22303 - Microwaves KENMORE - Free user manual and instructions

Product Type	Countertop Microwave
Brand	Kenmore
Model	22303
Color	Stainless Steel
Capacity	1.6 cu ft
Power Output	1000 Watts
Power Levels	10
Control Type	Touchpad with Digital Display
Turntable	Yes, 12.5-inch
Child Lock	Yes
Defrost Function	Yes, by weight and time
Clock	Yes, 12-hour display
Timer	Yes, up to 99 minutes 99 seconds
Interior Light	Yes
Dimensions (W x H x D)	20.5 x 12.2 x 16.3 inches
Weight	35 lbs
Voltage	120 V ~ 60 Hz
Cleaning Instructions	Wipe interior with damp cloth; use mild detergent. Do not use abrasive cleaners.
Safety Features	Child lock, door interlock, automatic shut-off
Spare Parts Availability	Contact Kenmore customer service or authorized parts dealers
Repairability	Refer to manual; service by qualified technician recommended

Frequently Asked Questions - 22303 KENMORE

How do I set the clock on my Kenmore 22303 microwave?

Press the Clock button once, then use the number pads to enter the current time. Press Clock again to confirm. The clock uses a 12-hour format.

How do I defrost food using this microwave?

Press the Defrost button. You can choose Defrost by Weight (enter weight in pounds) or Defrost by Time (set desired time). The microwave will automatically set power and time.

Can I use metal pans or aluminum foil in the microwave?

No, do not use metal pans or aluminum foil as they can cause arcing and damage the microwave. Use only microwave-safe containers.

How do I clean the interior of my microwave?

Wipe the interior with a soft damp cloth and mild detergent. For stubborn stains, heat a bowl of water with lemon juice for 1-2 minutes to loosen debris, then wipe. Do not use harsh chemicals.

Why is my microwave not heating food?

Check that the door is fully closed and the child lock is not activated. Ensure the power cord is plugged in and the circuit breaker is not tripped. If the problem persists, contact a qualified technician.

How do I set the timer without cooking?

Press the Timer button, then enter the desired time using the number pads. Press Start to begin the countdown. The microwave will beep when time is up.

What is the child lock feature and how do I activate it?

Child lock prevents accidental operation. To activate, press and hold the Stop/Clear button for 3 seconds until you hear a beep. To deactivate, repeat the same steps.

Can I use paper plates or plastic containers?

Yes, use only microwave-safe paper plates and plastic containers labeled for microwave use. Avoid using containers with metal trim.

How do I adjust the power level?

After setting the cook time, press the Power Level button and enter a power level from 1 to 10 (1 is lowest, 10 is highest). Then press Start.

What should I do if the door does not close properly?

Check for obstructions like food debris on the door seal. If the door is misaligned, do not operate the microwave. Contact customer service for repairs.

USER MANUAL 22303 KENMORE

MICROWAVE OVEN SAFETY......1

INSTALLATION INSTRUCTIONS......2

Tools and Part......2

Location Requirements......2

Required Cutout Dimensions......2

Trim Kit Frame Dimensions......2

Electrical Requirements......3

Prepare Microwave Oven......3

Prepare Cutout/ Cabinet Opening......3

Install the Microwave Oven......4

Install Trim Kit Frame......5

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

Specifications :

KIT SIZE KIT MODEL NUMBERS/COLOR

27"(68.6cm) 405.22273310/ Stainless

30"(76.2cm) 405.22303310/ Stainless

405.22309310/ Black

■ The Built-in Kits can be installed on Kenmore Elite Microwave oven model: 405.74223310 and 405.74229310.
■ The Built-in Kits can be installed over any (electric or gas) built-in wall oven, up to 30" (76.2cm)

INSTALLATION INSTRUCTIONS

Tools and Parts

Tools Needed

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

■ Measuring tape

Drill

■ Pencil

■ 7/64" drill bit

■ Phillips screwdriver

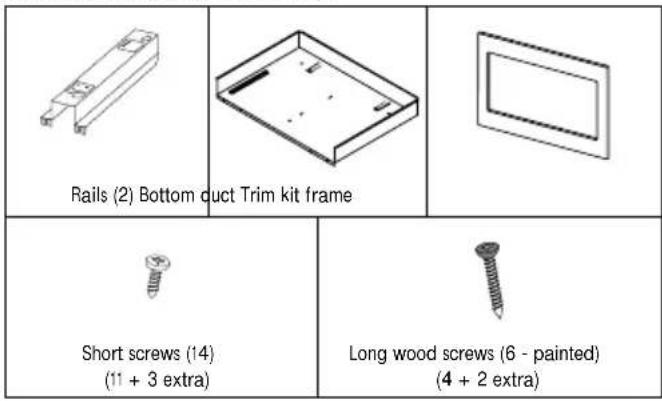

Parts Supplied (not shown to scale)

Location Requirements

The microwave oven may be installed over a built-in oven. If installing over a built-in oven, make sure there is a minimum of 3" (7.6 cm) between the top of the lower oven cutout and the microwave oven cutout floor.

The microwave oven may also be installed in a cabinet by itself (without a built-in oven below). For best usability, we recommend a minimum distance of 36" (91.4 cm) from the floor to the cutout floor.

Make sure the surrounding cabinetry has clearance to open and close freely. Allow a clearance of at least 1 ^9/16 " (4.0 cm) below the cutout floor (3" [7.6 cm] for installation above a built-in oven), and a clearance of at least 2" (5.1 cm) above the cutout opening.

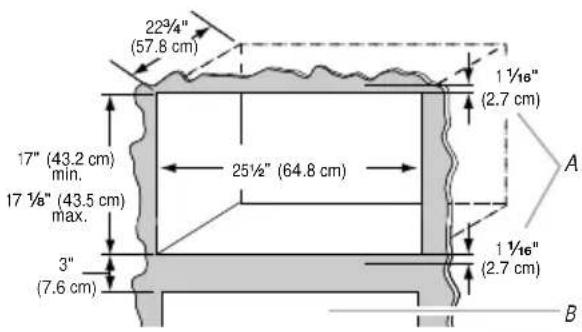

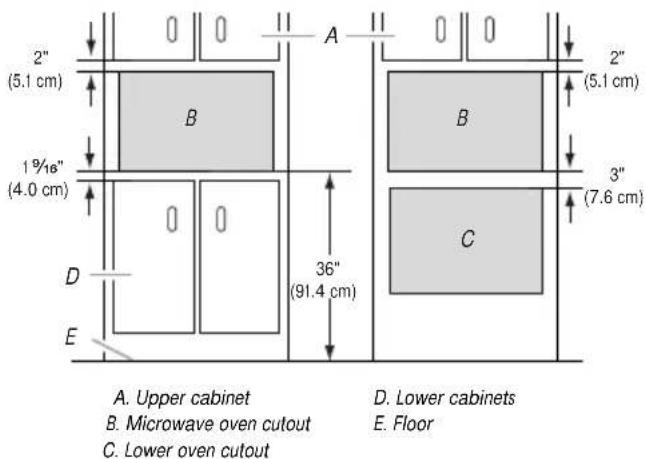

Required Cutout Dimensions

A. Trim kit frame overhang
B. Cutout for lower oven

NOTES:

■ Height dimension is critical: 17" (43.2 cm) minimum, 17 ^1/8 " (43.5 cm) maximum.
■ Width and depth measurements have ±1/16" (2 mm) tolerance.
■ 3" (7.6 cm) minimum dimension is from lower oven cutout ceiling to microwave oven cutout floor.
- Trim kit frame extends 1 116 " (2.7 cm) above and below the cutout opening.

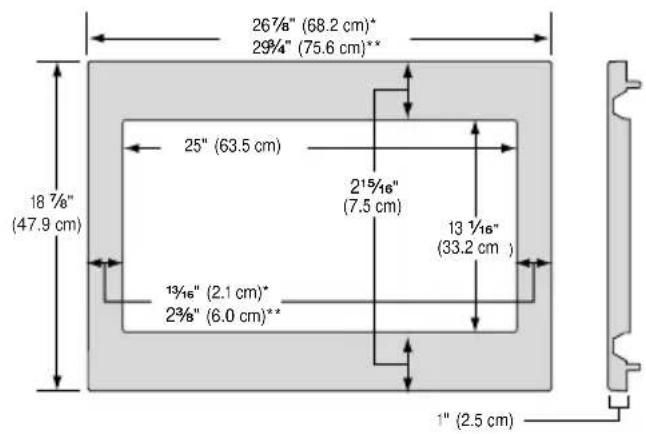

Trim Kit Frame Dimensions

*27" (68.6 cm) trim kit

**30" (76.2 cm) trim kit

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances.

Required:

■ A 120 volt, 60 Hz, AC only, 15- or 20-amp electrical supply with a fuse or circuit breaker.

Recommended:

■ A time-delay fuse or time-delay circuit breaker.

■ A separate circuit serving only this microwave oven.

GROUNDING INSTRUCTIONS

■ For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Prepare Microwave Oven

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.
3. Gently turn microwave oven onto its top, with the door facing forward (toward installer).

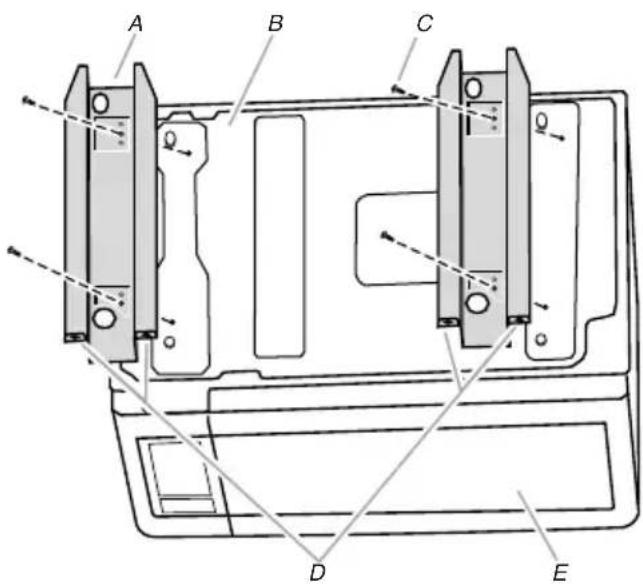

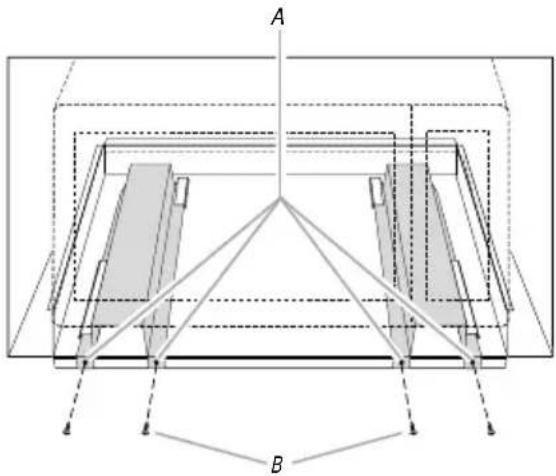

4. Align the #33 holes on the microwave oven bottom with the #33 holes on the rails, as shown, making sure the flanges are forward and pointing up.

A. Rails (2)
B. Microwave oven bottom
C. Short screws (4)
D. Flanges
E. Door

1. Secure the rails to the microwave oven bottom using four short screws through the #33 hole sets.

Prepare Cutout/Cabinet Opening

1. On the cutout floor, find and mark the centerline.

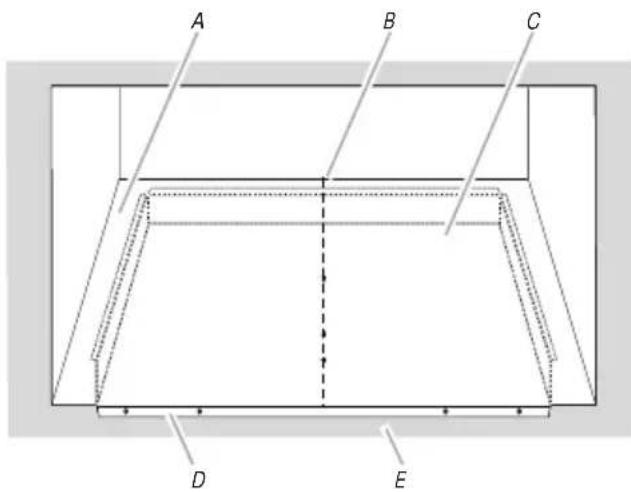

2. Place the bottom duct in the opening, with the flange resting against the bottom front facing of the opening.

A. Cutout floor
B. Centerline
C. Bottom duct
D. Bottom duct flange
E. Front facing

1. Align the center arrows on the bottom duct with the centerline drawn in Step 1 above.

A. Bottom duct
B. Center arrows, aligned with centerline

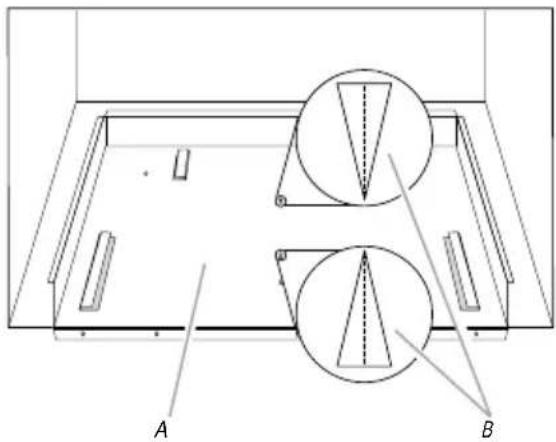

1. Mark the three mounting holes through the bottom duct onto the cutout floor.

Technical line drawing of a mechanical component with labeled points A and B, showing internal structure and alignment lines (no text or symbols beyond labels)

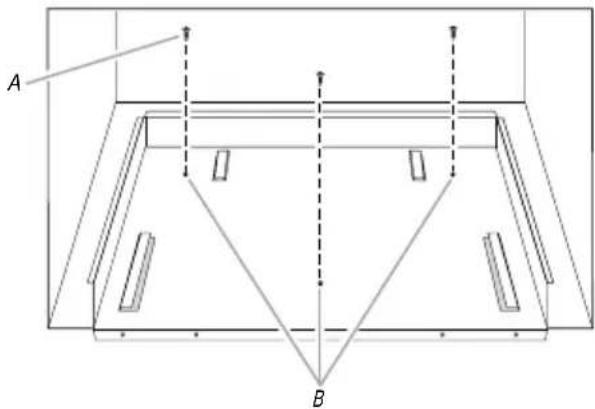

A. Short screws (3)
B. Bottom duct mounting holes

1. Using 7/64" drill, drill pilot holes into the three holes marked in Step 4.

2. Realign and install the bottom duct with three short screws.

3. Using 7/64" drill, drill pilot holes through the four mounting holes of the bottom duct flange into the bottom front facing of the cutout/cabinet opening.

A. Bottom duct flange
B. Mounting holes

Install the Microwave Oven

1. Gently return microwave oven to its upright position.
2. Position microwave oven near cutout opening.

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug in microwave oven.

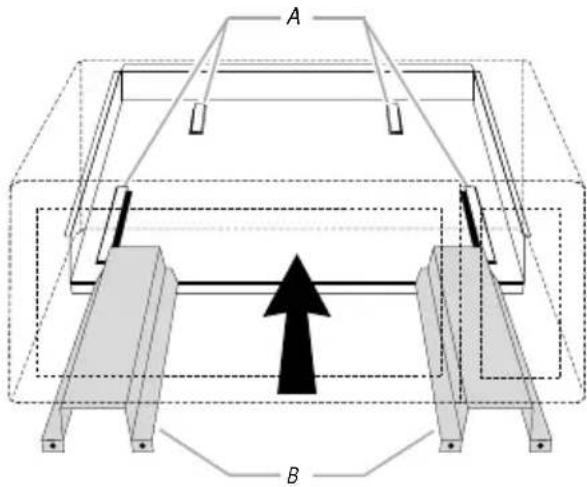

2. Align the rails with the rail guides on the bottom duct.

A. Rail guides
B. Rails

1. Slide the microwave oven back and into place. The mounting holes of the rail flanges and bottom duct flange will align against the bottom front facing of the cutout/cabinet opening.
2. Secure the microwave oven to the cutout/cabinet by installing four short screws into the mounting holes.

A. Mounting holes
B. Short screws (4)

Install Trim Kit Frame

1. Position trim kit frame over the opening so that the lower tabs rest on the cutout floor, as shown.

A. Front of trim kit frame
B. Tabs (upper and lower)
C. Cutout/ cabinet floor

1. Holding the trim kit frame in place, use 7/64" drill to drill four pilot holes into the front facing of the cutout/cabinet through the mounting hole guides in the upper and lower corners of the trim kit frame.

NOTES:

■ The holes will be drilled downward from the top, and upward from the bottom at an angle of about 45^ .
■ To avoid damage to the trim kit frame, do not overtighten screws.

A. Trim kit frame
B. Mounting hole guide

C. Long wood screw (4 - painted)

D. Cutout ceiling

1. Secure trim kit frame to cutout/ cabinet by installing four long wood screws (painted) into the pilot holes drilled in Step 2 above.

Simple line drawing of a rectangular box with a black square on the side (no text or symbols)

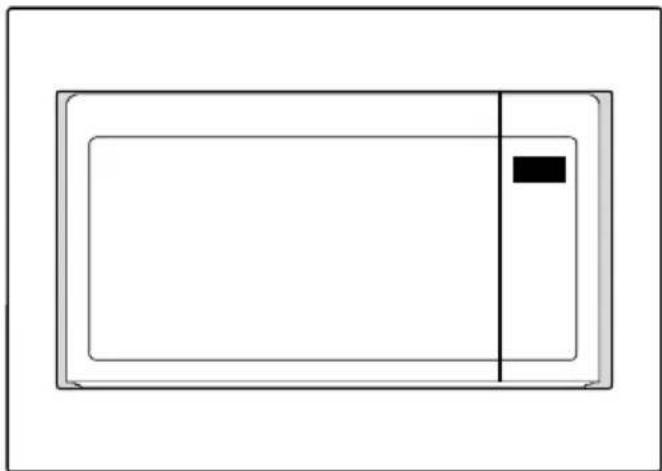

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save these Installation Instructions for future reference.
