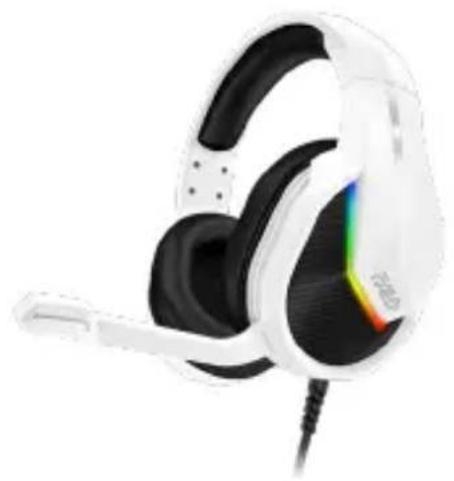

CHP-3595-WH - Headphones Connect IT - Free user manual and instructions

Product Type	Gaming Headphones with Microphone
Brand	Connect IT
Model	CHP-3595-WH
Driver Size	50 mm (electrodynamic)
Frequency Response	20 Hz - 20 kHz
Sensitivity	113 dB ± 3 dB
Impedance	32 Ω ± 15%
Noise Cancelling	Passive
Microphone Type	Tiltable, omnidirectional
Microphone Sensitivity	-40 dB ± 3 dB
Microphone Impedance	2.2 kΩ
Connections	USB-A (backlight), 3.5 mm jack (audio)
Included Adapter	3.5 mm F to 2x 3.5 mm M
Cable Length	2 m
Dimensions (W x D x H)	195 x 195 x 90 mm
Weight	290 g
System Requirements	Windows, Linux, Mac OS
Controls	Volume controller, microphone toggle
Headband	Adjustable
Cleaning	Soft damp cloth, no aggressive agents
Safety Warning	Avoid high volume for long periods to prevent hearing damage
Warranty	Standard warranty period (check documentation)

Frequently Asked Questions - CHP-3595-WH Connect IT

How do I connect the CHP-3595-WH headphones to my PC?

Connect the USB-A connector for power and backlight, and use the 3.5 mm jack for audio. An adapter is included for splitting audio and microphone jacks if needed.

Can I use these headphones with a PlayStation or Xbox?

The headphones are designed for PC with system requirements Windows/Linux/Mac OS. Console compatibility may require a 3.5 mm connection but features may be limited.

How do I adjust the microphone?

The microphone is tiltable. Rotate it into position near your mouth for optimal pickup.

How do I mute the microphone?

Use the microphone toggle switch on the control module to mute or unmute.

How do I control the volume?

Use the volume controller wheel on the inline control module.

Are these headphones compatible with my smartphone?

Yes, they can be used with smartphones via the 3.5 mm jack. The microphone and controls may work depending on the device.

What is the USB-A connector for?

The USB-A connector provides power for the backlighting. It is not required for audio; you can use only the 3.5 mm jack for sound.

How do I clean the headphones?

Use a soft, damp cloth without fluff. Do not use aggressive cleaning agents. Avoid moisture in the openings.

Can I replace the ear pads?

The manual does not specify replacement parts. Contact Connect IT customer service for spare parts or repairs.

Is there a warranty?

Yes, the product comes with a warranty period as per the documentation. Retain the proof of purchase and warranty card.

USER MANUAL CHP-3595-WH Connect IT

USER MANUAL BENUTZERHANDBUCH UŽIVATELSKÝ MANUÁL POUŽÍVATELŠKÝ MANUÁL HASZNÁLATI ÚTMUTATÓ

White and black headboard with colorful audio jack (no text or symbols visible)

EN GAMING HEADPHONES WITH MICROPHONE DE GAMING HEADSET MIT MIKROFON CZ HERNÍ SLUCHÁTKA S MIKROFONEM SK HERNÉ SLÚCHADLÁ S MIKROFÓNOM HU GAMER-FEJHALLGATÓ MIKROFONNAL

CHP-3595-WH

THANK YOU

FOR BUYING A CONNECT IT PRODUCT.

Do you want to be the first to know about other news of CONNECT IT? Follow us on social media.

YouTube

connectit

• Before putting this product into operation please read through the User's Manual carefully, even if you are already familiar with the use of similar products. Use the product only as described in this User's Manual.
• Keep this User's Manual for future reference. It is an integral part of the product and may contain important instructions for commissioning this product, its operation and cleaning.
• Make sure that all other people handling this product are familiar with this Manual. If you hand the product over to other people, make sure that they read this User's Manual, which shall be given to them together with the product.

We recommend keeping the original packaging of the product, proof of purchase and the warranty card, if supplied, at least for the warranty period. In case of transport, we recommend packing the product in the original packaging, in which it has been delivered in, as it protects it best against damage during transport.

Scan this QR code to get the latest version of the User's Manual. In your smartphone, open the QR code reader application and point the smartphone at this code – the page for downloading the latest version of the User's Manual will open:

You can also find the latest version of the User's Manual on our website

www.connectit-europe.com

The text and technical specifications are subject to change.

GAMING HEADPHONES WITH MICROPHONE

CHP-3595-WH

USER MANUAL

1 Important safety instructions

The use of the product limits your awareness of surrounding sounds. Therefore do not drive vehicles or operate any machines when using the product. Clean the product using a soft damp cloth that does not give up any fluff. Do not use any aggressive agents for cleaning.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

2 Technical Specifications

Headphones specification:

• Noise cancelling: passive
  ● Size of inverter: 50 mm
  ● Type of inverter: electrodynamic
  ● Frequency: 20 Hz - 20 kHz
  ● Sensitivity: 113 db +/- 3 dB
• Impedance: 32 Ω +/- 15%

Microphone specification:

● Directional characteristic: omnidirectional
● Sensitivity: -40 dB +/- 3 dB
- Impedance: 2.2k Ω
● System requirements: Windows/Linux/Mac OS
- Connectors:
- USB-A, backlight
● Jack 3.5 mm (M), audio signal

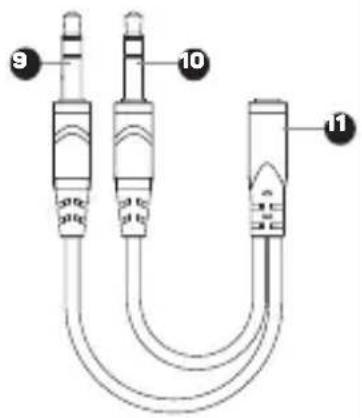

- Adapter: Jack 3.5 mm (F) → 2x Jack 3.5 mm (M), audio signal
- Cable length: 2 m
● Dimensions: 195 x 195 x 90 mm
- Weight: 290 g

GAMING HEADPHONES WITH MICROPHONE

CHP-3595-WH

USER MANUAL

3 Packaging Contents

• Gaming headset
• 3.5 mm jack adapter
• User manual

4 Description of Each Part

1 Left speaker
2 Right speaker
3 Tiltable microphone
4 Adjustable headband
5 Volume controller
6 Microphone toggle

Line drawing of a USB connector with labeled pin (8), no text or symbols present

GAMING HEADPHONES WITH MICROPHONE

CHP-3595-WH

USER MANUAL

5 Notices

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Packaging materials and old appliances shall preferably be recycled. The packaging materials of this product can be disposed of as sorted waste. The same applies to the plastic bags made of polyethylene (PE) and other materials – please hand them over for recycling.

DISPOSAL OF WASTE ELECTRICAL & ELECTRONIC EQUIPMENT

In accordance with the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), this appliance is labeled with this symbol on the product or its packaging to indicate that this product shall not be treated as household waste. It must be disposed of at a collection site for recycling of waste electrical and electronic equipment. The proper disposal of this product helps to prevent adverse impacts on the environment and human health, which could otherwise result from improper waste disposal. The disposal shall be carried out in accordance with waste management regulations. For more detailed information about the recycling of this product, contact the local authorities, household waste disposal services or the shop where you have bought the product. For proper disposal, renewal and recycling, hand the products over to the designated collection sites. Alternatively, in some EU or other European countries, you can return the products to your local dealer when buying an equivalent new product. The proper disposal of this product helps to preserve valuable natural resources and prevent potential adverse impacts on the environment and human health, which could result from improper waste disposal. For details, contact your local authorities or the nearest collection facility. In case of improper disposal of this type of waste, fines may be imposed in accordance with national legislation.

For business entities in the EU countries

If you want to dispose of electrical and/or electronic equipment, please contact your dealer or supplier for the necessary information.

Disposal in other countries outside the European Union

This symbol is valid in the European Union. If you want to dispose of this product, contact your local authorities or your dealer for the necessary information about the proper way of disposal.

In accordance with the law, we provide the take-back, processing and free environmentally friendly disposal of electrical and electronic equipment through the collective system of REMA Systém, a.s. The main purpose is to protect the environment by ensuring the efficient recycling of waste electrical and electronic equipment.

For the current list of collection sites, see the web www.rema.cloud

This product meets all the basic requirements of the applicable EU directives. It is CE marked. This mark indicates the conformity of the product's technical characteristics with the applicable technical regulations.

The EU Declaration of Conformity is available at www.connectit-europe.com

connect IT

CONNECT IT ^® is a registered trade mark

R202010-IM

WIR DANKEN IHNEN

FÜR DEN KAUF EINES PRODUKTS VON CONNECT IT.

CONNECT IT ^® is a registered trade mark

R202010-IM

Line drawing of a USB connector with labeled pin (8), no text or symbols present

5 Hinweis

CONNECT IT ^® is a registered trade mark

R202010-IM

Diagram of a USB connector with labeled pin (8), showing internal structure without any text or symbols beyond the number and label.

5 Upozornění

POKYNY A INFORMACE O NAKLÁDÁNÍ S POUŽITÝM OBALEM

CONNECT IT ^® is a registered trade mark

R202010-IM

POUŽÍVATELŠKÝ MANUÁL

3 Obsah balenia

• Herné Slüchadlá
  • 3.5 mm jack adaptér
• Príručka

Diagram of a USB connector with labeled pin (8), showing internal structure without any text or symbols.

5 Upozornenia

POKYNY A INFORMÁCIE O ZAOBCHÁDZANÍ S POUŽITÝM OBALOM

Line drawing of a USB connector with labeled pin (8), no text or symbols present

GAMER-FEJHALLGATÓ MIKROFONNAL

CHP-3595-WH

HASZNÁLATI ÚTMUTATÓ

5 Figyelmeztetés

CONNECT IT® is a registered trade mark

R202010-IM

NOTES

NOTES

Two stylized animal figures, one in teal and one in black, walking side by side (no text or symbols)

connect IT®

MANUFACTURER

HERSTELLER

VÝROBCE

VÝROBCA

GYÁRTÓ

IT TRADE, a.s.

Brtnická 1486/2

101 00 Praha 10

Czech Republic

tel.: [phone]

[e-mail]

www.connectit-europe.com
