Product Type	LED TV
Model	INTV-40M510
Screen Size	40 inches (diagonal)
Resolution	Full HD (1920 x 1080) (typical)
Aspect Ratio	16:9
Power Consumption	70 W (typical)
Standby Power Consumption	< 0.5 W
Power Supply	AC 100-240 V, 50/60 Hz
Connectivity	HDMI (2), USB (1), VGA, PC Audio, AV (composite), Antenna (RF), Coaxial (SPDIF), CI Slot
Tuner	DVB-T (terrestrial), DVB-C (cable) via CI
TV Bracket (VESA)	Compatible with standard mounting kit (size not specified)
Weight	Approx. 8 kg (estimate)
Dimensions (without stand)	Approx. 90 x 52 x 8 cm (estimate)
Stand Dimensions	Width: approx. 70 cm; Depth: approx. 20 cm (estimate)
Remote Control	Infrared, requires 2 x AAA batteries (included)
Media Playback	USB: Photo, Music, Movie, Text (with built-in player)
PVR Recording	Yes (via USB, timeshift and recording)
Audio Output	2 x 8 W speakers (estimate)
Hotel Mode	Supported (for commercial use)
Parental Control	Channel lock, parental guidance, key lock
Operating Temperature	0°C to 45°C
Accessories Included	User manual, remote control, power cord, AAA batteries (2), stand base (if applicable)
Certifications	CE, RoHS

Frequently Asked Questions - INTV-40M510 Infiniton

How do I perform the initial setup of the TV?

Connect the antenna and power cord, then press the power button. The first-time installation wizard will appear. Use the remote to select language, country, and environment mode (Home/Retail). Then start Auto Tuning to scan for channels. You can skip ATV or DTV tuning if needed by pressing the MENU key.

What should I do if the remote control is not working?

Check if the plastic packaging is removed from the remote. Ensure there are fresh batteries installed with correct polarity. Point the remote directly at the TV sensor from a short distance. If still not working, replace the batteries with new ones and try again.

How can I connect external devices like a set-top box or DVD player?

Use the HDMI ports for high-definition devices, AV input for composite video/audio, or VGA/PC Audio for a computer. Connect the antenna to the RF-IN port for TV channels. The TV will automatically detect the source; you can switch sources using the SOURCE button on the remote.

Can I record TV shows using a USB drive?

Yes, the TV supports PVR (Personal Video Recorder) and timeshift. Insert a USB device into the USB port, go to the Channel menu, and set a timer in Schedule List. Use the REC button to start recording. Ensure the USB is formatted with a compatible file system (FAT32) and has sufficient speed.

How do I adjust picture and sound settings?

Press the MENU button on the remote, navigate to PICTURE or SOUND using arrow keys. In Picture mode you can choose from Dynamic, Standard, Mild, or Personal. In Sound mode, select Standard, Music, Movie, Sports, or Personal. Adjust contrast, brightness, treble, bass, etc. in Personal mode.

What is the screen size and resolution?

The Infiniton INTV-40M510 has a 40-inch screen (diagonal). It supports Full HD resolution, typically 1920 x 1080 pixels, providing clear and detailed images.

How do I mount the TV on the wall?

First, remove the stand by unscrewing the screws. Attach the wall mounting bracket (compatible with VESA standard, size not specified) to the TV using screws. Then fix the bracket to the wall with appropriate anchors. Ensure the wall can support the TV weight and follow the bracket instructions. It is recommended to have a professional install it.

The TV shows no picture but sound is working. What should I do?

Check if the antenna or input cable is properly connected. Adjust brightness and contrast settings. If using an external source, ensure it is powered on. Try a different source or channel. If the problem persists, unplug the TV for 60 seconds and reconnect.

Can I update the TV software?

Yes, you can update the software via USB. Go to Setup menu > Software Update (USB). Download the latest firmware from the Infiniton support website, save it to a USB drive, insert the USB into the TV, and follow the on-screen instructions.

How do I enable parental controls?

Press MENU > LOCK. The default password is 0000. Then enable System Lock, set a new password, and use Channel Lock or Parental Guidance to restrict channels or content based on age rating. Key Lock disables the TV panel buttons.

USER MANUAL INTV-40M510 Infiniton

IMPORTANT

Please read this manual carefully before installing and operating the TV.

Keep this manual handy for further reference

Table Of Contents

Preparations Guide

Safety Information....2

Important Safety Precautions....3

Installed And Connected TV

TV Bracket assemble....4

TV Buttons And Terminal Interface....5

External device connect ion diagram....6

Install And Connect TV....7

TV Stand installation Instructions....7

TV Menu

First Time Installation....8

Channel Menu....10

Picture Menu....15

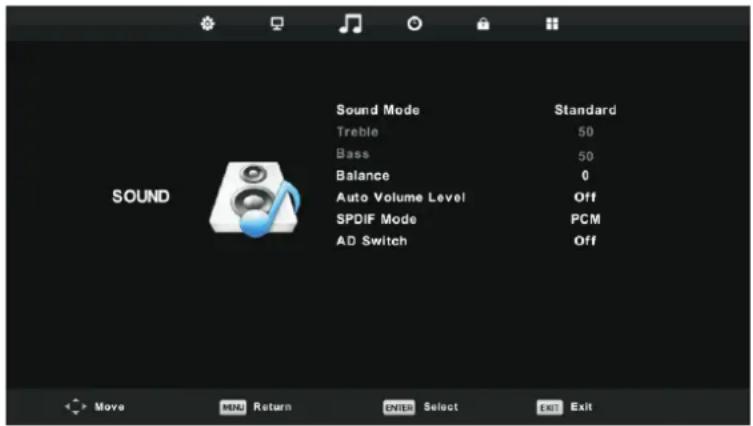

Sound Menu....17

Time Menu....18

Lock Menu....20

Hotel Mode....22

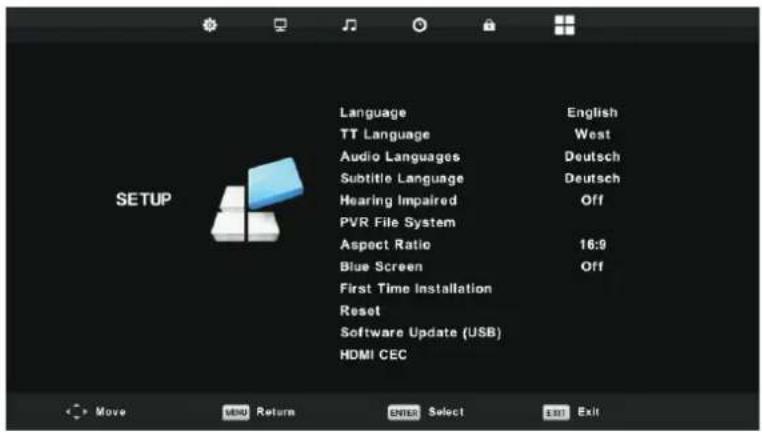

Setup Menu....23

PC Menu

Screen Menu....26

Media Menu

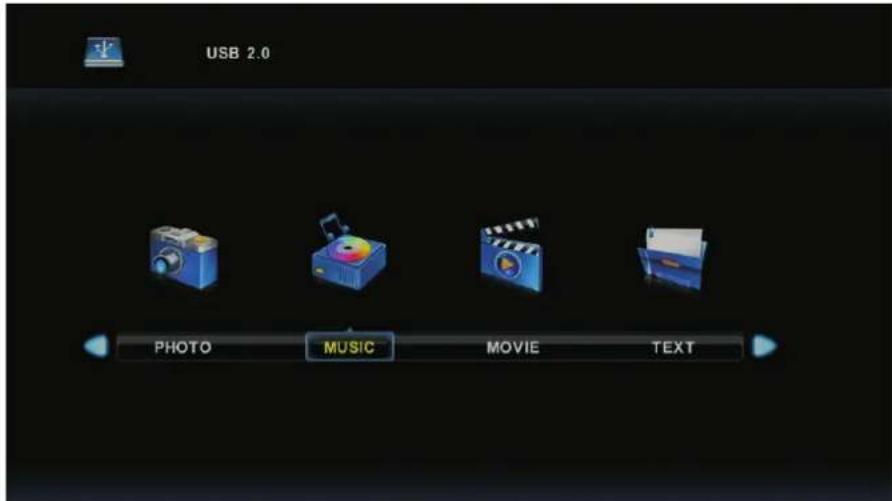

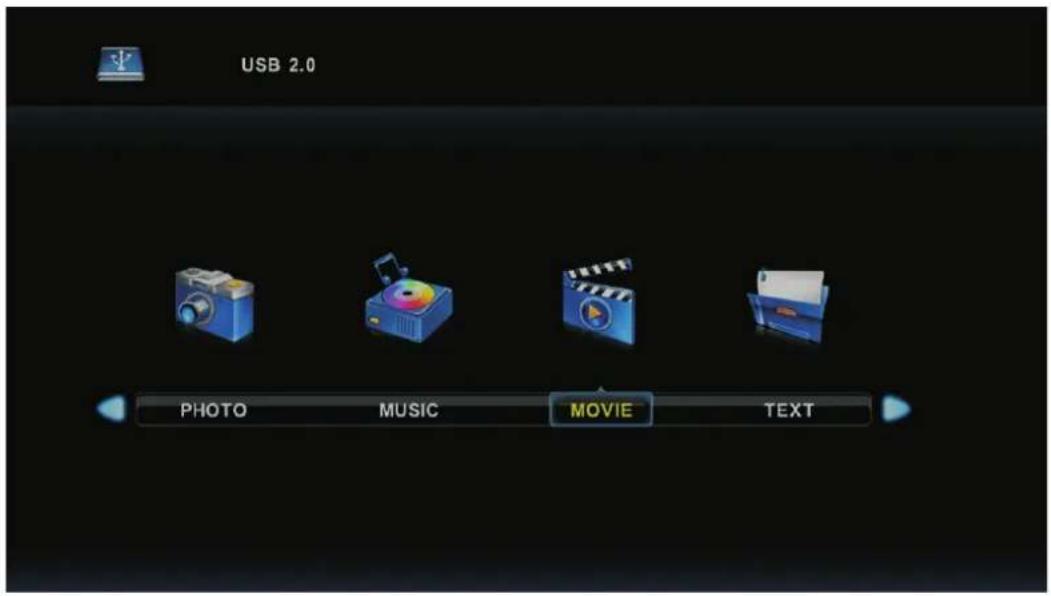

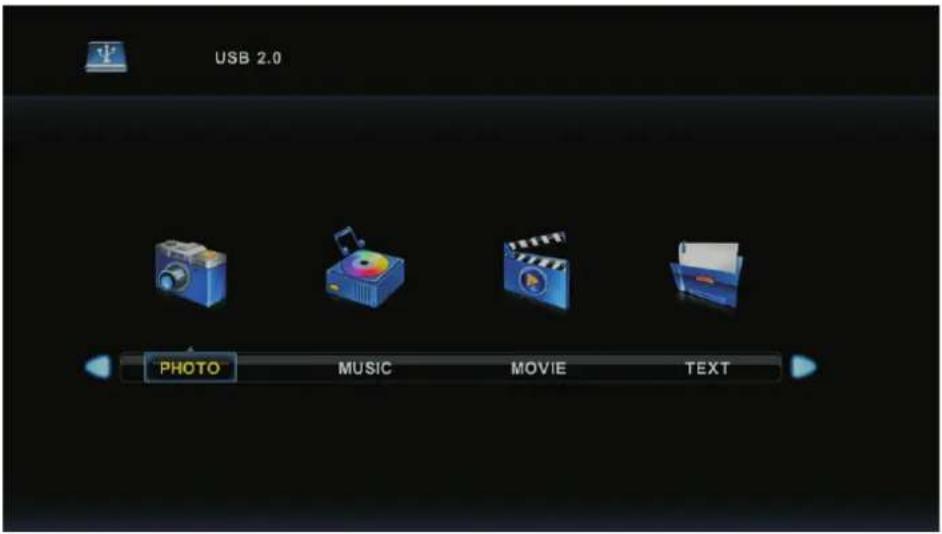

Media Operation....27

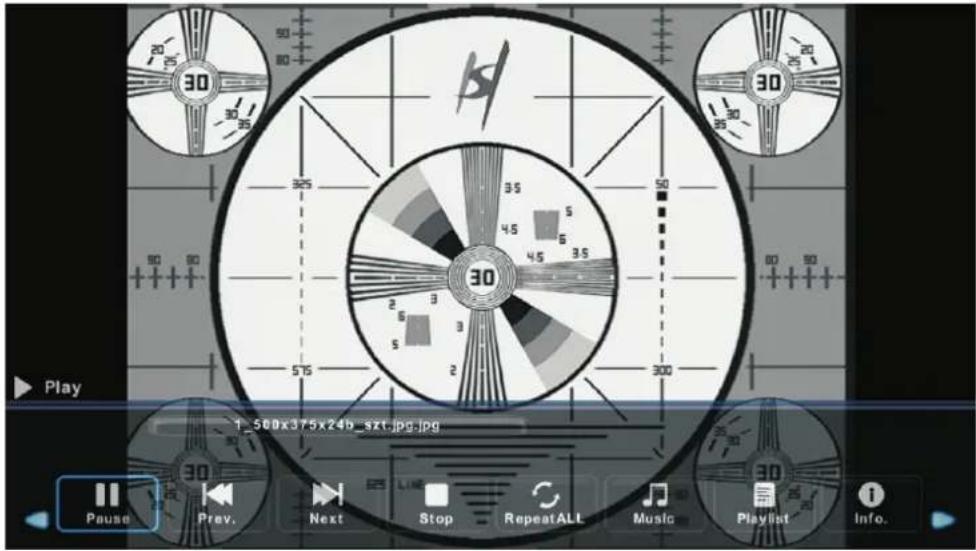

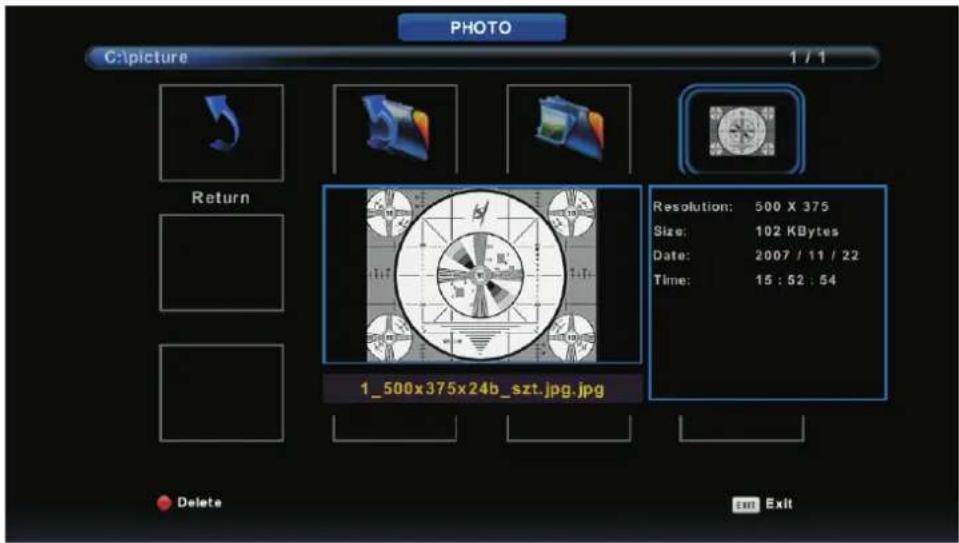

Photo Menu....28

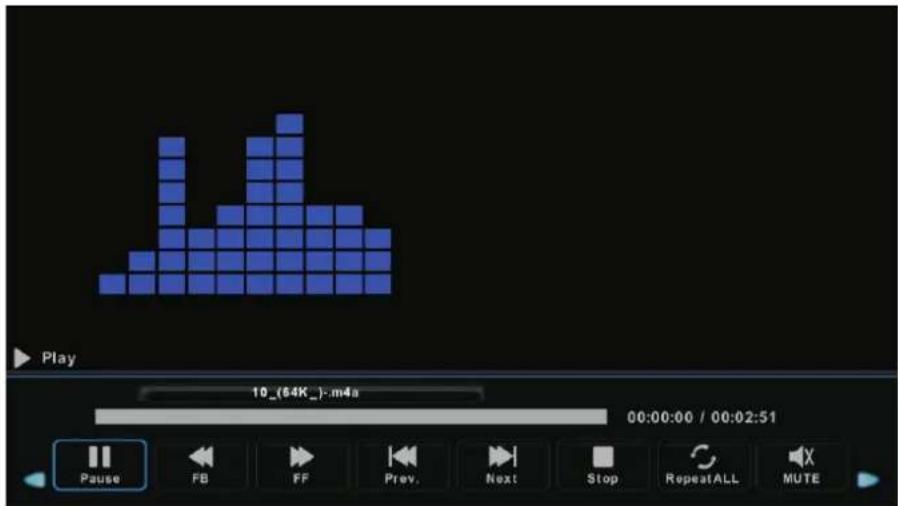

Music Menu....29

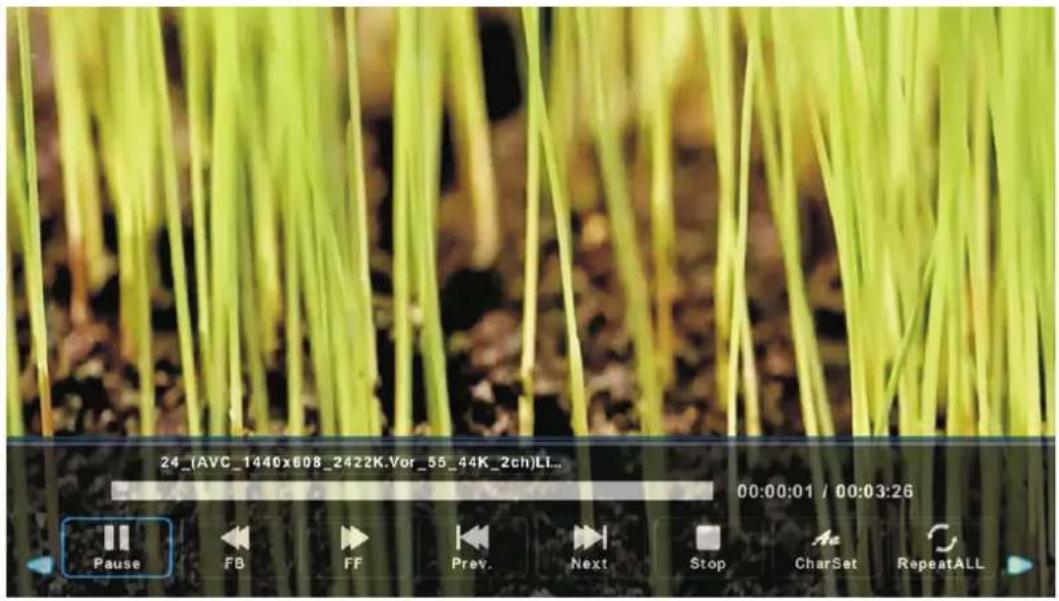

Movie Menu....30

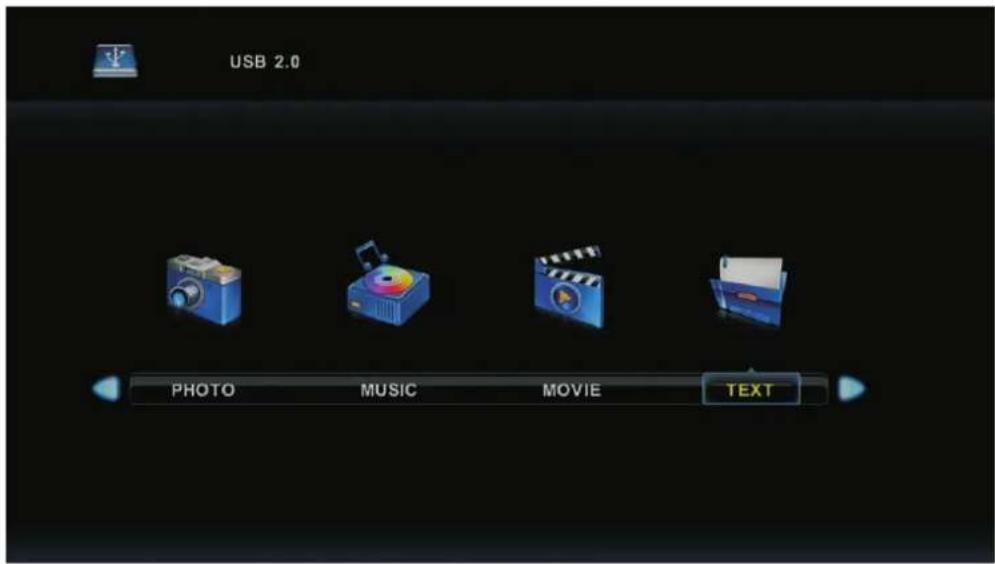

Text Menu....31

Other Information

Help....32

Specifications....33

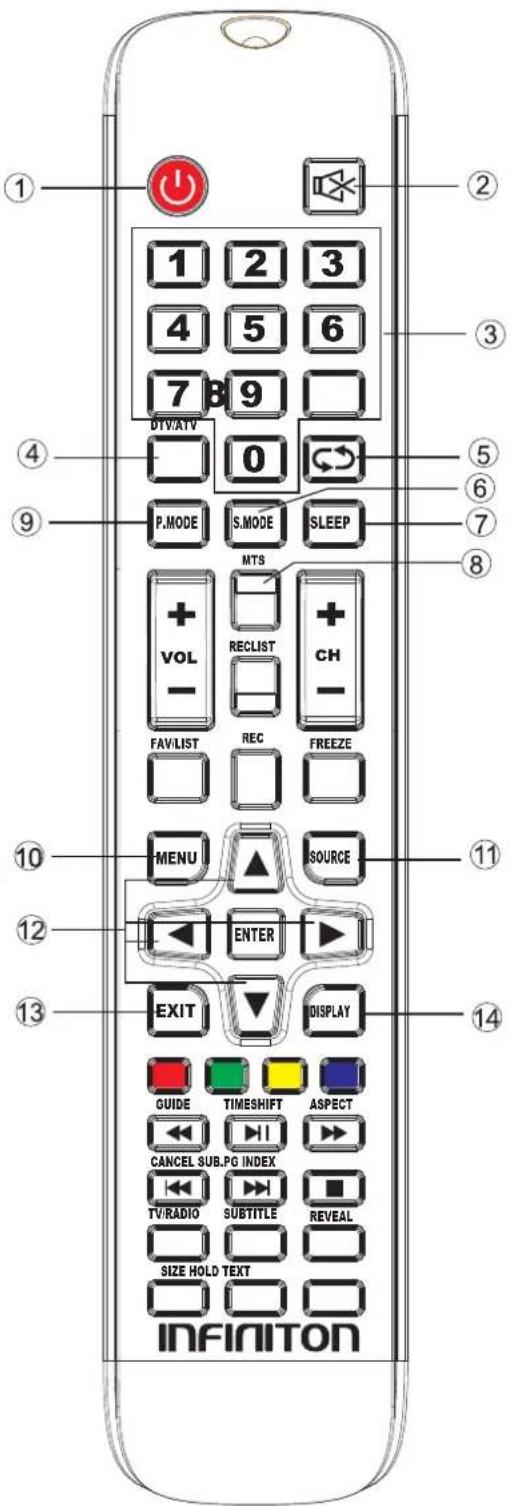

Remote Controller....34

This user manual for reference only

Safety Information

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

High voltages are used in the operation of this product. to reduce the risk of electric shock, do not remove cover of the cabinet, refer servicing to qualified service personal

If the TV any changes or coarse adjustment, electric shocks to be hurt, do not attempt to open a machine-maintenance, customer contact centres needed overhaul.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating in the literature accompanying the appliance.

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Warning The lightning flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

Important Safety Precautions

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety, If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at Plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use attachments /accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used caution when moving the cart/apparatus combination to avoid injury

tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

Caution:

14) To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

15) The mains plug is used as disconnect device, the disconnect device shall remain readily operable.

16) The socket-out shall be installed near the equipment and shall be easily accessible.

17) This product should never be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacture's instructions have been adhered to.

18) The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquid, such as vases, shall be placed on the apparatus.

19) Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles).

20) Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

21)

Never place the TV, remote control or batteries near naked flames or other heat sources, including direct sunlight. To prevent the spread of fire, keep candles or other flames away from the TV, remote control and batteries at all times.

22) The USB terminal should be loaded with 0.5 A under normal operation.

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions. unless you are qualified to do so.

23) The battery shall not be exposed to excessive heat such as sunshine, fire or the like.

24) This equipment is a Class II or double insulated electrical appliance. It has been designed in such a way that it does not require a safety connection to electrical earth

25) The maximum using environment temperature is 45 degrees. The Maximum using altitude is 2000 meters

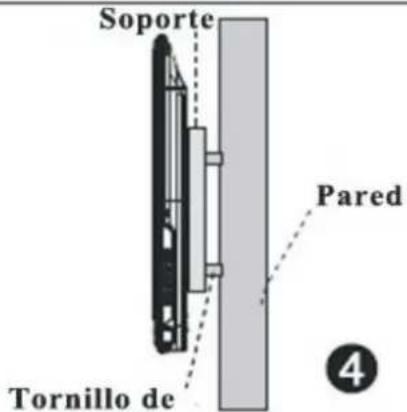

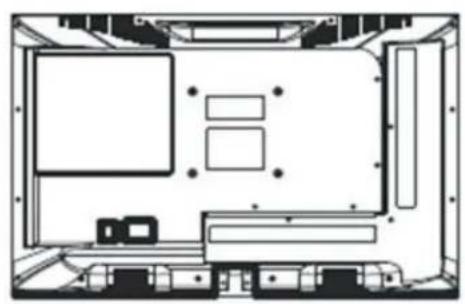

TV Bracket assemble

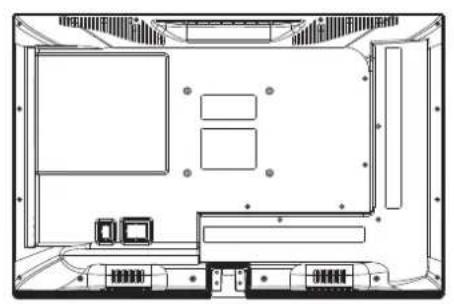

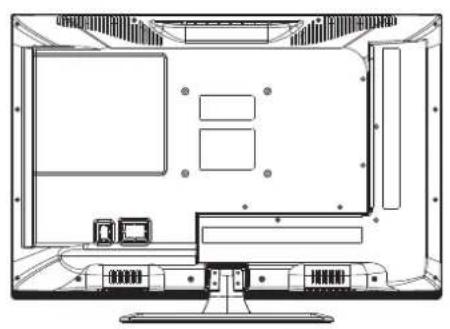

Fix the TV on the wall

1. First, put the TV on the table smoothly and put some soft cloth on the table to avoid scratching the screen.
2. User the screw driver to take off the screws which are fixed on the bottom stand (the direction of the arrow, refer to the ptoto1). And take off the bottom stand (please take off the screws and bottom stand carefully).
3. Make one bracket which can fix on the wall according to the size of arrow direction of photo2 and photo3.
4. Drill four holes properly on the wall (the size only for reference) and put into four screws. (optional parts) Drill four holes properly on the wall (the size only for reference) and put into four screws. (optional parts)
5. according to the step 4, use the screwdriver to lock the screw on the back of the TV. then hang the TV on the wall.

Top-down line drawing of a computer monitor layout with no text or symbols

1

Top-down schematic of a computer room layout with monitor, keyboard, and drive unit (no text or labels)

2

3

Note:

1. The bracket fixed on the wall is optional part.
2. when you assemble the TV, there should be no other articles on the around and front and please keep the distance from other articles.
3. When assemble the TV, please ask the career man to fix in order to avoid the danger.
4. The fixing picture is only for reference.
5. Please follow the use manual about bracket assemble to fix the TV.
6. Attach the mounting bracket from the VESA compatible wall mounting kit.

TV Buttons And Terminal Interface

TV Buttons

Note: The key instructions are subject to below.

Display \ Hide key icon : When there is no button icon popping up, press the key, the key icon will pop up like the picture shows above, the key icon will automatically turn off after 5 seconds of inactivity.

Icon selection : Short press the button, move the loop to the right, select the icon.

Icon function selection : Long press the key to achieve the function of the selected icon.

Icon Description:

: Power off Icon : Corresponding to the "POWER" button of remote .
: Menu Icon : Corresponding to the "MENU" button of remote.
: Source Icon : Corresponding to the "SOURCE" button of remote.
: CH+Icon: Corresponding to the "CH+" button of remote.
: CH-Icon: Corresponding to the "CH-" button of remote.
+ : Volume+ Icon : Corresponding to the "VOL+" button of remote.
: Volume- Icon : Corresponding to the "VOL-" button of remote.

Terminal Interface

Note: The following are the various terminal interface, the actual position and arrangement, the number of different models may be different.

	AV inputExternal AV Signal Input AndRelevant Right/Left Sound Channel		EARPHONE outputWhen earphones are plugged in,speakers are disabled
	HDMI inputDigital signal input from HDMI video connector.		USB inputConnect a USB device here to playits media files or to recordprogramsvia the PVR function.
	ANT 75Connect the antennal/cadle tv input(75/VHF/UHF)		COAXIALConnect the SPDIF receiver.

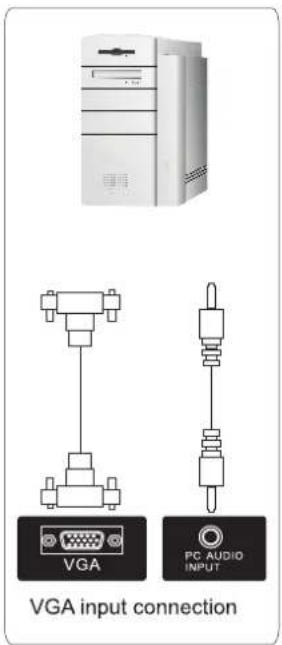

	VGA inputPC analog signal input		PC AUDIO INPUTVGA input and audio input when VGAinput
	CI SLOTThe card reader input CI(common interface) this requires CAM(conditional access module)used for pay TV.

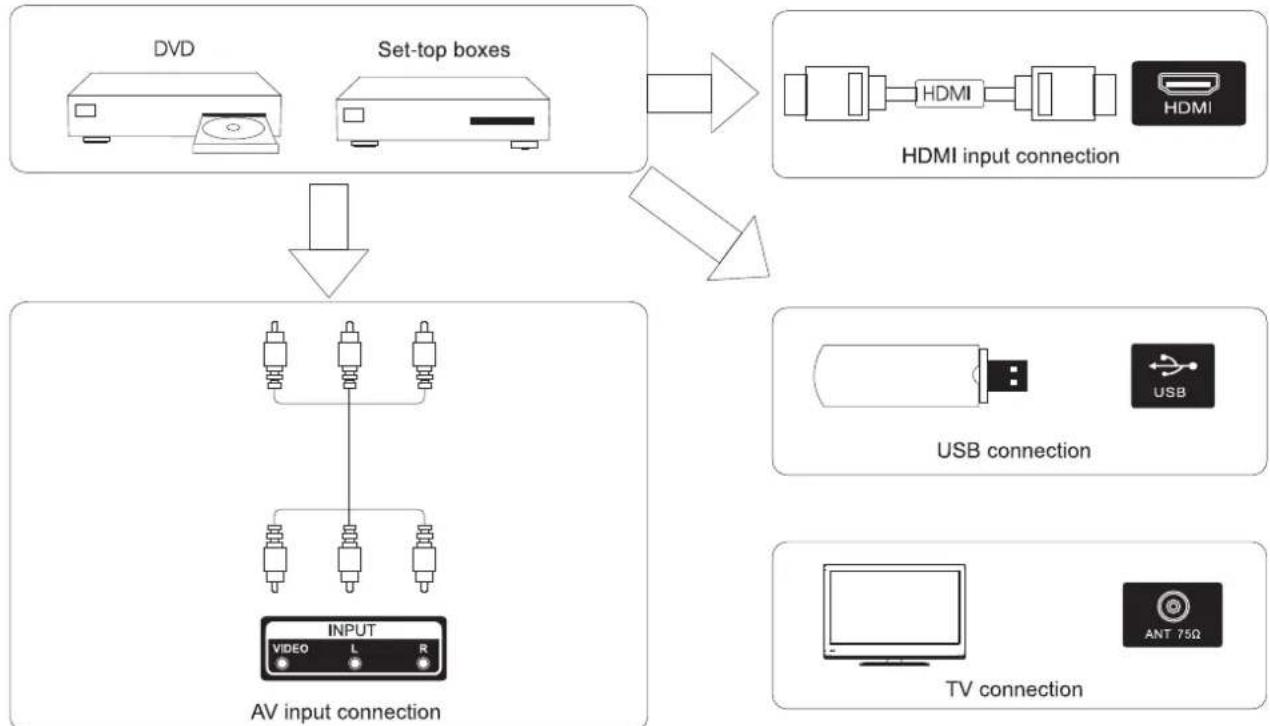

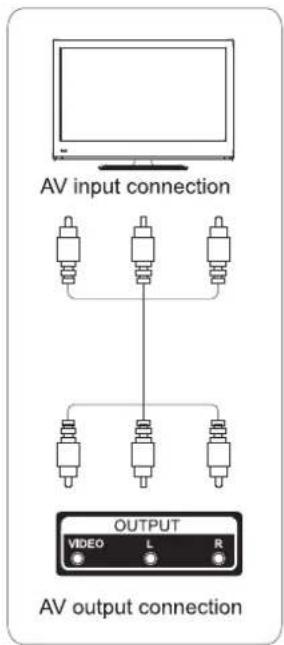

External device connection diagram

Install And Connect TV

3

2
1

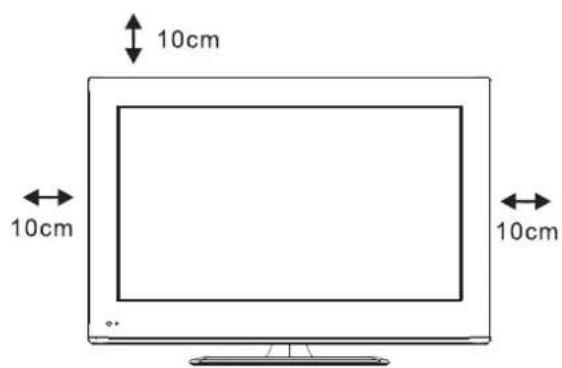

Set your TV

To put your TV in a firm place which can bear the weight of the TV. To avoid danger, please don't expose the TV near water or heating place (such as light, candle, heating machine), do not block the ventilation at the back of TV.

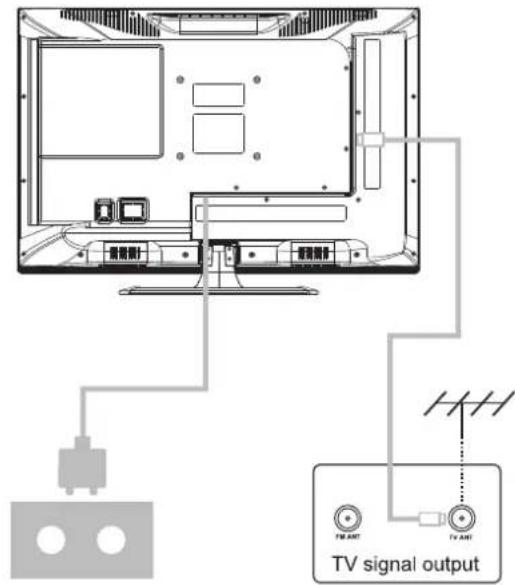

Connect antenna and power

1. Connect the antenna cable to the antenna socket on the back of the TV.
2. To plug the power cord of TV.

Turn on TV

1. Connect the power supply, enter the standby mode (red light), press the power button of the TV or the power button on the remote control to turn on the TV.

Note:

Picture for reference purposes only.

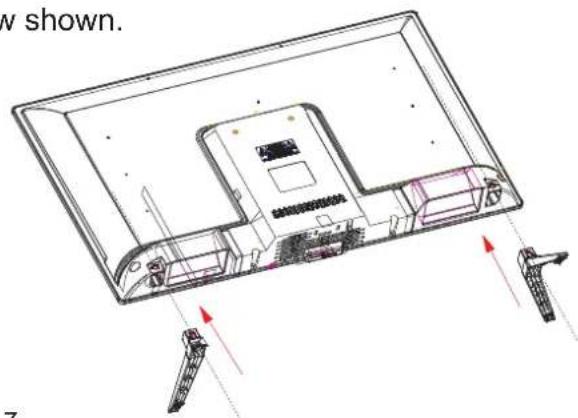

TV Stand Installation Instructions

1. Open the carton and remove the TV and scattered accessories and base (some models without base).
2. To avoid the damage of the TV, covered with a soft mattress, put it on the table, face down on a soft mattress.
3. Clip base on card slot as the direction of arrow shown.
4. The installation is completed.

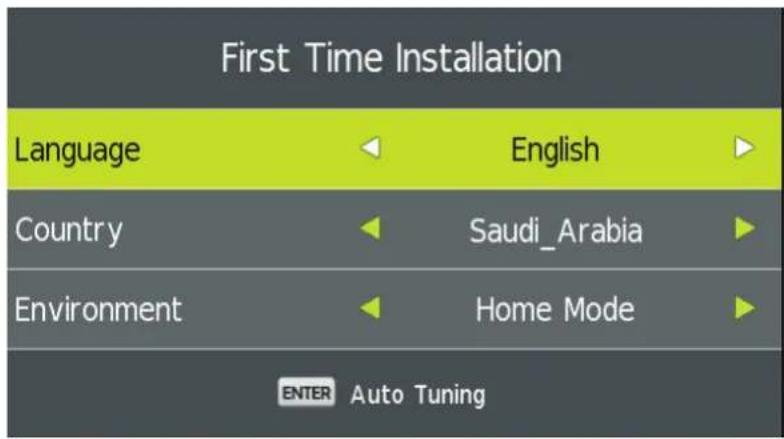

First Time Installation

Connect an RF cable from the Tv's input called "RF-In" and to your TV Aerial socket.

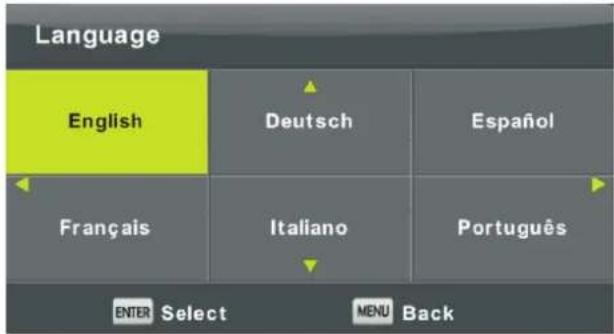

Select Language

Press ◀/ ▶ button to select the language to be used for menus and message.

Select Country

Press ▼ / ▲ button to highlight country menu.

Press ◀/ ▶ button to select the country you want to.

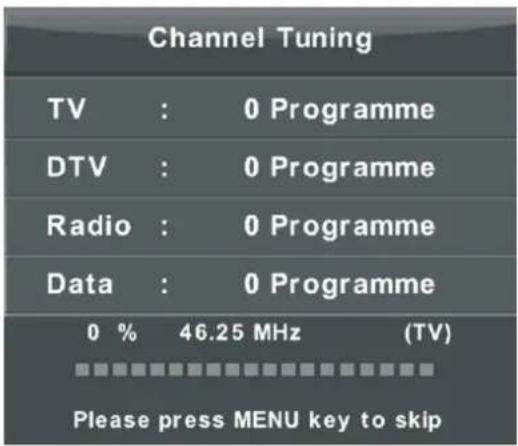

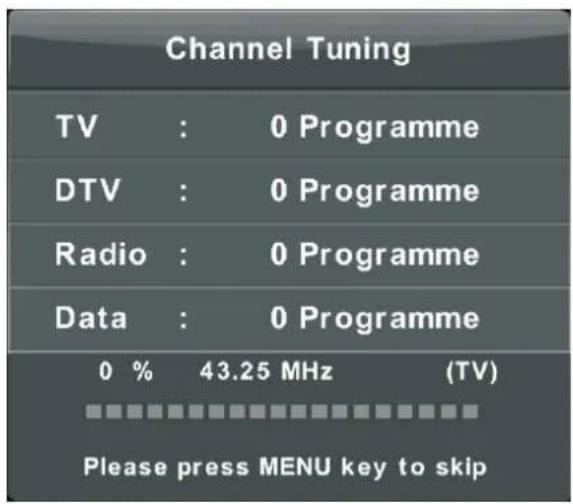

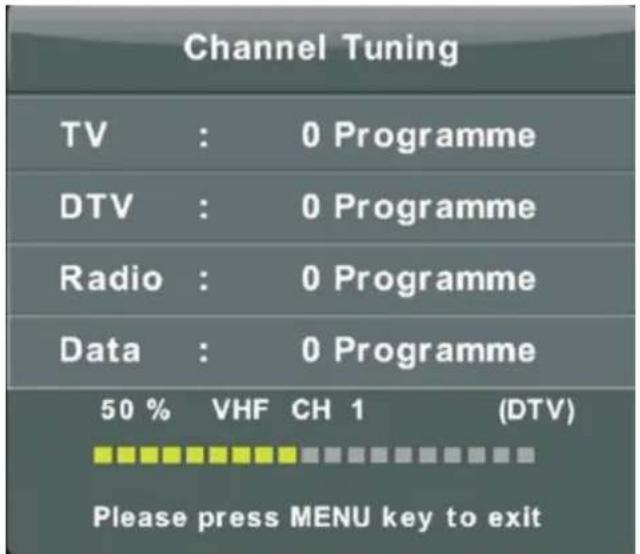

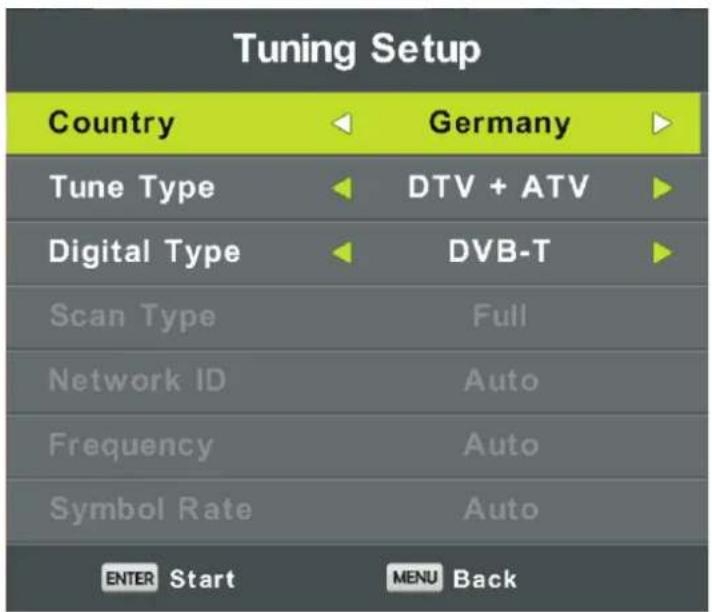

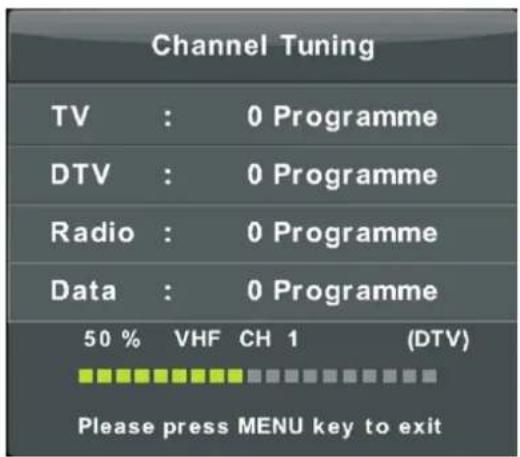

Auto Tuning

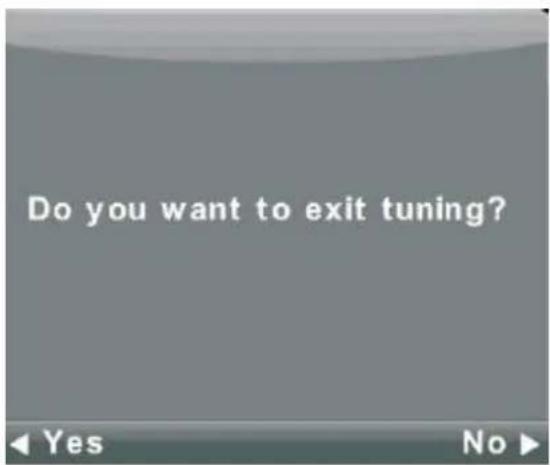

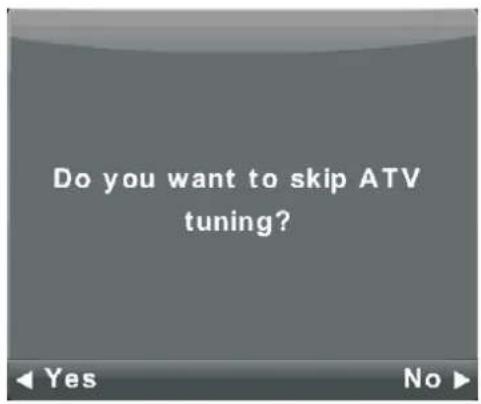

First tuning ATV, press Menu and left arrow button to skip ATV tuning, Second tuning DTV, press Menu and left arrow button to skip DTV tuning.

Main Menu Operation

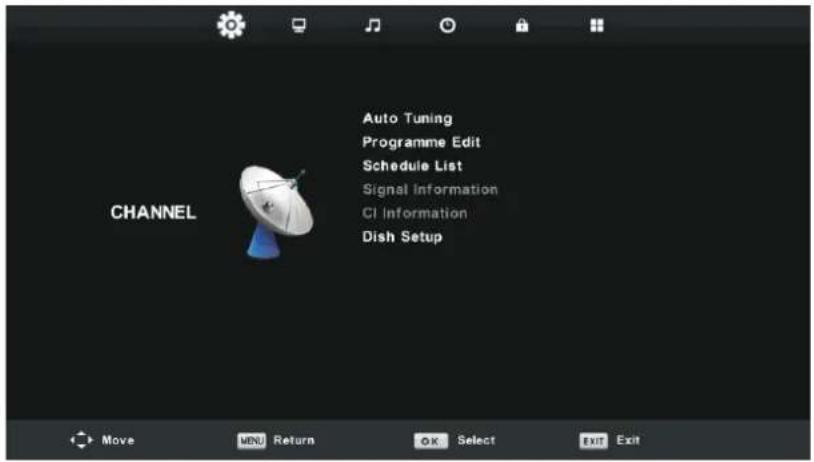

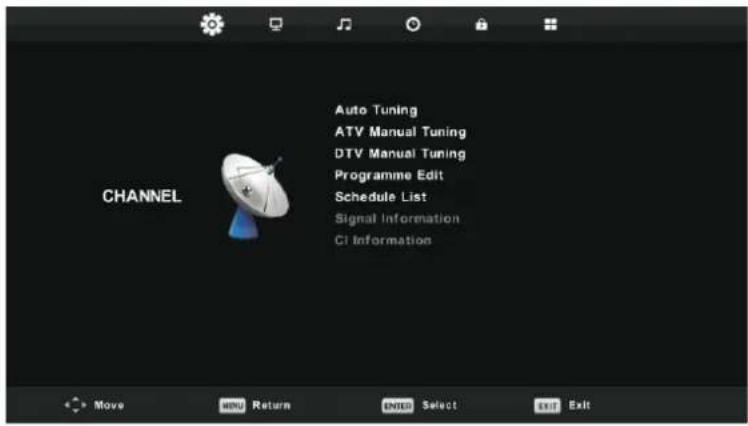

Channel Menu

Press button to display the main menu.MENU

Press 🔊 button to select CHANNEL in the main menu.

1. Press ▼/ ▲button to select the option that you want to adjust in the menCHANNEL
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

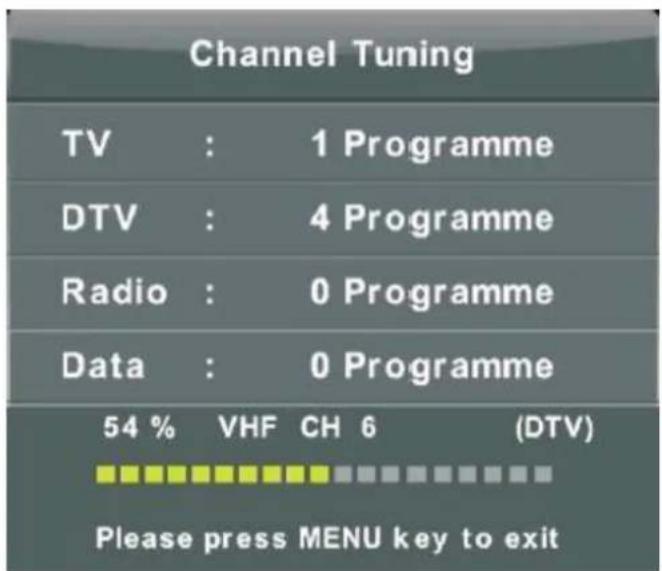

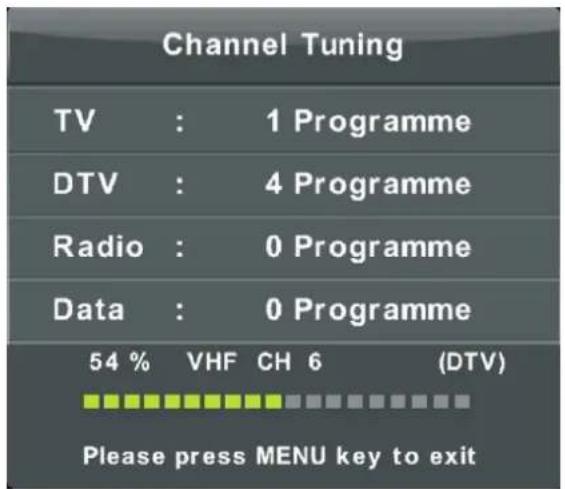

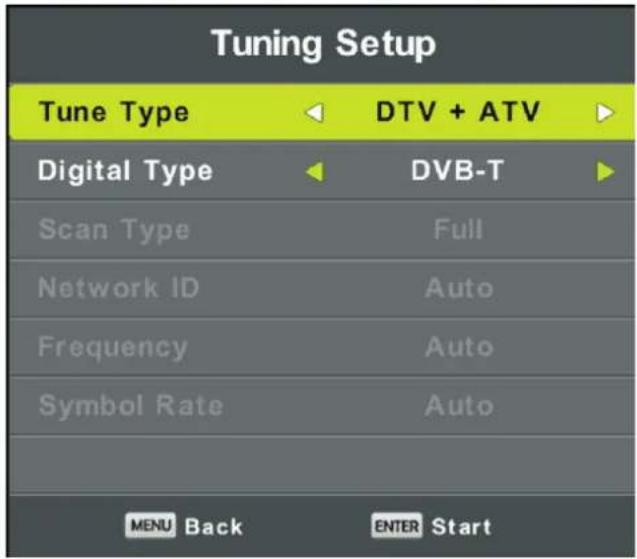

Auto Tuning

Press ▼/▲ button to select Auto Tuning, then press Enter/▶ button to enter.

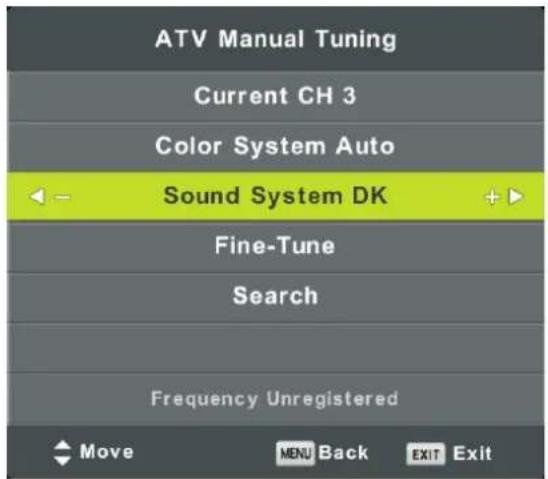

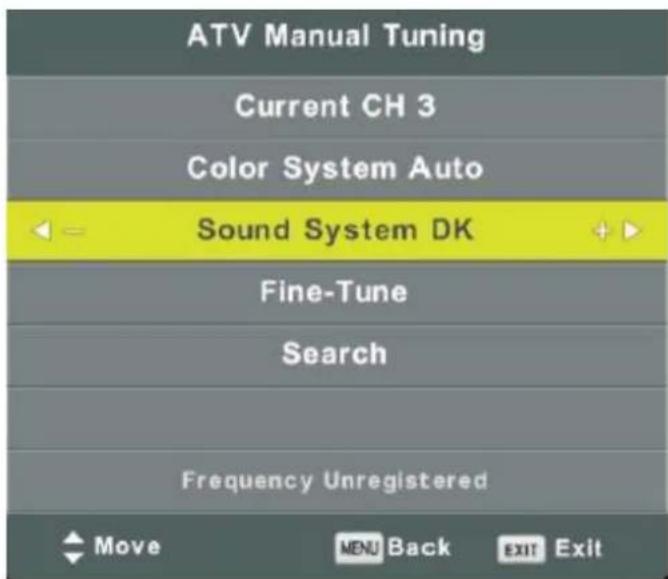

ATV Manual Tuning

Current CH

Set the channel number.

Color System

Select the color system

(Available System: AUTO, PAL, SECAM)

Sound System

Select the Sound system

Fine-Turn

Adjust the frequency of the channel finely.

Search

Start searching channel.

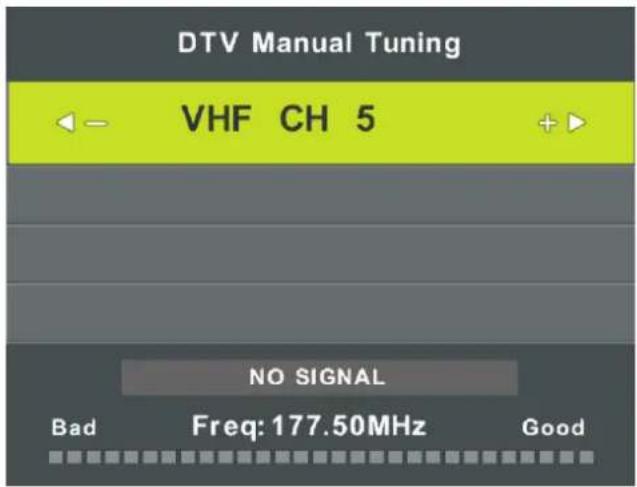

DTV Manual Tuning

Press ▼/ ▲button to select National Tuning, then press Enter button to enter sub-menu.

Press ◀/▶button to select channel, then press Enter button to search program.

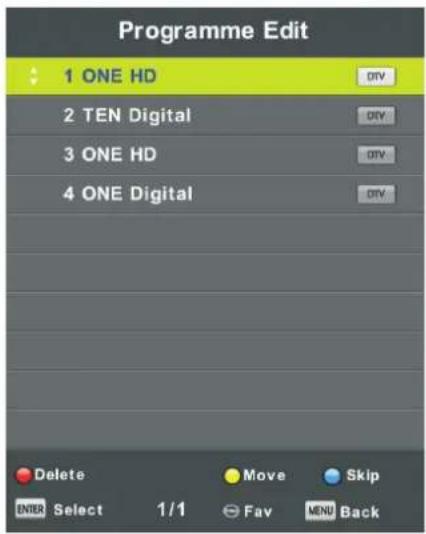

Program Edit

Press ▼/▲ button to select Program Edit, then press Enter button to enter sub-menu.

The three colored key is the e shortc ut key fo r progra mming the channel.

First press ▼ / ▲ to highlight the channel you want to select, then:

Pre ss the Redon to delete th e progra m in the list.

Pre ss the 'button' to move th e channel in the list.

Pre ss the E button to skip th e selected channel.

Pre ss Fav button to add or re mote the channel to your favorite list.

(Your TV set will skip the channel auto mati cally when using

CH+/- to view the channels.)

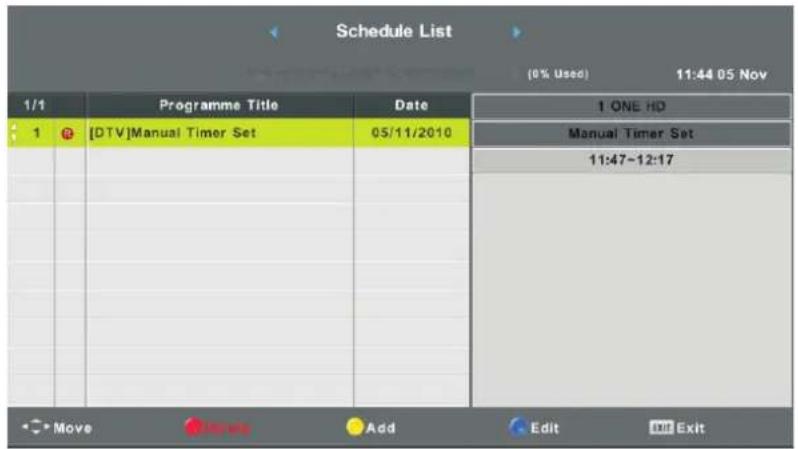

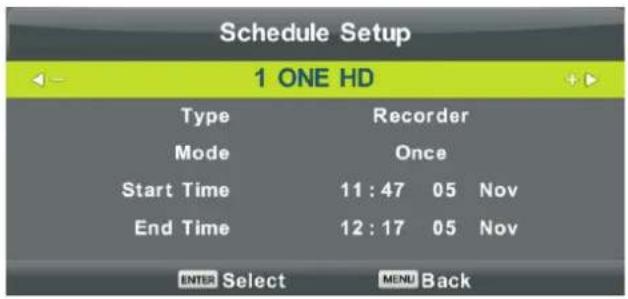

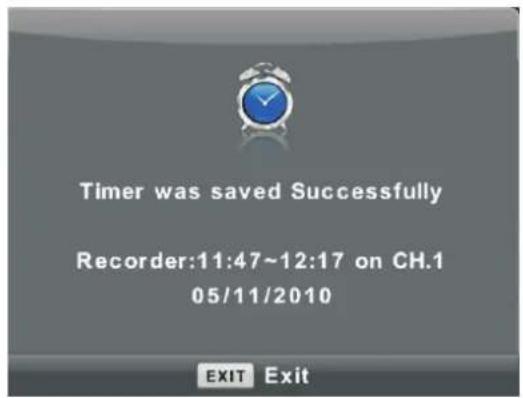

Schedule List

Press ▼/ ▲button to select Schedule List, then press Enter button to enter sub-menu. It is available in DTV and satellite source.

Press the button to enter the interface below.

When the time appointment is conflict, it will produce a warning message.

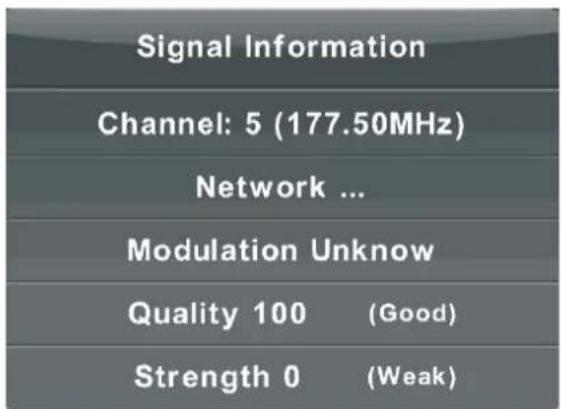

Signal Information

Press ▼ / ▲ button to select Signal Information, press the Enter button to see the detail information about the signal. Only available when there is signal in DTV.

CI Information (Need to support the CI function)

Press ▼/ ▲button to select CI Information, then press the Enter button to display detail if you has inserted the CI card

The CHANNEL List in Satellite Source.(Need to support the DVB-S2 function)

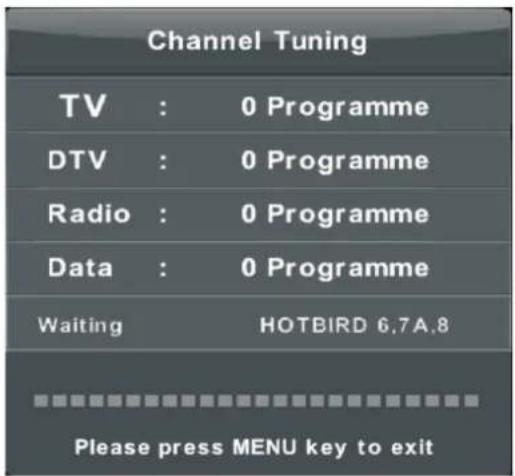

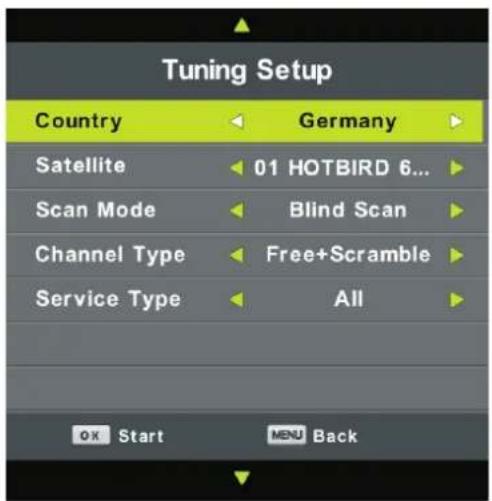

Auto Tuning

Press ▼ / ▲ button to select Auto Tuning, then press Enter/▶ button to enter.

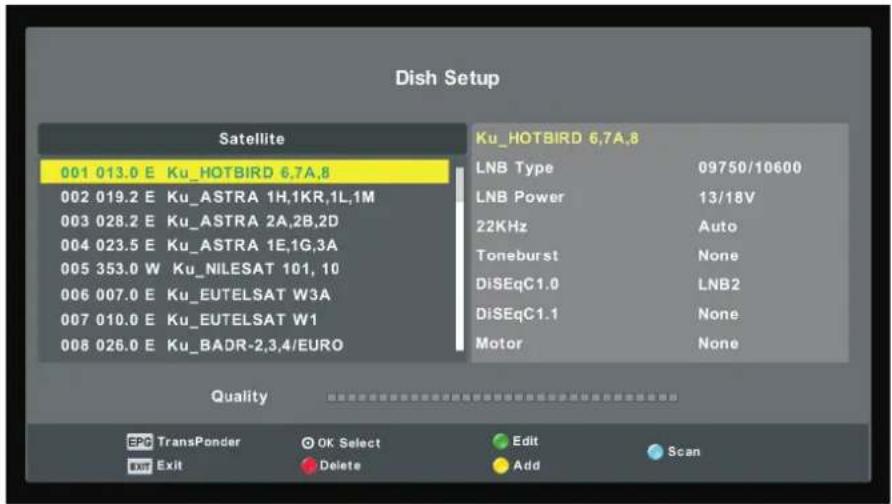

Dish Setup

Press ▼ / ▲ button to select Dish Setup.then press Enter/▶ button to enter.

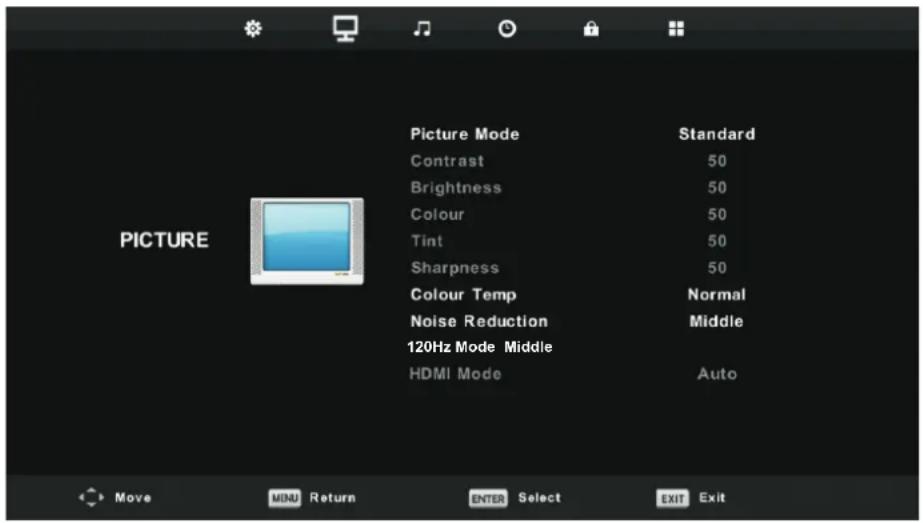

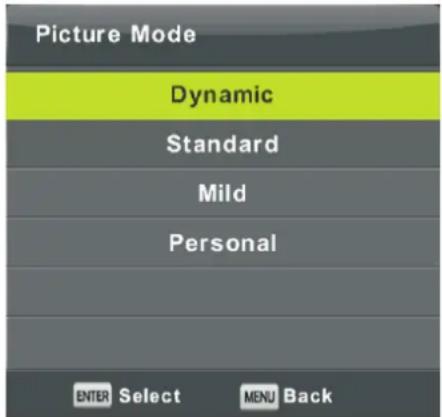

Picture Menu

Press button to display the main menu.MENU

Press ◀ button to select PICTURE in the main menu.

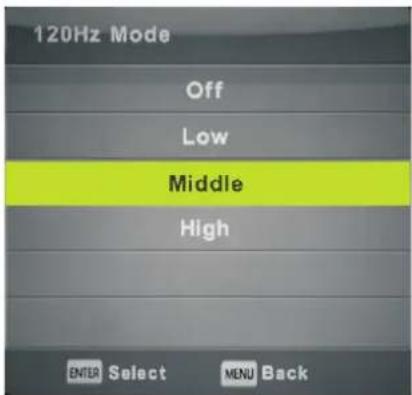

Note: 120Hz MODE Function only supported with UHD TV

1. Press ▼ / ▲ button to select the option that you want to adjust in the PICTURE menu.
2. Press OK button to adjust.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

Picture Mode

Press ▼ / ▲ button to select Picture Mode, then press OK button to enter sub-menu.

You can change the value of contrast, brightness, color, sharpness and tint when the picture is in

Personal mode.

TIPS: You can press PMODE button to change the Picture Mode directly.

Contrast/ Brightness/ Color/ Tint / Sharpness

Press ▼ / ▲ button to select option, then press enter/▶ button to adjust.

Contrast Adjust the highlight intensity of the picture, but the shadow of the picture is invariable.

Brightness Adjust the optical fiber output of the entire picture, it will effect the dark region of the picture.

Color Adjust the saturation of the color based on your own like.

Tint Use in compensating color changed with the transmission in the NTSC code.

Sharpness Aadjust the peaking in the detail of the picture.

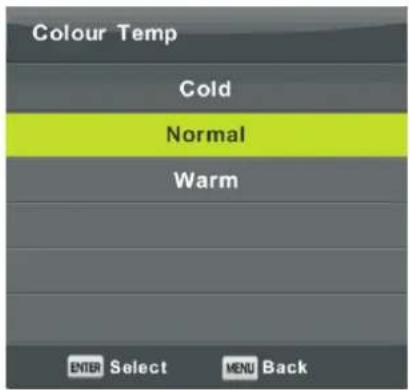

Color Temp

Change the overall color cast of the picture.

Press ▼ / ▲ button to select Color Temperature, then press but OK to enter sub-menu.

Press ▲/ ▼ button to select. (Available Picture mode: Cool, Medium, Warm).

Cold Increase the blue tone for the white.

Normal Increase the sex-linked colors for the white.

Warm Increase the red color for the white.

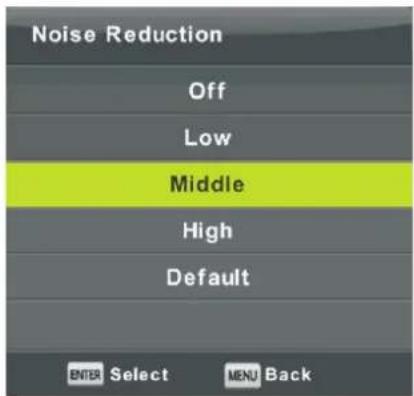

Noise Reduction

To filter out and reduces the image noise and improve picture quality.

Press ▼ / ▲ button to select Noise Reduction, the OK press button to enter sub-menu.

Off Select to turn off video noise detection.

Low Detect and reduce low video noise.

Middle Detect and reduce moderate video noise.

High Detect and reduce enhanced video noise.

Default Set as Default.

120Hz MODE ( Only with UHD TV )

Adjust the motion compensation.

Higher setting may improve the motion performance when watching sports or playing games.

Press ▼/ ▲button to select(Off/Low/Middle/High)

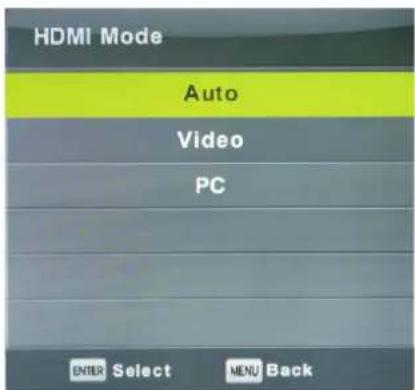

HDMI Mode

Press ▼ / ▲ button to select HDMI Mode, then press button to enter sub-menu.

Press ▼ / ▲ button to select . (Available Picture mode: Auto, Video, PC).

Sound Menu

Press button to display the main menu.MENU

Press ◀ button to select SOUND in the main menu.

1. Press ▼ ▲button to select the option that you want to adjust in the menSOUND
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

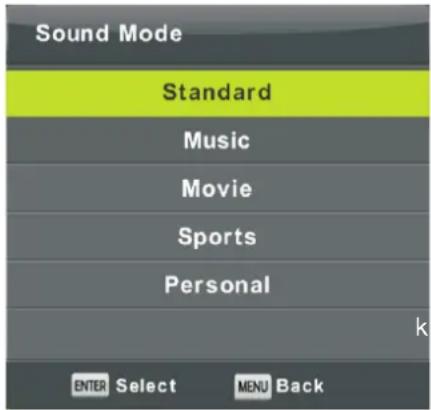

Sound Mode

Press ▼ button to select Sound Mode, then press Enter button to enter sub-menu.

Press▼/▲ button to select.

You can change the value of Treble and Bass when the sound is in Personal mode.

TIPS: You can press SMODE button on the remote control to change the Sound Mode directly.

Standard Produces a balanced sound in all environments.

Music Preserves the original sound.Good for musical programs.

Movie Enhances treble and bass for a rich sound experience.

Sports Enhances vocals for sports.

Personal Select to customize picture settings.

Note: The treble and bass are only available in personal mode, you can adjust them as you like.

Balance

Press ▼/ ▲button to select option, Press / ◀button to adjust.

Auto Volume level

Press ▼/ ▲button to select Auto Volume Level, then press / ◀button to select On or Off.

SPDIF Mode

Press ▼/ ▲button to select SPDIF Mode, then press / ◀button to select Off / PCM / Auto.

AD Switch

Press ▼ button to select AD Switch, then press / button to select On or Off.

Amblyopia function for the blind, the tracks will be mixed describe the current screen.

It need codestream to support.

NOTE:

Balance: This item can adjust the speaker's output, it enables you to listen to best at your position.

Auto Volume: This item is used for reducing the difference between channel and program's volume automatically.

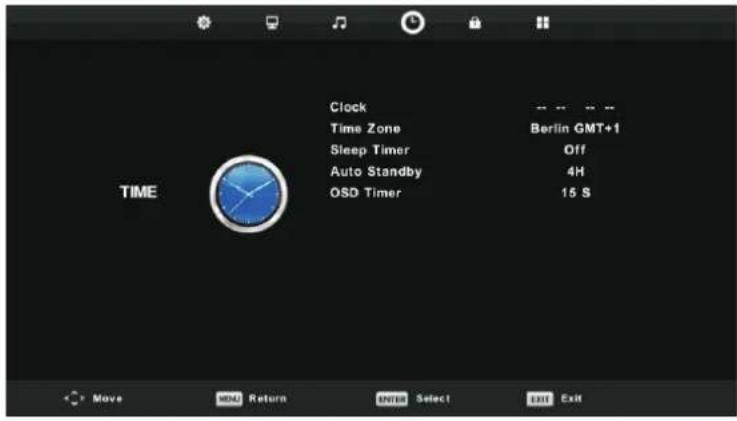

Time Menu

Press button to display the main menu.MENU

Press ◀/▶button to select TIME in the main menu.

1. Press ▼/ ▲button to select the option that you want to adjust in the merTIME
2. Press Enter button I to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

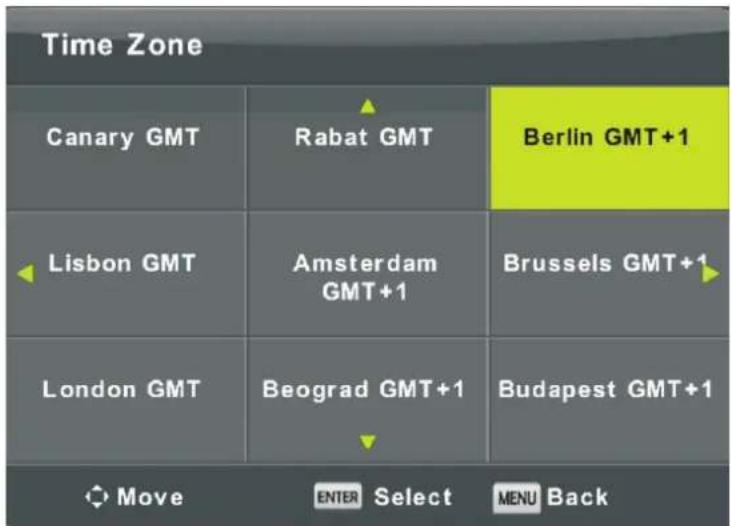

Time Zone

Press ▼ / ▲ button to select Time Zone, then press Enter button to enter sub-menu.

Press ▼ / ▲ / ◀ / ▶ button to select time zone.

Sleep Timer

Press ▼ ▲button to select , SheeppFaser Enter to enter sub-menu.

Press ▼▲button to select.

Press ▼/ ▲button to select.

Tips: The remote control does not make any operation in the hypothesis time, it will close down automatically. If you do any operation, it will reset the time.

OSD Timer

Press ▼/▲ button to select OSD, Timer then press Enter button to enter sub-menu.

Press ▼/ ▲ button to select.

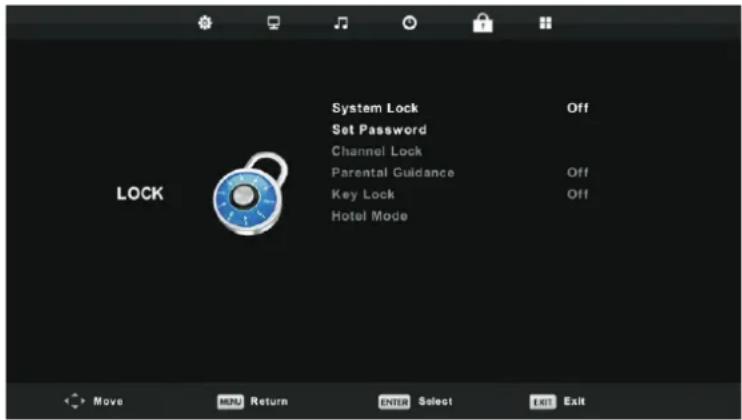

Lock Menu

Press button to display the main menu.MENU

Press ◀/▶ button to select Lock in the main menu.

1. Press ▼ ▲LOCK SYSTEM option that you want to adjust in the menu.
2. Press Enter/ ◀ button to adjust.
3. After finishing your adjustment, Press MENU button to return back to the previous menu

Lock System

Press ▼ / ▲ button to select System Lock, then press Enter button to make the following 3 options valid.

Default password is 0000, and if forget what you set, please call the service center.

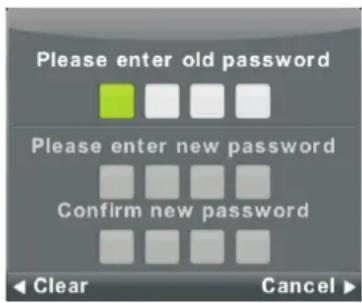

Set Password

Press ▼ / ▲ button to select Set Password, then press Enter button to enter sub-menu to set new password.

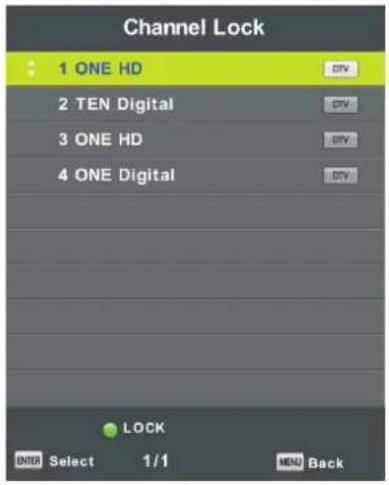

Channel Lock

Press ▼ / ▲ button to select Channel Lock then press Enter button to enter sub-menu to select. Press button to lock or unlock the channel.Green

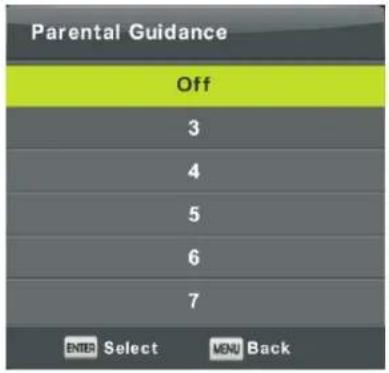

Parental Guidance

Press ▼ / ▲ button to select Parental Guidance, then press Enter button to enter sub-menu to select the number of age which is suitable for your children.

Key Lock

Press ▼ / ▲ button to select Key Lock, then press ◀/▶ button to select Off or On. When Key Lock's statue is on, you can't use the Key panel button.

Hotel Mode(Need support the Hotel Mode)

1. Press ▼ / ▲ button on the remote control to select hotel mode in the Lock menu.
2. Press Enter button on the remote control to enter the sub-menu.
3. After finishing your adjustment, Press MENU button to save and return back to the previous menu.

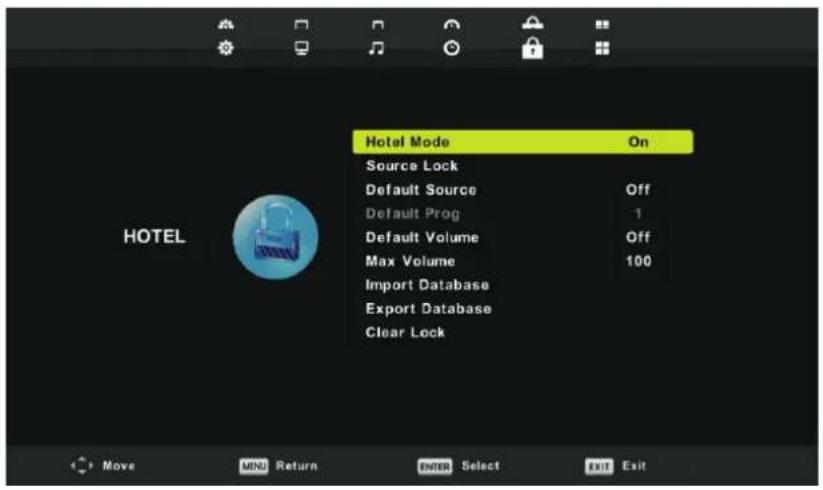

Hotel Mode

Press ▼ / ▲ button to select Hotel Mode, then press ◀/▶ button to select on or off.

Source Lock

Press ▼ / ▲ button to select Source Locke, then press Enter button to enter sub-menu to select.

Default Source

Press ▼ / ▲ button to select Default Source, then press Enter button to enter sub-menu to select.

Default Prog

Press ▼ / ▲ button to select Default Prog, then press ◀/▶ button to adjust.

It is available when the default source is TV.

Max Volume

Press ▼ / ▲ button to select Max Volume, then press ◀/▶ button to adjust.

Clear Lock

Press ▼ / ▲ button to select Clear Lock, then press Enter button to clear the setting you have done before.

Setup Menu

Press button to display the main menu.MENU

Press ◀/▶ button to select SETUP in the main menu.

1. Press ▼/ ▲button to select the option that you want to adjust in the menSETUP
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

OSD Language

Select an OSD menu language can be displayed. Default English is selected as menu language.

Press ▼ / ▲ / ◀ / ▶ button to select Menu Language.

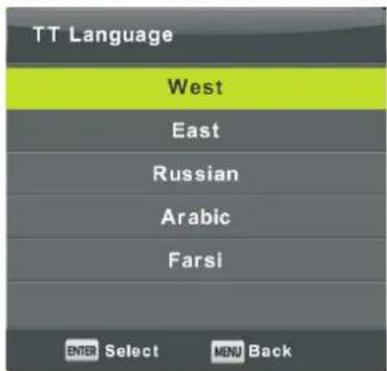

TT Language

Press Enter button to select TT Language, then press button to enter sub-menu. Press ▼ / ▲ button to select TT language.

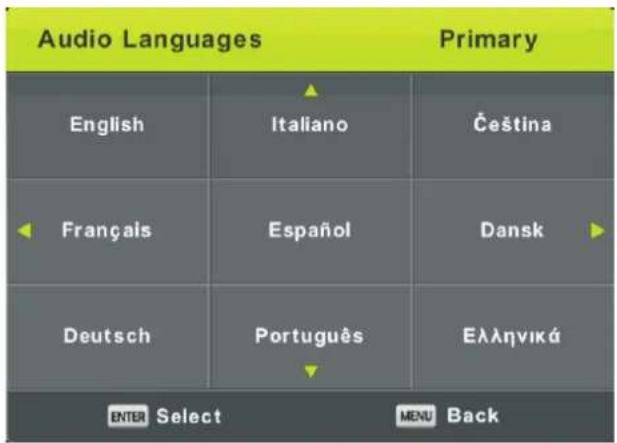

Audio Languages

Press ▼ Audio to select Audio Languages, then press Enter button to

Press ◀/ ▶button to select the primary of Audio Languages.

Press ▼ / ▲ / ◀ / ▶ button to select the Audio Languages.

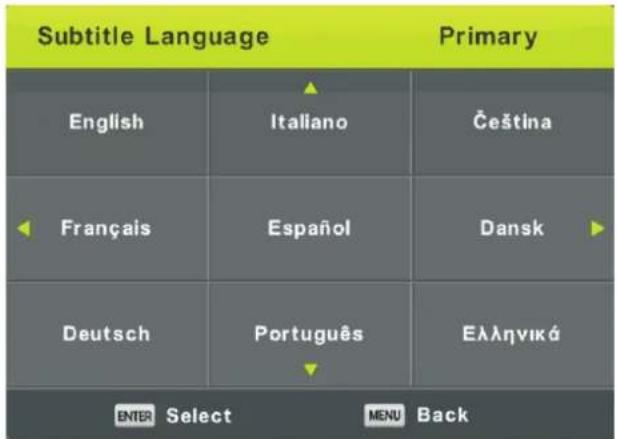

Subtitle Language

Press ▼ / ▲ button to select Subtitle Language, then press Enter button to enter sub-menu.

Press ◀/ ▶button to select the primary of Subtitle Language.

Press ▼ / ▲ / ◀/▶ button to select the Subtitle Language.

Hearing Impaired

Press ▼ / ▲ button to select Hearing Impaired, then press Enter button to select On or Off.

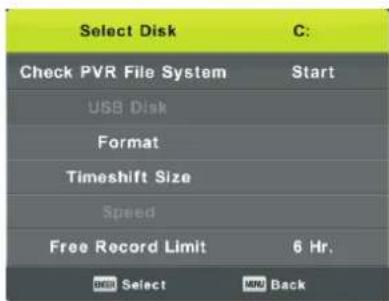

PVR File System

Press ▼ AUVRtFileSystemthempressEnter button to .

Press ▼ / ▲ button to select Check PVR File System,

then press Enter button to enter. Then it will check the USB speed.

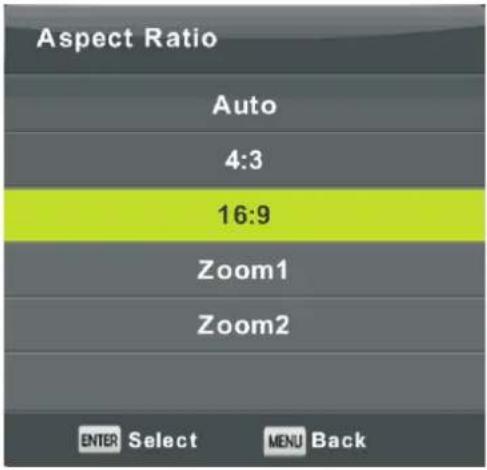

Aspect Ratio

Prest AspeattRatio Select buttonprester sub-menu.

Press ▼ ▲ set to aspect ratio. (Available options are: Auto, 4:3, 16:9, Zoom1, Zoom2).

Blue Screen

Press ▼ / ▲ button to select Blue Screen, then press Enter button to select On or Off.

First Time Installation

Press ▼ / ▲ button to select First time installation, then press Enter button to enter.

Reset

Press ▼ / ▲ button to select Reset, then press Enter button to enter sub-menu.

Software Update(USB)

Press ▼ / ▲ button to select Software Update (USB), plug your USB device in the USB slot, then press Enter button to update the right software.

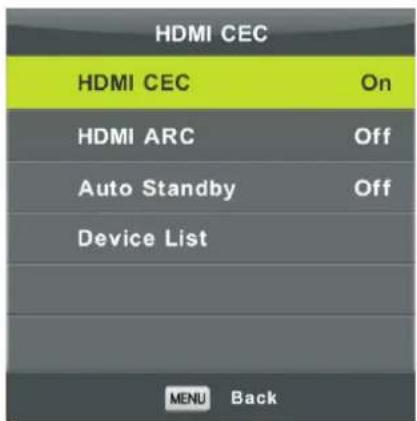

HDMI CEC(Need to support the HDMI CEC/ARC function)

Press ▼ / ▲ button to select HDMI CEC, then press Enter button to enter the sub-menu.

HDMI CEC Press ◀ button to turn the HDMI CEC on or off.

HDMI ARC Press ◀ button to turn the HDMI ARC on or off.

Auto Standby Press ✦ button to turn the Auto Standby on or off.

Device List Press Enter button to open the main menu of device.

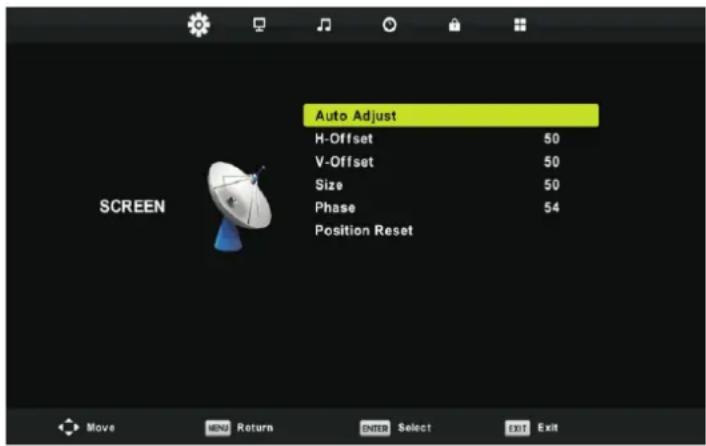

Screen Menu

Press button to display the main menu.MENU

Press ◀/▶button to select SCREEN in the main menu.

1. Press ▼/▲button to select the option that you want to adjust in the men SCREEN
2. Press Enter button to adjust.
3. After finishing your adjustment, Press Enter button to save and return to the previous menu.

Auto Adjust

Press Enter button to start adjusting H-Offset/V-Offset/Size/Phase automatically.

H-Offset

Adjust the horizontal position of the picture.

Press ▼ / ▲ button to select H-Offset, then press Enter button to enter sub-menu.

V-Offset

Adjust the vertical position of the picture.

Press ▼ / ▲ button to select V-Offset, then press Enter button to enter sub-menu.

Size

Adjust the display size.

Press ▼ / ▲ button to select Size, then press Enter button to enter sub-menu.

Phase

Adjust the horizontal interfering lines.

Press ▼ / ▲ button to select Phase, then press Enter button to enter sub-menu.

Position Reset

Press ▼ / ▲ button to select Position Reset, then press Enter button to enter.

Notes:

1. Noise Reduction in PICTURE option is invalid.
2. AD Switch in SOUND option is invalid.
3. TIME menu and description are the same as that for mode.
4. Block Program and Parental Guidance in LOCK option is invalid.
5. Audio Languages, Subtitle Language, Hearing Impaired and PVR File System in SETUP option is invalid.
6. Mode has no CHANNEL menu.

Media OPERATION

Note: Before operating Media menu, Plug in USB device, then press Source button to set the Input Source to Media.

Press ▼ / ▲ button to select Media in the Source menu, then press Enter button to enter.

Press◀/▶ button to select the option you want to adjust in the main Media menu,

then press button to enter. Enter

Photo Menu

Press ◀/▶ button to select PHOTO in the main menu, then press Enter button to enter.

Press button to return to the previous menu and exit menu to quit.Exit

Press◀/▶ button to select the file you want to watch in the file selecting menu, then press enter button to display picture.

When highlighting the option you select, the file information will appear on the right and picture will be previewed in the center.

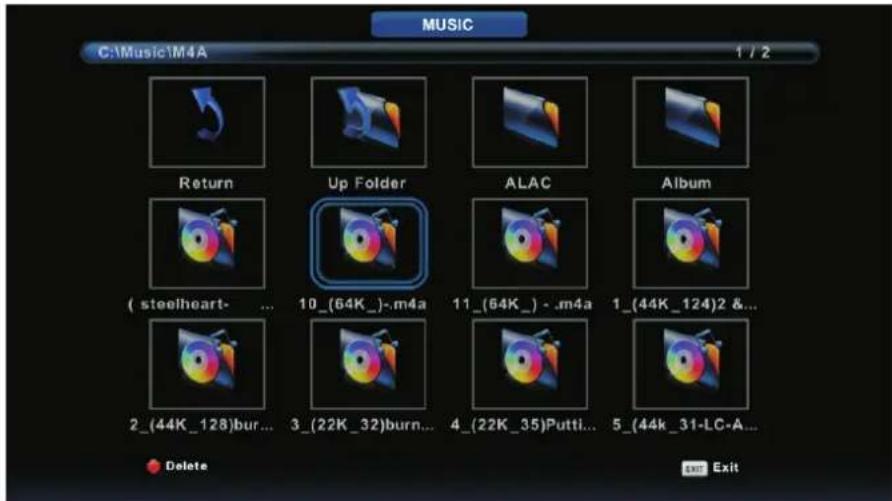

Music Menu

Press◀/▶ button to select MUSIC in the main menu, then press Enter button to enter.

Press button to return to the previous menu and exit menu to quit.Exit

Press◀/▶ button to select drive disk you want to watch, then press Enter button to enter.

Press ◀/▶ button to select return option to the previous menu.

Movie Menu

Press◀/▶ button to select MOVIE in the main menu, then press Enter button to enter.

Press button to return to the previous menu and exit menu to quit.Exit

Press ◀/▶ button to select drive disk you want to watch, then press Enter button to enter.

Press enter button to play the selected movie.

Press display button to select menu in the bottom you want to run, then press Enter button to operate.

Press button to back to the previous menu and exit button to quit the entire menu.Exit

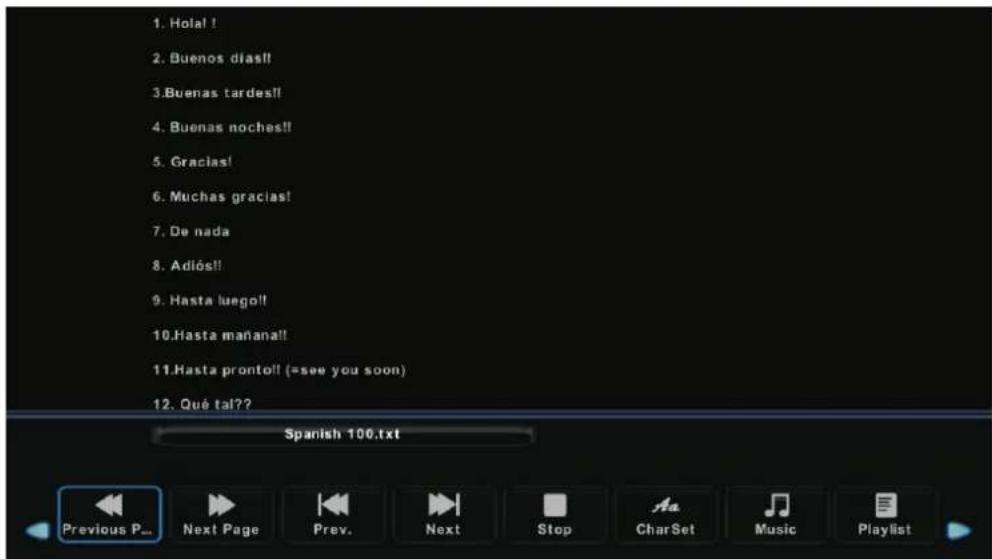

Text Menu

Press ◀/▶ button to select TEXT in the main menu, then press Enter button to enter.

Press button to return to the previous menu and exit menu to quit.Exit

Press ◀/▶ button to select drive disk you want to watch, then press Enter button to enter.

Press ◀/▶ button to select return option to back to the previous menu.

Help

No power	·Check if the AC cord of TV is plugged in or not. If there's still no power, please disconnect the plug, and reconnect to the socket after 60 seconds. Turn the power back on.
Signal not received properly	·Double or phantom images may appear on your TV if there are high buildings or mountains close to where you are. You can adjust the image thru manual operation: consult instruction of vernier regulation, or adjust the direction of the external antenna.·If you use an indoor antenna, under certain circumstances signal reception may be more difficult. Adjust the direction of the antenna for optimum reception. If this does not improve reception, you may have to switch to an external antenna.
No picture	·Check if the antenna at the back of the TV is connected properly.·View other channels to see if the problem still occurs.
Video appears with no audio	·Try increasing the volume.·Check if the TV's sound is on mute or not.
Audio is present, but video does not appear or is discolored	·Try adjusting the contrast and brightness.
Static noise affects video and audio quality	·Check if the antenna at the back of the TV is connected properly.
Broken lines on screen	·Electrical appliances such as hair dryers or vacuums etc. may be interfering with your TV set. Switch these appliances off.
Remote doesn't work	·Make sure the plastic bag which came with the remote control is removed. Try using the remote in a shorter distance from the TV. Check if the placement of the batteries is correct, or try using new batteries with the remote control.·The TV will go into Standby mode if it receives no response in a few minutes.
No video (PC mode)	·Please check if the cable is connected to the VGA port correctly, or if the cable is bent in some places.
Vertical line blinking (PC Mode)	·Enter the main menu, and adjust the vertical placement to eliminate the vertical line.
Horizontal tearing (PC Mode)	·Adjust the horizontal placement of the screen to clear any horizontal lines.
Screen is too bright or dark (PC Mode)	·Adjust the brightness or contrast in the main menu.
No response from the PC	·Check if the PC's display resolution is set to a compatible resolution for the TV.
Lines appearing when a device is connected to the RCA port	·Make sure you are using a cable of good quality.
Problems are unresolved	·Unplug the power cable and wait for 30 seconds, then reconnect to the socket. If problems still persist, do not attempt to repair the TV by yourself. Kindly contact the service center.

Do not leave your TV displaying a static image, whether it is from a paused video, menu screen, etc. for an extended period of time, doing so will damage the display and may cause image burn-in.

Specifications

Screen Size	power Consumption	Main accessories
16"	24W	User's manual x1Remote controller x1Power cord x1AAA Batteries x2
19"	30W/36W
22"	30W/36W
24"	30W/36W
28"	36W
32"	56W/65W/100W
39"/40"	60W/70W/76W
42"	67W/70W/95W/100W
43"	65W/80W
50"	100W/108W/135W
55"	100W/135W/140W/160W
65"	159W/165W/195W

LIFE TIME : 60,000 Hrs

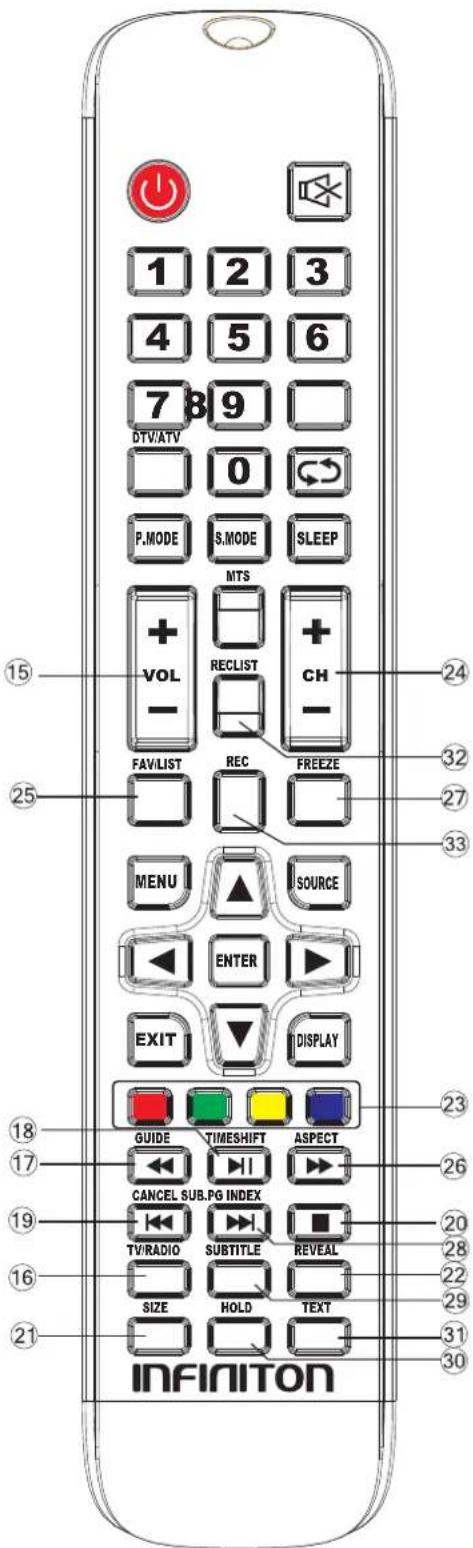

Remote Controller

1. POWER : Set your TV to power on or standby mode.
2. MUTE : Press to mute the sound. Press again or press VOL+ to unmute.
3. 0-9: Press 0\~9 to select a TV channel directly while watching TV. The channel will change after 2 seconds. Applicable for entering page number in teletext mode and so on.
4. DTV/ATV: Switch between Analog and Digital TV
5. Return to the previous viewed program.
6. S.MODE: Press to cycle through the different sound settings
7. SLEEP: Select amount of time before TV turn itself off automatically.
   8 MTS : Press to search the NICAM modes.
8. P.MODE: Press to cycle through the different picture settings
9. MENU: Allow you to navigate the on-screen menus.
10. SOURCE: Open the main menu, press to list the sources
11. ▲▼ ◀▶ ENTER: Allow you to navigate the on-screen menus and adjust the system settings to your preference.
12. EXIT: Exit from the menu or sub-menu and cancel the function in process (if applicable)
13. DISPLAY: Press to display the source and channel's info.

Battery Installation:

Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off. Put two AAA batteries inside the battery compartment with their + and - ends aligned as indicated. Do not mix old and new batteries or different types of batteries. Slide the lid until you hear it click into place.

Using the Remote Control:

Unless stated, otherwise, the remote control can operate all the features of the TV.

Always point the remote control directly at the remote sensor in front of the TV.

Remote Controller

1. VOL+/VOL-: Press to increase / decrease the sound level.
2. TV/RADIO : When watching channel, allows you to switch between TV and Radio modes
3. GUIDE:1. Launches the EPG (Electronic Program Guide) 2. Fast reverse in PVR or Media Player mode.
4. TIME SHIFT: 1.DTV channel time shift Function. 2.play on PVR or Media Player mode.
5. CANCEL: 1. When a page is selected in the mode of text, it may take some time before it becomes available, pressing the CANCEL key will return to the TV mode. When the required page is found, the page number will appear at the top of the TV picture, press the CANCEL key to return to the mode of text for you to browse this page.
6. Previous chapter in PVR or Media Player mode
7. INDEX:1. Request the Index page in Teletext mode. 2.Exit the playing function in PVR or Media Player mode.
8. SIZE: Change the size of display in Teletext mode.
9. REVEAL: Reveal or Hide the hidden words.
10. COLOR BUTTONS: Teletex switch of the analog parts, the items selection in the menu of the digital parts and the practice of the MHEG5 in the DVB menu.
11. CH+/CH- : Press to scan through channels.
12. FAV/LIST: press to open the favorite list. then you can select the favorite channel.
13. ASPECT: 1. Select picture scale.
14. fast forward in PVR or Media Player mode.
15. FREEZE: press to freeze the picture
16. SUB. PG 1. Press to access sub page.
17. Next chapter in PVR or Media Player mode.
18. SUBTITLE: To show and set the language of current DTV.
19. HOLD: HOLD On or Off for current page display.
20. TEXT: Switch the teletext on and off.
21. RECLIST: Show the recorded list.
22. REC: Record begin in PVR mode.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Warning: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the surface since they can get hot

- A steam cleaner is not to be used.

- Do not use a steam cleaner to clean your cooktop.

- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

- The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

- WARNING: Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

CE Certificate

It has been determined that this product complies with the LOW VOLTAGE directive (2006/95/ec), Electromagnetic Compatibility directive (2004/108/EC), and RoHS directive.

For more information related to declarations and certificates of conformity, please contact us through the mail [e-mail] and in the web www.infiniton.es

TECHNICAL SERVICE

If you have any questions regarding this device, please contact us: [e-mail] and www.infiniton.es

You can also contact our official technical service - INFINITON WORLD ELECTRONIC, S.L tel: [phone]

Repairs e-mail: [e-mail]

www.infiniton.es

INFINITON

TV LED

MANUAL DE INTRUCCIONES

INTV-40M510

EAN:8436546195351

CONTENIDO

Guía de preparación

Régimen "Hotel mode"....22

Ajustes....23

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Top-down architectural floor plan of a modern TV room with multiple rooms and furniture (no text or labels)

1

Top-down schematic of a room layout with furniture and fixtures (no text or labels)

2

3

sujeción

Nota:

Technical line drawing of a flat-screen monitor with internal components and directional arrows indicating orientation (no text or symbols)

Ajustes iniciales

First Time Installation

Language

English

Country

Germany

Auto Tuning

Tuning Setup

Tune Type

DTV + ATV

Digital Type

DVB-T

Scan Type

Full

Network ID

Auto

Frequency

Auto

Symbol Rate

Auto

Back

Start

Autoajuste

Menú principal

Ajuste manual ATV

Autoajuste

Régimen de sonido

Texto

MANUAL DE INSTRUÇÕES

INTV-40M510

EAN:8436546195351

Warning symbol of a lightning bolt inside a triangle (no text or numbers)

Aviso

MANUEL D'INSTRUCTIONS

INTV-40M510

EAN:8436546195351

Technical line drawing of a device casing with internal components and a side-view detail (no text or symbols)

Illustration of a flat-screen TV with a hand pressing a button next to it, labeled with number 5 (no text or symbols on the TV itself)

Installation Initiale

INFINITON WORLD ELECTRONIC S.I.

C/Baza 349, naves 4-6

Polígono Juncaril

18220 ALBOLOTE (Granada)

e-mail: [e-mail]

INFINITON

INFINITON

TARJETA DE GARANTÍA

Modelo

N° de serie ____

Empty white rectangle with a thin gray border (no text or symbols)
