USER MANUAL IAN 24778 CRIVIT

KarbonsKe pohodne palice aX

SI

KarbonsKe pohodne palice aX

Navodilo za uporabo

GB

aX carbon hiKing poles

Instructions for use

DE AT CH

aX-carbon-TreKKingsTÖcKe

Gebrauchsanleitung

Prisrčne čestitke!

Illustration of hands holding a tool with directional arrows indicating rotation (no text or symbols)

Illustration of a hand holding a pen with a curved arrow indicating rotation (no text or symbols)

Zapiranje

Mechanical assembly diagram showing a belt buckle adjustment mechanism (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Opozorilo: Po zapiranju preverite, ali zapirala držijo, tako da se narahlo naslonite na palico.

Line drawing of a woman standing with a stick, no text or symbols present

Line drawing of a woman in athletic wear holding two poles, labeled 'G' in the top-left corner (no other text or symbols)

• Hoja po prečenju (sl. H)

Line drawing of a woman exercising on a slope, holding poles (no text or symbols)

Line drawing of a girl using a resistance band on a slope (no text or symbols)

Line drawing of a person skiing on a slope, no text or symbols present

Uporaba zanke (sl. K)

Illustration of a human hand wearing a wristband with a black strap (no text or symbols)

Silhouette of a mechanical component with an arrow indicating direction (no text or symbols)

Illustration of a hand holding a tool with an arrow indicating movement, no text or symbols present

Silhouette of a hand holding a tool with a compass-like base, no text or symbols present

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Line drawing of a woman performing a stretching exercise with an upward arrow (no text or symbols)

Line drawing of a woman performing a stretching exercise with a vertical bar (no text or symbols)

Illustration of a person performing a stretching exercise with two poles (no text or symbols)

Line drawing of a person performing a resistance band exercise (no text or symbols)

Čiščenje in nega

Shranjevanje in transport

your purchase you have decided on a high-quality product.

Get to know the product before you start to use it. Carefully read the following operating instructions. Use the product only as described and only for the given areas of application. Keep these instructions safe.

When passing the product on to a third party, always make sure that the documentation is included.

Use/Area of application

This trekking pole is fitted with a hard metal tip for hiking on terrain, on ice, or on other smooth surfaces. It also has an asphalt pad, which can be easily attached and removed, if you are hiking on asphalt or another hard surface. The trekking pole is only designed for use when hiking.

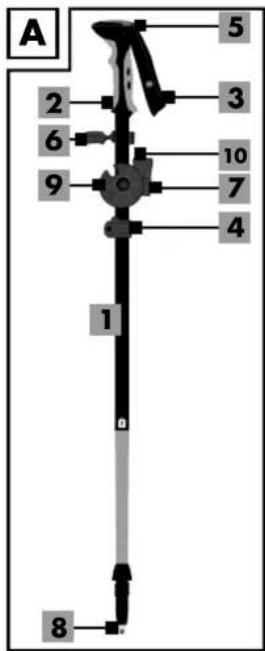

List of parts

(1) Trekking pole
(2) Ergonomic 2-component grip
(3) Wrist strap
(4) Height adjustment system
(5) Strap adjustment system
(6) Clasp to attach poles together
(7) Combination fixture
(8) Tip (hollow ground point)
(9) Basket
(10) Asphalt pad

Technical data

Length: adjustable between 110-135cm

Weight: one trekking pole approx. 286g

Maximum load: 60kg

Material: Carbon aluminium

Safety notes

• Do not perform repairs that endanger safety!
  • We recommend using a heart rate monitor.
• If you have a known heart or circulation problem, please consult a doctor before starting a sporting activity.
• Use sports shoes with a good grip and lateral support.
• Avoid practising this sport in the dark or at twilight.
  • Use reflectors worn on your body.
• Check the screw function on the trekking poles before each use.
• Check the pole for damage before each use.
• Do not use the pole if a split is found in the pole segments or if the trekking pole is not functioning perfectly. Such poles must be discarded.
• Avoid road traffic where possible to minimise the risk of accident.
• Trekking poles are not suitable for downhill skiing.
• Please do not use oil as any oil will have a negative effect on the retention force of the adjustment mechanism.
• Please note that the tip of the trekking poles may damage the ground.
• Please do not sit on the poles as they could bend.
  • The tip of poles poses all sorts of danger to children!
  • The appliance is only designed for private use.
  • There is no guarantee for professional use.
• Check the locking system regularly during use.

Opening/Folding (figures B/C)

Your pole can be folded in three sections.

• The direction to turn the pole for opening and folding is indicated on the pole.
• To open the pole, hold the upper pole segment with one hand so that the other can be opened by turning it anti-clockwise (figure B).
• Now pull the middle pole segment with one hand until the elastic band is visible (figure C).
• You can now fold the upper and middle pole segments together.
• Repeat the procedure for the lower end of the pole.

Illustration of hands holding a tool with circular arrows indicating rotation (no text or symbols)

Diagram of a hand holding a pen or tool with a curved arrow indicating rotation (no text or symbols)

Closing

- Tighten the screw sections securely so that they cannot be turned any further with normal strength.

Note: After closing please check that the locks hold by leaning gently on the pole.

Setting the stick length (figures D/E)

Your trekking poles can be adjusted to any length between 110cm and 135cm and should be set in accordance with your height and the type of use.

1. Open the lock (figure D).
2. Hold the lower end of the pole with one hand and use the other to pull the pole out to the desired length.
3. If you want to set the pole length to a height of 120cm then fix the upper pole segment in such a way that the 120cm marking is just visible and just protrudes from the upper pole segment.

Caution! Never fix the pole length beyond the 'STOP' mark!

1. Close the lock tightly. The lock must be flat against the lock system.

Note: The screw on the lock could loosen! Before each use, please ensure that the screw is tight. Turn the lock clockwise to tighten it (figure E).

Caution! The pole will lose stability if the screw is not tightened far enough!

Mechanical assembly diagram showing a belt buckle adjustment on a black belt (no text or symbols)

Mechanical component diagram showing a rotating arm mechanism with no text or symbols

Note: After closing, please check that the locks hold by leaning gently on the pole.

• Walking on level ground (figures F/G)

Set the pole length so that your upper and lower arm form an angle of 90^ . Please ensure the poles are set to equal lengths.

Line drawing of a woman standing with a stick, no text or symbols present

Line drawing of a woman holding two poles, no text or symbols present

• Walking on traverses (figure H)

Line drawing of a person using a crosswalk (no text or symbols)

The upper pole must be shortened and the lower pole lengthened for this purpose so that both can offer support.

- Ascending/Descending (figures I/J)

While walking uphill, the poles must be shortened, so that they provide comfortable support. While walking downhill, the poles should be lengthened so that you can maintain a comfortable, upright body position when you support yourself on them.

Line drawing of a person performing a resistance band exercise on stairs (no text or symbols)

Line drawing of a girl gliding on a slope, holding a crosswalk (no text or symbols)

Attaching the wrist strap (figure K)

Illustration of a human hand wearing a black wristband with a circular mark, no text or symbols present

Place the strap in such a way that the back of your hand is surrounded by the upper part of the strap. The logo should be on the outside. Then grip the handle. Please ensure to observe „L“ (left) and „R“ (right) marked on the hand strap.

Adjusting the wrist strap (figures L-O)

The size of the wrist straps can be set by using the push button. To open the locking mechanism, press the button on the strap adjustment system down with your thumb (figure L).

The strap is now unlocked and the strap length can be set individually. Pull on the open lower end of the strap to shorten the loop. Pull in the other direction, if you wish to enlarge the loop (figure M).

Then fix the strap again by holding the pole with one hand and using the other to pull on the upper strap, so that the push button clicks into place (figure N).

Set the size of the strap so that it does not cut into your hand when you hold the grip (figure O).

Silhouette of a tool or device with an arrow pointing to a tip, no visible text or symbols

Illustration of a hand holding a tool with an arrow indicating motion (no text or symbols)

Diagram of a hand holding a tool with a compass needle, showing motion direction (no text or symbols)

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Useful notes for use

• Wear gloves in cold weather.
• On longer hikes you should ensure that you take enough to drink (take a drinks belt or drinks rucksack if necessary).
• Wear suitable clothing in the winter.

Combination fixture for asphalt pad and basket

You can keep the asphalt pad and the trekking pole basket on the combination fixture. Use the asphalt pad when hiking on stony or hard surfaces, and use the trekking pole basket on soft surfaces to prevent the trekking pole from sinking into the ground. You may also remove the combination fixture. Pull the red rubber ring out of the guide on the fixture by its tab. Then the fixture can then be removed from the pole. To attach the combination fixture, place it on the pole again, wrap the rubber ring around the pole once, and place it again into the leading part on the combination fixture. If you are not using the asphalt pad or the trekking pole basket on your current hike, then you can fix or insert them into the basket change system attachment.

Warming up and stretching

Warm up and stretch well before trekking.

• Front thigh muscles (figure P)
Pull your foot up to your backside.

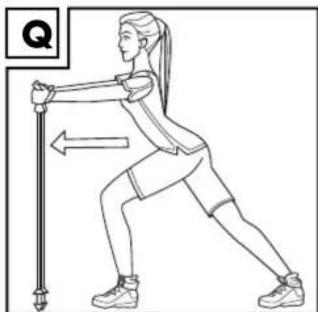

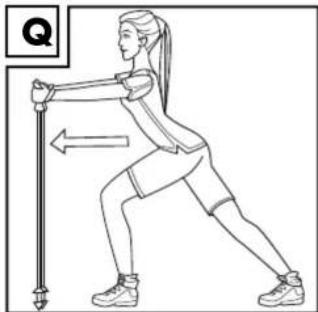

• Back thigh muscles (figure Q)
Press the back of your heel onto the floor while leaning your body forwards.

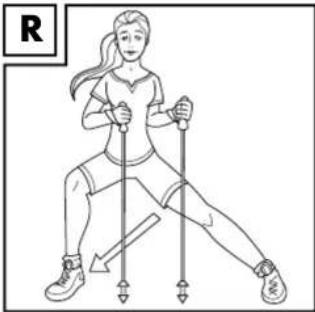

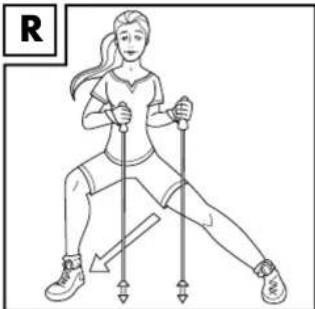

• Inner hip muscles (figure R)
Push your pelvis down at an angle.
• Calf muscles (figure S)
Lift and then lower your heels briefly several times.

Line drawing of a woman performing a stretching exercise with one leg extended (no text or symbols)

Line drawing of a woman performing a stretching exercise with a vertical bar (no text or symbols)

Illustration of a person performing a stretching exercise with two poles (no text or symbols)

Line drawing of a person performing a stretching exercise with arms extended (no text or symbols)

Cleaning and care

To clean the trekking poles use a cloth soaked in lukewarm water or soapy water. Never clean the trekking poles with solvents or harsh cleaning materials. These could damage the plastic or the markings and cause damage over time.

Storage and transportation

Do not subject the trekking poles to direct sunlight or increased heat as this can cause splits or degradation in your trekking poles, thus shorten their lifespan and substantially impeded their working order. Always store the trekking poles in a dry room. Dry wet poles with a cloth before folding in order to prevent corrosion. Always attach the asphalt pad to the tip during transportation.

Disposal

Please dispose of the product and packaging in an environmentally friendly manner, separating different materials for recycling as required! Dispose of this item through an authorised disposal company or through your local waste disposal facilities - ask your local authority for information if further guidance is required. Ensure that you comply with all regulations currently in force.

3-year warranty

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 24778

GB Service Great Britain

Tel.: [phone]

(£ 0.10/Min.)

E-Mail: [e-mail]

You can also find spare parts for your product at:

www.delta-sport.com, category Service - Lidl Spare Parts Service

Illustration of hands holding a pen with arrows indicating rotation or movement (no text or symbols)

Diagram of a hand holding a pen or tool with a curved arrow indicating rotation (no text or symbols)

Schließen

Mechanical assembly diagram showing a belt buckle adjustment mechanism (no text or symbols)

Mechanical component diagram showing rotational motion with arrows indicating direction (no text or symbols)

Line drawing of a woman standing with a stick, no text or symbols present

Line drawing of a woman holding two poles, no text or symbols present

Line drawing of a woman gliding herestyle with two poles, no text or symbols present

Line drawing of a girl performing a resistance band exercise on a slope (no text or symbols)

Line drawing of a person skiing on a slope, no text or symbols present

Illustration of a hand wearing a wristband with a tool, no text or symbols present

Silhouette of a tool or device with an arrow pointing to a tip, no visible text or symbols

Illustration of a hand holding a black tool with an arrow indicating movement, no text or symbols present

Diagram of a hand holding a tool with a compass needle pointing to it, labeled 'N' (no text or symbols on the diagram itself)

Illustration of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Side profile illustration of a woman performing a stretching exercise with an upward arrow (no text or symbols)

Line drawing of a woman performing a stretching exercise with a vertical bar (no text or symbols)

Illustration of a woman performing a stretching exercise with two poles (no text or symbols)

Line drawing of a person performing a stretching exercise with arms extended (no text or symbols)

Additional parts for our products are delivered against advance payment by bank transfer or Paypal. Please be sure to state the article number together with your name and postcode in the reference field when sending a payment.

Bank transfer:

Please send your Paypal payment to:

[e-mail]

Our postal address:

SERVICE.DELTA-SPORT.COM

HÜTTMANNSWEG 11

24641 HÜTTBLEK, GERMANY

Here is how you order: Under "sender/purchaser", enter in capital letters your name, address, and telephone number (in case of any queries).

Sender/purchaser

(please fill out completely in capital letters)

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

Surname, given name

House number, street

[Non-Text]

Town, postcode

广力云智慧零售收银系统

Alternatively, you can order all articles directly from our on-line store:

www.delta-sport.com, category Service - Lidl Spare Parts Service

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

2014

3

35

8

-1

S

T

r.

Z

†

on

po

S

a-

Itc

e

D

m = 311

6

ES

LI

O

P

G

10

N

<1

118

H

7

ON

C

B

n AR

r CA

on

fo x

f A

er

e 8

d7

r7

04

2

1

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

)

B

G

C

m = 311

m = 311

■ ■ ■ ■ ■

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

2017

3

5

8

-1

s

T

r.

Z

+

or

oo

S

□-

lto

e

D

7

<

AX

A

CE

C

LL

A

P

E

N

D

D

HC

外

©

P

E

K

S

Z

8

C BC

ni RE

In

il

,

08

r7

a 7

4

N 2

3

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

)

1

\$

(

m = 311

m = 311

-

[Non-Text]

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

[Non-Text]

Priimek ime

(四)本说明仅供参考。

[Non-Text]

[Non-Text]

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated placeholder underscores where none should exist in the GT. Hence, the OCR result is inconsistent with the Ground Truth.

[Non-Text]

Poštna št., kraj

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

Iterative lohle we indelle aenešite tudi oseemdeho ve

Alternatively, you can order all articles directly from our on-line store: www.delta-sport.com, category Service - Lidl Spare Parts Service

QuantityArticle nubtprice			Total
80006	pcs x =	4,55 €	€
80007		2,95 €	€pc
Post and packaging
5,00 €The flat shipping rate applies to Germany only.Please enquire at the Online Shop regarding the shipping rate outside Germany.
Total
€
SignatureDate and place
