USER MANUAL IAN 306074 CRIVIT

SPIN FISHING SET 210-5

FOR TROUT AND PERCH

GB

SPIN FISHING SET 210-5

FOR TROUT AND PERCH

Instructions for use

DE AT CH

SPINNANGEL-SET 210-5

FÜR FORELLE UND BARSCH

Gebrauchsanweisung

LT

SPININGO RINKINYS 210-5

UPETAKIAMS IR EŠERIAMS

Naudojimo instrukcija

IAN 306074

GB LT

DE AT CH

Top-down schematic of a mechanical component with concentric rings and a central body (no text or symbols)

Congratulations!

With your purchase you have decided on a high-quality product. Get to know the product before you start to use it.

Carefully read the following instructions for use.

Use the product only as described and only for the given areas of application. Keep these instructions safe. When passing the product on to a third party, always make sure that the documentation is included.

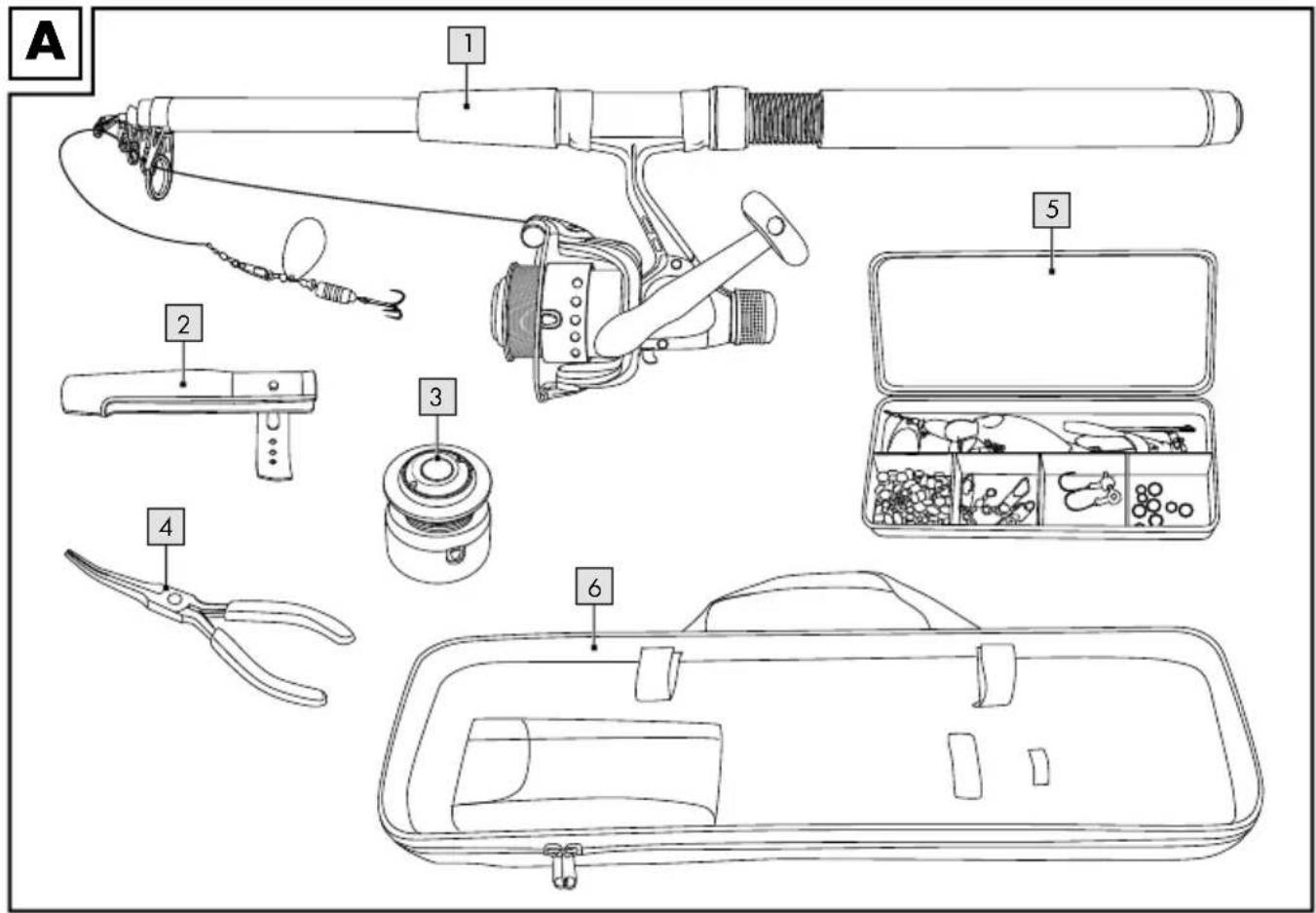

Package contents (Fig. A)

1 x spin fishing set (1)
1 x protective cap for transport purposes (2)
1 x spare reel (3)
1 x fishing pliers (4)
1 x storage box with accessories (5)
1 x carry-bag (6)
1 x instructions for use

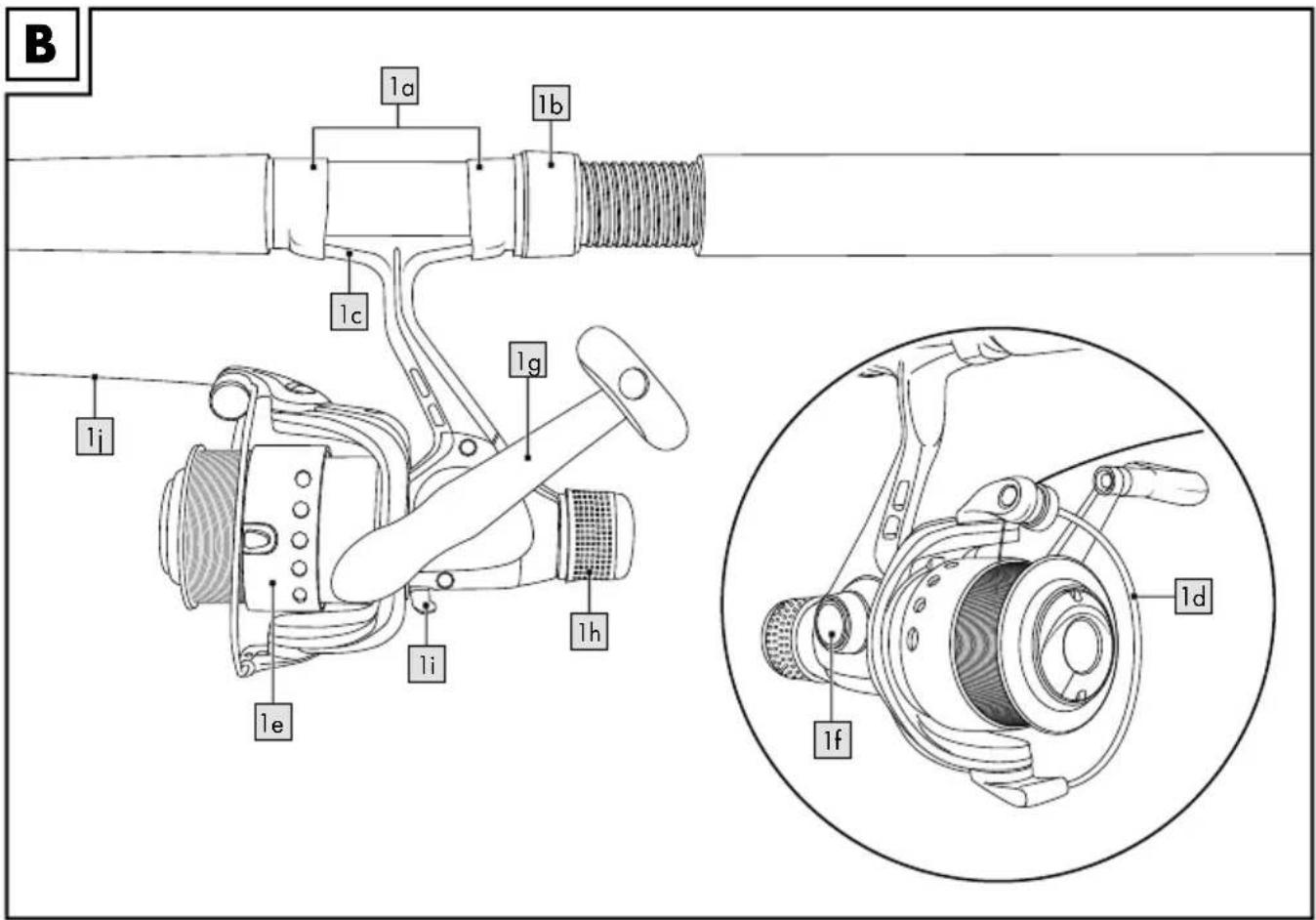

Parts description (Fig. B)

Reel brackets (1a)

Screw fastener (1b)

Castor wheel (1c)

Line guide bracket (1d)

Castor reel (1e)

Crank handle (1f)

Crank (1g)

Brake (1h)

Back rotation lock (1i)

Fishing line (1j)

Technical data

Rod length: approx. 210cm

Lead: up to 40g

∅ Fishing line: 0.22mm

Load-bearing capacity: 3.0kg

Size of fishing reel: 30 - 4 BB

Translation: 5.5:1

Date of manufacture (month/year): 11/2018

Usage

Before initial use

Warning: Before commencing with fishing inform yourself with regard to national and local regulations. These instructions describe the current information on the item.

Fishing is a very versatile sport. Therefore, we recommend that you read additional expert literature and/or gather information from clubs and organisations.

Assembling the fishing rod

Even if the angling set is assembled ready for fishing, you must still check the following points with regard to its assembly before its initial use. This ensures safe functioning of the rod and reel.

1. The castor heel (1c) must be inserted into the reel brackets (1a) and the screw fastener (1b) must be tightened clock-wise.
2. Put the crank (1g) into the required position by folding it up. Ensure that the opposite crank screw (1f) is tight.
3. Loosen the brake (1h) by turning it anti-clockwise. Pull enough fishing line (1j) from the reel (1e) and guide it under the line guide bracket (1d) through all the rod rings. Tighten the brake again by turning it clock-wise.

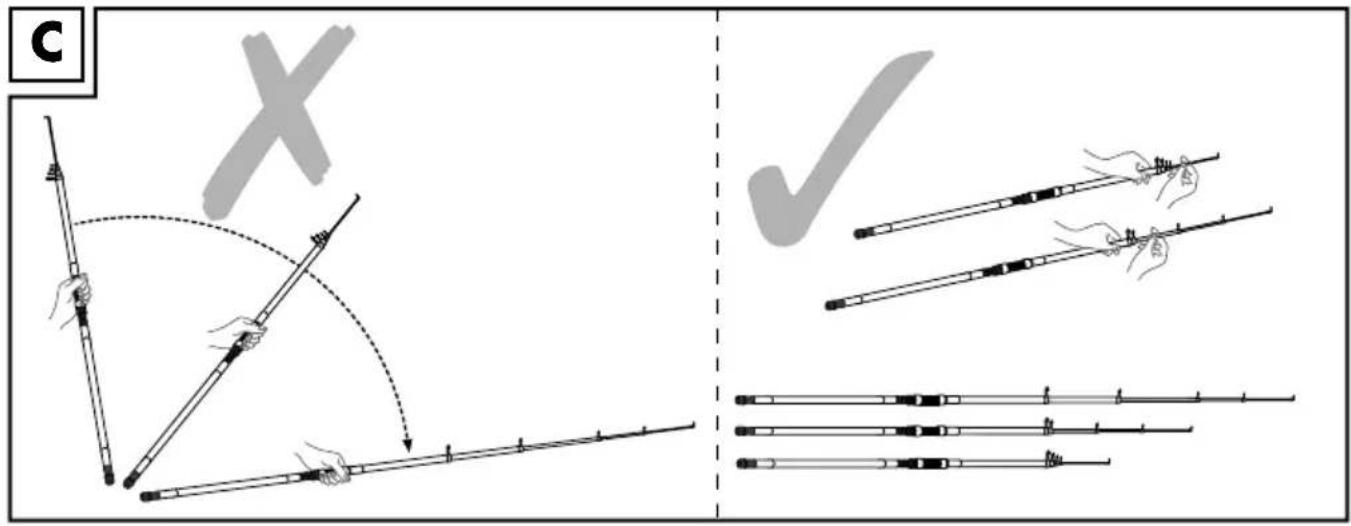

4. Pull the rod out, segment for segment, starting at the top (see Fig. C).

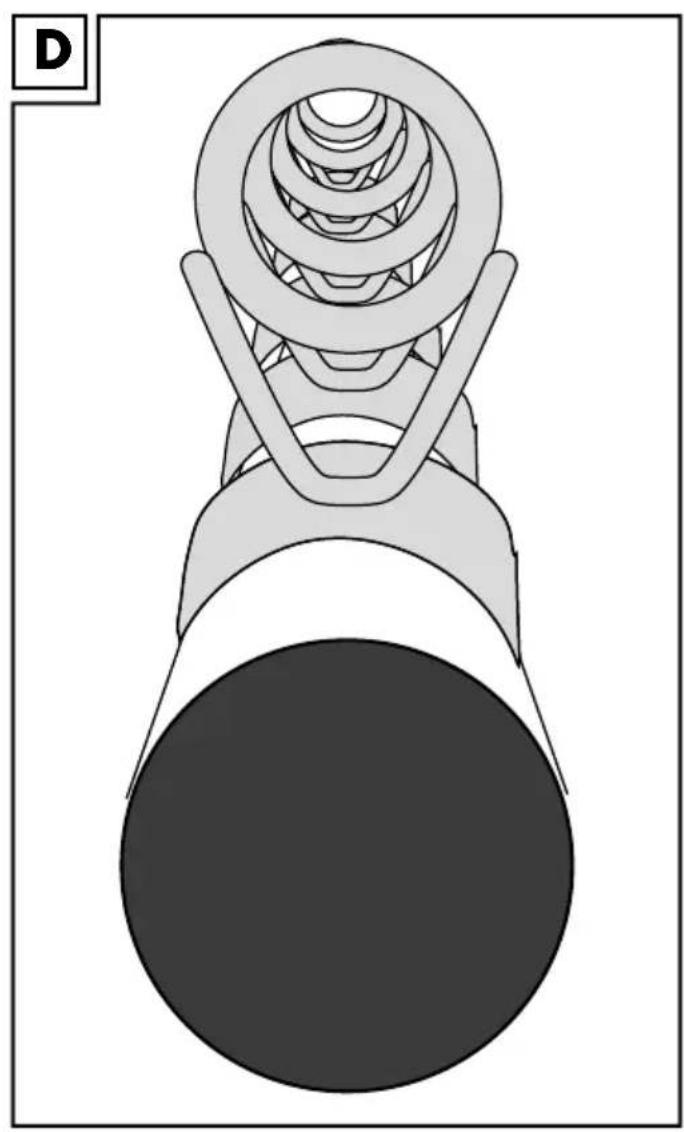

5. Ensure that the rings of each segment are aligned (see Fig. D).

Casting bait with an over-the-head throw

Ensure that the crank screw (1i) is tight. Grip the rod by the handle, ensuring that the castor wheel is between your middle and ring fingers.

Your pointing finger grips the fishing line when the roller lever is still closed, and holds it against the fishing rod by keeping it down. Open the line guide bracket and guide the fishing rod past the head, sideways, to the rear - your free hand grips the end of the rod handle in this manoeuvre, giving you additional stability and control.

The fishing line, together with the bait, should not twist, and the distance between the bait/lead and top end of the fishing rod should be sufficient to enable an elegant swing.

Visualise your end point in the water, and swing the fishing rod forward, with an even movement forward, steadily increasing in speed. Your pointing finger releases the fishing line the moment the top end of the fishing rod points to your end point. When your bait hits the water, i.e. once it's reached the desired depth, lock the line guide bracket.

Intended use/Tips for successful fishing

The fly and cast fishing set was developed for light lure and cast fishing in lakes, ponds, and rivers.

With its maximum casting weight of 40g it's particularly suitable for trout and bass fishing.

The reel is wound with a mono-filament fishing line, with a 0.22mm diameter, with a maximum load of 3.0kg. In practice, however, much heavier fish have been landed with this fishing line.

The fishing set has been pre-assembled with a spinner specifically for trout and bass fishing.

Throw out the bait, let it sink for a moment, and then reel in evenly, so that the spinner starts to rotate, imitating a bait-fish.

Try to find good fishing sports (so-called hot-spots) where trout and bass, as well as bait-fish, like to frequent.

Good areas, especially in spring and autumn, are around branches or reed belts in the water, the so-called "troughs". Often oval in shape, these are deep recesses on the bottom of the body of water, caused by special currents, objects or by the natural flow of the river.

Even if the spinning rod is very flexible and bendy, which cushions the strong pulling of escaping fish, the brake must be set in such a way that a slight left turn of the knob enables the fish to slowly pull line from the reel, with medium to strong pulling, when the line guide bracket is locked off. By doing this, loss of the bait is prevented, or even a line-break, while landing the fish.

Ethical behaviour

Your enjoyment of fishing should also be dictated by respect for fish and nature. In addition to the national and local regulations, please keep in mind some important basic rules for fishing.

• Ensure that you have all necessary fishing accessories for landing fish safely with you, to remove the fish-hook gently, so you can release the fish or to kill it ethically. For many fishing styles, this especially includes landing nets, measuring tape, stunning device, knife, disgorger, fish-hook remover or fisher's pliers.
• Do not drag caught fish along the ground or in the sand, as this can easily lead to injuries of the sensitive mucous membrane. Always handle the catch with wet hands for this reason.
• Release under-size fish, and fish in spawn, gently.
• Fish for eating must be stunned properly and killed humanely with a knife.
• Even if the fish are biting ubiquitously, do not over-do it and do not catch more fish than is really necessary.
  • Always leave the fishing spot in the same state as you would like to find it.

Safety information

Life-threatening hazard!

Do not fish near power lines. Always look out for any low-hanging lines and avoid contact with them.

You may endanger your life due to electrical shock.

Life-threatening hazard during lightning storms!

Do not fish during a storm. A flash of lightning hitting your fishing rod, or fishing line, can lead to life-threatening injuries or can even be fatal. You may endanger your life due to electrical shock.

Risk of injury!

Check the item for damage and wear before each use. Never use damaged items. Safe use cannot be guaranteed in such cases.

Risk of accident and injury!

This item contains sharp hooks which can injure anglers or other persons. Therefore, please handle the equipment with care.

- Look out for other anglers, or random persons, and keep a safe distance. Incorrect casting can also cause injury, due to the hook being cast vigorously.

• For protecting against hook injuries, wear suitable protective eyewear, as well as head protection.
• Do not undertake any repairs yourself. Refer to the service centre.
• Store the item out of reach of children.
• Only allow children to use the item under adult supervision.

Maintenance and cleaning

After use in salt water, do a quick rinse of the rod and reel with lukewarm water. When the reel is dry, put one or two drops of oil on all moving parts to ensure that functionality and life-span are maintained.

Storage

Always store the item clean and dry at room temperature.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations.

Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling.

The code consists of the recycling symbol - which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts.

Repairs after the warranty are subject to a charge.

IAN: 306074

Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]
