USER MANUAL IAN 332872 CRIVIT

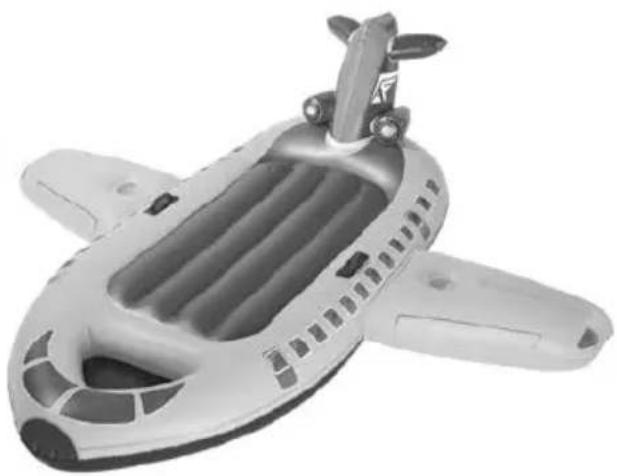

Two grayscale illustrations of inflatable boats, one with a transparent hull and the other with a white hull (no text or symbols visible)

Exterior view of a modern office building (no signage)

COLCHÓN DE AIRE INFLABLE MATERASSO AD ARIA GONFIABILE

ES

COLCHÓN DE AIRE INFLABLE

Instructions for use

¡Enhorabuena!

Two black-and-white illustrations showing a person in water with a vertical arrow and a circular symbol, no text or symbols present.

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Package contents

1 x inflatable air mattress
2 x repair patch
1 x deflation tube
1 x instructions for use

Technical data

Dimensions (inflated):

LM-7566: approx. 208 x 103 x 45cm

(L × W × H)

LM-7567: approx. 187 x 111 x 42cm

(L × W × H)

LM-7568: approx. 203 x 187 x 65cm

(L × W × H)

Maximum load: 100kg

Date of manufacture (month/year): 01/2020

Intended use

This product was designed for private use by a person weighing up to 100kg and is intended for use on water. The product is not a swimming aid, aquatic toy or winter sport product and is only suitable for swimmers!

Not suitable for children under 14 years of age.

Warning! The usage surface is the side where the valves and symbols are located.

Symbols used

WARNING!

Take note of the symbols displayed on the product before using it.

General caution sign

Does not protect against drowning

General prohibition symbol

Mandatory symbol

Read instructions for use first

Do not use in offshore winds

Do not use in offshore currents

Not suitable for children under 14 years

Number of users: Adults 1 Children 0

Only to be used by persons who can swim

Product requires the user to be able to balance

Maximum load

Safe distance from shore: 50m

Fully inflate all air chambers

Permissible operating pressure

Safety information

WARNING!

Failure to follow these instructions for use could result in a risk of capsizing, drifting off course and drowning.

An unequal distribution of weight on the product leads to capsizing.

WARNING!

Risk of suffocation for children! Do not allow children to play unsupervised with the product or the packaging materials.

WARNING! LIFE-THREATENING HAZARD!

Does not protect against drowning!

Only to be used by persons who can swim!

WARNING!

The air chambers can be pushed under the water surface when the user is getting on. The product can capsize for this reason, and also if the product is loaded more on one side.

Risk of injury!

• Only use the product for its intended use.

• The product may only be used by persons familiar with the safety information.

• Observe the maximum load. Exceeding the weight limit can damage the product or impair its function.

• Check the product for damage or wear before each use. Only use the product if it is in perfect condition! Do not use the product if it is visibly damaged or if you suspect that it is damaged.
• Do not use the product if it is losing air.

Preventing damage to the product!

• All inflatable products are sensitive to cold. Never unfold and inflate the product at temperatures below 15°C!
• If the air pressure increases in direct sunlight, this must be rectified by releasing the corresponding amount of air.
• Make sure the product does not come into contact with stones, gravel or sharp objects, particularly when inflated, and do not allow it to rub or scrape against anything, as this can cause damage to the material.
• Only insert a suitable pump adapter into the safety valves. Otherwise the valves could be damaged.
• Do not over-inflate – this can result in the seams splitting open. Ensure the valves are firmly closed after inflating.
• Avoid contact with sharp, hot, pointy or hazardous items.
• WARNING! Avoid using sunscreen and skincare products that contain alcohol. Sunscreens and skincare products that contain alcohol can strip the coloured layer off this inflatable PVC product. This may stain your body, clothing or other objects which come into contact with the product.

Inflating

WARNING!

• Always inflate each air chamber fully!
- Avoid over-inflating the air chambers as otherwise there is a risk of over-stretching the material or splitting the seams.

• To inflate the product, use a commercial foot pump or double-stroke piston pump with the appropriate pump adapter.
• Do not use a compressor or compressed air canisters to inflate the product. These can damage the product.
• Ensure that the chambers are inflated evenly and in succession.
• Only inflate the chambers until they are still slightly rippled on the inside.

Inflate the chambers in the following order:

1. • Outer chamber
2. • Inner chamber

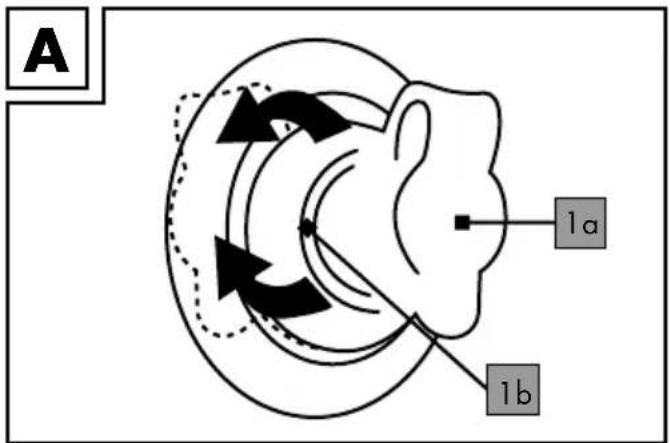

3. Open the valve cap (1a) (Fig. A).

4. Inflate the air chamber until the product is sufficiently firm.
5. Close the valve cap and apply light pressure to press the valve down.

Deflating

1. Pull out the valve.
2. Lightly squeeze the valve shaft (1b) (Fig. A) to release the air, or alternatively feed the deflation tube into the seal in order to release the air quickly.

Repairs

Small leaks or holes can be mended using the enclosed repair patches.

Important! After repairing, do not inflate the product for 20 minutes!

Do not use the patches on the seam.

1. Allow the product to deflate completely.
2. Clean the area around the leak thoroughly! The area must be dry and grease-free.
3. Cut out a piece of the repair material that is large enough for its edges to extend beyond the damaged area by about 1.3cm.
4. Peel the patch off the paper, place it on the damaged area, and press on it firmly.

Storage, cleaning

When not in use, always store the product deflated, clean and dry at room temperature. The valves should always be kept closed when the product is in storage. Only clean the product with water or soapy water and never with harsh cleaning agents.

When storing for the winter, do not place any sharp objects on the product or apply talcum powder to it.

IMPORTANT! Never clean the product with harsh cleaning agents.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol

- which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail.

Our service employees will advise as to the subsequent procedure as quickly as possible.

We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN: 332872_1907
