HG05418 - Uncategorized Livarno Lux - Free user manual and instructions

Product Type	Table Lamp
Model Number	HG05418
Brand	Livarno Lux
Dimensions (L x W x H)	20 x 20 x 45 cm
Weight	1.2 kg
Power Supply	220-240V ~ 50/60 Hz
Bulb Type	E27 LED bulb (max 15W, not included)
Light Output	Warm white (3000K)
Lumen Output	800 lm
Dimmable	No
Material	Metal and fabric lampshade
Color	Black base, white shade
Switch Type	In-line switch on cord
Cord Length	1.8 m
Protection Class	Class II (double insulated)
Usage	Indoor use only
Maintenance	Wipe with dry cloth; do not use abrasive cleaners
Safety Features	Overheat protection; stable base
Spare Parts	Bulb compatible with E27; cordset replaceable by qualified person
Repairability	Repairable by electrician; not user-serviceable
Certifications	CE, RoHS

Frequently Asked Questions - HG05418 Livarno Lux

What type of bulb does the Livarno Lux HG05418 lamp use?

The lamp uses an E27 screw base bulb. It is compatible with LED bulbs up to 15W. The bulb is not included.

Is the lamp dimmable?

No, the Livarno Lux HG05418 is not dimmable. Use a standard on/off switch.

Can I use this lamp outdoors?

No, this lamp is designed for indoor use only. Do not expose to moisture or rain.

How do I clean the lampshade?

Use a soft, dry cloth to dust the shade. For stains, lightly dampen the cloth with water and mild soap. Avoid soaking the fabric.

What is the maximum wattage for the bulb?

The maximum recommended wattage is 15W for an LED bulb. Using a higher wattage may cause overheating.

Does the lamp have a warranty?

Livarno Lux typically offers a 2-year warranty. Check your purchase receipt for details or contact customer service.

The lamp flickers. What should I do?

First, check that the bulb is screwed in tightly. If the issue persists, try a different bulb. If still flickering, the switch or wiring may be faulty; consult a qualified electrician.

Can I replace the power cord?

The power cord is fixed. If damaged, the lamp should be repaired by a professional. Do not attempt to replace it yourself.

Is assembly required?

Some minor assembly may be required, such as attaching the lampshade to the base. Follow the instructions included in the manual.

Where can I download the user manual?

The user manual is available for free download on notice-facile.com in PDF format. Select your language and click download.

USER MANUAL HG05418 Livarno Lux

3D ROPE LIGHT FIGURE

GB CY

3D ROPE LIGHT FIGURE

Operation and safety notes

RS

3D - SVETLEĆA FIGURA

GB / CY Operation and safety notes Page 5

HR Upute za posluživanje i za Vašu sigurnost Stranica 11

HG05418B

HG05418C

List of pictograms used....Page 6

Introduction......Page 6

Intended use....Page 6

Delivery scope......Page 6

Description of parts....Page 6

Technical data....Page 6

Safety instructions......Page 7

before use....Page 9

Installation....Page 9

Use Page 9

Timer function....Page 9

Cleaning and care....Page 9

Disposal Page 9

Warranty Page 10

Warranty claim procedure......Page 10

Service Page 10

List of pictograms used
	Direct current/voltage Safety class II
	Alternating current/voltage		This icon indicates that the product is mains operated.
	For indoor and outdoor use		This icon indicates that the power cable is approx. 1.5 m
	Timer: 6 hours Splashproof
	CE mark indicates conformity with relevant EU directives applicable for this product.

3D rope light figure

- Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

- Intended use

This product is suitable for indoors and outdoor use as decorative lighting. The product is only intended for use in private

households, and not intended for commercial use.

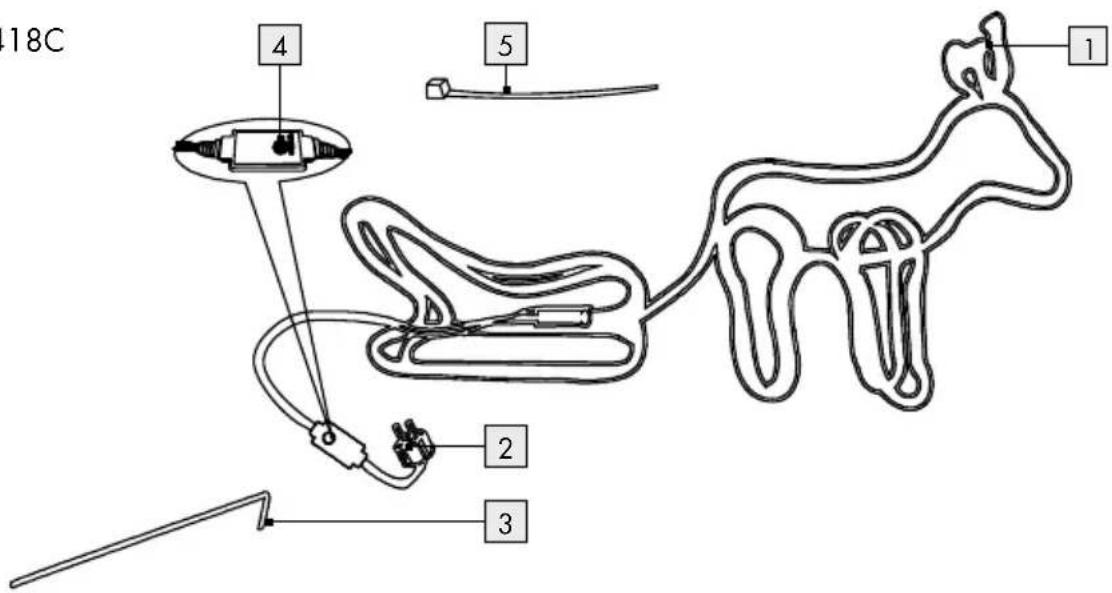

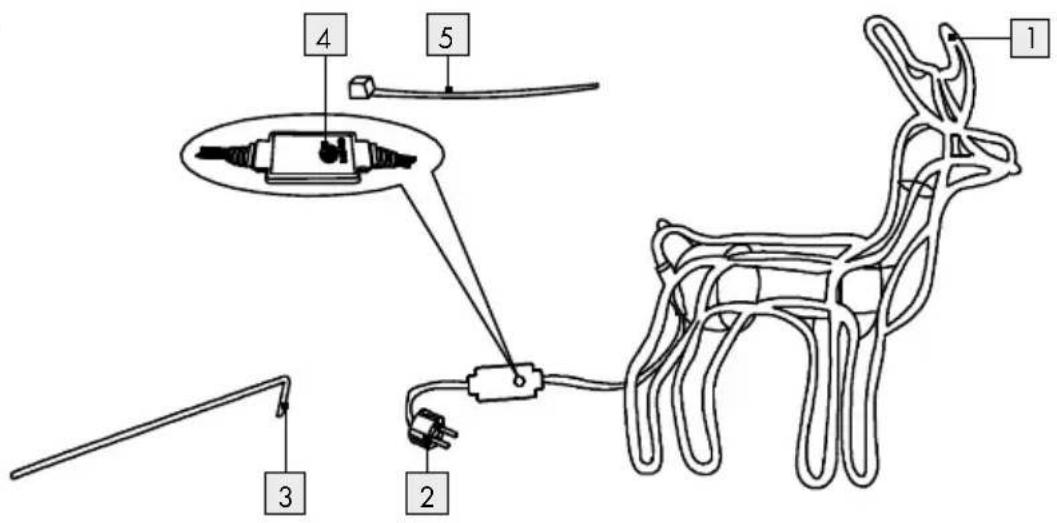

• Description of parts

1 3D rope light figure
2 Mains plug
3 Ground spike
4 Timer button
5 Cable tie

- Technical data

Operating voltage: 230-240V \~, 50Hz

Protection class: II/

IP class: IP44 (splash water

protected)

TÜV SÜD/GS certified.

LED:3V ===, 0.06 W

24 LED per meter

Rated power: HG05418A: 9W

HG05418B: 13.5W

HG05418C: 13.5W

LED are not replaceable.

- Delivery scope

1 3D rope light figure
4 Ground spikes
4 Cable ties
1 Operating instructions

Safety instructions

BEFORE USING THE PRODUCT, PLEASE FAMILIARISE YOURSELF WITH ALL OF THE SAFETY INFOR- MATION AND INSTRUCTIONS FOR USE! WHEN PASSING THIS PROD- UCT ON TO OTHERS, PLEASE ALSO INCLUDE ALL THE DOCUMENTS!

WARNING!

DANGER OF DEATH

AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the product at all times.

This product is not a toy and should not be played by children. Children are not able to understand the dangers that can occur when handling this product.
This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction

concerning use of the product in a safe way and understand the hazards involved. Children shall not play with the product. Cleaning and user maintenance shall not be made by children without supervision.

Avoid the danger of death from electric shock!

Before use, ensure that the mains voltage available is the same as the required operating voltage for the product (230–240 V\~).
■ Before connecting to the mains, always check the product for any damage.
■ Never use the product if you find damage of any kind.
The connecting cable cannot be repaired! If the cable is damaged, the product must be taken out of use and disposed of in the proper way.
This product does not contain any parts which can be serviced by the user. The bulbs cannot be replaced.
■ The LEDs are not replaceable.
If the LEDs fail at the end of their lives, the entire product must be replaced.

■ Never open any of the electrical parts or insert any kind of object into them.
■ Do not open or cut the product.
■ Protect the product from sharp edges, mechanical loads and hot surfaces.
- Do not install with sharp fasteners or nails.
■ Always remove the mains plug from the socket before installing, dismantling or cleaning.
■ Never touch the mains plug or the product with wet hands.

⚠️ CAUTION! RISK OF OVER-

HEATING! Do not cover the product with blankets, cushion or similar heat-insulating material. Do not operate the product whilst it is still in the packaging.

■ Use the product only with the parts described in these instructions.
If the product is not to be used for any length of time (e.g. holidays), disconnect it from the power supply.

- Keep the product away from ponds and other bodies of water. Install the product at least 2 m from water containers. Avoid locations where flooding occurs after heavy rain.

■ Use the product outdoors only when connected to a mains socket protected by a residual- current

product (RCD) with a rated trip current of not more than 30 mA.

Please note that the plug / power adapter continues to draw a small amount of power even if the product is turned off as long as the plug / power adapter is plugged into a power outlet. To switch the product off completely, unplug the plug / power adapter from the socket.

■ Do not recessed into a surface.

■ Outdoor mains sockets must be suitable for use outdoors and should be at least 2.5 m from the nearest water container or body of water.

The product is protected against splash water (IP44). This protection standard is only possible if the mains socket also fulfills requirements of at least the same protection class.

■ Ensure that the product is not laid out through areas in which lawn mowers, strimmers, shears or similar cutting tools are used.

■ Ensure that the product does not present a trip hazard.

If you have any questions about the product or are unsure about any of its aspects, please seek the advice of an electrical equipment specialist.

RISK OF INJURY! Make sure that when the lamp is removed that the ground spikes are also removed so they cannot pose any risk (e.g. stumbling over them).

Before use

Note: Remove all packaging materials from the product.

●Installation

☐ Place the 3D rope light figure ☐ on a stable substrate.
☐ For outdoor installation, if possible fix the 3D rope light figure 1 in place with the ground spikes 3 and the cable ties 5.
☐ Check the stability of the 3D rope light figure ☐1.
☐ For indoor installation, place the 3D rope light figure 1 on an even surface and fix it with the cable ties 5 if possible. Otherwise, the product may not stand stable.

Use

Plug the mains plug into the socket.
Please note that the product will still use some energy even when the product has been switched off if the mains plug 2 is still plugged in. To switch the product off completely, unplug the mains plug 2 from the socket.

- Timer function

The timer button 4 has three functions:

1 x push of the button:

☐ The product lights up continuously.

2 x push of the button:

☐ The product lights up continuously for 6 hours and then switches itself off for 18 hours. The product will then switch on again for 6 hours at the allocated time and then switch off for 18 hours.

Note: The timer button lights up when the timer function has been activated.

3 x push of the button:

☐ The product is switched off.

- Cleaning and care

CAUTION! RISK OF ELECTRIC SHOCK!

First remove the mains plug 2 from the socket.

CAUTION! RISK OF ELECTRIC SHOCK!

For reasons of electrical safety the product must never be cleaned with water or other liquids or immersed in water.

• Let the product cool before you clean it. Risk of injury!
  Do not use any solvents, petrol or similar items. This would damage the product.
  ☐ Only a dry, lint-free cloth should be used for cleaning.

●Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibre-board/80-98: composite materials.

The product and packaging materials are recyclable, dispose of it separately for better waste treatment. The Triman logo is valid in France only.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

- Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase.

Should this product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty applies to defects in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

- Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (e.g. IAN 123456_7890) available as proof of purchase.

You will find the item number on the rating plate, an engraving on the front page of the instructions for use (bottom left), or as a sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

CYServiceCyprus

Tel.: [phone]

E-Mail: [e-mail]

CE IP44
