GS 7243 - Freezer BOMANN - Free user manual and instructions

Product Type	Chest Freezer
Brand	Bomann
Model	GS 7243
Net Capacity	Approx. 200 L
Energy Efficiency Class	E (EU 2019)
Annual Energy Consumption	200 kWh/year
Noise Level	40 dB
Climate Class	SN-T (10°C - 43°C)
Freezing Capacity	10 kg/24h
Storage Time During Power Failure	15 hours
Star Rating	4 stars
Dimensions (W x D x H)	90 x 60 x 85 cm
Net Weight	35 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	100 W
Adjustable Thermostat	Yes
Fast Freeze Function	Yes
Baskets Included	2 wire baskets
Interior Light	Yes (LED)
Defrost Method	Manual
Castors / Wheels	Yes (4 castors)
Lock with Key	Yes
Refrigerant	R600a (Isobutane)
Repairability Index	8.0 / 10

Frequently Asked Questions - GS 7243 BOMANN

What is the net capacity of the Bomann GS 7243 freezer?

The net capacity is approximately 200 litres, suitable for a small household.

How do I adjust the temperature on this freezer?

Use the adjustable thermostat dial inside the freezer. Turn it clockwise for colder temperatures and anticlockwise for warmer. The recommended setting is -18°C.

Does the GS 7243 have a fast freeze function?

Yes, it has a fast freeze function that rapidly lowers the temperature to freeze fresh food quickly. Activate it 24 hours before adding a large load.

How often should I defrost the freezer?

Defrost when the ice layer reaches 5 mm thickness. Typically every 6 months or as needed. Always unplug the freezer and remove food before defrosting.

What should I do during a power failure?

Keep the freezer door closed. The freezer can keep food frozen for up to 15 hours without power. Do not refreeze partially thawed food.

Is the freezer equipped with a lock?

Yes, it has a lock with key to secure the lid. Keep the key in a safe place.

What type of refrigerant does the GS 7243 use?

It uses R600a (Isobutane), a natural refrigerant that is environmentally friendly but flammable. Ensure proper ventilation and avoid damaging the cooling circuit.

How do I clean the freezer?

Unplug the freezer and remove all food. Wash the interior with a mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners.

Does the freezer come with baskets?

Yes, it includes 2 wire baskets for organizing food items.

What are the dimensions of the Bomann GS 7243?

The dimensions are approximately 90 cm (W) x 60 cm (D) x 85 cm (H). Ensure adequate space for ventilation around the unit.

USER MANUAL GS 7243 BOMANN

Front view of a white stainless steel refrigerator with open door and side panel (no visible text or symbols)

General notes Page 18

Special safety information for this unit Page 19

Transport and packaging Page 20

Appliance equipment Page 21

Installation Page 21

Startup / Operation Page 23

Cleaning and maintenance Page 27

Troubleshooting Page 28

Technical data Page 29

Disposal Page 29

Einleitung

Illustration showing two people installing or adjusting a door panel, with an inset showing a circular component being turned (no text or symbols)

Line drawing of a mechanical device with a tool and an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical assembly with no visible text or symbols

Pure mechanical assembly diagram without any text, numbers, or symbols

Mechanical assembly diagram showing four stages of a mechanical component with bolted parts and a central shaft (no text or labels)

Pure mechanical assembly diagram without any text, numbers, or symbols

Line drawing of a boat hull with visible hull, hull, and side-mounted mast (no text or symbols)

Simple line drawing of a door with an arrow pointing to the interior (no text or symbols)

3D diagram of a rectangular block with an arrow indicating direction (no text or symbols)

Simple line drawing of a mechanical device with arrows indicating motion or force direction (no text or symbols)

Diagram of a mechanical lever system with pulleys and motion arrows indicating movement (no text or symbols)

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage.

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this appliance to other people, also pass on the operating instructions.

IOTE:

• Due to constant product modifications, your appliance may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original appliance.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• This appliance is not intended to be used as a built-in appliance.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• To ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special safety information for this unit

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farm houses and by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• catering and similar non-retail applications.

WARNING:

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process (if necessary), except those described in this manual (depending on the model included the scope of delivery).
• Do not damage the refrigerant circuit.
• Do not operate any electrical devices inside the appliance.
• Do not store explosive substances such as aerosol containers with flammable propellant in the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• NOTE: Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type.
• Use the provided collection points of electrical equipment for the disposal of the appliance.

Coolant

WARNING: Risk of fire / flammable

materials

The coolant circuit of this unit contains the refrigerant Isobutane (R600a), a natural gas that is flammable and of high environmental compatibility. Make sure no parts of the coolant circuit get damaged during transport and installation of the appliance.

If the coolant circuit is damaged:

• avoid any open flames or ignition source,
• disconnect the plug,
• thoroughly air the room in which the appliance is installed and
• contact an authorized technician.

Transport and packaging

Transport the appliance

Transport the appliance, if possible, in vertical position. Otherwise, it is absolutely necessary to allow the appliance standing upright for a few hours before installation "Prior to first use". Protect the appliance during transport against weather influences.

Unpacking the appliance

• Remove the appliance from its packaging.
• Remove all packaging material, such as foils, filler and cardboard packaging.
  Dispose of packaging materials that are no longer required in accordance with the locally applicable regulations.
• To prevent hazards, check the appliance for any transport damage.

- In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning and maintenance".

Appliance equipment

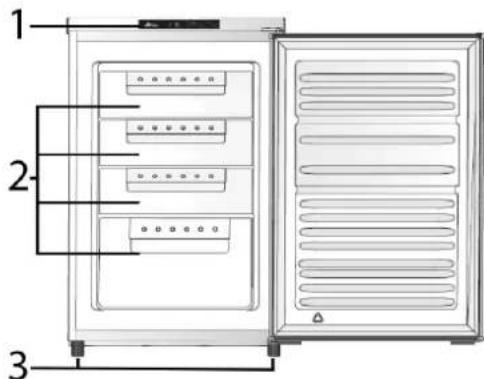

Appliance overview

1 Control panel

3 Feet

2 Freezing drawers

Delivery scope

4x freezing drawer, 1x ice-cube tray

Installation

Conditions for the installation location

- Good ventilation is required around the appliance to dissipate the heat properly and to guarantee efficient cooling operation at low power consumption. Enough clearance is necessary.

- Gap to the back approx. 50 \~ 70 mm, to the side walls and above the appliance each approx. min. 100 mm;

- Place the appliance so that the appliance door can open without being impeded.

• Only install at a location with an ambient temperature suitable for the climate class of the appliance. The climate class can be found under "Technical data" and on the rating label located in the interior or on the appliance rear.
• Place the appliance on a steady and safe surface. If the appliance is not horizontally leveled, adjust the feet accordingly.

• Avoid the installation:

• near heaters, next to a stove, direct sunlight or any other heat sources;

• at locations with high humidity (e. g. outdoors, bathroom), as metal parts would be susceptible to corrosion under such circumstances;
• near volatile or flammable materials (e. g. gas, fuel, alcohol, paint, etc.), in rooms which may have poor air circulation (e. g. garages).
• Do not expose the appliance any weather.

Leveling the appliance

Illustration showing two people installing or adjusting a door panel, with an inset showing a circular dial (no text or symbols)

Slight unevenness in the floor can be leveled out using the front feet.

Check whether the appliance is leveled horizontally. If the unit is not in balance, the feet must be adjusted.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not modify the appliance plug. If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must be ensured to disconnect the appliance from the power supply in case of emergency.

- Make sure that the voltage supply matches the specifications on the rating label before connecting.

• Connect the mains cable to a properly installed and earthed wall outlet.
• If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

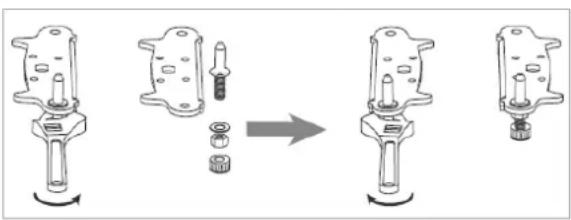

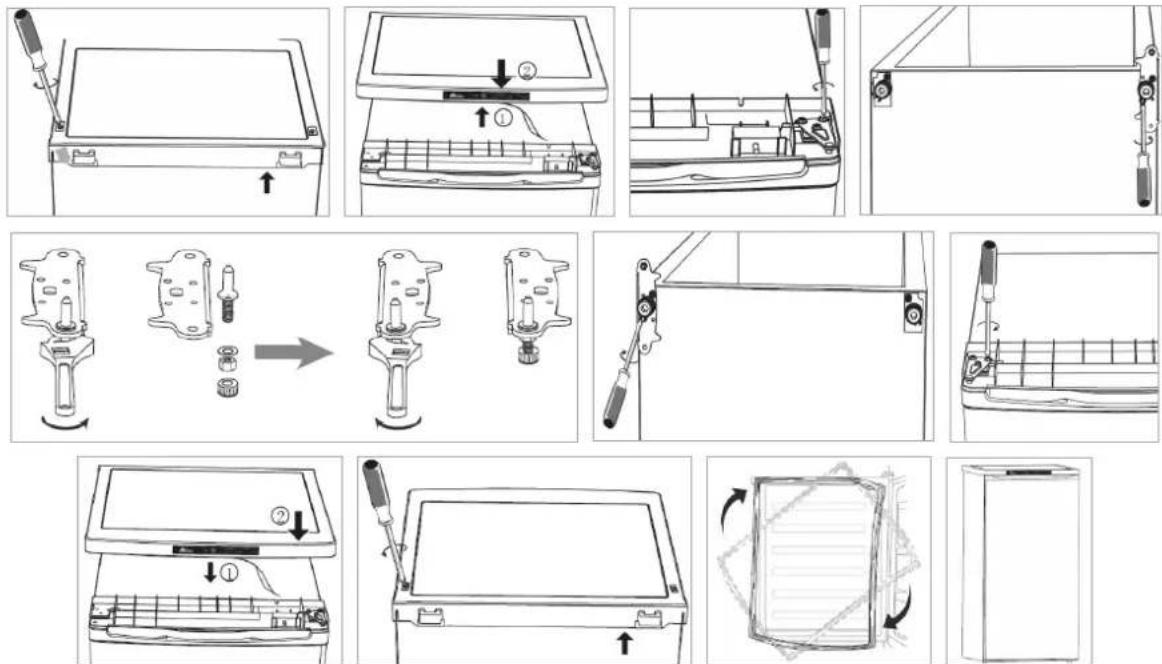

Reversing the door opening

If required, the door opening can be moved from the right (supplied condition) to the left side.

WARNING:

When replacing the door stop, the appliance must be disconnected from the power supply first.

NOTE:

• Ask another person to assist.
• You possibly need: screw wrench, Phillips screw-driver as well as a thin-blade screwdriver.

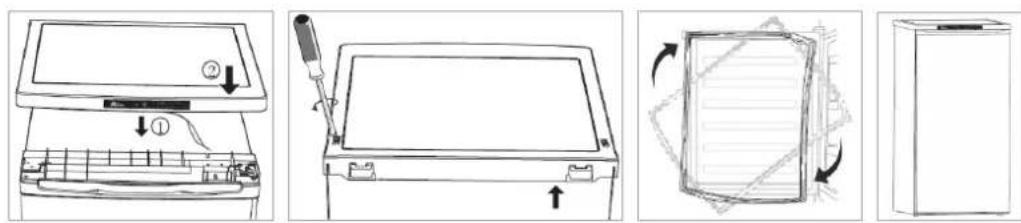

• Loosen the screws on the top cover.
• Lift the top cover approx. 5 cm away from the appliance, then carefully pull out the terminal strip (1) for the display (2) and disconnect it. Remove the top cover.

• Dismount the upper door hinge; lift out the appliance door and set it safely aside.

• Tilt the appliance slightly backwards and block it in this position. Unscrew the feet and dismount the lower door hinge.

• Transfer and fasten the lower door hinge to the opposite appliance side; after you have unscrewed the hinge pin and inserted it from the other side of the hinge. Screw in the feet accordingly.

• Put the appliance back in the upright position. Put the appliance door on and fix it in the intended position.

• Transfer and fasten the upper door hinge on the opposite appliance side.
• Connect the terminal strip (1) to the display (2).
• Put on the top cover and fasten it.
• Check the door rubber seal for an exact fit and, if necessary, bring it into the correct position.

Check that the door is optimally aligned vertically and horizontally so that the door can open and close smoothly.

Startup / Operation

Prior to first use

CAUTION:

After transport, the appliance should be left standing upright for four hours before connecting to the power supply. Nonobservance could lead to malfunction of the cooling system and causes an appliance breakdown.

Clean the appliance interior including all accessory parts. Consider the instructions which we provide in the chapter "Cleaning and maintenance".

Starting the appliance

• Connect the appliance to the power supply.
• Set the operating conditions. See also the following sections.

Control overview

Sup	Control lamp super freezing
Eco	Control lamp energy saving mode
Mode	Mode button

Setting	Temperature button
	Control lock button combination

SETTING

Temperature setting

Press the Setting- button several times to set the desired indoor temperature in the range from -16^ to -22^ .

The display shows the temperature selection.

The setting is saved about 5 seconds after the last button was pressed.

After selecting the temperature, the set temperature is always shown in the display – not the real indoor temperature.

Switch off

Keep pressing the Setting- button for approx. 5 seconds to switch off the appliance.

MODE

Function setting

By pressing the Mode- button several times, you can choose between:

→1x User setting (no lamp) → 2x Super freezing → 3x Energy saving mode

The corresponding control lamp lights up.

Control lock

To activate / deactivate the control lock, keep pressing the button combination Mode and Setting for approx. 3 seconds.

Function description

SUP

Super freezing function

Activate / deactivate the super freezing function with the Mode- button.

If the super freezing function is activated, the control lamp lights up and the message [SF] (super freezing) appears on the display.

When the super freezing function is activated, the appliance works at maximum power (approx. -22^ ) to speed up the freezing process.

The super freezing function switches off automatically after about 52 hours. The indoor temperature adapts to the preset temperature.

The function can be ended at any time before the switch-off time has expired.

ECO

Energy saving mode

Activate / deactivate the energy saving mode with the Mode- button.

If the energy saving mode is activated, the control lamp lights up and the message [SE] (save energy) appears on the display.

The appliance is put into energy saving mode.

The indoor temperature is automatically adjusted to between -17^ and -16^ and kept constant.

Alarm function

..with the appliance door open

An alarm sounds as soon as the appliance door remains open for more than 5 minutes.

Press any button or close the appliance door to stop the acoustic signal.

..when the temperature rises

If the appliance malfunctions or if there is no power supply for a long time, the indoor temperature can

rise. If this rises to approx. -8^ , an alarm sounds and the display shows [ht] (high temperature) alternating with the detected temperature.

Press any button to stop the acoustic signal. The display shows the fault until the internal temperature has normalized again.

Settings

Basically, the temperature changes depending on the ambient temperature (place of installation), the frequency of opening the door and the equipment.

For initial operation, first set the lowest possible internal temperature (= highest power level) or activate the super freezing function until the appliance has reached the desired operating temperature. It is recommended to reset to a medium power level afterwards, then you can easily make any temperature correction.

Recommendation, for optimized food storage and to avoid food waste, a medium power level is generally best. A high power level also increases energy consumption.

To be able to check the cooling performance, you ideally need a freezing thermometer. Place it in the appliance.

The ideal temperature is -18^ . A less cold temperature setting may shorten food durability.

Equipment

Note that the equipment varies depending on the appliance type.

The various shelves or drawers can be removed for individual storage. Also practical for cleaning purposes.

iNOTE:

For the most efficient use of energy, place all shelves/drawers in their original positions.

Removing / inserting the drawers

- To remove the drawer, pull it out to the front, incline it if necessary and remove it.

Simple line drawing of a rectangular object with an arrow pointing downward (no text or symbols)

Simple 3D diagram of a rectangular block with an arrow indicating direction (no text or symbols)

- Insert the drawer, if necessary, lift the front part of the drawer slightly and push it in completely.

Ice cube tray

Depending on the model, an ice cube tray for making ice cubes is included with the appliance.

• Fill the ice cube tray about 34 full of drinking water. Then place the tray flat in the freezer for a few hours.
• To release the ice cubes from the tray more easily, you can briefly hold the tray under warm water.

Storing food

i NOTE: Recommendation!

To guarantee that the temperature is low enough, you should pre-cool the appliance a few times before initial loading foods.

CAUTION:

Always pay attention to the storage instructions on the sales packaging.

The 4-star freezer allows you to store frozen food at a temperature of -18°C or colder for several months; to prepare ice cubes and to freeze fresh food.

To avoid contamination of food, respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems (see "Cleaning and maintenance").

• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star ✉* frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice-cubes.
• One- *, two- ** or three-star *** compartments are not suitable for the freezing of fresh food.
• If the appliance is out of use for long period, follow the instructions under "Switching off".

Freezing

• CAUTION, refer to the enclosed product data sheet for the maximum amount of food in kg that can be frozen in 24 hours. If the quantity is greater, the quality of the freezing and the already frozen food will be affected.
• Fresh food should be frozen as fast as possible to the core. During freezing operation, the temperature of fresh food should be lowered as fast as possible to keep formation of ice crystals as little as possible and not to damage the food structure.
• Keep a space between the individual items, so that the cold air can circulate.

Storing frozen food

• Packed frozen merchandise should be stored in accordance with the manufacturer's data. Make sure the food items do not defrost after purchase and to store them as fast as possible in the freezer.
• It is possible to store food for longer periods of time. The period might vary, so observe the storage information on the packaging of the merchandise.

General safety precautions

- Do not store bottles or cans. These can break when the contents freeze – or even explode if they contain carbonated drinks.

• Once products have been defrosted halfway or completely, they should be consumed as soon as possible and should not be frozen again, except they have been processed to a ready meal.
• Do not eat food that is still frozen. Do not eat ice cream directly from the freezer. The cold can cause injuries in the oral cavity.
• Touching metal parts inside the unit can cause symptoms like burns if the skin is very sensitive.
• Never touch frozen food with moist or wet hands.

Packing frozen food

Always select packaging suitable for the food and pack it properly.

• Freeze in portions. Suitable for packaging are e. g. plastic films, polyethylene tubular films, aluminum foil, freezer cans.

• The packaging must be impermeable to air and moisture.

• Press the air out of the package.

• Seal the package tightly with e. g. rubber rings, plastic clips, twine or cold-resistant adhesive tapes.

- Label the package with contents and freezing date.

Storage times

The indicated storage times are guide values for the storage duration of various food groups in the freezer.

Food group	Storage time
Ice cream 2 to 6 months
Sausage, ham 1 to 3 months
Bread, bakery products 2 to 6 months
Game, pork	1 to 12 months
Fish, fat 1 to 2 months
Fish, lean 1 to 5 months
Cheese 2 to 4 months
Poultry, beef 2 to 10 months

Food group	Storage time
Vegetables, fruit 6 to 18 months
Herbs 6 to 10 months

For commercial frozen products, the storage period indicated on the packaging is decisive.

Operating noise

Type of sound	Cause
Mumbling	Compressor during its operation
Liquid sounds	Circulation of the refrigerant
Click sounds	The temperature control turns the compressor on or off
Disturbing noises	Vibration of the shelves or cooling coils

Switching off

Switch off the appliance using the Setting- button.

If the appliance is out of use for long periods:

• Remove the appliance content.
• Disconnect the appliance from the power supply.
• Defrost (model dependent) and clean the appliance thoroughly (see "Cleaning and maintenance").

- Leave open the appliance door to avoid formation of mold and unpleased odors.

Tips for Energy saving

• Disconnect the appliance from the power supply if it isn't in use.
• Do not install the appliance near stoves, heaters or other heat sources. In case of higher ambient temperatures, the compressor will run more frequently and longer.
• Ensure enough ventilation at the bottom and rear side. Never block ventilation openings.
• Place all shelves, racks or drawers (depending on model) in their original position.

• Adjust the temperature not colder than necessary.

• Allow warm food to cool before placing it in the appliance.

• Open the unit door only as necessary.
• Defrost the unit regularly (model dependent).
• The seal of the appliance door must be completely intact, so that the door closes properly.

Cleaning and maintenance

WARNING:

• Always disconnect the appliance from the power supply before cleaning and user maintenance.
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts.
• The unit must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.
• Do not damage the refrigerant circuit.

Cleaning the appliance including interior

To keep dirt and germs at bay, clean the appliance regularly!

• First clear out the contents of the appliance and store it in a cool place. Remove all moving parts such as shelves or drawers.
• Clean the interior of the appliance, the exterior surfaces and the accessories with lukewarm water and a mild cleaning agent; or with a clean, damp microfiber cloth without cleaning agent.
• After everything has dried thoroughly, you can put the appliance back into operation.
• Depending on the model: At least once a year, wipe off the dust that has accumulated on the rear wall of the unit and on the condenser (metal

grille). Use a soft brush or a vacuum cleaner for this purpose.

Cleaning / replacing the door seal

Regularly check the seal for dirt, damage and air tightness!

Checking the seal for air tightness

- Clamp a thin piece of paper at various points for testing. The paper must be equally difficult to pull through at all points.

Cleaning the gasket

• Clean the gasket with clear water only!
• CAUTION, grease and oil makes the seal porous and brittle. Wipe up grease or oil immediately with a damp, clean cloth.

Replacing the seal

- Remove the contents of the appliance and, if necessary, defrost the unit. Pay attention to how the old gasket is attached. Most gaskets are only plugged in. - Remove the worn gasket rubber by removing it from the groove. Carefully clean the appliance door and the groove below the rubber and remove any adhesive residue.

- Attach the new rubber. If necessary, heat the rubber seal with a hair dryer or hot water and shape it by hand. Start pressing the gasket in one corner and then press it around the door into the groove provided for this purpose.

- Continue to check the seal regularly for dirt and damage!

Defrosting

CAUTION:

Never use metal objects (e. g. knives) to remove ice from the evaporator. Otherwise, it can be damaged.

For better cooling and to minimize power consumption, the freezer must be defrosted regularly as follows:

• To start the defrosting process, disconnect the appliance from the power supply.
• Remove the appliance content and keep covered at a cool location.
• When the ice has melted, wipe the condensate away and dry the appliance interior.
• Then you may restart the appliance by connecting the plug and setting the indoor temperature.

Replacing the door hinge

If the appliance door starts to stutter, crack or jam when you open it, it is probably due to a worn or damaged hinge.

It is recommended to replace all door hinges at the same time, otherwise the next repair will soon be beckoning.

• Remove the contents of the appliance and the movable interior parts.
• Tilt the appliance backwards and block it in this position to prevent the door from sliding out.

Simple line drawing of a boat being lifted by strings, with arrows indicating upward motion (no text or symbols)

Diagram of a mechanical component with arrows indicating motion or force (no text or symbols)

• Loosen the top cover as described under "Reversing the door opening" and disassemble the upper door hinge.
• Turn out the stand and disassemble the lower door hinge.
• The respective hinge assembly is carried out in reverse order.

- Open and close the appliance door for a test run, readjust the hinges if necessary. In any case, make sure that the door fits tightly and accurately.

Troubleshooting

Before you contact an authorized specialist

Problem / Cause / Action

Appliance is not working properly or at all

- Check the power supply / temperature setting / ambient temperature.- Unblock the ventilation openings, install the appliance freely.

Loading is too warm

- Check the temperature setting / ambient temperature.- A large quantity of warm food has been stored in the unit in the last 24 hours.- The appliance door is not closed properly, check the door seal.

Loud noise during operation

- Check that the appliance is level.- See "Operating noise".

Water on the appliance bottom

- Check the temperature setting.

iNOTE:

If a problem persists after following the steps above, contact your trader or an authorized technician.

Error codes

With some malfunctions, the display shows error codes!

Code	Causes
ht	Temperature rise
E0	Temperature sensor failure

Technical data

Climate class N/ST: this appliance is intended to be used at ambient temperature ranging from 16°C to 38°C.

Electrical connection....

Power voltage: 220-240 V\~ / 50 Hz

Rated power: 100 W

Rated current: 0.7 A

Dimension H x W x D / weight.....

Appliance size: 85.0 x 55.0 x 58.0 cm

Net weight: ....approx. 33.0 kg

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.

WARNING:

Remove or disable any existing snap and bolt locks if you take the appliance out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
