MWHGD23S - Microwaves VOX - Free user manual and instructions

Type	Microwave oven
Model	MWHGD23S (also MWHGD23W, MWHGD23B, MWHM23S)
Rated Voltage	230 V ~ 50 Hz
Rated Input Power (Microwave)	1250 W
Rated Output Power (Microwave)	800 W
Rated Input Power (Grill)	1000 W
Oven Capacity	23 L
Turntable Diameter	270 mm
External Dimensions	485 x 406 x 293 mm
Net Weight	Approx. 14.0 kg
Functions	Microwave, Grill, Combination (Combi), Weight Defrost, Time Defrost, Auto Menu (8 presets), Quick Start, Kitchen Timer, Clock, Child Lock
Microwave Power Levels	100%, 80%, 50%, 30%, 10%
Grill/Combi Modes	G (100% grill), C-1 (55% microwave + 45% grill), C-2 (36% microwave + 64% grill)
Auto Menus	Pizza, Meat, Vegetable, Pasta, Potato, Fish, Beverage, Popcorn
Cooking Time Range	0:05 to 95:00 (minutes)
Defrost Range (Weight)	100 to 2000 g
Safety Features	Door interlock system, child lock, grounding plug, overheat protection
Cleaning	Wipe cavity with damp cloth; clean accessories in soapy water; use lemon and water for easy cleaning
Accessories Included	Glass tray, turntable ring assembly, grill rack, instruction manual
Installation Type	Countertop (freestanding), not for built-in or over-range
Warranty	Not specified in manual; refer to retailer

Frequently Asked Questions - MWHGD23S VOX

How do I set the clock on the VOX MWHGD23S microwave?

Press Kitchen Timer/Clock twice. The hour digits will flash. Turn the dial to set hours (0-23). Press the same button again; minute digits flash. Turn the dial to set minutes (0-59). Press Kitchen Timer/Clock to confirm. The colon will flash and time is set.

What is the correct way to use microwave cooking?

Press Microwave repeatedly to select power level (P100, P80, P50, P30, P10). Press Start/+30Sec./Confirm. Turn the dial to set cooking time (0:05 to 95:00). Press Start/+30Sec./Confirm again to start.

How do I use the grill or combination cooking?

Press Grill/Combi. repeatedly to choose G (grill only), C-1 (55% microwave + 45% grill), or C-2 (36% microwave + 64% grill). Press Start/+30Sec./Confirm, then set time. Press start again. For better grilling, turn food over after half the time and continue.

Can I use metal utensils or aluminum foil in the microwave?

No. Metal utensils, aluminum trays, and metal twist ties can cause arcing and fire. Transfer food to microwave-safe dishes. Only use microwave-safe plastic, glass, ceramic, and paper products as listed in the manual.

How do I clean the microwave oven?

Unplug the oven. Clean the cavity with a slightly damp cloth. For stubborn residue, place half a lemon in a bowl with 300ml water and heat on 100% power for 10 minutes, then wipe clean. Do not use abrasive cleaners or metal scrapers on the door glass.

How do I activate the child lock?

In waiting state, press and hold Stop/Clear for 3 seconds. A long beep sounds and a lock indicator appears. To release, press and hold Stop/Clear again for 3 seconds.

How do I defrost food by weight or time?

For weight defrost, press Weight Defrost (displays dEF1), turn the dial to select weight (100-2000g), press start. For time defrost, press Time Defrost (dEF2), set time, press start. Defrost power is fixed at P30.

My microwave oven won't start. What should I check?

First, ensure the power cord is plugged in tightly. If still not starting, check if the door is properly closed. If the fuse is blown or circuit breaker tripped, replace/reset. Test the outlet with another device. If problem persists, contact a qualified service person.

What are the recommended utensils for microwave cooking?

Use microwave-safe glass, ceramic, plastic (labeled microwave safe), paper plates/cups, and parchment paper. Avoid metal, aluminum foil, and plastic foam. Always test an empty utensil by heating with a cup of water for 1 minute – if warm, do not use.

How do I use the Auto Menu function?

Turn the dial clockwise to select a menu (A-1 to A-8). Press Start/+30Sec./Confirm. Then turn the dial to select the weight/quantity. Press start again. Refer to the menu chart for correct weight options for pizza, meat, vegetables, pasta, potato, fish, beverage, and popcorn.

USER MANUAL MWHGD23S VOX

Abstract black-and-white geometric pattern with diagonal stripes inside a circle (no text or symbols)

VOX

ELECTRONICS

MWHGD23W / MWHGD23B / MWHM23S

OPERATING INSTRUCTIONS MICROWAVE OVEN MANUALE DELL'UTENTE FORNO A MICROONDE BEDIENUNGSANLEITUNG MIKROWELLE ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ МИКРОВОЛНОВАЯ ПЕЧЬ

UPUTSTVO ZA UPOTREBU MIKROTALASNA RERNA MANUAL DE USUARIO MICROONDAS MANUAL DO USUÁRIO FORNO DE MICRO-ONDAS ΕΓΧΕΙΡΙΔΙΟ ΧΡΗΣΤΗ ΦΟΥΡΝΟΣ ΜΙΚΡΟΚΥΜΑΤΩΝ NAVODILA ZA UPORABO MIKROVALOVNA РЕČICA UPUTE ZA UPORABU MIKROVALNA РЕĆNICA UPUTSTVO ZA UPOTREBU MIKROTALASNA RERNA УПАТСТВА ЗА РАКУВАНЬЕ МИКРОБРАНОВА ПЕЧКА MANUALI I PERDORUESIT FURRA MIKROVALORE

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

GBR

Microwave Oven

INSTRUCTION MANUAL

MWHGD23W / MWHGD23B / MWHM23S

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.

(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

ADDENDUM

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

Specifications

Model:	MWHGD23W / MWHGD23B / MWHM23S
Rated Voltage:	230V~50Hz
Rated Input Power(Microwave):	1250W
Rated Output Power(Microwave):	800W
Rated Input Power(Grill):	1000W
Oven Capacity:	23L
Turntable Diameter:	270mm
External Dimensions:	485x406x293mm
Net Weight:	Approx. 14.0 kg

IMPORTANT SAFETY INSTRUCTIONS WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

1. Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".

2. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Children less than 8 years of age shall be kept away unless continuously supervised.

3. Keep the appliance and its cord out of reach of children less than 8 years.

4. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. (For appliance with type Y attachment)

5. WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

6. WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

7. WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

8. When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

9. Only use utensils that are suitable for use in microwave ovens.

10. If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

11. Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

12. The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

13. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.

14. The oven should be cleaned regularly and any food deposits removed.

15. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

16. The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)

17. Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

18. The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

19. The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

20. This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-by clients in hotels, motels and other residential type environments; -farm houses;

-bed and breakfast type environments.

1. The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
2. Metallic containers for food and beverages are not allowed during microwave cooking.
3. The appliance shall not be cleaned with a steam cleaner.
4. The appliance is intended to be used freestanding.
5. The rear surface of appliances shall be placed against a wall.
6. The appliances are not intended to be operated by means of an external timer or separate remote-control system.
7. The temperature of accessible surfaces may be high when the appliance is operating.
8. WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce the Risk of Injury to Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is

properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

2. If a long cord set or extension cord is used:

1) The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.
2) The extension cord must be a grounding-type 3-wire cord.
3) The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

UTENSILS

CAUTION Personal

Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment Paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

UtensilsAluminum tray	RemarksMay cause arcing. Transfer food into microwave-safe dish
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish
Metal or metal- utensils cause	Metal shields the food from microwave energy. Metal trim may trimmed arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SETTING UP YOUR OVEN

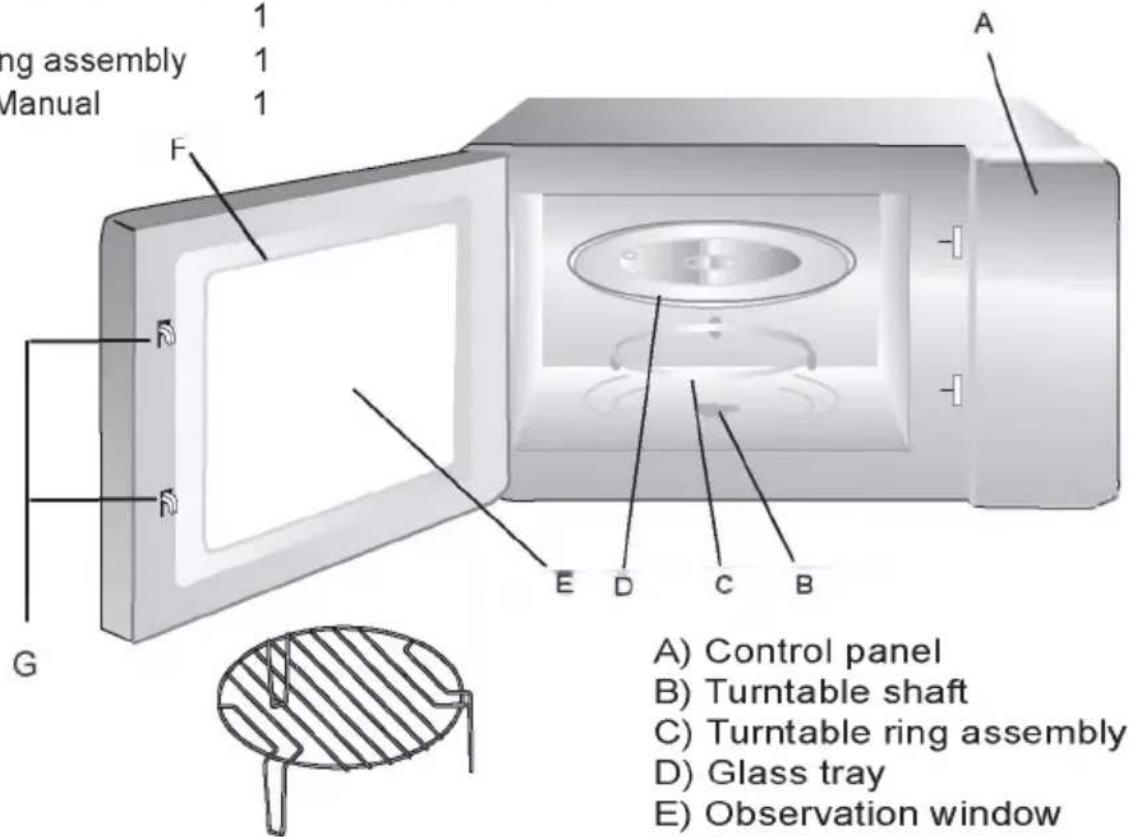

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

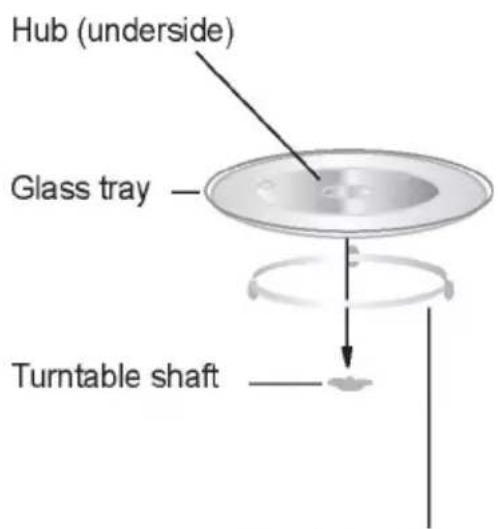

Turntable Installation

Turntable ring assembly

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

Countertop Installation

Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Installation

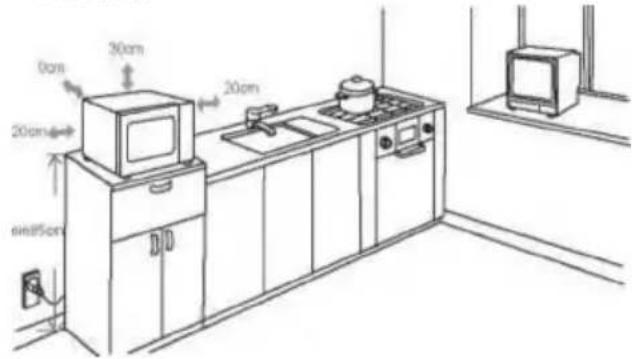

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.

(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.

(4) Blocking the intake and/or outlet openings can damage the

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

oven.

(5) Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING: Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be

void.

The accessible surface may be hot during opera

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the screen will display "0:00", buzzer will ring once.

1) Press "Kitchen Timer/Clock" twice to select clock function, the hour figures will flash.
2) Turn " 🔍 " to adjust the hour figures, the input time should be within 0--23.
3) Press "Kitchen Timer/Clock", the minute figures will flash.
4) Turn " 🔍 " to adjust the minute figures, the input time should be within 0--59.
5) Press "Kitchen Timer/Clock" to finish clock setting. ":" will flash, and the time will light.

Note: 1) If the clock is not set, it would not function when powered.

2) During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press " Microwave " once, the screen will display "P100". Press " Microwave " repeatedly or turn " "to choose the power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press. Then press" Start/+30Sec./Confirm " to confirm, and turn " " to set cooking time from 0:05 to 95:00. Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press " Microwave " once, the screen display "P100".
2) Press " Microwave " once again or turn" " to choose 80% microwave power.
3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "20:00".
5) Press " Start/+30Sec./Confirm " to start cooking.

Note: the step quantities for the adjustment time of the coding switch are as follow:

"Microwave" Pad instructions

Order	Display	Microwave Power
1	P100	100%
2	P80	80%
3	P50	50%
4	P30	30%
5	P10	10%

3. Grill or Combi. Cooking

Press " Grill/Combi. " once, the screen will display"G", and press " Grill/Combi. " repeatedly or turn the " " to choose the power you want, and "G", "C-1" or "C-2" will display for each added press. Then press " Start/+30Sec./Confirm "to confirm, and turn " " to set cooking time from 0:05 to 95:00. Press " Start/+30Sec./Confirm " again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press " Grill/Combi." once, the screen display "G".
2) Press " Grill/Combi. " once again or turn " " to choose combi. 1 mode.
3) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "C-1".
4) Turn " 🔍 " to adjust the cooking time until the oven displays "10:00".
5) Press " Start/+30Sec/Confirm " to start cooking.

"Grill/Combi." Pad instructions

Order	Display	Microwave Power	Grill Power
1	G	0%	100%
2	C-1	55%	45%
3	C-2	36%	64%

Note: If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Start/+30Sec./Confirm" to continue cooking. If no operation, the oven will continue working.

4. Quick Start

1) In waiting state, Press "Start/+30Sec./Confirm" to start cooking with 100% power for 30 seconds, each added press will increase 30 seconds cooking time up to 95 minutes.
2) In microwave, grill, combination cooking or time defrost state, each press of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time.
3) In waiting state, turn " " left to set cooking time with 100% microwave power. After choosing the cooking time, press " Start/+30Sec./Confirm " to start cooking.

5. Defrost By Weight

1) Press " Weight Defrost " once, and the oven will display "dEF1".
2) Turn " 🔍" to select the weight of food from 100 to 2000 g.
3) Press " Start/+30Sec./Confirm " to start defrosting.

6. Defrost By Time

1) Press " Time Defrost " once, and the oven will display "dEF2".
2) Turn " 🔍" to select the defrost time. The MAX time is 95 minutes.
3) Press " Start/+30Sec./Confirm " to start defrosting. The defrost power is P30, and it can not be changed.

7. Kitchen Timer

1) Press "Kitchen Timer/Clock." once, the screen will display 00:00, clock indicator will light.
2) Turn " 🔍 " to enter the correct time.(The maximum cooking time is 95 minutes.)
3) Press " Start/+30Sec/Confirm" to confirm setting, clock indicator will be flash.
4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times. If the clock be set(24-hour system), the screen will display the current time.

Note: The kitchen Time is differ from 24-hour system, Kitchen Timer is a timer.

8. Auto Menu

1) Turn " ” right to choose the menu, and "A-1" to "A-8" will display, which means pizza, meat, vegetable, pasta, potato, fish, pasta, beverage and popcorn.

2) Press " Start/+30Sec./Confirm " to confirm.

3) Turn " 🔍" to choose the default weight as the menu chart.

4) Press " Start/+30Sec./Confirm " to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1) Turn " clockwise till "A-6" display.

2) Press " Start/+30Sec./Confirm " to confirm.

3) Turn " " to select the weight of fish till "350" display.

4) Press " Start/+30Sec./Confirm " to start cooking.

The menu chart:

Menu	Weight	Display
A-1 Pizza	200 g	200
	400 g	400
A-2 Meat	250 g	250
	350 g	350
	450 g	450
A-3 Vegetable	200 g	200
	300 g	300
	400 g	400
A-4 Pasta	50g(with 450 ml cold water)	50
	100g(with 800ml cold water)	100
A-5 Potato	200 g	200
	400 g	400
	600 g	600
A-6 Fish	250 g	250
	350 g	350
	450 g	450
A-7 Beverage	1 cup(120 ml)	1
	2 cups(240 ml)	2
	3 cups(360ml)	3
A-8 Popcorn	50 g	50
	85 g	85
	100 g	100

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press " Time Defrost " once, and the oven will display "dEF2".

2) Turn " 🔍 " to select the defrost time till "5:00" display.

3) Press " Microwave " once, the screen display "P100".

4) Press " Microwave " once again or turn " " to choose 80% microwave power.

5) Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P 80".

6) Turn " 🔍 " to adjust the cooking time till the oven displays "7:00".

7) Press "Start/+30Sec/Confirm" to start cooking, and buzzer will sound once for the first section, defrosting time counts down; When defrosting finish, buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

10. Inquiring Function

1) In states of microwave, grill and combination cooking, press "Microwave", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;

2) In cooking state, press "Kitchen Timer/Clock" to inquire the time and the time will display for 3 seconds.

11. Lock-out Function for Children

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long beep denoting entering the children-lock state and the locked indicator will display and current time will display if the time has been set, otherwise, the screen will display "[::]".

Lock quitting: In locked state, press "Stop/Clear" for 3 seconds, there will be a long "beep" denoting that the lock is released.

Trouble shooting

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside.It is very dangerous.

Trouble	Possible Cause	Remedy
Oven can not be started.	(1) Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	(4) Door not closed well.	Close door well.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

According to Waste of Electrical and Electronic Equipment (WEEE) directive, WEEE should be separately collected and treated. If at any time in future you need to dispose of this product please do NOT dispose of this product with household waste. Please send this product to WEEE collecting points where available.

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ITA

Forno a microonde

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installazione

Warning symbol of a steam inside a triangle (no text or numbers)

Istruzioni

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

DEU

Mikrowelle

BEDIENUNGSANLEITUNG

MWHGD23W / MWHGD23B / MWHM23S

Simple line drawing of a trash bin with crossed lines and a blank rectangular base (no text or symbols)

Abstract black-and-white geometric pattern with diagonal stripes inside a circle (no text or symbols)

VOX

ELECTRONICS

RUS

Микроволновая печь

ИНСТРУКЦИЯ ПО

ЭКСПЛУАТАЦИИ

MWHGD23W / MWHGD23B / MWHM23S

Symbol of a trash bin crossed with no visible text or labels

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SRB

Mikrotalasna rena UPUTSTVO ZA UPOTREBU

MWHGD23W / MWHGD23B / MWHM23S

PREDOSTROŽNOSTI ZA IZBEGAVANJE MOGUĆEG PREKOMERNOG IZLAGANJA MIKROTALASNOJ ENERGIJI

VAŽNA SIGURNOSNA UPUTSTVA UPOZORENJE

Za smanjenje rizika od požara, strujnog udara, fizičkih povreda ili prekomernog izlaganja mikrotalasnoj energiji prilikom upotrebe Vašeg uređaja, molimo da se pridržavate osnovnih mera predostrožnosti, uključujući i sledeće:

1. Pročitajte i pridržavajte se "PREDOSTROŽNOSTI ZA IZBEGAVANJE MOGUĆEG PREKOMERNOG IZLAGANJA MIKROTALASNOJ ENERGIJI".

2. Ovaj uređaj mogu koristiti deca uzrasta iznad 8 godina starosti, kao i osobe sa smanjenim fizičkim, čulnim ili mentalnim sposobnostima ili nedostatkom iskustva i znanja, ako su pod nadzorom ili poseduju instrukcije za upotrebu aparata na bezbedan način uz razumevanje opasnosti rukovanja. Deca ne treba da se igraju sa aparatom. Čišćenje i održavanje ne bi trebalo da obavljaju deca koja nisu starija od 8 godina i pod nadzorom.

3. Držite aparat i njegov kabl van domašaja dece mlađe od 8 godina.

4. Ukoliko je strujni kabl oštećen, mora ga zameniti proizvođač, njegov serviser ili slično kvalifikovana osoba kako bi se izbegle povrede. ( Za uređaje sa Y dodatkom)

5. UPOZORENJE: Uverite se da je uređaj isključen pre menjanja sijalice kako biste izbegli mogućnost strujnog udara.

6. UPOZORENJE: Opasno je da bilo ko osim nadležne osobe izvodi bilo kakve popravke ili popravke koje uključuju uklanjanje poklopca koji štiti od izloženosti mikrotalasnoj energiji.

7. UPOZORENJE: Tečnosti i drugu hranu ne zagrevati u zatvorenim posudama jer su podložne eksplozijama.

8. Prilikom grejanja hrane u plastičnim ili papirnim posudama pazite na rernu zbog opasnosti od vatre.

9. Koristite samo posuđe prikladno za upotrebu u mikrotalasnim rernama.

10. U slučaju pojave dima, ugasite rernu ili je isključite iz struje, te držite zatvorena vrata rerne kako bi se sprečila pojava plamena.

11. Mikrotalasno zagrevanje pića može dovesti do odloženog eruptivnog vrenja, te morate biti pažljivi pri rukovanju ambalažom.

12. Sadržaj flašica za hranjenje i teglica sa hranom za bebe treba promešati ili promućkati pre upotrebe i proveriti temperaturu samog sadržaja kako bi se izbegle opekotine.

13. Jaja u ljusci i cela tvrdo kuvana jaja ne treba grejati u mikrotalasnim rernama, jer mogu eksplodirati, čak i nakon završetka mikrotalasnog grejanja.

14. Rernu treba redovno čistiti i uklanjati sve naslage hrane.

15. Ukoliko ne održavate rernu u čistom stanju, može doći do oštećenja njene površine što negativno utiče na radni vek samog aparata, a i dovodi do potencijalnih opasnosti.

16. Uređaj se ne sme postavljati iza ukrasnih vrata kako bi se izbeglo pregrevanje. (Ovo se ne odnosi na uređaje sa ukrasnim vratima).

17. Koristite samo temperaturnu sondu koja se preporučuje za ovu rernu. (za rerne sa mogućnošću upotrebe temperaturne sonde)

18. Mikrotalasna rena ne sme se postavljati u ormar, osim ako nije testirana u samom ormaru.

19. Mikrotalasna rena mora da radi sa otvorenim ukrasnim vratima. (za rerne sa ukrasnim vratima)

20. Ovaj aparat je namenjen upotrebi u domaćinstvu i sličnim objektima kao što su:

-kuhinja za osoblje,kancelarije i slična radna okruženja

-u hotelima, motelima i sličnim rezidencijalnim okruženjima

-seoskim kućama;

-prenoćištima.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Prema Direktivi za otpadnu električnu i elektronsku opremu (WEEE), otpadna električna i elektronska oprema treba zasebno da se prikuplja i prerađuje. Ako u nekom trenutku u budućnosti bude potrebno da odložite ovaj proizvod, NEMOJTE ga bacati zajedno sa kućnim otpadom. Pošaljite ovaj proizvod centru za prikupljanje otpadne električne i elektronske opreme, ukoliko isti postoji.

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ESP

Microondas

MANUAL DE USO

MWHGD23W / MWHGD23B / MWHM23S

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

horno.

Symbol of a trash bin crossed with no visible text or labels

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

PRT

Forno Microondas

MANUAL DE INSTRUÇÕES

MWHGD23W / MWHGD23B / MWHM23S

PRECAUÇÕES PARA EVITAR POSSÍVEIS EXPOSIÇÕES A POTÊNCIA EXCESSIVA DO MICROONDAS

Diagram of a mechanical assembly with a circular component and a downward force arrow (no text or symbols)

Instruções de uso

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Abstract black-and-white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

SVN

Mikrovalovna pečica

NAVODILA ZA

UPORABO

MWHGD23W / MWHGD23B / MWHM23S

VARNOSTNI UKREPI ZA IZOGIBANJE PREKOMERNEMU

IZPOSTAVLJANJU MIKROVALOVNEMU SEVANJU

Navodila za uporabo

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Abstract black-and-white geometric pattern with diagonal stripes inside a circle (no text or symbols)

VOX

ELECTRONICS

HRV

Mikrovalna pećnica UPUTE ZA UPORABU

MWHGD23W / MWHGD23B / MWHM23S

MJERE OPREZA ZA IZBJEGAVANJE MOGUĆEG PREKOMJERNOG IZLAGANJA MIKROVALNOJ ENERGIJI

a) Ne pokušavajte koristiti ovu pećnicu sa otvorenim vratima, jer to može rezultirati štetnim izlaganjem mikrovalnoj energiji. Važno je ne lomiti ili ne rotirati preinake na sigurnosnoj bravi.

b) Ne stavljajte nikakve predmete između prednje strane pećnice i vrata, ne dopuštajte nakupljanje prljavštine ili sredstava za čišćenje na brtvenim površinama.
c) UPOZORENJE: Ukoliko su vrata ili brtve oštećene, pećnica ne smije da se koristi sve dok ih ne zamjeni stručna osoba.

DODATAK

Symbol of a trash bin crossed with no visible text or labels

Sukladno Direktivi za otpadnu električnu i elektroničku opremu (WEEE), otpadna električna i elektronska oprema treba odvojeno da se prikuplja i prerađuje. Ako u nekom trenutku u budućnosti bude potrebno da odložite ovaj proizvod, NEMOJTE ga bacati zajedno sa kućanskim otpadom. Pošaljite ovaj proizvod odlagalištu električne i elektronske opreme, ukoliko isto postoji.

Abstract black-and-white geometric pattern with diagonal stripes inside a circle (no text or symbols)

VOX

ELECTRONICS

BIH

MNE

Mikrotalasna rena UPUTSTVO ZA UPOTREBU

MWHGD23W / MWHGD23B / MWHM23S

MJERE OPREZA ZA IZBJEGAVANJE MOGUĆEG PREKOMJERNOG IZLAGANJA MIKROTALASNOJ ENERGIJI

a) Ne pokušavajte koristiti ovu rernu sa otvorenim vratima, jer to može rezultirati štetnim izlaganjem mikrotalasnoj energiji. Važno je ne lomiti ili ne rotirati bezbjedosne spojeve na bravi.

b) Ne stavljajte nikakve predmete između prednje strane rerne i vrata, ne dopuštajte nakupljanje prljavštine ili sredstava za čišćenje na površinama za dihtovanje.
c) UPOZORENJE: Ukoliko su vrata ili vratni dihtunzi oštećeni, rena ne smije da se koristi sve dok ih ne zamjeni stručna osoba.

DODATAK

Ukoliko se uređaj ne održava čistim, to može da utiče na njegovu površinu i radni vijek, te da dovede do opasnih situacija.

Specifikacije

Model:	MWHGD23W / MWHGD23B / MWHM23S
Radni napon:	230V~50Hz
Nazivna ulazna snaga (mikrovalovi):	1250W
Nazivna izlazna snaga (mikrovalovi):	800W
Nazivna ulazna snaga (roštilj):	1000W
Kapacitet pećnice:	23L
Prečnik okretnog tanjira:	270mm
Spoljašnje dimenzije:	485x406x293mm
Neto težina:	oko 14.0 kg

VAŽNE SIGURNOSNA UPUTSTVA UPOZORENJE

Za smanjenje rizika od požara, strujnog udara, fizičkih povreda ili prekomjernog izlaganja mikrotalasnoj energiji prilikom korišćenja Vašeg uređaja, molimo da se pridržavate osnovnih mjera opreza, uključujući i sljedeće:

Symbol of a trash bin with no text or numbers, crossed by diagonal lines and a solid black rectangle below (no text or symbols present)

U skladu sa Direktivom za otpadnu električnu i elektronsku opremu (WEEE), otpadna električna i elektronska oprema treba odvojeno da se prikuplja i preraduje. Ako u nekom trenutku u budućnosti bude potrebno da odložite ovaj proizvod, NEMOJTE ga bacati zajedno sa kućnim otpadom. Pošaljite ovaj proizvod odlagalištu električne i elektronske opreme, ukoliko isto postoji.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Abstract black and white geometric pattern with diagonal stripes (no text or symbols)

VOX

ELECTRONICS

ALB

Furra mikrovalore UDHËZIMI PËR PËRDORIM

MWHGD23W / MWHGD23B / MWHM23S

MASAT PËR PARANDALIMIN E EKSPONIMIT TË TEPËRT NDAJ ENERGJISË MIKROVALORE

Diagram of a mechanical component with a central circular base and downward force arrow, no text or symbols present.

Vendosja e enes rrotulluese

"Grill/Combi." Udh >zim

Numri rendor	Displej	Fuqia mikrovalore	Fuqia e grillit
1	G	0%	100%
2	C-1	55%	45%
3	C-2	36%	64%

3) Shtypni " " to choose the default eeight as the menu chart.

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)
