| Product Type | VandalDome Security Camera with IR |
| Model | MX-VD2A-2-IR-VA |
| Image Sensor | 2MP (1920x1080) Progressive CMOS (estimated based on model) |
| Lens | Motorized varifocal, F1.7, 3-9mm, autofocus, P-Iris |
| Horizontal Field of View | 103° (wide) to 35° (telephoto) |
| Day/Night | Automatic with mechanical IR cut filter |
| IR Illumination | Integrated IR LEDs, range up to 30 m |
| Wide Dynamic Range (WDR) | 120 dB |
| Video Compression | H.264, MJPEG |
| Maximum Frame Rate | 30 fps at 2MP (H.264) |
| Streaming | Up to 3 simultaneous streams |
| ONVIF Compliance | Profiles S, G |
| Ingress Protection | IP66 |
| Impact Protection | IK10 (vandal-resistant) |
| Operating Temperature | -30°C to 65°C |
| Power Supply | PoE IEEE 802.3af, DC 12V (2.12A), or AC 24V |
| Power Consumption | Max. 13.68 W |
| Weight | 760 g |
| Housing Material | Metal and plastic |
| Storage | MicroSD/SDHC/SDXC card slot (card not included), NAS support |
| Alarm I/O | 4 alarm inputs, 2 alarm outputs |
| Audio | 1 audio input, 1 audio output |
| Connectors | RJ45, DC12V, AC24V, alarm, audio |
| Warranty | 2 years |
Frequently Asked Questions - MX-VD2A-2-IR-VA Mobotix
User questions about MX-VD2A-2-IR-VA Mobotix
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Security Camera in PDF format for free! Find your manual MX-VD2A-2-IR-VA - Mobotix and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. MX-VD2A-2-IR-VA by Mobotix.
USER MANUAL MX-VD2A-2-IR-VA Mobotix
The New, Additional MOBOTIX MOVE Camera Program
The New MOBOTIX MOVE Camera Range Has Arrived! 3
MOBOTIX MOVE Key Technical Data 4
The most Important FAQs About MOBOTIX MOVE 6
Why Are The New Cameras Called "MOBOTIX MOVE" And Not Just "MOBOTIX" As Usual? 6
What Are The Ideal Applications For MOBOTIX MOVE Cameras? 7
What Is The Particular Advantage Of A MOBOTIX MOVE Camera As Compared (At First Glance) With A Comparable Standard Camera From Another Provider? 7
What Are The Key Functions Of MOBOTIX MOVE Cameras? 7
What Advantages Does WDR (Wide Dynamic Range) Provide? 7
Will The MOBOTIX MOVE Cameras Also Be Produced In The MOBOTIX Factory In Germany? 8
Do The MOBOTIX MOVE Cameras Use The Same So ware As The Mx6 Video Systems? 8
What Are The System Requirements For Using MOBOTIX MOVE Camera So ware In A Browser? 10
What Operating Manuals Are Available For MOBOTIX MOVE Cameras? 10
What Accessories Are Available For The MOBOTIX MOVE Cameras? 10
What Are The Key Differences Between MOBOTIX MOVE Cameras And MOBOTIX Mx6 Video Systems?
11
The New MOBOTIX MOVE Camera Range Has Arrived!
Our MOBOTIX camera portfolio is broader than ever in terms of technology – these products will have you perfectly equipped for virtually any video project and enable you to meet virtually any requirement!
MOBOTIX has added the new MOBOTIX MOVE series to their current Mx6 camera range. There are four camera models: 2x PTZ SpeedDome, 1x bullet camera, 1x VandalDome. These thoroughly weatherproof, high-quality IP cameras are equipped with the latest standard functions of centralized video systems, such as integrated infrared lighting, automatic day/night switching with a mechanical IR blocking filter, Wide Dynamic Range and High Speed PTZ.
MOBOTIX MOVE is the perfect supplementary range along with our decentralized premium video systems for the newest Mx6 technology platform.
Enjoy the largest variety of technical possibilities of all time with MOBOTIX. Please note: MOBOTIX MOVE cameras are centralized video systems in ONVIF S/G format with H.264 and typically require additional centralized data storage (NAS) and a video management system that supports the ONVIF standard.
MOBOTIX MOVE Cameras - The Key Technical Data In Comparison
 |  |  |  | |
| Type VandalDome with IR LED BulletCamera with IR LED SpeedDome SpeedDome with IR LED | ||||
| Camera name MOBOTIX MOVEVD-4-IR | MOBOTIX MOVEBC-4-IR | MOBOTIX MOVESD-330 | MOBOTIX MOVESD-340-IR | |
| Order number Mx-VD1A-4-IR Mx-BC1A-4-IR Mx-SD1A-330 Mx-SD1A-340-IR | ||||
| Special features Weatherproof ONVIF S/G dome camera with integrated IR LEDs (up to 30 m) for use during day or night | Weatherproof ONVIF S/G bullet camera with integrated IR LEDs (up to 30 m) for use during day or night | Weatherproof, motorized ONVIF S/G dome PTZ camera | Weatherproof, motorized ONVIF S/G dome PTZ camera with integrated IR LEDs (up to 200 m) for use during day or night | |
| Optional accessories (order no.) | Wall mount (Mx-M-VD-W), pole mount (Mx-M-VD-P), corner mount (Mx-M-VD-C), in-ceiling set (Mx-M-VD-IC), transparent/tinted dome (Mx-A-VD-DCT/Mx-A-VD-DCS) | Wall mount (Mx-M-BC-W), pole mount (Mx-M-BC-P) | Wall mount (Mx-M-SD-W), pole mount (Mx-M-SD-P), corner mount (Mx-M-SD-C), transparent/tinted dome (Mx-A-SD-DCT/Mx-A-SD-DCS) | Wall mount (Mx-M-SD-W), pole mount (Mx-M-SD-P), corner mount (Mx-M-SD-C) |
| Image Sensor 4MP (2688 x 1512), 1/3" Progressive CMOS 3MP (2065 x 1533), 1/2.8" Progressive CMOS | ||||
| Max. frame rate 4MP/3MP@30 fps (H.264, with or without activated WDR function); MJPEG: 1080p@30 fps | ||||
| Day & Night Automatic day/night switching with mechanical blocking filter | ||||
| Minimal ambient lighting | Color: 0,1 luxBW: 0,01 lux | Color: 0,04 luxBW: 0,01 lux | Color: 0,04 luxBW: 0,002 lux | |
| Lens | Motorized Vario lens with "One Push" autofocus and P-iris ("precise" iris with automatic/mechanical adjustment to changing lighting situations) | |||
| Zoom | Remote Zoom | Up to 30x optical zoom | Up to 40x optical zoom | |
| Pan angle | - | 360° rotation (non-stop/endless pan) | ||
| Tilt angle | - | 120° (from -20° to +100°) | ||
| Focal Length | F1.7: 3–9 mm | F1.6: 4.3–129 mm | F1.6: 4.3–170 mm | |
| Image angle horizontal | 103° (wide) to 35° (telephoto) | 62° (wide) to 2° (telephoto) | 62° (wide) to 2° (telephoto) | |
| Image angle Vertical | 53° (wide) to 23° (telephoto) | 47° (wide) to 2° (telephoto) | 49° (wide) to 1° (telephoto) | |
| Video codecs | H.264, MJPEG | |||
| ONVIF | Profiles S, G | |||
| Streaming | Up to three H.264/MJPEG streams simultaneously | |||
| WDR | Yes (120 dB) | |||
| Integrated IR illumination | Yes (IR LEDs), max. range: 30 m | No | Yes (IR LEDs), max. range: 200 m | |
MOBOTIX MOVE Cameras - The Key Technical Data In Comparison
| IP/IK class IP66/IK10 (weatherproof and vandalism-protected) | ||||
| Ambient temperature | -30°C to 65°C (-22°F to 149°F)(without heating)Ten to 90 percent humidity | -40°C to 55°C (-40°F to 131°F)(without heating)Ten to 90 percent humidity | ||
| Power supply; power consumption | PoE IEEE 802.3af or DC 12V (2.12 A), or AC 24V;max. 13.68 W | PoE IEEE 802.3af or DC 12V (2.12 A), or AC 24V;max. 13.68 W | PoE IEEE 802.3at or DC 12V (2.12 A), or AC 24V;max. 25.4 W | UPoE (Universal PoE) or DC 12V (3.25 A), or AC 24V;max. 39 W |
| RTC battery SEIKO MS621-FL11E (integrated, safety data sheet available on demand) | ||||
| Storage Slot for SD card (microSD/microSDHC/microSDX, card not included with delivery); supports recording on NAS | ||||
| SD Cards tested by MOBOTIX | The max. capacity tested is 128 GB.There is no official white list available yet, but following cards have been tested successfully by MOBOTIX:Sony: SR-G1VM/128G > microSDXC Class 10 UHS-I U3;Toshiba: ADP-HS02/128G > microSDXC Class 10 UHS-I U3Kingston: SDC10G2/128G > microSDXC Class 10 UHS-I U1;ADATA: Premier ONE 128G > microSDXC UHS-II U3 Class 10Samsung: EVO 128G > microSDXC Class10 UHS-1(U1);SanDisk: ExtremePRO 128G > microSDXC UHS-I(V30)(A1) | |||
| Certifications CE/FCC, LVD | ||||
| Weight 760 g 780 g 2900 g 3800 g | ||||
| Connectors RJ45, Alarm IN (4x), Alarm OUT (2x), Audio IN, Audio OUT, DC12V and AC24V;additional for SpeedDomes: CVBS and RS-485 | ||||
| Housing Metal and plastic | ||||
| MTBF 40,000 hours | ||||
| Warranty Two years (no optional warranty extension available) | ||||
The most Important FAQs About MOBOTIX MOVE
Why Are The New Cameras Called "MOBOTIX MOVE" And Not Just "MOBOTIX" As Usual?
MOBOTIX MOVE
MOBOTIX are pioneers in decentralized video systems in which a camera isn't just a camera, but rather an intelligent, complete video solution. A decentralized MOBOTIX video system doesn't require a centralized recording device or the additional computing power of a workstation with centralized video management so ware (VMS). A MOBOTIX video system is simply connected to a network via Ethernet cable, supplied with power via PoE and then fully ready for use without an additional VMS (meaning without license fees, either)! Once it has been configured, the recording, video analysis with heat maps, people counting or behavioral detection, or the noise, light, motion and activity sensor of each individual camera will be perfectly controlled: in an automatic, event-controlled, intelligent and efficient way!
A er roughly 20 years of consistent technological advancement, we have elevated decentralized video technology to a new level of perfection, which is reflected in each Mx6 video system, that serves as intelligent IoT device. The decentralized MOBOTIX Mx6 video systems are the ideal choice for virtually every project that requires maximum video security, a long lifespan, functionality and data security!
Another special feature of MOBOTIX systems is their complete lack of mechanically moving parts. This, combined with their above-average lifespan, reliability and investment security, as well as virtually maintenance-free operation, has made MOBOTIX systems, which are developed and produced in Germany, legendary around the world.
However, conventional standard camera technologies, which are available on the market at all price and quality levels, have also been advancing further, and now offer functions that may correspond to binding requirements for certain projects. These requirements might be a motor-controlled PTZ solution, mechanical day/night switching with an IR blocking filter or compatibility with centralized video management systems in keeping with the ONVIF S and G standard.
Since MOBOTIX still does not wish to incorporate mechanically moving parts into their decentralized video systems for the reasons outlined above, certain MOBOTIX video systems also had to be supplemented with (for instance) PTZ cameras from other manufacturers in order to be able to fulfill customer requirements.
For these numerous reasons, and in order to be able to offer our customers everything from a single source, we decided to include our own MOBOTIX MOVE camera supplementary range in the MOBOTIX product
range. This contains the standard technologies that are most highly requested (according to the latest market analyses), thereby allowing customers to fulfill all product requirements with a high-quality MOBOTIX product solution in the future.
MOBOTIX = Without moving parts
MOBOTIX MOVE = With moving parts
Since, however, MOBOTIX MOVE cameras differ from decentralized MOBOTIX video systems technology on many counts, we are now offering these supplementary cameras under the new name MOBOTIX MOVE as an independent product line. In this context, "MOVE" stands for the use of mechanically moving parts in these cameras, as well as a nod to the fact that MOBOTIX have, in this case, parted with their previously strictly limited product policy of only offering decentralized video systems on the market. Or simply put, MOBOTIX MOVE opens up new possibilities!
What Are The Ideal Applications For MOBOTIX MOVE Cameras?
MOBOTIX MOVE cameras can be used in all projects subject to strict specifications regarding the camera technologies to be used and which (still) can't be combined with decentralized MOBOTIX complete video solutions; for example, VMS integration in keeping with the ONVIF standard is possible with MOBOTIX Mx6 cameras, but it isn't currently possible
in keeping with the ONVIF G standard. MOBOTIX MOVE is also a high-quality product solution that represents a timely supplement to a MOBOTIX system with a powerful, motor-controlled PTZ camera or a dome or bullet camera with WDR and integrated IR illumination.
What Is The Particular Advantage Of A MOBOTIX MOVE Camera As Compared (At First Glance) With A Comparable Standard Camera From Another Provider?
Many of our end customers would like to be able to procure all of their video technology from a single source, meaning directly from MOBOTIX. They can enjoy complete, seamless system installation from our MOBOTIX video experts all around the world, and have access to our professional MOBOTIX support
team. As a manufacturer known for particularly high-quality and reliable products, we can naturally vouch for the quality of MOBOTIX MOVE cameras, which are manufactured in keeping with the same high standards and production standards as all other MOBOTIX products are.
What Are The Key Functions Of MOBOTIX MOVE Cameras?
- Autofocus
- Wide Dynamic Range (WDR)
- Integrated smart event functions: external output, motion detection, network error detection, periodic event, manual trigger
- Motor zoom/focus that can be controlled via so ware/IRIS control with autofocus lens
• High-speed PTZ (for both SpeedDome cameras)
- Brightness-dependent color and BW image switching with automatic infrared blocking filter
- Integrated IR illumination (economical LED technology), not for SpeedDome SD-330

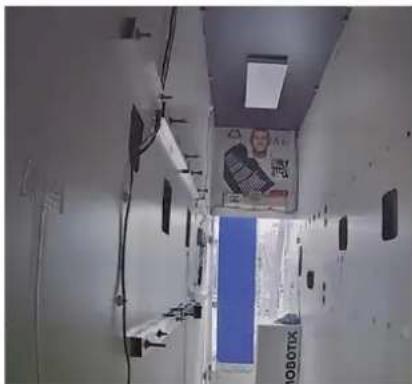

What Advantages Does WDR (Wide Dynamic Range) Provide?
The MOBOTIX MOVE cameras feature integrated, high-quality WDR image processing technology. This allows the cameras to automatically compensate for particularly strong
differences in brightness in the recorded scene independently through differing exposure times, and thereby avoid generating over- or underexposed areas in images.


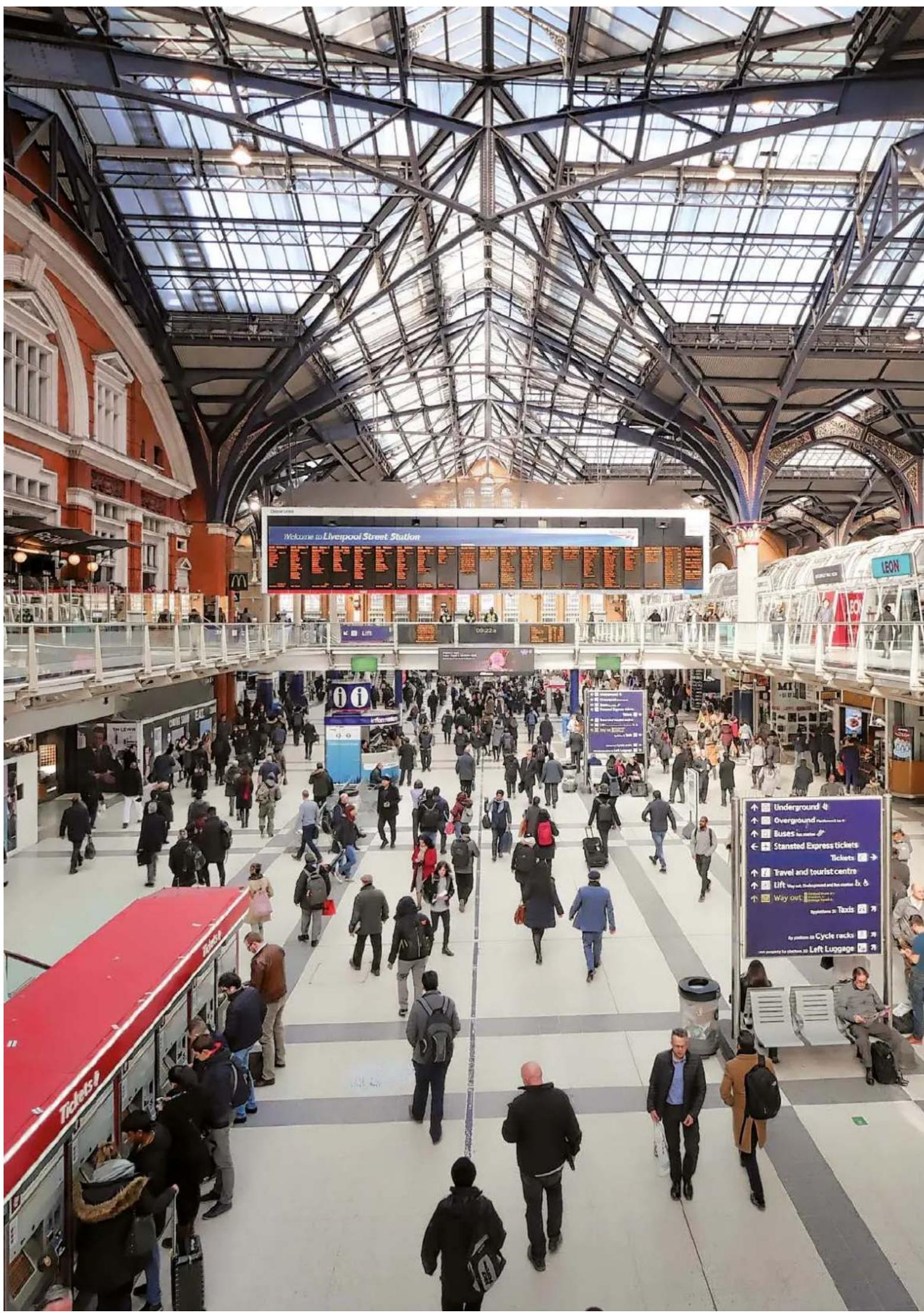

Wide Dynamic Range shows more frame details for applications with highly demanding light conditions (that combine very light and dark areas), such as in the entryways of
buildings, in store display windows and at loading bays or drive-in entrances to parking lots.
Lens Movement Sensor
Why Is Image Focusing Provided Via Autofocus?
For MOBOTIX MOVE cameras, it is not possible to manually focus lenses (which is usually only required once) in the MOBOTIX factory or on-site following a lens switch due to these cameras' motor-controlled, not purely digital (PT)Z functions. For this reason,
these cameras use a unique algorithm for a quick, reliable autofocus function. The camera focuses independently, automatically or at the push of a button, which means it quickly adjusts to each change in position and/or zoom level.
What Are The Special Features Of The Two MOBOTIX MOVE SpeedDome
Cameras?
The MOBOTIX SD-330 and SD-340-IR Speed-Dome cameras feature fine mechanical, very quickly reacting swivel and tilt technology, with an up to 40x optical zoom function that allows even far-off objects to be recorded, servo feedback technology and an electronic image stabilizer (EIS). The servo feedback technology ensures that the PTZ camera immediately returns to the default target monitoring area if external forces (such as vandalism or environmental vibrations) suddenly exert an influence. The EIS technology
can effectively generate stable images by actively recording the targeted motion of the images and compensating for this accordingly; this is particularly helpful when a high zoom level is set and the camera is installed in a place at which the environmental movements (such as from strong wind or trucks driving past) are not always constant.
MOBOTIX MOVE SpeedDome Cameras: More PTZ Features
| Pre-Sets The SpeedDome cameras support up to 256 Pre-Set positions. The positions including zoom and focus settings can be assigned via the web interface. | |
| Sequences Up to 8 sequences can be defined. Each can include up to 64 pre-set positions including configuration of the duration stay in each position. | |
| Cruise Path | Up to 8 cruise paths can be defined. The cruise path can be recorded and stored via the web interface. To stop the cameras cruise, simply move the camera via the PTZ control. |
| Auto Pan | Up to 4 auto pan paths can be defined. Speed, direction (left/right) and starting point can be defined via the web interface. |
| Home A home view can be defined by the operator. If the camera idles for a defined amount of time (1 – 128 minutes), it will automatically perform the defined action (e.g., move to a pre-set point or perform Auto Pan). | |
| Display Position Pan/Tilt degrees can be displayed in the live image (configured via text overlay settings). | |
| Tilt Angle Adjustable between -20° and +100° | |
| Pan Angle 360° endless pan | |
| Pan Speed Manual Pan Speed: 0.1° - 90°/s; Preset Pan Speed: 9° - 280°/s | |
| Tilt Speed Manual Tilt Speed: 0.1° - 60°/s; Preset Tilt Speed: 7° - 300°/s | |
| Joystick Control | The cameras support RS-485 protocols DSCP, PelcoD and PelcoP and therefore can be controlled by any joystick or keyboard supporting the same protocols. |
Will The MOBOTIX MOVE Cameras Also Be Produced In The MOBOTIX Factory In Germany?
We specify, test and qualify all MOBOTIX MOVE products at the MOBOTIX headquarters in Germany. However, the production itself is carried out by our technology partner in Taiwan, commissioned by us and working under strict specifications. The decisive cri-
teria for selecting this partner were above-average product quality and functionality as well as the fact that it guarantees our end customers an above-average level of cybersecurity for MOBOTIX MOVE products. However, please note that special features of our
Mx6 series that further increase data security (such as the MxFFS storage system with buffered archive or the MxPEG+ security video codec) are, depending on the system, not available for MOBOTIX MOVE cameras.
Do The MOBOTIX MOVE Cameras Use The Same So ware As The Mx6 Video Systems?
No, MOBOTIX MOVE cameras have their own, very easy to learn and use firmware that is delivered together with the camera and which can be easily operated via Web browser. Additionally, MOBOTIX MOVE cameras can also be integrated into many video management systems (VMS) by third-party providers (such as Milestone Systems), thanks to the ONVIF standards S and G.
A powerful VM hybrid solution, which is unique in that it has a modular structure, will also soon be available from MOBOTIX: The future MxManagementCenter 2.0 (release in Q4/2018) will make it possible to make optimal combined use of MOBOTIX MOVE cameras as well as MOBOTIX video systems (Mx6 and older) in parallel in one and the same video management system.

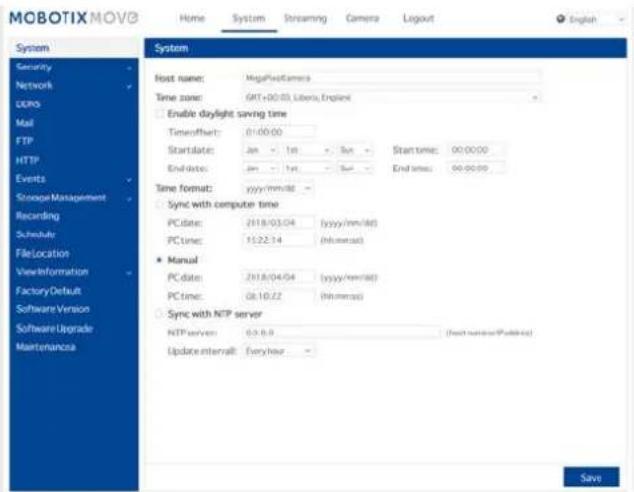

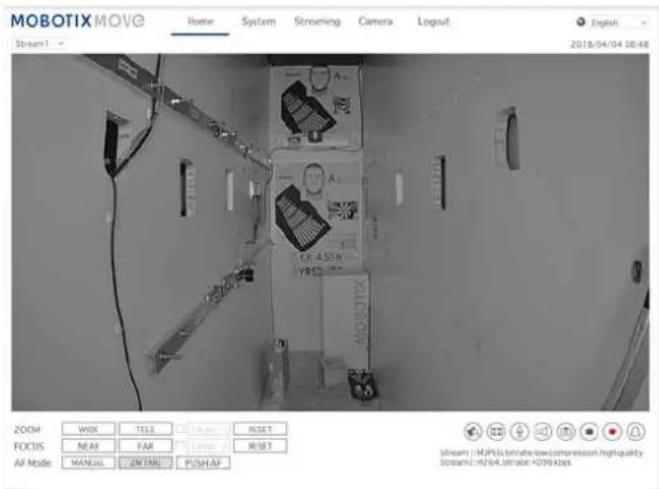

MOBOTIX MOVE camera firmware: Sample images
What Are The System Requirements For Using MOBOTIX MOVE Camera So ware In A Browser?
In order to be able to start the camera by entering the IP address through a Web browser (with the MOBTIX default access data:
admin / meinsm), please ensure that the PC has a good network connection and fulfills the following system requirements:
Components System requirements
PC Minimum: Intel® CoreTM i5-2430M @ 2.4 GHz or higher and 4 GB RAM Recommended: Intel® CoreTM i7-870 @ 2.493GHz or higher and 8 GB RAM
Operating System Windows VISTA / Windows XP / Windows 7 / Windows 10
Web browser Microso Internet Explorer 11.0 or higher (recommended), Chrome, Firefox, Safari
Network card 10Base-T (10 Mbps), 100Base-TX (100 Mbps) or 1000Base-T (1000 Mbps)
Viewer ActiveX control plug-in for Microsoft Internet Explorer
What Operating Manuals Are Available For MOBOTIX MOVE Cameras?
Each camera comes with a Quick Install guide included in the packaging. Technical datasheets and a camera and so ware
manual (instead of the usual MOBOTIX online operating help) are also available for download in PDF format from our website
(www.mobotix.com > Support > Download Center > Documentation >User Manuals > MOBOTIX MOVE Cameras).
What Accessories Are Available For The MOBOTIX MOVE Cameras?
For the launch, suitable wall, ceiling or corner mounts can be purchased for the MOBOTIX MOVE cameras. Replacement domes (clear or tinted) are also available. The MOBOTIX NPA PoE Set can be used for
the PoE power supply for a MOBOTIX MOVE camera (only for the Bullet and VandalDome camera), or the MOBOTIX MxSwitch (not for SpeedDome IR). Additionally required standard accessories for installing MOBOTIX
MOVE cameras, such as storage cards, power supply parts (if the power supply is not being set up via PoE), network cables and so on cannot be acquired from MOBOTIX directly.
What Are The Key Differences Between MOBOTIX MOVE Cameras And MOBOTIX Mx6 Video Systems?
| Sensor resolution 4MP/3MP 6 MP | ||
| Day/night sensors Automatic switching from color to BW night image (mechanical IR blocking filter) | Equipped with separate day and night sensors (dual lens camera); the color day sensor is also suitable for dimly lit scenarios (such as moonlight), thanks to Moonlight technology | |
| Lens Motorized Vario lens with autofocus, horizontal image angle of 1^ to 103^ (depending on model) | HD premium lens with fixed focus lengths, horizontal image angle of 8^ to 180^ (depending on model) | |
| H264/MJPEG Yes Yes | ||
| MxPEG+ No Yes | ||
| Streaming Up to three H.264/MJPEG streams simultaneously Multiple MxPEG/MJPEG streams, one H.264 stream | ||
| WDR Yes (120 dB) No | ||
| MxBUS-Anschluss No Yes (entire Mx6B series) | ||
| MiniUSB-Anschluss No Yes | ||
| Alarm In/Out Yes Via accessories (Interface Boxes) | ||
| MxMessageSystem No Yes | ||
| Basic Video Motion | Yes Yes | |
| Intelligent Video Analytics | No MxAnalytics (depending on model): Heat map, | people counting, behavior analysis |
| Intelligent Video Motion | No Yes | |
| SD card | SD card slot, ohne Karte | 4GB card pre-installed |
| Failover Storage System | No Yes (via MxFFS) | |
| ONVIF | Profil S, G | Profil S |
| Genetec Protocol (embedded) | No (Integration only via ONVIF) | Yes |
| MxThinClient integration | No Yes | |
| MxMC VMS integration | Yes, via ONVIF Swith MxMC 2.0 (starting in Q4/2018) | Yes, incl. Basic Config for MxMC 1.8 and later |
| MxBell App integration | No Yes | |
| MTBF | 40,000 hours | 80,000 hours |
| Standard warranty | Two years | Three years |
| Warranty extension | No Optional for up to eight years | |
MOBOTIX MOVE Bullet Camera: Ordering Information
Order number EAN Description
Mx-BC1A-4-IR 4047438031622 MOBOTIX MOVE Bullet Network Camera BC-4-IR • Image sensor: 4MP (2688x1520), 1/3" Progressive CMOS • Weatherproof ONVIF S / G bullet camera with built-in IR LEDs (up to 30m) for use with Day and night • Automatic changeover from color to B / W image (mechanical IR cut filter) • Remote Zoom • Motor-controlled Varifocal lens (F1.7: 3 to 9 mm, viewing angle HxV: 103° -35° x 53° -23°) with "One Push" autofocus and P-Iris with automatic adaptation to changing light situations • IP66, IK10 • Ambient temperature -30 to 65 °C, humidity 10 to 90% • Video codecs: H.264, MJPEG (up to 3 streams simultaneously) • Wide Dynamic Range (120 dB) • Max. Frame rate: 4MP @ 30B / s (H.264, with and without WDR enabled); MJPEG: 1080p @ 30 B / s • Power supply: PoE IEEE 802.3af or DC 12V (2.12 A) or AC 24V; max 13.68 W • Warranty: 2 years
Mx-M-BC-W 4047438031660 Wall mount
Mx-M-BC-P 4047438031677 Pole mount
MOBOTIX MOVE VandalDome Camera: Ordering Information
| Order number EAN Description | ||
 | Mx-VD1A-4-IR 4047438031639 MOBOTIX MOVE VandalDome Network Camera VD-4-IR • Weatherproof ONVIF S / G dome camera with integrated IR LEDs (up to 30 m) for day and night operation • Image sensor: 4MP (2688 x 1520), 1/3" Progressive CMOS • Automatic changeover from color to B / W image (mechanical IR cut filter) • Remote Zoom • Motor-controlled Varifocal lens (F1.7: 3 to 9 mm, viewing angle HxV: 103° -35° x 53° -23°) with "One Push" autofocus and P-Iris with automatic adaptation to changing light situations • IP66, IK10 • Ambient temperature -30 to 65°C, humidity 10 to 90% • Video codecs: H.264, MJPEG (up to 3 streams simultaneously) • Wide Dynamic Range (120 dB) • Max. Frame rate: 4MP @ 30B / s (H.264, with and without WDR enabled); MJPEG: 1080p @ 30 B / s • Power supply: PoE IEEE 802.3af or DC 12V (2.12 A) or AC 24V; max 13.68 W • Warranty: 2 years | |
 | Mx-M-VD-IC 4047438031684 In-ceiling set | |
 | Mx-M-VD-W 4047438031691 Wall mount | |
 | Mx-M-VD-P 4047438031707 Pole mount | |
 | Mx-M-VD-C 4047438031738 Corner mount | |
 | Mx-A-VD-DCT 4047438031721 Standard replacement dome | |
 | Mx-A-VD-DCS 4047438031714 Tinted replacement dome for particularly bright environments | |
MOBOTIX MOVE SpeedDome Cameras: Ordering Information
 | Order number EAN Description | |
| Mx-SD1A-330 4047438031646 MOBOTIX MOVE SpeedDome Network Camera SD-330 • Weatherproof motor-driven ONVIF S / G Dome PTZ camera • Up to 30x optical zoom • Image sensor: 3MP (2065 x 1533), 1/2.8" Progressive CMOS • Automatic changeover from color to B / W image (mechanical IR cut filter) • Automatic switching from color to B / W image (mechanical IR cut filter) • Motor-controlled Varifocal lens (F1.6: 4.3 to 129 mm, viewing angle HxV: 62° - 2° x 47° -2°) with "One Push" autofocus and P-Iris with automatic adaptation to changing light situations • IP66, IK10 • Ambient temperature -40 to 50°C, humidity 10 to 90% • Video codecs: H.264, MJPEG (up to 3 streams simultaneously) • Wide Dynamic Range (120 dB) • Max. Frame rate: 3MP @ 30 B / s (H.264, with and without WDR enabled); MJPEG: 1080p @ 30 B / s • Power supply: PoE IEEE 802.3at or DC 12V (2.12 A) or AC 24V; max 25.4 W • Warranty: 2 years(see image) | ||
 | Mx-SD1A-340-IR 4047438031653 MOBOTIX MOVE SpeedDome Network Camera SD-340-IR • Weatherproof, motorized ONVIF S / G dome PTZ camera with built-in IR LEDs (up to 200m) for day and night use • Up to 40x optical zoom • Image sensor: 3MP (2065 x 1533), 1/2.8" Progressive CMOS • Automatic changeover from color to B / W image (mechanical IR cut filter) • Motor-controlled Varifocal lens (F1.6: 4.3 to 170 mm, viewing angle HxV: 62° -2° x 49° -1°) with "One Push" autofocus and P-iris with automatic adaptation to changing light situations • IP66, IK10 • Ambient temperature -40 to 50°C, Humidity 10 to 90% • Video codecs: H.264, MJPEG (up to 3 streams simultaneously) • Wide Dynamic Range (120 dB) • Max. Frame rate: 3MP @ 30B / s (H.264, with and without WDR enabled); MJPEG: 1080p @ 30 B / s • Power supply: UPoE (Universal PoE) or DC 12V (3.25 A) or AC 24V; max 39 W • Warranty: 2 years (see image) | |
 | Mx-M-SD-W 4047438031745 Wall mount for both SpeedDomes and additional mount | |
 | Mx-M-SD-P 4047438031752 Pole mount, only in combination with wall mount | |
 | Mx-M-SD-C 4047438031769 Corner mount, only in combination with wall mount | |
 | Mx-A-SD-DCS 4047438031776 Tinted dome for SD-330, for particularly bright environments (not pictured) | |
 | Mx-A-SD-DCT 4047438031783 Standard dome for SD-330 (not pictured) | |
Notes:
EN_08/18
MOBOTIX AG
Kaiserstrasse
D-67722 Langmeil
Tel.: +49 6302 9816-104
Fax: +49 6302 9816-190
vertrieb@mobotix.com
www.mobotix.com
- The New, Additional MOBOTIX MOVE Camera Program
- The New MOBOTIX MOVE Camera Range Has Arrived! 3
- MOBOTIX MOVE Key Technical Data 4
- The most Important FAQs About MOBOTIX MOVE 6
- The New MOBOTIX MOVE Camera Range Has Arrived!
- The most Important FAQs About MOBOTIX MOVE
- MOBOTIX MOVE
- MOBOTIX = Without moving parts
- MOBOTIX MOVE = With moving parts
- What Are The Ideal Applications For MOBOTIX MOVE Cameras?
- What Is The Particular Advantage Of A MOBOTIX MOVE Camera As Compared (At First Glance) With A Comparable Standard Camera From Another Provider?
- What Are The Key Functions Of MOBOTIX MOVE Cameras?
- What Advantages Does WDR (Wide Dynamic Range) Provide?
- Why Is Image Focusing Provided Via Autofocus?
- What Are The Special Features Of The Two MOBOTIX MOVE SpeedDome
- Cameras?
- Will The MOBOTIX MOVE Cameras Also Be Produced In The MOBOTIX Factory In Germany?
- Do The MOBOTIX MOVE Cameras Use The Same So ware As The Mx6 Video Systems?
- Components System requirements
- MOBOTIX MOVE Bullet Camera: Ordering Information
- Order number EAN Description
- MOBOTIX AG
Brand : Mobotix
Model : MX-VD2A-2-IR-VA
Category : Security Camera
