USER MANUAL F 1045 W Zanussi-Electrolux

Line drawing of a front-loading washing machine with a circular vent and control panel (no text or symbols)

Important Safety Information

It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.

These warnings have been provided in the interest of safety. You MUST read them carefully before installing or using the appliance.

Installation

• This appliance is heavy. Care should be taken when moving it.
• It is dangerous to alter the specifications or attempt to modify this product in any way.
• All packing and transit bolts must be removed before use. Serious damage can occur to the product and to property if this is not adhered to. See relevant section in instructions.
• Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.
• Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
• Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air to circulate freely.

Child Safety

• This appliance is designed to be operated by adults. Children should not be allowed to tamper with the controls or play with the product.
• Pets and children have been known to climb into washing machines. Please check your drum before use.
• The glass door becomes very hot during the washing cycle. Keep children away from the vicinity of the appliance whilst it is in operation.
• Keep all packaging well away from children.
• Keep all detergents in a safe place out of children's reach.

Use

• Always unplug the appliance and turn off the water supply after use.
• Do not overload the appliance. See relevant section in the instruction book.
• Only wash fabrics which are designed to be machine washed. If in doubt, consult the care label on the clothes.
• Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn articles and treat stains such as paint, ink, rust, and grass before washing. Underwired bras must NOT be machine washed.
• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
• Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile cleaning fluids are used, care should be taken to ensure that the fluid is removed from the garment before placing in the machine.
• Wash small items such as socks, laces, washable belts etc in a washing bag or pillow case as it is possible for such items to slip down between the tub and the inner drum.
• Only use the advised quantities of fabric softener. Damage to the fabric can ensue if you over-fill. Refer to the manufacturer's recommendations of quantities.
• As some duvets and eiderdowns should be washed in large commercial machines because of their bulk, please check with the manufacturer of the item before washing in a domestic machine.
• Leave the porthole door slightly ajar between washes to preserve the door seal.
• Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Service Force Centre. Always insist on genuine Zanussi spare parts.

Contents

For the User

Important Safety Information 2

Your New Washing Machine 4

Description of the Appliance 5

Detergent dispenser drawer 5

Child safety feature 5

The Control Panel 6

Operating sequence 7-10

Washing 4.5 kg of white cotton at 95°C 7

Load the laundry 7

Measure out the detergent 7

Measure out the fabric softener 7

Select the required option 7

Select the required programme 7

Start the machine 8

At the end of the programme 8

Washing 2 kg of mixed fabrics at 50°C 9

Load the laundry 9

Measure out the detergent 9

Measure out the fabric softener 9

Select the required option 9

Select the required programme 9

Start the machine 9

At the end of the programme 10

Washing Hints 11-12

Which detergent?.... 12

And in which form? 12

Wash Care Symbols 13

Washing Programmes 14-15

Maintenance and Cleaning 16-17

Descaling 16

After each wash 16

Maintenance Wash 16

External cleaning 16

Cleaning the dispenser drawer 16

Cleaning the drawer recess 16

Cleaning the pump 16

The dangers of freezing 17

Something Not Working 18-19

Service and Spare Parts 19

Guarantee Conditions 20

For the Installer

Installation Instructions 21

Technical Specifications 21

Unpacking 22

Positioning 22

Water inlet 23

Water drainage 23-24

Levelling 24

Special conditions 24

In the interest of the environment 24

Electrical connection 25

Guide to use the Instruction Book

The following symbols will be found in the text to guide you throughout the instructions:

⚠️ Safety instructions

i Hints and tips

Environmental information

Your New Washing Machine

Your new washing machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption.

• Automatic cooling of the wash water to 60^ C before draining, with the 95^ C programme. This reduces thermal shock to fabrics, helping to prevent creasing.
• The special wool programme with its new delicate wash system treats your woollens with extreme care.
• The ECO VALVE allows total use of detergent and reduces water consumption so saving energy.

Ecological hints

To save water and energy and help protect the environment, we recommend that you follow these hints:

• Adjust the quantity of detergent according to the hardness of your water supply, the amount of laundry and the degree of soiling.
• A programme without prewash is sufficient for normally soiled laundry.
• The machine works more economically if it is fully loaded.
• With adequate pre-treatment, stains and limited soiling can be removed; the laundry can then be washed at a lower temperature, so saving energy.

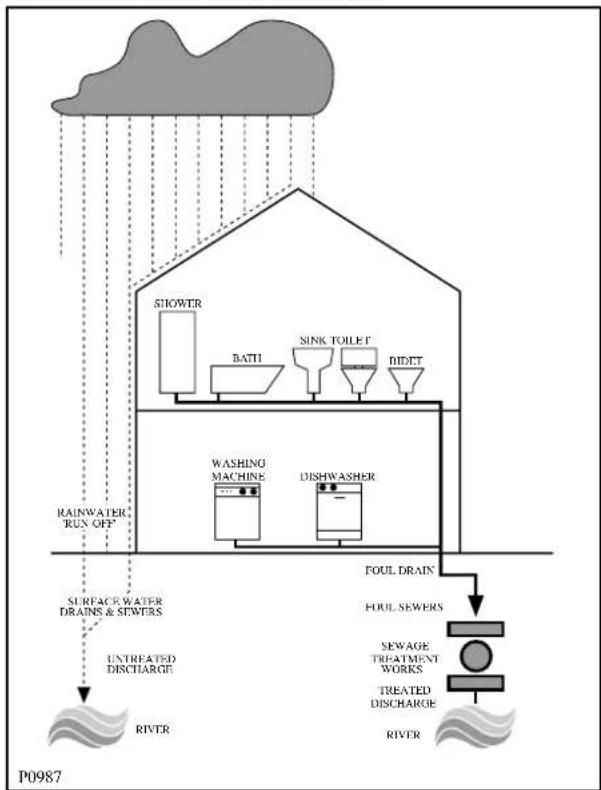

In the interest of the environment

• Materials marked with the symbol recyclable.
• Check with your local Council or Environmental Health Office to see if there are facilities in your area for re-cycling this appliance.
• When the appliance is to be scrapped, cut off the power supply cable and make the door lock device unusable to prevent young children from being trapped inside.
• Help to keep your country tidy - use authorised disposal sites for your old appliance.

How do we help to protect the environment? We use recycled paper!

Important

Your machine is fitted with a balance control de vice, which ensures the machine is stable during the spin. If the wash load appears not to have been spun sufficiently at the end of the wash cycle, because it is not evenly distributed in the drum, the balance control device may have operated. It will therefore be necessary to redistribute the wash load manually and select a spin programme. For more detailed information see the section headed "Something Not Working".

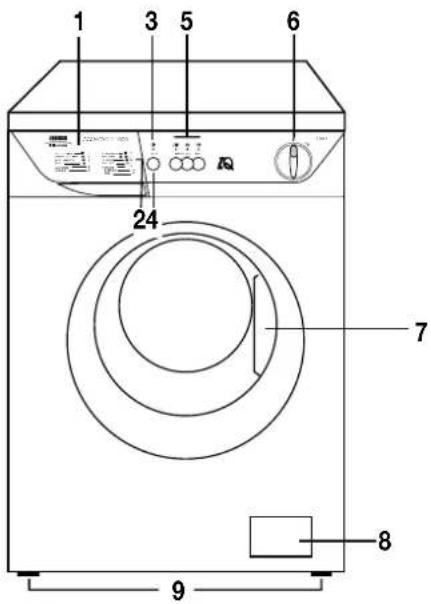

Description of the Appliance

1 Detergent dispenser drawer
2 Programme guide
3 "Mains-on" light
4 ON/OFF button
5 "Option" buttons
6 Programme selector dial
7 Door opening handle
8 Drain pump
9 Adjustable feet

1 3 5 6 24 7 8 9

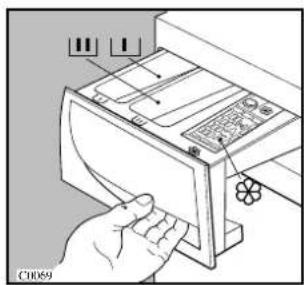

Detergent dispenser drawer

Prewash
Main wash
Fabric softener

Illustration of a hand inserting a device into a machine (no text or symbols visible)

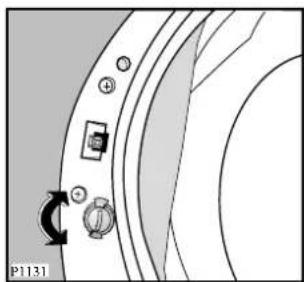

Child safety feature

This machine incorporates a special child safety feature to prevent small children from being trapped inside the machine.

To activate this device, rotate the button (without pressing it) inside the door clockwise until the groove is horizontal. If necessary use a coin.

To disable this device and restore the possibility of closing the door, rotate the button anti-clockwise until the groove is vertical.

Diagram of a mechanical component with labeled parts and an arrow indicating rotation (no readable text or symbols)

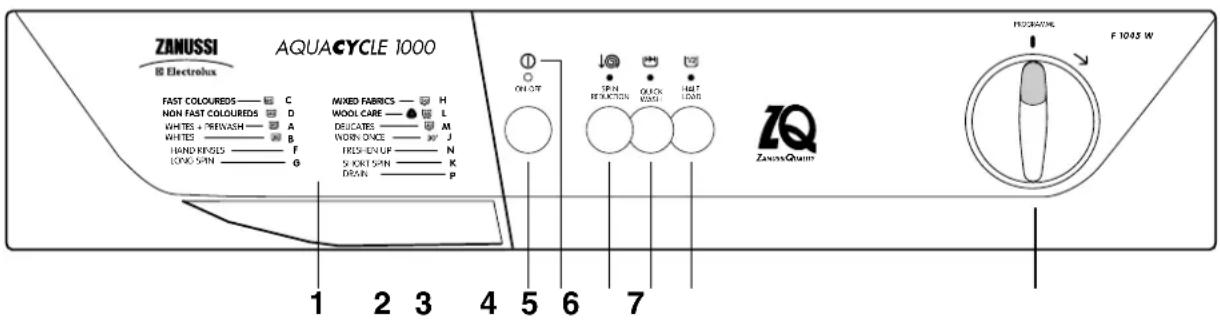

The Control Panel

ZANUSSI Electrobox AQUACYCLE 1000 FAST COLOURED5 — C NON FAST COLOURED5 — D WHITES + PREWASH — A WHITES — B HAND KINGS — F LONG SKIN — G MIXED FABRICS — H WOOL CARE — L DEUCATES — M NOM ONCE — JY FRESH-EN UP — N SIGHT SUN — K DRAN — P ON/OFF OPEN REFLUCTION TRACK WOOD HUNT LOAD ZQ ZANUSSI QUALITY PROGRAMME F 1043 W 1 2 3 4 5 6 7

I Programme guide

2 On/Off button ①

By depressing this button the machine starts operating. When depressed again, the machine stops.

3 Mains-on light

This light illuminates when the machine starts working and goes out when the ON/OFF button is released.

4 Spin Reduction button ↓

By depressing this button the spin speed is reduced as follows:

• cottons and linens: from 1000 rpm to 650 rpm for model F1045W and from 1200 rpm to 650 rpm for model F1245W.
• synthetics, delicates and wool (programme “K”): from 650 rpm to 450 rpm.

5 QUICK WASH Button 📋

By depressing this button on programmes A, B, C, D and H the wash time is reduced.

This is suitable only for garments which are lightly soiled.

6 HALF LOAD button 1/2

Select this button to reduce water consumption on the rinse cycle when washing a smaller load of cottons or linens (maximum load size = 2.25 kg).

7 Programme selector dial

Turn the dial clockwise to select the required wash programme.

Before setting the dial to any position the machine must be switched off by depressing the ON/OFF button again.

Operating Sequence

Before the first wash, we recommend that you pour 2 litres of water into the main wash compartment ☐ the detergent drawer in order to activate the ECO valve. Then run a cotton cycle at 60°C, without any laundry in the machine, to remove any manufacturing residue from the drum and tub. Pour 1/2 a measure of detergent into the dispenser drawer and start the machine.

WASHING 4.5 KG OF WHITE COTTON AT 95°C

Suppose you have 4.5 kg of normally soiled laundry to wash. It is white cotton and is suitable for high temperature washing.

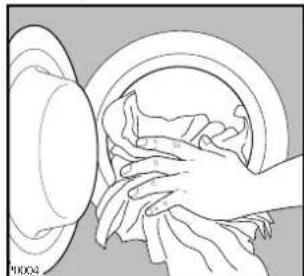

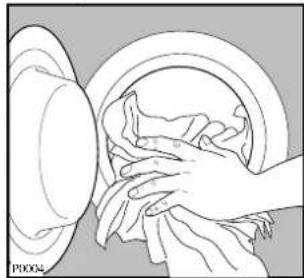

I. Load the laundry

Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

Illustration of hands washing clothes from a circular basin (no text or symbols)

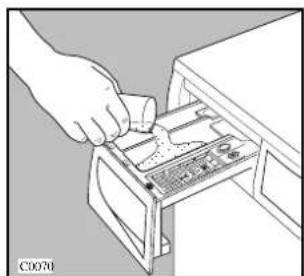

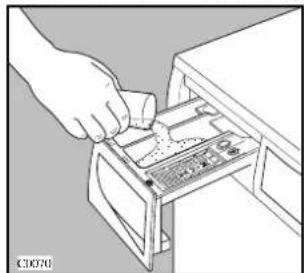

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent required and pour it into the main wash compartment ⌊‖ If you wish to carry out the prewash, pour detergent into the compartment marked ⌊‖

Illustration of a hand inserting a device into a drawer (no text or symbols visible)

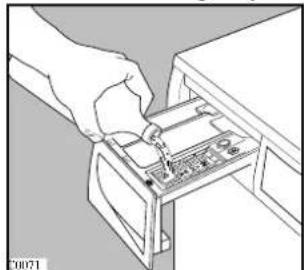

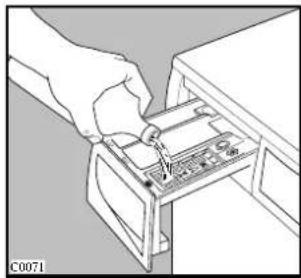

3. Measure out the fabric softener

If required, pour fabric softener into the compartment marked ⚙he amount used must not exceed the “MAX” mark in the drawer).

Close the drawer gently.

Illustration of a hand inserting a component into a drawer (no text or symbols visible)

4. Select the required option

Depress QUICK WASH button or SPIN REDUCTION if required.

SFIN REDUCTION QUICK WASH HALF LOAD

5. Select the required programme

Turn the programme selector dial clockwise to the programme B or A (if you wish to perform a prewash).

B P1006S

6. Start the machine

Before starting up the machine check that:

• the appliance is plugged in
• the water supply taps are turned on
• the drain hose is correctly and securely positioned
- the door and the detergent dispenser drawer are closed.

Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating.

ON OFF T0001S

7. At the end of the programme

The machine stops automatically.

The door is controlled by a safety device which releases 2 minutes after the end of the programme.

Switch the machine off by depressing the ON/OFF button again. The mains-on light goes out.

When the programme has finished you are advised to unplug the appliance and turn off the water taps.

WASHING 2 KG OF MIXED FABRICS AT 50°C

Suppose you have 2 kg of Mixed fabrics to wash. They are rather delicate fabrics and should not be washed at a high temperature.

I. Load the laundry

Open the door by pulling the door handle outwards. Place the laundry in the drum, one item at a time, shaking them out as much as possible. Close the door.

Illustration of hands washing clothes from a circular object (no text or symbols)

2. Measure out the detergent

Pull out the dispenser drawer until it stops. Measure out the amount of detergent required and pour it into the main wash compartment

Illustration of a hand inserting a device into a drawer (no text or symbols visible)

3. Measure out the fabric softener

If required, pour fabric softener into the compartment marked the amount used must not exceed the "MAX" mark in the drawer).

Close the drawer gently.

Illustration of a hand inserting a component into a drawer with a tool (no text or symbols visible)

4. Select the required option

Depress the QUICK WASH or SPIN REDUCTION button if required.

SPIN REDUCTION QUICK WASH HALF LOAD

5. Select the required programme

Turn the programme selector dial clockwise to the programme H.

H M00.75

6. Start the machine

Before starting up the machine check that:

• the appliance is plugged in
• the water supply taps are turned on
• the drain hose is correctly and securely positioned
- the door and the detergent dispenser drawer are closed.

Depress the ON/OFF button: the mains-on light will illuminate and the machine starts operating.

ON OFF T001S

7. At the end of the programme

After the last rinse, the machine stops with the water left in the wash tub, to prevent the fabric from creasing.

To drain the water, select programme “K” (short spin) or “P” (drain).

The door is controlled by a safety device which releases 2 minutes after the end of the programme.

Switch the machine off by depressing the ON/OFF button again. The mains-on light goes out.

When the programme has finished you are advised to unplug the appliance and turn off the water taps.

i Washing Hints

Do NOT overload the machine. Weigh the laundry the first few times you use the appliance.

The average weights of the most common items are listed below as a guide:

1000g = 1 kg

Sheet	700-1000
Pillow case 100-200 g
Tablecloth	400-500
Serviette	50-100
Tea towel 70-120 g
Linen hand towel 100-150 g
Towelling hand towel 150-250 g
Towelling bath towel 700-1000 g
Bath robe 1000-1500 g
Man's shirt 200-300 g
Apron	150-200

• Load the laundry loosely alternating large items with small ones.
• Sort the laundry according to the type of fabric, colour-fastness and how dirty it is.
• Avoid washing unhemmed or torn items as they may unravel.
• Before washing, empty all pockets of small objects which may have been left inside (coins, keys, screws etc). as these could damage the drain pump.
• When washing curtains, remove the hooks.
• Close poppers and zips and fasten loose buttons.
• It is essential to wash new coloured items separately when washing for the first time.
• When washing fabrics requiring different wash temperatures together, always select the lowest temperature.
• White items should not be washed with coloured items.
• Very small items (handkerchiefs, ribbons, socks etc) should be washed in a washing bag or a pillow case.

• Use a good quality detergent suitable for automatic washing machines.
  • Use the correct quantities of detergent.

• For wool, use gentle detergent only in small quantities.

• Bleach is very corrosive; it should be used with care and kept out of reach of children.
• Some stains such as fruit, wine, grass, rust etc. are difficult to remove and should be treated before washing with specific products, which can be found in most household shops. In some cases it may help to soak the stain before washing with a special pre-soak product or biological detergent.
• Only wool marked “Pure New Wool - washable, preshrunk” can be washed in the machine using the wool programme; other types of wool should be washed by hand or dry cleaned.
• If you have used the machine to wash, rinse or spin only non-colour fast garments, there may be dye left in the sump. To ensure any subsequent wash is not contaminated with the dye, select and carry out a rinse and spin programme, without any garments, to ensure that any dye is removed from the sump.
• Once you have finished using the machine, you are advised to unplug it and turn off the water taps.

Which detergent?.....

To ensure you obtain the best wash results from your appliance, it is important to use the right detergent in your everyday wash, and only detergents recommended for use in automatic machines.

To maintain the appearance of your clothes and household textiles and to make them last longer you should use different types of detergent for different washes, whether for whites, colours or delicates.

WHITES

We recommend the Ariel product range which is biological and designed to provide excellent cleaning and stain removal even at low temperatures.

NON BIOLOGICAL

If you prefer to use a non biological detergent, which does not contain enzymes we recommend Fairy. Fairy provides good cleaning and stain removal.

COLOUREDS

For coloured items you should use a detergent which is designed to clean while maintaining the original colour. Ariel Color does not contain bleach and therefore helps to preserve colours.

DELICATE ITEMS

When washing delicates such as woollens, you should use a product which is specially designed to care for fine fabrics.

Dreft Automatic is suitable for woollens and other delicates.

LAUNDRY BLEACH

For additional stain removal you may wish to use a product such as Ace Gentle Bleach which is used in addition to your chosen detergent. Ace is suitable for all washable fabrics including silks, woollens and coloureds.

And in which form?

Not only are there different types of detergent, but they are also available in different forms. Whether you chose a powder or liquid in traditional or compact form is your own personal choice.

TRADITIONAL POWDERS

Pour the powder directly into the dispenser drawer. Do not sprinkle powder onto clothes in the machine drum.

TRADITIONAL LIQUIDS

Liquid can be placed in the main wash compartment of the detergent drawer marked with the symbol Lllstart the machine immediately upon placing the detergent in the dispenser drawer.

Alternatively the detergent is measured into the specially designed dosing device* which should be placed on top of the laundry, and at the back of the machine drum.

COMPACT POWDERS AND LIQUIDS

Compact detergents (or concentrates as they are also known) are available in liquid or powder form, and generally require a smaller dosage. Follow the manufacturer's instructions to ensure the most economical usage. Pour the detergent directly into the dispenser drawer, or alternatively measure the detergent into the specially designed dosing device* which should be placed on top of the laundry, and at the back of the machine drum.

* If you use a dosing device in a washer dryer, please ensure the dosing device/ball is removed before carrying out a drying programme.

FABRIC CONDITIONERS

These are ideal for improving ‘softness’, and also reduce static cling on synthetics and make ironing easier. They are available in two types:

For example Lenor liquid fabric softener, for use in the washing machine/washer dryer. The liquid fabric softener should be poured into the compartment marked with the symbol ✿ Follow the manufacturer's dosage instructions and never exceed the MAX level.

Bounce conditioning sheets for use in a tumble dryer. We recommend the conditioning sheets are pinned (using a safety pin) to an article of laundry and placed in the tumble dryer.

Wash Care Symbols

Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine.

WASHING SYMBOL
WASH ACTION FABRIC

	Normal (Maximum)	White Cotton or Linen without Special Finishes
	Normal (Maximum)	Cotton, Linen or Viscose without Special Finishes Colourfast at 60°C.
	Reduced (Medium)	Nylon, Polyester/Cotton, Viscose with Special Finishes, Cotton/Acrylic Mix.
	Normal (Maximum)	Cotton, Linen or Viscose Colourfast at 40°C but not 60°C.
	Reduced (Medium)	Acrylics, Acetate, Triacetate, Wool mixes, Polyester/wool blends.
	Much Reduced (Minimum)	Wool, wool mixtures, Silks
	Hand wash only	Do not machine wash
BLEACHING
cl	Chlorine bleach may be used
IRONING
	Hot iron	Cotton, Linen, Viscose
	Warm iron	Polyester mixtures, Wool
	Cool iron	Acrylic, Nylon, Polyester
DRY CLEANING
P	May be dry cleaned. Other letters and/or a bar beneath the circle will indicate the required process to the dry cleaner.
TUMBLE DRYING
	with high heat setting
	with low heat setting
	May be tumble dried
X	A cross through any symbol means «DO NOT»

Important Notes

For best results, always use the dispenser drawer for dispensing detergents and liquid additives.

Once the dispenser has been filled, close it by pushing it in gently. This is particularly important if you are using

fabric conditioner to avoid the conditioner entering the machine prematurely.

When using liquid detergent and a prewash programme, place the detergent into the correct compartment in the dispenser drawer, after the prewash has finished.

Washing Programmes

Programmes for cotton and linen

Wash programme/Washing symbol		Degree of soil and type of laundry	Programme dial position	Description	Possible options	Max Load	Progr. time mins.
	WHITES + PREWASH	For heavy soiled cotton items.	A	Prewash at 40 °C Wash at 95°C 3 rinses Long spin	QUICK WASH HALF LOAD SPIN RED.	4.5 kg	145
[SCGZ]	WHITES	White cotton, for example normally soiled work garments, sheets, household linen, underwear, towels.	B	Wash at 95 °C 3 rinses Long spin	QUICK WASH HALF LOAD SPIN RED.	4.5 kg	120
	FAST COLOUREDS	Fast coloured cotton or linen fabrics, shirts, underwear, towels.	C(*)	Wash at 60 °C 3 rinses Long spin	QUICK WASH HALF LOAD SPIN RED.	4.5 kg	130
	NON- FAST COLOUREDS	Non fast coloured cotton or linen fabrics, shirts, blouses, underwear.	D	Wash at 40 °C 3 rinses Long spin	QUICK WASH HALF LOAD SPIN RED.	4.5 kg	115
HAND RINSES		Separate rinse cycle for hand washed cotton and linen items	F	4 rinses Long spin	SPIN RED.	4.5 kg	58
LONG SPIN		Separate spin for cotton and linen items	G	Long spin	SPIN RED.	4.5 kg	12

(*) This programme at 60^ C with cold water filling and a wash load of 4.5 kg is the reference programme for the Energy label according to EEC Directive 92/75.

Water filling: 30^ - 40^ programmes: cold water filling

50°-60° programmes: hot and cold filling

95° programme: hot water filling

The programme times are intended as a guide only. The actual time will vary depending on incoming water temperature and pressure.

Important!

• Some programmes when selected may start with a short drain. This is quite normal and not a fault with the appliance.
  When a programme is selected, the selector dial will advance to the water filling position. E.g. Programme B is selected, there is a short drain. The appliance takes in water and the selector will appear to move to the C position. The appliance will have memorised the programme selected, in this case B, and will run the correct programme even though the selector dial appears to be at position C.
• We recommend you not to switch the appliance off and on during its operation. This would modify the memorised programme in progress with unsatisfactory washing results.

Washing Programmes

Programmes for synthetics, mixed fabrics, delicates and wool

Wash programme/Washing symbol		Degree of soil and type of laundry	Programme dial position	Description	Possible options	Max Load	Progr. time mins.
	MIXED FABRICS	Synthetic or mixed fabrics, underwear, coloured garments, non-shrink shirts, blouses.	H	Wash at 50 °C3 rinsesStop with water in tub	QUICK WASH	2 kg	60
	WORN ONCE	Lightly soiled synthetic or mixed fabrics	J	Wash at 30 °C3 rinsesStop with water in tub		2 kg	30
SHORT SPIN		Separate spin for hand washed delicate items	K	Draining of water and short spin	SPIN RED.	2 kg	6
	WOOL CARE	Specially tested programme for wool garments bearing the “Pure new wool, non-shrink, machine washable” label.	L	Wash at 40 °C3 rinsesStop with water in tub		1 kg	50
	DELICATES	Delicate fabrics, for example curtains	M	Wash at 40 °C3 rinsesStop with water in tub		2 kg	45
FRESHEN UP		This programme can be used for softening hand washed garments.	N	1 rinse, with fabric softener, if required Stop with water in tub		2 kg	9
DRAIN		For emptying out the last rinse water of these programmes	P	Draining of water		-	1

Important!

- Some programmes when selected may start with a short drain. This is quite normal and not a fault with the appliance.

When a programme is selected, the selector dial will advance to the water filling position.

- We recommend you not to switch the appliance off and on during its operation. This would modify the memorised programme in progress with unsatisfactory washing results.

Maintenance and Cleaning

Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply.

Descaling

The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine. Do this separately from any laundry washing, and according to the softening powder manufacturer's instructions. This will help to prevent the formation of lime deposits.

After each wash

Leave the door open for a while. This helps to prevent mould and stagnant smells forming inside the appliance. Keeping the door open after a wash will also help to preserve the door seal.

Maintenance Wash

With the use of low temperature washes it is possible to get a build up of residues inside the drum.

We recommend that a maintenance wash be performed on a regular basis.

To run a maintenance wash:

• The drum should be empty of laundry.
- Select the hottest cotton wash programme.
- Use a normal measure of detergent, must be a powder (such as Ariel Futur).

External cleaning

Clean the exterior cabinet of the appliance with soap and water only, and then dry thoroughly.

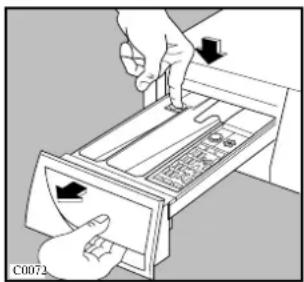

Cleaning the dispenser drawer

The washing powder and additive dispenser drawer should be cleaned regularly.

Remove the drawer by pressing the catch downwards and by pulling it out. Flush it out under a tap, to remove any traces of accumulated powder.

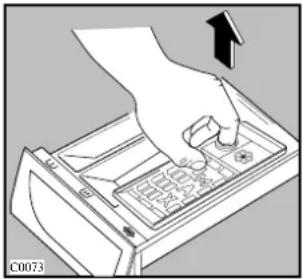

To aid cleaning, the top part of the additive compartment should be removed.

C0072

C0073

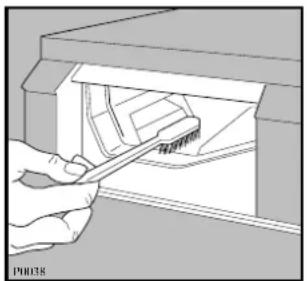

Cleaning the drawer recess

Having removed the drawer, use a small brush to clean the recess, ensuring that all washing powder residue is removed from the upper and lower part of the recess. Replace the drawer and run the rinse programme without any clothes in the drum.

Illustration of a hand using a tool to clean or inspect a mechanical component (no text or symbols visible)

Cleaning the pump

The pump should be inspected if

• the machine does not empty and/or spin
- the machine makes an unusual noise during draining due to objects such as safety pins, coins etc. blocking the pump.

Proceed as follows:

• Disconnect the appliance.
• If necessary wait until the water has cooled down.
• Open the pump door.

Hand inserting a card into a wall-mounted device (no text or symbols visible)

• Place a container close to the pump to collect any spillage.
• Pull out the emergency emptying hose, place it in the container and remove its cap.

- When no more water comes out, unscrew the pump cover and remove it. Always keep a rag nearby to dry up spillage of water when removing the cover.

Diagram of a device with a circular component and a connecting rod, labeled P1115 (no text or symbols on the diagram itself)

- Remove any objects from the pump impeller by rotating it.

P1116

- Put the cap back on the emergency emptying hose and place the latter back in its seat.

Line drawing of a vintage-style open door with a circular dial and handle, no text or symbols present

- Screw the pump cover fully in.

- Close the pump door.

Warning

When the appliance is in use and depending on the programme selected there can be hot water in the pump circuit. Never remove the pump cover during a wash cycle, always wait until the appliance has finished the cycle, and is empty. When replacing the pump cover, after a cleaning inspection, ensure it is securely retightened so as to stop leaks and young children being able to remove it.

Cleaning the water inlet filters

If your water is very hard or contains traces of lime deposit, the water inlet filters may become clogged.

It is therefore a good idea to clean it from time to time.

Turn off the water taps. Unscrew the water inlet hoses.

Clean the filters using a hard bristle brush. Tighten up the inlet hoses.

Illustration of hands using a tool to adjust or install a wall-mounted device, with a faucet and circular arrow symbol above (no text or labels)

The dangers of freezing

If the machine is exposed to temperatures below 0^ C, certain precautions should be taken.

• Turn off the water taps.
  • Unscrew the inlet hoses.
• Place the end of the emergency emptying hose and that of the inlet hoses in a bowl placed on the floor and let water drain out.
• Screw the water inlet hoses back on and reposition the emergency emptying hose after having put the cap on again.
• When you intend to start the machine up again, make sure that the room temperature is above 0°C.

Important!

Every time you drain the water through the emergency emptying hose you must pour 2 litres of water into the main wash compartment of the detergent drawer and then run the drain programme. This will activate the ECO valve avoiding that part of the detergent remains unused at next washing.

Emergency emptying out

If the water is not discharged, proceed as follows to empty out the machine:

• pull out the plug from the power socket;
• close the water tap;
• if necessary, wait until the water has cooled down;
• open the pump door;
• place a bowl on the floor and place the end of the emergency emptying hose into the bowl. Remove its cap. The water should drain by gravity into the bowl. When the bowl is full, put the cap back on the hose. Empty the bowl. Repeat the procedure until water stops flowing out;
• clean the pump if necessary as previously described;
• replace the emergency emptying hose in its seat after having plugged it;
• screw the pump cover again and close the door.

Something Not Working

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Force Centre, please carry out the checks listed below.

IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.

Symptom	Possible causes
The machine does not start	The door has not been closed.The plug is not properly inserted in the power socket.There is no supply at the socketThe main fuse or the fuse in the plug has blown.The selector dial is not correctly positioned.The ON/OFF button has not been depressed.
The machine does not fill	Ensure the water taps are open.The filters in the inlet hoses are blocked.The inlet hoses may be squashed or kinked.The door has not been closed.
The machine fills then empties immediately	The end of the drain hose is too low.The end of the drain hose is submerged in water.There is no vent in the end of the drain hose.
The machine does not empty and/or does not spin	The drain hose may be squashed or kinked.The drain pump may be blocked.The drain hose extension, if fitted, is not correct. Follow the instructions for connecting to the waste.The drainage system pipes are blocked.The wash load is unbalanced: redistribute the clothes inside the drum to allow the machine to spin.A programme which ends with water in tub has been selected.
There is water on the floor	Too much detergent or unsuitable detergent has been used (creates too much foam).Check whether there are any leaks from one of the inlet hose(s) fittings. It is not always easy to see this as the water runs down the hose; check to see if it is damp.The drain hose may be damaged or not securely positioned.The detergent dispenser drawer or recess is clogged.The drainage system pipes are blocked.
Unsatisfactory washing results	Too little detergent or unsuitable detergent has been used. An insufficient amount of detergent leaves the laundry looking grey and causes lime scale to form Stubborn stains have not been treated prior to washingThe correct wash programme has not been selected.Too much laundry has been placed in the drum.
The machine vibrates when spinning	The internal packing has not been removed.The machine is in contact with the wall or furniture.The machine is not stable and level (check diagonally).The washing load is badly distributed in the drum.Maybe there is very little laundry in the drum.
The door will not open	The programme is still running.The door lock has not yet released.Water in the tub: the door cannot be opened if water is present in the tub.
Spinning starts late or the machine does not spin	The electronic unbalance detection device has cut in because the laundry is not evenly distributed in the drum. The laundry is redistributed by reverse rotation of the drum. This may happen several times before the unbalance disappears and normal spinning can resume. If, after 10 minutes, the laundry is still not evenly distributed in the drum, the machine will not spin. In this case, redistribute the load manually and reselect the spin programme.
The machine makes an unusual noise	The machine is fitted with a type of motor which makes an unusual noise compared with other traditional motors. This new motor ensures a softer start and more even distribution of the laundry in the drum when spinning, as well as increased stability of the machine.
No water is visible in the drum	Machines based on modern technology operate very economically using very little water without affecting performance.

Service & Spare Parts SERVICE FORCE

In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:

0870 5 929929

Your telephone call will be automatically routed to the Service Force Centre covering your post code area.

For the address of your local Service Force Centre and further information about Service Force, please visit the website at www.serviceforce.co.uk.

Before calling out an engineer, please ensure you have read the details under the heading “Something Not Working”.

When you contact the Service Force Centre you will need to give the following details:

1. Your name, address and post code
2. Your telephone number
3. Clear and concise details of fault

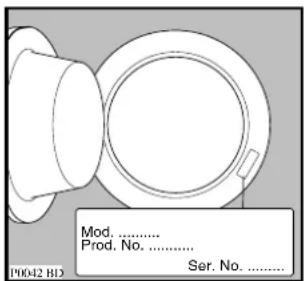

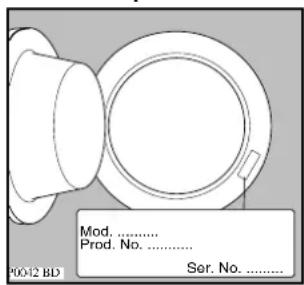

4. The model and serial number of the appliance (found on the rating plate - see picture)
5. The purchase date.

Please note that a valid purchase receipt or guarantee documentation is required for in-guarantee service calls.

Mod. ...... Prod. No. ...... Ser. No. ...... (10042 HD)

Customer Care Department

For general enquiries concerning your Zanussi Electrolux appliance or for further information on Zanussi Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at www.zanussi.co.uk

Customer Care Department

Zanussi Electrolux

55-77 High Street

Slough

Berkshire

SL1 1DZ

Tel [phone]*

* calls to this number may be recorded for training purposes.

Guarantee Conditions

Standard guarantee conditions

We, Zanussi Electrolux, undertake that if, within 12 months of the date of the purchase, this ZANUSSI ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that:

• The appliance has been correctly installed and used only on the electricity supply stated on the rating plate.
• The appliance has been used for normal domestic purposes only, and in accordance with the manufacturer's instructions.
• The appliance has not been serviced, maintained, repaired, taken apart or tampered with, by any person not authorised by us.
• All service work under this guarantee must be undertaken by a Service Force Centre.
• Any appliance or defective part replaced shall become the Company's property.
• This guarantee is in addition to your statutory and other legal rights.

Home visits are made between 8.30am and 5.30pm Monday to Friday. Visits may be available outside these hours in which case a premium will be charged.

Exclusions

This guarantee does not cover:

• Damage or calls resulting from transportation, improper use or neglect, the replacement of any light bulbs or removable parts of glass or plastic.
• Costs incurred for calls to put right an appliance which is improperly installed or calls to appliances outside the United Kingdom.
• Appliances found to be in use within a commercial environment, plus those which are subject to rental agreements.
• Products of Zanussi Electrolux manufacture which are NOT marketed by Zanussi Electrolux.

European guarantee

If you should move to another country within Europe then your guarantee moves with you to your new home subject to the following qualifications:

• The guarantee starts from the date you first purchased your product.
• The guarantee is for the same period and to the same extent for labour and parts as exists in the new country of use for this brand or range of products.
• The guarantee relates to you and cannot be transferred to another user.
• Your new home is within the European Community (EC) or European Free Trade Area.
• The product is installed and used in accordance with our instructions and is only used domestically, i.e. a normal household.
• The product is installed taking into account regulations in your new country.

Before you move please contact your nearest Customer Care Centre, listed below, to give them details of your new home. They will then ensure that the local Service Organisation is aware of your move and able to look after you and your appliances.

France Senlis [phone]

Germany Nurnberg [phone]

Italy Pordenone [phone]

Sweden Stockholm [phone]

UK Slough [phone]

Installation Instructions

⚠ It is dangerous to alter the specifications or attempt to modify this product in any way.
⚠️ Care must be taken to ensure that the appliance does not stand on the electrical supply cable.
⚠️ Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
⚠️ Any plumbing work required to install this appliance should be carried out by a qualified plumber or competent person.
Should the appliance power supply cable need to be replaced, this should be carried out by our Service Force Centre.

Technical Specifications

DIMENSIONS	HeightWidthDepth	6057
POWER SUPPLY VOLTAGE 230-240 V/50 HzTOTAL POWER ABSORBED 2050 W (10A)
WATER PRESSURE Minimum (hot) 35 kPa	MinimumMaximum	50800
MAXIMUM RECOMMENDED LOAD Cotton,	linen 4.5 kgSynthetics 2 kgDelicate fabrics 2 kgWool	1 kg
SPIN SPEED	Maximum	1000 rpm (F1045W)1200 rpm (F1245W)
CONSUMPTION DATA FOR WASHING4.5 KG NORMALLY SOILED COTTONITEMS AT 60°C (PROGR. C) WITH COLD WATER FILLING	EnergyWater	0.85 kWh53 litres

This appliance complies with the following E.E.C. Directives:

• 73/23 EEC of 19.2.73 (Low Voltage Directive) and subsequent modifications;
• 89/336 EEC of 3.5.89 (Electromagnetic Compatibility Directive) and subsequent modifications.

Unpacking

All transit bolts and packing must be removed before using the appliance.

You are advised to keep all the packaging for re-use in case the machine is to be transported again.

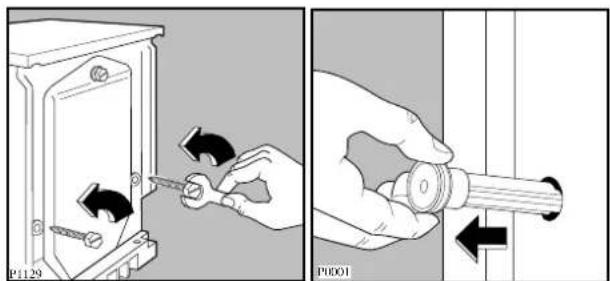

Using a spanner unscrew and remove the two rear bottom screws. Slide out the two plastic pins.

Lay the machine gently on its back, making sure that the hoses are not squashed.

P1129 PUD01

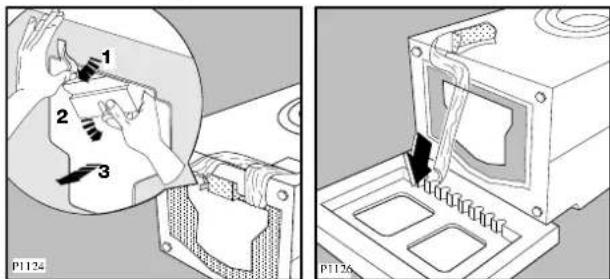

Remove the polystyrene block from the bottom of the machine and release the two plastic bags.

Very carefully slide out the left polythene bag, removing it towards the right and then downwards.

1 2 3 P1124 P1126

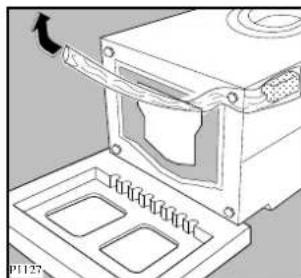

Repeat the operation for the right polythene bag, removing it towards the left and then upwards.

Technical illustration of a mechanical device with a clamped component and a base plate (no text or symbols)

Remove the polystyrene base.

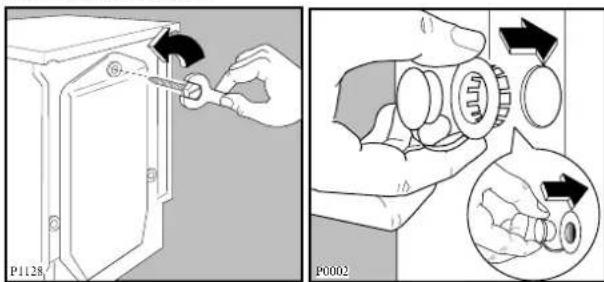

Set the machine upright and unscrew the remaining rear screw. Slide out the relevant pin.

Fill all the holes with the plastic plugs supplied with the instruction booklet.

P1128 P0002

Important!

You are advised to keep all the packaging for re-use in case the machine is to be transported again.

If the appliance is to be moved, the precautions listed under “The dangers of freezing” must be carried out i.e. the residual water in the hoses must be pumped out.

Positioning

Install the machine on a flat hard floor.

Make sure that air circulation around the machine is not impeded by carpets, rugs etc. Check that the machine does not touch the wall or other kitchen units.

Never place cardboard, wood or similar materials under the machine to compensate for any unevenness in the floor.

Your new washing machine has been designed to be permanently plumbed in to your home's water supply and drainage system. However, if this is not possible, it may be connected to suitable existing taps with the drain hose discharging into a sink.

The appliance has two inlet hoses, hot and cold, with female 3/4" BSP thread connectors. If this connection is not compatible with the plumbing of the existing installation, a variety of connectors are available from good hardware stores and plumbers merchants to suit most domestic plumbing. Any alteration to your existing plumbing must be carried out by a competent person, or qualified plumber.

Installation on a Suspended Floor

Suspended wooden floors are particularly susceptible to vibration. To help prevent vibration we recommend you place a waterproof wood panel, at least 15 mm thick under the appliance, secured to at least 2 floor beams with screws. If possible install the appliance in one of the corners of the room, where the floor is more stable.

Water inlet

The inlets on the back of the appliance are colour coded, blue for cold and red for hot.

Connect the hoses to a tap with a 3/4" thread.

Do not use already employed inlet hoses.

Illustration of a hand holding a wrench near a faucet, with no text or symbols present.

If only a cold water supply is available, connect the two hoses to a cold water outlet by means of a «Y» connection piece.

Installation should comply with local water authority and building regulations' requirements.

The appliance must be given a separate cold water supply and not be connected to a mixer tap, a single outlet water heater or a booster pump. A minimum water pressure of 0.48 bar is required for safe operation of the appliance.

If you cannot make the cold water connection direct from the rising mains, you may be able to operate the appliance from your cold water storage system.

There should be a minimum distance of 5.02m (16.5 ft) between the appliance's inlet and the bottom of the water storage tank.

There will be sufficient pressure for the hot water supply, providing there is a minimum height of 2.74 metres (9 ft) between the bottom of the cold water storage tank and the bottom of the hot water cylinder.

Set the hoses correctly by loosening the ring nuts. After positioning the inlet hoses, be sure to tighten the ring nuts again to prevent leaks.

Diagram of a pipe fitting with a curved arrow indicating direction (no text or symbols)

Water drainage

This appliance is designed to be permanently plumbed into your home's water supply and drainage system.

The appliance drain hose should hook into a standpipe, the hook in the drain hose is formed using the plastic "U-Piece" supplied.

The standpipe should have an internal diameter of approximately 38mm (see diagram) thus ensuring there is an air break between the drain hose and standpipe.

38 mm.(1½°) diameter standpipe Min. 30 cm.(12') P1(p4)

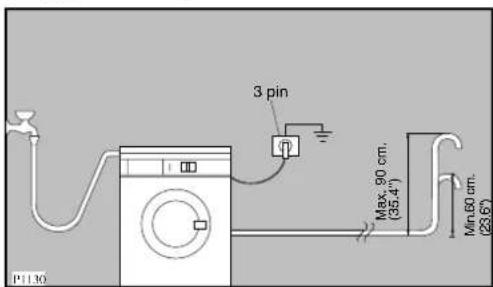

When discharging into a standpipe ensure that the top of the curve in the hose end is no more than 90cm (35.4") and no less than 60cm (23.6") above floor level. The upright standpipe should have a minimum length of 30cm (12") from the bottom of the elbow to the top of the pipe (see diagram).

3 pin Max. 90 cm. (35,4") Min.60 am. (23,6) P1130

Make sure that it is designed in such a way, that the end of the drain hose cannot be covered with water.

The drain hose may be extended to a maximum of 4 metres. An additional drain hose and joining piece is available from your local Service Force Centre. The joining piece must have an internal diameter of 18mm.

If you intend the drain hose to empty into a sink, make sure that the sink is empty and the plug hole is not blocked. Use the plastic "U-Piece" supplied.

Diagram of a pipe fitting with a valve inserted, showing pipe ends and a close-up view (no text or symbols)

The drain hose must not be kinked.

Important

• Before connecting up the machine to new pipework or to pipework that has not been used for some time, run off a reasonable amount of water to flush out any debris that may have collected in the pipes.
• For a correct functioning of the machine the drain hose must be hooked on the proper support piece situated on the top of the back side of the appliance.

Levelling

Level the washing machine by raising or lowering the feet. The feet may be tight to adjust as they incorporate a self locking nut, but the machine MUST be level and stable.

Diagram of a mechanical assembly with rotating arrows indicating motion (no text or symbols)

Any necessary adjustment can be made with a spanner. Accurate levelling prevents vibration, noise and displacement of the machine during operation.

Some vibration is inevitable, especially if mounted on a wooden floor.

Sprung wooden floors are particularly susceptible to vibration. For advice, consult a builder. If possible, always place the machine on a solid floor.

Special conditions

If the floor is carpeted or covered with crumbly or soft material, insert a rigid support base under the feet to prevent noise, vibration or displacement. The base should protrude a few centimetres beyond the edges of the machine.

Warning

The machine should NOT be placed on deep pile carpeting.

Note

Please ensure that when the appliance is installed it is easily accessible for the engineer in the event of a breakdown.

In the interest of the environment

Washing machines and dishwashers should be connected to the FOUL drainage system, the water will then be taken to a sewage works for treatment before being discharged safely into a river.

It is essential that these appliances are not connected to the surface water drainage system as this water is discharged directly into a river or stream and may cause pollution. If you require any further advice please contact your local water authority.

Electrical connection

Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.

WARNING: THIS APPLIANCE MUST BE EARTHED.

The manufacturer declines any liability should this safety measure not be observed.

Before switching on, make sure the electricity supply voltage is the same as that indicated on the appliance's rating plate. The rating plate is located at the top of the rim of the open door.

Mod. ...... Prod. No. ...... Ser. No. ......

The appliance is supplied with a 13amp plug fitted. In the event of having to change the fuse in the plug supplied, a 13amp ASTA approved (BS1363A) fuse must be used.

Should the plug need to be replaced for any reason, proceed as described below.

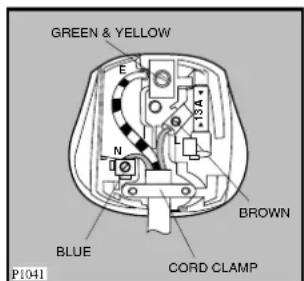

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown - Live

GREEN & YELLOW E N BROWN BLUE CORD CLAMP P1041

The wire coloured green and yellow must be connected to the terminal marked with the letter «E» or by the earth symbol ♣ coloured green and yellow.

The wire coloured blue must be connected to the terminal marked «N» or coloured black.

The wire coloured brown must be connected to the terminal marked «L» or coloured red.

Upon completion there must be no cut, or stray strands of wire present and the cord clamp must be secure over the outer sheath.

WARNING:

A cut off plug inserted into a 13 amp socket is a serious safety (shock) hazard.

Ensure that the cut off plug is disposed of safely.

Should the appliance power supply cable need to be replaced, this should be carried out by our Service Force Centre.

Note

When the appliance is installed the power supply cable must be accessible.

Permanent connection

In the case of permanent connection it is necessary that you install a double pole switch between the appliance and the electricity supply (mains), with a minimum gap of 3mm between the switch contacts and of a type suitable for the required load in compliance with the current electrical regulations.

The switch must not break the yellow and green earth cable at any point.

From the Electrolux Group. The world's No. 1 choice.

The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
