USER MANUAL GR-DVL167 JVC

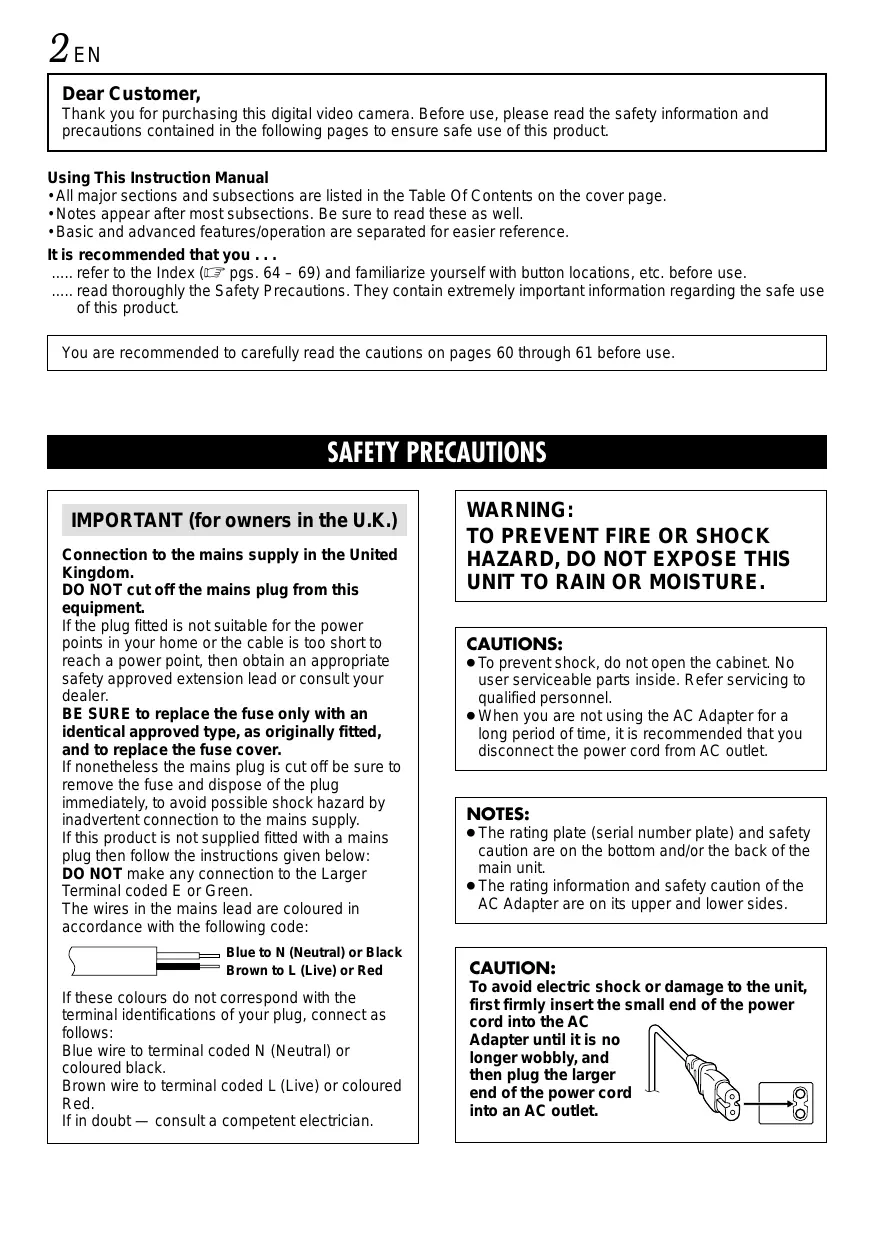

2en Dear Customer, Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product. Using This Instruction Manual *All major sections and subsections are listed in the Table Of Contents on the cover page. + Notes appear after most subsections. Be sure to read these as well +Basic and advanced features/operation are separated for easier reference. Itis recommended that you .… refer to the Index (7 pgs. 64 - 69) and familarize yourself with button locations, etc. before use...… read thoroughly the Safety Precautions. They contain extremely important information regarding the safe use ofthis product. | You are recommended to carefully read the cautions on pages 60 through 61 before use. SAFETY PRECAUTIONS IMPORTANT (for owners in the UK.) Connection to the mains supply in the United Kingdom. DO NOT cut offthe mains plug from this equipment. Ifthe plug fitted is not suitable for the power points in your home or the cable is too short to reach à power point, then obtain an appropriate safety approved extension lead or consult your dealer. BE SURE to replace the fuse only with an identical approved type, as originally fitted, and to replace the fuse cover. Ifnonetheless the mains plug is cut off be sure to remove the fuse and dispose of the plug immediately, to avoid possible shock hazard by inadvertent connection to the mains supply. Ifthis product is not supplied fitted with à mains plug then follow the instructions given below: DO NOT make any connection to the Larger Terminal coded E or Green. The wires in the mains lead are coloured in accordance with the following code: EE —— Blue to N (Neutral) or Black Brown to L (Live) or Red Ifthese colours do not correspond with the terminal identifications of your plug, connect as follows: Blue wire to terminal coded N (Neutral) or coloured black. Brown wire to terminal coded L (Live) or coloured Red Ifin doubt — consult a competent electrician:

UNIT TO RAIN OR MOISTURE. CAUTIONS: eTo prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel e When you are not using the AC Adapter for à long period of time, itis recommended that you disconnect the power cord from AC outlet. NOTES: e The rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit. e The rating information and safety caution of the AC Adapter are on its upper and lower sides. CAUTION: To avoid electric shock or damage to the unit, first firmly insert the small end of the power cord into the AC Adapter until itis no longer wobbly, and then plug the larger re end of the power cord ] into an AC outlet. Ko) To

ENS CAUTIONS: e This camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with à television of à different standard. However, live recording and LCD monitoriviewfinder playback are possible anywhere eUse the J VC BN-V408U/V416U/V428U battery packs and, to recharge them or to supply power to the camcorder from an AC outiet, use the provided mult-voltage AC Adapter and Power Cord. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.) When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear). Do not block the ventilation holes. {ifthe ventilation holes are blocked by à newspaper, or cloth etc. the heat may not be able to get out.) No naked flame sources, such as lighted candles, should be placed on the apparatus. When discarding batteries, environmental problems must be considered and the local rules or laws goveming the disposal of these batteries must be followed strictiy. The apparatus shall not be exposed to dripping or splashing. Do notuse this equipment in à bathroom or places with water. Also do not place any containers filed with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit. if water or liquid is allowed to enter this equipment, fire or electric shock may be caused.) SOME DOS AND DON'TS ON THE SAFE USE OF EQUIPMENT

equipment has been designed and manufactured to meet intemational safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. DO read the operating instructions before you attempt to use the equipment. DO ensure thatall electrical connections (including the mains plug, extension leads and interconnections between pieces of equipment) are properly made and in accordance with the manufacturer's instructions. Switch off and withdraw the mains plug when making or changing connections. DO consult your dealer if you are ever in doubt about the installation, operation or safety of your equipment. DO be careful with glass panels or dors on equipment. DON'T continue to operate the equipment if you are in any doubt about it working normally, or ifitis damaged in any way — switch off, withdraw the mains plug and consult your dealer. DON'T remove any fixed cover as this may expose dangerous voltages. DON'T leave equipment switched on when itis unattended unless itis specifically stated that itis designed for unattended operation or has à standby mode. Switch off using the switch on the equipment and make sure that your family knows how to do this. Special arrangements may need to be made for infirm or handicapped people DON'T use equipment such as personal stereos or radios so that you are distracted from the requirements of road safety. Itis illegal to watch television whilst driving. DON'T listen to headphones at high volume, as such use can permanentiy damage your hearing, DON'T obstuct the ventilation of the equipment, for example with curtains or soft furishings. Overheating will cause damage and shorten the life of the equipment. DON'T use makeshift stands and NEVER fix legs with wood screws — to ensure complete safety always fitthe manufacturers approved stand or legs with the fixings provided according to the instructions. DON'T. allow electrical equipment to be exposed to rain or moisture. ABOVE ALL — NEVER let anyone especially children push anything into holes, slots or any other opening in the case — this could result in à fatal electrical shock; — NEVER guess or take chances with electrical equipment of any kind — itis better to be safe than sorry!

4er SAFETY PRECAUTIONS Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of intemal circuitry. There is also a risk of fire or electric shock. CAUTION! The following notes concern possible physical damage to the camcorder and to the user. When carrying, be sure to always securely attach and use the provided shoulder strap. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in à malfunction Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury. Do not use à tipod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder. CAUTION! Connecting cables (AudioWideo, S-Video, etc.) to the camcorder and leaving the unit on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage A D PAL This camcorder is designed exclusively for the digital video cassette. Only cassettes marked “ip” can be used with this unit. Before recording an important scene ... . make sure you only use cassettes with the Mini DV mark “IN. . remember that this camcorder is not compatible with other digital video formats. .. remember that this camcorder is intended for private consumer use only. Any commercial use without proper permission is prohibited. (Even if you record an event such as à show, performance or exhibition for personal enjoyment, itis strongly recommended that you obtain permission before- hand.)

AC Adapter AP-V10EG or Battery Pack AAA (RO3) Battery x 2 AP-VL2EG BN-V408U for remote control unit) PROVIDED ACCESSORIES Remote Control Unit CD-ROM Lens Cap RM-V717U {See below for attachment) Core Filter or optional S-Video cable L7 pg. 6 for attachment) AudioWVideo Cable Editing Cable {03,5 mini-plug to PC Connection Cable RCA plug) NOTE: In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core fier. Ifa cable has only one core fier, the end thatis closest to the filter should be connected to the camcorder.

How To Attach The Lens Cap To protect the lens, attach the provided lens cap to the camcorder as shown in the illustration. NOTE: To confirm the lens cap is on correctiy make sure the cap is flush to the camera

How To Attach The Core Filter Attach the Core Filter(s) (if provided with your model r7 pg. 5) to an optional cable(s). The Core Filter reduces interference. Stopper PP Wind once Release the Run the cable through the Core Filter, leaving approx Close the Core Filter until it stoppers on both | 3 cm of cable between the cable plug and the Core Filter. | clicks shut. ends ofthe Core | Wind the cable once around the outside of the Core Filter Filter. as shown in the illustration. + Wind the cable so thatitis not slack. NOTE: Take care notto damage the cable L JS m When connecting cables, attach the end with the Core Filter to the camcorder. AUTOMATIC DEMONSTRATION Automatic Demonstration takes place when “DEMO MODE "is set to “ON” (factory-preset). MENU/BRIGHT Wheel = Automatic Demonstration starts when there is no operation for about 3 minutes after the Power Switch is set to “@'or “BAND” and no cassette is in the camcorder. = Performing any operation during the demonstration stops the demonstration temporarily. no operation is performed for more than 3 minutes after that, the demonstration will resume. m'DEMO MODE "remains “ON” even ifthe camcorder power is tumed off. m To cancel Automatic Demonstration: Power Switch

1. Setthe Power Switch to “MANUAD” while pressing down the Lock Button

Lock Button located on the switch and press the MENU/ BRIGHT wheel in. The Menu Screen appears

2. Rotate the MENU/BRIGHT wheel to select"E SYSTEM"

and press it The SYSTEM Menu appears.

3. Rotate the MENU/BRIGHT wheel to select'DEMO MODE"

and press it The Sub Menu appears.

4. Rotate the MENU/BRIGHT wheel to select"OFF” and press it.

5. Rotate the MENU/BRIGHT wheel to select"® RETURN”,

and press ittwice. The normal screen appears Sub Menu NOTE: If you do not detach the Lens Cap, you cannot see the actual changes of the Automatic Demonstration activated on the LCD monitor or viewrinder.

&Een GETTING STARTED (cont.) BATT. RELEASE Button To DC connector (@) To AC outtet Battery pack Charging time BN-V408U approx. 1 hr. 30 min BN-V416U (optional) | approx. 3 hrs BN-V428U (optional) | approx. 5 hrs Power This camcorder's 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.

CHARGING THE BATTERY PACK

1 Tiltthe viewfinder upward (©). With the arrow on the battery pack pointing downward, push the battery pack slightly against the battery pack mount @), then Slide down the battery pack until it locks in place (). 2 Setthe Power Switch to "OFF". Connectthe AC Adapter to the camcorder (4), then connect the Power Cord to the AC Adapter (). S Piug the Power Cord into an AC outiet G The CHARGE lamp on the camcorder blinks to indicate charging has started Æ \nen the CHARGE lamp stops blinking but stays lit, charging is finished. Unplug the Power Cord from the AC outiet. Disconnect the AC Adapter from the camcorder. To Detach The Battery Pack … …Press BATT. RELÉASE and pull outthe battery pack. NOTES: e lfthe protective cap is attached to the battery pack, remove it first. ‘ During charging, the camcorder cannot be operated e Charging is not possible if the wrong type of battery is used. When charging the battery pack for the first time or after a long storage period, the CHARGE lamp may not light. In this case, remove the battery pack from the camcorder, then ty charging again lfthe battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase à new one. e Using the optional AA-V40EK AC Power Adapter! Charger, you can charge the BN-V40BU/V416U/V428U battery pack without the camcorder. However, it cannot be used as an AC adapter. For other notes,

en 9 ATTENTION Before detaching the power source, make sure that the camcorders power is tumed off. Failure to do so can result in à camcorder malfunction. NOTES: e Recording time is reduced significantiy under the following conditions. +Zoom or Record-Standby mode is engaged repeatediy +The LCD monitor is used repeatedly. +The playback mode is engaged repeatedly. «Before extended use, itis recommended that you prepare enough battery packs to cover 3 times the planned shooting time

& … E Lithium-ion is vulnerable in colder temperatures.

Use the AC Adapter (connect as shown in the illustration) NOTES: + The provided AC Adapter features automatic voltage selection in the AC range from 110 V to 240 V. «For other notes, 17 pg. 53. About Batteries DANGER! Do not attempt to take the batteries apart, or expose them to flame or excessive heat, as it may cause à fire or explosion. WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in à short circuit and possibly start a fire. The Benefits Of Lithium-lon Batteries Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures (below 10°C), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re- attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance. {If you're using a heating pad, make sure the battery pack does not come in direct contact with it.)

GETTING STARTED (cont.) Recording Start/Stop button Grip Adjustment À Separate the Velcro strip. 2 Pass your right hand through the loop and grasp the grip. S Adiust your thumb and fingers through the grip, to easily operate the Recording StartStop button and Power Switch and Power Zoom Lever. Be sure to fasten the Velcro strip to your preference. Viewfinder Adjustment À secte Power Switch to "D or MAD while pressing down the Lock Button located on the Switch. 2 Tu the Dioptre Adjustment Control unti the indications in the viewfinder are clearly focused Shoulder Strap Attachment À make sure the battery pack is removed. Following the illustration, thread the strap through the eyelet (D), then fold it back and thread it through the buckle (2) Repeat the procedure to attach the other end ofthe strap to the other eyelet (1) located under the Grip Strap . Confirm the strap is not twisted Tripod Mounting CAUTION When attaching the camcorder to a trpod, extend its legs to stabilise the camcorder. Itis not advised to use small sized tripods. This may cause damage to the unit by falling over. À ro attach the camcorder to a tripod, align the direction stud and screw to the mounting socket and stud hole on the camcorder. Then tighten the screw clockwise. Some tripods are not equipped with studs.

en ll MENU/BRIGHT Wheel Date/Time Settings Power Lamp The date/time is recorded onto the tape at all times, but its display can be tumed on or off during playback (7 p9. 36, 37) À settne Pouer Switch to “ED while pressing down the Lock Button located on the switch. The power lamp lights and the camcorder is tumed on. 2 Press the MENU/BRIGHT wheel in to access the Menu Screen. 3 Rotate the MENU/BRIGHT wheel to select “BI DISPLAY”. Press it and the DISPLAY Menu Powér Switch appears. & Rotate the MENU/BRIGHT wheel to select ES Lock Button “CLOCK AD] .”. Press itand “day” is highlighted. Rotate the MENU/BRIGHT wheel to input the day. Press it. Repeat to input the month, year, hour and Display minute. Rotate the MENU/BRIGHT wheel to select “4 RETURN" and press it twice. The Menu Screen closes. NOTE: Even if you select“CLOCK AD) .” ifthe parameter is not highlighted the camcorder's internal clock continues to operate. Once you move the highlight bar to the first date/ time parameter (day), the clock stops. When you finish setting the minute and press the MENU/BRIGHT wheel in, the date and time begin operation from the date and + LCD/TV DISPLAY Menu, time you just set.

12e GETTING STARTED (cont.) Loading/Unloading À Cassette The camcorder needs to be powered up to load or eject a cassette. Make sure the window side is À Side and hold OPEN/E] ECT in the direction of facing out. the arrow then pull the cassette holder cover open until it locks. The cassette holder opens automatically *Do not touch internal components. Cassette holder 2 insert or remove a tape and press “PUSH HERE" t close the cassette holder. +Once the cassette holder is closed, itrecedes

7) automatically. Wait untl it recedes completely before

7, closing the cassette holder cover. E «When the battery's charge is low, you may not be able to close the cassette holder cover. Do not apply force. Replace the battery with a fully charged one OPEN/EJ ECT before continuing Switch Erase protection tab* 3 Close the cassette holder cover firmly until it Cassette holder cover locks into place PUSH HERE Approximate recording time *To Protect Valuable Recordings ... … Slide the erase protection tab on the back of the Recording mode tape in the direction of “SAVE”. This prevents the Tape SP LP tape from being recorded over. To record on this - - - tape, slide the tab back to "REC" before loading it. 30 min. 30 min. 45 min. . 60 min. 60 min. 90 min. Be sure to press only the section labeled “PUSH HERE"to close the cassette holder; touching other 80 min. 80 min. 120 min parts may cause your finger to get caught in the cassette holder, resulting in injury or product damage. NOTES: eIttakes à few seconds for the cassette holder to open. Do not apply force e If you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try again. Ifthe cassette holder still does not open, tum the camcorder off then on again Ifthe tape does not load properiy, open the cassette holder cover fully and remove the cassette. À few minutes later, insert it again. e When the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cassette holder cover. e Closing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder. «Even when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed with the camcorder switched off, however, it may not recede. lt is recommended to turn the power on before loading or unloading e When resuming recording, once you open the cassette holder cover a blank portion wil be recorded on the tape or a previously recorded scene will be erased (recorded over) regardiess of whether the cassette holder came out or not. See page 18 for information about recording from the middle of a tape. e Loosen the Grip Strap if it appears to interfere with the cassette holder cover operation (17 pg. 10).

en 13 MENU/BRIGHT Wheel Recording Mode Setting Power Lamp Setthe tape recording mode depending on your preference À settne Pouer Switch to “GMT while pressing down the Lock Button located on the switch. The power lamp lights and the camcorder is tumed on. 2 Press the MENU/BRIGHT wheel in. The Menu Screen appears. 3 Rotate the MENU/BRIGHT wheel to select “B CAMERA'"and press it The CAMERA Menu appears. Power Switch Æ Rotate the MENU/BRIGHT wheel to select'REC MODE "and press it The Sub Menu appears. Select MR Lock Button "SP"or"LP"by rotating the MENU/BRIGHT wheel and press it Rotate the MENU/BRIGHT wheel to select "&J RETURN", and press ittwice. The Menu Screen closes. Display +Audio Dubbing (r7 pg. 49) and Insert Editing Menu Screen (e7 9. 50 are possible on tapes recorded in the mode (Long Play) is more economical, providing

1.5 times the recording time.

NOTES: e lfthe recording mode is switched during recording, the playback picture will be blurred at the switching point. eitis recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder. «During playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound. Rec MODE Sub Menu

RECORDING en 19 Power lamp Power Switch During shooting Lock Button Recording Start/Stop Button Display Zsn|_ Tape remaining time indicator (Approximate) min — 90 min—» 89 min {Now calculating) +3 min 0 min <—— 1 min <——2 min (linking) (Blinking) (Blinking) BRIGHT -CTI+ MENU/BRIGHT Wheel Tally lamp lights while recording is in progress) Basic Recording NOTE: You should already have performed the procedures listed below. If not, do so before continuing.

e Grip Adjustment (7 pg. 10) « Viewfnder Adjustment (17 pg. 10) e Load À Cassette (7 pg. 12) e Recording Mode Seting (: À Remove the lens cap. 2 setthe Power Switch to “Æ”" or “ERUD" while pressing down the Lock Button located on the switch. Shooting while using the LCD monitor: Make sure the LCD monitor is fully open. Tilt it upward/ EE downward for best viewability. Shooting while using the viewfinder: Close the LCD monitor. «The power lamp lights and the camcorder enters the Record-Standby mode. PAUSE" is displayed. S press the Recording Star/Stop Button. "ÉPREC" appears while recording is in progress. To Stop Recording .… … press the Recording StartStop Button. The camcorder re-enters the Record-Standby mode. To Adjust The Brightness Of The Display .… . rotate the MENU/BRIGHT wheel until the bright level indicator on the display moves and the appropriate brightness is reached. NOTES: « lfte Record-Standby mode continues for 5 minutes, the camcorder's power shuts off automatically. To tum the camcorder on again, setthe Power Switch to “OFF”, then back to “EM ” or “MANUAL)”. + The image will not appear simultaneousiy on the LCD monitor and the viewfinder. It will appear in the viewnder when the LCD monitor is in the lock position, and itwill appear on the LCD monitor when fully extended e When à blank portion is left between recorded scenes on the tape, the time code is interrupted and errors may occur when editing the tape. To avoid this, refer to “Recording from the middle of a tape” (17 pg. 18) e To turn the tally lamp or beep sounds off, 7 pg. 32,

16en RECORDING (cont.) Self Recording To tum on the camcorder, setthe Power Switch to any operation mode except “OFF”while pressing down the Lock Button located on the switch. Power Switch Power lamp_— f Lock Button JOURNALISTIC SHOOTING in some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tit the LCD monitor in the most convenient direction. It can rotate 270° (90° downward, 180° upward). SELF-RECORDING You can shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tit it upward 180° so thatit faces forward, then point the lens toward yourself and start recording Operation Mode Choose the appropriate operation mode according to your preference using the Power Switch. Power Switch Position

Allows you to set various recording functions using the Menus. If you want more creative capabilities than Full Auto recording, try this mode When the Power Switch is set to “Œ ”, “ EJ” appears. When set to “ANAL” or “PLAY”, there is no indication. {Full Auto): Allows you to record using NO special effects or manual adjustments. Suitable for standard recording OFF: Allows you to switch off the camcorder. PLAY: +Allows you to play back a recording on the tape. +Allows you to transfer a still image recorded on the tape to a computer.

en 17 Zoom in (T: Telephoto) FEATURE: Zooming Zoom display 10x WEB aus 2 7 —— 10X (optical) z00m zone Approximate zoom ratio Power Zoom Lever LIGHT OFF/AUTO/ON Switch {Open the LCD monitor to access this switch.) DANGER = The video light can become extremely hot. Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result m Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot for some time. = When operating, keep a distance of about 30 cm between the video light and people or objects. = Do notuse near flammable or explosive materials. m Do not place the camcorder in a cabinet or box while the video light is in operation = When using the video light, if you wish to install the camcorder in a fixed position, attach it to a tripod, etc. Do not affx it directly to a surface such as a table top. mitis recommended that you consult your nearest} VC dealer for replacing the video light. PURPOSE: To produce the zoom infout effect, or an instanta- neous change in image magnification. OPERATION: Zoom In Slide the Power Zoom Lever towards ‘T Zoom Out Slide the Power Zoom Lever towards “W”. mThe further you slide the Power Zoom Lever, the quicker the zoom action NOTES: e Focusing may become unstable during Zooming. In this case, setthe zoom while in Record-Standby, lock the focus by using the manual focus {7 pg. 29), then zoom in or outin Record mode. + Zooming is possible to à maximum of 500X, or it can be switched to 10X magnifcation using the optical zoom (7 pg. 33) + Zoom magnification of over 10X is done through Digital image processing, and is therefore called Digital Zoom. + During Digital zoom, the quality of image may suffer. < Macro shooting (as close as approx. 5 cm to the subject) is possible when the Power Zoom Lever is set allthe way to ‘W”. Also see TELE MACRO"in the Menu Screen on page 34 FEATURE PURPOSE: To brighten the scene when natural lighting is too dim OPERATION: Set LIGHT OFF/AUTO/ON as required OFF: Tumns off the light. AUTO : Automatically turns on the light when the camcorder senses insufficient lighting on the subject. ON: Always keeps the light on as long as the camcorder is turned on mThe video light can only be used with the camcorder's power on. mitis recommended to set the white balance p9. 31) to # when you use the video light. = When not using the video light, turn it off to save battery power. NOTES: «Even ifthe battery indicator (1) does not blink due to low battery charge, the camcorder may turn off automatically when you turn on the video light. or when you start recording with the video light tumed on. e When LIGHT OFF/AUTO/ON is set to "AUTO": + Depending on the lighting conditions, the video light may keep tuming on and off, In this case, manually switch the light on or off using LIGHT

+Whik the “SHUTTER" or SPORTS" mode {7 pg. 25) is engaged, the lightis likely to stay on. +While the ‘TWILIGHT” mode (7 pg. 25) is engaged, the light will not activate. +While the “Night-S cope” mode (rpg. 24) is engaged, the light wil not activate.

18e RECORDING (cont.) f. N Time Code During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback. Ifrecording starts from a blank portion, the time code begins counting from “00:00:00” {minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number. To perform Random Assemble Editing (r7 pg. 44 - 48), time code is necessary. If during recording a blank portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from “00:00:00”. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform "Recording From The Middle of A Tape" below in the following cases: + When shooting again after playing back à Display recorded tape. + When power shuts off during shooting. + When à tape is removed and re-inserted during Frames are not displayed during recording. shooting. 1 Minutes + When shooting using à partially recorded tape + When shooting on à blank portion located T— Seconds partway through the tape L_prames + When shooting again after shooting à scene : . (25 frames = 1 second) then opening/closing the cassette holder cover. Recording From The Middle Of A Tape L. Play back à tape or use Blank Search (r7 pg. 22) to find the spot at which you want to start recording, then engage the Still Playback mode (17 pg. 19)

2. Setthe Power Switch to “ÆD" or “FARUAD" while pressing down the Lock Button located on the switch,

then start recording NOTES: + The time code cannot be reset. + During fast-forwarding and rewinding, the time code indication does not move smoothly. + The time code is displayed only when ‘TIME CODE "is setto “ON"(r7 pg. 35, 36). When a blank portion is recorded on a tape Time code Time code Time code 00: 05:43:21 :00: L4 A4 LA Tape Already recorded scene Blank Newly recorded scene À À À Shooting start point Shooting stop point Shooting start point Proper recording Time code Time code Time code 00: 05:43:21 05:44:00 4 A4 A4 Tape Already recorded scene New scene Latest scene À À À Shooting start point Shooting start point Shooting start point

PLAYBACK en 19 Stop Button (m) Normal Playback Rewind Button (44) À Load a tape (7 pg. 12). Play/Pause Button (>/11) 2 setthe Power Switch to "PLAY "while pressing doun the Lock Button located on the switch. To start playback, Fast-Forward Button (>>) press »/I. Power Zoom Lever (VOL.) *To stop playback, press m +Press € to rewind, or »> to fast-forward the tape during Stop mode. To Control The Speaker Volume . …Slide the Power Zoom Lever (VO| to turn up the volume, or towards the volume owards “+” to turn down NOTES: = + 1fStop mode continues for 5 minutes when power is supplied from a battery, the camcorder shuts off automatically. To tum on again, setthe Power Switch to “OFF”, then to “PLAY”. < The playback picture can be viewed in the LCD monitor, viewfinder or on a connected TV {+7 pg. 20). + You can also view the playback picture on the LCD monitor with itflipped over and pushed against the camera body. + LCD monitorfviewfinder indications: + When power is supplied from a battery: the “C1” battery pack remaining power indicator is displayed. When power is supplied from an AC outlet: “1” does not appear. + During Stop mode, none ofthe indications are displayed. ‘+ When a cable is connected to the AV connector, the sound is not heard from the speaker. Still Playback: Pauses during playback. 1)Press »/II during playback.

2) To resume normal playback, press »/H1 again

e1fstil playback continues for more than about 3 minutes, the camcorder's Stop mode is automatically engaged After 5 minutes in the Stop mode, the camcorders power is automatically turned off. When »/H is pressed, the image may not pause immediately while the camcorder stabiliseds the stil image: Shuttle Search: Allows high-speed search in either direction. 1)Press »> for fonvard or 44 for reverse search during playback. 2 To resume normal playback, press »/ + During playback, press and hold 4 or »>. The search continues as long as you hold the button. Once you release it, normal playback resumes. «A slight mosaic effect appears on screen during Shuttle Search. This is not à malfunction Frame-By-Frame Playback: Allows frame-by-frame search

1) Engage Still Playback.

2) Rotate the MENU/BRIGHT wheel towards “4” for forward Frame-By-Frame Playback, or towards “-"for

reverse Frame-By-Frame Playback during Still Playback. To resume normal playback, press »/11. e You can also use the provided remote control for Frame-By-Frame Playback (17 pg. 42). Slow-Motion Playback/Playback Special Effects and Playback Zoom Available only with the remote control (provided) (r7 pg. 42, 43). ATTENTION During Shuttle Search, parts ofthe picture may not be clearly visible, particularly on the left side of the screen.

AudioWideo cable [—"iî Imini-plug to RCA Yellow to plug] (provided) VIDEO IN mn —+ White to

• When connecting the cables, open this cover. #The Audio cable is not required for watching stil images only. I# your TV/VCR has a 21-pin connector Use the provided Cable Adapter. Audio[Video cable Cable mini-plug to RCA plug] Yellow (provided) mis Adapter si —

—-Ürar AUDIO R* Camcorder F CF En: To S-VIDEO S-Video cable To BLN yerrcves” (options) Video Out Select Switch *The Audio cable is not required for watching still images only. NOTE: Set the video out select switch of the cable adapter as required: Y/C__: When connecting to a TV or VCR which accepts Y/C signals and uses an S-Video cable. CVBS : When connecting to a TV or VCR which does not accept Y/C signals and uses an audio/video cable.

1 Make sure all units are tumed off. 2 connect the camcorder to a TV or VCR as shown in the illustration (r7 pg. 20) Iusing a VCR … go to step 3. Ifnot.… go to step 4. S connectthe VCR output to the TV input, referring to your VCR'S instruction manual 4 Turn on the camcorder, the VCR and the TV. 5 setthe VCR to its AUX input mode, and setthe TV toits VIDEO mode. To choose whether or not the following displays appear on the connected TV +Date/Time …. Set 'DATE/TIME "to “AUTO”, “ON"or “OFF”in the Menu Screen (17 pg. 36). Or, press DISPLAY on the remote control (provided) to turn on/off the date indication. + Time Code …. Set'TIME CODE "to “ON” or “OFF” in the Menu Screen (T7 pg. 36) +Playback Sound Mode, Tape Speed And Tape Running Displays for tape playback …. Set'ON SCREEN"to "LCD" or “LCD/TV"in the Menu Screen (17 pg. 36). en 21 « itis recommended to use the AC Adapter as the power supply instead of the battery pack (7 pg. 9). «To monitor the picture and sound from the camcorder without inserting a tape, setthe camcorder's Power Switch to “EU ” or “MANUAL)”, then set your TV to the appropriate input mode. < Make sure you adjust the TV sound volume to its minimum level to avoid a sudden burst of sound when the camcorder is tumed on. e 1f you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture. e While the Audio/Video cable is connected to the AV connector, sound cannot be heard from the speaker.

DRE BLANK SEARCH THUAN Stop Button (m) Blank Search Helps you find where you should start recording in the middle of a tape to avoid time code interruption (C7 pg. 18). 1 Load a tape (IF pg. 12) 2 settne Power Switch to “PLAY” while pressing down the Lock Button located on the switch 3 Press BLANK +"BLANK SEARCH" appears blinking and the camcorder automatically starts reverse or forward shuttie search, then stops at the spot which is about 3 seconds of tape before the beginning of the detected blank portion: To cancel Blank Search midway .…… 2 Press M. NOTES: ein step 3, ifthe current position is at a blank portion the camcorder searches in the reverse direction, and ifthe current position is at a recorded portion the camcorder searches in the forward direction. + Blank Search does not work if "HE AD CLEANING REQUIRED. USE CLEANING CASSETTE" has appeared with the tape lfthe beginning or end ofthe tape is reached during Blank Search, the camcorder stops automatically + A blank portion which is shorter than 5 seconds of tape may not be detected. e The detected blank portion may be located between recorded scenes. Before you start recording, make sure there is no recorded scene after the blank portion.

24Ee\ FOR RECORDING NOTES: + During NigheS cope, the following functions or settings cannot be activated and its indicator blinks or goes out: +Some modes of “Programme AE With S pecial Effects” {7 pg. 24, 25). +"GAIN UP”in the CAMERA Menu (17 pg. 33) +"DIS”in the MANUAL Menu (7 pg. 33). +‘Video light’ when LIGHT OFF/AUTOON is set to “AUTO” (7 pg. 17) «During Night:S cope, it may be difficult to bring the camcorder into focus. To prevent this, use of manual focus and/or a tripod is recommended MENU/BRIGHT Wheel Lock Button Power Switch NIGHT Button Display NOW SPOTL IGHT TWILIGHT SEPIA Night-Scope Makes dark subjects or areas even brighter than they would be under good natural lighting. Although the recorded image is not grainy, it may look as ifitis strobing due to the slow shutter speed. À Settne Power Switch to while pressing down the Lock Button located on the switch. 2 Press NIGHT so thatthe Night-Scope indicator “I'appears +The shutter speed is automatically adjusted to ovide up to 30 times sensitivity. +" appears beside “Ii” while the shutter speed is being automatically adjusted. To Deactivate Night-Scope … … press NIGHT again 50 thatthe Night:S cope indicator disappears. Programme AE With Special Effects À settne Power Switch to "END" while pressing down the Lock Button located on the switch. 2 Press the MENU/BRIGHT weel in. The Menu Screen appears. 3 Rotate the MENU/BRIGHT wheel to select “F1 PROGRAM AE", then press it. Æ otate the MENU/BRIGHT wheel to select the desired mode (r7 pg. 25), then press it. Selection is complete. Press the MENU/BRIGHT wheel in again The Menu Screen closes +The PROGRAM AË Menu disappears and the selected mode is activated. The selected mode indicator appears. To Deactivate The Selected Mode ..…. select “OFF” in step 4. NOTES: + Programme AE with special effects can be changed during recording or during Record-Standby, + Some modes of Programme AE special effects cannot be used during NigheS cope. IMPORTANT Some modes of Programme AE with special effects cannot be used with certain Fade/Wipe Effects {7 pg. 26, 27). If an unusable mode is selected, its indicator blinks or goes out.

En 2D SHUTTER 1/50-The shutter speed is fixed at 1/50th of à second. Black bands that usually appear when shooting a TV screen become narrower. 1/120-The shutter speed is fixed at 1/120th of à second. The flickering that occurs when shooting under à fluorescent light or mercury-vapour lamp is reduced S& SPORTS {Variable Shutter Speed: 1/250 - 1/4000)

This setting allows fast-moving images to be captured one frame at a time, for vivid, stable slow- motion playback. The faster the shutter speed, the darker the picture becomes. Use the shutter function under good lighting conditions. &* snow Compensates for subjects that may otherwise appear too dark when shooting in extremely bright surroundings such as in the snow. Œ SPOTLIGHT Compensates for subjects that may otherwise appear too bright when shooting under extremely strong direct lighting such as spotights: NOTE: “SPOTLIGHT" has the same effect as -3 with the exposure control ( 30). Makes evening scenes look more natural. White Balance (r7 pg. 31) is initially set to can be changed to your desired setting. When Twilight is chosen, the camcorder automatically adjusts the focus from approx. 10 m to infinity. From less than 10 m, adjust the focus manually.

C2 sepia Recorded scenes have a brownish Ent like old photos. Combine this with the Cinema mode for a classic 1o0k

Like black and white films, your footage is shot in B/W. Used together with the Cinema mode, it enhances the “classic film” effect.

Æ, STROBE Your recording looks like a series of consecutive snapshots. SLOW (Slow Shutter) Lights dark subjects or areas even brighter than they would be under good natural lighting. Use *SLOW" only in dark areas. 31 SLOW ax Slow Shutter raises light sensitivity to allowr shooting in dark environments. Slow Shutter aises light sensitvty further to allow shooting in even darker environments. NOTES: + When using “SLOW”, the image takes on a strobe- like effect e When using “SLOW”, it may be difficult to bring the camcorder into focus. To prevent this, use of manual focus and/or a tripod is recommended.

26ën FOR RECORDING (cont.) IMPORTANT Some Fade/Wipe Effects cannot be used with certain modes of Programme AE with special effects {7 pg. 24, 25). If an unusable Fade/Wipe Effect is selected, its indicator blinks or goes out. Lock Button MENU/BRIGHT Wheel Power Switch Recording Start/Stop Button Fade/Wipe Effects These effects let you make pro-style scene transi- tions. Use them to spice up the transition from one scene to the next. Fade or Wipe works when tape recording is started or when you stop recording, À Settne power Switch to "ER" while pressing down the Lock Button located on the switch 2 Press the MENU/BRIGHT wheel in. The Menu Screen appears. S rotate the MENU/BRIGHT wheel to select"Æ WIPE/FADER", then press it. a Rotate the MENU/BRIGHT wheel to select the desired function, then press it. Selection is complete. Press the MENU/BRIGHT wheel in again. *The WIPE/FADER Menu disappears and the effect is reserved. The indicator representing the selected effect appears. 5 press the Recording Star/Stop Button to activate the Fade-in/out or Wipe-in/out. To Deactivate The Selected Effect. . .. select "OFF "in step 4. NOTE: You can extend the length of a Fade or Wipe by pressing and holding the Recording Start/Stop Button.

Fade in to a colour screen from a black and white screen, or fade out from colour to black and white. WIPE — CORNER Wipe in on à black screen from the upper right to the lower left corner, or wipe out from lower left to upper right, leaving a black screen WIPE — WINDOW The scene starts in the centre of à black screen and wipes in toward the comers, or comes in from the comers, gradually wiping out to the centre. WIPE — SLIDE Wipe in from right to left, or wipe out from left to right. WIPE — DOOR Wipe in as the two halves of à black screen open to the left and right, revealing the scene, or wipe out and the black screen reappears from left and right to cover the scene. WIPE — SCROLL The scene wipes in from the bottom to the top of à black screen, or wipes out from top to bottom, leaving à black screen

WIPE — SHUTTER Wipe in from the centre of a black screen toward the top and bottom, or wipe out from the top and bottom toward the centre leaving à black screen.

fi) PIN FULL Snapshot mode with no frame PIN-UP Pin-Up mode FRAME Snapshot mode with frame There is the sound effect of a shutter closing Snapshot This feature lets you record still images that look like photographs onto a tape.

SNAPSHOT MODE SELECTION

À Seine power Suitch to “BRD' while pressing down the Lock Button located on the switch 2 Press the MENU/BRIGHT wheel in. The Menu Screen appears. S rotate the MENU/BRIGHT heel to select ‘EN CAMERA". Press it and the CAMERA Menu appears. Æ rotate the MENU/BRIGHT wheel to select “SNAP MODE", then press it. 5 Rotate the MENU/BRIGHT wheel to select the desired Snapshot mode, then press it Rotate the MENU/BRIGHT wheel to select “4 RETURN"and press it twice. The Menu Screen closes. SNAPSHOT RECORDING À press SNAPSHOT. PHOTO” appears while the snapshot is being taken. H you press during Record-Standby . "PHOTO" appears and à still image will be recorded for approx. 6 seconds, then the camcorder re-enters the Record-Standby mode K you press during Recording . "PHOTO" appears and à stil image will be recorded for approx. 6 seconds, then the normal recording resumes +Regardless of the Power Switch position (* ‘UD '), Snapshot recording takes place using the selected Snapshot mode Motor Drive Mode Keeping SNAPSHOT pressed provides an effect similar to serial photography. (Interval between still images: approx. 1 second) NOTES: e To remove the shutter sound, 7 “BEEP"on pg. 32, 34 el Snapshot recording is not possible, “PHOTO” blinks when SNAPSHOT is pressed elfProgramme AE with special effects (17 pg. 24) is engaged, certain modes of Programme AË with special effects are disabled during Snapshot recording. In such à case, the icon blinks elfSNAPSHOT is pressed when “DIS” is setto “ON” {7 pg. 33), the Stabiliser will be disabled e During tape playback as well all snapshot modes are available. However, the shutter sound is not heard During Snapshot recording, the image displayed in the viewfnder may be partally missing. However, there is no effect in the recorded image. e When a cable is connected to the AV connector, the shutter sound is not heard from the speaker, however it is recorded onto the tape

En 29 Focus detection zone While focusing on a further While focusing on a nearer subject subject

FEATURE: Auto Focus PURPOSE: The camcorder's Full Range AF system offers continuous shooting ability from close-up (as close as approx 5 cm to the subject) to infinity. However, correct focus may not be obtainable in the situations listed below (in these cases use manual focusing) + When two subjects overlap in the same scene. + When illumination is low.* + When the subject has no contrast (difference in brightness and darkness), such as à flat, one-colour wall, or à clear, blue sky.* + When à dark object is barely visible in the viewfnder.* + When the scene contains minute patterns or identical patterns that are regularly repeated + When the scene is affected by sunbeams or light reflecting off the surface of à body of water. + When shooting à scene with à high-contrast background.

• The following low-contrast warnings appear blinking: 4, 4, » and 2 NOTES: lfthe lens is smeared or blurred, accurate focusing is not possible. Keep the lens clean, wiping with a piece of soft clot ifit gets dirty. When condensation occurs, wipe with a soft cloth or wait for it to dry natural. + When shooting a subject close to the lens, zoom out fist (7 pg. 17). Ifzoomed-in in the auto focus mode, the camcorder may automatically zoom out depending on the distance between the camcorder and the subject. This wil not occur when ‘TELE MACRO" {7 pg. 34) is activated FEATURE: Manual Focus PURPOSE: To obtain correct focus. OPERATION: 1)f you are using the viewfinder, you should already have made the necessary viewfinder adjustments {7 pg. 10) 2)Setthe Power Switch to " while pressing down the Lock Button located on the switch, then press FOCUS (r> pgs. 64 and 65, ©) FOCUS Button). The manual focus indicator appears 31 To focus on a farther subject, rotate the MENU/BRIGHT wheel towards “+. "2" appears and blinks. To focus on a nearer subject, rotate the MENU/BRIGHT wheel towards “-". "4" appears and blinks. 4)Press the MENU/BRIGHT wheel in. Focus adjustment is complete. To reset to Auto Focus, press FOCUS twice or setthe Power Switch to “ED” IFFOCUS is pressed once, the camcorder will enter the focus adjustment mode again NOTES: + Be sure to focus the lens in the maximum telephoto position when you use the Manual Focus mode. If you focus in on subject in the wide-angle position, sharply focused images cannot be obtained when zoomed up because the depth-of-field is reduced at longer focal lengths. When the focus level cannot be adjusted any further or closer, “4 "or “& ” will blink.

30En FOR RECORDING (cont.) Exposure Control Manual exposure adjustment is recommended in the following situations: +When shooting using reverse lighting or when the background is too bright. <When shooting on a reflective natural background such as at the beach or when skiing, +When the background is overly dark or the subject light À Settre Power Switch to "FARD" while pressing down the Lock Button located on the switch. 2 Press the MENU/BRIGHT wheel in. The Menu Screen appears. S rotate the MENU/BRIGHT wheel to select "El EXPOSURE", then press it. 4 Rotate the MENU/BRIGHT wheel to select “MANUAL", then press it. The Menu Screen disappears. The exposure control indicator appears. 5 Rotate the MENU/BRIGHT wheel towards “+” to brighten the image, or towards "to darken the image. (maximum +6) 6 Press the MENU/BRIGHT wheel in. Exposure adjustment is complete. To Return To Automatic Exposure Control … select "AUTO" in step 4. Or, setthe Power Switch © “ag”. To Brighten The Subject Quickly .… press BACKLIGHT. EX is displayed and the subject is brightened. If pressed again, disappears and the brightness returns to the previous level. +43 exposure has the same effect as the BACKLIGHT Button. + Using BACKLIGHT may cause the light around the subject to become too bright and the subject to become white. +Backlight compensations is also available when the Power Switch is set to NOTE: You cannot use the manual exposure control at the same time with backlight, spotight (17 pg. 25) compensation and'SNOW"(L7 pg. 25) Iris Lock Use this function in the following situations: +When shooting à moving subject. +When the distance to the subject changes (so its size in the LCD monitor or the viewfinder changes), such as when the subject is backing away. +When shooting on à reflective natural background such as atthe beach or when skiing. +When shooting objects under à spotight. +When zooming When the subject is close, keep the iris locked. Even when the subject moves away from you, the image will not darken or brighten Before the following steps, perform steps 1 through 4 of “Exposure Control”. 5 adiust zoom s0 thatthe subject ls the LCD monitor or the viewfinder, then press and hold the MENU/BRIGHT wheel for over 2 seconds. The exposure control indicator and “ ppear. Press the MENU/BRIGHT wheel in. “{B” changes to and the iris is locked. Iris lock indicator Power Switch To Return To Automatic Iris Control... .. rotate MENU/BRIGHT to display “AUTO” then n step 4. The exposure control indicator disappear. Or, setthe Power switch to To Lock The Exposure Control And The Iris . after step 4 of“Exposure Control”, adjust the | exposure rotating the MENU/BRIGHT wheel Then lock the iris in step 5 of ‘lis Lock”. For automatic locking, rotate the MENU/BRIGHT wheel to select "AUTO", then press it in step 4. The iris becomes automatic after about 2 seconds. Iris Like the pupil ofthe human eye, it contracts in well-lit environment to keep too much light from entering, and dilates in dim environments to allow in more light.

EN 91 White Balance Adjustment A term that refers to the correctness of colour reproduction under various lighting. If the white balance is correct, all other colours will be accurately reproduced. The white balance is usually adjusted automatically. However, more advanced camcorder operators control this function manually to achieve à more professional colour/tnt reproduction: À Settre Power Switch to “FARD" while pressing down the Lock Button located on the switch 2 Press the MENU/BRIGHT wheel in. The Menu Screen appears. 3 kotate the MENUBRIGHT wheel to select “2 W.BALANCE", then press it The W.BALANCE Menu appears. & Rotate the MENU/BRIGHT wheel to select the desired mode. “AUTO”... White balance is adjusted automatically (factory preset) White balance is set manuall. Outdoors on à sunny day. … Outdoors on à cloudy day. .. À video light or similar type of lighting is used. 5 press the MENU/BRIGHT wheel in. Selection is complete. Press the MENU/BRIGHT wheel in again. The Menu Screen closes and the selected mode indicator except "AUTO" appears To Return To Automatic White Balance ... …. Select ‘AUTO"in step 4. Or, setthe Power Switch bo “En”. NOTE: White balance cannot be used when Sepia or Monotone (7 pg. 25) is activated Manual White Balance Operation Perform Manual White Balance when shooting under various types of lighting. À Follow steps 1 through 4 of the white balance adjustment, and select “4 MWB". 2 Hold à sheet of plain white paper in front ofthe subject. Adjust zoom or position yourself so that the white paper fils the screen 3 Press the MENU/BRIGHT wheel in until Æ4 begins blinking rapidly. When the setting is completed, 1®4 resumes normal blinking 4 Press the MENU/BRIGHT wheel in twice. The Menu Screen closes and the Manual White Balance indicator #4 is displayed. MENU/BRIGHT Wheel

White paper Power Switch NOTES: ein step 2, itmay be dificult to focus on the white paper. In such a case, adjust focus manually (r- pg. 29). «A subject can be shot under various types of lighting conditions indoors (natural, flourescent, candlelight, etc.). Because the colour temperature is different depending on the light source, the subject tint will differ depending on the white balance settings. Use this function for a more natural result. + Once you adjust white balance manual, the setting is retained even ifthe power is tumed off or the battery removed.

Normal Screen For Recording Menu This camcorder is equipped with an easy-to-use, on-screen menu system that simplifies many of the more detailed camcorder settings (7 pg. 33 - 35) À Settne power Switch to “BND while pressing down the Lock Button located on the switch 2 Press the MENU/BRIGHT wheel in. The Menu Screen appears. S rotate the MENU/BRIGHT wheel to select the desired function menu, and press it. The selected function menu appears. Æ inction menu seting depends on the function. If you have selected “E3 WIPE/FADER”, “F4 PROGRAM AE", “E1 EXPOSURE” or “2 W. BALANCE”... .. see pg. 33. If you have selected “E CAMERA”, “[E] MANUAL”, “LA SYSTEM" or “I] DISPLAY”. …. go to step 5. 5 rotate the MENU/BRIGHT wheel to select the desired function and press it The Sub Menu appears. Then, rotate the MENU/BRIGHT wheel to select the parameter, and press it. Selection is complete. G aotate the MENU/BRIGHT wheel t select “t RETURN'and press ittwice. The Menu Screen closes. +The X icon represents “END”. NOTE: When the Menu Screen is left on for a couple of minutes, à residual image may be left on the screen and it may take several seconds for the residual image to disappear. This is not due to any defect of the unit.

Refer to “Fade/Wipe Effects" (17 pg. 26, 27). F1 PROGRAM

Refer to “Programme AË With Special Effects" (77 pg. 24, 25). E3 EXPOSURE Refer to ‘Exposure Control” and ‘iris Lock” (r7 pg. 30)

Refer to “White Balance Adjustment’ and ‘Manual White Balance Operation” (7 pg. 31). REC MODE Allows you to setthe tape recording mode (SP or LP) depending on your preference (L7 pg. 13) SOUND MODE 12BIT Enables tape recording of stereo sound on four separate channels, and is recommended for use when performing audio dubbing. (E quivalent to the 32 kHz mode of previous models) Enables tape recording of stereo sound on two separate channels. (Equivalent to the 48 kHz mode of previous models) ZO0M When set to “10X” while using digital zoom, the zoom magnification will reset to 10X since digital zoom will be disengaged. Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 10X (the optical zoom limit), to à maximum of 40X digital magnification A CAMERA 500X Allows you to use the Digital Zoom. By digitally processing and magnifying images, zooming is possible from 10X (the optical zoom limit), to à maximum of 500X digital magnification. SNAP MODE Refer to "Snapshot” (17 pg. 28). GAIN UP OFF Allows you to shoot dark scenes with no picture brighiness adjustment. AGC The overall appearance may be grainy, butthe image is bright. AUTO The shutter speed is automatically adjusted (1/25 — 1/200 sec.}. Shooting à subject in low or poor lighting at 1/25 sec. shutter speed provides à brighter image than in the AGC mode, but the subjects movements are not smooth or natural. The overall appearance may be grainy. While the shutter speed is being automatically adjusted, “-£A "is displayed. DIS OFF Il MANUAL ON «y To compensate for unstable images caused by camera-shake, particularly at high magnification NOTES: < Accurate stabilisation may not be possible if hand shake is excessive, or under the following conditions + When shooting subjects with vertical or horizontal stripes. + When shooting dark or dim subjects. + When shooting subjects with excessive backlighting. + When shooting scenes with movement in various directions. + When shooting scenes with low-contrast backgrounds: e Switch off this mode when recording with the camcorder on à tripod. e The “ous” indicator blinks or goes out if the Stabiliser cannot be used.

NOTES: actory-preset + Settings made in the “ÆJ CAMERA" Menu remain effective whether the Power Switch is set to “CRD” or “(MANUAD). However, the menu settings can be changed only when the Power Switch is s: e The “Il MANUAL" settings are effective only when the Power Switch is sett CANUAD)".

34e USING MENUS FOR DETAILED ADJUSTMENT (cont.) Menu Screen Explanations (cont.) TELE [OFF Usually the distance to a subject where the lens is in focus depends on the MACRO 200m magnification. Unless there is a distance more than 1m to the subject, the lens is out of focus at the maximum telephoto setting. When set to "ON, ON you can shoot a subject as large as possible at a distance of approx. 60 cm. + Depending on the zoom position, the lens may go out of focus WIDE [OFF Records with no change in the screen ratio. For playback on à TV with a MODE normal screen ratio n CINEMA | Inserts black bands atthe top and bottom ofthe screen. During playback on £ n wide-screen TVs, the black bands atthe top and bottom of the screen are cut and the screen ratio becomes 16:9. C1] appears. When using this mode, refer H to your wide-screen TV's instruction manual. During playback/recording on 4:3 È TVS/LCD monitorviewfinder, black bands are inserted at the top and bottom of E the screen and the image appears like a letterboxed 16:9 movie. SQUEEZE | For playback on TVs with an aspect ratio of 16:9. Naturally expands the image to fitthe screen without distortion. fa appears. When using this mode, refer to your wide-screen TV's instruction manual. During playback/recording on 4:3 TVS/LCD monitorviewfinder, the image is elongated vertically. WIND [OFF Disengages the function which culs down on noise created by wind CUT ON @S | Helps cutdown on noise created by wind. "€ "appears. The quality ofthe sound will change. This is normal. BEEP [OFF Even though notheard while shooting, shuter sound is recorded on the tape BEEP | The beep sounds when the power is tumed on or off, and atthe beginning and end of recording, Also to activate the shutter sound effect (:7 pg. 28). Ë MELODY | Instead of a beep, a melody sounds when any operation is performed. It also ÿ activates the shutier sound effect (17 pg. 28) ü|TALLY [OFF The tally lamp remains off at al mes E oN The tal lamp comes on to signal the start of recording ID NUMBER This number is necessary when connecting the camcorder to a device such as à computer using the J terminal (} LIP} or PC connector. The numbers range from O1 to 99. Factory setting is 06 ET: Factory-preset NOTES: e The “II MANUAL'"settings are effective only when the Power Switch is set to “PANUAD e “LEA SYSTEM” functions which are set when the Power Switch is set to “PANUAL)" are also applied when the Power Switch is setto “PLAY” (7 pg. 36)

En 9D DEMO |OFF Automatic demonstration will nottake place. MODE [on Demonstrates certain functions such as Programme AE with special effects, etc., and can be used to confirm how these functions operate. Demonstration starts in the following cases: +When the Menu Screen is closed after "DEMO MODE "is turned “ON”. +With DEMO MODE set to ON’, operation for about 3 minutes = after the Power Switch is set to “ # Performing any operation during the demonstration stops the demonstration ÿ temporarily. If no operation is performed for more than 3 minutes after that, the à demonsträtion will resume. E NOTES: e lfa tape is in the camcorder the demonstration cannot be tumed on. + "DEMO MODE” remains "ON" even ifthe camcorder power is tumed off. e IFDEMO MODE "remains ON”, some functions will not be available. After viewing demo, set to “OFF”. CAM CANCEL | Does notreset all settings to the factory-preset. RESET LEXECUTE | Reset al settings tte factory-preset. ON LCD Keeps the camcorders display (except the date, time and time code) from SCREEN appéaring on the connected TV screen LCD/TV | Makes the camcorders display appear on screen when the camcorder is connected to à TV. DATE/ [OFF The date/time does not appear. TIME AUTO Displays fe datelime for approx. 5 seconds in he following cases: + When the Power Switch is Set from “OFF "to "or" à 2 When tape playback stars, The camcorder displays the date/lime when ô scenes are recorded. 5 + When the date is changed during tape playback on The date/time is always displayed. TIME OFF Time code is not displayed. ON Time code is displayed on the camcorder and on the connected TV. Frame numbers are not displayed during recording. CLOCK AD]. Allows you to setthe current date and time (77 pg. 11). LT: Factory-preset NOTES: "LA SYSTEM” and “TJ DISPLAY" functions which are set when the Power Switch is set to “FRNUAD)" are also applied when the Power Switch is set to “PLAY"(r7 pg. 36). CLOCK AD) only appears when the Power Switch is set to Settings made in the “I DISPLAY" Menu remain effective even when the menu setings can be changed only when the Power Switch is set to Power Switch is set to “ŒM". However, + The date indication can also be turned on/off by pressing the DISPLAY Button on the remote control (provided) (7 pg. 21, 38, 45)

RETURN For Playback Menu The following procedure applies to all except Synchro Comp (£7 pg. 48). 1 Setthe Power Switch to “PLAY” while pressing down the Lock Button located on the switch. 2 Press the MENU/BRIGHT wheel in. The Menu Screen appears. S rotate the MENU/BRIGHT wheel to select the desired function menu, and press it. The selected function menu appears. Æ otate the MENU/BRIGHT wheel to selectthe desired function, and press itto display the Sub Menu. 5 rotate the MENU/BRIGHT wheel select the desired parameter and press it Selection is complete. 6 Rotate the MENU/BRIGHT wheel to select “J RETURN"and press ittwice to close the Menu Screen. Menu Screen Explanations SOUND MODE | 57 pg. 37 12BIT MODE p9.37 QE NNCHRO C7 pg.48. WIREC MODE | Alows you to setthe tape $ recording mode (SP or LP) depending on your preference E {7 pg. 13). Itis recommended you use “REC MODE "in the “rm VIDEO” Menu when using this camcorder as a recorder during dubbing (17° pg. 39).

ü Each setting is linked with “or DISPLAY" or “EA SYSTEM", which [| appears when the Power Switch is > set to “MANUAL)" (17 pg. 34, 35). 4 The parameters are the same as in ë the description on pg. 34, 35.

NOTES: + The date indication can also be tumed on/off by pressing DISPLAY on the remote control (provided). e'REC MODE” can be set when the Power Switch is set to “PLAY"or “(MANUAL)" (17 pg. 13, 33).

EN 37 Playback Sound During tape playback, the camcorder detects the sound mode in which the recording was made, and plays the sound back. Select the type of sound to accompany your playback picture. According to the menu access explanation on pg. 36, select "SOUND MODE" or “12BIT MODE" from the Menu Screen and set it to the desired parameter. STEREO Ja] | Sound is output on both “L’ and ‘R” channels in stereo. SOUND MODE | SOUNDL[Q» | Sound from the ‘L’ channel is output in stereo. SOUNDR d | Sound from the ‘R" channels output in stereo MIX Original and dubbed sounds are combined and output in stereo on both “Land 'R” channels in stereo 1287 MODE | SouND1 Original sound is output on both "Land "R” channels in stereo SOUND 2 Dubbed sound is output on both ‘Land "R”channels in stereo [CL]: Factory-preset NOTES: + The “SOUND MODE” setting is available for both 12-bit and 16-bit sound. (In previous models’ functions, called ‘32 kHz” and ‘16-bit’ is called “48 kHz") ‘+ The camcorder cannot detectthe sound mode in which the recording was made during fast-forward or rewind. During playback the sound mode is displayed in the upper left corner. 12-bit'is Display ON SCREEN setting: For playback sound, tape DATE/TIME setting: TIME CODE setting: speed and tape running. For date/time. For time code. TETTTSONET SP

38En DUBBING Connector cover Power Switch AudioWideo cable Imini-plug to RCA plug] (provided) S-Video cable (optional) To AUDIO, VIDEO* and [ST-IN connectors video Cable Adapter (provided) select switch Ifyour VCR has à SCART. connector, use the provided fl cable adapter. VCR En

• When connecting the cables, open this cover. # Connect when an S-Video cable is not used Dubbing To À VCR À Ecowing tre ilustration, connect the camcorder and the VCR. Also refer to pg. 20 and 21. 2 Setthe camcorder's Power Switch to “PLAY” while pressing down the Lock Button located on the switch, turn on the VCR's power, and insert the appropriate cassettes in the camcorder and the VCR S Engage the VCR'S AUX and Record-Pause modes 4 Engage the camcorders Play mode to find à spot just before the edit-in point, Once itis reached, press »/H on the camcorder. 5 press »/11 on the camcorder and engage the VCR'S Record mode. 6 engage the VCR'S Record-Pause mode and press »/IE on the camcorder. 7 Repeat steps 4 through 6 for additional editing, then stop the VCR and camcorder when finished. NOTES: As the camcorder starts to play your footage it will appear on your TV. This will confirm the connections and the AUX channel for dubbing purposes. «Before you start dubbing, make sure that the indica- tions do not appear on the connected TV. Ifthey do, they are being recorded onto the new tape e Setthe video out select switch ofthe cable adapter as required: YIC : When connecting to a TV or VCR which accepts Y/C signals and uses an S-Video cable. CVBS : When connecting to a TV or VCR which does not accept Y/C signals and uses an audiolvideo cable. To choose whether or not the following displays appear on the connected TV... *Date/Time …. Set'DATE/TIME "to “AUTO”, “ON” or “OFF” in the Menu Screen (T7 pg. 36) Or, press DISPLAY on the remote control (provided) to turn onfoff the date indication. +Time Code …. Set'TIME CODE" to “ON"or "OFF" in the Menu Screen (7 pg. 36). +Playback Sound Mode, Tape Speed And Tape Running Displays …. set'ON SCREEN”to “LCD” or “LCD/TV"in the Menu Screen (17 pg. 36).

En 39 Dubbing To Or From À Video Unit Equipped With À DV Connector (Digital Dubbing) Itis also possible to copy recorded scenes from this camcorder onto another video unit equipped with à DV connector. Since à digital signal is sent, there is lle if any image or sound deterioration [To use this camcorder as a player] À make sure al units are tumed off. Connect this camcorder to a video unit equipped with à DV input connector using a DV cable as shown in the Core filter. illustration. 2 setthis camcorders Power Switch to “PLAY” while pressing down the Lock Button located on the DV cable Power Switch switch, turn on the video units power, and insert the (optional) appropriate cassettes in this camcorder and the video unit. S press » to play back the source tape Core filter Æ nie watching the playback on the monitor, = engage the DV connector-equipped video units OUT record mode from the spot on the source tape you Video unit equipped want to begin recording. with DV connector NOTES: e itis recommended to use the AC Adapter as the power supply instead of the battery pack (7 pg. 9). Ifthe remote control is used when both the player and recorder are } VC video units, both units will perform the same operation. To prevent this from happening, press the buttons on both units. elfa blank portion or disturbed image is played back on the player during dubbing, the dubbing may stop so that an unusual image is not dubbed. + Even though the DV cable is connected correcty, sometimes the image may not appear in step 4. If this occurs, turn offthe power and make connections again. elf "Playback Zoom’ {r7 pg. 43), “Playback Special Effects" (7 pg. 42) or “Snapshot’ is attempted during playback, only the original playback image recorded on the tape is output from the DV connector. + When using a DV cable, be sure to use the optional JVC VC-VDV204U DV cabl [To Use This Camcorder As A Recorder]

1. Setthis camcorder's Power Switch to "PLAY" while pressing down the Lock Button located on the switch

2. Set'REC MODE "to "SP" or "LP" in the Menu Screen (17 pg. 36).

3. Connectthe DV cable as shown in the illustration and load a cassette to record on.

4. Press the Recording Star}S top button to engage the Record-Pause mode. “DW:IN "appears on the screen

5. Press the Recording Start/Stop button to start recording. € rotates

6. Press the Recording Start/Stop button again to engage the Record-Pause mode.

NOTES: Digital Dubbing is performed in the sound mode recorded on the original tape, regardless of the current “SOUND MODE" setting (7 pg. 33) During Digital Dubbing, no signals are output from the video or audio connectors. stops rotating

The Full-Function Remote Control Unit can operate this camcorder from à distance as well as the basic operations (Playback, Stop, Pause, Fast-Forward and Rewind) of your VCR. Italso makes additional playback functions possible Installing The Batteries The remote control uses two “AAA (R03)" size batteries. See “General Battery Precautions” (7 pg. 60) remove the battery compartment cover while pushing up the tab as illustrated 2 Insert two "AAA (R03)" size batteries in the correct direction. S Re-attach the battery compartment cover. Remote sensor When using the remote control, be sure to point it at the remote sensor. The transmitted beam's approximate effective distance for indoor use is 5m The transmitted beam may not be effective or may cause incorrect operation outdoors or when the remote sensor is directly exposed to sunlight or powerful lighting

en 41 e © oS— = 15] 65 8% o © 6 ® Functions Buttons With the camcorders Power Switch set to the camera position (* A ” or “(MANUKD)"). With the camcorder's Power Switch setto “PLAY”. O infrared beam transmitting window Transmits the beam signal. @ Zoom (TM) Buttons Zoom infout {7 pg. 17) Zoom infout (7 pg. 43) © DISPLAY Button 17 po. 21, 36,45 OSHIFT Button _ LF pg. 43, 44 © SLOW Rewind/Forward Buttons - T7 po. 42 LeftRight Buttons - C7 pg. 43 OREW Button _ Rewind/Reverse Shuttle Search on the tape (17 pg. 19) OFADE/WIPE Button _ 17 pg. 46 O EFFECT ON/OFF Button _ T7 pg. 42 O EFFECT Button _ T7 pg. 42 © PAUSE IN Connector _ T7 pg. 45 © START/STOP Button Functions the same as the Re cording Start/Stop Button on the camcorder. ® MBR SET Button T7 p9. 44 © SNAPSHOT Button Functions the same as SNAPSHOT on the camcorder. © up Button _ 7 pg. 43 INSERT Button - 17 pg. 50 © Down Button — 17 pg. 43 A. DUB Button _ T7 pg. 49 OPLAY Button = Starts Playback of the tape (7 pg. 19) OFF Button - Forward/F orward Shuttie Search on the tape (7 pg. 19) © STOP Button Stops the tape (r7 pg. 19) © PAUSE Button Pauses the tape (77 pg. 42) @R.AEDIT Buttons T7 pg. 44 - 48

USING THE REMOTE CONTROL UNIT (cont.) FEATURE: Slow-Motion Playback PURPOSE: To allow slow-speed search in either direction during tape playback. OPERATION:

1) To change from normal to Slow-Motion

Playback, press SLOW (<1 or ») more than approx. 2 seconds. After approx. 1 minute in Slow Rewind or approx. 2 minutes in Slow Forward, normal playback resumes To stop Slow-Motion Playback, press PLAY (>). NOTES: e You can also engage Slow-Motion Playback from Stil Playback by pressing SLOW more than approx 2 seconds e During Slow-Motion Playback, due to digital image processing, the picture may take on a mosaic effect. «After SLOW («1 or ») is pressed and held, the still Forward Button image may be displayed for a few seconds, followed by a blue screen for à few seconds. This is nota malfunction. e There may be a small margin between the slow- motion playback start point you chose and the D actual start point for Slow-Motion Playback. EFFECT — During Slow-Motion Playback, there will be disturbances in video and the picture may seem unstable, especially with steady images. This is not 8 malfunction e During Slow-Motion Playback, press PAUSE (11) to pause playback FLAYBACK EFFECT PLAYBACK EFFECT FEATURE: Frame-By-Frame Playback Select Menu PURPOSE: 1 CLASSIC FILM To allow frame-by-frame search during tape ie playback. 4 [& STROBE OPERATION:

1) To change from normal to Frame-By-Frame

Playback, press SLOW (+) repeatedly for forward or SLOW («1) repeatedly for reverse. Each time it is pressed, the frame is played back. NOTE: You can also engage Frame-By-Frame Playback from Stil Playback by pressing SLOW {1 or ) repeatediy. FEATURE: Playback Special Effects PURPOSE: To allow you to add creative effects to the playback image. OPERATION:

Select Menu appears.

3) Move the highlight bar to the desired effect by pressing EFFECT. The selected function is activated and

after 2 seconds the menu disappears. mo deactivate the selected effect, press EFFECT ON/OFF on the remote control. Pressing it again re- activates the selected effect. mTo change the selected effect, repeat from step 2 above. NOTE: The effects that can be used during playback are Classic Film, Monotone, Sepia and Strobe. The effects work the same in playback as they did in recording. Refer to page 25 for more information

en 43 Remote sensor Zoom Buttons Up Button SHIFT Left Button —| — Down Button PLAY Right Button. STOP Normal playback To move image, press [2 (Right) while keeping SHIFT held down. FEATURE: Playback Zoom PURPOSE: To magnify the recorded image up to 50X at any time during playback. OPERATION: 1)Press PLAY (») to find the scene of interest. 2)Press the Zoom Buttons (T/W) on the remote control. Make sure the remote control is pointed atthe camcorder's remote sensor. Pressing T 200mS in.

3) You can move the image on screen around to

find a particular portion of the picture. While holding down SHIFT, press E1 (Left), C3 {Right), rx (Up) and 53 (Down) = To end zoom, press and hold W until magnifica- tion returns to normal. Or, press STOP (1) and then press PLAY (>). NOTES: + Zoom can also be used during slow-motion and still playback. + Due to ditital image processing, the quality ofthe image may suffer.

Random Assemble Editing [R.A.Edit] Create edited videos easily using your camcorder as the source player. You can select up to 8 ‘cuts” for automatic editing, in any order you like. R.A.E dit is more easily performed when the MBR (Mult-Brand Remote) is set to operate with your brand of VCR {see VCR CODE LIST), but can also be performed by operating the VCR manuall. Before operation, make sure the batteries are installed in the remote control (7 pg. 40).

À rumotte power to the VCR and point the remote towards the VCR S infrared sensor. Then, referring to the VCR CODE LIST, press and hold MBR SET, and enter the brand code. The code is automatically set once you release MBR SET, and the VCR's power comes on 2 make sure the VCR'S power is on. Then, while holding SHIFT, press the button on the remote for the desired function. The functions the remote can control are PLAY, STOP, PAUSE, FF, REW and VCR REC STBY (you do not need to press SHIFT for this one) You are now ready to try Random Assemble Editing. IMPORTANT Although the MBR is compatible with J VC VCRS and those of many other makers, it may not work with yours or may offer limited functions. NOTES: elfthe VCR'S power does not come on in step 1, try another code from the VCR CODE LIST. + Some brands of VCR do not come on automatically. In this case, tum the power on manually and tr step 2. e lfthe remote control is not able to control the VCR, use the controls on the VCR e When the remote control batteries run out, the VCR brand you have set will be erased In that case, replace the old battery with a new one to resetthe VCR brand.

video out select switch VCR AudioWVideo cable (provided) Editing cable (provided) Connector cover#* I your VCR has the SCART connector, use the provided cable adapter. [AI [EITo Remote PAUSE or R.A.EDIT

• Connect when an S-Video cable is not used “When connecting cables, open this cover.

ATTENTION FOR EDITING CABLE

Make sure you connect the end with the core filer (plug which has 3 rings around the pin) to the camcorder. MAKE CONNECTIONS Also refer to pg. 20 and 21. À Ga vc ver equipped with a remote pause connector .… connect the editing cable to the Remote PAUSE connector. A JVC VCR not equipped with a remote pause connector but equipped with an R.A.EDIT connector .… .. connect the editing cable to the R.A.EDIT connector. [] A VCR other than above .. connect the editing cable to the remote control's PAUSE IN connector. 2 insert a recorded tape into the camcorder. Setthe Power Switch to "PLAY" while pressing down the Lock Button located on the switch S rum the VCR power on, insert a recordable tape and engage the AUX mode (refer to the VCR'S instructions). NOTES: + Before Random Assemble Editing, make sure the indications do not appear on the TV monitor. they do, they will be recorded onto the new tape To choose whether or not the following displays appear on the connected TV +Date/Time Set DATEITIME 10 "AUTO" "ON Or"OF Fin the Menu S creen (: 36). Or, press DISPLAY on the remote control (provided) to turn onfoff the date indication. «Time Code set*TIME CODE"to “ONor “OFF"in the Menu Screen (r7 po. 36) «Playback Sound Mode, Tape Speed And Tape Running Displays set"ON SCREEN" to “LCD'or"LCD/TV'in the Menu Screen (17 pg. 36) e Setthe video out select switch ofthe cable adapter as required: YIC : When connecting to a TV or VCR which accepts Y/C signals and uses an S-Video cable. CBS : When connecting to a TV or VCR which does notacceptY/C signals and uses an audioivideo cable + When editing on a VCR equipped with a DV input connector, an optional DV cable can be connected instead of an S-Video cable and audiolvideo cable

46e USING THE REMOTE CONTROL UNIT (cont.) Programme SELECT SCENES Random Assemble Editing Menu 4 pointthe remote control atthe camcorders remote sensor. Press PLAY (») and then press R.A.EDIT ON/OFF on the remote control. The Random Assemble Editing Menu appears. 5 irusing a Fade/Wipe atthe beginning of the scene, press FADE/WIPE on the remote control. +Cycle through the effects by pressing repeatediy, and stop when the one you want is displayed G attne beginning ofthe scene, press EDIT IN/ OUT on the remote control. The Edit-In position appears in the Random Assemble Editing Menu 7 Atthe end ofthe scene, press EDIT IN/OUT. The Edit-Out position appears in the Random Assemble Editing Menu. 8 irusing à Fade/Wipe atthe end of the scene, press FADE/WIPE +Cycle through the effects by pressing repeatediy, and stop when the one you want is displayed +1f you select a Fade/Wipe effect for an Edit-Out point, the effect is automatically applied to the following E dit-in point. +When you use Fade/Wipe effects, that time is included in the total time. Q irusing Playback Special Effects, press EFFECT UF pg. 42). ÂOrepeat steps 6 through 9 to register additional scenes +To change previously registered points, press CANCEL on the remote control. The registered points disappear, one at à time, from the most recent registered point. +If you are not using Fade/Wipe or Programme AE with special effects, repeat steps 6 and 7 on. NOTES: e When choosing a scene, set Editn and Edit-Out points so that there is a relatively large difference between them: lfthe search time for an in-point exceeds 5 minutes, the recording deck's Record-Standby mode will be cancelled and editing wil not take place. e lfthere are blank portions before or after the Edit-In and Edit- Out points, a blue screen may be included in the edited version. e Since time codes register time only as accurately as seconds, the time code total time may not match the total programme time exactiy. e Tuming offthe camcorder's power erases all registered Edit-In and Edit-Out points. If you select Sepia or Monotone mode from Programme AE with special effects, you cannot use the Black & White Fäder. In this case the Black & White indicator begins linking. Once the next Edit-In point is registered, the effect is tumed off, To combine these effects, use Sepia or Monotone during recording, then use the Black & White Fader during Random Assemble E diting eitis not possible to use Fade/Wipe effects and Programme AE with special effects during Random Assemble E diting using a DV cable.

À Rewina the tape in the camcorder to the beginning of the scene you want to edit and press PAUSE (11). 12 point the remote control towards the VCR's remote sensor and press VCR REC STBY (@l), or manually engage the VCR's Record-Pause mode 1 press the Recording Start/Stop Button on the camcorder. Editing proceeds as programmed, right Ediing Men through to the end of the last registered scene +When dubbing is complete, the camcorder enters the Pause mode, and the VCR enters its Record- Recording StartStop Pause mode. Button +If you do not register an Edit-Out point, the tape will be dubbed all the way to the end automatically. +If you operate the camcorder during automatic editing, the VCR will enter its Record-P ause mode and automatic editing will stop. Â4 Engage the Stop modes for the camcorder and the VCR D _ To make the R.A.E dit counter display disappear, press R.A.EDIT ON/OFF on the remote control. NOTES: «Pressing R.A.EDIT ON/OFF on the remote control clears all settings registered during Random Assemble Editing. e When the editing cable is connected to the remote control Pause In connector during dubbing, make sure the remote control is pointed at the VCR's sensor, and the path between the two is unobstructed. e Random Assemble E diting may not function property when using a tape including several duplicated time codes (7 pg. 18).

SYNCHRO Remote sensor For More Accurate Editing Some VCRS make the transition from Record-P ause to Record mode faster than others. Even if you begin editing for the camcorder and the VCR at exactly the same time, you may lose scenes you wanted, or find that you have recorded scenes you did not want. For à cleanly edited tape, confirm and adjust the timing of the camcorder against your VCR

DIAGNOSING VCR/CAMCORDER TIMING

À Play back the tape in the camcorder, then point the remote control at the camcorder's remote sensor and press R.A.EDIT ON/OFF. The Random Assemble Editing Menu appears. 2 Perform Random Assemble Editing on Pro- gramme 1 only. In order to check VCR and camcorder timing, select the beginning of à scene transition as your Edit-In point. S Piay back the dubbed scene If any images from the scene prior to the transition you chose for your Edit-In point were recorded, that means your VCR moves too quickly from Record- Pause to Record mode +Ifthe scene you tried to dub starts in progress, the VCR is slow to start recording.

ADJUSTMENT OF VCR/CAMCORDER TIMING

LI Point the remote control at the camcorder's remote sensor and press R.A.EDIT ON/OFF to make the Random Assemble E diting menu disappear, then press the MENU/BRIGHT wheel in. The Menu Screen appears. 5 rotate the MENU/BRIGHT wheel to select "Cr VIDEO” and press it. The VIDEO Menu appears. Then, rotate it to "SYNCHRO” and press it. The value for “SYNCHRO"is highlighted G sased on the diagnostics performed, you can now advance the VCR'S record timing by rotating the MENU/BRIGHT wheel towards “+”. You can also delay the VCR'S record timing by rotating the MENU/ BRIGHT wheel towards “-". The adjustment range is from -1.3 to +1.3 seconds, in 0.1-second increments. Press the MENU/BRIGHT wheel in to finish the setting 7 Rotate the MENU/BRIGHT wheel to select “4 RETURN"and press it twice. Now perform Random Assemble E diting beginning with step 4 on page 46. NOTES: + Before performing actual Random Assemble Editing, do à few Random Assemble Editing trial runs to check whether the value you have input is appropriate or not, and make adjustments accordingly. + Depending on the recorder, there may be situations where the timing difference cannot be fully corrected.

en 49 Display Audio Dubbing TS | Audio Dub Standby mode The audio track can be customized only when recorded in the 12-bit mode (17 pg. 33). NOTES: + Audio Dubbing is not possible on a tape recorded in 16- bit audio, on a tape recorded in the LP mode or on à blank portion of a tape. e To perform Audio Dubbing while watching on the television, make connections (17 pg. 20) PowerSwitch play back the tape to locate the point where editing will start, then press PAUSE (11). 2 White holding A.DUB (#) on the remote control, press PAUSE (11). "11S" appears. 3 Press PLAY (») , then begin ‘narrating”. Speak into the microphone «To pause dubbing, press PAUSE (11) Æ 5 end Audio Dubbing, press PAUSE (11), then Speaker STOP (m) To hear the dubbed sound during playback D Remote sensor … set"12BIT MODE" to “SOUND 2" or "MIX"in the Menu Screen (r7 pg. 36, 37). NOTES: «Sound is not heard from the speaker during Audio Dubbing e When editing onto a tape that was recorded at 12-bit, the old and new soundtracks are recorded separately. «If you dub onto a blank space on the tape, the sound may be disrupted. Make sure you only edit recorded areas e lffeedback or howling occurs during TV playback, move the camcorders microphone away from the TV, or tum down the TV's volume. elf you change from 12-bitto 16-bit in mid-recording and then use the tape for Audio Dubbing, itis not effective from the point where 16-bit recording began. + During Audio Dubbing, when the tape moves to scenes recorded in the LP mode, scenes recorded in 16-bit audio or a blank portion, Audio Dubbing tops (7 pg. 68). microphone

DOën USING THE REMOTE CONTROL UNIT (cont.) Insert Editing You can record à new scene into à previously recorded tape, replacing à section of the original recording with minimal picture distortion atthe in and outpoints. The original audio remains unchanged NOTES: + Before performing the following steps, make sure that TIME CODE” is set to “ON” in the Menu Screen pg. 35, 37). «Insert Editing is not possible on a tape recorded in the Power Switch LP mode or on a blank portion of a tape. «To perform Insert Editing while watching in the television, make connections (17 pg. 20) À Puy back the tape, locate the Edit-Out point and press PAUSE (11). Confirm the time code atthis point Display (7 pg. 35, 37). 2 Press REW (44) until the Edit-n point is located, then press PAUSE (1) S press and hold INSERT (©) on the remote control, then press PAUSE IG" and the Time Code (min.:sec.) appear and the camcorder enters Insert-Pause mode. Æ press START/STOP to begin editing. +Confirm the insert at the time code you checked in step 1. Remote sensor «To pause editing, press START/STOP. Press it again to resume editing. 5 0 end insert Editing, press START/STOP, then STOP (m). NOTES: + Programme AE with special effects (r7 pg. 24, 25) can be used to spice up the scenes being edited during Insert E diting During Insert E diting, the date and time information changes lf you perform Insert Editing onto a blank space on the tape, the audio and video may be disrupted. Make sure you only edit recorded areas e During Insert E diting, when the tape moves to scenes recorded in the LP mode or à blank portion, Insert Edtng stops (77 pg. 69) Lock Button 12:34

SYSTEM _ CONNECTIONS EN O1 [A] Using PC connection cable PC connection cable provided) To RS-232C Power Switch Core filter Core filter To DV DV cable (optional) To DV connector PC with DV D connector Connection To À Personal Computer IA] Using PC connection cable This camcorder can transfer still images to à PC by using the software (provided) 1B] Using DV cable Itis also possible to transfer still images to à PC with à DV connector by using software equipped with the PC or commercially available software. 1 Make sure the camcorder and PC are turned off. 2 Connect the camcorder to your PC using the appropriate cable as shown in the illustration 3 Turn the camcorder's Power Switch to "PLAY" while pressing down the Lock Button located on the switch and turn on the PC. +Refer to the instruction manual of the software on how to transfer à still image to the PC. 4 When finished, turn off the PC first, then the camcorder. NOTES: eRefer to “SOFTWARE INSTALLATION AND PC CONNECTION GUIDE”forthe installation of the bundied software and drivers e itis recommended to use the AC Adapter as the power supply instead of the battery pack (17 pg. 9). + Never connectthe PC connection cable and the DV cable simultaneously to the camcorder. Connect only the cable you wish to use to the camcorder. e The date/time information cannot be captured into the

e Refer to the instruction manuals of the PC and Software e The still images can also be transferred to a PC with a DV connector-equipped capture board + When using a DV cable, be sure to use the optional JVC VC-VDV206U or VC-VDV204U DV cable depending on the type of DV connector (4 or 6 pins) on the PC, or use the DV cable provided with the capture board. e The system may not work properiy depending on the PC or capture board you are using.

DETAILS En 03 Perform charging where the temperature is between 10°C and 35°C. 20°C to 25°C is the ideal temperature range for charging. If the environment is too cold, charging may be incomplete. O Charging times are for a fully discharged battery pack. Charging time varies according to the ambient temperature and the status of the battery pack O To avoid interference with reception, do not use the AC Adapter near a radio. O Since the AC Adapter processes electrcity internally, it becomes warm during use. Be sure to use it only in well-ventilated areas. The following operation stops chargin +Setthe Power Switch to "PLAY", or “END. +Disconnect the AC adapter from the camcorder. +Unplug the AC adapter's power cord from the AC outlet. +Detach the battery from the camcorder. “ RECORDING 7 pg-. 15, 16) O When you use the LCD monitor outdoors in direct sunlight, the LCD monitor may be difficult to see. Ifthis happens, use the viewfinder instead. O The cassette holder cannot be opened unless à power supply is attached. O There may be à delay after you open the cassette holder cover until the cassette holder opens. Do not use force O Once the cassette holder is closed, itrecedes automatically. Wait until it recedes completely before closing the cassette holder cover. O When the Recording StartStop button is pressed, it may take a few seconds before actual recording starts. "#3 "starts rotating when the camcorder actually starts recording O The time required to calculate and display the remaining tape length, and the accuracy ofthe calculation, may vary according to the type of tape used. O “TAPE END" appears when the tape reaches its end, and the power goes off automatically if left in this condition for 5 minutes. "TAPE END”also appears when à cassette at its end is loaded.

D4en TROUBLESHOOTING I, after following the steps in the chart below, the problem still exists, please consult your nearest] VC dealer. beginning. The camcorder is à microcomputer-controlled device. E xtemal noise and interference (from a TV, a radio, etc.) might prevent it from functioning proper. In such cases, first disconnect its power supply unit (battery pack, AC Adapter, etc.) and wait à few minutes; and then re-connect it and proceed as usual from the El Lo power is supplied.

SYMPTOM POSSIBLE CAUSES CORRECTIVE ACTION

<The power is not connected proper. <The battery is dead + Connect the AC Adapter securely (7 pg. 9). +Replace the dead battery with a fully charged one (17 pg. 8, 9).

appears. «The dateltime is not set. «The built-in clock battery has run out and the previously set date/time has been erased +Setthe date/iime (r7 pg. 11). +Consult your nearest VC dealer for replacement. El Recording cannot be performed. «The tape's erase protection tab is setto “SAVE”. «The Power Switch is set to “PLAY” or "OFF". +'TAPE END" appears «The cassette holder cover is open. +Setthe tape's erase protection tab REC" (7 pg. 12). *Setthe Power Switch to “ŒM"or CANAL)" (17 pg. 16). *Replace with new cassette 7 pg. 12). +Close the cassette holder cover. EE There is no picture. «The camcorder is not getting power, or some other malfunction exists. + Turn the camcorder's power off and on again (T7 pg. 16) E The focus does not adjust automatically. Focus is set to the Manual mode. «The recording was done in à dark place, or the contrast was low. <The lens is dirty or covered with condensation. Set Focus to the Auto mode 7 pg. 29). +Clean the lens and check the focus again (r7 pg. 59). HE The cassette will not load properiy. «The cassette is in the wrong position. «The battery's charge is low. +Setitin the right position 7 pg. 12). «Install à fully charged battery EF pg. 8, 9). Snapshot mode cannot be used «The Squeeze mode is selected +Disengage the Squeeze mode {T7 pg. 34).

SYMPTOI POSSIBLE CAUSES CORRECTIVE ACTION

E The colour of Snapshot looks strange + The light source or the subject does notinclude white. Or there are various different light sources behind the subject. +The Sepia or Monotone mode is activated. +Find à white subject and compose your shot so that it also appears in the frame (7 pg. 28). +Turn off Sepia and Monotone (7 pg. 24, 25) EI The image taken using Snapshot is too dark. +Shooting was performed under backlit conditions. +Press the BACKLIGHT Button {7 pg. 30). I The image taken using Snapshot is too bright. +The subject is too bright. *Set'PROGRAM AE"to POTLIGHT”in the Menu Screen {L pg. 24) El Digital Zoom does not work. +10X optical zoom is selected. *Set'ZOOM"to “40X" or “500X" in the Menu Screen (r7 pg. 33). EB The Black & White Fader does not work. +The Sepia or Monotone mode is activated. +Turn off Sepia and Monotone (7 pg. 24, 26). I Even when Slow Shutter is notselected, the image looks like itis activated +When shooting in the dark, the unit becomes highly sensitive to light and the image takes on an effect similar to Slow Shutter. +1f you want the lighting to look more natural, set GAIN UP to “AGC"or"OFF"in the Menu Screen (r7 pg. 33) I] White Balance cannot be activated. +The Sepia or Monotone mode is activated. +Turn off Sepia or Monotone before setting White Balance (r7 pg. 25,

EE When shooting a subject iluminated by bright light, vertical Ines appear. + This is à result of exceedingly high contrast, and is not à malfunction: I When the screen is under direct sunlight during shooting, the screen becomes red or black for an instant. This is not a malfunction. During recording, the date/ me does not appear. *"DATE/TIME "is set to OFF" in the Menu Screen. *SetDATE/TIME "to “ON”in the Menu Screen (7 pg. 35).

CONTINUED ON NEXT PAGE

D6en TROUBLESHOOTING (cont.) SYMPTOM I Time code does not appear. POSSIBLE CAUSES *'TIME CODE ”is set to “OFF” in the Menu Screen. CORRECTIVE ACTION *Set'TIME CODE”to “ON”in the Menu Screen (17 pg. 35, 36). Æ] images on the LCD monitor appear dark or whitish +In places subject to low tempera- ture, images become dark due to the characteristics of the LCD monitor. When this happens, the displayed colours differ from those that are actually recorded. This is not a defect of the camcorder. +When the LCD monitor's fluores- cent light reaches the end of is service life, images on the LCD monitor become dark. Consult your nearest] VC dealer. +Adjustthe brightness and angle of the LCD monitor (7 pg. 15, 16). Æ The rear of the LCD monitor is hot. The light used to illuminate the LCD monitor causes it to become hot. «Close the LCD monitor to turn it off or setthe Power Switch to "OFF", and let the unit cool down. EI The indicators and the image colour on the LCD monitor are not clear. «This may occur when the surface or the edge ofthe LCD monitor is pressed FA The LCD monitor or viewfinder indications blink. + Certain Fade/Wipe effects, certain modes of Programme AE with special effects, "DIS" and other functions that cannot be used together are selected at the same time +Re-read the sections covering Fade/Wipe effects, Programme AE with special effects and "DIS" {7 pg. 24 - 27, 33) FI Coloured bright spots appear all over the LCD monitor or the viewfinder. +The LCD monitor and the view- finder are made with high-precision technology. However, black spots or bright spots of light (red, green or blue) may appear constant on the LCD monitor or the viewfinder. These spots are notrecorded on the tape. This is not due to any defect of the unit. (Effective dots more than 99.99 %)

SYMPTOI POSSIBLE CAUSES CORRECTIVE ACTI

E] During recording, sound cannot be heard This is normal E Play, Rewind and Fast- Forward functions do not work. «The Power Switch is set to “C

*Setthe Power Switch to PLAY" UF pg. 19) Æ The LCD monitor image is distorted +During playback of the unrecorded portion, High-speed Search and still playback, LCD monitor indications appear distorted. This is not a defect Images on the LCD monitor are jittery. +The speaker volume is too great. +Turn the speaker volume down ( pg. 19) E Blocks of noise appear during playback, or there is no playback picture and the screen becomes blue. +Clean the video heads with an optional cleaning cassette = pg. 61) Æ] The LCD monitor, the viewfinder and the lens have become dirty (ex. fingerprints). +Wipe them gentiy with soft cloth Wiping strongly can cause damage ( pg. 59) E An unusual mark appears + Check the section of the manual that explains LCD monitor/ viewfinder indications (7 pg. 66 - 69)

SYMPTOI POSSIBLE CAUSES CORRECTIVE ACTION

An error indication (01, E02 or E06) appears +A malfunction of some kind has occurred. In this case the camcorder's functions become unusable +Remove the power supply (battery pack, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. Ifthe indication remains even though you repeat the above to or three times, please consult your nearest} VC dealer. Do not eject the cassette. This will cause damage to the tape A An error indication (03 or E04) appears. +A malfunction of some kind has occurred. In this case the camcorder's functions become unusable *Eject the cassette once and re- insert it, then check ifthe indication clears. When it does, you can resume using the camcorder. Ifthe indication remains even though you repeat the above two or three times, please consult your nearest JVC dealer. The charger indicator on the camcorder does not light. + The temperature of the battery is extremely high/low + Charging is difficult in places subject to extremely high/low temperatures. +To protect the battery, it is recommended to charge it in places with à temperature of 10°C to 35°C (17 pg. 60). When the image is printed from the printer, a black bar appears atthe bottom of the screen This is not a malfunction. +By recording with "DIS" activated {7 pg. 33) this can be avoided When the camcorder is connected via the DV connector, the camcorder does not operate. <The DV cable was plugged/ unplugged with power tumed on + Turn the camcorder's power off and on again, then operate it

USER MAINTENANCE en 9 After Use 1 Turn off the camcorder. 2 Slide and hold OPEN/E) ECT in the direction of the arrow then pull the cassette holder cover open until itlocks. The cassette holder opens automatically Remove the cassette. 3 Press ‘PUSH HERE" to close the cassette holder. +Once the cassette holder is closed, it recedes automatically. Wait until itrecedes completely before closing the cassette holder cover. 4 Tiltthe viewfinder upward (©). Press BATT. RELEASE (2) and remove the battery pack G) OPEN/ÆJECT Switch Cassette holder cover PUSH HERE BATT. RELEASE Button Cleaning The Camcorder À ro clean the exterior, wipe gentiy with a soft cloth. Putthe cloth in diluted mild soap and wring it well to wipe off heavy dirt. Then wipe again with à dry cloth. 2 Press PUSH OPEN and open the LCD monitor. Wipe gentiy with à soft cloth. Be careful not to damage the monitor. Close the LCD monitor. S ro clean the lens, blow it with à blower brush, then wipe gentiy with lens cleaning paper. Æ 5 clean the viewinder, raise it to the vertical position. Open the viewfinder cleaning hatch in the direction of the arrow @. 5 insert a lens blower or soft cloth into the gap at the bottom of the viewfinder and clean the interior of the viewfinder with it @. G ciose the hatch, Ti the viewfinder back to the horizontal position: NOTES: e Avoid using strong cleaning agents such as benzine or alcohol « Cleaning should be done only after the battery pack has been removed or other power units have been disconnected e Mould may form ifthe lens is left dirt. e When using a cleaner or chemically treated cloth refer to the cautions of each product.

OUR CAUTIONS Video Light DANGER = The video light can become extremely hot Do not touch it either while in operation or soon after turning it off, otherwise serious injury may result = Do not place the camcorder into the carrying case immediately after using the video light, since it remains extremely hot for some time. = When operating, keep à distance of about 30 cm between the video light and people or objects = Do not use near flammable or explosive materials. = Do not place the camcorder in à cabinet or box while the video light is in operation. = When using the video light, if you wish to install the camcorder in a fixed position, attach it to à tripod, etc. Do not aff it direct to à surface such as à table top. = itis recommended that you consult your nearest JVC dealer for replacing the video light. General Battery Precautions Ifthe remote control is not functioning even if it is being operated correct, the batteries are exhausted Replace them with fresh ones. Use only the following batteries: AAA (RO3) size x 2 Please make note of the following rules for battery use. When misused, the batteries can leak or explode.

1. When replacing batteries, refer to page 40

. Do notuse any different size of batteries from those specified. Be sure to install batteries in the correct direction Do not use rechargeable batteries. Do not expose the batteries to excessive heat as they can leak or explode. Do not dispose of the batteries in à fire . Remove the batteries from the unit ifitis to be stored for an extended period to avoid battery leakage which can cause malfunctions.

8. Do not recharge the provided batteries.

Battery Packs The supplied battery pack is a lithium-ion battery. Before using the supplied battery pack or an optional battery pack, be sure to read the following cautions:

. do not burn . do not short-circuit the terminals. When transporting, make sure the provided battery cap is attached to the battery. Ifthe battery cap is misplaced, carry the battery in à plastic bag . do not modify or disassemble . do not expose the battery to temperatures exceeding 60°C, as this may cause the battery to overheat, explode or catch fire. use only specified chargers

2. To prevent damage and prolong service life.

. do notsubject to unnecessary shock. : charge in an environment where temperatures are within the tolerances shown in the chart below. This is à chemical reaction type battery— cooler temperatures impede chemical reaction, while warmer temperatures can prevent complete charging. . store in à cool, dry place. Extended exposure to high temperatures will increase natural discharge and shorten service life. . fully charge and then fully discharge the battery every 6 months when storing the battery pack over à long period time. . remove from charger or powered unit when not in use, as some machines use current even when switched off. NOTES: e ltis normal for the battery pack to be warm after charging, or after use Temperature Range Specifications Terminals Charging 10°C to 35°C Operation 0°C to 40°C Storage -10°C to 30°C Recharging time is based on room temperature of 20°C. e The lower the temperature, the longer recharging takes.

en6l To properly use and store your cassettes, be sure to read the following cautions:

.. make sure the cassette bears the Mini DV mark. .. be aware that recording onto prerecorded tapes automatically erases the previously recorded video and audio signals. .. make sure the cassette is positioned properly when inserting, .. do notload and unload the cassette repeatedly without allowing the tape to run at all. This slackens the tape and can result in damage. .. do not open the front tape cover. This exposes the tape to fingerprints and dust.

2. Store cassettes .…

.. away from heaters or other heat sources. .. out of direct sunlight. -. where they won't be subject to unnecessary shock or vibration. .. where they won't be exposed to strong magnetic fields (such as those generated by motors, transformers or magnets). .. vertically, in their original cases LCD Monitor

1. To prevent damage to the LCD monitor,

DO NOT... .… push itstrongly or apply any shocks. -. place the camcorder with the LCD monitor on the bottom . To prolong service life . . avoid rubbing it with coarse cloth . Be aware of the following phenomena for LCD monitor use. These are not malfunctions: + While using the camcorder, the surface around the LCD monitor and/or the back of the LCD monitor may heat up. + If you leave power on for à long time, the surface around the LCD monitor becomes hot.

. open the camcorder's chassis. L.. disassemble or modify the unit. - short-circuit the terminals of the battery pack. Keep it away from metallic objects when not in use . allow inflammables, water or metallic objects to enter the unit remove the battery pack or disconnect the power supply while the power is on. . leave the battery pack attached when the camcorder is not in use.

2. Avoid using the unit. …

… in places subject to excessive humidity or dust. . in places subject to soot or steam such as near à cooking stove. . in places subject to excessive shock or vibration. .… near a television set : near appliances generating strong magnetic or electric fields (speakers, broadcasting antennas, etc.) . in places subject to extremely high (over 40°C) extremely low (under 0°) temperatures

3. DO NOT leave the uni

. in places of over 50% 2 in places where humidity is extremely low {below 35%) or extremely high (above 80%). … in direct sunlight. … in à closed car in summer. . near à heater.

4. T protect the unit, DO NOT.

. allow itto become wet. .… drop the unit or strike it against hard objects . subject it to shock or excessive vibration during transportation. . keep the lens directed at extremely bright objects for long periods … expose the lens to direct sunlight. - carry it by holding the LCD monitor or the vievifinder. . swing it excessively when using the shoulder strap or the grip.

5. Dirty heads can cause the following problems:

+ No picture during playback + Blocks of noise appear during playback. + During recording or playback, the Head Clog Warning indicator “@" appears. + Recording cannot be performed properiy. In such cases, use an optional cleaning cassette. Insert it and play back. Ifthe cassette is used more than once consecutively, damage to the video heads may result After the camcorder plays back for about 20 seconds, it stops automatically, Also refer to the cleaning cassette's instructions. If, after using the cleaning cassette, the problems still exist, consult your nearest] VC dealer. Mechanical moving parts used to move the video heads and video tape tend to become dirty and worn out over time. In order to maintain à clear picture at al times, periodic check-ups are recommended after using the unit for about 1,000 hours. For periodic check-ups please consult your nearest] VC dealer. How to handle a CD-ROM +Take care not to soil or scratch the mirror surface (opposite to the printed surface). Do not write anything or put à sticker on either the front or back surface. Ifthe CD-ROM gets dirty, gentiy wipe it with à soft cloth outward from the centre hole using a circular motion. +Do not use conventional disc cleaners or cleaning spray. +Do not bend the CD-ROM or touch its mirror surface +Do not store your CD-ROM in a dusty, hot or humid environment. Keep it away from direct sunlight. About moisture condensation … « You have observed that pouring à cold liquid into a glass will cause drops of water to form on the glass’ outer surface. This same phenomenon occurs on the head drum of à camcorder when itis moved from a cool place to à warm place, after heating a cold room, under extremely humid conditions or in a place directiy subjected to the cool air from an air conditioner. + Moisture on the head drum can cause severe damage to the video tape, and can lead to internal damage to the camcorder itself. Serious malfunctioning If malfunctioning occurs, stop using the unit immediately and consult your local | VC dealer. The camcorder is à microcomputer-controlled device. External noise and interference (from à TV, a radio, etc.) might prevent it from functioning properly. In such cases, first disconnect its power supply unit (battery pack, AC Adapter, etc.) and wait a few minutes and then re-connect it and proceed as usual from the beginning.

SPECIFICATIONS amcorder Power supply Power consumption LCD monitor off, viewfinder on LCD monitor on, viewfinder off Video light Dimensions (W x H x D) Weight Operating temperature Operating humidity Storage temperature Pickup Lens Filter diameter LCD monitor Viewfinder Speaker Format Signal format Recording/Playback format Cassette Tape speed Maximum recording time {using 80 min. cassette) S-Video Output

Video output Audio output Power requirement Output Specifications shown are for SP mode unless otherwise indicated. E & O.E. Design and specifications subject to change without notice. General DC 11.0 V —= (Using AC Adapter) DC 7.2 V === (Using battery pack) Approx. 4.3 W Approx. 5.3 W Approx. 3.5 W 79 mm x 89 mm x 167 mm {with the LCD monitor closed and the viewfinder pushed down) Approx. 550 g 0°C to 40°C 35% to 80% -20°C to 50°C 14" CCD F 1.8, f=3.6 mm to 36 mm, 10:1 power zoom lens 937 mm 2.5" diagonally measured, LCD panelTFT active matrix system Electronic viewfinder with 0.24" black/white LCD Monaural Digital Video Camera DV format (SD mode) PAL standard Video: Digital component recording Audio: PCM digital recording, 32 kHz 4-channel (12-bit), 48 kHz 2-channel (16-bit) Mini DV cassette SP: 18.8 mm/s LP:12.5 mm/s SP: 80 min LP: 120 min. Connectors Y:1V (p-p), 75 Q, analogue C:0.29 V (p-p}, 75 Q, analogue 1V (p-p}, 75 Q, analogue 300 mV (rms), 1 kQ, analogue, stereo 4-pin, IEEE 1394 compliant 4-pin, IEEE 1394 compliant

en 65 Controls CD OPEN/EJECT Switch @ *Stop Button [m] ee *BACKLIGHT Button ……. © *Rewind Button [44]... *NIGHT Button …. © Play/Pause Button [»/18] © Fast-Forward Button [>>] © Monitor Open Button [PUSH OPEN]. @ Dioptre Adjustment Control ® Battery Release Button [BATT. RELEASE] … © Recording StartStop & Button … (©) -MENU Wheel [+, -, PUSH]... . +LCD Monitor BRIGHT (éighimess) Control [+, - - ” () Snapshot Button ISNAPSHOT].. (@) +Power Zoom Lever TM. +Speaker Volume Control IVOL: ] @® *+FOCUS Button. *BLANK Button . @ Lock Button…. @® Power Switch [ED , GANUAD), PLAY, OFF]... 17 pg. 16 @ Video Light Switch ILIGHT OFF/AUTO/ON]............... 7 pg. 17 Connectors The connectors @ to ® are located beneath a cover. ® Audio/Video Oufput Connector [AV]. LF pg. 20, 38,45 © :] Terminal [ LIP (j oint Level Interface Protocol)] … … C7 pg. 45 You can also connect to a | LIP-compatible camcorder or VCR to control it from the computer using the optional software HS-VIGKITE. © DC Input Connector ……. @ Digital Video Connector [DV IN/OUT] (i.Link*) . g. 39, 51 *i.Link refers to the IEEE 1394-1995 industry specification and extensions thereof. The & logo is used for products compliant with the i.Link standard. @ S-Video Quiput Connector IS-VIDEO]... @ PC Connector 7 pg. 8,9 p9. 20, 38,45 C7 pg. 51 Indicators [2] Tally Lamp [4] CHARGE Lamp … [5] Power Lamp Other Parts FE ‘Remote Sensor... + Camera Sensor Be careful not to cover this area, a sensor necessary for shooting is built:in here. Viewfinder Æ] Video Light. Æ Stereo Microphone Viewfinder Cleaning Hatch Shoulder Strap Eyelets . Æ Grip Strap LCD Monitor Speaker … E Battery Pack Mount … Stud Hole . . Tripod Mounting Socket. EF pg. 40 07 pg. 10 .07 pg. 17

66en INDEX indications LCD Monitor /Viewfinder Indications During Recording ©— [el LP 50min di IT @—#3l L ) (D Appears when the Power Switch is setto "ED. (D Appears when in the Squeeze or Cinema mode (7 pg. 16) {7 pg. 34) @ + Ii : Appears when Night-Scope is engaged @ Rotates while the tape is running. (7 pg. 15) UF p9. 24) (%) Displays the recording mode (SP or LP) À : Appears when "GAIN UP" is setto C7 pg. 13) “AUTO” and the shutter speed is being @ Displays the tape remaining time. (r7 pg. 15) automatically adjusted (7 P9. 33) Gi . REC" appears during recording © Appears when the white balance is adjusted (7 pg. 31)

“+"Appears when the exposure is adjusted (7 pg. 30) + EM: Appears when backlight compensation is used. x pg. 30) © Displays the selected Programme AE with special effects CF pg. 24) © Appears when the iris is locked. (7 pg. 30) @ Appears when Digital Image Stabiliser ("DIS") is engaged. {7 pg. 33) @) Approximate zoom ratio: Appears during 200ming. (7 pg. 17) © Appears during zooming. © Zoom level indicator (C7 p9. 17) @ Displays the selected Fade/Wipe effect. {7 pg. 26, 27)

“PAUSE appears during Record-Standby mode. (7 pg. 15) + "PHOTO" appears when taking a Snapshot. (T7 pg. 28) Appears when the Insert Editing (©) or Insert Editing Pause (HG) mode is engaged.(r7 pg. 50) Appears when the wind cut mode is engaged to cut down on noise created by wind. (r7 pg. 34) + BRIGHT : Displays the brightness of the LCD monitor. {7 pg. 15) : Displeys the sound mode for approx. 5 seconds after turing on the camcorder. (7 pg. 33) Displays the date/time. 7 pg. 11) Appears when the focus is adjusted manuall. U7 pg. 29) (7 pg. 18, 35) + SOUND Displays the Time Code

LCD Monitor/Viewfinder Indications During Playback r © Displays the sound mode @ Displays the Blank Search mode. @ Displays the tape speed. @ Appears while à tape is running. SP 1» > Playback >>: Fast-Forward/Shuttle search <<: Rewind/Shuttle search LL Pause LLLe Forward slow-motion «un Reverse slow-motion S : Audio Dubbing HS: Audio Dubbing Pause (@) Displays the date/time. (7 pg. 36, 37) @ The level indicator moves. LU _) © nisplays the time code (7 p9. 36, 37)

68 en INDEX Indications (cont.) Warning Indications Indications Function Displays the battery remaining power. Remaining power level: high 5-0 ge | Remaining power level: exhausted As the battery power comes close to nil, the battery indicator © blinks. When the battery power is exhausted, power turns off automatically. [eol Appears when no tape is loaded. 7 pg. 12) CHECK TAPE'S ERASE | Appears when the erase protection tab is setto “SAVE” while the Power Switch is PROTECTION TAB setto “ EU) ” or “MANUAL)”. Cr pg. 22)

HEAD CLEANING REQUIRED USE CLEANING CASSETTE Appears if dirt is detected on the heads during recording or playback. Use an optional cleaning cassette, C7 pg. 61)

Appears if condensation oceurs. When this indication is displayed, wait more than 1 hour until condensation disappears. SET DATE/TIME! CONDENSATION OPERATION PAUSED PLEASE WAIT Appears if a tape is not loaded when the Recording Start/Stop Button or TAPE! SNAPSHOT Button is pressed while the Power Switch is set to “CU ” or TAPE END Appears when the tape ends during recording or playback. € pg. 53) DIFFERENT Appears ifa tape in another format is loaded. FORMATTED TAPE « Appears when the date/time is not set. 7 pg. 1) < Appears when the built-in clock battery runs out and the previously set date/time is erased. Consul your nearest] VC dealer for replacement.

PROTECTION TAB> LENS COVER Appears for 5 seconds after power is turned on ifthe lens cap is attached. A. DUB ERROR! Appears if Audio Dubbing is attempted on a blank portion of a tape. (7 pg. 49) A. DUB ERROR! e Appears if Audio Dubbing is attempted on a tape recorded in the LP mode. <CANNOT DUB € pg. 49) ON ALP RECORDED TAPE> | + Appears if Audio Dubbing is attempted on a tape recorded in 16-bit audio. <CANNOT DUB € pg. 49) ON À 16BIT + Appears if A. DUB (#) on the remote control is pressed when the erase RECORDING> protection tab is set to “SAVE”. (7 pg. 49)

en 69 Indications Function INSERT ERROR! Appears if Insert Editing is attempted on a blank portion of a tape. € pg. 50) INSERT ERROR! + Appears if Insert Editing is attempted on a tape recorded in the LP mode. <CANNOT EDIT C7 pg. 50) ON A LP RECORDED TAPE> | e Appears if INSERT (©) on the remote control is pressed when the erase <CHECK TAPE'S ERASE protection tab is set to “SAVE”. EU pg. 50) PROTECTION TAB> E01, E02 or E06

REATTACH BATTERY The error indications (E01, 02 or E06) show what type of malfunction has occured. When an error indication appears, the camcorder turns off automatically, Remove the power supply (battery, etc.) and wait a few minutes for the indication to clear. When it does, you can resume using the camcorder. the indication remains, consult your nearest] VC dealer. E03 or E04

The error indications (E03 or E04) show what type of malfunction has occured. When an error indication appears, the camcorder turns off automatically. Eject the cassette once and re-insert it, then check ifthe ation clears. When it does, you can resume using the camcorder. If the indication remains, consult your nearest VC dealer.
