| Product Type | Edger KombiTool for STIHL KombiSystem |
| Weight | 4.4 lbs (2.0 kg) with deflector and blade |
| Compatible KombiEngines | STIHL KombiEngines with loop handle and barrier bar |
| Cutting Attachment | Metal cutting blade for grass, weeds, and soft green plants |
| Depth of Cut | Adjustable via depth wheel; maximum penetration 5 mm |
| Rotation Direction | Arrow on deflector indicates correct direction (away from operator) |
| Safety Features | Deflector, skirt, wear guard, and barrier bar |
| Maintenance | Check blade tightness, wheel, skirt, and wear guard before each use |
| Blade Replacement | Replace when bent, cracked, or length insufficient for depth adjustment; do not resharpen |
| Storage | Store in dry, locked location; remove blade if storing for 3+ months |
| Waste Disposal | Do not discard in household waste; recycle at approved facility |
| Warranty | Warranty claims accepted only if repairs done by authorized STIHL dealer using genuine parts |
Frequently Asked Questions - FCB-KM STIHL
User questions about FCB-KM STIHL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Uncategorized in PDF format for free! Find your manual FCB-KM - STIHL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FCB-KM by STIHL.
USER MANUAL FCB-KM STIHL
WARNING
Read Instruction Manual thoroughly before use and follow all safety precautions – improper use can cause serious or fatal injury.
ADVERTENCIA
Guide to Using this Manual 2
Safety Precautions and Working
Techniques 3
Using the Unit 9
Approved KombiEngines 11
Assembling the Unit 11
Mounting the KombiTool 12
Mounting the Cutting Blade 12
Starting / Stopping the Engine 13
Storing the Machine 14
Replacing the Depth Wheel 14
Replacing the Skirt 14
Replacing the Cutting Blade 15
Checking and Replacing the Wear
Guard 15
Maintenance and Care 16

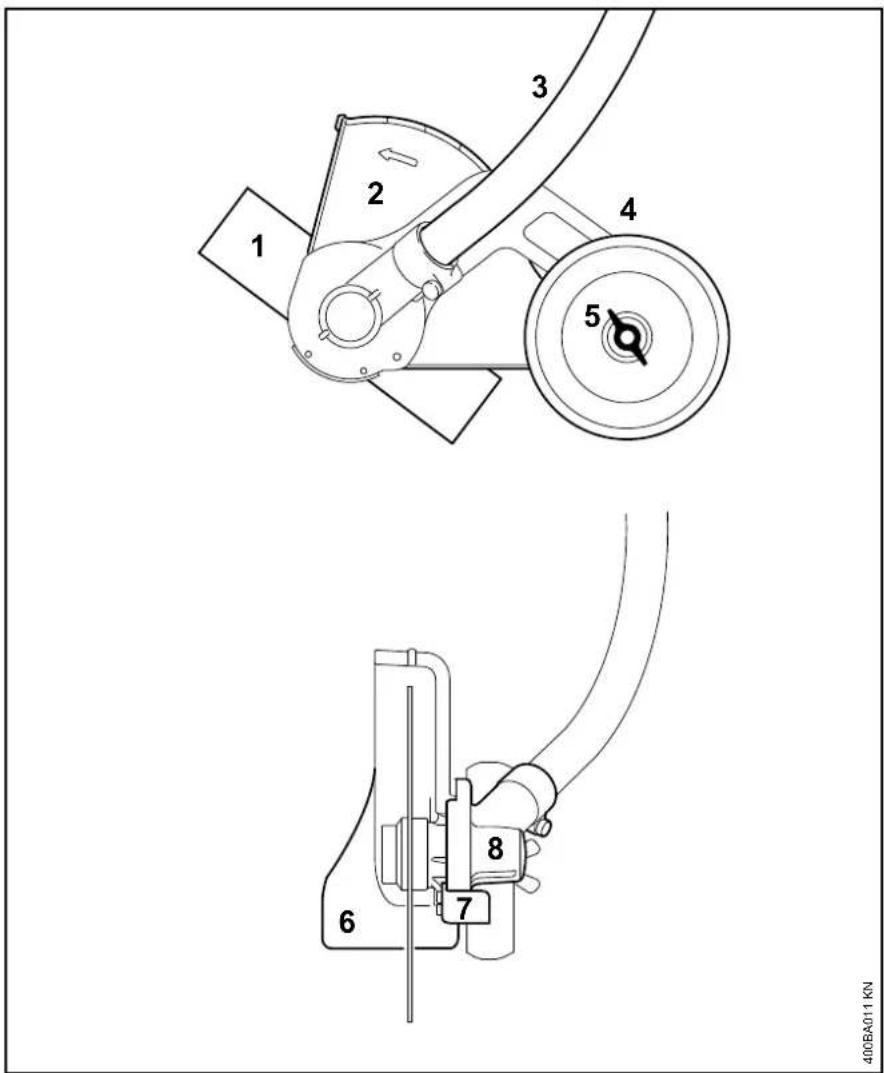

Main Parts 17
Specifications 18
Maintenance and Repairs 18
Disposal 19
Trademarks 19
Allow only persons who fully understand the manuals of the KombiEngine and edger KombiTool to operate this power tool combination.
To receive maximum performance and satisfaction from your STIHL KombiTool, it is important that you read, understand and follow the safety precautions and the operating and maintenance instructions in chapter "Safety Precautions and Working Techniques" before using your KombiTool. For further information you can go to www.stihlusa.com.
Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in the two manuals.
WARNING
Because a KombiEngine equipped with an edger KombiTool has a high-speed cutting attachment some special safety precautions must be observed to reduce the risk of personal injury. Careless or improper use may cause serious or even fatal injury.
STIHL®
FCB-KM
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems.
KombiSystem

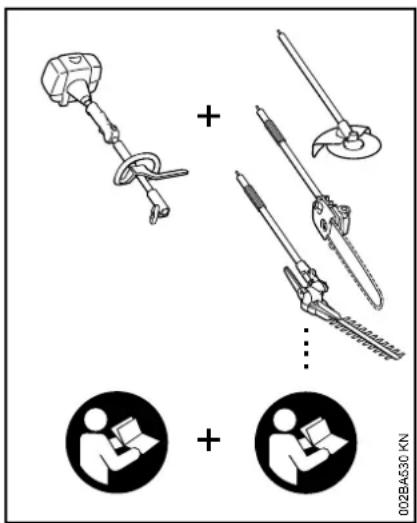

In the STIHL KombiSystem a number of different KombiEngines and KombiTools can be combined to produce a power tool. In this instruction manual the functional unit formed by the KombiEngine and KombiTool is referred to as the power tool.
Therefore, the separate instruction manuals for the KombiEngine and KombiTool should be used together for the power tool.
Always read and and make sure you understand both instruction manuals before using your power tool for the first time and keep them in a safe place for future reference.
Guide to Using this Manual
Pictograms
All the pictograms attached to or embossed on the machine are shown and explained in this manual.
Symbols in Text
Many operating and safety instructions are supported by illustrations.
The individual steps or procedures described in the manual may be marked in different ways:
●A bullet marks a step or procedure.
A description of a step or procedure that refers directly to an illustration may contain item numbers that appear in the illustration. Example:
●Loosen the screw (1).
●Lever (2) ...
In addition to the operating instructions, this manual may contain paragraphs that require your special attention. Such paragraphs are marked with the following symbols and signal words:
DANGER
Indicates an imminent risk of severe or fatal injury.
WARNING
Indicates a hazardous situation which, if not avoided, could result in severe or fatal injury.
NOTICE
Indicates a risk of property damage, including damage to the machine or its individual components.
Engineering Improvements
STIHL's philosophy is to continually improve all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications and improvements may not be covered in this manual. If the operating characteristics or the appearance of your machine differs from those described in this manual, please contact your STIHL dealer or the STIHL distributor for your area for assistance.
Safety Precautions and Working Techniques
Because a KombiEngine equipped with an edger KombiTool is a high-speed power tool, special safety precautions must be observed to reduce the risk of personal injury.
It is important that you read, fully understand and observe the following safety precautions and warnings. Read the instruction manuals and the safety precautions of your KombiEngine and KombiTool periodically. Careless or improper use may cause serious or fatal injury.
Have your STIHL dealer show you how to operate your power tool. Observe all applicable local safety regulations, standards and ordinances.
WARNING
As more fully explained later in these Safety Precautions, to reduce the risk of personal injury, make sure your unit is equipped with the proper handle, harness (if applicable) and deflector. Use only cutting attachments that are specifically authorized by STIHL for use on your KombiEngine model.
WARNING
Do not lend or rent your power tool without the instruction manuals of your KombiEngine and KombiTool. Be sure that anyone using it understands the information contained in these manuals.
WARNING
The use of this machine may be hazardous. If the rotating blade comes in contact with your body, it will cut you. When it comes in contact with solid foreign objects such as rocks or bits of metal, it may fling them directly or by ricochet in the direction of bystanders or the operator. Striking such objects could damage the cutting attachment and may cause blades to crack, chip or break. Thrown objects, including broken blades, may result in serious or fatal injury to the operator or bystanders.
STIHL does not recommend the use of an edger when cutting in stony areas.
Use your KombiEngine equipped with the edger KombiTool only for edging in grass, weeds and soft green plants.
WARNING
Do not use it for other purposes, since misuse may result in personal injury or property damage, including damage to the machine.
WARNING
Minors should never be allowed to use this power tool. Bystanders, especially children, and animals should not be allowed in the area where it is in use.
WARNING
To reduce the risk of injury to bystanders and damage to property, never let your power tool run unattended. When it is not in use (e.g. during a work break), shut it off and make sure that unauthorized persons do not use it.
Most of these safety precautions and warnings apply to the use of all STIHL edgers. Different models may have different parts and controls. See the appropriate section of your KombiEngine and KombiTool instruction manuals for a description of the controls and the function of the parts of your model.
Safe use of a power tool involves
-
the operator
-
the power tool
-
the use of the power tool.
THE OPERATOR
Physical Condition
You must be in good physical condition and mental health and not under the influence of any substance (drugs, alcohol, etc.) which might impair vision, dexterity or judgment. Do not operate this machine when you are fatigued.
WARNING
Be alert – if you get tired, take a break. Tiredness may result in loss of control. Working with any power tool can be strenuous. If you have any condition that
English
might be aggravated by strenuous work, check with your doctor before operating this machine.
Proper Clothing
WARNING
To reduce the risk of injury, the operator should wear proper protective apparel.
The deflector provided with your power tool will not protect the operator from all foreign objects (gravel, glass, wire, etc.) thrown back by the rotating cutting attachment. Thrown objects may also ricochet and strike the operator.
WARNING
To reduce the risk of injury to your eyes never operate your power tool unless wearing goggles or properly fitted protective glasses with adequate top and side protection complying with ANSI Z87 "+" (or your applicable national standard). If there is a risk of injury to the operator's face, STIHL also recommends that you also wear a face shield or face screen over your goggles or protective glasses.
Power tool noise may damage your hearing. Wear sound barriers (ear plugs or ear mufflers) to protect your hearing. Continual and regular users should have their hearing checked regularly.
Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.
Always wear heavy duty work gloves (e.g. made of leather or other wear resistant material) when handling the machine and metal blades. Heavy-duty, nonslip gloves improve your grip and help to protect your hands.
Clothing must be sturdy and snug-fitting, but allow complete freedom of movement. Wear long pants made of heavy material to help protect your legs. Do not wear shorts, sandals or go barefoot.
Avoid loose-fitting jackets, scarfs, neckties, jewelry, flared or cuffed pants, unconfined long hair or anything that could become caught on branches, brush or the moving parts of the unit. Secure hair so it is above shoulder level.
Good footing is very important. Wear sturdy boots with nonslip soles. Steel-toed safety boots are recommended.
Wear an approved safety hard hat to reduce the risk of injury to your head when there is a danger of head injuries.
For further instructions on proper clothing see the safety precautions in the instruction manual of the KombiEngine you are using.
THE POWER TOOL (KOMBIENGINE EQUIPPED WITH EDGER KOMBITOOL)
For illustrations and definitions of the power tool parts see the chapter on "Main Parts."
WARNING
Never modify this power tool in any way. Only attachments supplied by STIHL and expressly approved by STIHL for use with the specific STIHL KombiEngine are authorized. Although certain unauthorized attachments are useable with STIHL power tools, their use may, in fact, be extremely dangerous.
If this tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work. Check in particular that the controls and safety devices are working properly. Do not continue operating this machine if it is damaged. In case of doubt, have it checked by your STIHL servicing dealer.
THE USE OF THE POWER TOOL (KOMBIENGINE EQUIPPED WITH EDGER KOMBITOOL)
Transporting the Power Tool
WARNING
To reduce the risk of injury from loss of control and blade contact, never carry or transport your power tool with the cutting attachment moving.
WARNING
Always switch off the engine and make sure the cutting blade has stopped before putting a power tool down.
It may be carried only in a horizontal position. Grip the shaft in a manner that the machine is balanced horizontally. Keep the hot muffler away from your body and the cutting attachment behind you.
WARNING
When transporting it in a vehicle, properly secure it to prevent turnover, fuel spillage and damage to the unit.
Before Starting
WARNING
Always check your power tool for proper condition and operation before starting. Never attempt to modify the controls or safety devices.
WARNING
Never operate your power tool if it is damaged, improperly adjusted or maintained, or not completely or securely assembled.
WARNING
Do not attach any cutting attachment to a unit without proper installation of all required parts. Failure to use the proper parts may cause the blade to fly off and seriously injure the operator or bystanders.
WARNING
The cutting attachment must be properly tightened and in safe operating condition. Inspect for loose parts (nuts, screws, etc.) and for cracked, bent, warped or damaged blades. Replace damaged blades before using the power tool.
Keep the handles clean and dry at all times; it is particularly important to keep them free of moisture, pitch, oil, fuel mix, grease or resin in order for you to maintain a firm grip and properly control your power tool.
WARNING
To reduce the risk of personal injury to the operator from blade contact and thrown objects, make sure your unit is equipped with the proper deflector, handle and harness (if applicable).
English

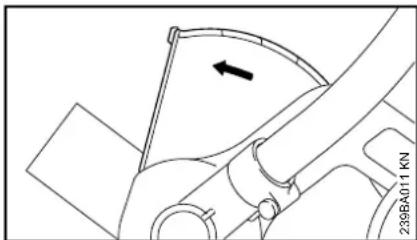

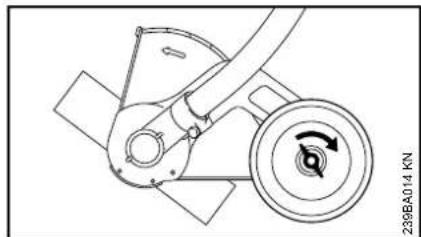

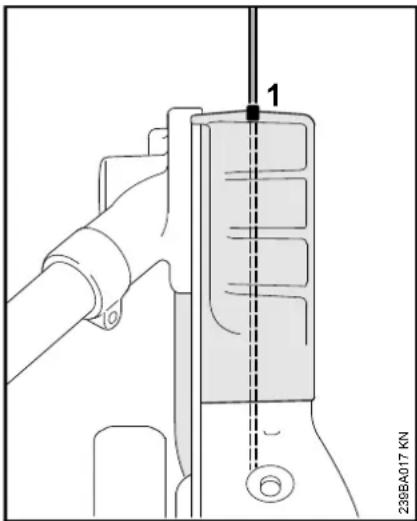

The arrow on the deflector must always face away from you, so that cuttings and other debris will be diverted away from the machine and your position (see chapter "Using the Unit".)
Adjust carrying harness and hand grip to suit your size before starting work. The machine should be properly balanced as specified in your instruction manual for proper control and less fatigue in operation. To be better prepared in case of an emergency, practise releasing the unit from the harness as quickly as possible.

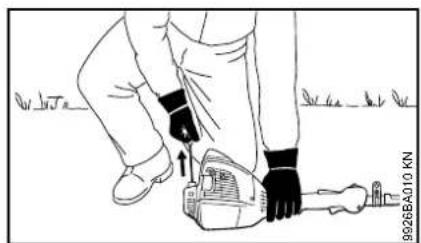

Starting
WARNING
Start the engine at least 10 feet (3 m) from the fueling spot, outdoors only.
For specific starting instructions, see the appropriate section of your KombiEngine and KombiTool manuals.

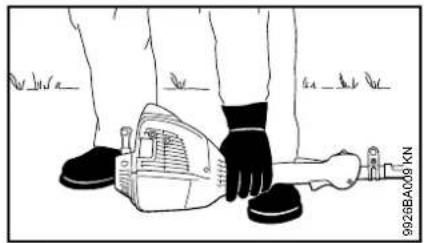

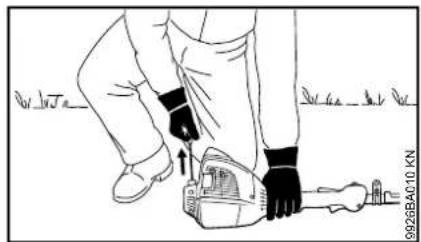

Place the power tool on firm ground or other solid surface in an open area. Maintain good balance and secure footing.
WARNING
To reduce the risk of injury from loss of control, be absolutely sure that the cutting tool is clear of you and all other obstructions and objects, including the ground, because when the engine starts at starting-throttle, engine speed will be fast enough for the clutch to engage and move the blade on the cutting tool.
Once the engine has started, immediately blip the throttle trigger, which should release the starting throttle and allow the engine to slow down to idle.
With the engine running only at idle, attach the power tool to the spring hook of your harness if you are using one (see appropriate chapter of this manual).
WARNING
Your power tool is a one-person machine. Do not allow other persons in the general work area, even when starting.
See also the safety precautions on Starting in the instruction manual of the KombiEngine.
During Operation
Holding and Controlling the Power Tool
Your right hand should grip the rear handle. This also applies to left-handers.
WARNING
Never attempt to operate your power tool with one hand. Loss of control of the power tool resulting in serious or fatal injury may result. To reduce the risk of cut injuries, keep hands and feet away from the cutting attachment. Never touch a moving cutting attachment with your hand or any other part of your body.
WARNING
Do not overreach. Keep proper footing and balance at all times. Special care must be taken in slippery conditions (wet ground, snow) and in difficult, overgrown terrain. Watch for hidden obstacles such as tree stumps, roots and ditches to avoid stumbling. For better footing, clear away scrub and cuttings. Be extremely cautious when working on slopes or uneven ground.
WARNING
To reduce the risk of injury from loss of control, never work on a ladder or on any other insecure support. Never hold the cutting attachment above waist height.
Working Conditions
Operate and start your power tool only outdoors in a well-ventilated area.
Operate it under good visibility and daylight conditions only. Work carefully.
WARNING
If the vegetation being cut or the surrounding ground is coated with a chemical substance (such as an active pesticide or herbicide), read and follow the instructions and warnings that accompany the substance at issue.
WARNING
Inhalation of certain dusts, especially organic dusts such as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction. Substantial or repeated inhalation of dust and other airborne contaminants, in particular those with a smaller particle size, may cause respiratory or other illnesses. Control dust at the source where possible. Use good work practices, such as operating the unit so that the wind or operating process directs any dust raised by the power tool away from the operator. Follow the recommendations of EPA / OSHA / NIOSH and occupational and trade associations with respect to dust ("particulate matter"). When the inhalation of dust cannot be substantially controlled, i.e., kept at or near the ambient (background) level, the operator and any bystanders should wear a respirator approved by NIOSH / MSHA for the type of dust encountered.
Operating Instructions
WARNING
Do not operate your power tool using the starting throttle lock, as you do not have control of the engine speed.
In the event of an emergency, switch off the engine immediately – move the slide control / stop switch / momentary stop switch to 0 or STOP.
See section of your KombiEngine instruction manual on the proper use of the slide control / stop switch / momentary stop switch.
WARNING
The cutting attachment continues to rotate for a short period after the throttle trigger is released (flywheel effect.)
WARNING
The rotating cutting attachment may fling foreign objects directly or by ricochet a great distance.
To reduce the risk of eye and other injury always wear proper eye protection (see the chapter on "Proper Clothing") and ensure that bystanders are at least 50 feet (15 m) away. To reduce the risk of damage to property, also maintain this distance from such objects as vehicles or windows. Even maintaining a minimum distance of 15 meters cannot exclude the potential danger. Any coworkers who must be in the restricted area should also wear goggles or protective glasses. Stop the engine immediately if you are approached.
WARNING
Inspect the work area: To reduce the risk of injury, remove stones, pieces of metal and other solid objects which could be thrown 15 meters or more by the cutting attachment or damage the cutting attachment and property (e.g. parked vehicles, windows).
WARNING
This edger is normally to be used at ground level with the KombiTool perpendicular to the ground. Use of an edger above ground level or with the cutting attachment parallel to the ground may increase the risk of injury, since the cutting attachment is more fully exposed and the edger may be more difficult to control. Never use your edger as a hedge trimmer.
WARNING
During cutting, check the tightness and the condition of the cutting attachment at regular short intervals with the engine and attachment stopped. If the behavior of the attachment changes during use, stop the engine immediately, wait until the cutting attachment stops, and check the nut securing the attachment for tightness and the blade for cracks, wear and damage.
English
WARNING
A loose blade may vibrate, crack, break or come off the edger, which may result in serious or fatal injury. Make sure that the cutting attachment is properly tightened. Use the wrench supplied or one of sufficient length to obtain the proper torque. If the blade loosens after being properly tightened, stop work immediately. The retaining nut may be worn or damaged and should be replaced. If the blade continues to loosen, see your STIHL dealer. Never use a KombiEngine with a loose KombiTool.
WARNING
Replace a cracked, bent, warped, damaged or worn out blade immediately, even if damage is limited to superficial cracks. Such attachments may shatter at high speed and cause serious or fatal injury.
WARNING
When using your edger, avoid cutting close to fences, sides of buildings, tree trunks, stones or other such objects that could cause the power tool to kick out or could cause damage to the blade.
WARNING
If a rotating metal blade strikes a rock or other hard object, sparks may be created, which can ignite flammable materials under certain circumstances. Flammable materials can include dry vegetation and brush, particularly when weather conditions are hot and dry. When there is a risk of fire or wildfire, do
not use metal blades around flammable materials or around dry vegetation or brush. Contact your local fire authorities or the U.S. Forestry Service if you have any question about whether vegetation and weather conditions are suitable for the use of a metal blade.
WARNING
If the blade or deflector becomes clogged or stuck, always shut off the engine and make sure the cutting attachment has stopped before cleaning. Grass, weeds, etc. should be cleaned off the blade at regular intervals.
WARNING
To reduce the risk of unintentional rotation of the cutting attachment and injury, always shut off the engine before replacing the cutting attachment.
WARNING
The gearbox becomes hot during operation. To reduce the risk of burn injury, do not touch the gear housing when it is hot.
USING THE CUTTING ATTACHMENT
For an illustration of the cutting attachment and instructions on proper mounting see the chapter on "Replacing the Cutting Blade" in your instruction manual.
MAINTENANCE, REPAIR AND STORING
WARNING
Always stop the engine and make sure that the cutting attachment is stopped before doing any maintenance or repair work or cleaning the power tool. Do not attempt any maintenance or repair work not described in your KombiEngine and KombiTool instruction manuals. Have such work performed at your STIHL servicing dealer only.
WARNING
Use only identical STIHL replacement parts for maintenance and repair. Use of non-STIHL parts may cause serious or fatal injury.
Wear gloves when handling or performing maintenance on blades.
WARNING
Never repair damaged cutting attachments by welding, straightening or modifying the shape. This may cause parts of the cutting attachment to come off and result in serious or fatal injuries.
Tighten all nuts, bolts and screws, except the carburetor adjustment screws, after each use.
Do not clean your machine with a pressure washer. The solid jet of water may damage parts of the machine.
Do not immerse the power tool in fluids.
Always clean dust and dirt off the power tool – do not use any grease solvents for this purpose.
English
Store the power tool in a dry and high or locked location out of reach of children.

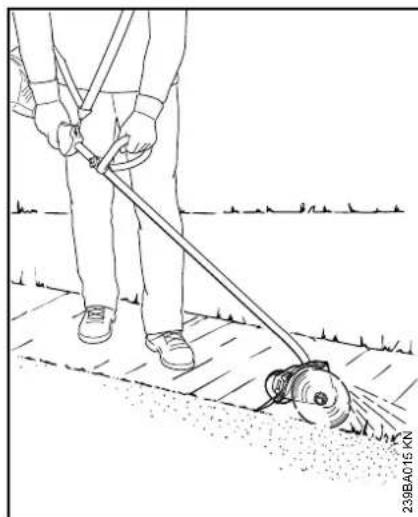

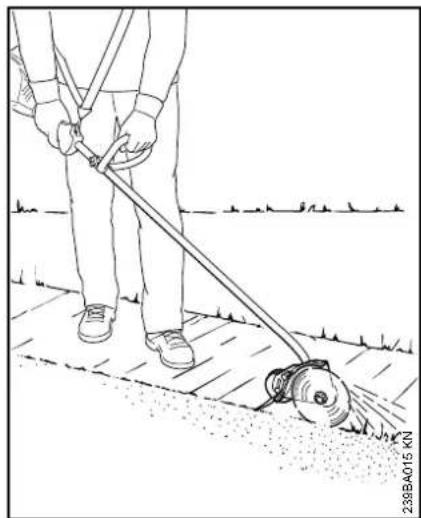

Using the Unit
Preparations
If the soil is very dry, spray it with a little water before you start work: this softens the soil a little and also reduces the amount of dust created. – Slightly damp green plants are easier to cut.
WARNING
Remove all obstacles and objects from the working area.
- Plan the best route for edging – always hold and operate the machine on the right-hand side of the body

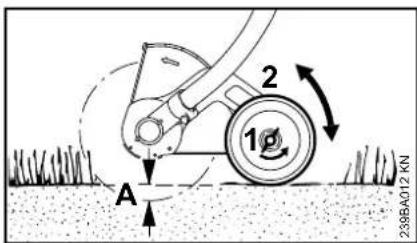

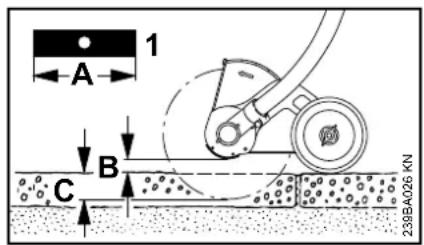

Adjust the depth of cut
●Shut off the engine – risk of accident!

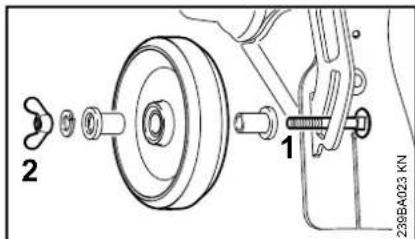

●Loosen wingnut (1) counterclockwise
- Adjust wheel (2): upwards – depth of cut (A) increases; downwards – depth of cut (A) decreases
English

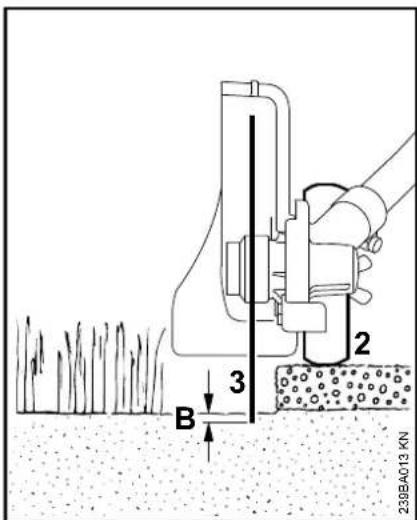

Adjust correctly
The depth of cut is influenced by uneven ground as well as height and working position of the operator. For this reason,
- adjust the wheel (2) so that the blade (3) barely touches the ground when the machine is held in a normal working posture or penetrates the ground at most to a depth (B) of 5 mm.


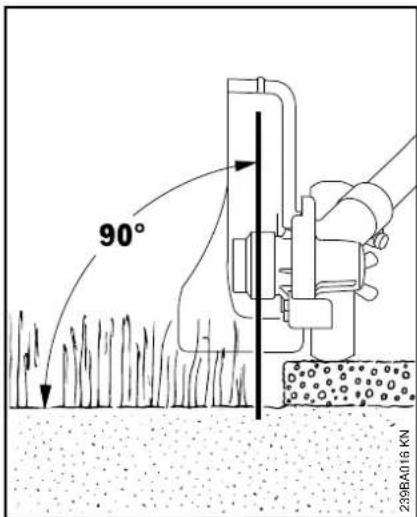

●Standing in the normal working position, check the depth of cut again – correct it if necessary
Do not adjust the deflector.
The deflector has been set by the manufacturer so that the arrow on the deflector and the open side point away from the operator. This ensures that cuttings and other debris will be directed away from the machine and operator.
Edging
- Start the engine
●Start the cut at at least half throttle and continue cutting at full throttle
●Hold and guide the unit so that the blade is vertical - Cut steadily so that the engine speed does not decline to any major extent – do not apply force
●Cut at a normal walking pace
●Do not push the blade into the ground
●Always walk forwards when cutting, do not pull the unit towards you
●Cut at a steady pace – this avoids having to make several passes
●Use the gunning sight (1) for the cutting blade to align the blade to the edge
Approved KombiEngines Assembling the Unit
KombiEngines
Only KombiEngines supplied by STIHL or expressly approved by STIHL for use with the specific model are authorized.
Only use this KombiTool with the following KombiEngines:
For machines with a loop handle, the clip (barrier bar) must be installed.
- Pull the protective caps off of the ends of the shaft and keep them in a safe place for later use – see "Storing the Machine"
Connecting drive tube to gearbox

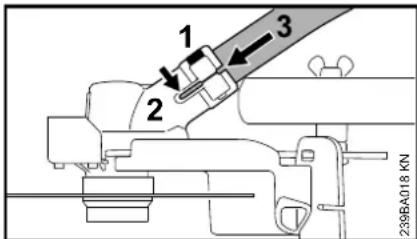

- Loosen the clamping screw (1) on the gearbox – do not remove
- Insert curved end of drive tube (3) in the gearbox (2), turn the gearbox back and forth as necessary.
●Push the shaft (3) in as far as it will go.
●Screw in the clamping screw (1) as far as it will go – do not tighten yet!
English

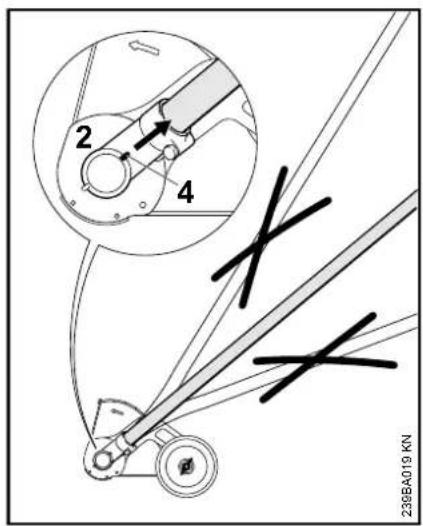

●Align the gearbox (2) on the shaft so that the rib (4) is in line with the shaft.
●Tighten the clamping screw firmly.

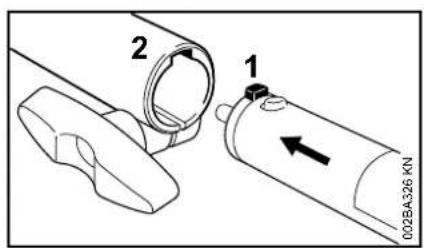

Mounting the KombiTool
●Push the lug (1) on the drive tube into the slot (2) in the coupling sleeve as far as stop.
When correctly installed, the red line (3) (arrow point) must be flush with the end of the coupling sleeve.
●Tighten down the star knob (4) firmly.
Removing the KombiTool
- Reverse the above sequence to remove the drive tube.
Mounting the Cutting Blade


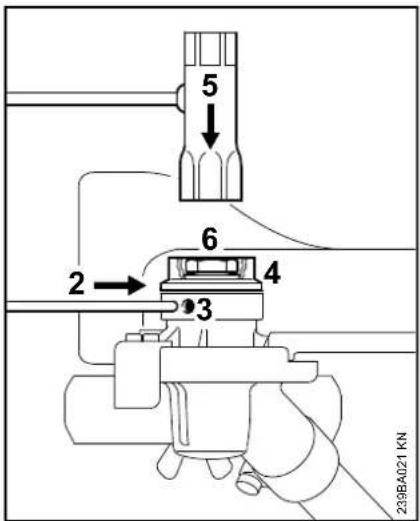

●Insert the locking pin (2) as far as possible into the bore (3), push lightly and rotate back and forth a little together with the thrust washer (4) until the shaft is blocked.
●Fit Allen wrench (5) onto nut (6).
●Turn nut clockwise (left-hand thread) and remove it.
- Remove the thrust washer.

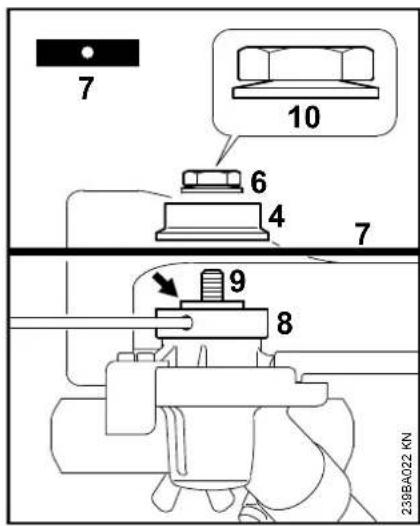

●Position the blade (7) on the thrust plate (8).
WARNING
The collar (arrow) must engage the hole in the blade.
●Fit the thrust washer (4) on the shaft (9) and block the shaft.
●Screw nut (6) counterclockwise onto shaft and tighten.
WARNING
If the cup spring (10) on the nut (6) becomes fatigued, then the nut must be replaced!
Starting / Stopping the Engine
Starting the engine
To start the engine, basically follow the instructions for use for the KombiEngine or basic power tool!
The blade must not touch the ground or any other objects – risk of accident!
- Assume a firm stance – possibilities: standing, bending or kneeling
- Press the machine firmly against the ground with the left hand – do not touch the control elements on the control handle while doing so – see instruction manual for the KombiEngine or basic power tool
NOTICE
Do not stand or kneel on the shaft!
WARNING
If the engine is started, the blade may rotate as soon as the engine is running – therefore blip the throttle trigger as soon as the engine is running – the engine begins to idle.
The other starting procedure is described in the instruction manual for the KombiEngine or basic power tool.
Switching off the engine
●see instruction manual for the KombiEngine or basic power tool
Storing the Machine Replacing the Depth Wheel
For periods of 3 months or longer
- Remove, clean and inspect the cutting blade.
- If the KombiTool is removed from the KombiEngine and stored separately: Fit the protective cap on the drive tube to avoid dirt getting into the coupling.
- Store the machine in a dry, high or locked location – out of the reach of children and other unauthorized persons.
Have the worn wheel replaced by a specialist dealer. STIHL recommends that maintenance and repair work be carried out only by authorized STIHL dealers.
Wheel
●End of screw thread (1) is deformed so that the wingnut (2) cannot be lost
The wingnut can only be unscrewed from the screw with lots of force. If the parts are joined again after this, the function of the "filler cap retainer" is no longer assured. In this case, have the screw and wingnut replaced with new ones by a specialist dealer.
Replacing the Skirt

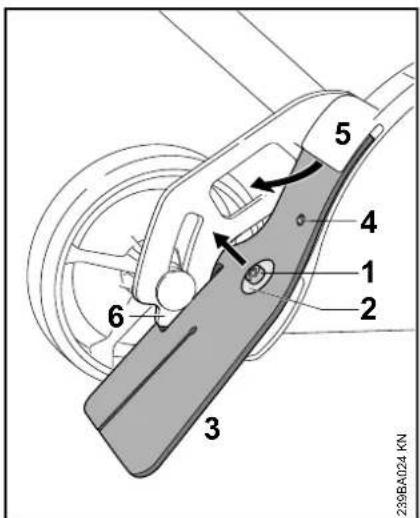

Removing the skirt
●Undo and remove the screw (1).
- Remove the washer (2)
●Pull the skirt (3) out of the segment (6) and out of the gap (5) in the deflector

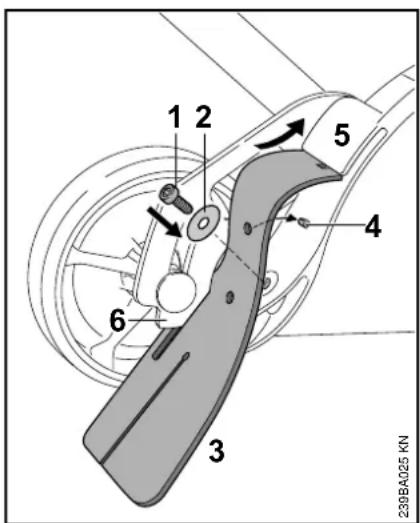

Fitting the skirt
●In order to push the skirt easily into the gap on the deflector, apply a thin coating of resin-free oil to the top of the skirt
- Thread the skirt (3) into the segment (6) and push into the gap (5) of the deflector – the bore in the skirt must be fixed in the arbor (4)
●Place washer (2) onto screw (1).
●Insert and tighten the screw (1)
Replacing the Cutting Blade
A bent or cracked blade must not be straightened or welded – it may break completely! – it must be replaced – see "Fitting the blade".
STIHL recommends the use of only genuine STIHL blades.
Do not resharpen the blade!
- Replace the blade (1), if its length (A) is no longer sufficient to adjust the depth of cut (C) with the necessary ground clearance (B).
Checking the balance
To avoid out-of-balance blades:
●Have the blade checked by a servicing dealer with the STIHL balancer (special accessory) to see if it is out of balance – STIHL recommends the STIHL servicing dealer – replace the blade if it is out of balance, see "Fitting the blade"
Checking and Replacing the Wear Guard
Checking the protection against wear
●Before starting up the machine, check that the protection against wear (1) is not damaged
●Replace the protection against wear at the latest when the gearbox (2) becomes visible (arrow)
NOTICE
If worn deflectors are not replaced in time, this can cause serious damage to the gearbox.
English

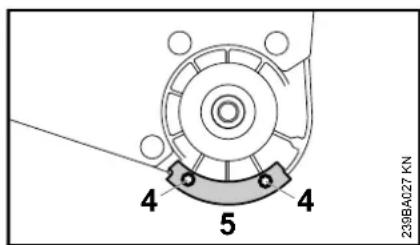

Replacing the protection against wear
- Remove the blade – see "Fitting the blade"
●Unscrew screws (4)
●Replace the protection against wear (5)
●Screw in and tighten screws (4)
●Fit the blade – see "Fitting the blade"
Maintenance and Care
The following information applies in normal operating conditions. The specified intervals must be shortened accordingly when working for longer than normal or under difficult cutting conditions (extensive dust, etc.).
All accessible screws, nuts and bolts
- check and retighten if necessary Wheel
●Visual inspection, before starting work - Check that the wingnut is secure, before starting work
●Have it replaced if necessary – see "Replacing the wheel"
Skirt
●Visual inspection, before starting work
- Replace if damaged – see "Replacing the skirt"
Blade
●Visual inspection, before starting work
- Check that it is secure, before starting work
- If necessary, have it checked to see if it is out of balance, replace if it is out of balance – see "Replacing the blade"
- Replace if damaged – see "Replacing the blade"
Protection against wear
- Check before starting work
- Replace if necessary – see "Check and replace protection against wear"
Safety information label
●Replace illegible safety information labels
Main Parts
1 Cutting Blade
2 Deflector
3 Drive Tube
4 Depth Wheel
5 Wingnut
6 Skirt
7 Wear Guard
8 Gearbox
English
Definitions
1 Cutting Blade
Metal cutting blade for cutting weeds and soft green plants.
2 Deflector
Designed to reduce the risk of injury from foreign objects flung backwards toward the operator by the cutting attachment and from contact with the cutting attachment.
3 Drive Tube
Encloses and protects the drive shaft between the coupling sleeve and gearbox.
4 Depth Wheel
Deflector-mounted depth wheel rolls on ground and keeps edger cutting blade at preset height for required depth of cut.
5 Wingnut
Must be loosened to shift the wheel to adjust the depth of cut.
6 S k i r t
Designed to reduce the risk of injury from foreign objects flung backwards toward the operator by the cutting blade.
7 Wear Guard
Protects the gearbox from wear.
8 Gearbox
Reduces engine speed to speed required to drive the edger blade.
Specifications
Weight
with deflector and
blade: 4.4 lbs. (2.0 kg)
Maintenance and Repairs
Users of this unit should carry out only the maintenance operations described in this manual. STIHL recommends that other repair work be performed only by authorized STIHL servicing dealers.
Warranty claims following repairs can be accepted only if the repair has been performed by an authorized STIHL servicing dealer using genuine STIHL replacement parts.
Genuine STIHL parts can be identified by the STIHL part number, the
STIHL ^ logo and, in some cases, by the STIHL parts symbol G_ . The symbol may appear alone on small parts.
Disposal
Observe all country-specific waste disposal rules and regulations.
STIHL products must not be thrown in the garbage can. Take the product, accessories and packaging to an approved disposal site for environment-friendly recycling.
Contact your STIHL servicing dealer for the latest information on waste disposal.
Trademarks
STIHL Registered Trademarks
STIHL®
STIHL®
G
The color combination orange-grey (U.S. Registrations #2,821,860; #3,010,057, #3,010,058, #3,400,477; and #3,400,476)
AUTOCUT®
EASYSTART®
FARM BOSS®
iCademy®
MAGNUM®
MasterWrench Service®
MotoMix®
OIOMATIC®
ROCK BOSS®
STIHL Cutquik®
STIHL DUROMATIC®
STIHL Quickstop®
STIHL ROLLOMATIC®
STIHL WOOD BOSS®
TIMBERSPORTS®
WOOD BOSS®
YARD BOSS®
Some of STIHL's Common Law Trademarks
Team STIHL™
4-MIX ^TM
BioPlus ™
Easy2Start ™
EasySpool ^TM
ElastoStart ™
Ematic ^TM
FixCut ^TM
HT Plus ^TM
IntelliCarb ™
Master Control Lever ^TM
Micro TM
Pro Mark ^TM
English
Quad Power ^TM
Quiet Line ^TM
STIHL Arctic ^TM
STIHL Compact ™
STIHL HomeScaper Series ^TM
STIHL Interchangeable Attachment Series ™
STIHL M-Tronic ^TM
STIHL MiniBoss ™
This listing of trademarks is subject to change.
Any unauthorized use of these trademarks without the express written consent of
ANDREAS STIHL AG & Co. KG, Waiblingen is strictly prohibited.
Contenido
Sistema KombiSystem 22
Illustration of a person performing a rope knotting or lifting operation (no text or symbols)natural_image
Line drawing of a person using a power tool on a paved surface, no text or symbols presentnatural_image
Technical line drawing of a mechanical component with no visible text or symbolsnatural_image
Line drawing of a person using a manual power tool on a paved surface (no text or symbols)ADVERTENCIA
Illustration of a person using a power tool on their back, with grass and no visible text or symbols
MasterWrench Service®
MotoMix®
OILOMATIC®
ROCK BOSS®
STIHL Cutquik®
STIHL DUROMATIC®
STIHL Quickstop®
STIHL ROLLOMATIC®
STIHL WOOD BOSS®
TIMBERSPORTS®
WOOD BOSS®
YARD BOSS®
0458-471-8621-A
- WARNING
- ADVERTENCIA
- STIHL®
- KombiSystem
- Guide to Using this Manual
- Pictograms
- Symbols in Text
- DANGER
- NOTICE
- Engineering Improvements
- Safety Precautions and Working Techniques
- THE OPERATOR
- Physical Condition
- English
- Proper Clothing
- THE POWER TOOL (KOMBIENGINE EQUIPPED WITH EDGER KOMBITOOL)
- THE USE OF THE POWER TOOL (KOMBIENGINE EQUIPPED WITH EDGER KOMBITOOL)
- Starting
- During Operation
- Working Conditions
- Operating Instructions
- USING THE CUTTING ATTACHMENT
- MAINTENANCE, REPAIR AND STORING
- Using the Unit
- Preparations
- Adjust the depth of cut
- Approved KombiEngines Assembling the Unit
- KombiEngines
- Connecting drive tube to gearbox
- Removing the KombiTool
- Starting / Stopping the Engine
- Starting the engine
- Switching off the engine
- Storing the Machine Replacing the Depth Wheel
- Replacing the Skirt
- Checking the balance
- Maintenance and Care
- Skirt
- Blade
- Protection against wear
- Safety information label
- Main Parts
- Definitions
- Cutting Blade
- Deflector
- Drive Tube
- Depth Wheel
- Wingnut
- S k i r t
- Wear Guard
- Gearbox
- Specifications
- Weight
- Maintenance and Repairs
- Disposal
- Trademarks
- STIHL Registered Trademarks
- Team STIHL™
- Contenido
Brand : STIHL
Model : FCB-KM
Category : Uncategorized
