Product Type	Tower Fan
Model	AFT801
Brand	Blaupunkt
Power Supply	220-240 V ~ 50/60 Hz
Power Consumption	45 W
Fan Power Input	36.52 W
Maximum Airflow	24.45 m³/min
Maximum Air Velocity	2.646 m/s
Service Value	0.67 (m³/min)/W
Sound Power Level	59 dB(A)
Standby Power Consumption	0.548 W
Operating Modes	Normal, Natural, Night, Children
Speed Settings	Adjustable (via speed button)
Timer Function	1-12 hours
Oscillation	Yes, on/off button
Angle Adjustment	Manual tilt (push/pull top)
Control Panel	Digital display with buttons: on/off, speed, mode, oscillation, timer
Dimensions (Approx.)	Height: 100 cm, Base diameter: 30 cm
Weight (Approx.)	4 kg
Cleaning	Wipe body with dry cloth; blow or vacuum interior
Safety Features	Overheat protection? (not specified); do not cover or block airflow
Use	Indoor domestic use only

Frequently Asked Questions - AFT801 BLAUPUNKT

How do I assemble the Blaupunkt AFT801 tower fan?

Join the two parts of the base, place the body on the base ensuring the power cord is positioned correctly, then screw the base to the body using the provided fastening screws.

What are the different operating modes?

The fan offers four modes: Normal (constant speed), Natural (simulates wind gusts by varying speed every 5 seconds), Night (starts at highest speed, reduces after 30 min to medium, then to low after another 30 min), and Children (auto-off after 3 hours, starts high, reduces speed every 15 min, oscillation on).

How do I set the timer?

Press the Timer button repeatedly to increase the delay from 1 to 12 hours. Each press adds 1 hour. To cancel the timer, press again after reaching 12 hours.

Can I adjust the oscillation?

Yes, press the Oscillation button to turn oscillation on or off. The fan will automatically oscillate left and right when enabled.

How do I change the fan angle?

Gently push or pull the top of the fan while holding the base to tilt it backward or forward. Do not force it beyond the intended range.

How should I clean the fan?

Always unplug the fan before cleaning. Wipe the body and base with a dry cloth. For the interior, use compressed air or a vacuum cleaner to remove dust from the grilles and motor area.

What is the power consumption?

The fan has a maximum power input of 36.52 W with a total power consumption of 45 W. Standby power consumption is 0.548 W.

Is the fan safe for use around children?

Yes, but supervision is required. The Children mode includes a 3-hour auto-off and reduces speed gradually. Ensure children do not insert objects into the grille or play with the fan.

Can I use the fan in a bathroom or outdoors?

No, the fan is designed for indoor dry use only. Do not use in humid areas like bathrooms, near water, or expose to rain or direct sunlight.

What is the noise level?

The sound power level is measured at 59 dB(A), which is comparable to a quiet conversation.

USER MANUAL AFT801 BLAUPUNKT

Black vertical electric fan with digital display and control panel (no visible text or symbols)

Enjoy it.

Tower fan

Turmventilator

Efficiency information

AFT801
Description	Symbol	ValueF	Unit
Maximum fan flow rate	F	24,45	m3/min
Fan power input	P	36,52	W
Service value	SV	0,67	(m3/min)/W
Standby power consumption	PSB	0,548	W
Fan sound power level	LwA	59	dB(A)
Maximum air velocity	C	2,646	meters/sec
Measurement standard for service value	GB/T 13380-2007
Contact details for obtaining more information	2N-Everpol Sp. z o.o.ul. Puławska 403A02-801 Warsaw, Polandphone: [phone]e-mail: [e-mail]

Important notes

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

• Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not

work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Do not block the airflow or cover the device.
• Regularly clean the fan of dust so that dirt does not block the air flow.
• Do not insert any objects between the machine's protective grilles.
• Do not use the fan in rooms with high humidity, such as bathrooms, etc. Do not place the fan in places where it could fall into a bathtub, wash basin or other water tank.

CE

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Power: 45W

Power supply: 220-240V\~50/60Hz

1. Control panel:
   1a. On/Off switch button
   1b. Speed setting button
   1c. Operation mode setting button
   1d. Oscillation button
   1e. Timer button

2. Display

3. Corps
4. Basis
5. Base fixing screws

ASSEMBLY AND PREPARATION FOR WORK

1. Join the two parts of the base.
2. Place the body on the base, pay attention to the position of the power cord.
3. Screw the base to the body with the fastening screws.
4. Place the device in a convenient place.

USE OF THE TOWER FAN

1. Connect the device to a power source.
2. Start the fan with the switch.
3. Set the expected operating mode with the operating mode setting button:
4. Normal mode **: the fan will run at the set speed.
5. Natural mode — the fan will simulate gusts of wind, cyclically change gusts every 5 seconds from fastest to smallest speed.
6. Night mode 😊: the fan will start at the fastest speed, after 30 minutes it will reduce the speed to medium, after another 30 minutes to the lowest and will continue to work until it is turned off or the operating mode is changed.
7. Children mode 😊 the fan will set the delayed off mode to 3 hours. The fan will start at the fastest speed, after 15 minutes will reduce the speed to medium, after another 15 minutes to the lowest. Oscillation will start automatically, you can turn it off by pressing.
8. The airflow speed can be adjusted with the speed button.
9. With the timer button you can set the delayed switch off function in the range of 1 - 12 hours. Each press increases the value by 1. To turn off the timer, press the timer button again after setting the delayed switch off to 12 hours.
10. The oscillation function can be turned on and off with the oscillation button .

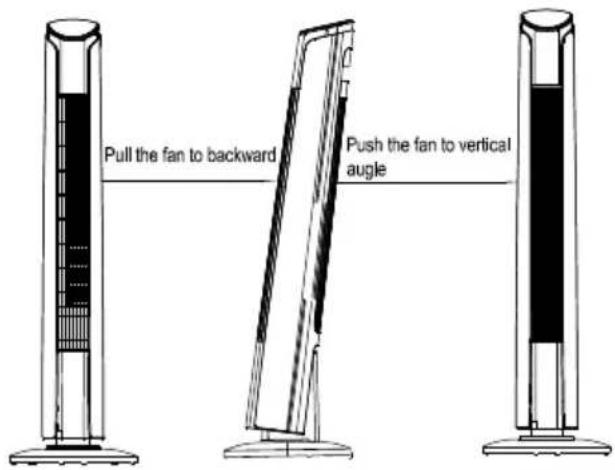

11. To change the fan angle, press or pull the top of the fan while holding the base.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, make sure that the fan has been disconnected from the power

source.

The fan should be cleaned regularly. Body, posture should be wiped with a dry cloth. The interior should be blown out with compressed air or vacuumed with a vacuum cleaner.

CZYSZCZENIE I KONSERWACJA

ČIŠTĚNÍ A ÚDRŽBA

ČISTENIE A ÚDRŽBA

ČIŠČENJE IN VZDRŽEVANJE

ČIŠĆENJE I ODRŽAVANJE

Prije početka čišćenja i održavanja treba provjeriti je li ventilator isključen iz napajanja. Ventilator treba redovito čistiti. Podloga i korpus brišu se suhom krpom. Unutrašnjost treba propuhati komprimiranim zrakom ili usisati usisivačem.

VALYMAS IR PRIEŽIŪRA
