AHS901 - Air Humidifier BLAUPUNKT - Free user manual and instructions

Product Type	Air Humidifier
Brand	Blaupunkt
Model	AHS901
Dimensions (approx.)	25 x 25 x 35 cm
Weight (approx.)	2.5 kg
Water Tank Capacity	3.5 L
Humidification Output	Up to 300 ml/h
Coverage Area	Up to 30 m²
Noise Level	< 35 dB(A)
Power Supply	220-240 V, 50 Hz
Power Consumption	25 W
Humidification Method	Ultrasonic
Control Type	Touch panel + remote control
Display	LED digital display
Functions	Auto mode, timer (1-12 h), adjustable mist output, night mode, aroma diffuser
Water Filter	Replaceable demineralization cartridge
Cleaning	Weekly descaling; tank and transducer cleaning recommended
Safety Features	Auto shut-off when water empty, tip-over protection
Spare Parts	Replacement filter (model AHS901-F), aroma pad, cleaning brush
Repairability	User-replaceable filter and fuse; professional service for electronics
Warranty	2 years

Frequently Asked Questions - AHS901 BLAUPUNKT

How do I clean the Blaupunkt AHS901 humidifier?

Disconnect the unit and empty the water tank. Clean the tank with a soft cloth and mild detergent. For the transducer, use the included cleaning brush to remove mineral deposits. Rinse thoroughly before refilling.

Why is the humidifier not producing mist?

Check if the water tank is empty. If full, verify that the water level is above the minimum mark. The unit may have shut off automatically due to low water. Also ensure the transducer is clean and not covered by mineral scale.

Can I use essential oils in the AHS901?

Yes, the AHS901 has an aroma diffuser compartment. Add a few drops of essential oil onto the included aroma pad, then place it in the designated slot. Do not add oil directly into the water tank.

How often should I replace the water filter?

The demineralization cartridge should be replaced every 2-3 months, depending on water hardness. The filter indicator on the display will prompt you when replacement is needed.

What is the maximum run time on a full tank?

At maximum mist output, the 3.5 L tank lasts about 12 hours. In low or auto mode, it can run up to 24 hours before needing a refill.

Does the humidifier have a timer function?

Yes, you can set a timer from 1 to 12 hours using the remote control or touch panel. The unit will automatically turn off after the set time.

What should I do if the display shows an error code?

Refer to the user manual for specific codes. Common issues: E1 indicates water tank not properly seated, E2 means low water level. Turn off, refill, and restart. If persists, contact Blaupunkt support.

Is the AHS901 suitable for large rooms?

It is designed for rooms up to 30 m² (approx. 320 sq ft). For larger areas, consider multiple units or a larger capacity model.

How do I reset the filter replacement indicator?

Press and hold the 'Mode' button for 5 seconds until the filter icon stops flashing. This resets the filter life counter after installing a new cartridge.

Can I leave the humidifier on overnight?

Yes, the night mode reduces noise and dims the display. The auto shut-off when empty ensures safe operation while sleeping.

USER MANUAL AHS901 BLAUPUNKT

Enjoy it.

Air humidifier Luftbefeuchter Nawilżacz powietrza Zvlhčovač vzduchu Zvlhčovač vzduchu Párásító Vlažilnik zraka

Ovlaživač Zraka Υγραντήρας αέρα Овлажнител на въздух Umidificator De Aer Oro Drėkintuvas Õhuniisutaja

Important notes

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to a socket with values corresponding to the values on the rating label.

- It is necessary to check if the total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let the cord hang over the edge of a counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from the electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug, or the whole device into water or any other liquids.

- The device should be cleaned regularly following the recommendations in the cleaning and maintenance section.

- Do not place the device near heat sources, flames, electric heating elements, or hot ovens. Do not place it on any other device.

- This equipment can be used by children aged 8 years and above if supervised. People with reduced physical or mental capabilities, or those without experience, must be supervised and made aware of the risks. The instruction manual should be used as a reference for safe use. Children should not play with the equipment.

• Children without ensured supervision should not perform cleaning and maintenance of the equipment.

• Extra precautions should be taken when using this device around children or pets. Do not let children play with the device.

- Never use the product near combustibles.

- Never expose the product to atmospheric conditions such as direct sunlight or rain, etc. Never use it in humid conditions (like bathrooms or camping houses).

• The power cable should be checked periodically for damage.

- If the power cable is damaged, take the product to a professional service location to be fixed or replaced to prevent hazards.

- Never use the product with a damaged power cable, or if it has been dropped or damaged in any way, or if it does not

work properly. Do not try to repair the defective product yourself, as it can lead to electric shock. Always return the damaged device to a professional service for repair.

• All repairs should only be performed by authorized service professionals. Any unauthorized repair attempts can be hazardous to the user.
• Only original accessories or those recommended by the manufacturer should be used. Using non-recommended accessories may damage the device and make it unsafe.
• Do not add drugs or chemicals to the water tank, base, or vapor outlet. Do not add aromatic oils, salt, decalcifying tablets, powders, or cleaning agents to water. Use only clean water. Make sure that the water mist outlet is not aimed directly at walls, furniture, electrical outlets, electrical and electronic equipment.
• Do not block the device ventilation. Keep at least 20 cm of free space around the device. Do not block the water mist outlet.
• Do not use the device if there is a risk of condensation. Moisture may occur on the external or internal parts of the device if:
• the device is moved from a cold to a warm place,
• the heating system has just been turned on,
• the device is being used in a high moisture area,
• the device is cooled by the air conditioning cooling system.

- Do not tilt or overturn the device and do not attempt to add or drain water when the device is operating.

- Do not remove the water tank from the device base during

the device operation.

• Do not touch the device with wet hands. - Do not leave water in the humidifier if it is not in use.

- Too much humidity in the room can lead to moisture accumulation, causing the growth of bacteria and fungi and damage to walls, furniture, and wallpaper.

- The working environment for the humidifier is when the temperature is between 5 and 40 degrees Celsius, and relative humidity is lower than 80% RH.

- The device should be disconnected from the mains when filling up the tank, placing the water tank in the device, and cleaning the humidifier.

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance in the common waste bin.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Voltage: 220-240V~50/60Hz

Power: 225W

Water tank capacity: 6L

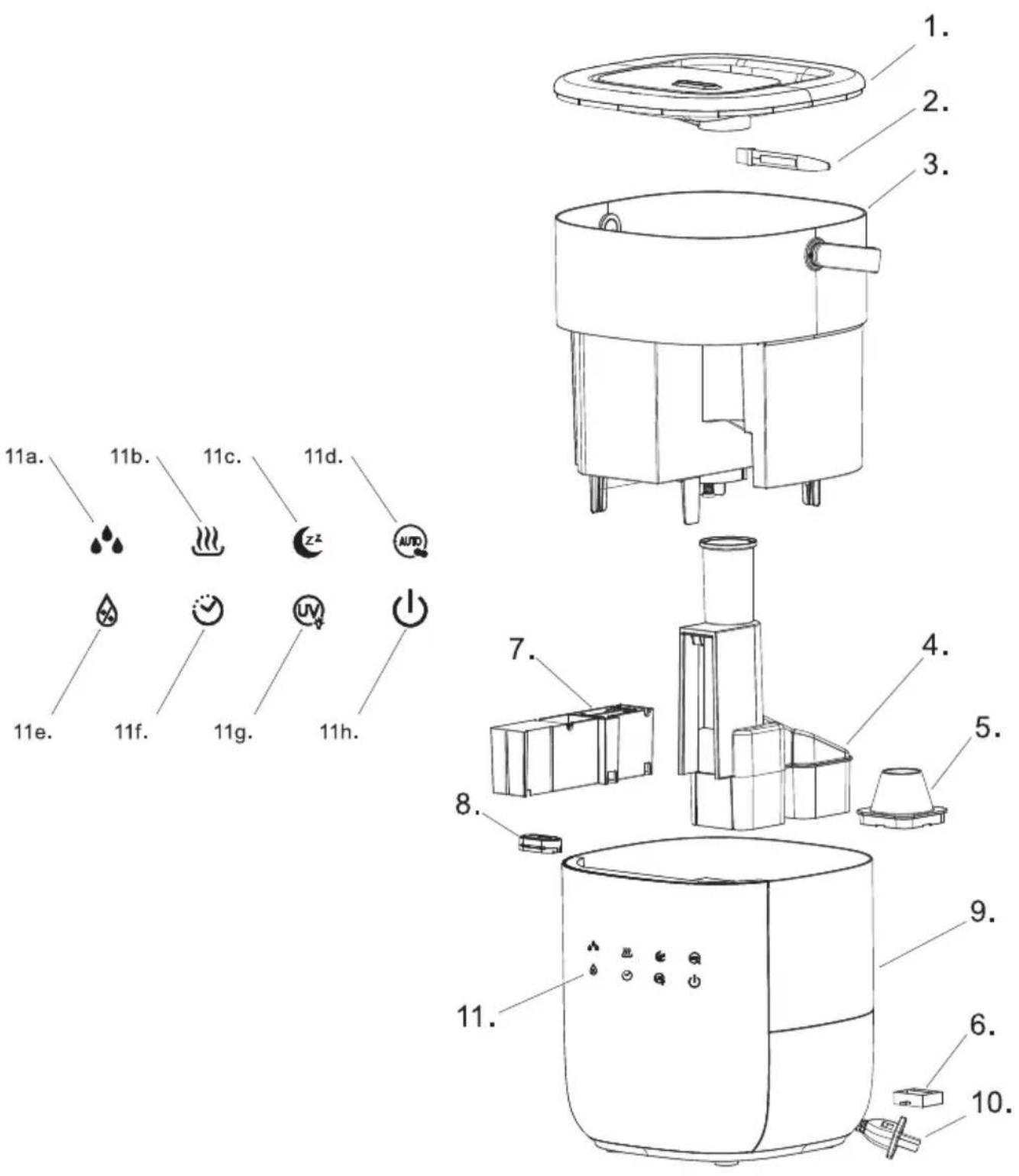

1. Cover
2. Cleaning brush
3. Water tank with a handle
4. Air channel
5. Choke
6. Aromatherapy basket
7. Partition
8. Cartridge with silver ions
9. Body
10. Power cord plug
11. Control panel 11a. Humidification intensity selection button 11b. Hot mist function button 11c. Night mode button 11d. Automatic mode button 11e. Humidistat setting button 11f. Timer button 11g. UV lamp button 11h. Power button

REFILLING THE WATER TANK

The tank can be refilled in two ways.

1. After removing the tank cover (9), pour water into the tank using a bottle or other container.
2. After removing the cover (9), the tank can be removed. Lift the tank using the handle. Fill the tank under the tap. Place the tank on the body of the device, paying attention to the location of internal components such as a lamp, aromatherapy basket, etc.

USING THE APPLIANCE

Press the power switch to turn on the appliance. After pressing the power switch, the air humidifier starts to generate a water mist. The operating parameters can be checked on the LED display. Press the button again to return to standby mode.

The humidification intensity can be adjusted using 3 intensity levels. Set the intensity by pressing the humidification intensity selection button.

Pressing the automatic mode button will start the mode of maintaining constant humidity in the range of 55%-68% humidity. The air humidifier will change the humidification intensity depending on the difference between ambient humidity and target humidity.

Press the humidistat setting button to enable the Humidistat mode. Each press will change the target ambient humidity value by 5%. The air humidifier will turn on and off to maintain humidity within the selected humidity level.

To enable the hot mist function, press the hot mist function button. The heater will heat the water to a temperature close to boiling point. This will increase the amount of mist/steam generated and affect water sterilisation. The appliance's tank and base heat up, and the water in the air humidifier body is very hot. Special care must be taken.

In order to set the appliance turn-off timer, press the timer button to start the timer; each press sets the time to turn off the appliance from 1 to 10 hours. Pressing and holding the button (3 seconds) disables the timer.

Note: A longer pressing of the night mode button (3 seconds) turns off the sounds accompanying pressing the function buttons. To restore the sounds, hold down the button again.

To turn off the air humidifier mood light, press and hold the night mode button for 3 seconds. Pressing it again will turn the lighting on longer.

To turn off the humidifier lighting and activate the night mode, press the night mode button. Pressing it again will restore the display.

To turn on the air ionization, press the button of the automatic mode for a longer time (3 seconds) (the display will show "N1". To turn off the ionization, long press the button again (the display will show "--".

THE AROMATHERAPY FUNCTION

To use the aromatherapy function, follow these instructions.

1. Take out the aromatherapy attachment (6).
2. Apply a few drops of water-soluble aroma oil (for use in humidifiers) on the sponge.
3. Put the aromatherapy attachment in the right place. The aroma will begin to release when the humidifier is switched on.
4. When you want to stop the aromatherapy, or the appliance will be unused for some time, remove the sponge from the aromatherapy attachment and clean it.

CLEANING AND MAINTENANCE

Turn off the device and unplug it.

Remove the water tank and empty it. Then wash it and remove all dirt and sediment from it. Dry the water tank.

The transmitter and the internal water tank should be regularly desalinated. It is recommended to use water with the addition of citric acid or vinegar.

Do not immerse the device in water.

The device will count down the use time to turn on the cleaning reminder mode, when the use time reaches 50 hours, the LED display will flash to remind users to clean the device, after maintenance, users can reset the device by long pressing the power button for 3 seconds.

The humidifier uses a resin filter which reduces the hardness of the water. It is recommended to replace it every 3-6 months (depending on the hardness of the water). Recommended filter: the Blaupunkt ACC048.

The silver ion cartridge (Blaupunkt ACC058) prevents the development of micro-organisms in the water. It should be replaced every six months.
