Product Type	TV Stand
Brand	One For All
Model	WM 7482
Max TV Weight	50 kg (110 lbs)
Max TV Size	70"
Sound Bar Weight Capacity	5 kg (11 lbs)
VESA Compatibility	Universal: 200x200, 300x200, 300x300, 400x200, 400x300, 400x400
Material	Metal
Safety Features	Includes anti-tip kit
Warranty	Lifetime against defects in materials and workmanship
Included Components	TV brackets, sound bar bracket, mounting hardware, anti-tip kit
Installation	Freestanding TV stand assembly required

Frequently Asked Questions - WM 7482 ONE FOR ALL

What is the maximum TV size and weight this stand can hold?

The stand supports a maximum TV size of 70 inches and a maximum weight of 50 kg (110 lbs).

Can I mount a sound bar on this TV stand?

Yes, the stand has a dedicated sound bar bracket with a capacity of up to 5 kg (11 lbs).

Is this TV stand compatible with my VESA pattern?

The stand is universally compatible with VESA patterns: 200x200, 300x200, 300x300, 400x200, 400x300, and 400x400.

Does the stand include an anti-tip mechanism?

Yes, an anti-tip kit is included and must be installed to prevent the stand from tipping over.

How do I clean and maintain the TV stand?

Wipe with a soft, dry cloth. Avoid using abrasive cleaners or solvents. Check and tighten screws periodically.

What is the warranty period for the One For All WM 7482?

It comes with a lifetime warranty against defects in materials and manufacturing.

What type of screws are needed to attach the TV to the brackets?

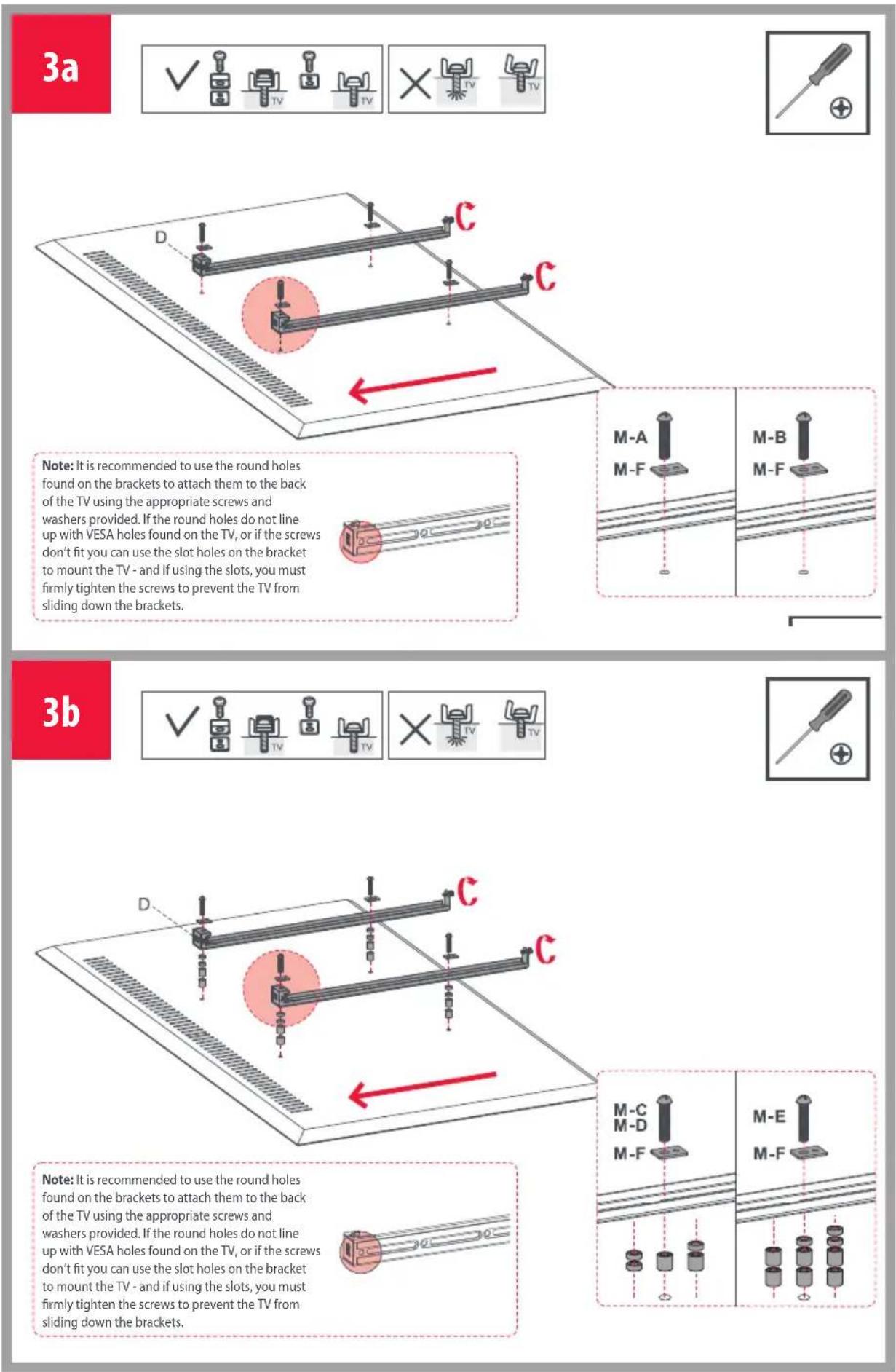

Use the provided screws and washers. For slotted holes, tighten firmly to prevent the TV from sliding.

Can this stand be placed directly on carpet?

Yes, but ensure stability. The anti-tip kit should be anchored to the wall for safety.

Does the stand have storage shelves?

Yes, it includes shelves for media components. The exact number may vary by configuration.

What tools are required for assembly?

Typically a Phillips screwdriver and possibly an Allen key (included). Refer to the manual for specifics.

USER MANUAL WM 7482 ONE FOR ALL

Two modern metal-framed display stand cases labeled WM7481 and WM7482, showing different frame structures and support legs (no text on main objects)

We're ready to assist with the installation

www.oneforall.com

Support

Learn about One For All products, download manuals, watch instruction videos or get in contact with our Customer Service Team for personal assistance.

Support

Universal

200 × 200 300 × 200

300 × 300 | 400 × 200

400 × 300 400 × 400

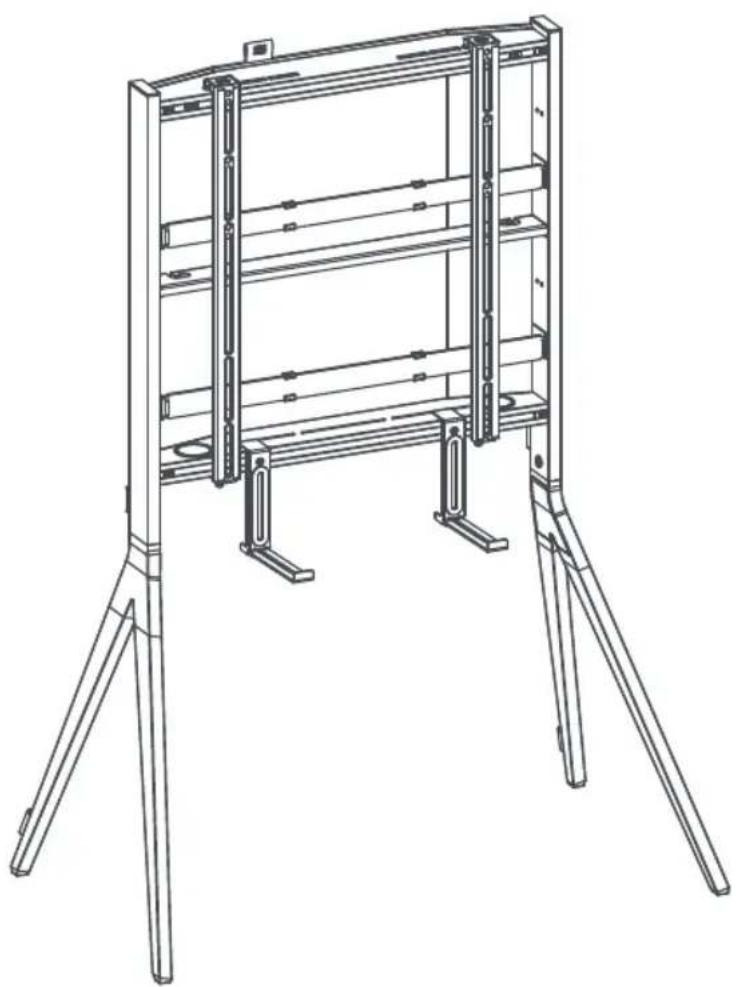

Technical line drawing of a multi-level metal shelving unit with support legs and structural supports (no text or symbols)

Safety Disclaimer

This product includes an anti-tip kit that must be used in conjunction with the product and will prevent the product from falling or tipping over. Please follow the enclosed information to properly install these safety accessories. In no event shall the Seller be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, whatsoever arising out of or connected with the use or misuse of this product.

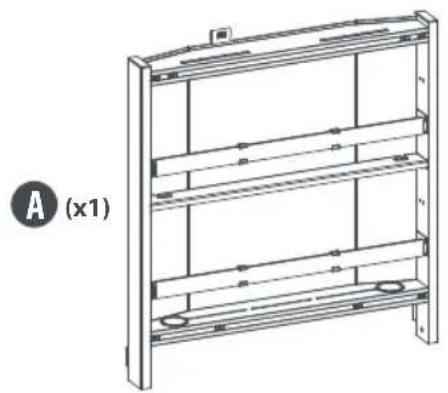

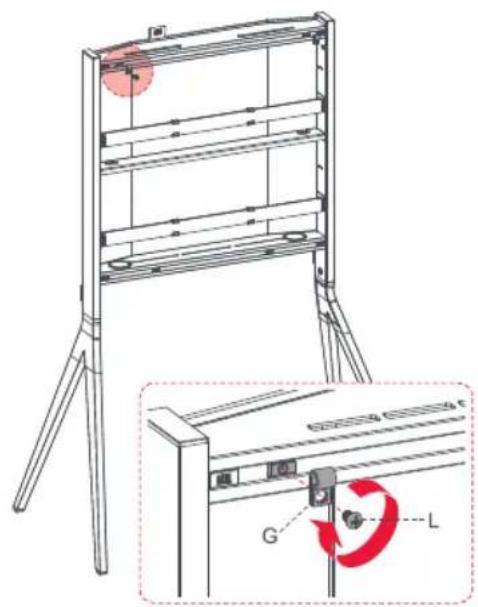

Technical line drawing of a multi-level shelving unit with labeled section A (x1), no text or symbols present.

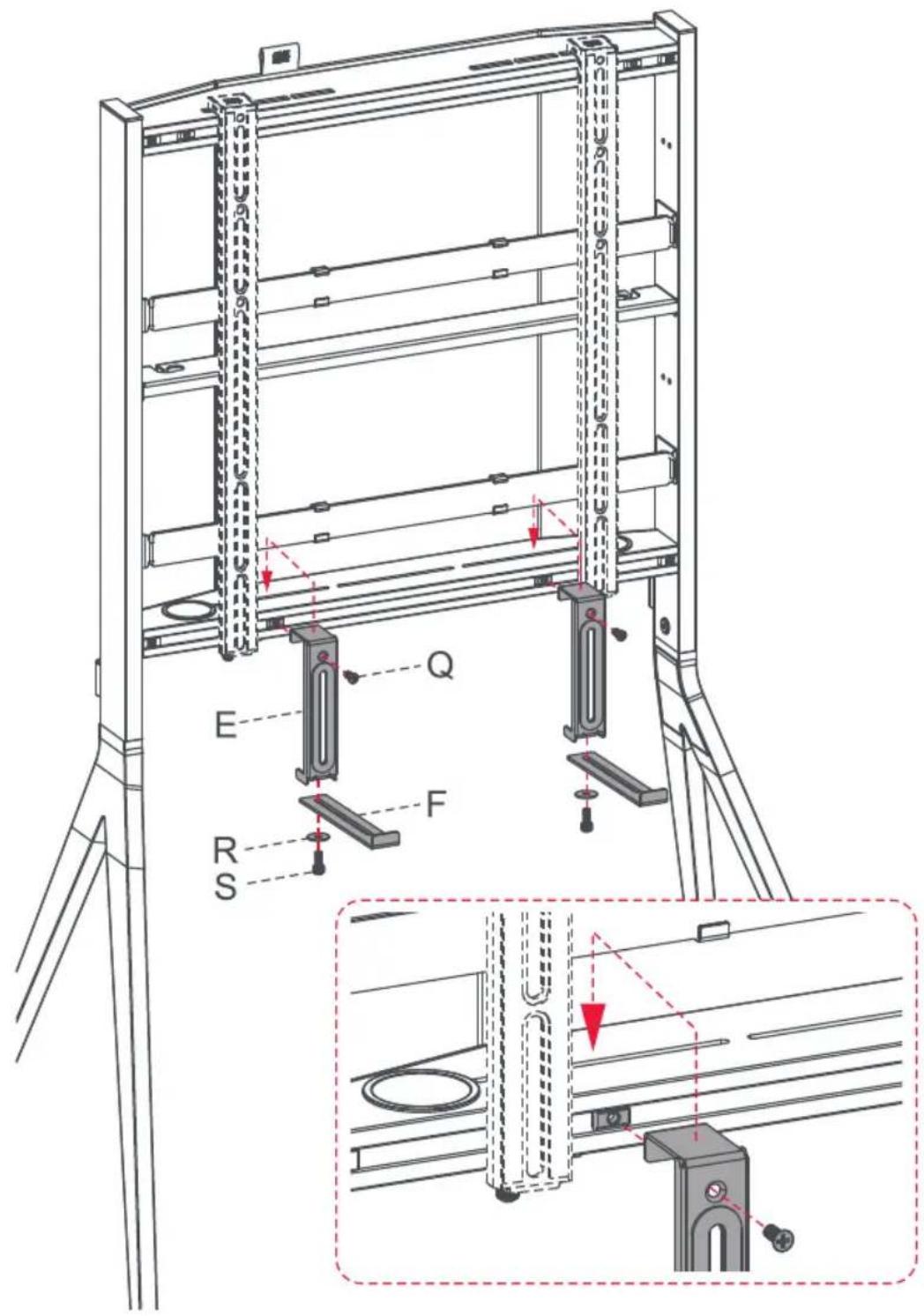

Technical line drawing of two mechanical components labeled D and E (no text or symbols on the parts themselves)

(x2) (x2) (x2) (x2) (x1) (x4)

Diagram of a device with labeled components (J, KL) and a small connector (no text or symbols on the device itself)

(x2) (x2) (x2) 2mm (x1) 5mm (x1)

Pure electrical circuit lines without any symbols

Two labeled circular icons: one with a nail, the other with a pencil (no text or symbols)

(x4) (x4) (x2) (x2)

M-A

M-B

M-C

M-D

M-E

M-F

M-G

M-H

START

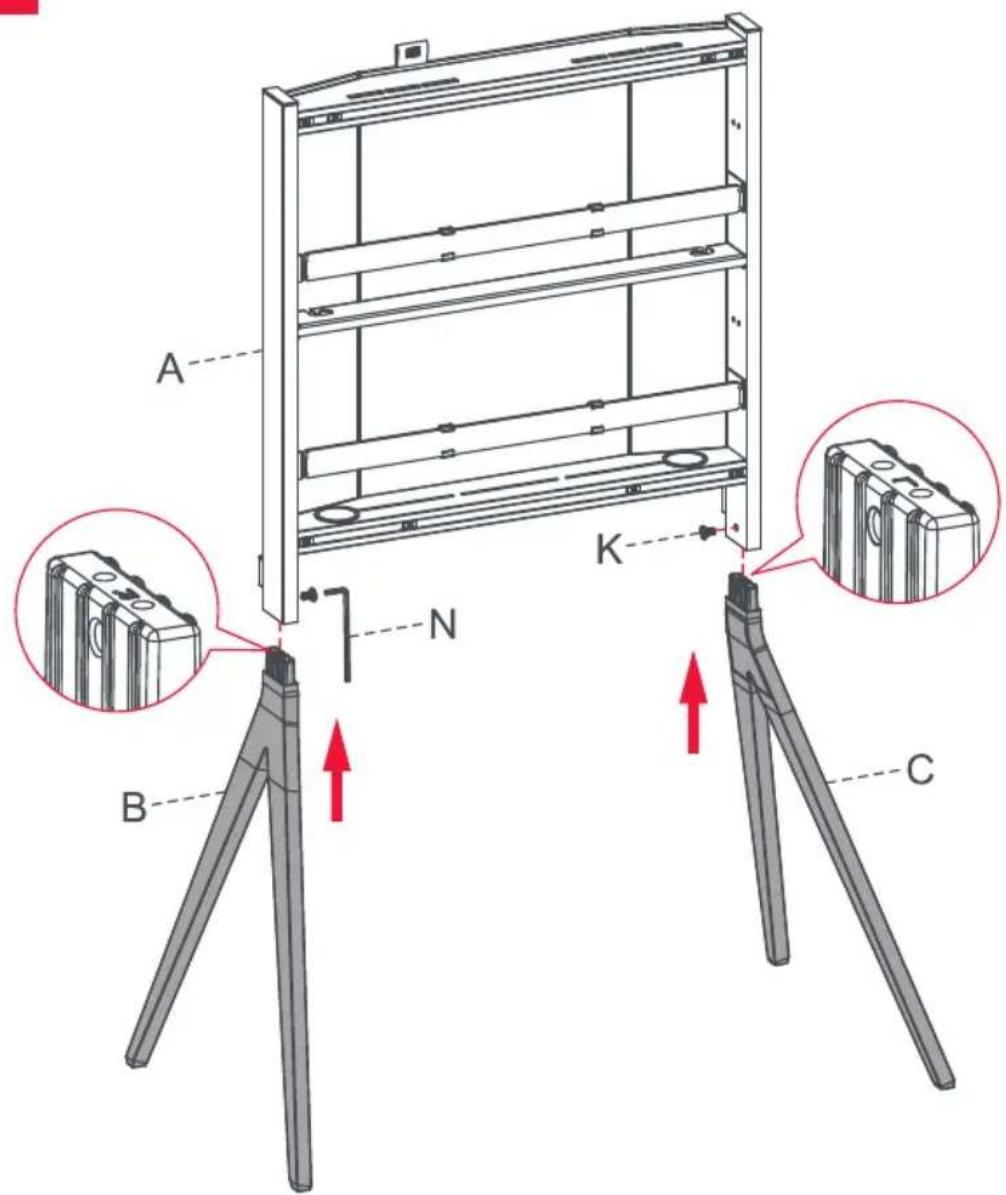

1

2

6

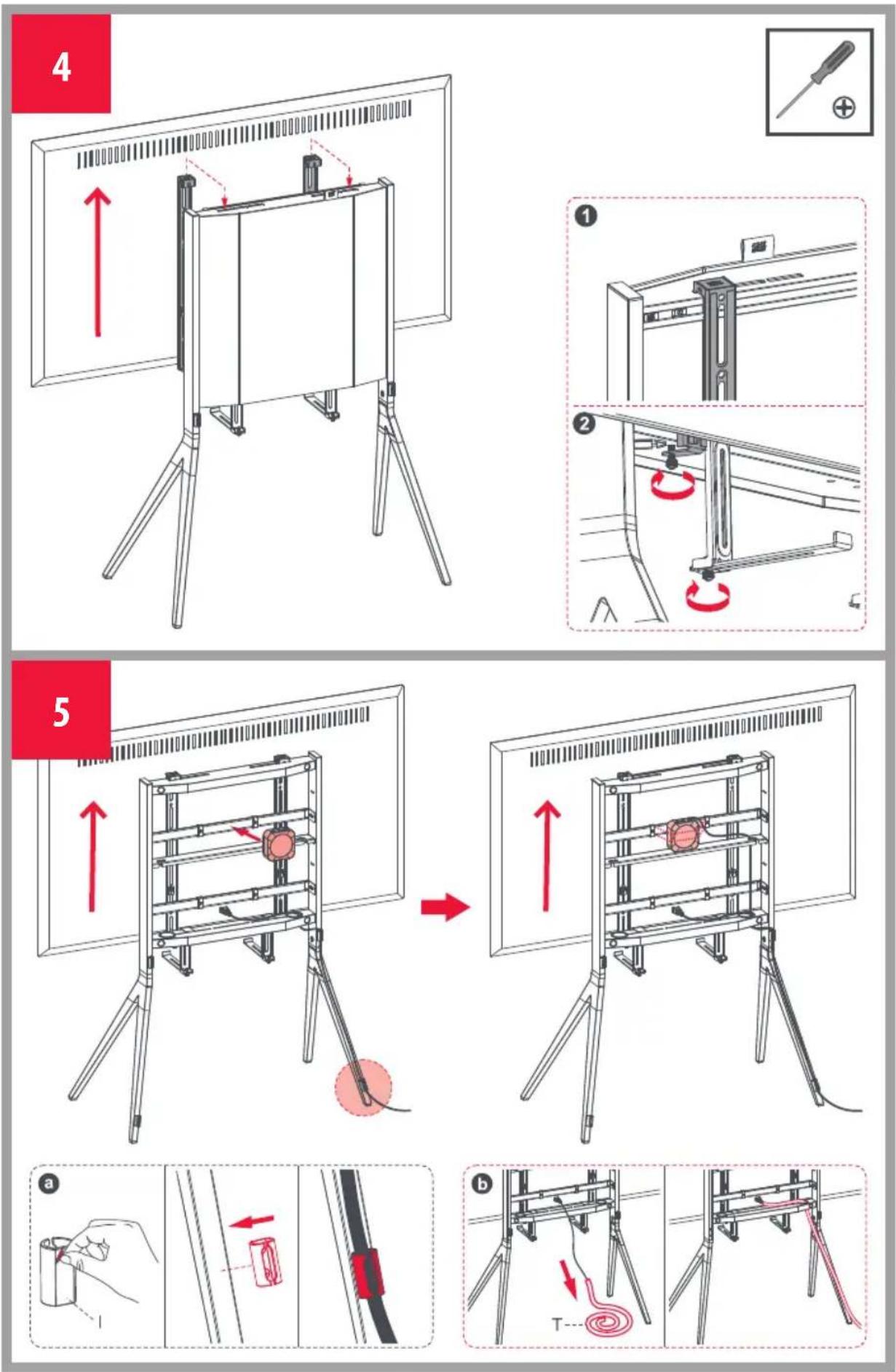

Diagram of a device mounted on a tripod stand, showing internal components and a red arrow indicating motion (no text or symbols present)

7

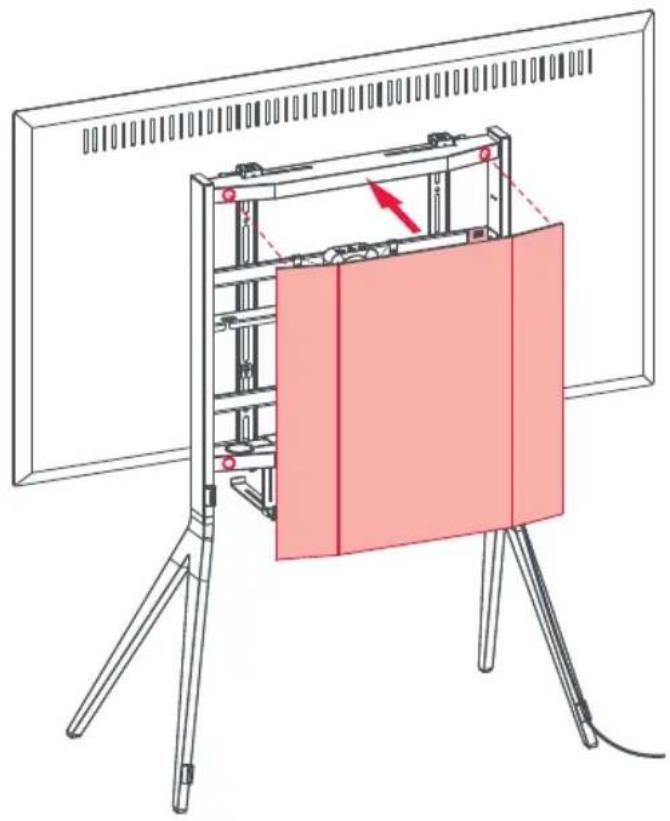

Line drawing of a flat-screen monitor mounted on a tripod stand (no text or symbols)

8a

EXTRA

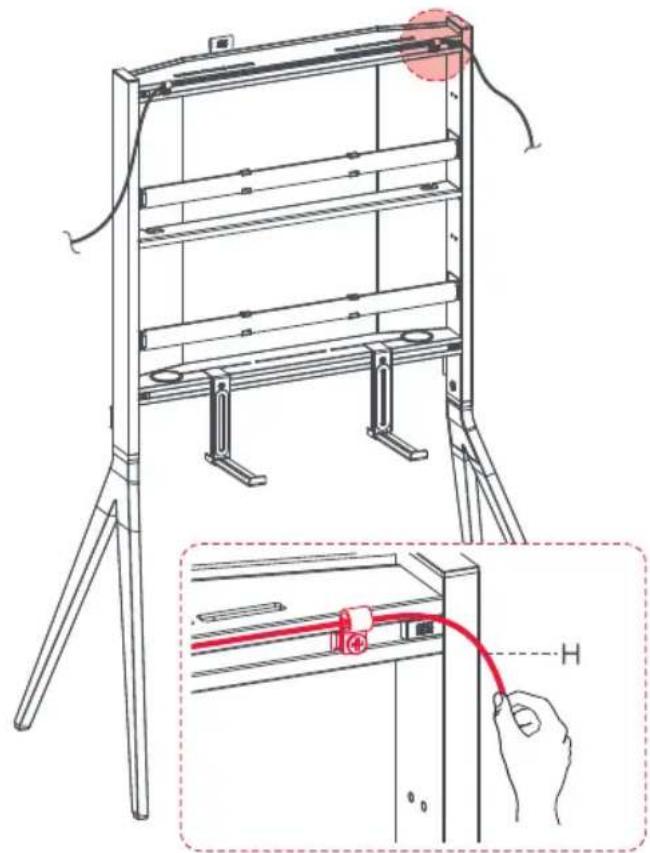

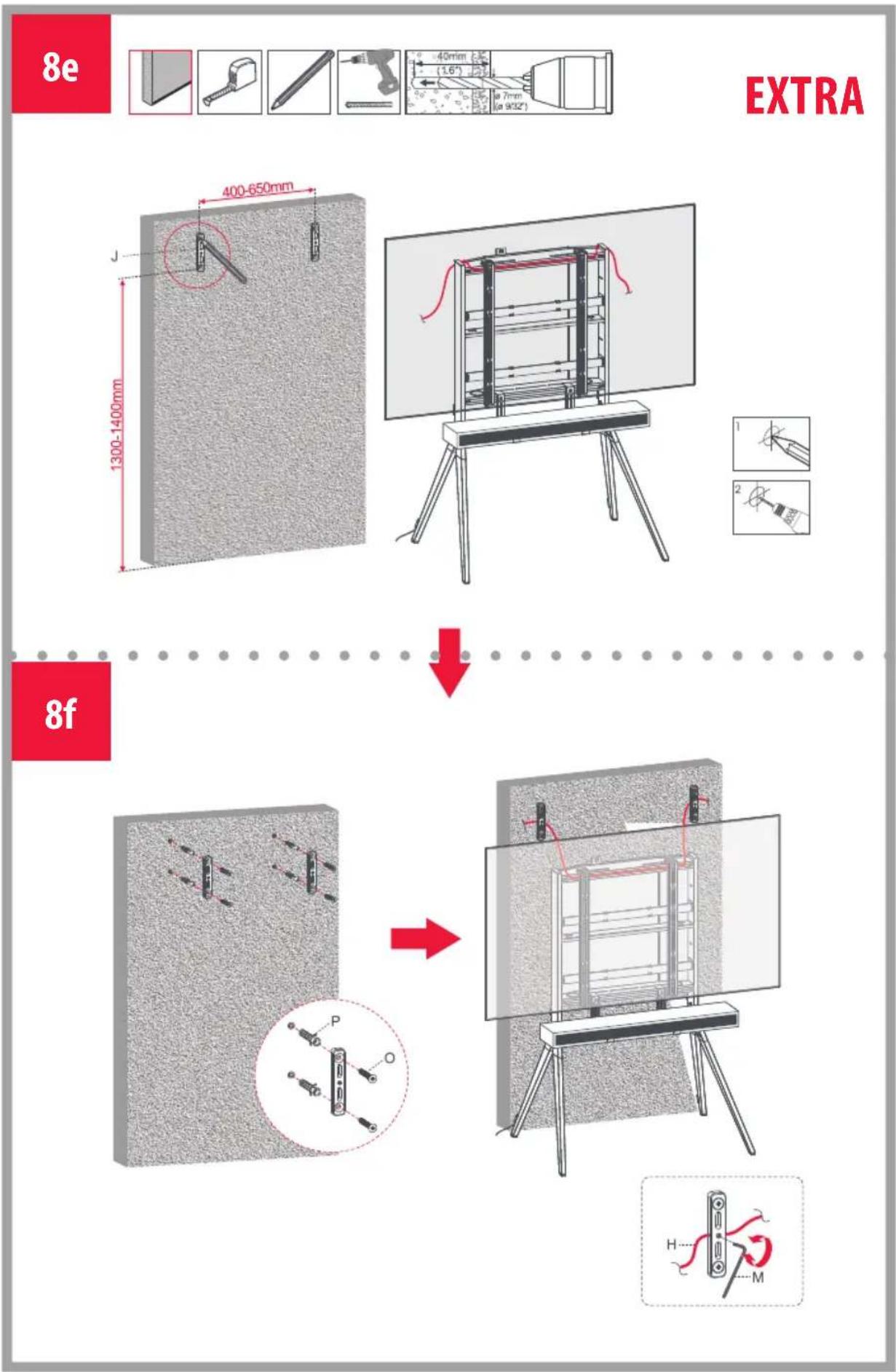

To avoid TV falling, anti-fall wire rope should be installed.

H

Hand-drawn red spiral line drawing on white background (no text or symbols)

8b

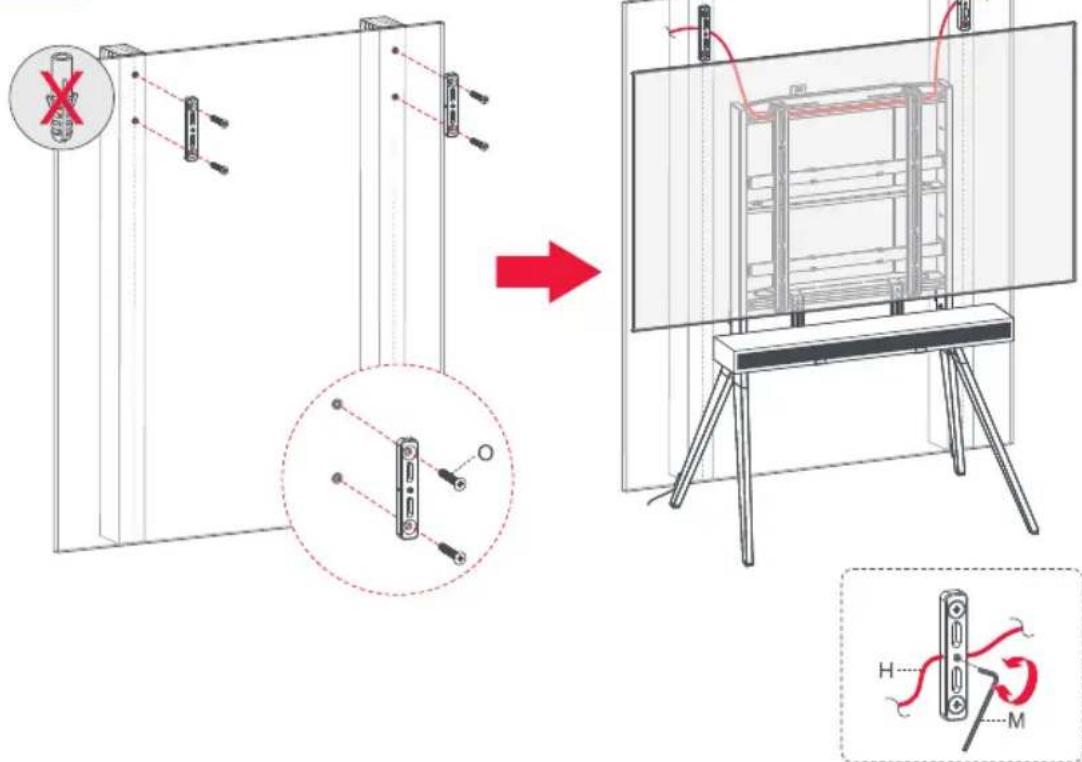

Technical line drawing of a mechanical device with a red-handled cable or wire being inserted into a cabinet (no text or symbols present)

8c

EXTRA

Technical line drawing of a simple electrical enclosure mounted on an easel, with no visible text or symbols.

8d

4c-4

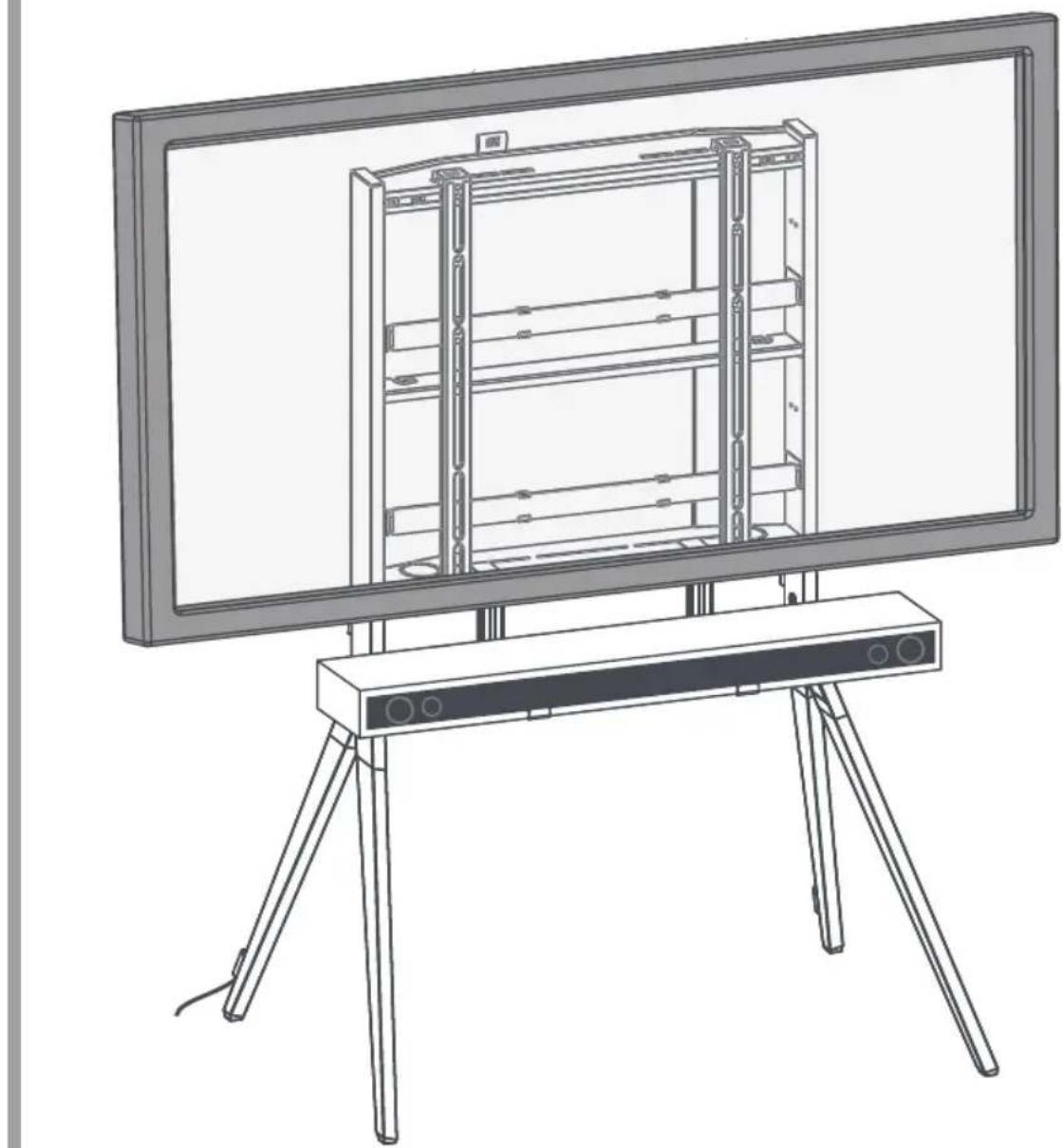

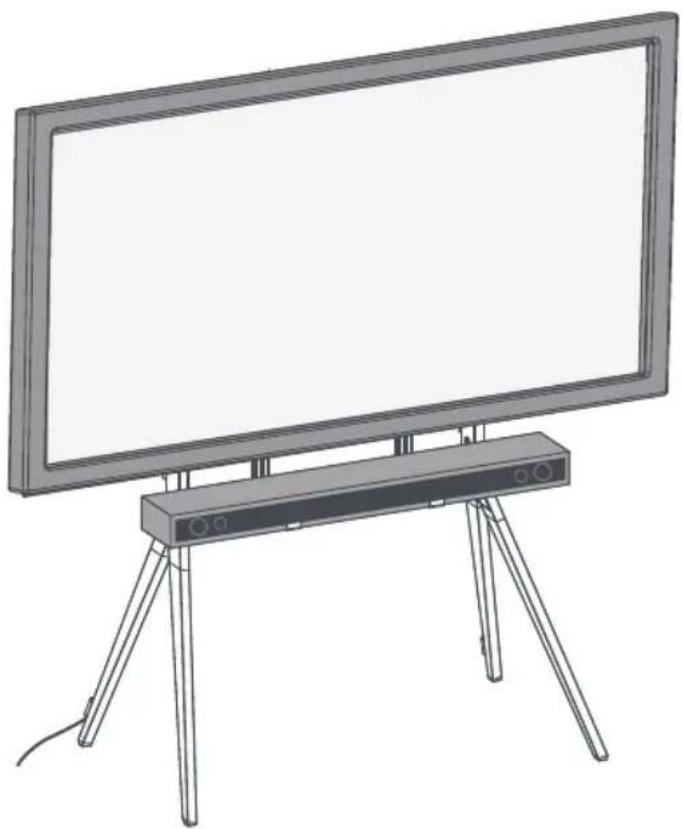

Line drawing of a flat-screen TV set mounted on a tripod stand, showing internal storage racks and display (no text or symbols)

GUARANTEE TERMS AND CONDITIONS

ENGLISH

Thank you for purchasing this ONE FOR ALL product! The product you now have in your possession is made of durable materials and is based on a design, every detail of which has been meticulously thought out. That is why ONE FOR ALL gives you a Life Time guarantee for defects in materials or manufacturing.

GUARANTEE TERMS AND CONDITIONS

1. ONE FOR ALL guarantees that if during the guarantee period of a product, faults arise due to defects in manufacturing and/or materials, it will, at its discretion, repair or if necessary replace the product, free of cost. A guarantee for normal wear and tear is hereby expressly excluded.
2. If the guarantee is invoked, the product should be sent to ONE FOR ALL together with the original purchase document (invoice, sales slip or cash receipt). The purchase document should clearly show the name of the supplier and the date of purchase.
3. ONE FOR ALL guarantee shall lapse in the following cases: - If the product has not been drilled, installed and used in accordance with the Instructions for Use; - If the product has been altered or repaired by a party other than ONE FOR ALL; - If a fault arises due to external causes (outside the product) such as for example lightning, water nuisance, fire, scuffing, exposure to extreme temperatures, weather conditions, solvents or acids, wrong use or negligence; - If the product is used for different equipment than is mentioned on or in the packing.

UNIVERSAL ELECTRONICS BV, COLOSSEUM 2, 7521 PT ENSCHEDE, THE NETHERLANDS

WARNING

Correct installation is extremely essential, and falls outside the scope of responsibility of ONE FOR ALL. The fastening material provided is exclusively intended for installation on walls made of solid wood, bricks, concrete or solid-wood columns with a maximum of 3 mm wall finishing. For walls made of other materials, for example hollow bricks, please consult your installer and/or specialist supplier. During installation, please also follow the instructions for installation and use of the apparatus to be installed/fixed (for example the LCD/LED/plasma screen).
