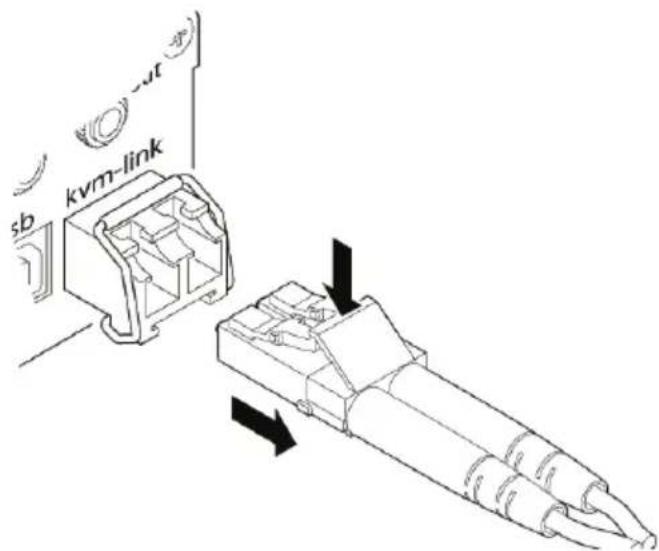

2.7 Removing a fiber cable 21

3.1 How to access the main menu 22

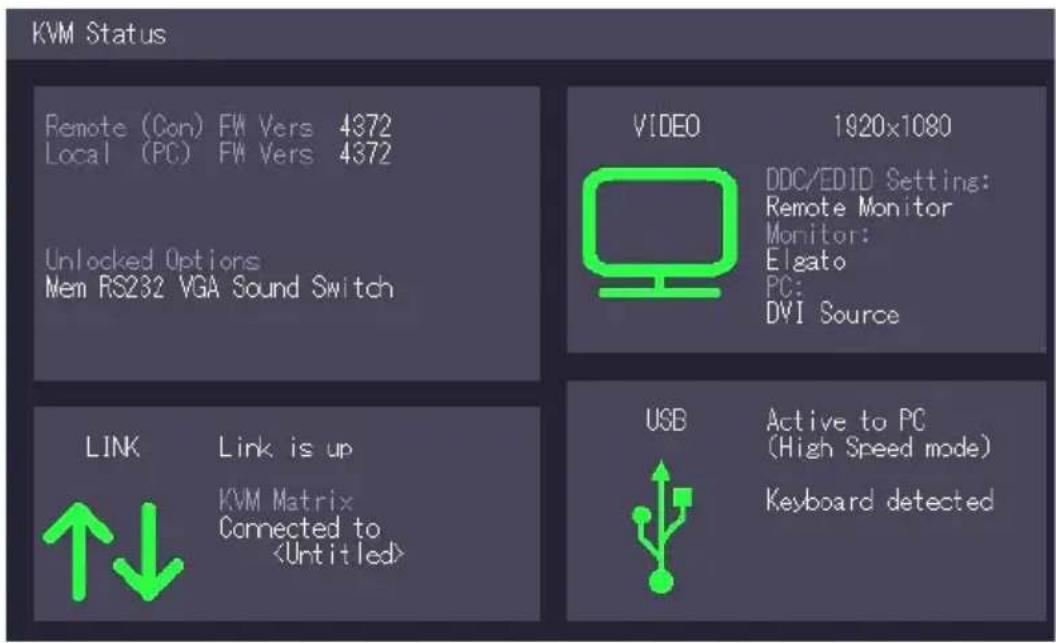

3.2 Status Menu 23

TABLE OF CONTENTS

3. Extender menu/settings 23

3.3 How determine the current Firmware version 24

3.4 How to perform a firmware update 25

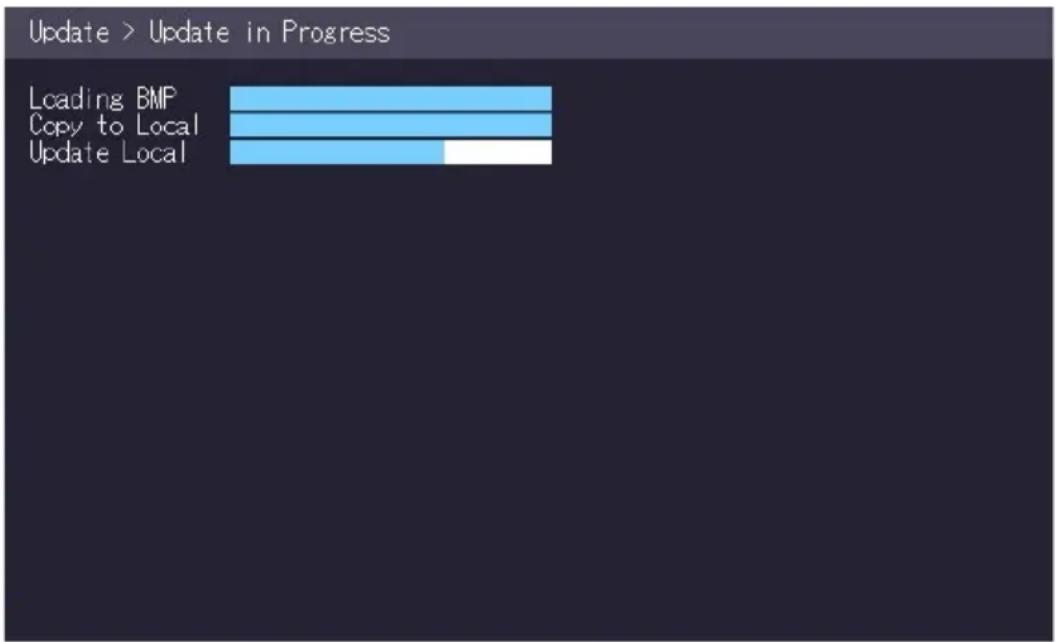

3.4.1 update via a bitmap image 26

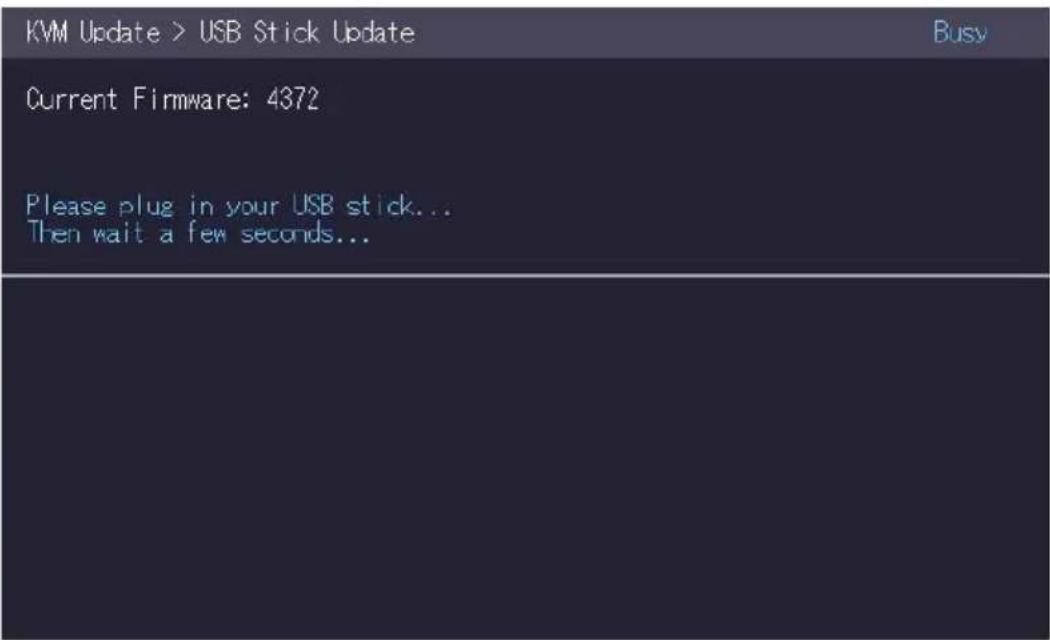

3.4-2 update with usb stick 27

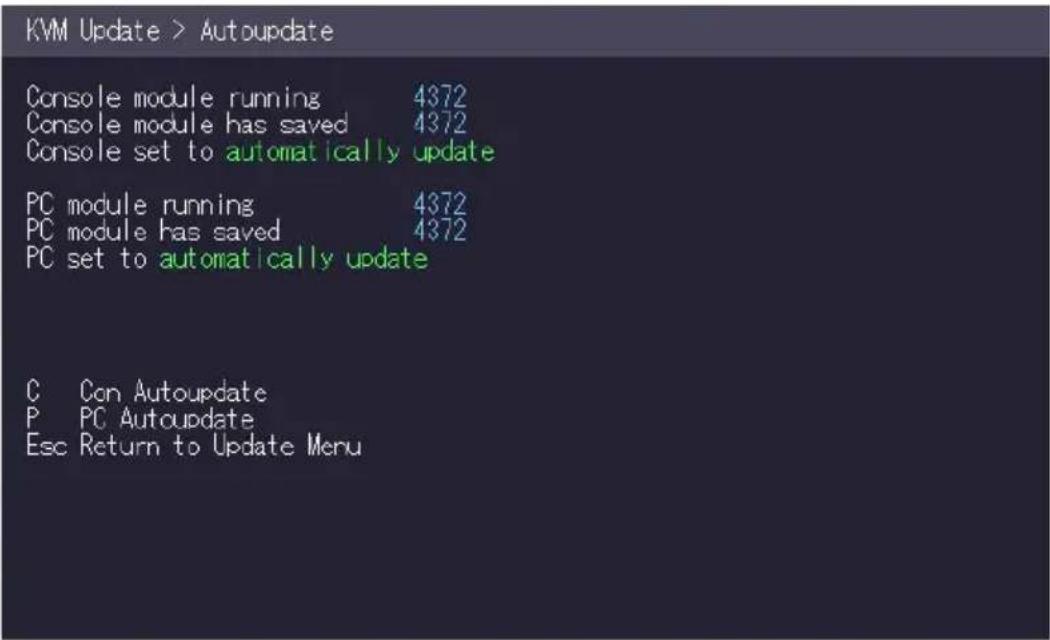

3.4.3 Performing autoupdate 30

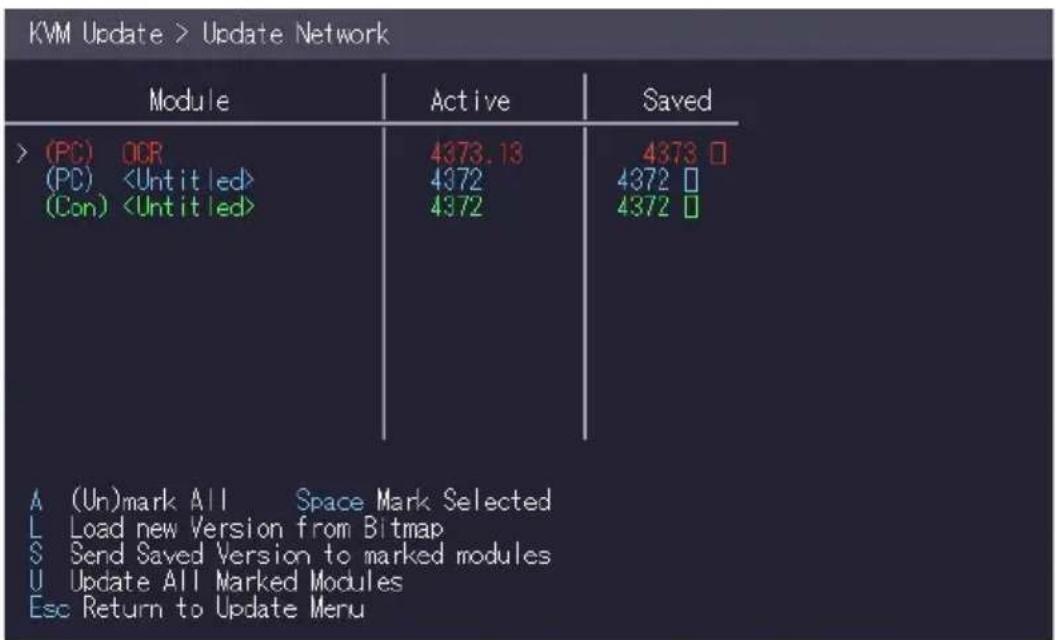

3.4.4 Performing network update 31

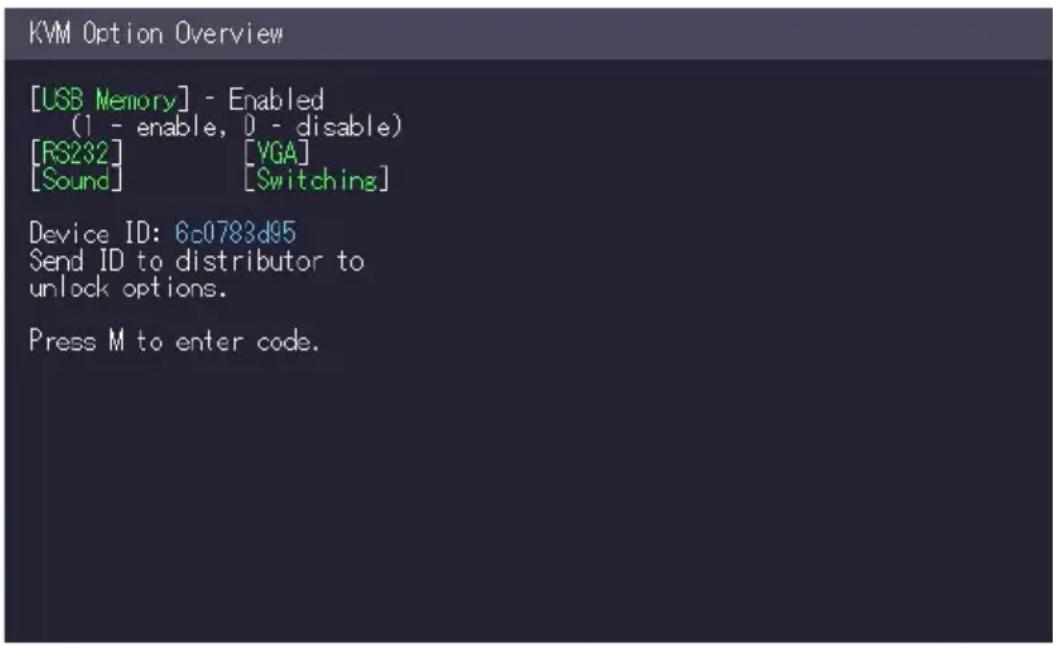

3.5 unlock an upgrade 32

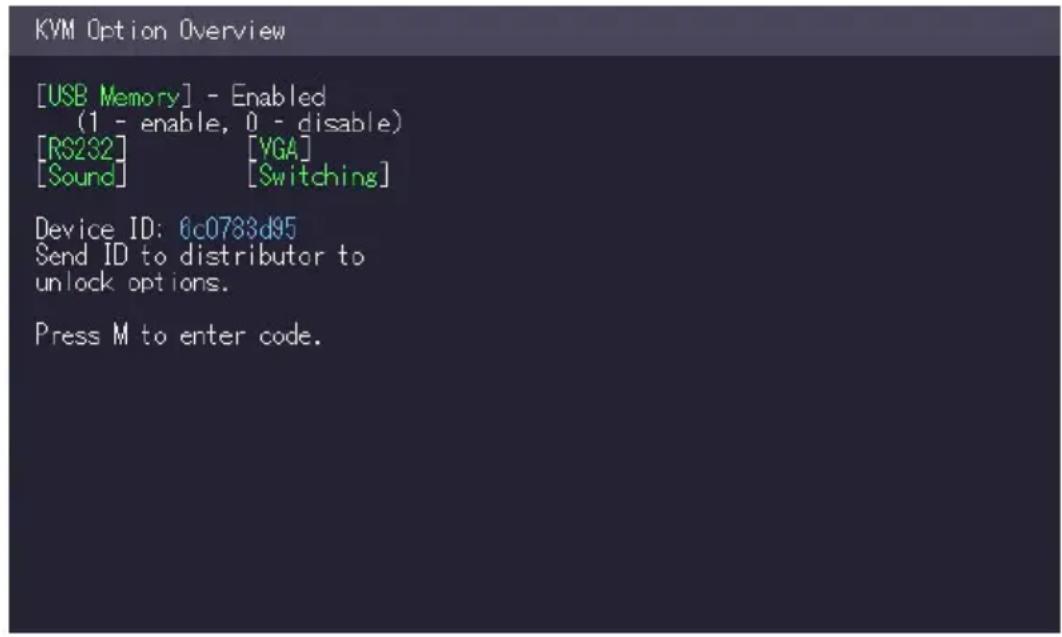

3.6 How to enable or disable the USB memory upgrade 33

3.7 How to define what DDC information by the PC 34

3.8 How to change the network settings 34

3.9 How to change the extender settings 35

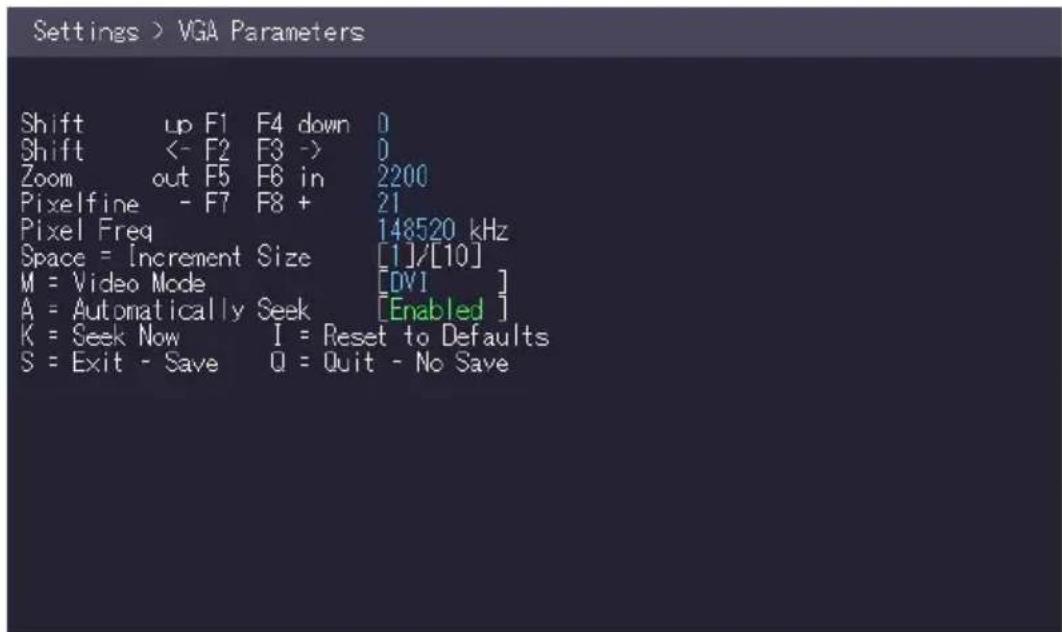

3.9.1 How to optimize VGA preferences 37

3.9.2 How to enable or disable the USB compatibility mode 38

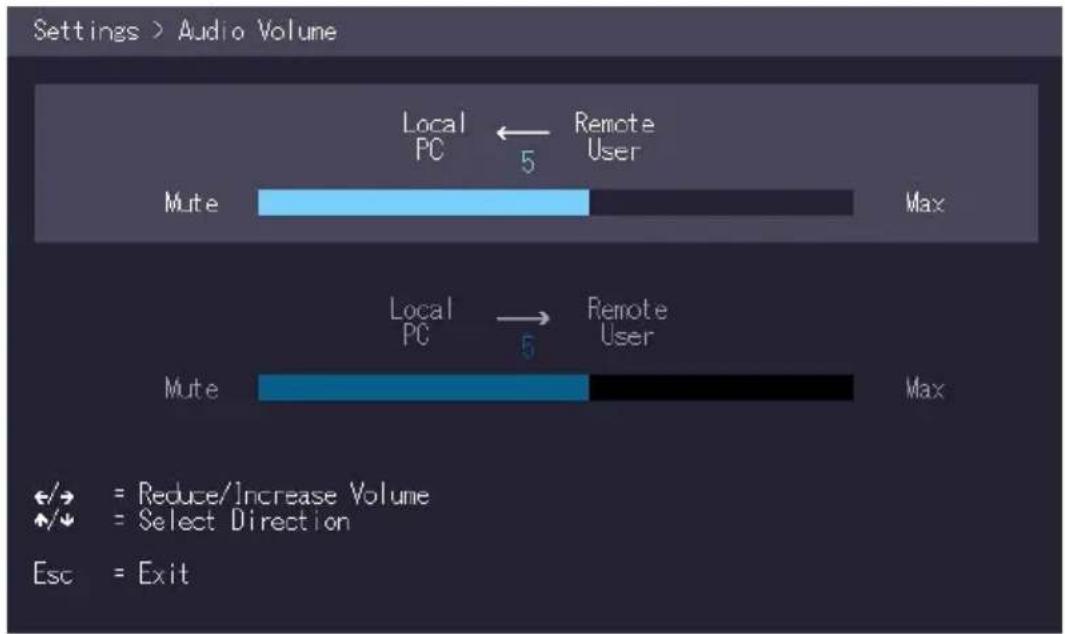

3.9.3 How to set the audio volume 39

3.9.4 How to set the baud rate for the RS232 40

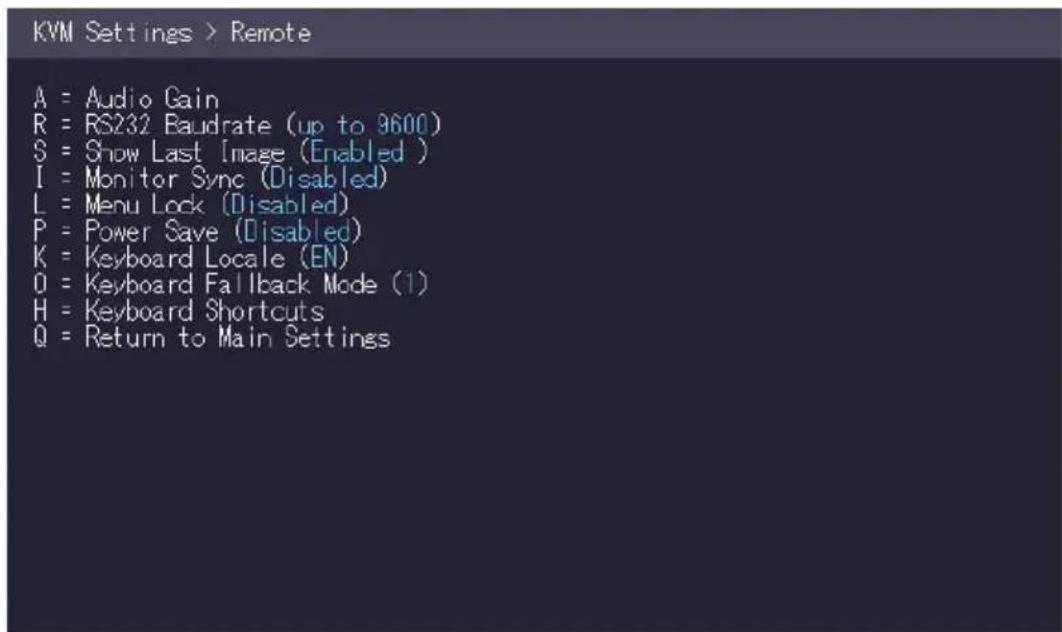

3.9.5 How to show the last received image 41

3.9.6 How to turn on or off monitor synchronization 42

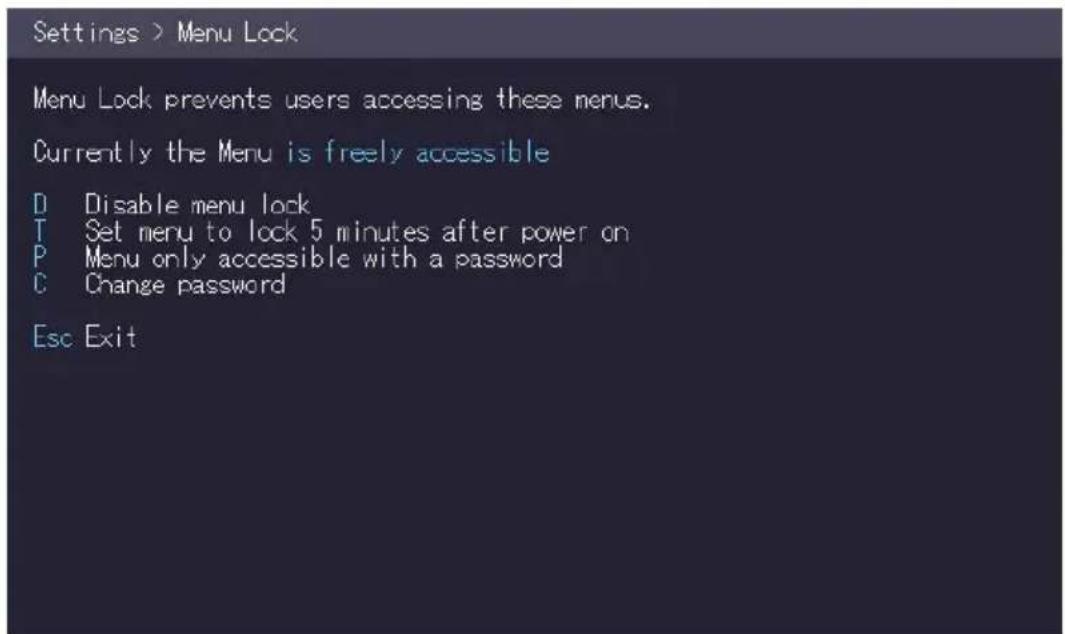

3.9.7 How to lock the main menu 43

3.9.8 How to use power saving mode 44

TABLE OF CONTENTS

3.9.9 How to select your type of keyboard 45

3.9.10 How to change the keyboard fallback mode 46

3.9.11 How to change keyboard hortcuts 47

3.9.12 How to close the Extender Settings menu 47

3.10 How to switch between different computers 48

3.11 How to share videos 49

4. Network Settings 51

4.1 How to access the Network Settings menu (Master View and 51

4.2 How to force disconnect or select a workstation from the current connected devices 53

4.3 How to manage user details, rights and groups 55

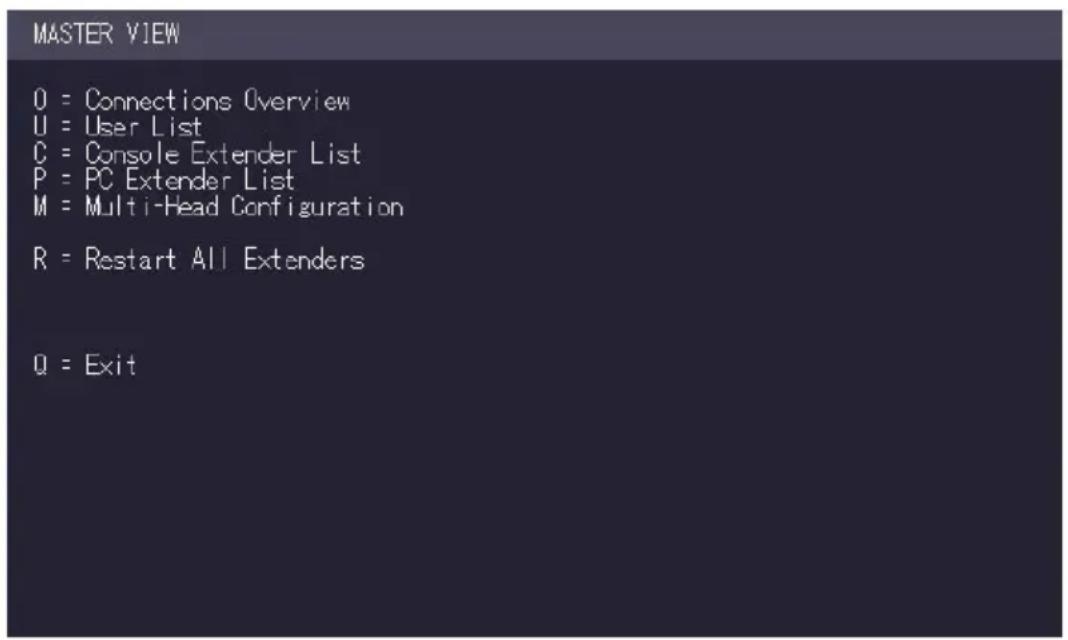

4.4 How to view the status of all remote units 58

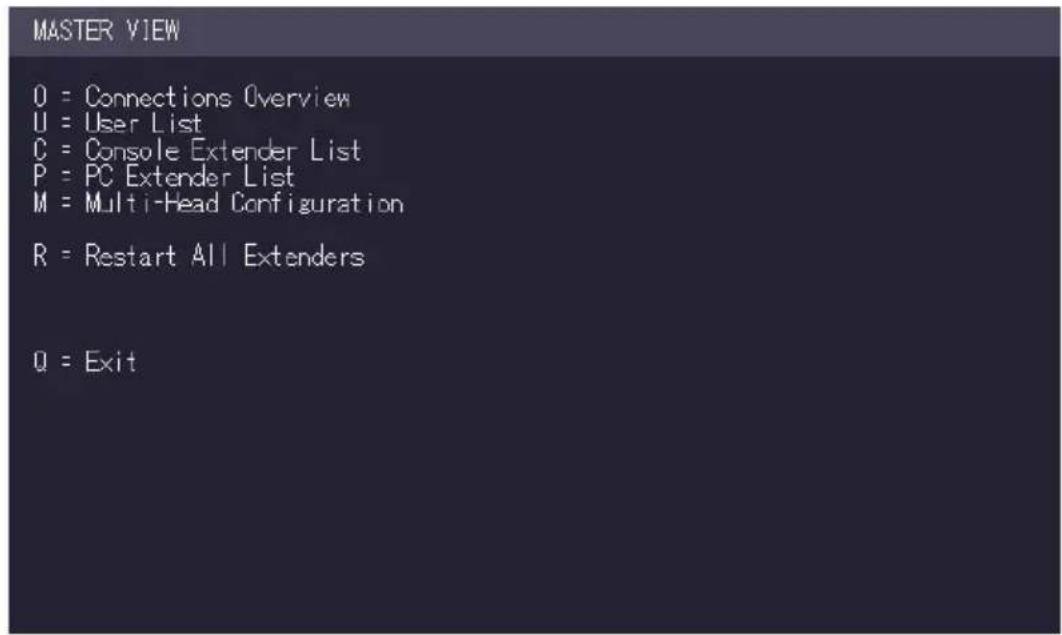

4.5 How to view the status of all local units 60

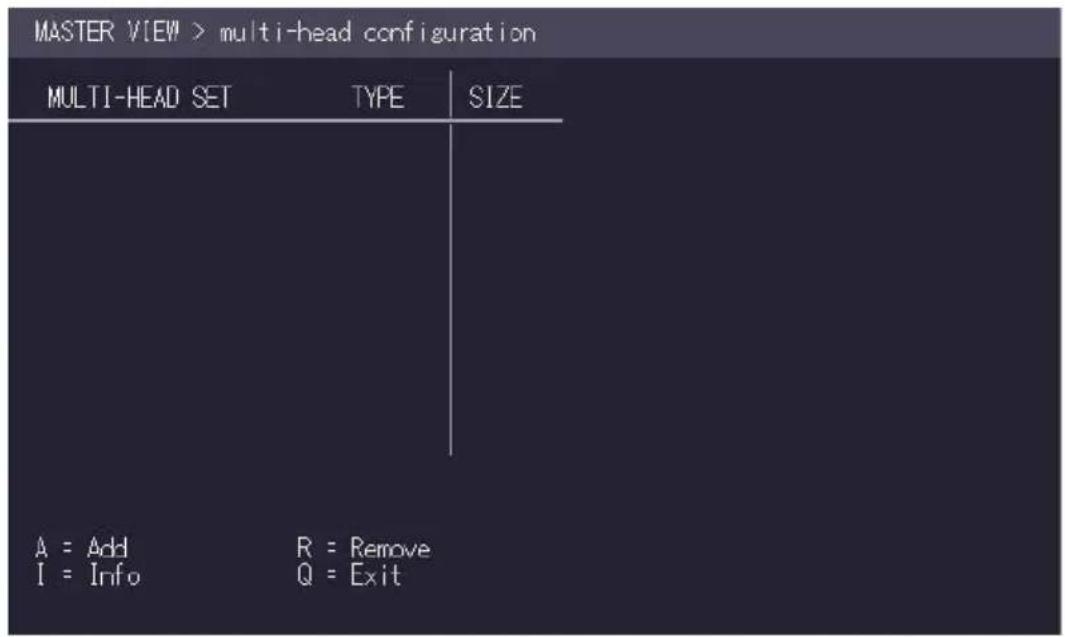

4.6 How to set up dual-head or multi-head systems 62

4.7 How to enable user groups and rights and login access 64

4.8 How to auto-connect to a free computer after an interruption 65

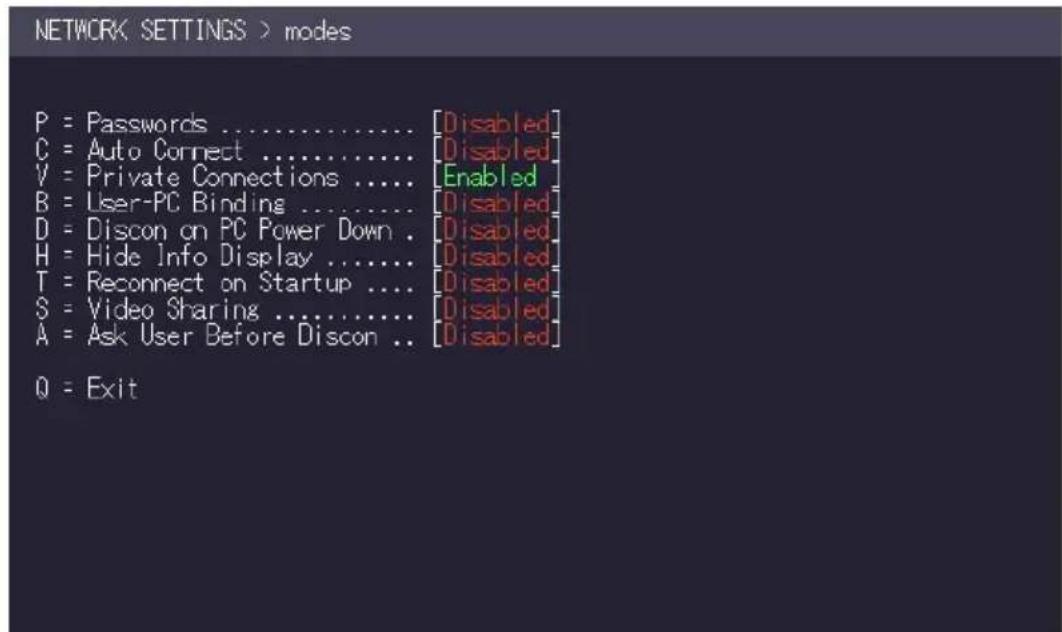

4.9 How to set up a private connection 66

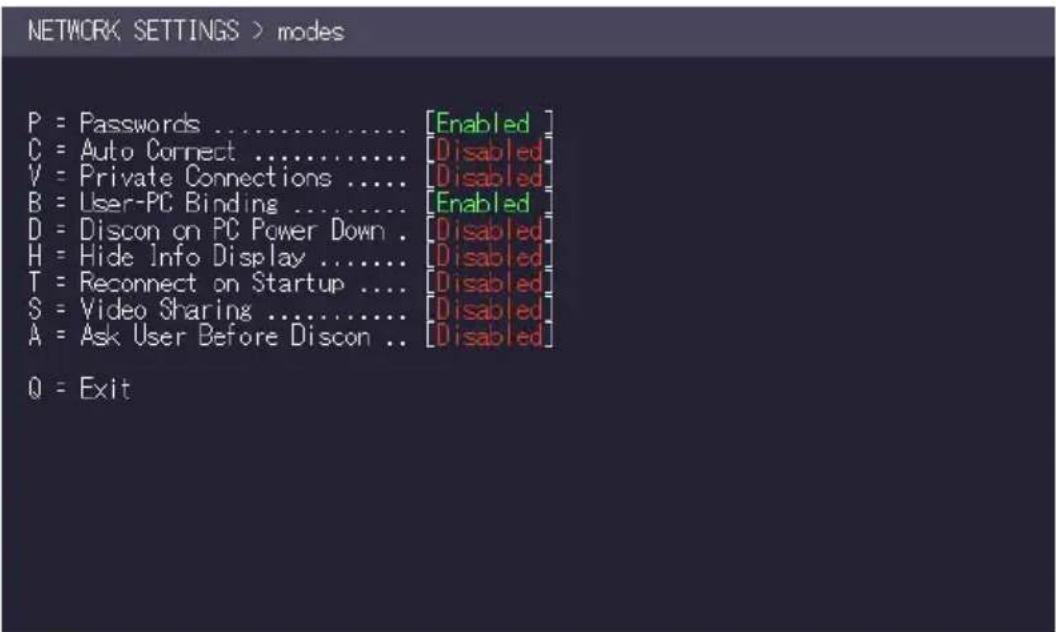

4.10 How to enable the User-PC Binding mode 67

4.11 How to enable the disconnect on PC Power Down option 68

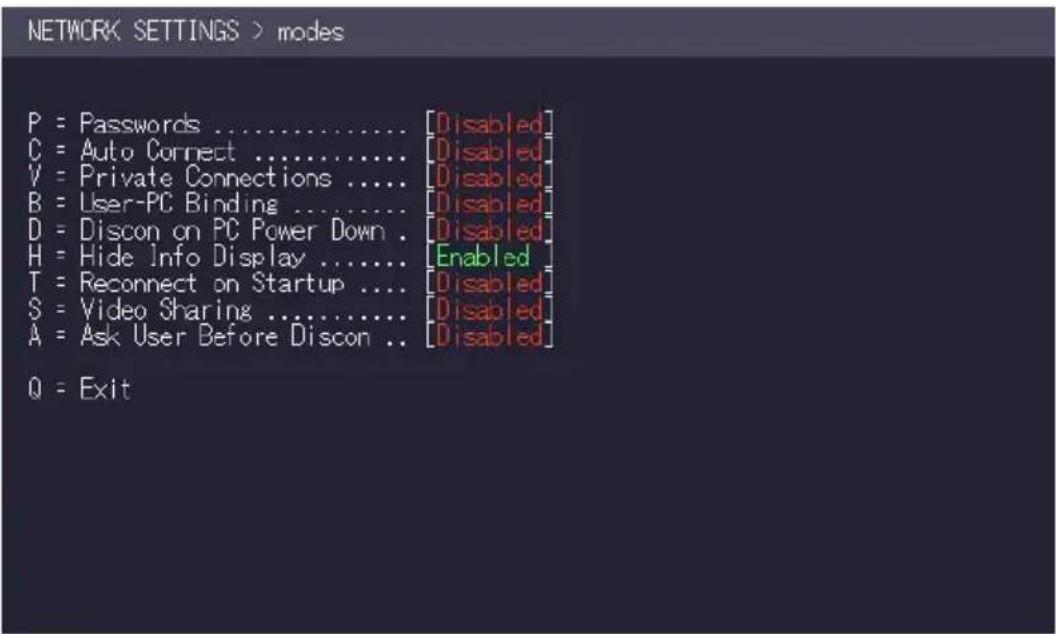

4.12 How to hide info display 69

TABLE OF CONTENTS

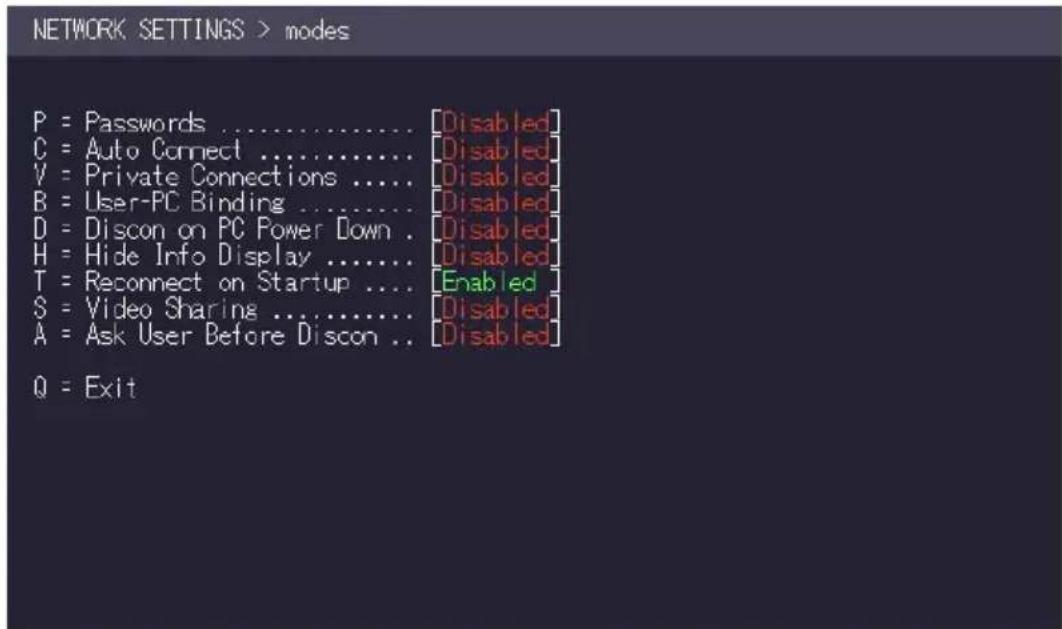

4.13 How to reconnect on startup 70
4.14 Video Sharing 70

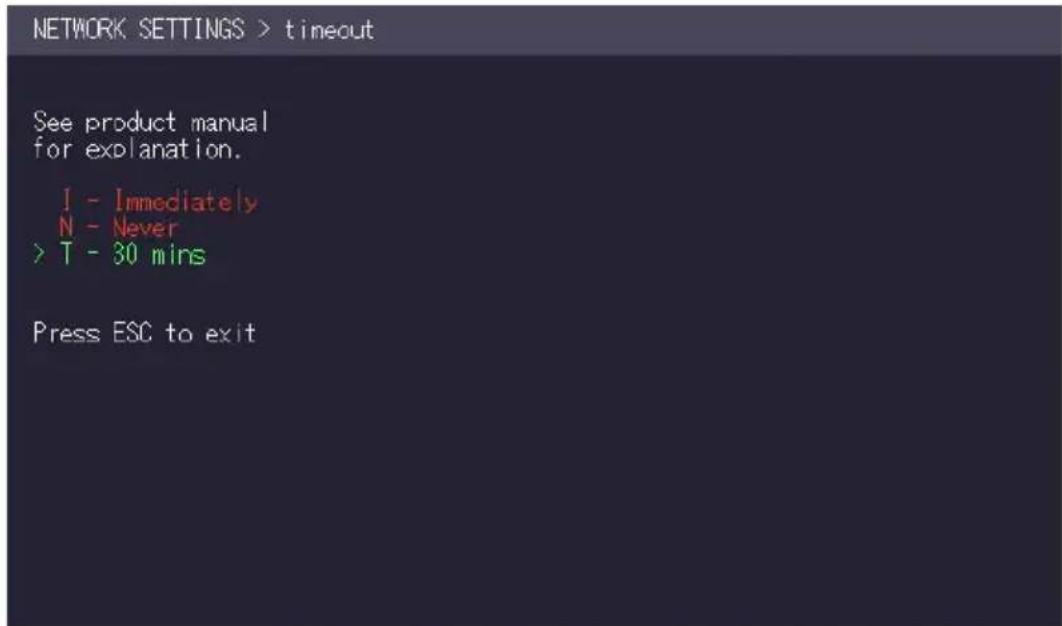

4.15 How to set the password timeout 71

1. Maintenance and care 72
2. troubleshooting 72
3. Troubleshooting 73
4. Disposal 73
5. Warranty 74
6. Support 74
7. Declaration of Conformity 75

11.1 Requirements for CAT5e/6/7 cables 77

1. Requirements for cables 77

11.3 Requirements network switch 78
11.2 Requirements fibER cables 78

11.2.1 Multi-Mode (standard) 78
11.2.2 Single-Mode (optional) 78

1. Requirements Network Switch 78

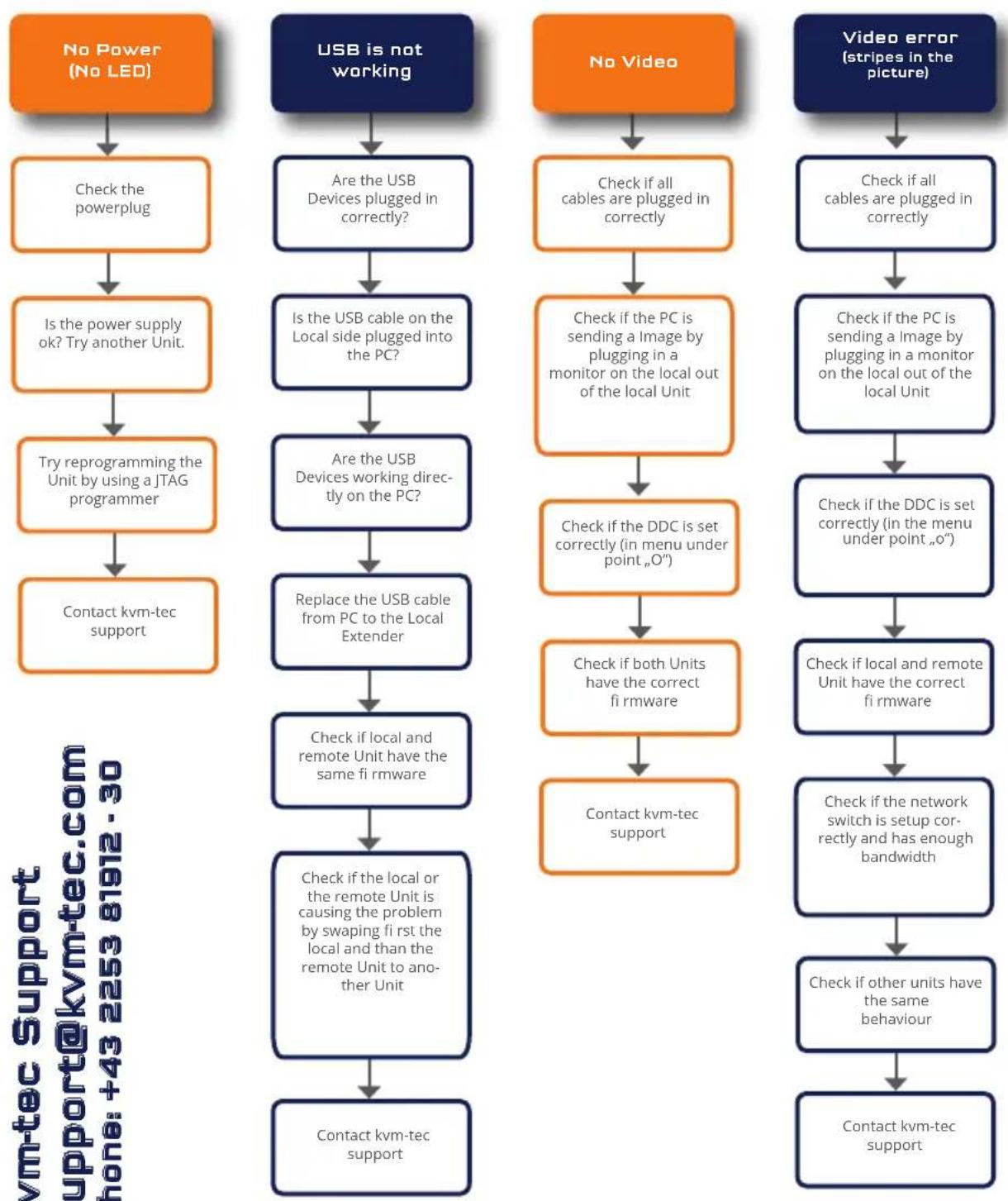

2. First Aid 80
3. Extended warranty 81
4. notes 82

1. INTRODUCTION

Congratulations on the purchase of your new Masterline MVX2/MVX2-F KVM Extender. You have bought a high quality extender. These instructions are part of this product. They contain important information regarding safety, use and disposal for every user of the Masterline MVX2 and MVX2-F KVM Extender. Please familiarise yourself with the information within prior to using your product. Use the product only in the manner as described and for the areas of application as stated. When passing the product to a third party be sure to also supply all instructions and other relevant documentation. Following proper use and maintenance, your Masterline MVX2/MVX2-F KVM Extender will bring you joy for many years to come.

1.1 INTENDED USE

This product is intended to be used as a device to increase the distance that a keyboard, monitor and mouse can be placed from a computer. This product is intended for professional use. The product should not be used in potentially explosive environments.

The product may only be used according to the instructions as described in this manual. All use, other than that described in this manual, is seen as unintended use. Modifications in the course of technological progress are reserved. In these user instructions the Masterline MVX2/MVX2-F KVM Extender is referred to as 'product' or 'extender'. The MVX2/PC is referred to as the 'local unit' and the MVX2/Monitor is referred to as the 'remote unit'.

1. INTRODUCTION

1.2 SAFETY INSTRUCTIONS

WARNING! Read and understand all safety instructions.

- Follow all the instructions. This will avoid accidents, fire, explosions, electric shocks or other hazards that may result in damage to property and/or severe or fatal injuries. Please ensure that everyone who uses the product has read and followed these warnings and instructions.

- Keep all safety information and instructions for future reference and pass them on to subsequent users of the product.

- The manufacturer is not liable for cases of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions. In such cases, the warranty will be voided.

- This product is not intended for use by persons (including children) with restricted physical, sensory or intellectual capability or lack of experience and/or knowledge, unless they are supervised by a person who is responsible for their safety or provides them with instructions on how to use the product.

• DANGER! Not for use in potentially explosive environments.

- DANGER! Be vigilant at all times, and always take care around this product. Do not use electrical equipment if you are lacking in concentration or awareness, or are under the influence of drugs, alcohol or medication. Even a moment of inattentiveness can lead to serious accidents and injuries when using electrical equipment. Check the product and the cables for any damage before use. If there is any visible damage, a strong odour, or excessive overheating of components unplug all the connections immediately and stop using the product.

• DANGER! The MVX1-F KVM Extender is a Class 1 Laser Product 1 according to DIN 40008/EN and VDE 0837.

- If the product is not installed and used in accordance with this manual, it may cause disruptive interference with radio or television reception or affect other electronic products in residential areas.

- Use shielded cables only to connect the components in order to avoid such interference. Non-compliance invalidates the permission to operate this product.

- Only the mains adapter included with the product should be used as the power supply. Do not use other adapters.

- Prior to connecting to the mains, make sure your local mains voltage matches the rating indicated on the product.

- The product must be connected to a permanent and earthed AC wall socket.

1. INTRODUCTION

• Protect cables from being strained, pinched or buckled and place them in a way to prevent people from tripping over the cord.
• In particular, ensure to avoid damage to the mains adapter.
• Use the product with a suitable, properly installed and easily accessible mains power socket. Make sure the product can be disconnected from the power socket at all times.
• Unplug the product during electrical storms or when not in use.
• DANGER! Never touch the adapter with wet hands.
• Use the product within the specified performance limits.
• Keep the product away from flammable materials such as curtains and drapes.
• Protect the mains adapter from use by third parties (particularly children). Keep the unused mains adapter in a dry, elevated or locked location away from children.
• Do not place the product near heaters.
• Do not drop or hit the product.
• Unplug all connections before cleaning the product. Do not use wipes or chemicals as these could damage the surface. Wipe the housing with a damp cloth. Electrical/electronic parts must not be cleaned.
• Alterations to the product and technical modifications are not permitted.

1.3 TECHNICAL SPECIFICATIONS

Type: KVM Extender (local unit and remote unit)

Model: Masterline MVX2/MVX2-F KVM Extender

Power supply input voltage: 100 - 240 V; 50/60 Hz AC

Power supply output: 12V; 1A (external power supply)

Power requirement: 12W per extender (excluding attached USB devices)

Operating temperature range: 0 °C to 45 °C / 32 °F to 113 °F

Storage temperature range: -25^ to 80^ / -13^ to 176^

Relative humidity: max. 80% (non-condensing)

Storage humidity: max. 80% (non-condensing)

Casing Material: Anodized aluminium

Dimensions: approx. 198 x 41 x 103,5 mm / 7.79 x 1.57 x 4.7 inch "

Weight: local unit 604g/1.33 lbs.

remote 582g/1,29 lbs

Expected product life: 82 820 hours / 9.5 years

Laser MVX2-F:

VDE 0837

Class 1 Laser Product 1 according to DIN 40008/EN and

1. INTRODUCTION

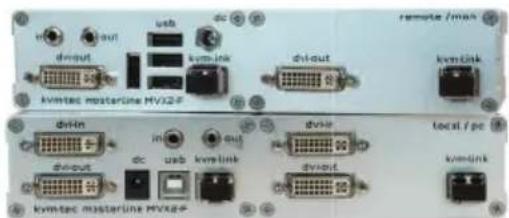

1.4 PRODUCT ELEMENTS

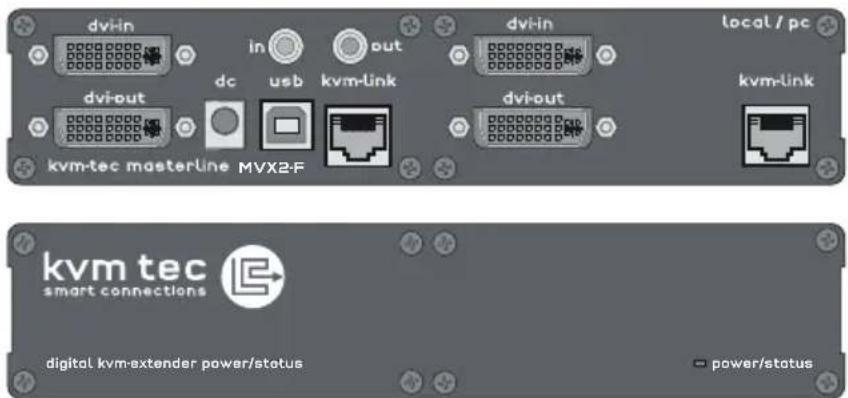

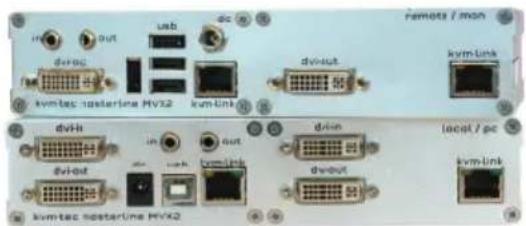

Local Extender (CPU)

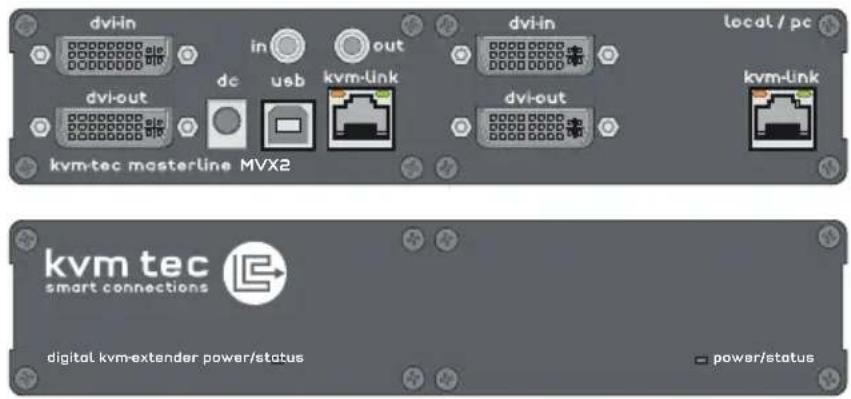

dvi-in in out dvi-in local / pc dc usb kvm-link dvi-out dvi-out kvm-tek kvm-tek masterline MVX2 kvm-tek smart connections digital kvm-extender power/status power/status

Nr. Name Function

1 dvi-in DVI connection to PC
2 in Audio In from PC
3 out Audio Out to PC
4 DVI in DVI -in from PC
5 kvm-link/ RJ45 socket Connection for CAT cable 5/6/7
6 DVI-out DVI connection to monitor
7 kvm-link/ RJ45 socket Connection for CAT5/6/7 cable
8 usb USB connection
9 dc Connection for 12 V power supply
10 dvi-out DVI connection to monitor
11 Power/Status LED Displays the status of the extender

Local Extender (CPU) FIBER

dvi-in in out dvi-in local / pc dvi-out dc usb kvm-link dvi-out kvm-link kvm-tec masterline MVX2-F kvm-tec smart connections digital kvm-extender power/status power/status

5 kvm-link/ RJ45 socket Connection for fiber cable
7 kvm-link/ RJ45 socket Connection for fiber cable

1. INTRODUCTION

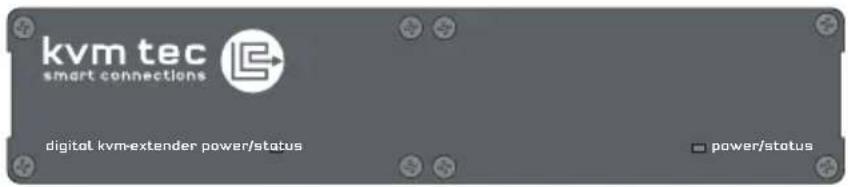

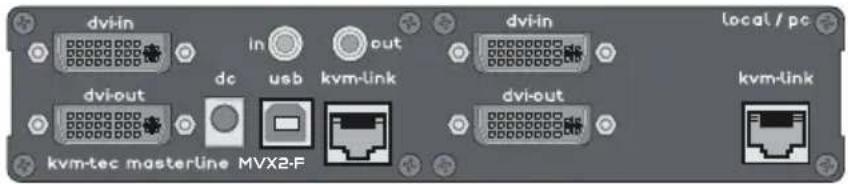

Remote Extender (CON)

dvi-in in out dvi-in local / pc dvi-out dc usb kvm-link dvi-out kvm-link kvm-tec masterLine MVX2-F

kvm tec smart connections digital kvm-extender power/status power/status

Nr. Name Function

12 in Audio In from microphone etc.
13 out Audio Out to speakers etc.
14 usb USB connections (e.g. for keyboard and mouse)
15 dc Connection for 12 V power supply
16 kvm-link/ RJ45 socket Connection for CAT5/6/7 cable
17 dvi-out DVI-D connection to monitor
18 kvm-link/ RJ45 socket Connection for CAT5/6/7 cable
19 dvi-out DVI-D connection for monitor
20 Power/Status LED Displays the status of the extender

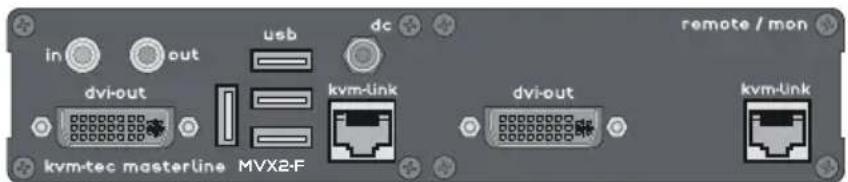

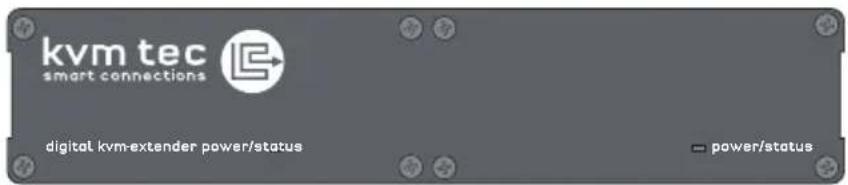

Remote (CON) Extender FIBER

in out usb dc dvi-out kvm-tek masterline MVX2-F kvm-link remote / mon dvi-out kvm-link

kvm tec smart connections digital kvm-extender power/status power/status

16 kvm-link/ RJ45 socket Connection for fiber cable
18 kvm-link/ RJ45 socket Connection for fiber cable

1. INTRODUCTION

1.5 MEANING OF LED INDICATORS

The Status LED (8/15) can light red, orange or green. Table 1 shows the meaning of each colour. Also see chapter Troubleshooting.

		Normal Operation
Colour Blinking Physical Link		Active Connection	Video Extended	USB Initialisation	UBS Data Received	Identify Command	Autoupdate Mode
Main LED
Red - Yes No Update		Failed
Red Slow No No
Orange	- Yes Yes No
Orange	Fast						Update in Progress
Green	-	Yes	Yes	Yes			Update Succeeded
Green	V. fast				Yes**
Red/Green	V. fast					Yes
RJ45 Socket LEDs *
Yellow	- No
Yellow	Slow Yes
Green	-			Yes
Green	V. fast					Yes

* MVX only ** Rem. Only

Table 1: Meaning of LED indicators

2. INSTALLATION OF THE EXTENDER

2.1 UNPACKING AND CHECKING THE CONTENTS

Before using the product for the first time it should be checked for damage. In case of damage due to transport inform the carrier immediately. Before delivery the product is checked for its function and its operating safety.

• Make sure that the packaging contains the following content:

1x MVX2 or MVX2-F /local extender/CPU

1x MVX2 or MVX2-F /remote extender/CON

1 x wall power supply unit I 12V 1A (EU-plug or INT plug)

2 x DVI - DVI cable 1,8m/5.9ft

1 x USB cable 1,8m/5.9ft

x VGA-DVI cable 1,8m/5.9ft (opt)

2 x Audio cable 1,8m /5.9ft (opt)

8 x mounting pads

2 x SFP Module Multimode up to 500m/1640 ft.

alternativ with Single-Mode up to 20km/12mi ItemNr6835

2. INSTALLATION OF THE EXTENDER

2.2 MOUNTING OPTIONS

2.2.1 MOUNTING PADS AND RUBBER FEET

The mounting pads and rubber feet can be used to hold the extenders in place and prevents them from sliding and falling.

To attach the mounting pads or rubber feet:

1. Remove the protection layer from the mounting pads or rubber feet (G).
2. Attach the mounting pads or rubber feet (G) to the bottom the units.

2.2.2 MOUNTING KITS (OPTIONAL)

The following mounting kits are available:

Rack Mounting Kit RMK-F - Part No. 6130

The rack mounting kit RMK-F is for mounting kvm-tec Smartline SVX and Masterline MVX extenders. It consists of a19" rack shelf and an alu-faceplate.

Rack Mounting Kit RMK-FN - Part No. 6131

The rack mounting kit RMK-FN is for assembling kvm-tec Smartline SVX and Masterline MVX extenders. It consists of 19" Rack Shelf, an alu-faceplate and a power supply.

Rack Mounting Kit RMK-FRN - Part No. 6132

The rack mounting kit RMK-FRN is used to mount kvm-tec Smartline SVX and Masterline MVX extenders. It is equipped with rack shelf, faceplate and 2 power supply units, which are summarized in a redundancy module.

Under Desk Mounting Kit - Part No. 6135

The Under Desk Mounting kit is for underdesk mounting of the SVX and MVX extender.

Din Rail Mounting Kit - Part No. 6136

The DIN rail mounting is used for space-saving installation in control cabinets or on DIN rails. The attachment to the SVX and MVX extenders is possible in several ways.

2. INSTALLATION OF THE EXTENDER

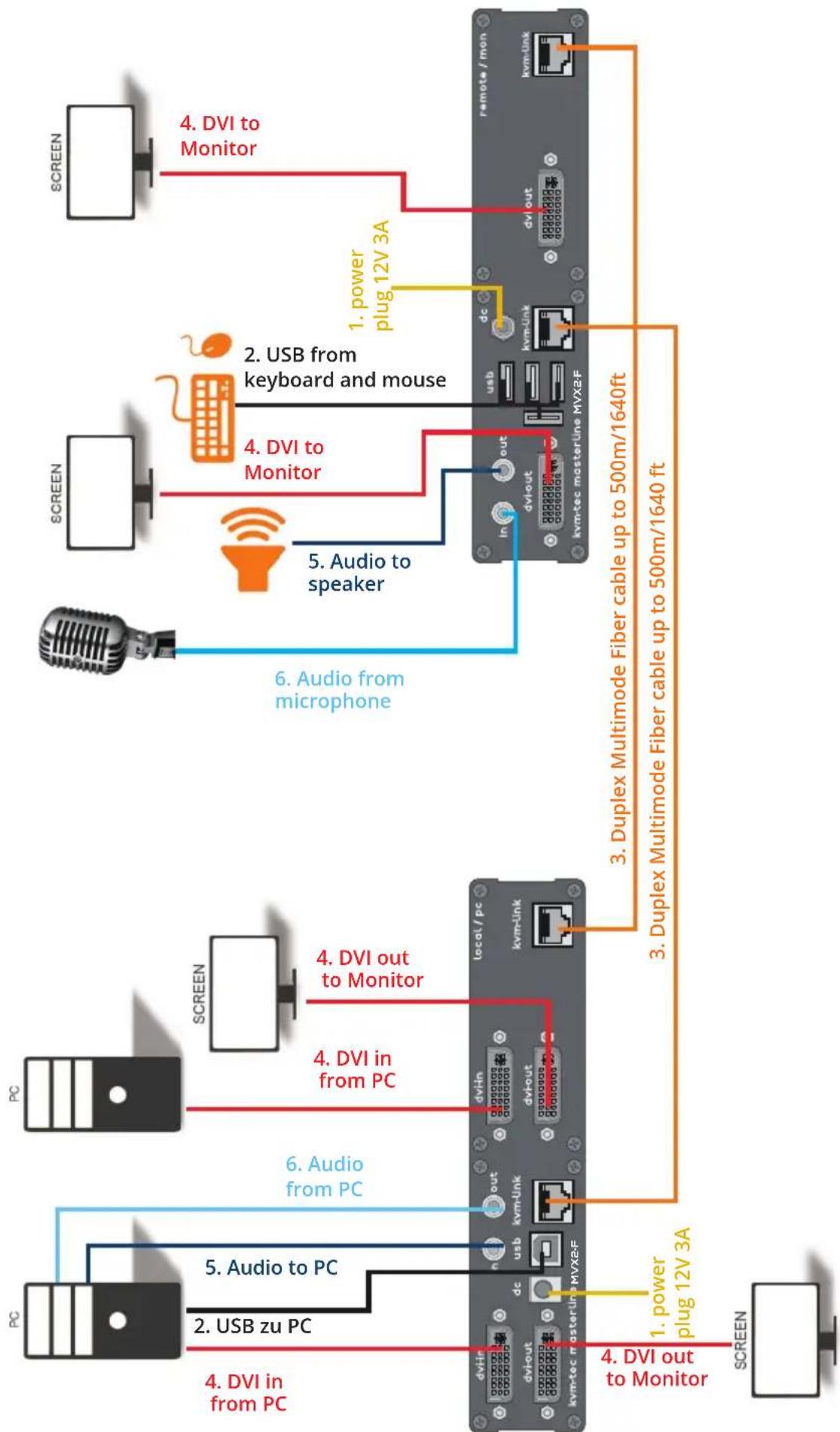

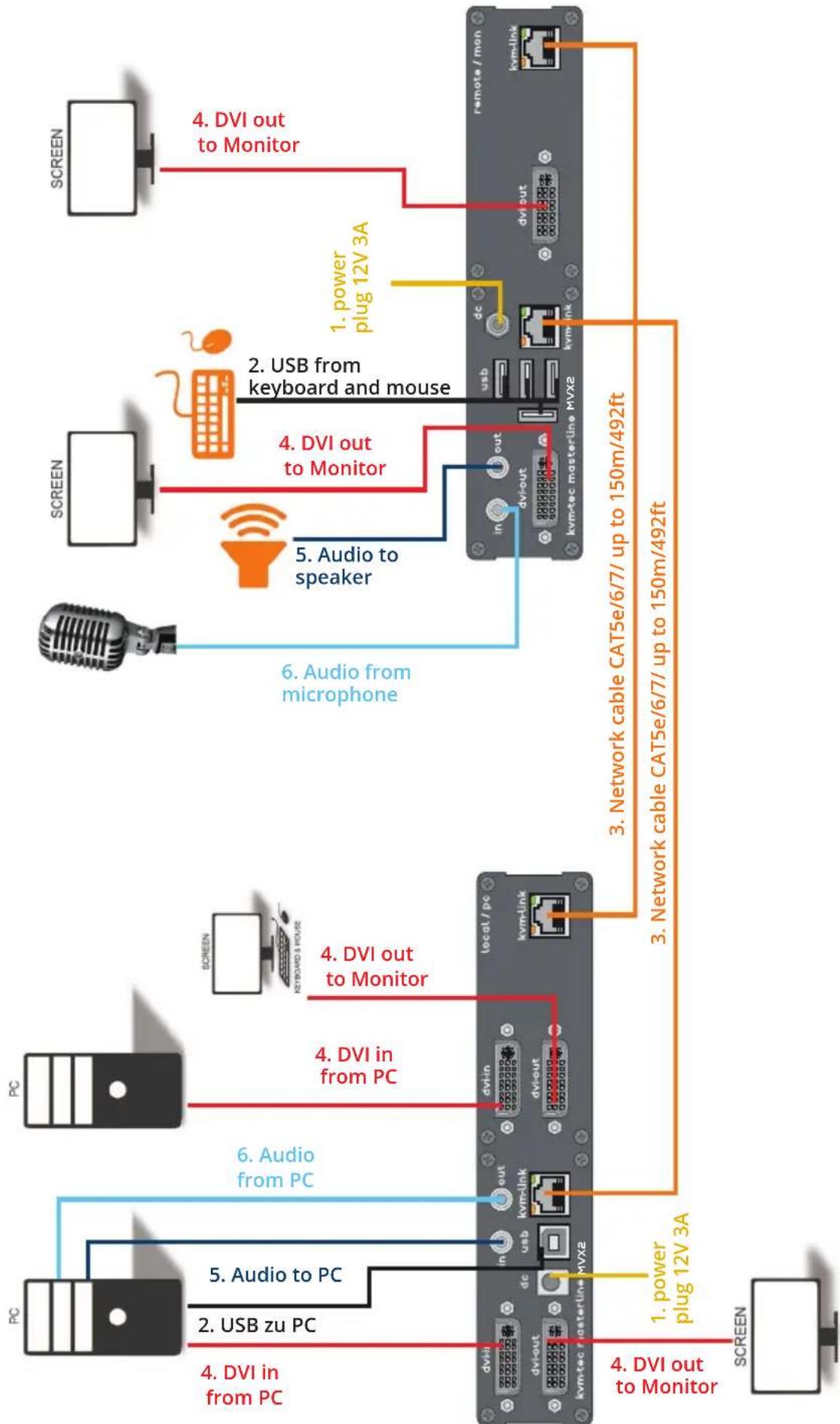

2.3 INSTALLING THE EXTENDER

WARNING! Read and understand all safety information before installing the product.

The units can be set up to access one host computer, or to access numerous host computers. In the case of the latter, an additional Network Switch must be installed. With a Network Switch, each user can gain quick access to any of the required computers.

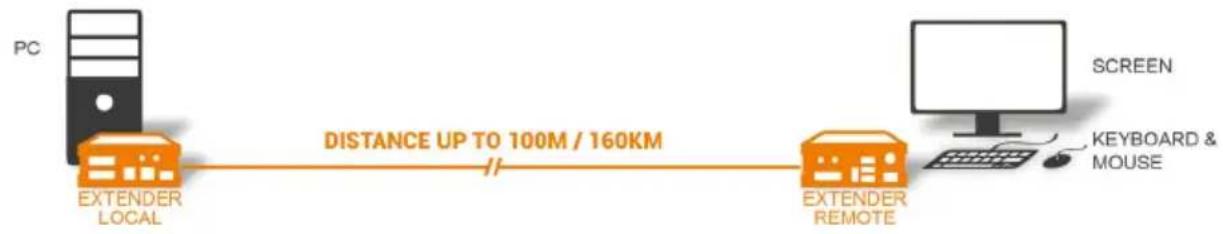


point to point connection

Set up for Switching System up to 48 endpoints

2. INSTALLATION OF THE EXTENDER

2. INSTALLATION OF THE EXTENDER

Quick Installation MVX2 MASTERLINE local / CPU - remote/ CON

1. Connect the CON / Remote and the CPU / Local Unit with the included 12V 2A power supply.
2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU / Local Unit. Connect keyboard and mouse to the CON / Remote Unit.
3. Connect the CPU / Local and the CON / Remote Unit with two network cables.
4. Now connect the DVI cable to the DVI socket of the PC and the other end to the DVI socket of the CPU / Local Unit (DVI-in). Then connect the monitor to the CON / Remote Unit with a DVI cable.
5. Then connect PC audio out with the audio cable to Local Audio in. Then connect audio / out via the audio cable
6. Almost done! Now connect the audio cable Local Audio / out to the PC Audio in and Remote Audio / out with the audio cable to the microphone.

HAVE FUN - your kvm-tec Extender is now in use for many years (MTBF approx 10 years)

2. INSTALLATION OF THE EXTENDER
        MVX2F["kvim-tek masterline MVX2-F"]
        MVX2F -->|1. power plug 12V 3A| Screen1
        MVX2F -->|4. DVI out to Monitor| Screen2
        MVX2F -->|3. Duplex Multimode Fiber cable up to 500m/1640ft| Screen3
        MVX2F -->|3. Duplex Multimode Fiber cable up to 500m/1640 ft| Screen4
    end

    subgraph MVX2-F
        MVX2F --> dvivin["dviv"]
        MVX2F --> dvout["dvout"]
        MVX2F --> dvout_out["dvout"]
        MVX2F --> dvoutOut["dvout"]
    end

    subgraph MVX2-F
        MVX2F --> dvivout["dviv"]
        MVX2F --> dvoutOut["dvout"]
        MVX2F --> dvoutOut["dvout"]
    end

    subgraph MVX2-F
        MVX2F --> dvivoutOut["dvout"]
        MVX2F --> dvoutOutOut["dvout"]
    end

    subgraph MVX2-F
        MVX2F --> dvivoutOutOut["dvout"]
        MVX2F --> dvoutOutOut["dvout"]
    end

    subgraph MVX2-F
        MVX2F --> dvivoutOutOut["dvout"]
        MVX2F --> dvoutOutOut["dvout"]
    end

    subgraph MVX2-F
        MVX2F --> dvivoutOutOutOut["dvout"]
        MVX2F --> dvoutOutOutOut["dvout"]
    end

    subgraph MVX2-F
        MVX2F --> dvivoutOutOutOut["dvout"]
        MVX2F --> dvoutOutOutOut["dvout"]
    end

    subgraph MVX2-F
        MVX2F --> dvivoutOutOutOut["dvout"]
        MVX2F --> dvoutOutOutOut["dvout"]
    end

    subgraph MVX2 -F
        MVX2F --> dvivoutOutOutOut["dvout"]
        MVX2F --> dvoutOutOutOut["dvout"]
    end

    subgraph MVX2 -F
        MVX2F --> dvivoutOutOutOut["dvout"]
        MVX2F --> dvoutOutOutOut["dvout"]
    end

    subgraph MVX2 -F
        MVX2F --> dvivoutOutOutOutOut["dvout"]
        MVX2F --> dvoutOutOutOut["dvout"]
    end

    subgraph MVX2 -F
        MVX2F --> dvivoutOutOutOutOut["dvout"]
        MVX2F --> dvoutOutOutOut["dvout"]
    end

    subgraph MVX2 -F
        MVX2F --> dvivoutOutOutOutOut["dvout"]
        MVX2 F-> dvivoutOutOutOut["dvout"]

    subgraph MVX2 -F
        MVX2F-> dvivoutOutOutOutOut["dvout"]
        MVX2F-> dvoutOutOutOut["dvout"]

    end

2. INSTALLATION OF THE EXTENDER

Quick Installation MVX2 FIBER Masterline local / CPU - remote/ CON

1. Connect the CON / Remote and the CPU / Local Unit with the included 12V 2A power supply.
2. Now connect the USB cable to a USB port on your PC and connect the other end of the USB cable to the CPU / Local Unit. Connect keyboard and mouse to the CON / Remote Unit.
3. Connect the CPU / Local and the CON / Remote Unit with two fiber cables.
4. Now connect the DVI cable to the DVI socket of the PC and the other end to the DVI socket of the CPU / Local Unit (DVI-in). Then connect the monitor to the CON / Remote Unit with a DVI cable.
5. Then connect PC audio out with the audio cable to Local Audio in. Then connect audio / out via the audio cable
6. Almost done! Now connect the audio cable Local Audio / out to the PC Audio in and Remote Audio / out with the audio cable to the microphone.

HAVE FUN - your kvm-tec Extender is now in use for many years ( MTBF approx 10 years)

2. INSTALLATION OF THE EXTENDER

2.4 STARTUP

To start up the system without switch:

1. Make sure that the two monitors and the computer are switched on.
2. If you are using a Network Switch, connect the power supply to an earthed wall socket.
3. Connect both extender power supplies (C) to an earthed wall socket. Both extenders will start an initialisation process. The red status LED blinks a few seconds. After a few seconds the status LED lights green. The monitor will displays your computer's desktop or any open applications.

2.5 REPLACING THE SFP MODULE

The MVX2-F is delivered with a multimode SFP module.

To replace an SFP module with a different SFP module:

1. Remove the black dust protector from the SFP module.

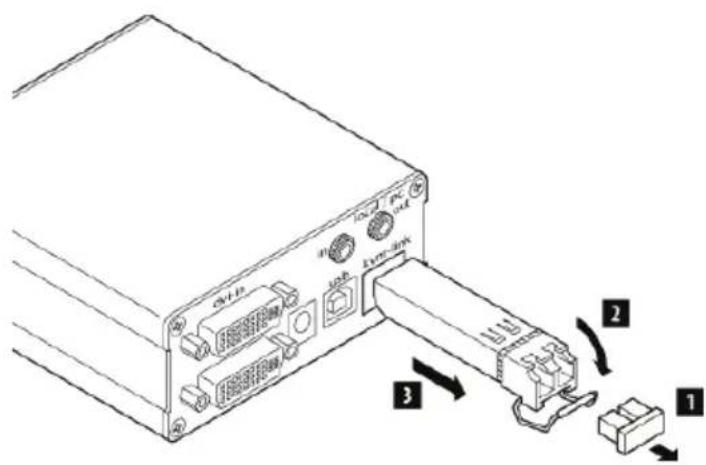

2. Pull the metal latch of the SFP module forwards until it is at a right angle.
3. Replace the SFP module with the other module. Put the metal latch back in position. Only use SFP modules from kvm-tec, or recommended by kvm-tec.

Diagram of an electronic device showing labeled ports and connectors, including CPU, I/O ports, and a USB port with directional arrows.

2. INSTALLATION OF THE EXTENDER

2.6 REMOVING A CATX CABLE

To remove a CATx cable:

- Press the latch down and slowly pull the cable out.

SB KVM-Link

2.7 REMOVING A FIBER CABLE

To remove a fi ber cable:

- Press the latch down and slowly pull the cable out.

kvm-link sb

2. INSTALLATION OF THE EXTENDER

3.1 HOW TO ACCESS THE MAIN MENU

Use the monitor and keyboard to get access to the main menu.

To access the main menu:

1. Make sure the extenders, the monitors and the computer are switched on.
2. Press the Scroll Lock key on your keyboard quickly five times. The main menu appears with an overview of the sub-menus.
3. To access a sub-menu press the applicable key.

KVM Home
T = Status Overview
U = Update Flash FW
M = Option Overview
O = DDC Option (Remote Monitor)
W = Network Settings
G = Extender Settings
L = Switching List
Q = Exit
Remote (Con) FW Ver = 4372
Local (PC) FW Ver = 4372

In the main menu, you can make the following settings by pressing the to select the corresponding letter.

T Status Overview Menu Status / Current Status:

U Update Flash FW Update firmware

M Option Overview Overview of all upgrades

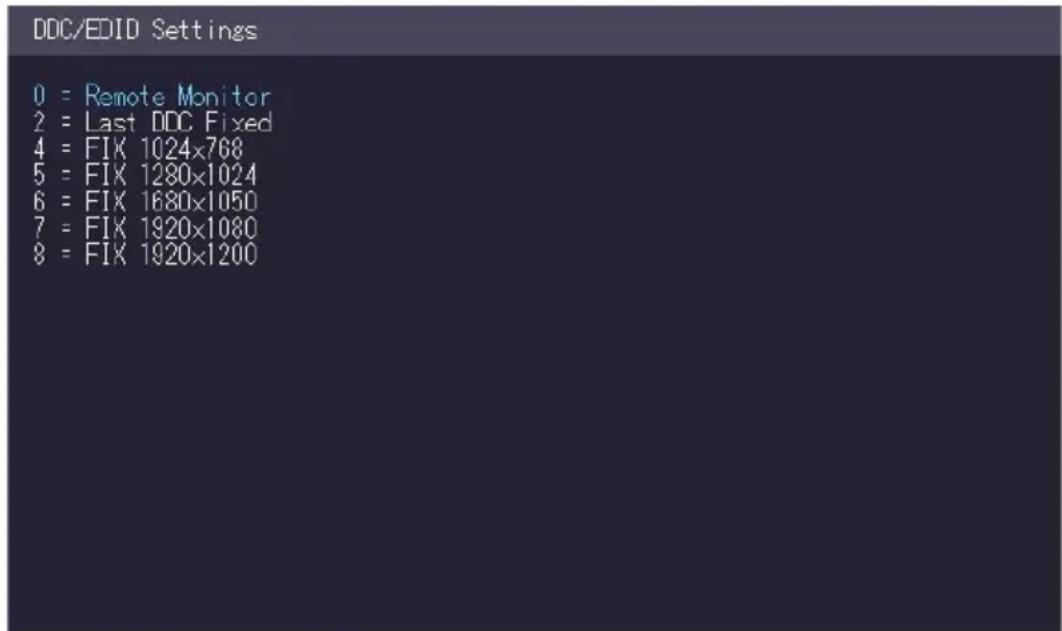

O DDC Option DDC Option Fixed ice position 1020 x 1080

W Network Settings Network Settings

G ExtenderSettings Settings Extender

L Switching List List of all extenders in the switching system

Q Exit Exit

3. EXTENDER MENU/SETTINGS

3.2 STATUS MENU

KVM Status Remote (Con) FW Vers 4372 Local (PC) FW Vers 4372 Unlocked Options Mem RS232 VGA Sound Switch VIDEO 1920x1080 DDC/EDID Setting: Remote Monitor Monitor: Elgato PC: DVI Source LINK Link is up KVM Matrix Connected to USB Active to PC (High Speed mode) Keyboard detected

In the "Status Menu" the current status of the extender connection is displayed. It provides information on the connection itself as well as resolution of the video channel, and USB-status.

The enabled options and the current FW-version is displayed in the left top corner.

Link status shows whether there is a physical connection available. Connection indicates if kvm data is currently able to be transmitted.

Video and USB show if data is currently being transmitted.

3. EXTENDER MENU/SETTINGS

3.3 HOW DETERMINE THE CURRENT FIRMWARE VERSION

To view the firmware version:

- Make sure the main menu is open. The currently installed firmware versions of the remote and local units are displayed below (e.g. '4267')

KVM Home
T = Status Overview
U = Update Flash FW
M = Option Overview
O = DDC Option (Remote Monitor)
W = Network Settings
G = Extender Settings
L = Switching List
Q = Exit
Remote (Con) FW Ver = 4372
Local (PC) FW Ver = 4372

3. EXTENDER MENU/SETTINGS

3.4 HOW TO PERFORM A FIRMWARE UPDATE

The latest version of the firmware can be downloaded from http://www.kvm-tec.com/en/support/firmware-download.html. Each update file is accompanied by a detailed description of the update process.

There are four ways to perform an update:

1. update via a bitmap image
2. update from the USB stick
3. automatic update
4. network update

KVM Update

Basic Update:
U = Quick Update from Bitmap
S = Load Update from USB Stick (Do not plug in stick until prompted)

Advanced:
A = Automatic Update
N = Network Update

Remote unit. Firmware vers. 4372
Local unit. Firmware vers. 4372

Q Return to Main Menu

To perform a firmware update:

1. Make sure the main menu is open.
2. Press the U key. The Update menu appears.
3. Press the N key to do a network update.
4. Press the A key to do an automatic update.
5. Press the U key to do a direct update.
6. Press the S key to do a USB Update.
7. Press the Q key to return to the main menu.

3. EXTENDER MENU/SETTINGS

3.4.1 UPDATE VIA A BITMAP IMAGE

The file will be output from an image and will be copied and stored to the currently connected extenders.

Wait until all 3 phases of the update have been completed and make sure that you have Never unplug or plug in the devices during the update.

3. EXTENDER MENU/SETTINGS

3.4.2 UPDATE WITH USB STICK

For the update of the USb Stick the following steps are necessary:

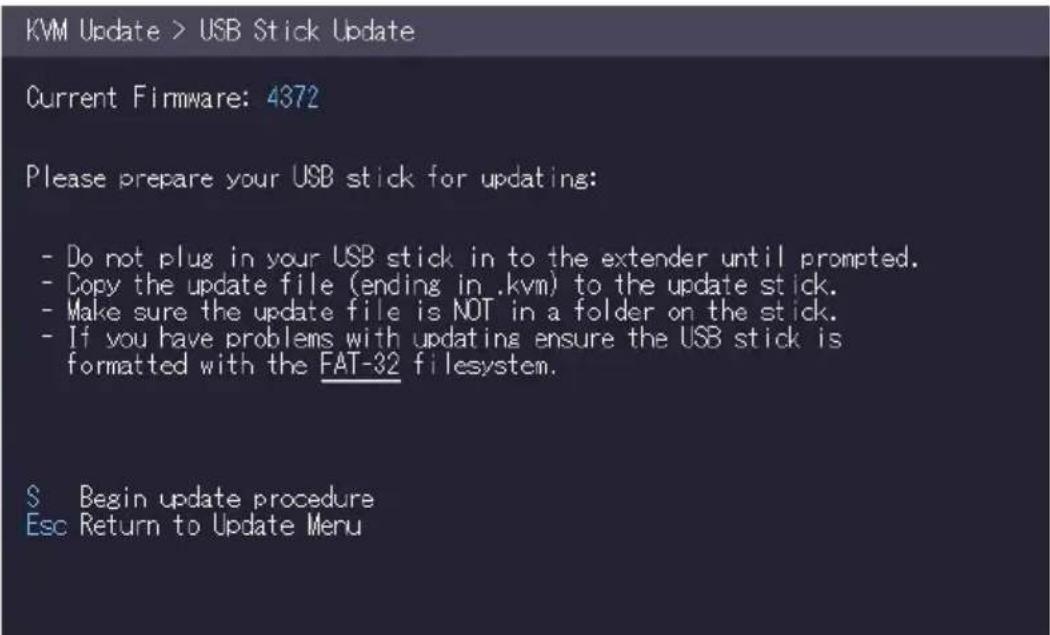

KVM Update > USB Stick Update Current Firmware: 4372 Please prepare your USB stick for updating: - Do not plug in your USB stick in to the extender until prompted. - Copy the update file (ending in .kvm) to the update stick. - Make sure the update file is NOT in a folder on the stick. - If you have problems with updating ensure the USB stick is formatted with the FAT-32 filesystem. S Begin update procedure Esc Return to Update Menu

1. you receive the message that you can plug in the USB stick.
2. copy the update file (ending in .kvm) to the USB stick
3. make sure that the update file is directly on the stick and that it is not in any subdirectory
4. the USB stick must be formatted with FAT-32

3. EXTENDER MENU/SETTINGS

KVM Update > USB Stick Update Busy Current Firmware: 4372 Please plug in your USB stick... Then wait a few seconds...

Plug in the USB stick and wait for a moment

3. EXTENDER MENU/SETTINGS

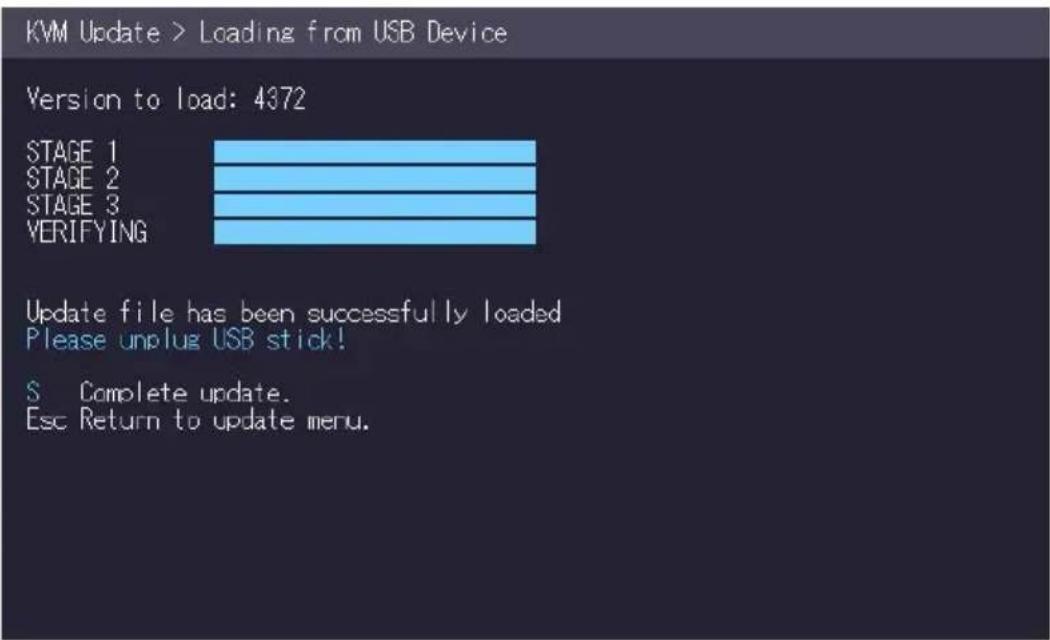

KVM Update > Loading from USB Device Version to load: 4372 STAGE 1 STAGE 2 STAGE 3 VERIFYING Update file has been successfully loaded Please unplug USB stick! S Complete update. Esc Return to update menu.

Wait until all 4 phases have been completed.

3. EXTENDER MENU/SETTINGS

3.4.3 PERFORMING AUTOUPDATE

You can select in the menu which part should be updated.

As soon as the devices are connected, the firmware is copied from one unit to the other.

KVM Update > Autoupdate Console module running 4372 Console module has saved 4372 Console set to automatically update PC module running 4372 PC module has saved 4372 PC set to automatically update C Con Autoupdate P PC Autoupdate Esc Return to Update Menu

The flashing of the LEDs indicates that the update process has been completed (the LEDs are then green)

3. EXTENDER MENU/SETTINGS

3.4.4 PERFORMING NETWORK UPDATE

In the network update the devices that are updated can be marked.

KVM Update > Update Network Module Active Saved > (PC) OCR 4373.18 4373 □ (PC) 4372 4372 □ (Con) 4372 4372 □ A (Un)mark All Space Mark Selected L Load new Version from Bitmap S Send Saved Version to marked modules U Update All Marked Modules Esc Return to Update Meru

The information is then sent to the marked units. During this process the devices can still be in operation. As soon as all updates have been transmitted, the marked devices can be restarted and start with the new firmware.

3. EXTENDER MENU/SETTINGS

3.5 UNLOCK AN UPGRADE

1. Make sure that the main menu is open. 2.
2. press the M button. The Options Overview menu opens. The device ID will be order the unlock code from your supplier
3. order the activation code from your supplier by entering the 9-digit device ID and enter the serial number of the KVM Extender. 4.
4. press the M key to enter the unlock code.
5. enter the unlock code of the supplier.
6. the Extender will automatically restart.
   To confirm that the option has been unlocked, return to the Options menu.
   Overview and make sure that the corresponding option is now green.

[USB Memory] - Enabled (1 - enable, D - disable) [RS232] [YGA] [Sound] [Switching] Device ID: 6c0783d95 Send ID to distributor to unlock options. Press M to enter code.

The information is then sent to the marked units. During this process the devices can still be in operation. As soon as all updates have been transmitted, the marked devices can be restarted and start with the new firmware.

3. EXTENDER MENU/SETTINGS

3.6 HOW TO ENABLE OR DISABLE THE USB MEMORY UPGRADE

The USB Memory Upgrade allows the user to enable or disable the memory upgrade. When the USB Memory upgrade is enabled, USB flash storage and external storage devices can be accessed via the extender. If your extender was provided with the USB Memory upgrade you can enable and disable at any time.

To enable or disable the USB Memory upgrade:

1. Make sure the main menu is open.
2. Press the M key. The Options Overview menu opens. The current USB Memory status is displayed (Enabled or Disabled).
3. Press 1 to enable or 0 to disable the USB Memory upgrade

[USB Memory] - Enabled (1 - enable, 0 - disable) [RS232] [YGA] [Sound] [Switching] Device ID: 0c0783d95 Send ID to distributor to unlock options. Press M to enter code.

The kvm-tec feature „USB save“ prevents the intrusion of viruses via the USB interface. by deactivating mass storage devices.

3. EXTENDER MENU/SETTINGS

3.7 HOW TO DEFINE WHAT DDC INFORMATION IS USED BY THE PC

The DDC Option menu allows the user to define what DDC information is used by the PC.

To define what DDC information is used by the PC:

1. Make sure the main menu is open.
2. Press the O key. The DDC Option menu appears.

- Press 0 to use the DDC information from the monitor attached to the remote extender.

- Press 2 to save the current DDC information. The system uses the same settings after the extender has been restarted.

- Press 4 through 8 to use a predefined resolution which is saved.

1. Press ESC to go back to the main menu.

DDC/EDID Settings 0 = Remote Monitor 2 = Last DDC Fixed 4 = FIX 1024x768 5 = FIX 1280x1024 6 = FIX 1680x1050 7 = FIX 1920x1080 8 = FIX 1920x1200

3.8 HOW TO CHANGE THE NETWORK SETTINGS

See chapter „Switching Menu Settings“.

3. EXTENDER MENU/SETTINGS

3.9 HOW TO CHANGE THE EXTENDER SETTINGS

The Extender Settings menu allows the user to change a range of further preferences. Three of the selections (VGA, Audio and RS232) will take you to sub-menus. The other four can be enabled or disabled by pressing the applicable key.

To access the Extender Settings menu:

1. Make sure the main menu is open.
2. Press the G key. The Extender Settings menu appears.
3. The extender settings are distributed across two sub-menus: Remote Settings and Local Settings.

KVM Settings L = Local Settings R = Remote Settings Q = Return to Main Menu

3. EXTENDER MENU/SETTINGS

1. To access the local or remote extender settings:

- Press the L key to access the Local Settings menu.

KVM Settings > Local
V = VGA parameters
U = USB Compatibility Mode (Disabled)
W = Enable USB Remote Makeup (Disabled)
L = Compatibility with Linux (Disabled)
Q = Return to Main Settings

- Press the R key to access the Remote Settings menu.

KVM Settings > Remote
A = Audio Gain
R = RS232 Baudrate (up to 9600)
S = Show Last Image (Disabled)
I = Monitor Sync (Disabled)
L = Menu Lock (Disabled)
P = Power Save (Disabled)
K = Keyboard Locale (EN)
O = Keyboard Fallback Mode (1)
H = Keyboard Shortcuts
Q = Return to Main Settings

3. EXTENDER MENU/SETTINGS

3.9.1 HOW TO OPTIMIZE VGA PREFERENCES

The VGA preferences can be set and optimized. The VGA option does only function when it has been unlocked (see 3.4).

To optimize the VGA settings:

1. From the Extender Settings menu, press the L key. The Local Settings menu appears.

2. Press the V key. The VGA menu appears.

3. Press F1 to move the display area up.

4. Press F4 to move the display area down.
5. Press F2 to move the display area to the left.
6. Press F3 to move the display area to the right.
7. Press F5 to zoom out.
8. Press F6 to zoom in.

- Press space to change the rate of the above mentioned setting. This toggles the rate of change between 1 and 10.

- Press M to switch the video mode between:

• Auto – the mode is automatically detected and set by the extender.
  • DVI – only DVI input is detected.
  • VGA – only VGA input is detected.

• Press K for automatic adjustment and positioning of the image area.

• Press I to reset parameters to default values.
• Press S to save the settings and exit the menu.
• Press Q to exit without saving.

Settings > VGA Parameters Shift up F1 F4 down D Shift <- F2 F3 -> D Zoom out F5 F6 in 2200 Pixelfine - F7 F8 + 21 Pixel Freq 148520 kHz Space = [Increment Size [1]/[10] M = Video Mode [DVI ] A = Automatically Seek [Enabled ] K = Seek Now I = Reset to Defaults S = Exit - Save Q = Quit - No Save

3. EXTENDER MENU/SETTINGS

3.9.2 HOW TO ENABLE OR DISABLE THE USB COMPATIBILITY MODE

The USB compatibility mode can be enables or disabled.

To enable/disable the USB compatibility mode:

1. From the Extender Settings menu, press the L key. The Local Settings menu appears.
2. Press the U key to enable or disable the USB compatibility mode.

KVM Settings > Local
Y = VGA parameters
U = USB Compatibility Mode (Enabled)
W = Enable USB Remote Makeup (Disabled)
L = Compatibility with Linux (Disabled)
Q = Return to Main Settings

3. EXTENDER MENU/SETTINGS

3.9.3 HOW TO SET THE AUDIO VOLUME

The volume of the audio input (microphone) on the remote unit can be changed. The default value is 5 but can be set to any value in between 0 and 9. At 0 the audio input on the remote unit is disabled.

To set the volume:

1. From the Extender Settings menu, press the R key. The Remote Settings menu appears.
2. Press the A key. The Audio Input Gain menu appears.

Press arrow left / right to change volume

Press arrow up / down to set directio

Settings > Audio Volume Local PC ← Remote User 5 Mute Max Local PC → Remote User 5 Mute Max ←/→ = Reduce/Increase Volume ↑/↓ = Select Direction Esc = Exit

3.9.4 HOW TO SET THE BAUD RATE FOR THE RS232 (SERIAL) CONNECTION

Local Unit Pinout (DCE):

Pin	Function	Direction
2	TxD	OUT
3	RxD	IN
4	DTR	IN
5	GND —
8	CTS	OUT

Remote Unit Pinout (DTE):

Pin	Function	Direction
2	RxD	IN
3	TxD	OUT
4	DTR	OUT
5	GND —
8	CTS	IN

The pin numbers refer to a 9-pin D-sub plug.

The baud rate can be set in the menu. There is a universal setting for baud rates up to 9600 which transmits all different RS232 configurations transparently. For higher baud rates the following settings are available via the menu:

Baudrate

4800	No 1
9600	Odd 2
19200	Even
38400	Mark
57600	Space
115200
230400

Parity
Stopbits

To set the baud rate:

1. From the Extender Settings menu, press the R key. The Remote Settings menu appears.
2. Press the R key. The Baud Rate menu appears.
3. To select a baud rate press the applicable key. The Enter Parity menu opens.
4. To select a parity rate press the applicable key.

Settings > RS232 Enter Baudrate 0 = any below 1 = 4800 2 = 9600 3 = 19200 4 = 33400 5 = 57600 6 = 115200 7 = 230400

3. EXTENDER MENU/SETTINGS

3.9.5 HOW TO SHOW THE LAST RECEIVED IMAGE

With the function „show the last image“ the last received image can be used instead of a black screen, if the remote Extender (CON) is not being used by the local Extender (CPU) are separated. To show that this is the last received picture the frame of the image flashes red.

Activate or deactivate the „Show last Image“ function. 1:

1. In the Extender Settings menu, press the R button. The Remote Settings menu becomes Press S to activate or deactivate the function.
2. press S to activate or deactivate the function.
3. press ESC to return to the main menu.

KVM Settings > Remote A = Audio Gain R = RS232 Baudrate (up to 9600) S = Show Last Image (Enabled ) I = Monitor Sync (Disabled) L = Menu Lock (Disabled) P = Power Save (Disabled) K = Keyboard Locale (EN) Q = Keyboard Fallback Mode (1) H = Keyboard Shortcuts Q = Return to Main Settings

3. EXTENDER MENU/SETTINGS

3.9.6 HOW TO TURN ON OR OFF MONITOR SYNCHRONIZATION

The monitor synchronization can be turned on and off. When enabled, the refresh rate of the graphics card of the PC and that of the remote monitor are adjusted to match one another. The advantage of this is to ensure that transmission remains smooth when the screen content changes rapidly (e.g. When using multimedia applications). Not all monitors support this method so by default this option is disabled.

To turn on monitor synchronization:

1. From the Extender Settings menu, press the R key. The Remote Settings menu appears.
2. Press the I key to enable or disable the function.
3. Press ESC to go back to the main menu.

KVM Settings > Remote
A = Audio Gain
R = RS232 Baudrate (up to 9600)
S = Show Last Image (Disabled)
I = Monitor Sync (Enabled)
L = Menu Lock (Disabled)
P = Power Save (Disabled)
K = Keyboard Locale (EN)
O = Keyboard Fallback Mode (1)
H = Keyboard Shortcuts
Q = Return to Main Settings

3. EXTENDER MENU/SETTINGS

3.9.7 HOW TO LOCK THE MAIN MENU

The extender menu can be locked. When enabled, the extender locks 5 minutes after start up to prevent unauthorized access.

To lock or unlock the menu:

1. From the Extender Settings menu, press the R key. The Remote Settings menu appears.
2. Press the L key. The Menu Lock Menu appears.

Settings > Menu Lock Menu Lock prevents users accessing these menus. Currently the Menu is freely accessible D Disable menu lock T Set menu to lock 5 minutes after power on P Menu only accessible with a password C Change password Esc Exit

3. EXTENDER MENU/SETTINGS

3.9.8HOW TO USE POWER SAVING MODE

The power saving mode lets the extender turn off its video out when the remote extender does not receive a video signal for more than a minute.

To turn on or off the power saving mode:

1. From the Extender Settings menu, press the R key. The Remote Settings menu appears.
2. Press the P key to enable or disable the power saving mode.
3. When in power saving mode, press any key to return to the menu.

KVM Settings > Remote
A = Audio Gain
R = RS232 Baudrate (up to 9600)
S = Show Last Image (Disabled)
I = Monitor Sync (Disabled)
L = Menu Lock (Disabled)
P = Power Save (Enabled)
K = Keyboard Locale (EN)
O = Keyboard Fallback Mode (1)
H = Keyboard Shortcuts
Q = Return to Main Settings

3. EXTENDER MENU/SETTINGS

3.9.9 HOW TO SELECT YOUR TYPE OF KEYBOARD

The Keyboard Locale menu lets you switch between keyboard layouts for navigating the on screen display menu (OSD). You can choose between French (Azerty), English (Qwerty) and German (Qwertz).

To select a keyboard layout:

1. From the Extender Settings menu, press the R key. The Remote Settings menu appears.

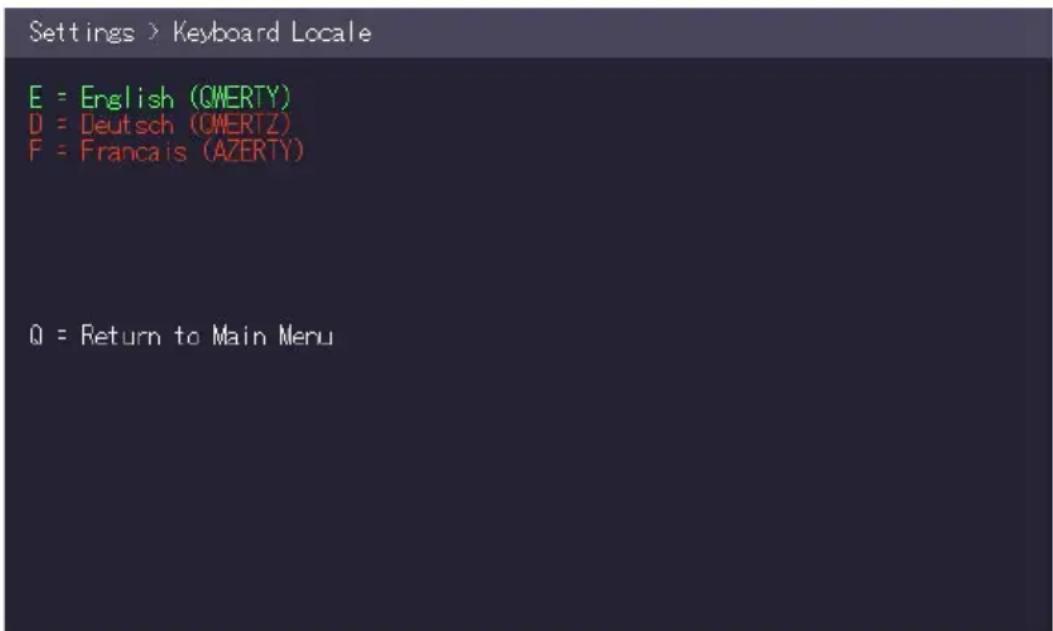

2. Press the K key. The Keyboard Locale menu opens:

3. Press E to select English (QWERTY)

4. Press D to select German (QWERTZ)
5. Press F to select French (AZERTY)

Settings > Keyboard Locale E = English (CMERTY) D = Deutsch (CMERTZ) F = Francais (AZERTY) Q = Return to Main Menu

3. EXTENDER MENU/SETTINGS

3.9.10 HOW TO CHANGE THE KEYBOARD FALLBACK MODE

To change the keyboard fallback mode:

1. From the Extender Settings menu, press the R key. The Remote Settings menu appears.
2. Press the O key to change the keyboard fallback mode to 0, 1 or 2.

KVM Settings > Remote
A = Audio Gain
R = RS232 Baudrate (up to 9600)
S = Show Last Image (Disabled)
I = Monitor Sync (Disabled)
L = Menu Lock (Disabled)
P = Power Save (Enabled)
K = Keyboard Locale (EN)
O = Keyboard Fallback Mode (2)
H = Keyboard Shortcuts
Q = Return to Main Settings

3. EXTENDER MENU/SETTINGS

3.9.11 HOW TO CHANGE KEYBOARD SHORTCUTS

The Keyboard Shortcuts menu lets you edit the preferred shortcuts for common commands.

To edit the shortcuts:

1. From the Extender Settings menu, press the R key. The Remote Settings menu appears.
2. Press the H key. The Keyboard Shortcuts menu opens.
3. Use the arrows to select a command.
4. Press E to edit the shortcut.

To edit:

• Press a single key. Edit the frequency with left and right arrows.
• OR -
• Press a key combination

KEYBOARD SHORTCUTS
> Main Menu 5x<scroll>
Switching List <L-Ctrl><L-Alt><F12>
Conn. Overview <L-Ctrl><L-Alt><F9>
Disconnect <L-Ctrl><L-Alt><F11>
Favourites <L-Ctrl><L-Alt><F1>
Use arrows to scroll up and down.
E = Edit
Q = Exit

3.9.12 HOW TO CLOSE THE EXTENDER SETTINGS MENU

To close the Extender Settings menu:

- Press Q to close the Extender Settings menu.

3. EXTENDER MENU/SETTINGS

3.10 HOW TO SWITCH BETWEEN DIFFERENT COMPUTERS

The menu for switching between different computers is accessible via a USB keyboard connected to the remote unit.

1. Press Ctrl+Alt+F12 (this is the default keyboard shortcut but may be changed. See "How to change keyboard shortcuts"). The switching menu opens. The switching menu lists all the local units connected to the switching network.

2. Blue indicates the computer with which you are currently connected. The status is listed as "conn'd".

3. White indicates a computer which is currently connected to by another work station (Remote unit). The status is listed as "in use".
4. Green indicates a computer in the switching network that isn't connected to any work station (Remote unit). The status is listed as "free".

5. Red indicates a computer which was once in the switching network but isn't currently available. This usually indicates that the Extender has been disconnected from the network. If this is the case the computer can be removed from the switching menu with the "delete" key.

6. Use the arrow up and arrow down keys, or PGUP and PGDOWN keys, to select a local extender. Press enter. The system switches to the selected computer.

- The left column defines the favourites menu and provides each computer with a favourite number. Each favourite number corresponds to a hot-key combination that can be used to quickly connect to the desired computer without having to access the switching menu. For example favourite “1” has the hot-key combination

“Ctrl+Alt+F1” For favourite "2" this is “Ctrl+Alt+F2” and so on up to favourite "8" with “Ctrl+Alt+F8”. All other computers can still be accessed via the switching menu. To change the order of the computers in this list, select the computer then press a number key 1 through 8 to shift it to that number.

- If the password system is active, the user currently logged in is displayed at the bottom. You can manually logout by pressing the "x" key or disconnect from the current PC by pressing the „d" key.

3. EXTENDER MENU/SETTINGS

3.11 HOW TO SHARE VIDEOS

The Video Sharing option allows you to share your screen with other users on the network. Ensure that the switch you are using has IGMP Snooping capabilities, and that this is turned on (most switches have this off by default).

What happens with the control over the local extender depends on the initial state. There are two main use-cases which can both be controlled in the MASTER VIEW connections overview menu. Note that this capability is not available in combination with the password security system.

To share a video:

1. Make sure the main menu is open.
2. Press Ctrl+Alt+F10. The MASTER VIEW connections overview menu opens.
3. Choose one of the following:

• To mirror a screen to other consoles:

- Press the P key on the keyboard of the extender that should display the user's screen. In this case „P“ stands for „push to screen“. Such a command is only valid if the console which initiates the mirroring is currently connected to a local unit and has video and the other remote unit is “free” (marked green).

• To see the screen of other consoles on the network:

- Press the G key on the keyboard of the extender that should display the user's screen. The key „G“ stands for „get screen“. If the console unit from which this command is executed currently has a partner, a disconnect is executed before the video of the other local unit is displayed. If the selected local extender currently isn't connected, a regular connection including USB, etc. is established.

3. EXTENDER MENU/SETTINGS

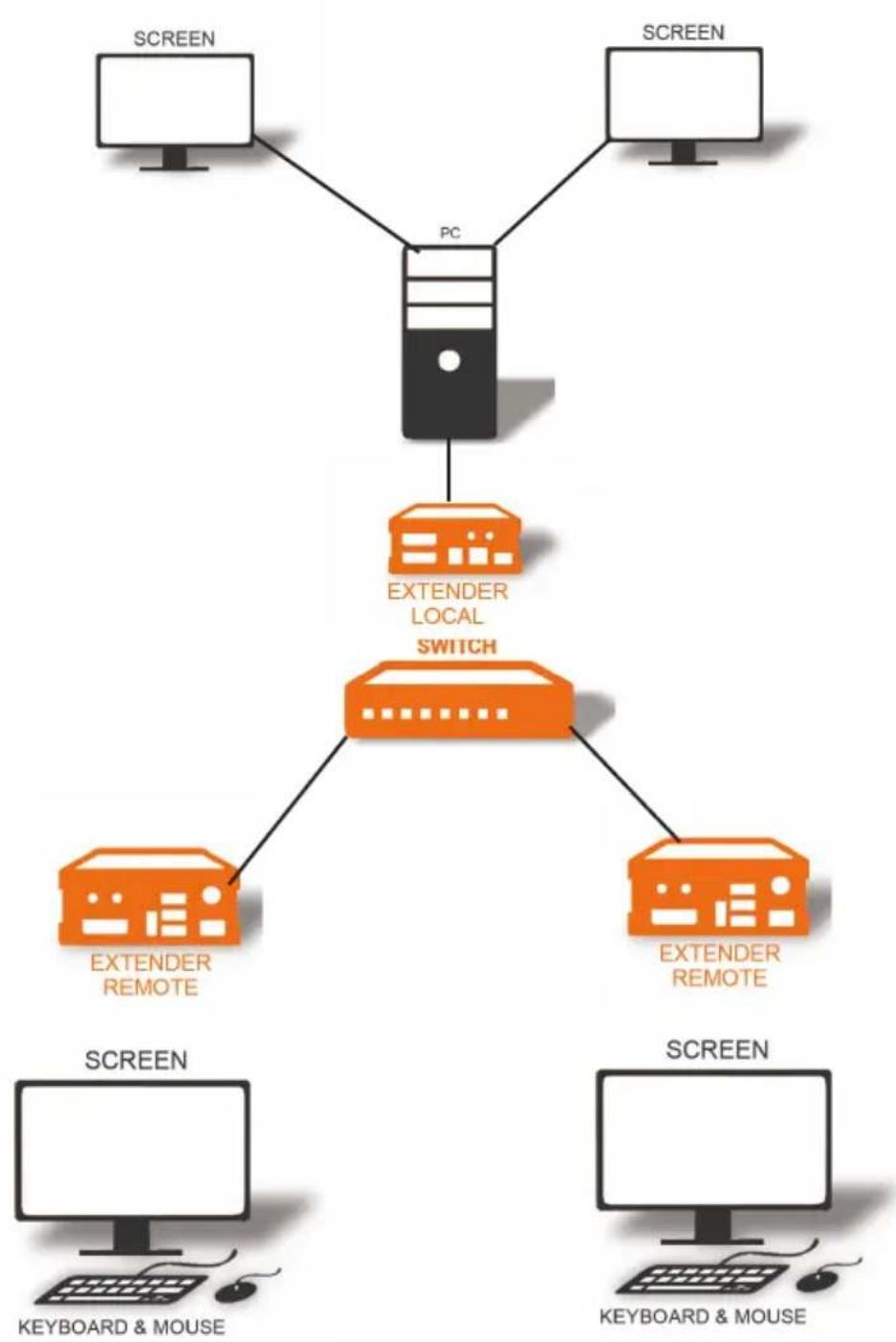


Videosharing

4. NETWORK SETTINGS

4.1 HOW TO ACCESS THE NETWORK SETTINGS MENU (MASTER VIEW AND NETWORK MODE)

The Network Settings menu includes the preferences and settings for the Switching Option. Note: this menu is only available when the Switching Option has been unlocked (see chapter „How to unlock an Option“).

To access the Network Settings menu (Master View and Network Mode):

1. Make sure the main menu is open (see chapter „How to access the main menu“)
2. Press the W key. The Enter User/Password window opens.

NETWORK SETTINGS
V = Master View (Device Configuration)
M = Network Mode
T = Set Timeout ( Immediately )
Q = Save and Exit

4. NETWORK SETTINGS

1. Log in with your user name and password. The Network Setting menu opens. Note: in order to prevent unauthorised access to the Network Settings, this option is protected by a user/password combination. Access is only allowed for users with administrator rights. The factory settings provide an administrator user with User: admin and Password: admin. The Master View option allows the administrator to view, add, edit or remove user, console and computer information.

Press the V key to access the Master View menu.

- The Network Mode allows to define how you want the network system to operate. Each of the modes available may individually be activated or deactivated by pressing the appropriate key. You may have more than one selected depending on their function. Some modes require others, and others are incompatible with each other, but the system will automatically recognise this for you. Press the M key to access the Network Mode menu.

MASTER VIEW

D = Connections Overview
U = User List
C = Console Extender List
P = PC Extender List
M = Multi-Head Configuration
R = Restart All Extenders
Q = Exit

4. NETWORK SETTINGS

4.2 HOW TO FORCE DISCONNECT OR SELECT A WORKSTATION FROM THE CURRENT CONNECTED DEVICES

The Connection Overview provides an overview of the current connections as well as the free PCs and consoles on the network. You may break a connection remotely, or assign a PC a new console or vice versa.

To force disconnect or select a workstation from the current connected devices:

1. Make sure the Master View menu is open (see chapter „How to access the Network Settings menu (Master View and Network Mode)“).

MASTER VIEW
O = Connections Overview
U = User List
C = Console Extender List
P = PC Extender List
M = Multi-Head Configuration
R = Restart All Extenders
Q = Exit

4. NETWORK SETTINGS

1. Press the O key. The Connection Overview menu opens.

MASTER VIEW > connections overview PCs Consoles > ---> Ctrl+H - Help

1. Press the I key. The Connection Details window opens.

2. Press the D key to force disconnect the selected device/connection.

3. Press the E key or Enter key to select a PC or workstation to create or break a section to that unit.

- Press the Q key to exit.

4. NETWORK SETTINGS

4.3 HOW TO MANAGE USER DETAILS, RIGHTS AND GROUPS

The Console Extender List allows you to manage user details, rights and groups.

To manage user details, rights and groups:

1. Make sure the Master View menu is open (see chapter „How to access the Network Settings menu (Master View and Network Mode)“).

2. Press Ⓞ to exit the menu.

MASTER VIEW
Q = Connections Overview
U = User List
C = Console Extender List
P = PC Extender List
M = Multi-Head Configuration
R = Restart All Extenders
Q = Exit

4. NETWORK SETTINGS

1. Press the U key. The User List menu opens.

- Press the A key to add a new user.

- Press the R key to delete the selected user.

- Press the I key to display details about the selected user which may be edited.

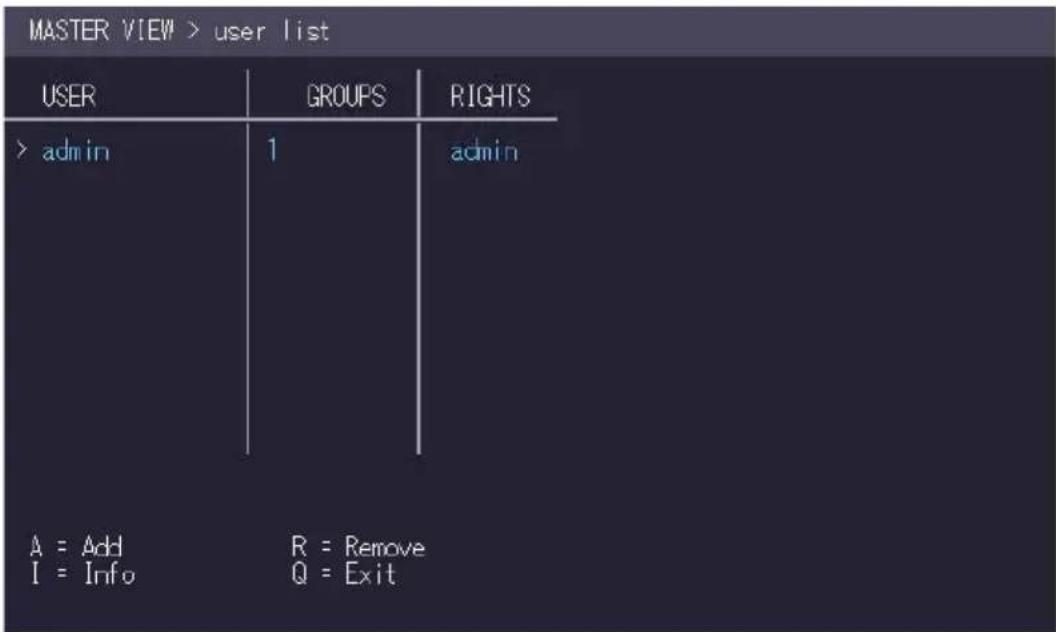

MASTER VIEW > user list USER GROUPS RIGHTS > admin 1 admin A = Add R = Remove I = Info Q = Exit

4. NETWORK SETTINGS

Management User Details

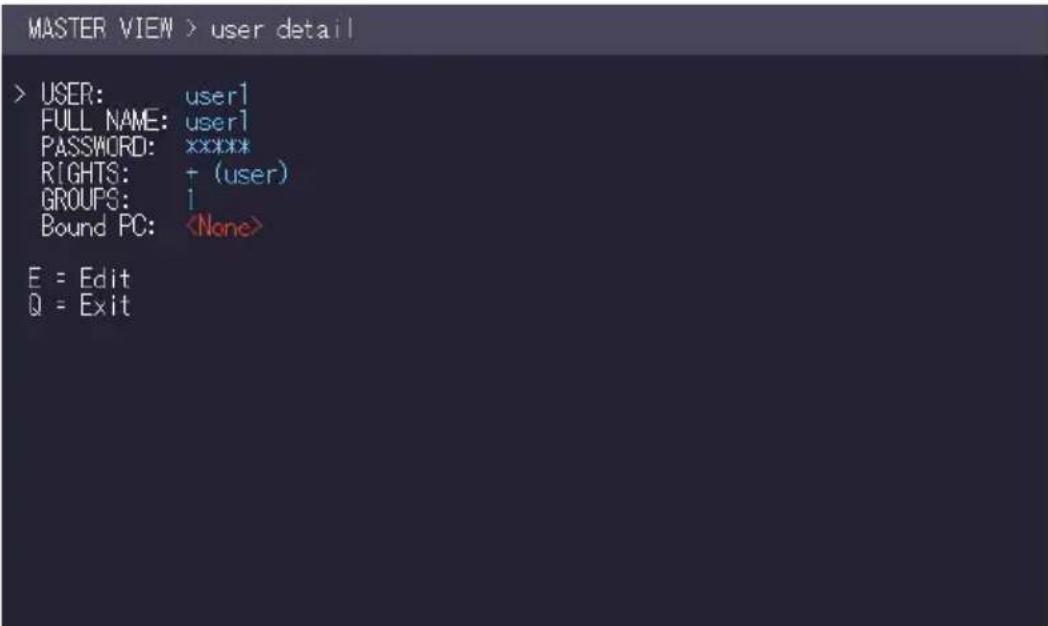

MASTER VIEW > user detail > USER: user1 FULL NAME: user1 PASSWORD: xxxxx* RIGHTS: + (user) GROUPS: 1 Bound PC: E = Edit Q = Exit

32.. To edit a user, press the I key. The User Detail menu opens.

1. Select the user detail you want to edit and press the E key.

- User: Assign each user a login name with max. 12 characters.

• Full Name: For clarity the full name of a user may be entered with max. 20 characters. This name is displayed when informing other users who interrupted their connection.

- Password: Each user requires a password for the login. Max. 16 characters.

- Rights: There are three types of rights: USER, MASTER and ADMIN.

By pressing the + key the rights of the selected user can be changed. The rights control access to the Network Settings menu (only ADMIN), and which users may interrupt the connection of which other users.

- Admin: May interrupt connections of Masters and Users. In the case that an Admin interrupts the connection of another Admin, the interrupted Admin may reclaim the original connection. Private connections can't be interrupted.

- Master: May interrupt connections of Users. In the case that a Master interrupts the connection of another Master, the interrupted Master may reclaim the original connection. Admins and private connections can't be interrupted.

- User: In the case that a User interrupts the connection of another User, the interrupted User may reclaim the original connection. Admins, Masters and private connections can't be interrupted.

4. NETWORK SETTINGS

- Groups: Each user can join up to 8 user groups. Each computer is defined as

belonging to one user group. By default all computers are in the same user group. This system makes it possible to allow or deny different users access to a computer. The user's group access is set by pressing the buttons 1 – 8.

- Bound PC: When in User-PC Binding mode (see 4.10) each user must have a PC bound to them. That user will only be able to connect to that PC. When selected the

User Detail menu, press RETURN a list of PCs on the network will be displayed to select from.

4.4 HOW TO VIEW THE STATUS OF ALL REMOTE UNITS

The Console Extender List allows you to view all remote units in the switching network and their current status.

To view the status of all remote extenders:

1. Make sure the Master View menu is open (see chapter „How to access the Network Settings menu (Master View and Network Mode)“).

MASTER VIEW Q = Connections Overview U = User List C = Console Extender List P = PC Extender List M = Multi-Head Configuration R = Restart All Extenders Q = Exit

4. NETWORK SETTINGS

1. Press the C key. The Console Extender List menu opens.

2. "this" defines the extender which you are currently using.

3. "in use" indicates that the extender is in use.

4. "free" indicates that this extender is not busy.

5. To edit the name of an extender, press the I key. The Console Extender Detail menu opens.

6. Press the E key to edit the name of the extender.

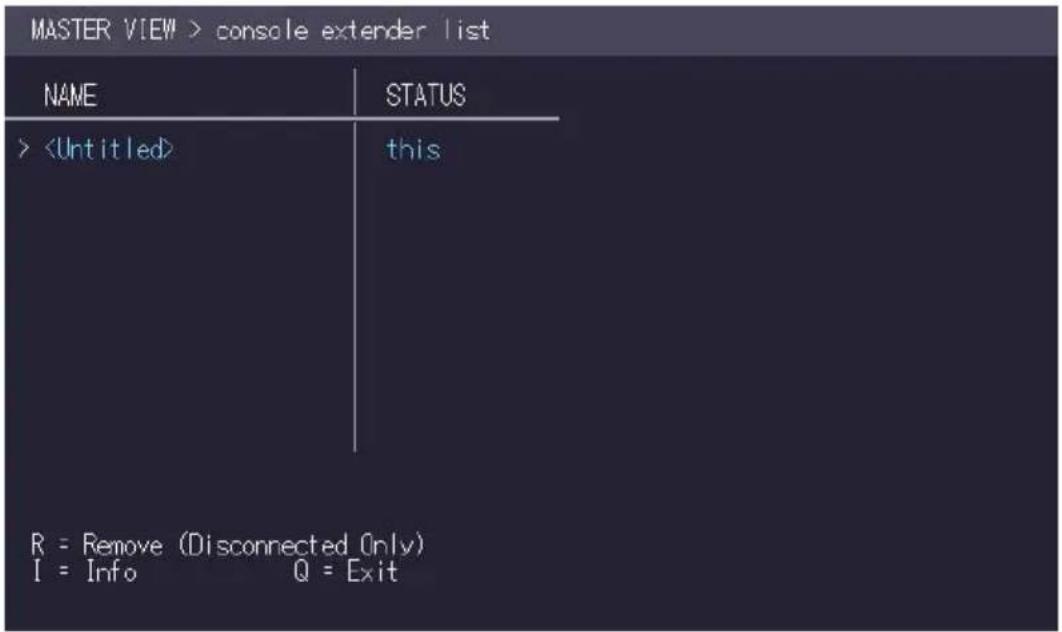

MASTER VIEW > console extender list NAME STATUS > this R = Remove (Disconnected Only) I = Info Q = Exit

4. NETWORK SETTINGS

4.5 HOW TO VIEW THE STATUS OF ALL LOCAL UNITS

The PC Extender List allows you to view all local units in the switching network and their current status.

To view the status of all local units:

1. Make sure the Master View menu is open (see chapter „How to access the Network Settings menu (Master View and Network Mode)“).

MASTER VIEW Q = Connections Overview U = User List C = Console Extender List P = PC Extender List M = Multi-Head Configuration R = Restart All Extenders Q = Exit

1. Press the P key. The PC Extender List menu opens.

4. NETWORK SETTINGS

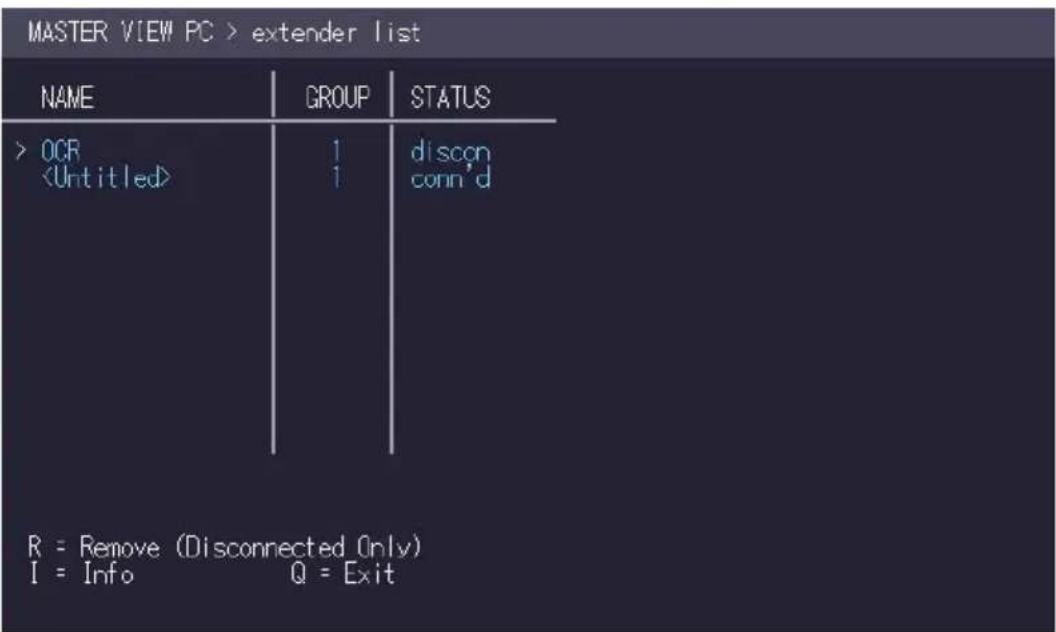

MASTER VIEW PC > extender list NAME GROUP STATUS >OCR 1 discon Untitled> 1 cenn'd R = Remove (Disconnected Only) I = Info Q = Exit

1. To edit the name, groups or status of an extender, press the I key. The PC Extender Detail menu opens.
2. Use the Up and Down Arrow keys to select the name or group of the PC unit.
3. Press the E key to edit the selected parameter.

Example:

There are the following 3 PC's: Department PC, Team A PC and Team B PC. The users Alex, Blair and Charlie should have access to the Department PC and the Team A PC. The users Danny, Em and Frankie should have access to the Department PC and the Team B PC.

To achieve this we assign each PC a different group:

Department PC: Group 1

Team A PC: Group 2

Team B PC: Group 3

Alex, Blair and Charlie are assigned to be members of Group 1 and Group 2. Danny, Em and Frankie are assigned to be members of Group 1 and Group 3.

4. NETWORK SETTINGS

4.6 HOW TO SET UP DUAL-HEAD OR MULTI-HEAD SYSTEMS

If you use multiple monitors with a PC then you can group individual local and remote units together in the Multi-Head menu, making them switch as a single unit.

To group individual local and remote extenders:

1. Make sure the Master View menu is open (see chapter „How to access the Network Settings menu (Master View and Network Mode)“).

MASTER VIEW
Q = Connections Overview
U = User List
C = Console Extender List
P = PC Extender List
M = Multi-Head Configuration
R = Restart All Extenders
Q = Exit

1. Press the M key. The Multi-Head configuration menu opens.

4. NETWORK SETTINGS

MASTER VIEW > multi-head configuration MULTI-HEAD SET TYPE SIZE A = Add R = Remove I = Info Q = Exit

1. Press the A key. The multi-head detail menu opens.

2. Press the R key to remove an extender from the multi-head set.

3. Press the Q key to exit.

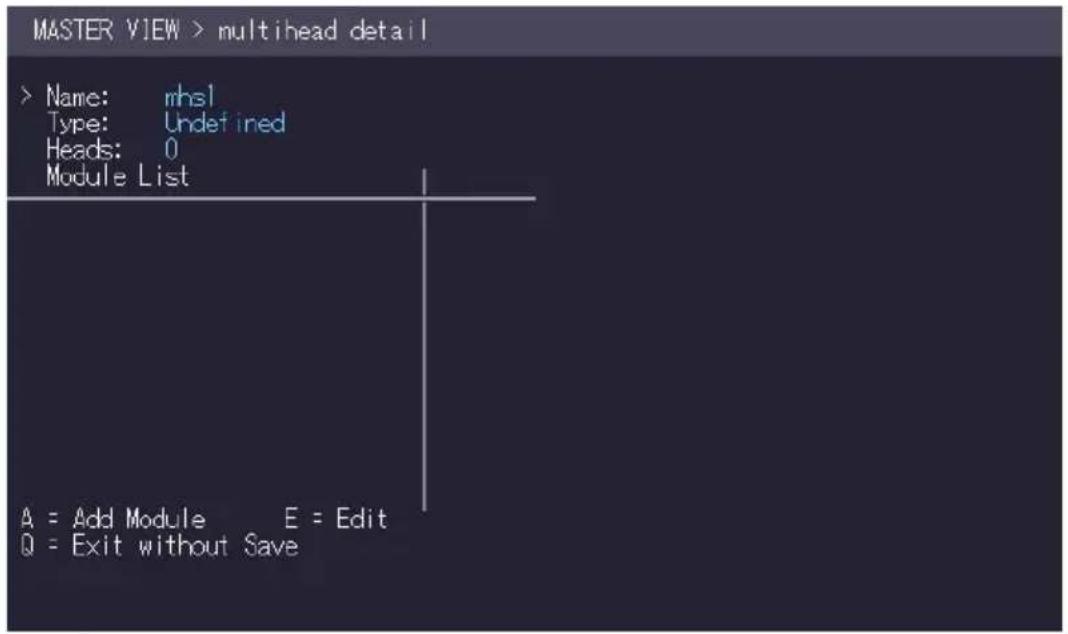

MASTER VIEW > multihead detail > Name: rhsl Type: Undefined Heads: 0 Module List A = Add Module E = Edit Q = Exit without Save

1. Press the A key to add individual extenders. The extender type is automatically determined once the first extender has been selected.
2. Press the E key to edit the multi-head set name of max. 16 characters.

4. NETWORK SETTINGS

4.7 HOW TO ENABLE USER GROUPS AND RIGHTS AND LOGIN ACCESS

The Passwords option allows to activate user groups and rights and login access. For more information about user groups and rights see „How to manage user details, rights and groups“.

Access to the network settings is always protected by a login and password, even when the password system is disabled.

To enable the password option:

1. Make sure the Network Mode menu is open (see chapter „How to access the Network Settings menu (Master View and Network Mode)“).

2. Press the P key to disable or enable the option.

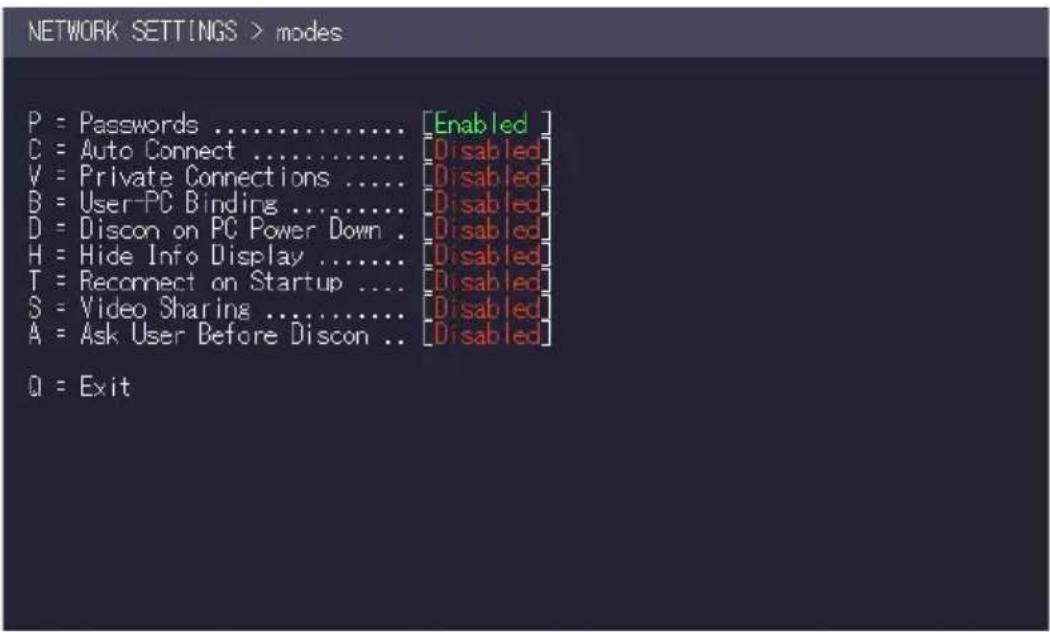

NETWORK SETTINGS > modes P = Passwords ....... [Enabled] C = Auto Connect ....... [Disabled] V = Private Connections ....... [Disabled] B = User-PC Binding ....... [Disabled] D = Discon on PC Power Down . [Disabled] H = Hide Info Display ....... [Disabled] T = Reconnect on Startup ....... [Disabled] S = Video Sharing ....... [Disabled] A = Ask User Before Discon .. [Disabled] Q = Exit

4. NETWORK SETTINGS

4.8 HOW TO AUTO-CONNECT TO A FREE COMPUTER AFTER AN INTERRUPTION

The Auto Connect option allows you to connect automatically with a free computer if your connection is interrupted by another user. This function is unavailable while using the Password System.

To enable the auto-connect option:

1. Make sure the Network Mode menu is open (see chapter „How to access the switching menu Master View and Network Mode“).
2. Press the C key to disable or enable the option.

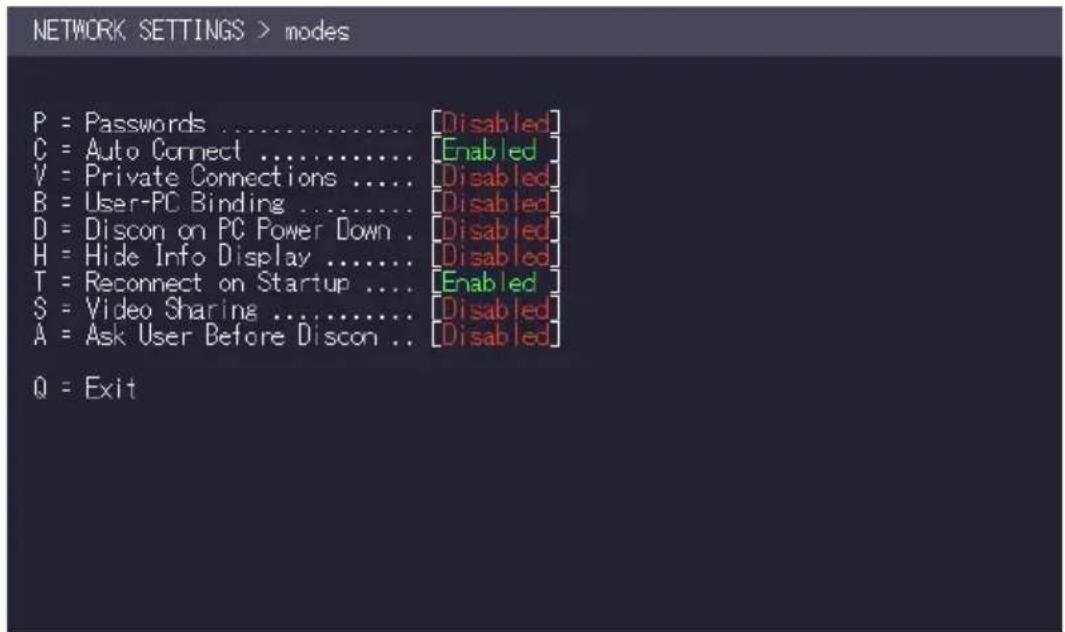

NETWORK SETTINGS > modes P = Passwords ....... [Disabled] C = Auto Connect ....... [Enabled] V = Private Connections ....... [Disabled] B = User-PC Binding ....... [Disabled] D = Discon on PC Power Down . [Disabled] H = Hide Info Display ....... [Disabled] T = Reconnect on Startup .... [Enabled] S = Video Sharing ....... [Disabled] A = Ask User Before Discon .. [Disabled] Q = Exit

4. NETWORK SETTINGS

4.9 HOW TO SET UP A PRIVATE CONNECTION

The Auto Connect option allows you to set up a private connection with a computer, which can't be interrupted by other users.

To enable the private connection option:

1. Make sure the Network Mode menu is open (see chapter „How to access the switching menu Master View and Network Mode“).

2. Press the V key to disable or enable the option.

3. To establish a private connection hold down Shift while you select a new connection (either in the switching menu or by pressing the hot-key combination (see chapter „How to switch between different computers“).

NETWORK SETTINGS > modes P = Passwords ............................................................................................ C = Auto Connect ..................................................................... V = Private Connections ............................................................................. B = User-PC Binding ................................................................... D = Discon on PC Power Down . ..................................................... H = Hide Info Display .................................................... T = Reconnect on Startup .... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... S = Video Sharing ............................................................................ ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... A = Ask User Before Discon .. ...................................................................... ....... Q = Exit

4. NETWORK SETTINGS

4.10 HOW TO ENABLE THE USER-PC BINDING MODE

To enable the User-PC Binding mode:

1. Make sure the Network Mode menu is open (see chapter „How to access the switching menu Master View and Network Mode“).
2. Press the B key to disable or enable the option.

NETWORK SETTINGS > modes P = Passwords ............................................................................................. C = Auto Connect ................................................................. V = Private Connections ....... ....... ....... ....... ....... ....... ....... ....... ....... B = User-PC Binding ....... ....... ....... ....... ....... ....... ....... ....... ....... ....... D = Discon on PC Power Down . ....... ....... ....... ....... ....... ....... ....... ....... H = Hide Info Display ....... ... ....... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... T = Reconnect on Startup ....... ....... ....... ....... ....... ....... ....... ....... ....... ....... ....... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... S = Video Sharing ....... ....... ....... ....... ....... ....... ....... ....... ....... ....... ....... .. [Disabled] A = Ask User Before Discon .. .. ....... ....... ....... ....... ....... ....... ....... ....... ....... ....... .. [Disabled] Q = Exit

4. NETWORK SETTINGS

4.11 HOW TO ENABLE THE DISCONNECT ON PC POWER DOWN OPTION

The Auto Connect option allows you to break the connection of any local unit that is connected to a PC that is powered down, allowing the remote unit to find a different local extender to connect to.

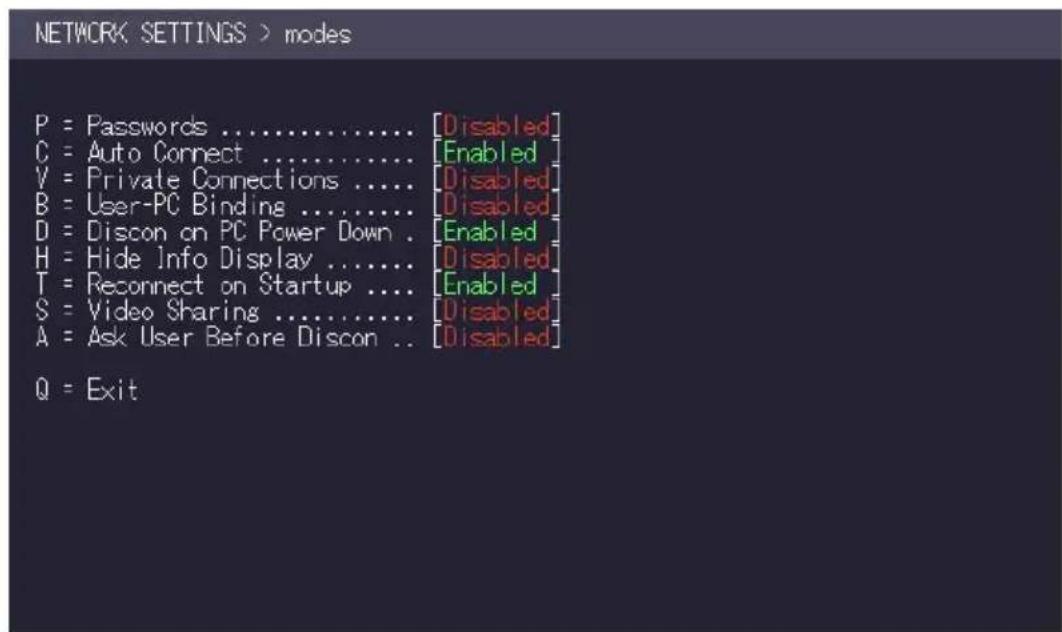

To enable the PC Power Down option:

1. Make sure the Network Mode menu is open (see chapter „How to access the switching menu Master View and Network Mode“).

2. Press the D key to disable or enable the option.

NETWORK SETTINGS > modes P = Passwords ....... [Disabled] C = Auto Connect ....... [Enabled] V = Private Connections ....... [Disabled] B = User-PC Binding ....... [Disabled] D = Discon on PC Power Down . [Enabled] H = Hide Info Display ....... [Disabled] T = Reconnect on Startup ....... [Enabled] S = Video Sharing ....... [Disabled] A = Ask User Before Discon .. [Disabled] Q = Exit

4. NETWORK SETTINGS

4.12 HOW TO HIDE INFO DISPLAY

To hide the info display during startup:

1. Make sure the Network Mode menu is open (see chapter „How to access the switching menu Master View and Network Mode“).
2. Press the H key to disable or enable the option.

NETWORK SETTINGS > modes P = Passwords ....... [Disabled] C = Auto Connect ....... [Disabled] V = Private Connections ....... [Disabled] B = User-PC Binding ....... [Disabled] D = Discon on PC Power Down . [Disabled] H = Hide Info Display ....... [Enabled] T = Reconnect on Startup ....... [Disabled] S = Video Sharing ....... [Disabled] A = Ask User Before Discon .. [Disabled] Q = Exit

4. NETWORK SETTINGS

4.13 HOW TO RECONNECT ON STARTUP

To reconnect on startup:

1. Make sure the Network Mode menu is open (see chapter „How to access the switching menu Master View and Network Mode“).

2. Press the T key to disable or enable the option.

NETWORK SETTINGS > modes P = Passwords ....... [Disabled] C = Auto Connect ....... [Disabled] V = Private Connections ....... [Disabled] B = User-PC Binding ....... [Disabled] D = Discon on PC Power Down . [Disabled] H = Hide Info Display ....... [Disabled] T = Reconnect on Startup ....... [Enabled] S = Video Sharing ....... [Disabled] A = Ask User Before Discon .. [Disabled] Q = Exit

4.14 VIDEO SHARING

See chapter „How to share videos“.

4. NETWORK SETTINGS

4.15 HOW TO SET THE PASSWORD TIMEOUT

When the password system is activated you can define under what circumstances the user will be required to re-enter their login details when switching.

• I - Immediately: User and password must be re-entered for each switch.
• N – Never: User and password are not required to be re-entered until the current user logs out. See chapter „How to switch between different computers“.
• T - Time in min: You define the number of minutes since the last switch before the user and password details are required again to switch.

NETWORK SETTINGS > timeout See product manual for explanation. I - Immediately N - Never > T - 30 mins Press ESC to exit

5. MAINTENANCE AND CARE

CAUTION! Do not use solvent-containing cleansers. Do not use wipes, alcohols (e.g. spiritus) or chemicals as these could damage the surface.

To clean the product:

- Clean the product with a maintenance product for synthetic material, which is available in specialized shops.

6. TROUBLESHOOTING

Error Cause Solution
LED is not lighting	The devices get no power	Is the power supply connected? (white box)
LED is lighting in red	No connection between Loc and Rem	Check if the RJ45/network cable is connected well. (Clicking noise when plugging in)Control both, if it does not work please send an e-mail to [e-mail]
LED is lighting in orange	No picture on the monitor	Check if the local (PC) cable is connected well.Check if the remote (monitor) cable is connected well.If everything is connected well but no function appears, reconnect power supply again.If the menu is visible, press the O key and choose the resolution of the monitor. Then press the assigned number on your keyboard.
LED is lighting green	Screen occurs but the keyboard is not working	Plug out/in USB of keyboard and wait until driver is installed (after few seconds).Check all USB connections on both sides (Local and Remote)If it is still not working, plug out/in DC once more
LED is lighting green	No audio Establish audio connection:plug stereo-jack to the audio output of the PC (green) connection with local: INremote: headset OUTEstablish microphone connection:plug stereo-jack to the microphone input of the PC (pink) connection with local OUT. Connect the microphone to the Remote IN

6. TROUBLESHOOTING

Error Cause Solution
LED is lighting green	The screen fl ickers, has an incorrect display	Install current fi rmware from our homepage www.kvm-tec.com/support
LED is blinking green	Different fi rmware or USB is not compatible	Please contact the kvm-tec support team via e-mail: [e-mail] or by phone: [phone]
LED are lighting differently	Different fi rmware	To enter on screen menu/check fi rmware version: To enter the On screen menu, press the Scroll Lock key fi ve times in quick succession. The currently installed fi rmware version is displayed below the menu If fi rmware update does not work, please send an e-mail to [e-mail]

7. DISPOSAL

Simple line drawing of a trash bin with crossed lines indicating no waste or plastic (no text or symbols)

This symbol on the product, the accessories or packaging indicates that this product must not be treated as unsorted municipal waste, but must be collected separately! Dispose of the product via a collection point for the recycling of waste electrical and electronic equipment within the EU and in other European countries that operate separate collection systems for waste electrical and electronic equipment.

By disposing of the product in the proper manner, you help to avoid possible hazards for the environment and public health that could otherwise be caused by improper treatment of waste equipment. The recycling of materials contributes to the conservation of natural resources. Therefore do not dispose of your old electrical and electronic equipment with the unsorted municipal waste.

The packaging is made of environmentally friendly materials, which may be disposed through your local recycling facilities. By disposing of the packaging and packaging waste in the proper manner, you help to avoid possible hazards for the environment and public health.

8. WARRANTY

Warranty lasts 24 months from the date of purchase. The defect product has to be sent back to the manufacturer or your supplier within 2 weeks. The warranty becomes void in case of:

• External forceful impact
• Inappropriate maintenance
• Violating the operating instructions
- Damage by lightning

Always contact us first before sending back the product.

9. SUPPORT

If you have any questions about our products, please contact your dealer.

kvm-tec electronic gmbh

Email: [e-mail]

Web: www.kvm-tec.com

kvm-tec Inc. USA Sales p+1 213 631 3663 & [phone] email: [e-mail]

kvm-tec ASIA-PACIFIC Sales p [phone] email: [e-mail]

kvm-tec China Sales - P + 86 1360 122 8145 email: [e-mail]

Find our newest updates and FAQs on our homepage: http://www.kvm-tec.com/support

10. DECLARATION OF CONFORMITY

EU DECLARATION OF CONFORMITY

Manufacturer: KVM-TEC Electronic GmbH

Gewerbepark Mitterfeld 1A, 2523 Tattendorf, Austria

Commercial register number: FN 272328h LG Wr. Neustadt

hereby we declare that the device

fulfils following EU Directive and European standards listed within:

EMC/EMV - EU Directive 2014/30/EU and 2014/35/EU

2014/35/EU low voltage directive

2014/30/EU EMV directive

The device was tested in a typical application with a PC.

RoHS II - EU Directive 2011/65/EU

Certificate according to RoHS II Directive 2011/65 / EU

We hereby certify that all our products are manufactured and packaged in accordance with RoHS II 2011/65/EU and PFOS 2006/122EG directives.

REACH - Regulation (EG) No. 1907/2006

For our products, we only use commercially available, well-known components from well-known manufacturers, which do not exceed the thresholds for Substances of Very High Concern (SVHC) and do not fall into the obligations for the production and placing on the market of substances / chemicals for pre-registration or registration (ECHA) fall.

10. DECLARATION OF CONFORMITY

Ecodesign Directive 2009/125/EC

In particular, the limits of the following standards are observed:

EN 55032:2012 Class A *

EN 55024:2010

EN 61000-3-2:2014

EN 61000-3-3:2013

EN 60950-1:2006+A2:2013, IEC 60950:2005

LASER CLASS 1: EN 60825-1:2007 compatible with IEEE 803.3z

Signed for and on behalf of: KVM-TEC Electronic GmbH

Place and date of issue: Tattendorf, 2018-05-09

A Cat5/6/7 cable should meet the following requirements:

• The pins are connected 1:1. Caution: the cable pairs must be twisted to EIA/TIA-568A (rare) or EIA/TIA-568 B (common) pairs.
• Erroneous assignments cannot be found with a simple cable tester.
• The pins for the green pair of wires are not adjacent to one other.
• The cable must at the very least meet the CAT5 specifications and be suitable for Gigabit transmission.
• The cable should meet one of the following standards: Class D ISO/IEC 11801:2002 or EN 50173-1:2002. Schema EIA/TIA-568 B.
• Only use shielded installation cable with min. cross section of 24 AWG throughout the length.
• The shield should be contiguous and connected to both ends. A shielded patch cable is allowed for connection to the device.

Schema EIA/TIA-568 B

Pin Color

1 Orange/White

2 Orange

3 Green/White

4 Blue

5 Blue/White

6 Green

7 Brown/White

8 Brown

11.2 REQUIREMENTS FIBER CABLES

11. REQUIREMENTS FOR CABLES

11.2.1 MULTI-MODE (STANDARD)

A Multi-Mode fibre cable should meet the following requirements:

• Maximum length should be 500 m. The MVX1-F includes a fibre Multimode – SFP Module which allows a transmission distance of up to 500 m.
  • Dedicated fibre connection cable type Duplex Multimode 50/125 (OM2), LC connector

11.2.2 SINGLE-MODE (OPTIONAL)

A fibre Single-Mode – SFP Module cable should meet the following requirements:

• Up to 20 km transmission distance.
• Requires dedicated fibre connection: cable type Duplex Singlemode with LC connector

A fibre Single-Mode – SFP Module BiDi cable should meet the following requirements:

• Up to 20 km transmission distance.
• Requires dedicated fibre connection: cable type Singlemode with LC connector Wavelength (☐) of 850 nm in multi-mode or 1310 nm TX -1550 nm RX in single-mode

12. REQUIREMENTS NETWORK SWITCH

The entire switching network system requires its own dedicated network. For security reasons it cannot be integrated into an existing company network.

The network switch must fulfil the following specifications:

1 Gigabit Switch, with true port to port transfer rates of 1 Gigabit/second

The following switches have all been tested and verified to work with all features of kvm-tec electronic's SVX Smartline, MVX Masterline and MX Matrixline KVM-extenders.

12. REQUIREMENTS FOR NETWORK-SWITCH

Recommended Switches

SWITCH

Orange rectangular object with white horizontal bars and six small square cutouts (no text or symbols)

Multiple Switch
Single Switch

Art Nr	Item Nr Product
	CATx SWITCHHE
6514	NS8RJ/2SFP Network Switch	8x RJ45 1000 Base-T / 2x SFP 1G
6534	NS24RJ/4SFP Network Switch	24x RJ45 1000 Base-T / 4x SFP 1G
6141	NS24RJ/2SFP/2SFP+ Network	Switch 24x RJ45 1000 Base-T / 2x SFP 1G / 2x SFP+ 10G
6155	NS48RJ/4SFP+ Network Switch	48x RJ45 1000 Base-T / 4x SFP+ 10G
6171	NS48RJ+/2SFP+ Network Switch	48x RJ45 10G / 2x SFP+ 10G
	FIBER SWITCHHE
6146	NS24SFP/4SFP+	Network Switch 24x SFP/4x SFP+
6166	NS48SFP/4SFP+ Network Switch	48 x SFP/4x SFP+ with redundancy power supply
6151	NS32SFP+/2QSFP+	Network Switch 32 x SFP/2x QSFP+
6161	NS48SFP+/4QSFP+ Network	Switch 48x SFP+ 10G / 4x QSFP+

13. FIRST AID

    F["USB is not working"] --> G["Are the USB Devices plugged in correctly?"]
    G --> H["Is the USB cable on the Local side plugged into the PC?"]
    H --> I["Are the USB Devices working directly on the PC?"]
    I --> J["Replace the USB cable from PC to the Local Extender"]
    J --> K["Check if local and remote Unit have the same fi rmware"]
    K --> L["Check if the local or the remote Unit is causing the problem by swapping fi rst the local and than the remote Unit to another Unit"]
    L --> M["Contact kvm-tec support"]

    N["No Video"] --> O["Check if all cables are plugged in correctly"]
    O --> P["Check if the PC is sending a Image by plugging in a monitor on the local out of the local Unit"]
    P --> Q["Check if the DDC is set correctly (in menu under point „O“)"]
    Q --> R["Check if both Units have the correct fi rmware"]
    R --> S["Contact kvm-tec support"]

    T["Video error (stripes in the picture)"] --> U["Check if all cables are plugged in correctly"]
    U --> V["Check if the PC is sending a Image by plugging in a monitor on the local out of the local Unit"]
    V --> W["Check if the DDC is set correctly (in the menu under point „o“)"]
    W --> X["Check if local and remote Unit have the correct fi rmware"]
    X --> Y["Check if the network switch is setup correctly and has enough bandwidth"]
    Y --> Z["Check if other units have the same behaviour"]
    Z --> AA["Contact kvm-tec support"]

We are here for you to answer your questions about installation?

Manual download www.kvm-tec.com

You Tube

or

kvm-tec Installationchannel on our homepage

personally [phone]

14. EXTENDED WARRANTY

2 Warranty kvm tec smart connections

2 years warranty

5 Warranty kvm tec smart connections

Part nr 9003 Warranty extension to 5 years per set

Part nr 9002 Warranty extension to 5 years per uni

15. NOTES
