USER MANUAL ZWT 3202 ZANUSSI

Line drawing of a rectangular industrial machine with a lid and side slots (no text or symbols)

ZWT 3202

Thank you for selecting our appliance

We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when purchasing household appliances.

Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The user manual should be passed on to any future owner of the appliance.

ZANUSSI

Inhalt

Hinweise 4

Simple diagram with sun, clock, checkmark, and plus/minus symbols (no text or labels)

Diagram showing a hand holding a tool interacting with an open device, with an arrow indicating rotation or movement.

Illustration of two hands holding a handgun with arrows indicating movement (no text or symbols)

3

4

Illustration of two hands holding a firearm, with arrows indicating movement (no text or symbols)

6

Flusensieb

Diagram showing hands using a tool to adjust or install a component, with a curved arrow indicating rotation or change.

Diagram showing a hand pouring liquid from a container into a bowl, with an arrow indicating direction and label '2'

3

4 WATERLESS DRINKING

5

6

7

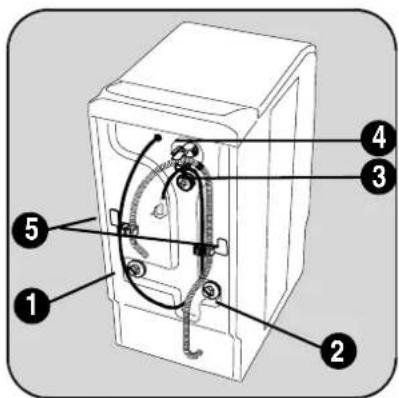

Wasserzulaufsiebe

Hand holding a pipe fitting with threaded end (no text or symbols visible)

Illustration showing a hand holding a water tap with a magnified inset, labeled with number 2

3D mechanical part diagram with no visible text or symbols

Diagram of a 3D geometric object with an arrow indicating rotation, no text or symbols present

Diagram of a 3D object with an arrow indicating rotation or movement, no text or symbols present

Diagram of a refrigerator interior with numbered parts labeled 1 to 5

3

4

Diagram showing a hand using a tool to press or rotate a circular component, with an arrow indicating rotation direction.

Illustration of a hand turning a button into a device (no text or symbols visible)

5

6

Diagram showing a hand using a tool to press a circular component, labeled with number 2

Illustration of a hand using a tool to adjust or install a circular component, with a black arrow indicating the direction (no text or symbols present)

Diagram showing a hand adjusting a door lock mechanism with numbered label 3

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1 6

2 90°

Illustration of a hand holding a small object with an arrow pointing to it, no text or symbols present

Illustration of a hand holding a key inserted into a door, with no text or symbols present.

3

4

4 1 2 1

Illustration of various screw and nut components (no text or symbols)

Illustration of a hand holding a tool with a numbered label (5), no text or symbols present

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Wasserzulauf

Diagram showing a step of hairpin installation with arrows indicating sequence from initial to final installation.

Illustration of hands performing a mechanical manipulation or disassembly task (no text or symbols present)

Garantie / Kundendienst

Servicestellen

5506 Mägenwil/Zürich

Industriestr. 10

9000 St. Gallen

Description of the appliance....29

Programmes table....31

How to run a wash cycle ?......32

Washing guide 36

Care and cleaning....38

Operating problems 40

Technical specifications ....42

Consumption......43

Environment......44

Installation....45

Guarantee....48

Warnings

WARNING!

These warnings are for the safety of you and others around you.

Please read these points carefully before installing and using your appliance. Thank you for your attention.

Keep this user manual with your appliance. If the appliance is sold or given to another person, please make sure this user manual is included. This way, the new user will have the relevant operating instructions and warnings.

General safety

• Do not modify or attempt to modify this appliance. This would put yourself in danger.
• Ensure that all coins, safety pins, brooches, screws etc have been removed before starting a washing programme. If left in washing, they can seriously damage the appliance.
• Use the amount of detergent recommended in the paragraph "Using the right amount of detergent".
• Put small items together (socks, belts etc.) in a small linen bag or pillow case.
• Unplug and close inlet hose tap after using appliance.
  • Always disconnect the power supply from the appliance before cleaning or maintenance.
• Do not machine wash clothes with ribbing, unfinished or torn material.

Installation

• Unpack or ask for the appliance to be unpacked immediately upon arrival. Check the outside of the appliance is not damaged in any way. Put any complaints you may have in writing on your copy of the delivery receipt.
• The appliance must be untied before connec-

ting to power supply or using. If all transit packaging is not completely removed, the appliance or surrounding furniture could be damaged.

• Connection to the water supply must be carried out by a qualified plumber.
• If your domestic electrical circuit needs adapting to allow the appliance to be plugged in, use a qualified electrician.
• Ensure that, after installation, the power cable is not trapped under the appliance.
• If the appliance is installed on carpeted floor, ensure that the carpet does not obstruct any ventilation ducts located at the base of the appliance.
• The appliance must be equipped with an ear-thed power plug which conforms to regulations.
• Before connecting your appliance to the power supply, carefully read the instructions in the chapter entitled "Electrical connection".
• Replacing the power cable should only be carried out by the After Sales Service.
• The manufacturer cannot be held responsible for any damage resulting from incorrect installation.

Precautions to be taken against frost

If your appliance is exposed to temperatures below 0^ C, the following precautions must be taken:

• Close the tap and disconnect the inlet hose.
• Place the end of this hose and the drain hose in a basin on the floor.
• Select the Drain programme let it run until the end of the cycle.
• Disconnect the appliance from the power supply by turning the program selector to "Stop".
• Unplug the appliance.
• Screw the inlet hose back on and replace the

drain hose.

This way, the water remaining in the hoses will be drained away, avoiding any ice formation which would damage your appliance.

Before turning your appliance on again, ensure that it is installed in an area where the temperature will not fall below freezing.

Use

• Your appliance is intended for normal domestic use. Do not use the appliance for commercial or industrial purposes or for any purpose other than the one it was designed for: washing, rinsing and spinning.
• Only wash items suitable for this treatment. Refer to the instructions on the label of each item.
• Do not put items into the washing machine which have had stains removed with petrol, alcohol, trichlorethylne etc. If such stain removers have been used, wait until the product has evaporated before putting these items into the drum.
• Your appliance has been designed for use by adults. Ensure children do not touch the appliance or use it as a toy.

Description of the appliance

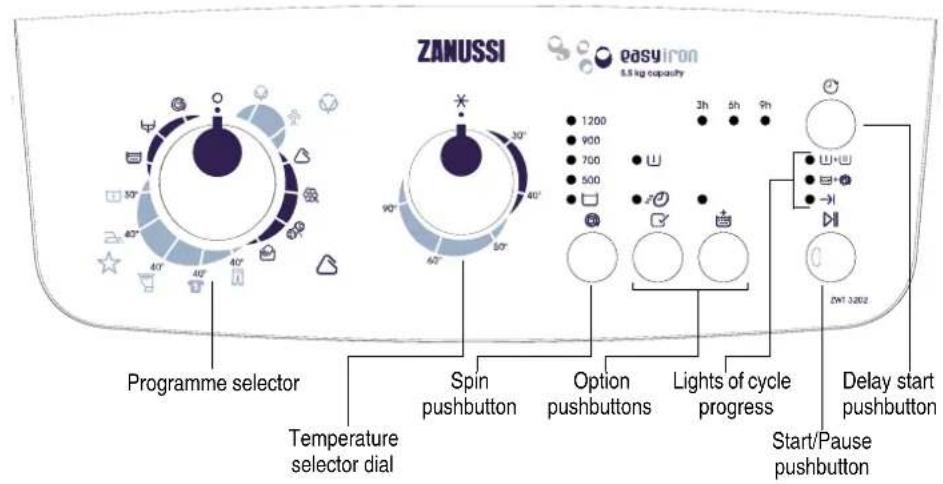

The control panel

ZANUSSI easy iron 6.5 kg capacity Programme selector Spin pushbutton Option pushbuttons Lights of cycle progress Delay start pushbutton Temperature selector dial Start/Pause pushbutton

Programme selector	• In the position, the machine is switched off.• In a another position, the machine is switched on and a programme is selected.
Temperature selector dial	• Selects the desired temperature.
Spin pushbutton	• Selects the desired spin speed or the options Rinse hold or Night cycle by repeatedly pressing the button.
Option pushbuttons	• Selects one or more options by repeatedly pressing the buttons.
Lights of cycle progress	• Indicates the phase of the programme in progress.
Start/Pause pushbutton	• To start the programme or pause it.
Delay start pushbutton	• Selects a delayed start by repeatedly pressing the button.

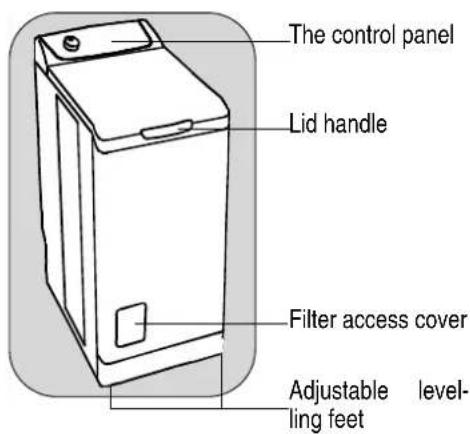

The control panel Lid handle Filter access cover Adjustable level- ling feet

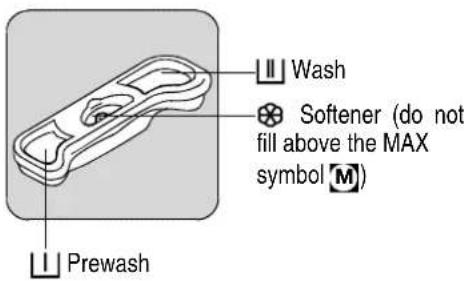

Dispenser box

Wash Softener (do not fill above the MAX symbol M) Prewash

Programmes table

Programme / Type of washing Load Possible options
Cottons: White or colour, e.g., normally soiled work clothes, bed linen, table linen, body linen, towels.	5,5 kg PrewashQuick**Rinse plus Rinse hold Delay start
Eco*: White or colour, e.g., normally soiled work clothes, bed linen, table linen, body linen, towels.	5,5 kg
Synthetics: Synthetic fabrics, body linen, coloured fabrics, non-iron shirts, blouses.	2,5 kg
Delicates: For all delicate materials, for example, curtains.	2,5 kg
Wool: Machine washable wool carrying the labels “pure new wool, machine washable, does not shrink”.	1,0 kg Rinse hold Delay start
Handwash: Very delicate items carrying the “wash by hand” label.	1,0 kg
Jeans: For washing denim clothes. The Rinse plus option is activated.	3,0 kg	Prewash Rinse hold Delay start
Intensive sport: For dirty outside sport clothes. The Prewash option is activated.	2,5 kg Rinse plus Rinse hold Delay start
Curtains: For washing curtains. Prewash option is activated.	2,5 kg
Easy iron: Reduces creasing and makes ironing easier.	1,0 kg	Prewash Rinse plus Rinse hold Delay start
Soak: Soaking for very dirty washing. The drum stops full of water.	5,5 kg	Delay start
Rinses: Hand washed items can be rinsed in this programme.	5,5 kg	Rinse plus Rinse hold Delay start
Drain: Runs an empty cycle after a Rinse hold or (Night Silence Plus).	5,5 kg
Spin: A spin cycle from 500 to 1200 rpm after a Rinse hold (or Night silence plus).	5,5 kg Delay start

* Reference programme for test conforming to CEI 456 standard (60° Eco programme).
** Cannot be used with Eco programmes.

How to run a wash cycle?

Using for the first time

IMPORTANT!

• Ensure the electrical and water connections comply with the installation instructions.
• Remove the polystyrene insert and all other items inside the drum.
• Run an initial wash cycle at 90^ , without any washing but with detergent to clean the water tank.

Daily use

Loading washing

• Open the lid of the appliance.
• Open the drum by depressing the locking button A: The two shutters unlock automatically.
• Load the washing, close the drum and the lid of your washing machine.

Diagram of a mechanical component with labeled section A (no text or symbols beyond label)

WARNING!

Before closing the lid of your appliance, ensure that the drum is properly closed :

• When the two shutters are closed,
• locking button A released.

Proportioning of detergents

Your washing machine has been designed to reduce your water and detergent consumption. You can therefore reduce the amounts recommended by detergent manufacturers.

Pour the amount of washing powder into the washing Li and prewash compartments if you have selected the "prewash" option. Pour fabric softener into the compartment if necessary.

If you use another detergent type, refer to the section "detergents and additives" in the washing guide.

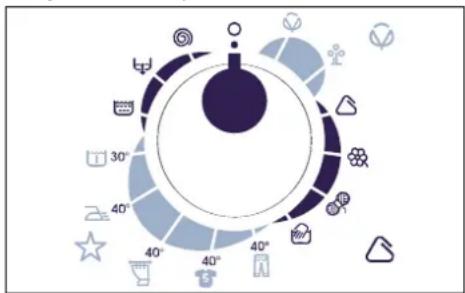

Selection of desired programme

You can find the right programme for different types of washing in the programme table (see "Programme table").

Turn the programme selector to the required programme. The "Start/Pause" ▷ pushbutton flashes green.

WARNING!

If you turn the programme selector to another programme while a cycle is in progress, the appliance will ignore the new selected programme. The "Start/Pause" ▷ pushbutton flashes red for a few seconds.

Selecting the temperature

Turn the temperature selector dial to the desired temperature. The symbol means a cold wash.

Selecting the spin speed

Press the «Spin» pushbutton to change the spin speed, if you want your washing to be spun at a different speed to the one selected by the appliance. You can also select «No spin», «Rinse hold» or «Night silence plus»*.

The maximum speeds are : for Cottons, Eco, Jeans : 1200 rpm, for Synthetics, Wool, Handwash,

Intensive sport, Easy iron : 900 rpm, pour Delicates, Curtains : 700 rpm.

At the end of the programme, if you have selected «Rinse hold» or «Night silence plus», you then need to select a «Spin» or «Drain» programme to finish the cycle.

«Rinse hold»

The washing machine will not drain the water from the last rinse, so will not crease the laundry.

Selecting options

Simple diagram with icons and symbols, no readable text or labels

You must select the different options after selecting the programme and before pressing the «Start/Pause» pushbutton (see Programme table). Press the desired but-

ton(s) ; the corresponding lights come on. If pressed again, the lights go out. If one of the options is not compatible with the selected programme, the «Start/Pause» ▷ pushbutton flashes red.

«Prewash» option Ⓤ

The appliance runs a prewash at 30^ C max. The prewash finishes with a short spin cycle for cotton or synthetic programmes, and with an empty cycle for delicates programmes.

«Quick» option =

The washing time will be reduced according to the programme selected.

«Rinse plus» option

The washing machine will add one or more rinses during the cycle. This option is recommended for people with sensitive skin and in soft water areas.

Temporary :

Press the «Rinse plus» 📋 pushbutton. The option is only active for the selected programme.

Permanent :

Hold down the «Option» and «Rinse plus» pushbuttons for a few seconds. The option is permanently activated, even if the appliance is switched off.

To deactivate it, repeat the process.

*depending on model

«Delay start»

This option allows you to delay the start of a wash programme by 3, 6 or 9 hours by pressing the «Delay start» Ⓤ pushbutton.

You can change or cancel the delayed start time at any time before you press the «Start/Pause»

▶ pushbutton, by pressing the «Delay start» ⏻ pushbutton again (when all indicators are off, the wash programme will start immediately).

If you have already pressed the «Start/Pause» ▶ pushbutton and you want to change or cancel the delayed start, proceed as follows :

• To cancel the delayed start and start the cycle immediately, press «Start/Pause» ▷ and then «Delay start» Ⓧ Press «Start/Pause» ▷ to start the cycle.
• To change the timer delay period, you must go through the «Off» oposition and reprogram your cycle.

WARNING!

The lid will be locked during the delayed start time. If you need to open it, you must first pause the appliance by pressing the «Start/Pause» ▷II pushbutton. After closing the lid again, press the «Start/Pause» ▷I pushbutton.

Start of the programme

Press the «Start/Pause» ▷ pushbutton to start the cycle; the corresponding light will come on green.

It is normal for the programme in stationary during the cycle.

selector to remain stationary during the cycle.

● 山+山
● +
● →

The light corresponding to the current cycle is illuminated.

+ : Prewash + Wash

+ : Rinse + Spin

→I : End of cycle

Interrupting a programme

Adding washing during the first 10 minutes

Press the «Start/Pause» ▷ pushbutton : the corresponding light will flash green while the appliance is paused. The lid can only be opened around 2 minutes after the washing machine has come to a stop. Press the «Start/Pause» ▷ pushbutton again to continue the programme.

Modifying the programme in progress

Before making any changes to the current programme, you need to pause the washing machine by pressing the «Start/Pause» plushbutton. If the modification is not possible, the «Start/Pause» plushbutton flashes red for a few seconds. If you still decide to change the programme, you must cancel the current programme (see below).

Cancelling the programme

If you want to cancel the programme, turn the programme selector to the «Off» position.

End of the programme

The washing machine stops automatically; the «Start/Pause» pushbutton goes out and the light «End» — comes on. The lid can only be opened around 2 minutes after the washing machine has come to a stop.

Turn the programme selector to the «Off» ○ position.

Remove washing

Unplug and close water inlet tap.

WARNING!

We recommend leaving the lid and drum open after use to ventilate the water tank.

ZANUSSI

Standby mode

If the appliance is on but no commands are selected for 10 min before or after a cycle, it goes into standby mode. All the lights go out and «Start/Pause» flashes slowly.

To exit standby mode, simply press any pushbutton or turn the programme selector.

Washing guide

IMPORTANT!

Sorting and preparing the washing

• Sort washing by type and care label (refer to International symbols section below): normal wash for tough fabrics which can withstand intense washing and spinning cycles; delicate wash for delicate fabrics which need to be treated with care. For mixed loads, loads with items of different types of material, choose a programme and a temperature suitable for the most fragile material.
• Wash whites and colours separately : Otherwise, whites will be coloured or will turn grey.
• New coloured clothes often contain excess dye. It is recommended to wash such items separately the first time. Follow care instructions "wash separately" and "wash separately several times".
  • Empty pockets and unfold items.
• Remove loose buttons, pins and fasteners. Close zip fasteners, tie ups laces and straps.
• Turn multilayered fabrics (sleeping bags, anoraks, etc.), coloured headwear, wool and material with printed designs inside out.
• Wash small fragile items (socks, tights, bras, etc) in a net bag.
  • Take special care with curtains. Remove hooks and place net curtains in a net or bag.

Wash loads depending on type of materials

The amount of washing placed in the drum must not exceed the maximum capacity of the washing machine. This capacity can vary depending on the type of materials. Reduce the quantity if washing is heavily soiled or made of absorbant material.

Not all textiles have the same volume in the drum or the same water absorption levels. In general, the drum must therefore be filled :

• to full capacity but avoiding excessive pressure on cotton, linen and cotton/linen mixtures,
  • to half capacity for processed cottons and synthetic fibres,
• to a third of its capacity for very fragile items such as net curtains and woollens.

For mixed loads, fill drum depending on most fragile materials.

Detergents and additives

Only use detergents and additives designed for use in a washing machine. Refer to manufacturer's recommendations and also Dispenser box and Using the right amount of detergent sections.

We do not recommend mixing different types of detergents. This may spoil the washing.

The amount of detergent to be used depends on the size of the load, the hardness of the water and how heavily soiled the washing is.

If the water is soft, reduce the amount slightly. If the water contains lime scale (a descaler is recommended) or if the washing is heavily soiled or stained, increase the amount slightly.

You can obtain information on the hardness level of water in your area by contacting your water company or other competent source.

There are no restrictions on the use of powder detergents.

Liquid detergents must not be used when a prewash has been selected. For cycles without prewash, they can be added either via means of a dosing ball, or in the detergent compartment. In either case, the wash cycle must be started immediately.

Detergent tablets or doses must be placed in the detergent compartment of your appliance's dispenser box.

For stain removal before a wash cycle, please refer to manufacturer's recommended amounts and instructions. If you use a detergent to

remove stains, the wash cycle must be started immediately.

International symbols

NORMAL WASH
	Wash at 95°C Wash at 60°C Wash at 40°C Wash at 30°C Hand wash Do not wash
DELICATE WASH
BLEACHING Whitewashing (bleach) allowed (cold only and in diluted solution)					No whitewashing (bleach)
IRONING High temperature (max 200°C)			Mid temperature (max 150°C)		Low temperature (max 100°C)			Do not iron
DRY CLEANING	Dry cleaning (all common solvents)		Dry cleaning (all common solvents except trichlorethylene		Dry cleaning (only oil-based solvents and R113)			Do not dry clean
						High temperature
						Mid temperature
DRYING Dry flat Hang dry Dry on clothes				hanger		Tumble drying permitted		Do not tumble dry

Care and cleaning

WARNING!

Unplug the appliance before cleaning.

Descaling the appliance

To descale the appliance, use an appropriate non-corrosive product designed for washing machines. Read product label for recommended amounts and how often descaling should be carried out.

The exterior

Use warm soapy water to clean the exterior of the appliance. Never use alcohol, solvents or similar products.

Dispenser box

To clean, proceed as follows :

1

Illustration of two hands holding a firearm, with arrows indicating movement (no text or symbols)

3

Illustration of a faucet spraying water onto a surface with a hand holding the valve (no text or symbols)

Illustration of two hands holding a tool, with arrows indicating movement or assembly (no text or symbols)

6

Drainage filter

Clean the filter located at the base of the appliance regularly :

Diagram showing hands using a tool to adjust or install a component, with a curved arrow indicating rotation or change.

Diagram showing a hand pouring liquid into a bowl with an arrow indicating rotation or flow direction

3

Illustration of a hand using a faucet to drain water from a sink (no text or symbols)

Illustration of a hand holding a device with a curved arrow indicating rotation (no text or symbols)

6

Illustration of a hand holding a rectangular object with an arrow indicating motion (no text or symbols)

Water inlet filters

To clean the 2 filters, proceed as follows :

Hand holding a mechanical component with threaded end (no text or symbols visible)

Illustration showing a hand holding a water tap and a close-up of the pipe with a magnified inset, labeled with number 2.

Operating problems

Numerous checks were carried out on your appliance before it left the factory. However, should you notice a malfunction, please refer to the sections below before contacting the after-sales service.

Problems Causes
The washing machine doesn't start or doesn't fill :	•the appliance isn't plugged in correctly, the electrical installation isn't working,•the lid of your appliance and the drum shutters aren't closed firmly,•the programme start command hasn't been properly selected,•there is a power failure,•the water supply has been cut off,•the water inlet tap is closed,•the water inlet filters are dirty,•a red tab appears on the water inlet hose.
The appliance fills but empties straight away :	•the drainage U-piece is fixed too low (see installation section).
The washing machine doesn't rinse or doesn't empty :	•the drain hose is blocked or bent,•the drainage filter is obstructed,•the out of balance detector has been activated : washing is unevenly distributed in the drum,•the “Drain” programme or “Night Silence Plus” or “Rinse hold” options have been selected,•the height of the drainage U-piece is unsuitable.
You have found water around the washing machine :	•too much detergent has caused foam to overflow,•the detergent is unsuitable for machine washing,•the drainage U-piece isn't attached correctly,•the drainage filter hasn't been put back in place,•the water inlet hose is leaking.
Wash is unsatisfactory : •the detergent is unsuitable for machine washing,•there is too much washing in the drum,•the wash cycle is unsuitable,•there isn't enough detergent.
The appliance vibrates, is noisy :	•the appliance hasn't been untied properly (see untying section),•the appliance isn't level and is unbalanced,•the appliance is too close to the wall or furniture,•washing is unevenly distributed in the drum,•the load is too small.
the wash cycle is much too long : •the water inlet filters are dirty,• the power or water supply has been cut off,• the motor overheating detector has been activated,• the water inlet temperature is lower than usual,• the foam detection security system has been activated (too much detergent) and the washing machine has begun draining the foam,• the out of balance detector has been activated : an extra phase has been added to distribute washing more evenly in the drum.
The washing machine stops during a wash cycle :	• the water or electricity supply is defective• a Rinse hold has been selected,• the drum shutters are open.
The lid doesn't open at the end of the cycle :	• the “immediate opening”* light is not lit,• the temperature inside the drum is too high,• the lid unlocks 1 - 2 minutes after the end of the cycle*.
The “Start/Pause” pushbutton** flashes red*** :	• the lid isn't closed properly.
The “Start/Pause” pushbutton** flashes red*** :	• the drainage filter is obstructed,• the drain hose is blocked or bent,• the drain hose is fixed too high (see “Installation” section).• the drainage pump is blocked,• the standpipe is blocked.
The “Start/Pause” pushbutton** flashes red*** :	• the water inlet tap is closed,• the water supply has been cut off.
Softener runs directly into the drum when filling the dispenser box :	• you have gone past the MAX indicator.

* Depending on model.
**On some models, the audible signals can sound.
*** After solving any problems, press the 'Start/Pause' pushbutton to restart the interrupted programme.

Technical specifications

DIMENSIONS Height	WidthDepth	850 mm400 mm600 mm
LINE VOLTAGE / FREQUENCY POWER CONSUMPTION		230 V / 50 Hz2300 W
WATER PRESSUREConnection to water supply	MinimumMaximum	0,05 MPa (0,5 bar)0,8 MPa (8 bar)Type 20x27
CE This appliance conforms to the CEE 89-336 directive concerning the limiting of radio-electric interference and the 2006/95/CE directive concerning electrical safety.

Consumption

Programme / Washing type Temperatures Average consumption**
	°C Litres kWh	Time
Cottons cold - 90 63 2,10 135-145
Eco* 40 - 90 63 1,80 140-150
Synthetics	cold - 60	45	0,80	85-95
Delicates	cold - 40	50	0,50	60-70
Wool	cold - 40	45	0,45	55-65
Handwash	cold - 40	45	0,45	55-65
Jeans	cold - 60	55	0,90	135-145
Intensive sport	cold - 40	50	0,70	95-105
Curtains	cold - 40	58	0,55	85-95
Easy iron	cold - 60	55	0,55	150-160
Soak	30	20	0,20	15-25
Rinses	-	32	0,05	50-60
Drain	-	-	0,002	0-10
Spin	-	-	0,015	10-20

* Reference programme for test conforming to CEI 456 standard (60° Eco programme) :
49 L / 0,93 kWh / 140 min
** Average figures which can vary depending on conditions of use.
Consumptions shown refer to the maximum temperature for each programme.

Environment

Disposing of the appliance

All materials carrying the symbol are recyclable. Dispose of them at a waste collection site (enquire at your local council) for collection a recycling.

When disposing of your appliance, remove a parts which could be dangerous to others: cut out the power supply cable at the base of the appliance.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Protecting the environment

To save water and energy and therefore help protect the environment, we recommend the following:

- Whenever possible, use the appliance at full capacity and avoid partial loads.

Only use the prewash and soak programmes for heavily soiled items.

- Use an appropriate amount of detergent for the hardness of the water (cf. section “Using the right amount of detergent”), the size of the sea-load and how soiled the washing is.

Installation

WARNING!

Remove all protective packaging for transit before using for the first time. Keep in case needed for future transit: Transporting a non-secured appliance may damage internal components and cause leakages and malfunctions. The appliance can also be damaged through physical contact.

7

3D mechanical part diagram with no visible text or symbols

Unpacking

1

Diagram of a 3D box with an arrow indicating rotation, no text or symbols present

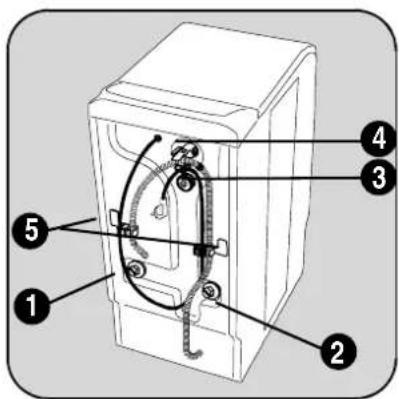

Untying

Diagram of a refrigerator internal structure with numbered labels pointing to components

3

4

Illustration of a hand using a tool to press or install a circular component with an arrow indicating motion (no text or symbols)

Illustration of a hand holding a small object with a black arrow pointing to it, next to a vehicle (no text or symbols)

5

6

Diagram showing a hand using a tool to press or rotate a circular component, labeled with number 2

Illustration of a hand holding a small object with a black arrow pointing downward (no text or symbols)

Diagram showing a hand inserting a spring into a door, with numbered label 3 indicating step number.

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

1 8

② 90°

Illustration of a hand inserting a small component into a door handle (no text or symbols)

Illustration of a hand holding a knob with a curved arrow indicating rotation (no text or symbols)

3

4

4 1 2 1

Illustration of various screw and nut components (no text or symbols)

Open the water inlet tap.

Check there are no leaks.

The water inlet hose can not be extended. If it is too short, please contact the after-sales service.

To install your washing machine at the same level as surrounding furniture, proceed as follows:

5

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Water supply

Install the supplied water inlet hose at the rear of your washing machine by proceeding as follows (Do not reuse an old hose):

Drainage

Diagram showing installation steps of a bathroom sink with bolts and rings, labeled with number 1

- The connector at the end of the flexible hose can be attached to all common types of standpipe.

Attach the connector to the standpipe with the hose clamp supplied

with the appliance*.

2 MIN 70 cm MAX 100 cm

- Fit the U-piece on the drainage hose.

Place everything in a drainage point (or in a sink) at a height of between 70 and 100 cm. Ensure it is positioned securely. Air must

be able to enter the end of the hose, to avoid any risk of siphoning.

WARNING!

The drain hose must never be stretched. If it is too short, contact a tradesperson.

Electrical connection

This washing machine must only be connected in single-phased 230 V.

Check the fuse size : 10 A for 230 V.

The appliance must not be connected with an extension lead or multi-plug adaptor.

Ensure that the plug is earthed and that it is in accordance with current norms.

Positioning

Position the appliance on a flat and hard surface in a ventilated location. Ensure the appliance does not come into contact with the wall or other furniture.

Accurate levelling avoids vibrations, noise and prevents the appliance from moving when running.

Diagram showing a hand holding a device with directional arrows indicating rotation or movement, labeled with number 1.

Illustration of hands performing a mechanical operation with rotating components (no text or symbols)

Warranty

Point of service

5506 Mägenwil/Zürich

Industriestr. 10

9000 St. Gallen

For each product we provide a two-year guarantee from the date of purchase or delivery to the consumer (with a guarantee certificate, invoice or sales receipt serving as proof).

The guarantee covers the costs of materials, labour and travel.

The guarantee will lapse if the operating instructions and conditions of use are not adhered to, if the product is incorrectly installed, or in the event of damage caused by external influences, force majeure, intervention by third parties or the use of non-genuine components.

ZANUSSI

www.electrolux.com
