Honor 7C - Phone HUAWEI - Free user manual and instructions
Find the device manual for free Honor 7C HUAWEI in PDF.
| Product Type | Smartphone |
| Brand | Huawei |
| Model | Honor 7C |
| Dimensions | 158.3 x 76.7 x 7.8 mm |
| Weight | 164 g |
| Display | 5.99 inch HD+ (1440 x 720 pixels) IPS LCD |
| Processor | Qualcomm Snapdragon 450 octa-core |
| RAM | 3 GB / 4 GB |
| Storage | 32 GB / 64 GB, expandable via microSD up to 256 GB |
| Rear Camera | 13 MP (f/2.2) + 2 MP depth sensor, LED flash |
| Front Camera | 8 MP (f/2.0) |
| Battery | 3000 mAh non-removable Li-Po |
| Charging | Micro USB 2.0, 5V/2A charging |
| Operating System | Android 8.0 (Oreo) with EMUI 8.0 |
| Connectivity | Wi-Fi 802.11 b/g/n, Bluetooth 4.2, GPS, 4G LTE |
| SIM | Dual SIM (Nano-SIM, dual stand-by) |
| Sensors | Fingerprint (rear-mounted), accelerometer, proximity, compass |
| Other Features | Face unlock, FM radio, 3.5mm headphone jack |
| Maintenance | Wipe with dry soft cloth; avoid moisture and extreme temperatures |
| Safety | Use only original charger and cables; do not disassemble; keep away from children |
| Parts & Repairability | Battery not user-replaceable; screen replacement possible at service center; spare parts available through Huawei services |
| General Information | Released April 2018; model number: AUM-L29; colors: Black, Gold, Blue |
Frequently Asked Questions - Honor 7C HUAWEI
User questions about Honor 7C HUAWEI
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Phone in PDF format for free! Find your manual Honor 7C - HUAWEI and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Honor 7C by HUAWEI.
USER MANUAL Honor 7C HUAWEI
English (United Kingdom).... 1
Українська....11
Русский 22

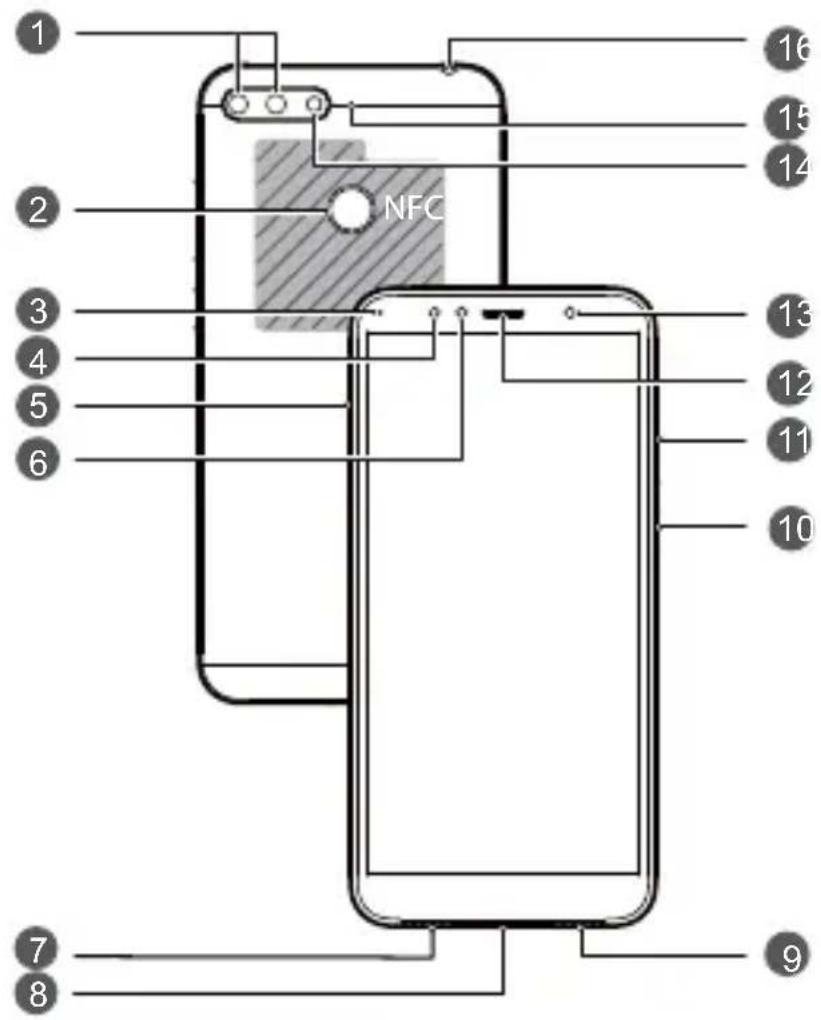

Your Device at a Glance
Before you start, let's take a look at your new device.
- To power on your device, press and hold the power button until the screen turns on.
- To power off your device, press and hold the power button, and then touch ⏻
- To restart your device, press and hold the power button, and then touch.
- Press and hold the power button for 10 or more seconds to forcibly restart your device.
| 1 | Dual-lens camera Fingerprint scanner |
| 3 | Status indicator Infrared sensor |
| 5 | Card tray Front camera |
| 7 | Primary microphone Micro-USB port |
| 9 | Speaker Power button |
| 11 | Volume button Earpiece |
| 13 | Smart SelfieButterflighting Flash | 14 | |
| 15 | Secondary microphone Headset jack | ||
Getting Started
- Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device.
- Be careful not to scratch your device or hurt yourself when using the eject pin.
- Store the eject pin out of the reach of children to prevent accidental swallowing or injury.
Do not use cut or modified SIM or microSD cards with your device as these may not be recognised and could damage the card tray (slot).

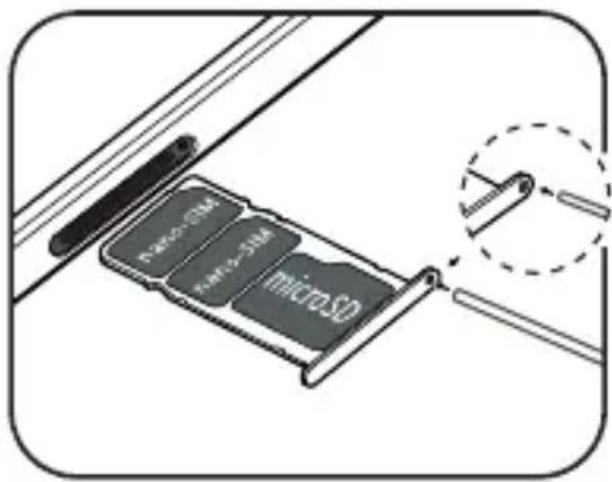

Follow the instructions in the following figures to set up your device. Please use the eject pin included.
Dual Card Dual Standby Single Pass
Your device supports only dual card dual standby single pass, which means you cannot use both SIM cards for calls or data services simultaneously.
- When you are on a call using SIM card 1, SIM card 2 cannot be used to make or answer calls. If someone calls SIM card 2, the caller will hear a voice message similar to "The subscriber you dialled is out of the service area" or "The subscriber you dialled cannot be connected for the moment, please try again later." The actual message will vary by service provider.
- When you are using SIM card 1's data service, SIM card 2's data service will be disabled.
Your device's single pass feature helps reduce power consumption and increase your device's standby time. It is not related to your service provider's network conditions.
You can go to Settings > Wireless & networks > Dual SIM settings, and enable Enable call forwarding between SIMs to avoid the conflicts mentioned above.
For More Information
If you encounter any problems whilst using your device, you can get help from the following resources:
- Go to Tips for function details and usage tips.
- Visit http://hihonor.com to view device information and other information.
- Visit http://consumer.huawei.com/en/support for the most up-to-date contact information for your country or region.
Go to Settings and touch System > About phone > Legal to view legal information for your product.
Go to Settings and touch System > About phone > Legal > Safety information to view safety information for your product.
Go to Settings and touch System > About phone > Authentication info to view regulatory information for your product.
All pictures and illustrations in this guide, including but not limited to the device colour, size, and display content, are for your reference only. The actual device may vary. Nothing in this guide constitutes a warranty of any kind, express or implied.
Safety Information
Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly.
Operation and Safety
- To prevent possible hearing damage, do not listen at high volume levels for long periods.
- Using an unapproved or incompatible power adapter, charger or battery may damage your device, shorten its lifespan or cause a fire, explosion or other hazards.
- Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C.
- Pacemaker manufacturers recommend maintaining a minimum distance of 15 cm between a pacemaker and a wireless device to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket.
- Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves or radiators.
- Adhere to local laws and regulations while using the device. To reduce the risk of accidents, do not use your device while driving.
- While flying in an aircraft or immediately before boarding, ensure that you use your device according to the instructions provided. Using a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operations or be illegal under law.
- To prevent damage to your device's parts or internal circuits, do not use it in dusty, smoky, damp or dirty environments or near magnetic fields.
- When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible.
- Unplug the charger from the electric socket and from the device when not in use.
- Do not use, store or transport the device where flammables or explosives are stored (e.g. in a petrol station, oil depot or
chemical plant). Using your device in these environments increases the risk of explosion or fire.
- Dispose of this device, the battery and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion or other hazards.
Disposal and recycling information
The crossed-out wheelie bin symbol on your product, battery, literature or packaging reminds you that all electronic products and batteries must be taken to separate waste collection points at the end of their working lives; they must not be disposed of in normal household waste. It is the responsibility of the user to dispose of the equipment using a designated collection point or service for separate recycling of waste electrical and electronic equipment (WEEE) and batteries according to local laws.
Proper collection and recycling of your equipment helps ensure EEE waste is recycled in a manner that conserves valuable materials and protects human health and the environment. Improper handling, accidental breakage, damage, and/or improper recycling at the end of its life may be harmful for your health and the environment. For more information about where and how to drop off your EEE waste, please contact your local authorities, retailer or household waste disposal service or visit the website http://consumer.huawei.com/en/.
Reduction of hazardous substances
This device and any electrical accessories are compliant with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH, RoHS and Batteries (where included) regulations, etc. For declarations of conformity about REACH and RoHS, please visit our web site http://consumer.huawei.com/certification.
EU Regulatory Conformance
Body worn operation
The device complies with RF specifications when used near your ear or at a distance of 0.50 cm from your body. Ensure that the device accessories, such as a device case and device
holster, are not composed of metal components. Keep the device away from your body to meet the distance requirement.
The highest SAR value reported for this device type when tested at the ear is
AUM-L41 0.31 W/kg
And when properly worn on the body is
AUM-L41 0.90 W/kg
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.
The most recent and valid version of the DoC (Declaration of Conformity) can be viewed at http://consumer.huawei.com/certification.
This device may be operated in all member states of the EU. Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within a radius of 20 km from the centre of Ny-Ålesund.
Frequency Bands and Power
(a) Frequency bands in which the radio equipment operates:
Some bands may not be available in all countries or all areas. Please contact the local network provider for more details.
(b) Maximum radio-frequency power transmitted in the frequency bands in which the radio equipment operates: The maximum power for all bands is less than the highest limit value specified in the related Harmonised Standard.
The frequency bands and transmitting power (radiated and/or conducted) nominal limits applicable to this radio equipment are as follows:
AUM-L41
GSM900:37dBm, GSM1800:34dBm, WCDMA900/2100:25.7dBm, LTE Band 1/3/7/8/20/40:25.7dBm, Wi-Fi 2.4G: 20dBm, Bluetooth: 20dBm, NFC: 60 dBuA/m at 10m
Accessories and Software Information
Some accessories are optional in certain countries or regions. Optional accessories can be purchased from a licenced vendor as required. The following accessories are recommended:
Adapters: HW-050100X01 (X represents the different plug types used, which can be either C, U, J, E, B, A, I, R, Z or K, depending on your region)
Batteries: HB366481ECW-11
Earphones: 1293-3283-3.5MM-300, MEMD1532B528A00, HA1-3W, EPAB542-2WH03-DH, 1293#+3283# 3.5MM-150, HA1-3, MEMD1532B528000
The product software version is AUM-L41: AUM-L41
5.0.1.32(C900log). Software updates will be released by the manufacturer to fix bugs or enhance functions after the product has been released. All software versions released by the manufacturer have been verified and are still compliant with the related rules.
All RF parameters (for example, frequency range and output power) are not accessible to the user, and cannot be changed by the user.
For the most recent information about accessories and software, please see the DoC (Declaration of Conformity) at http://consumer.huawei.com/certification.
Legal Notice
Trademarks and Permissions
honor, HUAWEI and are trademarks
or registered trademarks of Huawei Technologies Co., Ltd.
Android™ is a trademark of Google Inc.
LTE is a trade mark of ETSI.
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license.
Wi-Fi®, the Wi-Fi CERTIFIED logo and the Wi-Fi logo are trademarks of Wi-Fi Alliance.
Privacy Policy
To better understand how we protect your personal information, please see the privacy policy at http://consumer.huawei.com/privacy-policy.
Copyright © Huawei Technologies Co., Ltd.
2018. All rights reserved.
THIS DOCUMENT IS FOR INFORMATION PURPOSE ONLY, AND DOES NOT CONSTITUTE ANY KIND OF WARRANTIES.
https://consumer.huawei.com/certification.
Русский
(Huawei Technologies Company Limited, Administration Building, Huawei Technologies Company Limited, Bantian, Longgang District, Shenzhen, 518129, Китай)
Тел.: +86-755-28780808
Administration Building, Huawei Technologies Company Limited, Bantian, Longgang District, Shenzhen, 518129, Китай
Тел.: +86-755-28780808
Copyright © Huawei Technologies Co., Ltd.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
