EKP502 - Kettle BLAUPUNKT - Free user manual and instructions

Product Type	Electric Kettle
Brand	Blaupunkt
Model	EKP502
Capacity	1.7 L (Max), 0.5 L (Min)
Voltage	220-240 V ~ 50-60 Hz
Power	1850-2200 W
Dimensions (Approx.)	Height: 25 cm, Diameter: 15 cm
Weight (Approx.)	1.0 kg
Control Type	ON/OFF switch with indicator lamp
Automatic Shut-Off	Yes, when water reaches boiling point
Boil-Dry Protection	Built-in safety feature
Base	360° rotating base for easy placement
Lid	Hinged lid with push-button opening
Handle	Ergonomic handle for safe pouring
Filter	Removable scale filter (recommended to use during operation)
Material	Housing: Plastic, Inner: Stainless steel
Cord Length	Approx. 0.75 m
Cleaning	Wipe with damp cloth; descale regularly with descaling agents or citric acid
Safety Features	Auto shut-off, boil-dry protection, overheat protection, child lock (if applicable) - not specified
Only Use With	Provided base; do not use with other bases
Intended Use	Domestic use only; for boiling water

Frequently Asked Questions - EKP502 BLAUPUNKT

What is the maximum capacity of the Blaupunkt EKP502 kettle?

The kettle has a maximum capacity of 1.7 liters and a minimum capacity of 0.5 liters. Do not fill above the MAX mark or below the MIN mark.

How do I descale the kettle?

Regular descaling is necessary to remove limestone deposits. Use a descaling mixture available in household stores, or apply citric acid. After descaling, rinse the kettle thoroughly three times. Descaling is not covered under warranty.

Can I boil liquids other than water in the kettle?

No, the kettle is designed only for boiling water. Do not use it to warm any other liquids, as this may damage the appliance and pose safety risks.

What should I do if the kettle does not turn on?

Ensure the kettle is properly seated on the base and the power cord is connected. If the kettle is still hot after use, the automatic shut-off function may prevent it from switching on until it cools down. Wait at least 5 minutes before attempting to use it again.

Is the kettle safe to use with children around?

Children aged 8 years and above can use the kettle under supervision. Keep the kettle out of reach of children and pets. Never leave the kettle unattended while in use, and ensure children do not play with the device.

What is the power consumption of the EKP502?

The kettle operates at 220-240 V, 50-60 Hz, with a power rating of 1850-2200 W. Check that your electrical circuit can handle the load when used with other appliances.

How do I clean the kettle exterior?

Unplug the kettle and let it cool completely. Wipe the exterior with a damp cloth. Do not use aggressive detergents or abrasive materials, as they may damage the surface or remove markings. Do not immerse the base or kettle in water.

What does the indicator lamp mean?

The indicator lamp lights up when the kettle is turned on and heating. It will turn off automatically when the water reaches a boil or when you switch off the kettle manually.

Can I use the kettle without the lid closed?

No, you must always use the kettle with the lid closed. Operating with the lid open will prevent the automatic steam shut-off from working, which could cause overheating or burns.

Where can I get spare parts or service for my Blaupunkt kettle?

For spare parts or repairs, contact Blaupunkt service in Poland at tel. [phone] or email [e-mail]. Only use original accessories recommended by the manufacturer.

USER MANUAL EKP502 BLAUPUNKT

White Kriga water heater with 'BLAUPUNKT' branding and digital display (no visible text or symbols on the device itself)

Enjoy it.

Electric kettle Wasserkocher Czajnik elektryczny Rychlovarná konvice Rýchlovarná kanvica Vízforraló Električni grelnik

Električno kuhalo Нлектрикός браστήρας Електрическа кана Ceainic electric Elektrinis virdulys Elektrikann

IMPORTANT NOTES

• To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product.

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an earthed socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards. Make sure the cable is grounded, 3-cores with a socket and an earth cable.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull

the cable as it may cause damage to the plug or power cord. Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment. Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage. If the power cable is damaged the product should be taken

to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it. All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

• If the kettle is overfilled it may spurt during boiling water.

- WARNING: Do not open the lid if the water is boiling.

- The kettle must be used only with the provided base.

- Before lifting the kettle from the base make sure that the kettle is turned off.

- This equipment is intended for domestic and similar use, such as: staff kitchens in stores, offices and other work environments, utility rooms, by customers in hotels, motels and other residential environments of this type, in bedrooms and dining rooms. In case it is used for business purposes, the warranty conditions shall change.

• Always use caution when boiling water in the kettle. Do not touch the lid or housing of kettle. Do not open the lid during boiling or immediately after boiling. Steam coming out from kettle may cause burns and scalds.

- Move the kettle only by holding it by handle.

- Never fill kettle above MAX level and below MIN level. It may cause damage of kettle.

- Never switch kettle on without water.

- Never use kettle without filter or with open lid (automatic steam shutdown will not work).

- CAUSION: Regularly limestone sediment removal is necessary from the kettle's inside. Sediment may cause overheating of the kettle, shorten life cycle and cancel guarantee. Use mixings available in household stores or apply citric acid.

- Do not use aggressive detergents to wash the kettle body - they can damage the kettle or remove the markings.

- Do not wash the base of the kettle directly in the water.

- Do not use electric kettle to warm any other liquids than water.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Capacity max: 1,7L; Min: 0,5L

Voltage: 220-240V\~50-60Hz

Power: 1850-2200W

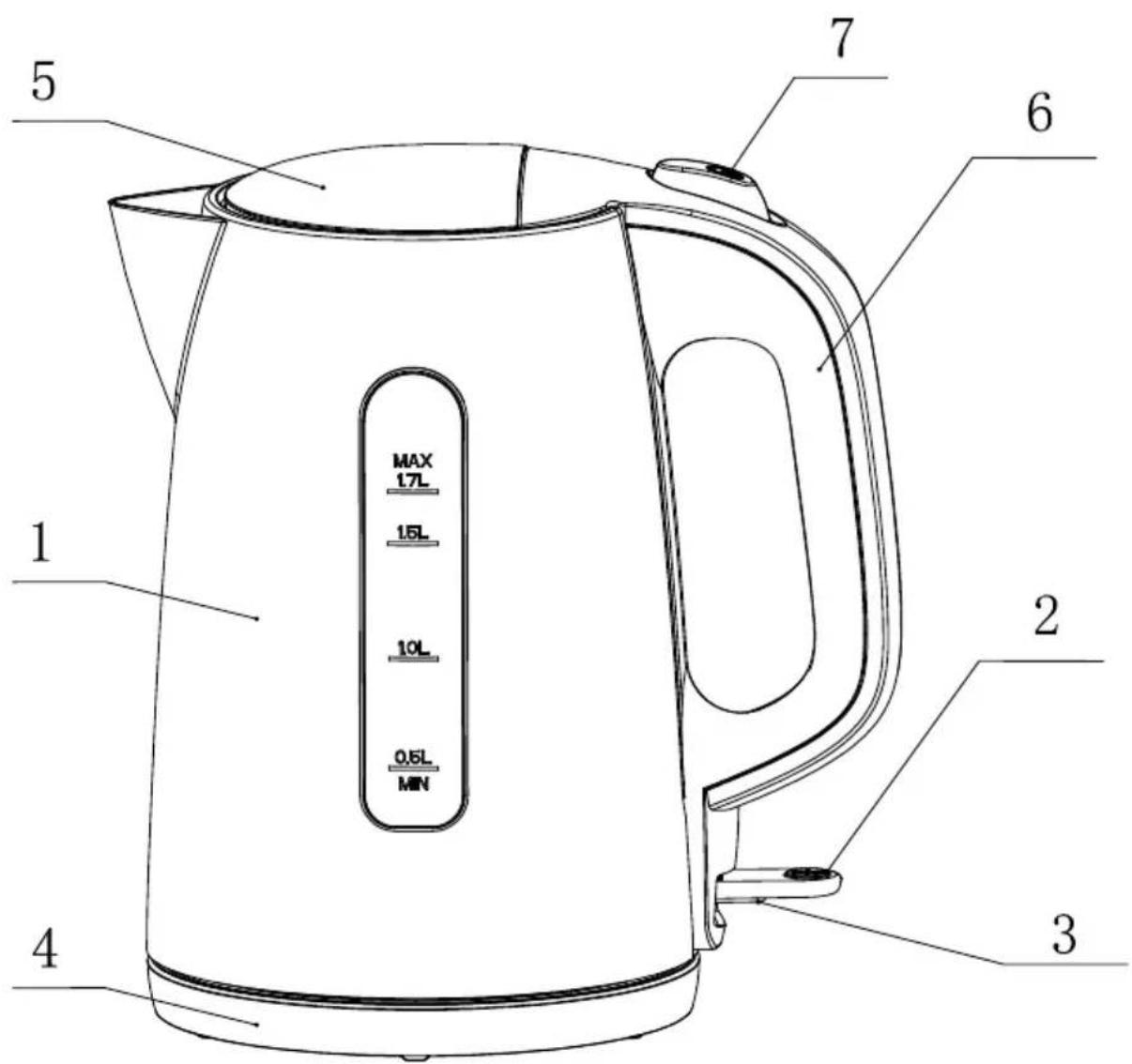

1. body
2. ON / OFF switch
3. indicator lamp

4. rotating base

5. the lid

6. handle

7. lid opening button

BEFORE FIRST USE

Fill up the kettle with water to max level.

Boil the water according to USING THE ELECTRIC KETTLE chapter.

Pour out the water.

Repeat four times.

To remove possible scent of manufacturing, please boil water few times.

ADVICE: Various deposits (rusty, milky, etc.) may form inside the kettle and float on the water. This is caused by minerals occurring naturally in the water (like calcium, magnesium, iron). In case of accumulation of the deposits clean the kettle according to CLEANING AND MAINTENANCE chapter.

USING THE ELECTRIC KETTLE

1. Fill the kettle with water. Make sure that water level is between MIN and MAX marking.
2. The appliance should be placed on the even and heat resistant surface, plugged to the mains.
3. Press ON/OFF switch. Indicator lamp will light.
4. The kettle will automatically switch off when water boils.
5. The kettle can manually be switched off in any time by ON/OFF switch.
   ADVICE: Automatic shutdown function may prevent to switch on kettle, if the kettle not cool down. It is recommended to wait more than 5 minutes before next use.

CLEANING AND MAINTENANCE

Before cleaning, be sure that device is not connected to the mains and it has completely cool down.

For cleaning, use a damp cloth. Do not use any harsh solvents and materials.

Regularly descale the kettle. Use descaling mixture to remove the limestone from the kettle. After descaling kettle should be rinsed very carefully three times.

Descaling doesn't belong to warranty service.

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
