Product Type	Desk Fan
Model	ATF301
Brand	Blaupunkt
Power Supply	220-240V~50Hz
Power Consumption	30W max; 19.5W fan power input; 0.006W standby
Maximum Airflow	14.33 m³/min
Maximum Air Velocity	1.96 m/s
Service Value	0.73 (m³/min)/W
Sound Power Level	47.662 dB(A)
Speed Settings	3 (Low, Medium, High)
Oscillation	Yes, press oscillation lock to enable/disable
Vertical Tilt Adjustment	Yes, manual adjustment
Control Type	Push buttons on control panel
Blade Material	Plastic (common)
Grille Material	Metal mesh
Assembly	Requires assembly; instructions in manual
Cleaning	Wipe with dry cloth; blow out or vacuum interior
Safety Features	Safety grilles, overheat protection (implied by motor housing grilles), CE certified
Intended Use	Domestic indoor use only
Warranty	Contact manufacturer for details

Frequently Asked Questions - ATF301 BLAUPUNKT

How do I assemble the Blaupunkt ATF301 fan?

Ensure the fan is unplugged. First, attach the back grille to the motor base, aligning the notches. Then slide the fan blade onto the motor shaft stem. Finally, attach the front grille by hooking it onto the back grille and tightening the fixing screw. Refer to the manual for diagrams.

How do I clean the fan?

Disconnect the fan from power before cleaning. Wipe the body and base with a dry cloth. Clean the interior (blades and motor area) using compressed air or a vacuum cleaner with a brush attachment. Do not use water or liquids.

Can I use the fan in a bathroom or outdoor area?

No, the fan is for indoor domestic use only. Do not use in high humidity areas like bathrooms, or expose to rain or direct sunlight. This can cause electric shock or damage.

What should I do if the fan makes unusual noise?

First, ensure the fan is on a stable surface. Check that all parts are properly assembled and the grille screws are tight. Clean the blades and grille from dust buildup. If noise persists, contact customer service; do not attempt to repair yourself.

How do I adjust the tilt or oscillation?

To adjust the vertical tilt, firmly hold the fan base and tilt the motor body to the desired angle. To enable oscillation, press the oscillation lock down. Pull it up to disable oscillation.

What is the maximum airflow and power consumption?

The maximum airflow is 14.33 m³/min. The fan power input is 19.5W with a maximum power of 30W. Standby power consumption is only 0.006W.

Is the fan safe for use around children?

Children aged 8 years and older can use the fan under adult supervision. Do not allow children to play with the fan or perform cleaning/maintenance without supervision. Keep the fan out of reach of very young children.

What should I do if the power cord is damaged?

If the power cord is damaged, stop using the fan immediately. Do not attempt to repair it yourself. Take the fan to a professional service center for repair or replacement to avoid electrical hazards.

How should I store the fan when not in use?

Disconnect and clean the fan. Store it in a cool, dry place away from direct sunlight and moisture. Keep the original packaging if possible. Do not place heavy objects on top.

Does the fan have a remote control or timer?

No, the fan is not designed to be controlled by an external timer, remote, or automatic switch. It uses manual push buttons on the control panel only.

USER MANUAL ATF301 BLAUPUNKT

White electric fan with mesh grille and base, no visible text or symbols

Enjoy it.

Desk fan

Schreibtisch-Lüfter Wentylator biurkowy Stolní ventilátor Stolný ventilátor asztali ventilátor Namizni ventilator

Stolni ventilator

Ανεμιστήρας γραφείου Настолен вентилатор Ventilator de birou Stalinis ventiliatorius Lauaventilaator

Efficiency information

ATF301
Description	Symbol	Value	Unit
Maximum fan flow rate	F	14,33	m3/min
Fan power input	P	19,50	W
Service value	SV	0,73	(m3/min)/W
Standby power consumption	PSB	0,006	W
Fan sound power level	LWA	47,662	dB(A)
Maximum air velocity	C	1,96	meters/sec
Measurement standard for service value	EN 50564: 2011IEC 60879: 1986EN 60704-2-7: 1998
Contact details for obtaining more information	2N-Everpol Sp. z o.o.ul. Puławska 403A02-801 Warsaw, Polandphone: [phone]e-mail: [e-mail]

Important notes

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

• Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

- The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not

work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Do not block the airflow or cover the device.
• Regularly clean the fan of dust so that dirt does not block the air flow.
• Do not insert any objects between the machine's protective grilles.
• Do not use the fan in rooms with high humidity, such as bathrooms, etc. Do not place the fan in places where it could fall into a bathtub, wash basin or other water tank.
• Never use the fan without the fan grilles installed.
• Do not turn on the fan if it is not assembled properly, particularly when fan grilles are not installed.
• Do not place the fan near curtains or other objects that can get accidentally caught by the fan.

CE

Device is compliant with EU directives:

• Low voltage directive (LVD)
• Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Power: 30W

Power supply: 220-240V\~50Hz

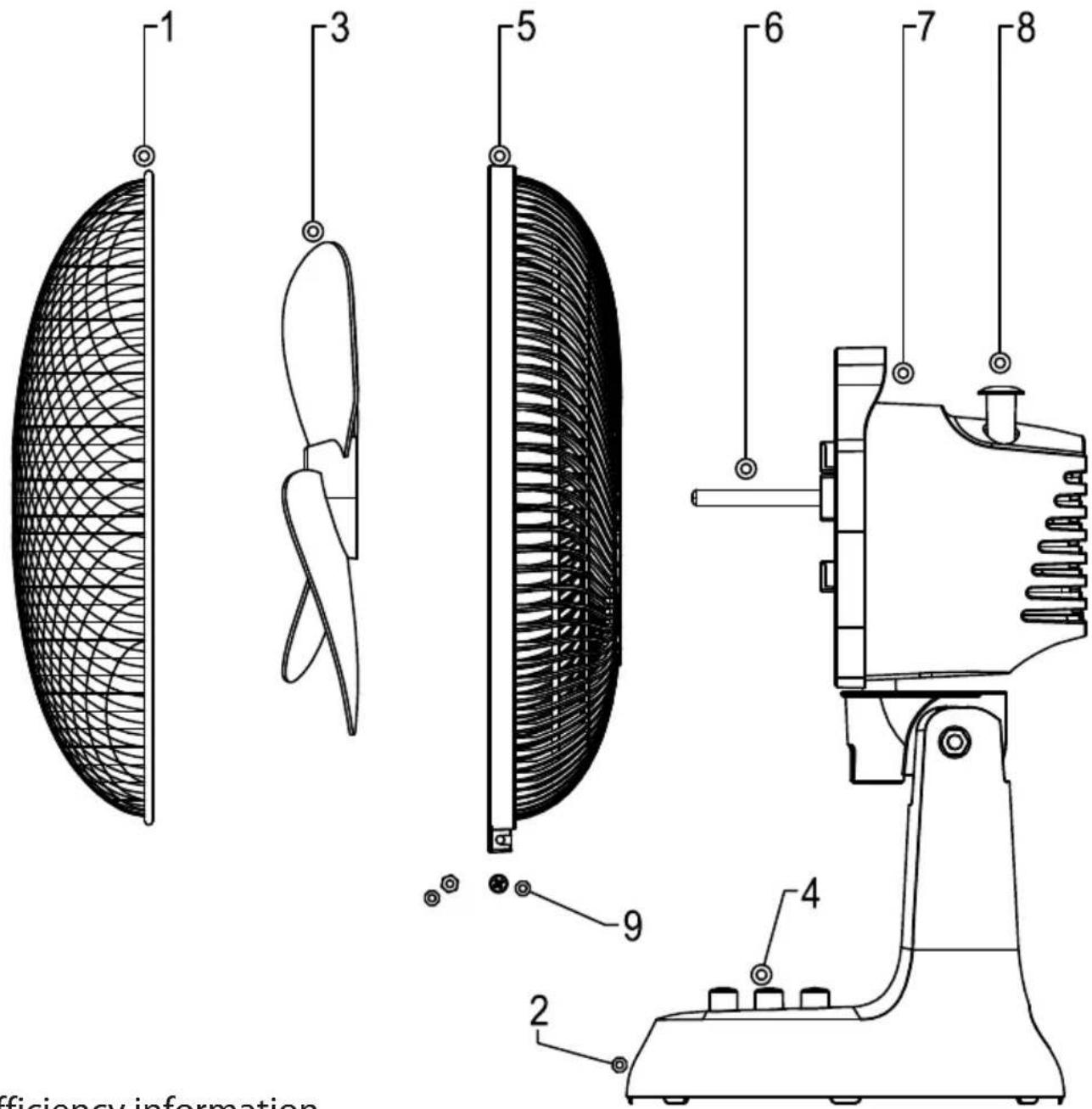

1. Front fan grille
2. Base
3. Fan blade
4. Control panel with buttons

5. Back grille

6. Motor shaft stem

7. Motor housing
8. Oscillation lock
9. Grille fixing screw

APPLIANCE ASSEMBLY AND DISASSEMBLY

1. Make sure the appliance is disconnected from the power source.

2. Assembly:

a) Put the back grille (5) on the motor base (pay attention to the notches).
b) Put on the fan blade (3) paying attention to the notch in the stem (6) and the fan blade opening.
c) Install the fan's front grille (1) by fitting the edge into the hooks on the back grille. Then secure by tightening the grille's fixing screw (9).

1. Disassembly:

a) Perform the disassembly in the reverse order of the assembly procedure.

FAN OPERATION

1. Before connecting the fan to the power supply, make sure that the button on the control panel is set to 0. Connect the appliance to the power supply.
2. To start the fan, press one of the buttons on the control panel:

1 - low speed
2 - medium speed
3 - high speed
3. To turn off the fan, press the 0 button on the control panel.
4. Oscillation. To enable the fan's oscillation movement, press the oscillation lock. To disable the fan's oscillation movement, lift the oscillation lock.
5. Vertical tilt adjustment. To change the fan tilt, hold the appliance in position and tilt the motor body.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, make sure that the fan has been disconnected from the power source.

The fan should be cleaned regularly. Body, posture should be wiped with a dry cloth. The interior should be blown out with compressed air or vacuumed with a vacuum cleaner.

Electromagnetic compatibility (EMC)

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
