Product Type	Fan
Brand	Blaupunkt
Model	ATF401
Dimensions (H x W x D)	45 cm x 30 cm x 30 cm
Weight	2.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	50 W
Number of Speed Settings	3
Oscillation	Yes, 90°
Adjustable Tilt	Yes
Remote Control	No
Timer Function	Yes, up to 7.5 hours
Material	Plastic and metal
Blade Diameter	40 cm
Noise Level	< 60 dB
Safety Features	Overheat protection, tip-over switch
Cleaning and Maintenance	Wipe with a soft damp cloth; do not immerse in water
Spare Parts Availability	Yes, blades and grille available
Repairability Index	Not rated

Frequently Asked Questions - ATF401 BLAUPUNKT

How do I assemble the Blaupunkt ATF401 fan?

To assemble, attach the front and rear grilles to the motor housing, then mount the blade assembly. Refer to the user manual for detailed steps.

How can I clean the fan?

Unplug the fan and wipe the grilles and blades with a soft damp cloth. Do not use abrasive cleaners or immerse in water.

What should I do if the fan does not start?

Check that the power cord is plugged in securely, and ensure the overheat protection has not tripped. If it still does not start, contact customer support.

Can I use the fan outdoors?

No, the Blaupunkt ATF401 is designed for indoor use only. Exposure to moisture may damage the fan.

How do I set the timer?

Press the timer button repeatedly to select a delay of up to 7.5 hours. The fan will automatically turn off after the set time.

Is the fan noisy?

The fan operates at a noise level below 60 dB, which is similar to a quiet conversation.

How do I adjust the tilt?

Loosen the tilt adjustment knob on the head, tilt the fan to your desired angle, then tighten the knob securely.

What is the warranty period?

The Blaupunkt ATF401 typically comes with a 2-year warranty. Check your purchase receipt for details.

Where can I find the user manual?

The user manual is available for download in PDF format from the notice-facile.com website.

Can I replace the blade myself?

Yes, replacement blades are available. Follow the instructions in the manual to safely replace the blade assembly.

USER MANUAL ATF401 BLAUPUNKT

White electric fan with mesh grille and base, no visible text or symbols

Enjoy it.

Desk fan

Schreibtisch-Lüfter Wentylator biurkowy Stolní ventilátor Stolný ventilátor asztali ventilátor Namizni ventilator

Stolni ventilator

Ανεμιστήρας γραφείου Настолен вентилатор Ventilator de birou Stalinis ventiliatorius Lauaventilaator

Simple line drawing of a device casing with a handle and label '11' (no text or symbols on the diagram itself)

Efficiency information

ATF401
Description	Symbol	Value	Unit
Maximum fan flow rate	F	28,86	m3/min
Fan power input	P	39,20	W
Service value	SV	0,74	(m3/min)/W
Standby power consumption	PSB	0,006	W
Fan sound power level	LWA	50,681	dB(A)
Maximum air velocity	C	2,024	meters/sec
Measurement standard for service value	EN 50564: 2011IEC 60879: 1986EN 60704-2-7: 1998
Contact details for obtaining more information	2N-Everpol Sp. z o.o.ul. Puławska 403A02-801 Warsaw, Polandphone: [phone]e-mail: [e-mail]

Important notes

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

- Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

• Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not

work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Do not block the airflow or cover the device.
• Regularly clean the fan of dust so that dirt does not block the air flow.
• Do not insert any objects between the machine's protective grilles.
• Do not use the fan in rooms with high humidity, such as bathrooms, etc. Do not place the fan in places where it could fall into a bathtub, wash basin or other water tank.
• Never use the fan without the fan grilles installed.
• Do not turn on the fan if it is not assembled properly, particularly when fan grilles are not installed.
• Do not place the fan near curtains or other objects that can get accidentally caught by the fan.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Power: 45W

Power supply: 220-240V\~50Hz

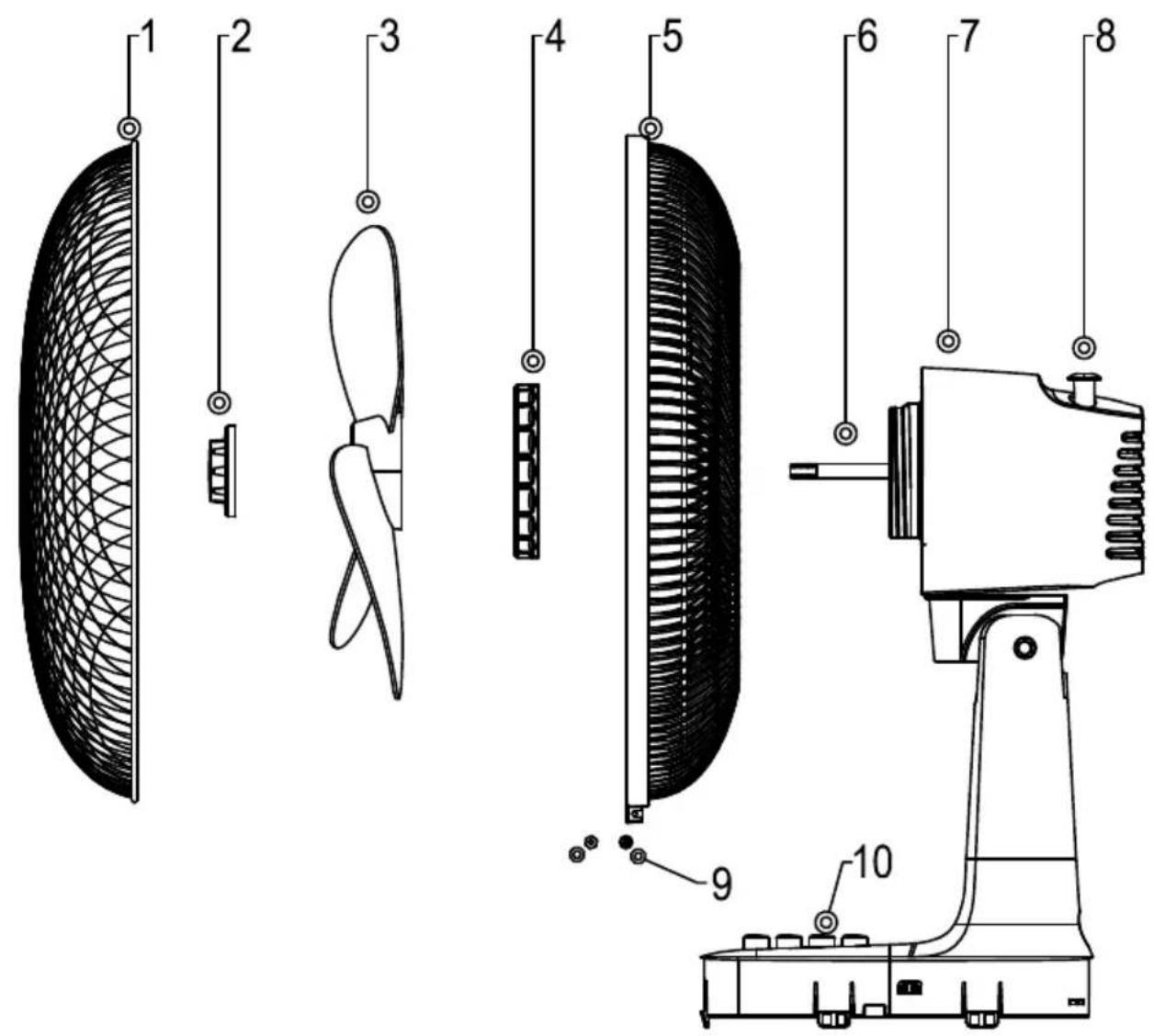

1. Front fan grille
2. Fan blade nut
3. Fan blade
4. Back grille fixing nut
5. Back grille

6. Motor shaft stem

7. Motor housing

8. Oscillation lock
9. Grille fixing screw
10. Control panel with buttons
11. Base

APPLIANCE ASSEMBLY AND DISASSEMBLY

1. Make sure the appliance is disconnected from the power source.
2. Assembly:
   a) Place the motor body (7) in the base (11).
   b) Put the back grille (5) on the motor base (pay attention to the notches).
   c) Screw on the back grille fixing nut (4).
   d) Put on the fan blade (3) paying attention to the notch in the stem (6) and the fan blade opening.
   f) Tighten the fan blade fixing nut (2)
   g) Install the fan's front grille (1) by fitting the edge into the hooks on the back grille. Then secure by tightening the grille's fixing screw (9).
3. Disassembly:
   a) Perform the disassembly in the reverse order of the assembly procedure.

FAN OPERATION

1. Before connecting the fan to the power supply, make sure that the button on the control panel is set to 0. Connect the appliance to the power supply.
2. To start the fan, press one of the buttons on the control panel:

1 - low speed
2 - medium speed
3 - high speed
3. To turn off the fan, press the 0 button on the control panel.
4. Oscillation. To enable the fan's oscillation movement, press the oscillation lock. To disable the fan's oscillation movement, lift the oscillation lock.
5. Vertical tilt adjustment. To change the fan tilt, hold the appliance in position and tilt the motor body.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, make sure that the fan has been disconnected from the power source.

The fan should be cleaned regularly. Body, posture should be wiped with a dry cloth. The interior should be blown out with compressed air or vacuumed with a vacuum cleaner.

Electromagnetic compatibility (EMC)

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]
