Product Type	Desk fan
Model	ATF501
Brand	Blaupunkt
Power Supply	220-240 V ~ 50 Hz
Power Consumption	55 W
Maximum Airflow	57.1 m³/min
Fan Sound Power Level	53.8 dB(A)
Service Value	1.05 (m³/min)/W
Standby Power Consumption	0.006 W
Maximum Air Velocity	2.11 m/s
Number of Speed Settings	3 (low, medium, high)
Oscillation	Yes, with oscillation lock
Tilt Adjustment	Vertical tilt adjustment
Control Panel	Buttons (0, 1, 2, 3)
Cleaning	Wipe body with dry cloth; blow out interior with compressed air or vacuum
Safety Features	Overheat protection; safety grille; auto shut-off if tipped? (not specified, but typical)
Assembly Required	Yes, user assembly of grille, blade, base
Compliance	CE, RoHS, LVD, EMC
Contact for Support	2N-Everpol Sp. z o.o., phone: [phone], email: [e-mail]

Frequently Asked Questions - ATF501 BLAUPUNKT

How do I assemble the Blaupunkt ATF501 fan?

Ensure the fan is unplugged. Place the motor body in the base, attach the back grille and secure with the fixing nut, then install the fan blade using the blade fixing nut, and finally attach the front grille by hooking it into the back grille and tightening the grille screw.

How do I clean the fan?

Disconnect the fan from power. Wipe the body and stand with a dry cloth. For the interior, use compressed air or a vacuum cleaner to remove dust. Do not use water or liquid cleaners.

What are the speed settings?

The fan has three speed settings: 1 (low), 2 (medium), and 3 (high). Press the corresponding button on the control panel to select the desired speed. Press 0 to turn off.

How do I enable oscillation?

To enable oscillation, press the oscillation lock button. To disable, lift the oscillation lock up. The fan will then oscillate left and right.

Can I tilt the fan?

Yes, the fan head can be tilted vertically. Hold the motor body and gently tilt it to the desired angle.

What is the power consumption?

The fan consumes 55 W during operation and only 0.006 W in standby mode.

Is the fan safe to leave unattended?

It is not recommended to leave the fan unattended while operating. Always unplug when not in use. Keep away from children and pets.

What is the maximum airflow?

The maximum airflow is 57.1 m³/min, with a maximum air velocity of 2.11 m/s.

How noisy is the fan?

The fan sound power level is 53.8 dB(A), which is relatively quiet for a desk fan.

What should I do if the fan stops working?

Check the power connection and ensure the fuse hasn't blown. If the problem persists, contact professional service. Do not attempt to repair yourself.

USER MANUAL ATF501 BLAUPUNKT

White desktop fan with mesh grille and power button (no visible text or symbols)

Enjoy it.

Desk fan

Schreibtisch-Lüfter Wentylator biurkowy Stolní ventilátor Stolný ventilátor asztali ventilátor Namizni ventilator

Stolni ventilator

Ανεμιστήρας γραφείου Настолен вентилатор Ventilator de birou Stalinis ventiliatorius Lauaventilaator

Efficiency information

ATF501
Description	Symbol	Value	Unit
Maximum fan flow rate	F	57,1	m3/min
Fan power input	P	49,1	W
Service value	SV	1,05	(m3/min)/W
Standby power consumption	PSB	0,006	W
Fan sound power level	LWA	53,818	dB(A)
Maximum air velocity	C	2,11	meters/sec
Measurement standard for service value	EN 50564: 2011IEC 60879: 1986EN 60704-2-7: 1998
Contact details for obtaining more information	2N-Everpol Sp. z o.o.ul. Puławska 403A02-801 Warsaw, Polandphone: [phone]e-mail: [e-mail]

Important notes

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

- Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

• Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not

work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Do not block the airflow or cover the device.
• Regularly clean the fan of dust so that dirt does not block the air flow.
• Do not insert any objects between the machine's protective grilles.
• Do not use the fan in rooms with high humidity, such as bathrooms, etc. Do not place the fan in places where it could fall into a bathtub, wash basin or other water tank.
• Never use the fan without the fan grilles installed.
• Do not turn on the fan if it is not assembled properly, particularly when fan grilles are not installed.
• Do not place the fan near curtains or other objects that can get accidentally caught by the fan.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam(buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Power: 55W

Power supply: 220-240V\~50Hz

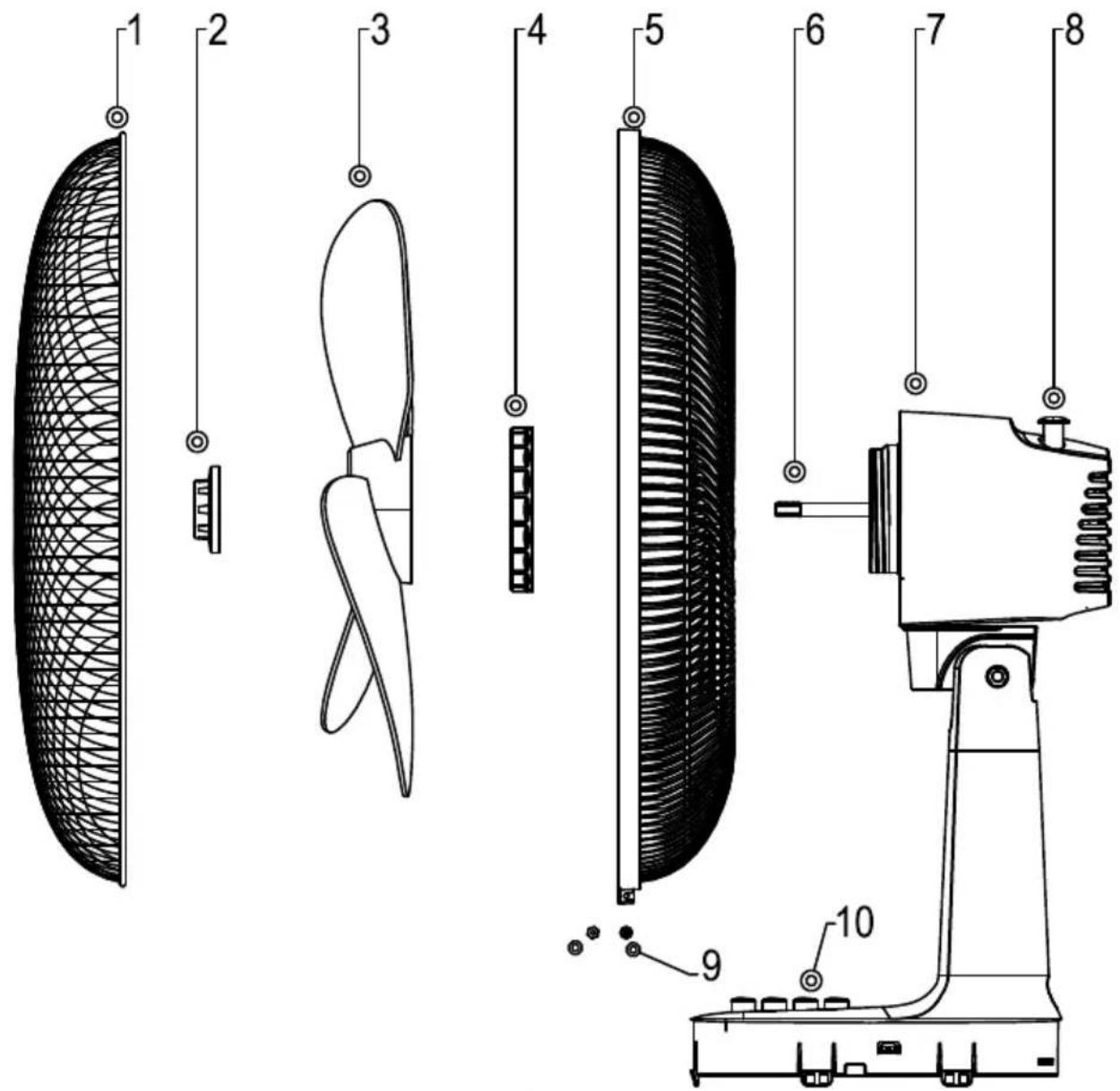

1. Front fan grille
2. Fan blade nut
3. Fan blade
4. Back grille fixing nut
5. Back grille

6. Motor shaft stem

7. Motor housing

8. Oscillation lock
9. Grille fixing screw
10. Control panel with buttons
11. Base

APPLIANCE ASSEMBLY AND DISASSEMBLY

1. Make sure the appliance is disconnected from the power source.
2. Assembly:

a) Place the motor body (7) in the base (11).

b) Put the back grille (5) on the motor base (pay attention to the notches).

c) Screw on the back grille fixing nut (4).

d) Put on the fan blade (3) paying attention to the notch in the stem (6) and the fan blade opening.

f) Tighten the fan blade fixing nut (2)

g) Install the fan's front grille (1) by fitting the edge into the hooks on the back grille. Then secure by tightening the grille's fixing screw (9).

1. Disassembly:

a) Perform the disassembly in the reverse order of the assembly procedure.

FAN OPERATION

1. Before connecting the fan to the power supply, make sure that the button on the control panel is set to 0. Connect the appliance to the power supply.
2. To start the fan, press one of the buttons on the control panel:

1 - low speed

2 - medium speed

3 - high speed

1. To turn off the fan, press the 0 button on the control panel.

2. Oscillation. To enable the fan's oscillation movement, press the oscillation lock. To disable the fan's oscillation movement, lift the oscillation lock.

3. Vertical tilt adjustment. To change the fan tilt, hold the appliance in position and tilt the motor body.

CLEANING AND MAINTENANCE

Before cleaning and maintenance, make sure that the fan has been disconnected from the power source.

The fan should be cleaned regularly. Body, posture should be wiped with a dry cloth. The interior should be blown out with compressed air or vacuumed with a vacuum cleaner.

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their

respective owners. Specifications are subject to change without prior notice.
