IAN 279106 - Lighting Livarno Lux - Free user manual and instructions
Find the device manual for free IAN 279106 Livarno Lux in PDF.
| Product Type | LED Desk Lamp |
| Model | IAN 279106 |
| Brand | Livarno Lux |
| Dimensions (approx.) | 30 x 10 x 10 cm |
| Weight (approx.) | 0.25 kg |
| Power Consumption | 6 W |
| Input Voltage | 220-240 V~, 50/60 Hz |
| Bulb Type | Integrated LED |
| Color Temperature | 3000 K (warm white) |
| Luminous Flux | 600 lm |
| Lifespan | 15,000 hours |
| Material | Plastic, Metal |
| IP Rating | IP20 |
| Switch Type | On/Off button |
| Cable Length | 1.5 m |
| Energy Class | A+ |
| Dimmable | No |
| Bulb Included | Yes (integrated) |
| Mounting Type | Desk clamp or plug-in |
| Maintenance | Wipe with dry cloth; do not use water |
| Safety Warnings | Do not cover lamp; keep away from flammable materials |
| Spare Parts Availability | Not available; lamp is non-reparable |
| General Information | For indoor use only |
Frequently Asked Questions - IAN 279106 Livarno Lux
User questions about IAN 279106 Livarno Lux
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Lighting in PDF format for free! Find your manual IAN 279106 - Livarno Lux and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. IAN 279106 by Livarno Lux.
USER MANUAL IAN 279106 Livarno Lux


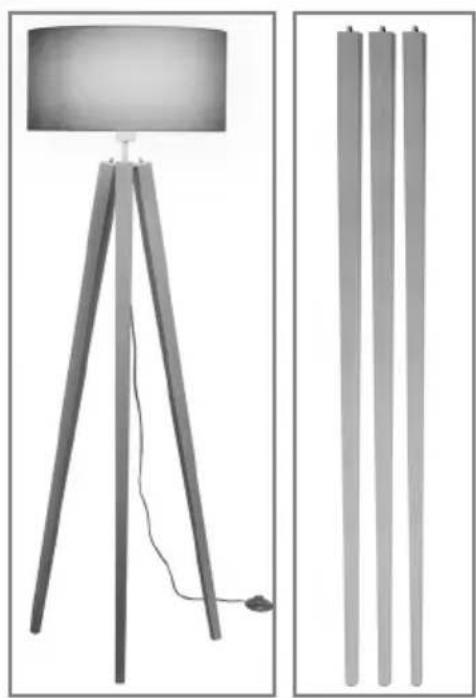

Modern minimalist table lamp with white lampshade and three wooden legs (no text or symbols)LED FLOOR LAMP
LED FLOOR LAMP
Operation and Safety Notes
DE AT CH
LED-STEHLEUCHTE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
RO
GB Operation and Safety Notes Page 5
List of pictograms used....Page 6
Introduction......Page 6
Intended use....Page 6
Scope of delivery....Page 6
Parts Description......Page 6
Technical Data Page 7
Safety Page 7
Safety Notices....Page 7
Start-up Page 8
Mounting the light....Page 8
Operation Page 8
Using the light....Page 8
Installing / replacing the illuminant....Page 8
Maintenance and Cleaning......Page 8
Disposal Page 8
Declaration of Conformity Page 9
Warranty / Service centre Page 9
Warranty Page 9
Service address....Page 9
Warranty card......Page 10
| List of pictograms used | |||
 | Read the instructions! |  | Observe the warnings and safety notices! |
| Safety instructionsInstructions for use |  | Accident hazard and risk of fatal injury for infants and children! | |
 | This light is only suitable for indoor use in dry and enclosed spaces. |  | Warning! Risk of electric shock! |
 | Volt (AC) Warning - Hot surfaces! |  | |
 | Hertz (mains frequency) Not dimmable. |  | |
 | Watt (effective power) |  | Dispose of the packaging and the product in an environmentally friendly manner! |
 | Safety class II | ||
LED Floor lamp
●Introduction
Congratulations on the purchase of your new product. You have chosen a high-quality product. Please be sure to
carefully read all the instructions for use. Fold out the page with illustrations. These instructions are part of the product and contain important information on setup and handling. Always observe all safety instructions. Before using this product for the first time, verify that the correct voltage is present and that all parts are properly mounted. If you have any questions or are unsure about operating the product, please contact your distributor or the service centre. Please keep these instructions in a safe place and pass them on to third parties if necessary.
Intendeduse
This light is only suitable for indoor use in dry and enclosed spaces. This product is only intended for private household use.
- Scope of delivery
Check that all the parts are present and that the appliance is in perfect condition immediately after unpacking.
1 Lamp shade
3 Lamp feet
1 LED lamps
1 Socket incl. mains cable
1 Mounting material (3 cap nuts, 3 washers, 1 spanner)
1 Instructions for use incl. warranty card
PartsDescription
1 Socket ring 2 Lamp shade
Socket
Mains cable with ON / OFF foot switch
Lamp base
Cap nut with washer
Spanner
Illuminant
●TechnicalData
Item number: 54508/54509
Operating voltage: 220-240V\~50/60Hz
Illuminant: LED, E27, 12 W
Rated power max.: 60 W
Protection class: II/
Dimensions: Height max. approx. 140 cm, ∅ approx. 46 cm
Distributor:
Edi Light GmbH, Heiligkreuz 22, A-6136 Pill, www.edi-light.com
●Safety
Safety Notices
Damage due to failure to comply with these operating instructions will invalidate the warranty! We assume no liability for consequential damage! We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
WARNING! RISK OF ACCIDENT AND DANGER TO LIFE FOR INFANTS AND CHIL-
DREN! This device may be used by children aged 8 years and up, as well as by persons with reduced physical, sensory or mental capacities, or those lacking experience and / or knowledge, as long as they are supervised or instructed in the safe use of the device and they understand the associated risks. Do not allow children to play with the device. Cleaning and user
maintenance must not be performed by children without supervision.
Do not leave the light or packaging material lying unattended. Plastic film or bags, plastic parts, etc. can turn into dangerous toys for children.
Avoid the risk of fatal injury from electric shock
We assume no liability for property damage or personal injury due to improper handling or failure to observe the safety notices!
■ Never use the light if any defects have been identified.
■ Always check the lamp and the mains cable with the plug for any damage before connecting it to the mains.
- Ensure that the light does not come into contact with water or other liquids under any circumstances.
■ Never open any of the components of the electrical equipment or insert any objects into the same components. This will pose a risk of fatal injury from electric shock.
■ Touch only the insulated part of the plug when connecting to or disconnecting from the mains supply!
To prevent hazards, if the external flexible lead on this lamp is damaged it must be replaced by the manufacturer, its service representative or an equally qualified professional!
Before use, verify the available mains voltage matches the voltage required for operating the light (220-240V\~, 50/60Hz).
Preventing fire and injury hazards
CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Ensure the light has been switched off and
has cooled down before touching it to avoid burns. Lamps become very hot.
- Check each bulb for damage immediately after unpacking.
- Replace defective bulbs with new ones immediately. Before replacing the bulb always remove the mains plug from the socket.
- Allow the lamp to cool for at least 15 minutes before replacing a defective bulb.
Do not cover the lamp with objects. Fire can result from excessive heat development.
■ Position the lamp so it is protected from moisture and dirt.
■ Never leave the light unattended whilst in operation. Excessive heat can result in a fire.
■ The LED light is not dimmable.
Do not look directly into the light source (lamp, LED, etc.). Do not look into the light source (lamp, LED, etc.) with an optical instrument (e.g. magnifier).
- Start-up
- Mounting the light
☐ Remove the packaging materials.
☐ Assemble the light per the illustration.
Your light is now ready to use.
Operation
Using the light
□ Completely unwrap the power cord 4.
☐ Insert the mains plug into the socket.
☐ Switch the light on and off using the ON / OFF foot switch.
• Installing / replacing the illuminant
WARNING! RISK OF ELECTRIC SHOCK! Unplug from the mains.
CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.
☐ Only replace the illuminant when completely cooled down.
☐ Use a clean, lint-free cloth when replacing the bulb.
☐ If necessary, unscrew the illuminant from the socket counter-clockwise 3. Only use the illuminants specified in chapter "Technical Data".
☐ Carefully screw the new illuminant clockwise into the socket 3.
□ Verify it is seated correctly.
☐ Plug the mains plug into the socket again.
● Maintenance and Cleaning
WARNING! RISK OF ELECTRIC SHOCK! Remove the mains plug from the socket before you clean the lamp.
WARNING! RISK OF ELECTRIC SHOCK! For electrical safety reasons do not clean the lamp with harsh deter-
gents and never immerse it in water.
CAUTION! RISK OF BURNS DUE TO HOT SURFACES! Allow the light to cool down completely.
- Do not use solvents such as petrol and the like, as they could damage the lamp.
☐ Only use a dry, lint-free cloth for cleaning.
●Disposal
The packaging is made of entirely recyclable materials, which you may dispose of at local recycling facilities. Contact your local community or municipal administration for more details on how to dispose of your worn-out product.
The symbol of the wheelie bin with a line through it means that the product has to be disposed of in a separate refuse
collection within the European Union. This applies to the product and to all components bearing this symbol. Do not dispose of products bearing this symbol in your normal household waste, but instead take them to be recycled at a collection site for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and protects the environment.
● Declaration of Conformity
This product fulfils the requirements of the applicable European and national directives. The relevant declarations and documents are held by the manufacturer. This product meets the requirements of the German Equipment and Product Safety Act.
We reserve the right to make technical and visual changes to the product in the interest of product improvement. Typographical and printing errors excepted.
● Warranty / Service centre
Warranty
We provide a 3 year warranty from the date of purchase.
Our products are manufactured using modern production methods and are subject to precise quality control. We guarantee this product is of good quality. During the warranty period any defects in material or manufacture will be replaced free of charge In the event of an unexpected defect, please return the carefully packaged product to the service address specified. The warranty does not extend to damage due to improper handling as well as wear items and consumables. These can be ordered from the telephone number listed for a charge. Repairs not covered by the warranty (e.g. light bulb) may also be requested at cost from the service address listed.
The product will be repaired at the specified service location. Timely processing and return can only be
ensured by sending the product directly to this address.
For additional product information, to order accessories or have a question about the service process, please contact our Customer Service Department at the telephone number specified. Please include the item number (see Technical Data) when inquiring about the product.
Serviceaddress
Great Britain
EGLO UK Ltd.
Unit 12 Cirrus Park
Lower Farm Road
Moulton Park Industrial Estate
Northampton NN3 6UR
T: +44 1604 790 986
E: info-greatbritain@eglo.com
IAN 279106
Please have your receipt and item number (e.g. IAN 12345) ready as your proof of purchase when enquiring about the product.
Warrantycard
Return address:
Name/First name:
Country/Postal code/City/Street address:
Phone:
Item number/Description:
Purchase date/Point of purchase:
Description of the defect:
Date/Signature:
Non-warranty cases:
☐ Please return the unrepaired item, carriage paid. ☐ Please provide pricing. Repair the product against charge.
Legenda pictogramelor utilizate....Pagina 12
Introducere ...... Pagina 12
EDI Light Service Center
c / o RTS Service Solutions
Halle 17-1
EDI Light Service Center
Heiligkreuz 22
A-6136 Pill / Austria
E-Mail: info@edi-light.com
Telefon: +43 5242 6996 0
Schweiz
EGLO Schweiz AG
Seetalstraße 142
CH-6032 Emmen
E-Mail: info-switzerland@eglo.com
Telefon: +41 41 268 69 59
