Product Type	Portable Bluetooth Speaker
Brand	Blaupunkt
Model	BT06
Bluetooth Version	4.1 + EDR
Bluetooth Range	Up to 10 meters (obstacle-free)
FM Frequency Range	87.5 - 108.0 MHz
MicroSD Card Support	Up to 32GB, MP3 format
AUX Input	3.5mm stereo
Rated Output Power	1 x 5W
Battery Type	Rechargeable lithium-ion 3.7V, 1200 mAh
Charging Time	Approximately 3-5 hours (with 5V/1A charger)
Music Playback Time	4-5 hours
Power Consumption	5W
Standby Power Consumption	< 0.5W
Power Supply	DC 5V, 1A (USB)
Hands-free Calling	Yes (built-in microphone)
Operating Temperature	Up to 35°C
Charging Indicator	Red LED (on during charging, off when full)
Controls	On/off, volume +/-, play/pause, mode button
Accessories Included	USB charging cable, 3.5mm audio cable
Compliance	CE, RoHS, ERP2
Safety	Do not expose to water, heat, dust; no user serviceable parts

Frequently Asked Questions - BT06 BLAUPUNKT

How do I pair the speaker with my phone via Bluetooth?

To pair, switch the speaker to Bluetooth mode (blue LED flashing). Enable Bluetooth on your phone, search for devices, and select "BP BT06". If prompted for a password, enter 0000. Once paired, the blue LED becomes steady.

How do I charge the speaker?

Use the supplied USB cable to connect the speaker's DC 5V jack to a USB charger (5V/1A or above). The red LED lights during charging and turns off when fully charged. Charge for at least 10 hours the first time.

How do I listen to FM radio?

Switch to FM mode. For better reception, move the speaker near a window or plug in the audio cable as an antenna. Short press the play/pause button to auto-scan and save stations. Use volume +/- to select preset stations.

How do I play music from a MicroSD card?

Copy MP3 files to a MicroSD card (up to 32GB). Insert the card into the slot, switch to MicroSD mode. The speaker will automatically play the music. Use volume +/- to skip tracks.

How do I use the AUX input?

Connect a 3.5mm audio cable from your device to the speaker's AUX IN jack. Switch to AUX mode and control playback from your device. Volume can still be adjusted on the speaker.

What should I do if there is no sound in Bluetooth mode?

Turn off Bluetooth on your phone, then repair with the speaker. Ensure your phone is within 10 meters and there are no obstacles. Also check that the speaker is not in another mode.

Can I answer phone calls with this speaker?

Yes, when paired via Bluetooth, an incoming call can be answered by short pressing the play/pause button. Speak within 30cm of the microphone. Press play/pause again to end the call and resume music.

How should I clean the speaker?

Wipe the speaker with a clean, dry or slightly damp cloth. Do not use chemical solvents or allow moisture to enter openings.

What is the battery life and charging time?

The battery provides 4-5 hours of music playback. Charging takes approximately 3-5 hours using a 5V/1A charger. Do not charge for more than 24 hours.

What should I do if the speaker does not power on?

First, charge the speaker for at least a few hours. If it still does not turn on, contact service center. Also ensure the power switch is in the ON position.

USER MANUAL BT06 BLAUPUNKT

Enjoy it.

Important Notes

• Safety and operating instructions should be retained for future reference.
• The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.
• Do not install the product in the following areas:
• Places exposed to direct sunlight or close to radiators.
• On top of other stereo equipment that radiates too much heat.
• Blocking ventilation or in a dusty area.
• Areas where there is constant vibration. • Humid or moist places.
• Do not place near candles or other naked flames.
• Operate the product only as instructed in this manual.
• Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product maybe reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this is only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture, or dust.
6. Do not place this unit close to a strong magnetic field.
7. Do not place the unit on an amplifier or receiver.
8. Do not place this unit in a damp area as the moisture will affect the life of electric components.
9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry, or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2013/56/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health. Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth™

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Thank you for purchasing our product. This model includes the following main features:

• Bluetooth function for audio streaming • PLL FM radio with station memory • MicroSD card playback
• Aux in • Built-in rechargeable battery power

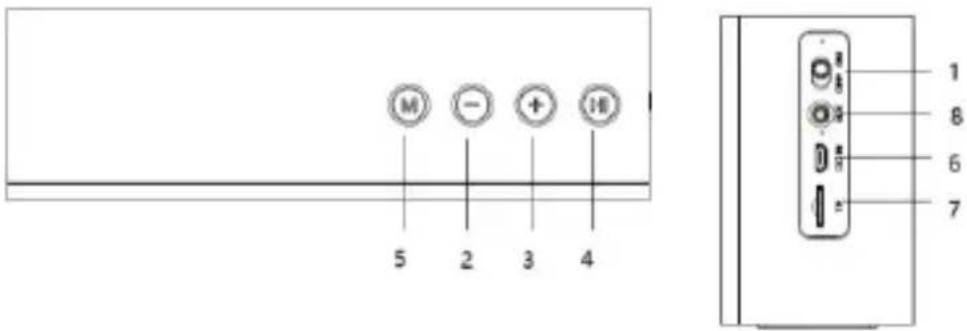

Location of controls:

1. On/off switch: push it to power on or off the unit. 2-3. Volume +/- button: press and hold it to adjust the output volume level. 4. Play and pause button.
2. Mode button: short press it to switch the play mode between Bluetooth/FM/microSD and AUX IN. 6. DC 5V power jack and charging LED indicator. 7. microSD card slot. 8. AUX in jack.

Battery charging

This unit has a built-in rechargeable lithium battery inside. Before starting playback, please follow the steps below for charging.

1. Using the supplied USB to microUSB type charging cable, connect the speaker with your USB charger (USB adaptor or USB output port like on PC, USB rating output: 5V/1A, other USB charger with current equal or above 1A). The microUSB connector should connect with the DC 5V power jack of the speaker, and the other terminal connect with the USB charger. Then plug your USB charger into the household AC power.
2. The charging LED will light up red during charging, and the red LED will turn off when the battery is fully charged.
3. The speaker will turn off automatically when the battery is exhausted. Please recharge it for continued use.
4. The output sound may be intermittent due to low battery power. This is not a malfunction. Please recharge the speaker.

Important: We recommend connecting a USB charger with a rated output of DC 5V/1A, or a USB power source with an output current equal to or above 1A. The typical USB output on a PC is 5V/1A (please refer to your PC's specifications). If the charging current is too low, there may be charging noise or abnormal speaker function. If this occurs, disconnect the charging power and leave the speaker for a while; the speaker will then reset to normal function. Please note that this is not a malfunction.

Notes:

Your battery lifetime will last longer if you follow these simple guidelines for charging and storing.

a. For the first charge, charge it for at least 10 hours.

b. Recharge and store the unit within a temperature range of 5°C to 35°C (40°F to 95°F).

c. Do not charge for more than 24 hours. Excessive charging or discharging may shorten the battery's life.

d. Battery life naturally shortens slowly over time.

e. Please turn off the speaker if it will not be used for a long time.

f. The speaker can play music while charging.

g. Due to prolonged charging and discharging, the unit's battery life will be affected and playback time will also be shortened. We cannot guarantee consistent playback throughout the battery's life, and this is not covered by our warranty or service.

Bluetooth operation

The speaker includes Bluetooth functionality, which allows you to wirelessly play audio from other Bluetooth devices such as smartphones. Please follow the instructions below for operation.

1. Switch to Bluetooth mode, then the blue LED will flash, indicating that the speaker is ready to pair with another device.
2. Enable the Bluetooth function on your Bluetooth device and search for available Bluetooth devices (please refer to your device's manual for operation).
3. Check the available Bluetooth devices on the menu list of your device and select "BP BT06" to start pairing. If a password is required during pairing, enter "0000" (four zeros). The blue LED will become steady when pairing is successful.
4. Select and play music on your Bluetooth device. The sound will then be output from the speaker.
5. During Bluetooth playback, you can short press the play/pause button to play or pause the music; short press the volume +/- button to select the last or next track.

Phone call hands-free: When the cell phone is paired with the speaker and an incoming call arrives, short press the play/pause button to answer the call. Talk towards the microphone hole within 30 cm (suggested distance) for better conversation sound quality. Short press the play/pause button again to end the call and resume music playback.

Notes:

a. Not all Bluetooth devices are guaranteed to pair successfully due to different designs and brands.

b. During hands-free calls, do not place your cell phone very close to the speaker to avoid interference that may affect conversation sound quality.

c. The best Bluetooth working distance is within 10 meters without any obstacles in between.

FM radio operation

Before listening to the radio, please try to move the unit next to the window as much as possible, or plug in the audio cable as an external antenna (optional) in order to get better reception.

Station Scanning: Switch to FM radio mode, then short press the play/pause button to auto scan and save the available FM stations (max support up to 45 preset stations). Short press the volume +/- buttons to select the last or next preset station; press and hold the volume +/- buttons to decrease or increase the volume.

TF/MicroSD card playback

Please copy the MP3 format music into the TF or MicroSD card device (max supported 32GB) before starting the playback, and then insert the card into the slot on the rear panel of the unit. Power on and switch to the MicroSD playback mode; the speaker will read out the card device automatically, and get the music output after a few seconds.

In TF/MicroSD card playback mode, short press the volume +/- buttons to select the last or next track; press and hold the volume +/- buttons to decrease or increase the volume. Short press the play/pause button to play or pause the music.

Notes:

a. The TF/MicroSD card playback mode is only available when a card device is installed on the speaker successfully.

b. The supported audio format is MP3 in TF/MicroSD playback mode, but not all mentioned audio files are guaranteed.

c. Not all TF/MicroSD card devices are supported due to different designs and brands; the max supported storage is 32GB.

d. Please kindly insert the TF or MicroSD card into the slot properly.

AUX IN/MP3 link mode

Using the supplied 3.5mm to 3.5mm stereo audio cable, connect the AUX IN jack of the unit with the line out or headphone jack on any other external audio player like an MP3 player, etc. Power on and switch to AUX IN playback mode; select and play the music from your external audio player, then the sound will output from the speaker.

Notes:

a. In AUX IN mode, the main control is on your external audio player side. But you can still increase or decrease the volume on the speaker side.

b. Please note that the AUX mode is only available when the audio cable is plugged in.

Specifications:

Power source: DC5V, 1A; (or DC 5V, rated current above 1A)

Bluetooth version: 4.1 +EDR, best working distance within 10 meters

FM frequency: 87.5~108.00MHz

TF/MicroSD card supported up to 32GB max, supports MP3 audio format.

Rated power: 1 x 5W

Battery: 3.7V/1200mAh rechargeable lithium battery

Charging time: approximately 3~5 hours based on DC5V, 1A input.

Music playback time: around 4~5 hours.

Power consumption: 5 watts

Standby power consumption: < 0.5 watts

Accessories: 1 USB charging cable, 1 3.5mm to 3.5mm audio cable

(The above specifications may be revised without prior notice)

Troubleshooting

1. The unit cannot power on.

a. Please charge the unit and try again.

b. Please contact the service center in case the issue remains.

2. There is no or intermittent sound output in Bluetooth mode.

a. Please turn off the Bluetooth, and repair with the speaker.

b. Please put your Bluetooth device closer to the speaker.

3. No available FM station or background noise in FM.

a. Please plug in the 3.5mm stereo audio cable and re-scan the available FM station.

b. Please tune to another FM station for listening.

c. Please try to move the unit next to the window in order to get better reception.

1. The speaker cannot read out the music in TF or microSD card.

a. Please check if you insert the TF or microSD card into the slot properly.

b. Please check if the audio format is in MP3.
