Product Type	Portable Bluetooth Speaker
Brand	Blaupunkt
Model	BT30LED
Bluetooth Version	2.1 + EDR
Bluetooth Range	Up to 10 meters (open area)
FM Radio Frequency Range	87.5 - 108.0 MHz
USB/MicroSD Playback	Yes (MP3 format)
Max Storage Capacity (USB/MicroSD)	32 GB
Battery Type	Rechargeable lithium-ion
Battery Capacity	3.7V / 3000 mAh
Charging Time	Approximately 3 hours (5V/1A charger)
Playback Time	3 - 4 hours (at moderate volume)
Power Source	DC 5V, 1A (via microUSB)
Rated Output Power	1 x 5W
Power Consumption (operating)	11 W
Standby Power Consumption	< 0.5 W
LED Lighting Effects	8 types + off mode (switchable)
AUX Input	Yes (3.5mm stereo)
Accessories Included	USB charging cable, 3.5mm audio cable
Recommended Cleaning	Wipe with a dry or slightly damp cloth; no chemical solvents
Safety Warnings	Do not expose to water, moisture, heat, or dust; avoid strong magnetic fields
Operating Temperature Range	5°C - 35°C (40°F - 95°F) for charging/storage

Frequently Asked Questions - BT30LED BLAUPUNKT

How do I pair my Bluetooth device with the BT30LED speaker?

Switch the speaker to Bluetooth mode (blue LED flashing). On your device, enable Bluetooth, search for available devices, and select "BP BT30LED". If prompted for a PIN, enter 0000. The blue LED will become steady once paired.

My speaker won't turn on. What should I do?

First, charge the speaker using the supplied USB cable with a 5V/1A or higher USB charger. If it still doesn't power on, try a different charger or contact service.

How long does it take to charge the battery fully?

Charging takes approximately 3 hours with a 5V/1A charger. The red LED turns off when fully charged.

Can I use the speaker while it is charging?

Yes, you can play music during charging. However, charging current below 1A may cause noise; remove and reconnect the charger if needed.

Why is there no sound or intermittent sound in Bluetooth mode?

Turn off Bluetooth on your device and the speaker, then re-pair. Also, make sure the devices are within 10 meters and there are no obstructions.

How do I use the FM radio?

Switch to FM mode. Short press the play/pause button to auto-scan and save stations (up to 50). Use previous/next buttons to select stations. For better reception, plug in the audio cable as an external antenna or move near a window.

What file format and maximum capacity does the MicroSD/USB support?

The speaker supports MP3 audio format. MicroSD and USB devices up to 32GB are supported. Not all cards may work due to brand differences.

How do I change the LED lighting effects?

In any playback mode, press and hold the play/pause button for 2 seconds to cycle through 8 different lighting effects and the off mode.

Can I connect external audio sources via AUX?

Yes, use the supplied 3.5mm audio cable to connect the speaker's AUX IN jack to your device's headphone or line-out. Switch to AUX mode. Volume can be adjusted on both the speaker and the external device.

What should I do if the MicroSD card is not detected?

Ensure the card is inserted correctly and formatted with MP3 files. The speaker only reads MP3 format. If the issue persists, try a different card (max 32GB).

USER MANUAL BT30LED BLAUPUNKT

Enjoy it.

Important Notes

• This safety and operating instruction should be retained for future reference. • The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom. • Do not install the product in the following areas: - Places exposed to direct sunlight or close to radiators. • On top of other stereo equipment that radiate too much heat. - Blocking ventilation or in a dusty area. - Areas where there is constant vibration. • Humid or moist places. • Do not place near candles or other naked flames. - Operate the product only as instructed in this manual. • Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and users' instructions should be followed.
5. Installation - Install in accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
7. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).
8. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.
9. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
10. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
11. The highest environmental temperature suitable for this product is 35°C.
12. ESD hints - If the product may reset or not reset to operation of control due to electrostatic discharge, just switch off and reconnect again, or move the product to another location.

ERP2 (Energy Related Products) note

This product with ecodesign complies with the stage 2 requirements of Commission Regulation (EC) NO. 1275/2008 implementing Directive 2009/125/EC regard to standby and off mode electric power consumption of electronic household and office equipment.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.
2. The appliance is not intended to be operated by means of an external timer or separate remote control system.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.
5. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
6. Do not place this unit close to a strong magnetic field.
7. Do not place the unit on an amplifier or receiver.
8. Do not place this unit in a damp area as the moisture will affect the life of electric components.
9. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
10. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.

NOTICE

Conformity

Hereby, Blaupunkt Competence Center 2N-Everpol Sp. z o.o., declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. The declaration of conformity can be obtained from the product page at www.blaupunkt.com.

Responsible party: 2N-Everpol Sp. z o.o, Puławska 403A, 02-801 Warsaw, Poland, Phone: [phone], E-mail: [e-mail]

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed of with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environment and human health. Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Recording and playback of material might require consent. See Copyright Act 1956 and The Performer's Protection Acts 1958 to 1972.

Bluetooth™

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by us is under license. Other trademarks and trade names are those of their respective owners.

Many thanks for buying our product. This model includes the following main features.

• Bluetooth function for audio streaming playback.
• PLL FM radio with station memory. • USB/MicroSD card playback.
• Aux in. • Built-in rechargeable battery power.

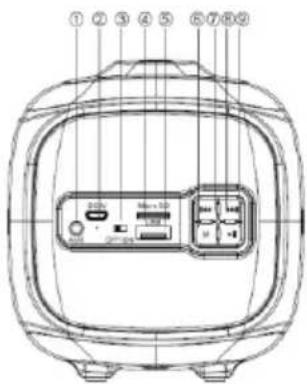

Location of controls:

1. AUX in jack.
2. DC 5V power jack and charging LED indicator.
3. On/off switch: push it to power on or off the unit.
4. microSD card slot.
5. USB port.
6. Mode button: short press it to switch the play mode between bluetooth/FM/micrSD/USB and AUX IN. 7-8. Previous/next button: press and hold it to adjust the output volume level.
7. Play and pause button.

Battery charging

This unit had built-in rechargeable lithium battery inside. Before start the playing, please follow up below step for charging.

1. Using the supplied USB to microUSB type charging cable connects the speaker with your USB charger (USB adaptor or USB output port like on PC, USB rating output: 5V/1A, other USB charger with current equal or above 1A). The microUSB connector should connect with the DC 5V power jack of speaker, and the another terminal connect with USB charger. Then plug your USB charger into the household AC power.
2. The charging LED will light on in red color during charging, and the red color LED will off when the battery is fully charged.
3. The speaker will off automatically when the battery power exhausted, please arrange recharge for playing.
4. The output sound may intermittent due to lower power. This is not malfunction. Please arrange it for recharging.

Important: We recommend connect the USB charger with rating output spec at DC 5V/1A, or equal or above 1A output current USB power. The general USB output on PC (personal computer) is 5V/1A (please reference your PC spec for checking). There may have some charging noise or abnormal function from speaker if the charging current is too low. If it happened, please remove the charging power and put the speaker in a while, then the speaker will reset the function in normal. Please kindly note this is not malfunction.

Notes:

Your battery lifetime will last longer if you follow up below simple guidelines for charging and storing. a. For charging first time, charge it at least 10 hours. b. Recharge and store the unit within the temperature range of 5°C\~35°C (40°F\~95°F). c. Do not charge longer than 24 hours. Excessive charging or discharging may shorten the battery's life. d. Battery life naturally shortens slowly over time. e. Please turn off the speaker if long time not to use. f. The speaker can play music during charging. g. Due to prolong charging and discharging, the unit battery life will be affected and playback time will also be shortened. We cannot guarantee the same playback consistently throughout and this is not include in our warranty and service.

Bluetooth operation

The speaker includes a Bluetooth function that allows you to wirelessly play audio from other Bluetooth devices such as smartphones. Follow the steps below for operation.

1. Switch to Bluetooth mode; the blue LED will flash, indicating that the speaker is ready to pair with another device.
2. Enable Bluetooth on your Bluetooth device and search for available Bluetooth devices (refer to your device's manual for instructions).
3. From the list of available devices on your device, select "BP BT30LED" to start pairing. If a password is required, enter "0000" (four zeros). The blue LED will become steady when pairing is successful.
4. Select and play music on your Bluetooth device. The sound will then output from the speaker.
5. During Bluetooth playback, you can short press the play/pause button to play or pause the music; short press the previous/next button to select the previous or next track.

Notes:

a. Due to differences in design and brand, not all Bluetooth devices are guaranteed to pair successfully.

b. During hands-free phone calls, do not place your cell phone very close to the speaker to avoid interference that may affect call sound quality.

c. The optimal Bluetooth working distance is within 10 meters without obstacles in between.

FM radio operation

Before listening to the radio, try to move the unit near a window, or plug in the audio cable as an external antenna (optional) to improve reception.

Station scanning: Switch to FM radio mode, then short press the play/pause button to auto-scan and save available FM stations (up to 50 presets). Short press the previous/next button to select the previous or next preset station; press and hold the previous/next button to decrease or increase the volume.

Tip: Fluorescent lamps (including LED) may cause interference with radio reception. Try turning off the lights and rescanning stations. You can also plug in the audio cable as an external antenna for better reception.

TF/MicroSD card & USB playback

Please copy the MP3 format music into the TF or MicroSD card device (max supported 32GB) before starting playback, and then insert the card into the slot on the rear panel of the unit. Power on and switch to the MicroSD playback mode; the speaker will read out the card device automatically, and get the music output after a few seconds.

In TF/MicroSD card playback mode, short press the previous/next button to select the last or next track; press and hold the previous/next button to decrease or increase the volume. Short press the play/pause button to play or pause the music. Notes:

a. The TF/MicroSD card playback mode is only available when there is a card device installed on the speaker successfully.

b. The supported audio format is MP3 in TF/MicroSD playback mode, but not all mentioned audio files are guaranteed.

c. Not all TF/MicroSD card devices are supported due to different designs and brands; the max supported storage is 32GB.

d. Please kindly insert the TF or MicroSD card into the slot properly.

e. The operation of USB playback function is the same.

AUX IN/MP3 link mode

Using the supplied 3.5mm to 3.5mm stereo audio cable, connect the AUX IN jack of the unit with the line out or headphone jack on any other external audio player like an MP3 player, etc. Power on and switch to AUX IN playback mode; select and play the music from your external audio player, then the sound will output from the speaker.

Notes:

a. In AUX IN mode, the main control is on your external audio player side. But you can still increase or decrease the volume on the speaker side.

b. Please kindly note that the AUX IN mode is only available when the audio cable is plugged in.

LED lighting adjustment: in playing mode, long press the play/pause button (2 seconds) can switch the LED lighting effect (8 types and off mode).

Specification:

Power source: DC5V, 1A; (or DC 5V, rating current above 1A)

Bluetooth version: 2.1 + EDR, best working distance within 10 meters

FM Frequency: 87.5~108.00MHz

USB/TF/MicroSD card supported device up to 32GB max, supports audio format MP3.

Rated power: 1 x 5W

Battery power: 3.7V/3000 mAH rechargeable lithium battery

Charging time: approximately 3 hours based on DC5V, 1A input.

Music playback time: 3~4 hours around.

Power consumption: 11 Watt

Standby power consumption: < 0.5Watt

Accessory: 1 pcs x USB charging cable, 1 pcs x 3.5mm to 3.5mm audio cable

(The above spec may revise without prior notice)

Trouble shooting

1. The unit cannot power on.

a. Please charge the unit and try again.

b. Please contact the service center in case of issue remains.

2. There is no or intermittent sound output in Bluetooth mode.

a. Please turn off Bluetooth and pair it again with the speaker.

b. Please bring your Bluetooth device closer to the speaker.

1. No available FM station or background noise in FM.

a. Please plug in the 3.5mm stereo audio cable and re-scan for available FM stations.

b. Please tune to another FM station for listening.

c. Please try moving the unit near a window to get better reception.

1. The speaker cannot read music from the TF or microSD card.

a. Please check if you have inserted the TF or microSD card into the slot properly.

b. Please check if the audio format is MP3.

Important information

02-801 Warsaw, Poland

phone: [phone]

e-mail: [e-mail]

www.blaupunkt.com

In case of questions or problems

please contact our service.

Tel. [phone]

E-mail: [e-mail]

All rights reserved. All brand names are registered trademarks of their respective owners. Specifications are subject to change without prior notice.

Enjoy it.
