| Product Type | Trimmer MultiTool Attachment |
| Brand | STIHL |
| Model | FS-MM |
| Weight (with deflector) | 2 lbs (0.9 kg) |
| Maximum Drive Shaft Speed | 6400 rpm (with MM 55 MultiEngine) |
| Approved MultiEngine | STIHL MM 56 |
| Compatible Cutting Attachments | Mowing heads: SuperCut 20-2, AutoCut C 25-2, AutoCut 25-2, FixCut 31-2, TrimCut 31-2, PolyCut |
| Deflector | Included for mowing heads only |
| Line Limiting Blade | Integrated in deflector |
| Drive Tube | Encloses and protects drive shaft |

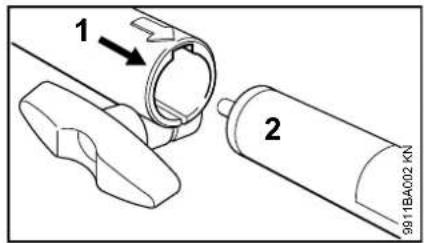

| Coupling Sleeve | Connects drive tube to MultiEngine stub shaft |
| Wing Screw | Secures lower drive tube |
| Wheel Compatibility | Optional set of wheels (special accessory) |
| Power Source | MultiEngine (gas engine, e.g., MM 56) |
| Safety Features | Deflector, line limiting blade, safety label; operator must read manual, wear PPE, keep bystanders at least 50 ft away |
| Maintenance | Check tightness of screws, inspect cutting attachment before each use, clean regularly, replace worn heads |
| Repair | Only by authorized STIHL servicing dealers with genuine STIHL parts |
| Disposal | Recycle at approved disposal site; do not throw in trash |
| Included Items | MultiTool attachment, deflector, coupling sleeve, wing screw, user manual |
Frequently Asked Questions - FS-MM STIHL
User questions about FS-MM STIHL
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge trimmers in PDF format for free! Find your manual FS-MM - STIHL and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. FS-MM by STIHL.
USER MANUAL FS-MM STIHL
WARNING
Read Instruction Manual thoroughly before use and follow all safety precautions – improper use can cause serious or fatal injury.
ADVERTENCIA
Guide to Using this Manual 2
Safety Precautions and Working
Techniques 3
Approved MultiEngines 10
Approved Combinations of Cutting
Attachment and Deflector 11

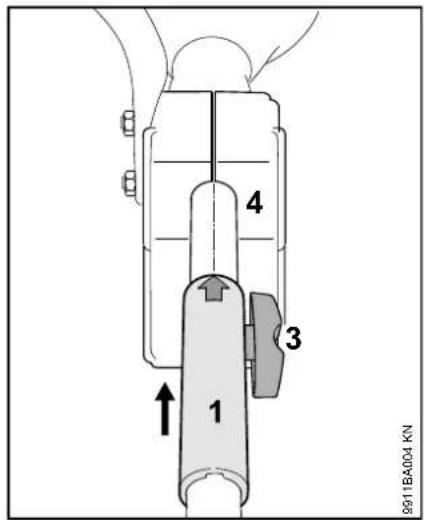

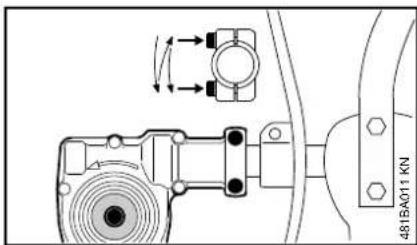

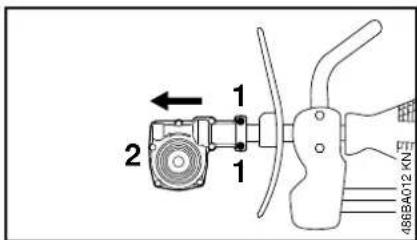

Fitting, removing the MultiTool 12

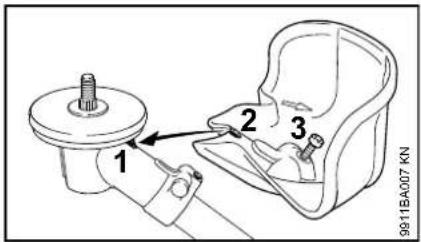

Mounting the Deflector 13

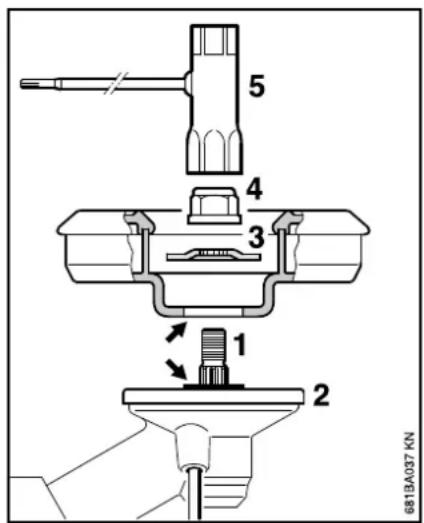

Mounting the Cutting Attachment 13
Starting / Stopping the Engine 15
Storing the Machine 15
Maintaining the Mowing Head 16
Maintenance and Care 17

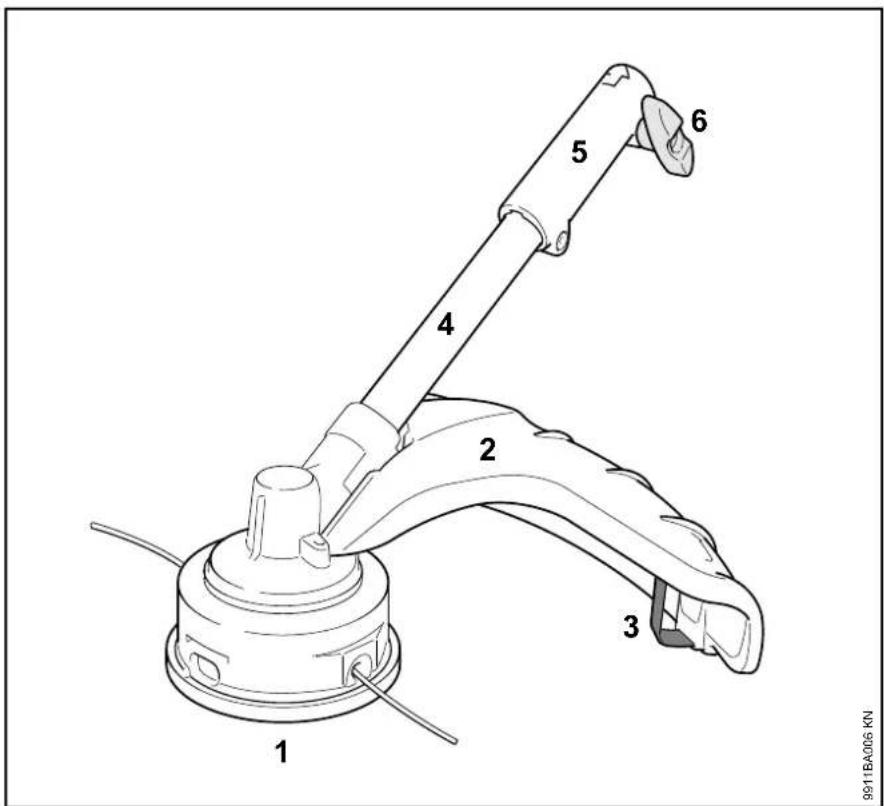

Main Parts 18
Specifications 19
Maintenance and Repairs 19
Disposal 20
Trademarks 20
STIHL
FS-MM
English
Allow only persons who fully understand the manuals of the MultiEngine (YARD BOSS®) and trimmer MultiTool attachment to operate this power tool combination.
To receive maximum performance and satisfaction from your STIHL MultiTool, it is important that you read, understand and follow the safety precautions and the operating and maintenance instructions in chapter "Safety Precautions and Working Techniques" before using your MultiTool. For further information you can go to www.stihlusa.com.
Contact your STIHL dealer or the STIHL distributor for your area if you do not understand any of the instructions in the two manuals.
WARNING
Because a MultiEngine (YARD BOSS®) equipped with a trimmer MultiTool attachment is a power tool with a relatively fast turning attachment, some special safety precautions must be observed to reduce the risk of personal injury. Careless or improper use may cause serious or even fatal injury.
This instruction manual is protected by copyright. All rights reserved, especially the rights to reproduce, translate and process with electronic systems.
English
MultiSystem

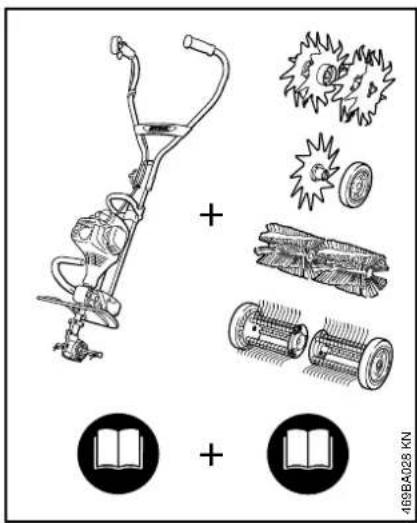

In the STIHL MultiSystem, various MultiEngines and MultiTools are combined to form a machine. In this Instruction Manual, the functional unit of MultiEngine and MultiTool is referred to as a machine.
Accordingly, the instruction manuals for the MultiEngine and the MultiTool constitute the entire Instruction Manual for the machine.
Always read both manuals carefully before using your machine for the first time and keep them safe for future reference.
Guide to Using this Manual
Pictograms
All the pictograms attached to or embossed on the machine are shown and explained in this manual.
Symbols in Text
Many operating and safety instructions are supported by illustrations.
The individual steps or procedures described in the manual may be marked in different ways:
●A bullet marks a step or procedure.
A description of a step or procedure that refers directly to an illustration may contain item numbers that appear in the illustration. Example:
●Loosen the screw (1).
●Lever (2) ...
In addition to the operating instructions, this manual may contain paragraphs that require your special attention. Such paragraphs are marked with the following symbols and signal words:
DANGER
Indicates a hazardous situation that, if not avoided, will result in death or serious injury.
WARNING
Indicates a hazardous situation that, if not avoided, could result in death or serious injury.
NOTICE
Indicates a risk of property damage, including damage to the machine or its individual components.
Engineering Improvements
STIHL's philosophy is to continually improve all of its products. As a result, engineering changes and improvements are made from time to time. Therefore, some changes, modifications and improvements may not be covered in this manual. If the operating characteristics or the appearance of your machine differs from those described in this manual, please contact your STIHL dealer or the STIHL distributor for your area for assistance.
Safety Precautions and Working Techniques
Because a MultiEngine (YARD BOSS®) equipped with a trimmer attachment is a high-speed power tool, special safety precautions must be observed to reduce the risk of personal injury.
It is important that you read, fully understand and observe the following safety precautions and warnings. Read the instruction manuals and the safety precautions of your MultiEngine and MultiTool periodically. Careless or improper use may cause serious or fatal injury.
Have your STIHL dealer show you how to operate your power tool. Observe all applicable local safety regulations, standards and ordinances.
WARNING
As more fully explained later in these Safety Precautions, to reduce the risk of personal injury, make sure your unit is equipped with the proper deflector for the type of cutting attachment you are using. Use only cutting attachments that are specifically authorized by STIHL for use on your MultiEngine model.
WARNING
Do not lend or rent your power tool without the instruction manuals of your MultiEngine and MultiTool. Be sure that anyone using it understands the information contained in these manuals.
WARNING
The use of this machine may be hazardous. If the rotating line or polymer blade comes in contact with your body, it will cut you. When it comes in contact with solid foreign objects such as rocks or bits of metal, it may fling them directly or by ricochet in the direction of bystanders or the operator. Striking such objects could damage the cutting attachment and may cause polymer blades to crack, chip or break. Thrown objects, including broken heads or blades, may result in serious or fatal injury to the operator or bystanders.
Use your MultiEngine equipped with the appropriate MultiTool only for cutting grass.
WARNING
Do not use it for other purposes, since misuse may result in personal injury or property damage, including damage to the machine.
WARNING
Minors should never be allowed to use this power tool. Bystanders, especially children, and animals should not be allowed in the area where it is in use.
WARNING
To reduce the risk of injury to bystanders and damage to property, never let your power tool run unattended. When it is not in use (e.g. during a work break), shut it off and make sure that unauthorized persons do not use it.
Most of these safety precautions and warnings apply to the use of all STIHL power tools. Different models may have different parts and controls. See the appropriate section of your MultiEngine and MultiTool instruction manuals for a description of the controls and the function of the parts of your model.
Safe use of a power tool involves
- the operator
- the power tool
- the use of the power tool.
THE OPERATOR
Physical Condition
You must be in good physical condition and mental health and not under the influence of any substance (drugs, alcohol, etc.) which might impair vision, dexterity or judgment. Do not operate this machine when you are fatigued.
WARNING
Be alert – if you get tired, take a break. Tiredness may result in loss of control. Working with any power tool can be strenuous. If you have any condition that might be aggravated by strenuous work, check with your doctor before operating this machine.
English
Proper Clothing
WARNING
To reduce the risk of injury, the operator should wear proper protective apparel.
The deflector provided with your power tool will not protect the operator from all foreign objects (gravel, glass, wire, etc.) thrown back by the rotating cutting attachment. Thrown objects may also ricochet and strike the operator.
WARNING
Clothing must be sturdy and snug-fitting, but allow complete freedom of movement. Wear long pants made of heavy material to help protect your legs. Do not wear shorts, sandals or go barefoot.
Avoid loose-fitting jackets, scarfs, neckties, jewelry, flared or cuffed pants, unconfined long hair or anything that could become caught on branches, brush or the moving parts of the unit. Secure hair so it is above shoulder level.
To reduce the risk of injury to your eyes never operate your power tool unless wearing goggles or properly fitted protective glasses with adequate top and side protection complying with ANSI Z87 "+" (or your applicable national standard). To reduce the risk of injury to your face STIHL recommends that you also wear a face shield or face screen over your goggles or protective glasses.
Power tool noise may damage your hearing. Wear sound barriers (ear plugs or ear mufflers) to protect your hearing. Continual and regular users should have their hearing checked regularly.
Be particularly alert and cautious when wearing hearing protection because your ability to hear warnings (shouts, alarms, etc.) is restricted.
Always wear heavy duty work gloves (e.g. made of leather or other wear resistant material) when handling the cutting attachment. Heavy-duty, nonslip gloves improve your grip and help to protect your hands.
Good footing is very important. Wear sturdy boots with nonslip soles. Steel-toed safety boots are recommended.
For further instructions on proper clothing see the safety precautions in the instruction manual of the MultiEngine you are using.
THE POWER TOOL (MULTIENGINE EQUIPPED WITH TRIMMER MULTITOOL)
For illustrations and definitions of the power tool parts see the chapter on "Main Parts."
WARNING
Never modify this power tool in any way. Only attachments supplied by STIHL and expressly approved by STIHL for use with the specific STIHL MultiEngine are authorized. Although certain unauthorized attachments are useable with STIHL power tools, their use may, in fact, be extremely dangerous.
For the cutting attachments authorized by STIHL for your unit, see the chapter "Approved Combinations of Cutting Attachment and Deflector" in the instruction manual or the STIHL "Cutting Attachments, Parts & Accessories" catalog.
If this tool is subjected to unusually high loads for which it was not designed (e.g. heavy impact or a fall), always check that it is in good condition before continuing work. Check in particular that the fuel system is tight (no leaks) and that the controls and safety devices are
working properly. Do not continue operating this machine if it is damaged. In case of doubt, have it checked by your STIHL servicing dealer.
THE USE OF THE POWER TOOL (MULTIENGINE EQUIPPED WITH TRIMMER MULTITOOL)

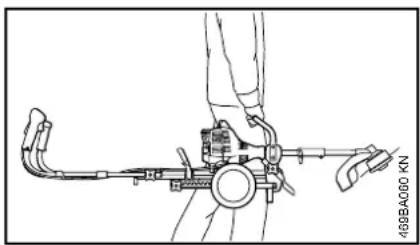

Transporting the Power Tool
WARNING
To reduce the risk of injury from loss of control and line contact, never carry or transport your power tool with the cutting attachment moving.
WARNING
Always switch off the engine and make sure the working tool has stopped before putting a power tool down.
WARNING
To reduce the risk of burn injury, do not touch hot parts of the machine and the gear housing when they are hot.
WARNING
When transporting it in a vehicle, properly secure it to prevent turnover, fuel spillage and damage to the unit.
Before Starting
WARNING
Always check your power tool for proper condition and operation before starting. Never attempt to modify the controls or safety devices.
WARNING
Never use a power tool that is damaged or not properly maintained.
WARNING
Do not attach any cutting attachment to a unit without proper installation of all required parts. Failure to use the proper parts may cause a blade or head to fly off and seriously injure the operator or bystanders.
WARNING
The cutting attachment must be properly tightened and in safe operating condition. Inspect for loose parts (nuts, screws, etc.) and for cracked or damaged heads. Replace damaged heads before using the power tool.
Keep the handles clean and dry at all times; it is particularly important to keep them free of moisture, pitch, oil, fuel mix, grease or resin in order for you to maintain a firm grip and properly control your power tool.
WARNING
To reduce the risk of personal injury to the operator from polymer blade or line contact and thrown objects, make sure your unit is equipped with the proper deflector for the type of cutting attachment being used (see chart in the chapter on "Approved Combinations of Cutting Attachment and Deflector".)

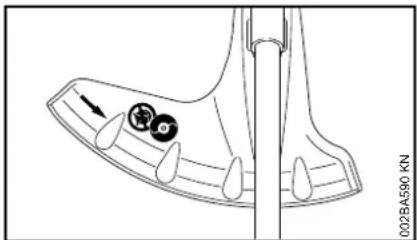

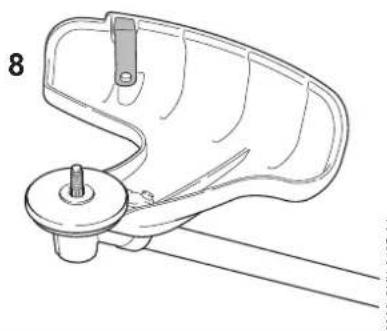

Keep the deflector adjusted properly at all times (see chapters on "Mounting the Deflector" and "Mounting the Cutting Attachment" of your instruction manual).
English

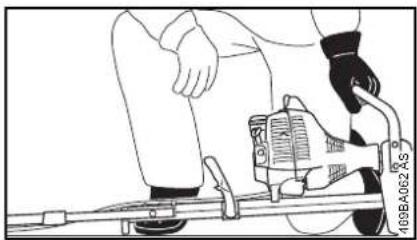

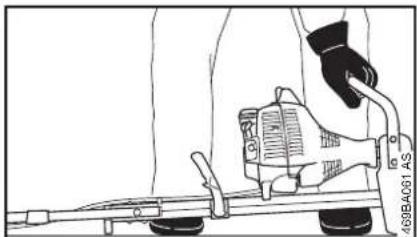

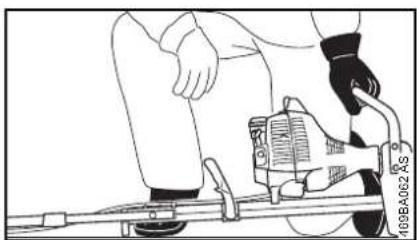

Starting
WARNING
Start the engine at least 10 feet (3 m) from the fueling spot, outdoors only.
Start and operate your power tool without assistance. For specific starting instructions, see the appropriate section of your MultiEngine and MultiTool manuals. Place the power tool on firm ground or other solid surface in an open area. Maintain good balance and secure footing.
WARNING
To reduce the risk of injury from loss of control, be absolutely sure that the working tool is clear of you and all other obstructions and objects, including the ground, because when the engine starts at starting-throttle, engine speed will be fast enough for the clutch to engage and move the working tool.
Once the engine has started, immediately blip the throttle trigger, which should release the starting throttle and allow the engine to slow down to idle.
WARNING
Your power tool is a one-person machine. Do not allow other persons in the general work area, even when starting.
See also the safety precautions on Starting in the instruction manual of the MultiEngine.

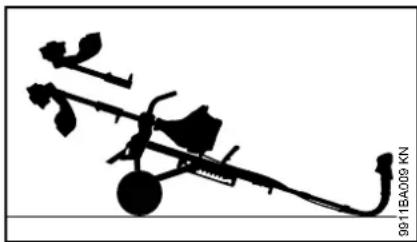

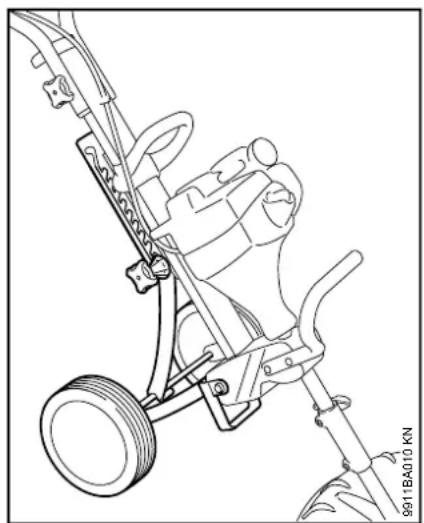

Set of wheels
Use only genuine STIHL wheels. The use of other wheels may result in damage to the machine or personal injury.
The wheels can be locked in different positions - see notes on "Wheels" in the MultiEngine instruction manual.
During Operation

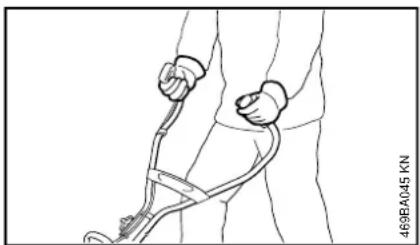

Holding and Controlling the Power Tool
WARNING
Never attempt to operate your power tool with one hand. Loss of control of the power tool resulting in serious or fatal injury may result. To reduce the risk of cut injuries, keep hands and feet away from the cutting attachment. Never touch a moving cutting attachment with your hand or any other part of your body.
WARNING
Do not overreach. Keep proper footing and balance at all times. Special care must be taken in slippery conditions (wet ground, snow) and in difficult, overgrown terrain. Watch for hidden obstacles such as tree stumps, roots and ditches to avoid stumbling. For better footing, clear
away scrub and cuttings. Be extremely cautious when working on slopes or uneven ground.
WARNING
To reduce the risk of injury from loss of control, never work on any other insecure support. Never hold the cutting attachment above waist height
Working Conditions
Operate and start your power tool only outdoors in a well-ventilated area. Operate it under good visibility and daylight conditions only. Work carefully.
WARNING
If the vegetation being cut or the surrounding ground is coated with a chemical substance (such as an active pesticide or herbicide), read and follow the instructions and warnings that accompany the substance at issue.
WARNING
Inhalation of certain dusts, especially organic dusts such as mold or pollen, can cause susceptible persons to have an allergic or asthmatic reaction. Substantial or repeated inhalation of dust and other airborne contaminants, in particular those with a smaller particle size, may cause respiratory or other illnesses. Control dust at the source where possible. Use good work practices, such as operating the unit so that the wind or operating process directs any dust raised by the power tool away from the operator. Follow the recommendations of EPA / OSHA / NIOSH and occupational and trade associations with respect to dust
("particulate matter"). When the inhalation of dust cannot be substantially controlled, i.e., kept at or near the ambient (background) level, the operator and any bystanders should wear a respirator approved by NIOSH / MSHA for the type of dust encountered.
Operating Instructions
WARNING
Do not operate your power tool using the starting throttle lock, as you do not have control of the engine speed.
In the event of an emergency, switch off the engine immediately – move the slide control / stop switch to 0 or STOP.
WARNING
The cutting attachment continues to rotate for a short period after the throttle trigger is released (flywheel effect.)
The rotating cutting attachment may fling foreign objects directly or by ricochet a great distance.
To reduce the risk of eye and other injury always wear proper eye protection (see the chapter on "Proper Clothing") and ensure that bystanders are at least 50 feet (15 m) away. To reduce the risk of damage to property, also maintain this distance from such objects as vehicles
or windows. Even maintaining a minimum distance of 15 meters cannot exclude the potential risk. Any coworkers who must be in the restricted area should also wear goggles or protective glasses. Stop the engine immediately if you are approached.
WARNING
Inspect the work area: To reduce the risk of injury, remove stones, pieces of metal and other solid objects which could be thrown 50 feet (15 m) or more by the cutting attachment or damage the cutting attachment and property (e.g. parked vehicles, windows).
WARNING
This power tool is normally to be used at ground level with the MultiTool parallel to the ground. Use of a MultiEngine above ground level or with the MultiTool perpendicular to the ground may increase the risk of injury, since the cutting attachment is more fully exposed and the power tool may be more difficult to control.
WARNING
During cutting, check the tightness and the condition of the cutting attachment at regular short intervals with the engine and attachment stopped. If the behavior of the attachment changes during use, stop the engine immediately, wait until the cutting attachment stops, and check
English
the nut securing the attachment for tightness and the attachment for cracks, wear and damage.
WARNING
A loose head may vibrate, crack, break or come off the power tool, which may result in serious or fatal injury. Make sure that the cutting attachment is properly tightened. Use the wrench supplied or one of sufficient length to obtain the proper torque. If the head loosens after being properly tightened, stop work immediately. The retaining nut may be worn or damaged and should be replaced. If the head continues to loosen, see your STIHL dealer. Never use a MultiEngine with a loose MultiTool.
WARNING
Replace a cracked, damaged or worn-out head immediately, even if damage is limited to superficial cracks. Such attachments may shatter at high speed and cause serious or fatal injury.
WARNING
If the head or deflector becomes clogged or stuck, always shut off the engine and make sure the cutting attachment has stopped before cleaning. Grass, weeds, etc. should be cleaned off from around the head at regular intervals.
WARNING
To reduce the risk of unintentional rotation of the cutting attachment and injury, always shut off the engine before replacing the cutting attachment. To
reduce the risk of injury, always shut off the engine before adjusting the length of the nylon line on manually adjustable mowing heads.
WARNING
The gearbox becomes hot during operation. To reduce the risk of burn injury, do not touch the gear housing when it is hot.
USING THE CUTTING ATTACHMENT
For an illustration of the various cutting attachments and instructions on proper mounting see the chapter on "Mounting the Cutting Attachment" in your instruction manual.
WARNING
To reduce the risk of severe or fatal injury from blade contact and / or loss of control, never attempt to use a metal blade on a power tool for which it is not authorized.
Using the Mowing Heads
Do not use with mowing line longer than the intended length. With a properly mounted deflector, the built-in line-limiting blade will automatically adjust the line to its proper length.
Using the unit with an overly long nylon cutting line increases the load on the engine and reduces its operating speed. This causes the clutch to slip continuously and results in overheating and damage to important components (e.g. clutch, polymer housing
components). Such damage could, among other things, cause the cutting attachment to rotate at idle.
Mowing heads are to be used only on trimmers / brushcutters equipped with a line-limiting blade in the deflector in order to keep the line at the proper length (see "Main Parts" chapter in your instruction manual).

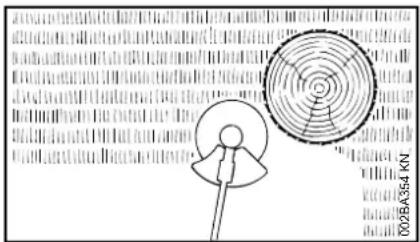

If the lawn edges are planted with trees or bordered by a fence etc., it is best to use a nylon line head. It achieves a "softer" cut with less risk of damaging tree bark etc. than polymer blades.
However, the polymer-bladed STIHL PolyCut produces a better cut if there are no plants along the edge of the lawn. Sharpening is not necessary, and worn polymer blades are easily replaced.
WARNING
To reduce the risk of serious injury, never use wire or metal-reinforced line or other material in place of the nylon cutting lines. Pieces of wire could break off and be thrown at high speed toward the operator or bystanders.
STIHL SuperCut mowing head
Fresh line is advanced automatically. Frayed line is replaced by a simple adjustment (see instruction sheet supplied with mowing head).
STIHL AutoCut mowing head
Nylon cutting line advances automatically when tapped against the ground (TapAction).
STIHL TrimCut mowing head
Frayed line is replaced by a simple adjustment (see instruction sheet supplied with mowing head).
STIHL PolyCut mowing head
Uses either nylon lines or nonrigid, pivoting polymer blades.
Observe wear indicators.


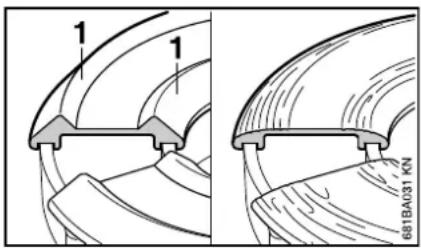

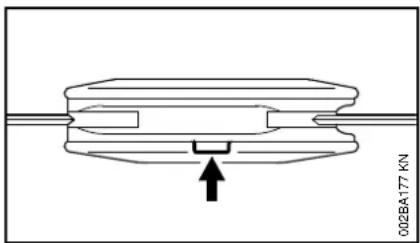

Three rectangular wear limit marks are applied to the base (periphery) of the PolyCut. To reduce the risk of serious injury from breakage of the head or blades, the PolyCut must not be used when it has worn as far as one of these marks. It is important to follow the maintenance instructions supplied with the head.
STIHL FixCut mowing head
Uses pre-cut lengths of nylon line.
Observe wear indicators.
Do not continue using the mowing head if the raised moldings (1) on the base are missing or worn – see right illustration above. The mowing head may otherwise shatter, and flying objects could result in injury to the operator or bystanders. Install a new mowing head.
MAINTENANCE, REPAIR AND STORING
WARNING
Always stop the engine and make sure that the cutting attachment is stopped before doing any maintenance or repair work or cleaning the power tool. Do not attempt any maintenance or repair work not described in your instruction manual. Have such work performed by your STIHL servicing dealer only.
WARNING
Use only identical STIHL replacement parts for maintenance and repair. Use of non-STIHL parts may cause serious or fatal injury.
Wear gloves when handling or performing maintenance on blades.
WARNING
Never repair damaged cutting attachments by welding, straightening or modifying the shape. This may cause parts of the cutting attachment to come off and result in serious or fatal injuries.
Tighten all nuts, bolts and screws, except the carburetor adjustment screws, after each use.
Do not clean your machine with a pressure washer. The solid jet of water may damage parts of the machine.
Store the power tool in a dry and high or locked location out of reach of children.
English
Approved MultiEngines
Only use MultiEngines supplied by STIHL or expressly approved by STIHL for use with the MultiTool.
This MultiTool may only be used in combination with the STIHL MM 56 MultiEngine.
Approved Combinations of Cutting Attachment and Deflector
Cutting Attachment Deflector
Select correct combination from the table according to the cutting attachment you intend to use.
WARNING
To reduce the risk of injury, no other combinations are permitted.
Only mowing heads (1, 2, 3, 4, 5, 6) may be used on the FS-MM MultiTool.
Cutting Attachments
Mowing heads
1 STIHL SuperCut 20 -2
2 STIHL AutoCut C 25-2
3 STIHL AutoCut 25-2
4 STIHL FixCut 31-2
5 STIHL TrimCut 31-2
8 Deflector for mowing heads
WARNING
Based on the cutting attachment being used:
Choose the proper deflector in order to reduce the risk of injury from thrown objects and contact with the cutting attachment.
Do not use rigid, non-pivoting polymer blades, metal cutting attachments or circular saw blades on this unit.
Only mowing heads may be used.
English
Fitting, removing the MultiTool
Mounting the MultiTool
Remove the gearbox
●Loosen the clamp screws (1) and pull the gearbox (2) off the drive tube.

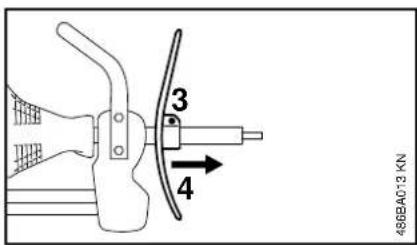

Remove the deflector
●Loosen the screw (3) and pull the deflector (4) off the drive tube.
WARNING
Keep the deflector in a safe place and always refit it before using other MultiTools – there is otherwise a risk of accidents.
●Push the coupling sleeve (1) onto the drive tube (2) as far as stop.
The coupling sleeve (1) is properly positioned when the arrow is in line with the gap in the flange (4).
●Tighten down the wing screw (3) firmly.
Removing the MultiTool
●Loosen the wing screw and pull off the FS-MM.

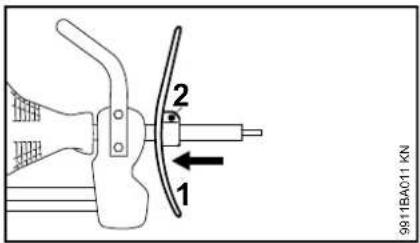

●Push the deflector (1) onto the drive tube (2) as far as stop.
●Tighten down the screw (2).

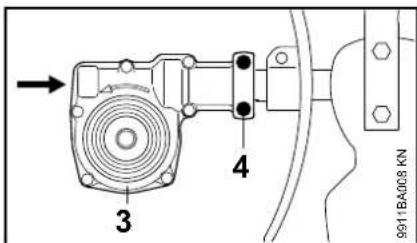

●Push the gearbox (3) into position and tighten down the clamp screws (4).
- Tighten the first screw moderately.
-
Tighten the second screw moderately.
-
Tighten down first screw firmly.
- Tighten down second screw firmly.
Mounting the Deflector
Mount the wheel guard.
Mounting the Cutting Attachment
Placing Power Tool on the Ground
- Attach the wheel guard to the gearbox, while doing so, insert the nose (1) into the recess (2) on the wheel guard.
●Turn-in and tighten the screw (3).
●Turn the power tool so that the cutting attachment mounting face is pointing up.

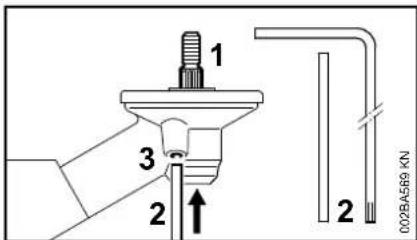

Blocking the shaft
To mount and remove the cutting attachments, the shaft (1) must be blocked with the locking pin (2) or Allen wrench (2). The parts are included in the scope of delivery and are available as special accessories.
English
- Push the locking pin (2) or Allen wrench (2) as far as it will go into the hole (3) in the gear – press gently
●Turn the shaft, nut or cutting attachment until the locking pin engages and the shaft is blocked
Fitting the mowing head with screw mounting
Keep the supplement sheet for the mowing head in a safe place.
●Fit the thrust plate

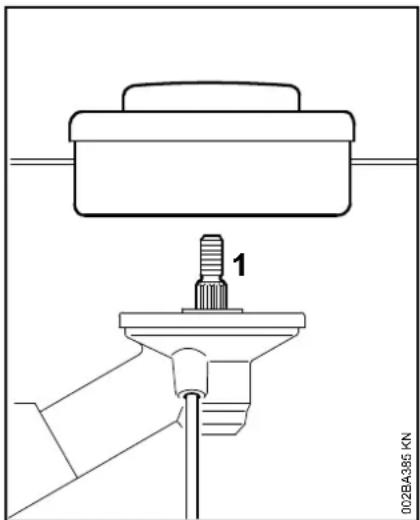

●Turn the mowing head anticlockwise on the shaft (1) as far as it will go
- Retain the shaft
●Tighten the mowing head
NOTICE
Remove the tool that was used to block the shaft.
Removing the Mowing Head
- Retain the shaft
●Turn the mowing head clockwise
Fitting Mowing Head without Screw Mounting
Keep the instruction leaflet for the mowing head in a safe place.
STIHL FixCut 31-2
●Fit the thrust plate (2).
●Place the mowing head on the thrust plate (2).
WARNING
Collar (see arrows) must engage the mowing head's mounting hole.
●Push the thrust washer (3) (convex side up) over the shaft (1) until it is seated on the base.
- Block the shaft.
- Use the combination wrench (5) to screw the mounting nut (4) onto the output shaft and it tighten down firmly.
WARNING
If the mounting nut has become too loose, fit a new one.
NOTICE
Remove the tool used to block the shaft.
Removing the Mowing Head
- Block the shaft.
- Use the combination wrench to loosen and unscrew the mounting nut counterclockwise from the output shaft.
Starting / Stopping the Engine
Starting the Engine
Always follow the starting procedure described in the MultiEngine instruction manual.
-
Retract the wheels, if fitted – see chapter on "Wheels" in MultiEngine instruction manual.
●Retract the spur, if fitted. -
Check that the MultiTool is not touching the ground or any other obstacles. The unit must rest on the engine flange and the support on the frame.
●Make sure you have good balance and secure footing – as shown in the illustration.
WARNING
To reduce the risk of injury from contact with the rotating attachment, always stand to the side of the power tool, never in front of the attachment.
- With your left hand on the loop handle, press the unit firmly against the ground – do not touch the throttle trigger or lockout lever.
NOTICE
Do not stand or kneel on the handlebar or frame.
WARNING
The attachment may begin to move as soon as the engine starts. For this reason, blip the throttle after starting – the engine returns to idling speed.
Now follow the starting procedure described in the MultiEngine instruction manual.
Stopping the Engine
●See MultiEngine instruction manual.
Storing the Machine
If the machine is to remain out of use for approx. 3 months or more
- Remove, clean and inspect the cutting attachment
●Store machine in a safe and dry place. Protect against unauthorized use (e.g., by children)
English
Maintaining the Mowing Head
Placing Power Tool on the Ground
●Turn the power tool so that the cutting attachment mounting face is pointing up.
Replacing Nylon Line
Always check the mowing head for signs of wear before replacing the nylon line.
WARNING
If there are signs of serious wear, replace the complete mowing head.
The nylon mowing line is referred to as "nylon line" or "line" in the following.
The mowing head is supplied with illustrated instructions for replacing the nylon line. Keep the instructions for the mowing head in a safe place.
- If necessary, remove the mowing head.
Adjusting Nylon Line
STIHL SuperCut
Fresh line is advanced automatically if the remaining line is at least 6 cm (2 1/2 in) long. The blade on the deflector trims overlong lines to the correct length.
STIHL AutoCut
●With the engine running, hold the rotating mowing head above the grass surface.
- Tap it on the ground once – fresh line is advanced and the blade on the deflector trims it to the right length.
Fresh line is advanced every time the mowing head is tapped on the ground. For this reason observe the mowing head's cutting performance during operation. If the mowing head is tapped on the ground too often, the line limiting blade will unnecessarily cut off unused lengths of nylon line.
Line feed operates only if both lines are still at least 2.5 cm (1 in) long.
Replacing Nylon Line
STIHL PolyCut
Precut lengths of nylon line can be fitted to the PolyCut in place of the cutting blades.
To reduce the risk of injury, always shut off the engine before refilling the mowing head.
●Fit precut lengths of nylon line in the mowing head as described in the instructions supplied.
Replacing Cutting Blades
STIHL PolyCut
Always check the mowing head for signs of wear before installing new cutting blades.
WARNING
If there are signs of serious wear, replace the complete mowing head.
The thermoplastic cutting blades are referred to as "blades" in the following.
The mowing head is supplied with illustrated instructions for replacing the blades. Keep the instructions for the mowing head in a safe place.
WARNING
To reduce the risk of injury, always shut off the engine before installing the blades.
- Remove the mowing head.
- Replace blades as shown in the illustrated instructions.
●Mount the mowing head on the machine.
Maintenance and Care
The following information applies in normal operating conditions. The specified intervals must be shortened accordingly when working for longer than normal or under difficult cutting conditions (extensive dust, etc.).
All accessible screws, nuts and bolts
●Tighten if necessary
Cutting attachments
●Visual inspection, check they are secure
before starting work and whenever the tank is refilled
-Replace if damaged
Safety information label
●Replace illegible safety information labels
Main Parts
1 Mowing Head
2 Deflector for Mowing Heads only
3 Line Limiting Blade
4 Drive Tube
5 Coupling Sleeve
6 Wing Screw
Definitions
1 Mowing Head
The cutting attachment, i.e. mowing head, for different purposes.
2 Deflector for Mowing Heads only
Designed to reduce the risk of injury from foreign objects flung backwards toward the operator by the cutting attachment and from contact with the cutting attachment.
3 Line Limiting Blade
Metal blade at the deflector in order to keep the line of the mowing head at the proper length.
4 Drive Tube
Encloses and protects the drive shaft between the coupling sleeve and gearbox.
5 Coupling Sleeve
Connects drive tube to lower part of drive tube (stub shaft).
6 W i n g S c r e w
Secures lower part of the drive tube (stub shaft).
Specifications
Speed
Maximum speed of the drive shaft on the cutting tool with Multmotor:
MM 55: 6400 rpm
Weight
without cutting attachment, 2 lbs. with deflector: (0.9 kg)
Maintenance and Repairs
Users of this unit should carry out only the maintenance operations described in this manual. STIHL recommends that other repair work be performed only by authorized STIHL servicing dealers using genuine STIHL replacement parts.
Genuine STIHL parts can be identified by the STIHL part number, the
STIHL ^ logo and, in some cases, by the STIHL parts symbol G_ . The symbol may appear alone on small parts.
For repairs of any component of this unit's air emissions control system, please refer to the air emissions systems warranty in this manual.
English
Disposal
Observe all country-specific waste disposal rules and regulations.
STIHL products must not be thrown in the garbage can. Take the product, accessories and packaging to an approved disposal site for environment-friendly recycling.
Contact your STIHL servicing dealer for the latest information on waste disposal.
Trademarks
STIHL Registered Trademarks
STIHL®
STIHL®
G
The color combination orange-grey (U.S. Registrations #2,821,860; #3,010,057, #3,010,058, #3,400,477; and #3,400,476)
MASTERWRENCH STIHL
SERVICE
AutoCut®
FARM BOSS®
iCademy®
MAGNUM®
MasterWrench Service®
MotoMix®
OILOMATIC®
ROCK BOSS®
STIHL Cutquik®
STIHL DUROMATIC®
STIHL Quickstop®
STIHL ROLLOMATIC®
STIHL WOOD BOSS®
TIMBERSPORTS®
WOOD BOSS®
YARD BOSS®
Some of STIHL's Common Law Trademarks
4-MIX ^TM
BioPlus ^TM
Easy2Start ™
EasySpool™
ElastoStart ™
Ematic ^TM
FixCut ^TM
IntelliCarb ™
Master Control Lever ^TM
Micro TM
Pro Mark ^TM
Quiet Line ^TM
STIHL M-Tronic ^TM
English
STIHL OUTFITTERS ^TM
STIHL PICCO ^TM
STIHL PolyCut ^TM
STIHL PowerSweep ^TM
STIHL Precision Series ^TM
STIHL RAPID ^TM
STIHL SuperCut ^TM
TapAction ^TM
TrimCut ^TM
This listing of trademarks is subject to change.
Any unauthorized use of these
trademarks without the express written consent of
Waiblingen is strictly prohibited.
Contenido
Sistema MultiSystem 23
Technical line drawing of a mechanical device with levers and gears (no text or symbols)natural_image
Line drawing of a person holding a medical device with attached bandages (no text or symbols)natural_image
Pure mechanical component diagram without any text, numbers, or symbols
ADVERTENCIA
Technical line drawing of a mechanical assembly with no visible text or symbolsnatural_image
Silhouette of a traditional Chinese dragon boat with a circular base and leaf-like decorations (no text or symbols)natural_image
Line drawing of a person using a tool on a mechanical device (no text or symbols)
Silhouette of a traditional Chinese mechanical device with a drum and leaf-like components (no text or symbols)MasterWrench Service®
MotoMix®
OIOMATIC®
ROCK BOSS®
STIHL Cutquik®
STIHL DUROMATIC®
STIHL Quickstop®
STIHL ROLLOMATIC®
STIHL WOOD BOSS®
TIMBERSPORTS®
WOOD BOSS®
YARD BOSS®
This product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
0458-480-8621-A
0458-480-8621-A
- WARNING
- ADVERTENCIA
- MultiSystem
- Guide to Using this Manual
- Pictograms
- Symbols in Text
- DANGER
- NOTICE
- Engineering Improvements
- Safety Precautions and Working Techniques
- THE OPERATOR
- Physical Condition
- English
- Proper Clothing
- THE POWER TOOL (MULTIENGINE EQUIPPED WITH TRIMMER MULTITOOL)
- Starting
- During Operation
- Working Conditions
- Operating Instructions
- USING THE CUTTING ATTACHMENT
- Using the Mowing Heads
- MAINTENANCE, REPAIR AND STORING
- Approved MultiEngines
- Approved Combinations of Cutting Attachment and Deflector
- Cutting Attachment Deflector
- Approved Combinations
- Cutting Attachments
- Mowing heads
- Fitting, removing the MultiTool
- Removing the MultiTool
- Mounting the Deflector
- Mounting the Cutting Attachment
- Removing the Mowing Head
- Starting / Stopping the Engine
- Starting the Engine
- Stopping the Engine
- Storing the Machine
- Maintaining the Mowing Head
- Replacing Nylon Line
- Adjusting Nylon Line
- STIHL SuperCut
- STIHL AutoCut
- STIHL PolyCut
- Replacing Cutting Blades
- Maintenance and Care
- Main Parts
- Definitions
- Mowing Head
- Deflector for Mowing Heads only
- Line Limiting Blade
- Drive Tube
- Coupling Sleeve
- W i n g S c r e w
- Specifications
- Speed
- Weight
- Maintenance and Repairs
- Disposal
- Trademarks
- STIHL Registered Trademarks
- STIHL®
- Contenido
Brand : STIHL
Model : FS-MM
Category : Hedge trimmers
