Flare DZ5571 - Watch Diesel - Free user manual and instructions

Product Type	Watch
Brand	Diesel
Model	Flare DZ5571
Movement	Quartz analog
Case Material	Stainless steel
Case Diameter	45 mm
Case Thickness	12 mm
Weight	150 g
Strap Material	Silicone
Strap Width	22 mm
Water Resistance	50 m (5 ATM)
Display	Analog with date window
Functions	Hours, minutes, seconds, date, chronograph
Power Source	Battery (CR2016)
Battery Life	Approximately 2 years
Glass	Mineral crystal
Clasp	Buckle
Warranty	2 years
Country of Origin	China
Maintenance	Wipe with soft dry cloth; avoid contact with solvents
Safety	Remove battery if not used for long periods
Spare Parts	Available through authorized service centers

Frequently Asked Questions - Flare DZ5571 Diesel

How do I set the time on my Diesel Flare DZ5571?

Pull the crown out to position 2 (second click). Turn the crown clockwise to set the correct time. Push the crown back in to position 0.

How do I set the date?

Pull the crown out to position 1 (first click). Turn the crown clockwise until the correct date appears. Push the crown back in.

How do I use the chronograph?

Press the top pusher to start/stop the chronograph. Press the bottom pusher to reset to zero. The chronograph measures up to 30 minutes.

Is my watch water resistant?

Yes, it is water resistant to 50 meters (5 ATM). It is suitable for swimming but not for diving or snorkeling.

How long does the battery last?

The battery typically lasts about 2 years. When the second hand moves in 4-second jumps, it is time to replace the battery.

Can I replace the battery myself?

It is recommended to have the battery replaced by a professional to maintain water resistance. The battery type is CR2016.

How do I clean my watch?

Wipe the case and strap with a soft, dry cloth. Avoid using chemicals, solvents, or abrasive cleaners. For silicone straps, mild soapy water can be used.

What should I do if the watch gets foggy inside?

Fogging indicates moisture inside. Remove the watch from water and place it in a dry, warm place. If persistent, contact customer service.

Can I adjust the strap length?

Yes, the strap has holes for adjustment. If needed, a watchmaker can remove links (if metal) or punch extra holes in silicone straps.

Where can I find spare parts for my Diesel Flare DZ5571?

Spare parts are available through authorized Diesel service centers. Contact customer support for assistance.

USER MANUAL Flare DZ5571 Diesel

• When the watch is underwater or wet, never use the pushers/bezels, or set the time. Watch cases and metal bracelets should be rinsed thoroughly in fresh water after being in salt water.
• No hot tub/sauna. Please do not take your DIESEL watch into the hot tub/sauna. The combination of extreme heat and water may cause your watch to lose some of its water-resistance.
• No backward hand, or date, adjustments should be made when the analog hands read between 8pm and 3am. At these times, the gears are too close together and such a change could cause damage.

Resistance to Water

Water Resistance Water-Related Use
Caseback Marking	Depth
		Washing Hands	Shower, Bathing	Swimming, Snorkeling	Scuba Diving
—	—	×	×	×	×
WR —
3 ATM	3 Bar, 30 Meters
5 ATM	5 Bar, 50 Meters
10 ATM	10 Bar, 100 Meters
20 ATM	20 Bar, 200 Meters
30 ATM	30 Bar, 300 Meters			[8STY]
50 ATM	50 Bar, 500 Meters
Always set the crown in closed position (the normal position). Tighten screw-lock crown completely.

Date Watch 515.2-3, 2117, 2317, VX42EZ-D

DATE SETTING

1. Pull crown out to position 2.
2. Rotate counter-clockwise to set date.
3. Return crown back to position 1.

TIME SETTING

1. Pull crown out to position 3.
2. Rotate counter-clockwise to set time.
3. Return crown to position 1.

Day/Date Watch 2305

DATE SETTING

1. Pull crown out to position 2.
2. Rotate clockwise to set date.
3. Return crown back to position 1.

DAY SETTING

With crown still in position 2, turn counter-clockwise and set day for previous day.

TIME SETTING

1. Pull crown out to position 3.
2. Rotate counter-clockwise to set time.
3. Return crown to position 1.

1 2 3 DATE

DAY 1 2 3 DATE

Chronograph JS15, JS16, JS26, JS10

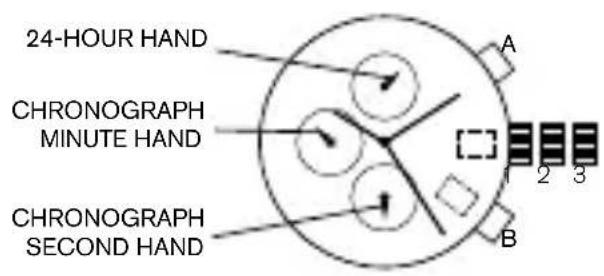

24-HOUR HAND CHRONOGRAPH MINUTE HAND CHRONOGRAPH SECOND HAND A B 1 2 3

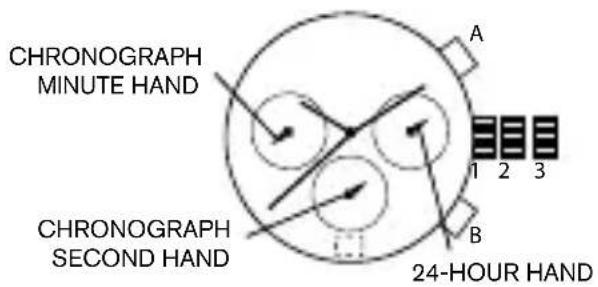

CHRONOGRAPH MINUTE HAND CHRONOGRAPH SECOND HAND A 1 2 3 B 24-HOUR HAND

DATE SETTING

1. Pull crown out to position 2.
2. Rotate clockwise to set date.
3. Return crown back to position 1.

TIME SETTING

1. Pull crown out to position 3.
2. Rotate clockwise to set time.
3. Return crown to position 1.

CHRONOGRAPH

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to rotate hands clockwise; press B to rotate hands counter-clockwise.
3. Each press of A or B will move the chronograph hands by one increment/decrement. Press and hold A or B for fast increment/decrement.
4. When both hands are in the zero position, reset time and return crown to position 1.

NOTE: Chronograph minute hand will synchronize with chronograph second hand during chronograph zero reset.

Chronograph Stopwatch VD57B

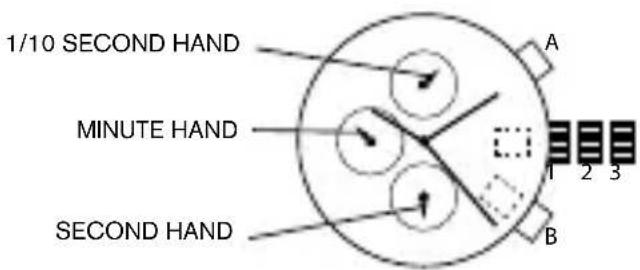

1/10 SECOND HAND MINUTE HAND SECOND HAND A 1 2 3 B

DATE SETTING (on some models only)

1. Pull crown out to position 2.
2. Rotate clockwise to set date.
3. Push crown back to position 1.

TIME SETTING

1. Pull crown out to position 3.
2. Rotate clockwise to set time.
3. Return crown to position 1.

USING THE STOPWATCH

1. Press A to start/stop the stopwatch.
2. Press B to control the split time and reset.

STOPWATCH HAND ADJUSTMENT

1. Pull crown out to position 3.
2. Press A to reset the stopwatch 1/10 second hand to the "0" position.
3. Press B to reset the second and minute hands.
4. Each press of A or B will move the chronograph hands by one increment/decrement. Press and hold A or B for fast increment/decrement.

NOTE: If the stopwatch hands function improperly, pull out crown and press A and B at the same time for over 2 seconds. When the pushers are released, the stopwatch second and 1/10 second hands will spin around and return to "0." This will indicate that the internal circuit has been reset.

Chronograph VD51B

DATE SETTING

1. Pull crown out to position 2.
2. Rotate the crown clockwise until the preview day's date appears.
3. Return crown to position 1.

TIME SETTING

1. Pull crown out to position 2 when the second hand is at the 12 o'clock position.
2. Rotate crown to set time.
3. Return crown to position 1.

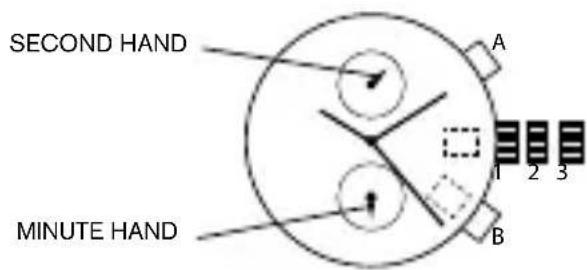

SECOND HAND MINUTE HAND A 1 2 3 B

USING THE STOPWATCH

1. Press A to start/stop the stopwatch.
2. Press B to control split time and reset.

NOTE: The measurement time is indicated by the stopwatch hands that move independently of the center hands (and 24-hour hand where applicable).

NOTE: The stopwatch can measure up to 60 minutes.

STOPWATCH HAND ADJUSTMENT

1. Pull crown out to position 3.
2. Press A or B to reset all stopwatch hands to "0" position.
3. Each press of A or B will rotate hands clockwise; press B to rotate hands counter-clockwise. Press and hold A or B for fast increment/decrement.
4. Return crown to position 1.

NOTE: Before setting the time, check if all the chronograph hands - 1/10 second (where applicable), second, minute - are at the "0"(12 o'clock) position.

NOTE: If the stopwatch is in use, press the buttons in the following order to reset it, and then check if the hands return to the "0" position.

*If the chronograph is counting: A → B *If the stopwatch is stopped: B *If the split time is displayed: B → A → B

Chronograph VD53, VD53B, VR32A25

DATE SETTING

1. Pull crown out to position 2.
2. Rotate clockwise to set date.
3. Return crown back to position 1.

TIME SETTING

1. Before setting the time, make sure the chronograph is stopped and set to zero (12:00) position.
2. Pull crown out to position 3.
3. Rotate crown clockwise to set time.
4. Return crown to position 1.

CHRONOGRAPH

1. Press A to start/stop the chronograph.
2. Press B to reset to zero.

SPLIT TIME

1. Press B while the chronograph is running.
2. Press B again to return to the chronograph.
3. Press A to finalize timing.
4. Press B to reset.

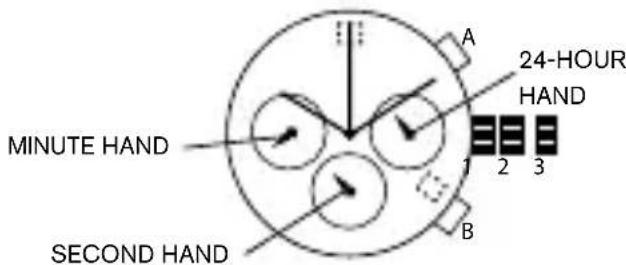

MINUTE HAND SECOND HAND A 24-HOUR HAND 1 2 3 B

CHRONOGRAPH ZERO RESET

1. If either of the chronograph hands is not at the zero (12:00) position, pull crown out to position 3.
2. Press A to rotate hands clockwise; press B to rotate hands counter-clockwise.
3. Each press of A or B will move the chronograph hands by one increment/decrement. Press and hold A or B for fast increment/decrement.
4. When both hands are in the zero position, reset time and return crown to position 1.

Automatic 8N24-N-LR-DZ, NH38A3M

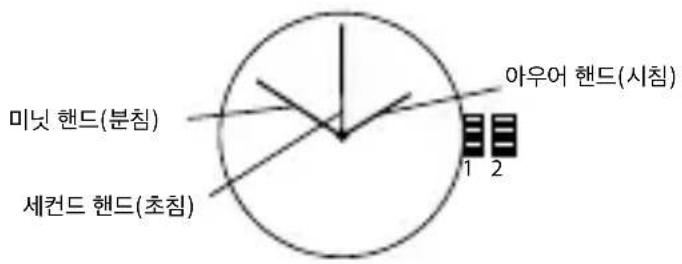

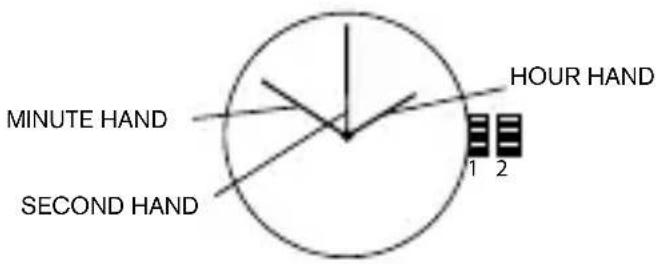

MINUTE HAND SECOND HAND HOUR HAND 1 2

WINDING THE MAINSPRING

1. Rotate the crown clockwise at position 1. Wind approximately 10 times clockwise and it will start to move naturally.

TIME SETTING

1. Pull the crown out to position 2.
2. Rotate crown to set time.
3. Return crown back to position 1.

Digital FL137AX, FL137AB, QFOX21CA, QFOX21CB, QFOX21BB

B 12313 A

FL137AB FL137AX

A 12313 B

QFOX21CA QFOX21CB

12 38

QFOX21BB

OVERVIEW

Features include CALENDAR and TIME.

NORMAL TIME DISPLAY

1. Press A to change display. Display sequence is time, calendar, seconds.
2. Press B to toggle 12/24-hour format.

TIME AND DATE SETTING

1. Press and hold B for 2 seconds to enter setting mode; year will begin flashing.
2. Press A to advance digit; press and hold A for fast advance.
3. Press B to set and advance to next setting value.
4. Setting sequence is year, month, date, hour, minute.
5. Press B to exit setting mode.

N OTE: Hour will be displayed in 24-hour format in time setting mode. N OTE: If no pusher/button is operated for 30 seconds, all changes will be saved and the setting will automatically return to display mode.

Digital QFO-015-AA

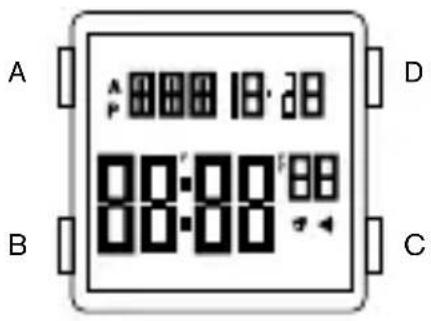

A 00:00'88' 00:00' B D C

OVERVIEW

Features include CALENDAR, ALARM, 12/24H FORMAT, CHRONO, TIMER, DUAL TIME, EL BACKLIGHT.

TIME SETTING

1. Press and hold C for 2 seconds to enter setting mode; seconds will begin flashing.
2. Press B to set and advance to next setting value.
3. Setting sequence is second, minute, hour 12/24H format, month, day, week.
4. Press D to advance the flashing digit.
5. Press C to exit setting mode.

NOTE: Pressing D while the seconds are in the range of 30 to 59 resets them to 00 and adds 1 to the minutes. In the range of 00 to 29, the minutes are unchanged.

NOTE: Press A for 3 seconds to activate EL backlight.

ALARM SETTING

1. Press D to turn on/off the alarm or chime.
2. To set the alarm, press and hold C for 2 seconds to select "hour" setting; Press B to select "minute" setting; Press D to advance the flashing digit.
3. When the alarm reaches the scheduled time, the alarm icon will flash and the chime will sound for 20 seconds.

CHRONOGRAPH

1. Press D to start/stop chronograph.
2. When stopped, press C to return to zero.
3. When running, press C to split count, then press D to exit split count and C to return to zero.
4. Press B to return to time.

TIMER MODE

1. The display range of the timer is 23 hours, 59 minutes and 59 seconds.
2. Press D to start/stop the timer. Press C to return to starting value.
3. Timer sounds for 10 seconds when counting down to 00:00:00. The timer is automatically reset to its starting value after the alarm stops.

DUAL TIME

1. In the Dual Time mode, press and hold C for 2 seconds to select "minute" setting; Press B to select "hour" setting, Press D to adjust the flashing item; Press C to finish setting and to exit setting mode.

DEUTSCH

WICHTIGE HINWEISE

Chronograph JS15, JS16, JS26, JS10

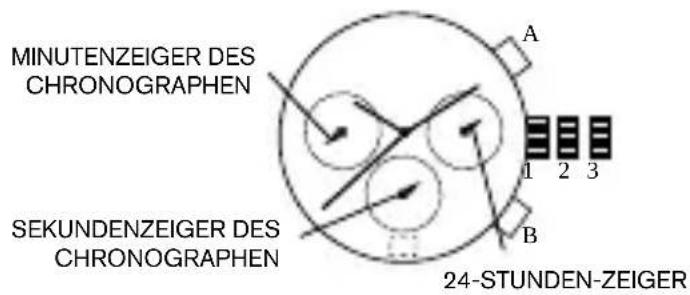

24-STUNDEN-ZEIGER MINUTENZEIGER DES CHRONOGRAPHEN SEKUNDENZEIGER DES CHRONOGRAPHEN A B 1 2 3

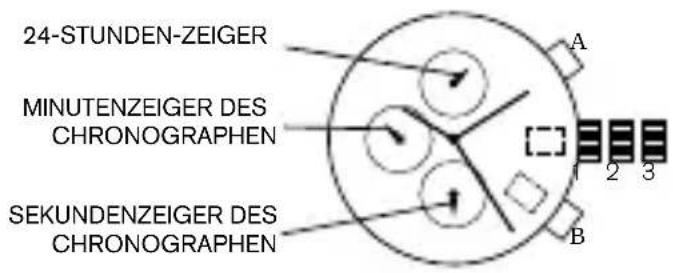

MINUTENZEIGER DES CHRONOGRAPHEN SEKUNDENZEIGER DES CHRONOGRAPHEN A 1 2 3 B 24-STUNDEN-ZEIGER

DATUMSEINSTELLUNG

Automatico 8N24-N-LR-DZ, NH38A3M

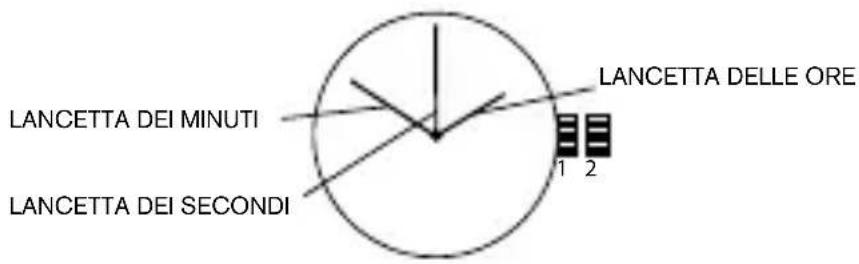

LANCETTA DEI MINUTI LANCETTA DEI SECONDI LANCETTA DELLE ORE 1 2

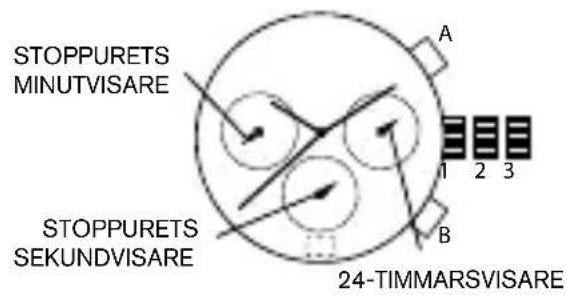

24-TIMMARSVISARE STOPPURETS MINUTVISARE STOPPURETS SEKUNDVISARE A 1 2 3 B

STOPPURETS MINUTVISARE STOPPURETS SEKUNDVISARE A 1 2 3 B 24-TIMMARSVISARE

DATUMINSTÄLLNING

오토매틱 8N24-N-LR-DZ, NH38A3M

Otomatis 8N24-N-LR-DZ, NH38A3M

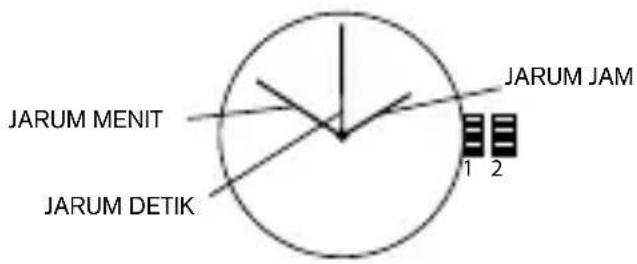

JARUM MENIT JARUM DETIK JARUM JAM 1 2
