Product Type	PC Case (Gaming Cube)
Brand	Thermaltake
Model	Lanbox VF1000 Series
Case Type	Gaming Cube
Dimensions (W x D x H)	300 x 430 x 280 mm (11.8 x 16.9 x 11.0 in) with handle; 300 x 430 x 230 mm (11.8 x 16.9 x 9.05 in) without handle
Weight	7.5 kg (16.53 lb) for steel model; 4.2 kg (9.25 lb) for aluminum model
Motherboard Support	Micro ATX and Mini ITX
Drive Bays	1 x 7" (convertible to 5.25"), 1 x 5.25", 3 x 3.5" (1 exposed, 2 hidden)
Front I/O Ports	USB 2.0 x 2, IEEE 1394 Firewire, HD-Audio
Expansion Slots	4
Cooling System	Front: 90mm fan (blue LED on some models), 1500 rpm; Rear: 60mm fans x 2 (up to 3), 1800 rpm
Material	Front panel: Aluminum; Chassis: SECC or Aluminum (depending on model)
Color	Black or Silver
Carrying Handle	Available on selected models (VF1000BWS, VF1000SWA)
Window Side Panel	Available on selected models (VF1000BWS, VF1000SWA)
Optional Upgrade	7" Bay LCD Monitor (P/N: 2413-01)
Power Supply Support	Standard ATX power supply (optional; Silent Purepower™ recommended)
Coolant Tube Support	Yes (for liquid cooling systems)
Intake Filter	Front intake filter, removable for cleaning
Compliance	CE, TCC Standard (tested with TCC Standard)

Frequently Asked Questions - Lanbox VF1000 THERMALTAKE

How do I open the top panel of the Thermaltake Lanbox VF1000?

To open the top panel, first unscrew the 3 screws shown in the manual. Then pull back the top panel as shown to loosen it. Next, unscrew the 7 screws to unlock the motherboard tray, and finally tug on the ring to pull back and remove the motherboard tray.

How do I install a 5.25" optical drive?

First, unscrew the 2 screws to slide back the optical drive tray. Then pull back and pull up to remove the tray. When installing the optical drive, it is recommended to screw into the 2nd hole for a flush installation. Secure the drive on both sides. If installing in the top bay, attach the metal adaptor first, then slide the drive in from the front.

How do I install a 3.5" hard drive?

You can install an HDD either on the HDD rack or on the side of the optical drive tray. For the HDD rack: unscrew the screw to remove the rack, slide it out, then secure the HDD with screws onto the rack. For the side of the optical drive tray: unscrew the 2 screws to remove the optical drive tray, then secure the HDD on the side with 4 screws (2 on each side).

How do I install the power supply?

First, unscrew the 6 screws holding the top power supply tray. Lift out the tray. Then install the power supply unit onto the tray. If using a power supply with a 120mm fan, ensure the fan is exposed on the top side. Finally, reinsert the tray and secure it with the screws.

How do I install a graphics or PCI expansion card?

Remove the screw as shown to open the expansion slot cover. Insert the graphics or PCI card into the slot and secure it by screwing the card as shown in the manual.

How do I install coolant tubes for liquid cooling?

If installing a liquid cooling system, first pry off the top tab of the motherboard tray. Then install the rubber tube protector. Coolant tubes may be installed as shown in the manual. This is optional.

How do I clean the intake filter?

To clean the intake filter, remove the 4 screws as shown on the front panel. Take out the filter and clean it. Then reinstall it by reversing the steps.

How do I connect the front panel LEDs and switches?

The front panel leads include POWER SW, POWER LED, H.D.D. LED, RESET SW, and SPEAKER. Consult your motherboard manual for the correct pin layout. Typically, POWER LED connects to PLED, POWER SW to PWR, H.D.D. LED to eSATA or HDD LED, RESET SW to RSW, and SPEAKER to a 4-pin header.

How do I connect the USB 2.0 and IEEE 1394 Firewire ports?

For USB 2.0, connect the cable from the case to the USB header on your motherboard, ensuring correct pin alignment (Vcc, Data-, Data+, GND). For IEEE 1394, connect the Firewire cable to the corresponding header on the motherboard, typically with pins for VP, TPB+, TPB-, VG, TPA+, TPA-, and SHIELD.

Can I install a 7" LCD monitor in this case?

Yes, the case supports an optional 7" LCD monitor (P/N: 2413-01). To install, remove the 4 screws holding the 7" drive bay cover, unscrew the cover, then remove the optical drive tray. Secure the front panel with 4 screws and reinstall the optical drive tray. Install the 7" cage onto the drive bay, push all metal clips to fix the cage, insert the 7" device, and install the frame.

USER MANUAL Lanbox VF1000 THERMALTAKE

©2006 Thermaltake Technology Co., Ltd. All Rights Reserved. 2006.09 All other registered trademarks belong to their respective companies.www.thermaltake.com

Tested

With TCC Standard

FOR HOME OR OFFICE USE

CE

[Unreadable]

Thermaltake

Coolall YOUR LIFE

LANBOX™

VF1000 Serles

Mini Chassis on the Move

User's Manual

ontents

Chapter 1. Product Introduction

1-1 Specification 01

Chapter 2. Case Mechaniacl Operation

2-1 How to open the side panel 03
2-2 5.25" device installation 04
2-3 HDD installation 07
2-3-1 Install HDD on the HDD rack
2-3-2 Install HDD on the side of optical drive tray
2-4 Installing 3.5" device 09
2-5 Installing Power Supply 10
2-6 Installing graphics and PCI expansion cards 11
2-7 Installing Coolant tubes 12
2-8 Installing 60mm fan 13
2-9 Clean the intake filter 13

Chapter3 Motherboard & Leads Installation

3-1 Motherboard Installation 14
3-2 Case LED connections 15

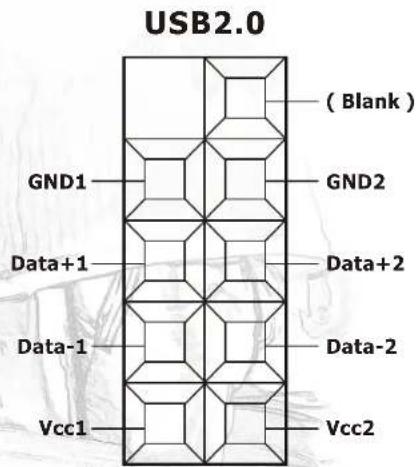

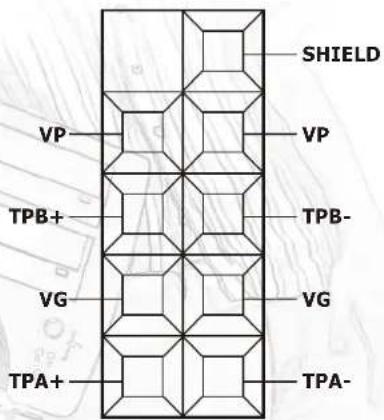

3-3 USB 2.0 & IEEE 1394 Firewire Connection 16

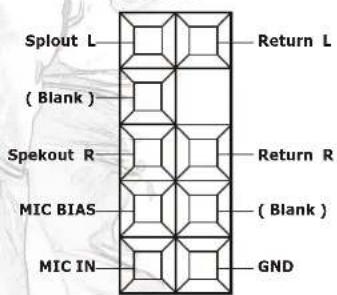

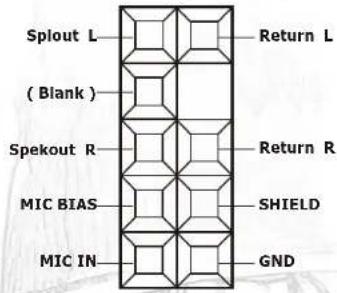

3-4 Audio Connection 18

Chapter4 Other

4-1 7"LCD monitor installation (optional) 19
4-2 7"LCD monitor uninstallation (optional) 21

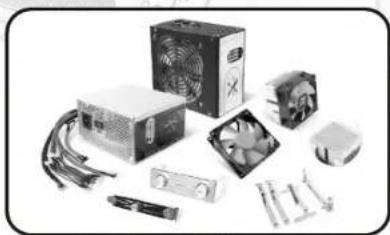

4-3 Silent Purepower ^TM power supply(optional) 23

Chapter 1. Product Introduction
Specification

Model	VF1000BWS	VF1000BNS
Case Type	Gaming Cube
Dimension (W*D*H)	300 x 430 x 280 mm11.8 X 16.9 X 11.0 inch	300 x 430 x 230 mm11.8 X 16.9 X 9.05 inch
Carrying Handle	Yes	N/A
Window side panel	Window	N/A
Front Panel Material	Aluminum
Chassis Material	SECC
Color	Black
Cooling System	- Front :90mm fan withblue LEDx 1, 1500rpm- Rear :60mm fanx 2, 1800rpm(up to 60mm fan x 3)	- Front :90mm fan x1, 1500rpm- Rear :60mm fan x2, 1800rpm(up to 60mm fan x 3)
Motherboard	Micro ATX form factor & mini ITX form factor
Drive Bays	- 7" x 1 (could be converted to 5.25" drive bay)- 5.25" x 1- 3.5" x 3 (Exposed x 1, Hidden x 2)
Front I/O	USB 2.0 x 2, IEEE 1394 Firewire, HD-Audio
Expansion Slots	4
Weights	7.5 kg / 16.53 lb 6.7 kg / 14.77 lb
Upgraded Kit (optional)	7" Bay LCD monitor (P/N: 2413-01)

Model	VF1000SWA	VF1000SNA
Case Type	Gaming Cube
Dimension (W*D*H)	300 x 430 x 280 mm11.8 X 16.9 X 11.0 inch	300 x 430 x 230 mm11.8 X 16.9 X 9.05 inch
Carrying Handle	Yes	N/A
Window side panel	Window	N/A
Front Panel Material	Aluminum
Chassis Material	Aluminum
Color	Silver
Cooling System	- Front :90mm fan with blue LEDx 1, 1500rpm- Rear :60mm fanx 2, 1800rpm(up to 60mm fan x 3)	- Front :90mm fan x1, 1500rpm- Rear :60mm fan x2, 1800rpm(up to 60mm fan x 3)
Motherboard	Micro ATX form factor & mini ITX form factor
Drive Bays	- 7" x 1 (could be converted to 5.25" drive bay)- 5.25" x 1- 3.5" x 3 (Exposed x 1, Hidden x 2)
Front I/O	USB 2.0 x 2, IEEE 1394 Firewire, HD-Audio
Expansion Slots	4
Weights	4.2 kg / 9.25 lb 3.4 kg / 7.50 lb
Upgraded Kit (optional)	7" Bay LCD monitor (P/N: 2413-01)

Chapter 2. Case Mechaniacl Operation

2-1 How to open the top panel

Close-up of a computer case with ventilation fans and screw holes (no visible text or symbols)

1

Unscrew the 3 screws shown to open the top panel.

Hand placing a grid into a rack with cooling fans (no text or symbols visible)

Hand placing a component into a storage unit with visible heat exchanger (no text or symbols)

2 Pull back the top panel as shown to loosen the panel.

Close-up of a computer tower case with multiple circular annotations highlighting internal components (no readable text or symbols)

Interior view of a computer tower case showing ventilation slots and drive bays (no text or symbols visible)

3 Unscrew the 7 screws shown to unlock the motherboard tray.

4 Tug on the ring and pull back as shown to remove the motherboard tray.

5 The motherboard tray

Exterior view of a modern office building (no signage)

-34-

LANBOX™ Mini Chassis on the Move

2-2 5.25" device installation

Close-up of a computer chassis showing internal components and mounting holes (no text or symbols visible)

Close-up of a hand operating a computer monitor with a scroll wheel (no visible text or symbols)

1 Unscrew the 2 screws as shown to slide back the optical drive tray.

Close-up of a computer motherboard showing a hand pressing a component with arrows indicating direction (no text or symbols visible)

Close-up of a hand holding a small electronic device with a black arrow pointing to it (no visible text or symbols)

2 Pull back, then pull up to remove the optical drive tray.

Close-up of a computer monitor with a cartoon face on the front panel (no visible text or symbols)

Close-up of a computer tower case with drive bays and ventilation slots (no visible text or labels)

3 When installing optical drives, it is recommended to screw into the 2nd hole as shown for a flush installation.

-34-

Mini Chassis on the Move LANBOX

Interior view of a mechanical or electronic device with visible components and no readable text or symbols

4 Screw in the optical drive on the opposing side.

Close-up of a computer monitor case with an inset magnified view showing a button (no text or symbols visible)

Close-up of a computer drive with a circular button and cable, no visible text or symbols

5 When installing an optical drive on the top bay, please install the metal adaptor first as shown.

Exterior view of a silver computer drive unit (no visible text or labels)

Exterior view of a computer drive chassis (no visible text or labels)

6 Slide in the optical drive from the front.

Exterior view of a metallic mechanical housing or enclosure (no visible text or symbols)

-56-

LANBOX™ Mini Chassis on the Move

Mechanical component with mounting holes and a circular feature (no visible text or symbols)

7 Secure the optical drive on the opposing side as well.

Exterior view of a mechanical or electronic device with two rectangular components and mounting brackets (no visible text or symbols)

8 Secure the top optical drive bay as shown.

Close-up of a mechanical device with a circular component and a label (no readable text or symbols)

Close-up of a mechanical component with bolts and mounting holes (no visible text or symbols)

-56-

Mini Chassis on the Move LANBOX

HDD installation

2-3-1 Install HDD on the HDD rack 2-3-2 Install HDD on the side of optical drive tray

Close-up of an electronic device with visible circuitry and wiring (no readable text or symbols)

Close-up of an electronic device with visible components and wiring (no text or symbols)

1 Unscrew the screw shown to remove the HDD rack.

Close-up of a hand using a tool to adjust or install electronic components (no visible text or symbols)

Exterior view of a mechanical device housing (no visible text or symbols)

2 Slide over the HDD rack as shown to remove. 3 The HDD rack.

Close-up of a metallic electronic device with a switch inserted, showing internal components and no visible text or symbols.

Interior view of a kitchen appliance showing a glass door, tray, and interior space (no visible text or symbols)

4 Secure HDDs using screws when installing in the HDD rack.

Close-up of a computer case with visible internal components and mounting holes (no text or symbols)

Close-up of a hand operating a computer drive with a circular button (no visible text or symbols)

1 Unscrew the 2 screws as shown to slide back the optical drive tray.

Close-up of a computer tower case with a hand holding the front panel and a black arrow pointing to a component (no visible text or symbols)

Close-up of a hand holding a small electronic device with a black arrow pointing to it (no visible text or symbols)

2 Pull back, then pull up to remove the optical drive tray.

Close-up of a mechanical device with a screwdriver inserted, showing internal components (no visible text or symbols)

Close-up of a computer monitor with a magnified inset showing a circular detail (no visible text or symbols)

3 A HDD can be installed on the side by securing 4 screws.
4 Screw in both sides of the HDD.

-78-

LANBOX™ Mini Chassis on the Move

-78-

Mini Chassis on the Move LANBOX

2-4 Installing 3.5" device

Industrial machine component with a circular arrow indicating rotation (no visible text or symbols)

Exterior view of a Thermostats industrial machine (no signage or text visible)

1 If a floppy drive is to be installed, please remove the bay cover first.

Close-up of a mechanical component with a circled feature, no visible text or symbols

Close-up of a metallic electronic device casing with internal components and mounting holes (no visible text or symbols)

2 Secure the floppy drive on the opposing side as shown.

Exterior view of a Thermostare air conditioner unit (no visible text or symbols on the device itself)

Close-up of a mechanical component with a circular arrow indicating rotation (no visible text or symbols)

3 Please make sure the floppy drive is flush with the front panel.

4 Secure the floppy drive using screws as shown.

2-5 Installing power supply

Close-up of a computer chassis with visible internal components and mounting holes (no text or symbols)

1 Unscrew the 6 screws holding in the top power supply tray.

Interior view of a computer case with visible internal components and a hand pointing to a component (no text or symbols)

2 Lift out the power supply tray as shown.

Exterior view of a plastic mechanical housing or enclosure (no text or symbols visible)

Close-up of a computer cooling unit with cooling fan and cooling tower (no visible text or symbols)

3 The power supply tray.

Close-up of a power supply unit rear panel showing fan and socket (no visible text or symbols)

4 Install the power supply unit onto the power supply tray as shown. If using a power supply with a 120mm fan, please make sure the fan is exposed on the top side.

-9 10- LANBOX™ Mini Chassis on the Move

-9 10-

Mini Chassis on the Move LANBOX

2-6

Installing graphics and PCI expansion cards

2-7

Installing coolant tubes

Close-up of a vintage portable radio with ventilation grilles and a rotary dial (no visible text or symbols)

Close-up of a computer tower with ventilation grilles and a directional arrow indicating motion (no text or symbols visible)

Close-up of a mechanical device with hexagonal grid pattern and cooling fins (no visible text or symbols)

1 Remove the screw as shown to install graphics and PCI expansion cards.

Close-up of an electronic circuit board with a magnified inset showing a component (no visible text or symbols)

2 When installing a graphic or PCI expansion card, please screw on the card as shown.

Close-up of a metallic electronic component with hexagonal holes and mounting brackets (no visible text or symbols)

1 If a liquid cooling system is to be installed, please pry off the top tab of the motherboard tray as shown.

Close-up of a hand inserting a microchip into an electronic circuit board (no visible text or symbols)

2 Please install the rubber tube protector as shown.

Close-up of a metallic industrial component with a perforated metal grille and mounting bracket (no visible text or symbols)

3 Coolant tubes may be installed as shown when using a liquid cooling system (optional).

-11

12-

LANBOX™ Mini Chassis on the Move

-11

12-

Mini Chassis on the Move LANBOX

Close-up of a metallic industrial power outlet with hexagonal grid pattern and mounting holes (no visible text or symbols)

1 An optional 60mm fan can be purchased and installed on the motherboard tray as shown.

2-9 Clean the intake filter

Interior view of a refrigerator with visible door, seats, and front panel (no text or symbols)

1 To clean the intake filter, please remove the 4 screws as shown.

Close-up of a mechanical component with a circular base and textured surface (no visible text or symbols)

2 Intake filter in the front panel.

-13 14- LANBOX™ Mini Chassis on the Move

Chapter3 Motherboard & Leads Installation

3-1 Motherboard Installation

Each motherboard has different standoff layout. It is highly suggested that you refer to your motherboard's manual when installing motherboard into the Case. The cases are applicable with Standard Micro ATX and mini ITX motherboards.

Your motherboard may require a special I/O Panel, which should be included with your motherboard.

Placement Direction:

When installing the motherboard, make sure you follow the direction provided by your motherboard manufacturer. On most standard motherboards, the edge with external ports goes to the rear part of the chassis. It is highly recommended that you install CPU, heat sink and modular components before fixing the motherboard inside the chassis.

This side towards the rear of the chassis

Close-up of a computer motherboard with CPU socket, RAM slots, and various connectors (no visible text or labels)

©

The locations of the screw holes. Note these locations and place included standoffs on the chassis first.

Above illustration is a sample of what the motherboard's layout. For more detail screw hole placement, please refer to your motherboard manual.

-1314-

Mini Chassis on the Move LANBOX

3-2 Case LED connections

On the front of the case, you can find some LEDs and switch leads (POWER SW*1, POWER LED*1, H.D.D. LED*1, RESET SW*1)

Please consult user manual of your motherboard manufacturer, then connect these leads to the panel header on the motherboard. These leads are usually labeled; if not, please trace them back to the case front to find out their source.

• POWER LED connects to your M/B at the PLED
• POWER SW connects to the PWR connector on the motherboard.
• H.D.D LED connects to the eSATA connector shown as picture(3.5)
• RESET SW connects to the RSW connector on the motherboard
• SPEAKER connector: find out the 4-pin labeled SPEAKER on the M/B then connect it.

3-3 USB 2.0 & IEEE 1394 Firewire Connection

USB connection

Please consult your motherboard manual to find out the section of "USB connection".

Close-up of a computer monitor interface with ports and cable connector (no visible text or symbols)

-15 _16 - LANBOX™ Mini Chassis on the Move

-1516-

Mini Chassis on the Move LANBOX

IEEE1394 Firewire connection

Please consult your motherboard manual to find out the section of "IEEE1394 Firewire connection".

IEEE 1394

Close-up of a black USB connector with visible pins and wires (no text or symbols)

-1718-

LANBOX™ Mini Chassis on the Move

3-4 Audio Connection

Please check your motherboard, does it support AC'97 or HD-Audio(AZALIA), choose one of them to connect.

HD AUDIO(AZALIA)

Close-up of two black electronic components with wires, no visible text or symbols

AC'97

-1718-

Mini Chassis on the Move LANBOX

Chapter4 Other

4-1 7"LCD monitor installation (optional)

Interior view of a computer room with visible door, shelves, and buttons (no text or symbols)

1 Please remove the 4 screws as shown.

Black-and-white photo of a person standing in front of a large dark object, possibly a vehicle or structure, with no visible text or symbols.

Close-up of a mechanical component with circular annotations pointing to features (no readable text or symbols)

2 Unscrew the 7" drive bay cover screws as shown.

Exterior view of a modern office building (no signage)

Interior view of a computer room with monitor, keyboard, and mouse (no visible text or symbols)

3 Remove optical drive tray then secure front panel with 4 screws as shown

Close-up of a white electronic device with visible ports and casing (no readable text or symbols)

Install back the optical drive tray.

-19 _20 - LANBOX™ Mini Chassis on the Move

Close-up of a hand pressing down on a printer (no visible text or symbols)

5 Install the 7" cage onto the 7" drive bay

Close-up of a computer motherboard showing internal components and casing (no visible text or symbols)

Close-up of a mechanical component with circular annotations highlighting features (no readable text or symbols)

Close-up of a mechanical component with circular annotations highlighting features (no readable text or symbols)

6 Push all the metal clips to fix the cage.

Close-up of a mechanical component with an arrow indicating direction (no visible text or symbols)

7 Insert the 7"device.

Close-up of a black electronic device with a display panel and control buttons (no visible text or symbols)

8 Install the frame.

-1920-

Mini Chassis on the Move LANBOX

4-2 7"LCD monitor uninstallation (optional)

Close-up of a hand pressing down on an air conditioner cover (no visible text or symbols)

1 Remove the frame as shown.

Close-up of a hand holding a computer monitor with an attached drive (no visible text or symbols)

Close-up of a computer tower with a black drive load and two circular annotations pointing to the front panel (no visible text or symbols)

2 Insert the device removing tool as shown.

Close-up of a printer's internal structure with a black arrow pointing to a component (no visible text or symbols)

3 Pull out the 7"drive bay as shown.

Interior view of a refrigerator with visible door and window (no text or symbols)

-21 _22 - LANBOX™ Mini Chassis on the Move

Close-up of a laptop keyboard with two circular annotations highlighting the keyboard’s interior area (no text or symbols present)

4 Pull back all the metal clips for removing the cage.

Close-up of a mechanical component with two circled areas highlighting features (no visible text or symbols)

for removing the cage.

5 Pull out the Cage.

Close-up of a computer monitor case with visible ports and screen (no text or symbols)

6 Finish uninstallation.

-2122-

Mini Chassis on the Move LANBOX

4-3 Silent Purepower™ power supply(optional)

The Thermaltake Silent™ Purepower specification meets Intel Pentium 4 and AMD K8; it offers plenty of functions, which mainly include:

1. Automatic Fan Speed Control: The Silent Purepower™ power supply can detect the inside heat and automatically adjust the fan speed to provide adequate airflow.
2. Ultra Silent: Ball bearing fans with high reliability and super low acoustic noise under all load condition.

The functions can assure the Silent Purepower ^™ meet the balance in noise control and heat exhausted. The Silent Purepower ^™ provides complete protection function as follow:

1. Over thermal protection at 100oC-105oC
2. Short circuit protection on all output.
3. Over voltage protection / Under voltage protection.
4. Over current protection.

Besides, Thermaltake enables the quality assurance of the Silent Purepower ^™ : 100% Hi-POT and ATE Function Test, 100% Burn-In and AC Input cycled on/off under high temperature condition. Furthermore, it has been approved by UL, CSA, TUV, VDE, NODIC, CB, FCC, CE, CNS.

Collection of electronic components including a power supply unit, fan, and cooling fans (no visible text or labels)

There are three main products of Thermaltake PSU, it is divided into standard, VR and specialty power supply unit. Please refer to http://www.thermaltake.com/purepower/main.htm

-23 _24 -

TM TM

LANBOX™ Mini Chassis on the Move

Pencil sketch of a person seated at a desk with a computer monitor and keyboard (no text or symbols visible)

-2324-

Mini Chassis on the Move LANBOX
