Brand	Livarno Lux
Model	IAN 102617
Product Type	LED Floor Lamp
Dimensions (approx.)	Height 150 cm, Base diameter 25 cm
Weight (approx.)	2.5 kg
Power Supply	220-240 V, 50/60 Hz
Bulb Type	Integrated LED Module (non-replaceable)
Light Output	800 lumens, 3000K warm white
Dimmable	No
Functions	On/Off switch on cable, adjustable lamp head
Material	Aluminum and plastic
Color Temperature	3000 K (warm white)
Protection Class	IP20 (indoor use only)
Energy Efficiency Class	A+
Maintenance & Cleaning	Wipe with a dry soft cloth, do not use abrasive cleaners
Safety Notes	Do not cover the lamp; keep away from flammable materials; unplug before cleaning
Spare Parts Availability	Spare parts available via manufacturer website
Repairability	LED module and driver not user-replaceable; contact service center
General Information	For indoor use only; complies with EU directives

Frequently Asked Questions - IAN 102617 Livarno Lux

How do I assemble the Livarno Lux floor lamp?

Assemble the base and pole as per the manual. Typically, screw the base to the pole and attach the lamp head. Ensure all connections are tight.

Can I replace the LED bulb?

No, the LED module is integrated and non-replaceable. If the light fails, the entire lamp may need replacement or professional repair.

Is the lamp dimmable?

No, this model does not support dimming. It operates at full brightness only.

What is the color temperature of the light?

The lamp emits warm white light at 3000K, creating a cozy atmosphere.

How do I clean the lamp?

Unplug the lamp first. Use a dry, soft cloth to wipe the surfaces. Do not use water or chemical cleaners to avoid damage.

What is the power consumption of the lamp?

The lamp consumes approximately 10W and has an energy efficiency class of A+.

Can I use an extension cord?

Yes, but ensure the extension cord is rated for at least 10A and is in good condition. Avoid overloading.

What should I do if the lamp flickers?

Check if the plug is fully inserted and the bulb/module is secure. If flickering persists, stop using and contact customer service.

Does the lamp come with a warranty?

Yes, standard warranty applies. Check your purchase documentation for details. Typically 2 years from date of purchase.

Can I use this lamp outdoors?

No, the lamp has IP20 protection rating, meaning it is only suitable for indoor use in dry areas.

USER MANUAL IAN 102617 Livarno Lux

Modern table lamp with a white cylindrical shade and metallic base, displayed on a reflective surface (no text or symbols visible on the lamp itself)

LÁMPARA DE SOBREMESA / LAMPADA DA TAVOLO

ES

Operation and Safety Notes

IAN102617

ES IT PT

GB / MT Operation and Safety Notes Page 14

Z31711A/Z31711B 1 2 3 4

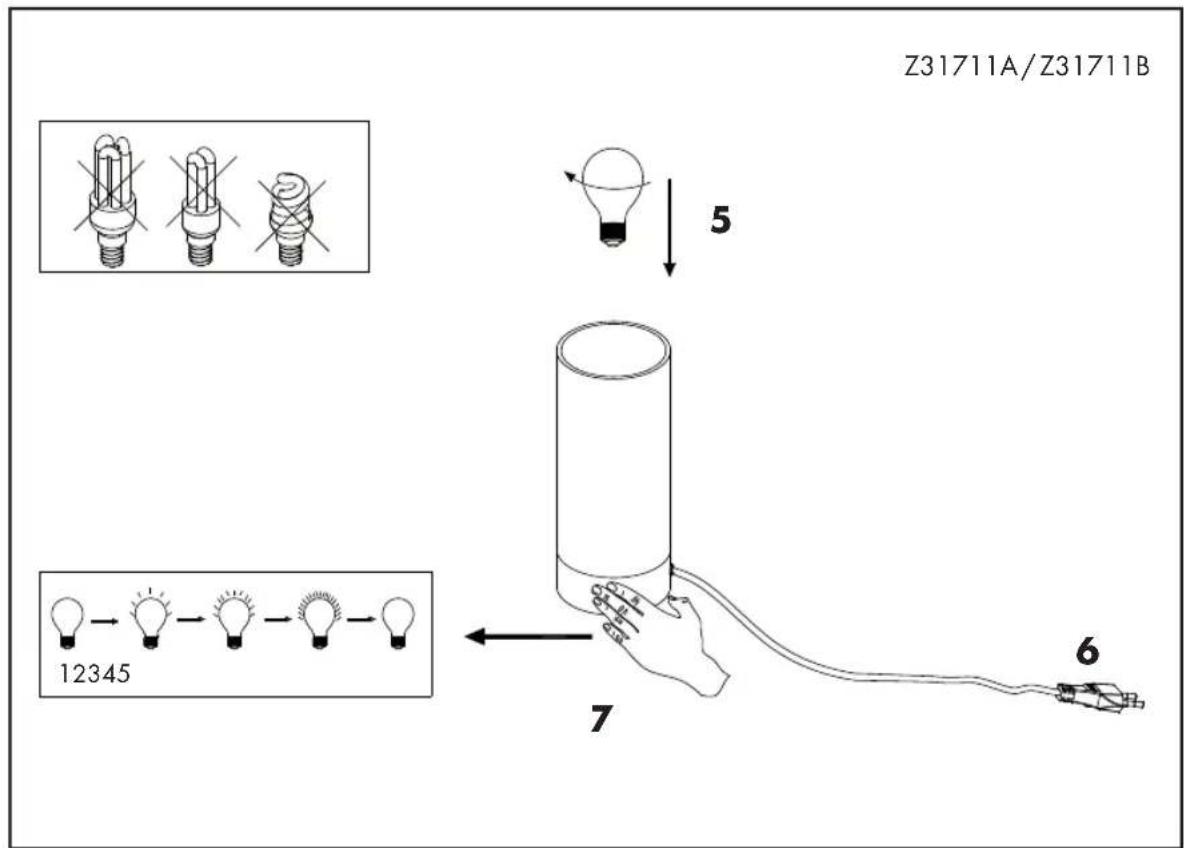

Z31711A/Z31711B 5 12345 7 6

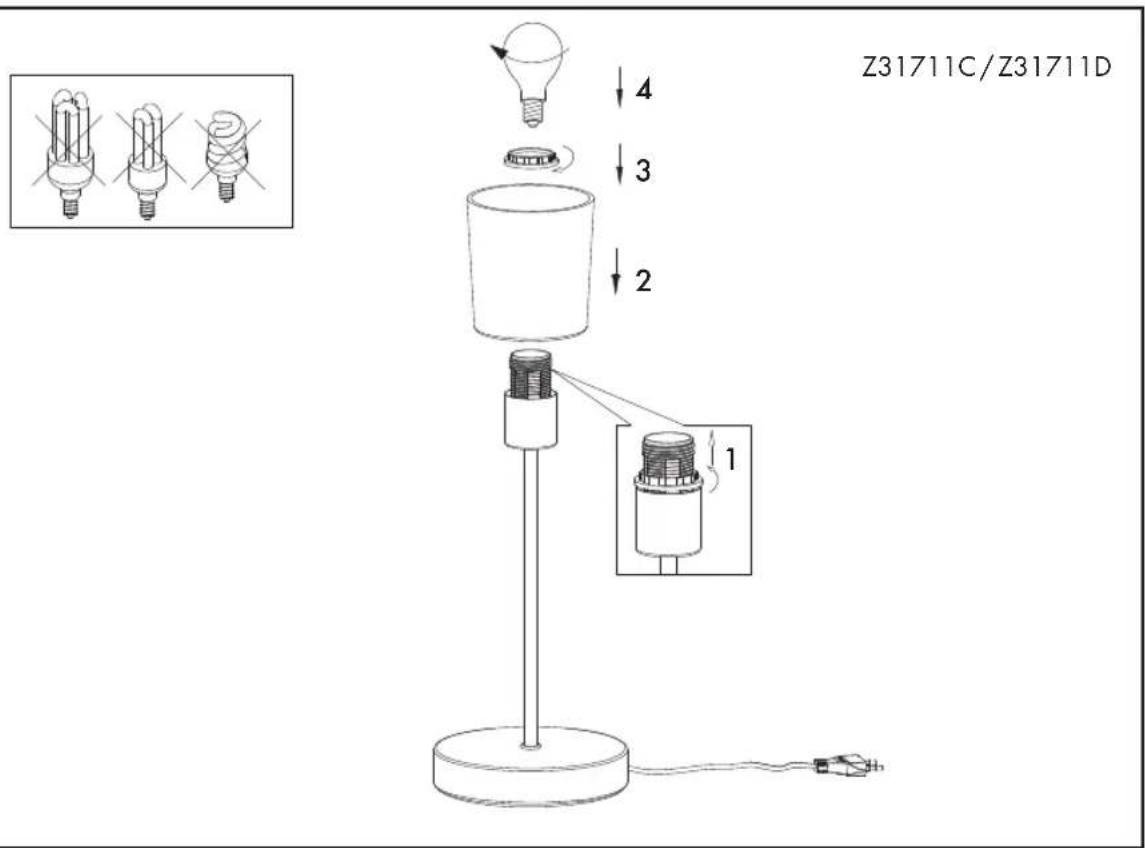

Z31711C/Z31711D

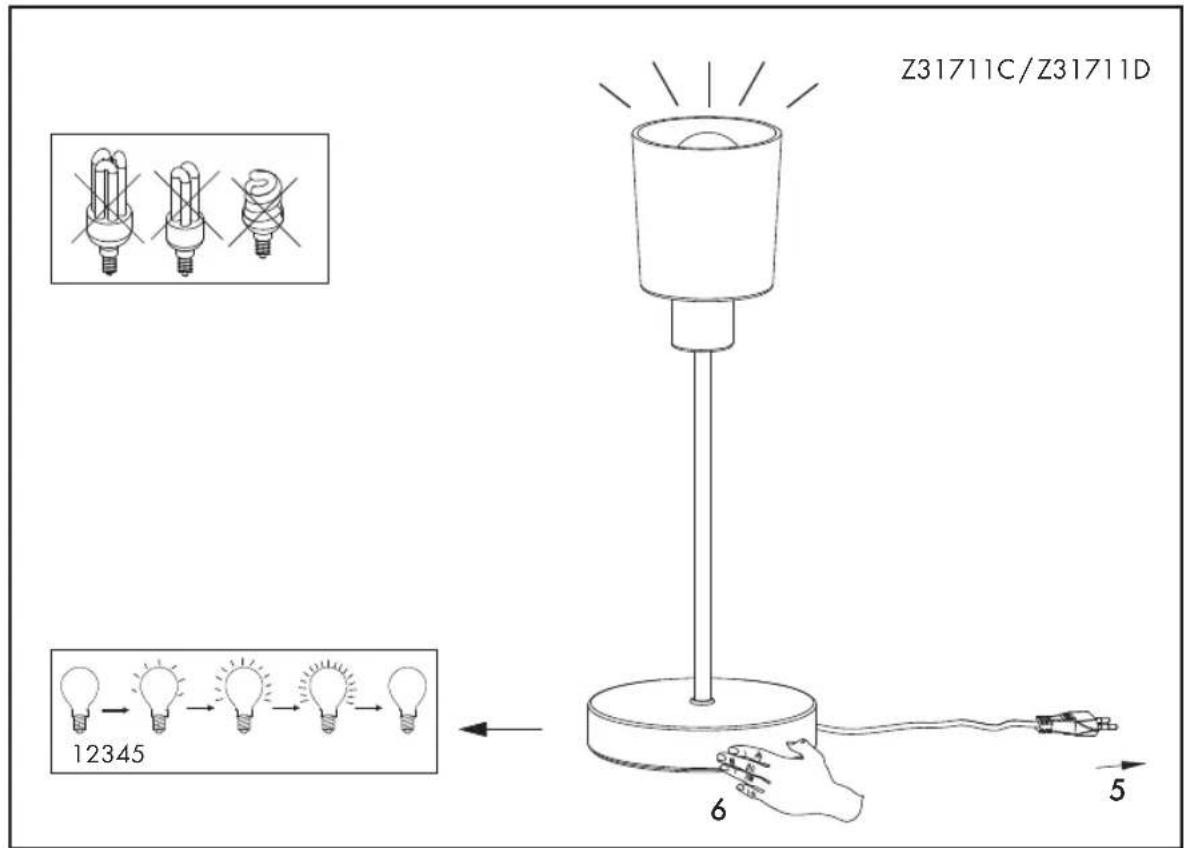

Z31711C/Z31711D 12345 6 5

This lamp is intended for indoor use in dry and enclosed rooms only. The product is not intended for commercial use.

●Technicaldata

Nominal voltage: 230 V \~, 50 Hz

Illuminant: 230 V\~, max. 42 W,

E14(Z31711C/Z31711D)

E27 (Z31711A/Z31711B)

ECO halogen bulb (included in the delivery)

Protection class:

- Scope of delivery

Check that all the items and accessories are present and that the device is in perfect condition immediately after unpacking.

1 Table lamp
1 E27 42 W bulb (Z31711A/Z31711B)
1 E14 42 W bulb (Z31711C/Z31711D)
1 Operating instructions

Safetyadvice

PLEASE READ THE ASSEMBLY INSTRUCTIONS BEFORE USING THE PRODUCT! PLEASE KEEP THE ASSEMBLY INSTRUCTIONS IN A SAFE PLACE! IF PASSING THIS PRODUCT ON TO A THIRD PARTY ALSO INCLUDE ALL DOCUMENTS.

DANG RORNING!

LOSS OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN!

Never leave children unsupervised with the packaging materials. The packaging material represents a danger of suffocation. Children

frequently underestimate the dangers. Always keep the product out of reach of children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

his lamp is designed for indoor use in dry and enclosed rooms only.

- Check the lamp and the mains lead for damage each time before connecting them. Never use your lamp if you discover that it is damaged in any way.

CAUTION! The lamp shield is not replaceable. Dispose of the lamp if you find cracks or other damage to the lamp shield.

This product's external main lead is non-replaceable. Hence, if it becomes damaged you must dispose of the entire product.

■ Protect the mains lead against sharp edges, mechanical stresses and hot surfaces.

■ Always unplug the mains plug from the socket before installation, dismantling or cleaning.

■ Disconnect the product from the mains supply if it is not going to be used for some time (e.g. holiday).

Only use 230 V \~ ECO halogen light bulbs with a E14 (Z31711C/Z31711D) or E27 (Z31711A/Z31711B) base and a maximum output of 42 watt.

■ Set the lamp in a stable, clean and even place.

FIRE HAZARD! Fit the light so that it is at least 0.5 m away from the material illuminated. Fire can result

from the development of too much heat.

DANGER OF INJURY! Check any bulb for damage immediately after unpacking. Do not fit a defective

bulb into the lamp.

14 GB/MT

■

DANGER OF BURNS! Ensure the lamp has been switched off and allowed to cool before you touch it.

In this way you will avoid the danger of burns. Light bulbs develop a great deal of heat.

• Replace a defective bulb immediately. Before replacing the bulb always remove the mains plug from the mains socket.
• Allow the lamp to cool for at least 15 minutes before replacing a defective bulb.

- Before initial use

Before assembly, ensure that the mains voltage available corresponds to the operating voltage necessary for the lamp (230 V \~). Do not connect the lamp if this is not the case.
☐ Screw the lamp into the socket until a flawless contact is enabled. Only use the lamp with an E14 (Z31711C/Z31711D) / E27 (Z31711A/Z31711B) base.

CAUTION! Only use 230 volt light bulbs with an E14 (Z31711C/Z31711D) / E27 (Z31711A/Z31711B) base and a maximum output of 42 watt. Using a higher power output could cause damage to the lamp.

☐ Use ECO halogen bulbs only.
☐ Do not use energy saving bulbs. Energy saving bulbs are not dimmable.

Operation

☐ Operate the lamp in accordance with the figures.

Please note: This lamp is equipped with a dimmer that regulates the light into 3 different levels of brightness by touching the metal foot.

- Changing the bulb

Before changing the bulb, switch off the lamp and remove the mains plug from the socket. Let the existing bulb cool down for 15 minutes.

- Cleaning and care

☐ Use a dry, soft and fluff-free cloth for cleaning and care. Use a slightly moist and a mild detergent to remove stubborn dirt.

●Disposal

The packaging is made entirely of recyclable materials which you may dispose at local recycling facilities.

Contact your local community or municipal administration for more details on how to dispose your worn-out product.

To help protect the environment, please dispose the product properly, and not in the household waste, when it has reached the end of its useful life. Information on collection points and their opening hours can be obtained from your local authority.

The device / article and its bulbs should be disposed of at an officially approved disposal centre or at your local communal disposal facility.

Observe the applicable regulations. If you are uncertain of what to do please contact your local authority's refuse disposal department.

Warranty

The device has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of product defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this device is 3 years from the date of purchase. Should this device show any fault in materials or manufacture within 3 years from the date

15 GB/MT

of purchase, we will repair or replace it – at our choice – free of charge to you.

The warranty period begins on the date of purchase. Please keep the original sales receipt in a safe location. This document is required as your proof of purchase. This warranty becomes void if the device has been damaged or improperly used or maintained.

The warranty applies to faults in material or manufacture. This warranty does not cover product parts subject to normal wear, thus possibly considered consumables (e.g. batteries) or for damage to fragile parts, e.g. switches, rechargeable batteries or glass parts.

CE

Tischleuchte

E14 (Z31711C/Z31711D)

E27 (Z31711A/Z31711B)

Vertical metallic rod with a crosshair symbol at one end (no text or labels)

OWIM GmbH & Co. KG

Stiftsbergstraße 1

D-74167 Neckarsulm

Model-No.: Z31711A/Z31711B/Z31711C/Z31711D

Version: 09/2014
