USER MANUAL IAN 93365 Livarno Lux

PDF online www.lidl-service.com

LED-TISCHLEUCHTE

DE AT CH

LED-TISCHLEUCHTE

Operation and Safety Notes

IAN93365

DE AT CH

Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the device.

GB Operation and Safety Notes Page 13

The following pictograms are used in these operating instructions / on the device:
	Read instruction manual!
	Observe warning and safety notes!
	Caution - electric shock! Risk of loss of life!
	Risk of loss of life by electric shock from damaged mains lead or mains plug!
	Warning - Hot surfaces!
	Volt (AC)
	Watts (Effective power)
	Dispose of packaging and appliance in an environmentally friendly way!

LED Desk lamp

- Introduction

We congratulate you on the purchase of your new device. You have chosen a high quality product. These operating instruc-

tions form a part of this product. They contain important information on safety, use and disposal. Make yourself familiar with all the operating instructions and safety advice for the product before use. Use the product only as described and for the indicated purpose. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it. Check that the correct mains voltage is available and that all the parts have been properly assembled before bringing into use.

Properuse

This lamp is designed for use indoors only, in dry and enclosed rooms. This product is intended for use in a private, domestic environment only. Other uses or modification of the product shall be considered as improper use and could lead to injury or

damage. The manufacturer accepts no liability for loss or damage arising from improper use.

Includeditems

Check that all the items and accessories are present and that the lamp is in perfect condition immediately after unpacking.

1 x LED Desk Lamp
1 x LED light (E14/3.2 W)
1 x Operating instructions

• Description of parts and features

1 Lamp shade
2 Socket
3 ON/OFF switch
4 Power cable
5 Mains plug
6 Threaded ring
7 Light bulb

●Technicaldata

Operating voltage: 220-240V\~, 50Hz

Protection class:

Light bulb: LED E14 / 3.2 W (included)

Rated power: 1 x max 3.2 W

Material: plastic, textile shade

Model:

7424-018L (empire lamp shade)

7425-018L (drum lamp shade)

7430-018L (hexagonal lamp shade)

Safety advice

The right to claim under the guarantee shall be rendered invalid in respect of damage caused by the non-observance of these operating instructions! No liability is accepted for consequent damage! No liability is accepted for damage to property or persons caused by improper handling or non-observance of the safety advice!

RISK OF WORKING!

OF LIFE AND ACCIDENT TO INFANTS AND CHILDREN! Never

leave children unsupervised with the packaging materials. Packaging materials present a suffocation hazard. Children often underestimate danger. Always keep the product out of reach of children.

We assume no liability for material damage or personal injury due to improper handling or failure to comply with the safety instructions!

To avoid danger to life from electric shock

Before connecting the lamp to the mains, always check it and the mains lead / plug for any damage. Never use your lamp if you discover that it is damaged in any way.
CAUTION! A damaged mains lead presents a serious danger to life from electric shock. The external

flexi-cable cannot be replaced, if the cable is damaged then the lamp must be disposed of.

• Never let the lamp come into contact with water or other liquids.
• Do not install the lamp on damp if conductive surfaces.
  ■ Never open any electrical devices such as switches, fittings etc. or allow any object to be inserted into them. This sort of interference can lead to a serious danger to life from electric shock.
• Touch only the insulated part of the plug when connecting to or disconnecting from the mains supply.
  Before installation ensure that the available mains voltage agrees with the operating voltage required for the lamp (220-240 V \~).

To avoid danger of fire and injury

⚠️ DANGER OF BURNS! Ensure the lamp has been switched off and allowed to cool before you touch it. In this way you will avoid the danger of burns. Light bulbs develop a great deal of heat.

• Replace defective bulbs immediately. Before replacing the bulb, always remove the mains plug from the mains socket.
• Allow the lamp to cool for at least 15 minutes before replacing a defective bulb.
  Do not allow any objects to cover the lamp. Fire can result from the development of too much heat.
  ■ Position the lamp so that it is protected from moisture and dirt.
  ■ Never leave the light unattended whilst in operation. Excessive heat can result in a fire.
  ■ Only use the light bulb indicated.
  Do not look directly into the light source (light bulb, LED etc.).
  ■ This lamp is not suitable for use as a night light.

- Before Initial Use

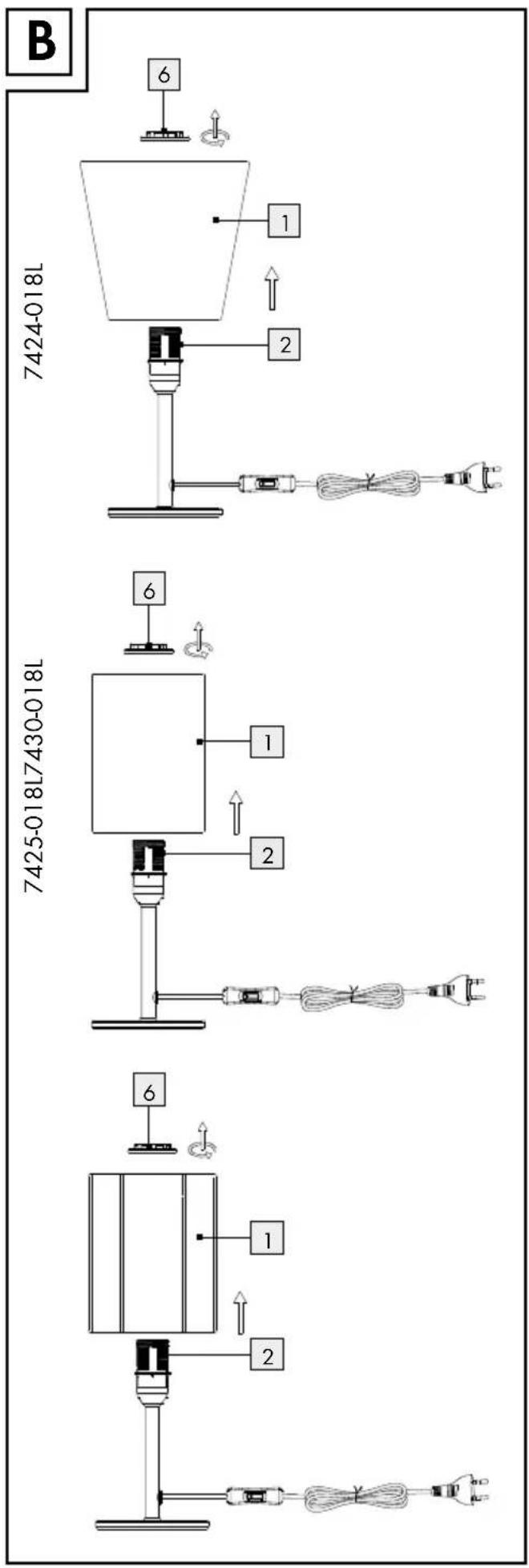

☐ Remove the threaded ring 6 from the socket 2 by turning it counter-clockwise (Fig. B).
☐ Remove the lamp shade 1 and turn by 180^ (Fig. B).

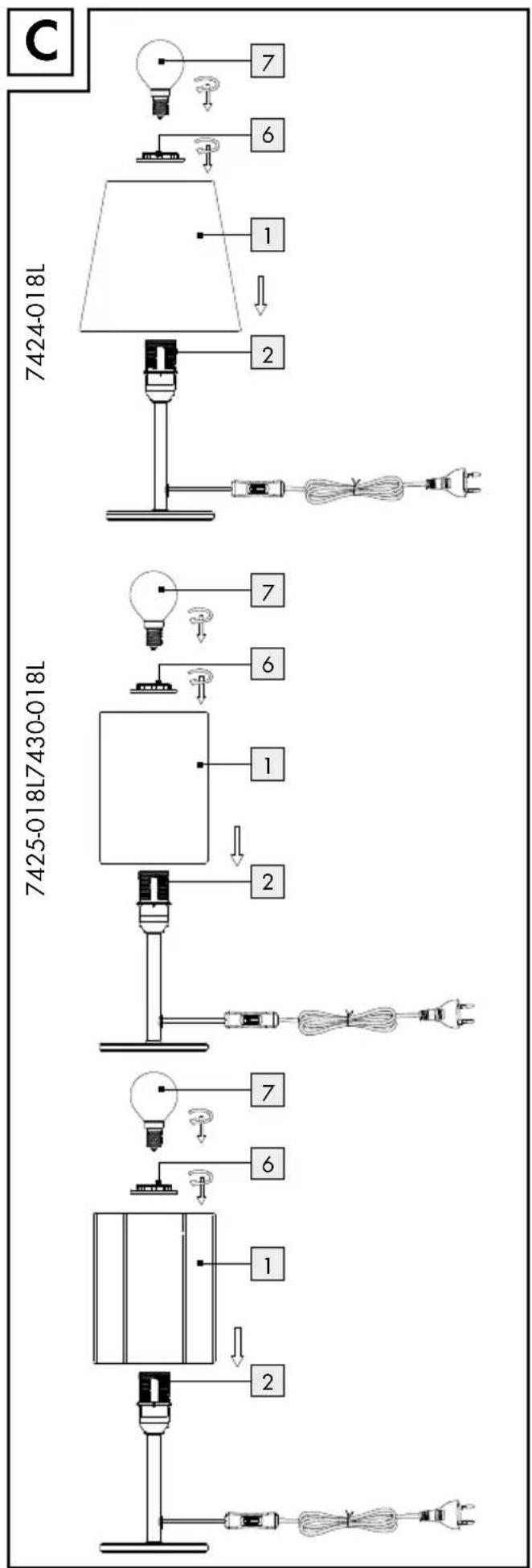

☐ Pull the lamp shade 1 over the socket 2 (Fig. C).
☐ Tighten the threaded ring 6 onto the socket 2, turning it clockwise (Fig. C).
☐ Screw the light bulb 7 clockwise into the socket (Fig. C).

Your light is now ready to use.

Operation

Using the lamp

□ Unwind the mains cable completely before use.
☐ Insert the mains plug into the socket.
☐ Turn the light on and off with the ON/OFF switch 3.

- Replacing a bulb

CAUTION! DANGER TO LIFE FROM

ELECTRIC SHOCK! Pull the mains plug 5 out of the socket.

☐ Turn the defective light bulb 7 anti-clockwise out of the bulb socket.
☐ Use a clean, fluff-free cloth when you are replacing a bulb.
☐ Screw the new light bulb 7 clockwise into the socket (Fig. E).

● Cleaning and maintenance

CAUTION! DANGER TO LIFE FROM

ELECTRIC SHOCK! Before cleaning, always pull out the mains plug 5 out of the socket.

Do not use solvents such as petrol and the like as they could damage the lamp.
For electrical safety reasons, never clean the lamp with water or other fluids or immerse it in water.
☐ Use a dry, fluff-free cloth for cleaning.
☐ The lamp is maintenance-free.

- Disposal

The packaging consists entirely of environmentally friendly materials. They can be disposed of at your local recycling facility.

The symbol of the wheelie bin with a cross through It means that, in the European Union, the product has to be disposed of in a separate refuse collection. This applies to the product and to all components bearing this symbol. Products marked in this way may not be disposed of with normal domestic waste but have to be handed in at a recycling collection point for electrical and electronic appliances. Recycling helps to reduce the consumption of raw materials and to ease the burden on the environment.

● Warranty and Service

●WarrantyDeclaration

This product has a 3-year warranty from the date of purchase; the warranty is only valid for the original purchaser and is not transferable. Please keep your receipt as proof of purchase. The warranty applies to material or manufacturing defects only. It does not cover wear parts or damage caused by improper use. The guarantee lapses in cases of unauthorized tampering. Your statutory rights are not restricted in any way by this warranty. Please contact the service centre by telephone. In the event of any claims under the warranty. This is the only way to ensure that your instrument can be returned free of charge.

Serviceaddress

Please have your receipt and the product number (e.g. IAN 12345) available for all queries as proof of purchase.

- Declaration of conformity C€

This product fulfils the requirements of the applicable European and national directives (Electromagnetic Compatibility 2004/108/EC, Low Voltage Directive 2006/95/EC, Ecodesign Directive 2009/125/EC, RoHS Directive 2011/65/EU). Conformity has been demonstrated. The relevant declarations and documents are held by the manufacturer.

Manufacturer

59929 Brilon (Germany)

Stand der Informationen · Stand van de informatie

Last Information Update: 12 / 2013 · Ident.-No.:
