USER MANUAL IOLAN DS1T Perle

Stacked black electronic device with visible ports and connectors (no text or symbols)

THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in accordance with this hardware guide may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own expense.

Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.

Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.

Perle, the Perle logo, and IOLAN DS1 G/DS1T G/SDS1 G/SDS1T G are trademarks of Perle Systems Limited.

©2017. Perle Systems Limited.

Table of Contents

Preface 2

Overview 3

Ethernet and Serial Port 4

Button/Switch Functions 4

LED Indicators 5

Installation 6

Connecting the Power 6

Connecting the Serial / Console Port 8

Rebooting/Resetting the IOLAN 9

Connecting Data Ports 9

Configuring the IOLAN 10

Appendix A - Technical Specifications ....11

Appendix B - Mechanical Drawing 13

Appendix C - Labels (Sample) .....15

Appendix D - Cabling and Connectors....16

Appendix E - IOLAN Maintenance ....20

Preface

Audience

This guide is for the network or computer technician responsible for installing the Perle IOLAN DS1/DS1T /SDS1/SDS1T G. Familiarity with the concepts and terminology of Ethernet and local area networks is required.

Purpose

This document describes the hardware and physical characteristics of the Perle IOLAN DS1 G/DS1T G /SDS1 G/SDS1T G. It covers hardware features as well as installation and operation of the IOLAN. This document does not cover how to configure your Perle IOLAN SDS1 or DS 1 port.

Information to configure your Perle IOLAN DS1 G/DS1T G /SDS1 G/SDS1T G can be found in the IOLAN User's Guide.

Document Conventions

This document contains the following conventions:

Most text is presented in the typeface used in this paragraph. Other typefaces are used to help you identify certain types of information. The other typefaces are:

Note: Means reader take note: notes contain helpful suggestions.

Caution: Means reader be careful. In this situation, you might perform an action that could result in equipment damage or loss of data.

Warning: IMPORTANT SAFETY INSTRUCTIONS

Means danger. You are in a situation that could cause bodily injury. Before you work on any equipment, be aware of the hazards involved with electrical circuitry and be familiar with standard practices for preventing accidents. Only qualified personnel should connect power to this unit.

Warning—more information is contained within this guide Warning—equipment rated above 40°C. Equipment may be very hot.

Overview

The IOLAN 1 port comes in various models.

• DS1-GR - 1 port model with a RJ45 serial port.
  • DS1-G9 - 1 port model with a DB9M serial port
  • DS1T-G9 - 1 port model with Extended Temperature DB9M serial port
  • DS1-G25F - 1 port model with a DB25F serial port
• SDS1-GR - 1 port model with a RJ45 serial port.
  • SDS1-G9 - 1 port model with a DB9M serial port
• SDS1T-G9 - 1 port model with Extended Temperature DB9M serial port
• SDS1-G25F - 1 port model with a DB25F serial port

This chapter discusses the following topics:

Ethernet and Serial Port

Button/Switch Functions

LED Indicators

Connecting the Power

Connecting the Serial / Console Port

Rebooting/Resetting the IOLAN

Connecting Data Ports

Configuring the IOLAN

External Power Supply Console/Serial Switch Reset On Console Off Serial Power/Ready Link 10/100/1000 Activity Power/Ready Link Activity Serial Activity Tx Rx Serial Port Ethernet 10/100/1000 perle

The IOLAN serial port options are RJ45, DB9M or DB25F. The DS1T G and SDS1T G Extended Temperature models come with a fixed Terminal Block connector.

External Power Plug Ethernet 10/100/1000 Reset Console/Serial Port Connector

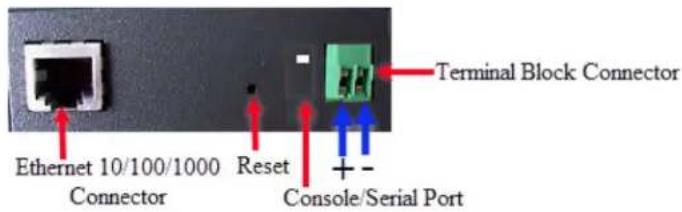

IOLAN DS1T G/SDS1T G (Back View with Terminal Block Connector)

Ethernet 10/100/1000 Connector Reset Console/Serial Port Terminal Block Connector

Ethernet and Serial Port

10/100/1000Base-T Port

The Ethernet port provides the standard gigabit Ethernet interface speeds of 10/100/1000 Mbps through twisted pair (UTP) cables of up to 100 meters (328ft) in length.

Serial Port / Console Port (RJ45/DB9M/DB25F)

The dip switch on the IOLAN is set in the factory to serial (up position). Unless you plan to attach a console to the IOLAN, leave the dip switch in the serial position (see Connecting Serial Devices). In console mode, this port can also be used as a console management port providing access to the IOLAN management function using the industry standard CLI command set (see Appendix D - Cabling and Connectors).

Button/Switch Functions

Reset Button

The inset RESET button will reboot the IOLAN if pushed in and released quickly. It will reset the IOLAN to factory defaults if pushed in and held for more than three seconds.

Console / Serial Switch

The IOLAN can be fully configured and managed from the console port. The IOLAN is set in the factory to serial (up position). Unless you plan to attach a console to the IOLAN, leave the dip switch in the serial position. If this DIP switch is set to the down position, then the serial port is in console mode. In console mode, the port provides access to the IOLAN management function using the industry standard CLI command set. See the IOLAN Command Line Interface Reference Guide.

LED Indicators

Power/Ready

State Description
Green - solid System Ready
Green - flashing System is booting or DIP switch is in console mode
Red Error condition

Link 10/100/1000

State Description
Green 1000 Mbps
Amber 100 /10 Mbps
Off No LAN connection

Activity

State Description
Green Flashes with activity
Amber Flashes with activity
Off No LAN connection

Installation

This chapter discusses the following topics:

General Cautions and Warnings

Connecting the Power

Connecting the barrel connector

Connecting the terminal block connector

Grounding and Power Cord Relief clip

Connecting the Serial / Console Port

Rebooting/Resetting the IOLAN

Connecting Data Ports

Configuring the IOLAN

CLI

Web Device Manager

DeviceManager

General Cautions and Warnings

Warning: Power sources must be off prior to beginning the power connection steps.

Read the installation instructions before you connect the unit to its power source.

Warning: Ensure that the voltage and current ratings of the intended power source are appropriate for the IOLAN as indicated on the product label.

Warning: Ensure that the installation and electrical wiring of the equipment is performed by trained and qualified personnel and that the installation complies with all local and national electrical codes.

Warning: The working voltage inputs are designed for operation with Safety extra low Voltage (SELV). Connect only to SELV circuits with voltage restrictions in line with IEC/EN 60950-1:2005 (2nd Edition) + A1:2009 and EN 60950-1: 2006 + A11:2009

Warning: If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

Connecting the Power

The DS1 G/SDS1 G model connects to power using the power adapter that came with your IOLAN. If using a DS1T G/SDS1T G with the Terminal Block connector use the instructions below to connect to power. The Terminal Block cannot be removed from the IOLAN.

Connecting the barrel connector

Plug the power adapter into a power socket and connect the barrel connector end into the IOLAN. The IOLAN will perform a power up sequence. The Power/Ready LED should show a solid green. See LED Indicators for power up sequence.

Connecting the terminal block connector

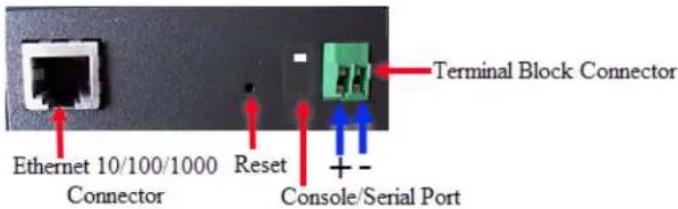

Ethernet 10/100/1000 Connector Reset Console/Serial Port Terminal Block Connector

1. Ensure power is NOT applied to the wires prior to connection.
2. On each end wire (12-20 AWG), remove the insulation from the copper wire 5 mm (3/16 of an inch).
3. Loosen the left screw on the top of the terminal connector block, then insert your positive (+) wire into the left terminal and screw it down tight (.51Nm torque). Loosen the right screw on the top of the terminal connector block, then insert your negative (-) wire into the right terminal and screw it down tight (.51Nm torque).
4. Connect the Ethernet cable from the RJ-45 plug (10/100/1000) to the HUB or switch that will provide network connectivity (if applicable to your application).
5. The console dip switch on the IOLAN should be set to the down position for serial mode.
6. Connect the power cord strain relief, if desired. (Figure 2)
7. Connect the grounding lug (not provided) to the grounding screw, if desired. (Figure 1)
8. Turn on power at source. See LED Indicators for power up sequence.

Grounding and Power Cord Relief clip

If your installation requires additional grounding, follow this procedure.

Grounding the chassis requires the following items:

• One grounding lug (not provided)

• One 12AWG wire (not provided)

Follow the manufacturers instructions for attaching the ground wire to the grounding lug.

1. Attach the grounding lug to the chassis and secure with the grounding screw provided. See Figure 1.

2. Attach the power cord relief clip as shown in Figure 2.

Grounding Screw

Power Cord Strain Relief Clip

Figure 2
Figure 1

Connecting the Serial / Console Port

The IOLAN can be fully configured and managed from the console port. The IOLAN is set in the factory to serial (up position). Unless you plan to attach a console to the IOLAN, leave the dip switch in the serial position. If this DIP switch is set to the down position, then the serial port is in console mode. In console mode, the port provides access to the IOLAN management function using the industry standard CLI command set. See the IOLAN Command Line Interface Reference Guide.

Console Port Mode

Depending on the model, the console port will be a DB9M connector, a RJ45 connector or a DB25 connector. See Appendix D - Cabling and Connectors for information on cabling requirements.

1. Power off the IOLAN and set the console switch to the down position.
2. Connect the power and allow the IOLAN to complete the boot up sequence.
3. Depending on your IOLAN model, connect an DB9, RJ45 or DB25 cable directly from the IOLAN to the COM port on your PC.
4. Choose Start > Control Panel > Systems or equivalent on the Windows Operating System you are using.
5. Click the Hardware tab and choose Device Manager, Expand the Ports (COM & LPT) section. This will expand the drop down to show the number of com ports on your system. Connect the cable to one of these ports (probably COM1 or COM2).
6. Start an terminal-emulation program (such as Putty or SecureCRT) on the COM port where you have connected the cable PC.
7. Configure this COM port within the terminal emulation program with the following parameters:

• 9600 baud
- 8 data bits
- 1 stop bit
- No parity
- None (flow control)

1. Connect power to the unit as described in Connecting Power to the IOLAN.

2. The PC will display the loot-loader sequence

Serial Port Mode

Serial mode is used when the IOLAN acts as a communication sever, or anytime you are not connecting directly to the IOLAN to configure it. You can connect directly to the IOLAN in serial mode, but the IOLAN will not display all the messages/information you will get in Console mode. See the IOLAN User's Guide for more information on the serial port.

Rebooting/Resetting the IOLAN

To reset the IOLAN insert a paper clip into the reset hole, then gently press inwards. If the button is released quickly the IOLAN will reboot, if the button is pressed for more then three seconds the IOLAN will be returned to factory defaults.

Reset

Connecting Data Ports

Ethernet Connection

By default the 10/100/1000 Ethernet port will automatically set itself up to match the speed of the port it is connected to. If auto negotiation is not supported by that port then, the port can be configured to operate at a fixed speed and duplex settings.

To connect to 10Base-T, 100Base-TX or 1000Base-T follow these steps:

1. Connect a straight through Ethernet cable from the IOLAN's Ethernet port to an 10/100/1000 RJ45 port on the network hub/switch.
2. Once the IOLAN is connected and the link is established, the link LEDs will turn on. These LEDs will indicate whether you have a 10, 100 or 1000 Mbps link to your hub/ switch. See. (LED Indicators) for more details.

Ethernet Connector - 8-pin RJ-45

1 - 10

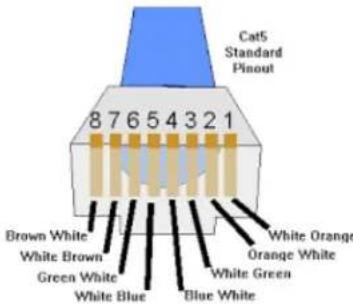

Cat5 Standard Pinout 8 7 6 5 4 3 2 1 Brown White White Brown Green White White Blue Blue White White Orange Orange White White Green

MDI Port Pinouts

Pin	Signal
1	Tx+
2	Tx-
3	Rx+
6	Rx-

MDI-X Port Pinouts

Pin	Signal
1	Rx+
2	Rx-
3	Tx+
6	Tx-

Configuring the IOLAN

The IOLAN can be configured, operated and monitored using any of the following methods. See the IOLAN User's Guide for more details.

CLI

A text-based Command Line Interface based on industry standard syntax and structure. The CLI can be accessed from the console port without a valid IP address for the initial setup. Once an IP address has been assigned the IOLAN can also be accessed by Telnet, SSH, SNMP or the Web interface.

Web Device Manager

The Perle Web Device Manager is an embedded Web based application that provides an easy to use browser interface for configuring and managing the IOLAN. The IOLAN can be accessed through any standard desktop web browser. The IOLAN must have a valid IP address.

DeviceManager

This is a Windows-based utility that provides the ability to do either an initial setup (out of the box) or to configure and manage the IOLAN. In order to use this utility the IOLAN must be connected to your network. You can download the DeviceManager software from our website at www.perle.com.

Appendix A - Technical Specifications

Contacting Technical Support

Contact information for the Perle Technical Assistance Center (PTAC) can be found at the link below.

https://www.perle.com/support_services/support_request.shtml

Warranty / Registration

This product is covered by the Perle IOLAN SDS Warranty. Details can be found at:

https://www.perle.com/support_services/warranty.shtml

Appendix B - Mechanical Drawing

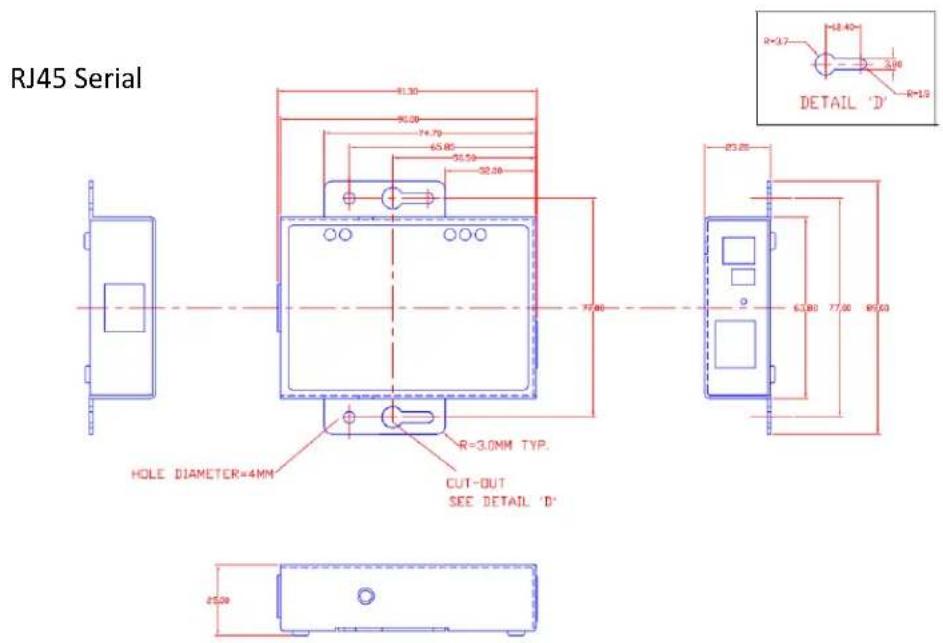

RJ45 Serial HOLE DIAMETER=4MM R=3.0MM TYP. CUT-OUT SEE DETAIL 'D' DETAIL 'D' R=17 18.40 2.96 R=19 74.70 65.80 51.50 32.00 77.00 61.80 77.00 89.03 25.00

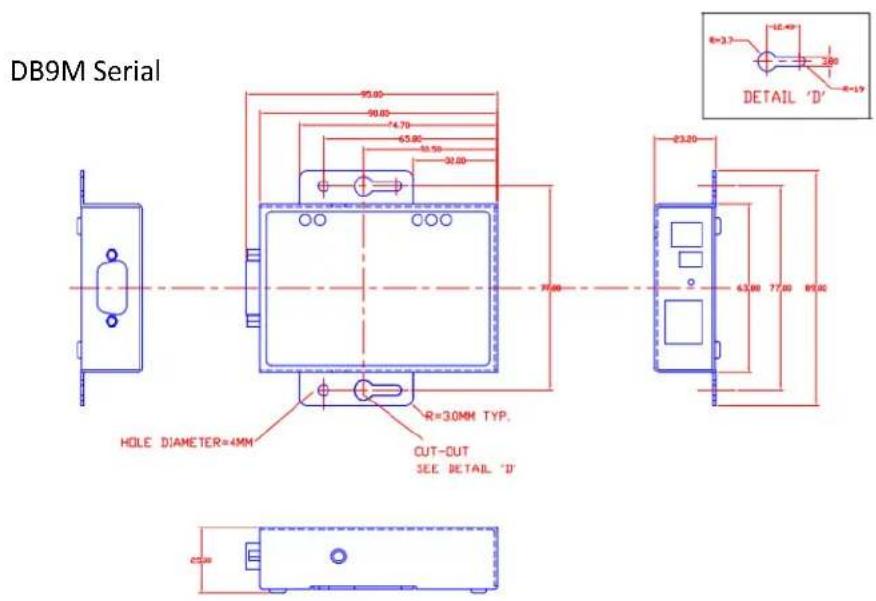

DB9M Serial HOLE DIAMETER=4MM R=30MM TYP. CUT-OUT SEE DETAIL 'D' DETAIL 'D' 23.20 63.80 77.80 87.80 95.00 90.00 74.70 65.80 53.50 31.00 25.00

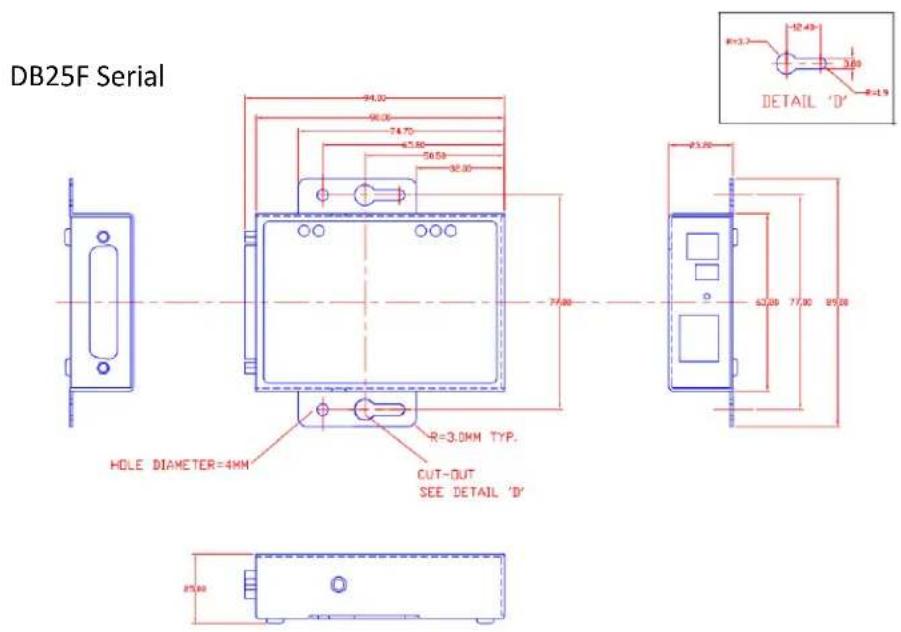

DB25F Serial 94.00 96.00 74.70 47.50 56.50 32.00 77.00 R=3.0MM TYP. HOLE DIAMETER=4MM CUT-OUT SEE DETAIL 'D' 87.00 DETAIL 'D' 12.40 3.60 R=1.9 62.00 77.00 85.00

Appendix C - Labels (Sample)

perle

Model: IOLAN DS1 GR

P/N:04031760

Input: 9-30VDC 0.4A max, Class2

MAC:0080D491079A

LISTED E160409

Ethernet to Serial Device

Made in Canada

perle

Model: IOLAN SDS1T G9

P/N:04031880

S/N: 80-410917T00064

Input: 9-30VDC 0.4A max, Class2

LISTED E160409

Ethernet to Serial Device

MAC:0080D49107C2

Made in Canada

Appendix D - Cabling and Connectors

This appendix provides pinouts for the serial DB25F, DB9M, RJ45 port and the Ethernet cable.

Connecting Serial Devices

Please refer to the pin-out table for your model, and ensure you have the appropriate cable for connecting your serial device to the serial port on the IOLAN.

IOLAN DB25 Female Connector

13 1 25 14

Pinout EIA-232 EIA-422			EIA-485 Full Duplex	EIA-485 Half Duplex
1 Shield	Shield Shield	Shield
2 (in) RxD
3 (out) TxD
4 (in) CTS
5 (out) RTS
6 (out) DTR
7 GND GND GND GND
8 (in) DCD
9 Power out Power out Power out Power out
12 Power in Power in Power in Power in
13		RTS-
14		RxD+	RxD+
15		RxD-	RxD-
18		CTS+
19		CTS-
20 (in) DSR
21		TxD+	TxD+	DATA+
22		TxD- TxD-	DATA-
25		RTS+

The Power In pin, pin 12 can be 9-30V DC.

The Power Out pin, pin 9, is only available on SDS models.

IOLAN DB9 Male Connector

Pinout EIA-232		EIA-422/485 Full Duplex	EIA-485 Half Duplex
1 (in) DCD
2 (in) RxD RxD+
3 (out) TxD TxD- TxD-/RxD-
4 (out) DTR
5 GND GND GND
6 (in) DSR
7 RTS TxD+ TxD+/RxD+
8 (in) CTS RxD-
9

IOLAN RJ45 Connector

1 - 10

Pinout E	IA-232 EIA-422			EIA-485 Full Duplex	EIA-485 Half Duplex
1 Power	In Power In		Power In Power In
2 (in) DCD
3 (out) RTS TxD+			TxD+	TxD+/RxD+
4 (in) DSR
5 (out) TxD TxD- TxD- TxD-/RxD-
6 (in) RxD RxD+ RxD+
7 GND	GND		GND	GND
8 (in) CTS RxD- RxD-
9 (out) DTR
10	Power Out		Power Out	Power Out	Power Out

The Power In pin, pin 1 can be 9-30V DC.

Hardware Options

The IOLAN contains jumpers that you might need to set before you configure it and put it into production. You can set the Power Out pin, pin 10 to a fixed 5V DC output or to the external adapter output; this can range from 9-30V DC (if an external adapter is shipped with the IOLAN, it has a 12V DC output); maximum output power is 1 (one) watt per serial port. The Power Out pin is only supported on the SDS1 G/SDS1T Gmodel The serial port can also operate in either EIA 232, 422 or 485 mode. This is a software configuration (See the IOLAN User's Guide for information on setting this parameter). If EIA 422 or 485 is selected, the line termination may need to be set. Termination is not necessary unless the IOLAN's are the end points.

To change the hardware settings, do the following:

1. Unplug the IOLAN from the electrical outlet and disconnect everything from the unit.
2. Open the case by unscrewing the two side screws, one on each side, and lifting off the top of the case.

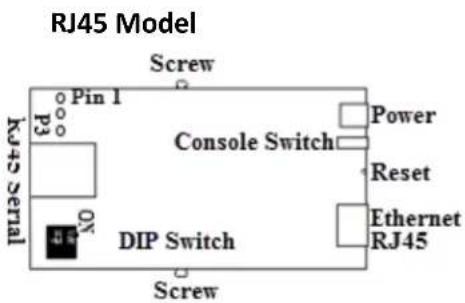

RJ45 Model Screw Pin I P3 KJ45 Serial Console Switch Power Reset Ethernet RJ45 ON DIP Switch Screw

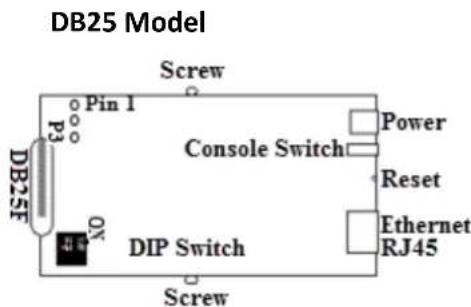

DB25 Model Pin I P3 DB25F Screw Console Switch Power Reset Ethernet RJ45 DIP Switch Screw

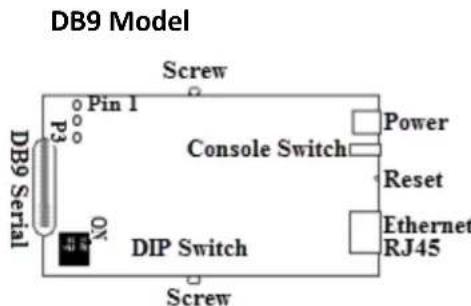

DB9 Model Pin 1 P3 DB9 Serial 0X Screw Console Switch Power Reset Ethernet RJ45 DIP Switch Screw

1. To change the Power Pin out, locate P3. For the fixed 5V DC output, jumper pins 1 and 2. For the output to equal the external adapter input, jumper pins 2 and 3.

2. To terminate Serial Port 1 for Full Duplex set DIP switch 1 ON. To terminate for Half Duplex set DIP switch 2 to ON.

3. Close the IOLAN case by replacing the case lid and the two screws. You can now power the IOLAN with the new settings.

Appendix E - IOLAN Maintenance

• Ensure there is clearance of 50.8mm (2 inches) on all sides of the IOLAN to provide proper airflow through the unit
• Do not use solvents or cleaning agents on this unit
• Keep vent holes clear of debris
• If case gets dirty wipe with a dry cloth
• Ensure all cables are in good working condition and replace any frayed cables or cables without clips
