Product Type	15" TFT-LCD Monitor (Security)
Screen Size	15"
Pixel Type	Active Matrix TFT
Max Resolution	1024 x 768 @ 60Hz (XGA)
Pixel Pitch	0.297 x 0.297 mm
Brightness	250 cd/m²
Contrast Ratio	450:1
Aspect Ratio	4:3
Viewing Angle (H/V)	130° / 110°
Display Colors	16.2 Million
Response Time	<12 ms
Video System	NTSC / PAL
Horizontal Frequency	31 ~ 48 kHz
Vertical Frequency	55 ~ 75 Hz
Panel Lamp Life	50,000 hours
Packing Dimensions (W x H x D)	20.0 x 16.1 x 6.5 inches
Weight	12.1 lbs
Power Consumption	35W
Power Source	DC 12V adapter (Auto Switching) / 3A
Inputs	RGB, VIDEO1, VIDEO2, S-VIDEO, PC Stereo, Trigger
OSD Languages	English, French, German, Italian, Spanish
Warranty	2 Years Limited (Orion Images)
Cleaning	Use soft cloth; unplug before cleaning; no liquid or chemical cleaners

Frequently Asked Questions - Premium 15RTC ORION

What should I do if the screen does not show any image?

Ensure the power supply is properly connected. Turn on the power. Select the correct input signal corresponding to the connected port. If using a PC, press the AUTO key to auto-adjust.

How do I adjust the brightness or contrast?

Press the MENU button, navigate to the PICTURE menu using the arrow keys, select BRIGHTNESS or CONTRAST, and adjust using the ◄/► keys.

How can I auto-adjust the screen when connecting to a PC?

Press the AUTO button on the front panel. Alternatively, go to the FUNCTION menu and select AUTO-ADJUST.

What input sources are supported?

The monitor supports VIDEO1, VIDEO2, S-VIDEO, and RGB inputs. Use the SOURCE button to cycle through them.

How do I clean the monitor safely?

Unplug the monitor from the power outlet. Use a soft cloth for cleaning. Do not use liquid cleaners, chemical solvents, or spray directly on the screen.

Why does the screen image appear distorted or out of range?

Make sure the input signal matches the monitor's specifications (e.g., resolution 1024x768 @60Hz). Use the AUTO key to adjust RGB signals. Check the RGB SETUP menu for H-POSITION, V-POSITION, CLOCK, and PHASE adjustments.

How do I change the OSD language?

Press MENU, navigate to FUNCTION, select LANGUAGE, and choose from English, French, German, Italian, or Spanish.

What does the power LED indicate?

When the power is on, the LED lights green. When off, the LED turns red.

What is the warranty period and how do I contact support?

The monitor comes with a 2-year limited warranty. For support, contact Orion Images at 714-766-6300 or email [e-mail].

Can I mount this monitor on a wall?

The manual does not specify VESA mount compatibility. However, the monitor is a security type and may be intended for desktop use. Ensure proper ventilation and place on a stable surface. For mounting, consult Orion Images.

USER MANUAL Premium 15RTC ORION

Front view of a black rectangular electronic device with a screen and control buttons (no readable text or symbols)

15" TFT-LCD MONITOR (SECURITY)

Warning Statements

* Follow this safety instruction to use the monitor properly and prevent the damages.

* This safety instruction has “Warning” and “Caution” as below.

WARNING: If the user does not follow this instruction, it may cause the serious damage to the user.

CAUTION: If the user does not follow this instruction, it may cause the slight damage to the user or cause some damages to the monitor.

* Keep this user's guide book for later use.

Never remove the back over and touch the inside of the monitor. If you need a service, please contact the service center.

Keep away the monitor from the direct sunlight and a heating appliance.

Never push objects of any kind into this product as they may result in a risk of fire or electric shock.

Connect the power code to the wall outlet tightly. If the power code or plug are defective and the wall outlet is not tight, please do not use them.

Warning Statements

Do not install this monitor on the outside and near water. If may cause damage to the product, electric shock and fire.

For cleaning do not use liquid cleaners. Never touch the power plug with wet- hands.

When lightning and thundering, unplug the monitor from the wall outlet and never touch it.

Unplug this product from the wall outlet, when It does not operate for a long time.

When smoking and noising from the monitor, unplug the product from the wall outlet and contact a service center.

How to fix

1. Do not open this product as it contains high voltage inside.
2. It may create an electric shock.
3. It the user disassembles and remove the back cover, it does not make sure
4. To make up for the damages and do a service and exchange the monitor..

Cautions

Install this monitor some distance From the wall and do not install unless Proper ventilation is provided.

Cartoon illustration of a smiling computer monitor with arms and legs, no text or symbols present

Place this product on a stable place. If not, it may fall, causing serious Damages to the monitor and people.

Cartoon illustration of a computer monitor character with a sad face and waving hands (no text or symbols)

The openings must not be blocked by curtain, rug or other similar surface.

Cartoon illustration of a computer monitor with a sad face and frowning expression (no text or symbols)

When carrying this monitor, be careful not to damage the panel and drop it. It may cause some trouble.

Before carrying the monitor, tum it off and Unplug the signal cables and the power code From the wall outlet.

Cartoon illustration of a smiling computer monitor with a speech bubble and a phone icon (no text or symbols)

Take the power plug out from the wall outlet. Do not pull the cable. It may snap the inner wires and cause overheating and fire.

Install this monitor about 50cm far from the eyes and an angle of 0\~15 degrees below eyes. Too close installation may cause having weak sight.

50cm

Do not press the LCD panel with hands or the sharpened material hardly.

Cartoon illustration of a sad computer monitor character holding a blank sign, with no text or symbols present.

For cleaning, unplug the monitor from the Wall outlet. Do net use the liquid cloth. Use the soft cloth.

Do not use the chemical liquid for cleaning. It may cause fading and breakage.

Illustration showing a crossed-out bottle and a sad face on a computer monitor, with no text or symbols present.

TABLE OF CONTENTS

1. INSTALLATION 6

1.1 Parts 6
1.2 Connection 7

2. FEATURES 8

2.1 Specifications 8

3. OSD SETTING 9-12

4. CONTROL BUTTON 13

5. APPENDIX 14

6. INFORMATION TO THE USER 15

7. TROUBLESHOOTING 16

8. LIMITED LIFETIME WARRANTY 17

5.1 D-SUB Connector PIN Assignment 14

INSTALLATION

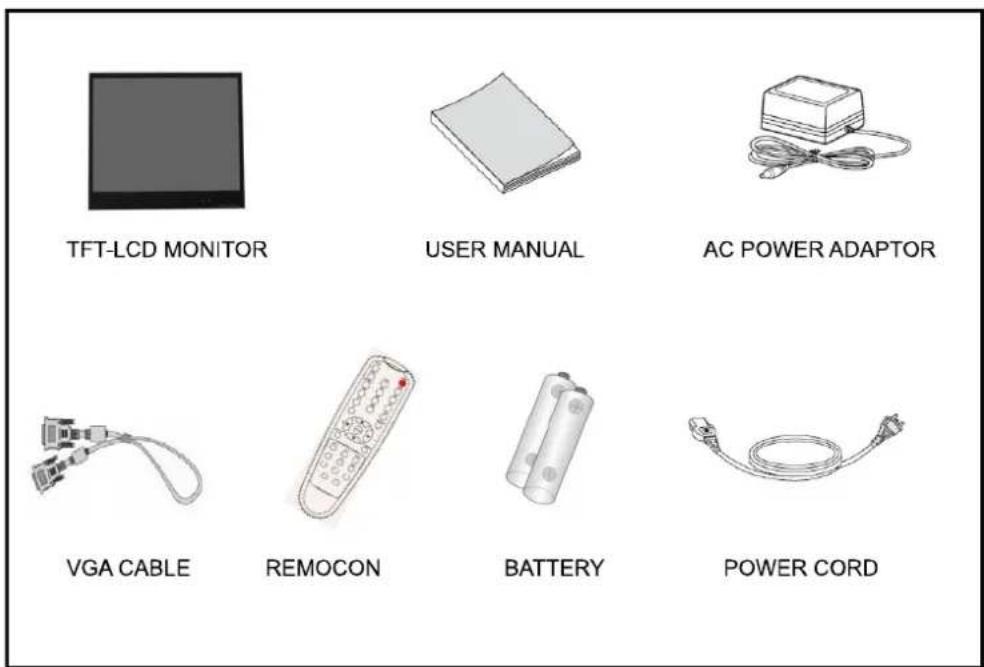

1.1 Parts

Remove the package cover and place the product on a flat and secure surface or in the installation location. Check whether all the following device and accessories are included with the main system.

INSTALLATION

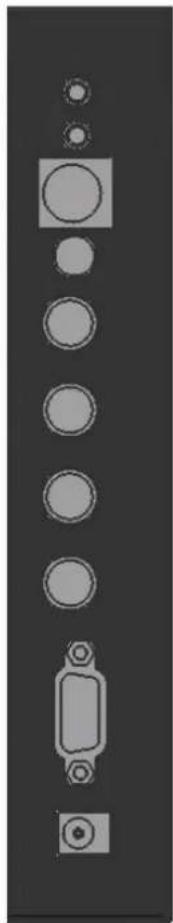

1.2 Connection

1. DC 12V IN

2. RGB IN

RGB signal input

1. VIDEO1 IN

Composite signal input for VIDEO1

1. VIDEO1 OUT

Video looping output for VIDEO1

1. VIDEO2 IN

Composite signal input for VIDEO2

1. VIDEO2 OUT

Video looping output for VIDEO2

1. S-VIDEO (Y/C) IN

Y/C separated signal input

1. S-VIDEO (Y/C) OUT

Y/C separated signal looping output

1. PC STEREO IN

Y/C separated signal input

1. TRIGGER IN\

NO / NC signal input

10

9

8

7

6

5

4

3

2

1

Vertical panel with circular and rectangular components, no visible text or symbols

FEATURES

2.1 Specifications (15 Inch)

VIDEO
Screen Size 15"
Pixel Type Active Matrix TFT
Max. Resolution 1024 x 768 @ 60Hz (XGA)
Pixel Pitch 0.297 x 0.297mm
Brightness	250 cd/m2
Contrast Ratio 450 : 1
Aspect Ratio 4:3
Viewing Angle (H/V) 130 / 110
Display Color 16.2 Million
Response Time < 12ms
Video System NTSC / PAL
Frequency (H) 31 ~ 48KHz
Frequency (V) 55 ~ 75Hz
Panel Lamp Life 50,000hours
MECHANICAL
Packing Dimension
W x H x D 20.0 x 16.1 x 6.5
Weight 12.1lbs
Power Consumption	35W
Power Source	DC12V adapter (Auto Switching) / 3A

NOTE : Technical specifications are subject to change without notice..

OSD (On Screen Display) SETTING

3.1 OSD MENU Description

MENU SELECTION

1. Press the MENU key to access the Main menu.
2. Use the and arrow key to highlight a selection
3. Press the OK or ▶ button to select an item.
4. Use the and arrow key to highlight a selection.
5. Use the and arrow key to adjust the setting on a selected item.

NOTE : If you don't connect RGB port, RGB SETUP menu is not select.

A. Input Select

INPUT VIDEO1 VIDEO2 S-VIDEO RGB

Inputs can be set to VIDEO1, VIDEO2, S-VIDEO and RGB mode.

1. Press the SOURCE button and then ▲/▼ button to move the source.
2. Press the ▶ button to select the source.
3. Press the MENU/EXIT button to exit the INPUT menu.

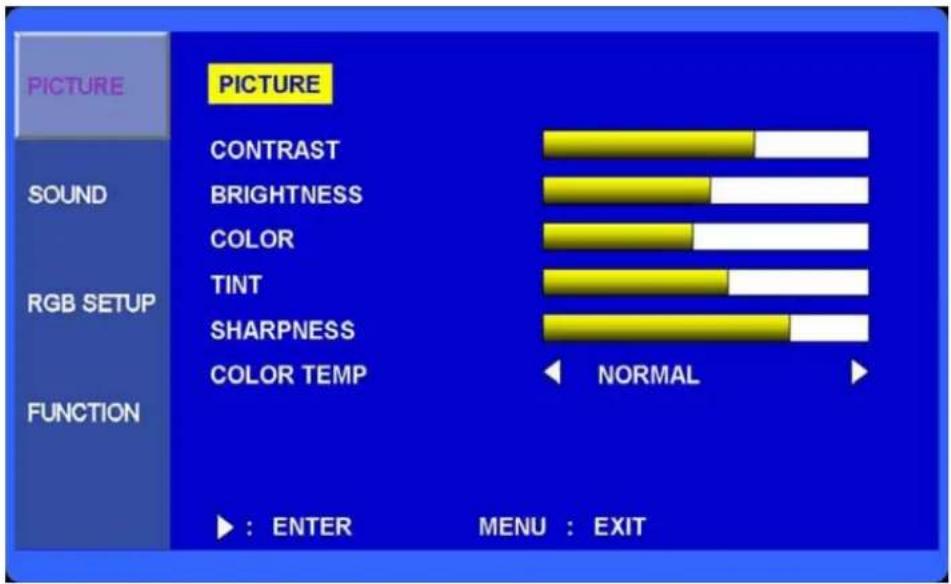

B. Picture Menu

PICTURE SOUND RGB SETUP FUNCTION PICTURE CONTRAST BRIGHTNESS COLOR TINT SHARPNESS COLOR TEMP NORMAL : ENTER MENU : EXIT

OSD (On Screen Display) SETTING

1. Press the MENU/EXIT key and then ▼/◄ or ▲/► key to select the PICTURE menu.
2. Press the OK or ▶ button and then ▲/▶ button to select the adjustment item you need.
3. Press the OK or ▶ button to active the item.
   FX) If you select the BRIGHTNESS, then the picture below appears on the screen.

BRIGHTNESS 61

1. Press the MENU/EXIT button to move the previous menu..

NOTE : TINT item is for the NTSC input only.

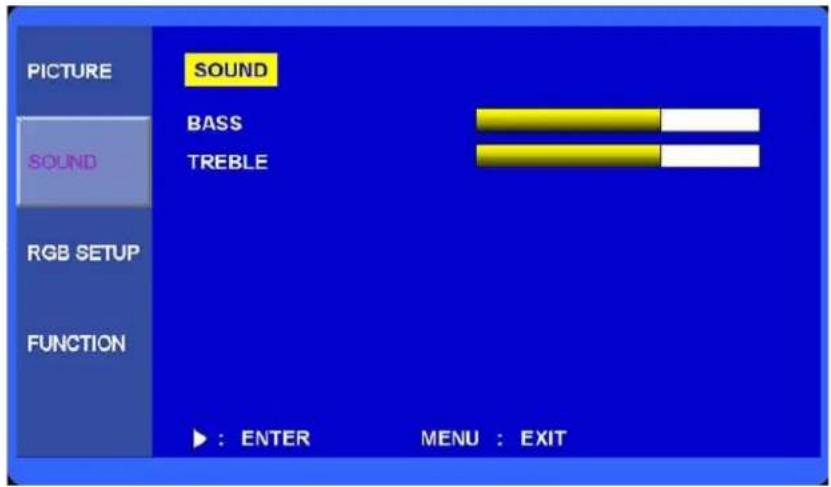

C. Sound Menu

PICTURE SOUND SOUND RGB SETUP FUNCTION SOUND BASS TREBLE ► : ENTER MENU : EXIT

1. Press the MENU button and then ▲/▼ button to select the SOUND menu.
2. Press the ▶ button and then ▲/▼ button to select the adjustment item you need.
3. Press the ▶ button to active the item.
   EX) If you select the TREBLE, then the picture below appears on the screen.

TREBLE 31

1. Press the MENU button to move to the previous menu..

OSD (On Screen Display) SETTING

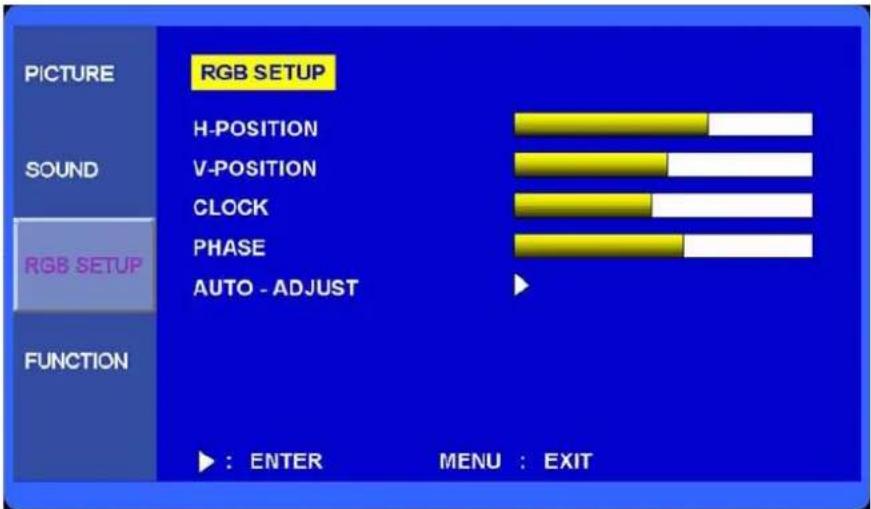

D. RGB Setup Menu

PICTURE RGB SETUP SOUND RGB SETUP FUNCTION H-POSITION V-POSITION CLOCK PHASE AUTO - ADJUST : ENTER MENU : EXIT

1. Press the MENU button and then ▲/▼ button to select the RGB SETUP menu.
2. Press the ▶ button and then ▲/▼ button to select the adjustment item you need.
3. Press the ▶ button to active the item.
4. Press the MENU button to move to the previous menu.

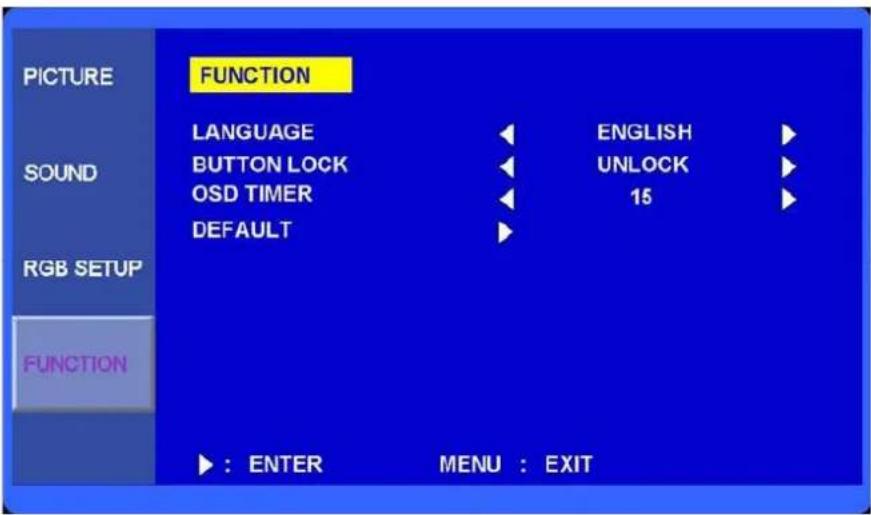

E. Function Menu

PICTURE FUNCTION LANGUAGE ENGLISH SOUND BUTTON LOCK UNLOCK OSD TIMER 15 DEFAULT RGB SETUP FUNCTION ► : ENTER MENU : EXIT

OSD (On Screen Display) SETTING

E. Function Menu (Continue)

1. Press the MENU button and then ▲/▼ button to select the FUNCTION menu.
2. Press the ▶ button and then ▲/▼ button to select the adjustment item you need.
3. Press the ▶ button to active the item.
4. Press the MENU button to move to the previous menu.

LANGUAGE : Select the language: English, French, German, Italian, Spanish. DEAFULT : Select RESET to set the monitor to the factory default values.

CONTROLL BUTTON

MENU/EXIT

SOURCE/▼

AUTO/▲

VOL

/SELECT

0/1

Menu/EXIT: Activates and exits the OSD.

SOURCE/▼: Select input source, and select the OSD menu.

AUTO/▲: Move the OSD menu and auto adjustment of RGB source.

▶/SELECT: Increase the level of volume and select the OSD menu.

◀ (VOL): Decrease the level of volume and move the previous menu.

Turns the power ON or OFF. There will be a few seconds delay before the display appears.

The power LED(next to the power switch) lights with green when the power is turned ON.

The power is turned off by pressing the power switch again and the power LED goes Red.

LED LENS:

IR RECEIVE LENS:

APPENDIX

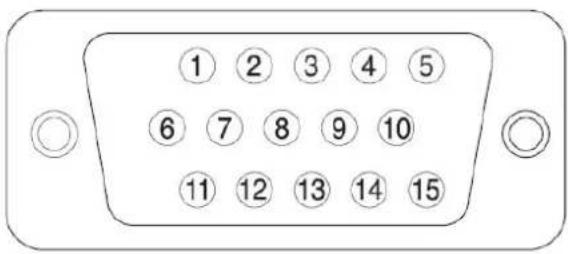

5.1 D-SUB Connector PIN Assignment

PIN NO.	PIN Name	PIN NO.	PIN Name
1	RED VIDEO	9	NC
2	GREEN VIDEO	10	SIGNAL CABLE DETECT
3	BLUE VIDEO	11	GROUND
4	GROUND	12	SDA (for DDC)
5	GROUND	13	H-SYNC
6	RED GROUND	14	V-SYNC
7	GREEN GROUND	15	SCL (for DDC)
8	BLUE GROUND

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮

INFORMATION TO THE USER

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:

● Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio / TV technician for help.

WARNING:

The manufacturer is not responsible for any Radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment."

TROUBLESHOOTING

* When the following troubles are occurred, follow the trouble shooting. Before contacting a service center.

Troubleshooting	Troubleshooting Tip
The screen doesn’t show up	1. Make sure if the power supply is connected property
	2. Turn on the power.
	3. Select the input signal right for the connected port.
The screen is too light or to dark	Control the BRIGHTNESS
The screen size is not fit for the PC signal	Press the AUTO key among keys in the front.(It is used only in the PC signal)
The screen color shows strange in the PC signal	In the FUNCTION menu of OSD menu, perform the AUTO-ADJUST.

2Year Limited Warranty

All Orion Images products carry a limited warranty from ship date against defects in materials and workmanship. Orion Images is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.

Contact Orion Images

In the event of missing and/or damage equipment, or technical questions, the following information can help in the completion of the installation.

Address: 7300 Bolsa Avenue, Westminster, CA 92683

Tel: [phone] / Fax: [phone]

Email: [e-mail]

Website: http://www.orionimages.com
