Crossfade 2 - Headphones V-Moda - Free user manual and instructions

USER MANUAL Crossfade 2 V-Moda

CROSSFADE II WIRELESS

USER'S MANUAL

REGISTER NOW AT

V-MODA.com/Register

BEWARE OF FAKES

CAUTION

If serial number on the product, on manual cover or bottom of packaging is missing or defaced, please return to retailer immediately.

IMMORTAL

LIFE

PROGRAM

1YR

WARRANTY

english
To acquire a printable version of this manual, please visit V-MODA.com/Manuals
español
Para adquirir una versión impresa de este manual, visite por favor V-MODA.com/Manuals
français
Pour obtenir une version imprimable de cette manuel, veuillez consulter V-MODA.com/Manuals
italiano
Per ottenere una copia stampabile di questa manuale, visitare il sito V-MODA.com/Manuals
deutsch
Eine Handbuch zum Ausdrucken erhalten Sie unter: V-MODA.com/Manuals
한국어의
수 동의 인쇄판을 얻으러면 V-MODA.com/Manuals
简体中文
要获得说明书的打印件，请访问 V-MODA.com/Manuals
繁品中文
要獲得說明書的打印件, 請訪問 V-MODA.com/Manuals
日本語
本取扱説明書の電子版を以下のページからダウンロード・プリントアウトすることができます V-MODA.com/Manuals

ROCK SAFELY

Enjoy your music responsibly. According to the American Speech-Language-Hearing Association, “listening to headphones at high volumes for extended periods of time can directly result in lifelong hearing loss”. At V-MODA, we are dedicated to providing an enjoyable listening experience, but we also care greatly about your personal health and safety. We recommend that you listen to your headphones at comfortable volume levels for reasonable periods of time.

How to enjoy your music responsibly.

• Turn down the volume. A good point of reference is half volume
• Limit listening time. Give your hearing a “time out”

Be aware of your surroundings. Do not use headphones during activities such as driving, bicycling or jogging while on public roads. Many states have laws prohibiting such actions. Obey local laws, be alert, and listen responsibly.

Caution around children. Keep out of reach of children, the parts included with this product can be a choking hazard. This product is not intended for children under 7 years of age.

WELCOME

Welcome to V-MODA, the music lifestyle. We sincerely hope you enjoy our headphones, the pinnacle of sound and quality design. With the essence of music at the foundation of all we do, we have precisely engineered our headphones to provide an enjoyable and natural sound signature, which invokes the sense of listening to your music live. Play Hard. Rock Harder.

Package Contents

1. 1-Button SpeakEasy Mic Cable
2. Carrying Case
3. Over-Ear Headphones
4. 1/4" Pro Adapter
5. USB Charging Cable

Renaissance Headphone Accessories

BoomPro Mic, custom metal shields, Audio Cables, 3-Button SpeakEasy Mic Cable and XL cushions are available at V-MODA.com.

USING YOUR HEADPHONES

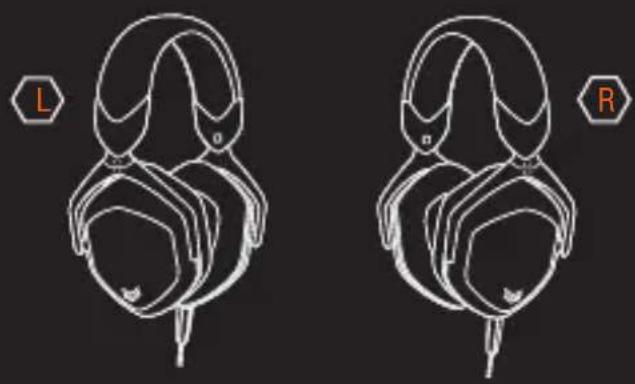

1. Very important: place earcups on corresponding ear. "L" on left ear, "R" on right ear

Silhouette of a person wearing headphones (no text or symbols)

1. Push hair back, extend the earcups from headband until they fit comfortably on ear, creating a snug fit to ensure highest quality and comfort

2. When wearing headphones wired (with cable connected), hang cable in front of your head to ensure headphones stay put during strenuous activity

Abstract line drawing of a stylized figure with curved lines and a central dot (no text or symbols)

YES NO

Safety warning symbol for headphones with a stop sign and no stop sign

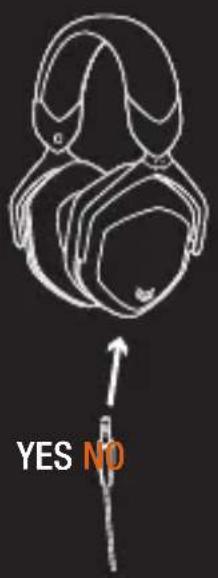

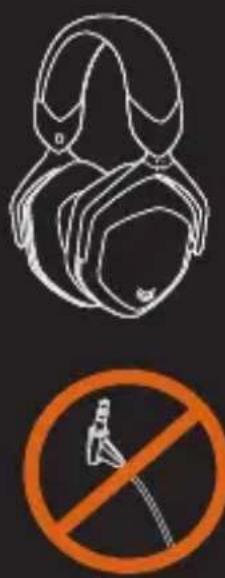

1. When using the included cable, insert straight plug into earcup (not 45^ angled plug)

WIRELESS MODE

ASS MODE VOLUME DOWN - 3-WAY SWITCH VOLUME UP + MULTI-FUNCTION MICROPHONE

STEP BY STEP GUIDE

ON/OFF

OFF

ON

To turn headphones on, slide the 3-way switch to the middle position. LED will start to blink once per second.

PAIRING (NEW DEVICES)

Once powered on, slide switch to the right, hold 3 seconds, when the LED starts to blink twice per second, release the switch. The switch will return to the middle position and begin to search. Once "V-MODA Crossfade 2" appears in the "new Bluetooth devices" section on your phone, select it to begin pairing.

3 CONNECTING (PAIRED DEVICES)

OFF

ON

• on/middle connects to last paired device in a few seconds
- be sure Bluetooth on your device is on

4 CHARGING

Illustration of a pair of headphones connected by a cable with a lightning bolt symbol (no text or labels)

• blinking orange LED = low battery
• fading orange LED = charging
• white LED = fully charged

5 ANSWER A CALL

1X =

Press once to answer (music pauses automatically)

6 REFUSE / HANG UP

1-2 SEC = 9

To refuse an incoming call or to hang up an existing call, press and hold for 1-2 seconds, then release

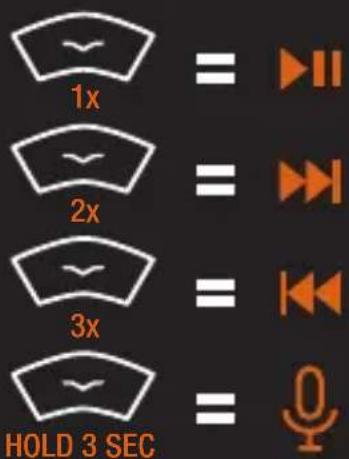

TRACKS CONTROL + VOICE ASSISTANT

1x 2x 3x HOLD 3 SEC

Track controls may vary based on device and settings.

Press once to play and pause

Press twice for next track

Press three times for previous track

Press and hold 📋 for 3 seconds to summon Voice Assistant such as Siri/OK Google

RESET PAIRED DEVICES HISTORY

3s 1s.. 1s.. HOLD 3 SEC

To reset the paired devices history press and hold 📄 for 3 seconds. LED lighting will change to blinking orange and white.

WIRED MODE

1. During music playback

• Click button once to pause and again to resume playback
• Click button twice quickly for next track
• Click button three times quickly for previous track

2. During calls

• Click button once to answer incoming call, click once to end call
• Press and hold button down for about two seconds to decline an incoming call

Pure electrical circuit lines without any symbols

Compatible with all Bluetooth smartphones, tablets, iPhone®, iPad®, iPod®, Apple Watch™, Android™, computers and any gaming or audio device with a 3.5mm or 6.35mm (1/4") port.

PROTECTING YOUR HEADPHONES

• Minimize exposure to moisture. Not intended for use while swimming, bathing or showering
• Use provided carrying case while idle
• Keep headphones clean and free of debris
• Do not pull on cable to disconnect plug from device

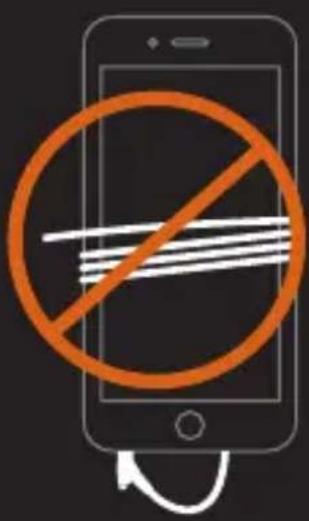

• Do not wrap cable around device while still plugged in as it puts unnecessary pressure on plug-cord connection

FOLDING YOUR HEADPHONES

To fold correctly, be sure to place earcups cushion to cushion.

Smartphone icon with no smoking symbol and crossed-out lines, indicating no smoking or anti-smoking

Illustration of a smartphone with a horizontal line and arrow, no text or symbols present

Prohibition sign with crossed arrows and a diagonal line, indicating no movement or restriction

Pure technical line drawing of a symmetrical mechanical or architectural component (no text or symbols)

Troubleshooting

If you are experiencing trouble with your headphones, please refer to the troubleshooting guidelines below. If the problem persists, please contact the V-MODA Six Star Service at V-MODA.com/Support or 1.888.VMODA.LA.

TROUBLE SUGGESTIONS
Pairing process trouble	- Make sure headphones are not connected to the charger and they are powered on- Turn off the headphones and turn them on again- Remember to turn on the Bluetooth feature on your device- Turn off the Bluetooth feature on any other device which has been previously paired- Reset paired devices history by pressing and holding Volume + and Volume - for 3 seconds- Try to pair with another device to make sure that both the headphones and your Bluetooth device are working properly- Go to Bluetooth settings and select “V-MODA Crossfade 2”
TROUBLE	SUGGESTIONS
Receiving no audio or low quality audio from an audio source	- Check the battery- Check the pairing- Make sure the audio source is playing- Make sure the volume on the device is not muted or turned down- Reboot the source/device- Turn off the headphones and turn them on again- Reset paired devices history of the headphones- Try streaming from another device or select another track- Move the device and headphones closer (max 33 feet or 10m)- Keep away from any possible interference (wireless routers, other Bluetooth devices, microwaves etc.)- Close any applications on your device that are not in use and disable Wi-Fi
Audio and video do not match	Try streaming from another device or select another track. Due to technology limitations, there may be a delay from some sources or applications
No audio (in wired mode)	Make sure the audio device and the headphones jacks are free of debris and that the cable is securely connected.
Lack of or excessive bass or treble (in wired mode)	Turn off any audio enhancement features on audio device. Make sure cable is firmly connected to the headphones (use straight plug) and device (use 45° plug). If the problem persists, try another cable.
TROUBLE SUGGESTIONS
Uneven Sound (in wired mode)	Make sure cable is firmly connected to the headphone by ensuring male 3.5mm is inserted into female 3.5mm all the way.
Distorted sound	Check to make sure the problem is not with the audio device or the file you are listening to. Ensure the EQ settings on the device are set properly. Make sure you have a snug fit and that the driver is pointing directly towards the ear.
Headphones will not charge	- Make sure the charging cable and source are functioning properly- Make sure both USB plugs are firmly connected into their sockets- Disconnect and reconnect the USB charging cable- If charging with your computer, make sure the USB port is powered and remember to plug in your computer

CAUTION

The operation temperature of devices is between -10^ (14°F) to 45^ (113°F). The battery will not work properly if temperature is beyond that range.

Orange background with white star and hand symbol (no text or numbers)

For more support please contact V-MODA's

Six Star Service V-MODA.com/SUPPORT

Cleaning Your Headphones

To keep your headphones clean, periodically wipe with a dry cloth.

Note on Static Electricity

In particularly dry air conditions, mild tingling may be felt on your ears. This is a result of static electricity accumulated in the body, and not a malfunction of the headphones. Wearing clothes made from natural materials can minimize the effect.

Hearing Safety

The Occupational Safety Health Administration has developed the following noise exposure chart to help determine what levels and lengths of listening are safe.

Sound Level dBA Maximum Listening Duration
90 8 hrs
92 6 hrs
95 3 hrs
100 2 hrs
102 1 12 hrs
105 1 hr
110 12 hr
115 14 hr or less

V-MODA Premier Limited Warranty

For a period of one (1) year from the date of retail purchase by the original end-use purchaser, V-MODA warrants that this product is free from any defects in manufacturing, materials and workmanship, under the following conditions:

• V-MODA will repair or replace the product within a reasonable period of time and free of charge for one (1) year from the date of retail purchase by the original end-use purchaser

• Product must be purchased from a V-MODA authorized reseller and delivered to you in new condition, in original packaging. This warranty does not cover products purchased open box, sold as-is, sold by private party resale or any other third party purchases from unauthorized resellers

• This Limited Warranty does not cover defects resulting from cosmetic damage, acts of God, misuse, accidents, commercial use, unauthorized alteration or modification of the product, improper connection, improper use or attempted repair by unauthorized distributors or resellers

• This warranty is void if the label bearing the serial number has been removed or defaced

• To obtain service under this limited warranty, visit V-MODA.com/Warranty to fill out the online warranty form and obtain further information

• For other customer service inquiries, please e-mail [e-mail]. You may also call 1.888.VMODA.LA Monday through Friday, 9:00 am to 5:00 pm (Pacific Standard Time)

• This limited warranty gives you specific legal rights, and you also may have other rights that vary from state to state or country to country. Some places do not allow limitations on implied warranties or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you

V-MODA Immortal Life Program - lifetime 50% discount

We do not judge. If you abuse your headphones crowdsurfing, stage diving, spelunking or otherwise, the V-MODA Immortal Life Program has your back.

All we ask is that you send the headphones (or what is left of them) to us and we will email you a 50% off coupon towards a comparable product from V-MODA.com.

Visit V-MODA.com/Support, e-mail [e-mail] or call 1.888.VMODA.LA, Monday through Friday, 9:00 am to 5:00 pm (PST), for information on how to get your 50% voucher.

IMMORTAL LIFE PROGRAM

1YR WARRANTY

CAUTION

If serial number on the product, on manual cover or bottom of packaging is missing or defaced, please return to retailer immediately.

COMPLIANCES

NOTE: This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, this is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, you are encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment to an outlet on a different circuit than the one to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help

Changes or modifications not expressly approved by V-MODA could void the user's authority to operate this equipment.

This device complies with Industry Canada license exempt RSS standard(s).

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

V-MODA LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC and all other applicable EU directive requirements. The complete declaration of conformity can be found at V-MODA.com/COMPLIANCE.

V-MODA Milano Design

©2017 V-MODA. All rights reserved.

V, V-MODA, the V-MODA logo, BLISS, Crossfade and V-PORT are trademarks of V-MODA LLC.

U.S. Pat. Nos. D683212, D698333, D625703 and patents pending.

iPhone®, iPad®, iPod®, Apple Watch™ are trademarks of Apple Inc., registered in the U.S. and other countries.

The trademark "iPhone" is used with a license from Aiphone K.K.

Android™ is a trademark of Google Inc. and is in no way affiliated with V-MODA

The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc.

and any use of such marks by V-MODA is under license.

Other trademarks and trade names are those of their respective owners.

RoHS Compliant
