Product Type	Bluetooth Handsfree Headset
Brand	Zebra
Model	H670
Connectivity	Bluetooth
Charging Time	Approximately 2 hours
Battery Type	Rechargeable Lithium-Ion (estimated)
Weight	Approx. 15 g (estimated)
Dimensions	Approx. 50 x 20 x 10 mm (estimated)
Controls	Slide switch, Call button, Volume buttons
Earhooks	Multiple sizes, adjustable for left or right ear
Indicator Light	RGB LED (red, blue, purple) for charging, pairing, call, battery
Audio Tones	Various tones for incoming call, end call, mute, low battery, etc.
Supported Profiles	Handsfree Profile (HFP), Headset Profile (HSP)
Pairing Passkey	0000
Wireless Range	Up to 10 meters (typical)
Certification	EU R&TTE Directive 1999/5/EC
In the Box	Headset, charger, earhooks, user manual
Compatible Devices	Most Bluetooth-enabled phones

Frequently Asked Questions - H670 ZEBRA

How do I pair my Zebra H670 headset with my phone?

Slide the Call button towards the microphone to power on and enter pairing mode. The indicator light becomes steadily blue. On your phone, enable Bluetooth and search for devices. Select 'Motorola H670' and enter the passkey 0000. Once paired, the light will flash blue.

How long does it take to charge the headset?

Approximately 2 hours. The indicator light turns red during charging and turns off when fully charged.

How do I attach the earhook?

Open the earhook 90 degrees from the headset, gently lift and pull the top off the upper hinge pin, then remove. Position for left or right ear, hook the bottom onto the lower hinge pin, and push the top over the upper hinge pin.

What do the different indicator light colors mean?

Steady red: charging; off: charged; steady purple: powering up; steady blue: pairing mode; slow blue flash: standby; quick blue flash: incoming call; slow blue pulse: on call; quick red flash: low battery; red flash: idle not connected.

How do I make a call?

Dial the number on your phone and press the send key. You will hear ringing in the headset. Alternatively, use voice dial by tapping the Call button and speaking the name.

How do I answer a call?

Tap the Call button to answer. To reject a call, press and hold a Volume button until you hear two descending tones.

How do I adjust the volume?

Use the Volume buttons on the headset. You can change the orientation by pressing and holding a Volume button while sliding the power switch to on.

How do I reset the headset to factory settings?

Press and hold both Volume buttons and the Call button simultaneously for 10 seconds. This erases all pairing information.

My headset won't enter pairing mode. What should I do?

Make sure any previously paired devices are turned off. If the indicator light is not steadily blue, turn off the headset, wait 10 seconds, then turn it back on.

What audio tones does the headset produce?

Various tones: ring tone for incoming call, single high tone for network unavailable, high to low tone for end call, two ascending tones for mute enabled, and two tones repeated every 30 seconds for low battery.

USER MANUAL H670 ZEBRA

motorola Bluetooth® Handsfree Headset

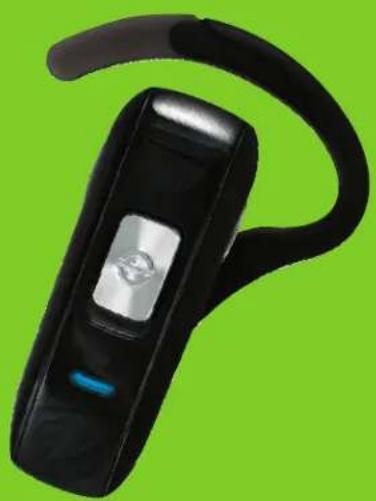

Black handheld device with a strap and control buttons against a solid green background (no text or symbols visible)

H670
MOTOSTART
Get connected in 4 quick steps.

BEFORE YOU BEGIN

Before using this product, read the Important Safety and Legal Information pamphlet and follow its instructions.

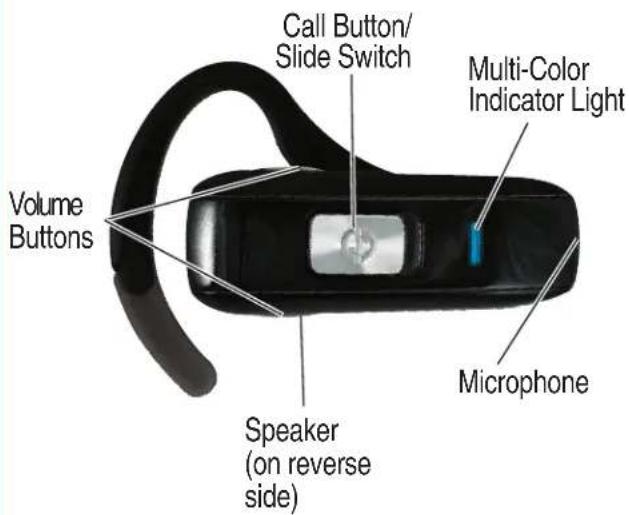

Take a moment before you get started to familiarize yourself with your new H670 Headset.

CHARGE
Your Headset's Battery

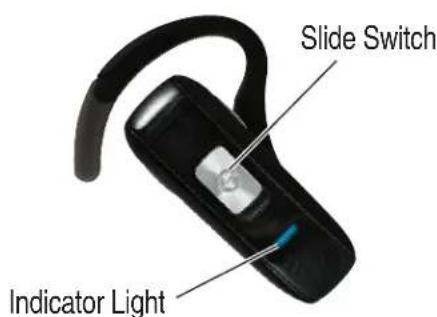

1 Verify slide switch is in the off position (toward the charging port).
2 Plug the Motorola charger into the end of the headset.

The indicator light turns red when the battery is charging. It may take up to 1 minute for the indicator light to turn on. When the headset's battery is fully charged (about 2 hours), the indicator light turns off.

3 Disconnect the charger.

Note: Headset is not functional while charging.

Note: For optimal performance, make sure that the headset is off while charging.

START BLUETOOTH FEATURE

Your Phone

Your phone's Bluetooth feature is off by default. To use your headset, you must turn on the Bluetooth feature in your phone.

For most Motorola phones (at the main menu):

1 Press ☐ (Menu) > Settings > Connection > Bluetooth Link > Setup.
2 Scroll to Power.
3 Select Change.
4 Scroll to On.
5 Press Select to turn on the Bluetooth feature. The Bluetooth feature remains on until you turn the feature off.

Note: These steps are for most Motorola phones. For other phones, see your phone's user's guide.

PAIR

Your Headset

Before you can use your headset, you must pair (link) it with your phone.

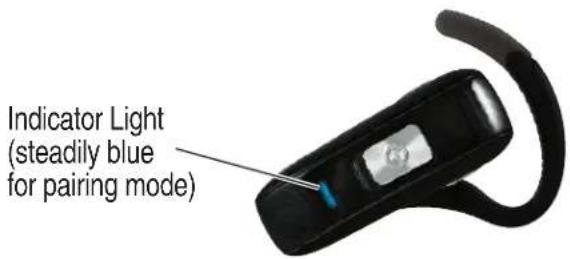

Step A - ENSURE HEADSET IS IN PAIRING MODE

Power on headset by sliding the Call button towards the microphone to initiate easy pairing. After a few moments, the indicator light will be steadily lit in blue to indicate headset is in pairing mode.

If the headset does not enter pairing mode, see TROUBLESHOOTING for help.

Motorola, Inc.

Consumer Advocacy Office

1307 East Algonquin Road

Schaumburg, IL 60196

www.hellomoto.com

1-877-MOTOBLU

1-888-390-6456 (TTY/TDD United States for hearing impaired)

Guide Number: 6809504A20-B

MOTOROLA and the Stylized M Logo are registered in the US Patent & Trademark Office. The use of wireless devices and their accessories may be prohibited or restricted in certain areas. Always obey the laws and regulations on the use of these products. The Bluetooth trademarks are owned by their proprietor and used by Motorola, Inc. under license. All other product or service names are the property of their respective owners.

© Motorola, Inc. 2007.

PAIR CONTINUED

Your Phone

Step B - SET YOUR PHONE TO LOOK FOR YOUR HEADSET

For most Motorola phones:

1 On your Motorola phone, press ☐ (Menu) > Settings > Connection > Bluetooth Link > Handsfree > Look for Devices.

The phone lists Bluetooth devices it finds.

2 Select Motorola H670.
3 Select OK or Yes to pair your headset with your phone.
4 Enter the passkey: 0000
5 Select OK.

When your headset successfully pairs and connects with your phone, the indicator light changes from steadily lit to flashing blue.

Note: These steps are for most Motorola phones.

For other phones, see your phone's user's guide.

TEST AND USE

Your phone and headset are now paired and ready to make and receive calls.

To make a call:

1 Place the headset over your ear.
2 On the phone, dial the number you want to call and press SEND key on your phone.
3 If your phone and headset are successfully paired, you will hear ringing on the headset.

After you have successfully paired your phone and headset, you don't need to repeat these steps. For daily use, ensure that your headset is turned ON and that your phone's Bluetooth feature is ON.

To save battery power, turn OFF the headset when you don't use it for an extended time by sliding the switch towards the charging plug.

USING YOUR H670

See

Features and

Functions Guide

on the reverse side

for information on

using your H670

Abstract green arrow graphic pointing right, no text or symbols present

Note: If desired, your headset can be restored to original factory settings. This action will erase all pairing information stored in your headset. Thus, you will need to pair your phone and headset again (see step 3).

To restore your headset to original factory settings, press and hold both Volume buttons and the Call button at the same time for 10 seconds.

TROUBLESHOOTING

My headset will not enter pairing mode.

Make sure that any devices previously paired with the headset are turned off. If the indicator light is not steadily lit in blue, turn off both the other device and headset, wait 10 seconds, then turn headset back on. Wait for the indicator light to become steadily lit in blue, indicating the headset is now in pairing mode.

My phone doesn't find my headset.

Make sure the indicator light on your headset is on (lit in blue) and steady when your phone is searching for devices (see step 3).

My headset worked before but now it's not working.

Make sure your phone is on and the Bluetooth feature is turned on in your phone (see step 2). If the Bluetooth feature was turned off or was turned on only temporarily, you may need to restart the Bluetooth feature (see step 2) and pair your phone and headset again (see step 3).

Support.

If you need more help, contact us at

1-877-MOTOBLU or visit us at

www.hellomoto.com/Bluetoothsupport

Features and Functions Guide

H670

Bluetooth®

Handsfree Headset

IMPORTANT:

Be sure to first follow the

MOTOSTART

Quick Start Guide

on the reverse side

of this guide

to complete initial setup

of your H670.

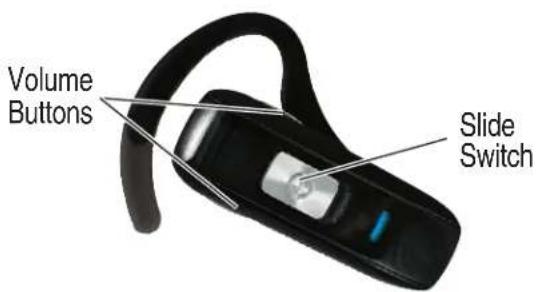

TURNING HEADSET ON AND OFF

To turn your headset on, slide the switch toward the microphone. The indicator light is steadily purple for several seconds, then flashes blue (if paired and connected with another device) or is steadily blue (if ready to be paired).

To turn your headset off, slide the switch toward the charging plug. The indicator light will turn off.

EARHOOKS AND YOUR HEADSET

Your H670 headset is supplied with multiple earhooks. The earhook is attached onto a hinge pin, and is placed onto your ear when using your headset. To install an earhook on your headset:

1 Open the attached earhook 90 degrees from the headset.

2 Gently lift and pull the top of the earhook up and off the upper hinge pin. Then, pull it away to remove it.

3 Position the headset for right or left ear use (right ear use is displayed).

4 Hook the bottom of the earhook onto the lower hinge pin, then lift and pull the top of the earhook over the upper hinge pin.

1 Open Earhook

2 Pull Earhook Up

WEARING THE HEADSET

Once you have attached your desired earhook, follow these steps to wear your headset on your ear:

1 Open the attached earhook 45 degrees from the headset.

2 Loop the earhook over your ear.

3 Press earhook to your ear.

When worn, your headset will look like this on your head:

Silhouette of a human head profile with a small device embedded in the ear (no text or symbols)

CHANGING VOLUME BUTTON ORIENTATION

You can also change the orientation of the volume buttons on your headset.

1 Turn the headset power off.
2 Press and hold the Volume button you want to assign as the "volume up" button and slide the switch toward the microphone. The indicator light is either steadily lit or flashing in blue.

European Union Directives Conformance Statement

Hereby, Motorola declares that this product is in compliance with:

• The essential requirements and other relevant provisions of Directive 1999/5/EC.
• All other relevant EU Directives.

The above gives an example of a typical Product Approval Number.

You can view your product's Declaration of Conformity (DoC) to Directive 1999/5/EC (to R&TTE Directive) at www.motorola.com/rtte. To find your DoC, enter the product Approval Number from your product's label in the "Search" bar on the web site.

MAKING CALLS

Function

Action

Receive a call

Tap the Call button

Mute or unmute a call

Tap both Volume

buttons

Reject a call

Press and hold a

Volume button until you hear two

descending

tones

End a call

Tap the Call button

Redial last call

Press and hold the

Call button until you hear two ascending

tones

Make a voice dial call

Tap the Call button

and speak the

name after the tone

Note: Your H670 supports both Handsfree and Headset

Profiles. Accessing call functions depends upon which

profile your phone supports. See your phone's user's guide for more information.

MAKING CALLS CONTINUED

Function

Action

Answer a second

Tap the Call button

incoming call

End an active call and

Tap the Call button

resume a call on hold

Disable the

First slide the switch

indicator light

toward charging plug

(to turn

then press

both Volume

buttons AND

the switch towards

the microphone

turn headset

Note: Some features are phone/network dependent.

INDICATOR LIGHTS

With the Charger Plugged In

Headset Indicator
Headset Status
Steady red
Charging
Off
Charging
complete
With No Charger Plugged In

Headset Indicator		Headset Status
Off		Power	off
Steady purple	Powering up
Steady blue	Pairing/connection mo de
10 rapid purple flashes		Connection successful
Slow blue flash	Standby (not on call)
Quick blue flash	Incoming call
Slow blue pulse	Connected (on a call)
Slow purple pulse	Connected (on a
Red flash	Idle (not connected)
Quick red flash	Low battery

Note: After 30 minutes of inactivity, the light stops flashing to conserve power, but the headset remains in standby mode.

AUDIO TONES

Audio Tone

Headset Status

Ring tone

Incoming call

Single high tone

Phone network not available

High to low tone

End call

Single high tone when

Volume at minimum

pressing volume button

or maximum

Two ascending tones

Mute enabled

Two descending tones

Mute disabled

Low to high tone

Connection

confirmation/voice activation

No audio indications;

Out of range

deteriorating quality

Two tones

Low battery

repeated every 30 sec.
