USER MANUAL W17PS V7

Illustration of a computer monitor with a curved stand (no text or symbols)

V7 ^® VIDEOSEVEN

MONITOR

USER MANUAL

SET UP YOUR LCD MONITOR....5

Installation 5

Screen Adjustments ....5

OSD Control 6

Description 8

TROUBLE SHOOTING....9

MAINTENANCE....10

PRODUCT

Note : Save the original box and packing material for future shipping needs.

Contents
Features	LCD monitor and Base. Please refer toQuick Setup.Accessories for this LCD monitor Model. Please refer toQuick Setup.
Power saver	Bright imageLightweightFast response timeStereo speakersPower saving featuresLow electromagnetic radiation outputKensington security lockSafety certifications
Plug & play	Power control system, also called (Power Saver), is installed inside the LCD monitor.If the monitor has not been used for a certain period of time, the system will turn the monitor to low voltage mode to save power. Slight movement of the mouse or any pressing key on the keyboard will return the original image.The VGA card inside the computer configuresPower Saver. You can use your PC to set the function.The LCD monitor is compatible with EPA ENERGY STAR and NÜTEK if used with a VESA DPMS computer.To save power, turn off the LCD monitor power when not in use.
	The new VESA Plug and Playfunction is used, eliminating the complicated and time-consuming installation process.Use thePlug and Playsystem without encountering the usual installation problems. Your computer system can easily identify and automatically adjust the monitor.The LCD monitor usesDisplay Data Channel (DDC) to send Extended Display Identification Data (EDID) to the computer system, so the computer system can auto adjust your monitor.

SAFETY

Note: Note the following safety precautions before using this monitor.

Electrical

Check the Voltage

Electrical Shock

Unusual conditions

Before connecting the AC power cord to the DC adapter socket, make sure that voltage of the DC adapter is suitable for local power.
To prevent electrical shock, do not insert any metal object into any opening in the LCD monitor casing.
Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel.
If the power cord is damaged, do not use the LCD monitor. Do not place any object on the power cord, and place the power cord away from crowded areas.
While pulling the LCD monitor plug away from the socket on the wall, hold the plug not the power cord.
Do not expose the LCD monitor to rain and do not use in environments near water (such as in the kitchen, or near a swimming pool).
If the LCD monitor becomes wet, unplug the power cord immediately and contact a Service Center.
If the LCD monitor begins to perform abnormally, makes a noise, or emits smoke or odors, unplug it immediately and contact a service center.

Common

Monitor and Screen Care

Cleaning the screen

Avoid touching the screen with your fingers or any hard objects. Oil from the skin is difficult to remove, and touching the screen with anything may damage the panel. Clean the monitor using a soft, dry cloth after first turning it off.
The LCD monitor should not be used in dusty or humid environments.
The LCD monitor should be kept away from heat sources and radiation. Such as: stoves, ovens, or direct sunlight.
To reduce glare, avoid placing the monitor in a place that receives direct sunlight.
Avoid letting small children play with monitor. Frequent touching of the panel will leave marks on the screen and lower the image quality.
◆ Handle with care when unplugging and moving the monitor.
Do not place items on top of the LCD monitor.
If the LCD monitor is not in use for a long time, unplug it and store it in the proper package. The original carton and packaging should be used if possible.
The openings in the LCD monitor casing are for ventilation. To prevent overheating, the openings should not be blocked or covered. Do not place the LCD monitor on a bed, sofa, blanket or other soft surfaces; as soft objects may block the vents in the LCD monitor.
If you place the LCD monitor on a bookshelf or other enclosed space, it is essential to leave an air-space of 4-inches (10cm) between the monitor and the enclosure.
- Ensure that the area around the LCD monitor is clean and free of moisture. Please refer to "Maintenance" for normal maintenance information.

SET UP YOUR LCD MONITOR

Installation

Note: Read the last section "Safety" before you install the LCD monitor.

Notes

Installation Position

Note the instructions below prior to installing your LCD monitor.

For the best image quality, choose a position away from any windows to minimize reflection of light on the panel.
It is important to view the LCD monitor from at least 30 cm to minimize eyestrain.
◆ Position the LCD monitor slightly above your horizontal vision.
Tilt the LCD monitor either forward or backward for the most comfortable viewing angle.
This LCD monitor supports connection to a personal computer or workstation. The steps are described as Quick Setup.
After installation, refer to "Auto Adjust" for automatic adjustment procedures.

Workstation Height

Angle of Vision

Quick Installation

Screen Adjustments

Auto Adjust

Though your computer system can automatically identify the new LCD monitor system, the Auto Adjust function can enhance the display. To enter adjust mode, refer to "OSD Control".

Turn the computer and LCD monitor on.
Press the 'Auto' button to start Auto Adjust.
The LCD monitor starts the Auto Adjust process. The process will continue for 10 seconds. You will notice the image change as the Auto Adjust is working.
Your LCD monitor provides a STFC function, through which you can check whether the LCD monitor is working properly.
If your LCD monitor is properly connected, but there is no image showing and the indicator light remains orange, follow these steps to start STFC.

□ Shutdown computer and LCD monitor.
□ Unplug the signal connector from the back of computer.
□ Turn the LCD monitor on.

OSD Control

The user-friendly OSD (On Screen Display) design enables you to adjust your monitor using the keypad on the front panel.

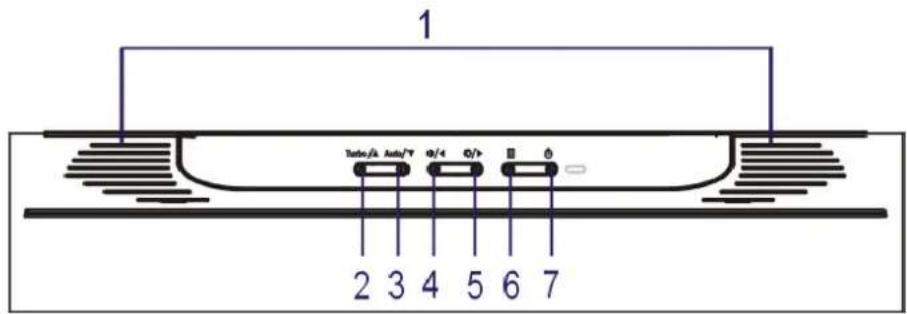

Keypad Button Definition

1 Tetra/k, Auto/°C 0/4 0/7 0 2 3 4 5 6 7

1	Speakers	Audio	output.
2	Turbo/▲		Switch between picture, text and economy modes.Move selection up when OSD is displayed.
3	Auto/▼		Automatically optimize positions, phase, and clock when OSD is not displayed.Move selection down when OSD is displayed.
4 /◀	○		Quick contrast adjustment and decrease contrast/brightness.Move selection left when OSD is displayed.
5	☀️/▶		Quick brightness adjustment and increase contrast/brightness.Move selection right when OSD is displayed.
6	≡		Enter and exit the OSD menu.
7	Power On/Off button and indicator LED.
	💡		Blue: Normal.Orange: Power Saving.Off: Power Off.

Operation

Your LCD monitor has been adjusted to its optimal settings before shipment. You can also adjust the image using the following illustrations and steps.

Press the "Menu" button to display the OSD.
◆ Press the▲ or ▼ button to select the function to be adjusted.
Press the button to access the function to be adjusted.
Press the◀ or ▶ buttons to change the current setting of the function.
To go back to the previous menu, press the ☐ button. Changes are saved automatically.
To exit the OSD menu press "Menu" ☑ again.

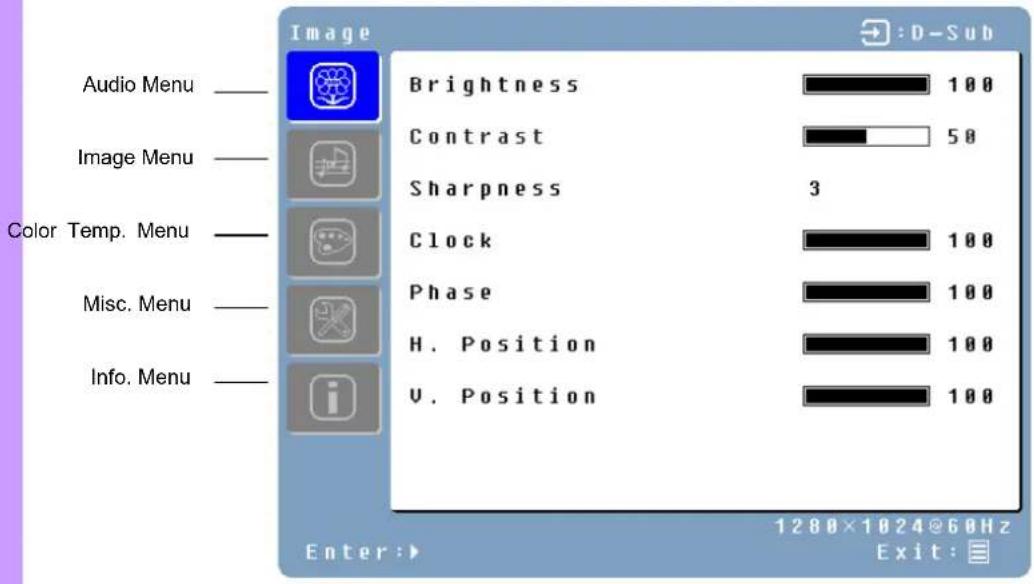

Audio Menu Image Menu Color Temp. Menu Misc. Menu Info. Menu Image Brightness Contrast Sharpness Clock Phase H. Position U. Position 100 50 3 100 100 100 100 D-Sub Enter: 1280×1024@60Hz Exit:

Notes

The OSD turns off several seconds after you stop pressing the buttons while performing an adjustment.
Any changes are automatically saved in memory when the OSD turns off. Turning off the power should be avoided while using the menu.
Adjustments for clock, phase and positions are saved for each individual signal timing. Except for these adjustments, all other adjustments have only one setting, which applies to all signal timings.
The icon color will change from white to pink when a function is selected.

Function Definition

Primary Menu	Secondary Menu	Description
Image	Brightness	Adjust the brightness of the screen.
	Contrast	Adjust the contrast of the image.
	Sharpness	Adjust the picture sharpness of low resolution pictures.
	Clock	Adjust the monitor clock. (Optional)
	Phase	Adjust the monitor phase. (Optional)
	H.	Positive image left or right on the screen. (Optional)
	V.	Positive image up or down on the screen. (Optional)
Audio	Volume	Adjust the volume of the audio.
	Mute	Disable the audio.
Color	Color	temp/9300K/7500K/6500K/sRGB (19" Optional)
	Red	Adjust red color.
	Green	Adjust green color.
	Blue	Adjust blue color.
Misc	Language	English, Français, Italiano, Deutsch, Español,日本語,简体H↓,繁韻[↓],Русский,한국어
	OSD time-out	Adjust OSD display time setting.
	OSD position	Move OSD display position to any one of the following 5 positions within the overall screen.
	Reset	Restore LCD monitor to factory settings.
	Input Select	Analog / Digital
	Auto setting	Adjust clock, phase and positions automatically.(Optional)
	CM Engine	Color Management Engine. (Optional)
Info	Resolution	Displays resolution.
	Horizontal frequency	Displays horizontal frequency.
	Vertical frequency	Displays vertical frequency.

Quick Adjustment

You can skip the Menu pages and display an adjustment scale directly by using the following button operations:

Brightness: Press the ⚙️ Brightness button when the Menu is not displayed.
Contrast: Press the ⏻ Contrast button when the Menu is not displayed.
Auto Setting: Press the Auto button when the Menu is not displayed.
Turbo: Press the Turbo button when the Menu is not displayed to switch between picture modes.

☐ Picture Mode - High brightness
□ Text Mode - Normal
□ Economy Mode - Brightness of back-light is reduced
□ Changing to a lower brightness mode can lessen eye fatigue.
☐ Change from Picture Mode to Text Mode when working with text.
☐ Change from Text Mode to Economy Modes when viewing the screen for long periods.

TROUBLE SHOOTING

Check the information in this section to see if problems can be solved before requesting repair.

Note : Users should only attempt to solve the problems described below. Any unauthorized product modification, or failure to follow instructions supplied with the product, will void the warranty immediately.

No image

No Signal Input

"Out Of Range"

Fuzzy image

Image too bright Image too dark

Irregular image

Distorted image

Image is not centered Size is not appropriate

Uneven color Color too dark Dark area distorted White color is not white

Can't adjust the LCD monitor with the buttons on the front panel.

Make sure power is ON.
Check whether the LCD monitor and computer power cords are plugged in and whether there is power.
Check the signal connection between the computer and LCD monitor.
Check the computer image output resolution and frequency and compare the value with the preset values.
Adjust phase.
Adjust brightness and contrast using OSD.
Check the signal connection between the computer and LCD monitor.
◆ Perform Auto Adjust.
◆ Reset the LCD monitor. (perform the "Reset" function using OSD)
Remove extra accessories (such as signal extension cord).
Use OSD Image Menu to adjust H. Position and V. Position.
Check image size setting.
◆ Perform Auto Adjust.
Use OSD Color Menu to adjust color setting.

Contact the store where you purchased the unit or service center listed on your warranty card.

MAINTENANCE

This product has undergone strict quality control during the production process. For maintenance of the LCD monitor, refer to the information below. Maintenance is important for maximizing the display performance and product life.

Warning: To prevent electrical shock, do not open the LCD monitor casing. Users should not attempt to repair the LCD monitor on their own. User maintenance is limited to the procedures listed below.

Unplug the power

Check the cover

Clean

Cleaner

Screen

Case

Accessory

Conserve

Disclaimer

Unplug the LCD monitor from the AC socket before conducting maintenance.
Check to see if the LCD monitor and accessories are damaged or broken..
◆ Never spray or pour any liquid directly onto the screen or case.
Do not allow water or liquid to enter the LCD monitor or accessories.

☐ Use pure water or non-ammonia, non-alcohol based glass cleaner.
☐ Do not use ketene (such as acetone), ethanol, toluene, acetic acid, methane, chloride, or abrasive detergent to clean the monitor because these chemicals can damage the LCD monitor.
☐ To clean your LCD monitor screen, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.
☐ If possible, use a special screen cleaner sheet or a solution suitable for static electricity application.
☐ To clean your LCD monitor case, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.
☐ To clean your accessories, use water or mild cleaner, as above, to gently moisten a soft, clean cloth.

If the LCD monitor is not in use for a long time, please unplug and store in the original box in order to avoid any unexpected damage.
Any damage resulting from use of any cleaner that is not mentioned above is not covered under this warranty term.
