BC60S - Range hood BELLING - Free user manual and instructions

Product Type	Range hood
Brand	Belling
Model	BC60S
Width	600 mm (estimated)
Voltage	220-240 V ~ 50 Hz
Total Power	333 W
Motor Power	330 W
Lighting Power	2 x 1.5 W (LED)
Airflow	800 m³/h
Noise Level	≤ 74 dB
Diameter of Air Outlet	150 mm
Number of Speeds	3 (Low, Mid, High)
Filter Type	High-density aluminium grease filter
Carbon Filter	Optional (not supplied with appliance)
Minimum Distance from Hob	650 mm
Control Type	Push buttons
Lighting Lamp Cap	ILCOS D code DSR-1.5-S-70
Installation Type	Wall-mounted
Ducting	External evacuation required
Usage	Domestic use only
Maintenance	Clean with hot water and non-corrosive detergent every 2 months; filters dishwasher safe at <60°C
Safety	Must be connected to earthed power point; accessible parts may become hot
Disposal	Dispose at local waste collection centre; render plug useless and cut cable

Frequently Asked Questions - BC60S BELLING

How do I install the Belling BC60S range hood?

Follow these steps: First, fix the installation plate and extension chimney installation plate to the wall using the provided plastic expansion pipes and screws. Then, attach the exhaust pipe. Hang the range hood on the installation plate, connect the exhaust pipe, and lock the screws (ST5*50) under the filter to prevent sliding. Finally, fix the chimney and extension. Ensure the minimum distance from the hob is 650 mm and that the ventilation tube bends at ≥120°.

What is the recommended distance between the hob and the hood?

The minimum distance between the supporting surface for cooking vessels on the hob and the lowest part of the range hood is 650 mm for safe and effective operation.

How do I clean the aluminium grease filters?

Remove the filters (see Fig.11 in the manual). You can wash them in a dishwasher with detergent at a temperature below 60°C. Do not use abrasive detergents as they may damage the hood. Always switch off the hood before cleaning.

How often should I replace the carbon filter?

The carbon filter (optional, not supplied) should be replaced after approximately 2-3 months of use. The carbon filter cannot be washed or recycled. To replace, remove the grease filters, then turn the carbon filter until it locks; reverse to remove.

What should I do if the hood is not working?

If the light works but the motor does not, check for blocked blades or a damaged capacitor or motor. If both light and motor do not work, check the power cord connection and replace lights if necessary. For oil leakage, ensure the outlet and ventilation entrance are tightly sealed. For vibration, tighten the motor and hood mounting, and replace the blade if damaged.

How do I replace the LED lights?

The LED lamps are 1.5W DC 12V with a round diameter of 70 mm (ILCOS D code DSR-1.5-S-70). For servicing, please contact Glen Dimplex Customer Care. Ensure the power is off before replacing.

Why is my hood vibrating?

Possible causes: a damaged blade (replace it), the motor not tightly fastened (tighten it), or the cooker hood not securely fixed to the wall (tighten all mounting screws). Check these components.

What do the different speed levels do?

Press the Low button for low speed, Mid for medium speed, and High for maximum suction. Press Stop to turn off the motor. The Light button controls the two LED lamps.

Can I use the hood with gas appliances?

Yes, but when using the range hood simultaneously with gas or other fuel-burning appliances, ensure adequate ventilation in the room. The air must not be discharged into a flue used for exhausting fumes from gas or other fuels.

Where can I get spare parts or service?

For spare parts and service, contact Glen Dimplex Australia (Ph: 1 800 444 357, www.belling.com.au) or Glen Dimplex New Zealand (Ph: 09 274 8265, www.belling.co.nz). Have your model number ready.

USER MANUAL BC60S BELLING

Read this manual carefully before operation

Pictures in this manual are for reference only.

For Models:

BC60S / BC60B

BC90B

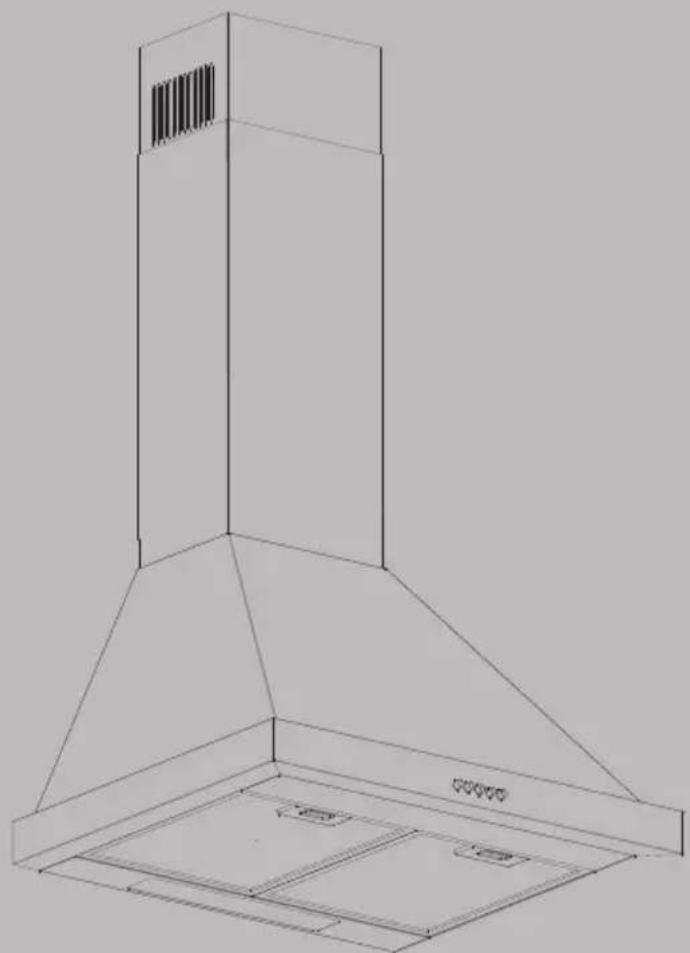

Line drawing of a double-bell kitchen chimney with ventilation grilles and mounting base (no text or symbols)

belling

Contents

01 Contents.... 1
02 Warnings....2
03 Safety Warning....3
04 Installation.... 4
05 Use.... 7
06 Maintenance.... 8
07 Trouble Shooting.... 9
08 Specifications ....10
09 Disposal.... 10

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
  ● The filter is made of high density aluminum.
• Please do not use corrosive detergent for cleaning. The proper function of the unit is conditioned by the regularity of the maintenance.
• To protect the main body from corrosion caused by long time accumulation of dirt, the cooker hood should becleaned with hot water with non-corrosive detergent every two months.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood is 65 mm.
  ● Regulations concerning the discharge of air have to be fulfilled.

• CAUTION :Accessible parts may become hot when used with cooking appliances.

• The appliance is not intended for use by young children or infirm persons without supervision.

• Young children should be supervised to ensure they do not play with the appliance.
  ● This appliance must be plugged into an earthed power point.
• The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes.
• The cooker hood and its filter should be cleaned regularly according to the instructions.
• If fault occurs with the appliance, please call after-sales service department.
• Please keep the kitchen ventilated.
• Prior to any maintenance, cleaning operation, ensure the power is off.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard.

• Follow the local laws applicable for external air evacuation.

• The bending of ventilation tube should be ≥ 120^ , parallel or above the start point/should be connected to the external wall.

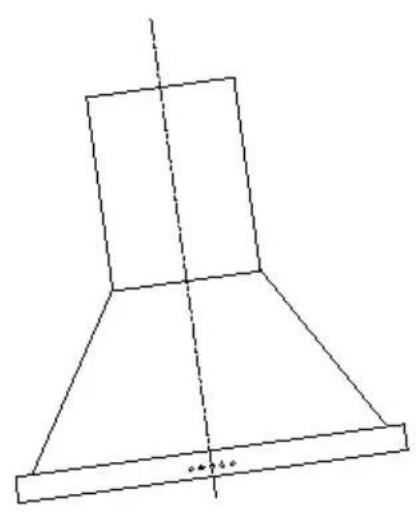

• Please moaker start by the installation plate is grease collection at one end. See Fig.1.

Simple line drawing of a conical chimney with a vertical dashed centerline and base plate (no text or symbols)

Right Wrong

Simple line drawing of a conical shape with a vertical dashed centerline and a base plate (no text or symbols)

Simple line drawing of a right-angled structure with a vertical beam and diagonal bracing (no text or symbols)

Fig.1

● After installation, make sure that plug can be removed if necessary.

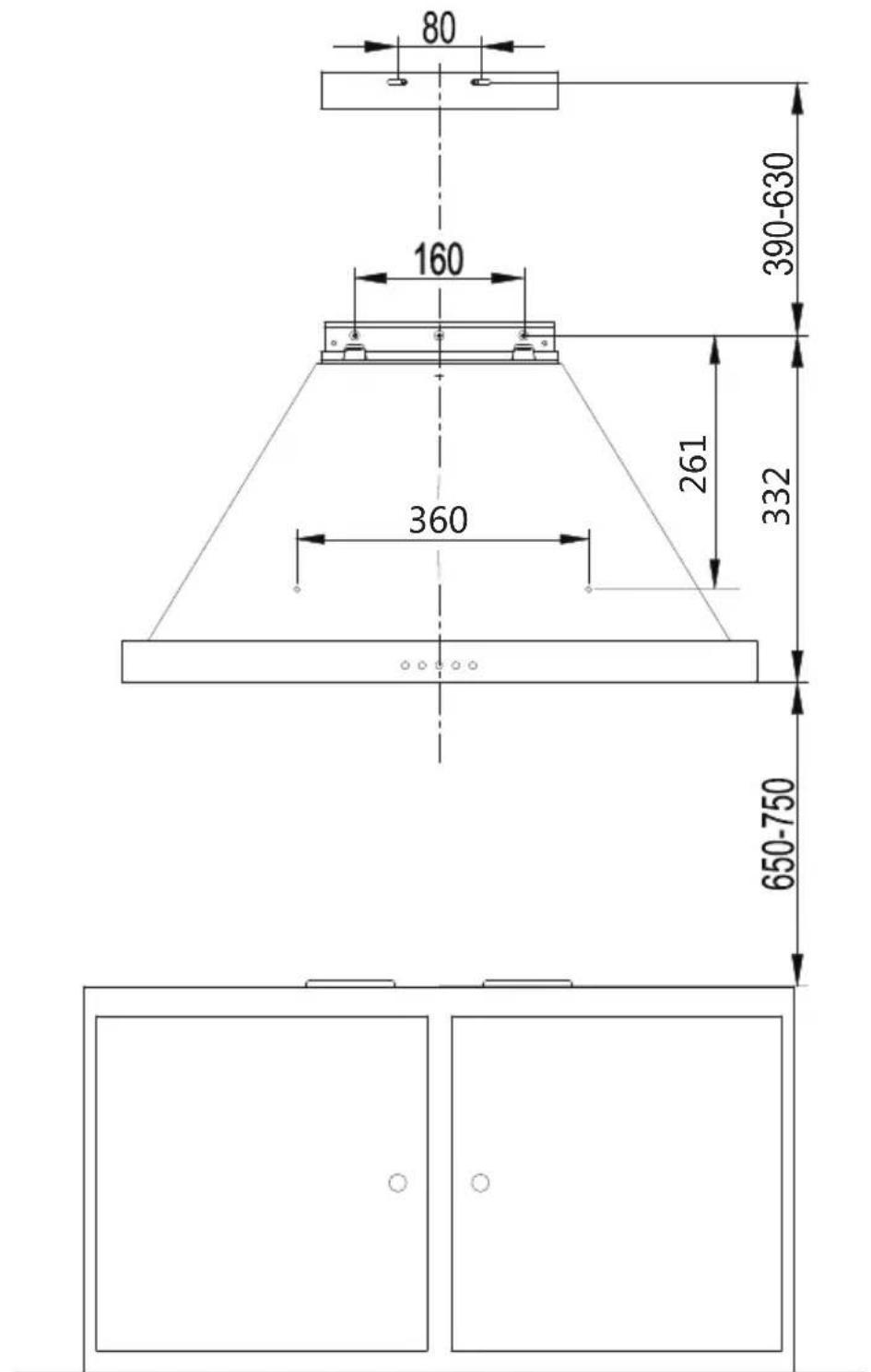

- ed 650 e750emhoop should be plac cooking plane for safe and a good effect. See Fig.2.
- There shall be adequate ventilation of the room when the cooker hood is working.

Fig.2

Fig.3

Installation

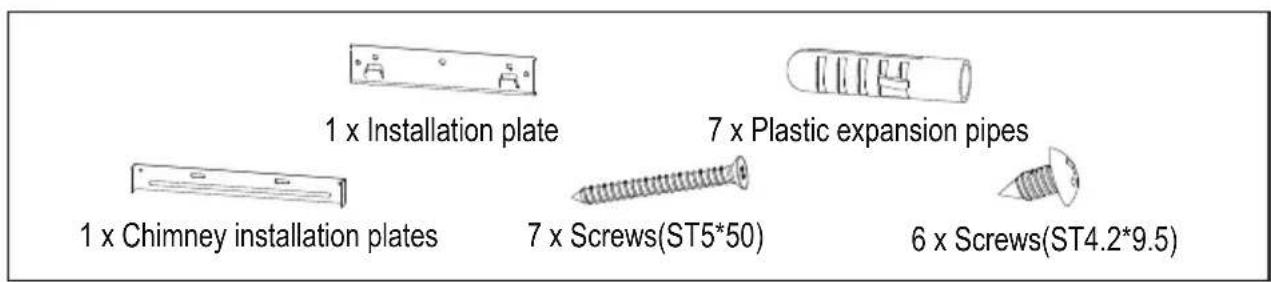

• Accessories. See Fig.3. (Type and quantity of accessories is subject to actual demand.)

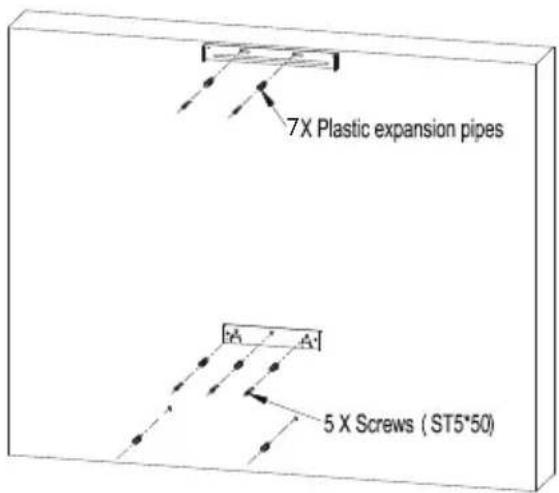

• Fix installation plate and extension chimney installation plate, install the plastic expansion pipes of safety screws on wall. See Fig.4.
  ● Fix the exhaust pipe, See Fig.5.

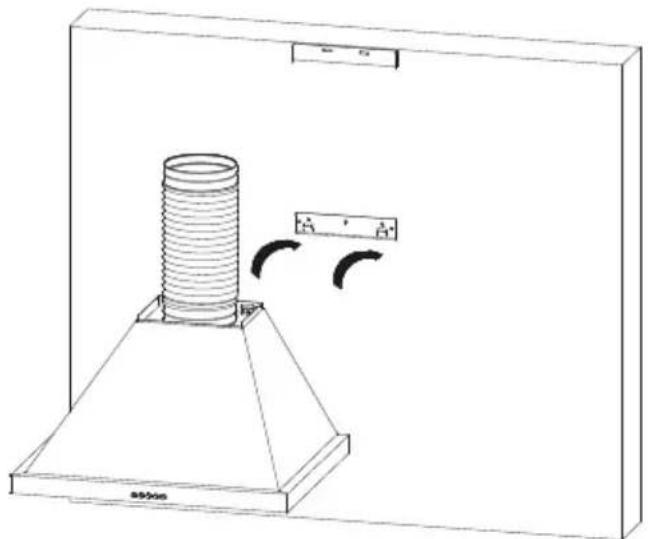

  ● Hang range hood on the installation plate. See Fig.6.

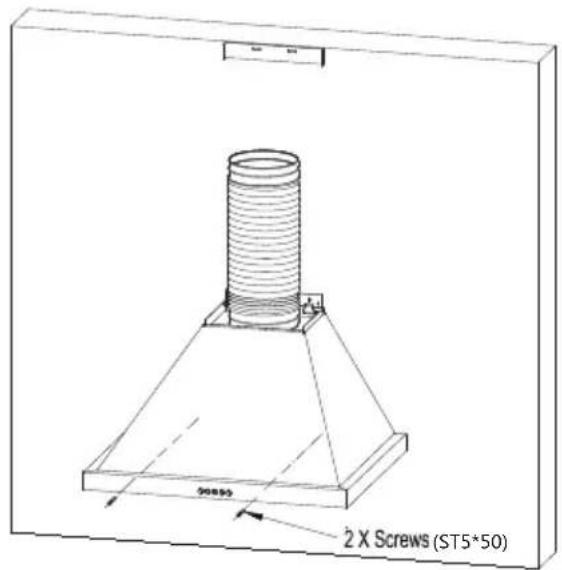

• After connecting the exhaust pipe well, open the filter and lock screws (ST5*50) to prevent the range hood from accidentally sliding off the installation plate. See Fig.7.

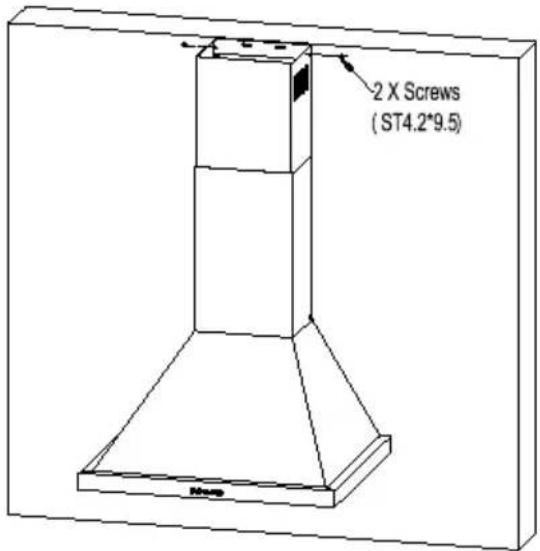

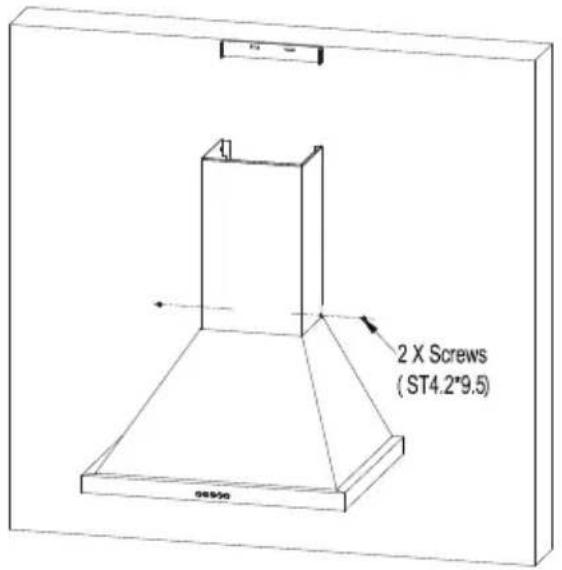

● Fix the chimney. See Fig.8.

● Fix the extension See Fig. .

Fig.4

Technical line drawing of a mechanical component with a cylindrical top and base (no text or symbols)

Fig.5

Technical line drawing of a mechanical component with a coiled spring and base plate (no text or symbols)

Fig.6

Fig.7 Fig.8

Fig.9

Fig.10.1

Use

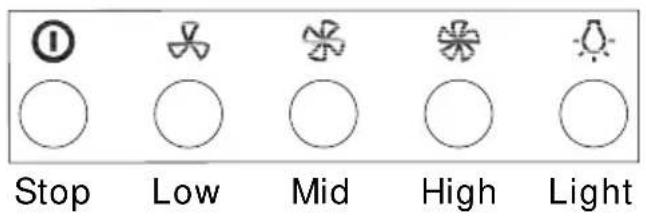

Speed adjustment. See Fig.10.1. (For some models)

• PressStop button, the motor will stop running.
• Press the Low (speed) button, the motor runs at low speed.
• Press theMid (speed) button, the motor runs at mid speed.
• Press the High (speed) button, the motor runs at high speed.
• Press the Light button, the two lighting lamps will come on.
• Press it again and the lamps will be turned off.

Cleaning of the filters

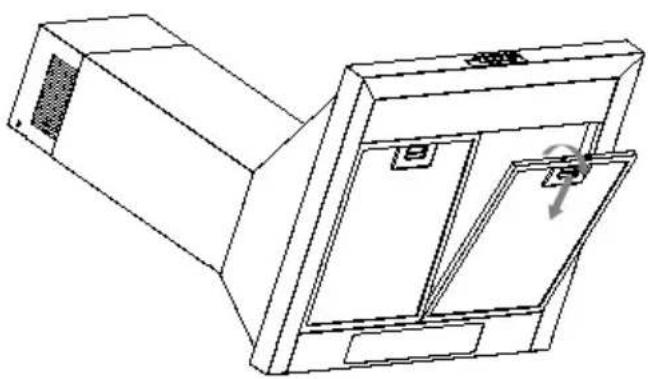

• Removing the filters according to Fig.11.
• Put into a dishwasher with detergent, set the temperature below 60 degrees.
• Please do not use abrasive detergent for it will damage the hood.
  ● Make sure that the hood is shut off before cleaning.

Technical line drawing of a mechanical device with a clamped door and mounting bracket (no text or symbols)

Fig.11 Fig.1

2

Replacement of the carbon filters (Optional

• Remove the filters see Fig.11.
  ● The carbon filters are located at both end of the motor.

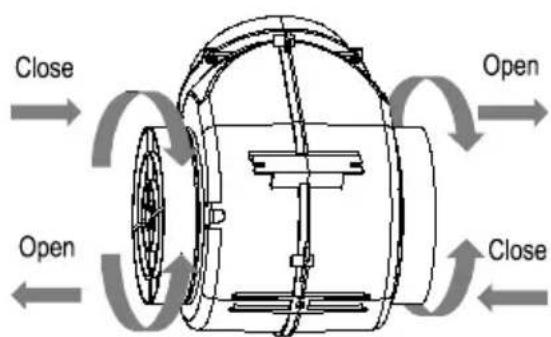

  Turn the carbon filters until they are locked. ee Fig.12
• Apply reverse procedure to remove the carbon filter.
• It should be replaced after approximately 2-3 months of use.
  ● The carbon filer cannot be washed or recycled.
  ● Carbon filter is not supplied with your appliance.

Fault	Cause Solution
Light on, but does not work.	The blades are blocked.
	The capacitor is damaged.	Replace capacitor.
	motorThe motor is damaged. Replace motor.
	The internal wiring of motor is cut off / disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and do not work.	Apart from the above mentioned, check the following:
	light damaged. Replace lights.
	Power cord loose.	Connect the wires as per the electric diagram.
Oil leakage.	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
	Leakage from the connection of U-shaped section and cover.	Take U-shaped section down and seal with soap or paint.
Vibration.	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction.	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines.	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough.	Tighten the hanging screw and make it horizontal.

Electrical Diagram

● Electrical diagram see label on main body of the actual product.

egatloV	220-240V~50Hz
Rated Power	333W
Lighting Power	2 X 1.5W
Motor Power	330W
Diameter of air tube	150mm
wolf riA	800m3/h
esioN	≤74dB

The air flow parameter is tested under conditions of 230V\~50Hz when the voltage is 220-240V\~50Hz and without carbon filters.

	Max Power	Voltage	Picture	Lamp Cap	ILCOS D code
Round/ Diameter : 70mm	1.5W	DC 12 V		——	DSR-1.5-S-70

For servicing the LED light please contact Glen Dimplex Customer Care

Disposal

Please dispose of it at your local community waste collection / recycling center and ensure it presents no danger to children while being stored for disposal. The plug must be rendered useless and the cable cut off to prevent misuse.

Glen Dimplex Australia Pty Ltd

1340 Fertree Gully Road

Scoresby Vic 3179

Customer Care

Ph: 1 800 444 357

Web: www.belling.com.au

Glen Dimplex New Zealand

38 Harris Rd

East Tamaki Auckland 2013

Customer Care

Ph: 09 274 8265

Web: www.belling.co.nz
