GDHA 60 UCHIM - Range hood BELLING - Free user manual and instructions

Product Type	Chimney Hood
Brand	Belling
Model	GDHA 60 UCHIM
Width	60 cm
Depth	50 cm
Height (Adjustable)	60 - 100 cm
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Number of Speeds	3
Maximum Airflow	600 m³/h
Noise Level (Max)	65 dB
Lighting	LED x2
Controls	Touch buttons
Grease Filter Type	Aluminum, washable
Charcoal Filter	Optional, replaceable
Ducting Diameter	150 mm
Energy Class	A
Annual Energy Consumption	50 kWh
Grease Filter Cleaning	Monthly in dishwasher or hand wash
Charcoal Filter Replacement	Every 3-6 months
Safety Features	Auto-off timer, safety switch
Spare Parts Available	Filters, motor, LED lamps

Frequently Asked Questions - GDHA 60 UCHIM BELLING

How do I install the Belling GDHA 60 UCHIM range hood?

Installation should be carried out by a qualified professional. Ensure the hood is mounted at least 65 cm above a gas hob or 50 cm above an electric hob. Use the provided template for accurate positioning. Connect the ducting to a 150 mm outlet. Refer to the manual for detailed steps.

Can the hood be used in recirculation mode?

Yes, the GDHA 60 UCHIM can be used in recirculation mode with an optional charcoal filter. This filter absorbs odors and needs to be replaced every 3-6 months depending on usage.

How often should I clean the grease filters?

The aluminum grease filters should be cleaned at least once a month. They can be washed in a dishwasher or by hand with warm soapy water. Ensure they are completely dry before reinstalling.

What is the maximum airflow of this hood?

The maximum airflow is 600 m³/h at the highest speed setting. This is suitable for medium to large kitchens.

Are the lights replaceable?

Yes, the LED lights are replaceable. Contact Belling customer service or a qualified technician to obtain compatible replacement lamps. Do not attempt to replace them while the hood is connected to power.

Why is my range hood making noise?

Normal operation produces up to 65 dB on maximum speed. If you hear unusual noises, check that the filters are properly installed and not clogged. Ensure the ducting is secure and free from obstructions. If noise persists, contact support.

How do I reset the filter alarm?

After cleaning or replacing the filters, press and hold the timer button for 3 seconds until the indicator light turns off. This resets the filter saturation alarm.

Can I use the hood without a charcoal filter?

Yes, if the hood is ducted to the outside, a charcoal filter is not required. Only use the charcoal filter in recirculation mode to trap odors.

What is the warranty period?

Belling typically offers a 2-year warranty for domestic use. Register your product online to activate the warranty. Commercial use may have different coverage.

Where can I download the user manual?

The user manual is available for free download on notice-facile.com in PDF format. Search for the model GDHA 60 UCHIM by Belling. You can also request a translated version via email.

USER MANUAL GDHA 60 UCHIM BELLING

Glen Dimplex HOME APPLIANCES

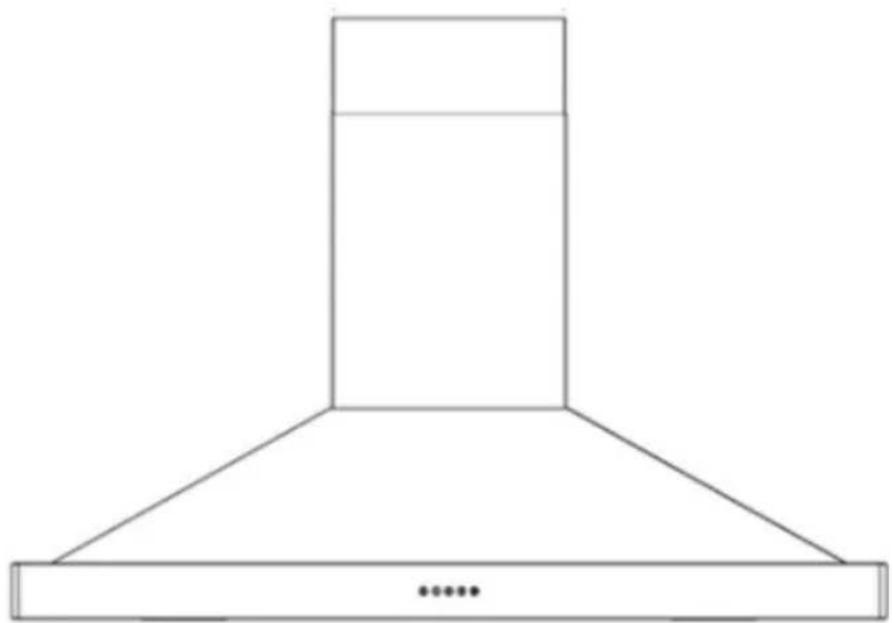

Line drawing of a standard smoke hood with no text or symbols

Glen Dimplex Cooker Hood

User Manual

Contents

Introduction......4

Safety Precaution....5

Installation Instructions....6

Using the Hood....10

Care and Cleaning 11

Technical Data....12

Glen Dimplex Customer Care.... 13

Introduction

Thank you for buying this high quality hood from Glen Dimplex.

Our policy is one of constant development and improvement. Strict accuracy of illustrations and specifications is not guaranteed. Modification to design and materials may be necessary subsequent to publication.

Before using the appliance for the first time, remove all packaging and protective polythene film.

This appliance has been designed for use as an exhausting (air evacuation to the outside) or filtering (indoor air re-cycling) hood.

Note: This appliance does not come supplied with a ducting kit or carbon filters. Details for ordering these parts are at the back of the handbook.

Because of the complexity and weight of the appliance, it is recommended that the installation be carried out by specialist personnel.

The manufacturer declines all responsibility for damage caused by improper or installation.

Please read this handbook carefully and keep it for future reference.

Your first year Guarantee

To fulfil the conditions of your guarantee, this appliance must be correctly installed and operated in accordance with these instructions and only be used for normal domestic purposes.

Please refer to your guarantee card for further details.

Please note that the guarantee and Service availability only apply to the UK and Republic of Ireland.

SAFETY PRECAUTION

1. Take care when the cooker hood is operating simultaneously with an open fireplace or burner that depends on the air in the environment. The cooker hood removes the air from the environment which a burner or fireplace needs for combustion.

The negative pressure in the environment must not exceed 4Pa (4x10-5 bar). Provide adequate ventilation in the environment for a safe operation of the cooker hood. Follow the local laws applicable for external air evacuation.

Before connecting the model to the electricity network review the data plate (positioned inside the appliance) to confirm that the voltage and power correspond to the network and the socket is suitable. If in doubt ask a qualified electrician.

If the power supply cable is damaged it must be replaced. This can be obtained direct from the manufacturer.

This device must be connected to the supply network through either a plug fused 6A or hardwired to a 2 phase spur protected by 6A fuse.

2. Warning!

In certain circumstances electrical appliances may be a danger hazard.

A) Do not check the status of the filters while the cooker hood is operating.
B) Do not touch bulbs or adjacent areas during or straight after prolonged use of the lighting installation.
C) Flambè cooking is prohibited underneath the cooker hood.
D) Avoid free flame as it is damaging for the filters and a fire hazard.
E) Do not leave food frying unattended as the overheated oil may become a fire hazard.
F) Disconnect the electrical connection prior to any maintenance.
G) This appliance is not intended for use by young children or infirm persons without supervision.
H) Young children should be supervised to ensure they do not play with the appliance.
I) There shall be adequate ventilation of the room when the hood is used at the same time as appliances burning gas or other fuels other than electric.
L) There is a risk of fire if cleaning is not carried out in accordance with the instructions.

This appliance conforms to the European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE).

The symbol on the product or on the accompanying paperwork indicates that the appliance should not be treated as domestic waste, but should be delivered to a suitable electric and electronic appliance recycling collection point.

Follow local guidelines when disposing of waste.

For more information on the treatment, re-use and recycling of this product, please contact your local authority, domestic waste collection service or the retailer where the appliance was purchased.

INSTALLATION INSTRUCTIONS

- Assembly and electrical connections must be carried out by specialized personnel.

- Wear protective gloves before proceeding with the installation.

• Electric Connection:

- The appliance has been manufactured as a class II, therefore no earth cable is necessary. The power point must be easily accessible after the installation of the appliance. If the appliance is equipped with power cord without plug, a suitably dimensioned omnipolar switch with 3 mm minimum opening between contacts must be fitted between the appliance and the electricity supply in compliance with the load and current regulations.

- The connection to the mains is carried out as follows:

BROWN = L line

BLUE = N neutral.

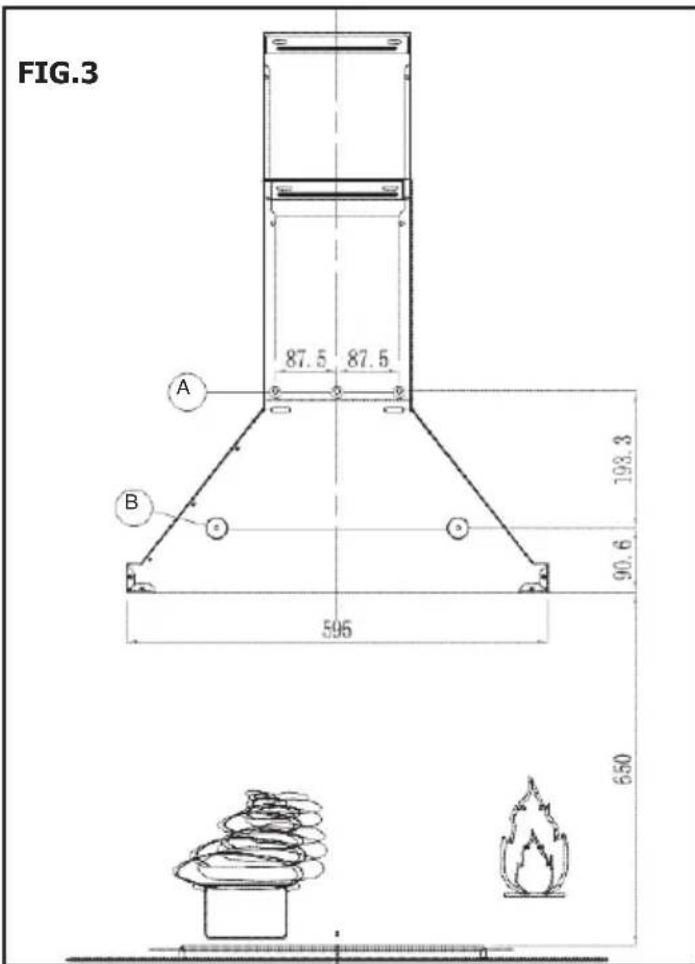

- If the hob is electric, gas, or induction, the minimum distance between the same and the lower part of the hood must be at least 65 ~cm . If a connection tube composed of two parts is used, the upper part must be placed outside the lower part (Fig.3).

Do not connect the cooker hood exhaust to the same conductor used to circulate hot air or for evacuating fumes from other appliances generated by other than an electrical source.

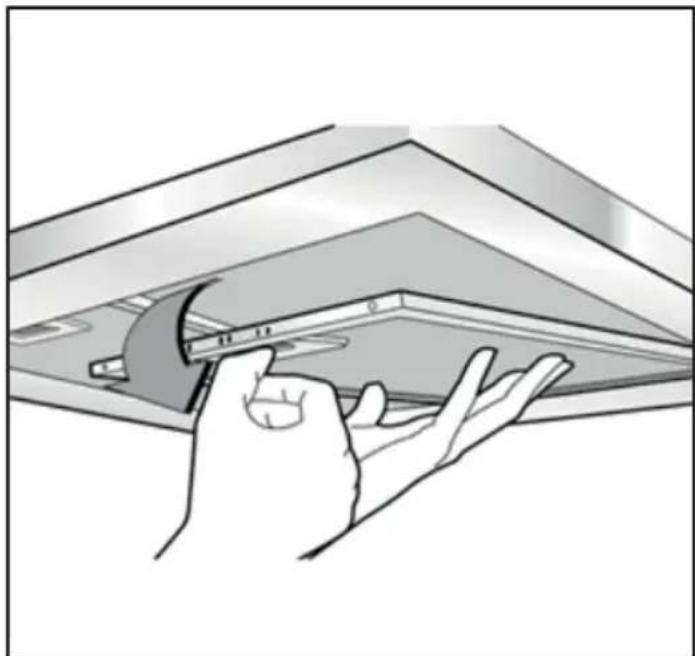

Before proceeding with the assembly operations, remove the anti-grease filter(s) (Fig.1) so that the unit is easier to handle.

- In the case of assembly of the appliance in the suction version prepare the hole for evacuation of the air.

Illustration of a hand holding a tool inside a ceiling-mounted panel, no text or symbols present

FIG.1

- We recommend the use of an air exhaust tube which has the same diameter as the air exhaust outlet hole. If a pipe with a smaller diameter is used, the efficiency of the product may be reduced and its operation may become noisier.

- If your appliance has been designed for use in habitations supplied with a centralized suction device perform the following operations:

- The switch controls opening and closure of a valve using a thermo-electrical device. By placing the switch in the ON position, after a minute, the valve opens rotating 90° allowing suction of the stale air. By placing the switch in the OFF position, the valve closes after 100 seconds.

- Fixing to the wall:

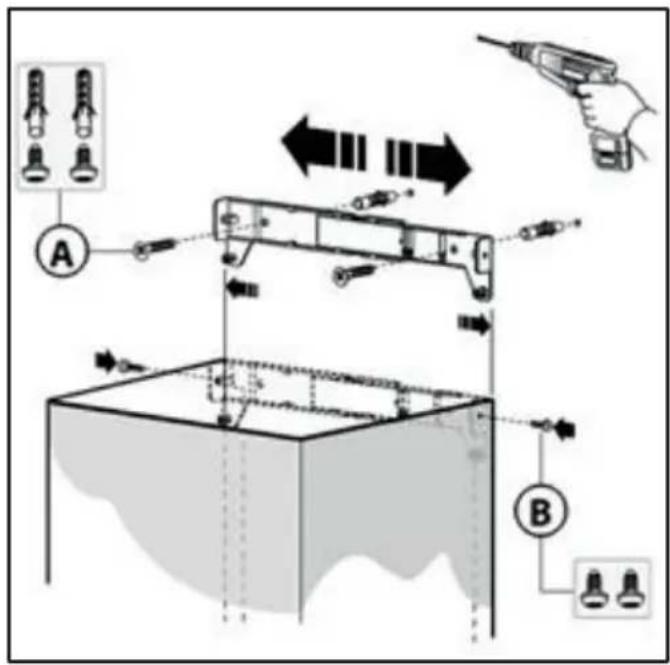

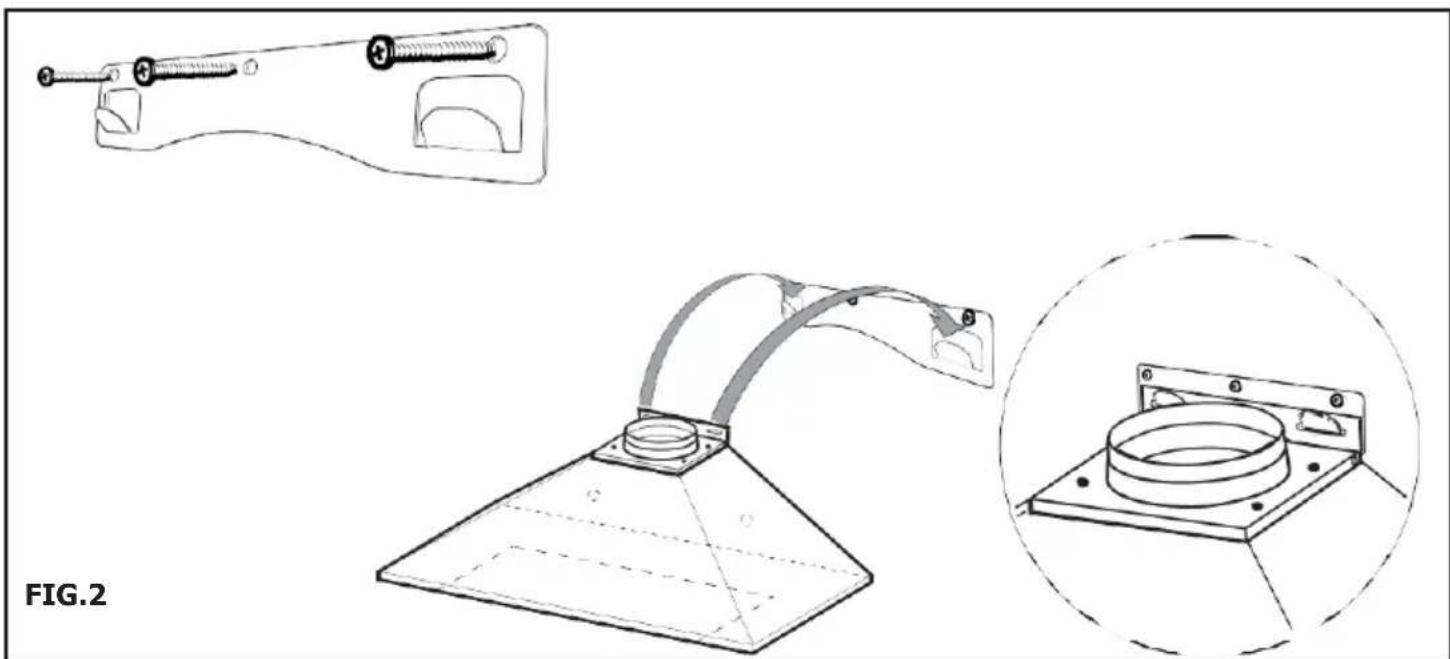

Drill 3 holes to accommodate the bracket (Fig.2). Screw and tighten the bracket onto the wall with the screws & screw plugs provided. Lift the cooker hood up and hang it onto the wall bracket hook (Fig.2).

Fix the appliance to the wall and align it in horizontal position to the wall units. When the appliance has been adjusted, definitely fix the hood using the screws B (Fig.3). For the various installations use screws and screw anchors suited to the type of wall (e.g. reinforced concrete, plasterboard, etc.).

If the screws and screw anchors are provided with the product, check that they are suitable for the type of wall on which the hood is to be fixed.

Technical line drawing of a mechanical device with two views: top shows a clamp and handle, bottom shows a conical base with a circular component (no text or symbols)

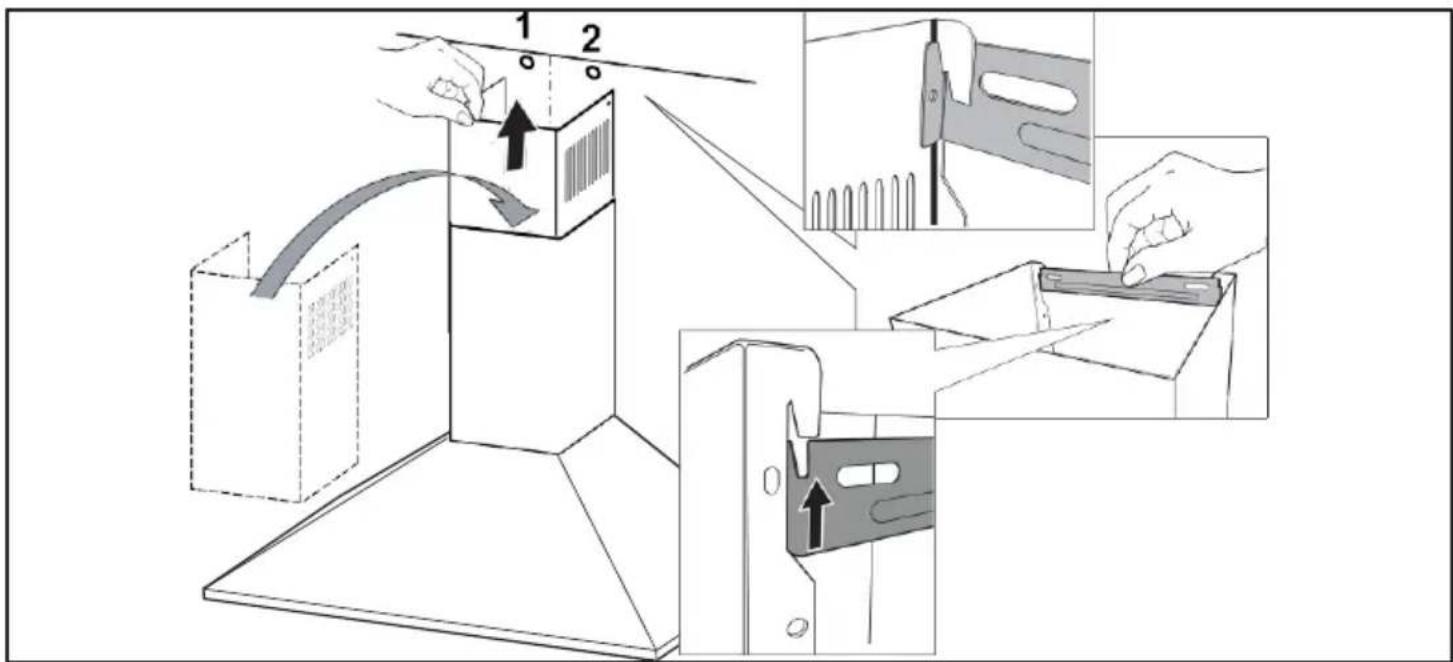

- Fixing the decorative telescopic flue:

Arrange the electrical power supply within the dimensions of the decorative flue. If your appliance is to be installed in the ducting version or in the version with external motor, prepare the air exhaust opening. Adjust the width of the support bracket of the upper flue (Fig.5). Then fix it to the wall using the screws A (Fig.5) in such a way that it is in line with your hood and respecting the distance from the ceiling.

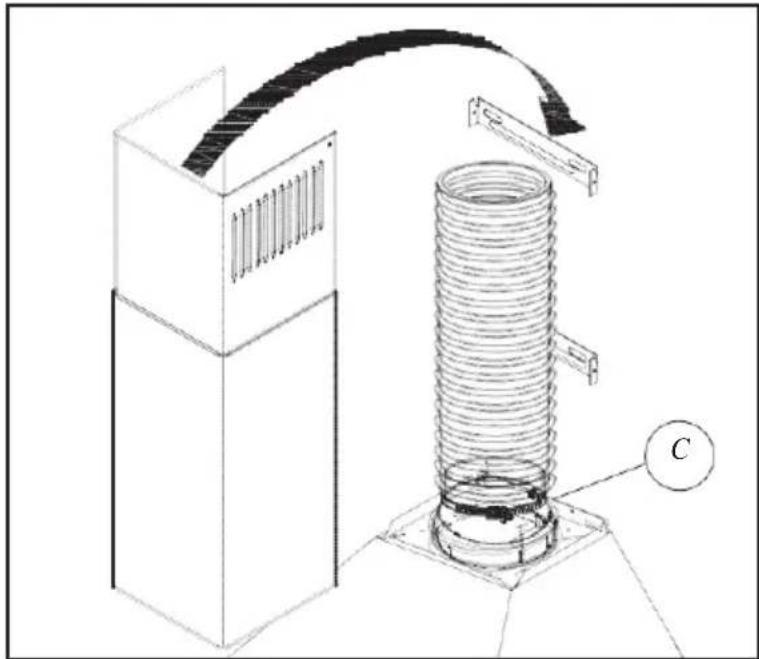

Connect the flange C to the air exhaust hole using a connection pipe (Fig.6). Insert the upper flue into the lower flue and rest above the frame. Extract the upper flue up to the bracket and fix it with the screws or hang the flue by matching both side blocks (Fig.7). To transform the hood from a ducting version into a filtering version, ask your dealer for the charcoal filters and follow the installation instructions.

FIG.5

Technical line drawing of a mechanical assembly with a coiled spring and housing (no text or symbols)

FIG.6

FIG.7

- Filtering version:

Install the hood and the two flues as described in the previous paragraph "Fixing the decorative telescopic flue". To assemble the filtering flue refer to the instructions contained in the kit. If the kit is not provided, order it from your dealer as accessory. The filters must be applied to the suction unit positioned inside the hood. They must be centered by turning them 90 degrees until the stop catch is tripped (Fig.8).

Mechanical component diagram showing a rotating shaft and housing with directional arrows indicating motion (no text or symbols)

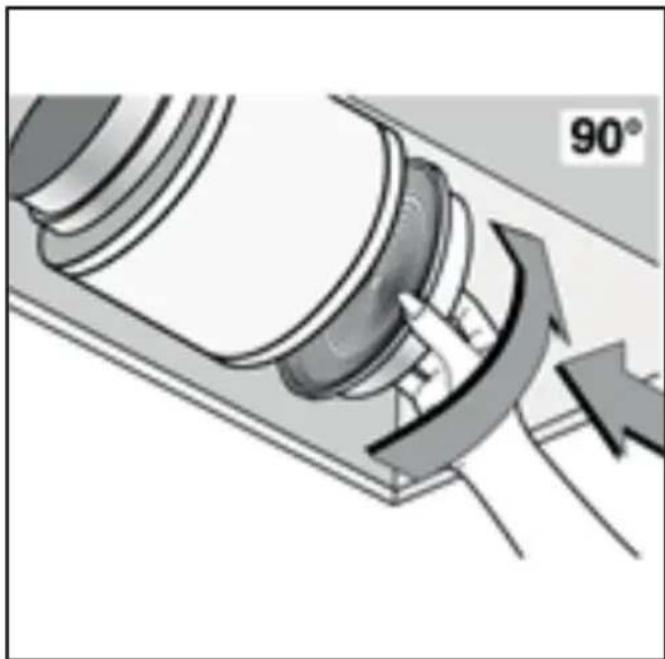

FIG.8

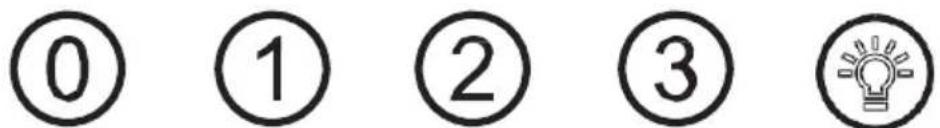

Controls

OFF button

Used for turning off the fan

Low Speed button

Starts the fan in low speed mode.

It is suitable for simmering and cooking which do not make much steam.

Medium Speed button

Starts the fan at medium speed.

This is ideal for ventilation during standard cooking operation.

High Speed button

Starts the fan in high speed.

This is ideal for when a high density of smoke or steam has been produced.

Light button

Used for turning on/off the light.

Before cleaning or maintenance switch off the electricity supply.

Replacing the LED Lights

If the appliance version is with LED lamps, the intervention of a specialized technician is necessary to replace them

Outer Casing

All external parts of the outer casing can be safely cleaned with a clean cloth wrung out in hot soapy water.

Do not use caustic pastes, abrasive cleaning powders, wire wool, hard implements or any products containing chlorides as they will damage the surfaces.

Stubborn marks can be removed using a stainless steel cleaner. We recommend that you clean the whole of the stainless steel area to maintain a uniform finish.

Sharp objects can mark the surface of stainless steel, but marks will become less noticeable with time.

To maintain the finish of the stainless steel, or to remove any greasy marks, wipe the stainless steel surface sparingly with a minimum amount of Baby Oil and kitchen paper.

Do not use cooking oils, as these may contain salt, which can damage the stainless steel surface.

Before cleaning or maintenance switch off the electricity supply.

To avoid any fire risk, the following cleaning instructions must be followed:

Grease Filters

The grease filters absorb grease and dust from cooking fumes, which would otherwise damage the inside of the hood.

The grease filters should be removed and cleaned regularly - with normal use, this should be every 2 months.

To clean use warm soapy water, or wash in a dishwasher. The grease filters may slightly change color following washing, however this does not affect their performance.

Important: Frequent washing is essential to prevent a build-up of grease in the filters which could become a fire hazard.

1. Remove the filters from the hood.
2. Carefully wash the grease filters in hot soapy water and dry with a clean towel.
3. Refit the clean filters.

Carbon Filters (models installed for use with the re-circulation method only)

The carbon filters absorb cooking odors and need renewing after about 6 months of normal use.

Replacement carbon filters can be obtained from our Customer Care (details at the rear of the handbook).

Saturation of the activated charcoal in the filter will depend on how often the hood is used, the type of kitchen and the regularity of cleaning the grease filter.

The carbon filters cannot be washed - renew every 6 months.

TECHNICAL DATA

Electricity Supply

230 - 240V \~ 50Hz

Classification

class II

Noise Level (External Venting)

Position 3 65 dBA

Position 1 45 dB

Light Bulbs

2 x 1.5W LED

Motor Rating

123W

Grease Filters

2 Off - Aluminum panel

Note: After cleaning, grease filters may lose their color slightly - this does not affect their performance.

Carbon Filters

2 Off - Available as Spares

Extraction Rate (External)

Position 3 488,4 m³/h

Position 1 326,0 m³/h

Customer Care

Please keep this handbook in a safe place as the information inside may be of use should you sell or pass on the appliance. Please fill in the model number and serial number in the spaces provided below as they will assist us should you need to call.

0344 815 3747

When you dial this number you will hear a recorded message and be given a number of options. This indicates that your call has been accepted and is being held in a queue. Calls are answered in strict rotation as our Customer Care Representatives become available.

Enter appliance numbers here for future reference:

These numbers can be found on your appliances data badge. Outside the UK and Northern Ireland, refer to your local supplier

Stoney Lane, Prescot, Merseyside, L35 2XW
