USER MANUAL WD-13517RD LG

Thank you for buying a

LG Fully Automatic Washing machine.

Please read your owner's manual carefully, it provides instructions on safe installation, use and maintenance.

Retain it for future reference.

Record the model and serial numbers of your washing machine.

Product Feature

■ Ultra Capacity

The Larger drum enables not just higher head drop and stronger centrifugal force, but also less tangling and wrinkling of the laundry. Heavier loads, such as king size comforters, blankets, and curtains, can be washed.

■ Direct Drive System

The advanced Brushless DC motor directly drives the drum without belt and pulley.

■ Tilted Drum and Extra Large Door Opening

Tilted drum and extra large opening make it possible to load and unload clothing more easily.

■ Water Circulation

Spray detergent solution and water onto the load over and over. Clothes are soaked more quickly and thoroughly during wash cycle.

The detergent suds can be removed more easily by the water shower during rinse cycle. The water circulation system uses both water and detergent more efficiently.

RollerJets

Washing ball enhances the wash performance and reduces damage to the clothing. The jets spray and help tumble clothes to enhance washing performance while maintaining fabric care.

■ Automatic Wash Load Detection

Automatically detects the load and optimizes the washing time.

■ Built-in Heater

Internal heater helps to maintain water temperature at its optimum level for selected cycles.

Child Lock

The Child lock prevents children from pressing any button to change the settings during operation.

Contents

Warnings....3

Specification....4

Installation....5

Care before washing....10

Using the dispenser 11

Function 13

How to use washer 14

Maintenance 22

Troubleshooting guide 25

Terms of Warranty 28

WARNING!

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life.

IMPORTANT SAFETY INSTRUCTIONS

WARNING : To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions, including the following:

• Read all instructions before using the washer.
• Do not wash articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances, as they give off vapors that could ignite or explode.
• Do not add gasoline, dry cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors that could ignite or explode.
• Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washing machine, turn on all hot water faucets and let the water flow from each for several minutes. This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame during this time.

• Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children.

• Before the washer is removed from service or discarded, remove the door to prevent children from hiding inside.

• Do not install or store the washer where it will be exposed to the weather.
• Do not tamper with controls.
• Do not repair or replace any part of the washer or attempt any servicing unless specifically recommended in the user-maintenance instructions or published user-repair instructions that you understand and have the skills to carry out.
• See Installation Instructions for grounding requirements.
• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
• Do not place items exposed to cooking oil in your washer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This appliance is equipped with a cord having an equipment-grounding conductor and grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinance.

• Do not use an adapter or extension cord.
• Do not remove ground prong.
• If you don't have the proper outlet, consult an electrician.

WARNING: Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the appliance is properly grounded. Do not modify the plug provided with the appliance - if it does not fit the outlet, have a proper outlet installed by a qualified electrician.

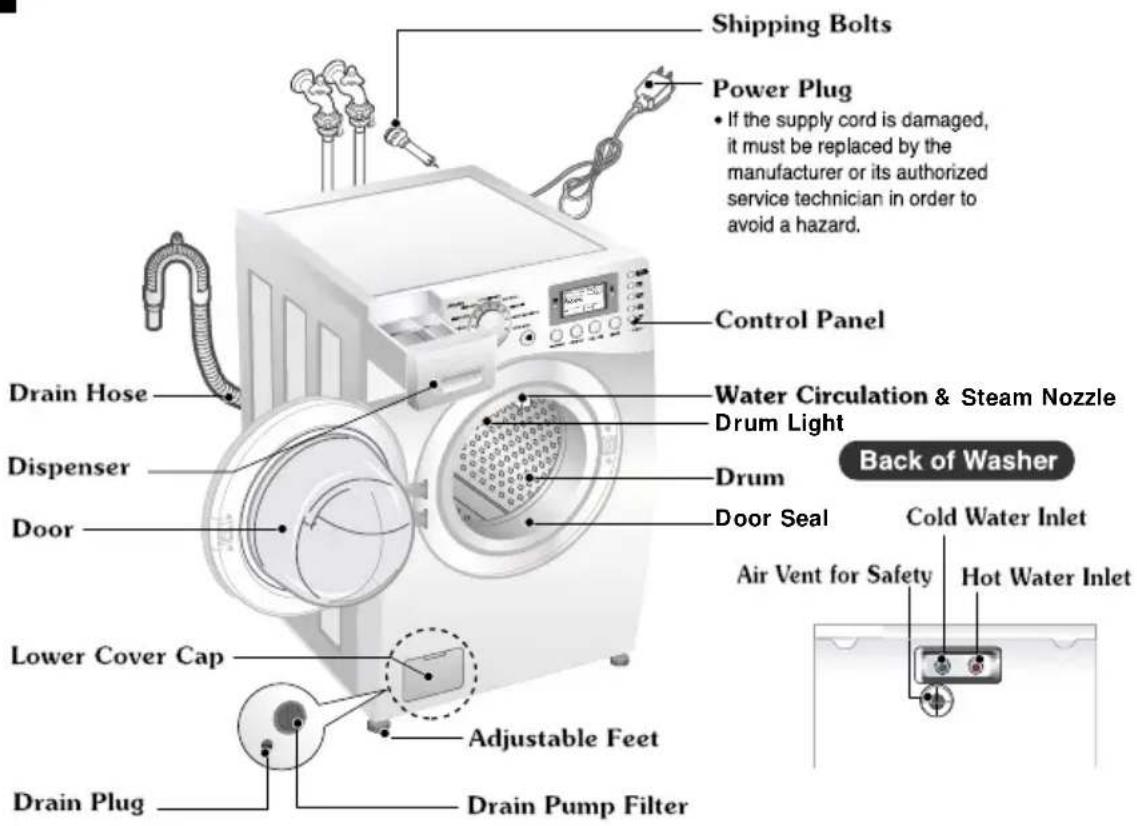

S

pecification

Shipping Bolts Power Plug • If the supply cord is damaged, it must be replaced by the manufacturer or its authorized service technician in order to avoid a hazard. Control Panel Drain Hose Water Circulation & Steam Nozzle Drum Light Drum Door Seal Back of Washer Cold Water Inlet Air Vent for Safety Hot Water Inlet Drain Cover Cap Lower Cover Cap Adjustable Feet Drain Plug Drain Pump Filter

■Name : Front loading washing machine

■Power supply : 120 V\~, 60 Hz

■ Size : 686 mm(W) 756 mm(D) 983 mm(H) / 1295 mm (D, door open)

■Weigh : 91 kg (201 lbs)

■Wash capacity : 15 kg (33.07 lbs)

■Dry capacity : 8 kg (17.64 lbs)

■Spin speed : 1320 rpm max.

■Permissible water pressure : 0.3-10kgf/cm ^2 (30-1000kPa)

* The appearance and specifications may be varied without notice to raise the units quality.

■ Accessories

Inlet hose 1EA ※ Option Hot/Cold (2EA)

Spanner

Caps (4EA)

Tie Strap

Elbow Bracket

nstallation

Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. Properly ground washer to conform with all governing codes and ordinances.

To reduce the risk of electric shock, do not install the washer in humid spaces.

The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

In countries where there are areas which may be subject to infestation by cockroaches or other vermin, pay particular attention to keeping the appliance and its surroundings in clean condition at all times.

Any damage which may be cause by cockroaches or other vermin will not be covered by the appliance guarantee.

■Transit bolts

The appliance is fitted with transit bolts to prevent internal damage during transport.

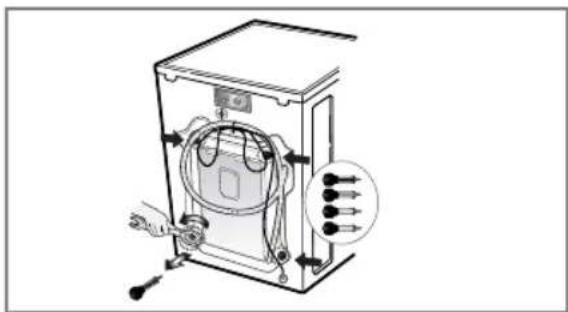

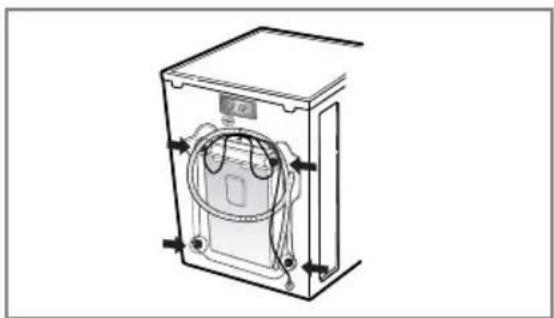

■Removing transit bolts

Technical line drawing of a mechanical enclosure with internal components and mounting holes (no text or symbols)

1. To prevent internal damage during transport, the special 4 bolts are locked. Before operating the washer, remove the bolts along with the rubber bungs.
2. If they are not removed, it may cause severe vibration, noise and malfunction.

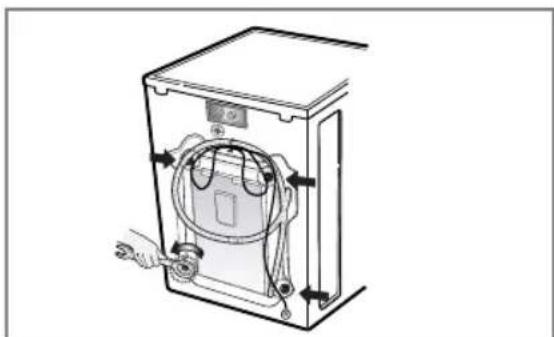

Technical line drawing of a mechanical device with internal components and a wrench, no visible text or symbols

1. Unscrew the 4 bolts with the spanner supplied.

Technical diagram of a mechanical device with internal components and a magnified inset showing pin connections (no text or labels)

1. Take out the 4 bolts along with the rubber bungs by slightly twisting the bung. Keep the 4 bolts and the spanner for future use.
2. Whenever the appliance is transported, the transit bolts must be refitted.

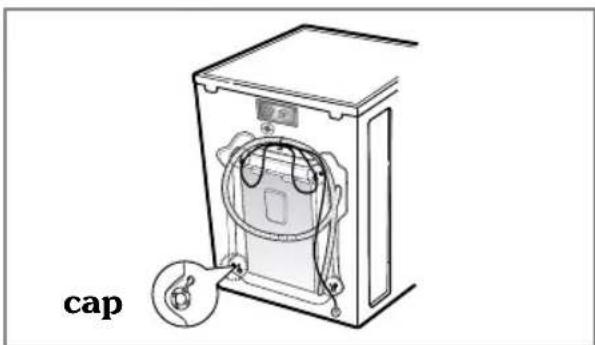

Line drawing of a mechanical device with a labeled component 'cap' (no text or symbols on the diagram itself)

1. Close the holes with the caps supplied.

I

nstallation

■ Installation clearances

The location must be large enough to fully open the washer door.

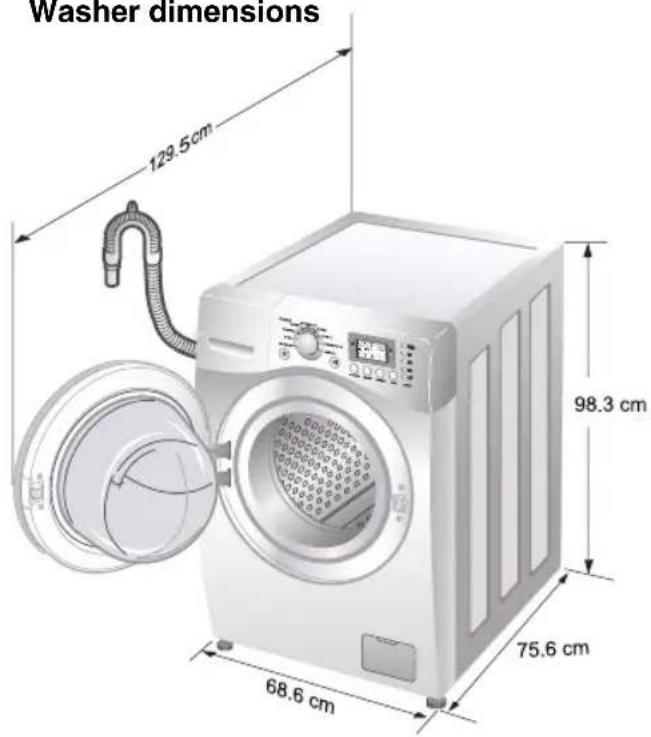

■ Washer dimensions

Washer dimensions 129.5 cm 98.3 cm 75.6 cm 68.6 cm

Diagram of a three-panel door with a 75.6 cm width and 10 cm height dimension (no text or symbols)

[Side view]

2.5 cm 68.6 cm 2.5 cm

[Front view]

- Most installations require a minimum 10 cm clearance behind the washer.

■ Minimum installation spacing for recessed area installation.

The following dimensions shown are for the minimum spacing allowed.

Additional spacing should be considered for installation and servicing.

• Additional clearances might be required for wall, door and floor moldings.
• Additional spacing of 2.5 cm on all sides of the washer is recommended to reduce noise transfer.

Companion appliance spacing should also be considered.

■ Level floor

• Allowable slope under entire washer is 1^ .
  • To minimize noise and vibration, the washer MUST be installed on a solidly constructed floor.
• Carpeting and soft tile surfaces are not recommended.
• Never install the washer on a platform or weakly supported structure.

NOTE: A firm, solid floor is even more critical to a front-loading washer than to a top-loader. If your floor is wood and/or frame construction, you may need to reinforce it. Front-loaders use substantially faster spin speeds than top-loaders, causing greater vibration. If the floor is not solid, your washer will vibrate. You will hear and feel the vibration throughout your house.

■ Power outlet

• Must be within 60 in. (1.5 m) of either side of the washer. Do not overload the outlet with more than one appliance.
• Time-delay fuse or circuit breaker is recommended.

NOTE: It is the personal responsibility and obligation of the customer to have a proper outlet installed by a qualified electrician.

I

nstallation

■ Electrical connection

1. Do not use an extension cord or double adapter.
2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard.
3. Always unplug the machine and turn off the water supply after use.
4. Connect the machine to an earthed socket in accordance with current wiring regulations.
5. The appliance must be positioned so that the plug is easily accessible.
6. Repairs to the washing machine must only be carried out qualified personnel. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local service center
7. Do not install your washing machine in rooms where temperatures below freezing may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
8. If the appliance is delivered in the winter months and temperatures are below freezing: Store the washing machine at room temperature for a few hours before putting it into operation.

CAUTION

CAUTION concerning the Power Cord

Most appliances recommend they be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner's manual to be certain.

Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized servicer.

Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance.

■ Washing Machine is to be connected to the water mains using new hose-sets and that old hose-sets should not be used.

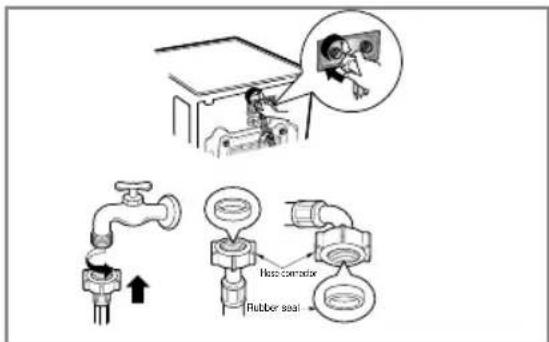

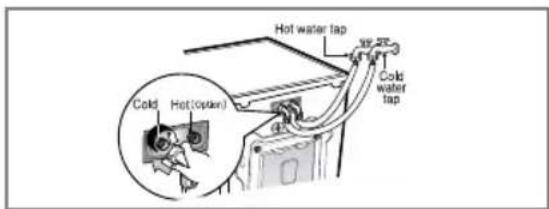

■ Connecting water supply hose

Diagram illustrating a mechanical assembly with labeled parts including hot condenser, rubber seal, and valve mechanism.

Hot water tap Cold water tap Cold Hot(outer)

▶ Water supply pressure must be between 30kPa and 1000kPa (0.3\~10kgf/cm²)
▶ Don't strip or crossthread when connecting Inlet hose to the valve.
▶ If the water supply pressure is more than 1000kPa, a decompression device should be installed.
- Two rubber seals are supplied with the water inlet hoses these are in order to prevent water leaks.
- Check water tightness of washing machine connections by turning the tap completely on.
- Periodically check the condition of the hose and replace the hose if necessary.
- Make sure that there is no kink on the hose and that it is not crushed.
▶ When your washer has two valves,
• The Inlet hose which has red connector is for the hot water tap.
- If the washer has two valves, the energy is saved by using hot valve.

I

installation

This equipment is not designed for maritime use or for use mobile installations such as caravans, aircraft etc.

Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain(gully) in the immediate vicinity.

When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the door lock to prevent young children being trapped inside.

Packaging material (e.g. Films, Styrofoam) can be dangerous for children. There is a risk of suffocation!

Keep all packaging well away from children.

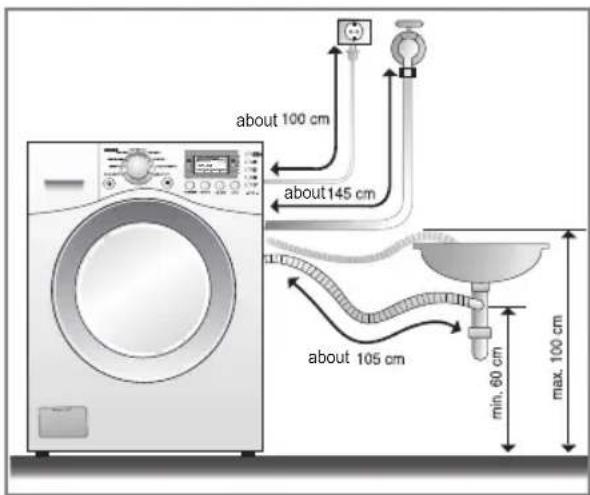

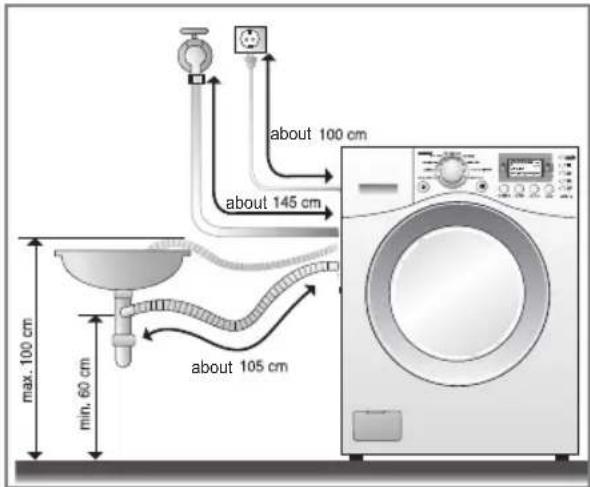

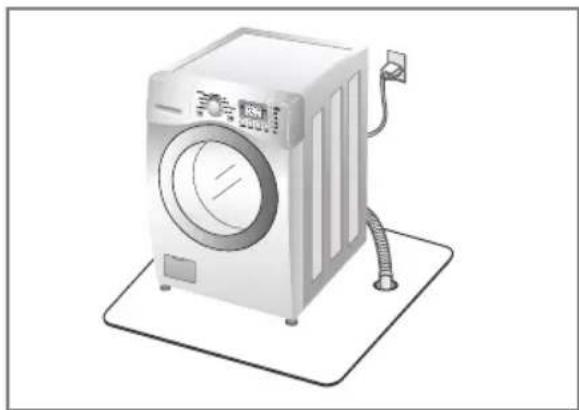

■ Installation of drain hose

about 100 cm about 145 cm max. 100 cm min. 60 cm about 105 cm

about 100 cm about 145 cm about 105 cm min. 60 cm max. 100 cm

• The drain hose should not be placed higher than 100 cm above the floor.
• Proper securing of the drain hose will protect the floor from damage due to water leakage.
• When the drain hose is too long, do not force back into the washer. This will cause abnormal noise.

Illustration of a white front-loading washing machine with a hose and mounting base (no text or symbols)

- Place the end of the drain hose in the hole of the floor drain system.

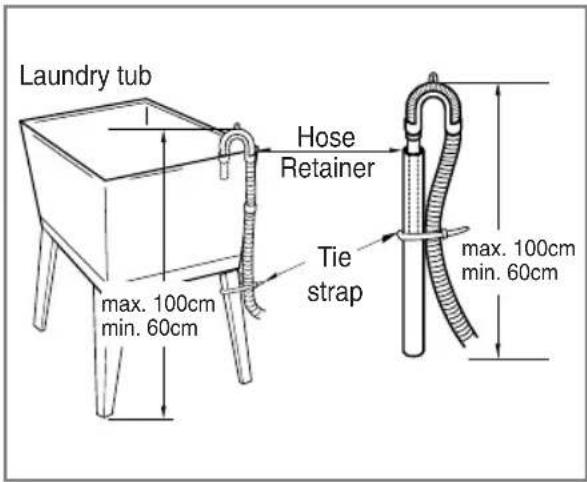

Laundry tub Hose Retainer max. 100cm min. 60cm Tie strap max. 100cm min. 60cm

• When installing the drain hose sink, secure it tightly with a string.
• Proper securing of the drain hose will protect the floor from damage due to water leakage.

nstallation

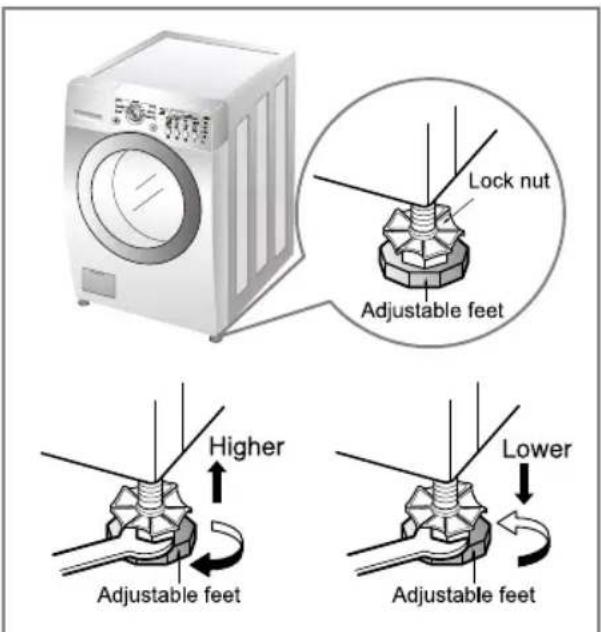

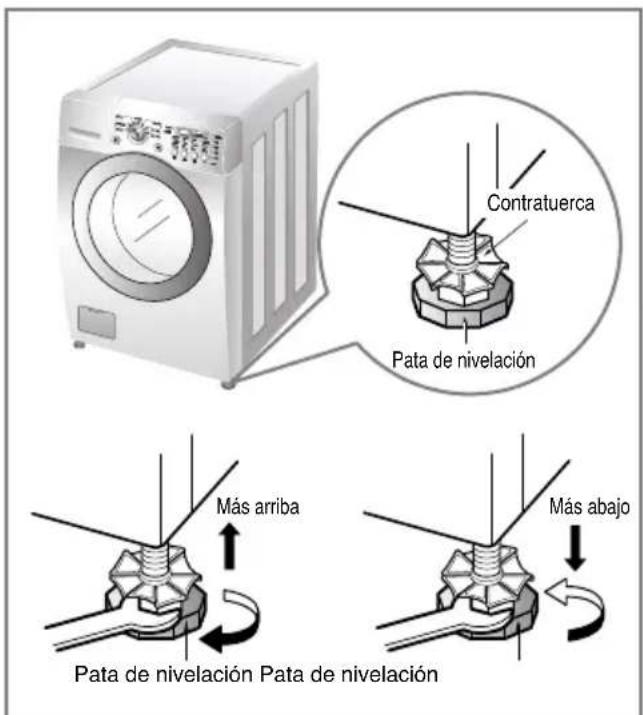

■ Level adjustment

Illustration of a white front-loading washing machine with control panel and side panel (no text or symbols)

Lock nut Adjustable feet Higher Lower Adjustable feet Adjustable feet

Illustration of a white front-loading washing machine with control panel and buttons (no text or symbols)

1. Adjusting the washing machine level properly prevents excessive noise and vibration. Install the appliance on a solid and level floor surface, preferably in a corner of the room.

NOTE: Extend the feet no more than necessary to level the washer. The more the feet are extended, the more the washer will vibrate.

1. If the floor is uneven, adjust the adjustable feet as required. (Do not insert pieces of wood etc. under the feet) Make sure that all four feet are stable and resting on the floor and then check that the appliance is perfectly level. (Use a spirit level)

* After the washer is level, tighten the lock nuts up towards of the base of the washer. All lock nuts must be tightened.

NOTE: If there are vibration and noise during the spin cycle, re-check the leveling of the washer, adjust the feet as required, and tighten the lock nuts securely to prevent changes in adjustment. Run the washer with a test load to make certain your washer is properly leveled. Put approximately 6 pounds of laundry in the machine. Then, press POWER, RINSE+SPIN, and START/PAUSE, in that order. When the machine spins at high speed, verify that it is stable. If not, adjust

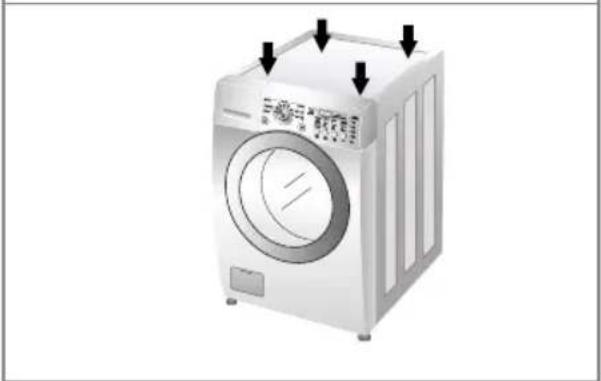

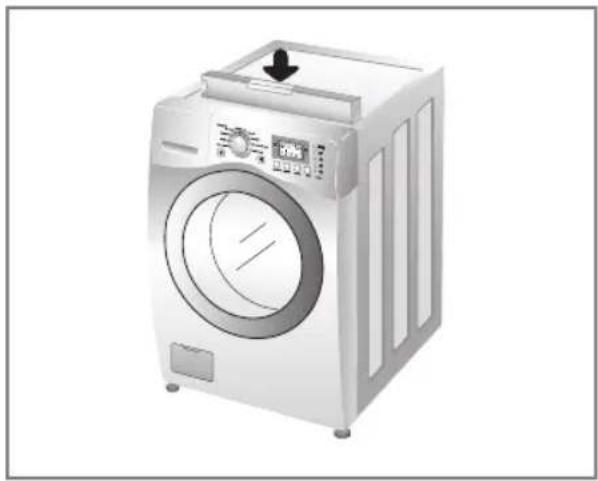

* Diagonal Check When pushing down the edges of the washing machine top plate diagonally, the machine should not move up and down at all. (Please, check both of two directions) If machine rocks when pushing the machine top plate diagonally, adjust the feet again.

C

are before washing

WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this appliance.

1. Fabric Care Labels

Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should be washed.

2. Sorting

To get the best results, sort clothes into loads that can be washed with the same wash cycle.

Different fabrics need to be washed in different ways.

Always sort dark colors from pale colors and whites. Wash separately as dye and lint transfer can occur causing discoloration of white clothing. If possible, do not wash heavily soiled items with lightly soiled ones.

Soil (Heavy, Normal, Light) Separate clothes according to amount of soil.

Color (White, Lights, Darks) Separate white fabrics from colored fabrics.

Lint (Lint Producers, Collectors) Wash lint producers and lint collectors separately.

3. Check before loading

Combine large and small items in a load. Load large items first.

Large items should not be more than half the total wash load.

Do not wash single items. This may cause an out-of-balance load. Add one or two similar items.

Illustration of a person's trousers with directional arrows indicating movement or process (no text or symbols)

- Check all the pockets to make sure that they are empty. Things such as clip, matches, pens, coins, and keys can damage both your washer and your clothes.

Illustration of four different garment types: a pleated shirt, a flared skirt, a shirt with circular cutout, and a jacket with X marks (no text or symbols)

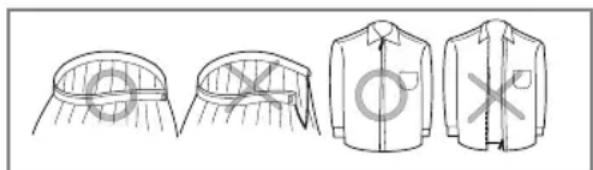

- Close zippers, hooks, and strings to make sure that these items do not snag on other clothes.

Illustration of a hand pouring liquid into a container with a small object, no text or symbols present

- Pretreat dirt and stains by brushing a little detergent dissolved in water onto stains like collars and cuffs to help lift dirt.

NOTE: Do not wash or spin water-proof clothes.

sing the dispenser

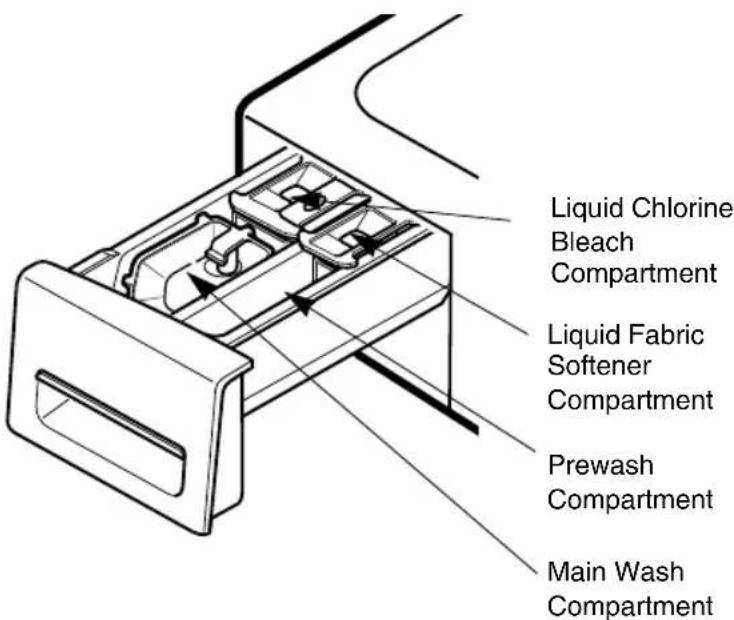

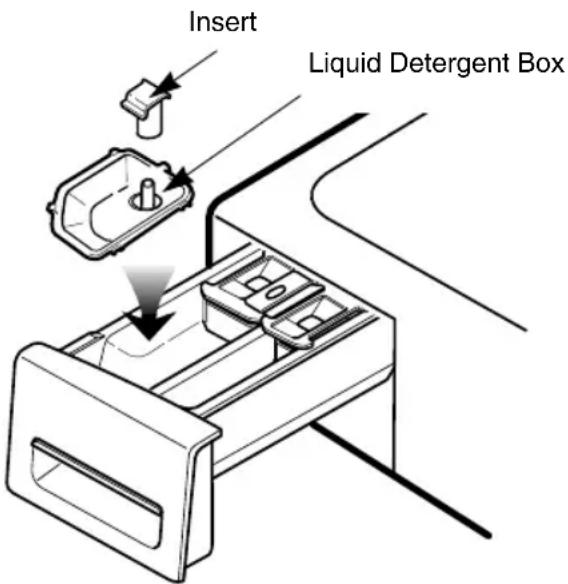

The automatic dispenser consists of four compartments which hold 1) liquid chlorine bleach, 2) liquid fabric softener, 3) liquid or powdered detergent for prewash and 4) liquid or powdered detergent and color safe bleach for main wash.

All laundry products can be added at once in their respective dispenser compartments. They will be dispensed at the appropriate time for most effective cleaning. After loading the laundry additives into the dispenser, close the dispenser drawer.

Add detergent, bleach and fabric softener to the automatic dispenser following these steps:

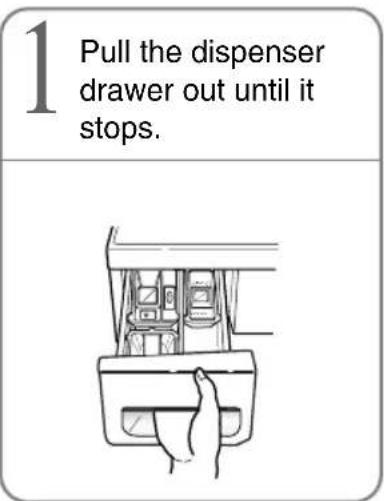

1. Open the dispenser drawer.
2. Load the laundry products into the appropriate compartments.
3. Close the dispenser drawer.

■ About detergent

Low sudsing detergent is recommended for this washer. Use the manufacturer's recommended amount.

If low sudsing detergent is not available, a reduced amount of regular detergent may be used.

Because reducing the amount of detergent may reduce cleaning, it is important to pretreat stains,

sort carefully by color and soil level, and avoid overloading.

Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.

For best results, avoid using too much detergent.

Liquid Chlorine Bleach Compartment Liquid Fabric Softener Compartment Prewash Compartment Main Wash Compartment

1. Prewash Detergent Compartment

• Add detergent to this compartment when using the Prewash option. Liquid or powdered detergent may be used in this compartment. The detergent will automatically be dispensed during Prewash if the Prewash option is selected.
• Add 1/2 the recommended amount of detergent to the Prewash compartment and the recommended amount of detergent to the main wash compartment.

NOTE : Liquid detergent will drain into the washer drum as it is added.

sing the dispenser

2. Main Wash Detergent Compartment

• Add measured detergent to this compartment for Main wash. Detergent is flushed from the dispenser at the beginning of the cycle. Either powdered or liquid detergent can be used.
• Liquid or powdered color-safe bleach may be added to the main wash compartment along with the same type of liquid or powdered detergent.
• When using liquid detergent, make sure the liquid detergent box and insert are in place. Do not exceed the maximum fill line.
• For powered detergent, remove both the liquid detergent box and insert.
• Powdered detergent will not dispense with the liquid detergent box and insert in place.

Insert Liquid Detergent Box

3. Liquid Bleach Compartment

• Add measured liquid chlorine bleach to this compartment. The bleach will be automatically dispensed at the proper time during the wash cycle.
• Do not exceed the maximum fill line. Overfilling can cause early dispensing of the bleach which could result in damaged clothes.
• Do not pour undiluted liquid chlorine bleach directly onto the load or into the drum. Fabric damage can occur.
• Do not use powdered bleach in this compartment.

4. Fabric Softener Compartment

• Add recommended amount of fabric softener to this compartment.
• Dilute concentrated softeners with warm water to the fill line.
• Do not exceed the maximum fill line. Overfilling can cause early dispensing of the fabric softener which could result in stained clothes.
• Do not pour fabric softener directly on the wash load.
• The fabric softener will be automatically dispensed during the last rinse cycle.

NOTE: Do not place, store, or spill laundry products (soap, detergent, bleach, softener, etc.) on the top of your washer or dryer. These products can damage the finish or controls if left there too long.

■ Select cycles designed for different types of fabric and soil levels.

Cycle	Fabric type	Wash/Rinse Temp.	Spin Speed	Soil Level	Pre-Wash	Rinse+ Spin	Extra Rinse	Stain Cycle	Water Plus	Dry
Steam FreshTM	Dress shirts, blouses
Sanitary	Heavily soiled underwear, work clothes, diapers, etc	Extra Hot/Cold	High	Normal	○	○	○	○	○	○
			Extra High No Spin Low Medium	Heavy Light
Bulky/Large	Large items such as blankets and comforters	Warm/Cold	Low	Normal	○	○	○	○	○
		Warm/Warm Hot/Cold Cold/Cold	Medium No Spin	Heavy Light
Perm Press	Dress shirts/pants wrinkle free clothing, poly/cotton blend clothing, table cloths	Warm/Cold	Medium	Normal	○	○	○	○	○	○
		Warm/Warm Hot/Cold Cold/Cold	High No Spin Low	Heavy Light
Cotton/ Normal	Cotton, linen, towels, shirts, sheets, jeans, mixed loads	Warm/Cold	High	Normal	○	○	○	○	○	○
		Warm/Warm Hot/Cold Cold/Cold	Extra High No Spin Low Medium	Heavy Light
AllergieneTM	Cotton, underwear, pillow covers, bed sheets, baby wear		High				○		○	○
			Extra High No Spin Low Medium
Delicates	Dress shirts/blouses nylons, sheer or lacy garment	Cold/Cold	Medium	Normal	○	○	○		○
		Warm/Cold Warm/Warm	No Spin Low	Heavy Light
Hand Wash/ Wool	Items labeled "hand washable"	Warm/Cold	Low	Normal		○	○		○
		Warm/Warm Cold/Cold	Medium No Spin	Light
Speed Wash	Lightly soiled clothing and small loads	Hot/Cold	Extra High	Light		○	○		○	○
		Cold/Cold Warm/Cold Warm/Warm	No Spin Low Medium High	Normal Heavy

NOTE: To protect your garments, not every Wash/Rinse temperature, spin speed, soil level or option is available with every cycle.

ow to use washer

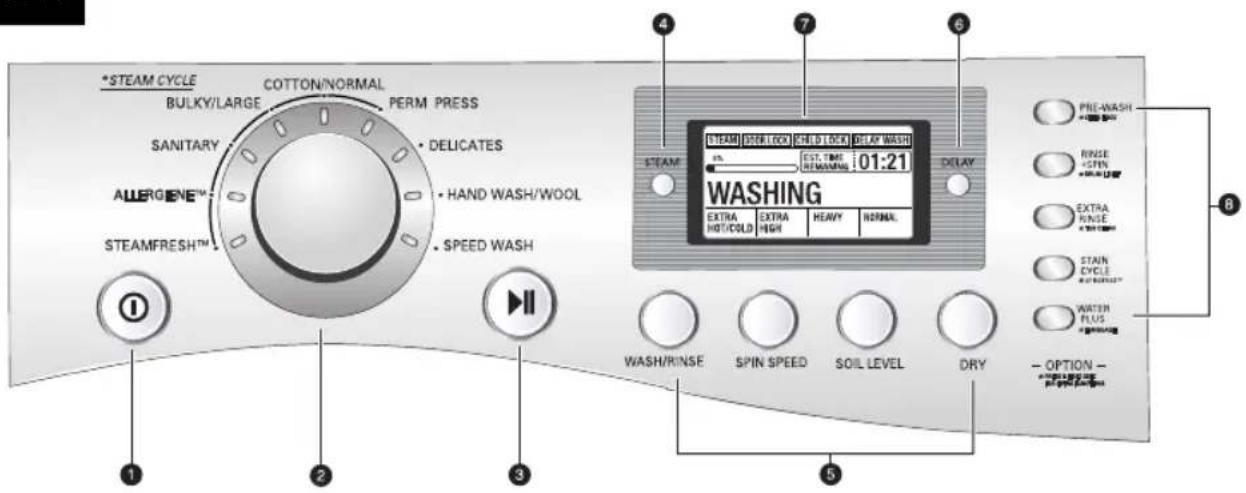

*STEAM CYCLE BULKY/LARGE COTTON/NORMAL PERM PRESS SANITARY • DELICATES ALLERGENE™ • HAND WASH/WOOL STEAMFRESH™ • SPEED WASH 1 2 3 4 5 6 7 8 STEAM STEAM STRAW/LOCK EAST/LOCK DELAY/WHASH 01:21 WASHING EXTRA HOT/COLD EXTRA HIGH HEAVY NORMAL. PRE-WASH RINSE • OPEN • WM/LOW/SPRING EXTRA RINSE • WM/LOW/SPRING STAIN CYCLE • WM/LOW/SPRING WATER PLUS - OPTION - • WM/LOW/SPRING

1. POWER ON/OFF BUTTON

Press to turn the washer ON. Press again to turn the washer OFF.

NOTE: Pressing the ON/OFF button during a cycle will cancel that cycle and any load settings will be lost.

2. CYCLE SELECTOR KNOB

Turn this knob to select the desired cycle. Once the desired cycle has been selected, the standard presets will be shown in the display. These settings can be adjusted using the cycle settings buttons anytime before starting the cycle.

3. START/PAUSE BUTTON

Press this button to START the selected cycle. If the washer is running, use this button to PAUSE the cycle without losing the current settings.

NOTE: If you do not press the START/PAUSE button within 8 minutes of selecting a cycle, the washer automatically turns off.

4. STEAM BUTTON

Press the STEAM button to add steam to the selected cycle for added cleaning power.

NOTE: Steam can only be added to the following cycles: STEAMFRESH™, SANITARY, BULKY/LARGE, PERM. PRESS, COTTON/NORMAL, and ALLERGIENE™.

5. CYCLE SETTINGS BUTTONS

Use these buttons to select the desired cycle options for the selected cycle. The current options are shown in the display. Press the button for that option to view and select other settings.

6. DELAY BUTTON

Press this button to delay the start of the wash cycle. Each press of the button increases the delay time by one hour, up to 19 hours.

7. LCD DISPLAY

The display shows the settings, estimated time remaining, options, and status messages for your Steam Washer™. The light in the display will remain on through the cycle.

8. OPTION BUTTONS

The option buttons allow you to select additional cycle options and will light when selected.

Certain buttons also allow you to activate special functions by pressing and holding the button for 3 seconds.

For detailed information about the individual options, please see the following pages.

ow to use washer

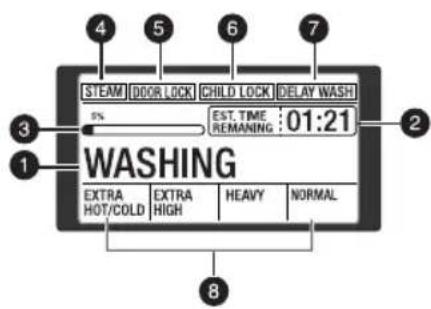

THE LCD DISPLAY

The LCD display shows the settings, estimated time remaining, options, and status messages for your washer. When the washer is turned on, the light in the display will illuminate.

STEAM DOOR LOCK CHILD LOCK DELAY WASH 5% EST. TIME REMANING: 01:21 WASHING EXTRA HOT/COLD EXTRA HIGH HEAVY NORMAL 1 2 3 4 5 6 7 8

1. STATUS/CYCLE DISPLAY

This portion of the display shows the selected cycle, operating status, and special messages. If a cycle has special instructions, they will also be displayed in this area.

2. ESTIMATED TIME REMAINING

When the START/PAUSE button is pressed, the washer automatically detects the wash load (weight) and optimizes the washing time, based on the selected cycle and options. The display will then indicate the estimated time remaining for the selected wash cycle.

NOTE: The cycle time displayed may appear much longer than that of a top-loading washer. The displayed time is for the complete cycle, rather than just the agitation portion of the cycle, as is typically shown on a top-loading washer.

3. CYCLE COMPLETION INDICATOR

Shows how much of the current wash cycle has been completed.

4. STEAM CYCLE INDICATOR

Indicates that a STEAM cycle has been selected.

5. DOOR LOCK INDICATOR

Indicates that the door is locked. The washer door will lock while the washer is operating. The door can be unlocked by pressing the START/PAUSE button to stop the washer.

NOTE: If the temperature in the washer is too high, the door cannot be unlocked until the washer has cooled. If the water level is too high, select the DRAIN & SPIN cycle to drain excess water. Do not try to force open the door.

6. CHILD LOCK INDICATOR

When CHILD LOCK is set, the Child Lock indicator will appear and all buttons are disabled except the ON/OFF button. This prevents children from changing settings while the washer is operating.

7. DELAY WASH INDICATOR

This indicator shows that the washer has been set for DELAY WASH. The washer will start automatically after the set delay time has passed.

8. CYCLE SETTING INDICATORS

These indicators show the current cycle settings for WASH/RINSE, SPIN SPEED, SOIL LEVEL, and DRY. To change these settings, press the appropriate settings button.

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.

ow to use washer

Once you have loaded the washer and added laundry products (detergent, bleach, and/or fabric softener):

① Press the ON/OFF button to turn on the washer. The lights around the cycle selector knob will illuminate.

② Turn the cycle selector knob to the desired cycle. The display will show the preset Rinse/Wash Temperature, Spin Speed, Soil Level, and Option settings for that cycle.

③ If you would like to change the settings for that cycle, press the option button(s) to display additional settings for that option. Press the button again to cycle through the settings until the desired setting is highlighted.

WASH/RINSE SPIN SPEED SOIL LEVEL DRY

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.

4 Select any additional cycle options, such as STEAM or DELAY by pressing the button for that option.

RINSE +SPIN EXTRA RINSE STAIN CYCLE WATER PLUS - OPTION -

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle.

5 Press the START/PAUSE button to begin the cycle. The door will latch, the display will change, and the washer will calculate the estimated time remaining. Once the washer has calculated the estimated total cycle time, the washer will start. To pause the cycle at any time, press PAUSE.

NOTE: The cycle time displayed may appear much longer than that of a toploading washer. The displayed time is for the complete cycle, rather than just the agitation portion of the cycle, as is typically shown on a top-loading washer.

NOTE: If the temperature in the washer is too high, the door cannot be unlocked until the washer has cooled. If the water level is too high, select the DRAIN & SPIN cycle to drain excess water. Do not try to force the door open.

Washing time can be reduced significantly for small or lightly soiled loads by selecting the Speed Wash cycle and setting the Soil Level button to Light.

⑥ When the load is finished, the beeper (if set) will sound and the door will unlock. Remove damp clothes from the washer immediately. Check under the door seal for small items.

STEAM CYCLES

STEAM cycles include the Sanitary, Bulky/Large, Perm. Press, Cotton/Normal, and ALLERGIENETM cycles. Adding the Steam option to

these cycles provides superior cleaning performance while reducing energy and water consumption. By using a hot steam spray from above and cooler water below, fabrics get the cleaning benefits of a super hot wash, without the energy usage or potential damage to fabrics.

To Add STEAM to a Standard Cycle:

① Turn on the washer and turn the cycle selector knob to select a cycle with the STEAM option.
② Press the STEAM button. The washer will automatically adjust the cycle settings.
③ Set any other desired options.
4 Press the START/PAUSE button to start the cycle. The washer will start automatically.

CAUTION:

Do not touch the door during steam cycles.

The door surface can become very hot.

Allow the door lock to release before opening the door.

Do not attempt to override the door lock mechanism or reach into the washer during a steam cycle. Steam can cause severe burns.

IMPORTANT NOTES ABOUT STEAM CYCLES:

• Steam may not be clearly visible during the steam cycles. This is normal. Too much steam could damage clothing.
• Do not use steam with delicate fabrics such as wool, silk, or easily discolored fabrics.
• Do not touch the door.

Using the SteamFresh™ Cycle

SteamFresh uses the power of steam alone to quickly reduce wrinkles and odor in fabrics. It brings new life to wrinkled clothes that have been stored for an extended time and makes heavily wrinkled clothes easier to iron. SteamFresh can also be used to help reduce odors in fabrics.

To Use the SteamFresh Cycle:

① Turn on the washer and turn the cycle selector knob to select the SteamFresh cycle.
② Load up to 5 items and close the door. NOTE: If there is any moisture inside the drum, such as from a previous wash cycle, wipe the drum dry with a towel before adding clothes.
③ Press the STEAM button until the correct number of items is shown in the display. No other options need to be set.
4 Press the START/PAUSE button to start the cycle.

After the SteamFresh cycle is complete, the washer will tumble the clothes for up to 30 minutes to prevent rewrinkling.

After removing clothes from the SteamFresh cycle, they may feel slightly damp. Place clothes on a hanger for at least 10 minutes to allow them to dry.

- The SteamFresh cycle is not recommended for use with 100% cotton clothing.

- Remove stains from clothing before using the SteamFresh cycle; the high heat could cause stains to set permanently.

- Do not use SteamFresh with the following items: wool, blankets, leather jackets, silk, wet clothes, lingerie, foam products, or electric blankets.

- Best results are achieved when articles are of similar size and fabric type. Do not overload.

ow to use washer

CYCLE SETTING BUTTONS

Each cycle has preset settings that are selected automatically. You may also customize the settings using the cycle setting buttons. Press the button for that option to view and select other settings.

The washer automatically adjusts the water level for the type and size of wash load for best results and maximum efficiency. It may seem there is no water inside the drum in some cycles, but this is normal.

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level, or option is available with every cycle. See the Cycle Guide for details.

WASH/RINSE

Selects the wash and rinse temperature combination for the selected cycle. Press the WASH/RINSE button repeatedly to scroll through available settings.

• Your washer features a heating element to boost the hot water temperature for Extra Hot settings.
  This provides improved wash performance at normal water heater settings.
• Select the water temperature suitable for the type of load you are washing. Follow the fabric care label for best results.
• Warm rinses leave the loads drier than cold rinses. Warm rinses can increase wrinkling.
• In cold climates, a warm rinse makes the load more comfortable to handle.
• Cold rinses use less energy.

SOIL LEVEL

Adjusts the selected cycle to allow more time for heavily soiled clothes or less time for lightly soiled clothes.

SPIN SPEED

The washer drum spins at up to 1,320 RPM. This

reduces drying time and saves energy. Press the SPIN SPEED button to select the maximum spin speed. Some fabrics, such as delicates,

require a slower spin speed.

The Drain & Spin cycle:

The Spin Speed button also activates the Drain & Spin cycle to drain the tub and spin clothes; for example, if you want to remove clothes before the cycle has ended.

To activate the DRAIN & SPIN cycle:

① Press the ON/OFF button to turn on the washer.
② Press the SPIN SPEED button.
③ Select the desired spin speed. NOTE: If NO SPIN is selected, the washer will drain only.
4 Press the START/PAUSE button.

CYCLE SETTING BUTTONS

Dry

Drying options are easily selected with the DRY button. For most even drying, make sure all articles in the clothes load are similar in material and thickness. Do not overload the washer by placing too many articles into the drum. Items must be able to tumble freely. If you open door and remove load before washer has finished the DRY cycle, remember to press the START/PAUSE button.

By pressing the DRY button, you can select:

① LOW TEMP - For delicate fabrics
② LESS - For damp drying fabrics
③ NORMAL - For general drying
④ MORE - For heavier fabrics
⑤ 30/60/90/120 - For timed drying

NOTES:

• Your washer can handle a load of up to 17.64 lbs. (8 kg) dry weight of articles.
• When drying cycle is completed, "End Of Cycle" is displayed on the LCD display.
• The Cool Down is set automatically when drying cycle is complete.
• If clothes are not removed promptly when the drying cycle ends, wrinkles can form.
• The Cool Down feature periodically tumbles, rearranges and fluffs the load to avoid wrinkles for up to 4 hours.
• The "End Of Cycle" message will continue to display until the cloths are removed or the Start/Pause button is pressed.

Drying Guide-Automatic Dry

Electronic sensors measure the temperature of the exhaust to increase or decrease the drying temperature for faster reaction time and tighter temperature control.

Recommended DRY settings by fabric type:

a) Perm Press - LOW TEMP
b) If clothes are to be ironed – LESS
c) Cotton/Towels - NORMAL
d) Diapers - MORE

NOTE: On Automatic Dry settings, the estimated drying time may vary from the actual drying time. The type of fabric, size of the load, and the selected dryness level affect drying time.

Drying Guide-Timed Dry

• Press the Dry button repeatedly to select the drying time in 30 minute increments: 30–60–90–120 minutes.
• Timed dry can last up to 120 min. When selecting Dry only, drying will start after the final Spin cycle.
• Drying times can vary greatly depending on dampness, room temperature and type of fabric. You may need to add additional Your own experience will be your best guide.

Drying Tips

Woolen Articles

Do not tumble dry woolen articles. Pull them to their original shape and dry them flat.

Woven and Loopknit Materials

• Some woven and loopknit materials may shrink when dried.
  • Always stretch them out immediately after drying.

Permanent Press and Synthetics

• Do not overload your dryer.
  • Take out permanent press articles as soon as the dryer stops to reduce wrinkles.

Fiber or Leather Materials

Always check the manufacture's instructions.

Baby clothes and Night Gowns

Always check the manufacture's instructions.

Rubber and Plastics

Do not dry any items made from or containing rubber or plastics, such as:

a) Aprons, bibs, chair covers
b) Curtains and table cloths
c) Bathmats

Fiberglass

Do not dry fiberglass articles in your dryer. Glass particles left in the washer could be picked up by your clothes the next time you use the washer and irritate your skin.

ow to use washer

CYCLE OPTION BUTTONS

Your Steam Washer ^™ features several additional cycle options to customize cycles to meet your individual needs. Certain option buttons also feature a special function (see the following page for details) that can be activated by pressing and holding that option button for 3 seconds.

To Add Cycle Options to a Cycle:

① Turn on the washer and turn the cycle selector knob to select the desired cycle.
② Use the cycle settings buttons to adjust the settings for that cycle.
③ Press the cycle option button(s) for the option you would like to add. The cycle option buttons, except STEAM and DELAY, will light when selected.
4 Press the START/PAUSE button to start the cycle. The washer will start automatically.

NOTE: To protect your garments, not every wash/rinse temperature, spin speed, soil level or option is available with every cycle. See the Cycle Guide for details.

STEAM

Use the STEAM button to add steam to the cycle for extra cleaning power and improved efficiency. See Steam Cycles section for additional details.

NOTE : Not all cycles can be used with the STEAM option.

DELAY

Once you have selected the cycle and other settings, press this button to delay the start of the wash cycle. Each press of the button increases the delay time by one hour, up to 19 hours.

PREWASH

Select this option to add a 16-minute prewash and spin cycle to the chosen cycle. This is especially useful for heavily soiled items.

RINSE+SPIN

Select this option to rinse and spin a load separately from a regular cycle. This can be helpful in preventing fresh

stains from setting in fabrics.

To activate the Rinse+Spin cycle:

① Press the ON/OFF button to turn on the washer.
② Press the RINSE+SPIN button.
③ Press the START/PAUSE button.

EXTRA RINSE

This option will add an extra rinse cycle to the selected cycle. Use this option to help ensure the removal of detergent or bleach residue from fabrics.

STAIN CYCLE

Select this option for heavily stained clothes, such as play clothes or work clothes. Stain Cycle will add extra wash time to the selected cycle, as well as an additional rinse cycle.

WATER PLUS

Select this option to add extra water to the wash and rinse cycles for superior results, especially with large or bulky items.

ow to use washer

SPECIAL FUNCTIONS

The option buttons also activate special functions, including CHILD LOCK, DRUM LIGHT, TUB CLEAN, SPINSENSE™, and LANGUAGE. Press and hold the option button marked with the special function for 3 seconds to activate.

CHILD LOCK

Use this option to prevent unwanted use of the washer or to keep cycle settings from being changed while the

washer is operating. Press and hold the PREWASH button for 3 seconds to activate or deactivate CHILD LOCK.

CHILD LOCK will be shown in the display, and all controls are disabled except the ON/OFF button. The washer can be locked during a cycle.

DRUM LIGHT

The drum is equipped with a blue LED light that illuminates when the washer is turned on. This light automatically turns

off when the door is closed and the cycle starts. To turn on the light during a cycle, press and hold the RINSE+SPIN button for 3 seconds. The drum light will illuminate and then turn off automatically after 4 minutes.

TUB CLEAN

A buildup of detergent residue can occur in the wash tub over time and can lead to a mildewy or musty smell. The TUB

CLEAN cycle is specially designed to remove this buildup. Press and hold the EXTRA RINSE button for 3 seconds to activate this cycle. The display will show a message to add liquid bleach to the dispenser. After the cycle has ended, open the door and allow the drum interior to dry completely.

NOTE: Do NOT use this cycle with clothes, and do NOT add detergent or fabric softener.

SPINSENSE™

SPINSENSE can be used to help reduce or eliminate vibrations, especially on wood floor installations.

To activate SPINSENSE™:

While the washing machine is running in any cycle, press and hold the STAIN CYCLE button for 3 seconds.

The STAIN CYCLE button light will remain lit while the washer is running to show that SPINSENSE is active. The SPINSENSE function will remain active for every cycle, even after a power failure.

To cancel SPINSENSE™:

Press and hold the STAIN CYCLE button for 3 seconds to turn off the SPINSENSE function.

LANGUAGE

This option allows you to change the language shown in the display. Once set, the selected language will stay

set even after the power is turned off.

The display language options are English, French, and Spanish; English is the default language.

To change the language:

1 Press the ON/OFF button to turn on the washer.
② Press and hold the WATER PLUS button for 3 seconds, until the following screen appears in the display.

SELECT A LANGUAGE ESPAÑOL FRANÇAIS ENGLISH

③ Press the WATER PLUS button repeatedly to cycle through “FRANÇAIS” (French), “ESPAÑOL” (Spanish), and then back to English.

aintenance

* Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock to avoid electrical shock hazards.
* When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the door lock to prevent young children being trapped inside.

■ The water inlet filter

• " " error message will blink on the control panel when water does not enter the detergent drawer.
• If your water is very hard or contains traces of lime deposit, the water inlet filter may become clogged.

It is therefore a good idea to clean it from time to time.

Simple line drawing of a faucet with a curved handle and arrow indicating rotation (no text or symbols)

1. Turn off the water tap.

Simple line drawing of a person using a tool to adjust or install a component (no text or symbols)

1. Unscrew the water inlet hose.

Illustration of hands holding a small object with an arrow indicating transformation (no text or symbols)

1. Clean the filter using a hard bristle brush.

Line drawing of a hand inserting a small object into a device (no text or symbols)

1. Tighten up the inlet hose.

■ The drain pump filter

* The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your machine.

CAUTION First drain using the drain and then open the pump filter to remove whatever any threads or objects.

Be careful when draining if the water is hot.

* Allow the water to cool down before cleaning the drain pump filter.

1. Open the lower cover cap (①) by using a finger. Turn the drain plug (②) to pull out the hose.

2. Unplug the drain plug (②), allowing the water to flow out. At this time use a vessel to prevent water flowing on to the floor. When water does not flow any more, turn the pump filter (③) open to the left.

3. Remove any foreign material from the pump filter (③). After cleaning, turn the pump filter (③) clockwise and insert the drain plug (②) to the original place. close the lower cover cap.

Diagram of a hand holding a tool with an arrow indicating motion, no text or symbols present

Diagram of a washing machine with labeled parts and components

Diagram of a device with labeled parts, showing a fan, bulb, and bowl connection

aintenance

■ Cleaning the Dispenser

- The dispenser may need to be cleaned periodically due to laundry additive build-up.

1 Pull the dispenser drawer out until it stops.

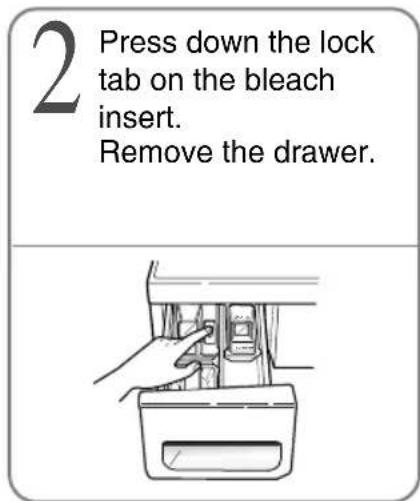

2 Press down the lock tab on the bleach insert. Remove the drawer.

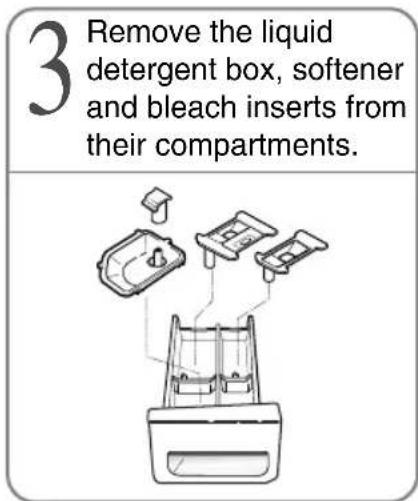

3 Remove the liquid detergent box, softener and bleach inserts from their compartments.

• Run warm water and a soft brush or cloth over the drawer, liquid detergent box and inserts to remove any excess laundry additives.
• Clean the drawer opening using water and a small brush.
• Follow the illustrations in reverse order to replace the parts to their proper location.

NOTE: Do not use any cleaning substance on the drawer opening other than water because it will drain into the tub. If this should happen, set the washer for a rinse and spin cycle to remove any cleaning substance from the washer before doing a load of laundry.

■ The washing drum

• If you live in a hard water area, lime scale can continuously builds up in places where it cannot be seen and it is not easily removed from the drum. Over time the build-up of scale clogs appliances, and if it is not kept in check, these will eventually have to be replaced.
• Although the washing drum is made of Stainless steel, specks of rust can be caused by small metal articles (paper clips, safety pins, etc.) which have been left in the drum.
• The washing drum should be cleaned from time to time.
• If you use descaling agents, dyes, or bleaches, make sure they are suitable for washing machine use.
• Descaler could contain components that can damage part of your washing machine.
• Remove the spots with a stainless steel cleaning agent.
• Never use steel wool.

aintenance

■ The water circulation nozzle

- Clean the water circulation nozzle, if clogged.

■ Cleaning your washer

1. Exterior

Proper care of your washer can extend its life.

The outside of the machine can be cleaned with warm water and a neutral, non-abrasive household detergent.

Immediately wipe off any spills. Wipe with a damp cloth.

Try not to damage the surface with sharp objects.

* IMPORTANT: Do not use methylated spirit, solvents or similar products.

2. Interior

Dry around the washer door opening, door seal and door glass. These areas should always be clean to ensure a water-tight seal.

TUB CLEAN is a special cycle for cleaning the inside of the washer. This cycle uses higher water level with higher spin speed. Perform this cycle regularly.

• To start the TUB CLEAN cycle:

1. Remove any clothing or items from the washer and close the door.
2. Open the dispenser drawer and add liquid chlorine bleach to the bleach compartment.
   NOTE: Do not add any detergent to the detergent compartments. Excessive suds may be produced and leak from the washer.
3. Close the dispenser drawer slowly.
4. Power On and then press the Extra Rinse button for 3 seconds. (Prewash option will be selected.)
5. Press the Start/Pause button to start.
6. After the cycle is complete, leave the door open to dry around the washer door opening, door seal and door glass.

CAUTION: If there are small children in the house, care must be taken so that they can not climb into or play inside the washer while it is open for drying.

NOTE: Remove hard water deposits using only cleaners labeled as safe for washing machines.

■ Winterizing instructions

If the washer is stored in an area where freezing can occur or moved in freezing temperatures, follow these winterizing instructions to prevent damage to the washer:

1. Turn off water supply tap.
2. Disconnect hoses from water supply and drain water from hoses.
3. Plug electrical cord into a properly grounded electrical outlet.
4. Add 1 gallon (3.8 ℓ) nontoxic recreational vehicle (RV) antifreeze to empty wash drum. Close door.
5. Set spin cycle and let washer spin for 1 minute to drain out all the water. Not all of the RV antifreeze will be expelled.
6. Unplug electrical power cord, dry drum interior, and close door.
7. Remove the two-compartment container from the Dispenser. Drain any water in compartments and dry the compartments.
8. Store washer in an upright position.
9. To remove antifreeze from washer after storage, run empty washer through a complete cycle using detergent. Do not add laundry.

roubleshooting guide

* This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately.

When the machine does not function properly or does not function at all, check the following points before you contact your service provider.

Problem Possible Causes Solutions
Rattling and clanking noise	·Foreign objects, such as keys, coins, or safety pins, may be in drum or pump.	·Stop washer and check drum and drain fi ter for foreign objects. If noise continues after washer is restarted, call for service.
Thumping sound	·Heavy wash loads may produce a thumping sound.·Washer load may be out of balance.	·This is normal. If sound continues, washer is probably out of balance. Stop and redistribute wash load.·Stop and redistribute wash load.
Vibrating noise	·Shipping bolts and/or packaging materials not removed.·Wash load may be unevenly distributed in the drum.·Not all leveling feet are resting fi rmly on the floor.·Floor not rigid enough.	·See Installation Instructions for removing shipping bolts and packaging.·Stop washer and rearrange wash load.·Adjust the leveling feet. Make sure all four feet are in fi rm contact with the floor while the washer is in the spin cycle with a load.·Make sure that the floor is solid and does not flex.Refer to “Flooring” in the Installation section.
Water leaking around washer	·Fill hose connection is loose at tap or washer.·House drain pipes are clogged.	·Check hoses. Check and tighten hose connections.·Unclog drain pipe. Contact a plumber if necessary.
Excessive sudsing	·Too much detergent or incorrect detergent.	·Reduce detergent amount or use low-sudsing detergent.
Staining	·Laundry products added directly to the washer drum.·Washer not unloaded promptly.·Clothes not sorted properly.	·Load the laundry products into the dispenser.·Always remove items from the washer as soon as the cycle is completed.·Always wash dark colors separately from light colors and whites to prevent discoloration. If possible, do not wash heavily soiled items with lightly soiled ones.

roubleshooting guide

Problem Possible Causes Solutions
Water in the washer drains slowly or not at all, or the display shows:	Drain hose is bent, pinched, or clogged.The drain fi liter is clogged.	Make sure the drain hose is free of clogs, kinks, etc., and is not pinched behind or under the washer.Clean the drain fi liter. See the Care and Cleaning section.
Washer fills with water slowly or not at all, or the display shows:	Water supply taps are not open fully.Water line hoses are kinked, pinched, or bent.Water inlet fi liters are clogged.Water pressure to tap or house is too low.	Make sure that the water taps are open fully.Make sure the hoses are not kinked or pinched. Be careful when moving the washer.Clean the inlet fi liters. See the Care and Cleaning section.Check another faucet in the house to make sure that household water pressure is adequate.
Washer will not turn on	Power cord is not properly plugged in.House fuse is blown, circuit breaker has tripped, or power outage has occurred.	Make sure that the plug is plugged securely into a grounded, 3-prong, 120-VAC, 60-Hz. outlet.Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
Washer won't spin, or the display shows:	The door is not closed properly.	Make sure that the door is closed properly and press the START/PAUSE button. After starting a cycle, it may take a few moments before the drum begins to turn or spin. The washer will not spin unless the door is locked (DOOR LOCK will appear in the display).If the door is closed and locked and the open door error message is displayed, call for service.
Door will not unlock when cycle is stopped or paused	Interior temperature of washer is too high.Water level in washer is too high.	The washer door has a safety lock to prevent burns. Allow the washer to cool until the DOOR LOCK indicator turns off in the display.Allow the washer to complete the programmed cycle, or run the DRAIN & SPIN cycle to drain the water.
Wash cycle time is longer than usual	The washer automatically adjusts the wash time for the amount of laundry, water pressure, water temperature, and other operating conditions.	This is normal. The washer adjusts cycle time automatically to provide optimal results for the selected cycle.
Musty or mildewy odor in washer	Inside of tub not cleaned properly.	Run the TUB CLEAN cycle regularly. Be sure to wipe around and under the door seal frequently.

roubleshooting guide

Problem Possible Causes Solutions
Steam is not visible during STEAM cycle	This is normal.	Because it uses pressurized steam, the washer requires very small amounts of steam to achieve optimal results. Excess steam could damage fabrics and reduce effi ciency.
Clothes not drying properly	Clothes load is too large.Clothes load is too small to tumble properly.Excess water.	Reduce load size.Add a few towels.Check that the washer is draining properly to extract adequate water from the load.
Wrinkling	Washer not unloaded promptly.Washer overloaded.Hot and cold water inlet hoses are reversed.	Always remove items from the washer as soon as the cycle is completed.The washer can be fully loaded, but the drum should not be tightly packed with items. The door of the washer should close easily.Hot water rinse can set wrinkles in garments. Check the inlet hose connections.
Drum light does not stay on	This is normal.	The drum light shuts off automatically when the washer starts. Press and hold the RINSE+SPIN button for 3 seconds to turn on the light; it will turn off automatically after 4 minutes.
The display shows:	Load is too small.Load is out of balance.The washer has an imbalance detection and correction system. If individual heavy articles are loaded (bath mat, bath robe, etc.) and the imbalance is too great, the washer will make several attempts to restart the spin cycle. If an imbalance is still detected, the washer will stop and the error code will be displayed.	Add 1 or 2 similar items to help balance the load.Rearrange items to help balance the load.
The display shows:[WWGS]	Control error.	Unplug the washer and call for service.
The display shows:FE	Water level is too high due to a faulty water valve.	Close the water taps, unplug the washer, and call for service.
The display shows:[23DS]	The water level sensor is not working correctly.	Close the water taps, unplug the washer, and call for service.
The display shows:[DBHW]	Thermal overload protection circuit in the motor has been tripped.	Allow the washer to stand for 30 minutes to allow the motor to cool; then restart the cycle. If the LE error code still appears, unplug the washer and call for service.
The display shows:PF	A power failure has occurred.	Restart the cycle.

T

erms of Warranty

What Is Not Covered:

• Service trips to your home to teach you how to use the product.
• If the product is connected to any voltage other than that shown on the rating plate.
• If the fault is caused by accident, neglect, misuse or Act of God.
• If the fault is caused by factors other than normal domestic use or use in accordance with the owner's manual.
• Provide instruction on use of product or change the set-up of the product.
• If the fault is caused by pests for example, rats or cockroaches etc..
• Noise or vibration that is considered normal for example water drain sound, spin sound, or warming beeps.
• Correcting the installation for example, levelling the product, adjustment of drain.
• Normal maintenance which recommended by the owner's manual.
• Removal of foreign objects / substances from the machine, including the pump and inlet hose filter for example, grit, nails, bra wires, buttons etc.
• Replace fuses in or correct house wiring or correct house plumbing.
• Correction of unauthorized repairs.
• Incidental or consequential damage to personal property caused by possible defects with this appliance.
• If this product is used for commercial purpose, it is not warranted.
  (Example : Public places such as public bathroom, lodging house, training center, dormitory)

If the product is installed outside the normal service area, any cost of transportation involved in the repair of the product, or the replacement of a defective part, shall be borne by the owner.

Lavadora

MANUAL DEL PROPIETARIO

WD-15517RD

WD-15519RD

Gracias por comprar

la lavadora totalmente automática LG.

Technical line drawing of a mechanical device with internal components and mounting holes (no text or symbols)

Diagram of a refrigerator with attached electrical cable and motor (no text or labels)

Technical diagram of a mechanical device with labeled components and wiring (no text or symbols present)

Technical line drawing of a mechanical device with internal components and a close-up inset showing a circular detail (no text or symbols)

129.5 cm 98.3 cm 75.6 cm 68.6 cm

Technical diagram of a rectangular panel with four recessed slots, showing dimensions: 75.6 cm width and 10 cm height (no text or symbols beyond measurement labels)

[Vista lateral]

2.5 cm 68.6 cm 2.5 cm

[Vista frontal]

■ Nivele el Piso

Illustration of a washing machine on a flatbed base with a hose (no text or symbols)

Illustration of a white front-loading washing machine with control panel and side door (no text or symbols)

Illustration of a white front-loading washing machine with control panel and buttons (no text or symbols)

Diagram of a faucet with a curved arrow indicating rotation or movement (no text or symbols)

Simple line drawing of a person using a handheld device to clean or install a device inside a cabinet (no text or symbols)

Illustration showing two hands holding a small object, one pointing to a circular object (no text or symbols present)

Simple line drawing of a hand inserting a tool into a container (no text or symbols)

1. Apriete la manguera de entrada.

Simple line drawing of a hand using a tool to lift or lift an object, with no text or symbols present.

Diagram of a washing machine with labeled parts and water displacement indicator

Diagram of a washing machine with labeled parts including pump, fan, and bucket

Line drawing of a hand pressing down on a mechanical component (no text or symbols)

Line drawing of a hand inserting a component into a container (no text or symbols)

Technical diagram of a device with labeled components, showing internal structure and assembly steps
