USER MANUAL LBW107E SMEG

WASHING MACHINE USER MANUAL

LBW107E LBW107E

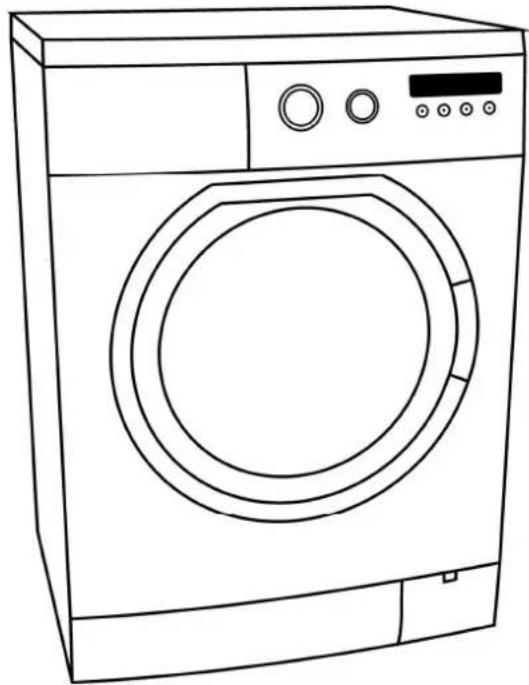

Line drawing of a washing machine with front panel and control buttons (no text or symbols)

BEFORE USING THE WASHING MACHINE, YOU SHOULD CERTAINLY READ THE INFORMATION IN USER'S MANUAL.

CONTENTS

CHAPTER-1: TECHNICAL SPECIFICATIONS 3

CHAPTER-2: BEFORE USING WASHING MACHINE 5

• Safety warnings 5
- Recommendations 6
CHAPTER-3: SETTING UP 7
- Removing transport safety screws....7
- Adjusting adjustable stays 9
• Electrical connection 1
• Water inlet connection 1
• Water discharge connection 1

CHAPTER-4: PRELIMINARY PREPARATION FOR

LAUNDERING 12

CHAPTER-5: CONTROL PANEL 16

• Detergent drawer 17
• Programme knob 18
• Spin speed selector knob 19
• Electronic display 20

• Selecting programme 21
  • Auxiliary functions 21
  • Starting the programme 27
• Child lock 28
• Cancelling programme 29
  • Finishing programme 30

CHAPTER-7: WARNING SYMBOLS 31

- Waming of water cut-off/low mains water pressure 31

CHAPTER -1: TECHNICAL SPECIFICATIONS

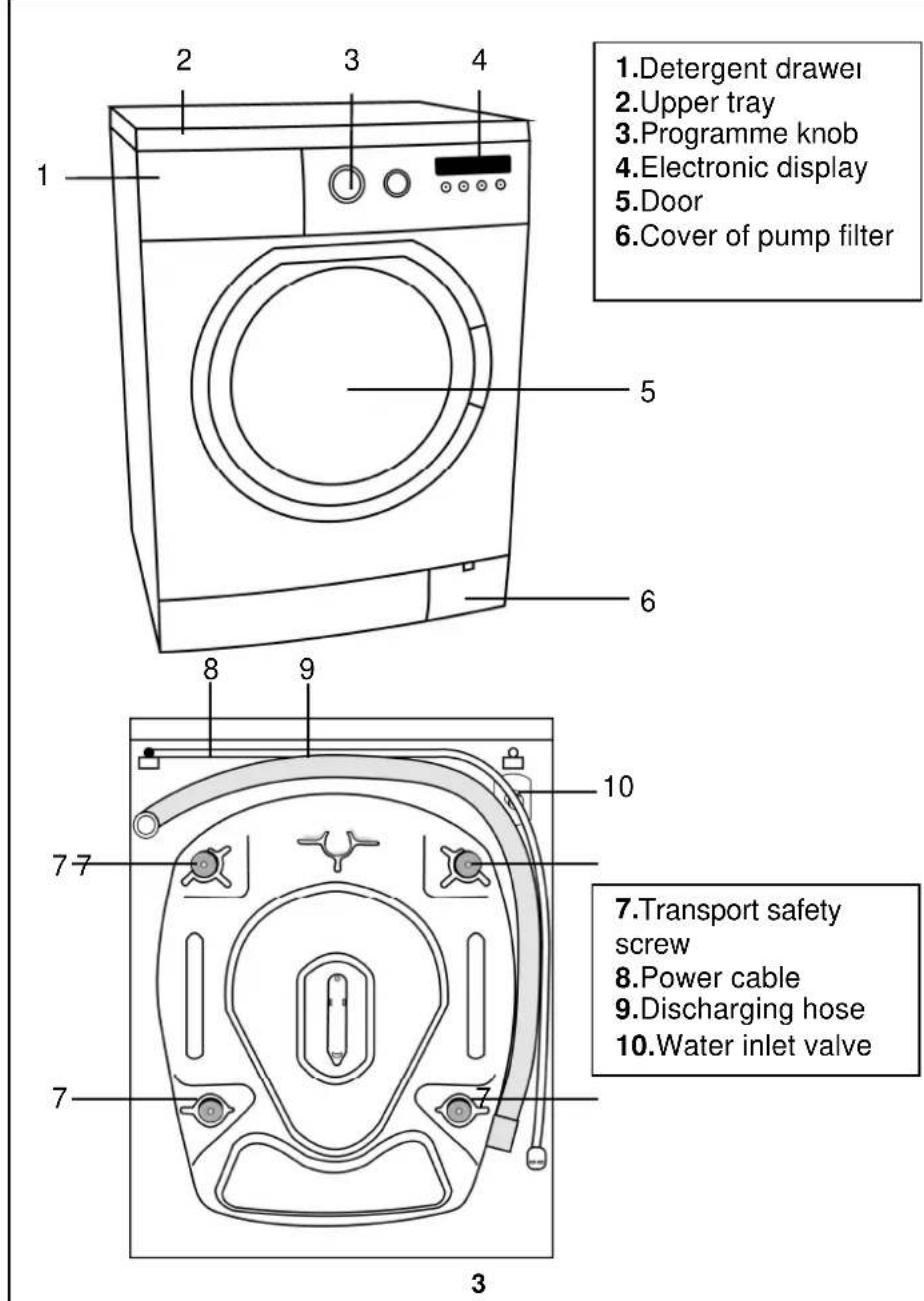

1.Detergent drawer 2.Upper tray 3.Programme knob 4.Electronic display 5.Door 6.Cover of pump filter 1 2 3 4 5 6 7 8 9 10 7. Transport safety screw 8.Power cable 9.Discharging hose 10.Water inlet valve 7 7 3

CHAPTER -1: TECHNICAL SPECIFICATIONS

	LBW107E LBW108E
Operating voltage / frequency (V/Hz)	(220-240) V ~/50Hz	(220-240) V ~/50Hz
Total current (A)	10 10
Water pressure (Mpa)	Maximum: 1 Mpa Minimum: 0.1 MPa	Maximum: 1 Mpa Minimum: 0.1 MPa
Total power (W)	2200 2200
Maximum dry laundry capacity (kg)	7	8
Wringing revolution (rev / min)	1000 1000
Programme number	15 15
Dimensions (Height x Width x Depth) (mm)	845 x 597 x 527 845 x 597 x 557

CHAPTER -2: BEFORE USING YOUR WASHING MACHINE SAFETY WARNINGS

SAFETY WARNINGS

• Do not use multiple receptacles or extension cord.
  • Do not plug in damaged or torn plugs.
• In case of a breakdown of power cable, contact the nearest authorized service for replacing it.
• Never pull the cable when unplugging. Grab the plug when unplugging.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electric shock.
• Never touch the machine with your wet, damped hand or foot.
• Never open the detergent compartment when the appliance is running.
• Never force the door to open when the washing machine is running.
• Do not touch discharging hose and water during discharging as the appliance may reach high temperatures when running.
• In case of any breakdown, unplug the appliance firstly and then tum the water faucet off. Do not attempt to repair by yourself and consult authorized service.
• Remember that packaging materials of your machine may be dangerous for children. Keep the packaging materials in a place where children cannot reach or dispose of them as to wasting instructions.
• Do not allow your children play with the washing machine which is an electrically-driven appliance.

CHAPTER -2: BEFORE USING YOUR WASHING MACHINE SAFETY WARNINGS / RECOMMENDATIONS

• You should absolutely remove the transport screws of your machine before the first usage. Faults occurring in the machines operated with transport screw fitted shall be out of scope of warranty.
• Do not put discharging hose of your machine in a vessel, bucket or sink.
• Your machine is out of warranty against faults caused by any kind of external factors (spate, pesticides, fire, etc.).
• The appliance is not intended for use by people (including children) with reduced physical, sensor yor mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a preson responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

RECOMMENDATIONS

• Before beginning to use your washing machine, ask for free-of-charge help about installing, commissioning and using your washing machine by calling the nearest authorized service.
• It is recommended to perform the first washing operation in 95' White Cotton programme and without laundry by inserting 12 scale of detergent in 2^nd compartment of the detergent drawer.
• As detergent or softener exposed to air for a long time may cause residues, put your detergent or softener in the detergent drawer in the beginning of each washing.

CHAPTER -3: SETTING UP REMOVING TRANSPORT SAFETY SCREWS

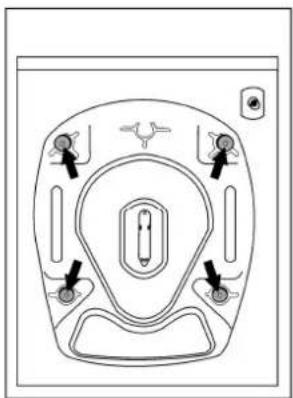

Before operating your washing machine, you should certainly remove the transport safety screw on the rear side of the machine.

Technical line drawing of a mechanical component with no visible text or symbols

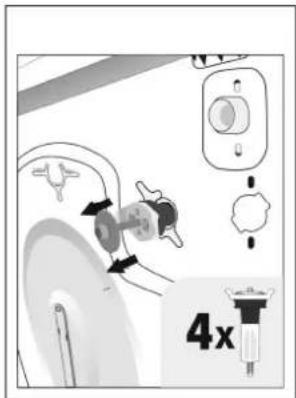

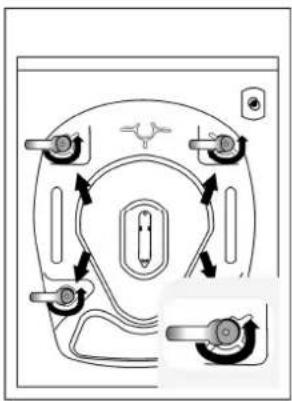

For this reason, transport safety screws shall be loosened by being rotated in counter-clockwise using an appropriate wrench.

Diagram of a mechanical or electrical component with directional arrows indicating motion (no text or symbols)

CHAPTER -3: SETTING UP REMOVING TRANSPORT SAFETY SCREWS

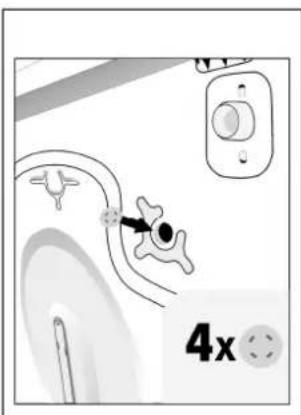

Transport screws shall be removed by pulling out.

4x

Fit the plastic transport screw taps delivered in accessories bag to the places where transport screws have been removed.

4x

The transport safety screws should be stored to be used in case of a transportation.

You should absolutely remove the transport screws of your machine before the first usage. Faults occurring in the machines operated with transport screw fitted shall be out of scope of warranty.

CHAPTER -3: SETTING UP ADJUSTING ADJUSTABLE STAYS

• Do not install your machine on a carpet or suchlike grounds.
• To ensure silent and vibration-free operation of your machine, it should be deployed on a non-sliding and firm ground.
• Loosen the plastic adjustment nut.

- Adjust the stays upward and downward by rotating them.

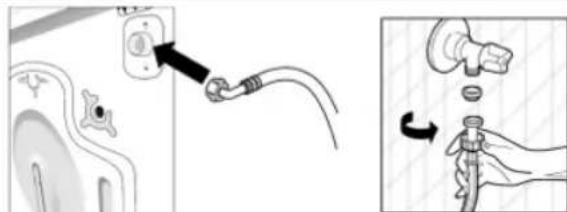

CHAPTER -3: SETTING UP WATER INLET CONNECTION / WATER DISCHARGE CONNECTION

Illustration showing a plug inserted into a washing machine and a hand holding a tool, with no visible text or symbols.

Water discharge connection

• Ensure that water discharge hose is not folded, twisted, crushed or elongated.
• Water discharge hose can be fitted minimum 60 cm and maximum 100 cm above the ground.
• The end of water discharge hose can be fitted to a specific apparatus directly attached to dirty water discharge hole or outlet joint of the basin elbow.
• Never attempt to extend the water discharge hose by jointing.
• Do not put discharging hose of your machine in a vessel, bucket or sink.

CHAPTER-4: PRELIMINARY PREPARATION FOR LAUNDERING SEPARATING LAUNDRIES

• Separate your laundries according to their types (cotton, synthetic, sensitive, woollen, etc.), their temperatures (cold, 30°, 40°, 60°, 90°) and degree of contamination (slightly stained, stained, highly stained).
  • Never wash your coloured and white laundries together.
• Wash your coloured laundries separately in the first washing as they may bleed.
• Ensure that there are no metallic materials on your laundries or in the pockets; if so, take them up.

WARNING: Faults that will emerge in case of penetration of foreign substances into your machine are not included within the scope of warranty.

• Remove the metallic or plastic hooks of tulle curtains or curtains or place them in a washing net or bag and then muzzle them.
  • Unzip and button up your laundries.
• Reverse textiles such as pants, knitwear, t-shirt and sweat suit.
• Wash socks, handkerchief and suchlike small laundries in a washing net.

Normal washing	Maximum washing temperature is 90°C	Maximum washing temperature is 60°C

CHAPTER-4: PRELIMINARY PREPARATION FOR LAUNDERING SEPARATING LAUNDRIES

Whitening available	No whitening	Ironing temperature is maximum 110°C
Ironing temperature is maximum 150°C	Ironing temperature is maximum 200°C	No ironing
Dry cleaning available	No dry cleaning	Leave on a flat place
Hang when wet Dry by hanging		Drying by twirling is not allowed
Dry cleaning in gas oil, pure alcohol and R113 is allowed	Perchloroethylene R11, R113, Petroleum	Perchlorinetyhlene R11, R113, Gas oil

CHAPTER-4: PRELIMINARY PREPARATION FOR LAUNDERING PUTTING LAUNDRIES IN THE MACHINE

• Open the door of your machine.
• Spread your laundries in your machine. Note: Maximum loading capacity may vary based on the laundry type you will wash, degree of contamination and the programme you have chosen. Do not exceed maximum dry loading capacity indicated in the programme table for washing programmes.

You can take the following table of weights as an example.

LAUNDRY TYPE	WEIGHT (gr)
Towel	200
Linen	500
Bathrobe	1200
Quilt cover	700
Pillow slip	200
Underwear	100
Tablecloth	250

• Put the laundries separately.
- Ensure that no laundry is stuck between the cover and bellow seal when closing the door of your machine.
- Push the door of your machine until hearing the locking sound to close it.

CHAPTER-4: PRELIMINARY PREPARATION FOR LAUNDERING ADDING DETERGENT INTO MACHINE

The amount of detergent you will put in your machine will depend on the following criteria:

• Your detergent utilization will be based on the degree of contamination of your laundries. Do not prewash your less stained laundries and put your slight amount of detergent in the 2^nd compartment of the detergent drawer.
• For your much stained laundries, select a programme including prewashing, and put 14 of the detergent you will put in the detergent drawer in the 1^st compartment of the detergent drawer while putting the remaining 34 of it into 2^nd compartment.
• Use detergents produced for automatic washing machine in your machine. The amount of detergent you will use for your laundries is printed on the detergent package.
• The higher the degree of hardness of the water the more detergent you will use.
• The amount of the detergent you will use will increase as the amount of your laundries increase.
• Put the softener in the softener compartment in the detergent drawer. Do not exceed the MAX level. Otherwise, softener will flow into washing water through flushing.
• Softeners with high density are required to be thinned to a degree before being put in the drawer. Because high-density softener will clog the flush and avoid the flow of the softener.
  • You can use your liquid detergents in all programs without

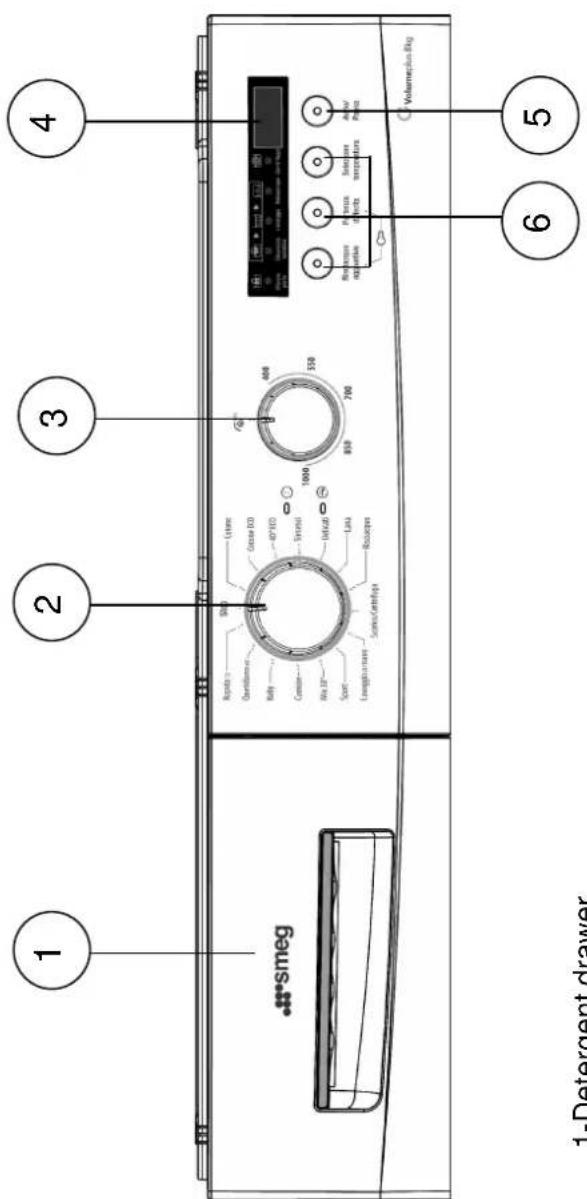

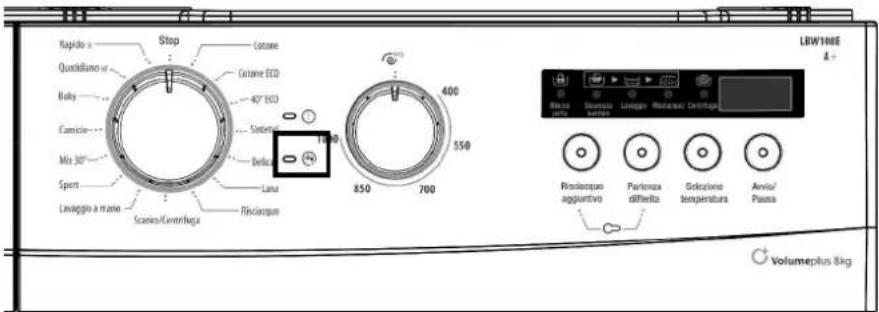

CHAPTER 5: CONTROL PANEL

1 smeg 2 3 4 5 6 1-Detergent drawer

1-Detergent drawer
2-Programme knob
3-Spin speed selector knob
4-Electronic display
5-Start / Pause button
6- Auxiliary function buttons

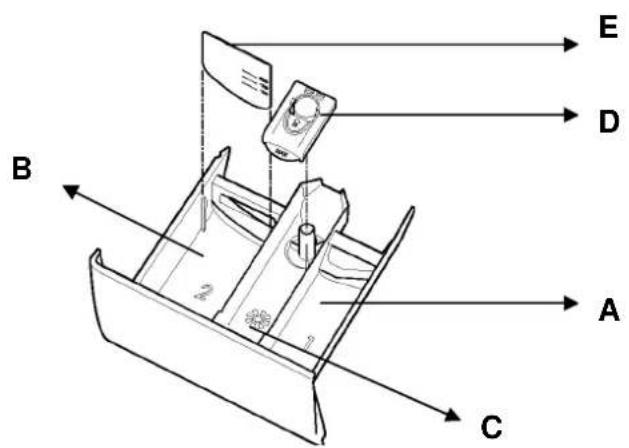

CHAPTER 5: CONTROL PANEL DETERGENT DRAWER

B 2 1 A C D E

A. Prewashing compartment
B. Main washing compartment
C. Softener compartment
D. Siphon cover
E. Liquid level detergent plate

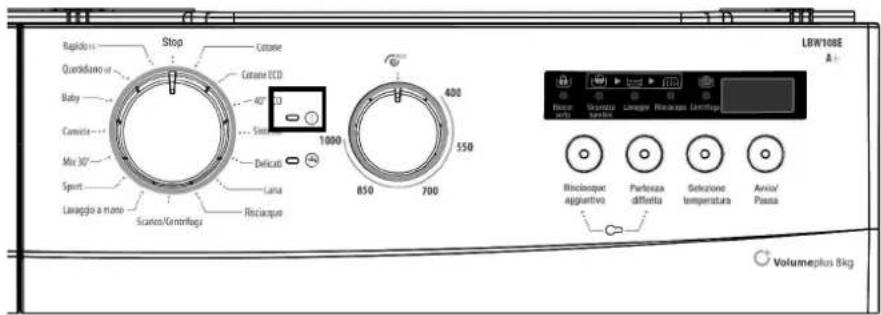

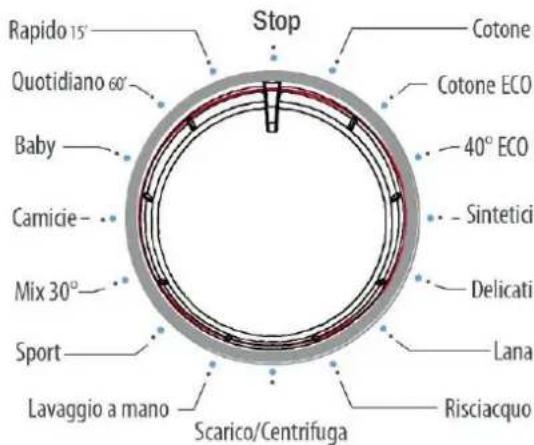

CHAPTER 5: CONTROL PANEL PROGRAMME KNOB

You may select the programme you like to wash your laundries through programme knob. You may set the programme selection operation by rotating the programme knob in both direction. Ensure that the programme knob is exactly on the programme you want to select.

Rapido 15° Quotidiano 60° Baby Camicie Mix 30° Sport Lavaggio a mano Stop Cotone Cotone ECO 40° ECO Sintetici Delicati Lana Risciacquo Scarico/Centrifuga

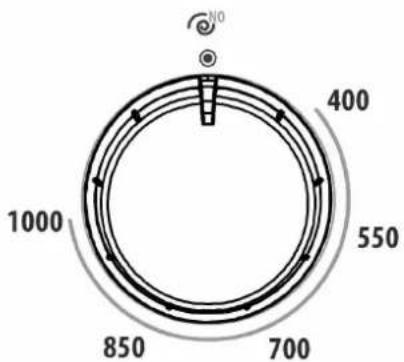

CHAPTER 5: CONTROL PANEL SPIN SPEED SELECTOR KNOB

By the spin speed selector knob, you can make the adjustment of speed for the process of spinning your clothes. The speed adjustment

interval is between (No spin) and the maximum spinning speed of your machine.

If the spin speed selector knob is higher than the to the selected program spin speed maximum speed, machine will make the spin according to the program maximum spin speed.

NOTE: Do the spinning process of your sensitive and delicate clothes in the most appropriate mode.

1000 850 700 550 400 No

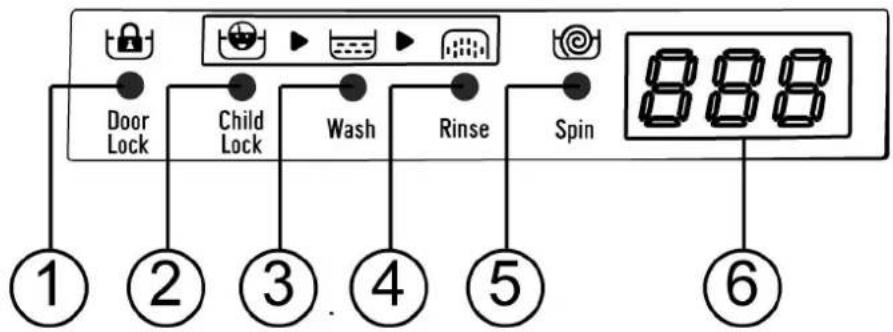

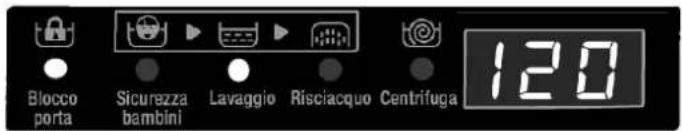

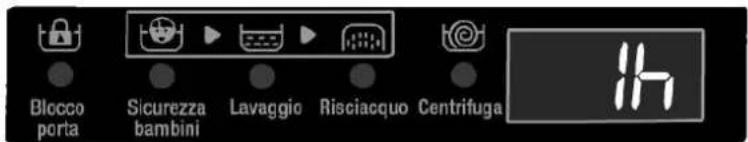

CHAPTER 5: CONTROL PANEL ELECTRONIC DISPLAY


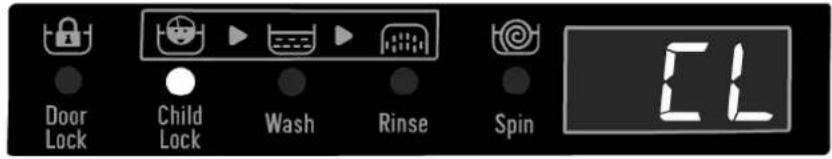

1-Door lock light

The door lock lighting, machine locked the door.

2-Child lock light

The child lock lighting, the child lock will active.

3-Wash light

The wash lighting, indicates that the machine during the wash.

4-Rinse light

The rinse lighting, indicates that the machine during the rinse.

5-Spin light

The spin lighting, indicates that the machine during the spin.

6-Electronic display

On the electronic display, you may view washing water temperature, the amount time your machine will continue washing. Furthermore, electronic display will warn you by means of fault symbols on the display when a fault occurs on your machine and notify you of the completion of the washing programme by revealing expression of "END" on the display as soon as the washing programme you have selected has finished as well.

CHAPTER 6: OPERATING YOUR MACHINE

• Plug your machine in.
• Open the water faucet.
• Open the machine door.
• Spread your laundries in your machine.
• Push the door of your machine until hearing the locking sound to close it.
• Put detergent and softener in the detergent drawer.

First washing operation

Some water may be left in your machine due to experiments and tests carried out during production. To dispose of this water, it is recommended to perform the first washing operation in 1 ^st programme and without laundry by inserting 1/2 scale of detergent in 2 ^nd compartment of the detergent drawer.

Selecting programme

Select the convenient programme for your laundries on the programme table.

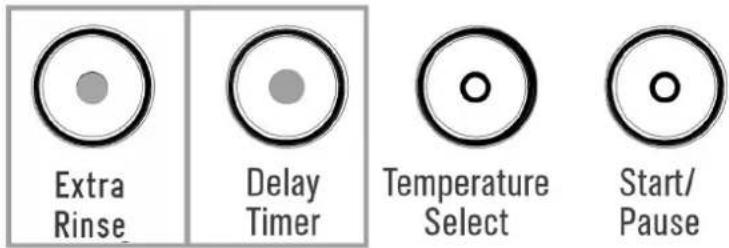

Auxiliary functions

Before starting the programme, you can optionally select an auxiliary

CHAPTER 6: OPERATING YOUR MACHINE

Half-load detection system

Your machine features a half-load detection system. In case you put approximately half or less amount of laundries of maximum laundry capacity in your machine, your machine will run so as to save washing time, water consumption and energy in some programmes(White cotton 95°, Colorfast cotton 60°, Non colorfast cotton 40°). When half-load function is active, the machine can complete the programme you have set in a shorter time.

CHAPTER 6: OPERATING YOUR MACHINE PROGRAM TABLE

PROGRAMME	TEMPERATURE(°C)	DETERGENTCOMPARTMENT	MAXIMUM AMOUNT OFDRY LAUNDRY (kg)		LAUNDRY TYPE
			LBW107E LB	W108E
1- COTTON 95 2 7	8				Very dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel(maximum 3,5 kg), bedclothes, etc.
2- COTTON ECO 60	2 2 7 8				Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel(maximum 3,5 kg), bedclothes, etc.
3- ECO 40 2 7 8					Dirty cotton and flax textiles. (Underwears, linen, tablecloth, towel(maximum 3,5 kg), bedclothes, etc.
4- SYNTHETICS 60	2 9,5 3,5				Very dirty synthetic or synthetic-mixed textiles. (Nylon socks, shirts,blouses, synthetic-including trousers etc.)
5- SILK	30	2	2.5	2.5	Less dirty silk-mixed laundries with machine wash labels.
6- WOOL 40 2 2,5 2,5	Woollen laundries with machine wash labels.
7- RINSE	-	-	7 8		If you want to additionally rinse your laundries upon completion ofwashing operation, you may use this programme for any kind oflaundries.
8- SPIN	-	-	7 8		If you want to additionally wring your laundries upon completion ofwashing operation, you may use this programme for any kind oflaundries.
9- HAND WASH	30	2	2,5	2,5	Sensitive and woollen laundries with non-machine wash labelrecommended to be washed by hand.
10- SPORTSWEAR	30 2 3,5 3,5	Sportswear.
11- MIX WASH	30	2	3,5	3,5	Dirty cotton, synthetic, colour and flax textiles can be washed together.
12- SHIRTS/BLOUSES	60 2 3,5	4			Dirty, synthetic and synthetic-mixed shirts and blouses can be washedtogether.
13- BABY WEAR	50	2	3.5	3.5	Baby clothes.
14- DAILY 60 min.	60	2	3.5	4	You can wash your dirty cotton, colour and flax textiles at 60°C in 60minutes.
15- SUPERRAPID 15 min.	30 2 2 2				You can wash your slightly dirty cotton, colour and flax textiles in 15minutes that is a short period.Note: As the washing period is short. less amount of detergent isrequired to be used compared to other programmes. The programmeperiod will increase if your machine detects instable loading. You canopen the door of your machine 2 minutes after the completion ofwashing operation. (The duration of 2 minutes required to open the doorof your machine is not included in the washing period.)

Program duration, energy consumption and water consumption values may vary according to wash load weight and type, selected extra functions, tap water and ambient temperature

CHAPTER 6: OPERATING YOUR MACHINEPROGRAM TABLE
Model	LBW107E LBW108E
PROGRAMME	Total Water Consumption	Max. T(°C)	Total Time (min)	Total Energy Consumption (kwh)	Total Water Consumption	Max. T(°C)	Total Time (min)	Total Energy Consumption (kwh)
1- COTTON 86 95 206	2,82 83 95 208	2.69
2- COTTON ECO 52	60 200 1,36 63 60	210 1,53
3- ECO 58 40 190 0,85	63 40 190 1,38
4-SYNTHETICS 69 60	101 0,90 54 60	102 0,86
5-SILK	89	30	90	0,35	86	30	90	0,28
6-WOOL	86	40	81	0,50	95	40	81	0,57
7-RINSE	55	Cold	42	0,13	50	Cold	47	0,13
8-SPIN	-	Cold	17	0,10	-	Cold	15	0,04
9-HAND WASH	86	30	93	0,32	87	30	92	0,32
10-SPORTS WEAR	58	30	76	0,30	48	30	79	0,2
11-MIX WASH	65	30	92	0,40	53	30	92	0,39
12-SHIRTS/BLOUSES	49 60 118	1,02 46 60 110 1,02
13-BABY WEAR	85	50	141	1,30	93	50	141	1,48
14-DAILY 60 min.	35	60	60	0,98	36	60	60	0,85
15-SUPER RAPID 15 min.	38	30	15	0,15	30	30	15	0,1
24

CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS

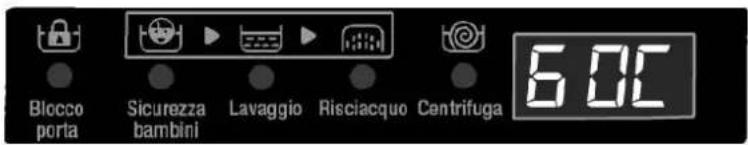

1-Washing water temperature selection

You can select the washing water temperature with the washing water temperature adjustment button.

Whenever you select a new programme, the maximum washing water temperature is shown on the washing water temperature display.

You can gradually decrease the washing water temperature between the maximum temperature and cold washing (--) by pressing washing water temperature adjustment button.

If you have missed the washing water temperature you wanted, you can return to the intended temperature by continuously pressing the washing water temperature adjustment button.

CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS

2-Auxiliary function for delay timer

By using this auxiliary function, you can let your machine start washing after 1 hour to 23 hours.

To use auxiliary function of delay timer:

• Press time delay button once.
• Expression of "1h" will appear on the display.
• Press on time delay button until the time, on which you want washing operation to be started.
• To activate the time delay you have selected in the programme, you may press on any auxiliary function button you like except "Start/Pause" button.

If you have skipped the time delay you want to set, you can go back to the time desired by keeping pressed on delay timer button.

If you want to cancel the delay timer, you are required to press the delay timer button once.

To run delay timer function, your machine is required to be operated by pressing on Start/Pause button. As soon as you start your machine, the count down process will start on the electronic display based on the delay period you have selected.

CHAPTER 6: OPERATING YOUR MACHINE AUXILIARY FUNCTIONS

3. Auxiliary function for Extra Rinse

You can have one more rinsing done in addition to the rinses which your machine has made in all washing programs by using this function

By pressing on Start/Pause button, you may start the programme you have selected, suspend a running programme. If you switch your machine to pause mode, electronic display will blink.

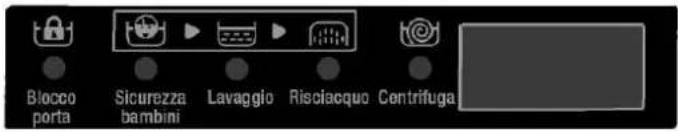

When you start your machine, the following symbols for the programmes you have selected will be available on electronic display.

• Symbols of wash, rinse or spin.
• Programme ending time or programme delay time based on your selection.
• Symbol of locked door.

To avoid programme flow from being affected if programme knobs are pressed or programme knob is turned when performing washing operation in your machine, child lock is available. The child lock will become active after the first and second function buttons on the control panel are pressed at the same time and for longer than 5 seconds.

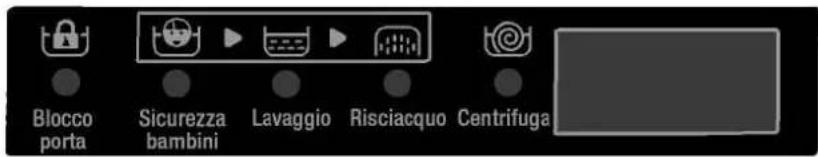

Door Lock Child Lock Wash Rinse Spin CL

Extra Rinse Delay Timer Temperature Select Start/Pause

When it becomes active the electronic display will blink "CL" and child lock light will light up.

If pressed any button while child lock is active, child lock light will blink on the electronic display.

When any of the programmes is running and child lock is active, if another programme is selected after programme knob is switched to 0 position, the programme already running will resume.

To deactivate it, it will be sufficient to press on the same buttons for more than 5 seconds. When child lock is deactivated, child lock light on the electronic display will go off.

CHAPTER 6: OPERATING YOUR MACHINE CANCELLING PROGRAMME

Cancelling programme

If you want to cancel any programme running:

- Switch the programme knob to 0.

- Your machine will stop the washing operation and the programme will be cancelled.

- To get rid of the water accumulated in the machine switch the programme knob to any programme.

- Your machine will perform the necessary discharge operation and cancel the programme.

- You can run your machine by selecting a new programme.

CHAPTER 6: OPERATING YOUR MACHINE FINISHING PROGRAMME

Finishing programme

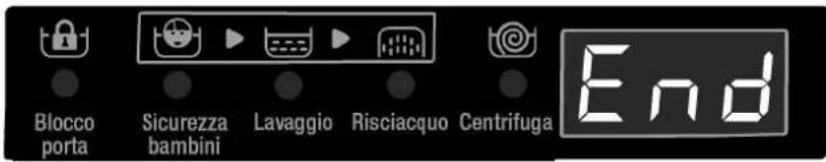

• Your machine will stop by itself as soon as the programme you have selected finishes.
  -Door lock light of extinguish.
  -Expression of "END" will flash on the electronic display.

• Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundries.
• Switch the programme knob to 0.
• Unplug your machine.
• Turn the water faucet off.

CHAPTER -7: WARNING SYMBOLS

WARNING OF WATER CUT-OFF / LOW MAINS WATER

PRESSURE

If symbol flashes on the control panel:

• Water faucet may be closed. Check.
• Mains water may be cut-off. Check. If so, switch the programme knob to position 0. You can select a programme and run your machine after the mains water is supplied.
• Mains water pressure may be low. Check.
• Water inlet hose may be twisted. Check.
• Water inlet hose may be clogged. Clean water inlet hose filters. (*)
• Valve inlet filter may be clogged. Clean the valve inlet filters. (*)

Rajido s Stop Cotone Quantiluno or Cotone ECD Baby 40° ECD Camicle Sensene Mix 30° Delta Sport Lava Levaggio a mano Scania/Cervinha Ricciarpon 400 550 850 700 LBW108E + Busca bath Busanza lattea Lavaggi Ricciarsoni Derrifuga Ricciarpon aggiuntivo Parionza diffeita Soluzione temperature Anvia/ Piazza Volumeplus Skg

(*) See the chapter regarding maintenance and cleaning of your machine.

CHAPTER -7: WARNING SYMBOLS WARNING OF CLOGGED PUMP FILTER

If symbol flashes on the control panel:

- Pump filter may be clogged. Clean the pump filter. (*) - Discharging hose may be clogged or twisted. Check the discharging hose.

Rapidus Quandiano or Baby Camella Mix 30' Sport Lavaeggio a mone Stop Cutane Cutane ECD 400 500 1000 400 850 700 1550 LRF/100E A+ Volume Anti Svrazza Mamma Langege Ricciarque Lambroge Ricciarque appiettivo Partecsa diffetta Seluzione temperatura Avvia/ Passa Volumepilus 5kg

(*) See the chapter regarding maintenance and cleaning of your machine.

CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE

• Unplug your machine.
• Turn the water faucet off.

WATER INLET FILTERS

Filters to avoid dirt and foreign substances in the water from penetrating into the machine are available both on the side of faucet and on the ends of water valves along the water inlet hose of your machine. If your machine cannot intake sufficient amount of water despite water faucet being open, these filters should be cleaned.

• Detach the water inlet hoses.
- Remove the filters on water inlet valves using pliers and then clean it with a brush in water.
- Disassemble the filters on the side of faucet side of water inlet hoses manually and clean it.
- Having the filters cleaned, you can fit them in the same way reversely.

CAUTION: Filters of water inlet valves may be clogged due to

contaminated water faucet or lack of necessary maintenance or valves may be broken down, causing water leaking into your machine continuously. For these reasons, breakdowns that may arise are out of scope of warranty.

CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / PUMP FILTER

A filter system which avoids threads remaining from your laundries and tiny materials from entering into the pump during water discharging operation carried out by your machine after completing washing so prolonging the lifecycle of your pump is available. It is recommended that you clean your pump filter once in 2 months. To clean pump filter:

- Depress the lug downwardly to uncover the pump section of the toe board and pull it towards yourself and extract it.

Simple line drawing of a room layout with a circular top and rectangular walls (no text or symbols)

Simple line drawing of a room with a large wall and a small circular object inside (no text or symbols)

- Before opening the filter cover, settle a vessel in front of the filter cover to prevent the water remained in the machine from flowing on the ground.

Simple line drawing of a rectangular frame with a curved top edge and a small horizontal line at the bottom (no text or symbols)

CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / PUMP FILTER

• After cleaning the filter, fit the filter cover by rotating it in clockwise.
• Fit the pump section of the toe board.
- Remember that water will leak if you do not fit the filter cover properly.
- You can use the pump section of the toe board for discharging slight amount of water remaining in the pump of your machine.

WARNING!

As water in the pump may be hot, wait until it cools down.

CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / DETERGENT DRAWER

Your detergents may deposit residue in detergent drawer and housing of detergent drawer over time. To clean the residue formed, disassemble the detergent drawer in particular periods. To eject the detergent drawer:

• Pull the detergent drawer up to the end

Simple line drawing of a doorway with a handle, no text or symbols present

- Keep on pulling by depressing on the flush cover in the detergent drawer already being pulled up to the end and then unsettle the detergent drawer.

Hand inserting a component into a device (no text or symbols visible)

CHAPTER -8: MAINTENANCE AND CLEANING OF YOUR MACHINE / SIPHON PLUG / BODY / DRUM

Siphon plug

Disassemble the detergent drawer. Disassemble the flush stopper and clean the softener residues completely. Refit the flush stopper after cleaning it. Check whether it has settled properly.

Line drawing of a boat with a submerged object and numbered parts (no text or symbols)

Body

Clean the outer body of your machine with warm water and a non-inflammable cleaning agent that will not abrade the body of your machine. After rinsing with some water, dry it using a soft and dry cloth.

Drum

Do not leave metallic objects such as needles, paper clips, coins, etc. in your machine. This objects will lead to formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturers of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

CHAPTER -9: PRACTICAL INFORMATION

Alcoholic drinks: Spotted area should initially be washed using cold water, and then be wiped with glycerine and water and rinsed with vinegar-mixed water.

Shoe shine: Spot should be rubbed out gently without damaging the cloth and be scrubbed and rinsed with detergent. If not removed, it should be scrubbed using the mixture obtained by adding 1 scale of alcohol (96') into 2 scales of water, and then be washed with warm water.

Tea and coffee: Stretch the spotted area of your laundry throughout the opening of a vessel, and pour hot water as much as the type of your laundry can resist. In case the type of your laundry permits, wash with bleacher.

Chocolate and cocoa: After submerging you laundries in cold water and rubbing it using soap or detergent, wash it in temperature that fabric type of your laundry can resist. In case oil stain is still visible, wipe with oxygen water (3%).

Tomato paste: After rubbing out the dried substances without damaging your laundry, submerge it in water for 30 minutes, and then scrub and wash it with detergent.

Bouillon-egg: Remove dried spot residues on your laundry, and then wipe it with a sponge or soft cloth submerged in cold water previously. Scrub with detergent, wash with diluted bleacher.

CHAPTER -9: PRACTICAL INFORMATION

Blood stain: Submerge your laundries in cold water for 30 minutes. If the stain is not removed, then submerge in a mixture of water and ammoniac (3 spoons of ammoniac in 4 litres of water) for 30 minutes.

Cream, ice cream and milk: Submerge your laundries in cold water and scrub the spotted area with detergent. If the spot is not removed, apply bleacher to the extent suitable for your laundries. (Do not use bleacher for colour laundries.)

Muff: Muff stains should be cleaned as soon as possible. Stain should be washed with detergent water, nevertheless if it cannot be removed, it should be wiped with oxygen water (3%).

Ink: Subject the spotted area to running water and wait until the flow of inked water ends. Then, wipe it with lemon-added water and detergent, and wash it after allowing 5 minutes.

Fruit: Stretch the spotted area of your laundry throughout the opening of a vessel, and pour cold water on it. Do not pour hot water on the spot. Wipe with cold water and apply glycerine. Allow 1-2 hours, wipe with a few drops of white vinegar, and rinse it.

Grass stain: Wipe the stained part with detergent. If type of your cloth permits bleacher using, wash with bleacher. Wipe your woollen laundries with alcohol. (For colour fabrics, a mixture of 1 scale of pure alcohol and 2 scales of water)

Oil paint: Spot should be removed by applying thinner before drying. Then, it should be wiped with detergent and washed.

Burn stain: If your laundry is suitable for applying bleacher, you can add bleacher into washing water. For woollen fabrics, a cloth previously submerged in oxygen water should be covered over the stain, and it should be ironed after putting a dry cloth on this cloth. It should be washed after being rinsed properly.

CHAPTER -10: TROUBLESHOOTING

All repairing operations required for your machine should be carried out by our authorised service. If your machine requires a repair or if you cannot remove the fault by the help of the information provided as follows:

• Unplug your machine.
• Turn the water faucet off.
- Contact the nearest authorised service.

FAULT	POSSIBLE CAUSE	REMOVING METHODS
Your machine does not start.	It is not plugged.	Plug it.
	Fuses out of order.	Replace the fuses.
	Electricity cut-off.	Check mains power.
	Start/pause button not pressed.	Press on start/pause button.
	Programme knob on position 0.	Switch the programme knob to the desired position.
	The machine door not completely closed.	Close the machine door.
Your machine does	Your faucet turned off.	Turn your faucet on.
	Water inlet hose may be twisted.	Check water inlet hose.
	Water inlet hose clamped.	Clean water inlet hose filter (*)

CHAPTER -10: TROUBLESHOOTING

FAULT POSSIBLE CAUSE		REMOVING METHODS
Your machine does not discharge water.	Discharging hose clogged or twisted.	Check the discharging hose.
	Pump filter clogged.	Clean the pump filter. (*)
	Laundries settled in the machine non-homogeneously.	Spread your laundries in the machine properly and homogeneously.
Your machine vibrates.	The stays of your machine not adjusted.	Adjust the stays of your machine. (**)
	Safety assembly fitted for transport not disassembled.	Disassemble the safety assembly of your machine. (**)
	Less amount of laundries in the appliance.	This will not block operation of your machine.
	Your machine overloaded with laundries or laundries settled non-homogeneously	Do not put laundries more than the amount recommended and settle the laundries in the machine homogeneously.
	Your machine rests on a hard surface.	Prevent your machine from resting on hard surfaces. When settling your machine, leave 2 cm space between it and wall or hard surfaces.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

CHAPTER -10: TROUBLESHOOTING

FAULT POSSIBLE CAUSE		REMOVING METHODS
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press on Start/Pause button. To eliminate foam formation, mix a spoon of softener with half litres of water, and pour the mixture in the detergent drawer. After 5-10 minutes, press on Start/Pause button again. In next washing operation, decide the dose of detergent as required.
	Wrong detergent used..	Use detergents produced only for automatic washing machines in your machine.
Unsatisfactory washing result.	The contamination degree of your laundries does not match the programme you have chosen.	Select the programme appropriate for the contamination degree of your laundries. (see programme table)
	Amount of detergent used insufficient.	Adjust the amount of detergent based on the amount and contamination degree of your laundries.
	Laundries in excess of maximum capacity put in your machine.	Load your machine with laundries, amount of which will not exceed maximum laundry capacity

CHAPTER -10: TROUBLESHOOTING

FAULT POSSIBLE CAUSE		REMOVING METHODS
Unsatisfactory washing result.	Water being hard. (Dirty, hard, etc.)	Adjust the amount of detergent based on the instruction of detergent manufacturer.
	Laundries distributed in your machine non-homogenously.	Spread your laundries in the machine properly and homogeneously.
As soon as the machine is loaded with water, water discharges.	The end of water discharging hose is too low for the machine.	Set the water discharging hose on appropriate height. (**)
No water appears in the drum during washing.	No fault. Water in the non-visible part of the drum.	-
Laundries have detergent residues on them.	Non-dissolving particles of some detergents may adhere to your laundries as white spots.	Perform an extra rinsing by setting your machine to “Rinsing” programme, or clean the spots using a brush after your laundries dries.
Grey spots appear on the laundries.	The reason for this spots may be oil, cream or ointment.	Apply the maximum amount of detergent instructed by the detergent manufacturer in the next washing operation.

(**) See the chapter regarding installation of your machine.

CHAPTER -10: TROUBLESHOOTING

FAULT POSSIBLE CAUSE		REMOVING METHODS
Wringing operation is not performed or runs late.	No fault. Unbalanced load control system has been activated.	Unbalanced load control system will try to spread your laundries homogeneously. Wringing operation will start after spreading your laundries. Put your laundries in the machine homogeneously in the next washing operation.

CHAPTER -11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE

Your machine is equipped with the systems which are capable of both taking necessary precautions and warning you in case of any breakdown by means of continuous self-checking during washing operations.

TROUBLE CODE	POSSIBLE FAULT	WHAT TO DO
E01	The door of your machine is left open.	Close the machine door. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service immediately.
E03	Pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service. (*)
E04	Your machine has excessive amount of water.	Your machine will discharge water by itself. Pursuant to discharging operation, turn off your machine and unplug it. Turn off your faucet and contact the nearest authorised service.

(*) See the chapter regarding maintenance and cleaning of your machine.

CHAPTER -11: AUTOMATIC FAULT WARNINGS AND WHAT TO BE DONE

TROUBLE CODE	POSSIBLE FAULT	WHAT TO DO
	Water cut-off or low mains water pressure.	- Water faucet may be closed. Check.- Mains water may be cut-off. Check.- If so, switch the programme knob to position 0. You can select a programme and run your machine after the mains water is supplied.- Mains water pressure may be low. Check.- Water inlet hose may be twisted. Check.- Water inlet hose may be clogged.- Clean water inlet hose filters. (*)- Valve inlet filter may be clogged.- Clean the valve inlet filters. (*)If the problem persists, unplug your machine, turn off your faucet and contact the nearest authorised service.
	Pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	- Pump filter may be clogged. Clean the pump filter. (*)- Discharging hose may be clogged or twisted. Check the discharging hose.If the problem persists, contact the nearest authorised service. (*)

CHAPTER -12: DESCRIBING SAVING ENERGY

Energy and water consumption may vary based on water pressure, water hardness, water temperature, ambient temperature, laundry amount, additional function selection, voltage fluctuations.

It will reduce energy and water consumption to use your machine with the laundry capacity proposed for the selected programme, wash your laundries less dirty or daily laundries in short programmes, carry out cleaning and maintenance periodically, use your machine in convenient time intervals specified by electricity vendor.

DISPOSAL OF YOUR OLD MACHINE

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment. You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring that this product is annihilated properly. Recycling materials will help natural resources be preserved. For more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product.

CE

52068303
