USER MANUAL S2722DGM DELL

Dell 27 Curved Gaming Monitor -S2722DGM

User's Guide

NOTE: A NOTE indicates important information that helps you make better use of your computer.
△ CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.
WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2021 - 05

Rev. A00

Contents

Safety instructions.... 5

About your monitor 6

Package contents 6

Product features....8

Identifying parts and controls .....9

Front view 9

Back view 10

Bottom view 11

Monitor specifications ..... 13

Resolution specifications ..... 14

Preset display modes ..... 15

Electrical specifications. 16

Physical characteristics. 17

Environmental characteristics 18

Pin assignments 19

Plug-and-Play 21

LCD monitor quality and pixel policy 21

Ergonomics. 21

Handling and moving the monitor ..... 23

Maintenance guidelines 24

Cleaning the monitor 24

Setting up the monitor 25

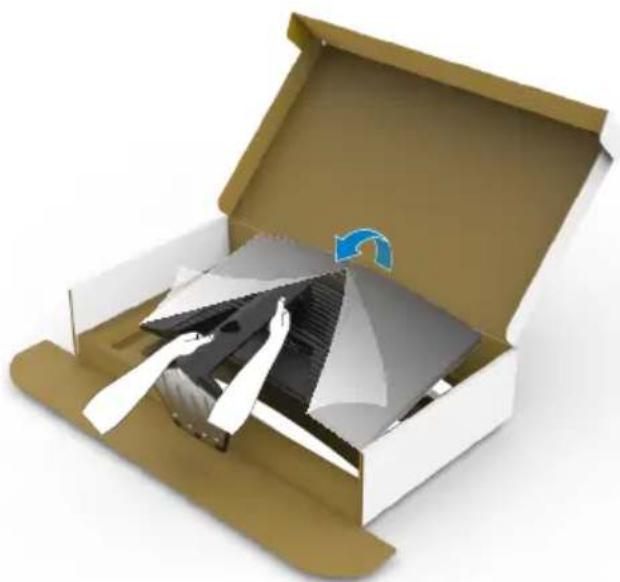

Connecting the stand 25

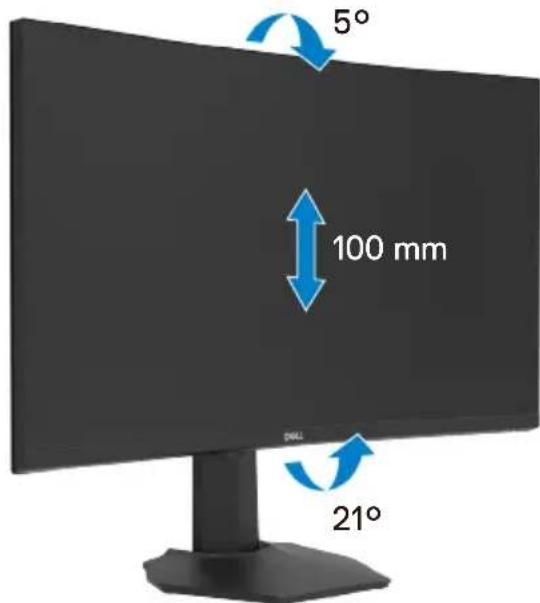

Using the tilt and vertical extension. 28

Connecting the monitor 29

Organizing the cables 30

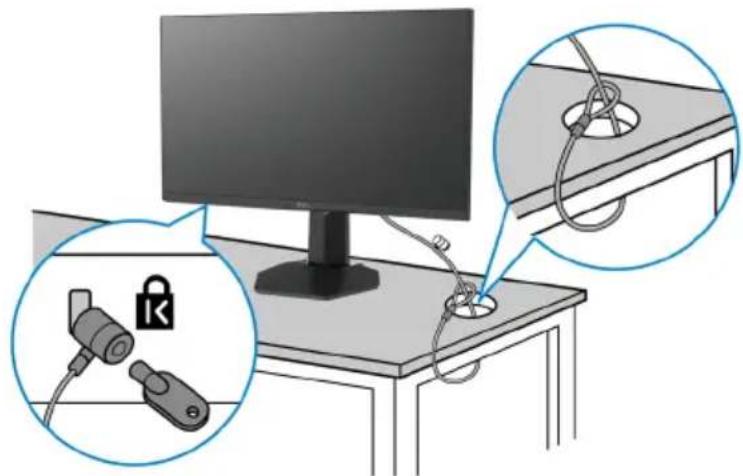

Securing the monitor using Kensington lock (optional) . 31

Removing the monitor stand 32

Wall mounting (Optional) 33

Operating the monitor 34

Turning on the monitor 34

Using the joystick control 34

Using the rear-panel controls 35

Using the On-Screen Display (OSD) menu ..... 37

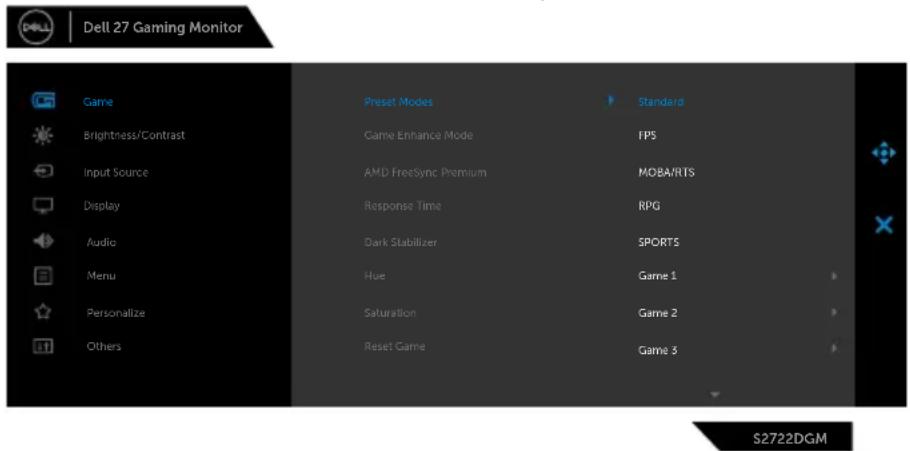

Accessing the menu system 37

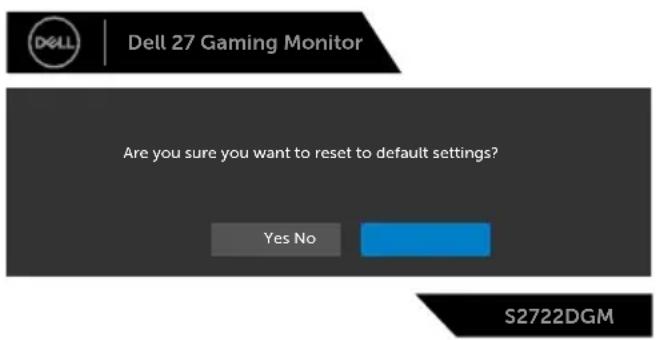

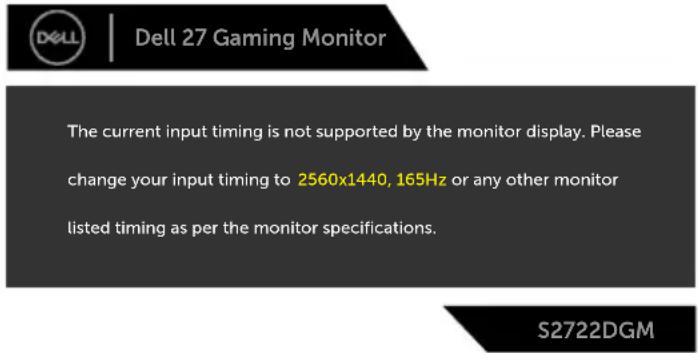

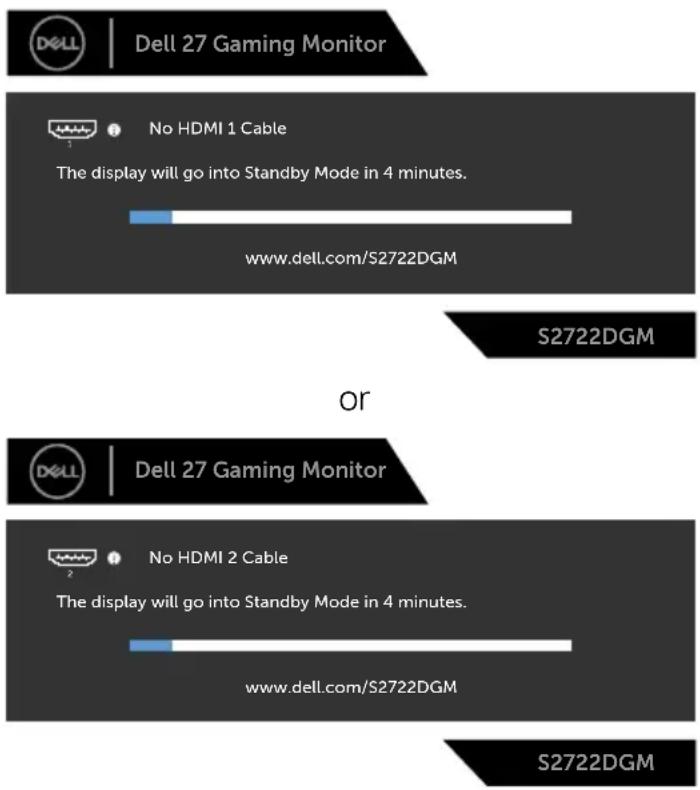

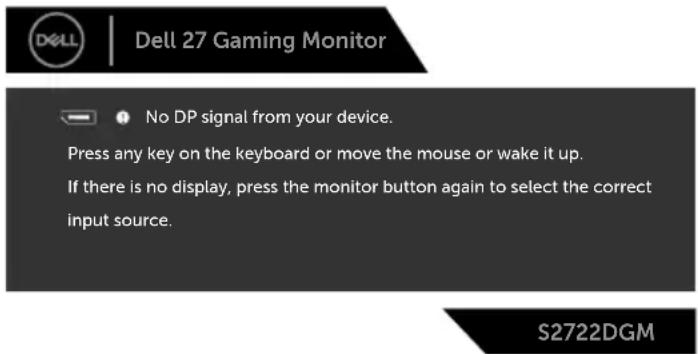

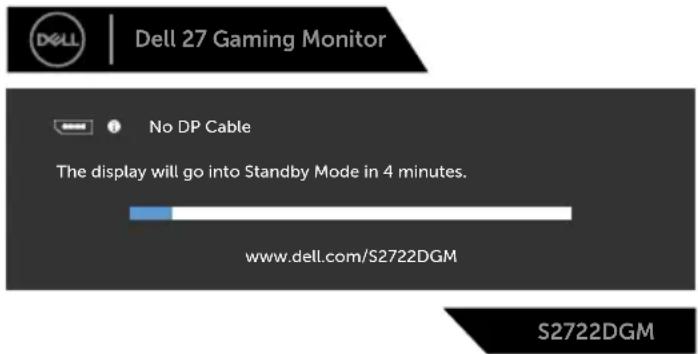

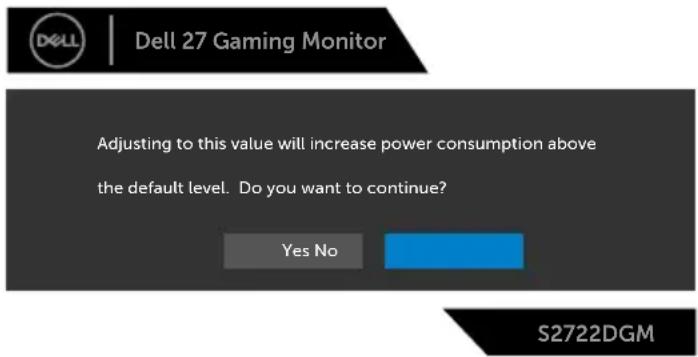

OSD warning messages 47

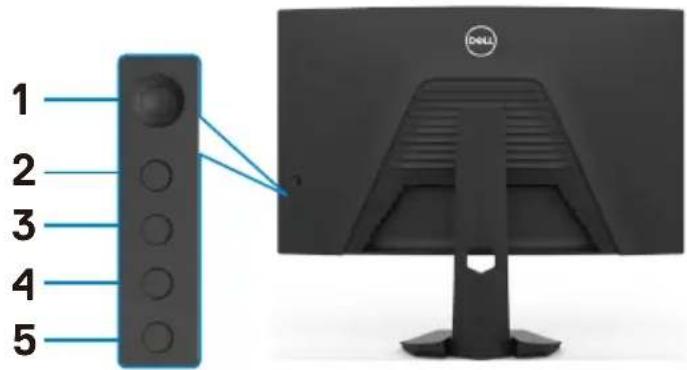

Locking the rear-panel control buttons. . . . . . . . . . . . . . . . . 50

Setting the maximum resolution 51

Troubleshooting 52

Self-test 52

Built-in diagnostics 54

Common problems 55

Product specific problems. 57

Appendix. 58

FCC notices (U.S. only) and other regulatory information 58

Contacting Dell. 58

EU product database for energy label and product information sheet 58

Safety instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

• Place the monitor on a solid surface and handle it carefully. The screen is fragile and can be damaged if dropped or hit sharply.
• Always be sure that your monitor is electrically rated to operate with the AC power available in your location.
• Keep the monitor in room temperature. Excessive cold or hot conditions can have an adverse effect on the liquid crystal of the display.
• Do not subject the monitor to severe vibration or high impact conditions. For example, do not place the monitor inside a car trunk.
• Unplug the monitor when it is going to be left unused for an extended period of time.
• To avoid electric shock, do not attempt to remove any cover or touch the inside of the monitor.

For information on safety instructions, see the Safety, Environmental, and Regulatory Information (SERI) document.

About your monitor

Package contents

Your monitor ships with the components shown in the table below. Ensure that you have received all the components and Contact Dell if anything is missing.

NOTE: Some components may be optional and may not ship with your monitor. Some features may not be available in certain countries.

	Display
	Stand riser
	Stand base
	Power cable (varies by country)
	HDMI cable

Screenshot of a scientific diagram with labeled components and schematic diagrams, likely illustrating a scientific or engineering concept.

DisplayPort (DP) cable (DP to DP)

• Quick Start Guide
  • Safety, Environmental, and Regulatory Information

Product features

The Dell 27 Curved Gaming Monitor-S2722DGM has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), and LED backlight. The monitor features include:

- 68.47 cm (27 in.) viewable area (measured diagonally), 2560 x 1440 (16:9) resolution, plus full-screen support for lower resolutions.

• Color gamut of 99% sRGB.

• Digital connectivity with DisplayPort and HDMI.

- Enabled with gaming console VRR supportability.

- Tilt and height adjustment capabilities.

- Removable-pedestal stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

- Plug and Play capability, if supported by your computer.

- On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.

- Game-enhanced features such as Timer, Frame Rate Counter and Dark Stabilizer in addition to enhanced game modes such as FPS, MOBA/RTS, SPORTS, or RPG, and 3 additional game modes to personalize your preferences.

• Power and OSD buttons lock.

- Security-lock slot.

- Stand lock.

- ≤ 0.3 W in Standby mode.

- AMD FreeSync™ Premium Technology, which minimizes graphic distortions like screen tearing and stuttering for smoother, fluid gameplay.

- Supports high refresh rates of 144 Hz and 165 Hz and a rapid response time of 1 ms in MPRT mode*.

- Dell Premium Panel Exchange for peace of mind.

- Optimize eye comfort with a flicker-free screen and ComfortView feature which minimizes blue light emission.

WARNING: The possible long-term effects of blue-light emission from the monitor may cause damage to the eyes, including eye fatigue, digital eye strain, and so on. The ComfortView feature is designed to reduce the amount of blue-light emitted from the monitor to optimize eye comfort.

* 1 ms is achievable in the MPRT mode and reduces visible motion blur and increases image responsiveness. However, this may introduce some slight and noticeable visual artifacts into the image. As every system setup and every gamer's needs are different, we recommend that users experiment with the different modes to find the setting that is right for them.

Identifying parts and controls

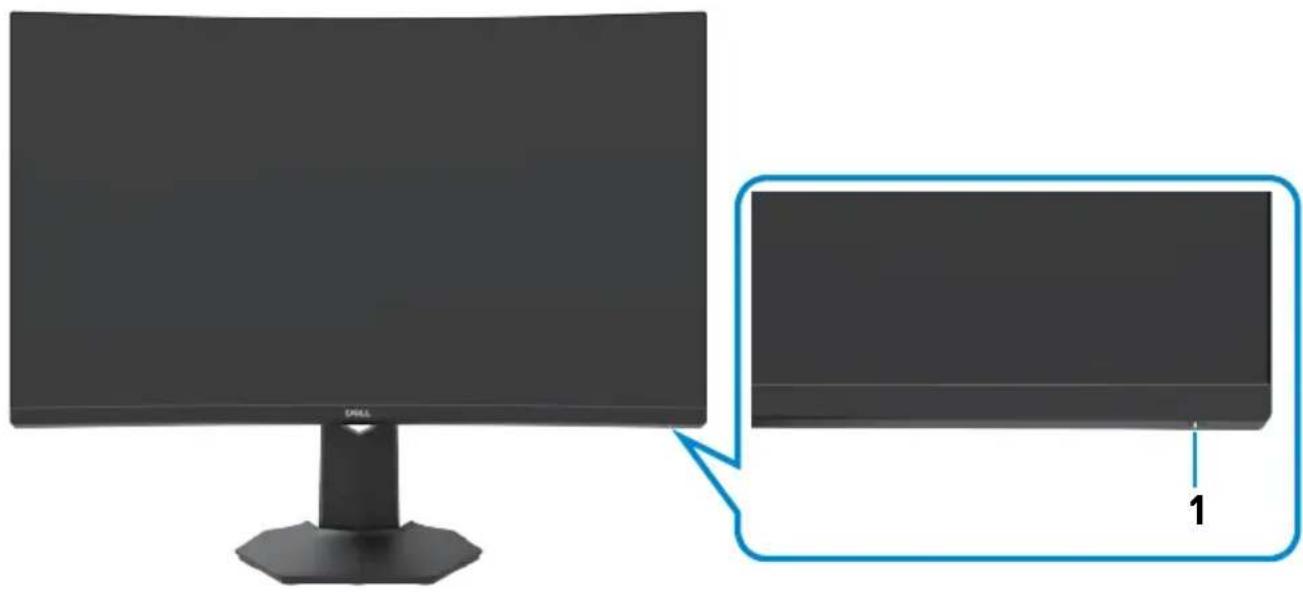

Front view

Computer monitor with a Drell brand logo and a zoomed-in view showing a small screen labeled '1' (no text or symbols on the screen itself)

Label Description Use
1 Power -status light	Solid white: The monitor is turned on and functioning correctly.Blinking white: The monitor is in Standby mode.

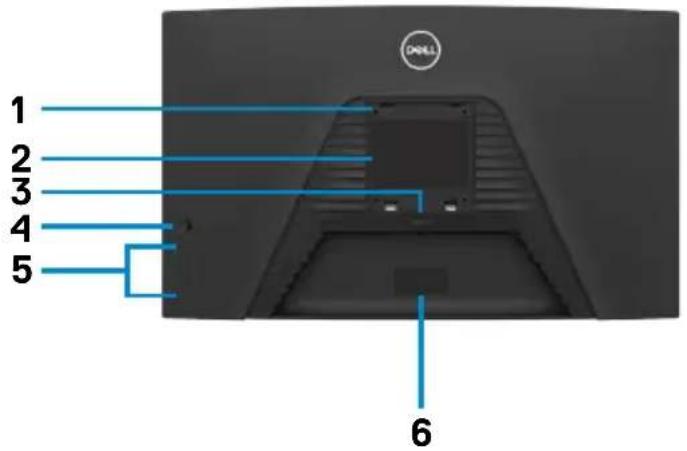

Back view

1 2 3 4 5 6

Front view of a black Dell computer monitor with a blue indicator line pointing to the side panel (no text or symbols on the screen)

Label	Description Use
1 VESA	mounting holes (100 mm x 100 mm-behind attached VESA cover)	Wall mount the monitor using a VESA-compatible wall-mounting kit (100 mm x 100 mm).
2 Regulatory label Lists the regulatory approvals.
3 Stand-release button Releases stand from the monitor.
4 Joystick Use it to control the OSD menu.

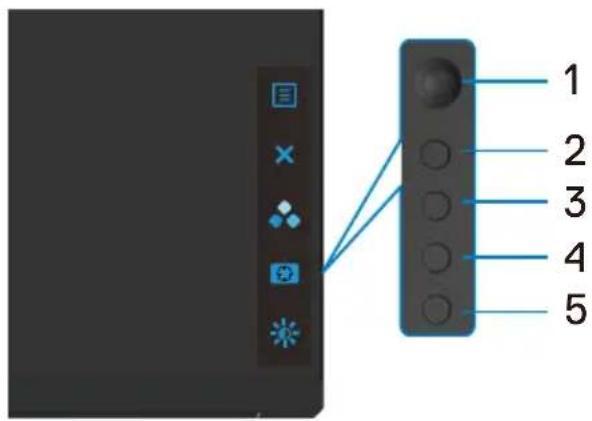

5 Function buttons Use the function buttons to adjust items in the OSD menu. For more information, see Operating the monitor.
6 Barcode, serial number, and Service Tag label		Refer to this label if you need to contact Dell for technical support. The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

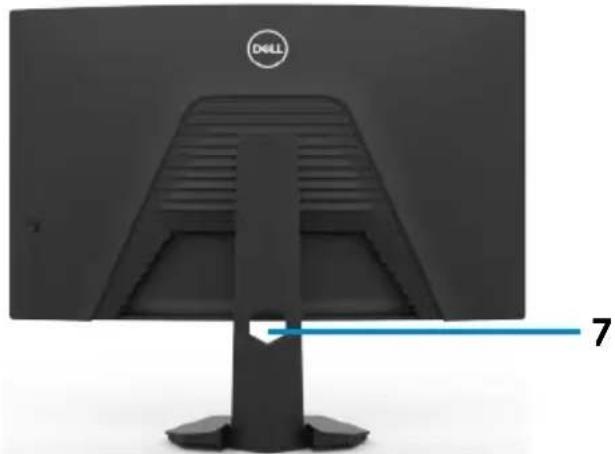

7 Cable-management slot Organizes the cables when the cables are routed through the slot.

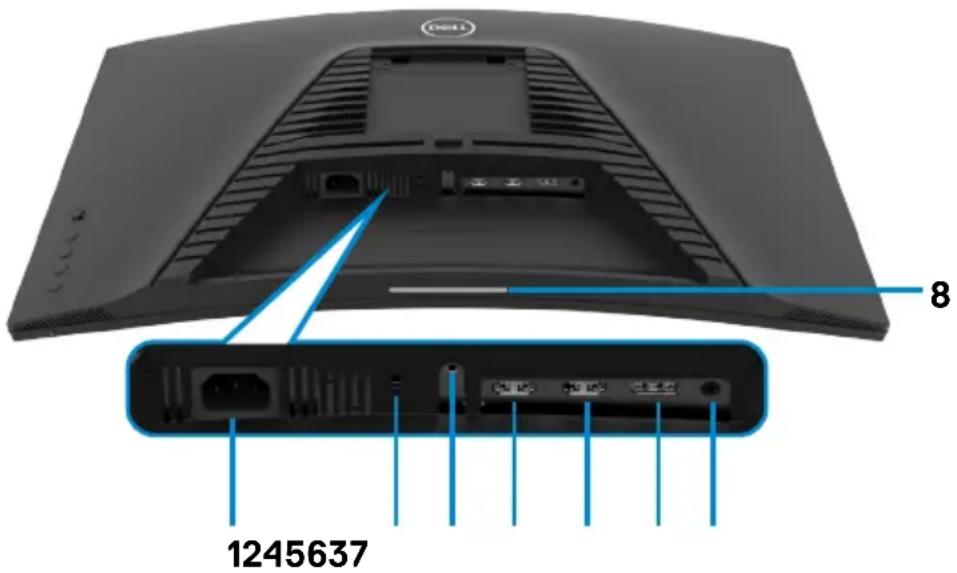

Bottom view

8 1245637

Label	Description Use
1	Power port Connect the power cable (shipped with your monitor).
2	Security-lock slot Secures monitor with security cable lock (sold separately).
3	Stand lock Lock the stand to the monitor using a M3 x 6 mm screw (screw not included).
4	HDMI port (HDMI 1) Connect the HDMI cable (shipped with your monitor).
5	HDMI port (HDMI 2) Connect the HDMI cable (shipped with your monitor).
6	DisplayPort Connect the DisplayPort (DP) cable.
7	Headphone out port Connect the headphones to the computer.CAUTION: Increasing the audio output beyond 50% on the volume control or equalizer may increase the output voltage on the headphones thereby increasing the sound pressure levels.

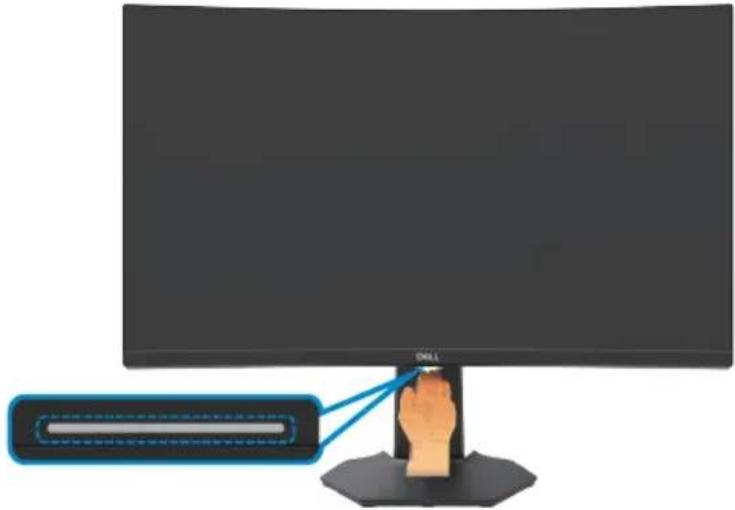

8 Downlights When the monitor setup is complete, tap the touch sensor at the bottom of the display to turn the downlights on or off. The factory setting is on, so the downlights are active if the power cable is connected (seeDownlight).

Monitor specifications

Screen type Active matrix - TFT LCD
Panel type Vertical Alignment	(VA)
Aspect ratio 16:9
Viewable image dimensions
Diagonal 684.70 mm (27 in.)
Active area
Horizontal	596.73 mm (23.49 in.)
Vertical 335.66 mm (13.21 in.)
Area 200301.7 mm	^2 (310.30 in. ^2 )
Pixel pitch 0.2331 mm x 0.2331 mm
Pixel Per Inch (PPI) 108.79
Viewing angle
Horizontal 178° (typical)
Vertical 178° (typical)
Brightness 350 cd/m ^2 (typical)
Contrast ratio 3000 to 1 (typical)
Curvature Curvature 1500R
Display screen coating Anti-glare treatment of the front polarizer, 3H hard coating
Backlight	LED edge-lit system
Response time (Gray to Gray)	6 ms (Fast mode)4 ms (SuperFast mode)2 ms (Extreme mode)1 ms (MPRT mode)NOTE: In Extreme mode, slight artifacts may be encountered due to overdriving. Use Super Fast/Fast mode for optimal front of screen experience and game play.
Color depth	16.7 million colors
Color Gamut	sRGB 99% (typical)
Connectivity	·1 x Display 1.2 port·2 x HDMI 2.0 port·1 x Audio headphone port (3.5 mm jack)
Border width (edge of monitor to active area)
Top 7.68 mm
Left/Right 7.73 mm
Bottom 20.94 mm
Adjustability
Height adjustable stand 100	mm
Tilt -5° to 21°
Cable management Yes
Dell Display Manager (DDM) Compatibility	Easy Arrange and other key features
Security Security lock slot (cable lock sold separately)

Resolution specifications

Resolution specifications	HDMI DisplayPort
Maximum preset resolution	2560 x 1440 at 144 Hz	2560 x 1440 at 165 Hz
Horizontal scan range 30 kHz to 230 kHz	30 kHz to 250 kHz
Vertical scan range	48 Hz to 144 Hz	48 Hz to 165 Hz
Video display capabilities (HDMI & DisplayPort alternate mode)	480p@60Hz, 576p@50Hz, 720p@50Hz, 720p@60Hz, 1080p@50Hz, 1080p@60Hz, 1080p@120Hz

Preset display modes

Display mode Horizontal frequency (kHz)	Vertical frequency (Hz)	Pixel clock (MHz)	Sync polarity (Horizontal/ Vertical)
VGA 720 x 400	31.47	70.08	-/+
VGA 640 x 480	31.47	59.94	-/-
VESA 640 x 480	37.50	75	-/-
VESA 800 x 600	37.88	60.32	40
VESA 800 x 600	46.88	75	49.50
VESA 1024 x 768	48.36	60	65
VESA 1024 x 768	60.02	75.03	78.75
MAC 1152 x 864 67.50 75	108 +/+
CVT 1280 x 800	49.70	59.81	83.50
VESA 1280 x 1024	64	60.02	108
VESA 1280 x 1024	80	75.02	135
VESA 1600x 1200	75	60	175.50
VEST 1680 x 1050	65.29	59.95	146.25
CVT 1920 x 1080	67.50	60	148.50
CEA 1920 x 1080	135	120	297
VEST 1920 x 1200	74.04	59.89	154
CVT 2560 x 1440	88.79	59.95	241.50
CVT 2560 x 1440	183	120	497.75
CVT 2560 x 1440	222.06	143.91	592
CVT 2560 x 1440 244.32	165 645	+/+

Electrical specifications

Video input signals · Digital video signal for each differential line.Each differential line is rated at 100 ohm impedance.• DisplayPort/HDMI signal input support.
Input voltage/frequency/current 100	-240 VAC / 50 or 60 Hz ± 3 Hz / 1.50 A (maximum)
In-rush current 120 V: 30 A (Max.)	240 V: 60 A (Max.)
Power consumption 0.20 W (Off mode)	10.21 W (Standby mode)125.3 W (On mode)156 W (Max.)220.97 W ( P_on )365.55 kWh (TEC)3

^1 As defined in EU 2019/2021 and EU 2019/2013.
^2 Max brightness and contrast setting.
^3 P _on : Power consumption of On mode measured with reference to Energy Star test method.

TEC: Total energy consumption in kWh measured with reference to Energy Star test method.

Physical characteristics

Connector type · One Display 1.2 port	· Two HDMI 2.0 ports · One headphone port
Signal-cable type · HDMI cable (1.80 m) · DisplayPort cable (1.80 m)
Dimensions (with stand):
Height (extended) 493.21 mm (19.42 in.)
Height (compressed) 393.21 mm (15.48 in.)
Width 608.38 mm (23.95 in.)
Depth 190.37 mm (7.49 in.)
Dimensions (without stand):
Height 364.14 mm (14.34 in.)
Width 608.38 mm (23.95 in.)
Depth 96.28 mm (3.79 in.)
Stand dimensions:
Height (extended) 386 mm (15.20 in.)
Height (compressed) 337 mm (13.27 in.)
Width 230.25 mm (9.06 in.)
Depth 190.37 mm (7.49 in.)
Weight
Weight with packaging 9.12 kg (20.10 lb)
Weight with stand assembly and cables	6.17 kg (13.59 lb)
Weight without stand assembly (For wall mount or VESA mount considerations - no cables)	4.24 kg (9.35 lb)
Weight of stand assembly	1.59 kg (3.51 lb)

Environmental characteristics

Compliant Standards
• RoHS Compliant• BFR/PVC Free monitor (excluding external cables)• Arsenic-free glass and mercury-free glass (panel only)
Temperature
Operating 0	°C to 40°C (32°F to 104°F)
Non-operating -20	°C to 60°C (-4°F to 140°F)
Humidity
Operating 10% to 80% (non-condensing)
Non-operating 5% to 90% (non-condensing)
Altitude
Operating 5,000 m (16,404 ft) (maximum)
Non-operating 12,192 m (40,000 ft) (maximum)
Thermal dissipation 191.08 BTU/hour	(maximum)86.33 BTU/hour (On mode)

Pin assignments

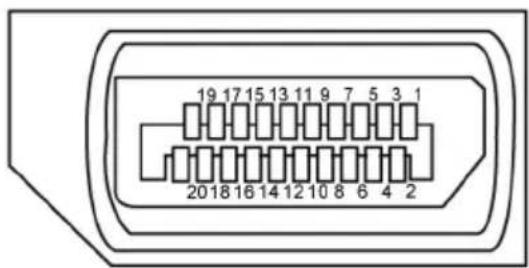

DisplayPort

19 17 15 13 11 9 7 5 3 1 20 18 16 14 12 10 8 6 4 2

Pin number	20-pin side of the connected signal cable	Pin number	20-pin side of the connected signal cable
1 ML3 (n)	11 GND
2 GND 12	ML0 (p)
3 ML3 (p)	13 CONFIG1
4 ML2 (n)	14 CONFIG2
5 GND 15	AUX CH (p)
6 ML2 (p)	16 GND
7 ML1 (n)	17 AUX CH (n)
8 GND 18	Hot Plug Detect
9 ML1 (p)	19 Return
10 ML0 (n)	20 DP_PWR

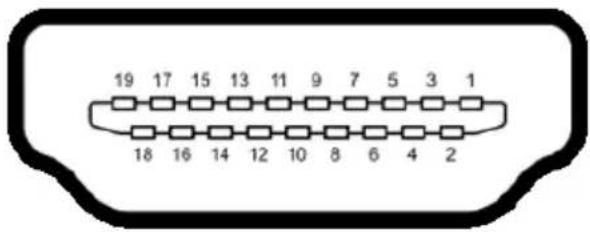

HDMI port

19 17 15 13 11 9 7 5 3 1 18 16 14 12 10 8 6 4 2

Pin number	19-pin side of the connected signal cable	Pin number	19-pin side of the connected signal cable
1 TMDS DATA 2+ 11 TMDS CLOCK SHIELD
2 TMDS DATA 2 SHIELD 12 TMDS CLOCK-
3 TMDS DATA 2- 13 CEC
4	TMDS DATA 1+	14	Reserved (N.C. on device)
5 TMDS DATA 1 SHIELD 15 DDC CLOCK (SCL)
6 TMDS DATA 1- 16 DDC DATA (SDA)
7	TMDS DATA 0+	17	DDC/CEC Ground
8 TMDS DATA 0 SHIELD 18 +5 V POWER
9 TMDS DATA 0- 19 HOT PLUG DETECT
10	TMDS CLOCK+

Plug-and-Play

You can install the monitor in any Plug-and-Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the computer can configure itself and optimize the monitor settings. Most monitor installations are automatic; you can select different settings if desired. For more information about changing the monitor settings, see Operating the monitor.

LCD monitor quality and pixel policy

During the LCD monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on LCD Monitor Pixel Policy, see Dell support site at: https://www.dell.com/pixelguidelines.

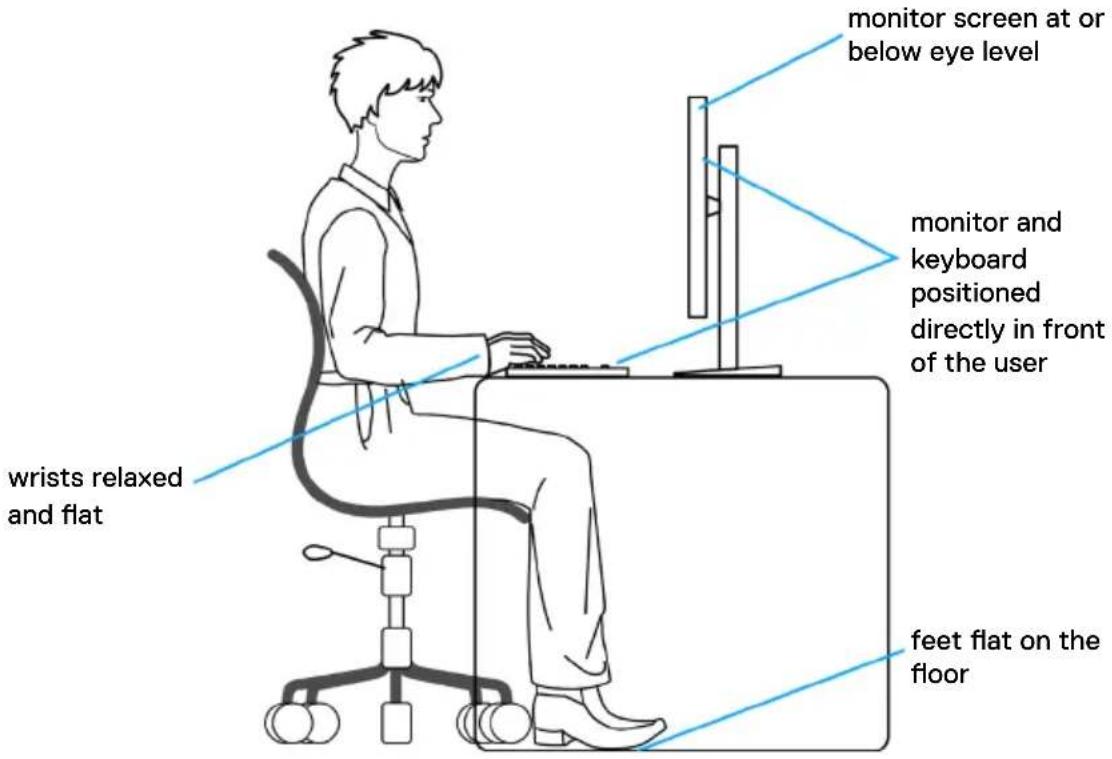

Ergonomics

WARNING: Improper or prolonged usage of keyboard may result in injury.
⚠ WARNING: Viewing the monitor screen for extended periods of time may result in eye strain.

For comfort and efficiency, observe the following guidelines when setting up and using your computer workstation:

• Position your computer so that the monitor and keyboard are directly in front of you as you work. Special shelves are commercially available to help you correctly position your keyboard.

• To reduce the risk of eye strain and neck/arm/back/shoulder pain from using the monitor for long periods of time, we suggest you to:

• Set the screen about 20 to 28 in. (50-70 cm) from your eyes.

• Blink frequently to moisten or rewet your eyes when working with the monitor.
• Take regular and frequent breaks for 20 minutes every two hours.
• Look away from your monitor and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.
• Perform stretches to relieve tension in the neck/arm/back/shoulders during the breaks.

- Make sure that the monitor screen is at eye level or slightly lower when you are sitting in front of the monitor.

• Adjust the tilt of the monitor, its contrast, and brightness settings.
• Adjust the ambient lighting around you (such as overhead lights, desk lamps, and the curtains or blinds on nearby windows) to minimize reflections and glare on the monitor screen.
• Use a chair that provides good lower-back support.
• Keep your forearms horizontal with your wrists in a neutral, comfortable position while using the keyboard or mouse.
  • Always leave space to rest your hands while using the keyboard or mouse.
• Let your upper arms rest naturally on both sides.
• Ensure that your feet are resting flat on the floor.
• When sitting, make sure that the weight of your legs is on your feet and not on the front portion of your seat. Adjust your chair's height or use a footrest if necessary to maintain a proper posture.
• Vary your work activities. Try to organize your work so that you do not have to sit and work for extended periods of time. Try to stand or get up and walk around at regular intervals.
• Keep the area under your desk clear of obstructions and cables or power cords that may interfere with comfortable seating or present a potential trip hazard.

monitor screen at or below eye level monitor and keyboard positioned directly in front of the user wristis relaxed and flat feet flat on the floor

Handling and moving the monitor

To ensure the monitor is handled safely when lifting or moving it, follow the guidelines mentioned below:

- Before moving or lifting the monitor, turn off your computer and the monitor.

- Disconnect all cables from the monitor.

- Place the monitor in the original box with the original packing materials.

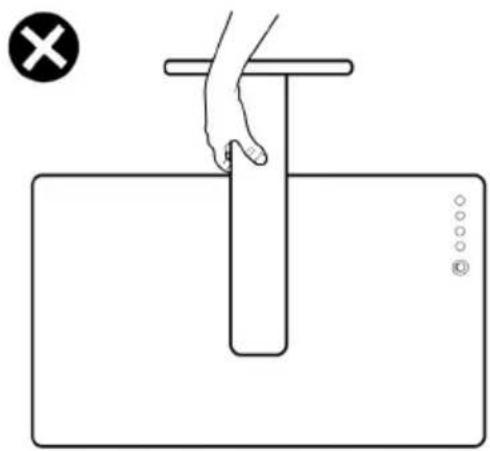

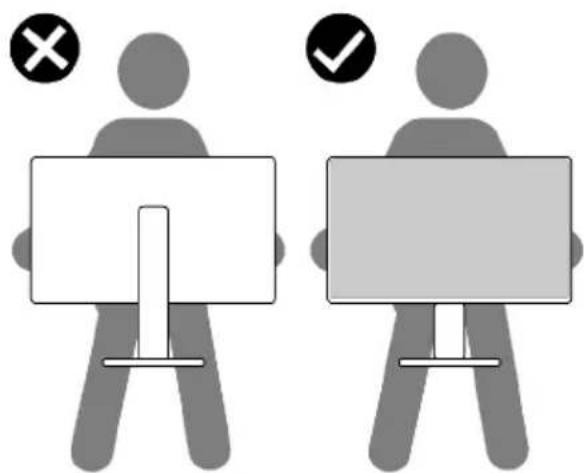

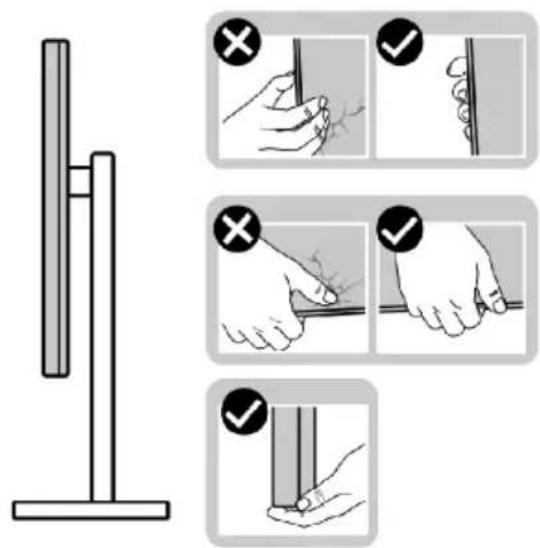

- Hold the bottom edge and the side of the monitor firmly without applying excessive pressure when lifting or moving the monitor.

Diagram illustrating hand tool application steps with checkmarks and magnified views of the tool

- When lifting or moving the monitor, ensure the screen is facing away from you and do not press on the display area to avoid any scratches or damage.

Two human figures holding blank signs with checkmarks, indicating cancellation or rejection status.

- When transporting the monitor, avoid any sudden shock or vibration to it.

- When lifting or moving the monitor, do not turn the monitor upside down while holding the stand base or stand riser. This may result in accidental damage to the monitor or cause personal injury.

Simple line drawing of a hand holding a test tube over a rectangular plate, with no text or symbols present.

Maintenance guidelines

Cleaning the monitor

WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

CAUTION: Read and follow the Safety Instructions before cleaning the monitor.

For best practices, follow these instructions in the list below while unpacking, cleaning, or handling your monitor:

- To clean your anti-static screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.

- Use a lightly-dampened, soft cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.

- If you notice white powder when you unpack your monitor, wipe it off with a cloth.

- Handle your monitor with care as a darker-colored monitor may get scratched and show white scuff marks more than a lighter-colored monitor.

- To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.

Setting up the monitor

Connecting the stand

NOTE: The stand riser and stand base are detached when the monitor is shipped from the factory.

NOTE: The following instructions are applicable only for the stand that was shipped with your monitor. If you are connecting a stand that you purchased from any other source, follow the set up instructions that were included with the stand.

To attach the monitor stand:

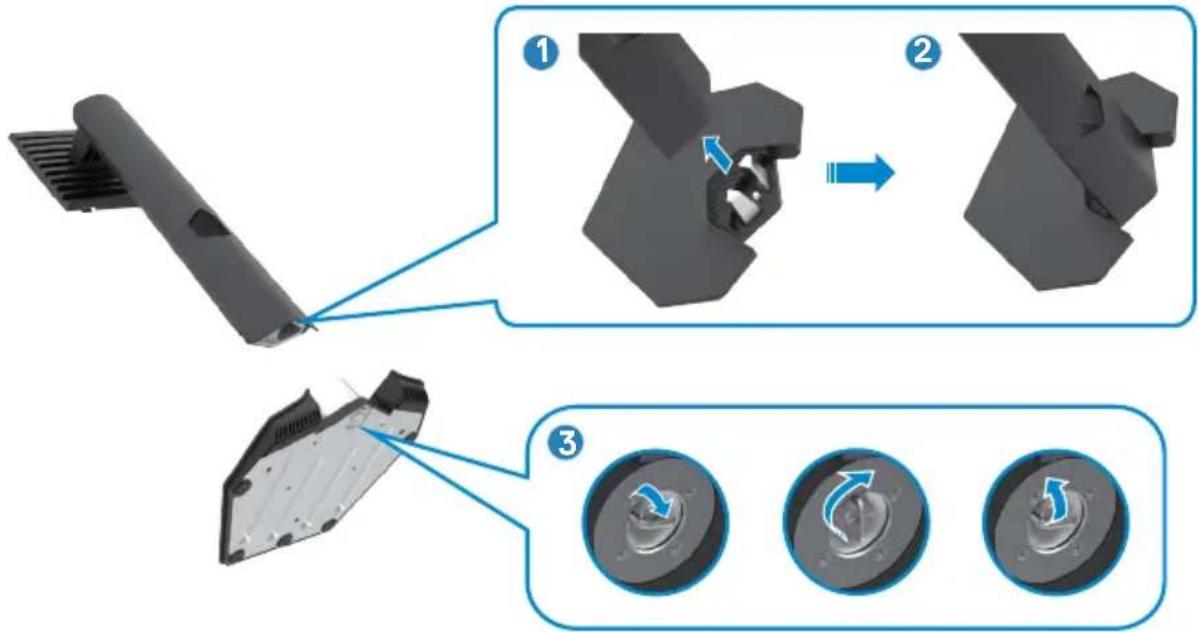

1. Connect the stand base to the stand riser.
2. Open the screw handle on the stand base and tighten the screw to secure the stand riser to the stand base.
3. Close the screw handle.

Diagram illustrating three-step assembly steps of a device component, showing disassembly, rotation, and final state.

1. Open the protective cover on the monitor to access the VESA slot on the monitor.

Open cardboard box with a white lid and blue directional arrows indicating movement or flow (no text or symbols)

1. Slide the tabs on the stand riser into the slots on the display back cover and press down the stand assembly to snap it into place.

3D illustration of an open cardboard box containing a mechanical component, with no visible text or symbols.

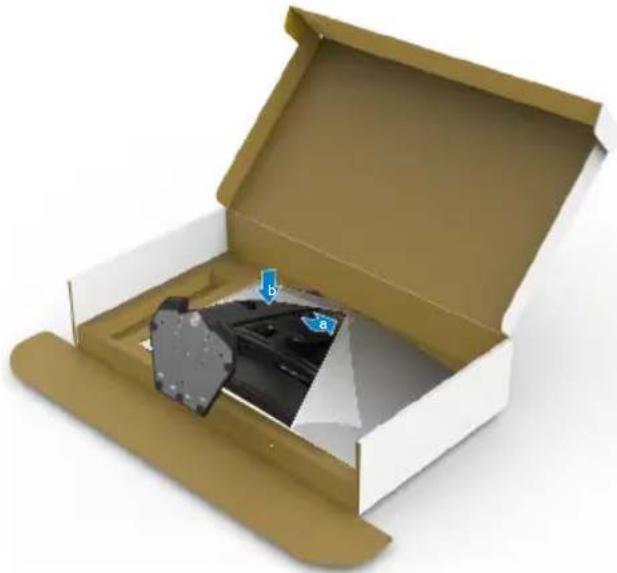

1. Hold the stand riser and lift the monitor carefully, then place it on a flat surface.

3D illustration of an open box containing a white and black object with a curved arrow symbol, no text or symbols present.

NOTE: Hold the stand riser firmly when lifting the monitor to avoid any accidental damage.

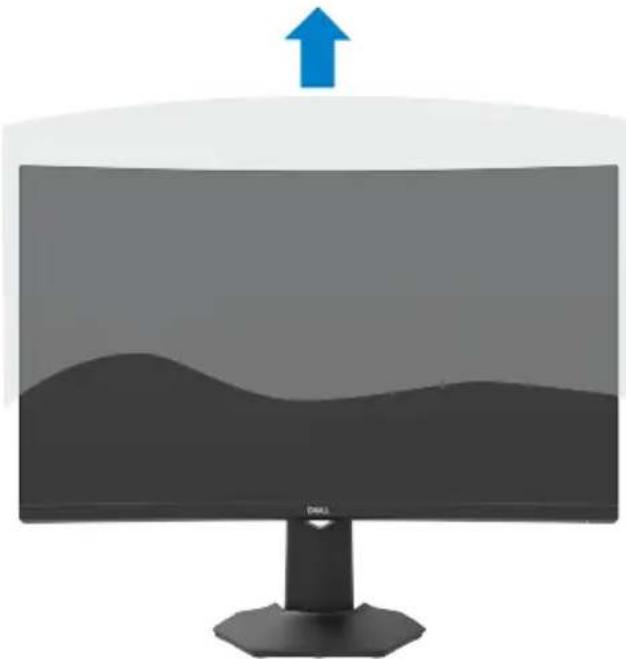

1. Lift the protective cover from the monitor.

Computer monitor with a blue upward arrow and wavy surface, no text or symbols present

Using the tilt and vertical extension

NOTE: The following instructions are applicable only for the stand that was shipped with your monitor. If you are connecting a stand that you purchased from any other source, follow the set up instructions that were included with the stand.

With the stand attached to the monitor, you can tilt the monitor for the most comfortable viewing angle.

5° 100 mm 21°

NOTE: The stand is detached when the monitor is shipped from the factory.

Connecting the monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety instructions.

NOTE: Do not connect all cables to the computer at the same time. It is recommend to route the cables through the cable-management slot before you connect them to the monitor.

To connect your monitor to the computer:

1. Turn off your computer.
2. Connect the power cable from the monitor to the wall outlet.
3. Turn on your monitor.
4. Select the correct input source from the OSD menu.

5. Turn on your computer.

6. Connect the DisplayPort/HDMI cable from the monitor to your computer.

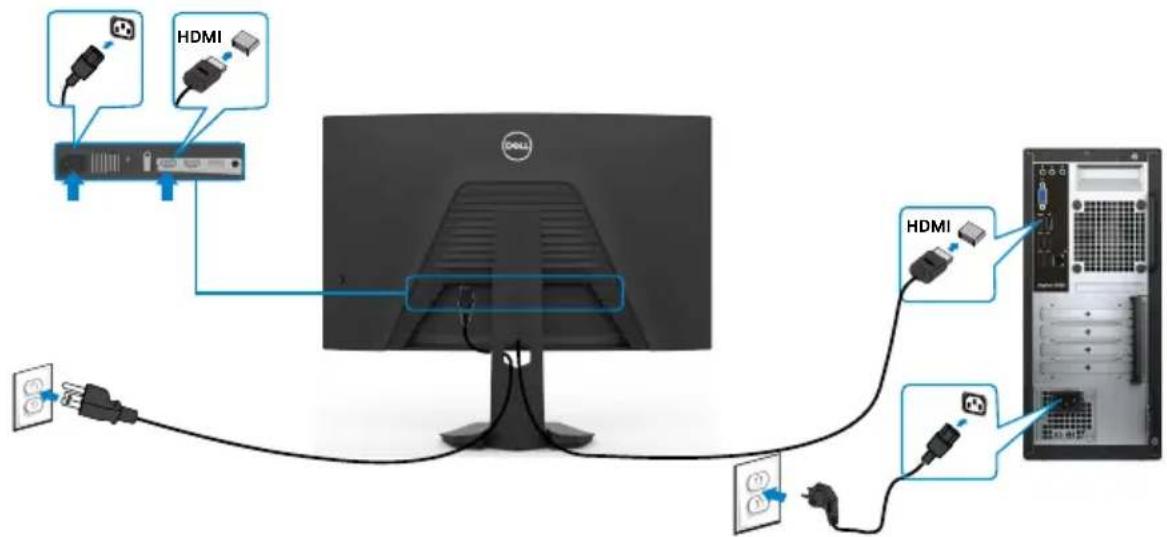

Connecting the HDMI cable

HDMI HDMI

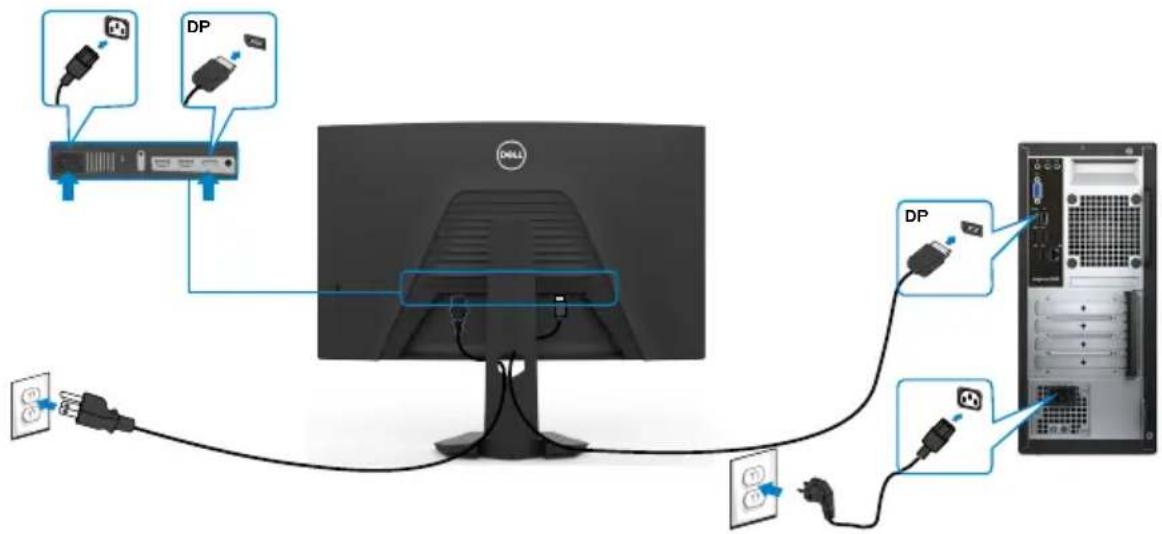

Connecting the DisplayPort cable

Diagram showing connections between a computer monitor, network ports, and a server tower with labeled components like DP and power plug.

Organizing the cables

Computer monitor with attached cables and a Dell logo, shown from side to top (no text or symbols on the device itself)

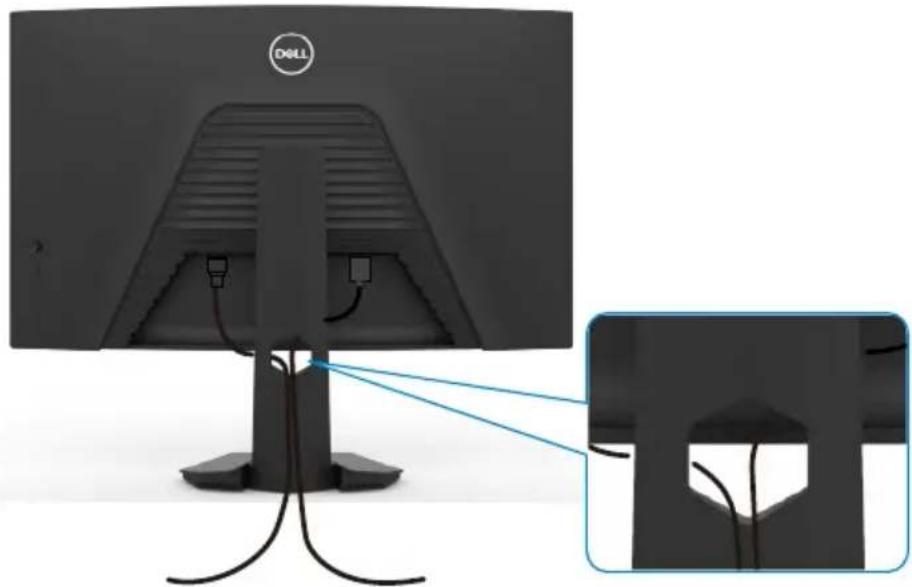

After attaching all necessary cables to your monitor and computer, (see Connecting your monitor for cable attachment) organize all cables as shown above.

Securing the monitor using Kensington lock (optional)

The security lock slot is located at the bottom of the monitor (see Security lock slot).

For more information on using the Kensington lock (purchased separately), see the documentation that is shipped with the lock.

Secure your monitor to a table using the Kensington security lock.

Illustration of a computer monitor connected to a cable with a lock, showing mechanical components (no text or symbols)

NOTE: The image is for the purpose of illustration only. Appearance of the lock may vary.

Removing the monitor stand

CAUTION: To prevent scratches on the LCD screen when removing the stand, ensure that the monitor is placed on a soft, clean surface.

NOTE: The following instructions are applicable only for the stand that was shipped with your monitor. If you are connecting a stand that you purchased from any other source, follow the set up instructions that were included with the stand.

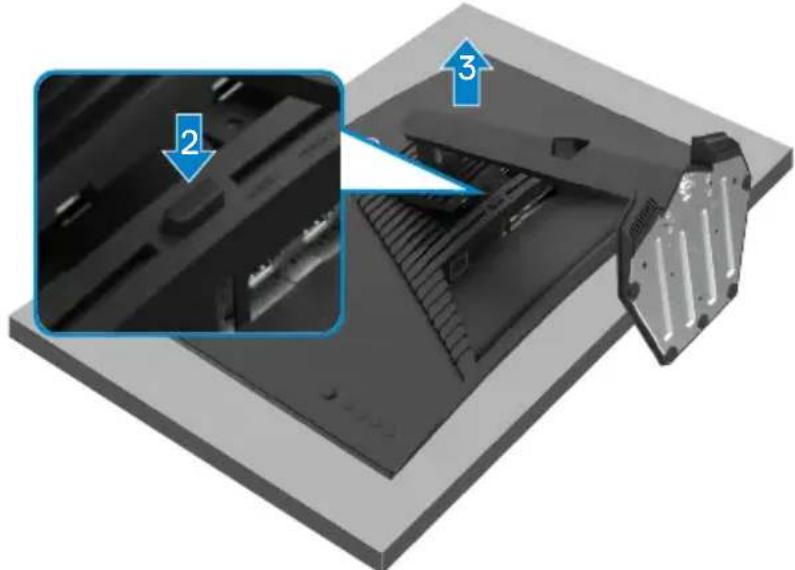

1. Place the monitor on a soft cloth or cushion.
2. Press and hold the stand-release button.
3. Lift the stand up and away from the monitor.

3D diagram of a computer monitor with labeled parts, showing internal structure and mounting bracket (no text or symbols)

Wall mounting (Optional)

Top-down view of a gray plastic tray with blue directional arrows indicating movement or force (no text or symbols)

NOTE: Use M4 x 10 mm screws to connect the monitor to the wall-mounting kit.

Refer to the instructions that come with the VESA-compatible wall mounting kit.

1. Place the monitor on a soft cloth or cushion on a stable, flat table.
2. Remove the stand. See Removing the stand for details.

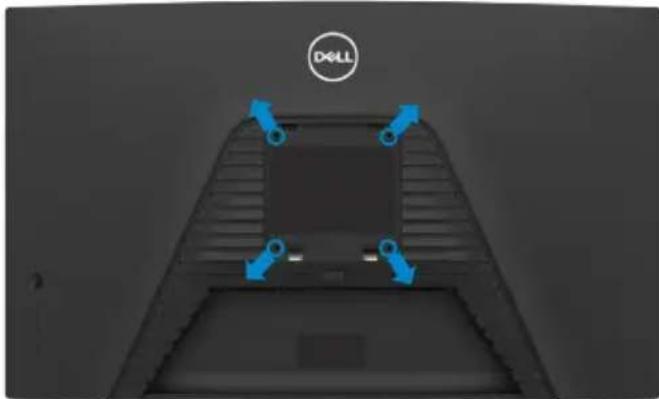

3. Use a Phillips crosshead screwdriver to remove the four screws securing the plastic cover.
4. Attach the mounting bracket from the wall mounting kit to the monitor.
5. Mount the monitor on the wall as instructed in the documentation that shipped with the wall-mounting kit.

NOTE: For use only with UL or CSA or GS-listed wall-mounting kit with minimum weight/load bearing capacity of 16.96 kg (37.4 lb).

Operating the monitor

Turning on the monitor

Press the 📄 button to turn on the monitor.

Line drawing of a hand holding a small object above a dark rectangular block (no text or symbols)

Using the joystick control

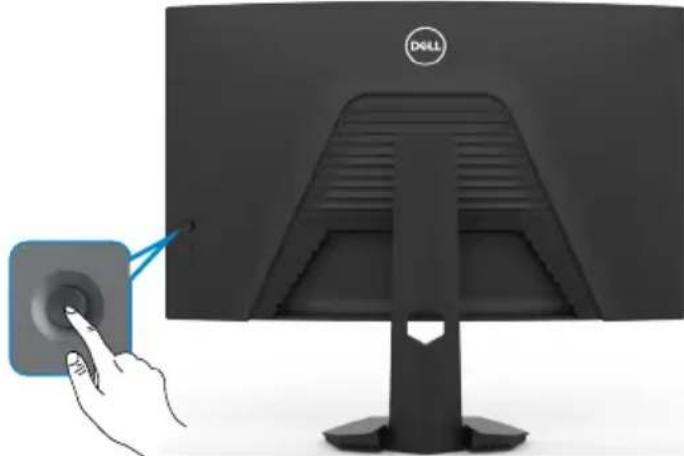

Use the joystick control on the rear of the monitor to make OSD adjustments.

Illustration of a computer monitor with a DELL logo and a hand pressing a button (no text or symbols on the screen)

1. Press the joystick button to launch the OSD main menu.
2. Move the joystick up/down/left/right to toggle between options.
3. Press the joystick button again to confirm the settings and exit.

Joystick Description

• When the OSD menu is on, press the button to confirm the selection or save the settings.
• When the OSD menu is off, press the button to launch the OSD main menu. See Accessing the menu system.

- For 2-way (right and left) directional navigation.

- Move right to enter the submenu.

- Move left to exit from the submenu.

- Increases (right) or decreases (left) the parameters of selected menu item.

- For 2-way (up and down) directional navigation.

- Toggles between the menu items.

- Increases (up) or decreases (down) the parameters of selected menu item.

Using the rear-panel controls

Use the control buttons on the rear of the monitor to adjust the display settings. As you use these buttons to adjust the settings, an OSD shows the numeric values of each feature as they change.

Diagram showing a device panel with labeled buttons and a connected control panel, numbered 1 to 5.

The following table describes the rear panel buttons:

Rear-panel button Description

1		Use this menu button to launch the on-screen display (OSD) and select the OSD menu.
	Menu	See Accessing the menu system.
2		Use this button to go back to the main menu or exit the OSD main menu.
	Exit
3		Use this button to choose from a list of preset color modes.
	Shortcut key: Preset Modes

Rear-panel button Description

4

Use this button to directly access the Dark Stabilizer adjustment sliders.

Shortcut key: Dark Stabilizer

5

Use this button to directly access the Brightness/Contrast adjustment sliders.

Shortcut key: Brightness/Contrast

When you press any of these buttons, the OSD Status Bar appears to let you know the current settings of some OSD functions.

Using the On-Screen Display (OSD) menu

Accessing the menu system

Icon Menu and submenus

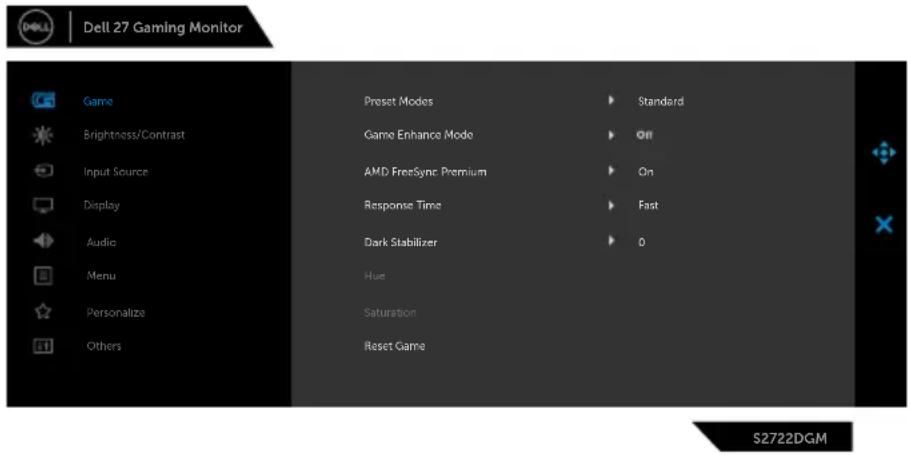

Game Use this menu to personalize your visual gameplay experience.

Dell 27 Gaming Monitor Game Brightness/Contrast Input Source Display Audio Menu Personalize Others Preset Modes Game Enhance Mode AMD FreeSync Premium Response Time Dark Stabilizer Hue Saturation Reset Game Standard On On Fast 0 S2722DGM

Preset Modes Enables you to choose from a list of preset color modes.

Dell 27 Gaming Monitor Game Brightness/Contrast Input Source Display Audio Menu Personalize Others Preset Modes Game Enhance Mode AMD FreeSync Premium Response Time Dark Stabilizer Hue Saturation Reset Game Standard FPS MOBA/RTS RPG SPORTS Game 1 Game 2 Game 3 S2722DGM

• Standard: Default color settings. This is the default preset mode.
• FPS: Loads color settings ideal for First-Person Shooter (FPS) games.
• MOBA/RTS: Loads color settings ideal for Multiplayer Online Battle Arena (MOBA) and Real-Time Strategy (RTS) games.
• RPG: Loads color settings ideal for Role-Playing Games (RPG).
• SPORTS: Loads color settings ideal for sports games.

Icon Menu and submenus	Description
	Game 1/Game 2/Game 3: Enables you to customize the color settings for your gaming needs.ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes.WARNING: The possible long-term effects of blue light emission from the monitor may cause personal injury such as digital eye strain, eye fatigue and damage to the eyes. Using monitor for extended periods of time may also cause pain in parts of body such as neck, arm, back and shoulder. For more information, see Ergonomics.Warm: Increases the color temperature. The screen appears warmer with a red or yellow tint.Cool: Presents colors at higher color temperatures. The screen appears cooler with a blue tint.Custom Color: Enables you to manually adjust the color settings. Move the joystick to adjust the Gain, Offset, Hue, and Saturation values and create your own preset color mode.
Game Enhance Mode	Adjusts Game Enhance Mode to Off, Timer, Frame Rate or Display Alignment.Off: Select to disable the functions under Game Enhance Mode.Timer: Enables you to disable or enable the timer at the upper left corner of the display. The timer shows the time elapsed since the game starts. Select an option from the time-interval list to keep you aware of the remaining time.Frame Rate: Selecting On allows you to display the current frames per second when playing games. The higher the rate, the smoother the motion appears.Display Alignment: Activating the function may help ensure the perfect alignment of the video contents from multiple displays.
AMD FreeSync Premium	Enables you to set the AMD FreeSync Premium On or Off.
Response Time	Enables you to set the Response Time to Fast, Super Fast, Extreme or MPRT.

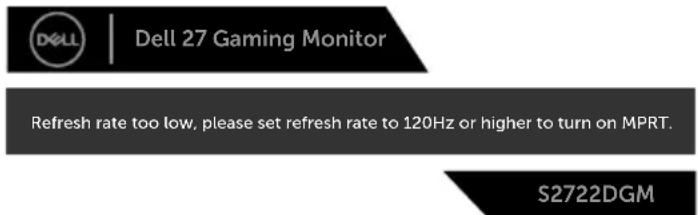

	NOTE: To turn on MPRT, source refresh rate need to be 120 Hz or higher.
	NOTE: When MPRT is turned on, FreeSync will be turned off. MPRT and FreeSync feature cannot be both turned on at the same time.
Dark Stabilizer	Improves the visibility in the dark gaming scenarios. The higher the value (between 0 to 3), the better visibility in dark area of the display image.
Hue Shifts the color of the video image to green or purple. This is used to adjust the desired flesh-tone color.Use the joystick to adjust the hue from 0 to 100.Move the joystick up to increase the green shade of the video image.Move the joystick down to increase the purple shade of the video image.	NOTE: Hue adjustment is available only for FPS, RTS, RPG, SPORTS mode.
Saturation	Adjusts the color saturation of the video image.Use the joystick to adjust the saturation from 0 to 100.Move the joystick up to increase the colorful appearance of the video image.Move the joystick down to increase the monochrome appearance of the video image.
	NOTE: Saturation adjustment is available only for FPS, RTS, RPG, SPORTS mode.
Reset Game	Resets your monitor's Game settings to the factory defaults.

Icon	Menu and submenus	Description
	Brightness/Contrast	Use this menu to activate Brightness/Contrast adjustment.
		[Dell 27 Gaming Monitor]
	Brightness Brightness adjusts the luminance of the backlight(minimum 0; maximum 100).Move the joystick up to increase brightness.Move the joystick down to decrease brightness.
	Contrast	Adjust the Brightness first, and then adjust Contrast only if further adjustment is necessary.Move the joystick up to increase contrast and Move the joystick down to decrease contrast (between 0 and 100).The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
	Input Source	Use the Input Source menu to select between different video inputs that are connected to your monitor.
		Dell 27 Gaming Monitor
		DP
		HDMI 1
		HDMI 2
		Auto Select On
		Reset Input Source
		S2722DGM

Icon Menu and submenus	Description
DP	Select DP input when you are using the DP (DisplayPort) connector. Press the joystick button to confirm the selection.
HDMI 1	Select HDMI 1 or HDMI 2 input when you are using a HDMI connector. Press the joystick button to confirm the selection.
HDMI 2
Auto Select Turn on the function to allow the monitor to automatically scan for available input sources. Press the joystick button to confirm the selection.
Reset Input Source	Resets your monitor's Input Source settings to the factory defaults.

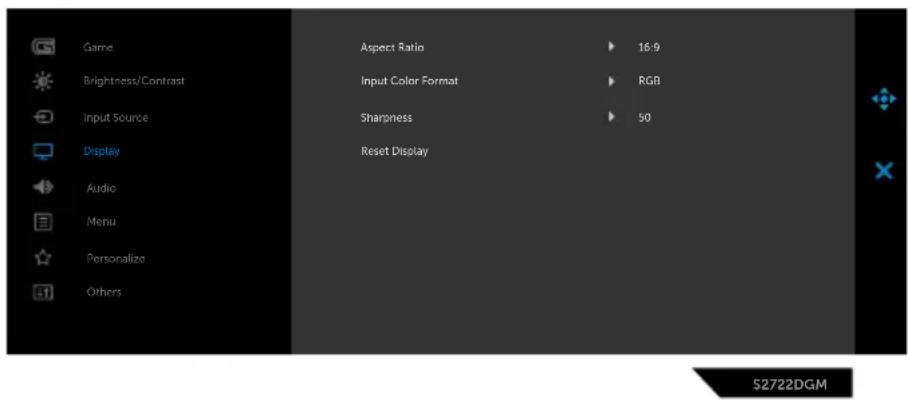

Display Use the Display menu to adjust the image.

Game Aspect Ratio 16:9 Brightness/Contrast Input Color Format RGB Input Source Sharpness 50 Display Reset Display Audio Menu Personalize Others S2722DGM

Aspect Ratio Adjusts the image ratio to 16:9, Auto Resize, 4:3 or 1:1.

Icon Menu and submenus	Description
Input Color Format	Enables you to set the video input mode to:RGB: Select this option if your monitor is connected to a computer or a media player that supports RGB output.YCbCr: Select this option if your media player supports only YCbCr output.
Sharpness Makes the image look sharper or softer.Move the joystick up and down to adjust the sharpness from ‘0’ to ‘100’.
Reset Display Restores the display settings to factory defaults.

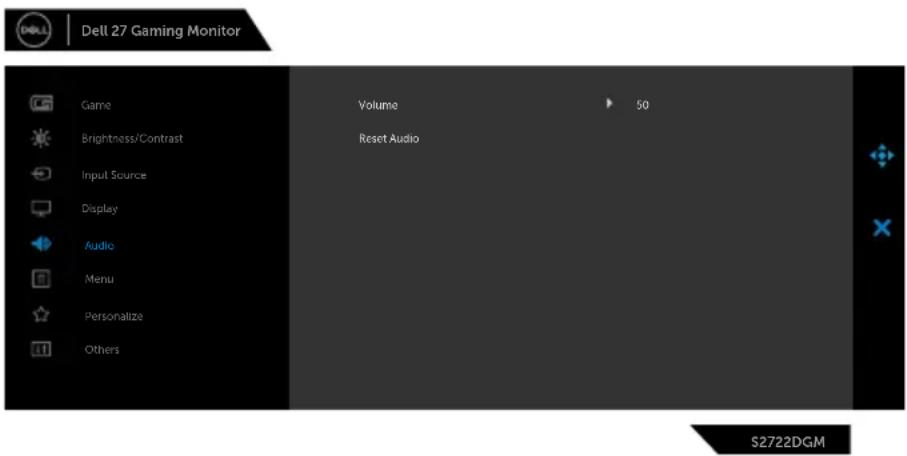

Audio
Volume Enables you to set the volume level of headphone output.Use the joystick to adjust the volume level from 0 to 100.
Reset Audio Restores the audio settings to factory defaults.

Icon Menu and submenus

Menu Select this option to adjust the settings of the OSD, such as the languages of the OSD, the amount of time the menu remains on screen, and so on.

Game Brightness/Contrast Input Source Display Audio Menu Personalizer Others Language Transparency Timer Reset Menu English 20 20s S2722DGM

Language Sets the OSD display to one of eight languages.

(English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).

Transparency Select this option to change the menu transparency by moving the joystick up or down (min. 0/max. 100).

Timer OSD Hold Time: Sets the length of time the OSD remains active after you press a button.

Move the joystick to adjust the slider in 1-second increments, from 5 to 60 seconds.

Reset Menu Restores the menu settings to factory defaults.

Personalize

Game Brightness/Contrast Input Source Display Audio Menu Personalize Others Shortcut Key 1 Shortcut Key 2 Shortcut Key 3 Power Button LED On in On Mode Downlight On Reset Personalization Preset Modes Dark Stabilizer Brightness/Contrast S2722DGM

Icon Menu and submenus	Description

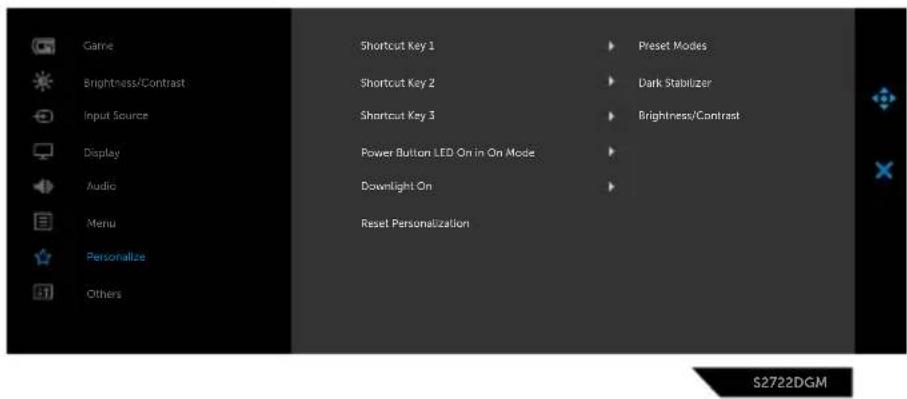

Shortcut key 1	Select from Preset Modes, Game Enhance Mode, AMD
Shortcut key 2	FreeSync Premium, Dark Stabilizer, Brightness/Contrast, Input Source, Aspect Ratio, Volume set as shortcut key.
Shortcut key 3
Power Button LED	Enables you to set the state of the power light to save energy.
Downlight The factory default setting of the touch sensor is on, and you can tap the downlights at the bottom of the display to turn them on or off. When the downlights are on, they light up blue.To turn off the touch sensor, select Off.
Reset Personalization	Restores shortcut keys to factory defaults.

Others Select this option to adjust the OSD settings such as the DDC/CI, LCD conditioning, and so on.

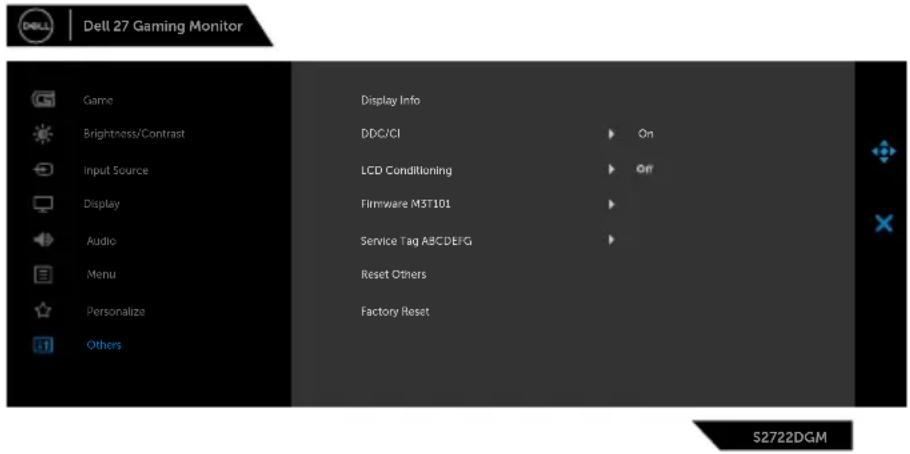

Dell 27 Gaming Monitor Game Display Info Brightness/Contrast DDC/CI On Input Source LCD Conditioning Off Display Firmware M3T101 Audio Service Tag ABCDEFG Menu Reset Others Personalize Factory Reset Others S2722DGM

Display Info Displays the monitor's current settings.

Icon Menu and submenus

Description

DDC/CI DDC/CI

(Display Data Channel/Command Interface)

allows you to adjust the monitor settings using software on your computer.

Select Off to turn off this feature.

Enable this feature for best user experience and optimum performance of your monitor.

Dell 27 Gaming Monitor

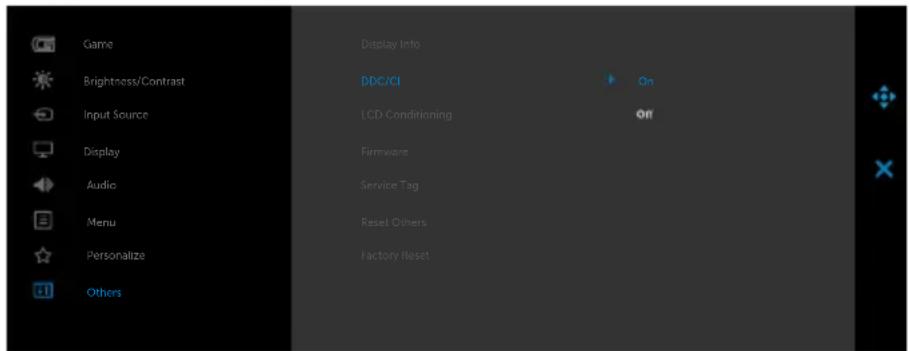

Game Brightness/Contrast Input Source Display Audio Menu Personalize Others Display Info DDC/CI LCD Conditioning Firmware Service Tag Reset Others Factory Reset

LCD Conditioning

Helps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. Select On to start the process.

Dell 27 Gaming Monitor

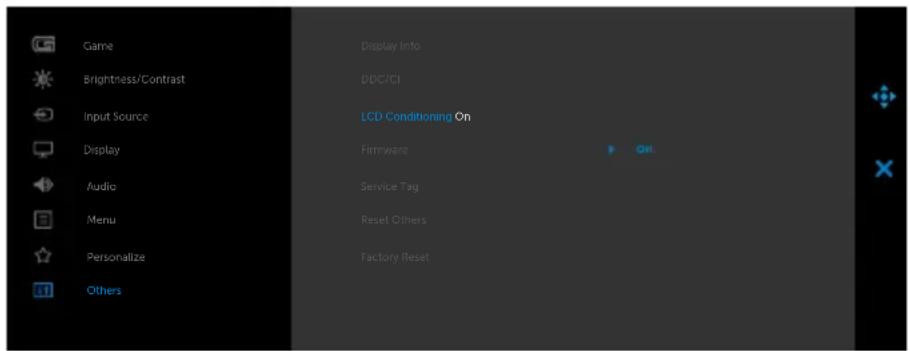

Game Brightness/Contrast Input Source Display Audio Menu Personalize Others Display Info DDC/CI LCD Conditioning On Firmware Service Tag Reset Others Factory Reset

Firmware Displays the firmware version of your monitor.

Service Tag Displays the Service Tag. The Service Tag is a unique alphanumeric identifier that allows Dell to identify the product specifications and access warranty information.

NOTE: The Service Tag is also printed on a label located at the back of the cover.

Icon Menu and submenus	Description
Reset Others	Restores other settings, such as DDC/CI, to factory defaults.
Factory Reset	Restores all preset values to the factory default settings.

OSD warning messages

When the monitor does not support a particular resolution mode, the following message is displayed:

Dell 27 Gaming Monitor The current input timing is not supported by the monitor display. Please change your input timing to 2560x1440, 165Hz or any other monitor listed timing as per the monitor specifications. S2722DGM

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor specifications for the Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is 2560 x 1440. Before the DDC/CI function is disabled, the following message is displayed:

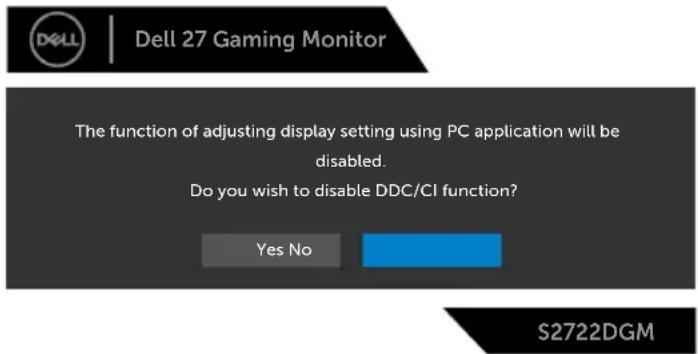

Dell 27 Gaming Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No S2722DGM

When MPRT attempts to work but the frame rate is less than 120 Hz, the following message is displayed:

Dell 27 Gaming Monitor Refresh rate too low, please set refresh rate to 120Hz or higher to turn on MPRT. S2722DGM

When the monitor enters the Standby mode, the following message is displayed:

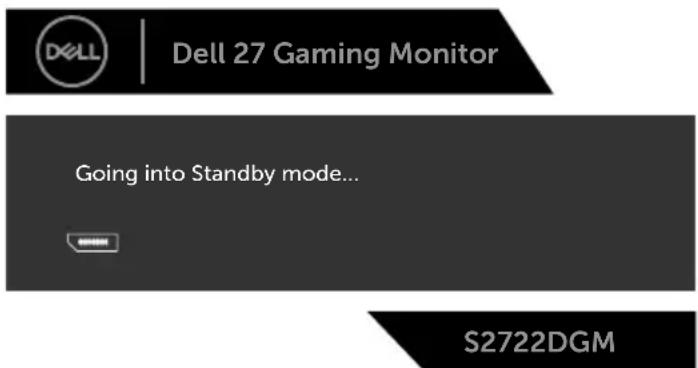

DELL | Dell 27 Gaming Monitor Going into Standby mode... S2722DGM

Activate the computer and wake up the monitor to gain access to the OSD.

If you adjust the Brightness level above the default level(default level is 75%), the following message is displayed:

Dell 27 Gaming Monitor Adjusting to this value will increase power consumption above the default level. Do you want to continue? Yes No S2722DGM

If you press any button other than the power button, the following messages is displayed depending on the selected input:

Dell 27 Gaming Monitor No DP signal from your device. Press any key on the keyboard or move the mouse or wake it up. If there is no display, press the monitor button again to select the correct input source. S2722DGM

If either DisplayPort, HDMI 1 and HDMI 2 input is selected and the corresponding cable is not connected, a floating dialog box as shown below appears.

DELL Dell 27 Gaming Monitor No DP Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S2722DGM S2722DGM

or

Dell 27 Gaming Monitor No HDMI 1 Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S2722DGM S2722DGM Or Dell 27 Gaming Monitor No HDMI 2 Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S2722DGM S2722DGM

When you select OSD items of Factory Reset in Other feature, the following message is displayed:

Dell 27 Gaming Monitor Are you sure you want to reset to default settings? Yes No S2722DGM

See Troubleshooting for more information.

Locking the rear-panel control buttons

You can lock the rear-panel control buttons to prevent access to the OSD menu and/or power button.

1 2 3 4 5

To lock the button(s):

1. Press and hold Button 5 for four seconds, a menu appears on the screen.

2. Select one of the following options:

- Menu Buttons: Choose this option to lock all OSD menu buttons except the Power button.

- Power Button: Choose this option to lock only the Power button.

- Menu + Power Buttons: Choose this option to lock all the buttons on the rear-panel control.

To unlock the button(s), press and hold Button 5 for four seconds until a menu appears on the screen. Select the Unlock icon 📋 to unlock the button(s).

Setting the maximum resolution

To set the maximum resolution for the monitor:

In Windows 7, Windows 8 or Windows 8.1:

1. For Windows 8 or Windows 8.1 only, select the Desktop tile to switch to classic desktop. For Windows Vista and Windows 7, skip this step.
2. Right-click on the desktop and click Screen Resolution.
3. Click the Dropdown list of the Screen Resolution and select 2560 x 1440.
4. Click OK.

In Windows 10:

1. Right-click on the desktop and click Display Settings.
2. Click Advanced display settings.
3. Click the dropdown list of Resolution and select 2560 x 1440.
4. Click Apply.

If you do not see 2560 × 1440 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures:

If you have a Dell desktop or portable computer:

- Go to https://www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.

If you are using a non-Dell computer :

• Go to your computer manufacturer's support website and download the latest graphic drivers.
• Go to your graphics card manufacturer's website and download the latest graphic drivers.

Troubleshooting

WARNING: Before you begin any of the procedures in this section, follow the Safety instructions.

Self-test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.
2. Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove all digital and the analog cables from the back of computer.
3. Turn on the monitor.

The floating dialog box should appear on-screen (against a black background), if the monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains white. Also, depending upon the selected input, one of the dialogs shown below will continuously scroll through the screen.

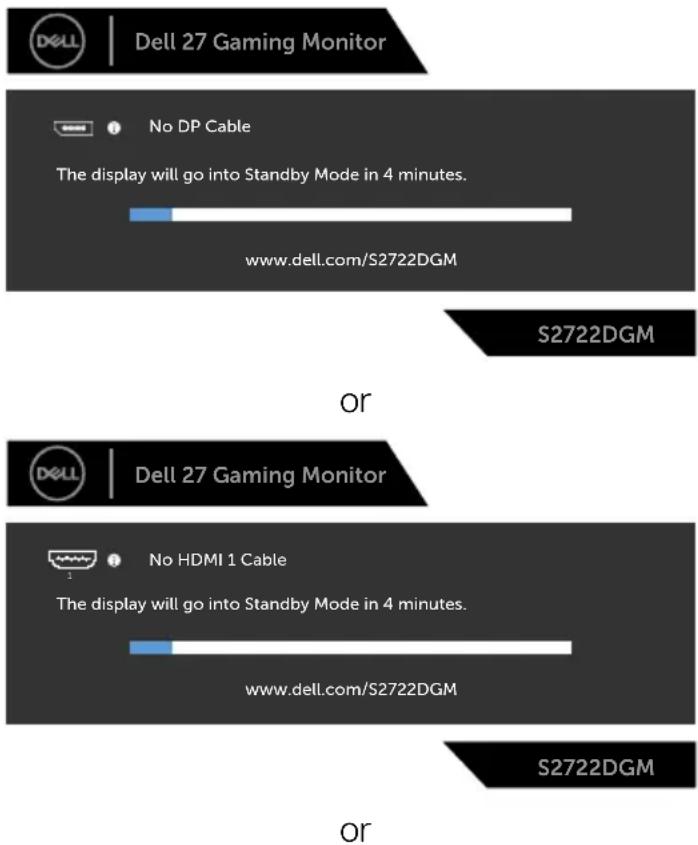

Dell 27 Gaming Monitor No DP Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S2722DGM S2722DGM or Dell 27 Gaming Monitor No HDMI 1 Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S2722DGM S2722DGM or

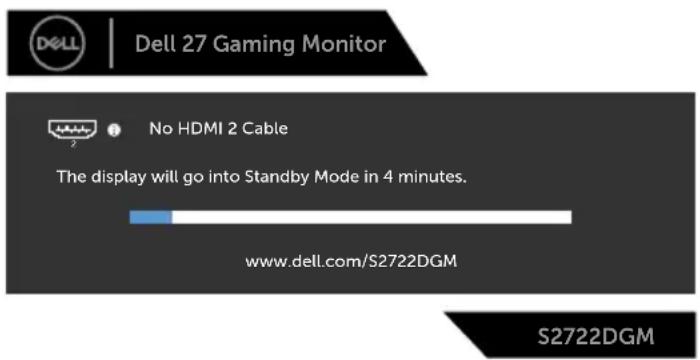

Dell 27 Gaming Monitor No HDMI 2 Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S2722DGM S2722DGM

1. This box also appears during normal system operation if the video cable becomes disconnected or damaged.
2. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning properly.

Built-in diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card.

1 2 3 4 5

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Press and hold Button 5 for 4 seconds, system will pop OSD message, select and press Button 1. A gray screen appears.
4. Carefully inspect the screen for abnormalities.
5. Move joystick (Button 1) to right. The color of the screen changes to red.
6. Inspect the display for any abnormalities.
7. Repeat steps 5 and 6 to inspect the display in green, blue, black, white, and text screens.

The test is complete when the text screen appears. To exit, press Button 5 again.

If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms	What You Experience	Possible Solutions
No Video/Power LED off	No picture · Ensure that the video cable connecting the monitor and the computer is properly connected and secure.· Verify that the power outlet is functioning properly using any other electrical equipment.· Ensure that the power button is depressed fully.· Ensure that the correct input source is selected in the Input Source menu.
No Video/Power LED on	No picture or no brightness	· Increase brightness and contrast controls via OSD.· Perform monitor self-test feature check.· Check for bent or broken pins in the video cable connector.· Run the built-in diagnostics.· Ensure that the correct input source is selected in the Input Source menu.
Missing Pixels LCD screen has spots		· Cycle power on-off.· Pixel that is permanently off is a natural defect that can occur in LCD technology.· For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at:https://www.dell.com/pixelguidelines.
Stuck-on Pixels LCD screen has bright spots		· Cycle power On-Off.· Pixel that is permanently off is a natural defect that can occur in LCD technology.· For more information on Dell Monitor Quality and PixelPolicy, see Dell Support site at:https://www.dell.com/pixelguidelines.
Brightness Problems	Picture too dim or too bright	· Reset the monitor to factory settings.· Adjust brightness and contrast controls via OSD.
Safety Related Issues	Visible signs of smoke or sparks	· Do not perform any troubleshooting steps.· Contact Dell immediately.
Intermittent Problems	Monitor malfunctions on & off	· Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.· Reset the monitor to factory settings.· Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color Picture missing color		· Perform monitor self-test.· Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.· Check for bent or broken pins in the video cable connector.
Wrong Color Picture color not good		· Try different Preset Modes in Color settings OSD. Adjust R/G/B value in Custom Color in Color settings OSD.· Change the Input Color Format to RGB or YCbCr in the Color settings OSD.· Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Faint shadow from the static image displayed appears on the screen	· Set the screen to turn off after a few minutes of screen idle time. These can be adjusted in Windows Power Options or Mac Energy Saver setting.· Alternatively, use a dynamically changing screensaver.

Product specific problems

Problem What you experience		Possible solutions
Screen image is too small	Image is centered on screen, but does not fill entire viewing area	·Check the Aspect Ratio setting in the Display menu OSD.·Reset the monitor to factory settings.
Cannot adjust the monitor with the buttons on the front panel	OSD does not appear on the screen	·Turn off the monitor, unplug the monitor power cable, plug it back, and then turn on the monitor.
No Input Signal when user controls are pressed	No picture, the LED light is white	·Check the signal source. Ensure the computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard.·Check whether the signal cable is plugged in properly. Connect the signal cable again, if necessary.·Reset the computer or video player.
The picture does not fill the entire screen	The picture cannot fill the height or width of the screen	·Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.·Run the built-in diagnostics.

Appendix

FCC notices (U.S. only) and other regulatory information

For FCC notices and other regulatory information, see the regulatory compliance website located at https://www.dell.com/regulatory_compliance.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options.

Availability varies by country and product, and some services may not be available in your area.

To get online monitor support content:

See https://www.dell.com/support/monitors.

To contact Dell for sales, technical support, or customer service issues:

1. Go to https://www.dell.com/support.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom-right corner of the page.
3. Click Contact Us next to the country dropdown.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.

EU product database for energy label and product information sheet

S2722DGM: https://eprel.ec.europa.eu/qr/545250
