Product Type	34-inch Ultra-Wide Curved Monitor
Model	Dell S3422DW
Screen Size	34.0 inches (864.2 mm) diagonal
Panel Type	Vertical Alignment (VA)
Native Resolution	3440 x 1440 at 100 Hz (HDMI/DP)
Aspect Ratio	21:9
Refresh Rate	Up to 100 Hz (HDMI/DP)
Response Time	4 ms (Gray to Gray)
Brightness	300 cd/m² (typical)
Contrast Ratio	3000:1 (typical)
Color Gamut	99% sRGB
Viewing Angle	178° horizontal / 178° vertical (typical)
Connectivity	2x HDMI 2.0, 1x DP 1.2, 1x USB 3.0 upstream, 2x USB 3.0 downstream (1 with BC1.2 charging), Audio line out
Speakers	Built-in 5W x 2
Adjustability	Height (100 mm), Tilt (-5° to 21°), Swivel (N/A), Slant (-4° to 4°)
VESA Mounting	100 x 100 mm (optional)
Dimensions (with stand)	808.16 x 489.36 x 210 mm (31.82 x 19.28 x 8.27 in)
Weight (with stand)	10.16 kg (22.40 lb)
Power Consumption	132 W (On, typical), 0.3 W (Standby)
Special Features	AMD FreeSync, ComfortView (low blue light), flicker-free, Dell Display Manager
Security	Kensington/Noble lock slot
Cleaning	Dampen a soft cloth with water; avoid chemicals like benzene, thinner, ammonia
Operating Temperature	0°C to 40°C (32°F to 104°F)

Frequently Asked Questions - S Series S3422DW DELL

What is the native resolution and refresh rate of the Dell S3422DW?

The native resolution is 3440 x 1440 at 100 Hz via both HDMI and DP ports.

Does the monitor support adaptive sync?

Yes, it supports AMD FreeSync with a variable refresh rate range of 48 Hz to 100 Hz (HDMI/DP).

How do I clean the monitor safely?

Unplug the monitor, then use a soft cloth lightly dampened with water. Avoid benzene, thinner, ammonia, or abrasive cleaners. For the screen, use a special screen-cleaning tissue or solution suitable for anti-static coating.

Can I mount the monitor on a wall?

Yes, it has VESA 100x100 mm mounting holes. Use a wall mount kit that supports at least 26.80 kg and follow the instructions in the manual.

What should I do if there is no video signal?

Ensure the video cable is securely connected, the monitor is powered on, and the correct input source is selected via the OSD menu. Try a self-test by disconnecting all video cables; if a floating dialog appears, the monitor is working. If not, check the computer's graphics card.

How can I reduce eye strain when using this monitor?

Use the ComfortView feature (low blue light), position the screen 20-28 inches from your eyes, blink frequently, take breaks every 2 hours, and look at a distant object for 20 seconds. Also adjust brightness and contrast to comfortable levels.

Does the monitor have built-in speakers?

Yes, it has two built-in speakers rated at 5 Watts each. You can control volume via the OSD menu.

How do I lock the OSD buttons to prevent accidental changes?

Press and hold the Exit button (button 4) for 4 seconds to enter the lock menu. You can choose to lock Menu Buttons, Power Button, or both. To unlock, repeat the same process.

What is the maximum resolution for USB charging?

The USB downstream port with BC1.2 provides up to 1.5A for charging devices. The resolution remains at 3440x1440 regardless of USB usage.

How do I enable Dell Display Manager features?

The monitor comes with Dell Display Manager software. Install it from the Dell support site, then use features like Easy Arrange to organize windows. It works only on compatible systems.

USER MANUAL S Series S3422DW DELL

NOTE: A NOTE indicates important information that helps you make better use of your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Copyright © 2021 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries. Other trademarks may be trademarks of their respective owners.

2021-04

Rev. A01

Contents

Safety instructions.... 6

About your monitor ....7

Package contents 7

Product features....8

Identifying parts and controls ..... 10

Front view 10

Back view 11

Side view. 12

Bottom view 12

Monitor specifications ..... 14

Resolution specifications ..... 15

Supported video modes 16

Preset display modes ..... 16

Electrical specifications. 17

Physical characteristics. 18

Environmental characteristics 19

Plug and play capability....20

LCD monitor quality and pixel policy 20

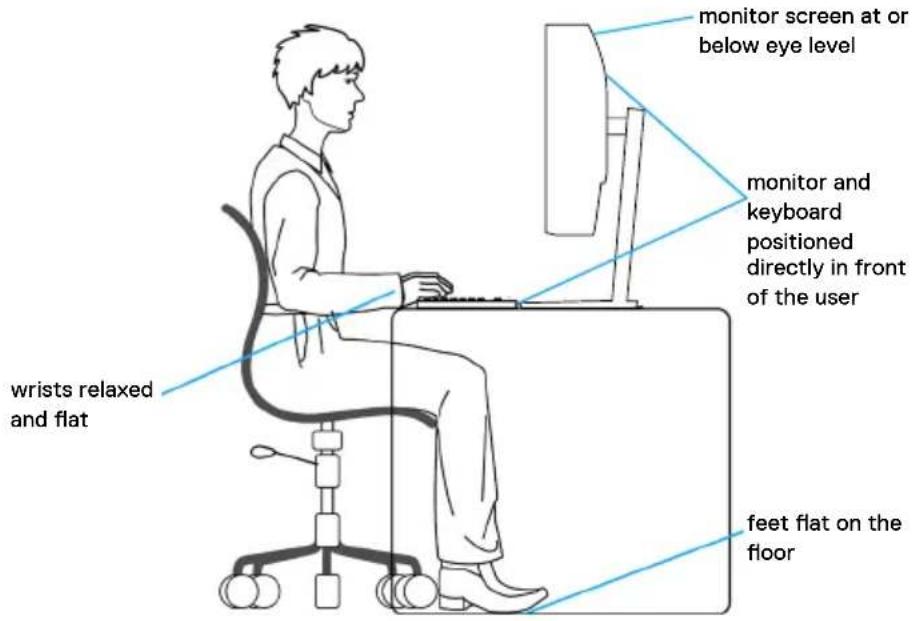

Ergonomics. 21

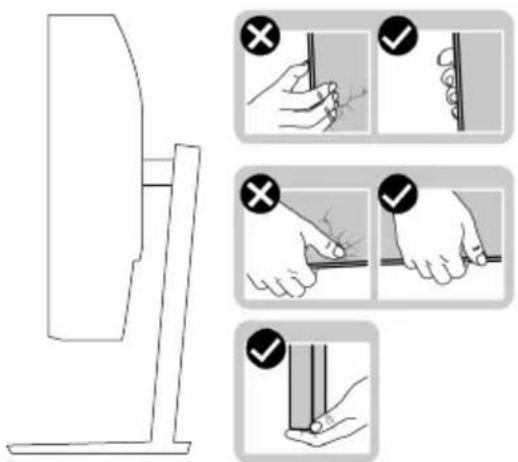

Handling and moving your display . . . . . . . . . . . . . 23

Maintenance guidelines 24

Cleaning your monitor. 24

Setting up the monitor 25

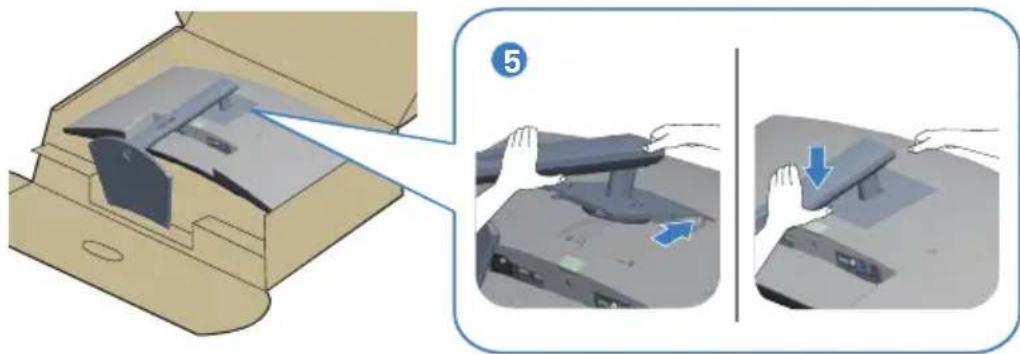

Connecting the stand 25

Connecting your monitor 26

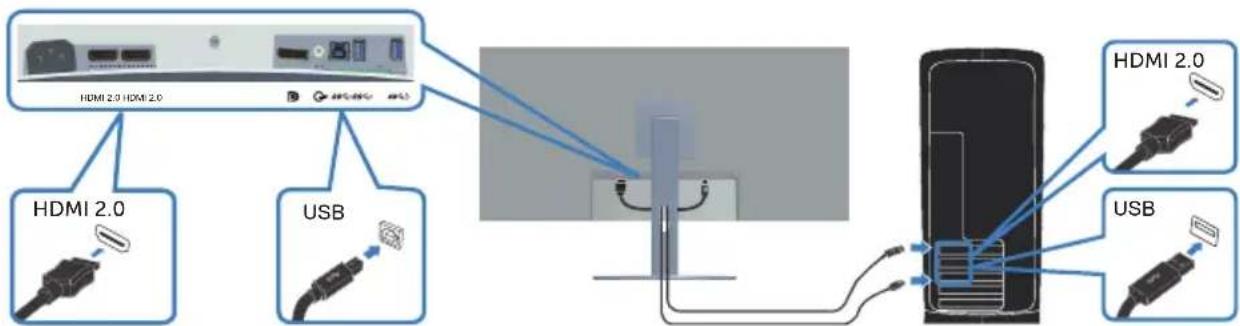

Connecting the HDMI and USB 3.0 cable. . . . . . . . . . . . . . . . . 26

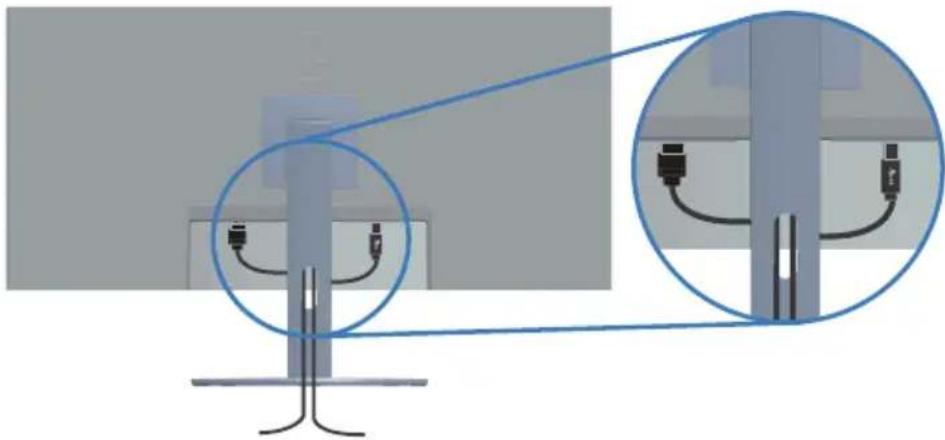

Organizing cables 27

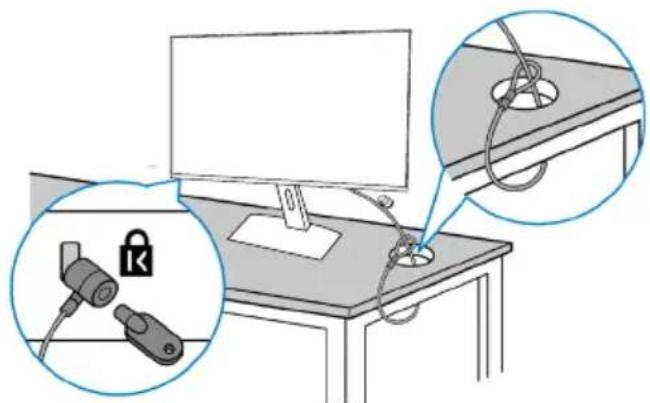

Securing your monitor using Kensington/Noble lock (optional)....27

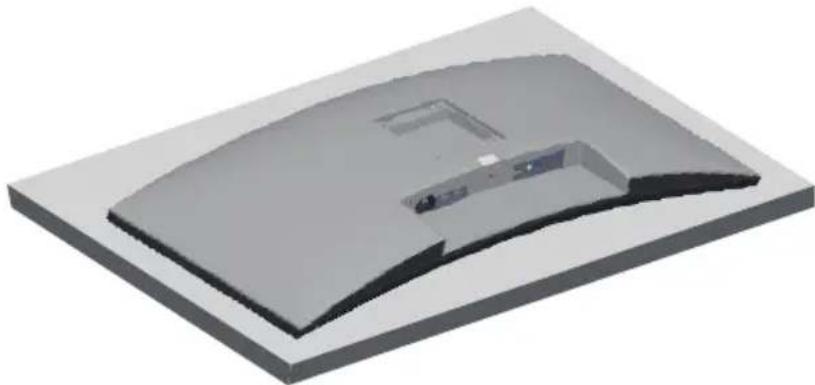

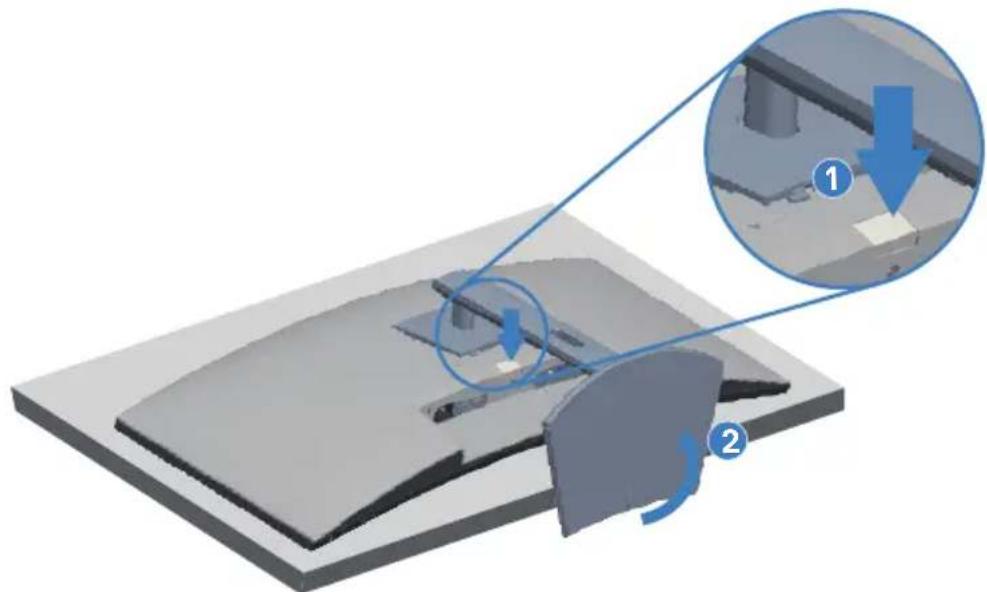

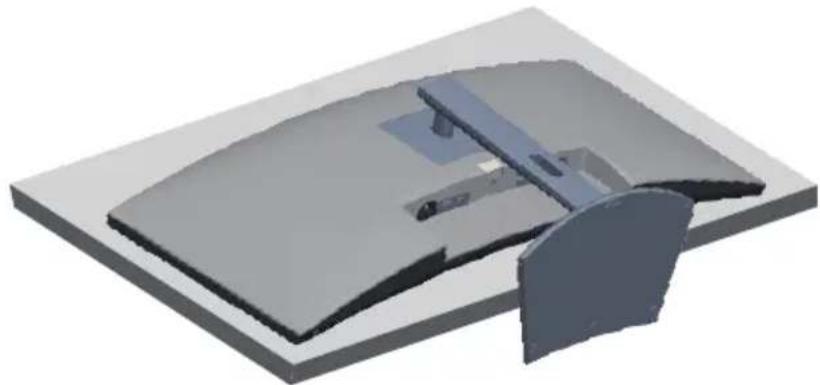

Removing the stand 28

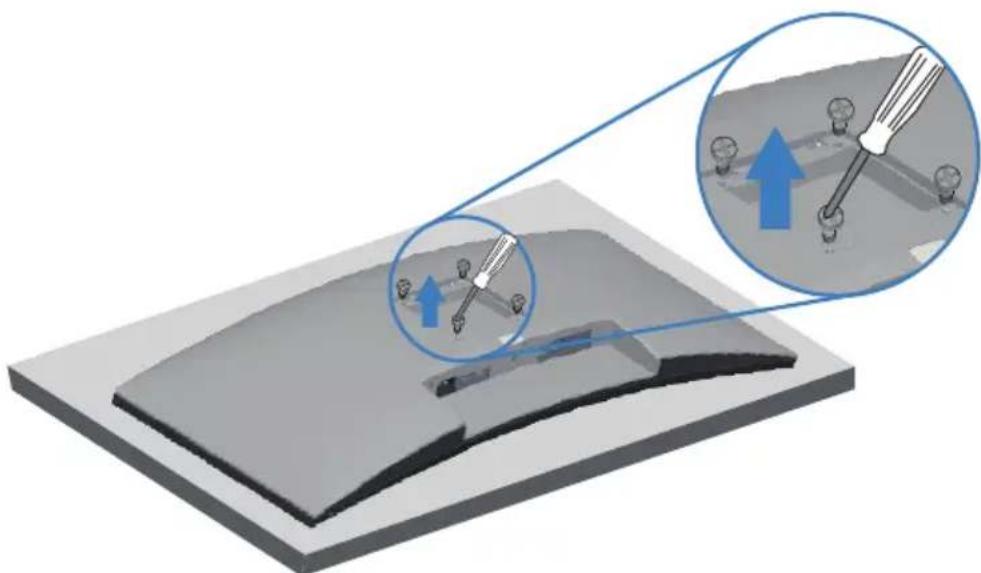

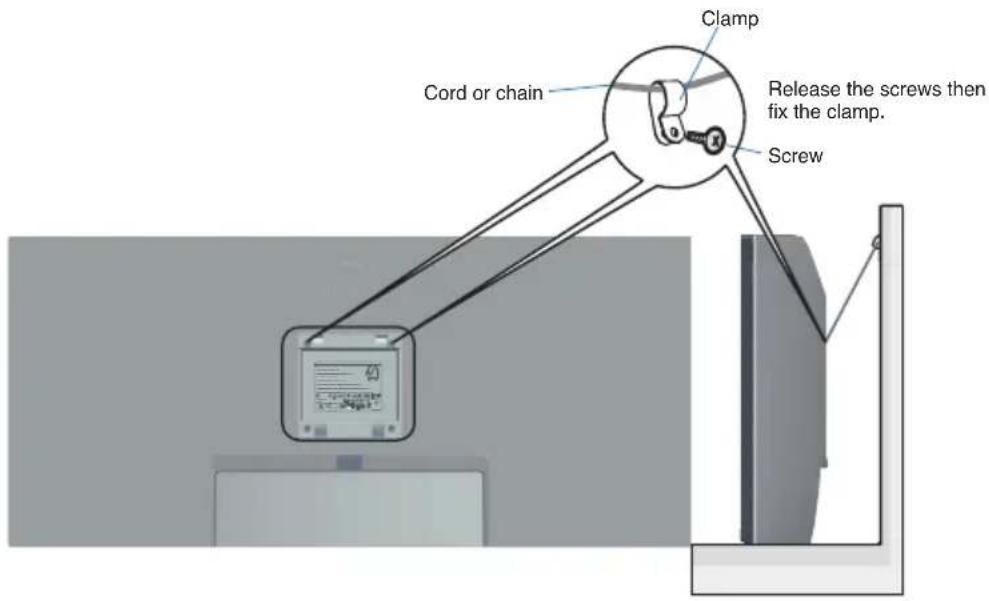

Wall mounting (optional) 29

Operating your monitor 31

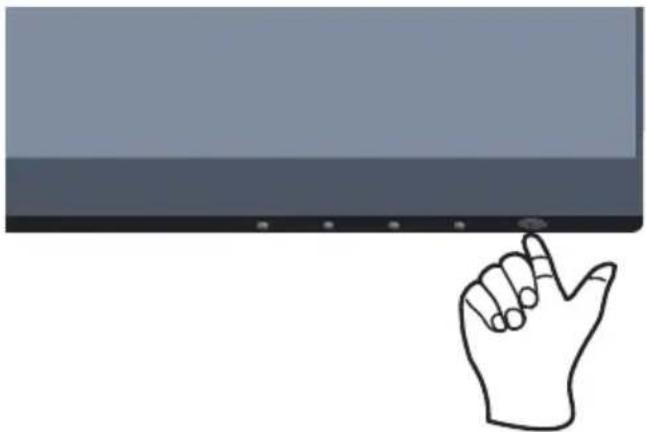

Power on the monitor 31

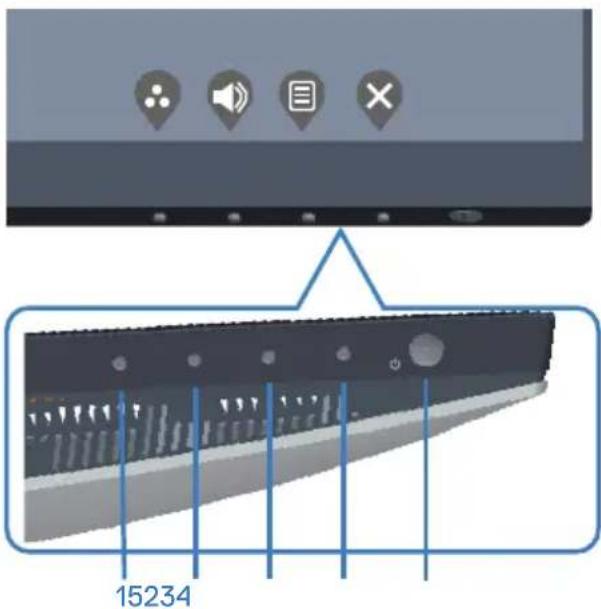

Using the control buttons 31

Control buttons 32

OSD controls 33

Using the On-Screen Display (OSD) menu ..... 34

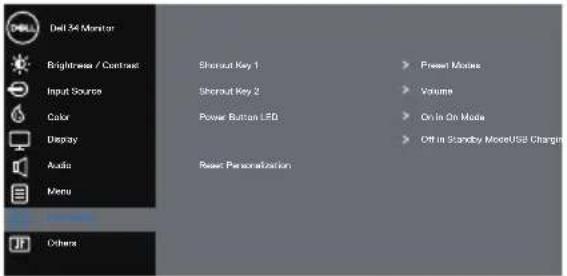

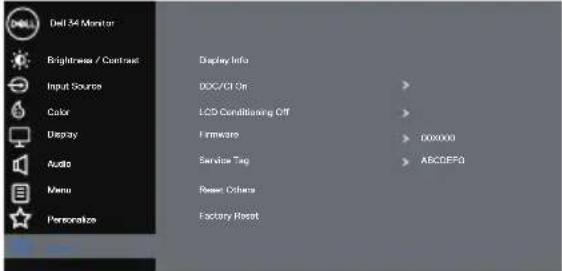

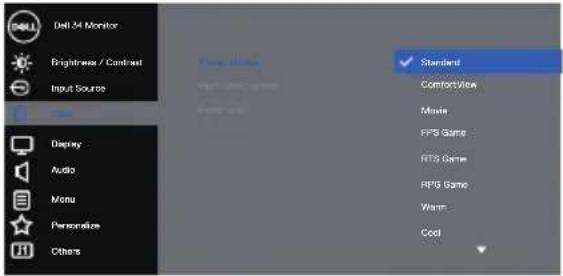

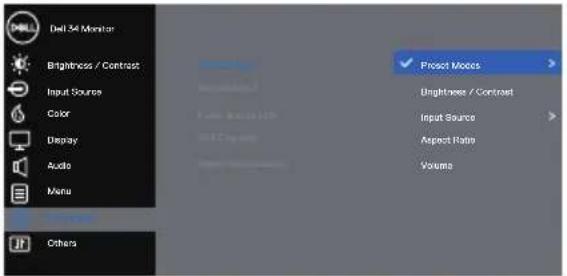

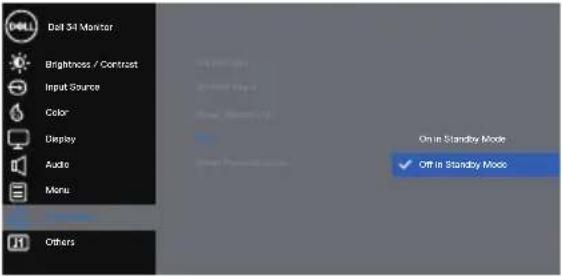

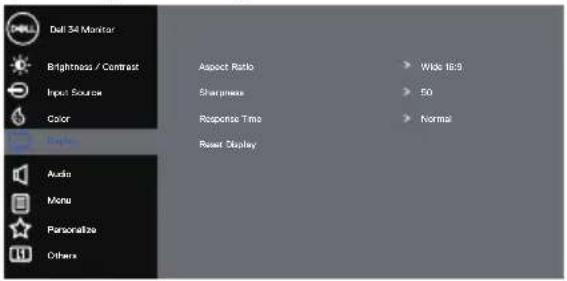

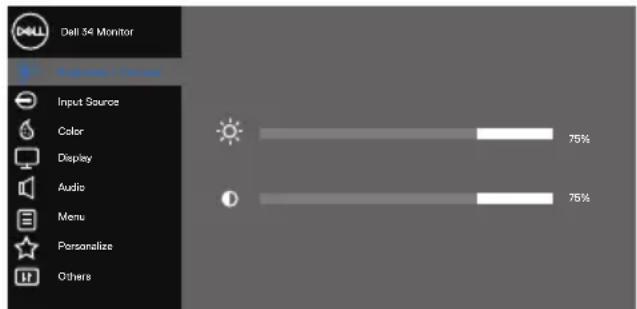

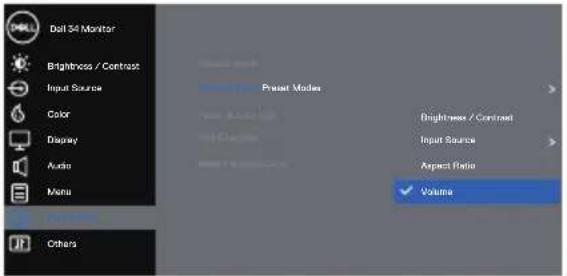

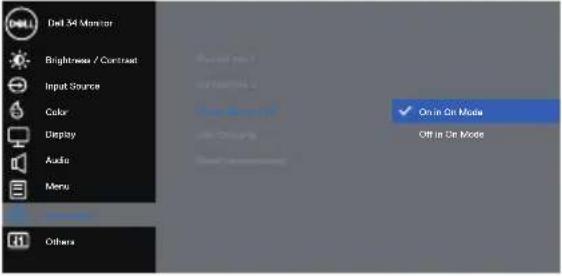

Accessing the OSD menu 34

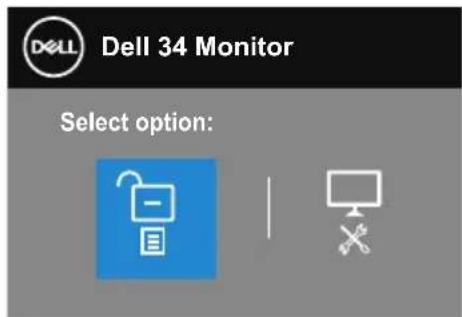

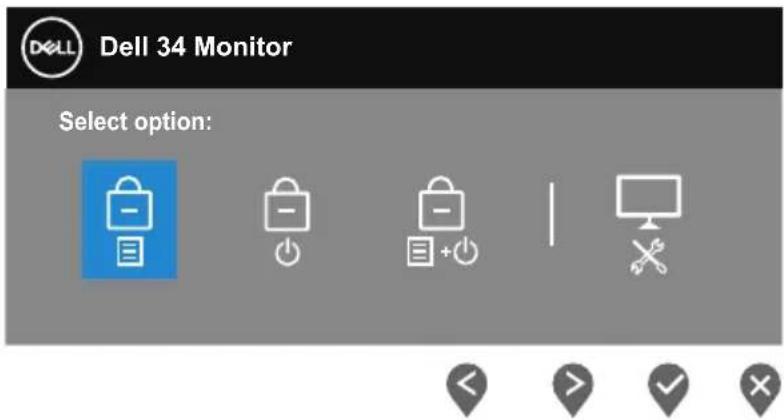

Menu and Power button lock 45

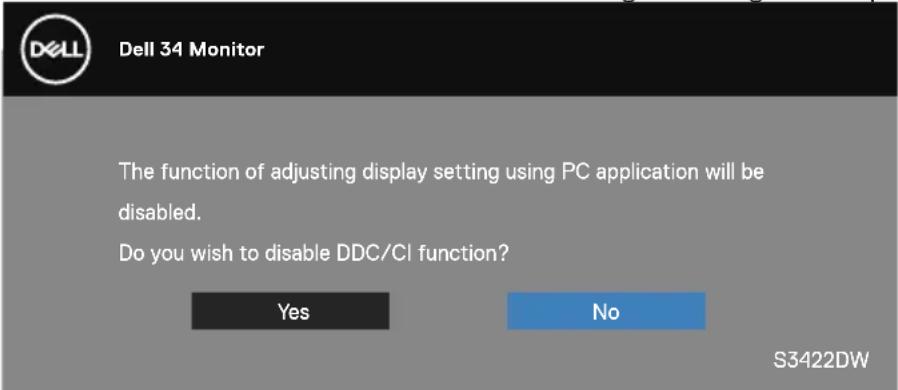

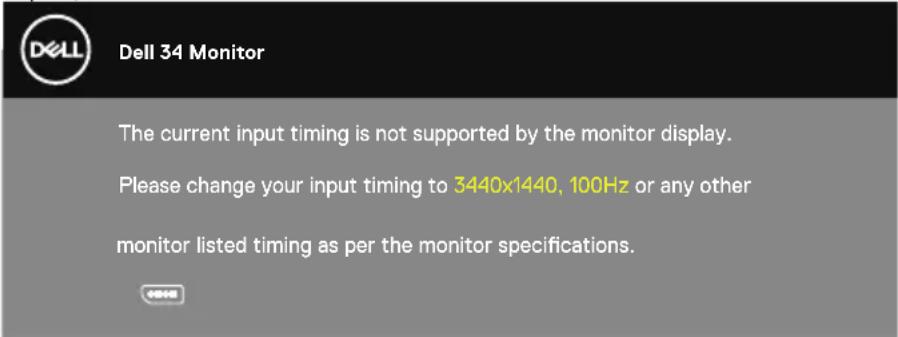

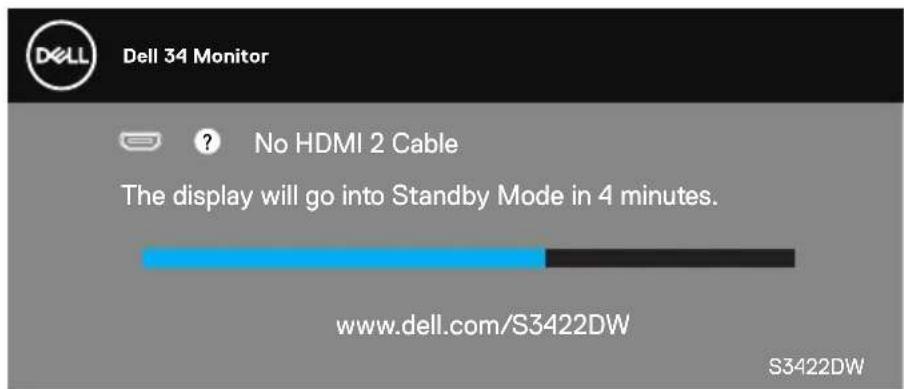

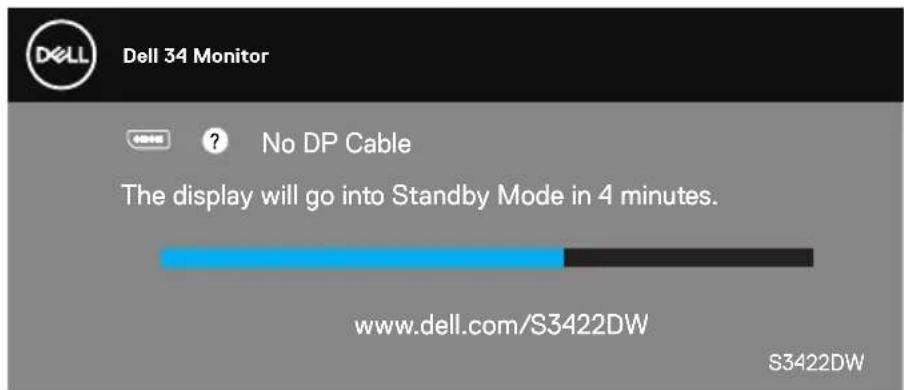

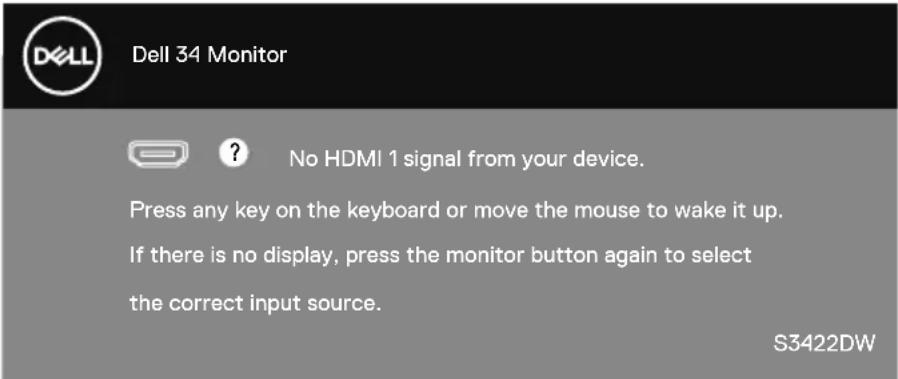

OSD warning messages 47

Setting up your monitor 50

Setting the maximum resolution 50

If you have a Dell desktop or a Dell portable computer with internet access .... 50

If you have a non Dell desktop, portable computer, or graphics card 51

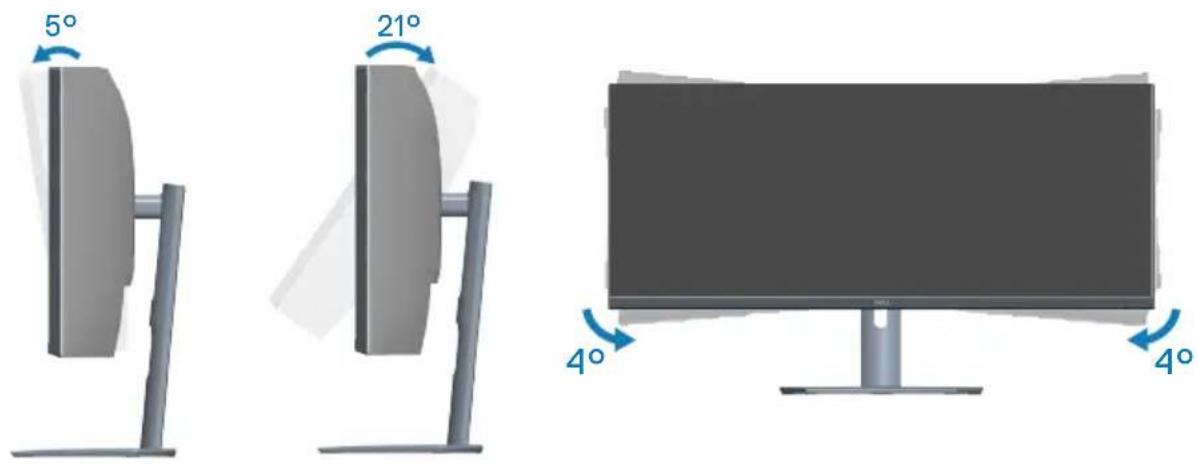

Using the tilt and vertical extension. 52

Tilt Extension 52

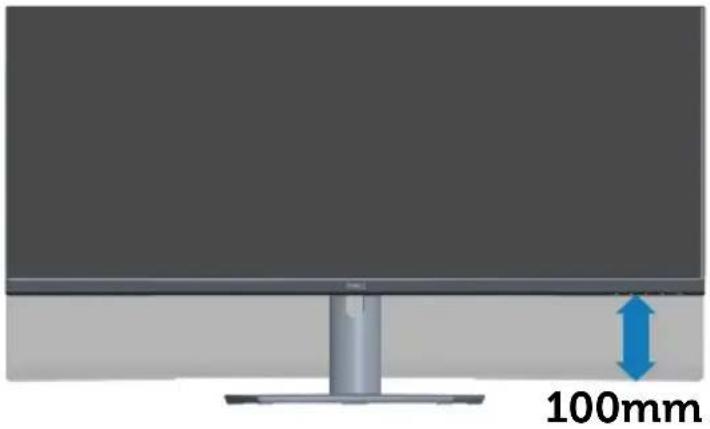

Vertical Extension....52

Troubleshooting 53

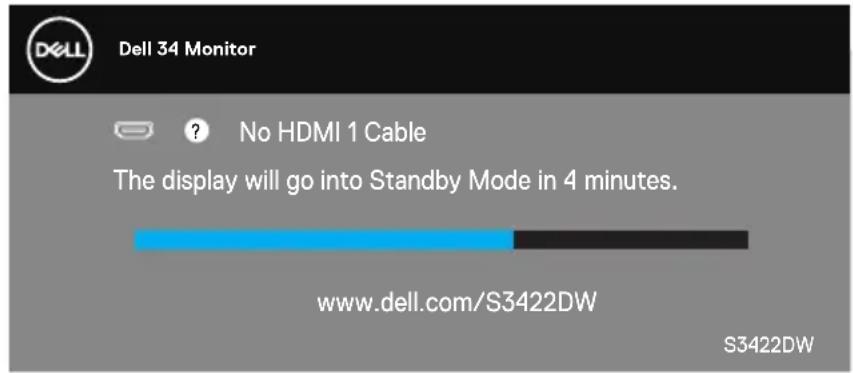

Self-Test 53

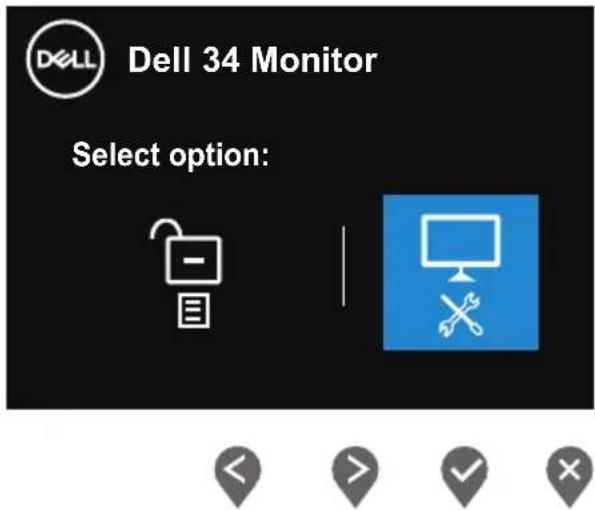

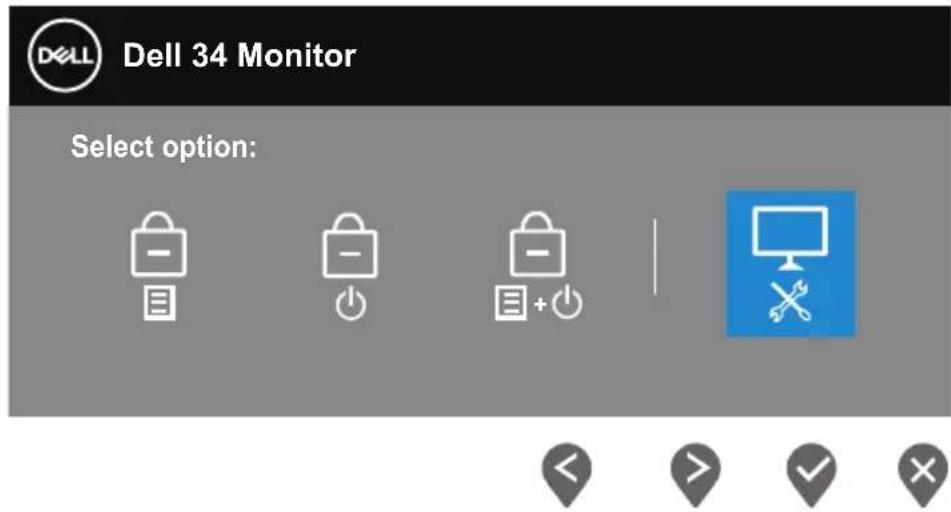

Built-in diagnostics 55

Common problems 57

Product-specific problems 60

Appendix. 61

Safety Instructions. 61

FCC notices (U.S. Only) and other regulatory information 61

Contacting Dell. 62

Stability Hazard. 63

Safety instructions

CAUTION: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

Place the monitor on a solid surface and handle it carefully. The screen is fragile and can be damaged if dropped or hit sharply.

Always be sure that your monitor is electrically rated to operate with the AC power available in your location.

Keep the monitor in room temperature. Excessive cold or hot conditions can have an adverse effect on the liquid crystal of the display.

Do not subject the monitor to severe vibration or high impact conditions. For example, do not place the monitor inside a car trunk.

Unplug the monitor when it is going to be left unused for an extended period of time.

To avoid electric shock, do not attempt to remove any cover or touch the inside of the monitor.

About your monitor

Package contents

Your monitor ships with the components shown below. Ensure that you have received all the components and see Contacting Dell for more information if something is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.

		Monitor
		Stand riser
		Stand base
		Power cable (varies by countries)
		HDMI 2.0 cable
		USB 3.0 upstream cable (enables the USB ports on the monitor)

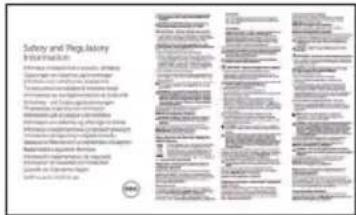

		Quick Setup GuideSafety and Regulatory Information

Product features

The Dell S3422DW monitor has an active matrix, Thin-Film Transistor (TFT), Liquid Crystal Display (LCD), anti-static, and LED backlight. The monitor features include:

86.42 cm (34.0 in.) viewable area display (measured diagonally). 3440 x 1440 resolution, with full-screen support for lower resolutions.

Compatible with (AMD FreeSync™ or No Sync), high refresh rates and a rapid response time of 4 ms.

Supports 48 Hz to 144 Hz (HDMI) and 48 Hz to 164 Hz (DP) in Freesync Mode.

Build-in Speaker (5 W) × 2

Color gamut of 99% sRGB.

Digital connectivity with DP and HDMI.

Equipped with 1 USB upstream port and 2 USB downstream ports.

Plug and play capability if supported by your computer.

On-Screen Display (OSD) adjustments for ease of setup and screen optimization.

Removable stand and Video Electronics Standards Association (VESA™) 100 mm mounting holes for flexible mounting solutions.

Tilt and height adjustment capabilities.

Security-lock slot.

€0.3 W in the Standby Mode

Dell Display Manager Software included.

Optimize eye comfort with a flicker-free screen.

⚠ WARNING: The possible long-term effects of blue light emission from

the monitor may cause damage to the eyes, including eye fatigue, digital eye strain, and so on. ComfortView feature is designed to reduce the amount of blue light emitted from the monitor to optimize eye comfort.

WARNING: If provided with a 3-pin attachment plug on the power cord, plug the cord into a grounded (earthed) 3-pin outlet. Do not disable the power cord grounding pin, for example, by attaching a 2-pin adapter. The grounding pin is an important safety feature.

WARNING: The possible long-term effects of blue light emission from the monitor may cause damage to the eyes, including eye fatigue, digital eye strain, and so on. ComfortView feature is designed to reduce the amount of blue light emitted from the monitor to optimize eye comfort.

⚠ WARNING: Please confirm the distribution system in building installation shall provide the circuit breaker rated 120/240V, 20A (maximum).

Identifying parts and controls

Front view

Front view of a modern computer monitor with a stand (no visible text or symbols)

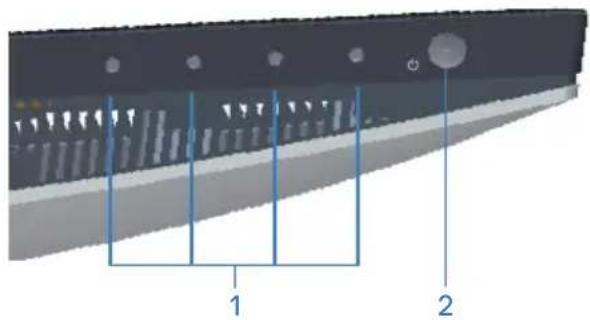

Technical diagram of a mechanical component with labeled parts (1 and 2), showing internal structure without any readable text or symbols.

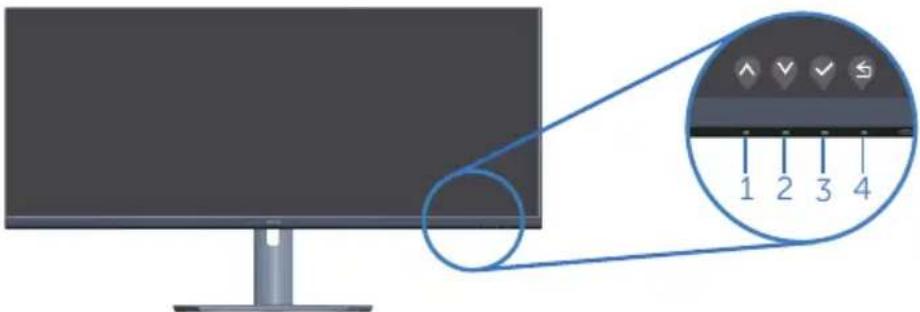

Control buttons

Label	Description Use
1	Function buttons Press the function buttons to adjust items in the OSD menu. (For more information, see Using the control buttons)
2	Power On/Off button Press the power button to turn the monitor on and off.Solid white light indicates the monitor is turned on and functioning normally.Blinking white light indicates the monitor is in Standby Mode.

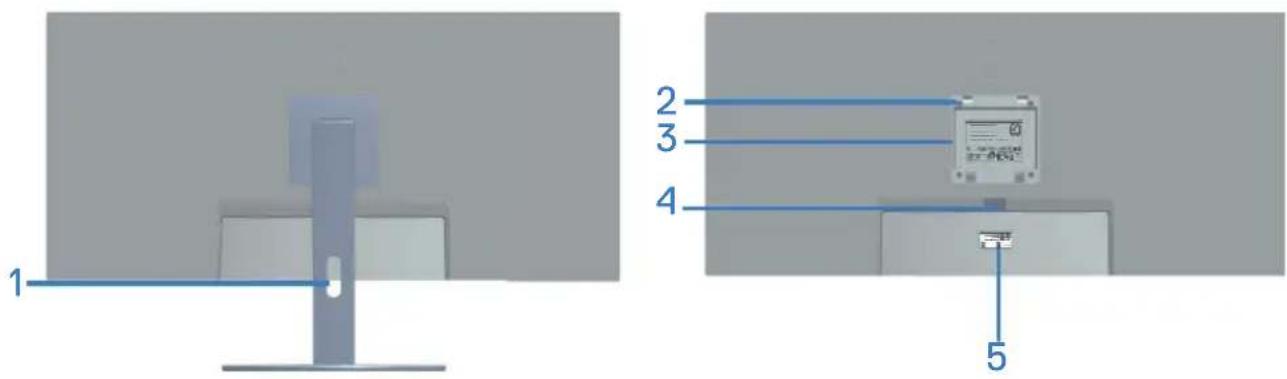

Back view

1 2 3 4 5

Back View with monitor stand

Label	Description Use
1 Cable	management slot Organizes the cables when the cables are routed through the slot.
2 VESA	mounting holes (behind VESA cover)	VESA mounting holes (100 mm x 100 mm). Use for Wall mounting the monitor through a VESA-compatible wall mount kit.
3 Regulatory information label Lists the regulatory approvals.
4 Stand	release button Releases stand from monitor.
5 Regulatory label (including Barcode serial number and Service Tag label)		Lists the regulatory approvals. Refer to this label if you need to contact Dell for technical support.The Service Tag is a unique alphanumeric identifier that enables Dell service technicians to identify the hardware components in your computer and access warranty information.

Side view

3D rendering of a computer monitor with a side-mounted stand (no text or symbols visible)

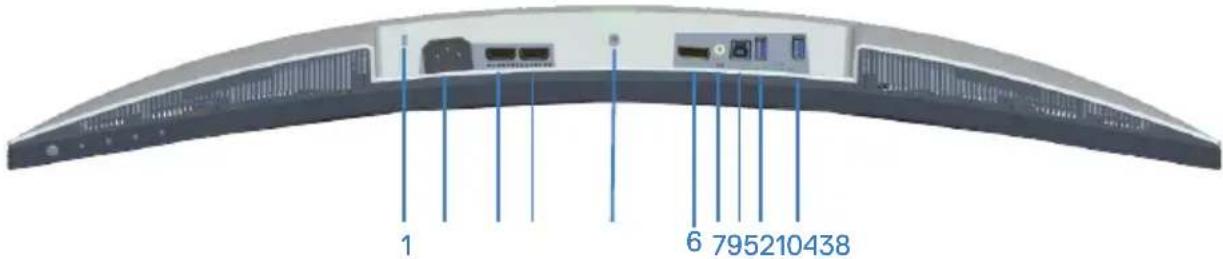

Bottom view

1 6 795210438

Bottom view without monitor stand

Label	Description Use
1	Security-lock slot Secure	your monitor using a security lock (purchased separately) to prevent unauthorized movement of your monitor.
2	Power connector Connect	the power cable (shipped with your monitor).
3	HDMI 1 2.0 port Connect	to your computer using a HDMI cable.
4	HDMI 2 2.0 port Connect	to your computer using a HDMI cable.
5	Stand lock feature	Lock the stand to the monitor using a M3 x 6 mm screw (screw not included).
6	DP 1.2 port Connect	to your computer using a DP cable.
7	Audio line out port	Connect to an external speaker or a sub-woofer (purchased separately).*
8	USB 3.0 upstream port	Connect the USB cable from this port to your computer to enable the USB ports on your monitor.

9 USB	3.0 downstream ports	Connect your USB peripherals such as storage devices and printers.
		NOTE: To use this port, you must connect the USB upstream cable (shipped with your monitor) between the monitor and the computer.
10 USB	3.0 downstream with BC1.2 charging	USB 3.0 downstream port with charging capability. Connect to charge your USB device.

*Audio line out port does not support headphones.

Monitor specifications

Model S3422DW
Screen type Active matrix-TFT LCD
Panel type Vertical Alignment
Viewable image
Diagonal	864.2 mm (34.0 in.)
Horizontal, Active Area	797.2 mm (31.19 in.)
Vertical, Active Area	333.7 mm (13.14 in.)
Area	266048.26 mm^2 (412.38 in. ^2 )
Native resolution and refresh rate	3440 x 1440 at 100 Hz (HDMI1 and HDMI2)
	3440 x 1440 at 100 Hz (DP)
Pixel pitch 0.23175 mm x 0.23175 mm
Pixel per inch (PPI) 109
Viewing angle
Horizontal	178° (typical)
Vertical	178° (typical)
Luminance output 300 cd/ m^2 (typical)
Contrast ratio 3000 to 1 (typical)
Faceplate coating Anti-glare with 3H hardness, Haze 40%
Backlight LED edgelight system
Response time (Gray to Gray)	4 ms
Color depth 16.7 million colors
Color gamut sRGB CIE 1931 (99.7%) CIE1976 (98.8%)
Connectivity 2 x HDMI 2	.0 with HDCP 2.2
	1 x DP 1.2 port
	1 x USB 3.0 upstream
	1 x USB 3.0 downstream
	1 x USB 3.0 downstream with BC 1.2 charging
	1 x Audio line out
Bezel width (edge of monitor to active area)
Top	8.64 mm
Left/Right	8.65 mm
Bottom	22.14 mm
Adjustability
Height adjustable stand	100 mm
Tilt	-5° to 21°
Swivel	N/A
Slant Adjust	-4° to 4°
Dell display manager compatibility	Easy Arrange and other key features
Security Security-lock slot (cable lock optional purchase)

Resolution specifications

Model S3422DW
Horizontal scan range 30 kHz to 160 kHz
Vertical scan range 48 Hz to 100 Hz (HDMI)48 Hz to 100 Hz (DP)
Maximum preset resolution	3440 x 1440 at 100 Hz (DP)3440 x 1440 at 100 Hz (HDMI)

Supported video modes

Model S3422DW
Video display capabilities (HDMI/DP)	480p, 480i(HDMI), 576p, 720p, 1080p, 576i(HDMI), 1080i(HDMI)

Preset display modes

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal / Vertical)
VESA, 640 x 480 31	.47 59.94 25.18	-/-
VESA,640 x 480 37	.50 75.00 31.50	-/-
IBM, 720 x 400 31	47 70.08 28.32	-/+
VESA,800 x 600 37	.88 60.32 40.00	+/+
VESA,800 x 600 46	.88 75.00 49.50	+/+
VESA,1024 x 768 48	.36 60.00 65.00	-/-
VESA,1024 x 768 60	.02 75.03 78.75	+/+
VESA,1152 x 864	67.50 75.00	108.00	+/+
VESA,1280 x 1024	63.98 60.02	108.00	+/+
VESA,1280 x 1024	79.98	75.02 135.00	+/+
VESA,1600 x 900	60.00 60.00	108.00	+/+
VESA,1600 x 1200	75.00 60.00	162.00	+/+
VESA,1680 x 1050	65.29 59.95	146.25	-/+
VESA,1920 x 1080	67.50 60.00	148.50	+/+
VESA,1920 x 1080	113.22	100.00	235.50	+/-
VESA,1920 x 1200	74.04 59.95	154.00	+/-
VESA,2560 x 1080	66.66	60.00	185.58	+/-
VESA,2560 x 1080	113.24	100.00	308.00	+/-
VESA,3440 x 1440	73.68 49.99	265.25	+/-
VESA,3440 x 1440	88.82 59.97	319.75	+/-
VESA,3440 x 1440	150.97	99.98	543.50	+/-

NOTE: This monitor supports AMD FreeSync.

Electrical specifications

Model S3422DW
Video input signals HDMI 2.0 (HDCP), 600 mV for each differential line,100 ohm input impedance per differential pairDP 1.2, 600 mV for each differential line, 100 ohminput impedance per differential pair
AC input voltage/frequency/current	100 VAC to 240 VAC / 50 Hz or 60 Hz ± 3 Hz / 1.6A(max.)
Inrush current 120 V: 30 A (Max.) at 0°C (cold start)240 V: 60 A (Max.) at 0°C (cold start)
Power Consumption 0.3 W	(Off Mode)10.3 W (Standby Mode)132 W (On Mode)195 W (Max)239 W (Pon) ^3 122 kWh (TEC) ^3

^1 As defined in EU 2019/2021 and EU 2019/2013.

^2 Max brightness and contrast setting with maximum power loading on all USB ports.

^3 Pon: Power consumption of On Mode measured with reference to Energy Star test method.

TEC: Total energy consumption in kWh measured with reference to Energy Star test method.

This document is informational only and reflects laboratory performance. Your product may perform differently, depending on the software, components and peripherals you ordered and shall have no obligation to update such information. Accordingly, the customer should not rely upon this information in making decisions about electrical tolerances or otherwise. No warranty as to accuracy or completeness is expressed or implied.

Physical characteristics

Model S3422DW
Signal cable type	Digital: HDMI, 19 pinsUniversal Serial Bus: USB, 9 pins
Dimensions (with stand)
Height (extended) 489.36 mm	(19.28 in.)
Height (compressed) 389.36 mm	(15.33 in.)
Width 808.16 mm (31.82 in.)
Depth 210 mm (8.27 in.)
Dimensions (without stand)
Height 364.50 mm (14.35 in.)
Width 808.16 mm (31.82 in.)
Depth 64.01 mm (2.52 in.)
Stand dimensions
Height 382.20 mm (15.05 in.)
Width 302 mm (11.90 in.)
Depth 210 mm (8.27 in.)
Weight
Weight with packaging 14.92 kg	(32.89 lb)
Weight with stand assembly and cables	10.16 kg (22.40 lb)
Weight without stand assembly (no cables)	6.70 kg (14.77 lb)
Weight of stand assembly 3.10 kg	(6.83 lb)
Front-frame gloss Black frame	2-4 gloss units

Environmental characteristics

Model S3422DW
Compliant Standards
RoHS-compliantBFR/PVC reduce monitorArsenic-free glass and Mercury-free for the panel onlyEnergy Gauge shows the energy level being consumed by the monitor in real time.
Temperature
Operating 0°C to	40°C (32°F to 104°F)
Non-operating	Storage: -20°C to 60°C (-4°F to 140°F)Shipping: -20°C to 60°C (-4°F to 140°F)
Humidity
Operating 10% to	80% (non-condensing)
Non-operating	Storage 10% to 90% (non-condensing)Shipping 10% to 90% (non-condensing)
Altitude
Operating (maximum)	5,000 m (16,400 ft)
Non-operating (maximum)	12,192 m (40,000 ft)
Thermal dissipation	324.3699 BTU/hour (maximum)129.74796 BTU/hour (typical)

Plug and play capability

You can install the monitor in any Plug and Play-compatible system. The monitor automatically provides the computer system with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so the system can configure itself and optimize the monitor settings. Most monitor installations are automatic, you can select different settings if desired. For more information about changing the monitor settings, see Operating your monitor.

LCD monitor quality and pixel policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state which are hard to see and do not affect the display quality or usability. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at www.dell.com/support/monitors

Ergonomics

△ CAUTION: Improper or prolonged usage of keyboard may result in injury.
△ CAUTION: Viewing the monitor screen for extended periods of time may result in eye strain.

For comfort and efficiency, observe the following guidelines when setting up and using your computer workstation:

Position your computer so that the monitor and keyboard are directly in front of you as you work. Special shelves are commercially available to help you correctly position your keyboard.
To reduce the risk of eye strain and neck/arm/back/shoulder pain from using the monitor for long periods of time, we suggest you to:

1. Set the distance of the screen between 20 to 28 in. (50 - 70 cm) from your eyes.
2. Blink frequently to moisten your eyes or wet your eyes with water after prolonged usage of the monitor.
3. Take regular and frequent breaks for 20 minutes every two hours.
4. Look away from your monitor and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.
5. Perform stretches to relieve tension in the neck, arm, back, and shoulders during the breaks.

Make sure that the monitor screen is at eye level or slightly lower when you are sitting in front of the monitor.

Adjust the tilt of the monitor, its contrast, and brightness settings.

Adjust the ambient lighting around you (such as overhead lights, desk lamps, and the curtains or blinds on nearby windows) to minimize reflections and glare on the monitor screen.

Use a chair that provides good lower-back support.

Keep your forearms horizontal with your wrists in a neutral, comfortable position while using the keyboard or mouse.

Always leave space to rest your hands while using the keyboard or mouse.

Let your upper arms rest naturally on both sides.
Ensure that your feet are resting flat on the floor.

When sitting, make sure that the weight of your legs is on your feet and not on the front portion of your seat. Adjust your chair's height or use a footrest if necessary to maintain a proper posture.

Vary your work activities. Try to organize your work so that you do not have to sit and work for extended periods of time. Try to stand or get up and walk around at regular intervals.

Keep the area under your desk clear of obstructions and cables or power cords that may interfere with comfortable seating or present a potential trip hazard.

monitor screen at or below eye level monitor and keyboard positioned directly in front of the user wristis relaxed and flat feet flat on the floor

Handling and moving your display

To ensure the monitor is handled safely when lifting or moving it, follow the guidelines mentioned below:

Before moving or lifting the monitor, turn off your computer and the monitor.

Disconnect all cables from the monitor.

Place the monitor in the original box with the original packing materials.

Hold the bottom edge and the side of the monitor firmly without applying excessive pressure when lifting or moving the monitor.

Diagram illustrating hand tool application steps with checkmarks and cross icons for correct and incorrect states

When lifting or moving the monitor, ensure the screen is facing away from you and do not press on the display area to avoid any scratches or damage.

Diagram showing two human figures with checkmarks and a central vertical symbol, likely indicating selection or confirmation steps.

When transporting the monitor, avoid any sudden shock or vibration to it.

When lifting or moving the monitor, do not turn the monitor upside down while holding the stand base or stand riser. This may result in accidental damage to the monitor or cause personal injury.

Simple line drawing of a hand holding a U-shaped object over a rectangular base, with a cross symbol in the corner (no text or labels)

Maintenance guidelines

Cleaning your monitor

WARNING: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

CAUTION: Read and follow the Safety Instructions before cleaning the monitor.

For best practices, follow the instructions in the list below while unpacking, cleaning or handling your monitor:

- To clean your screen, lightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the anti-static coating. Do not use benzene, thinner, ammonia, abrasive cleaners or compressed air.

- Use a lightly-dampened cloth to clean the monitor. Avoid using detergent of any kind as some detergents leave a milky film on the monitor.

- If you notice white powder when you unpack your monitor, wipe it off with a cloth.

- Handle your monitor with care as the black-colored monitor may get scratched and show white scuff marks.

• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and turn off your monitor when not in use.

Setting up the monitor

Connecting the stand

NOTE: The stand is detached when the monitor is shipped from the factory.

NOTE: The following procedure is applicable for the stand that shipped with your monitor. If you are connecting a third-party stand, see the documentation that shipped with the stand.

To attach the monitor stand:

1. Follow the instructions on the flaps of carton to remove the stand from the top cushion that secures it.
2. Connect the stand base to the stand riser.
3. Open the screw handle on the stand base and tighten the screw to secure the stand riser to the stand base.
4. Close the screw handle.

1. Slide the tabs on the stand assembly into the slots on the monitor and press the stand assembly down to snap it into place.

Illustration of a printer's internal structure and its hand positioning, showing part assembly and alignment (no text or symbols)

1. Place the monitor upright.

Connecting your monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

NOTE: Do not connect all cables to the computer at the same time. It is recommend to route the cables through the cable-management slot before you connect them to the monitor.

To connect your monitor to the computer:

1. Turn off your computer and disconnect the power cable.
2. Connect the HDMI or DP cable (optional purchase) from your monitor to the computer.
3. Connect the USB upstream cable (shipped with your monitor) to an appropriate USB 3.0 port on your computer. (See Bottom view for details.)
4. Connect the USB 3.0 peripherals to the downstream USB 3.0 ports on the monitor.

Connecting the HDMI and USB 3.0 cable

HDMI 2.0 HDMI 2.0 HDMI 2.0 USB HDMI 2.0 USB

1. Connect the power cables from your computer and monitor into a wall outlet.

Organizing cables

Use the cable-management slot to route the cables connected to your monitor.

Diagram showing cable routing between two devices with connectors and cables, no text or symbols present

Securing your monitor using Kensington/Noble lock (optional)

The security lock slot is located at the bottom of the monitor. (See Security lock slot)

For more information on using the Kensington/Noble lock (purchased separately), see the documentation that is shipped with the lock.

Secure your monitor to a table using the Kensington/Noble security lock.

Diagram showing a computer setup with a lock and lock icon, highlighting the lock mechanism.

NOTE: The image is for the purpose of illustration only. Appearance of the lock may vary.

Removing the stand

NOTE: To prevent scratches on the screen when removing the stand, ensure that the monitor is placed on a soft and clean surface.
NOTE: The following procedure is applicable only for the stand that shipped with your monitor. If you are connecting a third-party stand, see the documentation that shipped with the stand.

1. Place the monitor on a soft cloth or cushion at the edge of the desk.

3D rendered mechanical component with a curved base and a rectangular cutout, shown without any text or symbols.

1. Press and hold the stand release button, and then lift the stand off the monitor.

3D mechanical assembly diagram showing a component being processed with two blue arrows indicating motion, no text or symbols present

3D rendered model of a gray plastic component with a cutaway view (no text or symbols)

Wall mounting (optional)

3D diagram of a mechanical component with two views showing tool positioning and assembly (no text or symbols)

(Screw dimension: M4 x 10 mm).

See the documentation that shipped with the VESA-compatible wall mounting kit.

1. Lay the monitor on a soft cloth or cushion at the edge of the desk.
2. Remove the stand. See Removing the stand for details.
3. Remove the four screws that secure the panel to the monitor.
4. Attach the mounting bracket from the wall mounting kit to the monitor.
5. To mount the monitor on the wall, see the documentation that shipped with the wall mounting kit.

NOTE: For use only with UL or CSA or GS-listed wall mount bracket with minimum weight/load bearing capacity of 26.80 kg.

NOTE: When using the display, fasten the LCD to a wall using a cord or chain that can support the weight of the monitor in order to prevent the monitor from falling. Installing must be done by a qualified technician, and please contact your supplier for more information.

Cord or chain Clamp Release the screws then fix the clamp. Screw

Operating your monitor

Power on the monitor

Press the Button to turn on the monitor.

Simple line drawing of a hand pressing a button on a screen (no text or symbols)

Using the control buttons

Use the control buttons at the bottom edge of the monitor to adjust the image being displayed.

15234

Control buttons

The following table describes the control buttons:

Control Buttons Description
1		Use this button for choose from a list of preset modes.
	Shortcut key/Preset Modes
2		Use the buttons to adjust the volume. Minimum is ‘0’ (-). Maximum is ‘100’ (+).
	Shortcut key/Input Source
3		Use the Menu button at launch your on-screen display (OSD) and select the OSD menu. See Accessing the OSD menu.
	Menu
4		Use this button to go back to the main menu or exit the OSD main menu.
	Exit
5		Use the power button to turn the monitor on and off.
	Power On/Off button (with LED indicator)	Solid white light indicates the monitor is turned on. Blinking white light indicates it is in Standby mode.

OSD controls

Use the buttons on the bottom of the monitor to adjust the image settings.

Diagram showing a monitor connected to a screen with four labeled buttons and an arrow pointing to it, illustrating a navigation or tracking process.

Control Buttons Description
1		Use the Up button to increase values or move up in a menu.
	Up
2		Use the Down button to decrease values or move down in a menu.
	Down
3		Use the OK button to confirm your selection in a menu.
	OK
4		Use the Back button to go back to the previous menu.
	Back

Using the On-Screen Display (OSD) menu

Accessing the OSD menu

NOTE: Any changes you make are automatically saved when you move to another menu, exit the OSD menu, or wait for the OSD menu to automatically close.

1. Press the button to display the OSD main menu.

Dell 34 Monitor Brightness / Contrast Input Source Color Display Audio Menu Personalize Others 75% 75%

1. Press the 🔊 and 🔕 buttons to move between the setting options. As you move from one icon to another, the option is highlighted.
2. Press the ➤ or √ or ◇ button once to activate the highlighted option.
3. Press and button to select the desired parameter.
4. Press ➤ and then use the ⏰ and ⏽ buttons, according to the indicators on the menu, to make your changes.
5. Select the ↩ to return to previous menu or √ to accept and return to previous menu.

Icon	Menu and Sub-menus	Description
	Brightness/Contrast	Use this menu to adjust the brightness and contrast.
	Brightness Adjust the brightness of the backlight. Press the button to increase the brightness and press the button to decrease the brightness (min. 0 / max. 100).
	Contrast Adjust the brightness first, and then adjust the contrast only if further adjustment is necessary. Press the button to increase the contrast and press the button to decrease the contrast (min. 0 / max. 100). The Contrast function adjusts the degree of difference between darkness and lightness on the monitor screen.
	Input Source Use the input source menu to select between the different video signals that may be connected to your monitor.
	DP Select DP input when you are using the DP connector.Push to select the DP input source.
	HDMI 1 Select HDMI 1 input when you are using the HDMI 1 connector.Push to select the HDMI input source.
	HDMI 2 Select HDMI 2 input when you are using the HDMI 2 connector.Push to select the HDMI input source.
	Auto Select Select auto select to scan for available input signals.
	Reset Input Source Select this option to restore default Input Source.
	Color Change the color setting mode.

	Preset Modes	When you select Preset Modes, you can choose Standard, Comfortview, Movie, FPS Game, RTS Game, RPG Game, Warm, Cool, or Custom color from the list.Standard: Loads the monitor's default color settings. This is the default preset mode.ComfortView: Decreases the level of blue light emitted from the screen to make viewing more comfortable for your eyes.NOTE: To reduce the risk of eye strain and neck/arm/back/shoulders pain from using the monitor for long periods of time, we suggest you to:Set the screen about 20 to 28 in. (50-70 cm) from your eyes.Blink frequently to moisten or rewet your eyes when working with the monitor.Take regular and frequent breaks for 20 minutes every two hours.Look away from your monitor and gaze at a distant object at 20 feet away for at least 20 seconds during the breaks.Perform stretches to relieve tension in the neck/arm/back/ shoulders during the breaks.Movie: Loads color settings ideal for movies.FPS Game: Loads color settings ideal for First-Person Shooter games.RTS Game: Loads color settings ideal for Real-time Strategy games.RPG Game: Loads color settings ideal for Role-Playing games.Warm: Increases the color temperature. The screen appears warmer with a red/yellow tint.Cool: Decreases the color temperature. The screen appears cooler with a blue tint.Custom Color: Allows you to manually adjust the color settings.Press the and buttons to adjust the three colors (R, G, B) values and create your own preset color mode.*When VGA input is selected.
	Input Color Format	Allows you to set the video input mode to:RGB: Select this option if your monitor is connected to a computer or a media player that supports RGB output.YCbCr/YPbPr*: Select this option if your media player supports only YCbCr/YPbPr output.*When VGA input is selected.
		RGB: Select this option if your monitor is connected to a computer or a media player that supports RGB output.YCbCr: Select this option if your media player supports only YCbCr output.*When VGA input is selected.
	Hue Use this feature to adjust the flesh tone color in the video image. Press for to adjust the hue from 0 to 100.Press to increase the green shade of the video image.Press to increase the purple shade of the video image.NOTE: Hue adjustment is available only when you select Movie and Game mode.
	Saturation This feature can adjust the color saturation of the video image. Use for to adjust the saturation from 0 to 100.Press to increase the monochrome appearance of the video image.Press to increase the colorful appearance of the video image.NOTE: Saturation adjustment is available only when you select Movie and Game mode.
	Reset Color Allows your monitor color settings to the factory settings.
	Display Use the display to adjust image.
	Aspect Ratio Adjusts the image ratio to Wide 21:9, Auto Resize, 4:3 or 1:1
	Sharpness This feature can make the image look sharper or softer. Press for to adjust the sharpness from 0 to 100.
	Response Time Select the response time: Normal, Fast, or Extreme.
	Reset Display Select this option to restore default display settings.
	Audio Change the audio settings.
	Volume Press the buttons to adjust the volume. Minimum is '0' (-). Maximum is '100' (+).
	Speaker Select this option to active the speaker.
	Reset Audio Select this option to restore default display settings.
	Menu Select this option to adjust the settings of the OSD, such as, the languages of the OSD, the amount of time the menu remains on screen and so on.
	Language Set the language option for the OSD display: (English, Spanish, French, German, Brazilian Portuguese, Russian, Simplified Chinese, or Japanese).
	Transparency Press ▲or ▲to change the menu transparency (0 to 100).
	Timer OSD hold time: sets the length of time the OSD will remain active after the last time you pressed a button. Press ▲or ▲to adjust the slider in 1 second increments, from 5 to 60 seconds.
	Lock Controls user access to adjustments. User can select one of the following: Menu Buttons, Power Button, Menu + Power Buttons, Disable.
	Reset Menu Reset all OSD settings to the factory preset values.
	Personalize Select this option to adjust the settings of the person-alization.
	Shortcut Key 1 Select one of the following: Preset Modes, Brightness/Contrast, Input Source, Aspect Ratio, Volume to set the shortcut key 1.
	Shortcut Key 2 Select one of the following: Preset Modes, Brightness/Contrast, Input Source, Aspect Ratio, Volume to set the shortcut key 2.

	Power Button LED	Set the power LED indicator On In On Mode or Off In On Mode to save energy.[IMAGE]
	USB Enable or disable USB function in monitor standby mode.[IMAGE]
	Reset Personalization	Reset all settings under the personalize menu to the default setting.
↓↑	Others Change the OSD settings, such as the DDC/CI, LCD conditioning, and so on.
	Display Info Display the monitor's current settings.
	DDC/CI DDC/CI (display data channel/command interface) allows your monitor parameters (brightness, color balance and etc.) to be adjustable via the software on your computer.You can disable this feature by selecting off.Enable this feature by selecting on for best user experience and optimum performance of your monitor.
	LCD ConditioningHelps reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run. To start LCD conditioning, select on.Firmware Display the version of the firmware about the display.
	Service Tag Display the service tag number of the display. The Service Tag is a unique alphanumeric identifier that allows Dell to identify the product specifications and access warranty information.
	NOTE: The Service Tag is also printed on a label located at the back of the cover.
	Reset Others Reset all settings under the others setting menu to the factory preset values.
	Factory Reset Restore all preset values to the factory default settings.

NOTE: Your monitor has a built-in feature to automatically calibrate the brightness to compensate for LED aging.

Menu and Power button lock

Prevents users to access or change OSD menu settings on the display.

By default, the Menu and Power button lock setting is disabled.

3D diagram of a mechanical component with vertical blue lines and circular features, no readable text or symbols

To access the lock menu, press and hold the Exit button (button 4) for four seconds. A lock menu appears at the bottom right corner of the display.

NOTE: The lock menu can be accessed using this method when the Menu and Power buttons are in unlocked state.

Dell 34 Monitor Select option: < > ✓ ×

To access the unlock menu, press and hold the Exit button (button 4) for four seconds. An unlock menu appears at the bottom right corner of the display.

NOTE: The unlock menu can be accessed when the Menu and Power buttons are in locked state.

Dell 34 Monitor Select option:

There are three lock options.

	Menu Description
1	Menu Buttons When	Menu Buttons is selected, the OSD menu settings cannot be changed. All buttons are locked except Power button.
2	Power Button When	Power Button is selected, the display cannot be turned off using the Power button.
3	Menu + Power Buttons	When Menu + Power Buttons is selected, the OSD menu settings cannot be changed and the Power button is locked.
4	Built-in Diagnostics See	Built-in diagnostics for more information.

NOTE: To access the Lock or Unlock menu – Press and hold the Exit button (button 4) for four seconds.

In the following scenarios, the icon appears at the center of the display:

• When Up button (button 1), Down button (button 2), Menu button (button 3), or Exit button (button 4) are pressed. This indicates the OSD menu buttons are in lock state.
• When the Power button (button 5) is pressed. This indicates the Power button is in lock state.
• When any one of the five buttons are pressed. This indicates OSD menu buttons and the Power button is in lock state.

Unlocking the OSD menu and Power buttons:

1. Press and hold the Exit button (button 4) for four seconds. The unlock menu appears.
2. Select the unlock icon to unlock the buttons on the display.

OSD warning messages

When the monitor does not support a particular resolution mode, the following message is displayed:

Dell 34 Monitor The current input timing is not supported by the monitor display. Please change your input timing to 3440x1440, 100Hz or any other monitor listed timing as per the monitor specifications.

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor specifications for the Horizontal and Vertical frequency ranges addressable by this monitor. Recommended mode is 3440 x 1440.

Before the DDC/CI function is disabled, the following message is displayed:

Dell 34 Monitor The function of adjusting display setting using PC application will be disabled. Do you wish to disable DDC/CI function? Yes No S3422DW

When the monitor enters the Standby Mode, the following message appears:

DELL Dell 34 Monitor Entering Standby Mode. S3422DW

If you press any button other than the power button, the following messages will appear depending on the selected input:

Dell 34 Monitor No HDMI 1 signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source. S3422DW

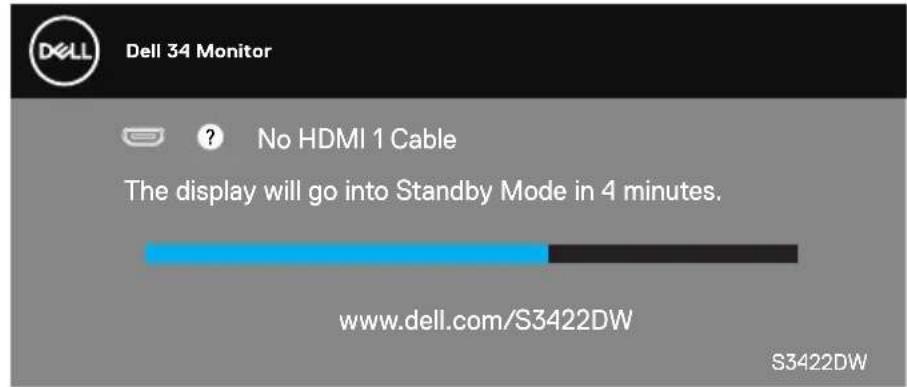

If an HDMI or DP cable is not connected, a floating dialog box as shown below appears. The monitor will enter Standby Mode after 4 minutes if left at this state.

Dell 34 Monitor No HDMI 1 Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S3422DW S3422DW

or

Dell 34 Monitor No HDMI 2 Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S3422DW S3422DW

or

Dell 34 Monitor No DP Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S3422DW S3422DW

The OSD functions only in the normal operation mode. When any button is pressed in the Active-off mode, the following message will be displayed:

Dell 34 Monitor No HDMI 1 signal from your device. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button again to select the correct input source. S3422DW

Activate the computer and the monitor to gain access to the OSD.

See Troubleshooting for more information.

Setting up your monitor

Setting the maximum resolution

To set the maximum resolution for the monitor:

In Windows 7, Windows 8, Windows 8.1 and Windows 10:

1. For Windows 8 and Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the Dropdown list of the Screen Resolution and select 3440 x 1440.
4. Click OK.

If you do not see 3440 × 1440 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures:

If you have a Dell desktop or portable computer:

- Go to www.dell.com/support, enter your computer's Service Tag, and download the latest driver for your graphics card.

If you are using a non-Dell computer (portable or desktop):

• Go to the support site for your computer and download the latest graphic drivers.
• Go to your graphics card website and download the latest graphic drivers.

If you have a Dell desktop or a Dell portable computer with internet access

• Go to www.dell.com/support, enter your service tag, and download the latest driver for your graphics card.
• After installing the drivers for your graphics adapter, attempt to set the resolution to 3440 × 1440 again.

NOTE: If you are unable to set the resolution to 3440 x 1440, please contact Dell to inquire about a graphics adapter that supports these resolutions.

If you have a non Dell desktop, portable computer, or graphics card

In Windows 7, Windows 8, Windows 8.1 and Windows 10:

1. For Windows 8 and Windows 8.1 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Personalization.
3. Click Change Display Settings.
4. Click Advanced Settings.
5. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel, and so on).
6. Refer to the graphic card provider website for updated driver (for example, www.ATI.com OR www.AMD.com).
7. After installing the drivers for your graphics adapter, attempt to set the resolution to 3440 × 1440 again.

Using the tilt and vertical extension

NOTE: These values are applicable to the stand that was shipped with your monitor. To set up with any other stand, see the documentation that shipped with the stand.

Tilt Extension

NOTE: The stand is detached when the monitor is shipped from the factory.
NOTE: The slant angle of this monitor is between -4^ and +4^ , not allowing for pivot movements.

Vertical Extension

NOTE: The stand can be extended vertically up to 100 mm.

100mm

Troubleshooting

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

Self-Test

Your monitor provides a self-test feature that allows you to check if your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.
2. Disconnect all video cables from the monitor. This way, the computer doesn't have to be involved.
3. Turn on the monitor.

If the monitor is working correctly, it detects that there is no signal and one of the following message appears. While in self-test mode, the power LED remains white.

Dell 34 Monitor No HDMI 1 Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S3422DW S3422DW

or

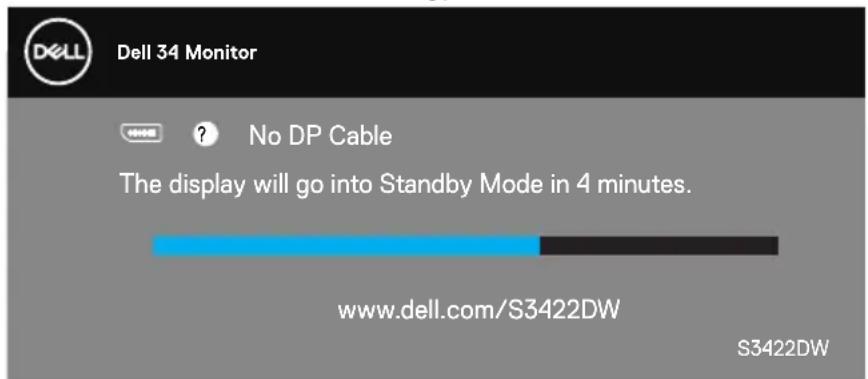

Dell 34 Monitor No DP Cable The display will go into Standby Mode in 4 minutes. www.dell.com/S3422DW S3422DW

NOTE: This box also appears during normal system operation, if the video cable is disconnected or damaged.

1. Turn off your monitor and reconnect the video cable; then turn on your computer and the monitor.

If your monitor remains dark after you reconnect the cables, check your video controller and computer.

Built-in diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if any screen abnormality you experience is an inherent problem with your monitor, or with your computer and video card.

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

3D diagram of a structural component with vertical blue rods and circular features, labeled '15234' at the base (no readable text or symbols beyond label)

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Press and hold the Exit button (button 4) for four seconds to enter the OSD lock/unlock menu.

Dell 34 Monitor Select option: - - - + + < > ✓ ✗

Dell 34 Monitor Select option: < > ✓ ×

1. Select the icon to run the built-in diagnostics.
2. Carefully inspect the screen for abnormalities.
3. Press the Up button (button 1) on the back cover again. The color of the screen changes to grey.
4. Inspect the display for any abnormalities.
5. Repeat step 6 and 7 to inspect the display in red, green, blue, black, white and text pattern screens.

The test is complete when the text pattern screen appears. To exit, press the Up button (button 1) again.

If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common problems

The following table contains general information about common monitor problems you might encounter and the possible solutions:

Common Symptoms	Possible Solutions
No Video/Power LED off	Ensure that the video cable connecting the monitor and the computer is properly connected and secure.Verify that the power outlet is functioning properly using any other electrical equipment.Ensure that the power button is pressed.Ensure that the correct input source is selected via the Input Source menu.
No Video/Power LED on	Increase brightness and contrast controls using the OSD.Perform monitor self-test feature check.Check for bent or broken pins in the video cable connector.Run the built-in diagnostics.Ensure that the correct input source is selected via the Input Source menu.
Poor Focus	Eliminate video extension cables.Reset the monitor to Factory Settings (Factory Reset).Change the video resolution to the correct aspect ratio.
Shaky/Jittery Video	Reset the monitor to Factory Settings (Factory Reset).Check environmental factors.Relocate the monitor and test in another room.
Missing Pixels	Cycle power On-Off.Pixel that is permanently Off is a natural defect that can occur in LCD technology.For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at:www.dell.com/support/monitors.
Stuck-on Pixels	Cycle power On-Off.Pixel that is permanently off is a natural defect that can occur in LCD technology.For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at:www.dell.com/support/monitors

Brightness Problems	Reset the monitor to Factory Settings (Factory Reset).Adjust brightness & contrast controls via OSD.
Geometric Distortion	Reset the monitor to Factory Settings (Factory Reset).Adjust horizontal & vertical controls via OSD.
Horizontal/Vertical Lines	Reset the monitor to Factory Settings (Factory Reset).Perform monitor self-test feature check and determine if these lines are also in self-test mode.Check for bent or broken pins in the video cable connector.Run the built-in diagnostics.
Synchronization Problems	Reset the monitor to Factory Settings (Factory Reset).Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode.Check for bent or broken pins in the video cable connector.Restart the computer in the safe mode.
Safety Related Issues	Do not perform any troubleshooting steps.Contact Dell immediately.
Intermittent Problems	Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Reset the monitor to Factory Settings (Factory Reset).Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color	Perform monitor self-test feature check.Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.Check for bent or broken pins in the video cable connector.
Wrong Color	Try different Preset Modes in Color settings OSD.Adjust R/G/B value in Custom Color in Color settings OSD.Change the Input Color Format to RGB or YCbCr in the Color settings OSD.Run the built-in diagnostics.
Image retention from a static image left on the monitor for a long period of time	Set the screen to turn off after a few minutes of screen idle time. These can be adjusted in Windows Power Options or Mac Energy Saver setting.Alternatively, use a dynamically changing screensaver.
Video Ghosting or Overshooting	Change the Response Time in the Display OSD to Normal, Fast or Extreme depending on your application and usage.

Product-specific problems

Specific Symptoms	Possible Solutions
Screen image is too small	Check the Aspect Ratio setting in the Display settings OSD.Reset the monitor to Factory Settings (Factory Reset).
Cannot adjust the monitor with the buttons on the bottom of the panel	Turn Off the monitor, unplug the power cord, plug it back, and then turn On the monitor.Check if the OSD menu is locked. If yes, press and hold the menu button for 6 seconds to unlock.
No Input Signal when user controls are pressed	Check the signal source. Ensure the computer is not in standby or sleep mode by moving the mouse or pressing any key on the keyboard.Check if the video cable is plugged in properly. Disconnect and reconnect the video cable if necessary.Reset the computer or video player.
The picture does not fill the entire screen	Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.Run the built-in diagnostics.

Appendix

Safety Instructions

WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Safety Environment and Regulatory Information (SERI).

FCC notices (U.S. Only) and other regulatory information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com/regulatory_compliance

Please follow these safety instructions for best performance, and long life for your monitor:

1. The socket-outlet shall be installed near the equipment and shall be easily accessible.
2. The equipment can be installed on wall or ceiling mounting in horizontal position.
3. The monitor is equipped with a three-pronged grounded plug, a plug with a third (Grounding) pin.
4. Do not use this product near water.
5. Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on product.
6. Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphones and headphones output voltage and therefore the sound pressure level.

Contacting Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options.

Availability varies by country and product, and some services may not be available in your area.

To get online Monitor support content:

1. Visit www.dell.com/support/monitors

To contact Dell for sales, technical support, or customer service issues:

1. Visit www.dell.com/support
2. Verify your country or region in the Choose A Country/Region drop-down menu at the bottom of the page.
3. Click Contact Us on the left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.

EU product database for energy label and product information sheet

S3422DW: https://eprel.ec.europa.eu/qr/428231

Stability Hazard.

The product may fall, causing serious personal injury or death. To prevent injury, this product must be securely attached to the floor/wall in accordance with the installation instructions.

A product may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

ALWAYS use cabinets or stands or installation methods recommended by the manufacturer of the product set.

ALWAYS use furniture that can safely support the product.

ALWAYS ensure the product is not overhanging the edge of the supporting furniture.

ALWAYS educate children about the dangers of climbing on furniture to reach the product or its controls.

ALWAYS route cords and cables connected to your product so they cannot be tripped over, pulled or grabbed.

NEVER place a product in an unstable location.

NEVER place the product on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the product to a suitable support.

NEVER place the product on cloth or other materials that may be located between the product and supporting furniture.

NEVER place items that might tempt children to climb, such as toys and remote controls, on the top of the product or furniture on which the product is placed.

If the existing product is going to be retained and relocated, the same considerations as above should be applied.
