Contents

Chapter 1: Working on your computer....7

Safety instructions....7

Before working inside your computer....7

Safety precautions....8

Electrostatic discharge—ESD protection....8

ESD field service kit 9

Transporting sensitive components....10

After working inside your computer....10

Chapter 2: Technology and components....11

DDR4....11

USB features....12

USB Type-C....14

HDMI 1.4....15

USB features....16

Power button LED behavior....18

Chapter 3: Disassembly and reassembly .... 20

Base cover....20

Removing the base cover....20

Installing the base cover....22

Battery....24

Lithium-ion battery precautions....24

Removing the battery....25

Installing the battery....26

WLAN card....26

Removing the WLAN card....26

Installing the WLAN card....27

WWAN card....28

Removing the WWAN card....28

Installing the WWAN card....29

Memory modules....30

Removing the memory module....30

Installing the memory module....31

Solid-state drive.... 32

Removing the M.2 2280 SATA SSD....32

Installing the SATA M.2 2280 SSD....33

Coin-cell battery....34

Removing the coin-cell battery....34

Installing the coin-cell battery....35

Inner frame....35

Removing the inner frame....35

Installing the inner frame....37

Heatsink assembly-discrete....38

Removing the heatsink assembly-discrete....38

Installing the heatsink assembly-discrete....40

Heatsink assembly—UMA....43

Removing the heatsink assembly-UMA.... 43

Installing the heatsink assembly-UMA....44

DC-in port....47

Removing the DC-in....47

Installing the DC-in....48

SmartCard reader....49

Removing the smartcard reader board....49

Installing the smartcard reader board....50

Touchpad buttons....51

Removing the touchpad button board....51

Installing the touchpad button board....52

LED board....53

Removing the LED board....53

Installing the LED board....54

Speakers....56

Removing the speakers....56

Installing the speakers....57

System board....58

Removing the system board....58

Installing the system board....60

Keyboard....63

Removing the keyboard....63

Installing the keyboard....65

Power button....67

Removing the power button with fingerprint reader....67

Installing the power button with fingerprint reader....67

Display assembly....68

Removing the display assembly....68

Installing the display assembly....71

Display bezel....76

Removing the display bezel....76

Installing the display bezel....77

Hinge caps....78

Removing the hinge caps....78

Installing the hinge caps....79

Display panel....80

Removing the display panel....80

Installing the display panel....82

Camera....85

Removing camera....85

Installing camera....85

Display hinges....86

Removing display hinge....86

Installing display hinge....87

Display (eDP) cable....88

Removing display cable....88

Installing display cable....89

Display back cover assembly....90

Replacing the display back cover....90

Palmrest assembly....91

Replacing the palmrest assembly....91

Chapter 4: Troubleshooting....94

Handling swollen Lithium-ion batteries....94

Dell SupportAssist Pre-boot System Performance Check diagnostics.... 95

Running the SupportAssist Pre-Boot System Performance Check....95

Built-in self-test (BIST)....95

M-BIST....95

LCD Power rail test (L-BIST)....96

LCD Built-in Self Test (BIST)....96

System-diagnostic lights....97

Recovering the operating system....97

Backup media and recovery options....98

WiFi power cycle....98

Drain residual flea power (perform hard reset)....98

Chapter 5: Getting help....100

Contacting Dell....100

Working on your computer

Topics:

•Safety instructions

Safety instructions

Prerequisites

Use the following safety guidelines to protect your computer from potential damage and to ensure your personal safety. Unless otherwise noted, each procedure included in this document assumes that the following conditions exist:

- You have read the safety information that shipped with your computer.

- A component can be replaced or, if purchased separately, installed by performing the removal procedure in reverse order.

About this task

WARNING: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best practices information, see the Regulatory Compliance Homepage

CAUTION: Many repairs may only be done by a certified service technician. You should only perform troubleshooting and simple repairs as authorized in your product documentation, or as directed by the online or telephone service and support team. Damage due to servicing that is not authorized by Dell is not covered by your warranty. Read and follow the safety instructions that came with the product.

CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface at the same time as touching a connector on the back of the computer.

CAUTION: Handle components and cards with care. Do not touch the components or contacts on a card. Hold a card by its edges or by its metal mounting bracket. Hold a component such as a processor by its edges, not by its pins.

CAUTION: When you disconnect a cable, pull on its connector or on its pull-tab, not on the cable itself. Some cables have connectors with locking tabs; if you are disconnecting this type of cable, press in on the locking tabs before you disconnect the cable. As you pull connectors apart, keep them evenly aligned to avoid bending any connector pins. Also, before you connect a cable, ensure that both connectors are correctly oriented and aligned.

NOTE: Disconnect all power sources before opening the computer cover or panels. After you finish working inside the computer, replace all covers, panels, and screws before connecting to the power source.

CAUTION: Exercise caution when handling Lithium-ion batteries in laptops. Swollen batteries should not be used and should be replaced and disposed properly.

NOTE: The color of your computer and certain components may appear differently than shown in this document.

Before working inside your computer

About this task

To avoid damaging your computer, perform the following steps before you begin working inside the computer.

Steps

1. Ensure that you follow the Safety Instruction.
2. Ensure that your work surface is flat and clean to prevent the computer cover from being scratched.
3. Turn off your computer.
4. Disconnect all network cables from the computer.

CAUTION: To disconnect a network cable, first unplug the cable from your computer and then unplug the cable from the network device.

1. Disconnect your computer and all attached devices from their electrical outlets.
2. Press and hold the power button while the computer is unplugged to ground the system board.

NOTE: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface at the same time as touching a connector on the back of the computer.

Safety precautions

The safety precautions chapter details the primary steps to be taken before performing any disassembly instructions.

Observe the following safety precautions before you perform any installation or break/fix procedures involving disassembly or reassembly:

• Turn off the system and all attached peripherals.
• Disconnect the system and all attached peripherals from AC power.
• Disconnect all network cables, telephone, and telecommunications lines from the system.
• Use an ESD field service kit when working inside any tabletnotebook to avoid electrostatic discharge (ESD) damage.
• After removing any system component, carefully place the removed component on an anti-static mat.
• Wear shoes with non-conductive rubber soles to reduce the chance of getting electrocuted.

Standby power

Dell products with standby power must be unplugged before you open the case. Systems that incorporate standby power are essentially powered while turned off. The internal power enables the system to be remotely turned on (wake on LAN) and suspended into a sleep mode and has other advanced power management features.

Unplugging, pressing and holding the power button for 20 seconds should discharge residual power in the system board. Remove the battery from tablets.notebooks.

Bonding

Bonding is a method for connecting two or more grounding conductors to the same electrical potential. This is done through the use of a field service electrostatic discharge (ESD) kit. When connecting a bonding wire, ensure that it is connected to bare metal and never to a painted or non-metal surface. The wrist strap should be secure and in full contact with your skin, and ensure that you remove all jewelry such as watches, bracelets, or rings prior to bonding yourself and the equipment.

Electrostatic discharge—ESD protection

ESD is a major concern when you handle electronic components, especially sensitive components such as expansion cards, processors, memory DIMMs, and system boards. Very slight charges can damage circuits in ways that may not be obvious, such as intermittent problems or a shortened product life span. As the industry pushes for lower power requirements and increased density, ESD protection is an increasing concern.

Due to the increased density of semiconductors used in recent Dell products, the sensitivity to static damage is now higher than in previous Dell products. For this reason, some previously approved methods of handling parts are no longer applicable.

Two recognized types of ESD damage are catastrophic and intermittent failures.

- Catastrophic – Catastrophic failures represent approximately 20 percent of ESD-related failures. The damage causes an immediate and complete loss of device functionality. An example of catastrophic failure is a memory DIMM that has received a static shock and immediately generates a "No POST/No Video" symptom with a beep code emitted for missing or nonfunctional memory.

- Intermittent – Intermittent failures represent approximately 80 percent of ESD-related failures. The high rate of intermittent failures means that most of the time when damage occurs, it is not immediately recognizable. The DIMM receives a static shock, but the tracing is merely weakened and does not immediately produce outward symptoms related to the damage. The weakened trace may take weeks or months to melt, and in the meantime may cause degradation of memory integrity, intermittent memory errors, etc.

The more difficult type of damage to recognize and troubleshoot is the intermittent (also called latent or "walking wounded") failure.

Perform the following steps to prevent ESD damage:

• Use a wired ESD wrist strap that is properly grounded. The use of wireless anti-static straps is no longer allowed; they do not provide adequate protection. Touching the chassis before handling parts does not ensure adequate ESD protection on parts with increased sensitivity to ESD damage.
• Handle all static-sensitive components in a static-safe area. If possible, use anti-static floor pads and workbench pads.
• When unpacking a static-sensitive component from its shipping carton, do not remove the component from the anti-static packing material until you are ready to install the component. Before unwrapping the anti-static packaging, ensure that you discharge static electricity from your body.
• Before transporting a static-sensitive component, place it in an anti-static container or packaging.

ESD field service kit

The unmonitored Field Service kit is the most commonly used service kit. Each Field Service kit includes three main components: anti-static mat, wrist strap, and bonding wire.

Components of an ESD field service kit

The components of an ESD field service kit are:

- Anti-Static Mat – The anti-static mat is dissipative and parts can be placed on it during service procedures. When using an anti-static mat, your wrist strap should be snug and the bonding wire should be connected to the mat and to any bare metal on the system being worked on. Once deployed properly, service parts can be removed from the ESD bag and placed directly on the mat. ESD-sensitive items are safe in your hand, on the ESD mat, in the system, or inside a bag.

- Wrist Strap and Bonding Wire – The wrist strap and bonding wire can be either directly connected between your wrist and bare metal on the hardware if the ESD mat is not required, or connected to the anti-static mat to protect hardware that is temporarily placed on the mat. The physical connection of the wrist strap and bonding wire between your skin, the ESD mat, and the hardware is known as bonding. Use only Field Service kits with a wrist strap, mat, and bonding wire. Never use wireless wrist straps. Always be aware that the internal wires of a wrist strap are prone to damage from normal wear and tear, and must be checked regularly with a wrist strap tester in order to avoid accidental ESD hardware damage. It is recommended to test the wrist strap and bonding wire at least once per week.

- ESD Wrist Strap Tester – The wires inside of an ESD strap are prone to damage over time. When using an unmonitored kit, it is a best practice to regularly test the strap prior to each service call, and at a minimum, test once per week. A wrist strap tester is the best method for doing this test. If you do not have your own wrist strap tester, check with your regional office to find out if they have one. To perform the test, plug the wrist-strap's bonding-wire into the tester while it is strapped to your wrist and push the button to test. A green LED is lit if the test is successful; a red LED is lit and an alarm sounds if the test fails.

- Insulator Elements – It is critical to keep ESD sensitive devices, such as plastic heat sink casings, away from internal parts that are insulators and often highly charged.

- Working Environment – Before deploying the ESD Field Service kit, assess the situation at the customer location. For example, deploying the kit for a server environment is different than for a desktop or portable environment. Servers are typically installed in a rack within a data center; desktops or portables are typically placed on office desks or cubicles. Always look for a large open flat work area that is free of clutter and large enough to deploy the ESD kit with additional space to accommodate the type of system that is being repaired. The workspace should also be free of insulators that can cause an ESD event. On the work area, insulators such as Styrofoam and other plastics should always be moved at least 12 inches or 30 centimeters away from sensitive parts before physically handling any hardware components

- ESD Packaging – All ESD-sensitive devices must be shipped and received in static-safe packaging. Metal, static-shielded bags are preferred. However, you should always return the damaged part using the same ESD bag and packaging that the new part arrived in. The ESD bag should be folded over and taped shut and all the same foam packing material should be used in the original box that the new part arrived in. ESD-sensitive devices should be removed from packaging only at an ESD-protected work surface, and parts should never be placed on top of the ESD bag because only the inside of the bag is shielded. Always place parts in your hand, on the ESD mat, in the system, or inside an anti-static bag.

- Transporting Sensitive Components – When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe transport.

ESD protection summary

It is recommended that all field service technicians use the traditional wired ESD grounding wrist strap and protective anti-static mat at all times when servicing Dell products. In addition, it is critical that technicians keep sensitive parts separate from all insulator parts while performing service and that they use anti-static bags for transporting sensitive components.

Transporting sensitive components

When transporting ESD sensitive components such as replacement parts or parts to be returned to Dell, it is critical to place these parts in anti-static bags for safe transport.

Lifting equipment

Adhere to the following guidelines when lifting heavy weight equipment:

CAUTION: Do not lift greater than 50 pounds. Always obtain additional resources or use a mechanical lifting device.

1. Get a firm balanced footing. Keep your feet apart for a stable base, and point your toes out.
2. Tighten stomach muscles. Abdominal muscles support your spine when you lift, offsetting the force of the load.
3. Lift with your legs, not your back.
4. Keep the load close. The closer it is to your spine, the less force it exerts on your back.
5. Keep your back upright, whether lifting or setting down the load. Do not add the weight of your body to the load. Avoid twisting your body and back.
6. Follow the same techniques in reverse to set the load down.

After working inside your computer

About this task

After you complete any replacement procedure, ensure that you connect any external devices, cards, and cables before turning on your computer.

Steps

1. Connect any telephone or network cables to your computer.

CAUTION: To connect a network cable, first plug the cable into the network device and then plug it into the computer.

1. Connect your computer and all attached devices to their electrical outlets.
2. Turn on your computer.
3. If required, verify that the computer works correctly by running ePSA diagnostics.

Technology and components

NOTE: Instructions provided in this section are applicable on computers shipped with Windows operating system. Windows is factory-installed with this computer.

Topics:

•DDR4
- USB features
•USB Type-C
•HDMI 1.4
- USB features
•Power button LED behavior

DDR4

DDR4 (double data rate fourth generation) memory is a higher-speed successor to the DDR2 and DDR3 technologies and allows up to 512 GB in capacity, compared to the DDR3's maximum of 128 GB per DIMM. DDR4 synchronous dynamic random-access memory is keyed differently from both SDRAM and DDR to prevent the user from installing the wrong type of memory into the system.

DDR4 needs 20 percent less or just 1.2 volts, compared to DDR3 which requires 1.5 volts of electrical power to operate. DDR4 also supports a new, deep power-down mode that allows the host device to go into standby without needing to refresh its memory. Deep power-down mode is expected to reduce standby power consumption by 40 to 50 percent.

DDR4 Details

There are subtle differences between DDR3 and DDR4 memory modules, as listed below.

Key notch difference

The key notch on a DDR4 module is in a different location from the key notch on a DDR3 module. Both notches are on the insertion edge but the notch location on the DDR4 is slightly different, to prevent the module from being installed into an incompatible board or platform.

Two views of a DDR3 and DDR4 integrated circuit chips (no text or symbols on the chip surfaces)

Figure 1. Notch difference

Increased thickness

DDR4 modules are slightly thicker than DDR3, to accommodate more signal layers.

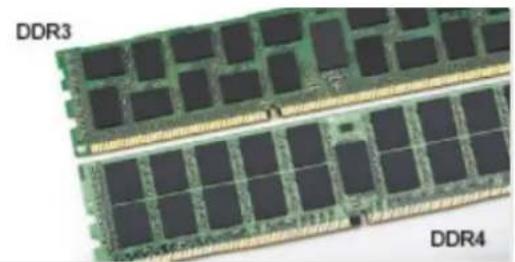

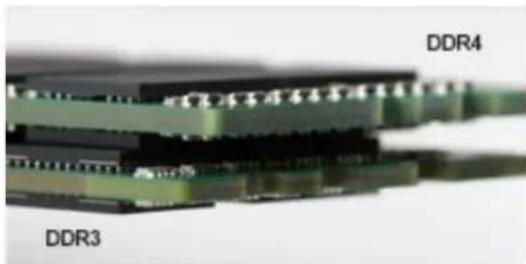

Close-up of a layered electronic component with labeled DDR3 and DDR4 (no additional text or symbols visible)

Figure 2. Thickness difference

Curved edge

DDR4 modules feature a curved edge to help with insertion and alleviate stress on the PCB during memory installation.

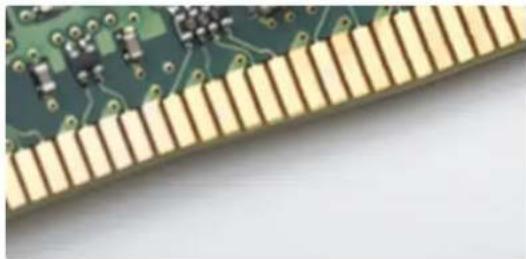

Close-up of a green printed circuit board with gold-colored traces (no visible text or symbols)

Figure 3. Curved edge

Memory Errors

Memory errors on the system display the new ON-FLASH-FLASH or ON-FLASH-ON failure code. If all memory fails, the LCD does not turn on. Troubleshoot for possible memory failure by trying known good memory modules in the memory connectors on the bottom of the system or under the keyboard, as in some portable systems.

NOTE: The DDR4 memory is imbedded in board and not a replaceable DIMM as shown and referred.

USB features

Universal Serial Bus, or USB, was introduced in 1996. It dramatically simplified the connection between host computers and peripheral devices like mice, keyboards, external drivers, and printers.

Table 1. USB evolution

Type Data Transfer Rate	Category Introduction Year
USB 2.0 480 Mbps High	Speed 2000
USB 3.0/USB 3.1 Gen 1	5 Gbps SuperSpeed 2010
USB 3.1 Gen 2 10 Gbps	SuperSpeed 2013

USB 3.0/USB 3.1 Gen 1 (SuperSpeed USB)

For years, the USB 2.0 has been firmly entrenched as the de facto interface standard in the PC world with about 6 billion devices sold, and yet the need for more speed grows by ever faster computing hardware and ever greater bandwidth demands. The USB 3.0/USB 3.1 Gen 1 finally has the answer to the consumers' demands with a theoretically 10 times faster than its predecessor. In a nutshell, USB 3.1 Gen 1 features are as follows:

●Higher transfer rates (up to 5 Gbps)
- Increased maximum bus power and increased device current draw to better accommodate power-hungry devices
●New power management features

●Full-duplex data transfers and support for new transfer types
●Backward USB 2.0 compatibility
●New connectors and cable

The topics below cover some of the most commonly asked questions regarding USB 3.0/USB 3.1 Gen 1.

Speed

Currently, there are 3 speed modes defined by the latest USB 3.0/USB 3.1 Gen 1 specification. They are Super-Speed, Hi-Speed and Full-Speed. The new SuperSpeed mode has a transfer rate of 4.8 Gbps. While the specification retains Hi-Speed, and Full-Speed USB mode, commonly known as USB 2.0 and 1.1 respectively, the slower modes still operate at 480 Mbps and 12 Mbps respectively and are kept to maintain backward compatibility.

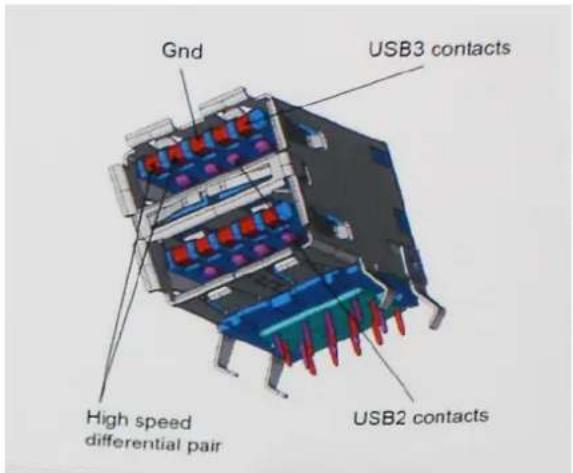

USB 3.0/USB 3.1 Gen 1 achieves the much higher performance by the technical changes below:

• An additional physical bus that is added in parallel with the existing USB 2.0 bus (refer to the picture below).
• USB 2.0 previously had four wires (power, ground, and a pair for differential data); USB 3.0/USB 3.1 Gen 1 adds four more for two pairs of differential signals (receive and transmit) for a combined total of eight connections in the connectors and cabling.
• USB 3.0/USB 3.1 Gen 1 utilizes the bidirectional data interface, rather than USB 2.0's half-duplex arrangement. This gives a 10-fold increase in theoretical bandwidth.

Gnd USB3 contacts High speed differential pair USB2 contacts

With today's ever increasing demands placed on data transfers with high-definition video content, terabyte storage devices, high megapixel count digital cameras etc., USB 2.0 may not be fast enough. Furthermore, no USB 2.0 connection could ever come close to the 480Mbps theoretical maximum throughput, making data transfer at around 320 Mbps (40 MB/s) — the actual real-world maximum. Similarly, USB 3.0/USB 3.1 Gen 1 connections will never achieve 4.8Gbps. We will likely see a real-world maximum rate of 400MB/s with overheads. At this speed, USB 3.0/USB 3.1 Gen 1 is a 10x improvement over USB 2.0.

Applications

USB 3.0/USB 3.1 Gen 1 opens up the laneways and provides more headroom for devices to deliver a better overall experience. Where USB video was barely tolerable previously (both from a maximum resolution, latency, and video compression perspective), it's easy to imagine that with 5-10 times the bandwidth available, USB video solutions should work that much better. Single-link DVI requires almost 2Gbps throughput. Where 480Mbps was limiting, 5Gbps is more than promising. With its promised 4.8Gbps speed, the standard will find its way into some products that previously weren't USB territory, like external RAID storage systems.

Listed below are some of the available SuperSpeed USB 3.0/USB 3.1 Gen 1 products:

●External Desktop USB 3.0/USB 3.1 Gen 1 Hard Drives
- Portable USB 3.0/USB 3.1 Gen 1 Hard Drives

• USB 3.0/USB 3.1 Gen 1 Drive Docks & Adapters
• USB 3.0/USB 3.1 Gen 1 Flash Drives & Readers
• USB 3.0/USB 3.1 Gen 1 Solid-state Drives
• USB 3.0/USB 3.1 Gen 1 RAIDs
  ●Optical Media Drives
• Multimedia Devices
  ●Networking
• USB 3.0/USB 3.1 Gen 1 Adapter Cards & Hubs

Compatibility

The good news is that USB 3.0/USB 3.1 Gen 1 has been carefully planned from the start to peacefully co-exist with USB 2.0. First of all, while USB 3.0/USB 3.1 Gen 1 specifies new physical connections and thus new cables to take advantage of the higher speed capability of the new protocol, the connector itself remains the same rectangular shape with the four USB 2.0 contacts in the exact same location as before. Five new connections to carry receive and transmitted data independently are present on USB 3.0/USB 3.1 Gen 1 cables and only come into contact when connected to a proper SuperSpeed USB connection.

USB Type-C

USB Type-C is a new, tiny physical connector. The connector itself can support various exciting new USB standards like USB 3.1 and USB power delivery (USB PD).

Alternate Mode

USB Type-C is a new connector standard that is very small. It is about a third the size of an old USB Type-A plug. This is a single connector standard that every device should be able to use. USB Type-C ports can support a variety of different protocols using "alternate modes," which allows you to have adapters that can output HDMI, VGA, DisplayPort, or other types of connections from that single USB port

USB Power Delivery

The USB PD specification is also closely intertwined with USB Type-C. Currently, smartphones, tablets, and other mobile devices often use a USB connection to charge. A USB 2.0 connection provides up to 2.5 watts of power — that'll charge your phone, but that's about it. A laptop might require up to 60 watts, for example. The USB Power Delivery specification ups this power delivery to 100 watts. It's bi-directional, so a device can either send or receive power. And this power can be transferred at the same time the device is transmitting data across the connection.

This could spell the end of all those proprietary laptop charging cables, with everything charging via a standard USB connection. You could charge your laptop from one of those portable battery packs you charge your smartphones and other portable devices from today. You could plug your laptop into an external display connected to a power cable, and that external display would charge your laptop as you used it as an external display — all via the one little USB Type-C connection. To use this, the device and the cable have to support USB Power Delivery. Just having a USB Type-C connection doesn't necessarily mean they do.

USB Type-C and USB 3.1

USB 3.1 is a new USB standard. USB 3's theoretical bandwidth is 5 Gbps, while USB 3.1's is 10 Gbps. That's double the bandwidth, as fast as a first-generation Thunderbolt connector. USB Type-C isn't the same thing as USB 3.1. USB Type-C is just a connector shape, and the underlying technology could just be USB 2 or USB 3.0. In fact, Nokia's N1 Android tablet uses a USB Type-C connector, but underneath it's all USB 2.0 — not even USB 3.0. However, these technologies are closely related.

Thunderbolt over USB Type-C

Thunderbolt is a hardware interface that combines data, video, audio, and power in a single connection. Thunderbolt combines PCI Express (PCIe) and DisplayPort (DP) into one serial signal, and additionally provides DC power, all in one cable. Thunderbolt

1 and Thunderbolt 2 use the same connector as miniDP (DisplayPort) to connect to peripherals, while Thunderbolt 3 uses a USB Type-C connector.

Two types of USB connectors shown: a white USB cable and a black USB connector (no text or symbols visible)

Figure 4. Thunderbolt 1 and Thunderbolt 3

1. Thunderbolt 1 and Thunderbolt 2 (using a miniDP connector)
2. Thunderbolt 3 (using a USB Type-C connector)

Thunderbolt 3 over USB Type-C

Thunderbolt 3 brings Thunderbolt to USB Type-C at speeds up to 40 Gbps, creating one compact port that does it all delivering the fastest, most versatile connection to any dock, display or data device like an external hard drive. Thunderbolt 3 uses a USB Type-C connector/port to connect to supported peripherals.

1. Thunderbolt 3 uses USB Type-C connector and cables - It is compact and reversible
2. Thunderbolt 3 supports speed up to 40 Gbps
3. DisplayPort 1.4 – compatible with existing DisplayPort monitors, devices and cables
4. USB Power Delivery - Up to 130W on supported computers

Key Features of Thunderbolt 3 over USB Type-C

1. Thunderbolt, USB, DisplayPort and power on USB Type-C on a single cable (features vary between different products)
2. USB Type-C connector and cables which are compact and reversible
3. Supports Thunderbolt Networking ( ^* varies between different products)
4. Supports up to 4K displays
5. Up to 40 Gbps

NOTE: Data transfer speed may vary between different devices.

Thunderbolt Icons

Protocol	USB Type-A	USB Type-C	Notes
Thunderbolt	Not Applicable		Will use industry standard icon regardless of port style (i.e., mDP or USB Type-C)
Thunderbolt w/ Power Delivery	Not Applicable		Up to 130 Watts via USB Type-C

Figure 5. Thunderbolt Iconography Variations

HDMI 1.4

This topic explains the HDMI 1.4 and its features along with the advantages.

HDMI (High-Definition Multimedia Interface) is an industry-supported, uncompressed, all-digital audio/video interface. HDMI provides an interface between any compatible digital audio/video source, such as a DVD player, or A/V receiver and a

compatible digital audio and/or video monitor, such as a digital TV (DTV). The intended applications for HDMI TVs, and DVD players. The primary advantage is cable reduction and content protection provisions. HDMI supports standard, enhanced, or high-definition video, plus multichannel digital audio on a single cable.

NOTE: The HDMI 1.4 will provide 5.1 channel audio support.

HDMI 1.4 Features

• HDMI Ethernet Channel - Adds high-speed networking to an HDMI link, allowing users to take full advantage of their IP-enabled devices without a separate Ethernet cable
• Audio Return Channel - Allows an HDMI-connected TV with a built-in tuner to send audio data "upstream" to a surround audio system, eliminating the need for a separate audio cable
• 3D - Defines input/output protocols for major 3D video formats, paving the way for true 3D gaming and 3D home theater applications
• Content Type - Real-time signaling of content types between display and source devices, enabling a TV to optimize picture settings based on content type
• Additional Color Spaces - Adds support for additional color models used in digital photography and computer graphics
• 4K Support - Enables video resolutions far beyond 1080p, supporting next-generation displays that will rival the Digital Cinema systems used in many commercial movie theaters
• HDMI Micro Connector - A new, smaller connector for phones and other portable devices, supporting video resolutions up to 1080p
• Automotive Connection System - New cables and connectors for automotive video systems, designed to meet the unique demands of the motoring environment while delivering true HD quality

Advantages of HDMI

• Quality HDMI transfers uncompressed digital audio and video for the highest, crispest image quality.
- Low -cost HDMI provides the quality and functionality of a digital interface while also supporting uncompressed video formats in a simple, cost-effective manner
- Audio HDMI supports multiple audio formats from standard stereo to multichannel surround sound
- HDMI combines video and multichannel audio into a single cable, eliminating the cost, complexity, and confusion of multiple cables currently used in A/V systems
- HDMI supports communication between the video source (such as a DVD player) and the DTV, enabling new functionality

USB features

Universal Serial Bus, or USB, was introduced in 1996. It dramatically simplified the connection between host computers and peripheral devices like mice, keyboards, external drivers, and printers.

Let's take a quick look on the USB evolution referencing to the table below.

Table 2. USB evolution

Type Data Transfer Rate	Category Introduction Year
USB 2.0 480 Mbps High	Speed 2000
USB 3.0/USB 3.1 Gen 1	5 Gbps Super Speed 2010
USB 3.1 Gen 2 10 Gbps	Super Speed 2013

USB 3.0/USB 3.1 Gen 1 (SuperSpeed USB)

For years, the USB 2.0 has been firmly entrenched as the de facto interface standard in the PC world with about 6 billion devices sold, and yet the need for more speed grows by ever faster computing hardware and ever greater bandwidth demands. The USB 3.0/USB 3.1 Gen 1 finally has the answer to the consumers' demands with a theoretically 10 times faster than its predecessor. In a nutshell, USB 3.1 Gen 1 features are as follows:

●Higher transfer rates (up to 5 Gbps)
●New power management features
●Full-duplex data transfers and support for new transfer types
●Backward USB 2.0 compatibility
●New connectors and cable

- Increased maximum bus power and increased device current draw to better accommodate power-hungry devices

The topics below cover some of the most commonly asked questions regarding USB 3.0/USB 3.1 Gen 1.

Speed

Currently, there are 3 speed modes defined by the latest USB 3.0/USB 3.1 Gen 1 specification. They are Super-Speed, Hi-Speed and Full-Speed. The new SuperSpeed mode has a transfer rate of 4.8Gbps. While the specification retains Hi-Speed, and Full-Speed USB mode, commonly known as USB 2.0 and 1.1 respectively, the slower modes still operate at 480Mbps and 12Mbps respectively and are kept to maintain backward compatibility.

USB 3.0/USB 3.1 Gen 1 achieves the much higher performance by the technical changes below:

• An additional physical bus that is added in parallel with the existing USB 2.0 bus (refer to the picture below).
• USB 2.0 previously had four wires (power, ground, and a pair for differential data); USB 3.0/USB 3.1 Gen 1 adds four more for two pairs of differential signals (receive and transmit) for a combined total of eight connections in the connectors and cabling.
• USB 3.0/USB 3.1 Gen 1 utilizes the bidirectional data interface, rather than USB 2.0's half-duplex arrangement. This gives a 10-fold increase in theoretical bandwidth.

Gnd USB3 contacts High speed differential pair USB2 contacts

With today's ever increasing demands placed on data transfers with high-definition video content, terabyte storage devices, high megapixel count digital cameras etc., USB 2.0 may not be fast enough. Furthermore, no USB 2.0 connection could ever come close to the 480Mbps theoretical maximum throughput, making data transfer at around 320Mbps (40MB/s) — the actual real-world maximum. Similarly, USB 3.0/USB 3.1 Gen 1 connections will never achieve 4.8Gbps. We will likely see a real-world maximum rate of 400MB/s with overheads. At this speed, USB 3.0/USB 3.1 Gen 1 is a 10x improvement over USB 2.0.

Applications

USB 3.0/USB 3.1 Gen 1 opens up the laneways and provides more headroom for devices to deliver a better overall experience. Where USB video was barely tolerable previously (both from a maximum resolution, latency, and video compression perspective), it's easy to imagine that with 5-10 times the bandwidth available, USB video solutions should work that much better. Single-link DVI requires almost 2Gbps throughput. Where 480Mbps was limiting, 5Gbps is more than promising. With its promised 4.8Gbps speed, the standard will find its way into some products that previously weren't USB territory, like external RAID storage systems.

Listed below are some of the available SuperSpeed USB 3.0/USB 3.1 Gen 1 products:

●External Desktop USB 3.0/USB 3.1 Gen 1 Hard Drives
- Portable USB 3.0/USB 3.1 Gen 1 Hard Drives
- USB 3.0/USB 3.1 Gen 1 Drive Docks & Adapters
- USB 3.0/USB 3.1 Gen 1 Flash Drives & Readers
- USB 3.0/USB 3.1 Gen 1 Solid-state Drives
- USB 3.0/USB 3.1 Gen 1 RAIDs
●Optical Media Drives
- Multimedia Devices
- Networking
- USB 3.0/USB 3.1 Gen 1 Adapter Cards & Hubs

Compatibility

The good news is that USB 3.0/USB 3.1 Gen 1 has been carefully planned from the start to peacefully co-exist with USB 2.0. First of all, while USB 3.0/USB 3.1 Gen 1 specifies new physical connections and thus new cables to take advantage of the higher speed capability of the new protocol, the connector itself remains the same rectangular shape with the four USB 2.0 contacts in the exact same location as before. Five new connections to carry receive and transmitted data independently are present on USB 3.0/USB 3.1 Gen 1 cables and only come into contact when connected to a proper SuperSpeed USB connection.

Windows 10 will be bringing native support for USB 3.1 Gen 1 controllers. This is in contrast to previous versions of Windows, which continue to require separate drivers for USB 3.0/USB 3.1 Gen 1 controllers.

Power button LED behavior

On certain Dell Latitude systems, the power button LED is used to provide an indication of the system status, and as a result the power button illuminates when pressed. The systems with the optional power button/fingerprint reader will have no LED under the power button and hence will apply the available LED's in the system to provide an indication of the system status.

Power button LED behavior without Fingerprint reader

●System is ON (S0) = LED illuminates solid white.
●System in Sleep/Standby (S3, SOix) = LED is off
●System is Off/Hibernating (S4/S5) = LED is off

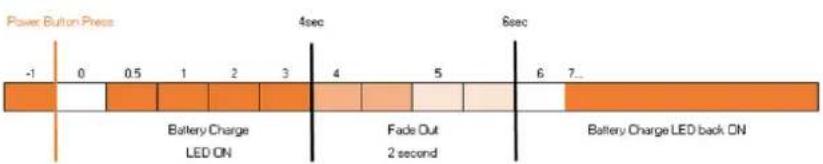

Power On and LED behavior with Fingerprint reader

• Pressing the power button for a duration between 50 msec to 2 sec turns on the device.
• Power button does not register additional presses until the SOL (Sign-Of-Life) has been provided to the user.
• System LED's illuminates upon pressing the power button.
• All the available LED's (Keyboard backlit/ Keyboard caps lock LED/ Battery Charge LED) illuminates and displays specified behavior.
  ●The auditory tone is Off by default. It can be enabled in the BIOS setup.
• Safeguards do not time out if the device gets hung during the logon process.
• Dell logo: Turns on within 2 secs after pressing the power button.
  ●Full boot: Within 22 secs after pressing the power button.
  ●Below is the example timelines:

eSDL Feature Description	Expected Timings
	Power Button Press	Dell Logo Appears
eSoL Keyboard Backlight
User has turned BL OFF
User has turned BL ON
eSoL Caps Lock LED
eSoL Battery Charge LED
While it is not charging	55
While it is currently charging	55

Power button with fingerprint reader will have no LED and will leverage the available LED's in the system to provide indication of the system status

•Power Adapter LED:

- The LED on Power adapter connector illuminates white when power is supplied from electrical outlet.

●Battery Indicator LED:

- If the computer is connected to an electrical outlet, the battery light operates as follows:

1. Solid white - the battery is charging. When the charge is complete the LED turns off.

- If the computer is running on a battery, the battery light operates as follows:

1. Off -the battery is adequately charged (or the computer is turned off).
2. Solid amber -the battery charge is critically low. A low battery state is approximately 30 minutes or less of battery life remaining.

- Camera LED

○ White LED activates when camera is on.

- Mic Mute LED:

- When activated (muted), the mic mute LED on the F4 Key should illuminate WHITE.

•RJ45 LEDs:

Table 3. LED on either side of RJ45 port

Link speed indicator (LHS) Activity indicator (RHS)
Green Amber

Disassembly and reassembly

NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

Topics:

• Base cover
  •Battery
  •WLAN card
• WWAN card
• Memory modules
• Solid-state drive
• Coin-cell battery
• Inner frame
  •Heatsink assembly-discrete
  •Heatsink assembly—UMA
• DC-in port
• SmartCard reader
• Touchpad buttons
  •LED board
• Speakers
• System board
• Keyboard
  •Power button
• Display assembly
  •Display bezel
  •Hinge caps
• Display panel
• Camera
• Display hinges
• Display (eDP) cable
  •Display back cover assembly
  •Palmrest assembly

Base cover

Removing the base cover

Prerequisites

1. Follow the procedure in Before working inside your computer.

About this task

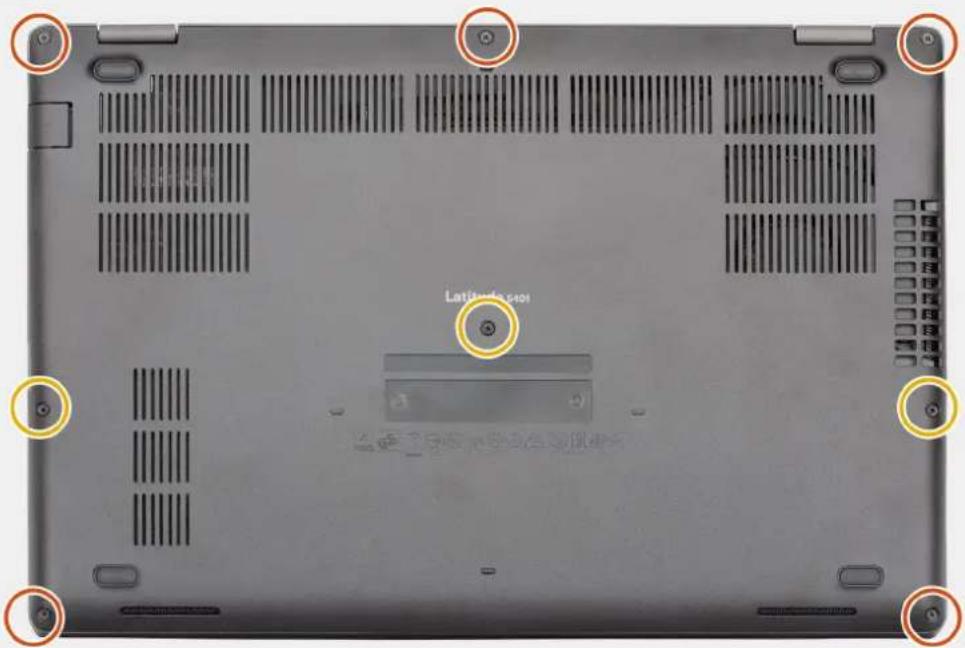

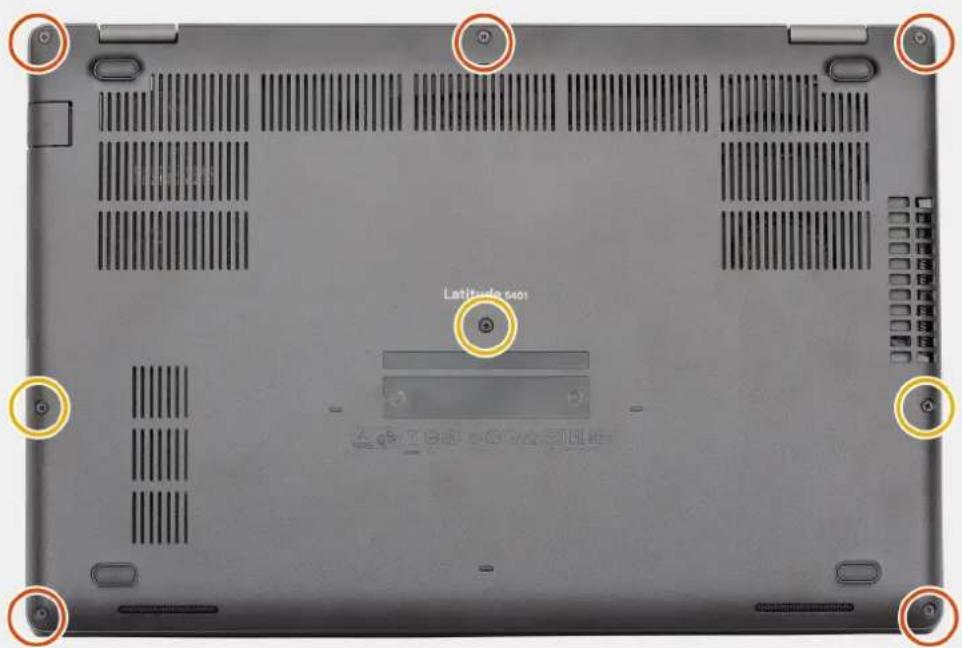

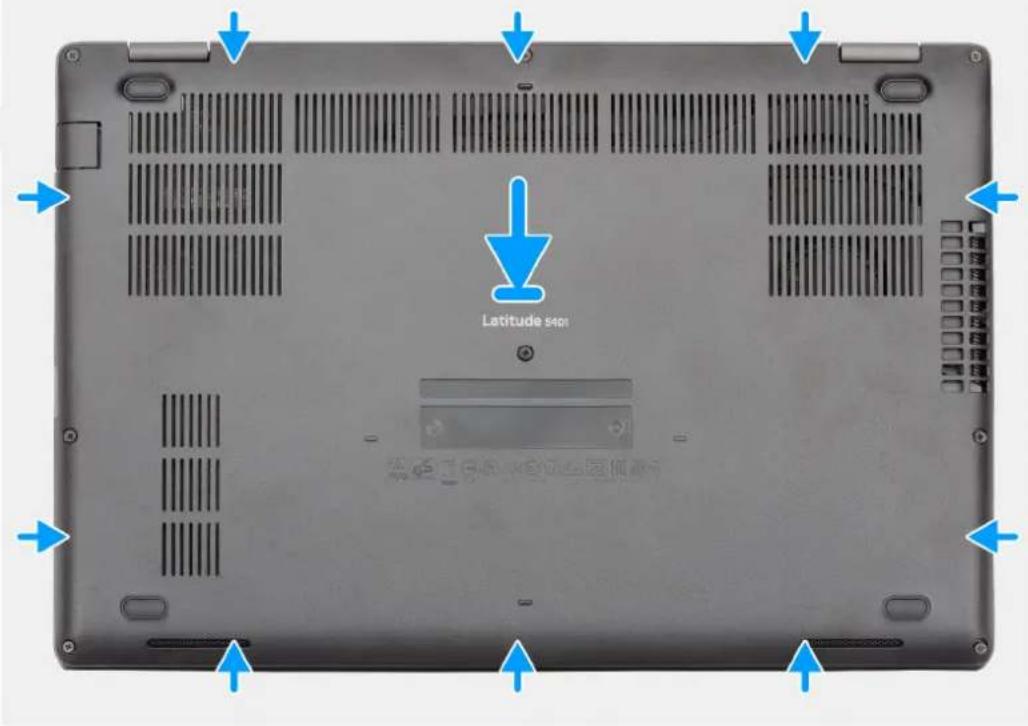

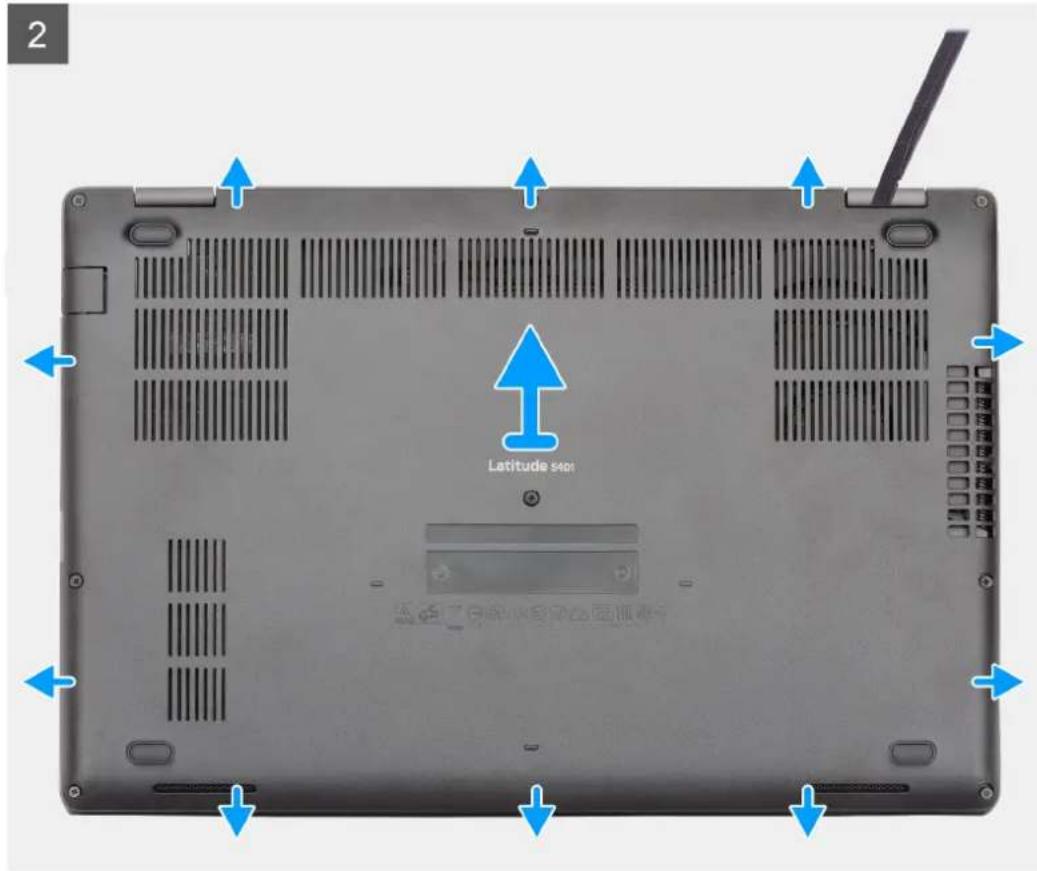

The figure indicates the location of the base cover and provides a visual representation of the removal procedure.

5x
M2.5×6

3x
M2.5×8

1

Latitude 5601 TENEGOOSUE

2 Latitude sign

Steps

1. Remove the five (M2.5x6) and three (M2.5x8) captive screws that secure the base cover to the computer.
2. Pry the base cover starting from the right hinge and work your way around.
3. Lift the base cover away from the computer.

Installing the base cover

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the base cover and provides a visual representation of the installation procedure.

1

Latitude set ↓

5x
M2.5×6

3x
M2.5×8

2

Latending 5401

Steps

1. Place the base cover on the palmrest and keyboard assembly, and snap the base cover into place.
2. Install the five (M2.5x6) and three (M2.5x8) captive screws to secure the base cover to the computer.

Next steps

1. Follow the procedure in After working inside your computer.

Battery

Lithium-ion battery precautions

CAUTION:

- Exercise caution when handling Lithium-ion batteries.

• Discharge the battery completely before removing it. Disconnect the AC power adapter from the system and operate the computer solely on battery power—the battery is fully discharged when the computer no longer turns on when the power button is pressed.
• Do not crush, drop, mutilate, or penetrate the battery with foreign objects.
• Do not expose the battery to high temperatures, or disassemble battery packs and cells.
• Do not apply pressure to the surface of the battery.

- Do not bend the battery.

- Do not use tools of any kind to pry on or against the battery.

• Ensure any screws during the servicing of this product are not lost or misplaced, to prevent accidental puncture or damage to the battery and other system components.
• If the battery gets stuck inside your computer as a result of swelling, do not try to release it as puncturing, bending, or crushing a lithium-ion battery can be dangerous. In such an instance, contact Dell technical support for assistance. See www.dell.com/contactdell.
  • Always purchase genuine batteries from www.dell.com or authorized Dell partners and resellers.
• Swollen batteries should not be used and should be replaced and disposed properly. For guidelines on how to handle and replace swollen Lithium-ion batteries, see Handling swollen Lithium-ion batteries.

Removing the battery

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.

About this task

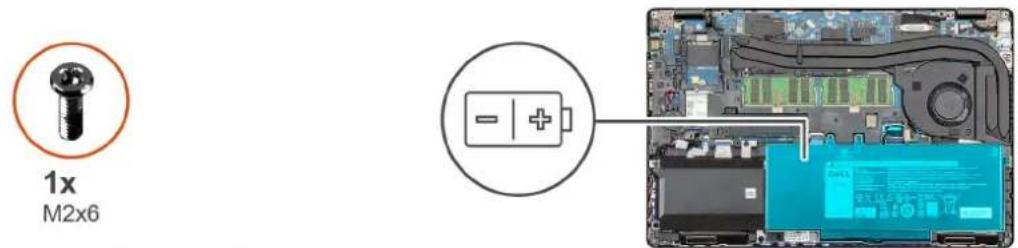

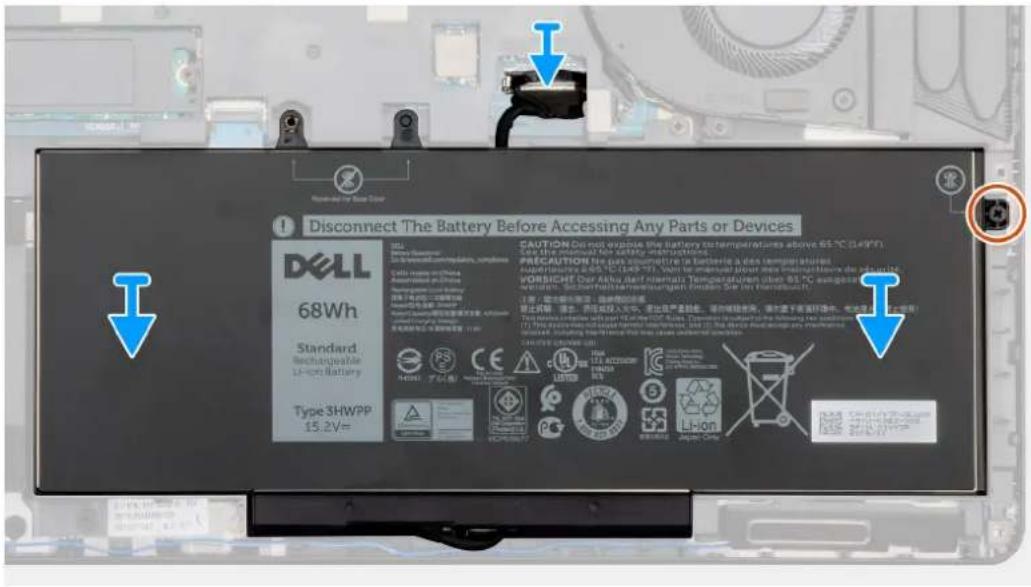

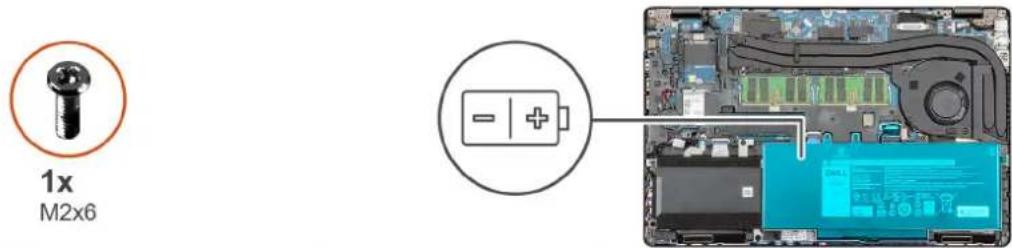

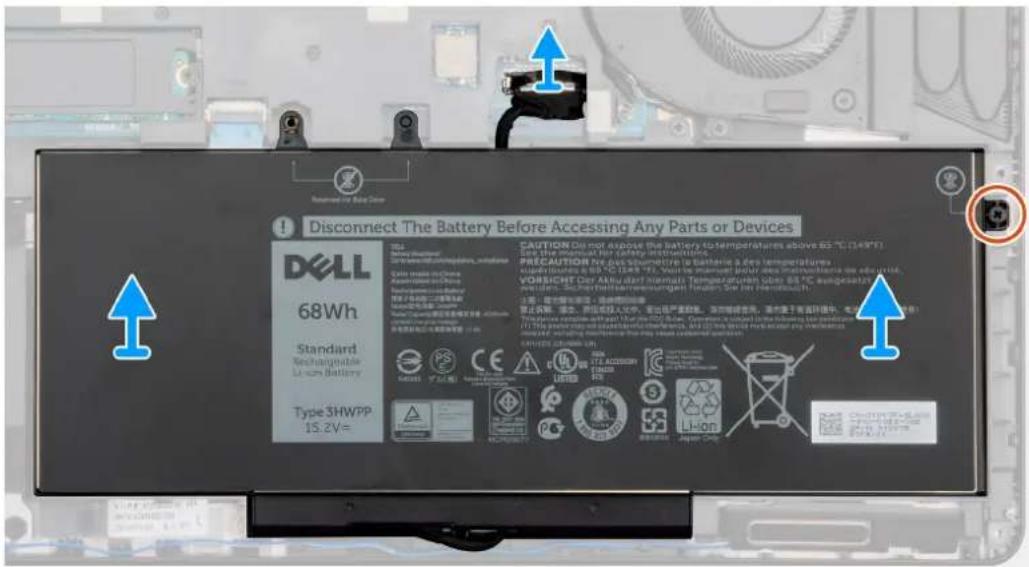

The figure indicates the location of the battery and provides a visual representation of the removal procedure.

1x M2x6

Disconnect The Battery Before Accessing Any Parts or Devices DELL 68Wh Standard Technische Lionon Battery Type 3HWPP 1S.2V= CAUTION Die not exposed (the battery to temperatures above 65 °C (349°F) SEE THE PERCENTAGE FOR TEMPERATURE INSULATION. PRECAUTION For the Thermometer to Batteries & other temperatures Hypertension at 60 °C (349°F) Voltage, minimum power, 200V, and current temperature above 65 °C. VORSICHT Der Akku darf Inematica Temperaturezurden über 65 °C (e.g., inductance, temperature, temperature, voltage, and current temperature). See the circuitry of the standard battery type 3.7V. 注意: 停止器功能, 按需断路器 禁止拆箱、锁卡、固定式拆入机中, 需击严重触碰。该开关将使用, 清洁量于垂直环境中, 电容和电流值: Translusive electrical part 15 or the 100% lower. Current or switch is the following test conditions: (1) This is used to maintain the current operating system with the following functions: demonstrate, switching to the high voltage control system. AVERAGE DIP LED ACCESS LED ACCESS Li-ion Japan Only Copyright: 68Wh Copyright: 68Wh Copyright: 68Wh

Steps

1. Disconnect the battery cable from the system board.
2. Remove the single (M2x6) captive screw that secures the battery to the palmrest.
3. Lift the battery away from the computer.

Installing the battery

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the battery and provides a visual representation of the installation procedure.

1x M2x6

1 Disconnect The Battery Before Accessing Any Parts or Devices DELL 68Wh Standard Rechargeable Li-ion Battery Type 3HWPP 15.2V= CAUTION Do not expose the battery temperature above 65 °C (LEPPP) CAUTION Does not expose the battery temperature below 65 °C (LEPPP) PRECAUTION For gas mixture in battery, a des temperature (400V) above 65 °C (LEPPP). Vorringerial power has been used to access VORSICHT Our Akti der Incenten Temperature/Power above 65 °C, including Sicherheitsvermögenungen. Finanien Sie ihr Handelsicht. [ ] 需求：避免因不可阻塞、绝缘阻燃、电容、电流、电压、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电流、电池 This device provides all power of the 300% Alkali. Transient or transmitted to the following two components: (1) Power is connected to the battery from the current source of the battery, which is also connected to the battery's internal structure. (2) Power is connected to the battery from the external circuit, which is also connected to the battery's internal structure. (3) Power is connected to the battery from the external circuit, which is also connected to the battery's internal structure.

Steps

1. Place the battery on the palmrest and align the screw holes on the battery with the screw holes on the palmrest.
2. Install the single (M2x6) captive screw to secure the battery to the palmrest.
3. Connect the battery cable to the connector on the system board.

Next steps

1. Install the base cover.
2. Follow the procedure in After working inside your computer.

WLAN card

Removing the WLAN card

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

About this task

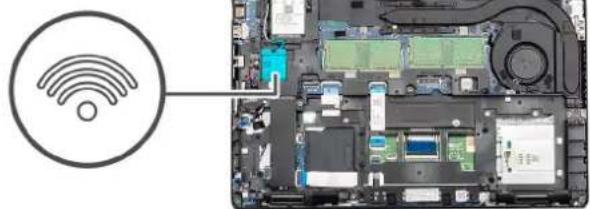

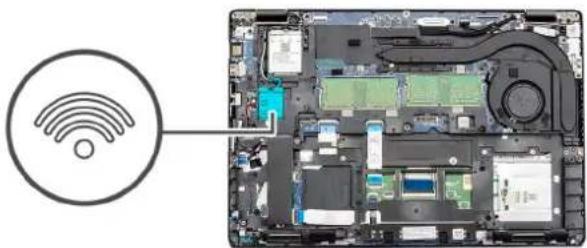

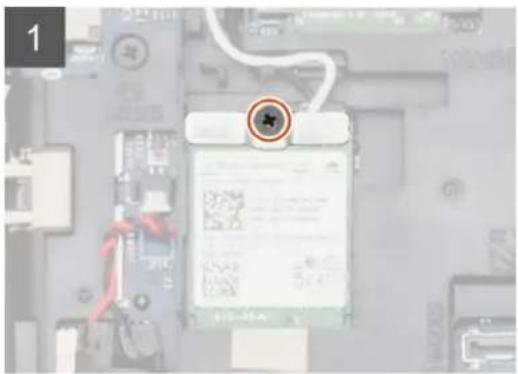

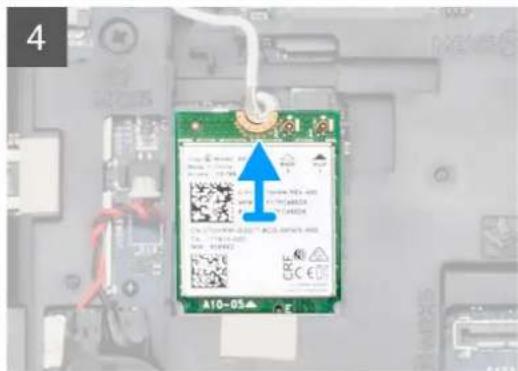

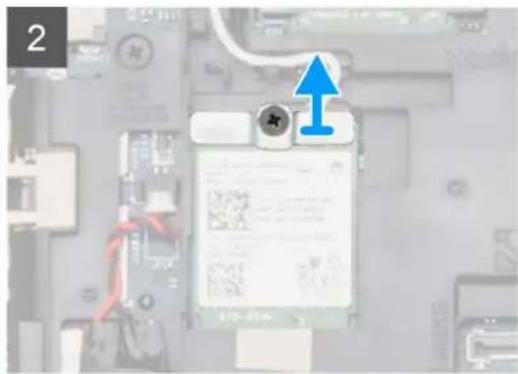

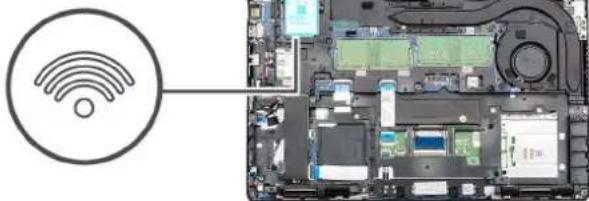

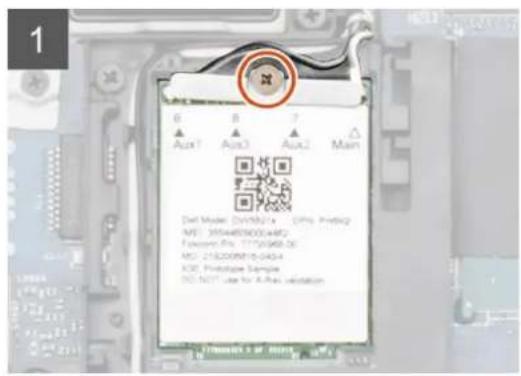

The figure indicates the location of the WLAN card and provides a visual representation of the removal procedure.

1x M2x3

Laptop with wireless signal icon overlay, showing internal circuitry and components (no readable text or symbols)

Circuit board close-up with a highlighted device and QR code on the wall

2 +

3

4 A10-05

Steps

1. Remove the single (M2x3) screw that secures the WLAN bracket to the computer.
2. Remove the WLAN bracket from the computer.

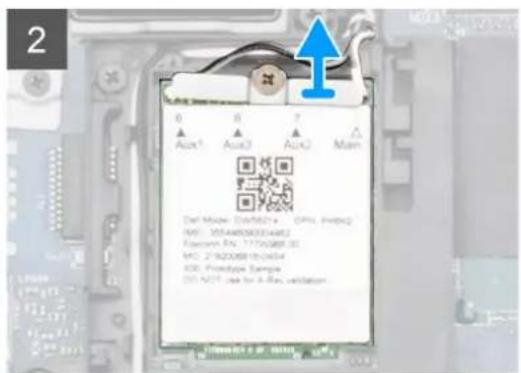

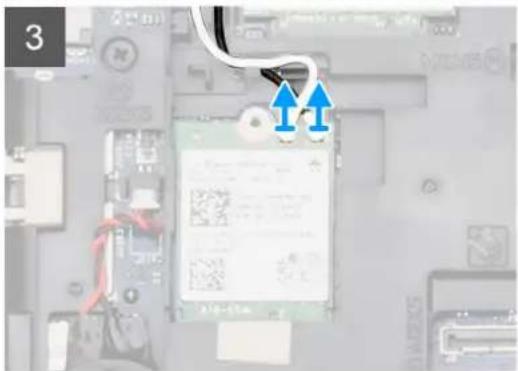

3. Disconnect the WLAN antenna cables from the WLAN module.
4. Remove the WLAN card out of the computer.

Installing the WLAN card

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

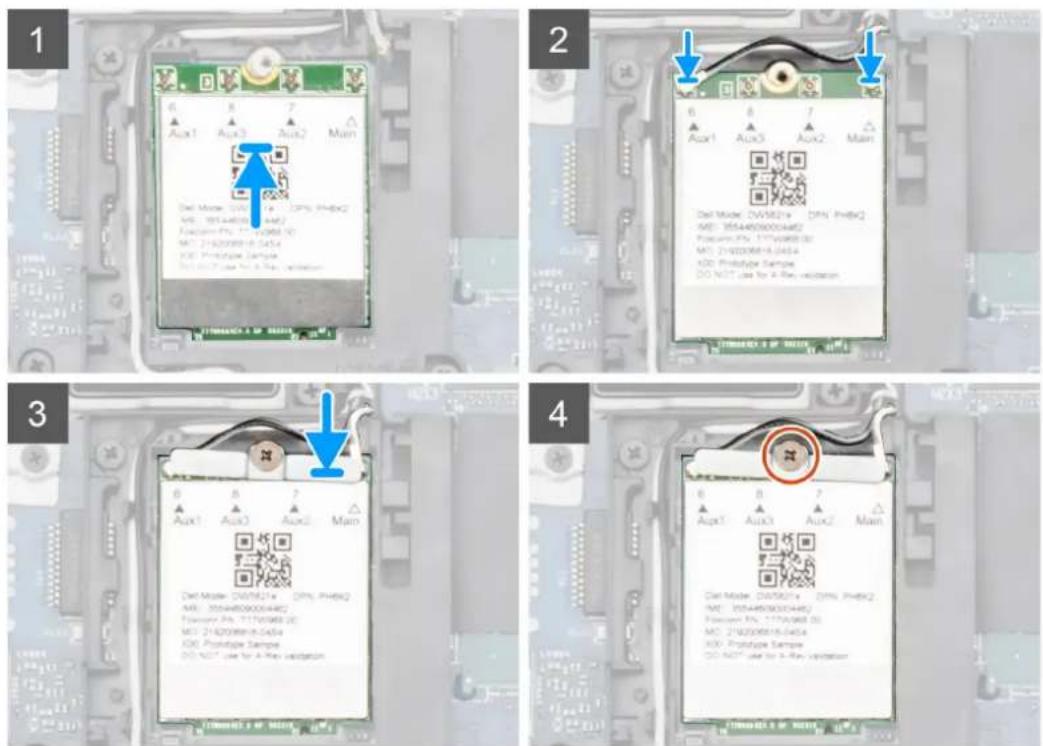

The figure indicates the location of the WLAN card and provides a visual representation of the installation procedure.

Interior view of a laptop with an icon depicting wireless signal and connected to the front panel (no text or symbols on the diagram itself)

Four-panel sequence showing a device with QR code and a circular sensor on its surface, labeled 1 to 4.

Steps

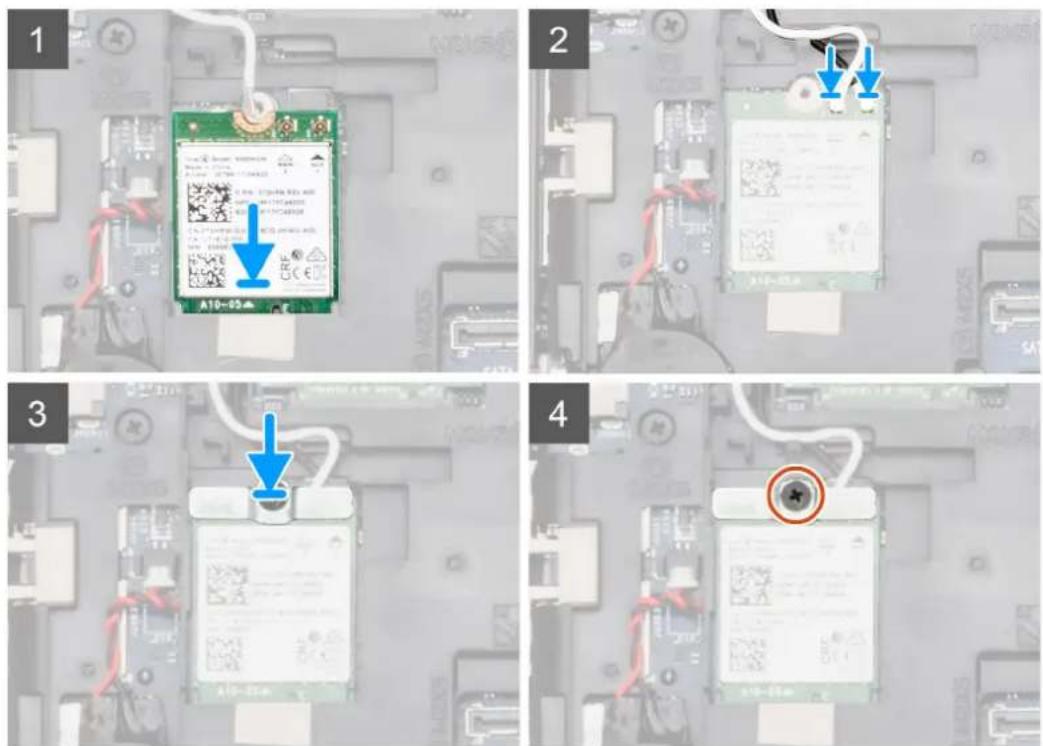

1. Locate the WLAN card slot on your computer.
2. Slide the WLAN card into the slot on the system board.

3. Connect the WLAN antenna cables to the WLAN module.

4. Place the WLAN card bracket on the WLAN card and replace the single (M2x3) screw to secure the bracket to the computer.

Next steps

1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.

WWAN card

Removing the WWAN card

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

About this task

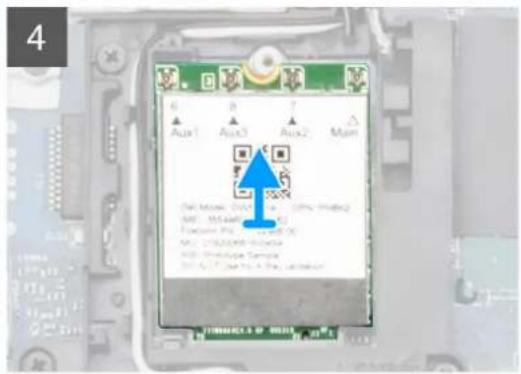

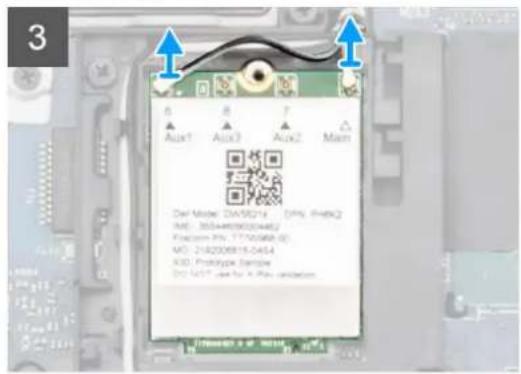

The figure indicates the location of the WWAN card and provides a visual representation of the removal procedure.

1x M2x3

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or labels)

1 8 8 7 Aux1 Aux3 Aux2 Main Diat Model: Dv00004.0000 Printing MST: 3564e8000-4452 F Document: 1770968-00 MD: 212000010-0454 ADC Photoshop Sample DD NOT Use for A-Print validation

2 6 8 7 Aux1 Aux3 Aux2 Main DVI MDAI: C0050214 OPN. PRING2 MCI: 30544000004482 Ferocyst Rx: 1770088 00 MD: 2192006810-0454 KDB Prototype Sample DD NDT use for A-Ray verification

3 6 8 7 Aux1 Aux3 Aux2 Main Del Mode: DA50214 DPN, PRN2 MD: 3034490000482 Fusion Pin: T7700068.00 MD: 218200815.0454 XOD: Prototype Sample DIN NDT test for A Play button

4 6 8 7 Aux1 Aux3 Aux2 Main AI: Mouse DUA - 0.0% Probe2 MT: MS4400 Functional PS: 0.0% MS: 0.0% Probe2 ADP: Prototype Sample DIP: A17 User Us & Pcs: Unleven T11988888 X 0.0% Probe2

Steps

1. Remove the single (M2x3) screw that secures the WWAN card bracket to the computer.
2. Remove the WWAN card bracket from the computer.
3. Disconnect the WWAN antenna cables from the WWAN module.
4. Remove the WWAN card out of the computer.

Installing the WWAN card

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the WWAN card and provides a visual representation of the installation procedure.

Laptop with wireless signal icon pointing to internal circuit board (no text or symbols on components)

1 6 8 7 Aux1 Aux3 Aux2 Main 2 6 8 7 Aux1 Aux3 Aux2 Main 3 6 8 7 Aux1 Aux3 Aux2 Main 4 6 8 7 Aux1 Aux3 Aux2 Main 4 Diet Model: DV500219 DYN: PH6K2 MD: DV50020000A48C Pocsumi Pn: DV5008000 MD: DV5008000-0454 IDD Prototype Sample DO NOT use for A-Ray validation 5 Diet Model: DV500219 DYN: PH6K2 MD: DV50020000A48C Pocsumi Pn: DV5008000 MD: DV5008000-0454 IDD Prototype Sample DO NOT use for A-Ray validation

Steps

1. Locate the WWAN card slot on your computer.
2. Slide the WWAN card into the slot on the system board.

3. Connect the WWAN antenna cables to the WWAN module.

4. Place the WWAN card bracket on the WWAN card and replace the single (M2x3) screw to secure the bracket to the computer.

Next steps

1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.

Memory modules

Removing the memory module

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

About this task

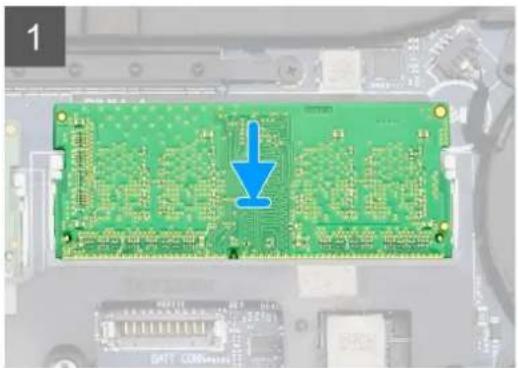

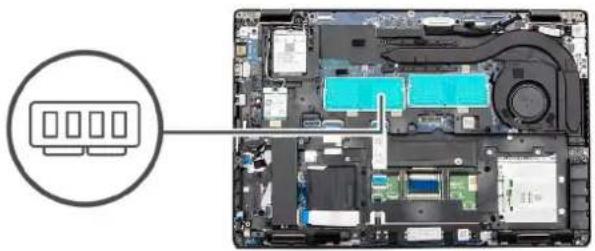

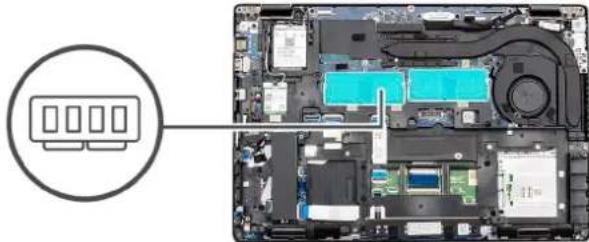

The figure indicates the location of the memory module and provides a visual representation of the removal procedure.

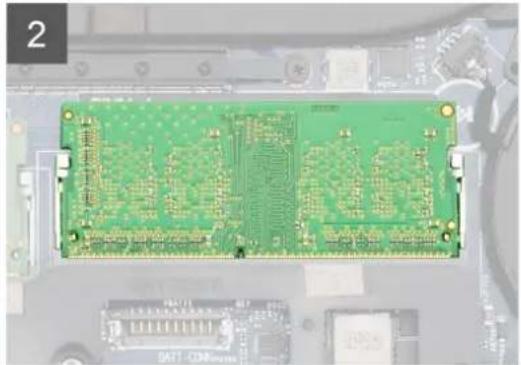

Interior view of a laptop showing internal components and a close-up of the front panel (no text or symbols visible)

Two views of a green printed circuit board with blue arrows indicating directional changes (no text or symbols present)

Steps

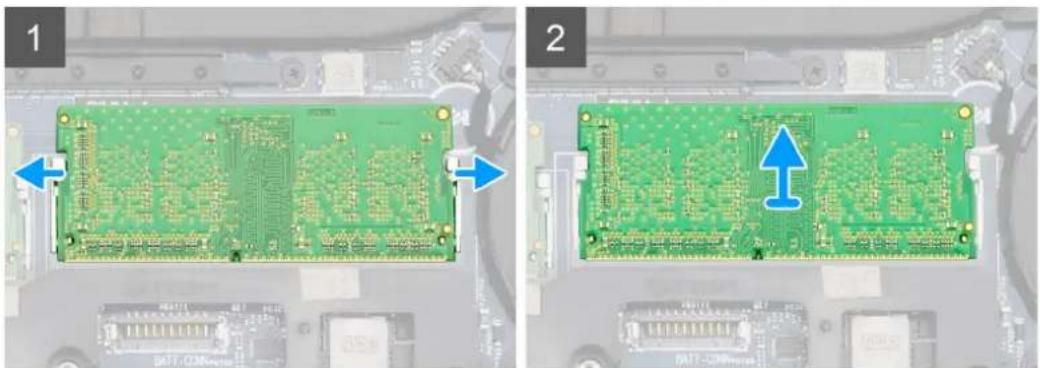

1. Using your finger tips gently pry the retention clips away from the memory module until the memory module pops up.
2. Slide and remove the memory module from the memory module slot on the system board.

Installing the memory module

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the memory module and provides a visual representation of the installation procedure.

Laptop interior showing internal circuitry and memory compartment, with a magnified inset highlighting a component (no text or symbols visible)

Close-up of a green printed circuit board with a blue arrow pointing to a specific component (no text or symbols visible)

Close-up of a green printed circuit board with gold contacts and traces, placed on a circuit board (no visible text or symbols)

Steps

1. Align the notch on the memory module with the tab on the memory module slot.
2. Slide the memory module firmly into the slot at an angle.
3. Press the memory module down until it clicks into place.

NOTE: If you do not hear the click, remove the memory module and reinstall it.

Next steps

1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.

Solid-state drive

Removing the M.2 2280 SATA SSD

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

About this task

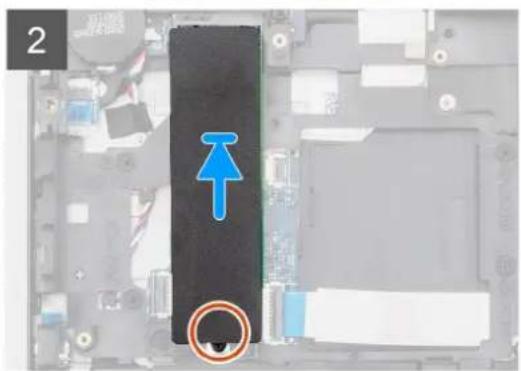

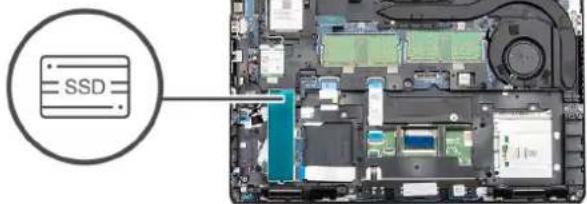

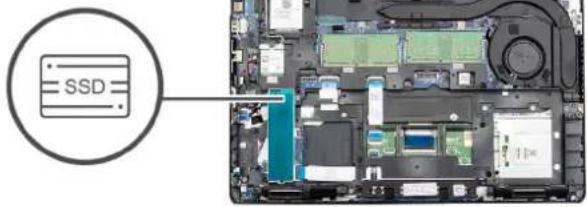

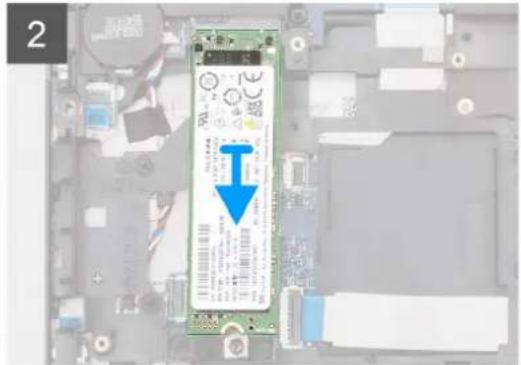

The figure indicates the location of the SATA M.2 2280 SSD and provides a visual representation of the removal procedure.

SSD

Close-up of a smartphone battery cover with a blue downward arrow and a circular button, no visible text or symbols.

2

Steps

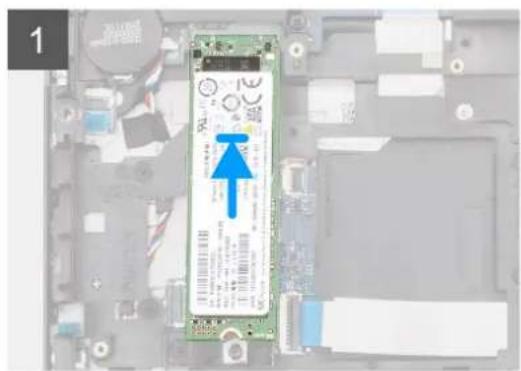

1. Locate the SSD on your computer.
2. Remove the thermal tape from the SSD module.

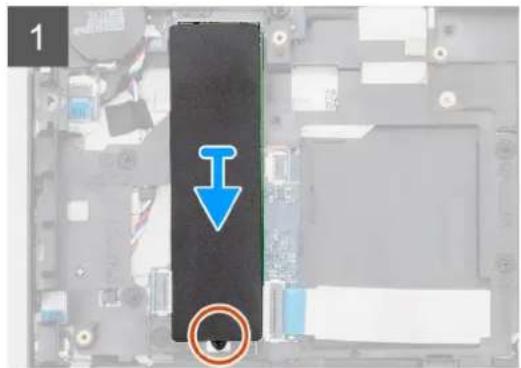

3. Remove the single (M2x3) screw that secure the SSD module to the computer.
4. Slide the SSD module out from the computer.

Installing the SATA M.2 2280 SSD

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the SATA M.2 2280 SSD and provides a visual representation of the installation procedure.

SSD

Photo of a device with a highlighted internal component and a blue arrow indicating upward motion, surrounded by circuit boards and components.

Close-up of an electronic device with a blue upward arrow and a circular button, no visible text or symbols

Steps

1. Locate the SSD slot on your computer.
2. Slide the SSD into the slot.
3. Place the SSD thermal tape over the SSD module.
4. Replace the single (M2x3) screw to secure the SSD module to the computer.

Next steps

1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.

Coin-cell battery

Removing the coin-cell battery

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

About this task

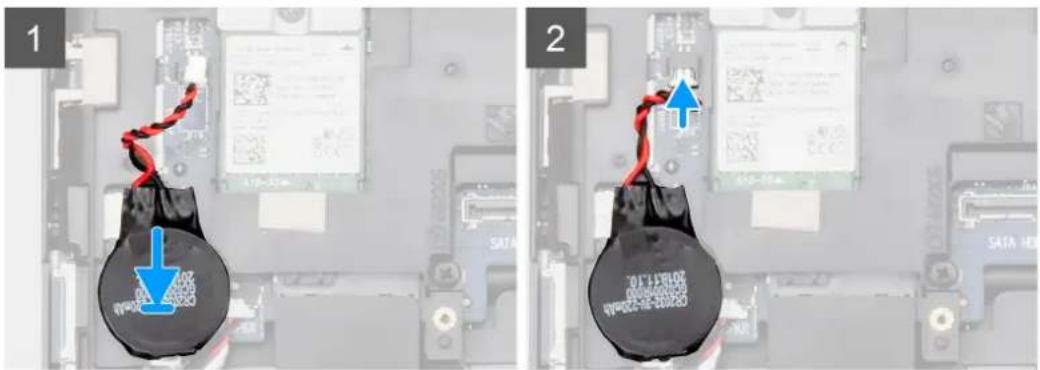

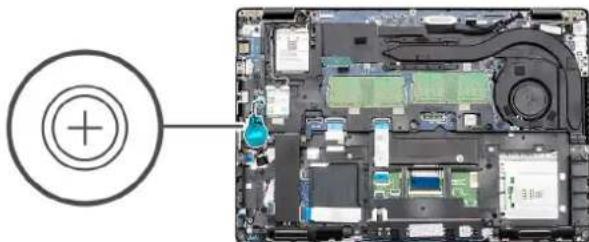

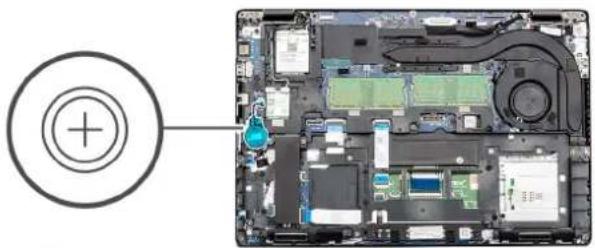

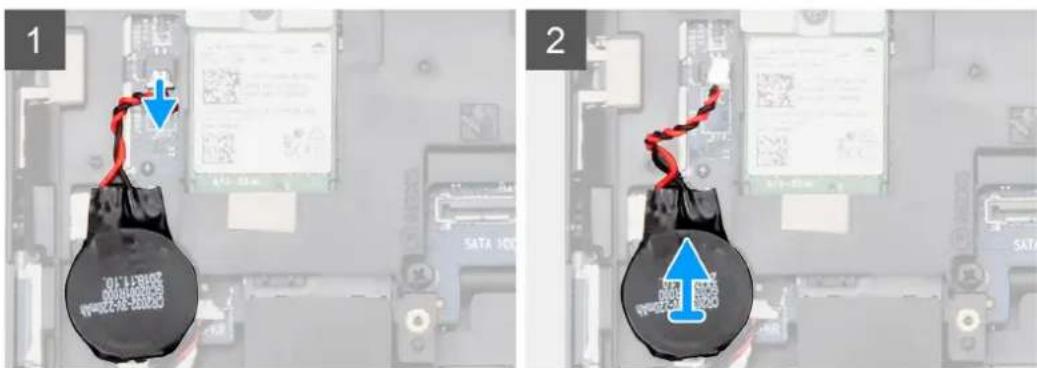

The figure indicates the location of the coin-cell and provides a visual representation of the removal procedure.

Close-up of a laptop's internal circuit board with a circular icon and plus symbol pointing to the left (no text or labels visible)

Two-panel image showing a battery cover with red wires and blue arrows indicating a change, labeled 1 and 2.

Steps

1. Locate the coin-cell battery on your computer.

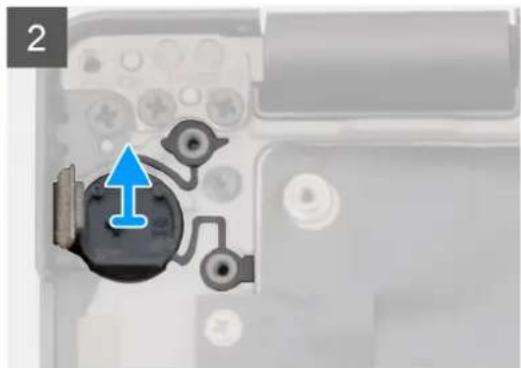

2. Disconnect the coin-cell battery cable from the connector on the system board.
3. Lift the coin-cell battery out of the computer.

Installing the coin-cell battery

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the coin-cell and provides a visual representation of the installation procedure.

Laptop keyboard with a circular icon pointing to the left side of the screen (no text or symbols visible)

1 2 VH-001 VH-002-HK-B00130

Steps

1. Locate the coin-cell battery slot on your computer.
2. Adhere the coin-cell battery on to the slot.
3. Connect the coin-cell cable to the connector on the system board.

Next steps

1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.

Inner frame

Removing the inner frame

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the WLAN card.
6. Remove the WWAN card.

About this task

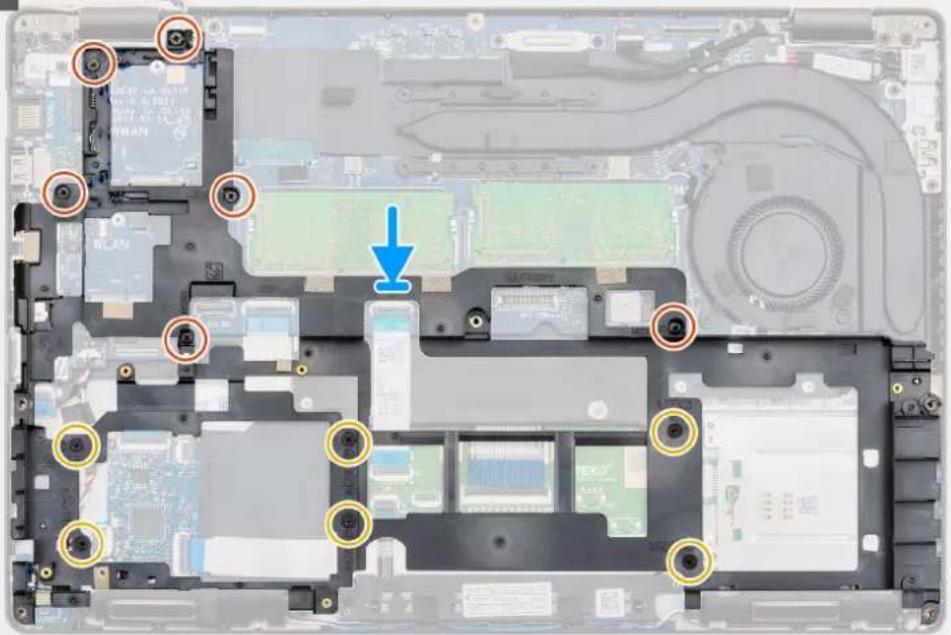

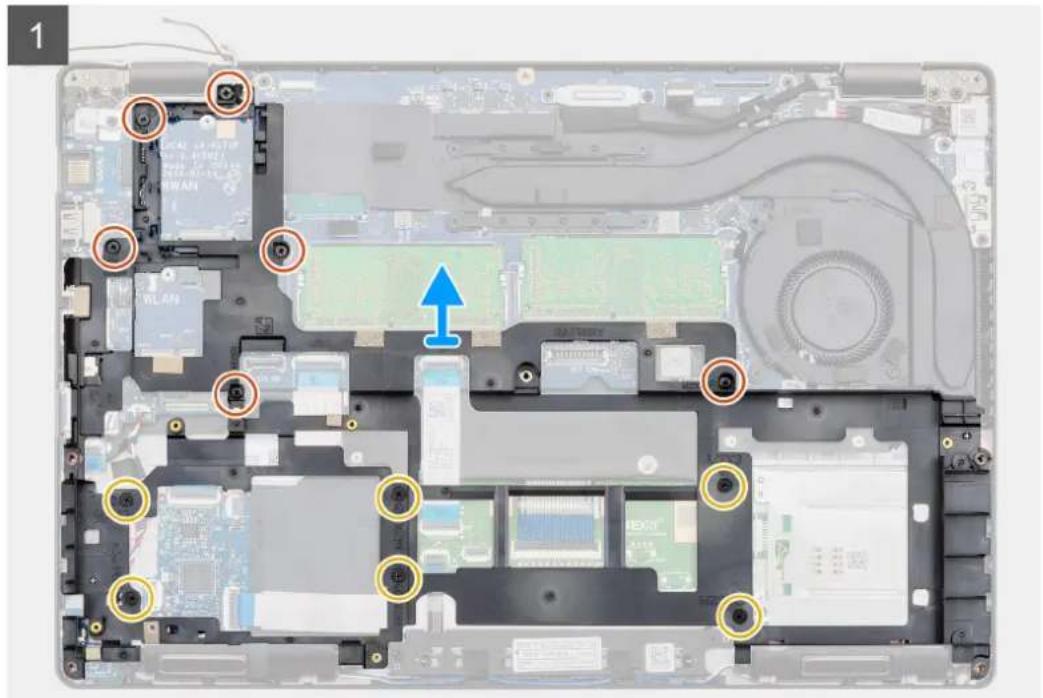

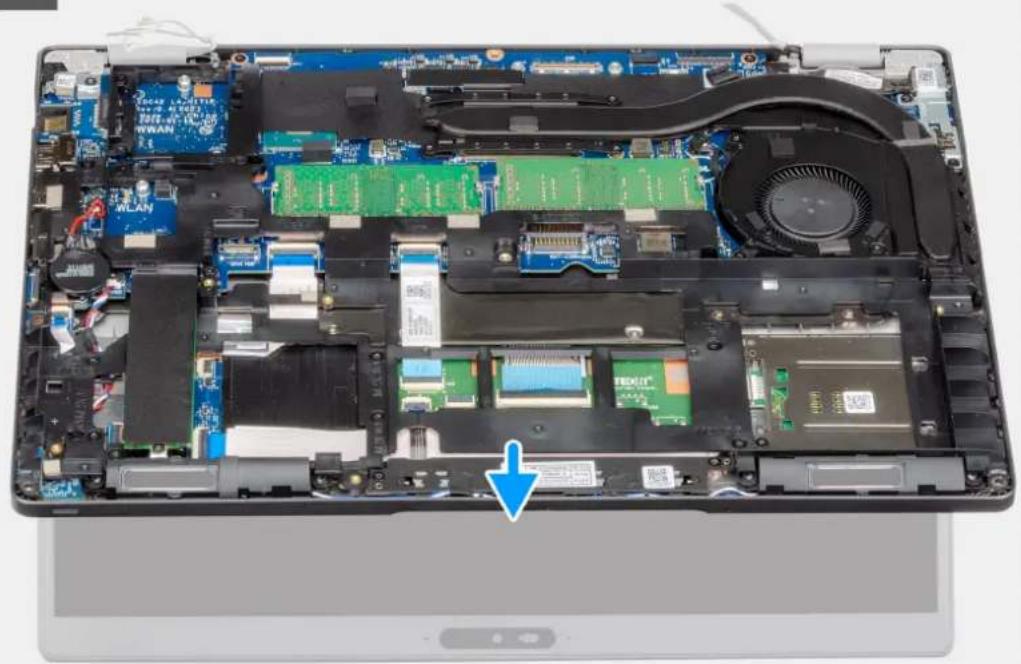

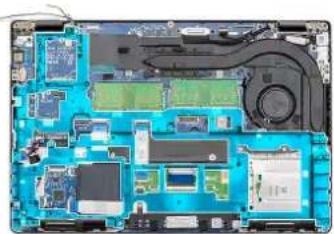

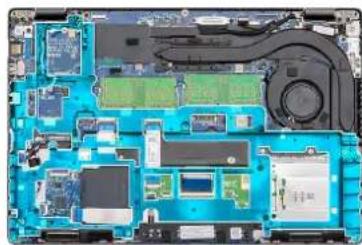

The figure indicates the location of the inner frame and provides a visual representation of the removal procedure.

Interior view of a computer motherboard showing blue and black plastic components (no visible text or labels)

[DC42 LA-H171P tex:0.4[XO7] Mode [in CHine 2019-01-14] WWAN

6x
M2x5

6x
M2x3

Interior view of a computer motherboard showing blue circuitry and various components (no visible text or labels)

1 XLAN ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← ← →

Steps

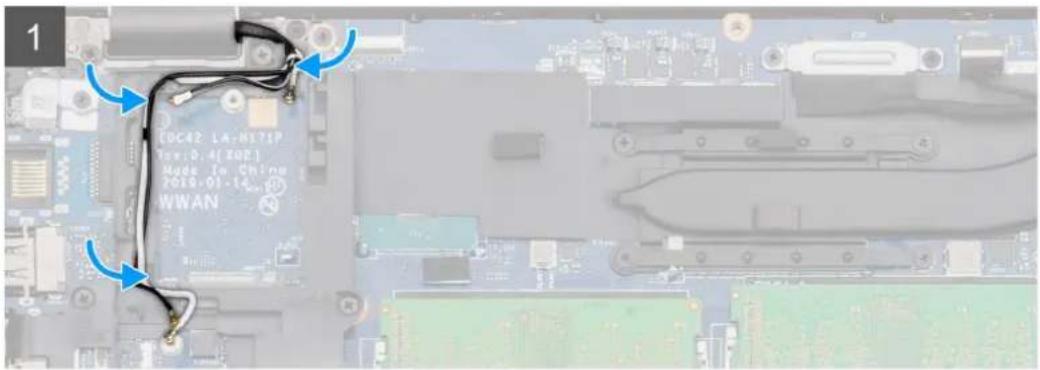

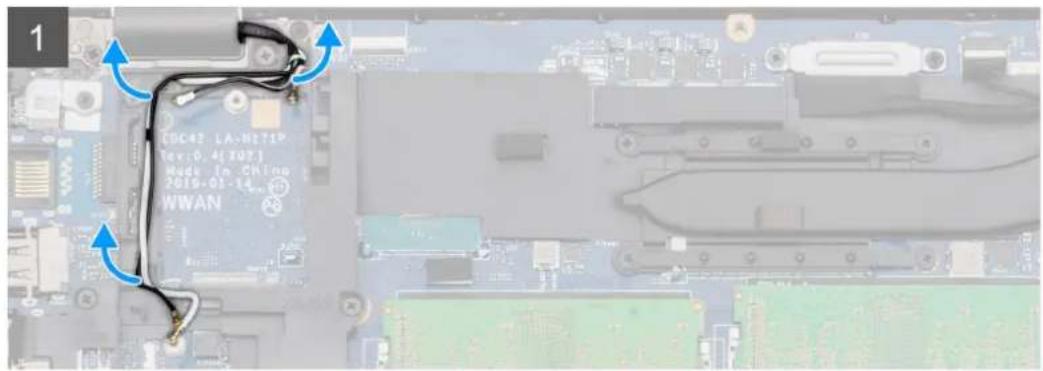

1. Unroute the WWAN and WLAN antenna cables from the routing clips.

2. Peel the coin-cell battery from the inner frame.

3. Remove the six (M2x5) and six (M2x3) screws that secure the inner frame to the computer.
4. Lift the inner frame out of the computer.

Installing the inner frame

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the inner frame and provides a visual representation of the installation procedure.

6x
M2x5

6x
M2x3

Cross-sectional view of a computer motherboard showing internal components like CPU, RAM, and memory (no text or symbols visible)

1

Laptop keyboard with visible circuit board and screw holes, showing no text or symbols

Top-down view of a computer motherboard showing CPU socket, RAM slots, and heatsink (no text or symbols visible)

1 DC42 LA-M171P Tsv.0.4 (E02) Mode (in China 2019.01-14.0) WWAN

Steps

1. Align and place the inner frame into the slot on your computer.
2. Replace the six (M2x5) and six (M2x3) screws to secure the inner frame to the computer.
3. Route the WWAN and WLAN antenna cables through the retention clips on the frame.
4. Adhere the coin-cell battery to the inner frame.

Next steps

1. Install the WLAN card.
2. Install the WWAN card.
3. Install the 2280 SATA SSD.
4. Install the battery.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.

Heatsink assembly-discrete

Removing the heatsink assembly-discrete

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the inner frame.

About this task

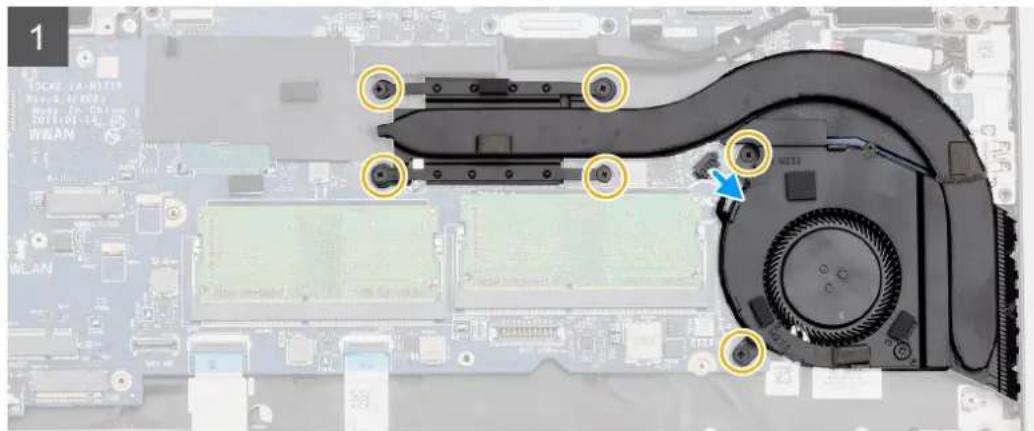

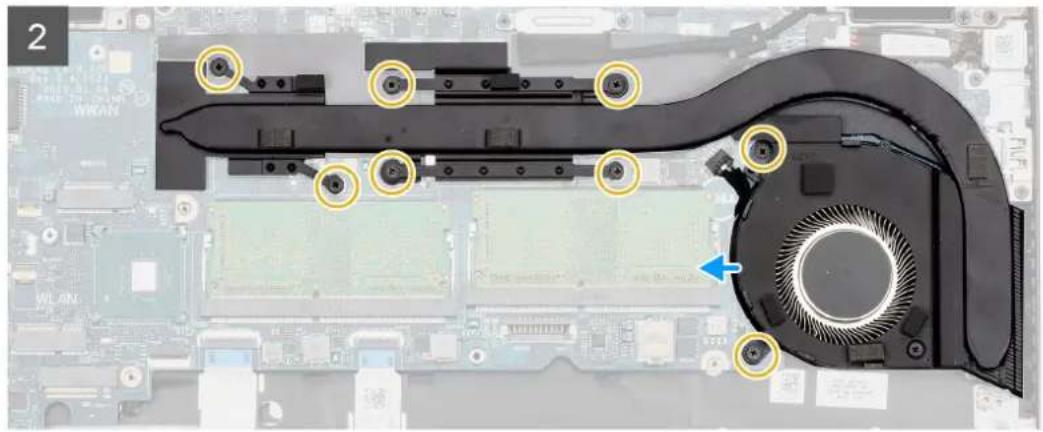

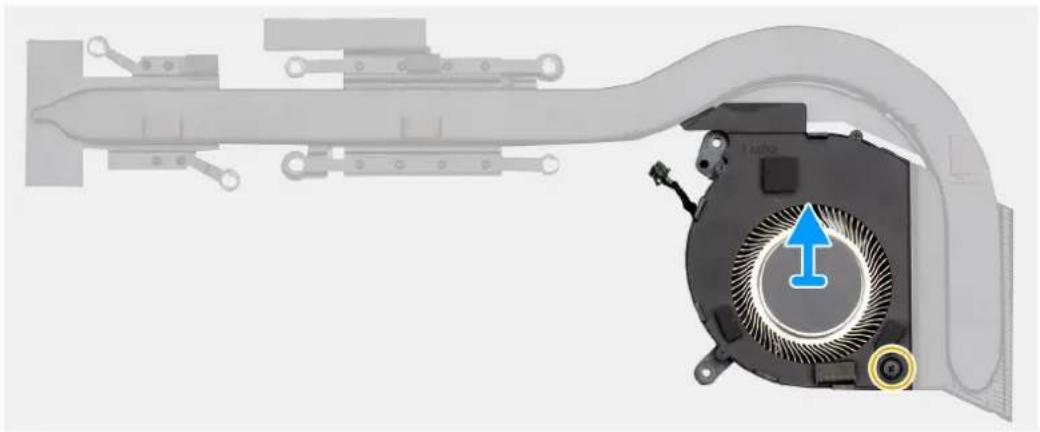

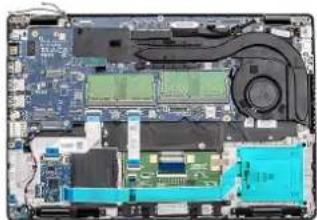

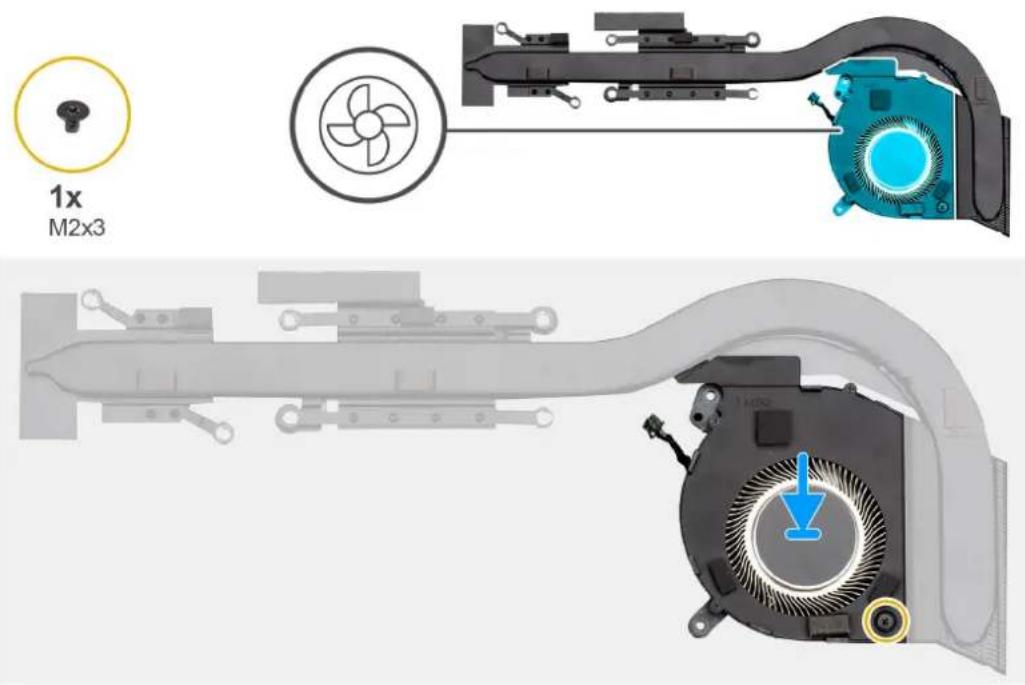

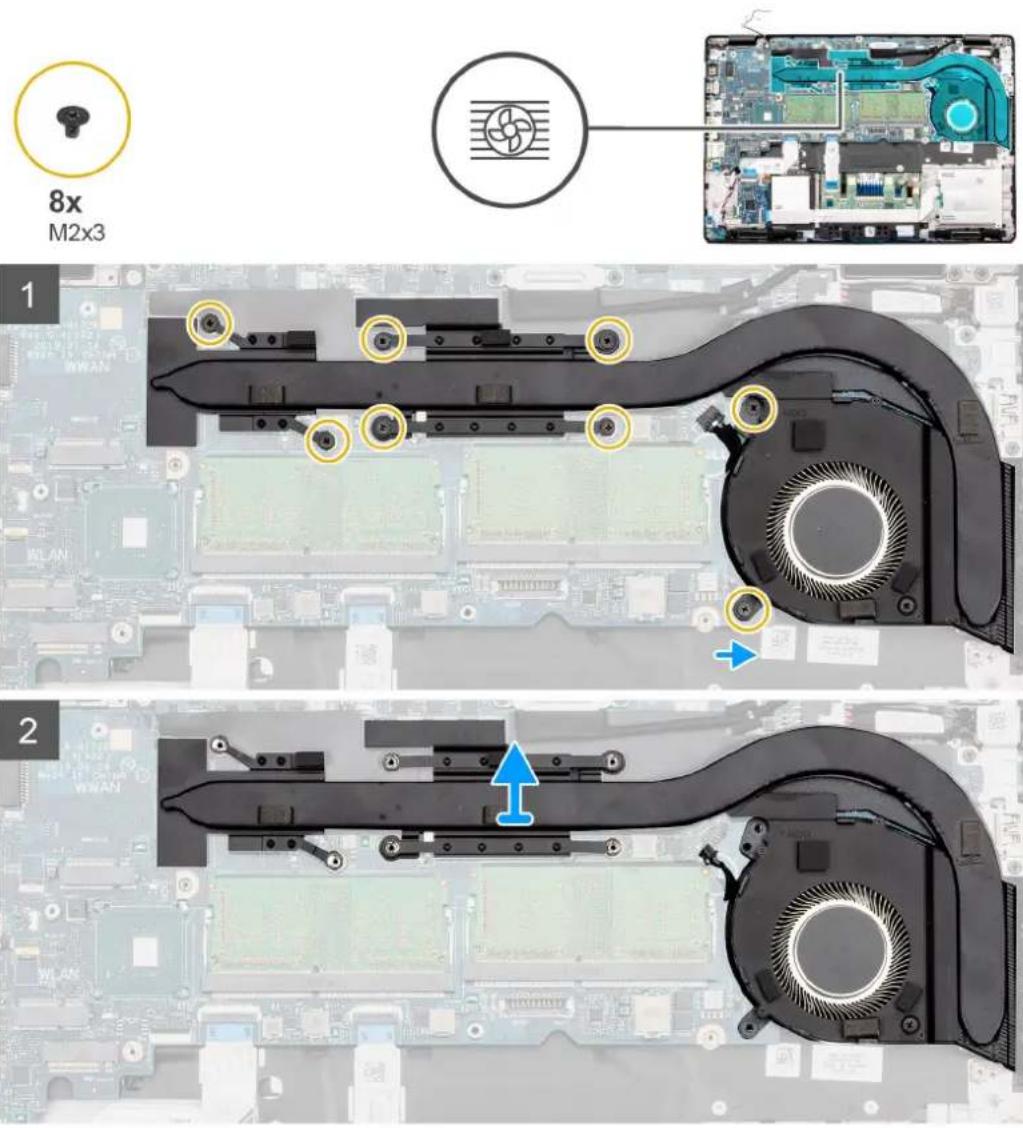

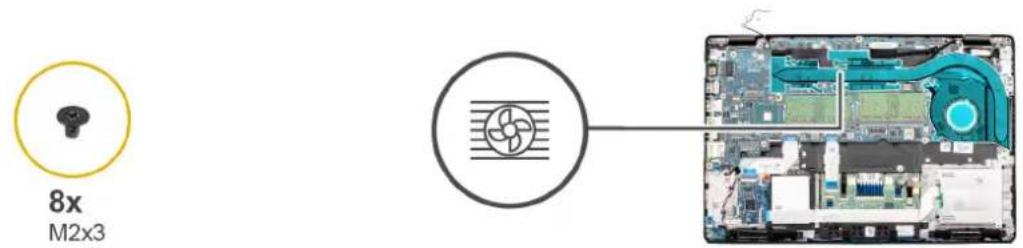

The figure indicates the location of the Heatsink and provides a visual representation of the removal procedure.

8x M2x3 1 2

1x M2x3

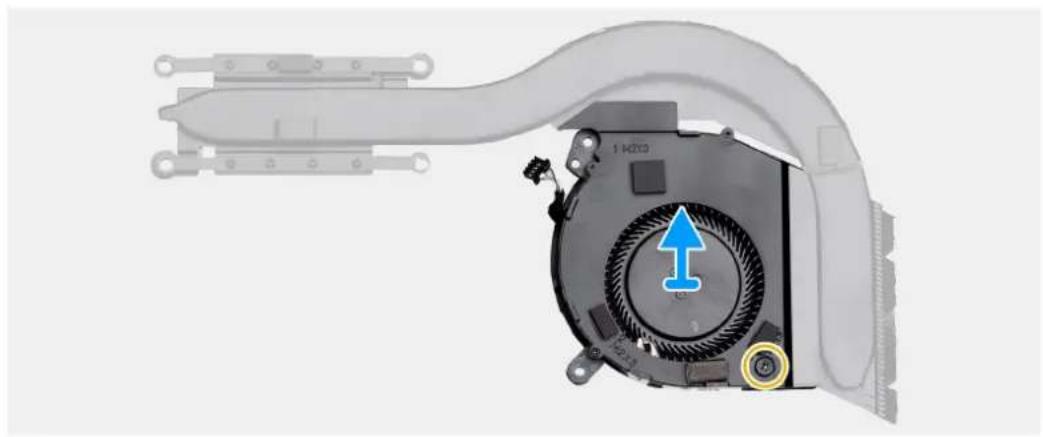

Mechanical assembly diagram showing a fan blade with a blue upward arrow indicating motion, no text or symbols present.

Steps

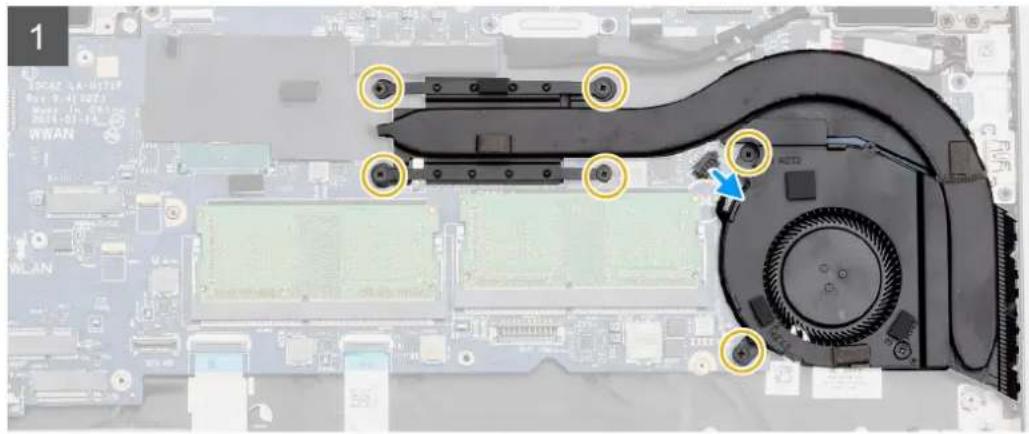

1. Locate the heatsink on your computer.
2. Disconnect the fan cable from the connector on the system board.
3. Remove the eight (M2x3) screws that secure the heatsink assembly to the system board.

NOTE: Remove the screws in the order of the callout numbers [1, 2, 3, 4, 5, 6] as indicated on the heatsink.

1. Lift the heatsink assembly out of the computer.
2. Remove the single (M2x3) screw that secures the heatsink fan to the heatsink.
3. Lift the heatsink fan away from the heatsink.

Installing the heatsink assembly-discrete

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

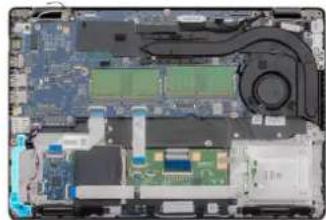

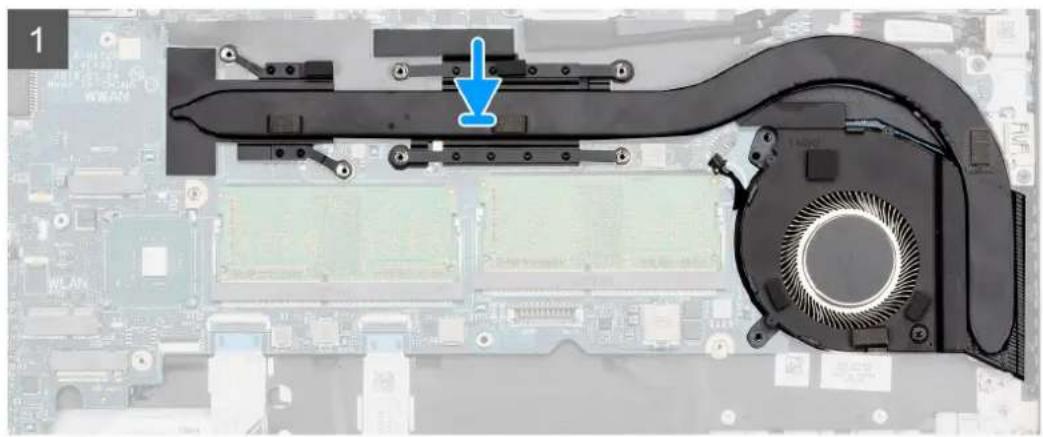

The figure indicates the location of the heatsink and provides a visual representation of the installation procedure.

1x M2x3

8x M2x3

Close-up of a computer motherboard with a highlighted component and a blue arrow pointing to a specific area (no text or symbols visible)

Close-up of a computer motherboard with a heatsink and fan component, no visible text or symbols

Steps

1. Align the screw hole on the heatsink with the screw hole on the heatsink fan.
2. Replace the single (M2x3) screw to secure the heatsink fan to the heatsink.
3. Locate the heatsink assembly slot on your computer.
4. Align and place the heatsink assembly into the slot.
5. Replace the two (M2x3) screws to secure the fan section on the heatsink assembly to the system board.

NOTE: Replace the screws as per the callout on the heatsink.

1. Replace the six (M2x3) screws to secure the heatsink assembly to the system board.
2. Connect the heatsink fan cable to the connector on the system board.

Next steps

1. Install the inner frame
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.

Heatsink assembly—UMA

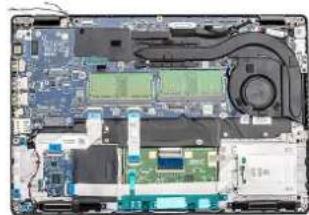

Removing the heatsink assembly-UMA

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

About this task

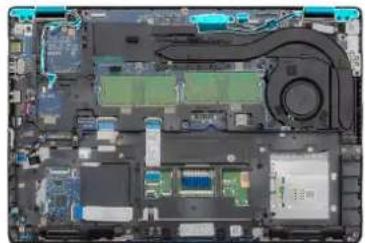

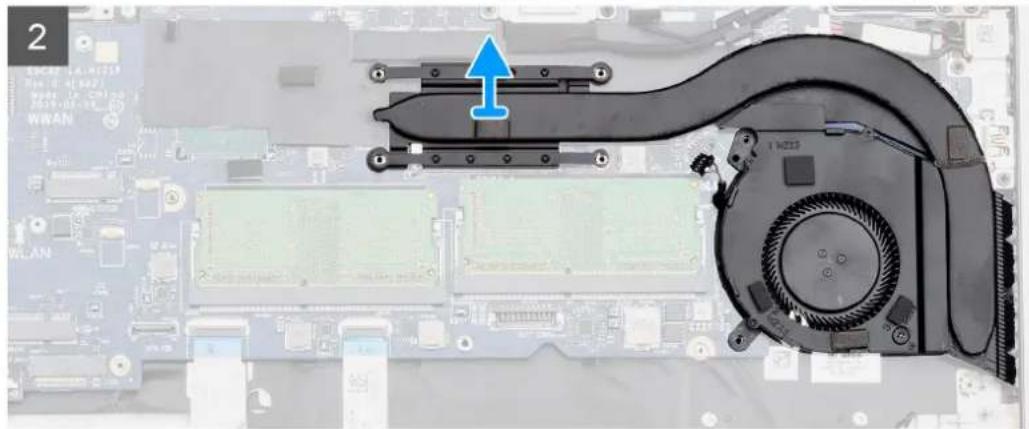

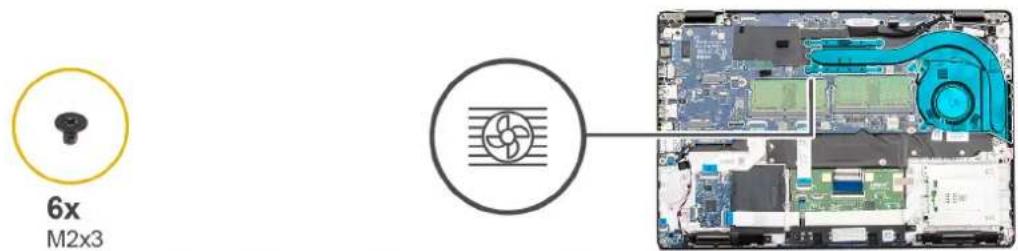

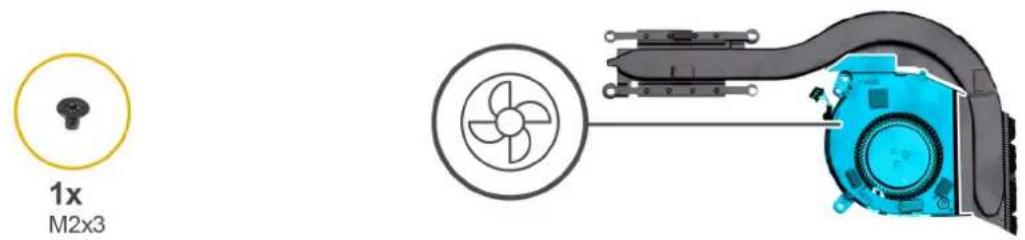

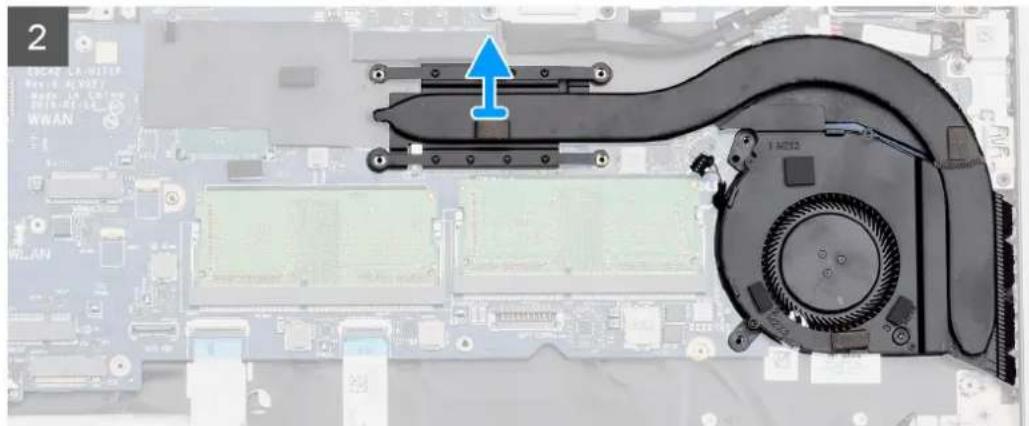

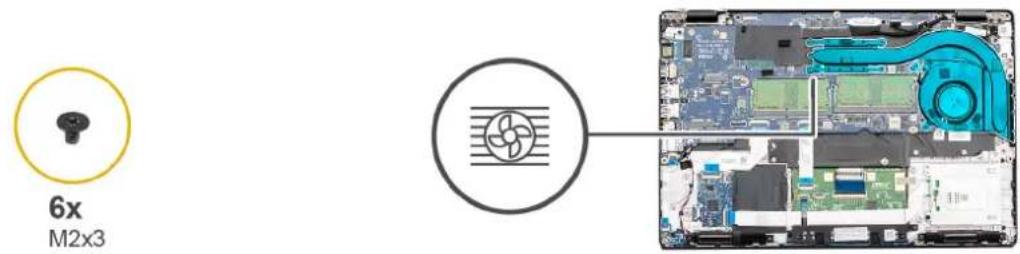

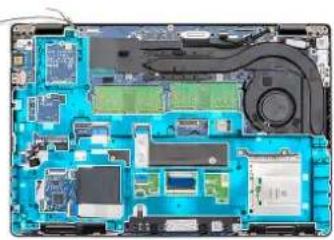

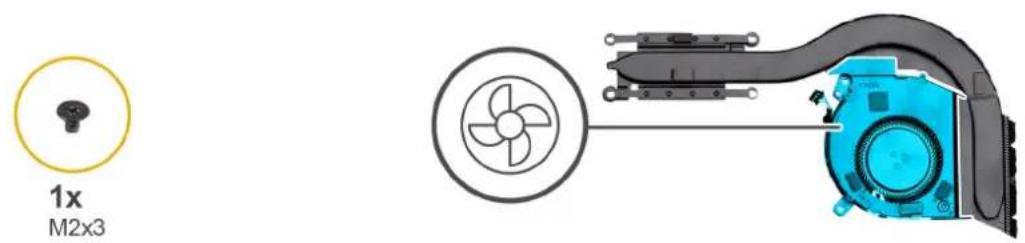

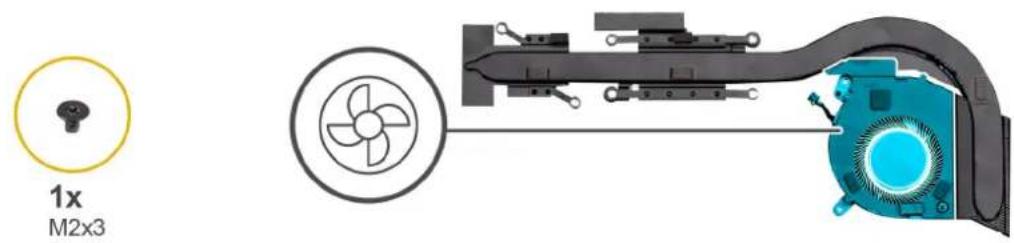

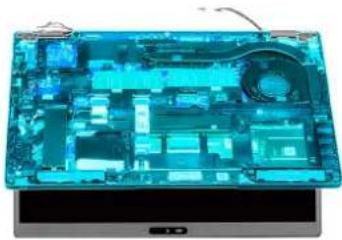

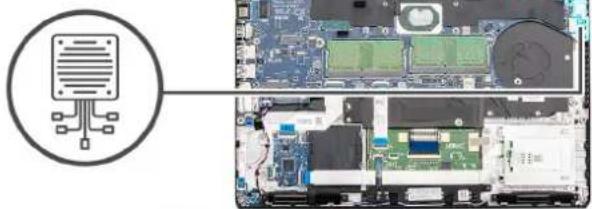

The figure indicates the location of the heatsink and provides a visual representation of the removal procedure.

6x M2x3

Close-up of a computer motherboard with a disassembled fan and cable connectors (no visible text or symbols)

Close-up of a computer motherboard with a heatsink and fan component, no visible text or symbols

1x M2x3

Diagram of a mechanical fan assembly with a blue upward arrow indicating motion or direction (no text or symbols present)

Steps

1. Locate the heatsink assembly on your computer.
2. Remove the six (M2x3) screws that secure the heatsink assembly to the computer.

NOTE: Remove the screws as per the callout on the heatsink module.

1. Disconnect the heatsink fan cable from the system board.
2. Lift the heatsink assembly out of the computer.
3. Remove the single (M2x3) screw that secures the heatsink fan to the heatsink.
4. Lift the heatsink fan away from the heatsink.

Installing the heatsink assembly-UMA

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the heatsink and provides a visual representation of the installation procedure.

1x M2x3

Mechanical assembly diagram showing a fan blade with a blue upward arrow indicating motion or force (no text or symbols present)

6x M2x3

Close-up of a computer motherboard with a disassembled fan component and highlighted ports (no text or symbols visible)

Close-up of a computer motherboard with a highlighted heat sink component (no text or symbols visible)

Steps

1. Align the screw hole on the heatsink with the screw hole on the heatsink fan.
2. Replace the single (M2x3) screw to secure the heatsink fan to the heatsink.
3. Locate the heatsink assembly slot on your computer.
4. Align and place the heatsink assembly into the slot of your computer.
5. Replace the six (M2x3) screws to secure the heatsink assembly to the system board.

NOTE: Install the screws as per the callout on the heatsink.

1. Connect the heatsink fan cable to the connector on the system board.

Next steps

1. Install the battery.
2. Install the base cover.
3. Follow the procedure in After working inside your computer.

DC-in port

Removing the DC-in

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the heatsink-discrete.

About this task

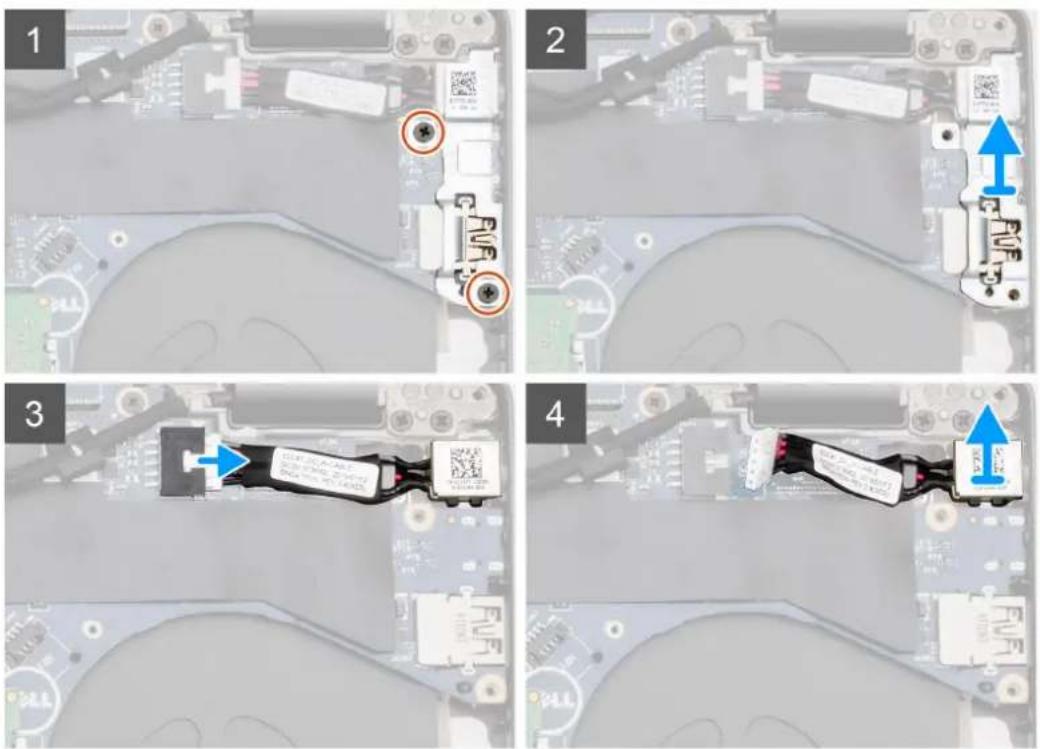

The figure indicates the location of the DC-in and provides a visual representation of the removal procedure.

2x M2x5

Four-panel sequence showing a device with a QR code and labeled components, likely demonstrating a repair or assembly process.

Steps

1. Locate the DC-in port on your computer.
2. Remove the two (M2x5) that secure the DC-in metal bracket.
3. Lift the DC-in metal bracket from the computer.
4. Disconnect the DC-in cable from the connector on the system board.
5. Remove the DC-in port from the computer.

Installing the DC-in

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

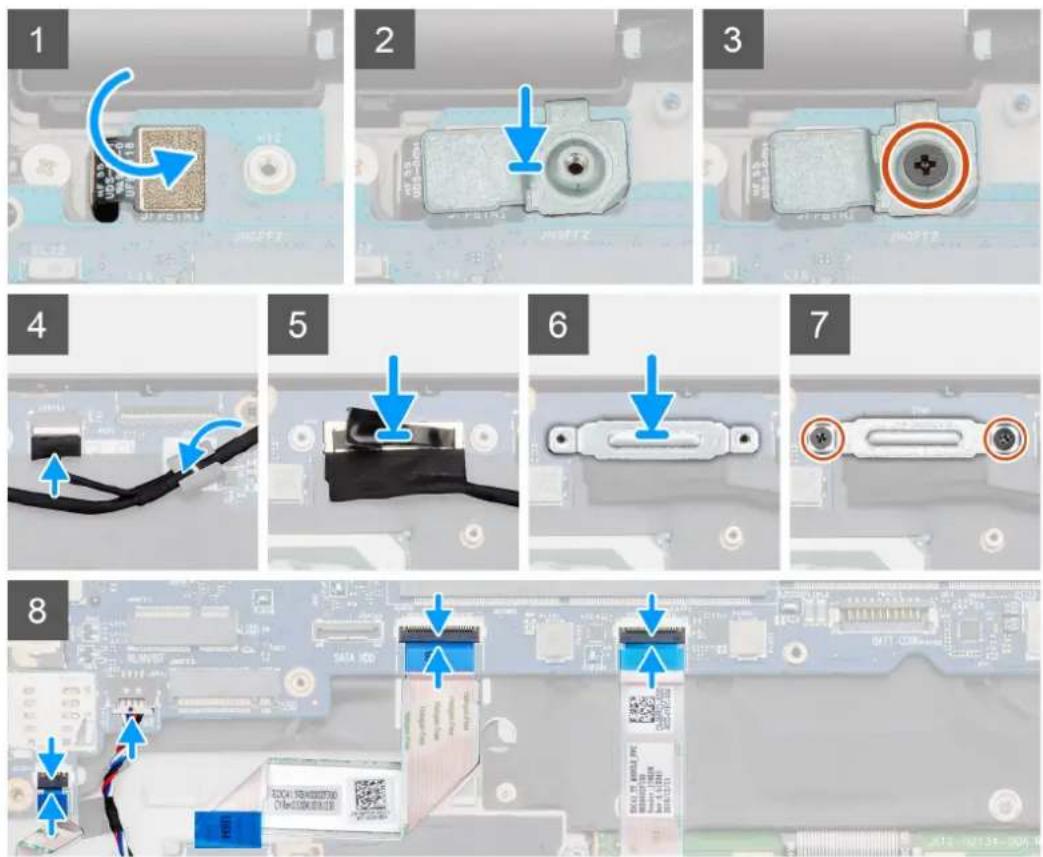

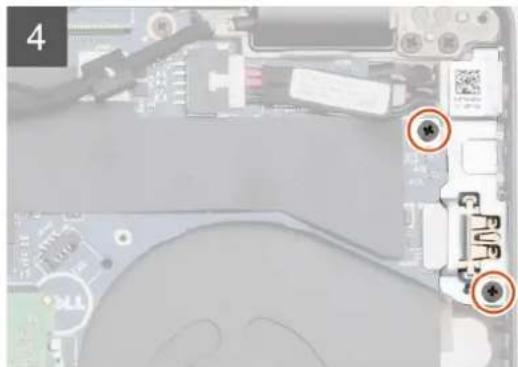

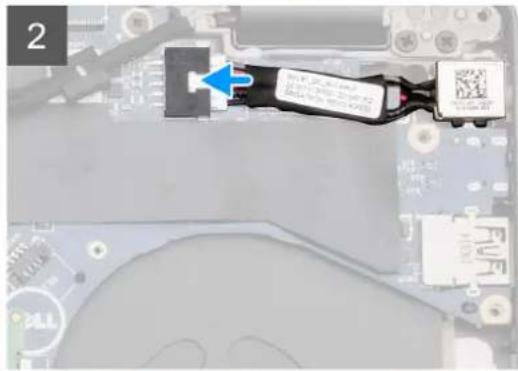

The figure indicates the location of the DC-in and provides a visual representation of the installation procedure.

Diagram showing a device connected to an open circuit board with visible components (no text or symbols)

Close-up of a computer motherboard with a black cable connector and a blue arrow indicating a downward motion (no text or symbols visible)

2

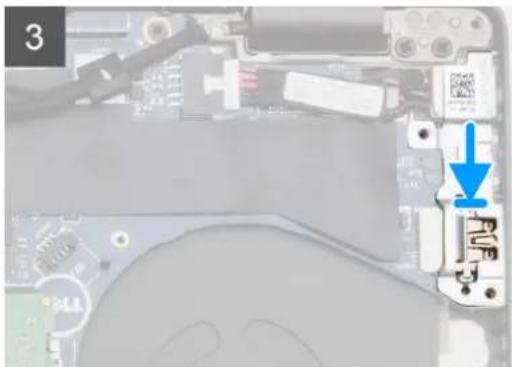

3 FIRE

Close-up of a computer motherboard with visible components and two orange circular annotations highlighting specific areas (no readable text or symbols)

Steps

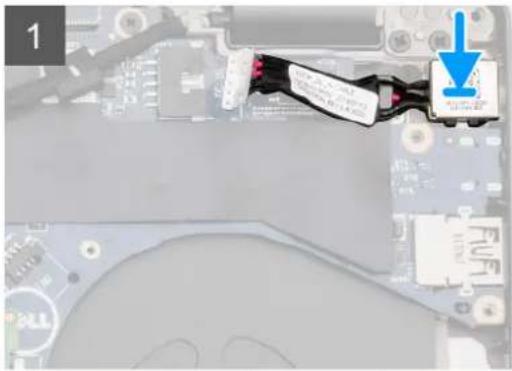

1. Locate the DC-in slot on your computer.
2. Insert the DC-in port into the slot on your computer.
3. Connect the DC-in cable to the connector on the system board.

4. Place the DC-in metal bracket on the DC-in port.

5. Replace the two screws (M2x5) that secure the DC-in metal bracket to the system board.

Next steps

1. Install the heatsink-discrete.
2. Install the battery.
3. Install the base cover.
4. Follow the procedure in After working inside your computer.

SmartCard reader

Removing the smartcard reader board

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the inner frame.

About this task

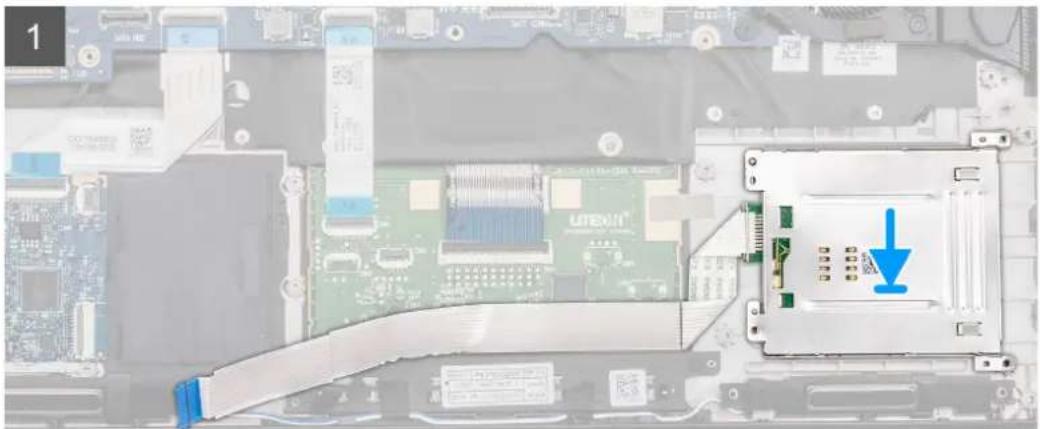

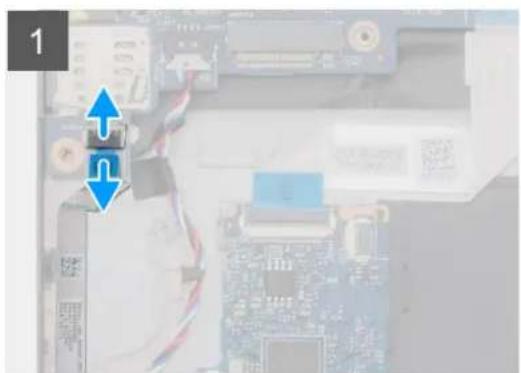

The figure indicates the location of the smart card reader board and provides a visual representation of the removal procedure.

3x
M2x3

Interior view of an electronic device showing circuit boards, RAM slots, and a speaker (no text or symbols visible)

Laptop keyboard with visible drive bays and memory card, showing no readable text or symbols

Close-up of a computer motherboard with a blue upward arrow pointing to a hardware component (no readable text or symbols)

Steps

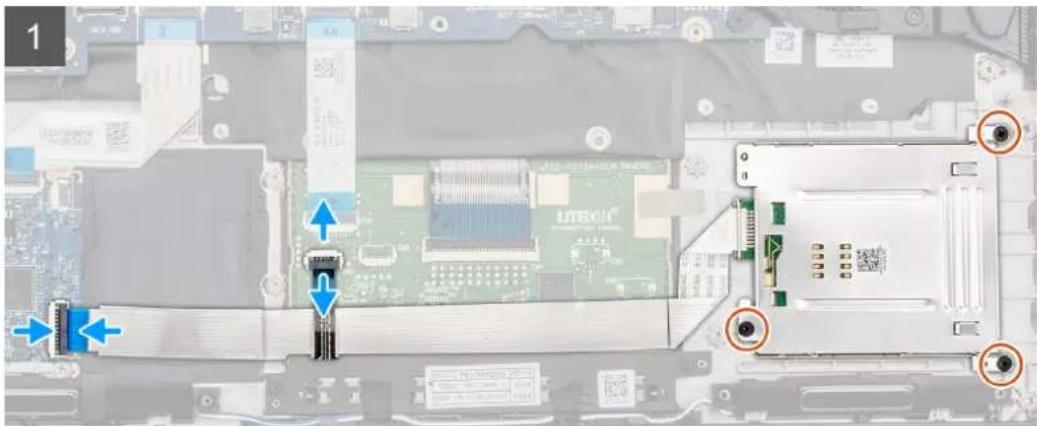

1. Locate the smartcard reader board on your computer.

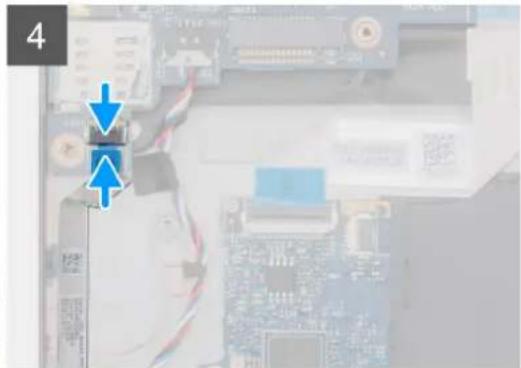

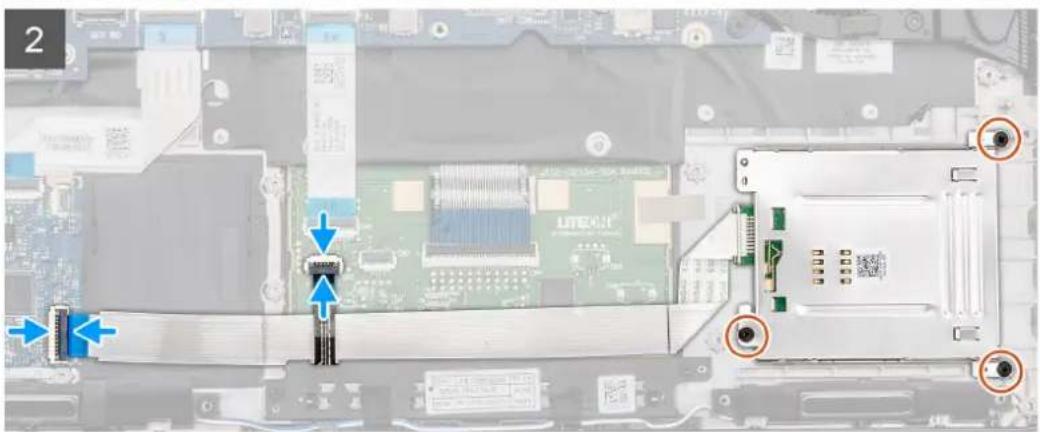

2. Open the latch and disconnect the touchpad button board cable from the system board.

3. Open the latch and disconnect the smartcard reader board cable from the system board.
4. Peel the smartcard cable from the palmrest.
5. Remove the three (M2x3) screws that secure the smartcard reader board to the computer.
6. Lift the smartcard reader module out of the computer.

Installing the smartcard reader board

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the smartcard reader board and provides a visual representation of the installation procedure.

3x
M2x3

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no text or symbols visible)

Laptop motherboard with a USB cable and an inset showing a memory card slot (no readable text or symbols)

Laptop CPU board with visible internal components and blue arrows indicating directional movement (no text or symbols)

Steps

1. Locate the smartcard reader board slot on your computer.

2. Align and place the smartcard reader board into the slot on your computer.

3. Replace the three (M2x3) screws that secure the smartcard reader board to the computer.

4. Adhere the smartcard reader cable to the palmrest and connect the cable to the connector on the system board.
5. Connect the touchpad button board cable to the connector on the system board.

Next steps

1. Install the inner frame.
2. Install the WLAN card.
3. Install the WWAN card.
4. Install the 2280 SATA SSD.
5. Install the battery.

6. Install the base cover.

7. Follow the procedure in After working inside your computer.

Touchpad buttons

Removing the touchpad button board

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the inner frame.

About this task

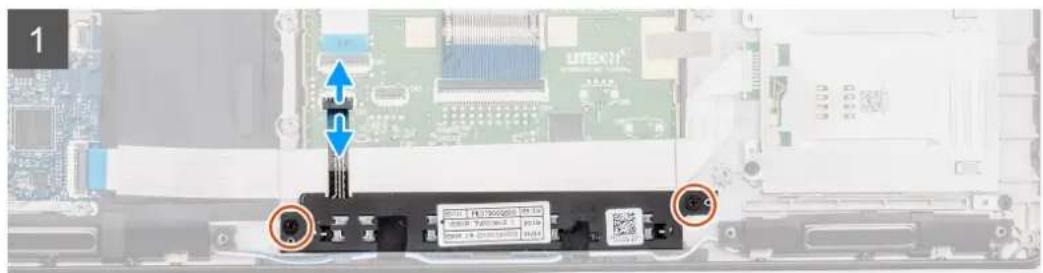

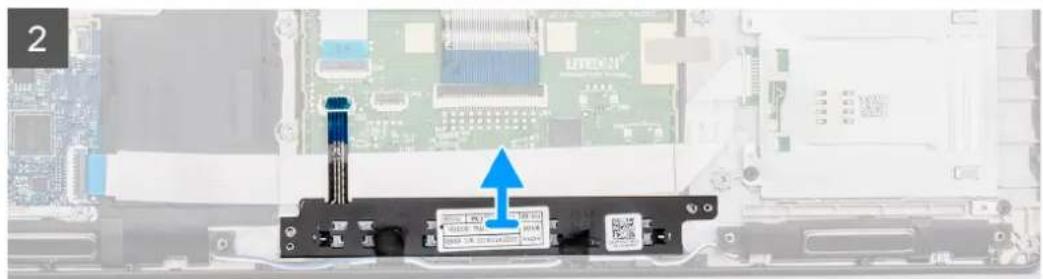

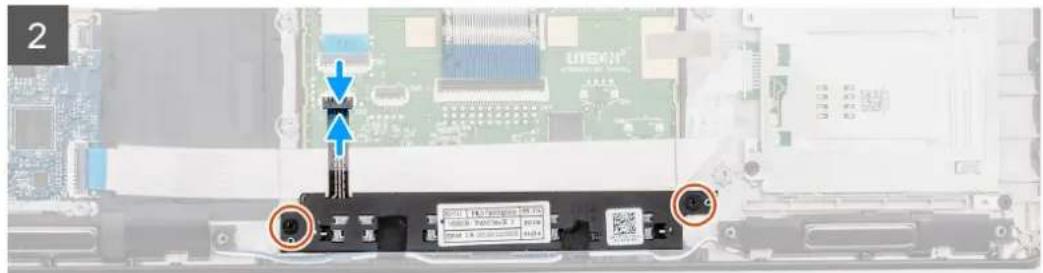

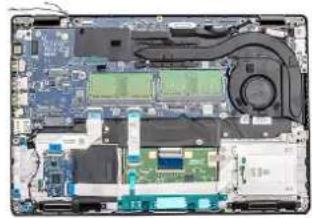

The figure indicates the location of the touchpad button board and provides a visual representation of the removal procedure.

Interior view of a computer motherboard showing CPU socket, RAM slots, and ventilation duct (no text or symbols visible)

1 H07200000 EN 10 EN 10:000000 EN 10 EN 10:000000 EN 10 EN 10:000000 EN 10

2 LED/ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON LED ON

Steps

1. Locate the touchpad buttons board on your computer.
2. Open the latch and disconnect the touchpad button board cable from the connector on the system board.
3. Remove the two (M2x3) screws that secure the touchpad button board to the palmrest.
4. Lift the touchpad button board out of the computer.

Installing the touchpad button board

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the touchpad buttons and provides a visual representation of the installation procedure.

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no text or symbols visible)

1 2023.1.1 100% 2023.1.1 100%

2 SINTEL 10.00000000000000 SINTEL 10.00000000000000 SINTEL 10.00000000000000 SINTEL 10.00000000000000

Steps

1. Locate the touchpad button board slot on your computer.
2. Align and place the touchpad button board into the slot on your computer.
3. Replace the two (M2x3) screws to secure the touchpad button board to the plamrest.
4. Connect the touchpad button board cable to the connector on the system board and secure the latch.

Next steps

1. Install the inner frame.
2. Install the WLAN card.
3. Install the WWAN card.
4. Install the 2280 SATA SSD.
5. Install the battery.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.

LED board

Removing the LED board

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the WLAN card.

6. Remove the WWAN card.

7. Remove the inner frame.

About this task

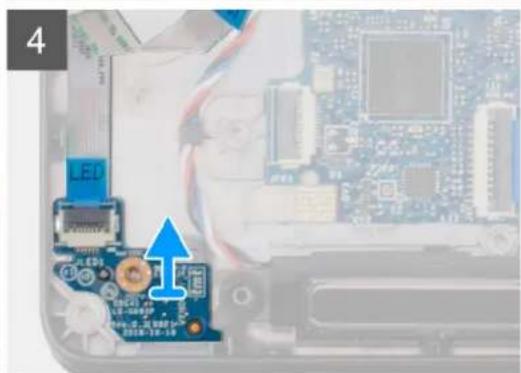

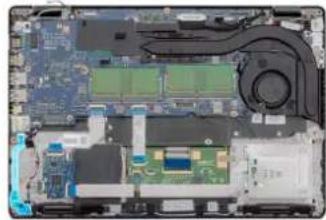

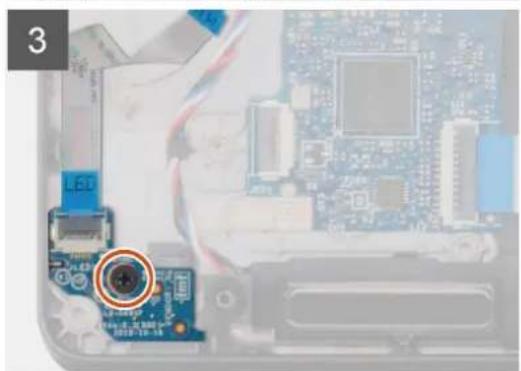

The figure indicates the location of the LED board and provides a visual representation of the removal procedure.

1x M2x3

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive mechanism (no text or symbols visible)

Close-up of a computer motherboard with visible circuit board and connectors (no readable text or symbols)

Interior view of a laptop showing circuit board and components, with a blue arrow pointing to a component (no text or symbols visible)

Close-up of a laptop's internal components including a circuit board, LED, and a camera lens (no visible text or symbols)

Close-up of a computer motherboard with an LED and a blue arrow pointing to a component (no visible text or symbols)

Steps

1. Locate the LED board on your computer.
2. Open the latch and disconnect the LED board cable from the connector on the system board.
3. Peel back the LED board cable.

NOTE: The LED board cable is secured to the computer by an adhesive strip.

1. Remove the single (M2x3) screw that secures the LED board to the computer.
2. Lift the LED board out of the computer.

Installing the LED board

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

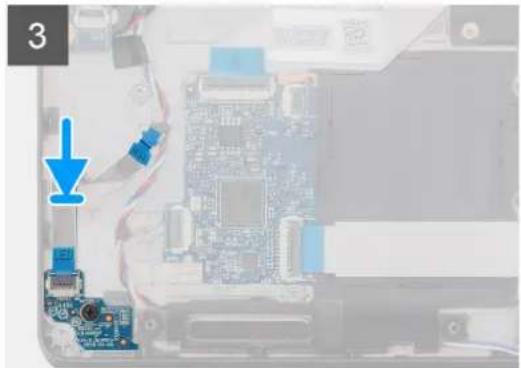

The figure indicates the location of the LED board and provides a visual representation of the installation procedure.

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or labels)

Close-up of a computer motherboard with an LED cable inserted, showing internal components and a blue arrow pointing to a component (no readable text or symbols)

Close-up of a laptop's front panel with a close-up of a camera lens on the circuit board (no visible text or symbols)

Laptop interior showing circuit board and electronic components with a blue arrow pointing to a component (no text or symbols visible)

Close-up of a computer motherboard with visible CPU socket and connectors (no text or symbols)

Steps

1. Locate the LED board slot on your computer.
2. Align and place the LED board on the slot on your computer.
3. Replace the single (M2x3) screw that secures the LED board to the computer.
4. Adhere the LED board cable to the adhesive strip on the palmrest.
5. Connect the LED board cable to the connector on the system board.

Next steps

1. Install the inner frame
2. Install the WLAN card.
3. Install the WWAN card.
4. Install the 2280 SATA SSD.
5. Install the battery.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.

Speakers

Removing the speakers

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the WLAN card.
6. Remove the WWAN card.
7. Remove the inner frame.
8. Remove the LED board

About this task

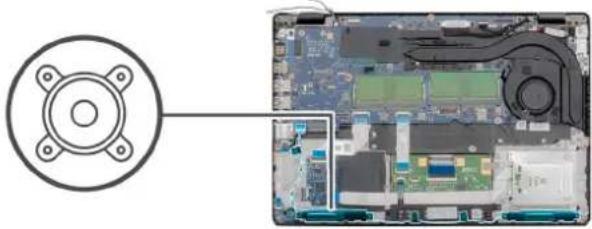

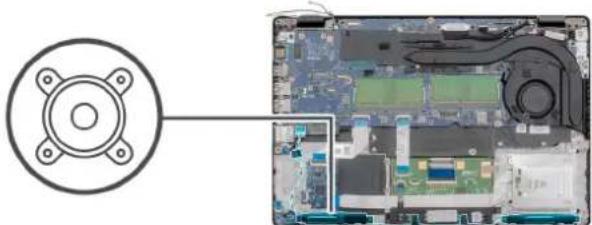

The figure indicates the location of the speakers and provides a visual representation of the removal procedure.

Diagram showing a circular component connected to an open circuit board with visible traces and components (no text or symbols)

Laptop keyboard with attached cable and connector, showing wiring and components (no text or symbols visible)

Laptop keyboard with two connectors and a cable, showing internal circuit board (no text or symbols visible)

Steps

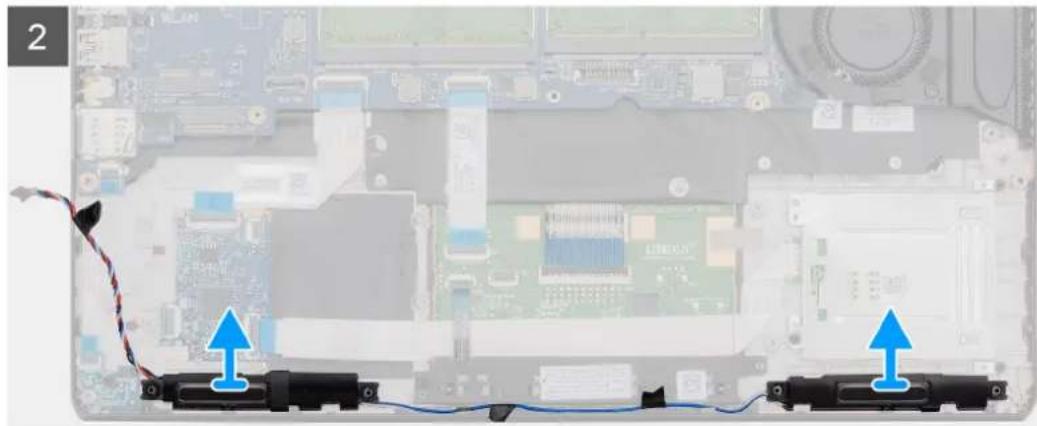

1. Locate the speakers on your computer.
2. Disconnect and Unroute the speaker cables from the retention clips on the computer.
3. Lift the speakers out of the computer.

Installing the speakers

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the speakers and provides a visual representation of the installation procedure.

Diagram showing a circular component connected to an open circuit board with visible traces and components (no text or symbols)

Laptop interior photo showing cable routing and component disassembly steps with blue arrows indicating movement

Steps

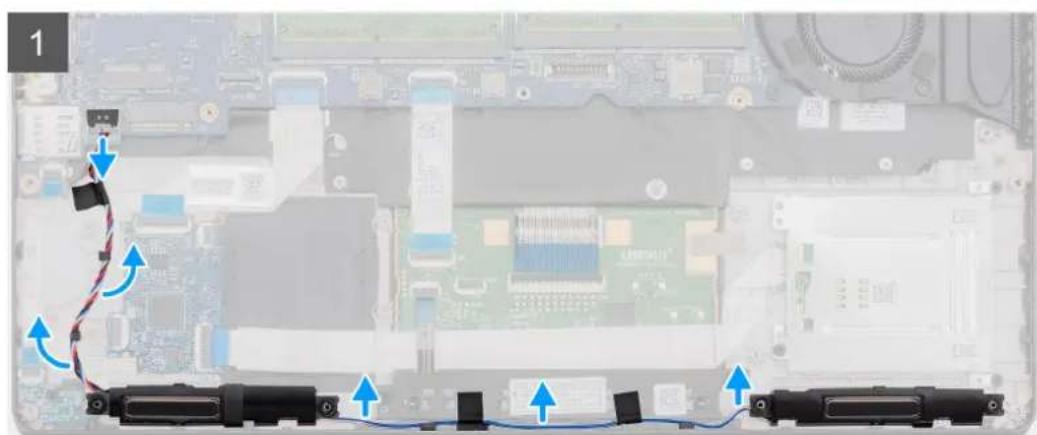

1. Locate the speakers slot on your computer.
2. Align and place the speakers in the slot on your computer.
3. Route the speaker cables through the retention clips on your computer.

Next steps

1. Install the LED board.
2. Install the inner frame.
3. Install the WLAN card.
4. Install the WWAN card.
5. Install the 2280 SATA SSD.
6. Install the battery.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.

System board

Removing the system board

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the memory.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the inner frame.
9. Remove the LED board.
10. Remove the heatsink-discrete or heatsink-UMA.
11. Remove the DC-in.

About this task

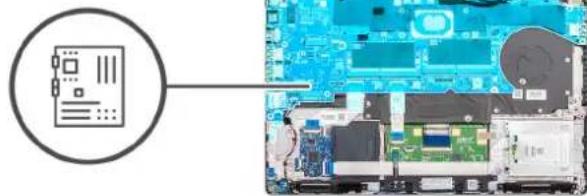

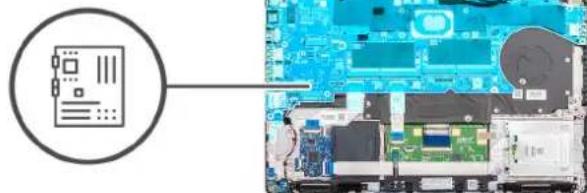

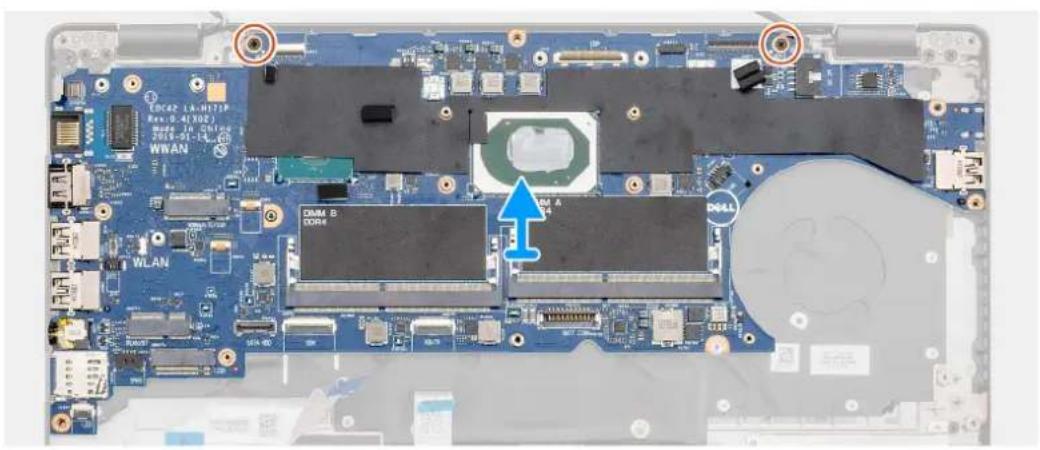

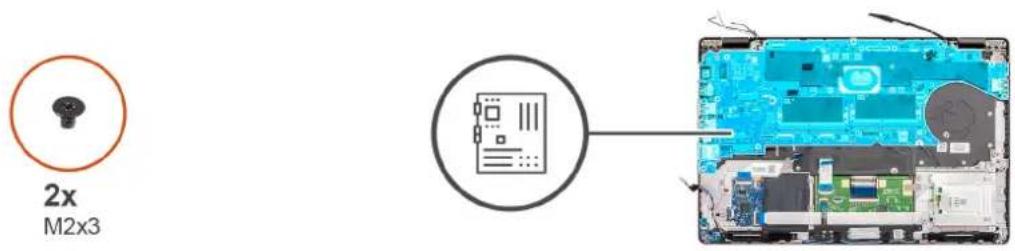

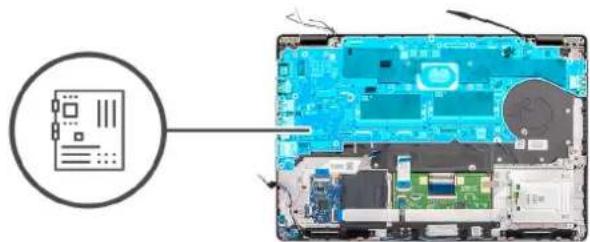

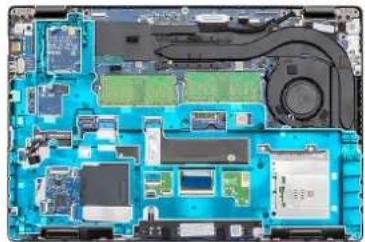

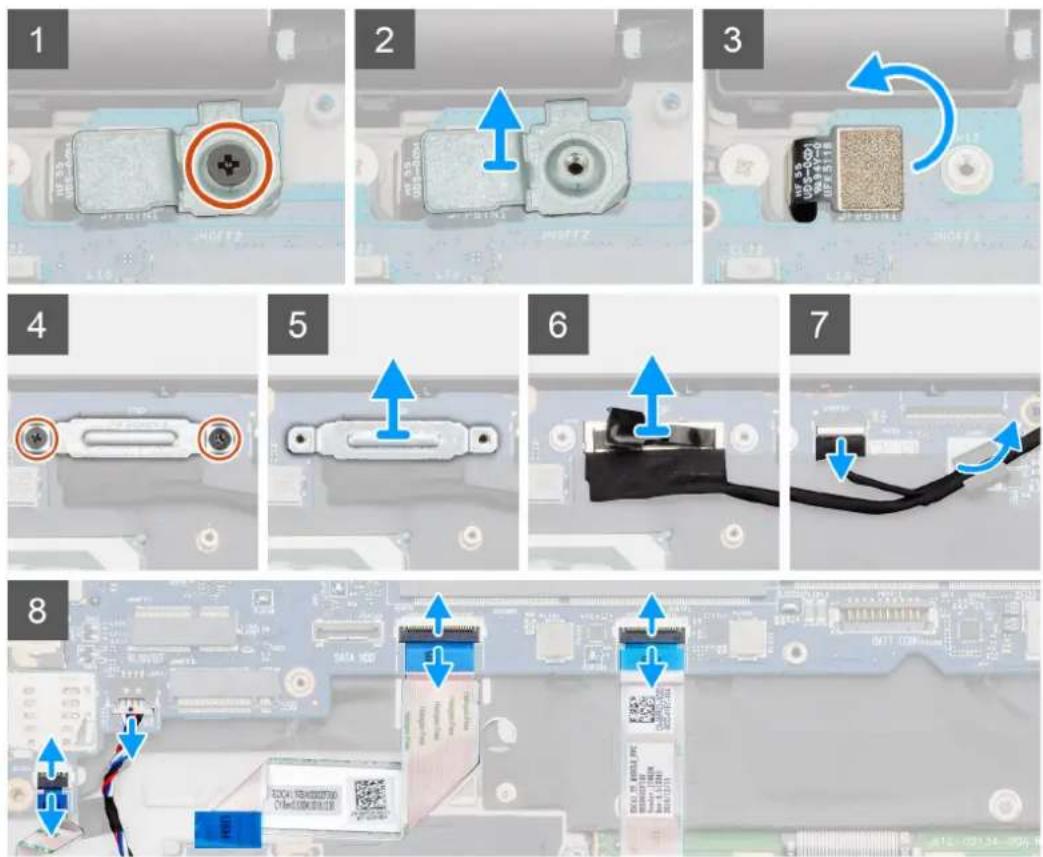

The figure indicates the location of the system board and provides a visual representation of the removal procedure.

3x
M2×3

Close-up of an electronic circuit board with a computer icon pointing to its components (no visible text or symbols)

2x M2x3

EDC42 LA-H171P Rev.0-41(3X2) 2018-01-14 WWAN WLAN DMM B DDR4 BMW A DOLL SIA-05

Steps

1. Locate the system board on your computer.
2. Remove the single (M2x3) screw that secures the fingerprint reader metal bracket.
3. Remove the fingerprint metal bracket from the computer and flip the fingerprint sensor over.
4. Remove the two (M2x3) screws that secure the display bracket in place.
5. Remove the display bracket out of the computer.

6. Disconnect the display cable from the connector on the system board.

7. Disconnect the following cables:

a. camera cable
b. speaker cable
c. LED board cable
d. fingerprint reader cable
e. keyboard cable

1. Remove the two (M2x3) screws that secure the system board to the palmrest and keyboard assembly.

2. Lift the system board off the palm-rest and keyboard assembly.

Installing the system board

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

The figure indicates the location of the system board and provides a visual representation of the installation procedure.

2x
M2x3

Laptop with open circuit board showing internal components and a circular icon pointing to a device (no text or symbols)

DDR42 LA-H171P Rev. 0-4 (X02) 2016-01-13 WWAN DDR4 B DDR4 DDR4 A DDR4 WLAN Dell

Close-up of an electronic circuit board with a computer monitor icon and a magnified inset showing internal components (no text or symbols visible)

Steps

1. Locate the system board slot on your computer.
2. Slide the ports on the system board into the slots on the palmrest and align the screw holes on the system board with the screw holes on the palmrest.
3. Replace the two (M2x3) screws to secure the system board to the palmrest.
4. Align and place the fingerprint reader sensor on to the slot on the computer.
5. Place the finger print reader metal bracket over the fingerprint sensor.
6. Replace the single (M2x3) screw to secure the metal bracket to the computer.
7. Connect the display cable to the connector on the system board.
8. Adhere the tape that secures the display board to the system board.
9. Replace the two (M2x3) screws to secure the display metal bracket to the system board.
10. Connect the following cables:

a. camera cable
b. speaker cable
c. LED board cable
d. fingerprint reader cable
e. keyboard cable

Next steps

1. Install the DC-in.
2. Install the heatsink-discrete or heatsink-UMA.
3. Install the LED board.
4. Install the inner frame.
5. Install the memory.
6. Install the WLAN card.
7. Install the WWAN card.
8. Install the 2280 SATA SSD.
9. Install the battery.
10. Install the base cover.
11. Follow the procedure in After working inside your computer.

Keyboard

Removing the keyboard

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the memory.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the inner frame.
9. Remove the LED board.
10. Remove the DC-in.
11. Remove the system board.

NOTE: System board can be removed with heatsink attached.

About this task

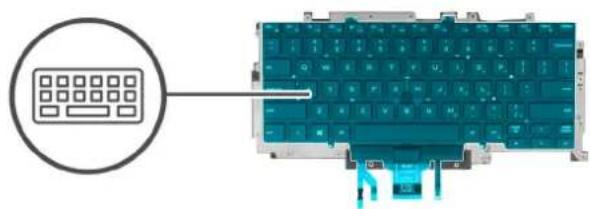

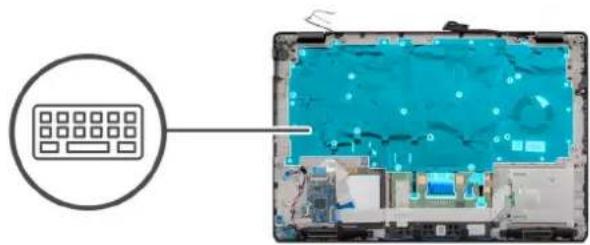

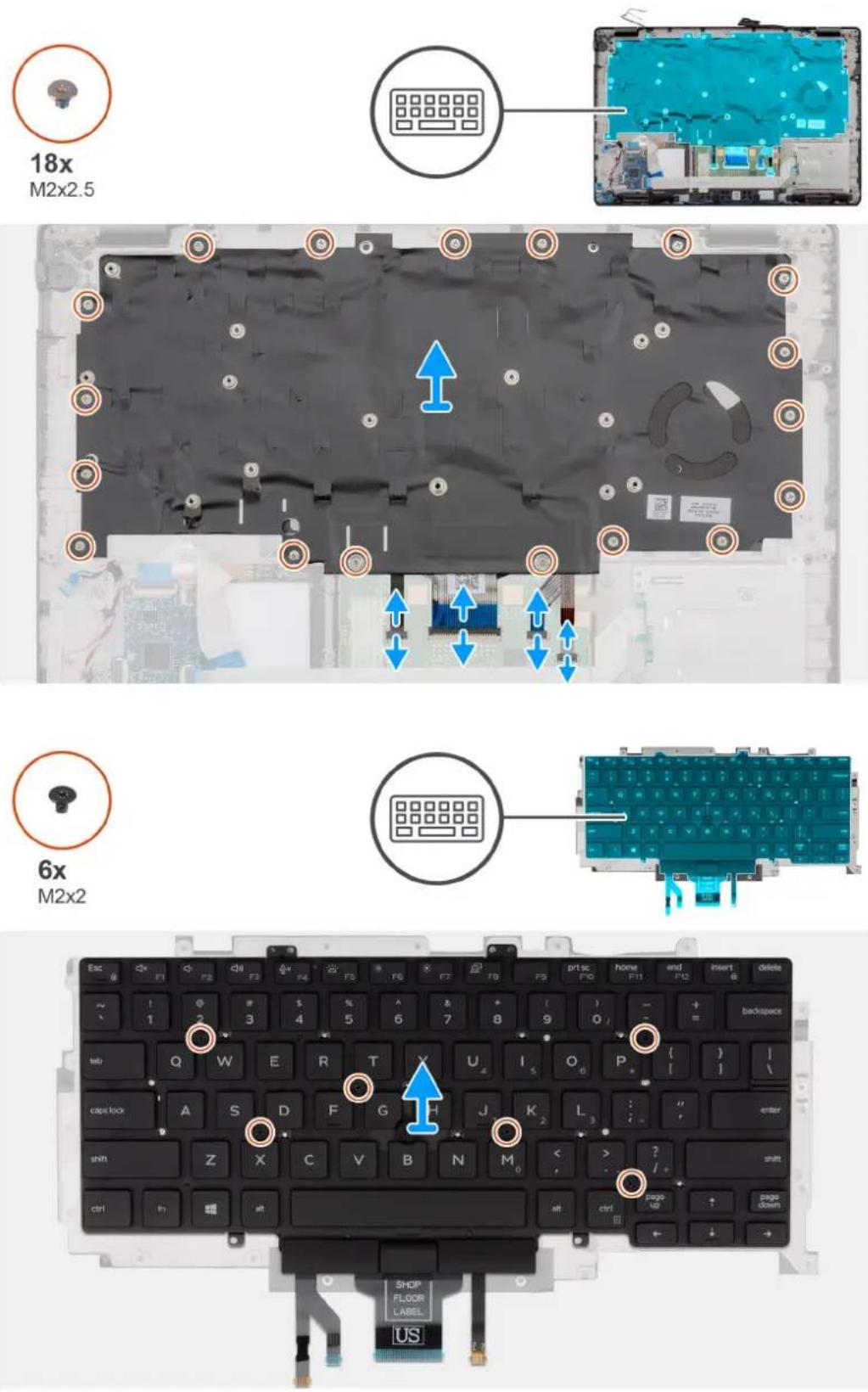

The figure indicates the location of the keyboard and provides a visual representation of the removal procedure.

Steps

1. Locate the Keyboard on your computer.
2. Open the latch and disconnect the following cables:
   a. keyboard cable

b. keyboard backlit cable
c. touchpad cable
d. touchpad button board cable

1. Remove the eighteen (M2x2.5) screws that secure the keyboard assembly to the palmerst.
2. Carefully lift the keyboard assembly from the palmrest.
3. Flip the keyboard assembly.
4. Remove the six (M2x2) screws that secures the keyboard to the keyboard bracket.
5. Remove the keyboard from the keyboard bracket.

Installing the keyboard

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

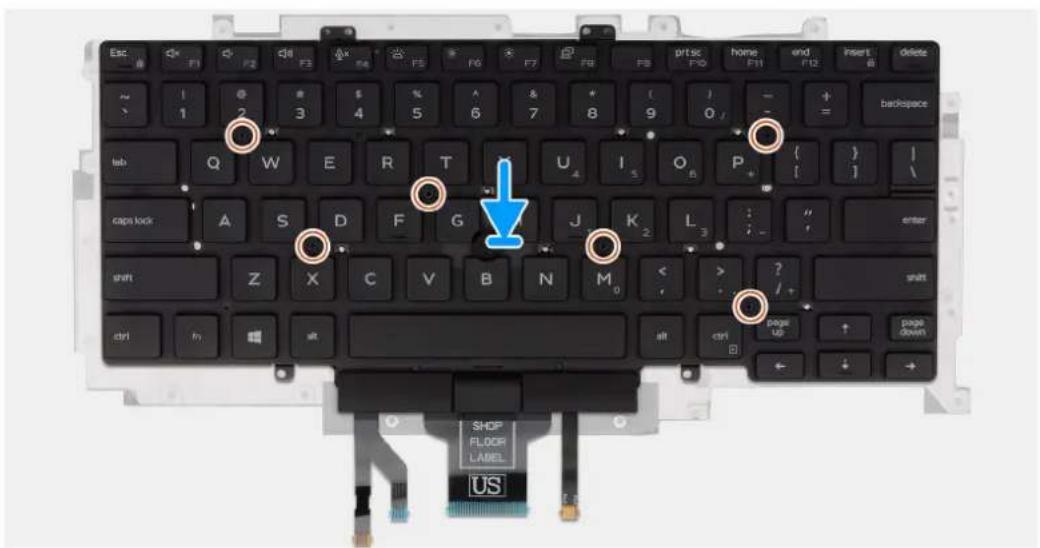

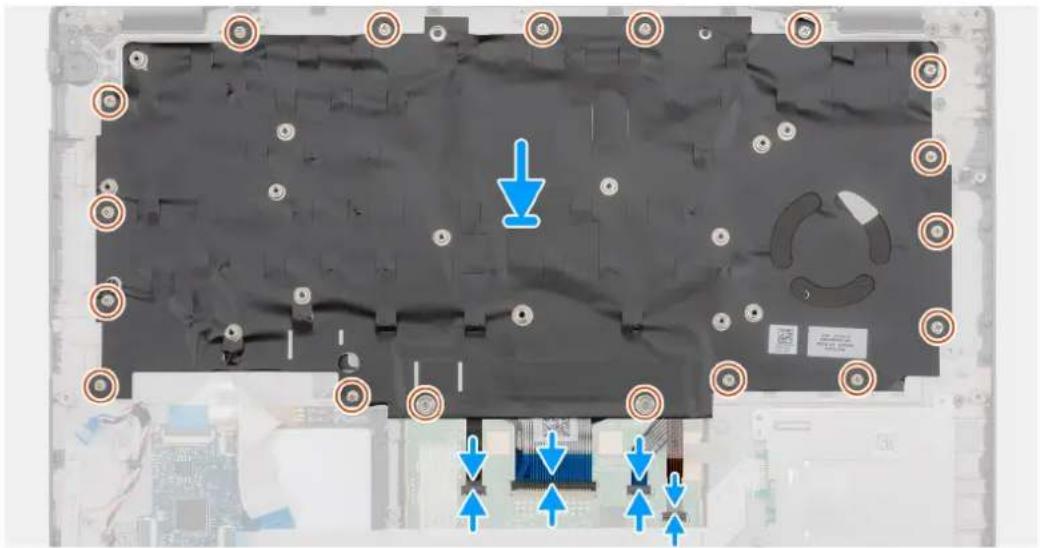

The figure indicates the location of the keyboard and provides a visual representation of the installation procedure.

6x M2x2

Diagram of a keyboard layout showing a highlighted green keyframe and a magnified view of the keyboard (no text or symbols present)

Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10 prt sc home end insert delete backspace Q W E R T U I O P { caps lock A S D F G J K L : " enter. shift Z X C V B N M < > shift ctrl h shift alt ctrl B page up page down SHOP FLOOR LABEL US

18x
M2×2.5

Top-down view of a laptop chassis showing internal components and a grid keypad icon (no text or symbols)

Top-down view of a laptop's back panel with blue arrows indicating movement or force, no visible text or symbols

Steps

1. Replace the six (M2x2) screws to secure the keyboard to the keyboard bracket.
2. Flip the keyboard assembly and align it to its slot on the palmrest.
3. Press down on the lattice at the snap points, in order to secure the keyboard assembly to the palmrest.

NOTE: The keyboard has multiple snap points on the lattice side which must be pushed down firmly after the keyboard is replaced.

1. Replace the eighteen (M2x2.5) screws that secure the keyboard assembly to the palmrest.
2. Connect the following cables:

a. keyboard cable
b. keyboard backlit cable
c. touchpad cable
d. touchpad button board cable

Next steps

1. Install the system board.

NOTE: System board can be installed with heatsink attached.

1. Install the DC-in.
2. Install the LED board.
3. Install the inner frame.
4. Install the memory.
5. Install the WLAN card.
6. Install the WWAN card.
7. Install the 2280 SATA SSD.
8. Install the battery.
9. Install the base cover.
10. Follow the procedure in After working inside your computer.

Power button

Removing the power button with fingerprint reader

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the memory.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the inner frame.
9. Remove the LED board.
10. Remove the DC-in.
11. Remove the system board.

NOTE: System board can be removed with heatsink attached.

About this task

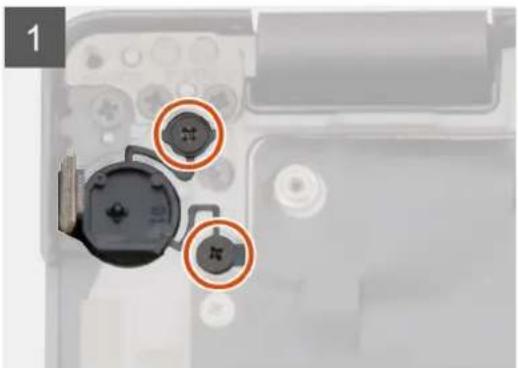

The figure indicates the location of the power button with fingerprint reader and provides a visual representation of the removal procedure.

2x M2x2

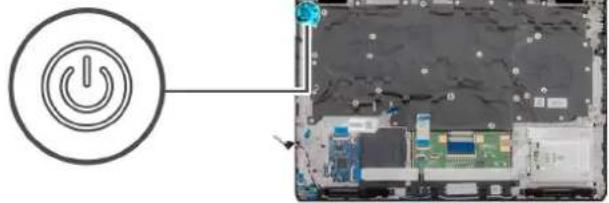

Laptop with power button icon and open circuit board showing internal components (no text or symbols)

Close-up of a device's internal components with two circular annotations highlighting specific areas (no text or symbols visible)

Close-up of a mechanical component with a blue arrow pointing to a circular feature, no visible text or symbols.

Steps

1. Locate the power button with fingerprint reader on your computer.
2. Remove the two (M2x2) screws that secure the power button to the palmrest.
3. Lift the power button with fingerprint out of the computer.

Installing the power button with fingerprint reader

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

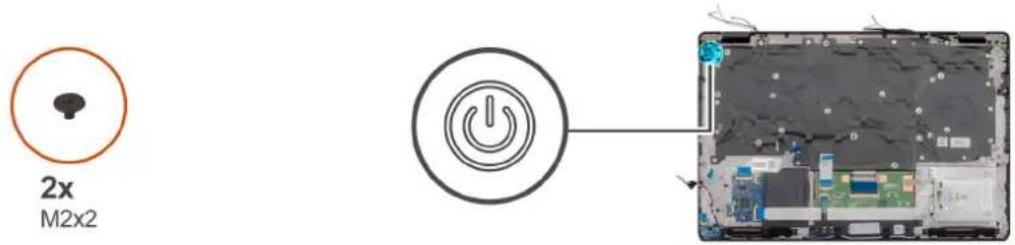

The figure indicates the location of the power button with fingerprint and provides a visual representation of the installation procedure.

2x M2x2

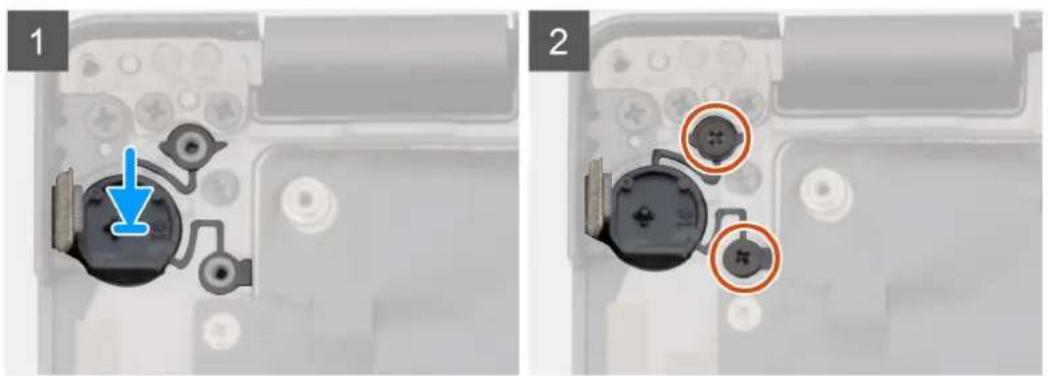

Diagram showing two views of a device's internal components with labeled parts and a blue arrow indicating a location or direction.

Steps

1. Locate the power button with fingerprint slot on your computer.
2. Align and place the power button with fingerprint into the slot on your computer.
3. Install the two (M2x2) screws that secure the power button to the palmrest.

Next steps

1. Install the system board.
   NOTE: System board can be installed with heatsink attached.
2. Install the DC-in.
3. Install the LED board.
4. Install the inner frame.
5. Install the memory.
6. Install the WLAN card.
7. Install the WWAN card.
8. Install the 2280 SATA SSD.
9. Install the battery.
10. Install the base cover.
11. Follow the procedure in After working inside your computer.

Display assembly

Removing the display assembly

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.

4. Remove the WLAN card.

5. Remove the WWAN card.

About this task

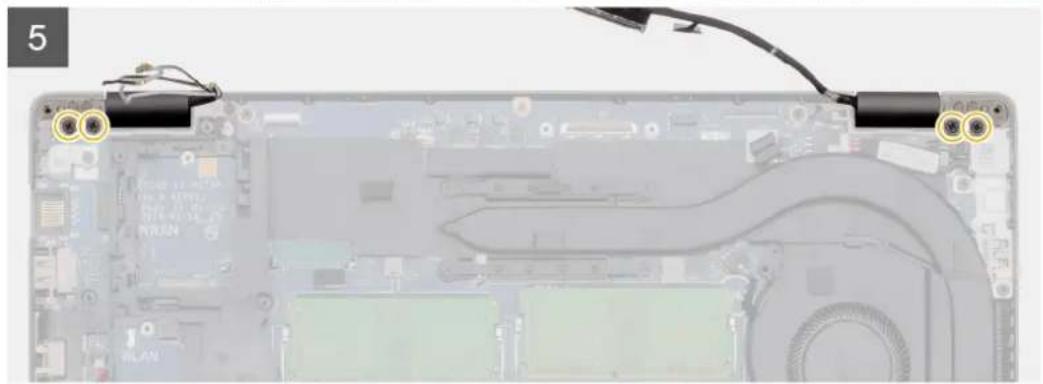

The figure indicates the location of the display assembly and provides a visual representation of the removal procedure.

2x
M2x3

4x
M2.5×5

Interior view of a computer motherboard showing CPU socket, drive bays, and circuit board (no visible text or labels)

Close-up of a mechanical component with two circular buttons and an upward arrow (no text or symbols)

Close-up of a black cable with a blue upward arrow pointing to a connector (no text or symbols visible)

Close-up of a black cable with blue directional arrows indicating movement or force (no text or symbols)

Close-up of a computer motherboard with visible wiring and blue directional arrows indicating movement (no text or symbols)

Internal view of a computer motherboard showing exposed circuit board and cable (no text or symbols visible)

Laptop with exposed internal circuitry and a central fan (no visible text or symbols)

7

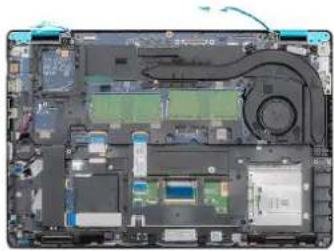

Laptop interior showing internal circuit board with RAM slots, drive bays, and a blue arrow pointing to a component (no readable text or symbols)

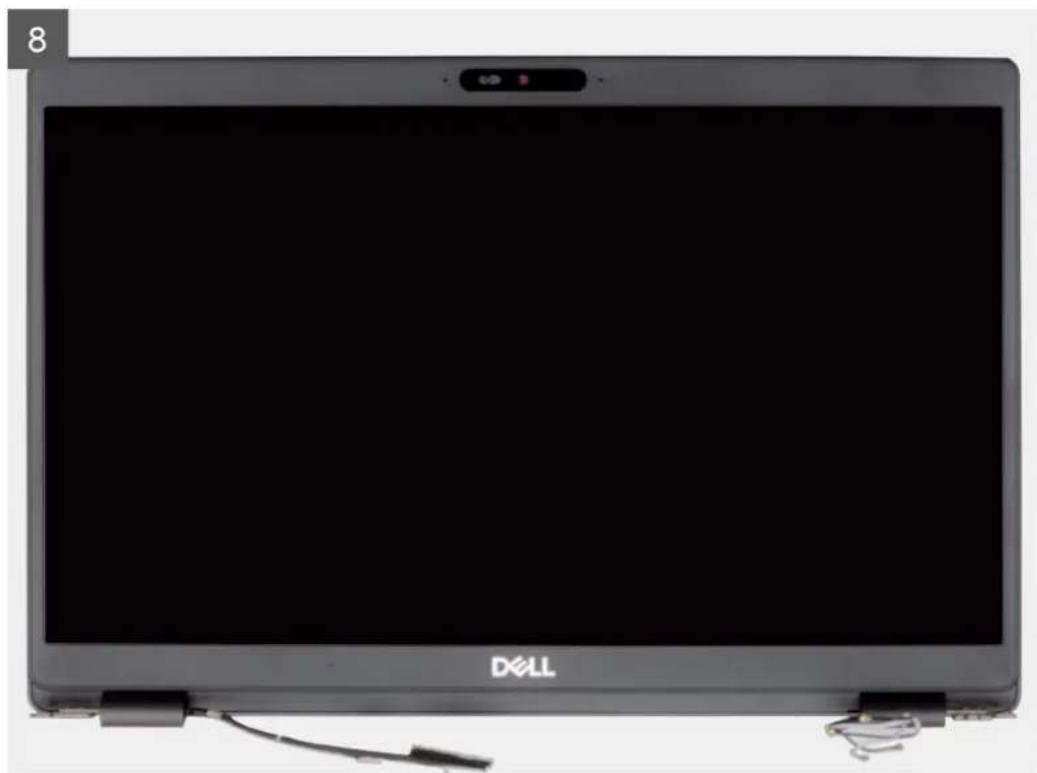

Blue and white photo of a modern flat-screen computer monitor with a black screen and ear (no visible text or symbols)

Front view of a Dell laptop with a black screen and cable, no visible text or symbols on the device body.

Steps

1. Remove the two (M2x3) screws that secure the EDP metal bracket to the computer.
2. Peel the tape that secures the display cable to the system board.
3. Open the latch and disconnect the display cable from the system board.
4. Disconnect the touchscreen cable from the connector on the system board.
5. Unroute the WLAN and WWAN cables from the retention clips.
6. Remove the four (M2.5x5) screws that secure the display hinges to the chassis of your computer.

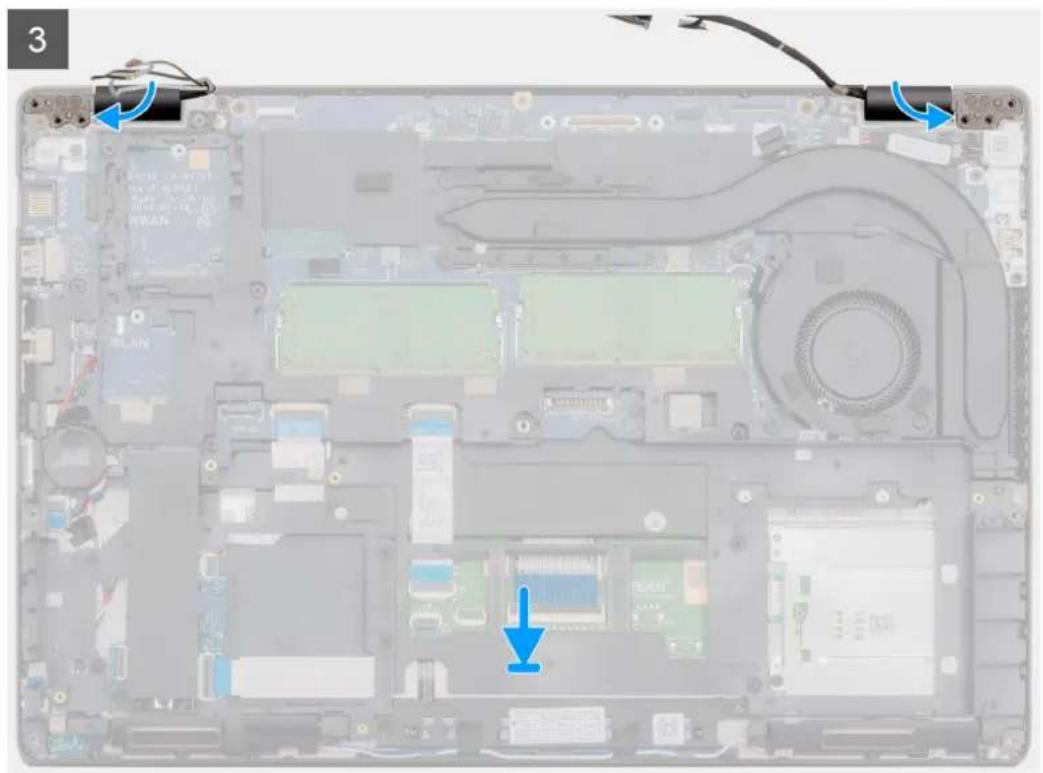

7. Open the display hinges at an angle of 90 degrees and slightly open the display.
8. Remove the palm-rest and keyboard assembly off the display assembly.

Installing the display assembly

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

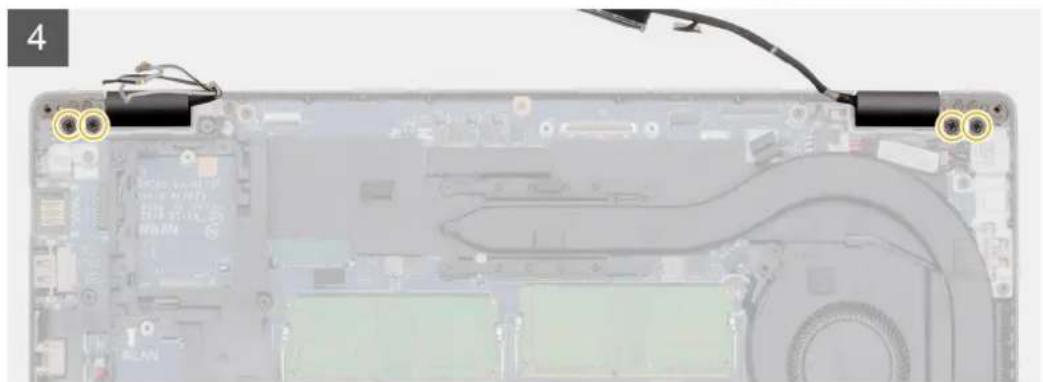

The figure indicates the location of the component and provides a visual representation of the installation procedure.

Blue and white photo of a flat-screen computer monitor with a black screen and earphone (no visible text or symbols)

Front view of a Dell laptop with a black screen and cable, no visible text or symbols on the device body.

Laptop with exposed internal circuitry and a central fan (no visible text or symbols)

2

Laptop keyboard with exposed internal components including a central processor and fan (no visible text or symbols)

Interior view of a laptop showing exposed circuit board and drive components (no text or symbols visible)

Laptop interior showing internal circuitry and ventilation system with blue arrows indicating components (no readable text or symbols)

2x M2x3

4x M2.5x5

Interior view of a computer motherboard showing CPU socket, RAM slots, and drive bays (no visible text or labels)

Internal view of a laptop chassis showing exposed circuit board and cable (no text or symbols visible)

Close-up of a mechanical component with two circular buttons and a blue downward arrow (no text or symbols)

Close-up of a black USB cable connector with a blue arrow pointing to it, no visible text or symbols

Close-up of a black cable with blue arrows pointing to a connector (no text or symbols visible)

Close-up of a black cable with blue directional arrows indicating motion or movement (no text or symbols)

Steps

1. Place the display assembly on a clean and flat surface.
2. Align and place the palmrest on the display assembly.
3. Using the alignment posts, close the display hinges.
4. Connect the display cable to the system board and adhere the tape to secure the display cable.
5. Place the display cable metal bracket on the display cable connector.
6. Replace the two (M2x3) screw to secure the display cable metal bracket to the system board.
7. Connect the touchscreen cable to the connector on the system board.
8. Replace the four (M2.5x5) screws that secure the display hinge to the chassis of the computer.
9. Route the WWAN cable and the WLAN cable through the retention clips provided.

Next steps

1. Install the WLAN card.
2. Install the WWAN card.
3. Install the battery.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.

Display bezel

Removing the display bezel

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the WLAN card.
5. Remove the WWAN card.
6. Remove the display assembly.

About this task

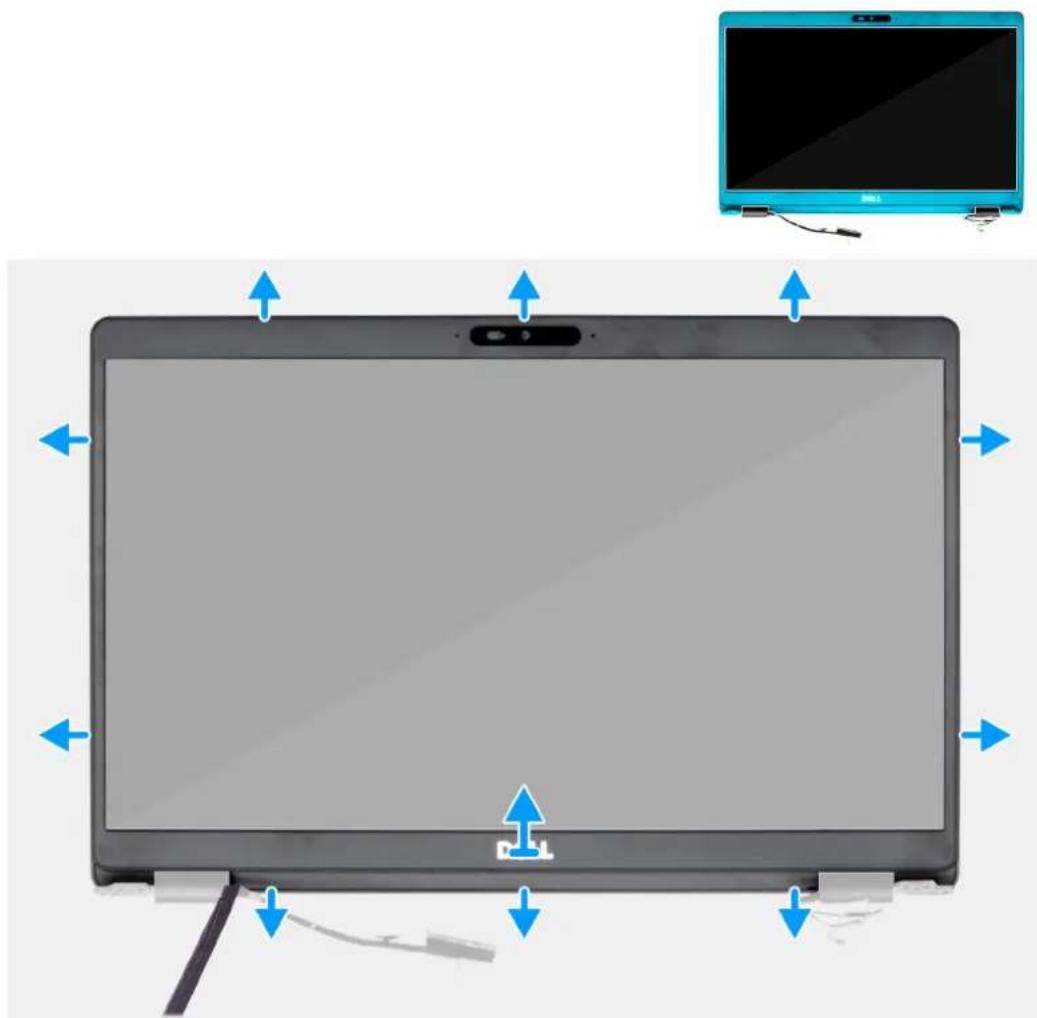

The figure indicates the location of the display bezel and provides a visual representation of the removal procedure.

Illustration of a tablet device with blue directional arrows indicating orientation, next to an inset monitor (no text or symbols on the device itself)

Steps

1. Use a plastic scribe to pry open the bottom edge of the display bezel beginning from the recesses near the hinges.
2. Work your way around the edges of the display bezel to release it from the display back cover.
3. Remove the display bezel off the display back cover.

Installing the display bezel

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

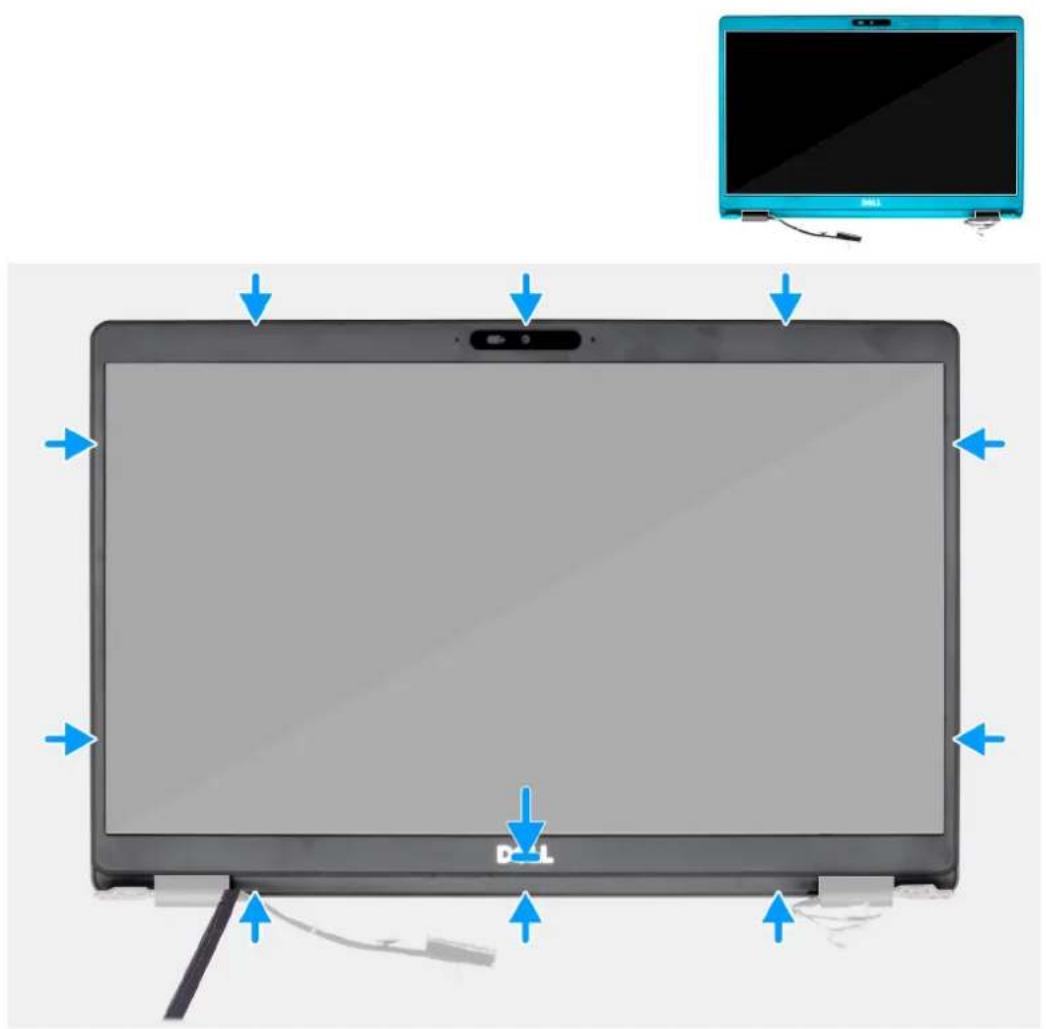

The figure indicates the location of the display bezel and provides a visual representation of the installation procedure.

Illustration of a laptop with arrows pointing to screen, showing no text or symbols on the device itself.

Steps

Align the display bezel with the display back-cover and antenna assembly, and gently snap the display bezel into place.

Next steps

1. Install the display assembly.
2. Install the WLAN card.
3. Install the WWAN card.
4. Install the battery.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.

Hinge caps

Removing the hinge caps

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
5. Remove the display bezel.

About this task

The figure indicates the location of the hinge caps and provides a visual representation of the removal procedure.

2x
M2x3

Front view of a laptop computer with visible circuit board and cable (no text or symbols)

Close-up of a device component with a highlighted circular detail (no visible text or symbols)

Close-up of a mechanical component with a blue arrow pointing to a cable or connector (no visible text or symbols)

Close-up of a device with a circular button labeled 'R' and cable, no readable text or symbols present.

Close-up of a black RCT component with a blue arrow pointing to it, next to a device panel (no readable text or symbols)

Steps

1. Locate the hinge cap on the display back cover.
2. Remove the two (M2x3) screws that secure the hinge caps to the chassis.
3. Pinch the hinge caps to release it from the ribs on the display back cover and then slide inwards to remove the hinge caps from the display hinge.

Installing the hinge caps

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

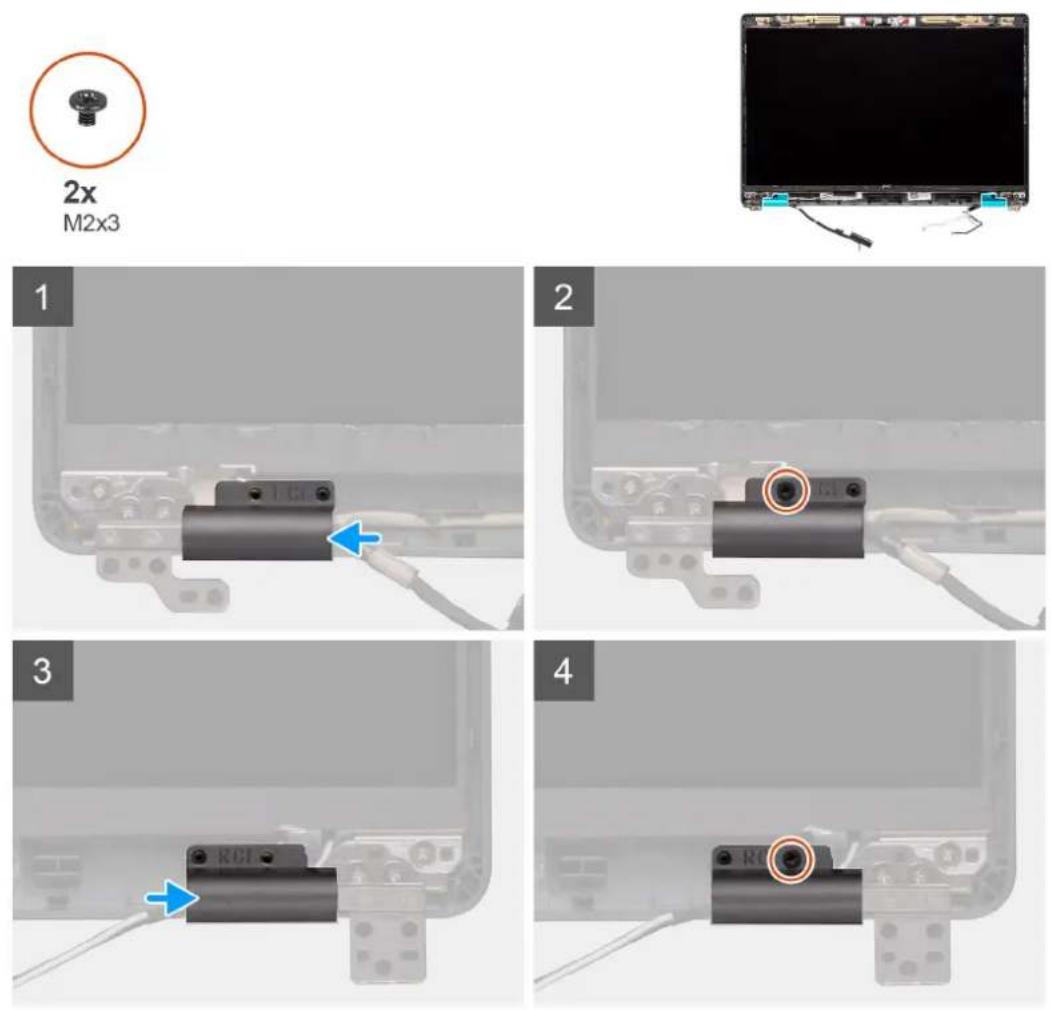

The figure indicates the location of the hinge caps and provides a visual representation of the installation procedure.

Steps

1. Place the hinge caps and slide outward on the display hinges.
2. Replace the two (M2x3) screws to secure the hinge caps to the display hinge.

Next steps

1. Install the display bezel.
2. Install the display assembly.
3. Install the battery.
4. Install the base cover.
5. Follow the procedure in After working inside your computer.

Display panel

Removing the display panel

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
5. Remove the display bezel.
6. Remove the display hinge caps.

About this task

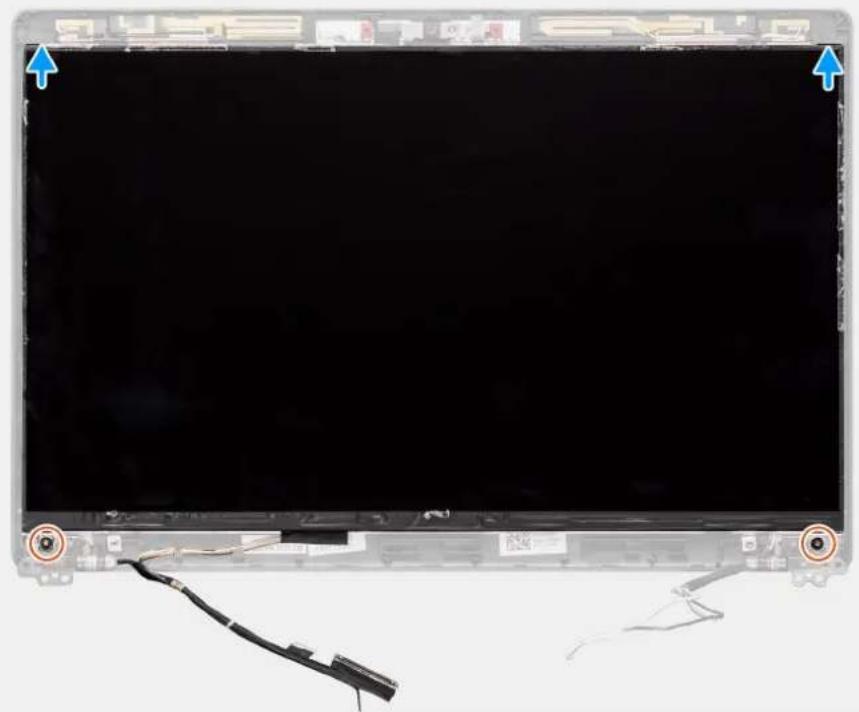

The figure indicates the location of the display panel and provides a visual representation of the removal procedure.

2x M2.5x3

Front view of a flat-screen computer monitor with visible circuitry and cable (no text or symbols)

1

Front view of a computer monitor with visible cable and connectors, no text or symbols present

Front view of a computer monitor with a cable and cable connector (no visible text or symbols)

2

Interior view of a laptop chassis showing front panel, rear panels, and cable (no visible text or labels)

Diagram showing a device with a blue arrow pointing to a label box containing Chinese text, likely indicating a component or annotation.

30V 120V 120V 30V 120V 120V

3

Close-up of a metallic object with a blue arrow indicating upward motion (no text or symbols visible)

Close-up of a gloved hand holding a dark rectangular object with a blue upward arrow, no visible text or symbols

Close-up of hands holding a transparent container with blue arrows indicating motion or movement (no text or symbols visible)

Steps

1. Locate the display panel on the display back cover assembly.

2. Remove the two (M2.5x3) screws that secure the display panel to the display assembly.

3. Lift to turn over the display panel to access the display cable.
4. Peel the conductive tape on the display cable connector.

NOTE: Do not pull and release the Stretch (SR) tapes from the display panel. There is no need to separate the brackets from the display panel.

1. Lift the latch and disconnect the display cable from the connector on the display panel.

Installing the display panel

Prerequisites

If you are replacing a component, remove the existing component before performing the installation procedure.

About this task

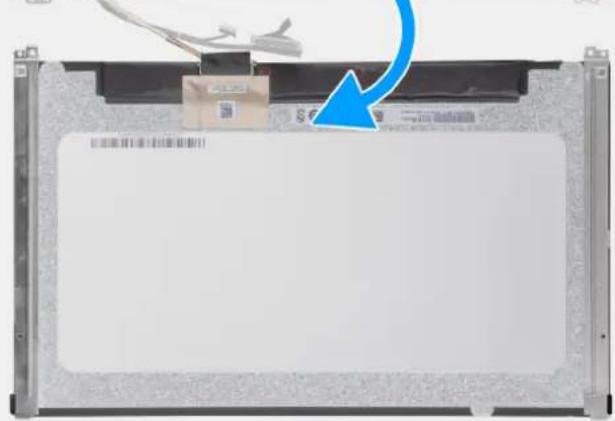

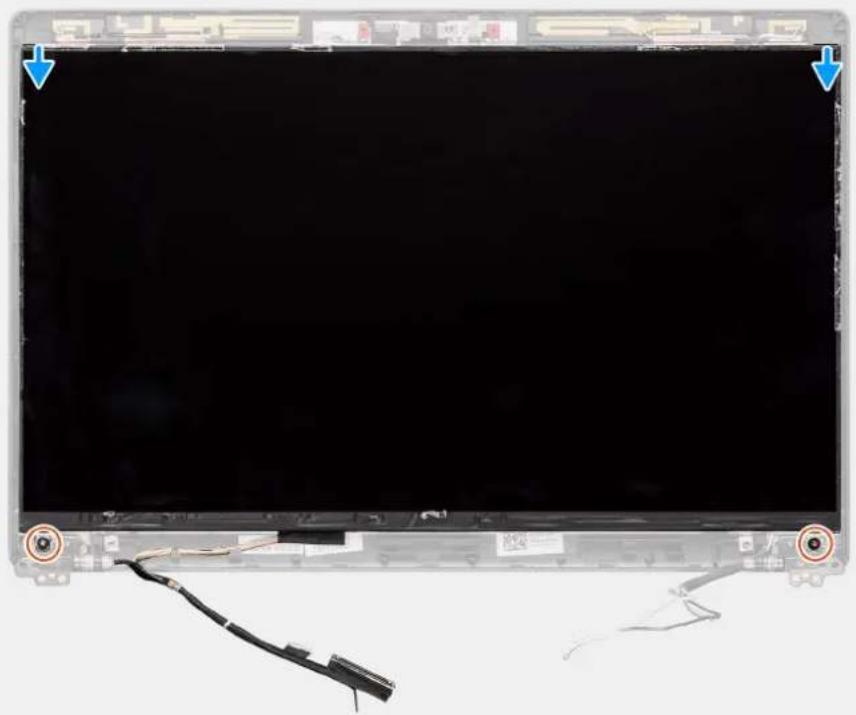

The figure indicates the location of the display panel and provides a visual representation of the installation procedure.

Scanned image of a device casing with visible label and control panel, showing Chinese text on the cover.

Close-up of a layered material sample with blue arrows indicating direction (no text or symbols)

Close-up of a gloved hand holding a dark rectangular object with a blue downward arrow, no visible text or symbols

Close-up of a metallic object with a blue arrow indicating a downward motion (no text or symbols visible)

4

Front view of a computer monitor with a cable and cable connector (no visible text or symbols)

5

Laptop back panel with visible circuitry and cable, showing a blue circular arrow indicating rotation (no text or symbols)

2x
M2.5×3

Front view of a computer monitor with visible circuitry and cable (no text or symbols)

6

Front view of a computer monitor with visible circuit board and cable, no text or symbols present

Steps

1. Connect the display cable to the connector and close the latch.
2. Adhere the adhesive strip to secure the display cable connector.
3. Turn back and place the display panel over the display back cover.
4. Replace the two (M2.5x3) screws that secure the display panel to the display assembly.

Next steps

1. Install the display hinge caps.
2. Install the display bezel.
3. Install the display assembly.
4. Install the battery.
5. Install the base cover.
6. Follow the procedure in After working inside your computer.

Camera

Removing camera

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
5. Remove the display bezel.
6. Remove the display hinge caps.
7. Remove the display panel.

About this task

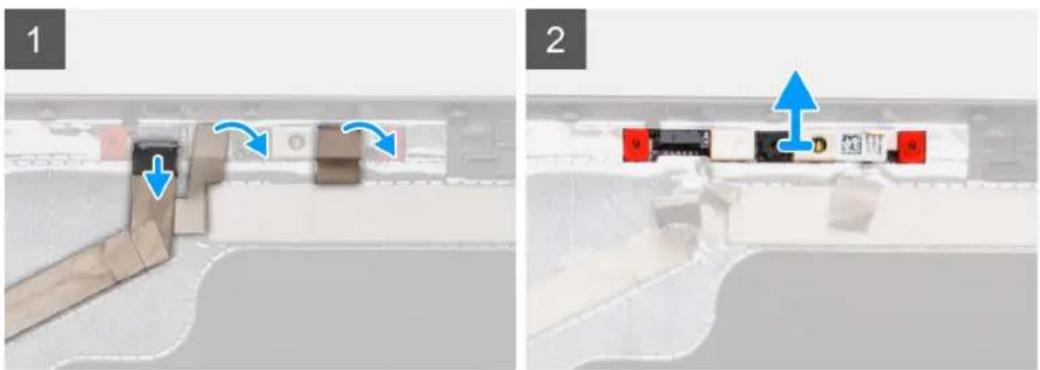

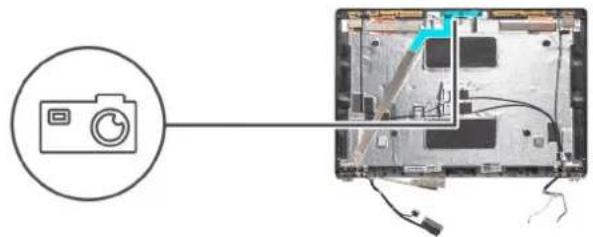

The figure indicates the location of the camera and provides a visual representation of the removal procedure.

Diagram showing a camera icon connected to an open laptop with visible circuit lines and cables (no text or symbols)

Two-panel image showing a wall-mounted device with blue arrows indicating motion or movement, no visible text or symbols.

Steps

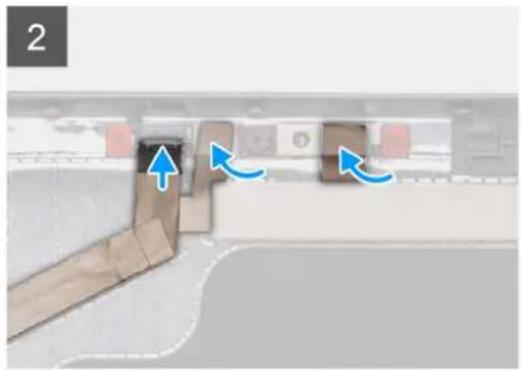

1. Peel the two conductive tape that secures the camera in place.
2. Disconnect the camera cable from the connector on the camera module.
3. Carefully pry and lift the camera module from the display back cover.

Installing camera

About this task

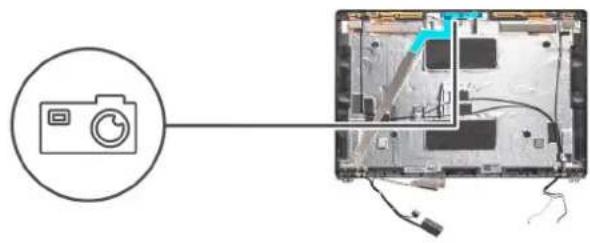

The figure indicates the location of the camera and provides a visual representation of the installation procedure.

Diagram showing camera icon connected to laptop screen with cable and wiring, highlighting a location on the screen.

Close-up of a mechanical component with red connectors and a blue arrow pointing to a black connector (no visible text or symbols)

Interior view of a room with furniture and wall-mounted equipment, showing directional arrows (no text or symbols)

Steps

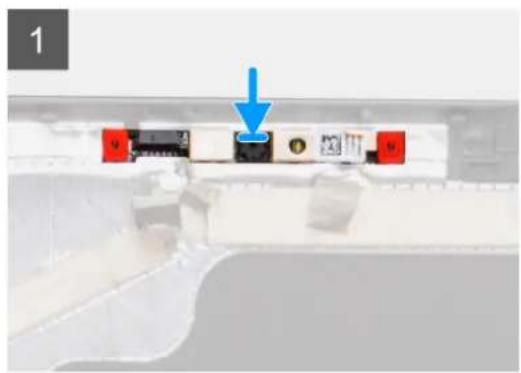

1. Insert the camera into the slot on the display back cover.
2. Connect the camera cable to the connector and adhere the adhesive tape above the camera connector.
3. Affix the two conductive tape above the camera module.

Next steps

1. Install the display panel.
2. Install the display hinge caps.
3. Install the display bezel.
4. Install the display assembly.
5. Install the battery.
6. Install the base cover.
7. Follow the procedure in After working inside your computer.

Display hinges

Removing display hinge

Prerequisites

1. Follow the procedure in Before working inside your computer.
2. Remove the base cover.
3. Remove the battery.
4. Remove the display assembly.
5. Remove the display bezel.
6. Remove the display hinge caps.
7. Remove the display panel.

About this task

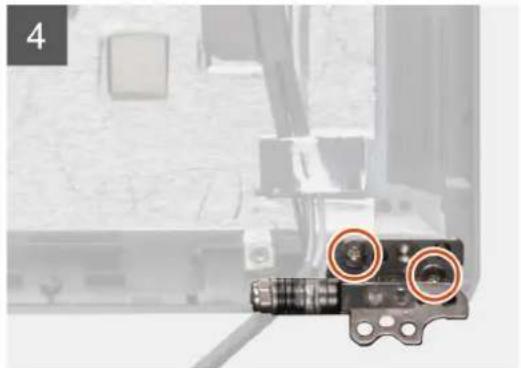

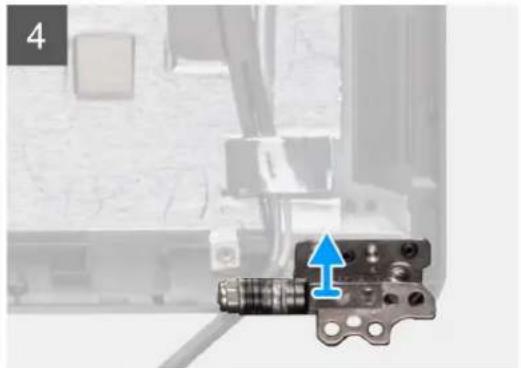

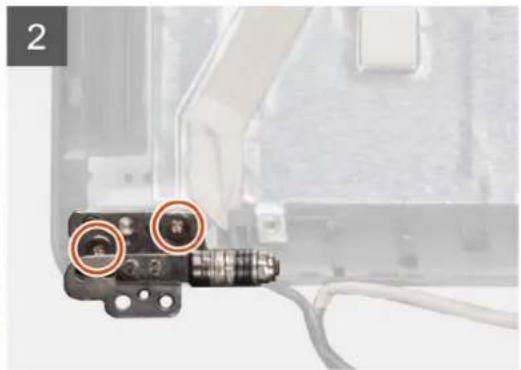

The figure indicates the location of the camera and provides a visual representation of the removal procedure.

4x M2.5x3

Laptop back panel with visible circuitry and wiring, no text or symbols present

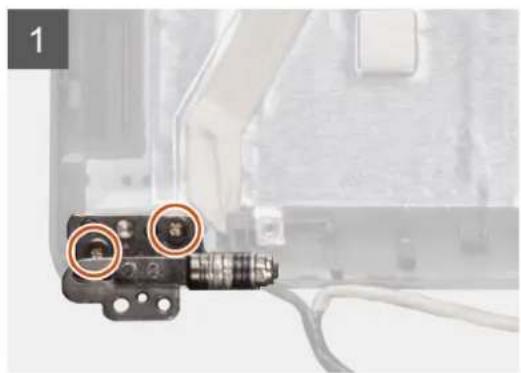

Close-up of a mechanical connector with two orange-circled features, no visible text or symbols

Close-up of a mechanical connector with a blue arrow pointing to it, next to a blurred background (no text or symbols visible)

Close-up of a camera lens mounted on a device, with two orange circular highlights highlighting the lens (no text or symbols visible)

Close-up of a mechanical component with a blue arrow pointing to a bolted joint (no visible text or symbols)

Steps

1. Remove the four (M2.5x3) screws that secure the display hinge to the display assembly.
2. Remove the display hinges from the display back cover.

Installing display hinge

About this task

The figure indicates the location of the camera and provides a visual representation of the installation procedure.

4x M2.5x3

Laptop back panel with visible circuitry and wiring, no text or symbols present

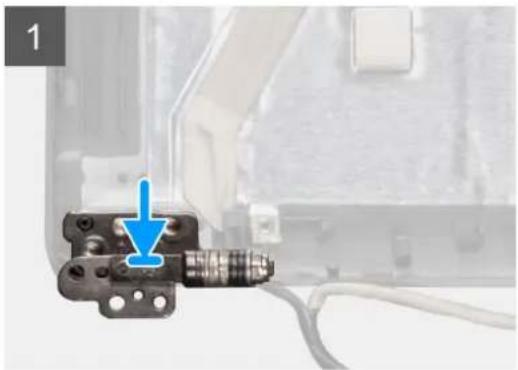

Close-up of a mechanical component with a blue arrow pointing to a detail, no visible text or symbols

Close-up of a mechanical connector with two orange-circled features, no visible text or symbols

Close-up of a mechanical component with a blue arrow pointing to a detail (no visible text or symbols)

Close-up of a camera lens mounted on a mechanical device, with no visible text or symbols.

Steps

1. Place the display hinge on the display assembly.
2. Replace the four (M2.5x3) screws to secure the display hinge to the display assembly.

Next steps

1. Install the display panel.
2. Install the display hinge caps.
3. Install the display bezel.
4. Install the display assembly.
5. Install the battery.

6. Install the base cover.

7. Follow the procedure in After working inside your computer.

Display (eDP) cable

Removing display cable

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the battery.

4. Remove the display assembly.
5. Remove the display bezel.
6. Remove the display hinge caps.
7. Remove the display panel.
8. Remove the camera.

About this task

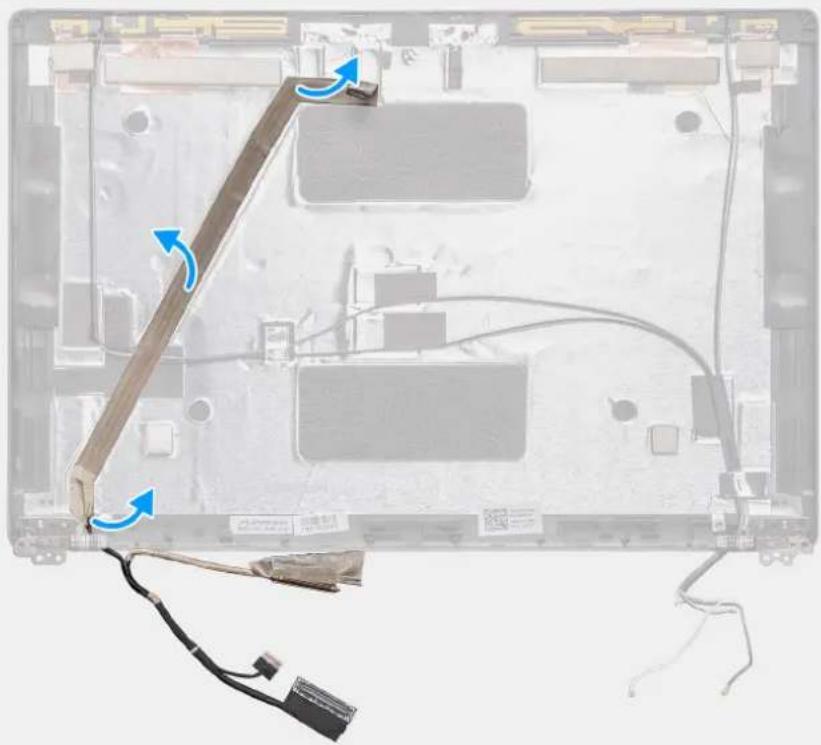

The figure indicates the location of the display cable and provides a visual representation of the removal procedure.

Laptop interior view showing rear panel with visible circuitry and wires (no text or symbols)

Laptop front panel with visible circuitry and cable connectors, no text or symbols present

Steps

Peel the conductive tape and unroute the display cable to release it from adhesive and lift the display cable from the display back cover.

Installing display cable

About this task

The figure indicates the location of the camera and provides a visual representation of the installation procedure.

Laptop back with visible circuitry and wiring, no text or symbols present

Laptop front panel with visible circuitry and cable connectors, no text or symbols present

Steps

1. Adhere the display cable to the display back cover.
2. Adhere the conductive tape and route the display cable to the display back cover.

Next steps

1. Install the camera.
2. Install the display panel.
3. Install the display hinge caps.
4. Install the display bezel.
5. Install the display assembly.
6. Install the battery.
7. Install the base cover.
8. Follow the procedure in After working inside your computer.

Display back cover assembly

Replacing the display back cover

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the battery.
4. Remove the display assembly.
5. Remove the display bezel.
6. Remove the display hinge caps.
7. Remove the display hinges.
8. Remove the display panel.
9. Remove the camera.
10. Remove the display cable.

About this task

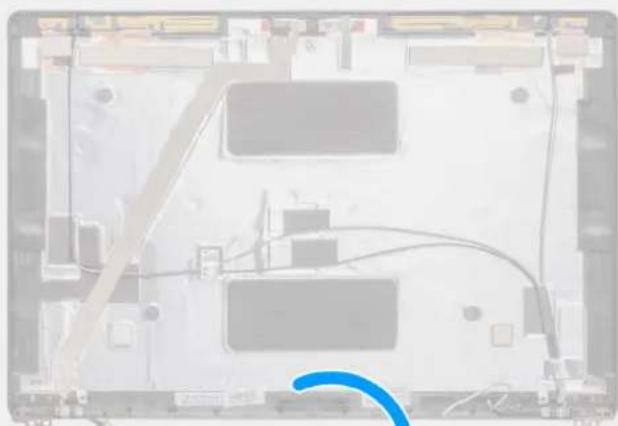

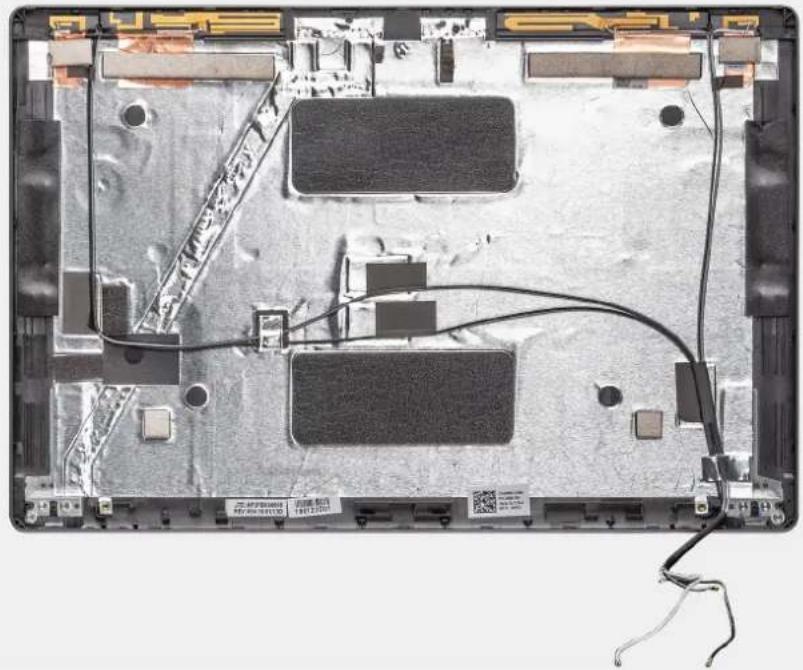

After performing the preceding steps, you are left with the display back cover.

Top-down view of a laptop's front panel showing internal components and wiring (no readable text or symbols)

Next steps

1. Install the display cable.
2. Install the camera.
3. Install the display panel.
4. Install the display hinges.
5. Install the display hinge caps.
6. Install the display bezel.
7. Install the display assembly.
8. Install the battery.

9. Install the base cover.

10. Follow the procedure in After working inside your computer.

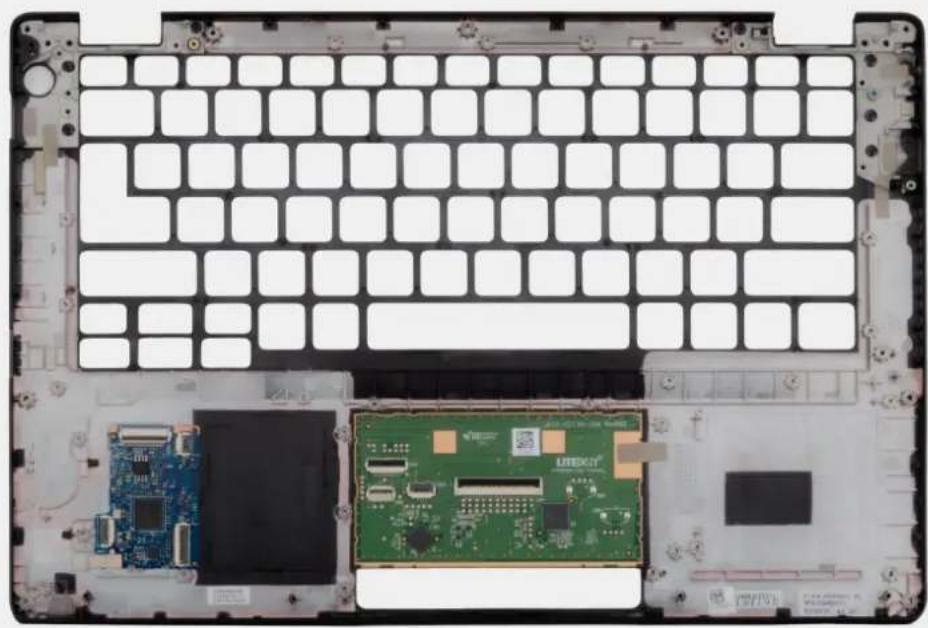

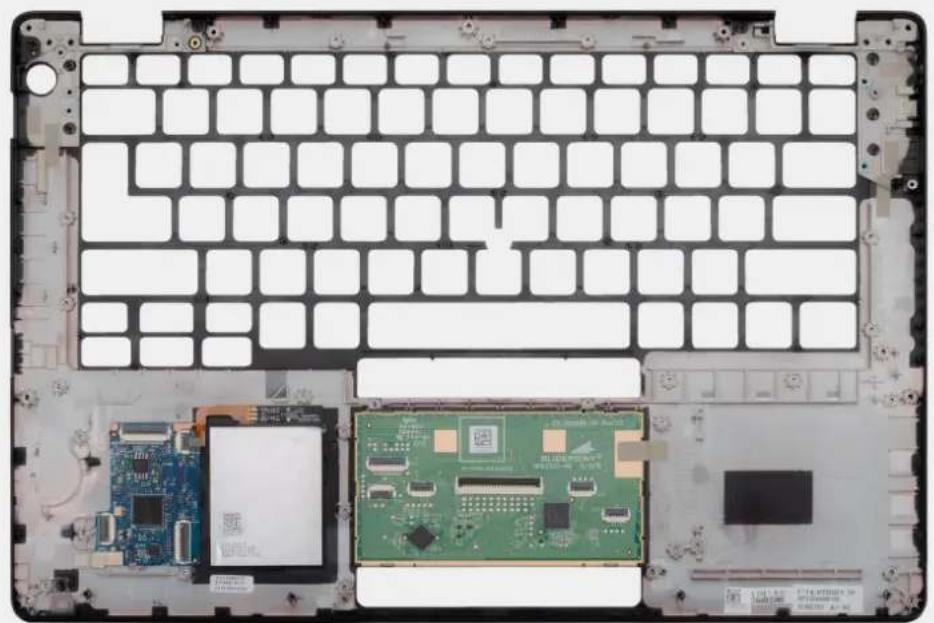

Palmrest assembly

Replacing the palmrest assembly

Prerequisites

1. Follow the procedure in Before working inside your computer.

2. Remove the base cover.

3. Remove the battery.
4. Remove the 2280 SATA SSD.
5. Remove the memory.
6. Remove the WLAN card.
7. Remove the WWAN card.
8. Remove the inner frame.
9. Remove the LED board.
10. Remove the DC-in.
11. Remove the system board.

NOTE: System board can be removed with heatsink attached.

1. Remove the keyboard.
2. Remove the smart card reader.
3. Remove the display assembly.

About this task

After performing the preceding steps, you are left with the palmrest.

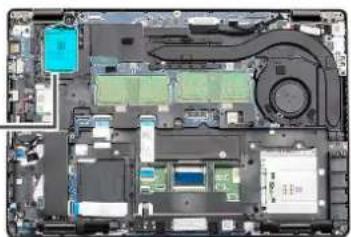

Palmrest without contactless smart card reader:

Laptop keyboard with visible circuit board and memory compartment (no text or symbols)

Palmrest with contactless smart card reader:

Laptop keyboard with visible circuit board and memory compartment (no text or symbols)

Next steps

1. Install the display assembly.
2. Install the smart card reader.
3. Install the keyboard.
4. Install the system board.

NOTE: System board can be installed with heatsink attached.

1. Install the DC-in.
2. Install the LED board.
3. Install the inner frame.
4. Install the memory.
5. Install the WLAN card.
6. Install the WWAN card.
7. Install the 2280 SATA SSD.
8. Install the battery.
9. Install the base cover.
10. Follow the procedure in After working inside your computer.

Troubleshooting

Topics:

•Handling swollen Lithium-ion batteries
• Dell SupportAssist Pre-boot System Performance Check diagnostics
•Built-in self-test (BIST)
•System-diagnostic lights
•Recovering the operating system
• Backup media and recovery options
- WiFi power cycle
- Drain residual flea power (perform hard reset)

Handling swollen Lithium-ion batteries

Like most laptops, Dell laptops use lithium-ion batteries. One type of lithium-ion battery is the lithium-ion polymer battery.

Lithium-ion polymer batteries have increased in popularity in recent years and have become standard in the electronics industry due to customer preferences for a slim form factor (especially with newer ultra-thin laptops) and long battery life. Inherent to lithium-ion polymer battery technology is the potential for swelling of the battery cells.

Swollen battery may impact the performance of the laptop. To prevent possible further damage to the device enclosure or internal components leading to malfunction, discontinue the use of the laptop and discharge it by disconnecting the AC adapter and letting the battery drain.

Swollen batteries should not be used and should be replaced and disposed of properly. We recommend contacting Dell product support for options to replace a swollen battery under the terms of the applicable warranty or service contract, including options for replacement by a Dell authorized service technician.

The guidelines for handling and replacing Lithium-ion batteries are as follows:

●Exercise caution when handling Lithium-ion batteries.
- Discharge the battery before removing it from the system. To discharge the battery, unplug the AC adapter from the system and operate the system only on battery power. When the system will no longer power on when the power button is pressed, the battery is fully discharged.
- Do not crush, drop, mutilate, or penetrate the battery with foreign objects.
- Do not expose the battery to high temperatures, or disassemble battery packs and cells.
- Do not apply pressure to the surface of the battery.
- Do not bend the battery.
- Do not use tools of any type to pry on or against the battery.
- If a battery gets stuck in a device as a result of swelling, do not try to free it as puncturing, bending, or crushing a battery can be dangerous.
- Do not attempt to reassemble a damaged or swollen battery into a laptop.
- Swollen batteries that are covered under warranty should be returned to Dell in an approved shipping container (provided by Dell)—this is to comply with transportation regulations. Swollen batteries that are not covered under warranty should be disposed of at an approved recycling center. Contact Dell product support at https://www.dell.com/support for assistance and further instructions.
- Using a non-Dell or incompatible battery may increase the risk of fire or explosion. Replace the battery only with a compatible battery purchased from Dell that is designed to work with your Dell computer. Do not use a battery from other computers with your computer. Always purchase genuine batteries from https://www.dell.com or otherwise directly from Dell.

Lithium-ion batteries can swell for various reasons such as age, number of charge cycles, or exposure to high heat. For more information on how to improve the performance and lifespan of the laptop battery and to minimize the possibility of occurrence of the issue, see Dell Laptop Battery - Frequently Asked Questions.

Dell SupportAssist Pre-boot System Performance Check diagnostics

About this task

SupportAssist diagnostics (also known as system diagnostics) performs a complete check of your hardware. The Dell SupportAssist Pre-boot System Performance Check diagnostics is embedded with the BIOS and is launched by the BIOS internally. The embedded system diagnostics provides a set of options for particular devices or device groups allowing you to:

• Run tests automatically or in an interactive mode
• Repeat tests
• Display or save test results
• Run thorough tests to introduce additional test options to provide extra information about the failed device(s)
• View status messages that inform you if tests are completed successfully
• View error messages that inform you of problems encountered during testing

NOTE: Some tests for specific devices require user interaction. Always ensure that you are present at the computer terminal when the diagnostic tests are performed.

For more information, see https://www.dell.com/support/kbdoc/000180971.

Running the SupportAssist Pre-Boot System Performance Check

Steps

1. Turn on your computer.
2. As the computer boots, press the F12 key as the Dell logo appears.
3. On the boot menu screen, select the Diagnostics option.
4. Click the arrow at the bottom left corner. Diagnostics front page is displayed.
5. Click the arrow in the lower-right corner to go to the page listing. The items detected are listed.
6. Select the device from the left pane and click Run Tests.

7. If there are any issues, error codes are displayed. Note the error code and validation number and contact Dell.

8. To run a diagnostic test on a specific device, press Esc and click Yes to stop the diagnostic test.

Built-in self-test (BIST)

M-BIST

M-BIST (Built In Self-Test) is the system board's built-in self-test diagnostics tool that improves the diagnostics accuracy of system board embedded controller (EC) failures.

NOTE: M-BIST can be manually initiated before POST (Power On Self Test).

How to run M-BIST

NOTE: M-BIST must be initiated on the system from a power-off state either connected to AC power or with battery only.

1. Press and hold both the M key on the keyboard and the power button to initiate M-BIST.
2. With both the M key and the power button held down, the battery indicator LED may exhibit two states:
   a. OFF: No fault detected with the system board
   b. AMBER: Indicates a problem with the system board
3. If there is a failure with the system board, the battery status LED will flash one of the following error codes for 30 seconds:

Table 4. LED error codes

Blinking Pattern Possible Problem
Amber White
2 1 CPU Failure
2 8 LCD Power Rail Failure
11 TPM Detection Failure
2 4 Unrecoverable SPI Failure

1. If there is no failure with the system board, the LCD will cycle through the solid color screens described in the LCD-BIST section for 30 seconds and then power off.

LCD Power rail test (L-BIST)

L-BIST is an enhancement to the single LED error code diagnostics and is automatically initiated during POST. L-BIST will check the LCD power rail. If there is no power being supplied to the LCD (i.e., the L-BIST circuit fails), the battery status LED will flash either an error code [2,8] or an error code [2,7] .

NOTE: If L-BIST fails, LCD-BIST cannot function as no power will be supplied to the LCD.

How to invoke L-BIST Test:

1. Press the power button to start the system.

2. If the system does not start up normally, look at the battery status LED:

3. If the battery status LED flashes an error code [2,7], the display cable may not be connected properly.

4. If the battery status LED flashes an error code [2,8], there is a failure on the LCD power rail of the system board, hence there is no power supplied to the LCD.

5. For cases, when a [2.7] error code is shown, check to see if the display cable is properly connected.

6. For cases when a [2,8] error code is shown, replace the system board.

LCD Built-in Self Test (BIST)

Dell laptops have a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with the LCD (screen) of the Dell laptop or with the video card (GPU) and PC settings.

When you notice screen abnormalities like flickering, distortion, clarity issues, fuzzy or blurry image, horizontal or vertical lines, color fade etc., it is always a good practice to isolate the LCD (screen) by running the Built-In Self Test (BIST).

How to invoke LCD BIST Test

1. Power off the Dell laptop.
2. Disconnect any peripherals that are connected to the laptop. Connect only the AC adapter (charger) to the laptop.
3. Ensure that the LCD (screen) is clean (no dust particles on the surface of the screen).
4. Press and hold D key and Power on the laptop to enter LCD built-in self test (BIST) mode. Continue to hold the D key, until the system boots up.
5. The screen will display solid colors and change colors on the entire screen to white, black, red, green, and blue twice.
6. Then it will display the colors white, black and red.
7. Carefully inspect the screen for abnormalities (any lines, fuzzy color or distortion on the screen).
8. At the end of the last solid color (red), the system will shut down.

NOTE: Dell SupportAssist Pre-boot diagnostics upon launch, initiates an LCD BIST first, expecting a user intervention confirm functionality of the LCD.

System-diagnostic lights

Power and battery-status light

The power and battery status light indicates the power and battery status of the computer. These are the power states:

Solid white: Power adapter is connected and the battery has more than 5% charge.

Amber: Computer is running on battery and the battery has less than 5% charge.

Off:

●Power adapter is connected, and the battery is fully charged.
- Computer is running on battery, and the battery has more than 5% charge.
- Computer is in sleep state, hibernation, or turned off.

The power and battery-status light may blink amber or white according to pre-defined "beep codes" indicating various failures.

For example, the power and battery-status light blinks amber two times followed by a pause, and then blinks white three times followed by a pause. This 2,3 pattern continues until the computer is turned off, indicating no memory or RAM is detected.

The following table shows different power and battery-status light patterns and associated problems.

NOTE: The following diagnostic light codes and recommended solutions are intended for Dell service technicians to troubleshoot problems. You should only perform troubleshooting and repairs as authorized or directed by the Dell technical assistance team. Damage due to servicing that is not authorized by Dell is not covered by your warranty.

Table 5. Diagnostic-light LED codes

Diagnostic light codes (Amber,White)

Problem description

2,1 Processor failure
2,2 System board: BIOS or ROM (Read-Only Memory) failure
2,3 No memory or RAM (Random-Access Memory) detected
2,4 Memory or RAM (Random-Access Memory) failure
2,5 Invalid memory installed
2,6 System-board or chipset error
2,7 Display failure - SBIOS message
3,1 Coin-cell battery failure
3,2 PCI, video card/chip failure
3,3 Recovery image not found
3,4 Recovery image found but invalid
3,5 Power-rail failure
3,6 System BIOS Flash incomplete
3,7 Management Engine (ME) error

Recovering the operating system

When your computer is unable to boot to the operating system even after repeated attempts, it automatically starts Dell SupportAssist OS Recovery.

Dell SupportAssist OS Recovery is a standalone tool that is preinstalled in all Dell computers installed with Windows operating system. It consists of tools to diagnose and troubleshoot issues that may occur before your computer boots to the operating system. It enables you to diagnose hardware issues, repair your computer, back up your files, or restore your computer to its factory state.

You can also download it from the Dell Support website to troubleshoot and fix your computer when it fails to boot into their primary operating system due to software or hardware failures.

For more information about the Dell SupportAssist OS Recovery, see Dell SupportAssist OS Recovery User's Guide at www.dell.com/serviceabilitytools. Click SupportAssist and then, click SupportAssist OS Recovery.

Backup media and recovery options

It is recommended to create a recovery drive to troubleshoot and fix problems that may occur with Windows. Dell proposes multiple options for recovering Windows operating system on your Dell PC. For more information, see Dell Windows Backup Media and Recovery Options.

WiFi power cycle

About this task

If your computer is unable to access the internet due to WiFi connectivity issues a WiFi power cycle procedure may be performed. The following procedure provides the instructions on how to conduct a WiFi power cycle:

NOTE: Some ISPs (Internet Service Providers) provide a modem/router combo device.

Steps

1. Turn off your computer.
2. Turn off the modem.
3. Turn off the wireless router.
4. Wait for 30 seconds.
5. Turn on the wireless router.
6. Turn on the modem.
7. Turn on your computer.

Drain residual flea power (perform hard reset)

About this task

Flea power is the residual static electricity that remains in the computer even after it has been powered off and the battery is removed.

For your safety, and to protect the sensitive electronic components in your computer, you are requested to drain residual flea power before removing or replacing any components in your computer.

Draining residual flea power, also known as a performing a "hard reset", is also a common troubleshooting step if your computer does not power on or boot into the operating system.

To drain residual flea power (perform a hard reset)

Steps

1. Turn off your computer.
2. Disconnect the power adapter from your computer.
3. Remove the base cover.
4. Remove the battery.
5. Press and hold the power button for 20 seconds to drain the flea power.
6. Install the battery.
7. Install the base cover.
8. Connect the power adapter to your computer.
9. Turn on your computer.

NOTE: For more information about performing a hard reset, see the knowledge base article 000130881 at www.dell.com/support.

Getting help

Topics:

- Contacting Dell

Contacting Dell

Prerequisites

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

About this task

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

Steps

1. Go to Dell.com/support.
2. Select your support category.
3. Verify your country or region in the Choose a Country/Region drop-down list at the bottom of the page.
4. Select the appropriate service or support link based on your need.
