Type de produit	Graphic tablet / Slate PC
Marque	Samsung
Modèle	Slate PC 7
Système d'exploitation	Windows 7
Écran	Écran tactile LCD
Caméra	Avant et arrière (en option)
Connectivité	Wi-Fi, Bluetooth (clavier en option)
Ports (via station d'accueil)	HDMI, USB, Ethernet, prise casque
Entrée	Écran tactile, stylet numériseur, bouton Accueil, boutons de volume, verrouillage d'orientation
Alimentation	Adaptateur secteur, batterie
Fonctions principales	Touch Logon, Easy Settings, Touch Launcher, Touch Supporter, rotation automatique de l'écran, réglage du volume, appareil photo
Accessoires inclus	Stylet numériseur (pièces de rechange comprises)
Accessoires en option	Clavier Bluetooth, station d'accueil
Entretien et nettoyage	Non spécifié dans la notice
Sécurité	Non spécifié dans la notice
Pièces détachées et réparabilité	Non spécifié dans la notice
Informations générales	Guide utilisateur disponible au format PDF

Frequently Asked Questions - Slate PC 7 SAMSUNG

How do I calibrate the touch screen?

To calibrate the touch screen, go to Start > Control Panel > Hardware and Sound > Tablet PC Settings > Display > Calibrate. Follow the on-screen instructions to touch the '+' marks. Save the calibration data when prompted.

How do I use the digitizer pen?

The digitizer pen works like your finger. Use the pen tip to tap, drag, etc. Press the pen button while touching the screen to perform a right-click. The top end (eraser) can erase handwritten text. Replace the pen tip if damaged by pulling it out with the ring tool and inserting a new one.

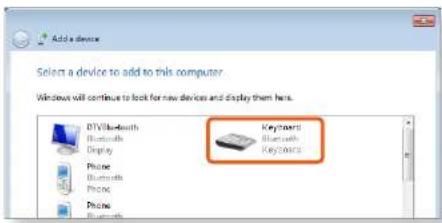

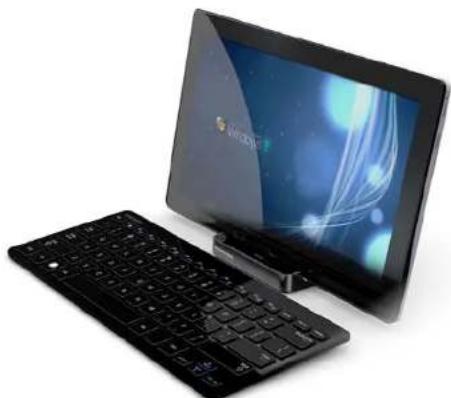

How do I connect a Bluetooth keyboard?

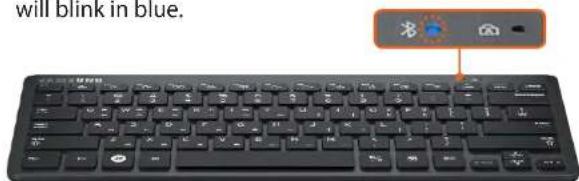

First, install batteries in the keyboard and press the power button for 3 seconds. On the Slate PC, go to Start > Devices and Printers > Add a Device. Select the keyboard from the list, enter the PIN shown on screen, and press Enter on the keyboard. The blue LED will turn off when connected.

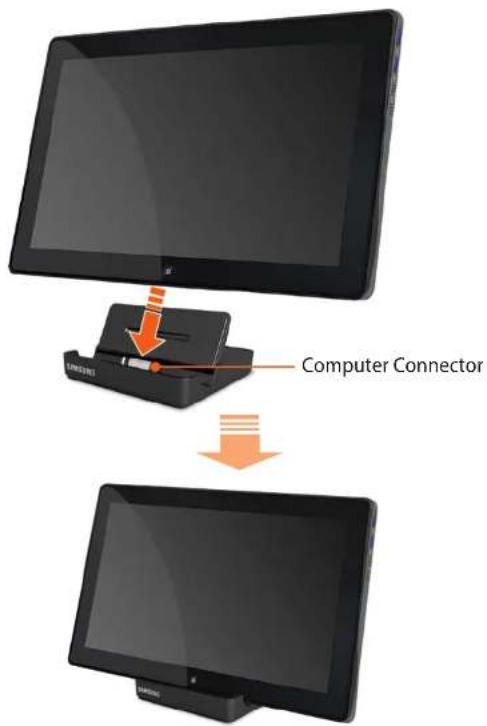

How do I use the Slate PC Dock?

Open the top cover of the dock, align the computer connector on the dock with the dock port on the bottom of the Slate PC, and gently connect. The dock provides HDMI, USB, Ethernet, and headphone jacks. For audio output, set the default playback device in Sound settings.

How do I adjust the screen brightness?

Open Easy Settings (Start > All Programs > Samsung > Easy Settings). Click Display > Screen Brightness and adjust the slider. To keep brightness after restart, set it via Control Panel > Hardware and Sound > Power Options > Change plan settings.

How do I set up Touch Logon?

Go to Start > All Programs > Samsung > Touch Logon > Touch Logon Options. Enable Touch Logon, choose a background and theme, then set a Touch Logon password (e.g., tap colors in sequence). Confirm the password. Next time you log in, tap and drag the bottom bar up, then enter your password by tapping the sequence.

How do I enter text with the touch screen?

Tap the Tablet PC Input Panel tab that appears on the left of the desktop. Use the touch keyboard to tap keys, or switch to the writing pad to handwrite letters. The system will convert handwriting. Tap Insert to enter the text.

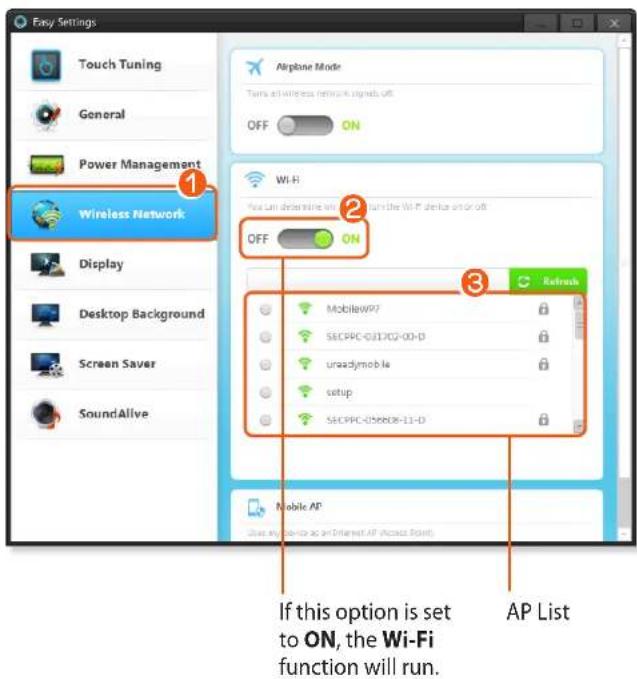

How do I connect to Wi-Fi?

Open Easy Settings, go to Wireless Network, set Wi-Fi to ON, and select an AP from the list. Once connected, the Wi-Fi icon appears in the system tray.

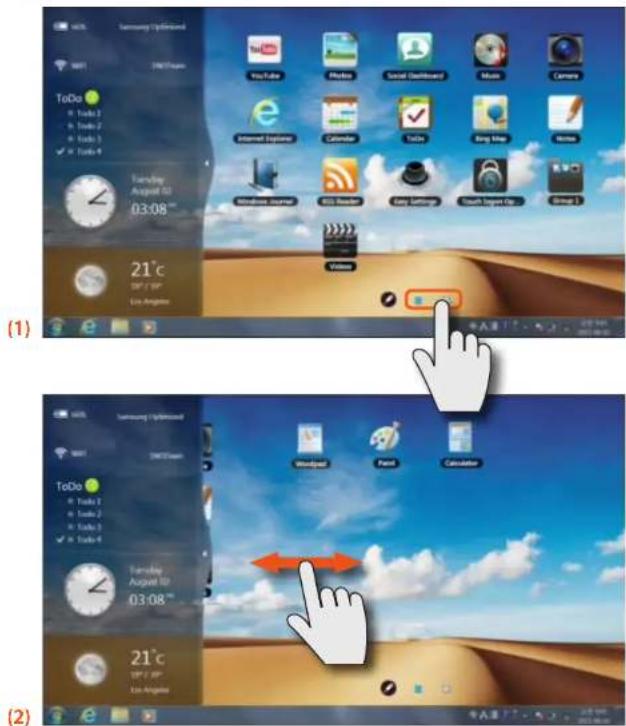

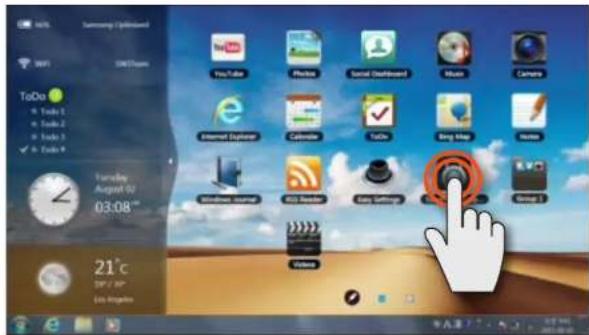

How do I use the Touch Launcher?

Swipe two fingers from top to bottom quickly on the screen, or go to Start > All Programs > Samsung > Play Touch > Touch Launcher. Touch an icon twice to launch a program. Navigate pages by flicking left/right or tap page indicators. Use Edit mode to rearrange or add/remove icons.

How do I turn the Slate PC on/off or enter sleep mode?

To turn on, press the Power button. To enter sleep mode, briefly press the Power button. To wake, press again. To shut down, click Start > Shut down.

USER MANUAL Slate PC 7 SAMSUNG

Illustration of a hand interacting with a tablet displaying a Windows 7 logo (no text or symbols on screen)

www.samsungcomputer.com

Before Reading This Guide

Before Reading This Guide

- This guide describes the general functions provided with Samsung Slate PC. Some functions and devices may not be provided or the version may differ depending on the product.

Please note that the descriptions in this guide may not match your computer's environment exactly.

- The images on the cover and the main content of this guide are images of representative Samsung Slate PC models and may differ from your actual product.

Copyright

© 2011 Samsung Electronics Co., Ltd.

This guide is the property of Samsung Electronics Co., Ltd. and is protected by copyright.

No information contained herein may be distributed or copied in any form whatsoever without the prior written consent of Samsung Electronics Co., Ltd.

Information in this guide is subject to change due to functional enhancements of the product and other reasons without prior notice.

CONTENTS

V

Getting Started

Overview
▶ Turning the Slate PC On and Off
Using the Touch Logon
LCD (Touch Screen) Brightness-Control
Using the Home Button
Using the Easy Settings

Using the Touch Feature

Using the Basic Gestures
Using the Applied Gestures
Screen Calibration
- Entering Letters Using the Touch Screen
Using the Touch Launcher

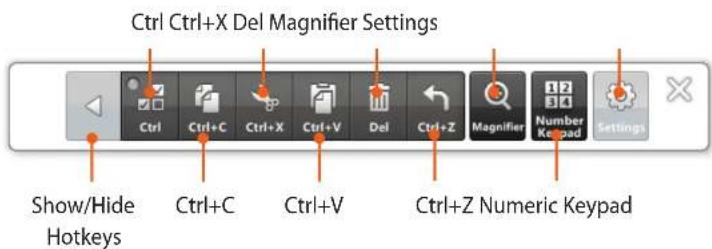

Using the Touch Supporter
Using the digitizer pen

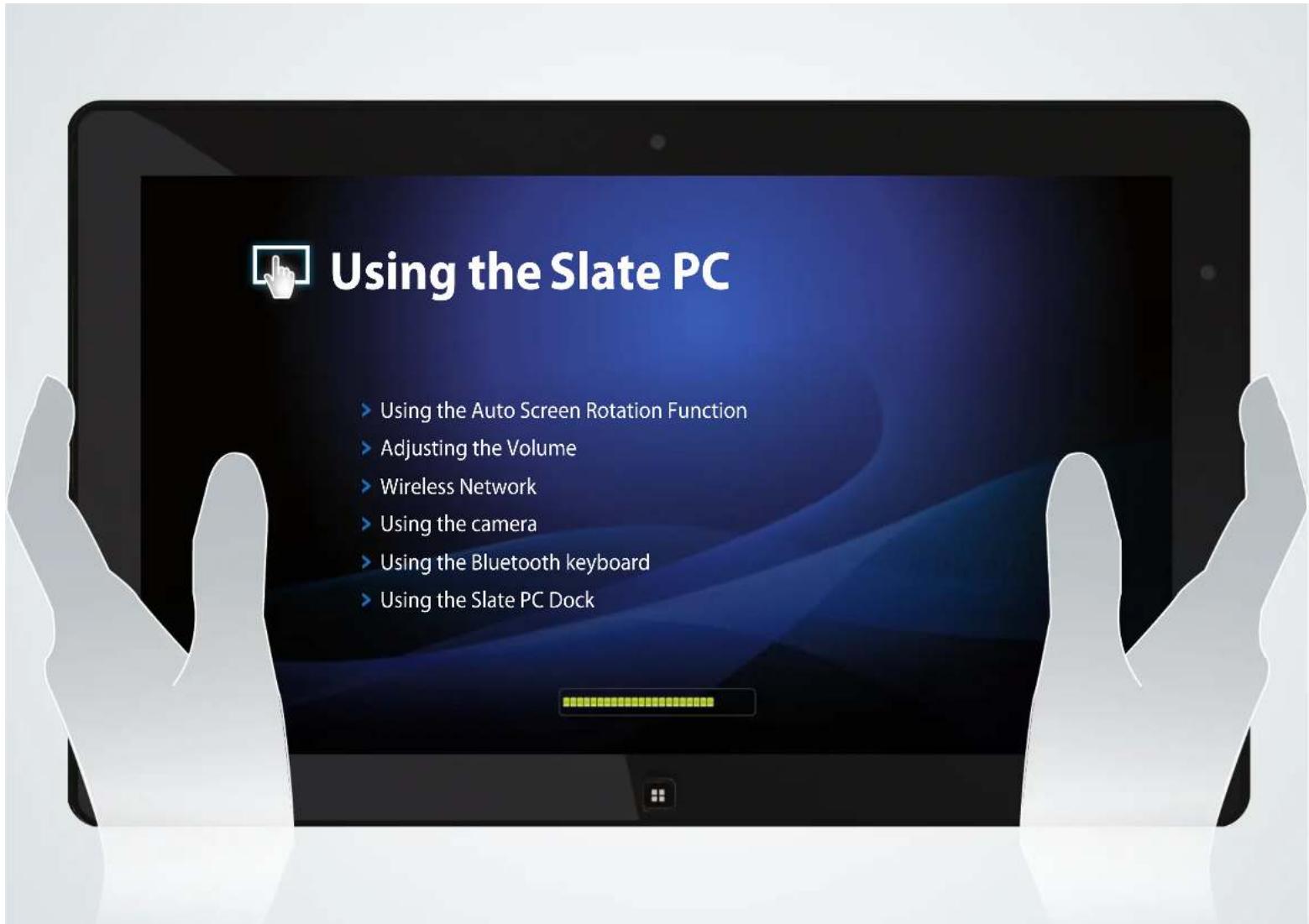

Using the Slate PC

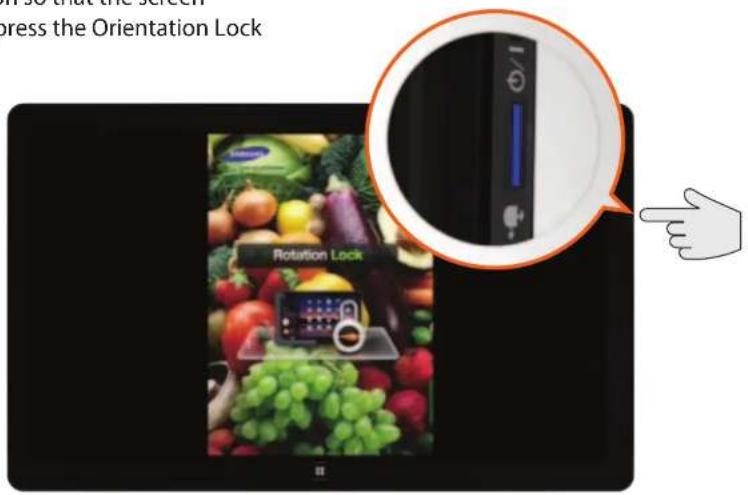

Using the Auto Screen Rotation-Function

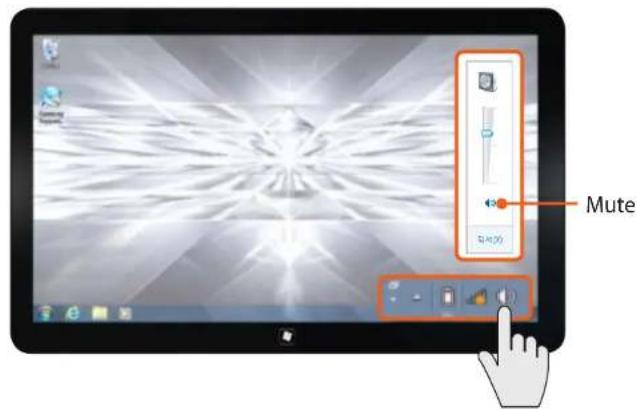

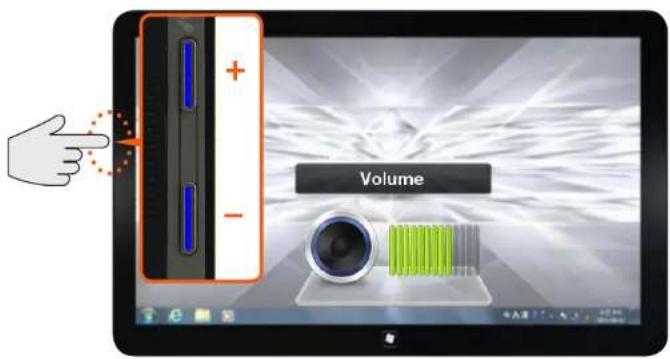

Adjusting the Volume
Wireless Network

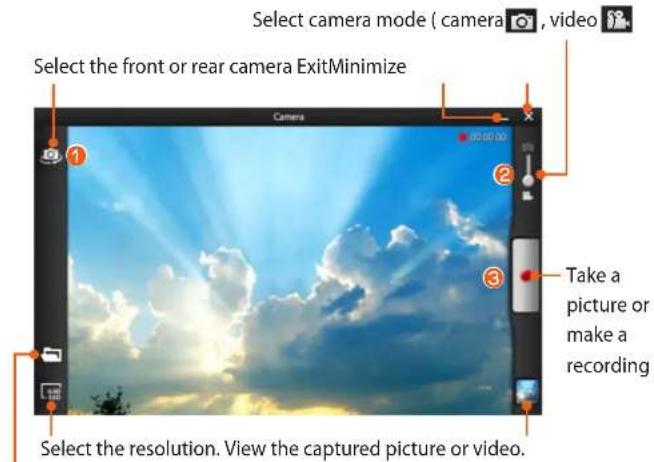

Using the camera
Using the Bluetooth keyboard
Using the Slate PC Dock

||

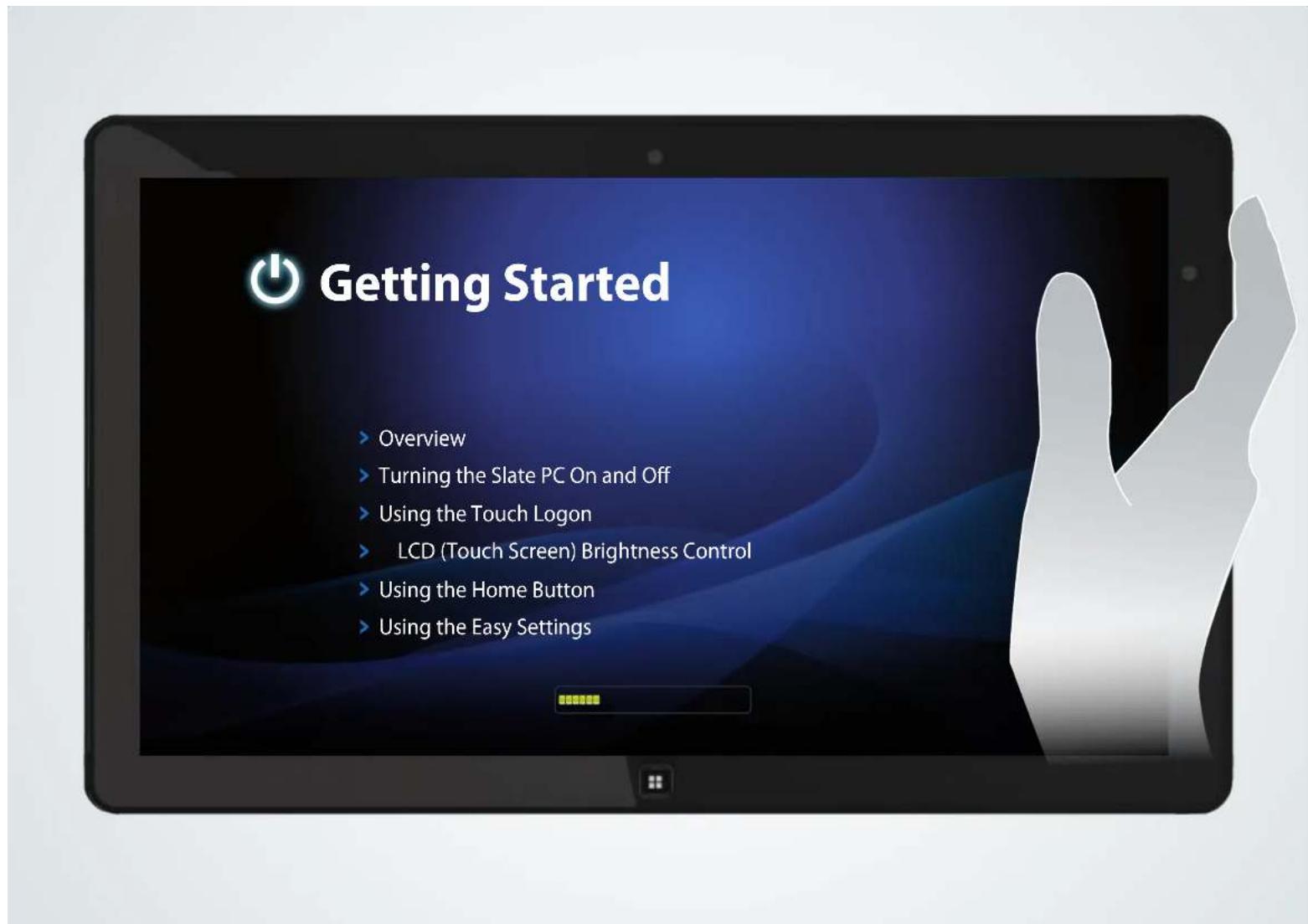

Getting Started

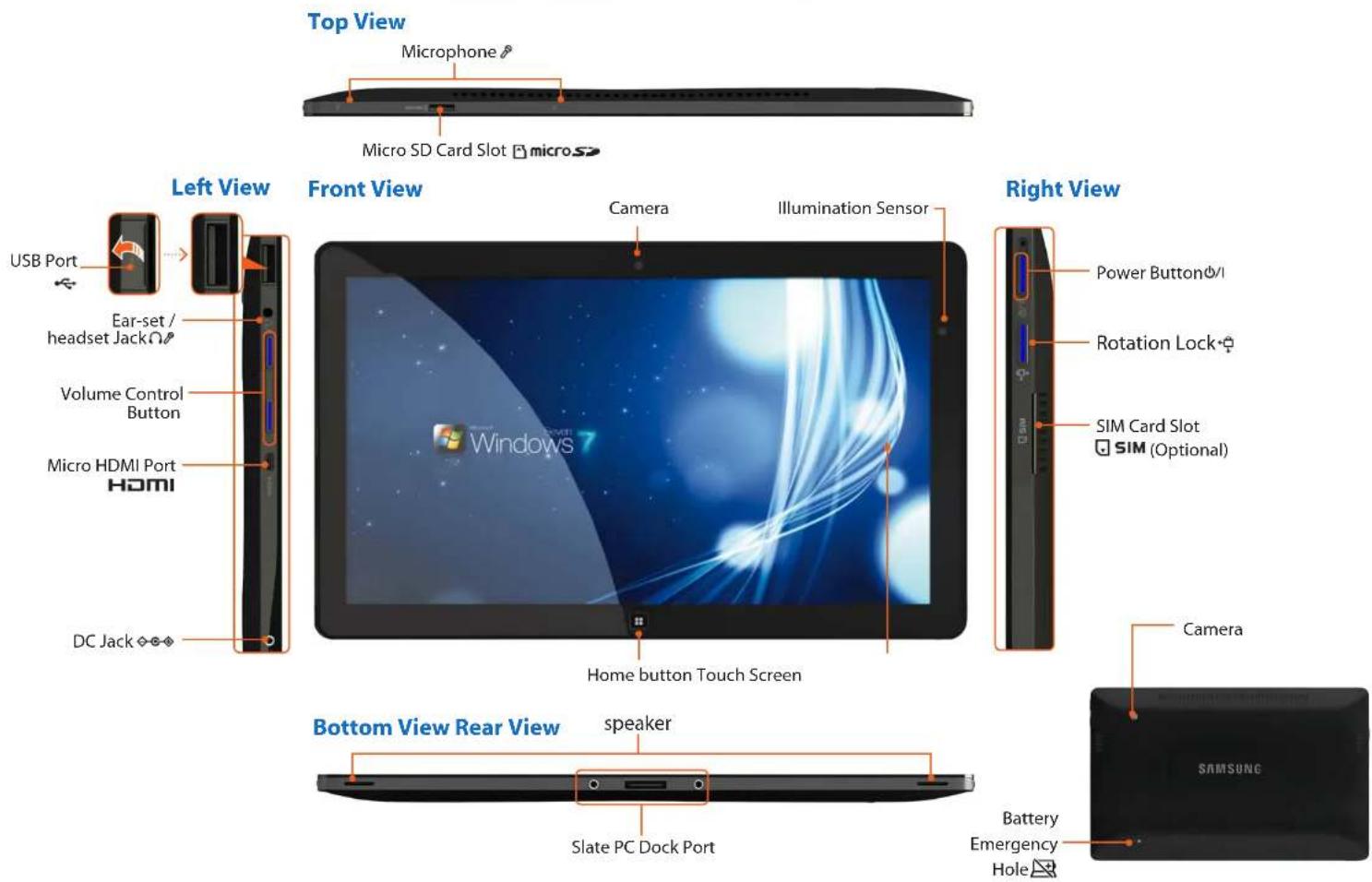

Overview
Turning the Slate PC On and Off
Using the Touch Logon
LCD (Touch Screen) Brightness Control
Using the Home Button
Using the Easy Settings

Overview

Getting Started

Turning the Slate PC On and Off

Getting Started

Turning the computer on

1 Connect the AC adapter.
2 Press the Power button to turn the computer on.

Exterior view of a tablet device with an orange arrow pointing to its screen (no text or symbols visible)

3 Power button LED is lit while the computer is turned on.

Setting up the Windows

When you use the computer for the first time, you have to Set up the Windows.

Turn the computer on and follow the Setting up the procedures according to the instructions on the Windows screen.

1 Turn the computer on.
2 Confirm your country and region, the time and currency, the keyboard type and click Next.
3 Follow the activation procedures according to the instructions on the screen.

Turning the Slate PC On and Off

Getting Started

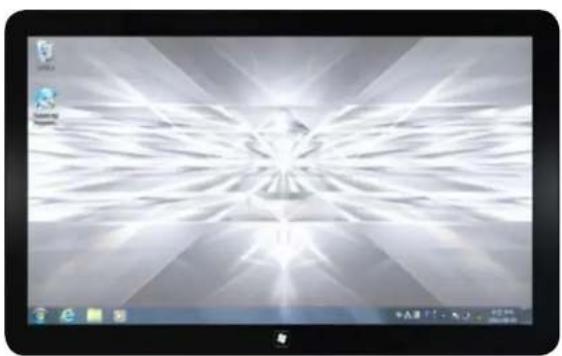

4 Once the Windows set-up is complete, you can use the computer.

Computer monitor displaying a starburst light pattern with no visible text or symbols on the screen or background.

Entering Sleep mode

When the computer is turned on, press the computer's power button once briefly.

To wake the computer up, briefly press the Power button of the computer again.

Turning the computer off

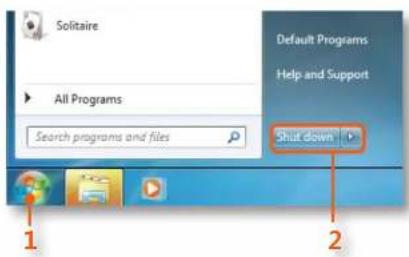

Click Start > Shut down mode Shut down to shutdown the computer.

Using the Touch Logon

Getting Started

Using the Touch Logon program, you can easily log on using your fingers.

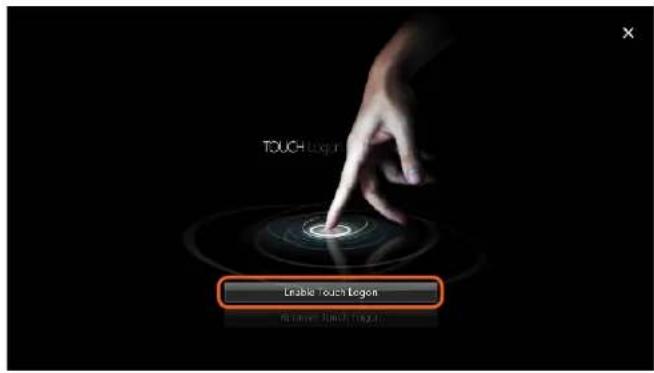

Configuring the Touch Logon program

To use the Touch Logon function, you have to setup the Touch Logon function in the Windows Logon screen.

1 Click Start > All Programs > Samsung > Touch Logon > Touch Logon Options.
2 Select Use Touch Logon.

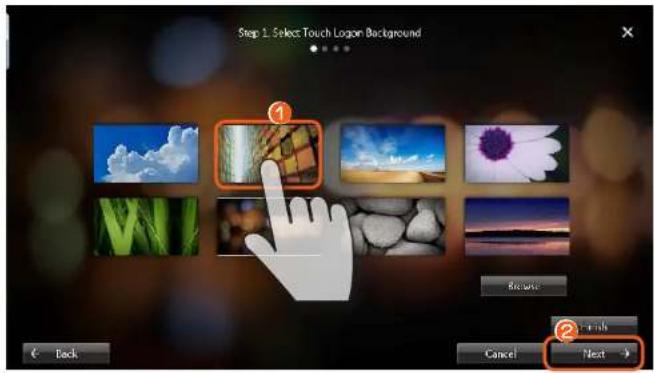

3 Choose the Touch Logon background screen. Select a background screen by touching it and touch Next.

If you haven't set a Windows password, the Touch Logon settings are finished at this stage. If you have set a Windows password, proceed to the next step.

Using the Touch Logon

Getting Started

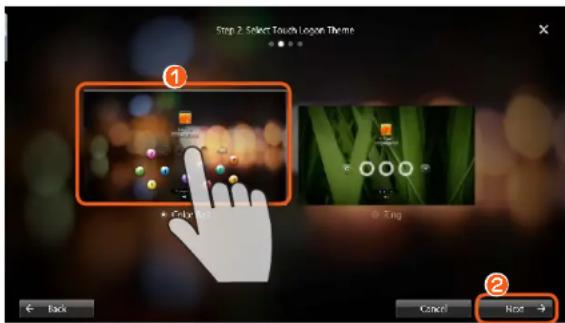

4 Choose a Touch Logon theme.

If you touch a theme, you can view a video that shows you how to use the theme to logon. Select a theme and touch Next.

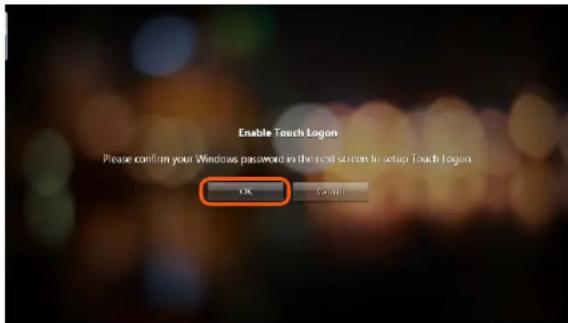

5 Touch OK and enter the previously configured Windows password.

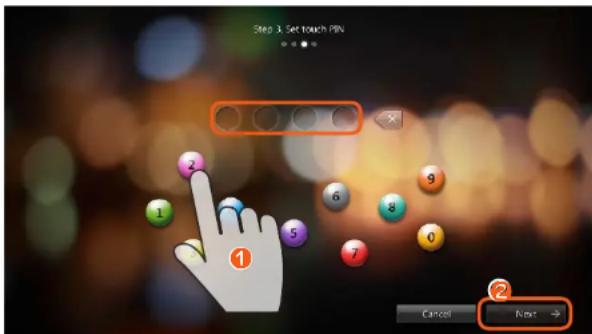

6 Set a Touch Logon password.

Set a Touch Logon password according to the method of the corresponding theme and touch Next.

E.g. when the Color Ball theme is selected.

7 Confirm the Touch Logon password you entered in the previous step.

Touch the password that you have entered again by touching each letter of the password in sequence. When entering the password is complete, touch Next.

The Touch Logon settings have been completed.

Now you can use the Touch Logon function from when you next logon.

Using the Touch Logon

Getting Started

Using the Touch Logon function

To logon by touch in the Windows logon screen

1 Press the Power button to turn the computer on.
2 When the Windows logon screen appears, touch your account to log on.

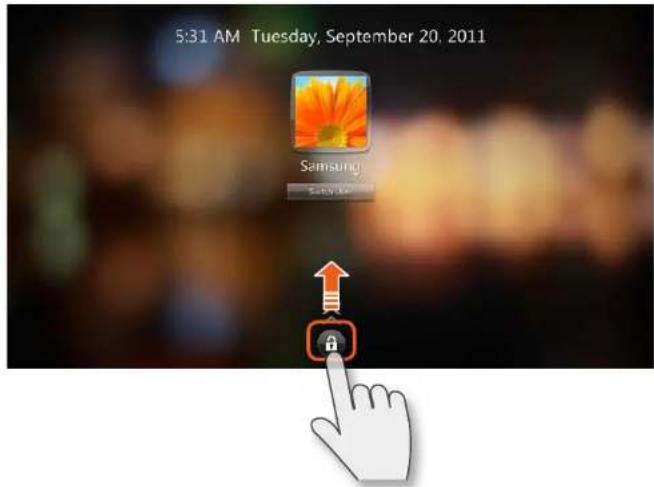

3 When the following screen appears, touch the at the bottom of the screen and drag it to the top while your finger maintains contact.

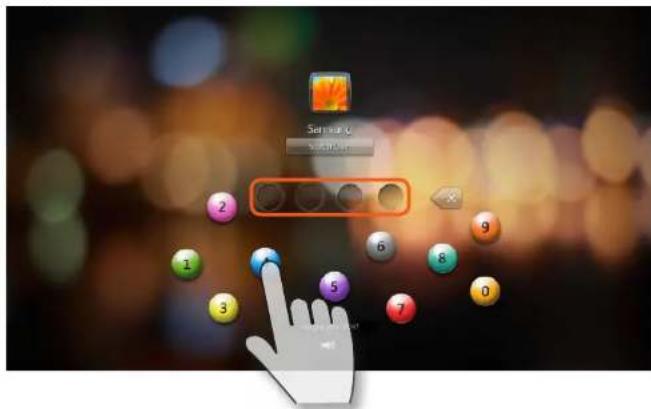

4 Touch each letter of the configured Touch Logon password in sequence.

E.g. when the Color Ball theme is set

If there is no configured Windows account password, it is immediately Unlocked without requiring the password.

Using the Touch Logon

Getting Started

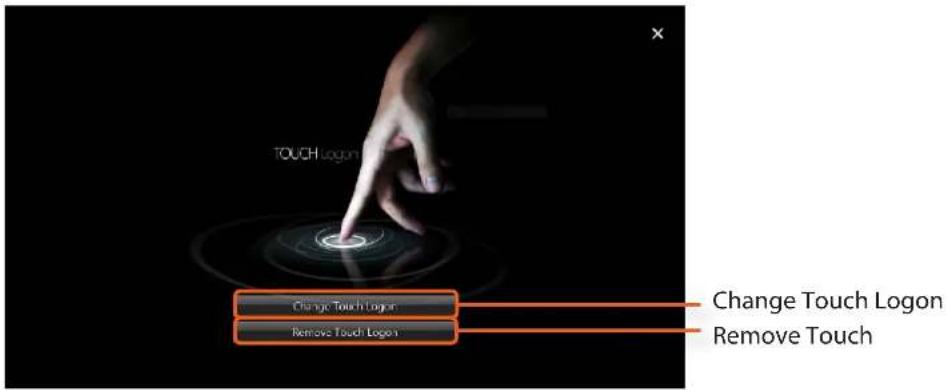

Changing the Touch Logon Settings /Removing Touch Logon

1 Click Start > All Programs > Samsung > Touch Logon > Touch Logon Options.
2 You can change the Touch Logon settings or remove the Touch Logon function according to the instructions on the screen.

If you change the Windows password in the Control Panel > User Accounts, the Touch Logon function is deactivated.

LCD (Touch Screen) Brightness Control

Getting Started

The LCD brightness is automatically controlled using the illumination sensor. You can manually control the LCD brightness as follows.

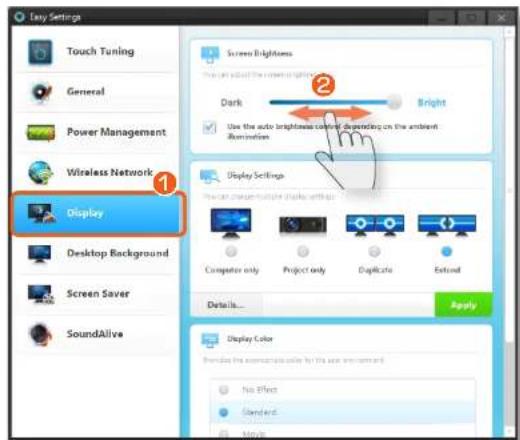

1 Launch the Easy Settings.

2 Click Display > Screen Brightness and set the brightness level.

- Maintaining the changed LCD brightness even after turning the computer on again

To maintain the LCD brightness set by using the brightness control keys or through the Power Options, follow the procedures below.

▶ For Windows 7

1. ClickControl Panel > Hardware and Sound > Power Options

2. ClickChange the settings of the currently configured mode.

3. Adjust the display brightness adjustment menu bar and click the Save the changes button.

When the computer runs on battery power, the touch screen is dark.

The screen brightness is set to dark when the computer is running on battery power to extend the battery use time. In the Easy Settings, set the level of the screen brightness.

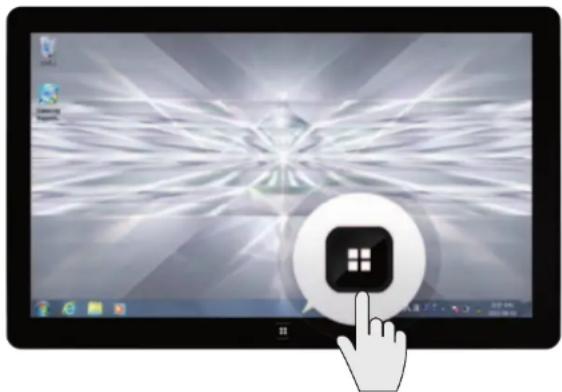

Using the Home Button

Getting Started

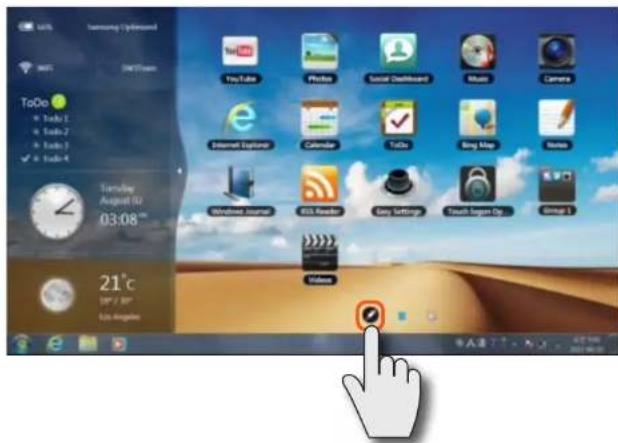

Using the Home button, you can conveniently execute the Touch Launcher or switch to the Windows Desktop screen.

Tablet displaying a glowing abstract background with a hand cursor clicking a button (no text or symbols visible)

Touching Once	Launches the Touch Launcher.
Touching and holding	shows the Windows Desktop screen.
Touching Twice	performs the role of the Win + Tab key combination.

Using the Easy Settings

Getting Started

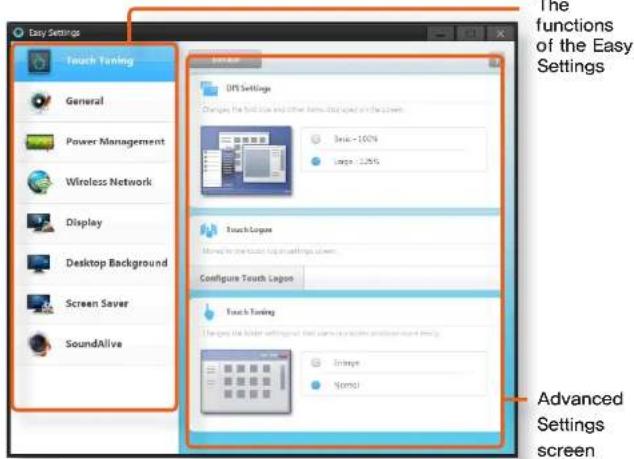

Easy Settings is the integrated Samsung software control program

1 Click Start > All Programs > Samsung > Easy Settings.

2 To configure a function, select the corresponding item.

The functions of the Easy Settings

[0W7Z]	Touch calibration	The Touch Logon setting and the screen text font size setting.
[X2DK]	General	Fast Start setting, silent mode and user account.
[000Z]	Power	You can configure the Power Plan (high-performance, power-saving, Samsung optimal mode), the power-saving settings and the display settings.
[H0CD]	Wireless Network	You can configure whether to use the Airplane mode and Wi-Fi options.
[X0CA]	Display	You can configure external display devices, and the screen brightness/color.
	Desktop Background / Screen Saver	You can configure the Desktop background and the screen saver.
[S2AX]	Sound Alive	You can configure the sound mode (Music, Movie, Speech, Silver Mode etc.).

Using the Touch Feature

Using the Basic Gestures

Using the Applied Gestures
Screen Calibration
Entering Letters Using the Touch Screen

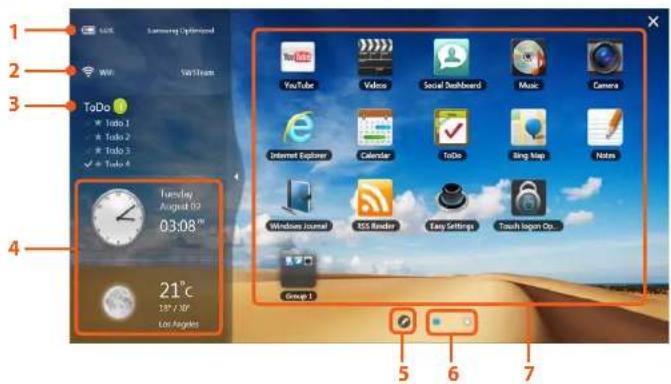

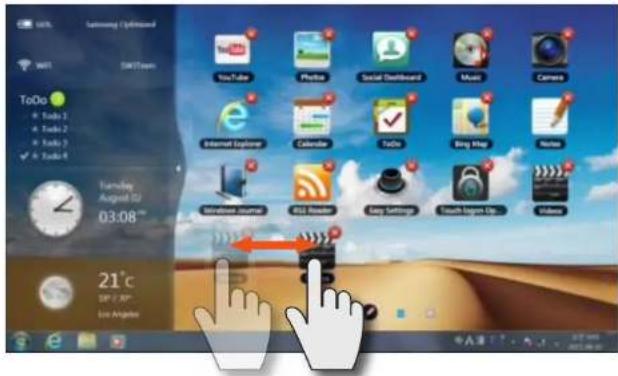

Using the Touch Launcher
Using the Touch Supporter
Using the digitizer pen

Learning basic touch screen operations

Touch Operation Function
Single-tap (click)			To select an item, tap over the item with your finger. This is the same as left-clicking once with a mouse.
Double-tap (double-click)			To run an item, quickly tap the item twice with your finger. This is the same as double-clicking once.
Moving (drag)			To drag an item, place your finger over the item and drag it to the new location. This is the same as dragging using a mouse.
Press and take off (mouse right-click)			If you press and hold the screen for approximately 3 seconds, the pop-up menu appears. This is the same as right-clicking with the mouse.
Tapping two fingers in succession (mouse right-click)			Tap with one finger and then tap with another finger while holding down the first finger. A pop-up menu appears.This is equivalent to right-clicking a mouse.
Moving finger (scroll)			Move your finger up and down, left or right to move on the screen accordingly.This is the scroll function of the mouse.[823] This operation may perform a different function depending on the application program.

Using the Applied Gestures

Using the Touch Feature

Touch Operation Function
Drag two fingers apart / together (zoom-in/zoom-out)		Drag apart or together two fingers to zoom-in or -out of a picture or image.
Flick one finger fast (page move)		Flick one finger quickly to the left or right in order to move to the previous or next page.
Quickly draw with two fingers (this runs the Touch Launcher)		By quickly drawing a line from top to bottom with two fingers, the Touch Launcher program is launched.
Tapping three fingers (Launching the Touch Supporter)		Tapping three fingers simultaneously launches the touch supporter program.
Tapping five fingers (Launching the keyboard program)		Tapping fi ve fingers simultaneously launches the keyboard program.

Learning about touch operations

Select Start > Control Panel > Hardware and Sound > Pen and Touch > Flicks tab and select Practice using flicks to learn about the various touch operations.

Screen Calibration

Using the Touch Feature

When you use the touch screen for the first time or the pointer on the screen does not precisely match the points you touch, calibrate the touch screen using the Tablet PC Settings menu.

Screen Calibration

The calibration process for the touch screen may differ depending on the operating system and may not be available in some operating systems. The following descriptions assume the Windows 7 operating system.

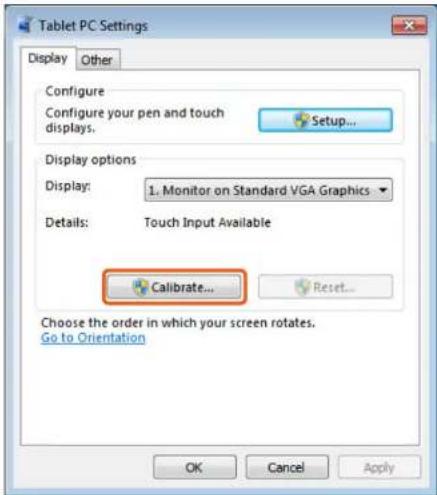

1 Click Start > Control Panel > Hardware and Sound > Tablet PC Settings > Display > Calibrate.

2 Select the screen type to calibrate. If the Calibration screen appears, touch the point represented by the "+" mark and then remove your finger.

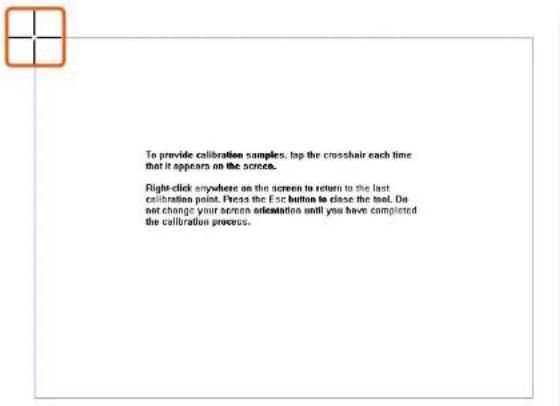

The "+" mark appears sequentially from the top left to the bottom right of the screen.

3 When the Do you want to save the calibration data? window appears, click Yes. The touch screen input points are calibrated.

Entering Letters Using the Touch Screen

Using the Touch Feature

You can enter letters using either the Tablet PC input panel.

Launching the Tablet PC Input Panel

If you touch the touch screen with your finger, the Tablet PC Input Panel tab appears with the cursor at the bottom left on the Desktop.

If you touch the Tablet PC Input Panel tab, the Tablet PC Input Panel appears.

Are you unable to find the Tablet PC Input Panel tab ?

click start > Control Panel > Hardware and Sound > Tablet PC Settings > Other tab and select [Go to Input Panel Settings], select the "Use the Input Panel tab" in the Options window and then click OK.

Let's learn how to enter letters in Notepad.

1 Launching Notepad.
2 If you touch the Notepad screen with your finger, the appears on the Notepad with the cursor.
3 If you touch the with your finger, the Tablet PC Input Panel appears.

Entering Letters Using the Touch Screen

Using the Touch Feature

Entering Letters Using the Touch Screen

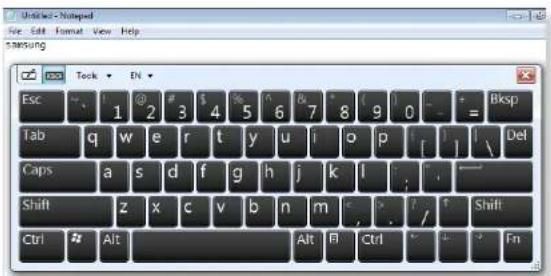

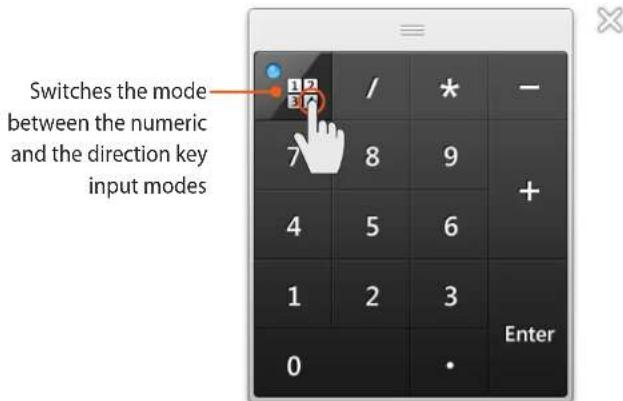

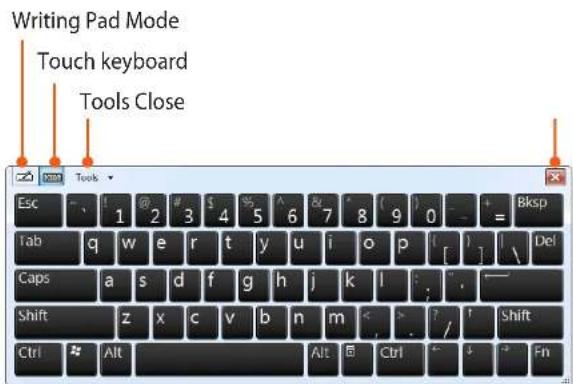

Using the touch keyboard, you can enter letters by touching the corresponding keys on the keyboard that is displayed on the screen as you do with a normal keyboard.

1 In the Tablet PC input panel, touch the touch keyboard icon
2 Enter letters by touching the corresponding keys on the screen.

Entering letters with the writing pad (hand-writing input mode)

In the touch screen, you can enter letters by directly writing letters with your finger on the writing pad input panel.

1 In the Tablet PC input panel, touch the writing pad icon

2 Write a letter in the input area of the writing pad in the touch screen and wait for a moment. Then the letter is converted to the most likely letter.

3 If you touch the Insert button, the converted letter is entered.

Modifying a letter

Over-write a new letter over an incorrectly recognized letter or touch the above the letter and select a letter.

Using the Touch Launcher

Using the Touch Feature

Touching the Launcher program enables you to easily play music and video files and operate downloaded applications by touching the screen with your finger on models with a touch screen.

Touch Launcher Functions

On the touch screen, drag two fingers from top to bottom quickly. Alternatively, Click Start > All Programs > Samsung > Play Touch and select Touch Launcher to launch it.

To exit the Touch Launcher, touch ✗

No. Function Description
1	Power Option	Shows the remaining battery charge and the currently configured battery mode.
2 WiFi		Shows the Wi-Fi connection status. If the computer is connected to Wi-Fi, the connected AP name is displayed.
3	ToDo(Things to do)	Creates/Displays the ToDo listYou can create a list of things to do.
4 Clock / Weather		Shows the time and weather information for the configured region.
5 Edit Mode		You can move the program icons, add groups, add/remove programs as well as change the Desktop background.
6 Page Indicator		Shows the position of the current page. To navigate the pages, click the Page Indicator or drag the screen to the left or the right.
7	Program area	Shows the program list. To launch a program, click the program icon.

Using the Touch Launcher

Using the Touch Feature

Launching a Program

To launch a program added to the Touch Launcher, quickly touch a program icon twice.

Navigating Pages

To navigate pages in the Touch Launcher (1), touch the page icon or (2) flick one finger to the left or right.

Using the Touch Launcher

Using the Touch Feature

Editing Program Icons

In Edit mode, you can add or remove a program, add a group, move a program icon and change the background image.

To edit program icons

1 Touch the Edit mode icon.

2 If the program icon changes to Edit mode, move the icon to the new location.

3 To exit Edit mode, touch the Edit mode icon again.

Using the Touch Supporter

Using the Touch Feature

This program helps you to use functions that cannot be easily used with touch operations more easily.

Using the Touch Supporter

If you touch the screen with three fingers simultaneously the touch support program is launched.

To exit the Touch Supporter, click ✗ or touch the screen with three fingers again.

What does the Ctrl key do (multiple selection mode)?

The icon performs the same function as the Ctrl key on the keyboard. If you touch the Ctrl button, the button indicator is turned on. While the Ctrl (multiple selection mode) icon is selected and you touch various files with your finger sequentially, all the touched files are selected.

Using the Numeric Keypad

The Numeric Keypad is to use numeric and direction keys only.

1 Touch the Numeric Keypad on the screen.

2 If you touch the buttons on the Numeric Keypad, the corresponding number or symbol is entered on the screen.

To select direction key input mode, touch To select numeric key input mode, touch

Using the digitizer pen

Using the Touch Feature

If a digitizer pen is supplied with the product, you can operate the computer with the pen instead of your fingers. You can use the digitizer pen as you would use your fingers.

Digitizer pen structure and functions

Pen tip	This performs the function of your finger tip when you touch the screen.
Pen button	If you press the pen button when the digitizer pen tip is on the screen, circles appear around the pointer on the screen. Touch the screen with the digitizer pen while holding down the pen button.This performs the right-click function.
Pen eraser	Erases letters with the top end of the digitizer Pen.This performs the function of an eraser.

Using the digitizer pen

Using the Touch Feature

Replacing the pen tip

If the pen tip is damaged, you can replace the pen tip as follows:

1 Hold the pen tip by inserting it into the hole of the ring and remove the tip by pulling it out.

Illustration of a magnifying glass focusing on a metallic ring with a black clip, next to a black pen (no text or symbols)

2 Insert the new pen tip into the digitizer pen.

Illustration of a screwdriver with an orange speech bubble highlighting the tip, alongside a black pen (no text or symbols present)

Take care so that the pen tip does not spring out when taking it out.

Using the Slate PC

Using the Auto Screen Rotation Function

Adjusting the Volume
Wireless Network
Using the camera
Using the Bluetooth keyboard
Using the Slate PC Dock

Using the Auto Screen Rotation Function

Using the Slate PC

If the Auto Screen Rotation function is activated, the screen orientation automatically changes as the computer is rotated.

To disable the Auto Screen Rotation function

Press the Orientation Lock button. If the Orientation Lock function is activated, the screen orientation does not change regardless of the rotation of the computer.

To release the Orientation Lock function so that the screen orientation is automatically changed, press the Orientation Lock button again.

Adjusting the Volume

Using the Slate PC

You can control the volume using the volume control buttons or the volume control program.

Method 1 Adjusting the volume with the buttons

You can control the volume by pressing the volume control button on the left side of the computer.

Method 2 Adjusting the Volume using the Volume Adjustment Program

Click the Volume icon on the taskbar and slide the volume control bar to adjust the volume.

If there is a nearby AP (Access Point), you can easily connect to a wireless LAN using the Easy Settings.

Connecting to a Wireless LAN through Easy Settings

1 Click Start > All Programs > Samsung > Easy Settings.
2 Configure the Wireless Network and set the Wi-Fi device to ON. Touch an AP in the AP list. If the computer is properly connected to the wireless network, the wireless LAN icon appears in the system tray.

Using the camera

Using the Slate PO

This product has 2 cameras(Optional). One is at the front and the other is at the back. Using the touch camera program, you can conveniently take a picture or record a video using touch operations.

Using the Camera program

Click the Touch Launcher and launch the Camera.

Open the folder to save the file with Explorer.

1 Touch the Select Front/Rear Camera to select either the front or the rear camera that you will use.
2 To take a picture, select camera mode. To record a video, select video mode.
3 Touch the Take a Picture Record to take a picture or record a video.
4 You can view the picture or recorded video through the Preview function or the Open the saved folder with Explorer.

Using the Bluetooth keyboard

Using the Slate PC

You can connect and use an external type keyboard. Now let's look at how to connect the Bluetooth wireless keyboard (optional) provided by Samsung Electronics.

Black foldable keyboard and tablet device with a network display screen (no visible text or symbols)

What is Bluetooth?

Bluetooth is wireless communications technology that allows access to nearby devices such as another computer, a cell phone, printer, keyboard, mouse, etc. without a cable connection.

Using the Bluetooth Wireless Keyboard

1 Remove the battery compartment cover at the back of the computer.

2 Install the battery and close the cover.

Close-up of a laptop keyboard with an orange arrow pointing to the left screen (no visible text or symbols)

Using the Bluetooth keyboard

Using the Slate PC

3 If you press and hold the keyboard power button for 3 seconds after starting the computer, the Bluetooth LED will blink in blue.

4 Click >Bluetooth Devices >Add a Device.

5 Select the keyboard to be connected and click Next.

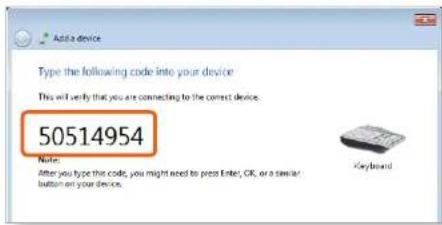

6 Enter the number displayed on the screen and press Enter. This will connect the keyboard. When the keyboard is connected, the blue Bluetooth LED of the keyboard is turned off.

Now you can use the keyboard.

Using the Slate PC Dock

Using the Slate PC

By connecting the computer to the Slate PC Dock, you can use various types of ports.

Installing/Removing the Dock

Before installing a computer to the docking station, make sure to disconnect all the cables connected to the computer. Installing and separating the Slate PC Dock after turning the computer off is recommended.

Installing the Slate PC onto the Dock

1 Insert your finger into the groove on the side of the Slate PC Dock to open the top cover of the Slate PC Dock.

Simple diagram showing a tool interacting with a device, with an orange arrow indicating rotation (no text or symbols)

2 Align the computer connector of the Slate PC Dock and the Slate PC Dock port at the bottom of the computer and connect them.

Ports Provided by the Dock

The back of the Dock

1	DC Jack◇◇◇	A jack to connect the AC adapter that supplies power to the computer.
2	Wired LAN Port [IMAGE]	Connect the Ethernet cable to this port.
3	Digital Video/Audio Port (HDMI) HDMI	You can connect an HDMI cable to this port. Using this port, you can enjoy digital video and audio on the TV.
4	USB Port [IMAGE]	You can connect USB devices to the USB port such as a keyboard/mouse, digital camera, etc.
5	Headphone Jack [IMAGE]	A jack used to connect the headphones.

Connecting headphones to the Dock

Using the Headphone jack

1 Right-click over the Volume Control icon in the notification area at the bottom right of the Desktop and select Playback Devices. (Alternatively, click the Control Panel > Hardware and Sound > Sound > Playback tab.)

2 Select the Speakers(USB audio), click Set Default and click OK.

Using the computer's built-in speaker when the computer is installing on the Dock

When the Dock is connected, the audio is output to the headphone jack of the Dock. To use the computer's built-in speaker when the Dock is connected, configure it as follows.

1 Right-click over the Volume Control icon in the notification area at the bottom right of the Desktop and select Playback Devices. (Alternatively, click the Control Panel > Hardware and Sound > Sound > Playback tab.)
2 Select the Speakers (Realtek High Definition Audio), click Set Default and click OK.

SAMSUNG

Rev 1.00
