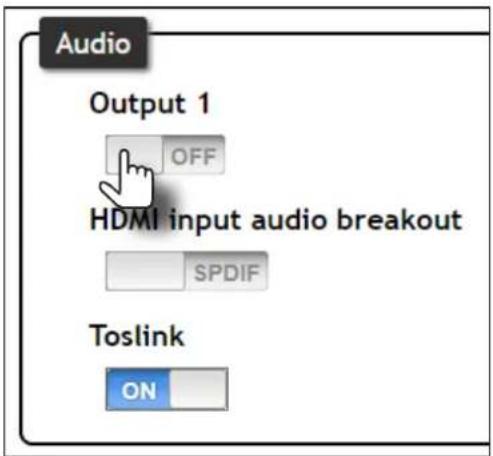

HDMI Output Muting 18

Optical Output Muting 18

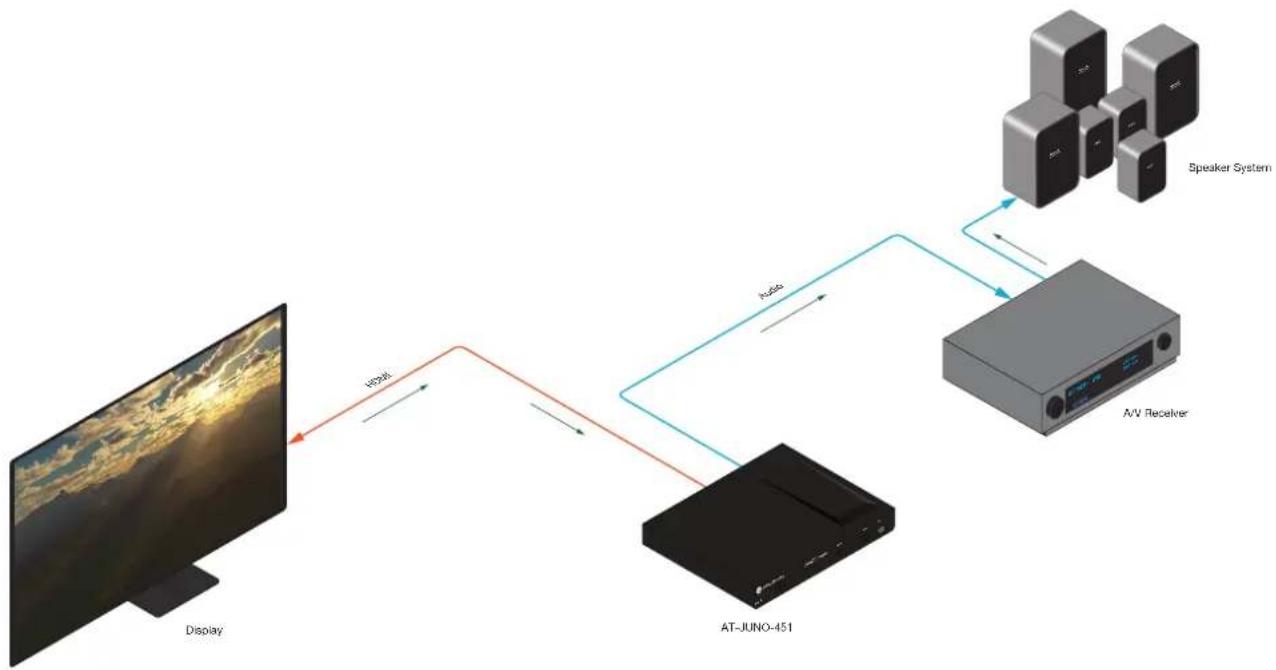

Using the Audio Return Channel (ARC) 19

Switching between ARC and HDMI inputs 21

Managing Users 22

Adding Users 22

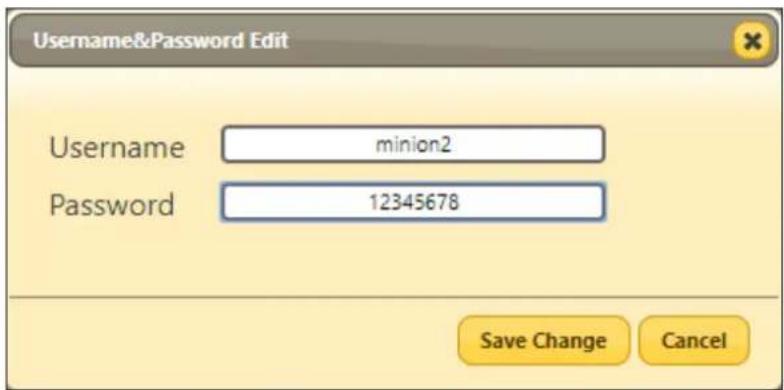

Editing / Deleting Users 23

Advanced Operation 24

RS-232 / IR Control 24

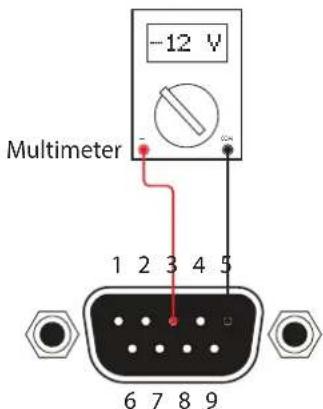

Determining the Port Type 24

Cable Assembly 25

Configuration 26

IR Control 27

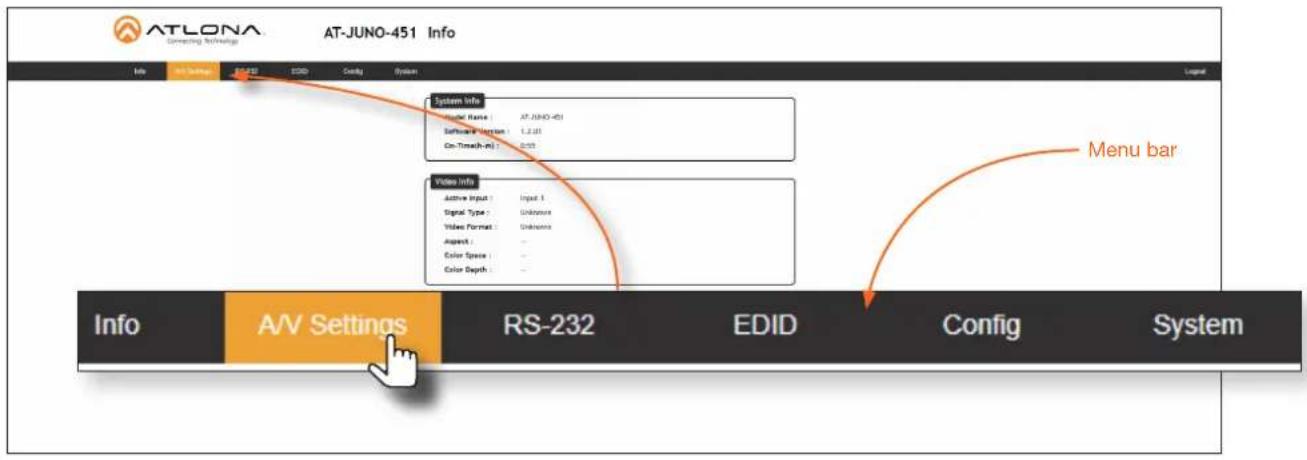

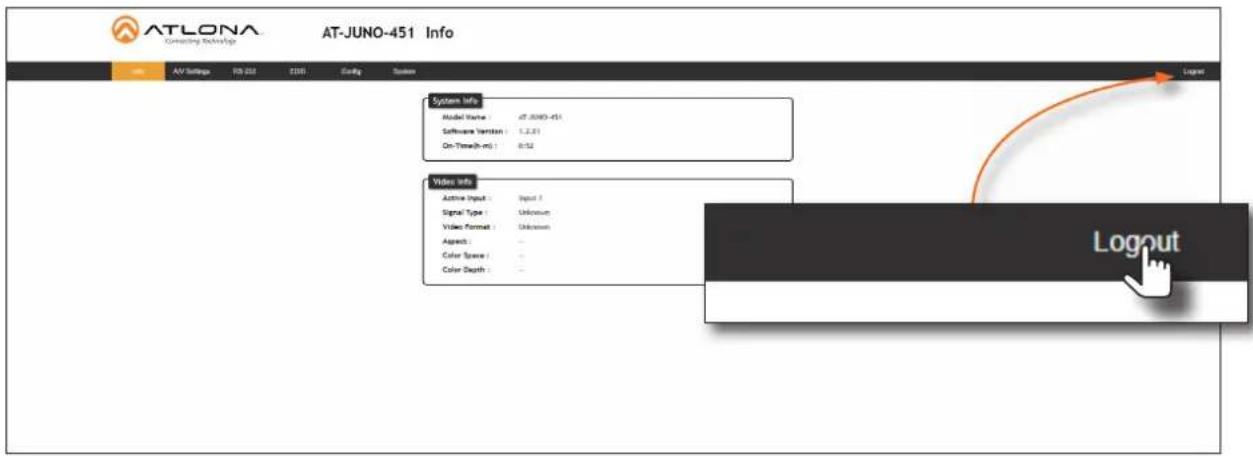

The Web GUI

Introduction to the Web GUI 28

Menu Bar 29

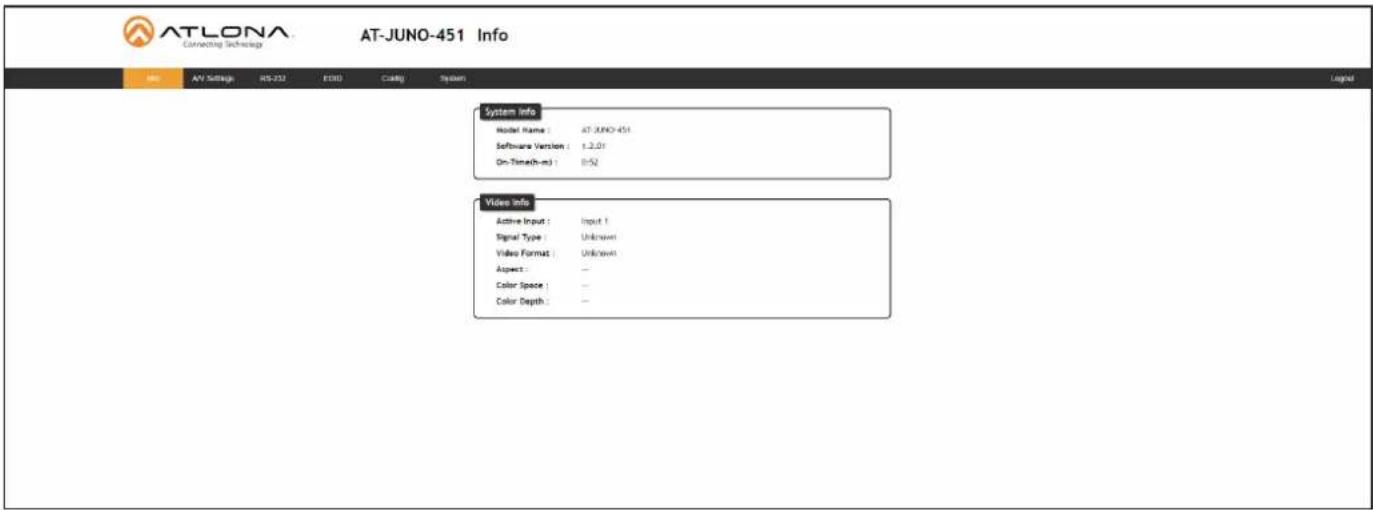

Info page 30

A/V Settings page 31

Video 31

Audio 32

RS-232 page 33

EDID page 34

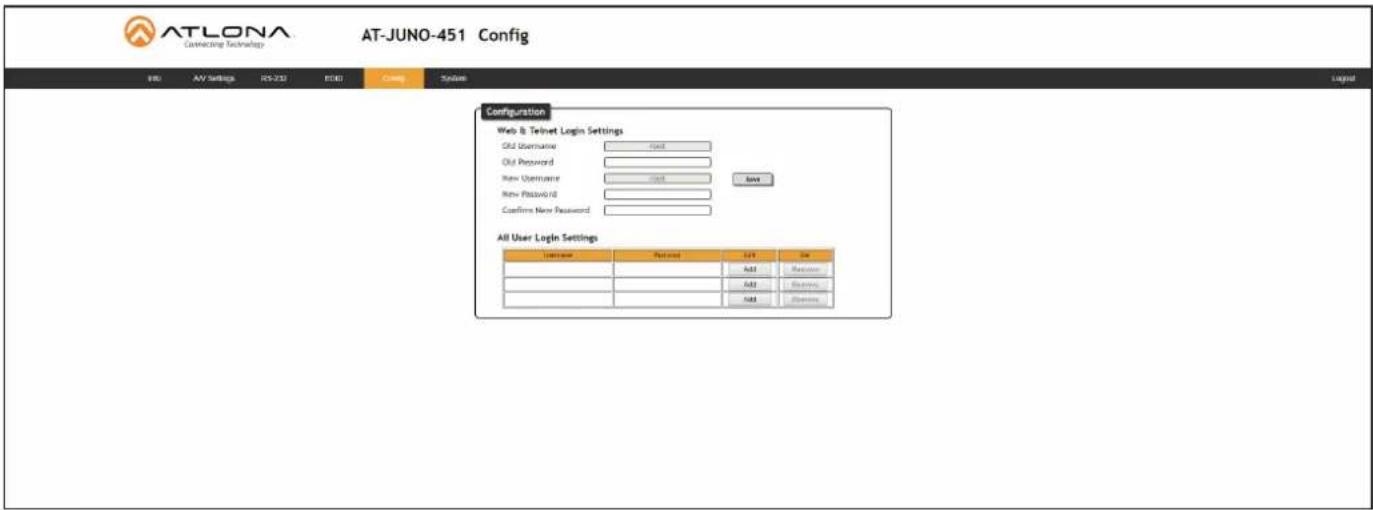

Config page 35

System page 36

Network 36

System 37

Appendix

Updating the Firmware 38

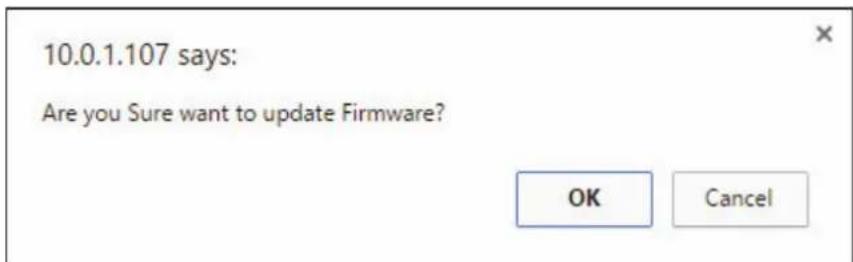

Using the Web GUI 38

Using USB 39

Default Settings 40

Specifications 41

Index 43

Introduction

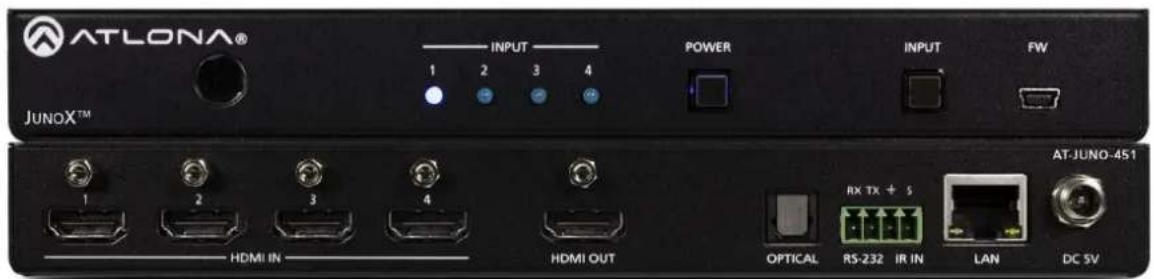

The Atlona JunoX™ 451 (AT-JUNO-451) is a 4×1 HDMI switcher for high dynamic range (HDR) formats. It is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. The JunoX 451 is ideal for residential applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content. The JunoX 451 includes EDID management features and automatic input switching. It also supports the HDMI Audio Return Channel (ARC) for receiving digital audio from a television. A TOSLINK digital audio output is provided for sending ARC or de-embedded HDMI audio to an AV receiver or soundbar. This JunoX Series HDMI switcher can be controlled via Ethernet, RS-232, and IR. A handheld IR remote control is included.

Features

• 4x1 HDMI Switcher
  • HDCP 2.2 compliant
  • Automatic input selection using hot plug detect and video detection technology
  • EDID management
• Delivers return audio from a TV to an optical digital audio output
  • HDMI audio de-embedding
• Easy, GUI-based configuration using integrated web server
  • TCP/IP, RS-232, and IR control
  • Multichannel audio compliant
• Front panel input selection status LEDs
• Award-winning 10 year limited product warranty

- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats

Package Contents

1 x AT-JUNO-451
1 x 4-pin captive screw connector
2 x Mounting plates
4 x Rubber feet
4 x Screws
1 x IR remote control
1 x DC 5V power supply
1 x IEC cord
1 x Installation Guide

Panel Description

ATLONA® JUNOXTM 1 2 3 4 5 INPUT POWER INPUT FW AT-JUNO-451 7 8 9 10 11 HDMI OUT LANOPTICAL RS-232 RX TX S# IR IN DC 5V

1 IR Window

Receives IR signals from the included IR remote.

2 Input Indicators

These LED indicators glow solid blue to indicate the active input.

3 POWER

Press this button to power-on or power-off the unit. When powered, the LED backlight will be blue.

4 INPUT

Press and release this button to cycle through each of the inputs.

5 FW

Connect a mini USB cable to this port to update the firmware.

6 INPUT (1 - 4)

Connect an HDR sources to each of these HDMI ports.

7 HDMI OUT

Connect an HDMI cable from this port to a display or other sink device. This output supports multichannel audio.

8 OPTICAL

Connect an optical audio cable from this TOSLINK port to an audio output device. This port is part of the Audio Return Channel (ARC): audio from the display is routed upstream, back to the switcher over HDMI, to this port.

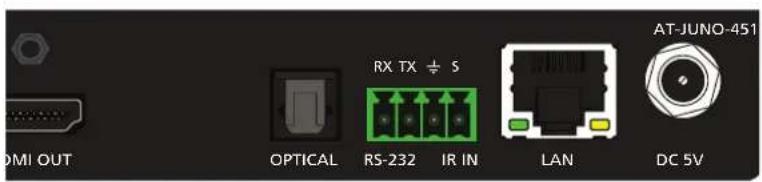

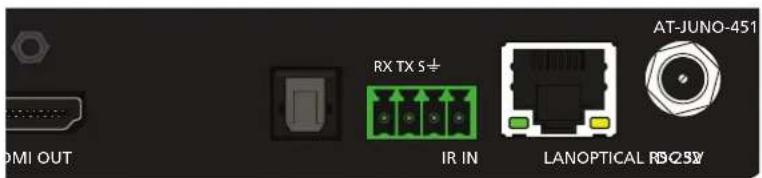

9 RS-232 / IR IN

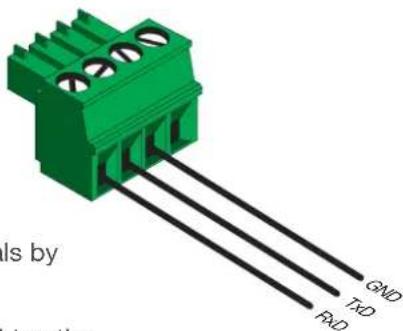

Connect the included 4-pin captive screw block to this port. Refer to RS-232 / IR Control (page 24) for wiring information, if necessary.

10 LAN

Connect an Ethernet cable from this port to a Local Area Network (LAN).

11 DC 5V

Connect the included 5 V DC power supply to this power receptacle.

IR Remote Control

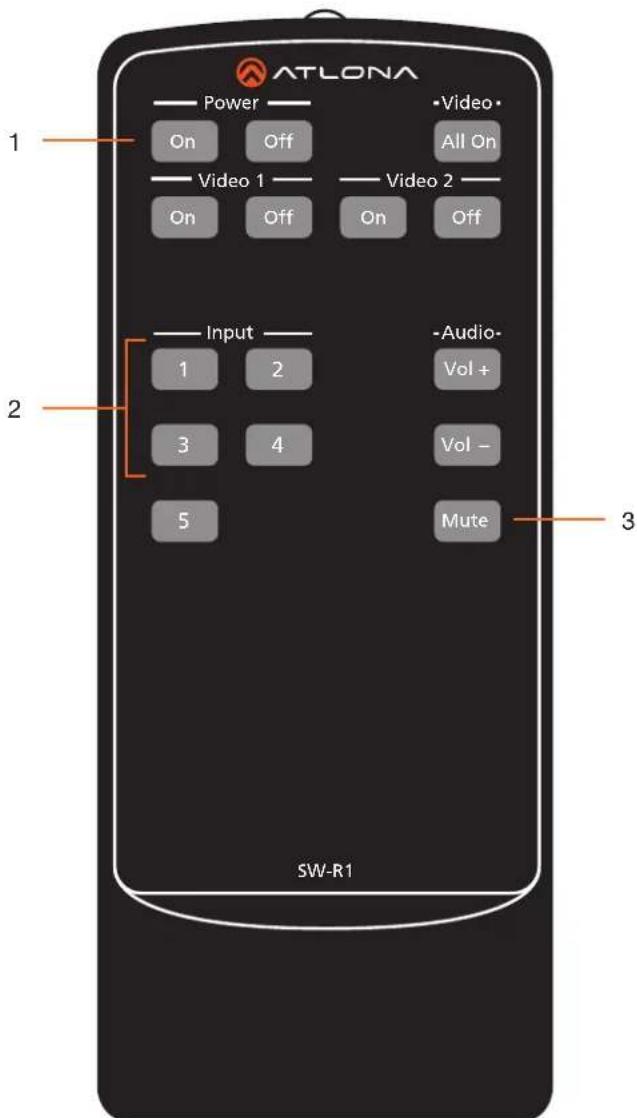

The AT-JUNO-451 includes an IR remote control unit, allow the control of the AT-JUNO-451 from a remote location.

ATLONA Power On Off Video 1 On Off Video 2 On Off Input 1 2 3 4 5 Audio- Vol + Vol - Mute SW-R1 1 2 3 4 3

1 On / Off buttons

Press the On button to power-on the unit. Press the Off button to power-off the unit.

2 Input

Press these buttons (1 - 4) to select the desired input.

3 Mute

Press this button to toggle audio muting on the HDMI OUT port. The Output 1 toggle switch, in the web GUI, will also change to reflect the current muting state. Refer to A/V Settings page (page 31) for more information.

Installation

Connection Instructions

1. Connect an HD/UHD source to each of the four HDMI inputs (INPUT 1 - INPUT 4).
2. Connect an optical audio cable from the OPTICAL port to a sound bar or other audio output device.
3. Connect an Ethernet cable from the LAN port to the Local Area Network (LAN). Ethernet cables should use EIA/TIA-568B termination.

IMPORTANT: Stranded or patch cable is not recommended due to performance issues. Sheiled cables are strongly recommended to minimize signal noise and interference.

1. Connect the included four-pin captive screw connector to the RS-232 / IR IN port. Refer to RS-232 / IR Control (page 24) for more information.
2. Connect the included 5 V DC power supply to the DC 5V power receptacle.
3. Connect the power supply to an available electrical outlet.

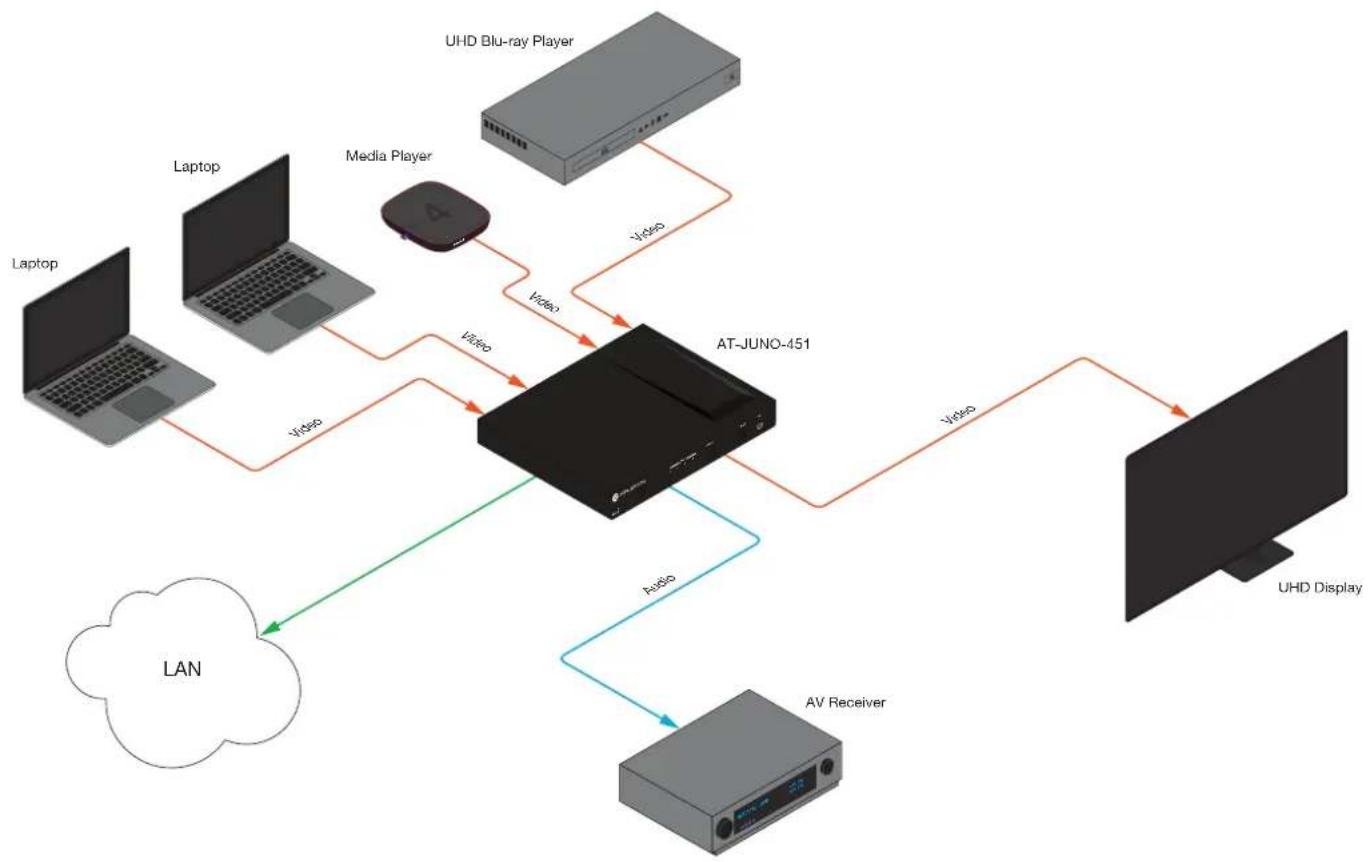

Connection Diagram

IP Configuration

The AT-JUNO-451 is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. Use an IP scanner, along with the MAC address on the back of the unit, to identify both the unit and its IP address on the network. If a static IP address is desired, the unit can be switched to static IP mode. Use one of the following procedures to switch between DHCP and static IP mode. The default static IP address of the AT-JUNO-451 is 192.168.1.254.

If the AT-JUNO-451 is unable to detect a DHCP server within 15 seconds, then the unit will set all IP settings to zero.

Setting the IP Mode

1. Make sure the AT-JUNO-451 is powered.
2. Connect an Ethernet cable between the LAN port of the AT-JUNO-451 and the Local Area Network (LAN).

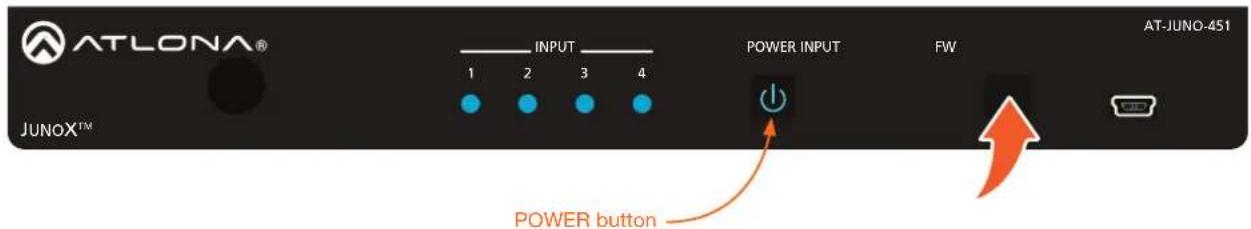

ATLONA® INPUT POWER INPUT FW JUNOX™ 1 2 3 4 POWER button AT-JUNO-451

1. Press and hold the INPUT button on the front panel for approximately 10 seconds. Release the INPUT button once the POWER button begins to flash blue and red. The number of flashes will indicate the currently selected IP mode.

POWER button flashes Description
Two Static IP mode
Four DHCP mode

Setting the IP Address Using Commands

Use the IPStatic and IPDHCP commands to switch between DHCP and IP mode through RS-232 or Telnet. Refer to API documentation for more information. All commands and their arguments are case-sensitive.

- Setting static IP mode

1. Connect to the AT-JUNO-451 using RS-232 or Telnet.
2. At the command line, execute the IPDHCP command using the off argument, as shown.
   IPDHCP off

Installation

1. Execute the IPStatic command. This command requires three arguments: the desired IP address of the AT-JUNO-451, the subnet mask, and the gateway address. All arguments must be entered in dot-decimal notation. The following is an example:

IPStatic 192.168.1.112 255.255.255.0 192.168.1.1

IP address Subnet mask Gateway

- Setting DHCP mode

1. Connect to the AT-JUNO-451 using RS-232 or Telnet.

2. At the command line, execute the IPDHCP command using the on argument, as shown. All characters are case-sensitive.

IPDHCP on

Once DHCP is enabled, the unit will be assigned an IP address by the DHCP server (if present).

Setting the IP Address using the Web GUI

The System page (page 36), in the web GUI, allows the AT-JUNO-451 to use either DHCP or static IP mode. In order to access the web GUI, the IP address of the AT-JUNO-451 must be known. Refer to Introduction to the Web GUI (page 28).

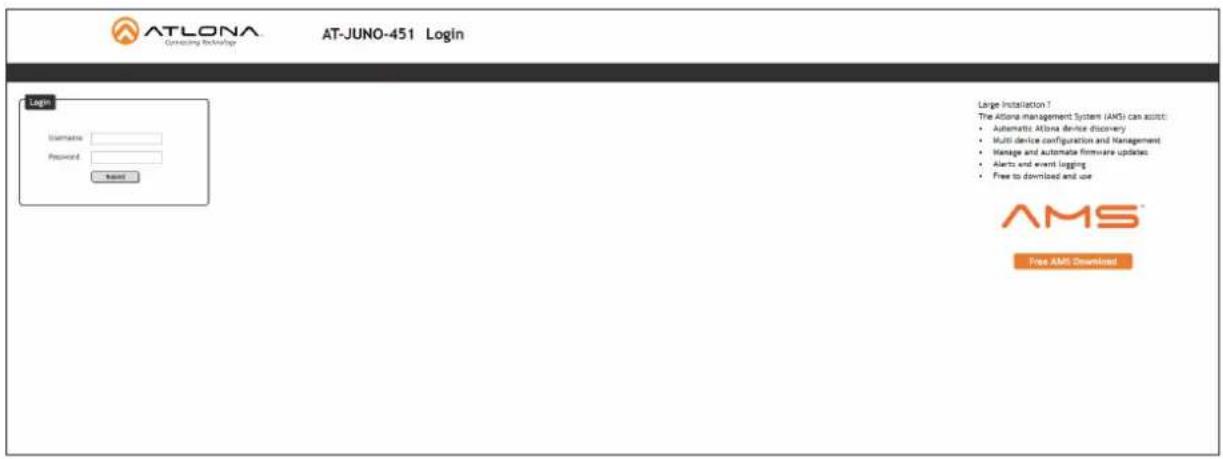

1. Open the desired web browser and enter the IP address of the AT-JUNO-451.

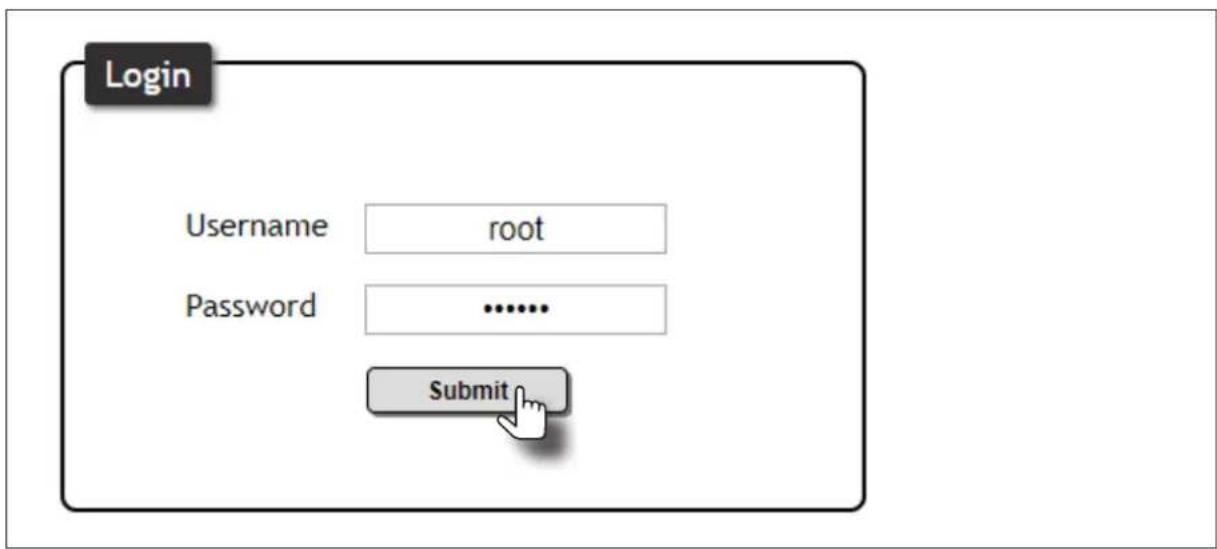

2. Log in, using the required credentials. The factory-default username and password are listed below:

Username: root

Password: Atlona

1. Click the System tab.

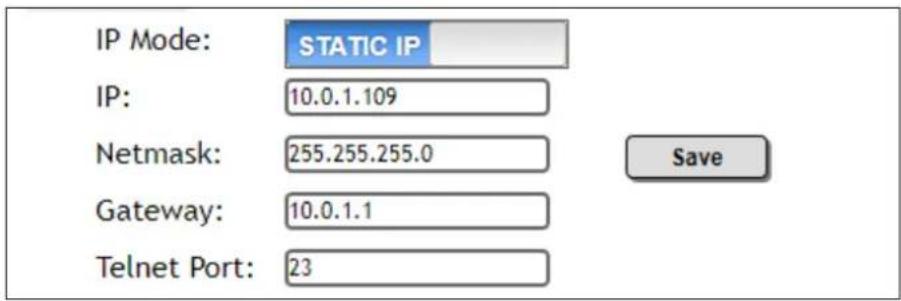

IP Mode: STATIC IP IP: 10.0.1.109 Netmask: 255.255.255.0 Gateway: 10.0.1.1 Telnet Port: 23 Save

1. Click the IP Mode toggle to switch between the DHCP and STATIC IP setting. When set to STATIC IP, the IP, Netmask, and Gateway fields can be modified.

2. Click the Save button to save the changes.

Basic Operation

LED Indicators

The LED indicators on both the front of the unit provide basic information on the current status of the AT-JUNO-451.

LED Description
POWER Blue	Unit is receiving power.
	Off Unit is not powered.	Press the POWER button to power the unit.Check the power supply and make sure it is securely fastened to the locking connector on the rear of the unit.Make sure that the power supply is connected to an available electrical outlet and that the outlet is “live” (some outlets are controlled by a wall switch).
INPUT Blue	The input is the currently selected (active) input.Off The input is not active.

Input Switching

Switching between any of the four input ports can be performed either manually or automatically. The following section covers both methods.

Manual Switching

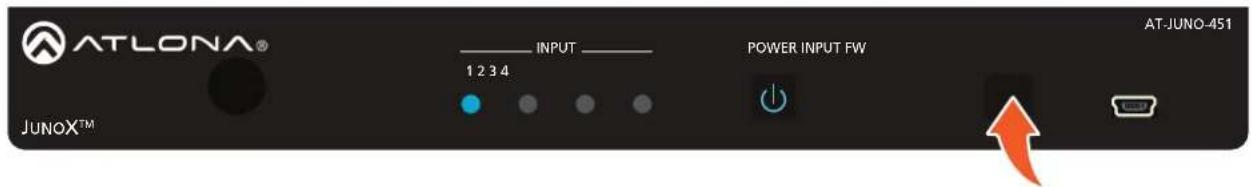

1. Press and release the INPUT button on the front panel to cycle between INPUT 1, INPUT 2, INPUT 3, and INPUT 4 HDMI inputs. The INPUT 1 is the factory-default setting.

ATLONA® INPUT POWER INPUT FW 1 2 3 4 JUNOX™ AT-JUNO-451

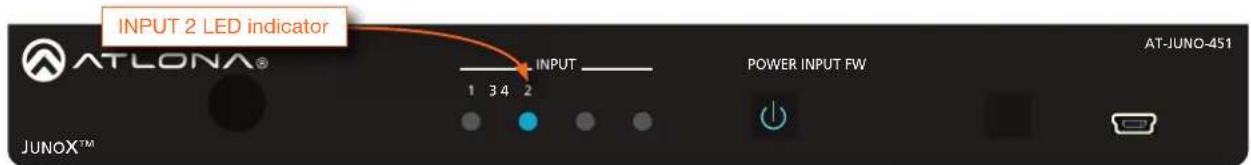

After the INPUT button is pressed, the INPUT LED indicator will advance to the next input, in sequence. In this example, INPUT 2 is the active input and is indicated by the INPUT 2 LED indicator on the front panel.

INPUT 2 LED indicator AT-LONA® INPUT POWER INPUT FW JUNOX™ 1 3 4 2 AT-JUNO-451

1. Press the INPUT button again to switch to INPUT 3. Once INPUT 4 is selected, and the INPUT button is pressed again, the unit will return to INPUT 1.

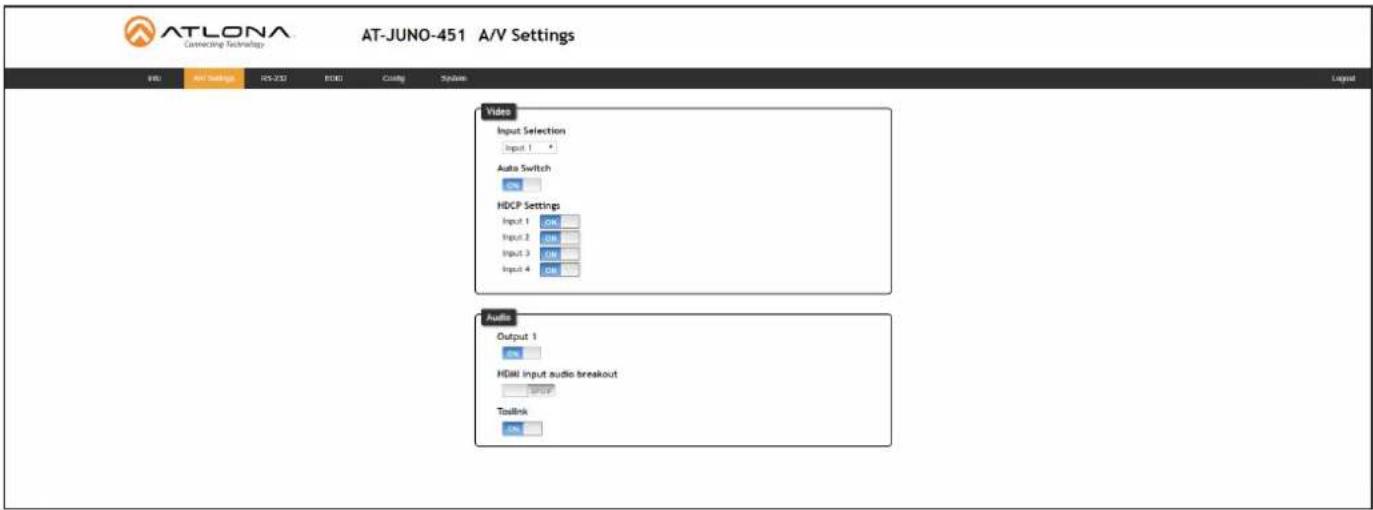

Manual input switching can also be performed under the A/V Settings page (page 31) of the web GUI, by clicking the Input Selection drop-down list and selecting the desired input. In addition, the x1AVx1 command can also be used. Refer to the Application Programmer's Interface for more information.

NOTE: The AT-JUNO-451 retains the currently selected input, even after the unit is powered-off then powered-on.

Auto Switching

Auto-switching can also be used to automatically select an input. Auto-switch is enabled by default and must be enabled for this feature to work. When auto-switching is enabled, the AT-JUNO-451 will automatically switch inputs, based on the presence of an input signal.

1. Enable auto-switching by using one of the following methods.

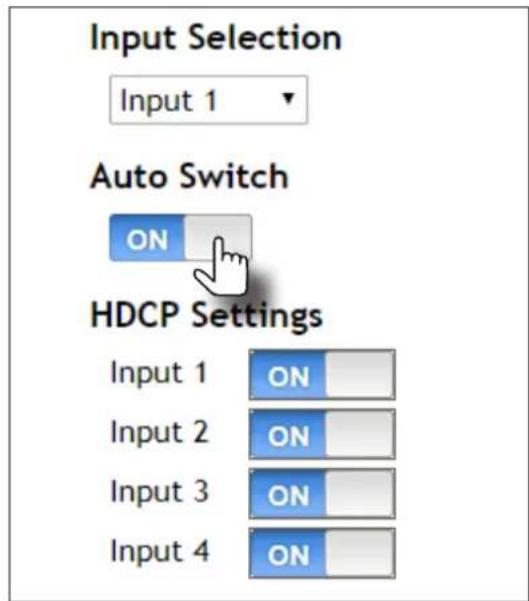

Using the web GUI

a. Login to the web GUI and access the A/V Settings page (page 31).
b. Click the Auto Switch mode toggle switch to the ON position (if not already in the ON position). This is the default setting.

Input Selection Input 1 Auto Switch ON HDCP Settings Input 1 ON Input 2 ON Input 3 ON Input 4 ON

1. Connect a source to any of the four input ports on the rear panel. The AT-JUNO-451 will automatically switch to the port with the connected source. The following rules apply to auto-switching.

2. If a source is disconnected, then the AT-JUNO-451 will fallback to a port with an active source.

3. If all sources are disconnected, then the AT-JUNO-451 will retain the port of the the last-connected source.

NOTE: The AT-JUNO-451 retains the currently selected input, even after the unit is powered-off then powered-on.

HDCP Settings

Normally, if a source is transmitting HDCP content to a display that is not HDCP-compatible, then the resulting image on the display will result in "snow", image flickering, or no picture.

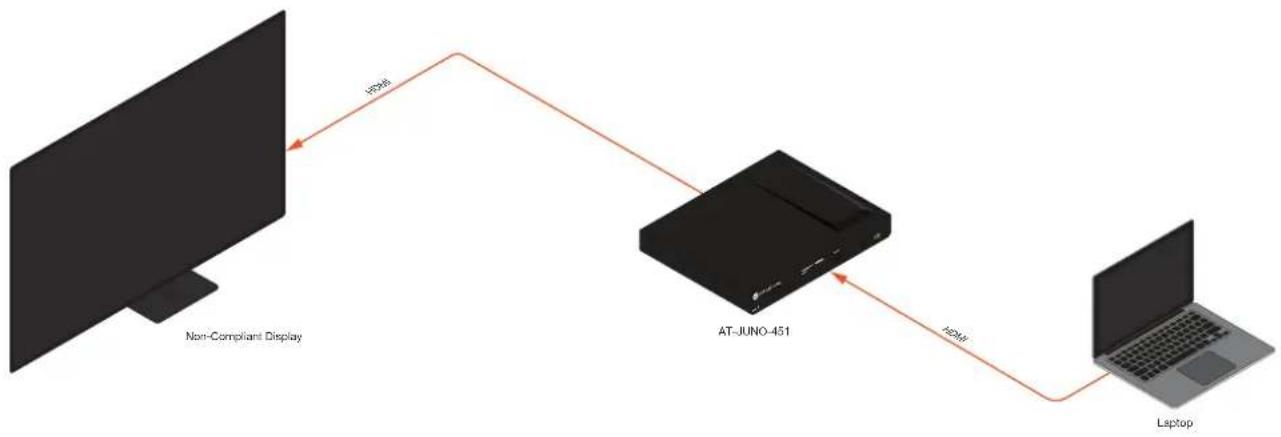

For example, in the illustration below, a laptop source is connected to the AT-JUNO-451. A non-compliant display is connected to the AT-JUNO-451 using an HDMI cable.

By default, the laptop may transmit HDCP content. However, when connected to a display that does not support HDCP, the laptop must be instructed to send non-HDCP content, in order for the content to be displayed.

1. Open the desired web browser and enter the IP address of the AT-JUNO-451.
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below:

Username: root

Password: Atlona

1. Click A/V Settings in the menu bar.
2. Click the Input 1 toggle switch, under HDCP Settings, and set it to the OFF position. This will instruct the source device to send non-HDCP content, if possible.

HDCP Settings

Input 1

Input 2

Input 3

Input 4

NOTE: Not all source devices are capable of transmitting non-HDCP content. For example, Sony PlayStation® gaming consoles and Mac® computers always transmit HDCP-encrypted content.

Controlling Audio

The AT-JUNO-451 provides complete control over audio muting for both the HDMI OUT and OPTICAL outputs.

HDMI Output Muting

1. Open the desired web browser and enter the IP address of the AT-JUNO-451.
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below:

Username: root Password: Atlona

1. Click A/V Settings in the menu bar.

2. Locate the Audio section.

3. Click the Output 1 toggle switch to the OFF position. When set to the OFF position, the audio on the HDMI OUT port will be muted. To re-enable the audio for the HDMI OUT output, set the toggle switch to the ON position.

Audio Output 1 OFF HDMI input audio breakout SPDIF Toslink ON

Optical Output Muting

1. Open the desired web browser and enter the IP address of the AT-JUNO-451.
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below:
   Username: root Password: Atlona
3. Click A/V Settings in the menu bar.

4. Locate the Audio section.

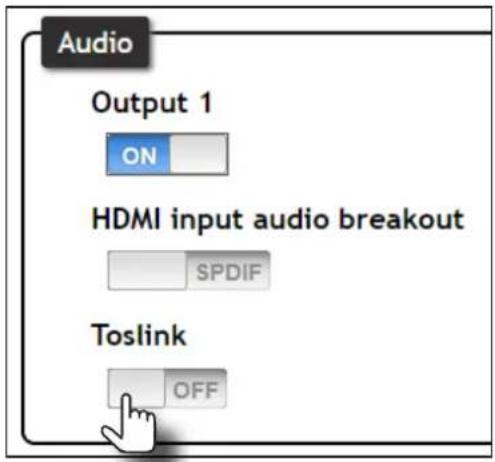

5. Click the Toslink toggle switch to the OFF position. When set to the OFF position, the audio on the OPTICAL port will be muted. To re-enable the audio for the OPTICAL output, set the toggle switch to the ON position.

Audio Output 1 ON HDMI input audio breakout SPDIF Toslink OFF

Using the Audio Return Channel (ARC)

The Audio Return Channel (ARC) allows audio to be sent upstream, from the display device, to the AT-JUNO-451 over an HDMI cable. The audio is then output over the OPTICAL port. This technique can be used to send audio from a Smart TV, using an app such as Netflix ^® , to an A/V receiver, providing a multichannel audio experience. The advantage of ARC is that no additional audio cables are required to be connected between the display and the audio output device.

The illustration below, shows an example of how the Audio Return Channel works. The dark green lines identify the audio coming from the display. The instructions on the following page will reference the diagram below.

NOTE: When ARC is enabled, the HDMI inputs will be disabled. To re-activate the HDMI inputs, ARC must be disabled.

Basic Operation

1. Connect an HDMI cable from the HDMI OUT port on the AT-JUNO-451 to the HDMI input port on the display. This cable is used to carry the audio from the display to the AT-JUNO-451.
2. Connect an optical cable from the OPTICAL OUT port on the AT-JUNO-451 to an A/V receiver. The audio from the display is output over the optical cable.
3. Open the desired web browser and enter the IP address of the AT-JUNO-451.
4. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below:

Username: root

Password: Atlona

1. Click A/V Settings in the menu bar.
2. Locate the Audio section.

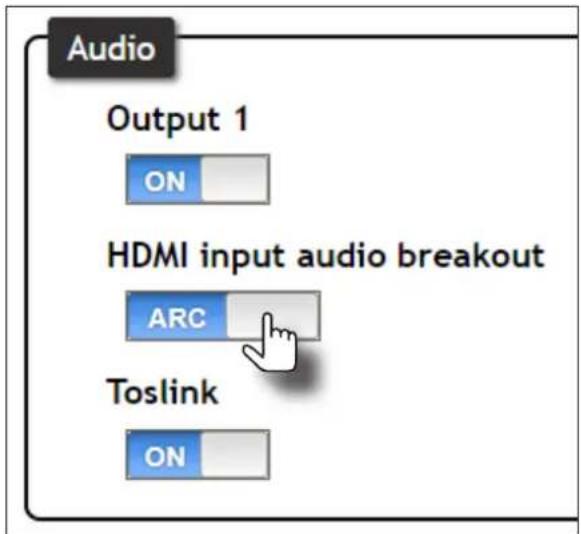

3. Click the HDMI input audio breakout toggle switch to the ARC position. The default setting is SPDIF.
4. Set both the Toslink and Output 1 toggle switches to the ON position.

Audio Output 1 ON HDMI input audio breakout ARC Toslink ON

Setting Description
SPDIF	The HDMI output audio will also be output using the OPTICAL port on the back of the unit.
ARC Audio being returned	from the display, over ARC, will be output on the OPTICAL port on the AT-JUNO-451. It should be noted that the audio is limited to formats supported by the SPDIF output, such as PCM, Dolby® Digital, and some formats of DTS. Lossless audio formats, such as Dolby TrueHD and DTS-HD Master AudioTM, are not supported by ARC or SPDIF.

1. Setup is complete. Audio from the display will now be heard over the A/V receiver. To disable ARC and hear the audio from the HDMI inputs, set the HDMI input audio breakout toggle switch to the SPDIF position.

Refer to the next page for information on how to toggle between HDMI inputs and ARC, using a control system.

Switching between ARC and HDMI inputs

Switching between HDMI inputs and ARC should be performed using a control system. The following describes the setup process.

1. Controlling the AT-JUNO-451 can be accomplished through either IP or RS-232.

2. If using RS-232, refer to RS-232 / IR Control (page 24) for more information.

3. If controlling over IP, connect an Ethernet cable from the control system to the LAN port on the AT-JUNO-451. Refer to the control system user manual for any necessary configuration details.

4. Send the AudioARC command to set the desired operation:

AudioARC ARC // enables ARC; only audio from the downstream display is output to the OPTICAL OUT port.

AudioARC SPDIF // disables ARC; HDMI inputs are enabled and the embedded HDMI audio is also output to the OPTICAL OUT port.

Refer to the AT-JUNO-451 API manual for a complete listing of commands.

Managing Users

The AT-JUNO-451 allows the admin user to create, edit, and remove additional TCP/IP users. All users have the same level of access to control the AT-JUNO-451. However, only the admin user is allowed to manage other users. Up to three additional users can be created.

Adding Users

1. Open the desired web browser and enter the IP address of the AT-JUNO-451.
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below:

Username: root

Password: Atlona

AT-LONA Connecting To Alaska AT-JUNO-451 Config Web 3.5T Settings 00:00:00 12:00:00 Control System Configuration Web & Telnet Login Settings Old Username: Old Password: New Username: New Password: Confirm New Password: All User Login Settings Username Password Link Set Add Remove Add Remove Add Remove

1. Click the Config tab.
2. Click the Add button, under the Edit column.

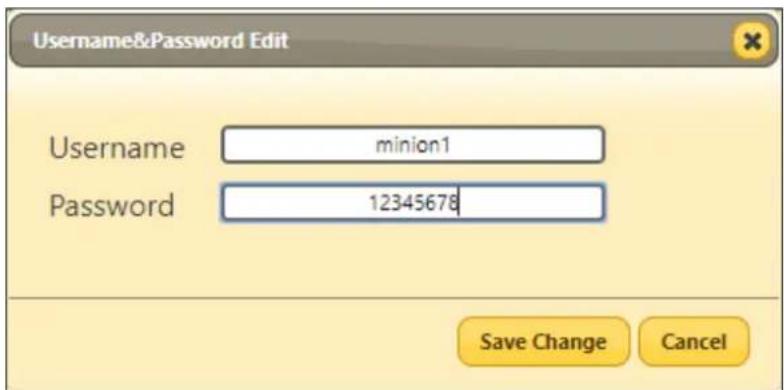

Username&Password Edit Username minion1 Password 12345678 Save Change Cancel

1. Enter the desired username and password in the Username&Password Edit dialog box.
2. Click the Save Change button to commit changes or click the Cancel button to return to the Config page without adding the user.

Once created, the new user and the associated password will appear under the All User Login Settings section. To login with the new username, click Logout in the upper-right corner of the screen, then enter the login credentials for the user on the Login page.

Editing / Deleting Users

The username and password of a user can be changed using this method.

1. Open the desired web browser and enter the IP address of the AT-JUNO-451.
2. Log in as the admin user with the required credentials. The factory-default username and password for the admin user are listed below:

Username: root

Password: Atlona

ATLONA Converting Technology AT-JUNO-451 Config Web AV Settings HID-232 LND4 System Configuration Web & Telnet Login Settings Out Username Out Password New Username New Password Cardio New Password Send All User Login Settings Sample: Received: OK Set Start: CD/076 Add Remove Add Remove Add Remove

Editing Users

a. Click Config in the menu bar.
b. Click the Edit button next to the user to be changed.
c. Enter the new information for the user in the Username&Password Edit dialog box.
d. Click the Save Change button to commit changes or click the Cancel button to return to the Config page without making changes.

Username&Password Edit Username minion2 Password 12345678 Save Change Cancel

Deleting Users

a. Click the Remove button next to the user to be deleted.

Advanced Operation

RS-232 / IR Control

The AT-JUNO-451 provides an RS-232 / IR port, allowing the unit to be managed using a control system.

RS-232 is serial data protocol that allows Data Terminal Equipment (DTE) devices, such a computer or control system, to communicate with Data Communication Equipment (DCE) devices, such as the AT-JUNO-451 or a display. Although IP control is available, RS-232 still plays an integral part of many control systems.

Although the 25-pin D-type connector (DB-25) was defined as the RS-232 standard, it is now commonly implemented in a nine-pin (DE-9) connector package. Each pin is numbered, as shown below.

DE-9 (male)

1 2 3 4 5 6 7 8 9

DE-9 (female)

5 4 3 2 1 9 8 7 6

DTE Pin Descriptions

Pin Signal Description
1 DCD	Data Carrier	Detect
2 RxD	Receive Data
3 TxD	Transmit Data
4 DTR	Data Terminal Ready
5 GND	Ground (Signal)
6 DSR	Data Set Ready
7 RTS	Request to Send
8 CTS	Clear to Send
9 RI Ring Indicator

DCE Pin Descriptions

Pin Signal Description
1	DCD	Data Carrier Detect
2	TxD	Transmit Data
3	RxD	Receive Data
4	DSR	Data Set Ready
5	GND	Ground (Signal)
6	DTR	Data Terminal Ready
7	CTS	Clear to Send
8	RTS	Ready to Send
9	RI Ring Indicator

Determining the Port Type

Most DTE devices provide a male connector, while DCE devices have a female connector. However, this is not always the case. If the port type is unknown, then a multimeter can be used to determine whether the port is DTE or DCE:

1. Turn on the multimeter and set it to measure DC voltage.
2. Connect the positive and negative leads to pins 3 and 5, respectively.
3. Check the voltage reading:

If the voltage is between -3 V DC and -15 V DC, then the device is DTE. Otherwise, it is DCE.

Voltage levels between -3 V and -15 V DC represent a logic "1". Voltage levels between +3 V and +15 V DC represent a logic "0".

-12 V Multimeter 1 2 3 4 5 6 7 8 9

Cable Assembly

When connecting a DTE device to a DCE device, a straight-through cable should be used. A straight-through cable is wired in such a way that the pins on one side of the cable are connected to the corresponding pins on the opposite side of the cable, as shown in the table below. However, the AT-JUNO-451 will use only TxD, RxD, and GND signals when communicating with a control system or computer.

Straight-Through Cable

Pin Signal Signal Pin
1 DCD DCD 1
2 RxD TxD 2
3 TxD RxD 3
4 DTR DSR 4
5 GND GND	5
6 DSR		DTR 6
7	RTS		CTS	7
8	CTS		RTS	8
9 RI		RI	9

1. Identify the DE-9 connector that will be attached to the control system or computer (DCE) equipment.
2. Remove the DE-9 connector at the opposite end of the cable with wire cutters.
3. Remove at least 1" of the cable insulation to expose each of the nine wires.
4. Locate a multimeter and set it to the "continuity" function.
5. Attach one of the leads from the multimeter to pin 2 on the DE-9 connector.
6. Take the other lead and probe each of the wires on the opposite end of the cable. When the wire connected to that pin is detected, the multimeter will emit an audible tone. Once this occurs, identify the current wire, and move it to the side.
7. Repeat step 6 for pin 3 and pin 5 on the DE-9 connector.
8. Group the remaining wires and pull them aside. Electrical tape can be use to secure the wires to the outside of the RS-232 cable.
9. Remove at least 3/16" (5 mm) of insulation from the TxD, RxD, and GND wires.

DMI OUT OPTICAL RS-232 IR IN RX TX ÷ 5 LAN DC 5V AT-JUNO-451

Is by GND TXD RxD

1. Locate the included 4-pin captive screw block and open each of the terminals by turning the screws counter-clockwise, using a small regular screwdriver.
2. Insert the TxD, RxD, and GND wires into correct terminal, as shown, and tighten the screws to secure each wire. Do not overtighten.
3. Connect the captive screw connector to the RS-232 / IR IN port on the AT-JUNO-451.

Configuration

1. Launch a web browser and login to the web GUI. Refer to Introduction to the Web GUI (page 28) for more information. The factory-default username and password are listed below:

Username: root

Password: Atlona

1. Click RS-232 in the menu bar.

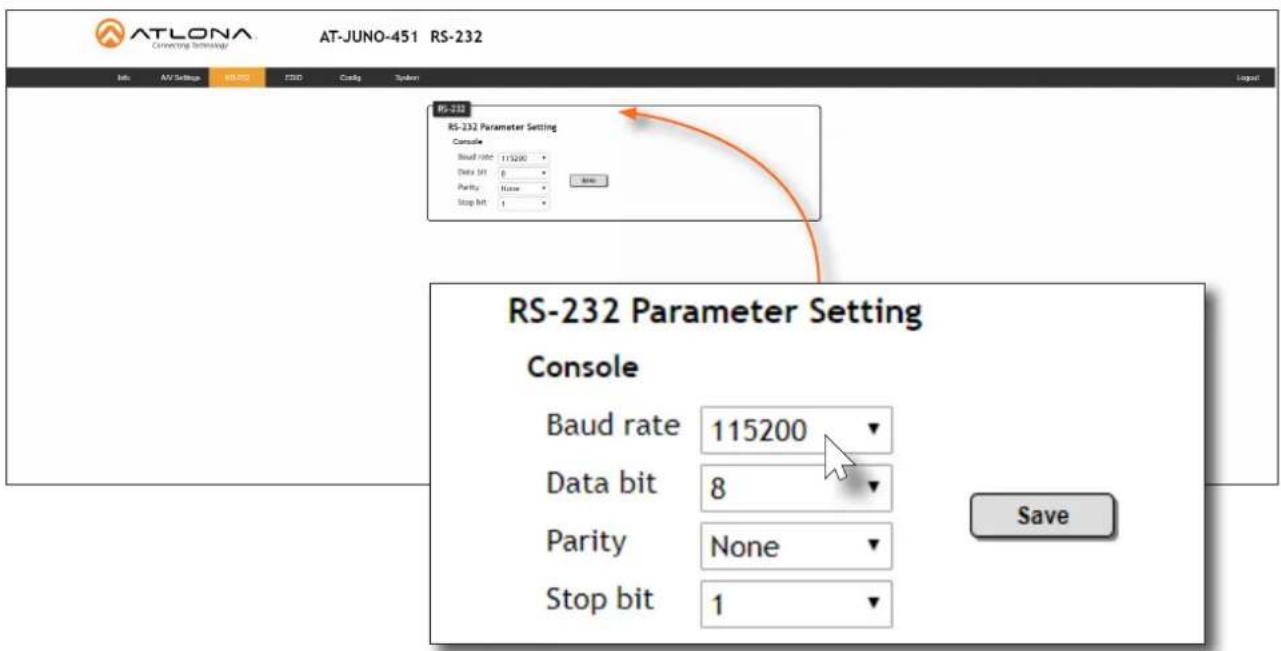

2. Select the proper baud rate, data bit, parity, and stop bit settings. These settings must correspond with the control system RS-232 settings.

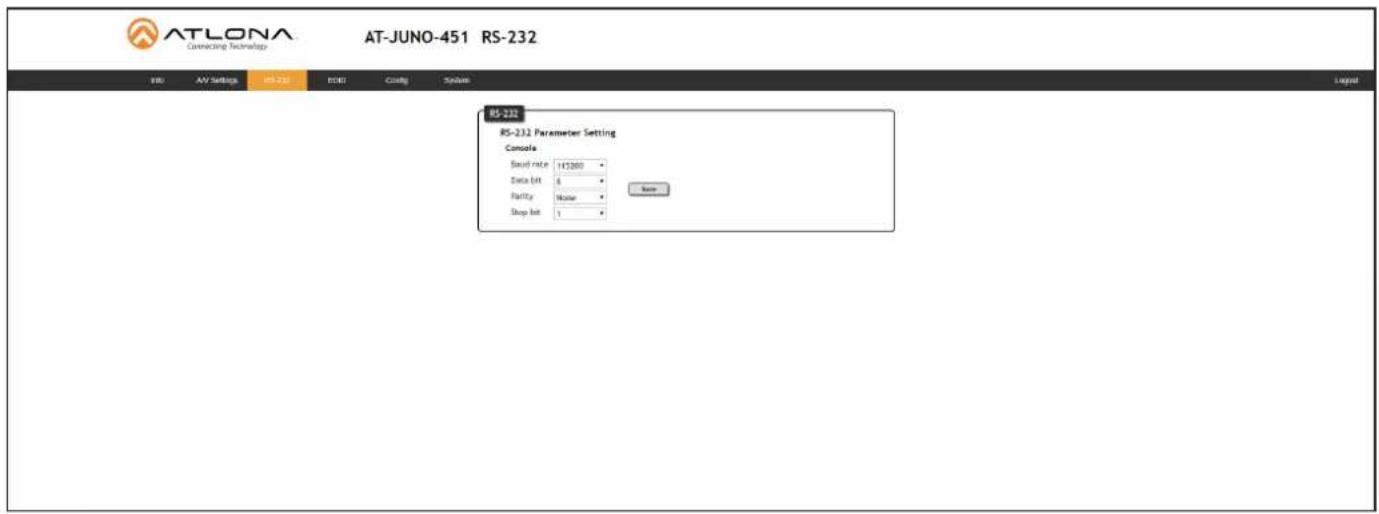

ATLONA Connecting Settings AT-JUNO-451 RS-232 Info AV Settings BIOS FSSD Config System RS-232 RS-232 Parameter Setting Console Baud rate 115200 Data bit 0 Parity None Stop bit 1 RS-232 Parameter Setting Console Baud rate 115200 Data bit 8 Parity None Stop bit 1 Save RS-232 Parameter Setting Console Baud rate 115200 Data bit 8 Parity None Stop bit 1

1. Click the Save button to commit changes.

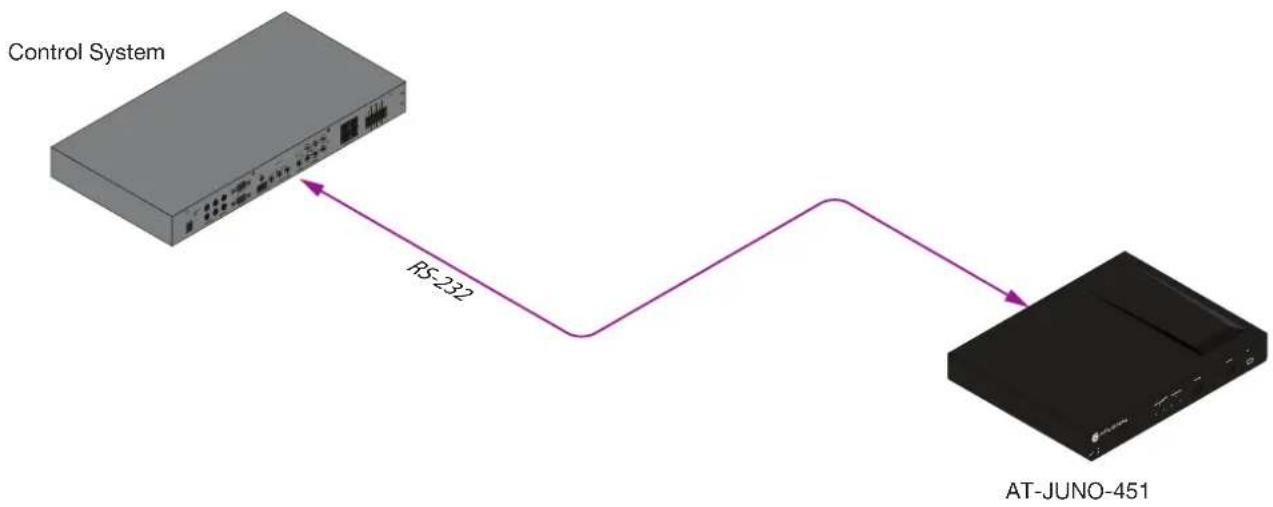


IR Control

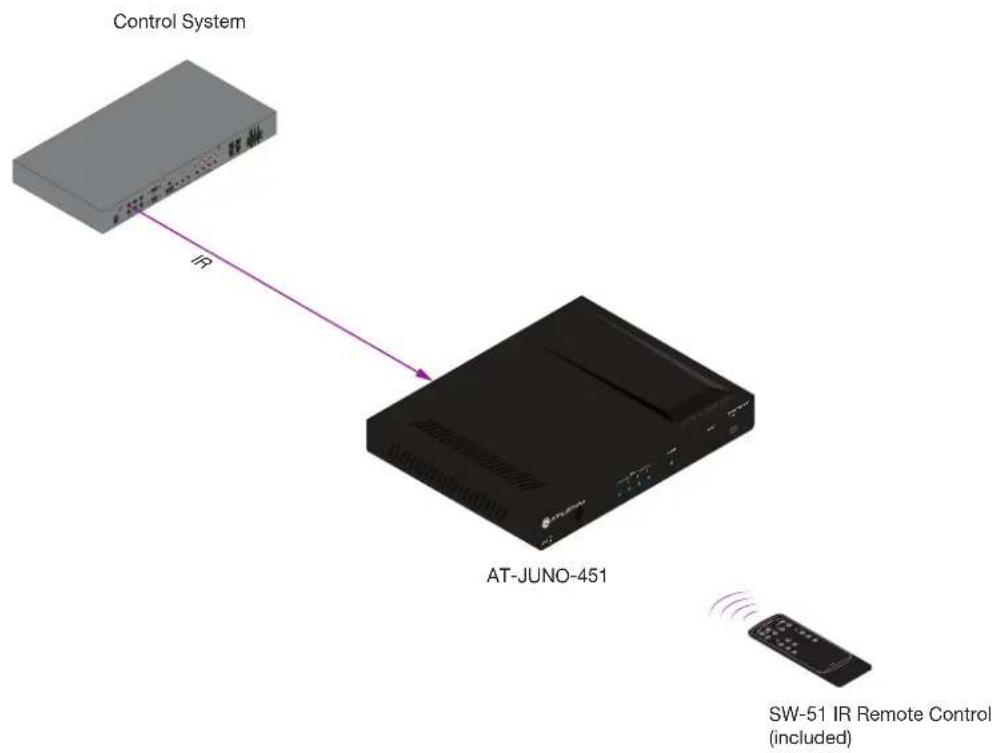

The illustration below, shows an example of how electrical IR, from either a control system or using the included IR remote, can be used to control the AT-JUNO-451.

To use electrical IR from a control system, the IR commands from the included remote must be "learned".

The AT-JUNO-451 only supports IR codes from the included IR remote control unit. Third-party IR remotes are not supported.

1. Remove at least 3/16" (5 mm) of insulation from the GND and S wires.
2. Locate the included 4-pin captive screw block and open each of the terminals by turning the screws counterclockwise, using a small regular screwdriver.
3. Insert the GND and S wires into correct terminal, as shown, and tighten the screws to secure each wire. Do not overtighten.
4. Connect the captive screw connector to the RS-232 / IR IN port on the AT-JUNO-451.
5. Connect the GND and S wires to the control system or to the AT-VCC-IR-KIT.

AT-JUNO-451 RX TX S÷ IR IN LANOPTICAL RD25V DMI OUT

Green 3D connector pin with three pins and two black wires labeled S and GND (no text or symbols on the component itself)

The Web GUI

Introduction to the Web GUI

The AT-JUNO-451 includes a built-in web GUI. Atlona recommends that the web GUI be used to set up the AT-JUNO-451, as it provides intuitive management of all features.

The AT-JUNO-451 is shipped with DHCP enabled. Once connected to a network, the DHCP server will automatically assign an IP address to the unit. Use an IP scanner to determine the IP address of the AT-JUNO-451. If a static IP address is desired, refer to IP Configuration (page 12). The default static IP address of the AT-JUNO-451 is 192.168.1.254.

1. Launch a web browser.
2. In the address bar, type the IP address of the AT-JUNO-451.
3. The Login page will be displayed.

ATLONA Consulting Technology AT-JUNO-451 Login Login Username: Password: Reset Large Installation ? The Altona management System (AltS) can assist: • Automatic Altona device discovery • Multi device configuration and Management • Manage and automate firmware updates • Alerts and event logging • Free to download and use AMS Free AMI Download

1. Type root, using lower-case characters, in the Username field.
2. Type Atlona in the Password field. This is the default password. The password field is case-sensitive. When the password is entered, it will be masked. The password can be changed, if desired. Refer to the Config page (page 35) for more information.
3. Click the Submit button or press the ENTER key on the keyboard.

Login Username root Password .......... Submit

1. The Info page will be displayed.

ATLONA ITJ-KUNO-451 Info System info Model Name: AT-JUNO-451 Software Version: 1.2.01 On-Timach-mg: 8/52 Video info Active Input: Input 1 Signal Type: Unknown Video Format: Unknown Aspect: Color Space: Color Depth:

1. Click Logout, on the far-right side of the menu bar, to log out of the web GUI and return to the Login page.

Menu Bar

The dark-colored bar, near the top of the screen, is the menu bar. When the mouse is moved over each menu element, it will be highlighted in light orange. Once the desired menu element is highlighted, click the left mouse button to access the settings within the menu.

In this example, moving the mouse over the A/V Settings menu item will highlight it. Click the A/V Settings menu item to display the A/V Settings page.

ATLONA Streaming Technology AT-JUNO-451 Info Info Alt Settings Alt+2 ESD Ctrl+ System System Info Material Name: AT-JUNO-451 Software Version: 1.2 GB Co-Touch-PS: 0.038 Video Info Active Input: Input 1 Signal Type: Unknowns Video Format: Unknowns Aspect: - Color Space: - Color Depth: - Menu bar Info A/V Settings RS-232 EDID Config System

Info page

ATLONA Connecting Technology AT-JUNO-451 Info AV Settings AT-232 ETSI Coding System System Info Model Name: AT-JUNO-451 Software Version: 1.2.01 On-Through-m: 0.52 Video Info Active Input: Input 1 Signal Type: Unknown Video Format: Unknown Aspect: — Color Space: — Color Depth: —

Model Name

The model SKU of this product.

Software Version

The version of firmware that the AT-JUNO-451 is running. Always make sure to check the AT-JUNO-451 product page, on the Atlona web site, for the latest version of firmware.

On-Time (h-m)

The time elapsed since the unit was last powered-on. Turning the unit "off", using the PWOFF command, will not reset this field.

Active Input

The currently selected input. The active input can be changed under the A/V Settings page (page 31) or by pressing and releasing the INPUT button on the front panel.

Signal Type

Displays the input resolution of the source device.

Video Format

Displays the video format.

Aspect

Displays the aspect ratio of the input video source.

Color Space

Displays the color space of the input video source.

Color Depth

Displays the color depth of the input video source.

A/V Settings page

AT-LONA Connecting Technology AT-JUNO-451 A/V Settings BID AV Settings RS-233 EICU Config Systems Video Input Selection Input 1 Auto Switch HDCP Settings Input 1 Input 2 Input 3 Input 4 Audio Output 1 HDMI input audio breakout Tollink

Video

Input Selection

Click this drop-down list to select the desired input.

Setting Port
Input 1 INPUT 1 (HDBaseT)
Input 2 INPUT 2
Input 3 INPUT 3
Input 4 INPUT 4

Auto Switch

Set the Auto Switch mode toggle to ON to enable auto-switching. When auto-switching is enabled, the switcher will automatically switch to the previous input, if a signal loss is detected on the current input. If a new source is connected, the AT-JUNO-451 will automatically switch to that input. The default setting is ON.

HDCP Settings

Sets the HDCP reporting mode of the specified HDMI port: Input 1 = INPUT 1 (HDBaseT), Input 2 = INPUT 2, Input 3 = INPUT 3, Input 4 = INPUT 4. Some devices will transmit HDCP content if an HDCP-compliant display/sink is detected. Setting this value to OFF, will instruct the source to send non-HDCP content (if possible) to non-HDCP display and/or sink devices. Note that setting this value to OFF will not decrypt HDCP content.

Setting Description

ON HDCP content is always transmitted by the source

OFF Instructs the source to send non-HDCP content, if possible

Audio

Output 1

Toggles audio muting on the HDMI OUT port. Set the Output toggle to OFF to disable HDMI audio on the output. The default setting is ON.

HDMI Input audio breakout

Sets the audio source used by the OPTICAL port on the unit. The default setting is SPDIF.

Setting Description
SPDIF	The HDMI output audio will also be output using the OPTICAL port on the back of the unit.
ARC Audio being returned	from the display, over ARC, will be output on the OPTICAL port on the AT-JUNO-451. It should be noted that the audio is limited to formats supported by the SPDIF output, such as PCM, Dolby® Digital, and some formats of DTS. Lossless audio formats, such as Dolby TrueHD and DTS-HD Master AudioTM, are not supported by ARC or SPDIF.

Toslink

Click this toggle to enable or disable the OPTICAL port on the back panel. By default, this option is set to OFF (disabled).

RS-232 page

ATLONA Connecting Technology AT-JUN0-451 RS-232 RS-232 RS-232 Parameter Setting Console Band rate 113200 Data bit 6 Parity None Stop bit 1 Save

RS-232 Parameter Setting

Click each of these drop-down boxes to select the desired baud rate, data bits, parity bit, and stop bit.

Setting Description

Baud rate Sets the baud rate. The following options are available: 2400, 9600, 19200, 38400, 56000, 57600, 115200.

Data bit Sets the number of data bits used to represent each character of data. The following options are available: 7 or 8.

Parity Sets the parity bit, which can be included with each character to detect errors during the transmission of data. The following options are available: None, Odd, or Even.

Stop bit Sets the stop bit. Stop bits are sent at the end of each character, allowing the client to detect the end of a character stream. The following options are available: 1 or 2.

EDID page

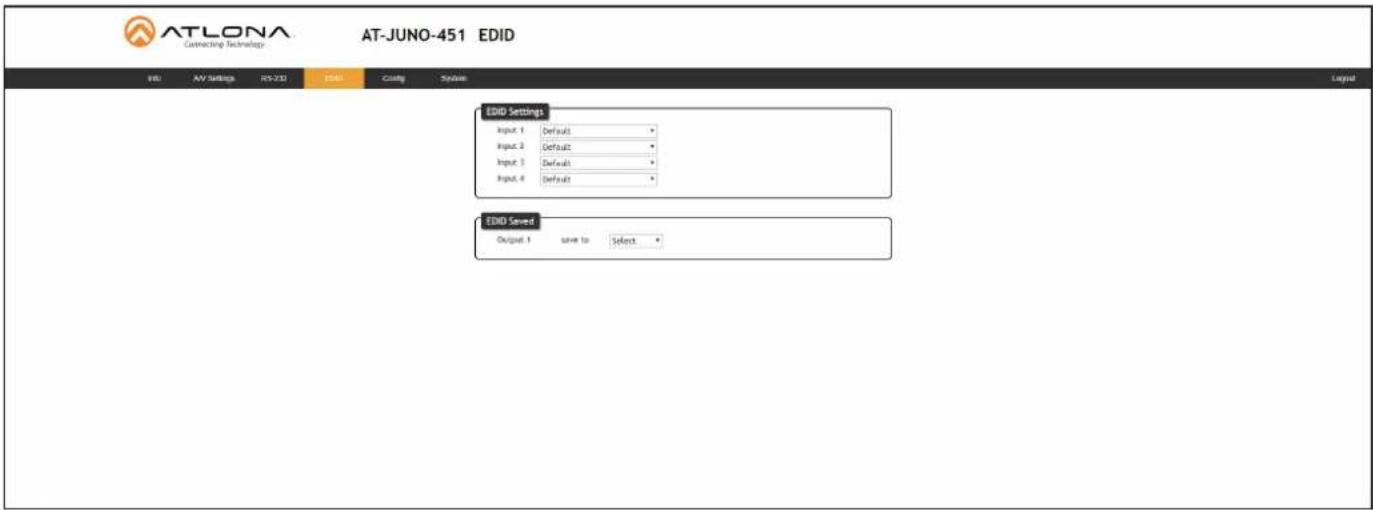

ATLONA Connecting Technology AT-JUNO-451 EDID EDID Settings Input 1 Default * Input 2 Default * Input 3 Default * Input 4 Default * EDID Saved Output 1 save to Select *

EDID Settings

Click these drop-down lists to select the desired EDID to be used for each input. Input 1 = INPUT 1, Input 2 = INPUT 2, Input 3 = INPUT 3, Input 4 = INPUT 4. The source device will use the information in the EDID, before sending A/V data to the sink device.

EDID listing
Default 1280x800 DVI
1080P 2CH 1920x1200 DVI
1080P MCH 3840x2160@60 4:2:0 2CH
1080P DD 3840x2160@60 4:2:0 MCH
1080P 3D 2CH 3840x2160@30 4:4:4 2CH
1080P 3D MCH 3840x2160@30 4:4:4 MCH
1080P 3D DD 4096x2160@60 4:2:0 2CH
720P 2CH 4096x2160@60 4:2:0 MCH
720P DD 3840x2160@60 4:4:4 2CH
1280x800 2CH 3840x2160@60 4:4:4 MCH
1366x768 2CH 4K 60 4:2:0 HDR 2CH
1080P DVI 4K 60 4:2:0 HDR multichannel audio (HD lossless)

EDID Saved

Click this drop-down list to select the memory location to save the downstream EDID. Eight memory locations are available. Once an EDID is saved to a memory location, it can be access from the EDID Settings drop-down lists.

Config page

ATLONA Connecting Technology AT-JUNO-451 Config IRD AV Settings RS-230 EOG Code Systems Configuration Web & Ticket Login Settings Old Username: Next Old Password: New Username: Next Save New Password: Confins New Password: All User Login Settings Username Required Edit Use Add Remove Add Remove Add Remove

Old Username

This field cannot be changed. "root" is the administrator user.

Old Password

Enter the current password for the "root" username in this field. The default password is "Atlona".

New Username

This field cannot be changed.

Save

Click this button to save all changes.

New Password

Enter the new password for the "root" username in this field.

Confirm New Password

Verify the new password by retyping it in this field.

All User Login Settings

- Username

Displays the username.

- Password

Displays the password for the associated username.

- Edit

Click the Add button, in this column, to edit the username and password in the row.

• Del

Click the Remove button to delete the user in the row. This button will only be available if both a username and password have been created.

System page

ATLONA Connecting Technology AT-JUNO-451 System IPD AV Settings RS-233 EROI Cutsig System Network IP Mode: UNDP IP: 10.7.196 Network: 201.203.2053 Gateway: 10.7.196 Wireless Port: 0 Send Telnet Login Mode TCP Telnet Timeout 120 Broadcast System Power File Lock UNLOCK Reset to Default Preparing Default Firmware Update Choose File, No No dream Update

Network

IP Mode

Click this toggle to set the IP mode of the AT-JUNO-451. The default setting is DHCP. Available settings: STATIC IP, DHCP.

IP

Enter the IP address of the AT-JUNO-451 in this field. This field will only be available if IP Mode is set to STATIC IP. The default IP address is 192.168.1.254.

Netmask

Enter the subnet mask in this field. This field will only be available if IP Mode is set to STATIC IP.

Gateway

Enter the gateway (router) address in this field. This field will only be available if IP Mode is set to STATIC IP.

Telnet Port

Enter the Telnet listening port in this field.

Telnet Login Mode

Click this toggle to set the login mode to either ON or OFF. If this feature is set to ON, then the AT-JUNO-451 will prompt for both the username and password at the start of a Telnet session. Use the same credentials as the web GUI.

Telnet Timeout

Click this drop-down list to select the timeout interval, in seconds, before the Telnet connection is automatically closed after no activity. Range: 1 to 3600 (seconds).

Broadcast

By default, broadcast mode is set to ON. When set to ON, any system changes will be announced over TCP/IP connections. To separate control between the web GUI and Telnet, set this feature to OFF. Read queries, such as IPCFG and Type commands, are not announced and will only return information to the requester.

System

Power

Under normal operation conditions, this toggle is set to ON. Click this toggle to OFF, to turn the AT-JUNO-451 "off". When "off", the POWER LED indicator on the front panel will turn red. The PWOFF and PWON commands can also be used to control the power state.

Reset to Default

Click the Factory Default button to set the AT-JUNO-451 to factory-default settings.

Firmware Update

Click the Choose File button to select the firmware file, when upgrading the firmware on the AT-JUNO-451. Once the firmware file is selected, click the Update button. Refer to Updating the Firmware (page 38) for more information.

Appendix

Updating the Firmware

Updating the firmware can be completed using either the USB interface or the web GUI. Atlona recommends using the web GUI for updating the firmware. However, if a network connection is not available, the AT-JUNO-451 firmware can be updated using a USB-A to USB mini-B cable.

Using the Web GUI

Requirements:

• AT-JUNO-451

• Firmware file
  • Computer running Microsoft Windows

• Connect an Ethernet cable from the computer, containing the firmware, to the same network where the AT-JUNO-451 is connected.

• Go to the System page (page 36) in the web GUI.

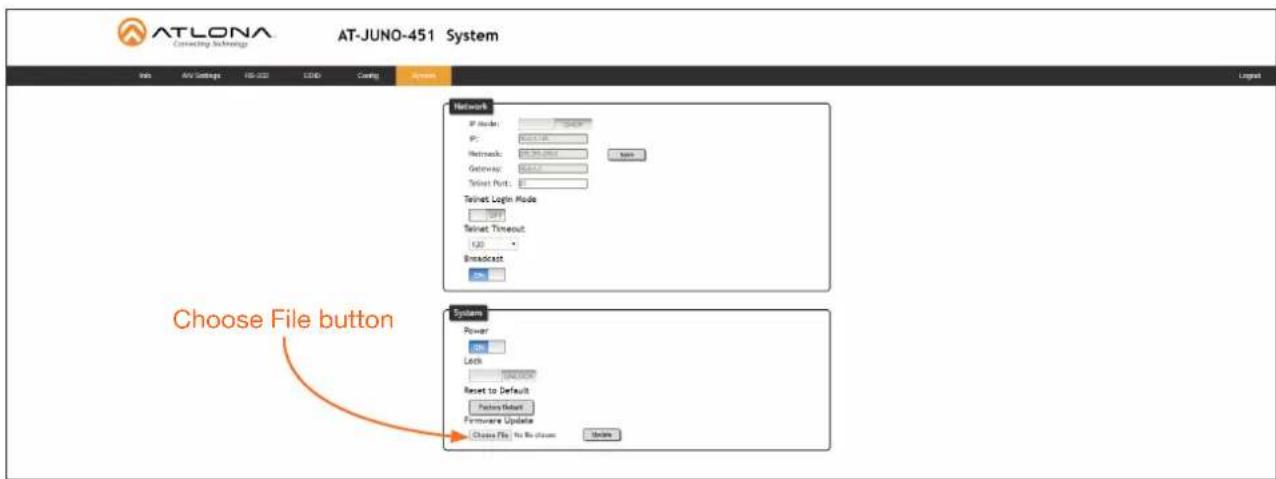

AT-LONA Connecting to Settings AT-JUNO-451 System Info AV Settings HS-232 SSD Config Network Network IP Mode: 70000000 IP: 60000000 Network: 90000000 Gateway: 90000000 Timeout Port: 0 Timeout Login Mode Timeout Timeout 1.20 Broadcast OK System Power ON Lock 100000000 Reset to Default Packing Reset Hardware Update Choose File, No Be Shown Next

1. Click the Choose File button, under Firmware Update.
2. Browse to the location of the firmware file, select it, and click the Open button.
3. Click the Update button to begin the update process.
4. The following message box will be displayed.

10.0.1.107 says: Are you Sure want to update Firmware? OK Cancel

1. Click the OK button to begin the firmware update process. Click the Cancel button to cancel the process.
2. After the firmware update process is complete, the Login screen will be displayed.

Using USB

Requirements:

• AT-JUNO-451

• Firmware file
  • Computer running Microsoft Windows
  • USB-A to USB mini-B cable

• Disconnect power from the AT-JUNO-451.

• Press and hold the INPUT button while connecting power to the AT-JUNO-451.
• Release the INPUT button. The POWER button will glow solid red, indicating that the AT-JUNO-451 is in update mode.
• Connect the USB-A to USB mini-B cable between the PC and the firmware port on the AT-JUNO-451. The unit will be powered by the USB cable.
• The USB UPDATE folder will be displayed.

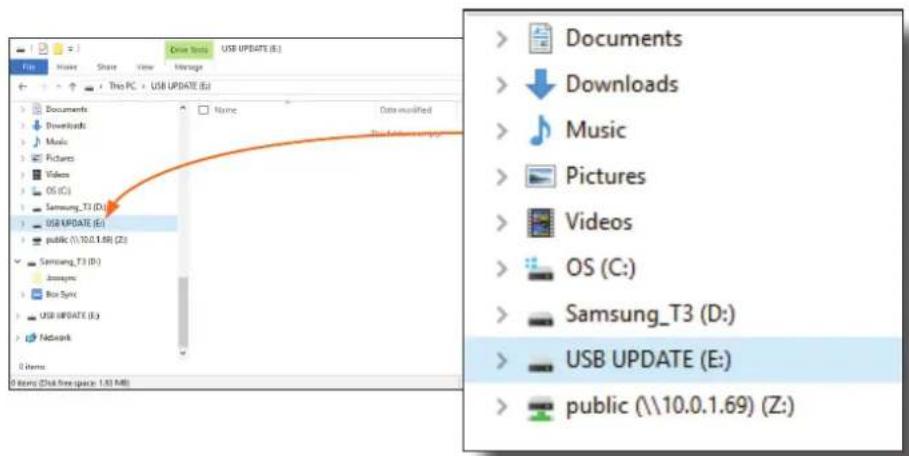

If this folder is not displayed, automatically, select the USB UPDATE drive from Windows Explorer.

Screenshot of a file explorer window showing USB updates with folder navigation and file list including Documents, Downloads, Music, Pictures, Videos, OS, Samsung_T3, and USB UPDATE files.

1. Delete all files from the USB UPDATE drive, if any are present.
2. Drag-and-drop the firmware file to the drive. During the firmware update procedure, the POWER button will flash.
3. After the file has been copied, disconnect the USB cable from both the computer and the AT-JUNO-451.
4. The firmware update process is complete.

Default Settings

The following tables list the factory-default settings for the AT-JUNO-451.

Feature Settings
A/V Settings Video
	Input Selection	Input 1
	Auto Switch	ON
	HDCP Settings
	Input 1	ON
	Input 2	ON
	Input 3	ON
	Input 4	ON
	Audio
	Output 1	ON
	HDMI input audio breakout	SPDIF
	Toslink	ON
RS-232 Baud rate		115200
	Data bit	8
	Parity	None
	Stop bit	1
EDID EDID Settings
	Input 1	Default
	Input 2	Default
	Input 3	Default
	Input 4	Default
	EDID Saved
	Output 1	---
Config Username (default)		root
	Password (default)	Atlona
System Network
	IP Mode	DHCP
	Static IP Address (default)	192.168.1.254
	Netmask	255.255.0.0
	Gateway	192.168.1.1
	Telnet Port	23
	Telnet Login Mode	OFF
	Telnet Timeout	120
	Broadcast	ON
	System
	Power	ON
	Lock	UNLOCK

Specifications

Connectors, Controls, and Indicators
INPUT 4 - Type-A, 19-pin female
OUTPUT 1 - Type A, 19-pin female
OPTICAL 1 - TOSLINKTM
RS-232 / IR 1 - 5-pin captive screw
LAN 1 - RJ45
DC 5V 1 - Barrel connector, 5.5 mm, locking
FW 1 - Type mini-B, 5-pin female
INPUT button 1 - momentary, tact-type
POWER button 1 - momentary, tact-type, backlit power LED
Input Indicators 4 - LED, blue
IR window 1 - Round, front panel

Video
UHD/HD/SD	4096×2160@24/25/30/50/60Hz, 3840×2160@24/25/30/50/60Hz, 2048×1080p, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
VESA 2560×2048, 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1600×900, 1440×900,1400×1050, 1366×768, 1360×768, 1280×1024, 1280×800 1280×768, 1152×768, 1024×768, 800×600,640×480
Color Space YUV, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0*
Color Depth	8-bit, 10-bit, 12-bit
HDR	HDR10 and Dolby® VisionTM @ 60 Hz

Audio
HDMI IN / HDBaseT IN	PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS® 5.1, Dolby Digital PlusTM, Dolby TrueHD, DTS-HD Master AudioTM, Dolby Atmos®, DTS:X
Sample Rate	32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate	24-bit (max.)

Resolution / Distance	4K - Feet	4K - Meters	1080p - Feet	1080p - Meters
HDMI IN/OUT	15	5	30	10

Signal
Maximum TMDS Clock	600 MHz
HDBaseT	18 Gbps
HDMI	2.0
USB	2.0
HDCP	2.2
CEC	1.4

*4096x2160@50/60Hz and 3840x2160@50/60Hz supports 8-bit 4:2:0 chroma subsampling, only.

Appendix

Temperature Fahrenheit Celsius
Operating 32° to 122° 0° to 50°
Storage -4° to 140° -20° to 60°
Humidity (RH) 20% to 90%, non-condensing
Power
Consumption 6.6 W
Idle Consumption 5.9 W
Supply Input: 100 - 240 V AC, 50/60 Hz, Output: 5 V DC
Dimensions Inches Millimeters
H x W x D 1.0 x 8.6 x 5.9 26 x 219 x 152
Weight Pounds	Kilograms
Device	1.82	0.82
Certification
Device	CE, FCC
Power Supply CE, FCC, Level VI, RoHS, cULus, RCM, CCC

Index

A

Audio

Audio Return Channel (ARC) 19

HDMI output 18

muting 18,32

optical output 18

switching 18

C

Configuration

IP. See IP configuration

Connection

diagram 11

instructions 11

Contents

package 8

Customer support 3

D

Default settings 40

Description

front / rear panel 9

E

EDID

presets 34

saving 34

F

FCC statement 6

Features 8

Firmware

updating

using the web GUI 38

using USB 39

H

HDCP

control 17

|

Input

selecting 31

Input switching

automatic 16

manual 15

Installation 11

IP configuration 12, 36

O

Operating notes 3

P

Panel descriptions 9

Password

default 28

R

RS-232

cable assembly 25

settings 33

S

Safety information 6

Settings

auto-switching 31

HDCP 31

Specifications 41

Switching

auto 16

manual 15

U

Updating firmware 38, 39

Users

adding 22

deleting 23

editing 23

W

Warranty 4

Web GUI 28
