USER MANUAL AT-HDDA-2 Atlona

Atlona 1 by 2 HDMI Distribution Amplifier

AT-HDDA-2

ATLONA® FIRMWARE POWER SYNC OUT 1 OUT 2 INT LEARN EDID

AT-HDDA-2 1 2 HDMI IN HDMI OUT DC 5V

User Manual

Table of Contents

1. Introduction 3
2. Package Contents 3
3. Features
4. Panel Descriptions
   a. Front Panel 3
   b. Rear Panel 4
5. EDID 4
6. Connection and Installation 5
7. Specifications 6
8. Safety Information 7
9. Warranty 8
10. Atlona Product Registration 9

With 4Kx2K pass through the Atlona 1 by 2 HDMI Distribution Amplifier offers a high definition solution for multi display installations. Field upgradable, with a built in USB port, ensures seamless firmware updating. With EDID learning mode, the HDDA provides a solution for incompatibilities and intermittent signals.

Package Contents

• 1 x AT-HDDA-2
• 1 x DC 5V/3A captive screw power adaptor
• 1 x Captive screw female connector (2 pin : Power)
• 1 x Pair of wall mount ears
• 1 x User manual

Features

• Transmits source signal to multiple displays simultaneously
• Built in EDID management to ensure compatibility
- 4Kx2K pass through
- Using additional HDDAs, cascade the source signal up to 8 times at 4Kx2K*
- Lossy and lossless audio formats pass through (up to Dolby TrueHD® and DTS-HD Master Audio™)
• Full 3D pass through
• Field serviceable USB firmware port for quick and easy updating
• LED signal lights to verify status for input and outputs
- HDCP compliant

Panel Description

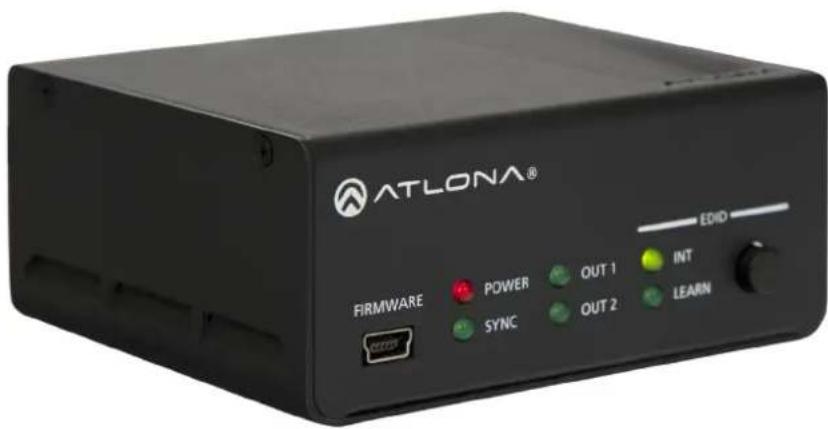

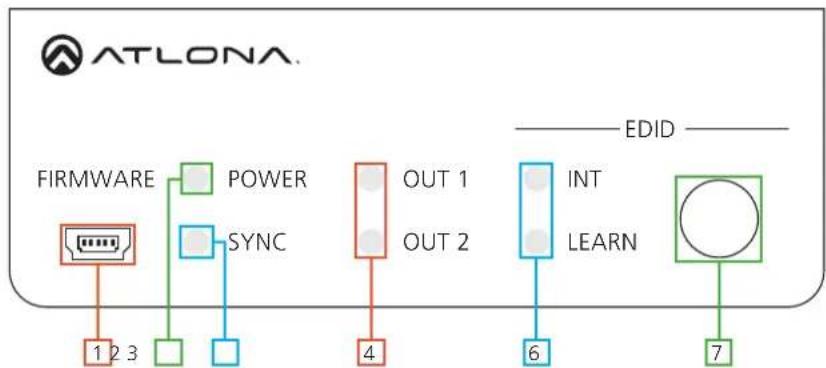

Front Panel

1. Firmware port: Mini USB port used for firmware updating
2. Power LED: Will light up when the distribution amplifier receives power
3. Sync LED: Illuminates when receiving signal from the source
4. Out LED: Each LED will illuminate for the corresponding connected displays
5. EDID LEDs: LED will illuminate to indicated the current EDID mode
6. EDID button: Press to select between EDID modes

*8 times cascading only occurs when used with other HDDA-2s or HDDA-4s - 4 times cascading with HDDA-8s

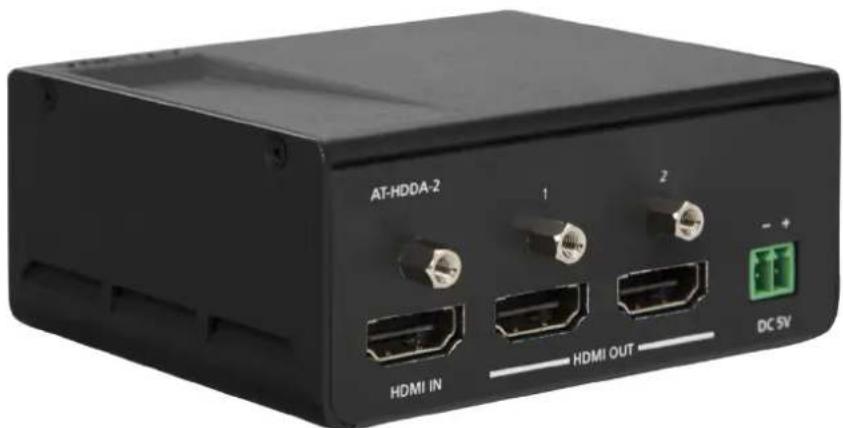

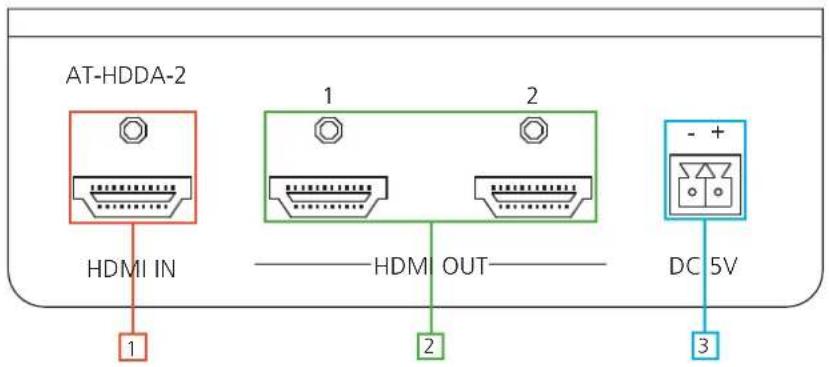

Back Panel

AT-HDDA-2 HDMI IN 1 1 2 HDMI OUT DC 5V 1 2 3

1. HDMI IN: Connect to an HDMI source
2. HDMI OUT: Connect to a display
3. DC 5V: Captive screw power connector

EDID (Extended Display Identification Data)

When the HDDA is completely connected and turned on it will load the Internal EDID™ automatically, which supports the highest common native video resolution and audio format of the devices.

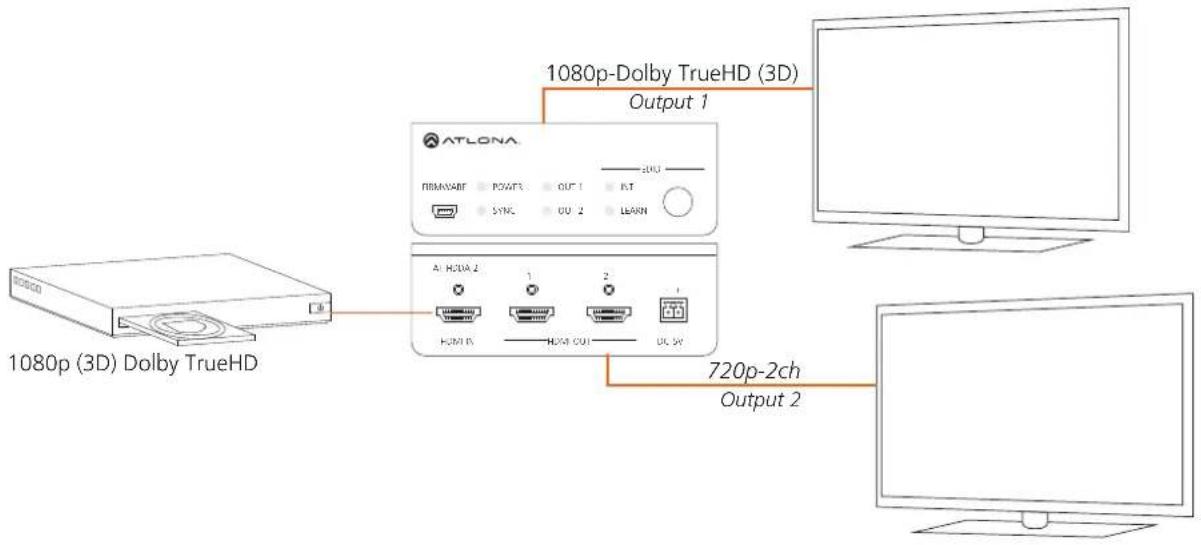

Example: With a mix of resolutions and audio formats the HDDA will default to the highest common video resolution and audio format. In the diagram below the default would be 720p with 2ch audio. Multi-channel audio and 3D are not enabled on internal mode, unless all devices support these features.

EDID learn mode loads the highest common resolution and audio format between output 1 and the source and mirrors to all outputs. *EDID learning only available for output 1*

To learn EDID press and hold the EDID button until the EDID learn LED flashes. Learning is completed once the LED is solid.

Note: Using the above diagram, output 2 will receive no audio or video once EDID is learned.

DVI

The HDDA is compatible with a combination of DVI and HDMI. Please use the EDID learn table below for the best compatibility.

Display Learned EDID Color Space Color Depth Audio Result
DVI only DVI RGB 8 bit No Video ok	no audio
DVI + HDMI DVI RGB 8 bit No Video ok, no audio
DVI + HDMI HDMI YUV 12 bit (up to) Yes DVI won't work
HDMI only HDMI YUV 12 bit (up to) Yes Everything works

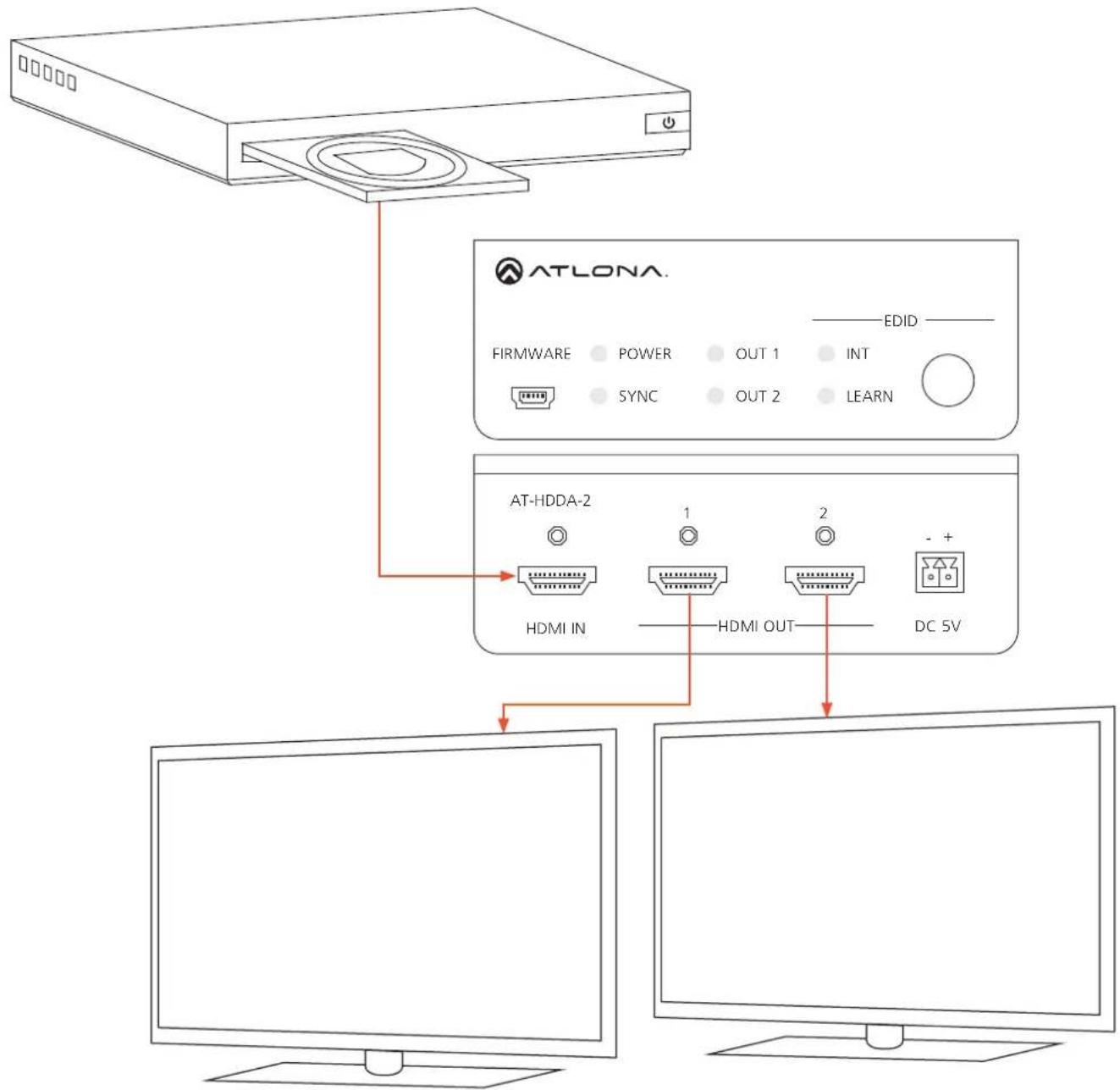

Connection and Installation

Specifications

Video Resolutions

Video 480i@60Hz, 480p@59.94/60Hz, 576i@50Hz, 576p@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, 1080p@23.98/24/25/29.97/30/50/59.94/60Hz, 3840x2160@24/25/30/60Hz (UHD), 4096x2160@24/25/30/60Hz

VESA 800x600, 1024x768, 1280x768, 1280x800, 1280x1024, 1366x768, 1400x1050, 1440x900, 1600x900, 1600x1200, 16:

Colorspace YCbCr, RGB Chroma Subsampling 4:4:4, 4:2:2, 4:2:0 (UHD only) Color depth 8-bit, 10-bit, 12-bit

Audio

Formats PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz

Distance

HDMI IN up to 15 meters (@1080p 8-bit) up to 50 feet HDMI OUT up to 15 meters (@1080p 12-bit) up to 50 feet 4K up to 5 meters up

Signal

Bandwidth	10.2 Gbps
CEC	No
HDCP	Compliant
Temperature
Operating	0°C	to	40°C	32°F	to	104°
Storage	-20°C	to	60°C	-4°F	to	140°F
Humidity	20 to 90% non-condensing

Power

Consumption Supply

3.8W Input: Output:

AC100~240V DC

50/60Hz 5V/2.6A

Dimension

H x W x D	37.85 x 88.89 x 76.13 (mm)	1.49 x 3.5 x 3 (inch)
Weight
Device	0.13	kg	0.29	lbs
Shipping	0.62	kg	1.37	lbs

Certification

Power Supply CE, FCC, cULus

Safety Information

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your product. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Atlona, Inc. ("Atlona") Limited Product Warranty Policy

Coverage

Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service.

Under its Limited Product Warranty, Atlona, at its sole discretion, will either:

A) repair or facilitate the repair of defective products within a reasonable period of time, restore products to their proper operating condition and return defective products free of any charge for necessary parts, labor and shipping OR

B) replace and return, free of charge, any defective products with direct replacement or with similar products deemed by Atlona to perform substantially the same function as the original products

C) refund the pro-rated value based on the remaining term of the warranty period, not to exceed MSRP, in cases where products are beyond repair and/or no direct or substantially similar replacement products exist.

Repair, replacement or refund of Atlona's products is the purchaser's exclusive remedy and Atlona's liability does not extend to any other damages, incidental, consequential or otherwise.

This Limited Product Warranty extends to the original end-user purchaser of Atlona's products and is non-transferrable to any subsequent purchaser(s) or owner(s) of these products.

Coverage Periods

Atlona's Limited Product Warranty Period begins on the date of purchase by the end-purchaser. The date contained on the end-purchaser 's sales or delivery receipt is the proof purchase date.

Limited Product Warranty Terms – New Products

• 10 years from proof of purchase date for hardware/electronics products purchased on or after June 1, 2013

• 3 years from proof of purchase date for hardware/electronics products purchased before June 1, 2013

• Lifetime Limited Product Warranty for all cable products

Limited Product Warranty Terms – Refurbished (B-Stock) Products

- 3 years from proof of purchase date for all Refurbished (B-Stock) hardware and electronic products purchased on or after June 1, 2013

Remedy

Atlona recommends that end-purchasers contact their authorized Atlona dealer or reseller from whom they purchased their products. Atlona can also be contacted directly. Visit www.atlona.com for Atlona's contact information and hours of operation. Atlona requires that a dated sales or delivery receipt from an authorized dealer, reseller or end-purchaser is provided before Atlona extends its warranty services. Additionally, a return merchandise authorization (RMA) and/or case number, is required to be obtained from Atlona in advance of returns.

Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408-962-0515 (US/international) or via Atlona's website at www.atlona.com.

Exclusions

This Limited Product Warranty excludes:

- Damage, deterioration or malfunction caused by any alteration, modification, improper use, neglect, improper packing or shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature.

- Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.

- Equipment enclosures, cables, power supplies, batteries, LCD displays, and any accessories used in conjunction with the product(s).

- Products purchased from unauthorized distributors, dealers, resellers, auction websites and similar unauthorized channels of distribution.

Disclaimers

This Limited Product Warranty does not imply that the electronic components contained within Atlona's products will not become obsolete nor does it imply Atlona products or their electronic components will remain compatible with any other current product, technology or any future products or technologies in which Atlona's products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.

Limitation on Liability

The maximum liability of Atlona under this limited product warranty shall not exceed the original Atlona MSRP for its products. To the maximum extent permitted by law, Atlona is not responsible for the direct, special, incidental or consequential damages resulting from any breach of warranty or condition, or under any other legal theory. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

To the maximum extent permitted by law, this limited product warranty and the remedies set forth above are exclusive and in lieu of all other warranties, remedies and conditions, whether oral or written, express or implied. To the maximum extent permitted by law, Atlona specifically disclaims all implied warranties, including, without limitation, warranties of merchantability and fitness for a particular purpose. If Atlona cannot lawfully disclaim or exclude implied warranties under applicable law, then all implied warranties covering its products including warranties of merchantability and fitness for a particular purpose, shall provide to its products under applicable law. If any product to which this limited warranty applies is a "Consumer Product" under the Magnuson-Moss Warranty Act (15 U.S.C.A. §2301, ET SEQ.) or other applicable law, the foregoing disclaimer of implied warranties shall not apply, and all implied warranties on its products, including warranties of merchantability and fitness for the particular purpose, shall apply as provided under applicable law.

Other Conditions

Atlona's Limited Product Warranty offering gives legal rights, and other rights may apply and vary from country to country or state to state. This limited warranty is void if (i) the label bearing the serial number of products have been removed or defaced, (ii) products are not purchased from an authorized Atlona dealer or reseller. A comprehensive list of Atlona's authorized distributors, dealers and resellers can be found at www.atlona.com.

Atlona, Inc Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
