USER MANUAL THC-T129-P HiLook

Abstract geometric design with blue and gray diamond shapes, a globe icon, and a hand symbol (no text or symbols present)

HiLook Series 2 MP Turret Camera

User Manual

User Manual

Thank you for purchasing our product. If there are any quesons, or requests, do not hesitate to contact the dealer.

This manual applies to the models below:

Type	Model
Type I	THC-T129-P
Type II	THC-T129-M
Type III	THC-T229-M

This manual may contain several technical mistakes or prinng errors, and the content is subject to change without noce. The updates will be added to the new version of this manual. We will readily improve or update the products or procedures described in the manual.

Regulatory Informaon

FCC Informaon

Please take aenon that changes or modicaon not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protecon against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instrucon manual, may cause harmful interference to radio communicaons. Operaon of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

FCC Conditions

This device complies with part 15 of the FCC Rules. Operaon is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operaon.

EU Conformity Statement

This product and - if applicable - the supplied accessories too are marked with "CE" and comply therefore with the applicable harmonized European

standards listed under the Low Voltage Directive 2014/35/EU, the EMC Directive 2014/30/EU, the RoHS Directive 2011/65/EU.

2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new

equipment, or dispose of it at designated collecon points. For more informaon see: www.recyclethis.info. 2006/66/EC (baery direcve): This product contains a

baery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentaon for speci baery informaon. The baery is marked with this symbol, which may

include leering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the baery to your supplier or to a designated collecon point. For more informaon, see: www.recyclethis.info.

Industry Canada ICES-003 Compliance

This device meets the CAN ICES-3 (A)/NMB-3(A) standards requirements.

Warning

This is a class A product. In a domesc environment this product may cause radio interference in which case the user may be required to take adequate measures.

Safety Instrucon

These instrucons are intended to ensure that user can use the product correctly to avoid danger or property loss.

The precauon measure is divided into "Warnings" and "Cauons".

Warnings: Serious injury or death may occur if any of the warnings are neglected.

Cauons: Injury or equipment damage may occur if any of the cauons are neglected.

Warnings Follow these safeguards to prevent serious injury or death.	Cauons Follow these precautions to prevent potential injury or material damage.

Warnings

• In the use of the device, you must be in strict compliance with the electrical safety regulations of the naon and region.
• Input voltage should meet both the SELV (Safety Extra Low Voltage) and the Limited Power Source with 12 VDC according to the IEC60950-1 standard and IEC62368-1 standard. Refer to technical speciaons for detailed informaon.
• Do not connect mulple devices to one power adapter to avoid over-heang or a re hazard caused by overload.
• Make sure that the plug is rmly connected to the power socket.
• Make sure that the device is rmly xed if wall mounng or ceiling mounng is adopted.
• If smoke, odor or noise rise from the device, turn off the power at once and unplug the power cord, and then contact the service center.
• Never attempt to disassemble the camera by unprofessional personal.

Cauons

• Do not drop the camera or subject it to physical shock.
• Do not touch senor modules with ngers.
• Do not place the camera in extremely hot, cold (the operang temperature shall be -40^ to 60^ ), dusty or damp locaons, and do not expose it to high electromagnetic radiation.
• If cleaning is necessary, use clean cloth with a bit of ethanol and wipe it gently.
• Do not aim the camera at the sun or extra bright places.
• The sensor may be burned out by a laser beam, so when any laser equipment is in using, make sure that the surface of sensor will not be exposed to the laser beam.

• Do not expose the device to high electromagnetic radiaon or extremely hot, cold, dusty or damp environment.

• To avoid heat accumulation, good venlaon is required for the operang environment.

• Keep the camera away from liquid while in use for non-water-proof device.
• While in delivery, the camera shall be packed in its original packing, or packing of the same texture.

Mark Descripon
Table 0-1 Mark Descripon

Mark	Descripon
---	DC Voltage

1 Introducon

1.1 Product Features

The main features are as follows:

• High performance CMOS sensor
- Smart light
• 4 in 1 video output

1.2 Overview

1.2.1 Overview of Type I Camera

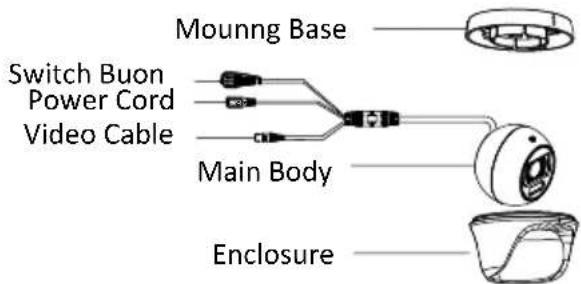

Mounng Base Switch Buon Power Cord Video Cable Main Body Enclosure

Figure 1-1 Overview of Type I Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.2 Overview of Type II Camera

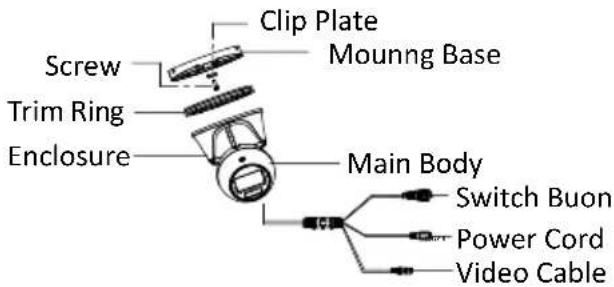

Clip Plate Mounng Base Screw Trim Ring Enclosure Main Body Switch Buon Power Cord Video Cable

Figure 1-2 Overview of Type II Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

1.2.3 Overview of Type III Camera

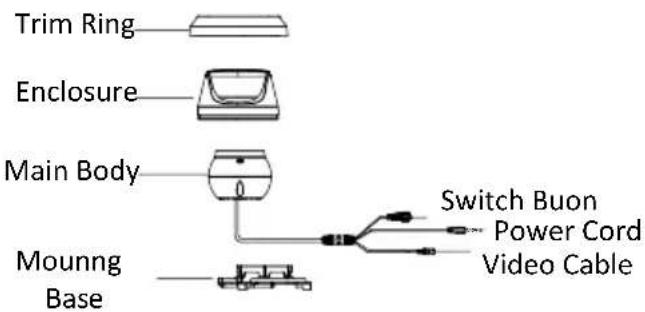

Trim Ring Enclosure Main Body Mounng Base Switch Buon Power Cord Video Cable

Figure 1-3 Overview of Type III Camera

Note:

Press and hold the switch buon for 5 seconds to switch the video output. Four kinds of video outputs are available: TVI, AHD, CVI, and CVBS.

2 Installaon

Before you start

• Make sure that the device in the package is in good condion and all the assembly parts are included.
• Make sure that all the related equipment is power-off during the installaon.
• Check the specicaon of the products for the installaon environment.
• Check whether the power supply is matched with your power output to avoid damage.
• Make sure the wall is strong enough to withstand three mes the weight of the camera and the mount.
• If the product does not funcon properly, contact your dealer or the nearest service center. Do NOT disassemble the camera for repair or maintenance by yourself.

2.1 Installaon of Type I Camera

2.1.1 Ceiling Mounng Without Juncon Box

Steps:

1. Rotate the camera to align one of the marks with the notch, and dissemble the camera.

Mark Notch

Figure 2-1 Align the Mark and the Notch

1. Pry the enclosure open with a at object, for example, a coin, to dissemble the camera.

Simple line drawing of a toilet with a handle and outlet (no text or symbols)

Figure 2-2 Dissemble the Camera

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. (Oponal) For cement ceiling, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs.

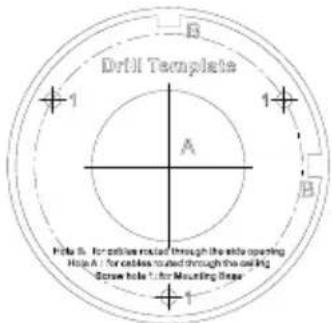

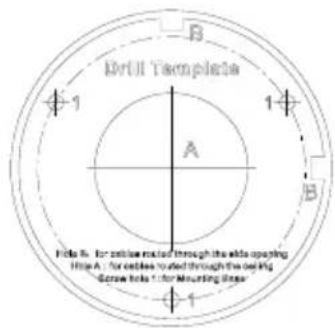

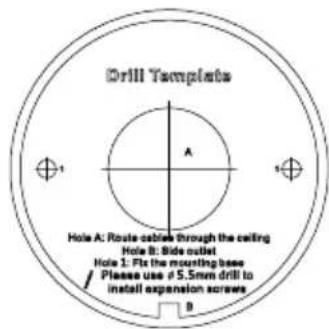

Drill Templates A Hole A: Route cables through the ceiling Hole B: Side outlet Hole 1: Fix the mounting base Please use a 5.5mm drill to install expansion screws B

Figure 2-3 Drill Template

1. (Oponal) Drill the cable hole, when the cables are routed through the ceiling.
2. Use two PA4 screws (supplied) to secure the moung base to the ceiling.

Simple line drawing of a ceiling lamp with two hanging weights (no text or symbols)

Figure 2-4 Secure the Base to the Ceiling

1. Install the camera back to the moung base and secure it.

Diagram of a mechanical component with internal parts and a mouth, no text or symbols present

Figure 2-5 Install the Camera Back

1. Connect the power cord and video cable.
2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below.

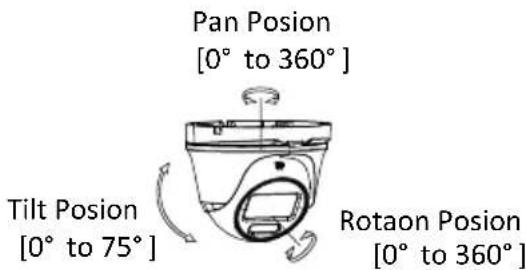

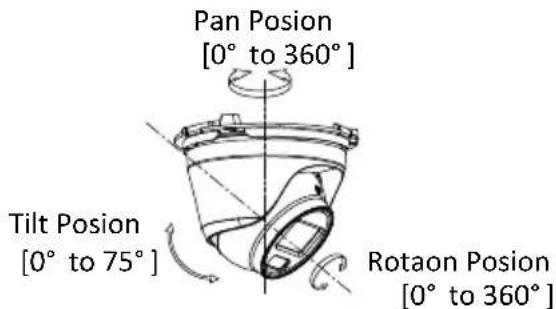

Pan Posion [0° to 360°] Tilt Posion [0° to 75°] Rotaon Posion [0° to 360°]

Figure 2-6 3-Axis Adjustment

1). Rotate the enclosure to adjust the pan posion [0° to 360°].
2). Move the main body up and down to adjust the tilt posion [0° to 75°].
3). Rotate the main body to adjust the rotaon posion [0° to 360°].

2.1.2 Ceiling Mounng with Juncon Box

Before you start:

You need to purchase a juncon box in advance.

Steps:

1. Loosen screws to take apart the juncon box.
2. Paste the drill template for juncon box to the place where you want to install the camera.
3. (Oponal) For cement ceiling, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs.

Drill Template A B Folta B: For cable rated through the side opening Hop A: For cables rated through the closing Drow hole 1 for Mounting Stage

Figure 2-7 Drill Template for Juncon Box

1. (Oponal) Drill the cable hole, when the cables are routed through the ceiling.

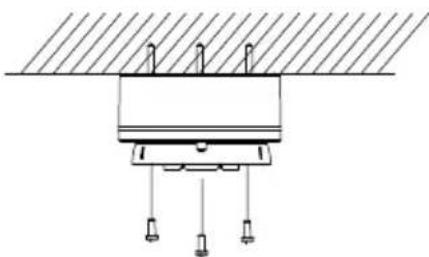

2. Secure the juncon box body on the ceiling with three PA4 × 25 screws that come with the juncon box.

Pure electrical circuit lines without any symbols

Figure 2-8 Secure the Juncon Box Body

1. Fix the moung base onto the juncon box cover with two M4 × 10 screws.

Figure 2-9 Fix the Mounng Base

1. Route the cables through the boom cable hole or the side cable hole of the juncon box.
2. Combine the juncon box cover with its body and secure it with three M3 screws.

Pure technical diagram of a mechanical component with three vertical pins and three base supports (no text or symbols)

Figure 2-10 Combine the Juncon Box Cover and Body

1. Connect the power cord and video cable and put the cables back into the juncon box.
2. Refer to step 9 of 2.1.1 Ceiling Mounng Without Juncon Box to adjust the angle and nish the installaon.

2.1.3 Wall Mounng

Before you start:

You need to purchase a wall mount in advance.

Steps:

1. Drill 10 mm screw holes in the wall where you want to install the wall mount.
2. Use four M6 expansion bolts to x the wall mount onto the wall.

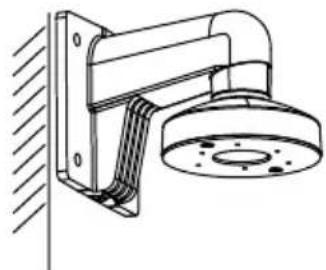

Technical line drawing of a mechanical bracket assembly with mounting flange (no text or symbols)

Figure 2-11 Fix the Wall Mount

1. Refer to steps 1 and 2 of 2.1.1 Ceiling Mounng Without Juncon Box to dissemble the camera.
2. Use two M4 screws to x the mounng base onto the wall mount.

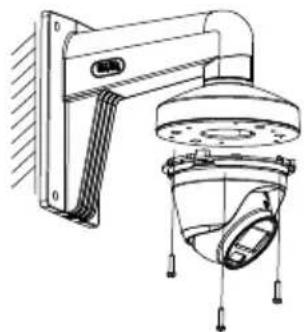

Technical line drawing of a mechanical clamp or bracket assembly (no text or symbols)

Figure 2-12 Fix the Mounng Base onto the Wall Mount

1. Refer to steps 7 to 9 of 2.1.1 Ceiling Mounng Without Juncon Box to nish the installaon.

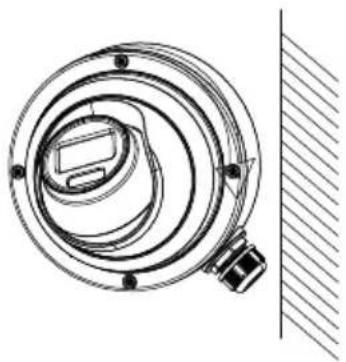

Technical line drawing of a surveillance camera mounted on a wall (no text or symbols)

Figure 2-13 Finish the Installaon

2.2 Installaon of Type II Camera

2.2.1 Ceiling Mounng without Juncon Box

Steps:

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. (Oponal) For cement ceiling, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs.

Drill Template Screw hole All : for Mounting Base

Figure 2-14 Drill Template

1. Loosen the screw and pull out the clip plate to dissemble the camera.

Technical line drawing of a microwave oven with lid and vent, showing internal structure (no text or symbols)

Figure 2-15 Dissemble the Camera

1. Secure the moung base to the ceiling with three PA4 × 25 screws.

Technical diagram showing a mechanical assembly with three cylindrical components and downward force arrows (no text or labels)

Figure 2-16 Aach the Gang Box to the Ceiling

1. Pull out the clip plate and install the camera back to the moung base. Push the clip plate back in to secure the camera.

Technical line drawing of a ceiling-mounted device with internal components (no text or symbols)

Figure 2-17 Install the Camera

1. Connect the power cord and video cable.

2. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below.

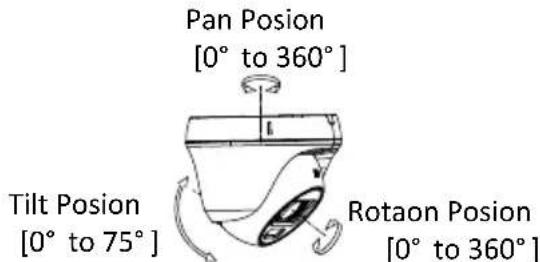

Pan Posion [0° to 360°] Tilt Posion [0° to 75°] Rotaon Posion [0° to 360°]

Figure 2-18 3-Axis Adjustment

1). Rotate the enclosure to adjust the pan posion [0° to 360°].
2). Move the main body up and down to adjust the tilt posion [0° to 75°].
3). Rotate the main body to adjust the rotaon posion [0° to 360°].

1. Tighten the screw to nish the installation.

2.2.2 Ceiling Mounng with Juncon Box

Before you start:

You need to purchase a juncon box in advance.

Steps:

1. Paste the drill template for juncon box to the place where you want to install the camera.
2. (Oponal) For cement ceiling, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs.

Drill Templates A B Folio B: for online mixed through the wide opening Title A: for cables used through the closing Screw Folio 1 for Mounting lines

Figure 2-19 Drill Template

1. (Oponal) Drill the cable hole, when the cables are routed through the ceiling.
2. Take apart the juncon box.
3. Secure the juncon box body on the ceiling with PA4 × 25 screws that come with the juncon box.

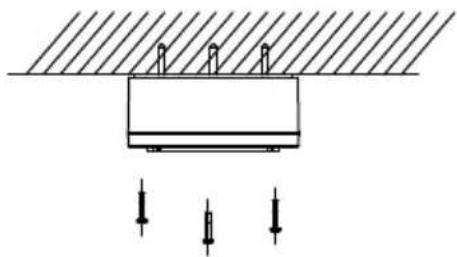

Simple diagram of a mechanical or electrical component with downward arrows indicating force or displacement (no text or symbols)

Figure 2-20 Secure the Juncon Box Body

1. Route the cables through the boom cable hole or the side cable hole of the iuncon box.
2. Combine the juncon box cover with its body and secure it with three PM3 screws.

Simple line drawing of a rectangular object with three vertical supports and downward arrows below, no text or symbols present.

Figure 2-21 Combine the Juncon Box Cover and Body

1. Fix the mounng base onto the juncon box with three M4 × 10 screws.
2. Connect the power cord and video cable and put the cables back into the juncon box.
3. Refer to steps 5, 7, and 8 of 2.2.1 Ceiling Mounng without Juncon Box to nish the installaon.

2.2.3 Wall Mounng

Before you start:

You need to purchase a wall mount in advance.

Steps:

1. Drill 10 mm screw holes in the wall where you want to install the wall mount.
2. Use four M6 expansion bolts to x the wall mount onto the wall.

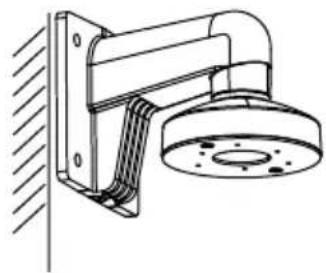

Technical line drawing of a mechanical bracket assembly with mounting flange (no text or symbols)

Figure 2-22 Fix the Wall Mount

1. Loosen the screw and pull out the clip plate to dissemble the camera.

Line drawing of a kitchen appliance with a lid and handle, showing internal components (no text or symbols)

Figure 2-23 Dissemble the Camera

1. Use three M4 screws to x the mounng base onto the wall mount.

Technical diagram of a mechanical assembly with mounting bracket and internal components (no text or symbols)

Figure 2-24 Fix the Mounng Base onto the Wall Mount

1. Refer to steps 5 to 8 of 2.2.1 Ceiling Mounng without Juncon Box to nish the installaon.

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Figure 2-25 Finish the Installaon

2.3 Installaon of Type III Camera

2.3.1 Ceiling Mounng Without Juncon Box

Steps:

1. Paste the drill template (supplied) to the place where you want to install the camera.
2. (Oponal) For cement ceiling, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs.

Drill Template Hole A : for cables routed through the wall. Screw hole 1 : for Mounting Base

Figure 2-26 Drill Template

1. (Oponal) Drill the cable hole, when the cables are routed through the ceiling.
2. Turn the trim ring counterclockwise to remove it from the camera.

Technical line drawing of a mechanical component with rotation arrow and downward arrow (no text or symbols)

Figure 2-27 Remove the Trim Ring

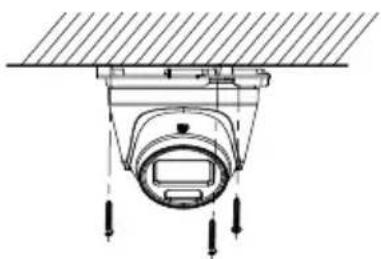

1. Secure the camera to the ceiling with three PA4 × 25 screws (supplied).

Technical diagram of a ceiling-mounted device with mounting holes and control panel (no text or symbols)

Figure 2-28 Secure the Camera to the Ceiling

1. Connect the power cord and video cable.

2. Loosen the screw and the clip plate.

Technical line drawing of a mechanical component with no visible text or symbols

Figure 2-29 Loosen the Screw and Clip Plate

1. Power on the camera to check whether the image on the monitor is goen from the opmum angle. If not, adjust the camera according to the gure below.

Pan Posion [0° to 360°] Tilt Posion [0° to 75°] Rotaon Posion [0° to 360°]

Figure 2-30 3-Axis Adjustment

1). Rotate the enclosure to adjust the pan posion [0° to 360°].
2). Move the main body up and down to adjust the tilt posion [0° to 75°].
3). Rotate the main body to adjust the rotaon posion [0° to 360°].

1. Fasten the screw and the clip plate.

2. Install the trim ring back.

Technical diagram of a mechanical device with a top view and a base, showing no text or symbols.

Figure 2-31 Install the Trim Ring Back

1. Turn the trim ring clockwise to secure the camera.

Diagram of a surveillance camera mounted on a flat surface, showing lens and frame structure (no text or symbols)

Figure 2-32 Secure the Camera

2.3.2 Installaon with Juncon Box/Inclined Ceiling Mount

Before you start:

• You need to purchase a juncon box or inclined ceiling mount in advance.
• Ceiling moung with juncon box and inclined ceiling mount are similar. Following steps take juncon box as an example.

Steps:

1. Paste the drill template for juncon box to the place where you want to install the camera.
2. (Oponal) For cement wall, drill the screw holes with a 5.5 mm drill and insert the supplied wall plugs.

Drill Template Hole A : for cables routed through the wall. Screw hole 1 : for Mounting Base

Figure 2-33 Drill Template

1. (Oponal) Drill the cable hole, when the cables are routed through the wall.
2. Turn the trim ring counterclockwise to remove it from the camera.

Diagram of a mechanical device with directional arrows indicating motion or force (no text or symbols)

Figure 2-34 Remove the Trim Ring

1. Take apart the juncon box.
2. Fix the camera onto the juncon box cover with three PM4 × 10 screws.

Technical line drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Figure 2-35 Fix the Camera onto Juncon Box Cover

1. Secure the juncon box body on the wall with four PA4 × 25 screws.

Technical line drawing of a mechanical component with housing and mounting base (no text or symbols)

Figure 2-36 Secure the Juncon Box Body

1. Route the cables through the boom cable hole or the side cable hole of the juncon box and connect the cables.

2. Combine the juncon box cover with its body with the four screw on the cover.

Technical line drawing of a mechanical component with concentric rings and mounting holes, adjacent to a hatched wall (no text or symbols)

Figure 2-37 Combine Juncon Box Cover with Body

1. Refer to steps 7 and 11 of 2.3.1 Ceiling Mounng Without Juncon Box to adjust the angle and nish installaon.

2.3.3 Wall Mounng

Before you start:

You need to purchase a wall mount in advance.

Steps:

1. Drill 10 mm screw holes in the wall where you want to install the wall mount.
2. Use four M6 expansion bolts to x the wall mount onto the wall.

Technical line drawing of a wall-mounted showerhead with a circular base and diagonal bracing (no text or symbols)

Figure 2-38 Fix the Wall Mount

1. Turn the trim ring counterclockwise to remove it from the camera.

Technical line drawing of a mechanical component with directional arrows indicating motion (no text or symbols)

Figure 2-39 Remove the Trim Ring

1. Install the camera to the wall mount with three PA4 × 25 screws (supplied).

Technical line drawing of a mechanical assembly with a mounted device and a bucket (no text or symbols)

Figure 2-40 Install the Camera

1. Refer to steps 6 to 11 of 2.3.1 Ceiling Mounng Without Juncon Box to nish installaon.

3 Menu Descripon

Please follow the steps below to call the menu.

Note:

The actual display may vary with your camera model.

Steps:

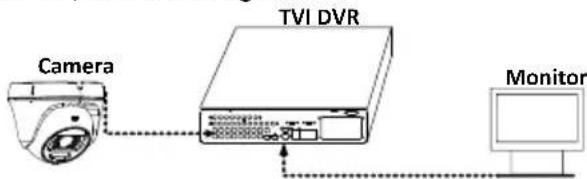

1. Connect the camera with the TVI DVR and the monitor, as shown in gure 3-1.

Camera TVI DVR Monitor

Figure 3-1 Connecon

1. Power on the camera, TVI DVR, and monitor to view the image on the monitor.
2. Click PTZ Control to enter the PTZ Control interface.
3. Call the camera menu by clicking ☐ button or calling preset No. 95.

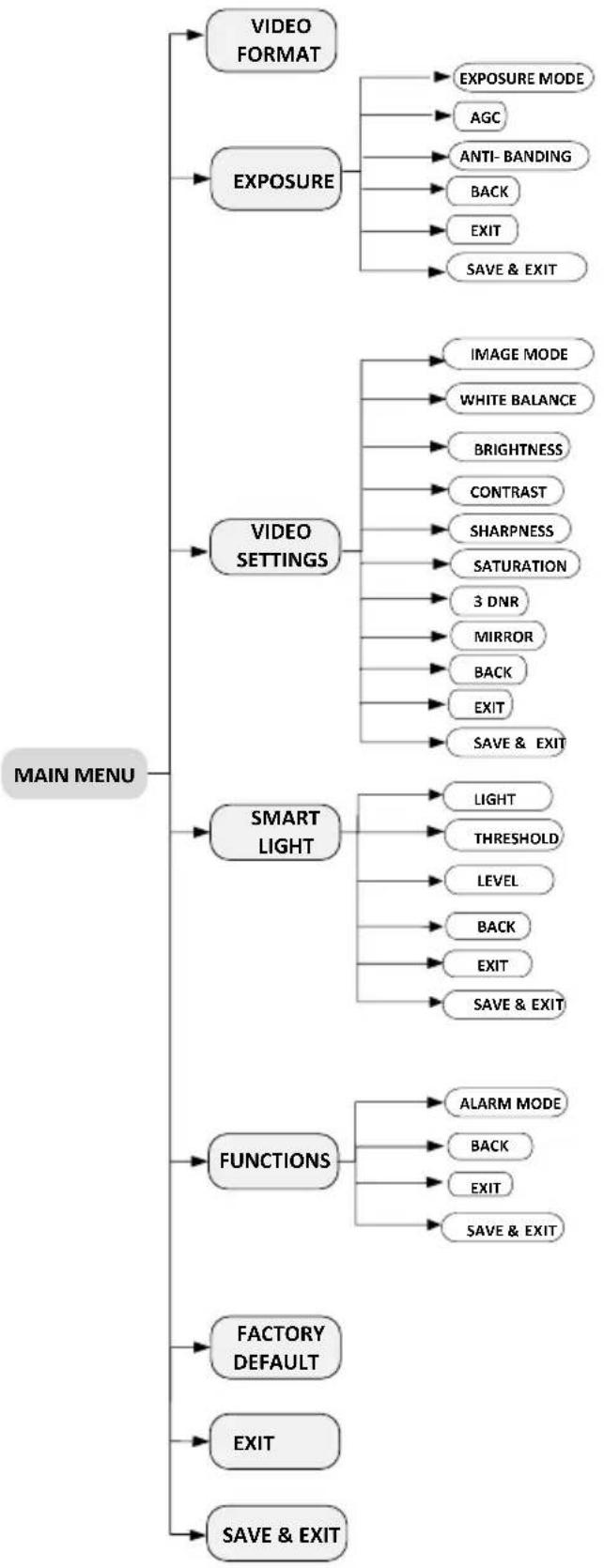


    A --> D["VIDEO SETTINGS"]
    D --> E1["IMAGE MODE"]
    D --> E2["WHITE BALANCE"]
    D --> E3["BRIGHTNESS"]
    D --> E4["CONTRAST"]
    D --> E5["SHARPNESS"]
    D --> E6["SATURATION"]
    E5 --> E7["3 DNR"]
    E6 --> E8["MIRROR"]
    E7 --> E9["BACK"]
    E8 --> E10["EXIT"]
    E9 --> E11["SAVE & EXIT"]

    A --> F["SMART LIGHT"]
    F --> G1["LIGHT"]
    F --> G2["THRESHOLD"]
    F --> G3["LEVEL"]
    F --> G4["BACK"]
    F --> G5["EXIT"]
    F --> G6["SAVE & EXIT"]

    A --> H["FUNCTIONS"]
    H --> I1["ALARM MODE"]
    H --> I2["BACK"]
    H --> I3["EXIT"]
    H --> I4["SAVE & EXIT"]

    A --> J["FACTORY DEFAULT"]
    J --> K1["EXIT"]
    A --> L["SAVE & EXIT"]

Figure 3-2 Main Menu Overview

1. Click the direcon buttons to control the camera.

1). Click up/down direcon buons to select menu opons.
2). Click Iris + to conrm the selecon.
3). Click le/right direcon buons to adjust the value of the selected opon.

3.2 VIDEO FORMAT

You can set the video format to 2MP@25fps, 2MP@30fps, PAL, or NTSC.

3.3 EXPOSURE

EXPOSURE MODE

You can set the EXPOSURE MODE to GLOBAL, BLC, HLC, or DWDR.

- GLOBAL

GLOBAL refers to the normal exposure mode which adjusts lighng distribuon, variaons, and non-standard processing.

• BLC (Backlight Compensaon)

BLC (Backlight Compensaon) compensates light to the object in the front to make it clear, but this may cause over-exposure of the background where the light is strong.

• HLC (Highlight Compensaon)

HLC stands for highlight compensation. The camera detects strong spots (over-exposure poron of image) and reduces the brightness of strong spots to improve the overall images.

- DWDR (Digital Wide Dynamic Range)

Digital wide dynamic range gives the camera the ability to view dark areas of given image as well as extremely lighted porons of the image or areas of high contrast.

AGC (Auto Gain Control)

It optimizes the clarity of the image in poor light conditions. The AGC level can be set to HIGH, MEDIUM, or LOW.

Note:

The noise will be amplified when seng the AGC level.

ANTI-BANDING

ANTI-BANDING is a camera seng that prevents the appearance of horizontal lines (banding) when photographing images in low frequency light and high brightness environments.

3.4 VIDEO SETTINGS

Move the cursor to VIDEO SETTINGS and click Iris+ to enter the submenu. IMAGE MODE, WHITE BALANCE, BRIGHTNESS, CONTRAST, SHARPNESS, SATURATION, 3DNR, and MIRROR are adjustable.

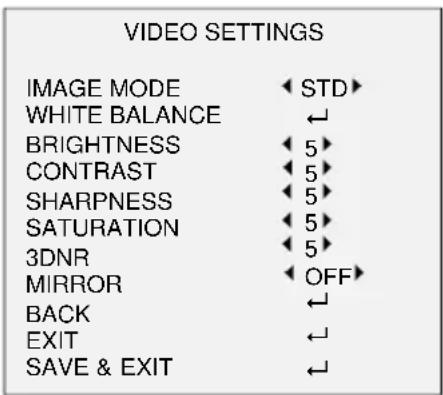

VIDEO SETTINGS IMAGE MODE ◄ STD► WHITE BALANCE ← BRIGHTNESS ◄ 5► CONTRAST ◄ 5► SHARPNESS ◄ 5► SATURATION ◄ 5► 3DNR ◄ 5► MIRROR ◄ OFF► BACK ← EXIT ← SAVE & EXIT ←

Figure 3-3 VIDEO SETTINGS

IMAGE MODE

IMAGE MODE is used to adjust the image saturaon, and you can set it to STD (Standard), HIGH-SAT (High Saturaon), or HIGHLIGHT (beer indoor facial details).

WHITE BALANCE

White balance, the white rendition funcon of the camera, is to adjust the color temperature according to the environment. It can remove unrealisc color casts in

the image. You can set WHITE BALANCE mode to AUTO or MANUAL.

- AUTO

Under AUTO mode, white balance is being adjusted automatically according to the color temperature of the scene illuminaon.

- MANUAL

You can adjust the R-GAIN and B-GAIN value to correct colors manually.

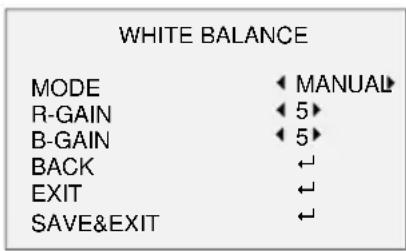

WHITE BALANCE MODE ◀ MANUAL R-GAIN ◀ 5 B-GAIN ◀ 5 BACK ← EXIT ← SAVE&EXIT ←

Figure 3-4 WHITE BALANCE

BRIGHTNESS

Brightness refers to the brightness of the image. You can set the brightness value from 1 to 9 to darken or brighten the image. The greater the value is, the brighter the image is.

CONTRAST

This feature enhances the dience in color and light between parts of an image.

SHARPNESS

Sharpness determines the amount of detail an imaging system can reproduce.

SATURATION

Saturaon is the properon of pure chromac color in the total color sensaon. Adjust this feature to change the saturaon of the color.

3DNR (3D DNR)

3DNR refers to 3D digital noise reducon. Comparing with the general 2D digital noise reducon, the 3D digital noise reducon funcon processes the noise between two frames besides processing the noise in one frame. The noise will be much less and the video will be clearer.

MIRROR

OFF, H, V, and HV are selectable for mirror.

OFF: The mirror funcon is disabled.

H: The image ips 180° horizontally.

V: The image ips 180° vercally.

HV: The image ips 180° both horizontally and

vercally.

Note:

MIRROR is only supported when the video output is switched to TVI.

3.5 SMART LIGHT

SMART LIGHT is used to control the integrated white light and avoid overexposure when the light is on. You can set the light as AUTO or OFF.

SMART LIGHT

LIGHT	AUTO
THRESHOLD	2
LEVEL	5
BACK
EXIT
SAVE &EXIT

Figure 3-5 SMART LIGHT

- AUTO

Under the AUTO mode, the white light turns on automacally as the environment becomes dark.

The THRESHOLD is the environmental light level at which the white light turns on. The greater the value is, the darker the environment is when the light is acvated.

The value of LEVEL controls the brightness of the white light. The greater the value is, the brighter the light is.

- OFF

The white light is always o except when alarm is set and triggered.

3.6 FUNCTIONS

Note:

FUNCTIONS are only supported when the video output is switched to TVI.

ALARM MODE

The camera supports alarm funcon. You can set the white light to FLASHING or SOLID under ALARM MODE

Note:

The supplement light funcon of the white light takes priority over the alarm funcon. The alarm mode sengs only take eect when the light is o.

3.7 FACTORY DEFAULT

Reset all the sengs to factory defaults.

3.8 EXIT

Move the cursor to EXIT and click Iris+ to exit the menu.

3.9 SAVE & EXIT

Move the cursor to SAVE & EXIT and click Iris+ to save the sengs and exit the menu.
