Product Type	Security Camera
Brand	Marshall
Model	CV226
Resolution	Up to 1920x1080p @ 60fps
Lens	M12 interchangeable with fine-focus adjustment
Protection Rating	IP67 (all-weather rated)
Power Supply	12V DC (included)
Video Output	HD-SDI via BNC (breakout cable)
White Balance	Auto, ATW, Push, Manual
Exposure Control	Auto, Manual, Shutter, Flickerless
Back Light Compensation	WDR, BLC, Spot, ACE, Eclipse
Image Stabilizer	Digital (up to 30% range)
Image Adjustment	Color, Sharpness, Mirror, Flip, D-Zoom, Defog, DNR, Motion, Shading, Black Level, Gamma
Frame Rate Options	720p25/29/30/50/60, 1080p25/30/50/60, 1080i50/60, and more
Communication	RS-485 (baudrate configurable)
OSD Language	English, Chinese
Reset Options	Factory default or user saved settings
Warranty	2 years

Frequently Asked Questions - CV226 MARSHALL

How do I reset the camera to factory default?

To reset to factory default, push the OSD joystick UP, DOWN, UP, DOWN, then PUSH and HOLD for five seconds. The camera will reset to 1920x1080p @ 30fps. If it doesn't reset, power-cycle the camera and repeat.

What should I do if there is nothing on the screen?

Check that all connected devices are powered on, confirm the voltage and current from the power supply are correct, and verify that all video cables are properly connected.

How can I improve picture clarity?

Ensure the monitor is adjusted correctly, clean the lens glass with a soft, dry, non-abrasive cloth or lens cleaning set, and properly adjust the focus.

Why is the picture flickering?

Check termination and set impedance to 75Ω properly. Ensure the camera is not pointing directly at the sun or a light source. Verify intermediate devices and cable length do not exceed the maximum transfer limit.

How do I adjust white balance?

In the OSD menu, select WB CONTROL. Choose AUTO (3000-8000°K), ATW (1900-11000°K continuous adjustment), PUSH (place white paper in front and press OSD), or MANUAL to fine-tune color temperature, red gain, and blue gain.

What is the maximum frame rate and resolution?

The camera supports up to 1920x1080p at 60fps. Other resolutions include 720p and 1080i at various frame rates.

Can I use the camera in harsh weather?

Yes, the CV226 has an IP67-rated all-weather body, making it suitable for outdoor use.

How do I change the lens?

Remove the IP67-rated cap by rotating it counter-clockwise. The M12 lens can then be unscrewed and replaced with another M12 lens of a different focal length.

What does the IMAGE STABILIZER do?

It reduces image blur caused by vibration. You can set the digital zoom range (up to 30%), filter level, and auto-centering for severe or minor vibration.

How do I set a camera ID?

In the DISPLAY CONTROL menu, select CAM ID and adjust from 0 to 255 using the OSD joystick.

USER MANUAL CV226 MARSHALL

Close-up of a black and red handheld device with attached cables, no visible text or symbols

User Manual

Table of Contents

1. General Information 02
2. Menu Structure 03
3. WB CONTROL 05
4. AE CONTROL 06
5. BACK LIGHT 07
6. IMAGE STABILIZER 08
7. IMAGE CONTROL 09
8. DISPLAY CONTROL 10
9. RESET 11
10. TROUBLESHOOTING 12
11. WARRANTY.... 13

1. General Information

Thank you for your purchase of a Marshall Miniature or Compact Camera.

The Marshall Camera team recommends thoroughly reading this guide for a deep understanding of on-screen-display (OSD) menus, breakout cable operation, settings adjustment explanation, troubleshooting, and other critical information.

Please carefully remove all contents of box, which should include the following components:

CV226 includes:

• Camera with breakout cable (Power/RS485/Audio)

• 12V Power Supply

The CV226 Camera utilizes an all-weather rated body with IP67 rated CAP that can be removed (rotate counter-clockwise) to reveal M12 lens which also can be rotated to adjust fine-focus position of lens on lens mount. Also, can be swapped out with other M12 lenses containing specific focal lengths to change AOV.

Each camera comes set to default at 1920x1080p @ 30fps out of the box, which can be changed in the OSD Menu to a variety of resolutions and framerates.

If the camera is accidentally changed to a resolution or framerate that your monitor or equipment does not accept, please follow the instructions below to reset camera to factory default:

1. Plug the camera into power source and connect breakout cable to rear camera panel (locking connection), Power LED should illuminate.

2. Push OSD joystick button UP, DOWN, UP, DOWN and PUSH and HOLD for five seconds.

3. Camera should reset to 1920x1080p @ 30fps.

4. If camera does not reset, repeat steps after a power-cycle.

Marshall

CV226 Manual

1. Menu Structure

Setup Sub Menu Sub Menu
WB CONTROL	AUTO
	ATW
	PUSH
	MANUAL	COLOR TEMPERATURE
		RED GAIN
		BLUE GAIN
AE CONTROL (EXPOSURE)	AUTO BRIGHTNESS 0-20
	MANUAL AGC LIMIT 0-20
	SHUTTER	SHUTTER	NORMAL
	FLICKERLESS DEBLUR
	DSS OFF, X 2-32
BACK LIGHT	BACK LIGHT	WDR
		BLC
		SPOT
	ACE	LOW, MIDDLE, HIGH
	ECLIPSE	LEVEL
		COLOR
IMAGE STABILIZER	RANGE	10%, 20%, 30%
	FILTER	LOW, MIDDLE, HIGH
	AUTO C	OFF, HALF, FULL
IMAGE CONTROL	COLOR LEVEL	0-20
	SHARPNESS	0-20
	MIRROR	ON, OFF
	FLIP	ON, OFF
	D-ZOOM	1.0X ~ 16.0X
	DEFOG	AUTO
		MANUAL
	DNR	OFF, LOW, MIDDLE, HIGH
	MOTION	DET WINDOW
		SENSITIVITY	0-20
		MOSTION OSD	ON, OFF
	SHADING	0-100%
	BLACK LEVEL	0-32
	GAMMA	0.3-0.8
	FRAME RATE

Setup Sub Menu $ub Menu
DISPLAY CONTROL	CAM VERSION
	CAM TITLE
	PRIVACY
	CAM ID	0~255
	BAUDRATE	2400~115200
	LANGUAGE	ENG, CHN
	DEFECT DET
RESET	ON/CHANGE	USER/FACTORY
EXIT

Marshall

www.marshall-usa.com3 4

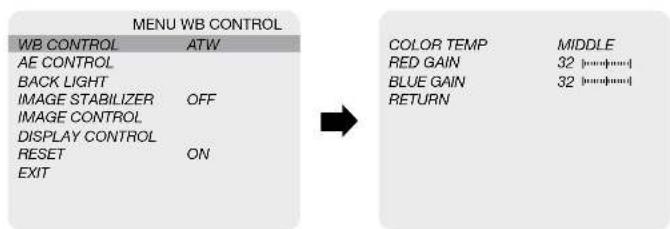

3. WB CONTROL

Select WB CONTROL using the UP or DOWN button. You can change between AUTO, ATW, PUSH, and MANUAL using the LEFT or RIGHT button

• AUTO: Controls the automatic adjustment of the light source's color temperature to 3,000 \~ 8,000°K.
• ATW: Continuously adjusts camera color balance in accordance with any change in color temperature. Compensates for color temperature changes within the range of 1,900 - 11,000°K.
• PUSH: Color temperature will be manually adjusted by pushing the OSD button. Place the white paper in front of the camera when OSD button is pressed to Obtain the optimum result.
  • MANUAL: Select this fine-tune White Balance manually.

You can adjust the blue and red tone level manually.

» COLOR TEMP: Select color temperature from LOW, MIDDLE, or HIGH.
» BLUE GAIN: Adjust the Blue tone of the image.
» RED GAIN: Adjust the Red tone of the image.

Adjust White Balance first by using the AUTO or ATW mode before switching to MANUAL mode.

White Balance may not work properly under the following conditions. In this case, select the ATW mode.

• When the ambient illumination of the subject is dim.
• If the camera is directed towards a fluorescent light or is installed in place where illumination changes dramatically. While Balance operation may become unstable.

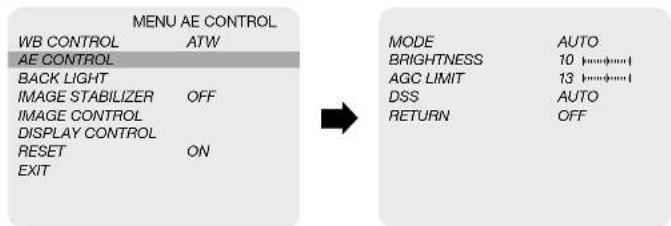

4. AE CONTROL

Select AE CONTROL using the UP or DOWN button. You can select the AUTO, MANUAL, SHUTTER, or FLICKERLESS mode from the sub menu.

• MODE: Select the desired exposure mode.

* AUTO: Exposure level is automatically controlled.
» MANUAL: Adjust BRIGHTNESS, GAIN, SHUTTER, and DSS manually.
» SHUTTER: Shutter can be set manually and DSS is controlled automatically.
FLICKERLESS: Shutter and DSS is controlled automatically.

• BRIGHTNESS: Adjust the brightness level.
- AGC LIMIT: Controls the amplification/gain process automatically if the illumination falls under the usable level.
Camera will raise up the gain to the selected gain limit under dark conditions.
• SHUTTER: Controls the shutter speed.
- DSS: When luminance condition is low, DSS can adjust the picture quality by maintaining the light level. Slow shutter speed limited to x32.

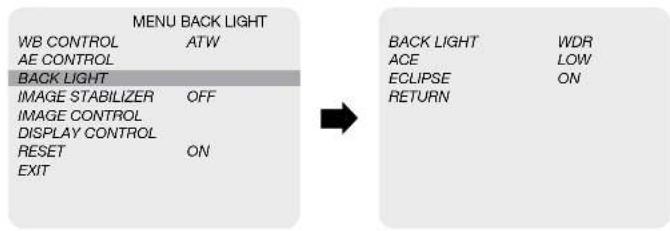

5. BACK LIGHT

Select BACK LIGHT using the UP or DOWN button. You can select the BACK LIGHT, ACE, or ECLIPSE mode from the sub menu.

- BACK LIGHT: Allows the camera to adjust the exposure of the entire image to properly expose the subject in the foreground.

WDR: Enables user to view both object and background more clearly when background is too bright.
» BLC: Enables a back light compensation feature.
SPOT: Enables a user to select a desired area on a picture and view the area more clearly when background is too bright.

• ACE: Brightness correction of the dark image area.
• ECLIPSE: Highlight the bright area with a masking box with a selected color.

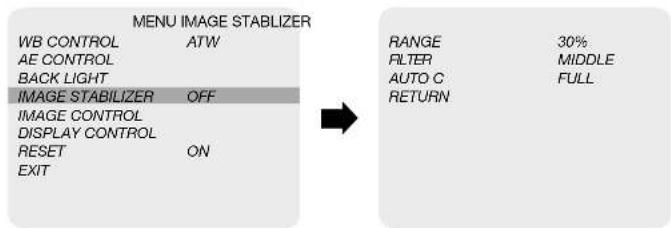

6. IMAGE STABLIZER

Select IMAGE STABILIZER using the UP or DOWN button. You can select the RANGE, FILTER, and AUTO C from the sub menu.

• IMAGE STABILIZER: Reduces image blurriness due to vibration caused by hand shake or camera movement. The image will be digitally zoomed in to compensate the shifted pixels.
  RANGE: Set the digital zoom level for image stabilizing. Max 30% = x1.4 Digital Zoom.
  » FILTER: Select the level of correction hold filter for the worst case of image. High = Less Correction.
  * AUTO C: Select the image auto centering level according to a vibration type. Full = Severe Vibration, Half = Minor Vibration.

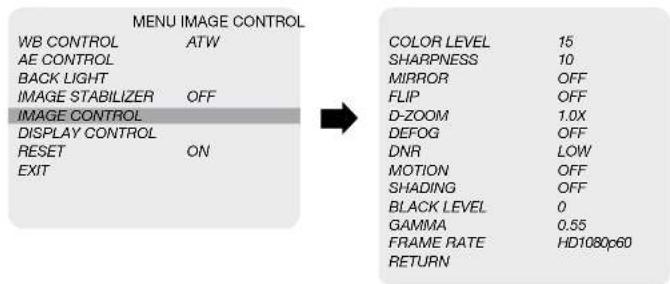

7. IMAGE CONTROL

Select IMAGE CONTROL using the UP or DOWN button. You can adjust all image related features from the sub menu.

• COLOR LEVEL: Adjust the color level value for a fine color tune.
- SHARPNESS: Adjust the image sharpness for a smooth or a sharp edge expression.
• MIRROR: Video output is rotated horizontally.
- FLIP: Video output is rotated vertically.
• D-ZOOM: Digitally zoom the video output up to 16x.
- DEFOG: Increases the visibility in extreme weather conditions, such as fog, rain or in a very strong luminous intensity.
- DNR: Reduces the video noise at low ambient light.
- MOTION: Observes the object movement by motion zone and sensitivity that are pre-set with sub menu. The motion detection icon can be displayed.
- SHADING: Correct the inconsistent brightness level in the image.
- BLACK LEVEL: Adjusts video output black level in 33 steps.
• GAMMA: Adjusts video output gamma level in 33 steps.
• FRAME RATE: Change video output specification.

Select the FRAME RATE using the LEFT or RIGHT button. Available frame rates are:

720p25, 720p29 (720p29.97), 720p30, 720p50, 720p60, 1080p25, 1080p30, 1080i50, 1080i60, 1080p50, 1080p60, 720p59 (720p59.94), 1080p29 (1080p29.97), 1080i59 (1080i59.94), and 1080p59 (1080p69.94)

Marshall

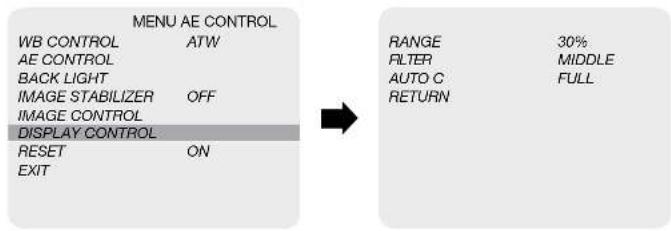

8. DISPLAY CONTROL

Select IMAGE STABILIZER using the UP or DOWN button. You can select the RANGE, FILTER, and AUTO C from the sub menu.

• CAM VERSION: Display the camera firmware version.
- PRIVACY: Mask areas where you want to hide on the screen.
• CAM ID: Select camera ID number from 0-255.
• BAUDRATE: Set the camera baudrate of RS-485 communication.
• LANGUAGE: Select English or Chinese OSD menu.

• CAN TITLE: Camera title can be entered using the virtual keyboard and it will overlay on the video.

- DEFECT DET: Adjust the active pixels by adjusting the threshold value. Camera iens must be completely covered before activating this menu.

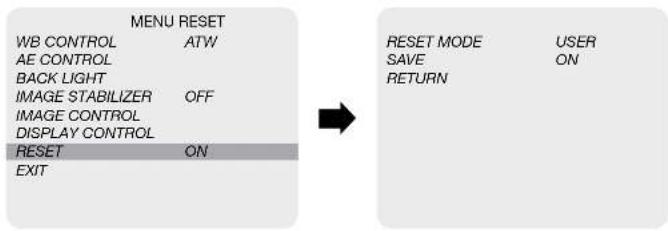

9. RESET

Select RESET using the UP or DOWN button. You can reset the setting to FACTORY or USER saved settings. Choose ON or CHANGE by using the LEFT or RIGHT button.

- ON: Set the camera reset setting to either FACTORY or USER saved settings which is defined from CHANGE menu.

Please make sure to select the right mode before resetting the camera.

- CHANGE: Change reset mode or save the current setting as a USER.

FACTORY: Select FACTORY if factory default setting is needed. FRAME RATE, CAM ID, and BAUDRATE will not change.
» USER: Select USER If the USER saved setting needs to be loaded.
» SAVE: Save the current settings as the USER saved setting.

10. TROUBLESHOOTING

Problem Solutions
Nothing appears on the screen.	a. Check that all connected devices are powered on.b. Confirm that the voltage is correct.c. Confirm that the power supply provides enough current to power the camera.d. Check that all video cables are correctly connected.
The picture is not clear.	a. Check that your monitor is correctly adjusted.b. Confirm that the glass in front of the lens is clean. If there is dust, dirt, or fingerprints on the glass, the image quality will be affected. To clean the glass, use a soft, dry, and non-abrasive cloth or a commercially available lens cleaning set.c. Correctly adjust the focus.
The picture has interference.	a. The camera may be close to a high voltage source, such as a power generator.b. The BNC cable is not terminated properly.c. The video cables are not connected properly.
The picture is flickering continually.	a. Check the termination and set the impedance at 75Ω properly.b. Ensure that the camera is not pointing towards the Sun or any light source.c. Check if there is any Intermediate device.d. Check if the distance of the video cable exceeds the maximum transferable limitation.
The camera is not synchronizing with the reference signal.	a. Make sure Tri-Level reference signal is used.b. Locking takes up to 1 minute depending on the signal strength. Make sure the sync LED is solidly lit.c. Check if the cable and connectors used in reference sync are in good condition.d. Make sure the cable length used in reference sync does not exceed 100 ft.e. Make sure OUTPUT EN is on when using the genlock output.

Warranty

Marshall Electronics warranties to the first consumer that this device will, under normal use, be free from defects in workmanship and materials, when received in its original container, for a period of two years from the purchase date. This warranty is extended to the first consumer only, and proof of purchase is necessary to honor the warranty. If there is no proof of purchase provided with a warranty claim, Marshall Electronics reserves the right not to honor the warranty set forth above. Therefore, labor and parts may be charged to the consumer. This warranty does not apply to the product exterior or cosmetics. Misuse, abnormal handling, alterations or modifications in design or construction void this warranty. No sales personnel of the seller or any other person is authorized to make any warranties other than those described above, or to extend the duration of any warranties on behalf of Marshall Electronics, beyond the time period described above.

Due to constant effort to improve products and product features, specifications may change without notice.
