USER MANUAL P1914S DELL

Regulatory model: P1914Sf

NOTE: A NOTE indicates important information that helps you make better use of your monitor.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

© 2013 Dell Inc. All rights reserved.

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. ENERGY STAR is a registered trademark of the U.S.

Environmental Protection Agency. As an ENERGY STAR partner, Dell Inc. has determined that this product meets the ENERGY STAR guidelines for energy efficiency.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.

Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

2013 - 09 Rev. A00

Contents

Dell Display Manager User's Guide .... 6

Overview 6

Using the Quick Settings Dialog . . . . . . . . . . . . . . . . . . . 6

Setting Basic Display Functions 7

Assigning Preset Modes to Applications ..... 7

Applying Energy-Conservation Features ..... 9

About Your Monitor 10

Package Contents 10

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Identifying Parts and Controls 12

Monitor Specifications.... 14

Power Management Modes 14

Pin Assignments 16

Plug and Play Capability....20

Flat-Panel Specifications.... 21

Resolution Specifications 22

Electrical Specifications 22

Preset Display Modes 23

Physical Characteristics 23

Environmental Characteristics 24

LCD Monitor Quality & Pixel Policy ..... 25

Maintenance Guidelines....25

Caring for Your Monitor 25

Setting Up the Monitor....26

Attaching the Monitor 26

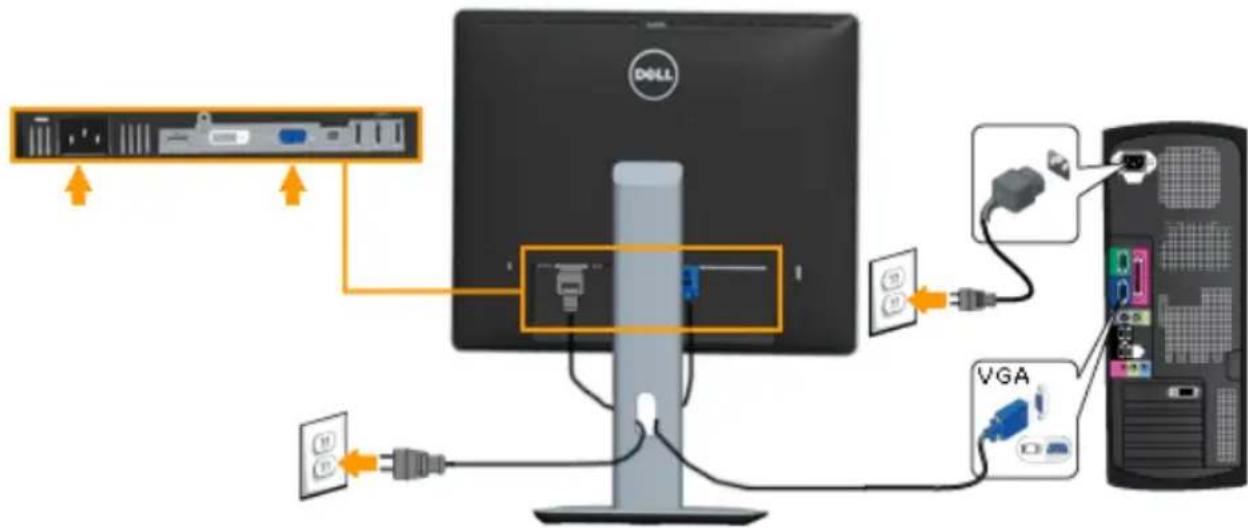

Connecting Your Monitor 27

Connecting the blue VGA Cable 27

Connecting the white DVI Cable 27

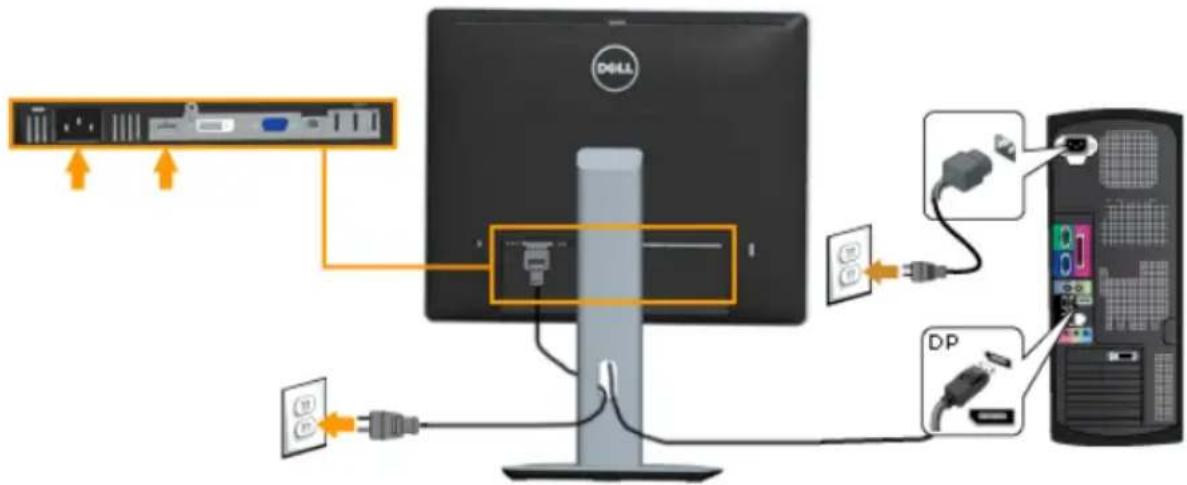

Connecting the black DisplayPort cable 28

Connecting the USB cable....28

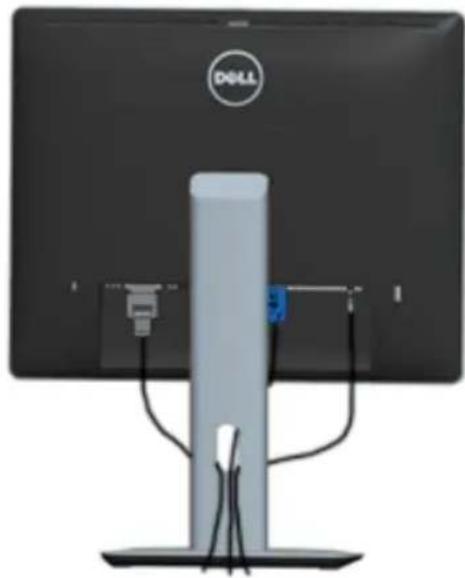

Organizing Your Cables 29

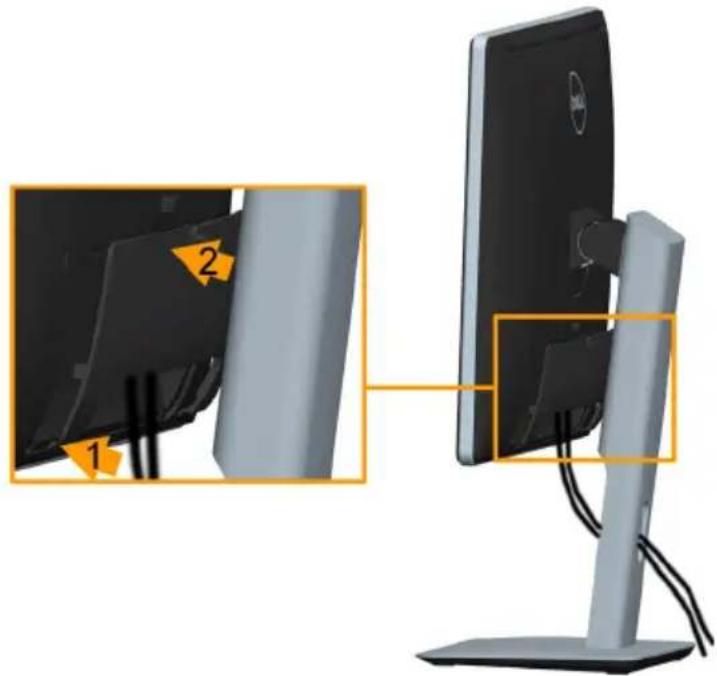

Attaching the Cable Cover 29

Removing the Monitor Stand 30

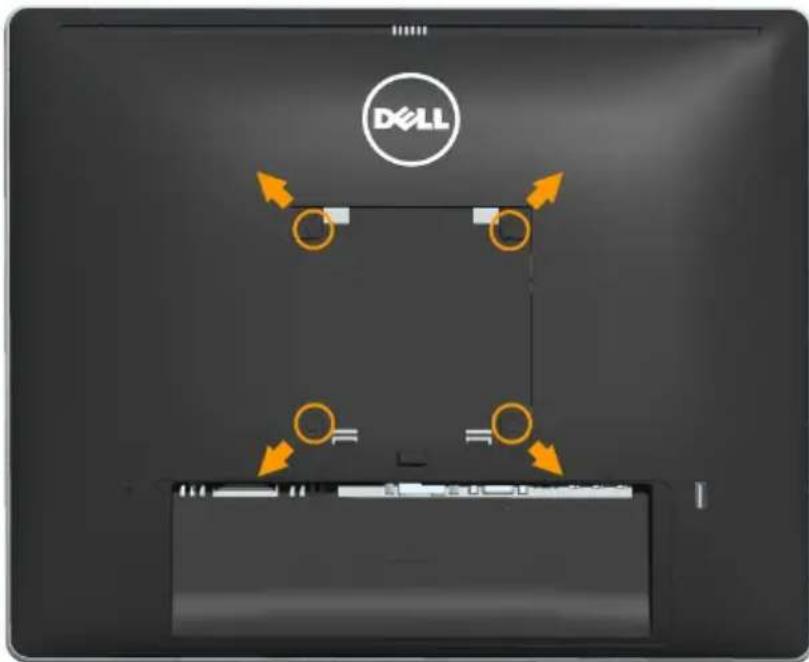

Wall Mounting (Optional) 31

Operating the Monitor 32

Power On the Monitor 32

Using the Front-Panel Controls 32

Front-Panel Keys. 33

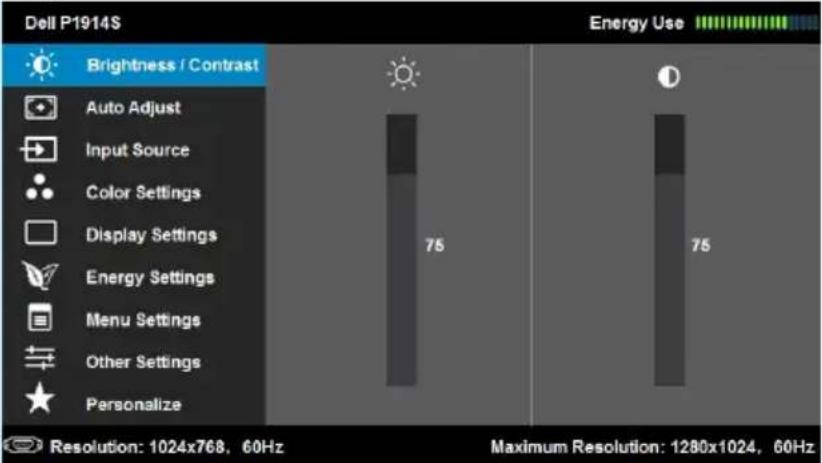

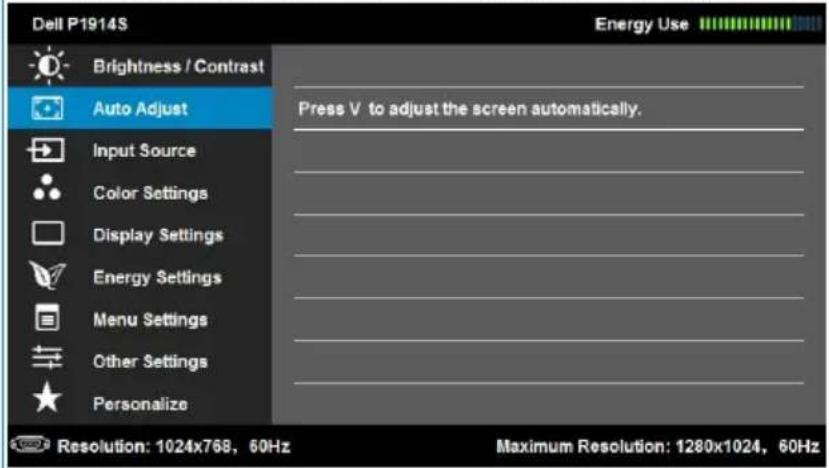

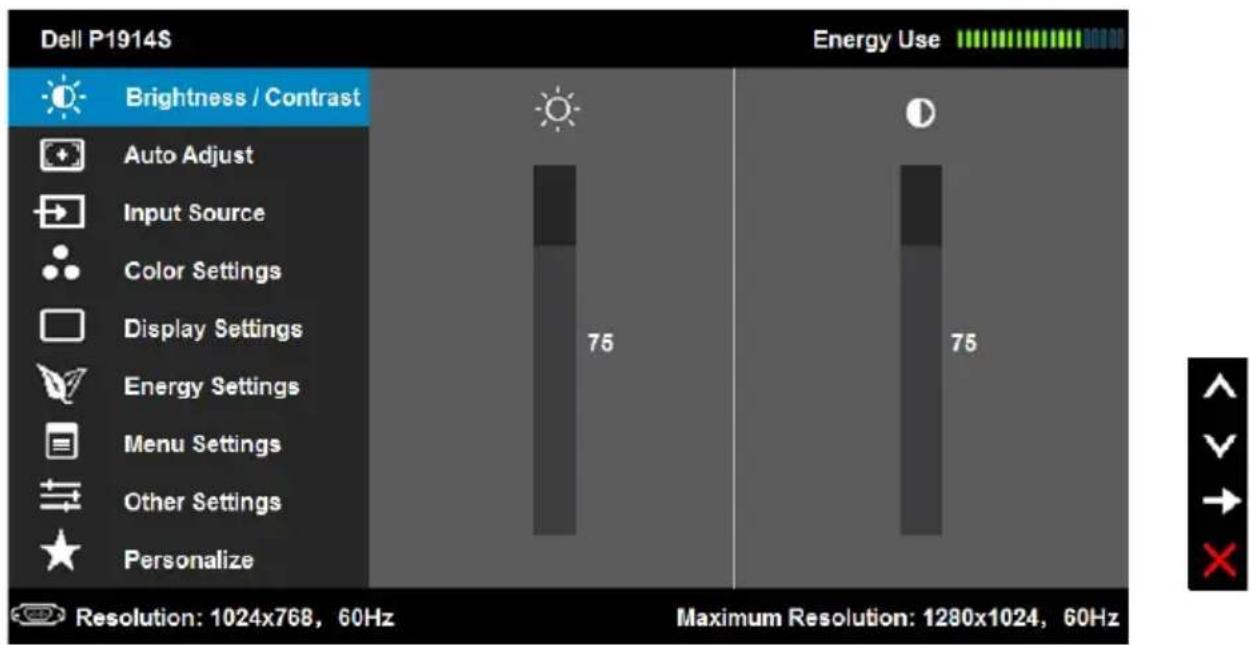

Using the On-Screen Display (OSD) Menu ..... 34

Accessing the Menu System 34

OSD Messages....44

Setting the Maximum Resolution 47

Using the Tilt, Swivel, and Vertical Extension ..... 48

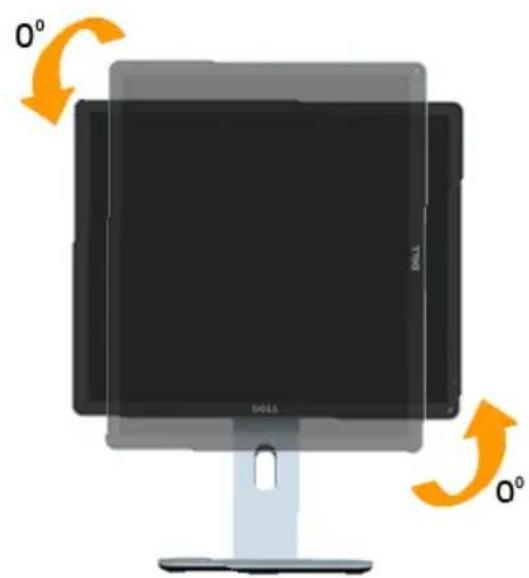

Rotating the Monitor. 50

Adjusting the Rotation Display Settings of Your System. 51

Troubleshooting 52

Self-Test 52

Built-in Diagnostics. 53

Common Problems.... 54

Product-Specific Problems 56

Universal Serial Bus (USB) Specific Problems ..... 57

Appendix 58

FCC Notices (U.S. Only) and Other Regulatory Information 58

Contact Dell 58

Setting Up Your Monitor .... 59

Setting the display resolution to 1280 x 1024 (Maximum)59

If you have a Dell desktop or a Dell portable computer with Internet access 60

If you have a non Dell desktop, portable computer, or graphics card 60

Procedures for setting up dual monitors in Windows Vista®, Windows® 7 or Windows® 8. . . . . . . . . . . . . . . 61

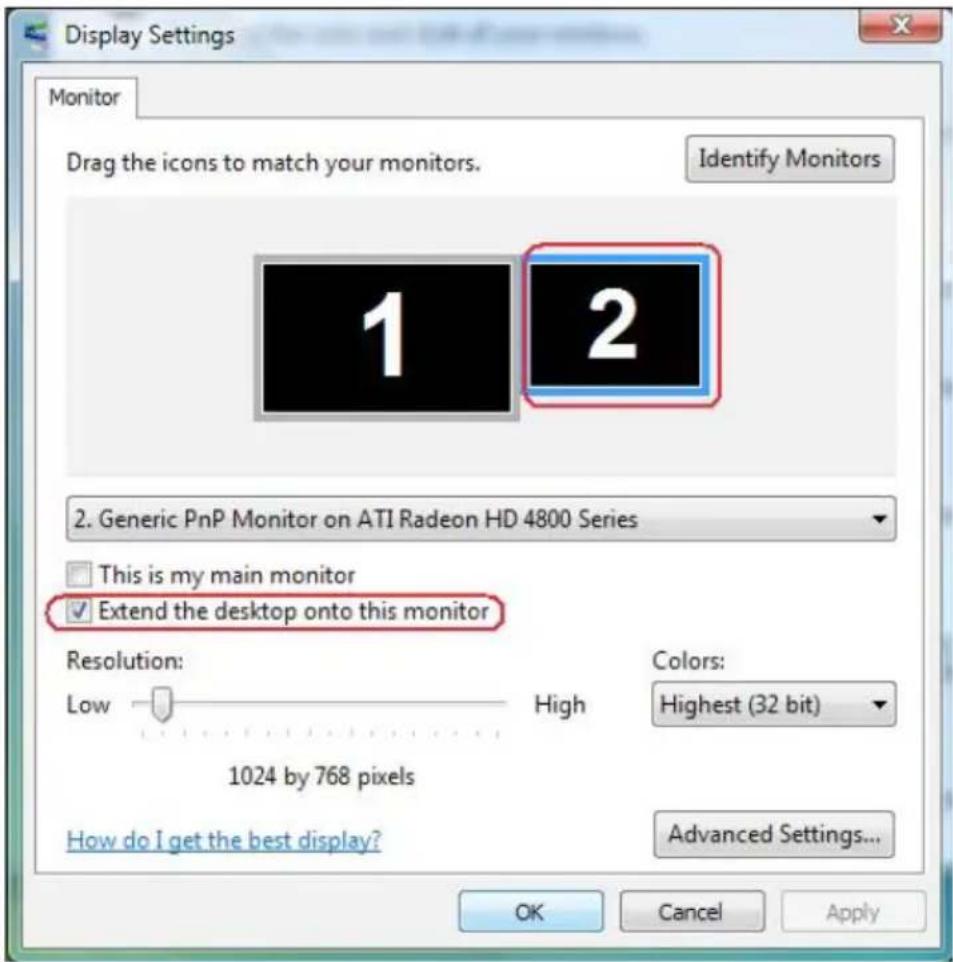

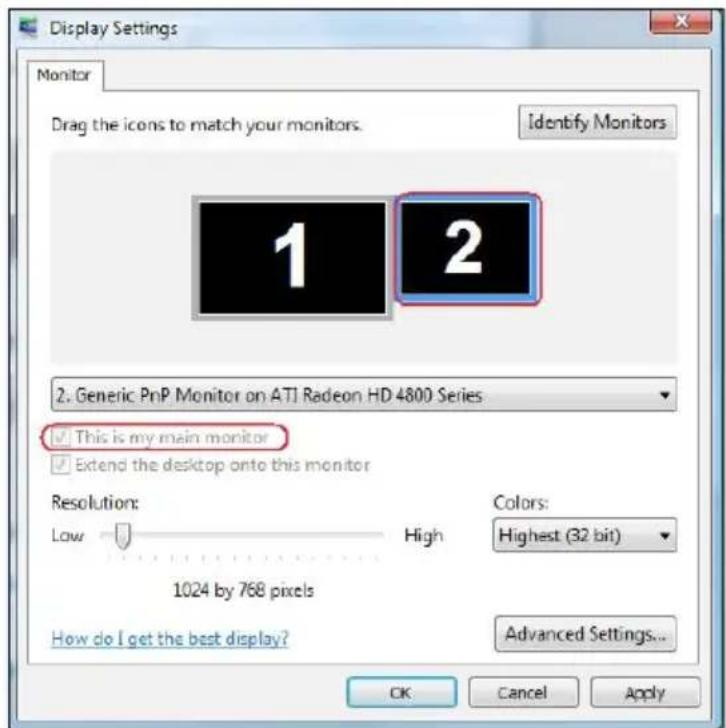

For Windows Vista® 61

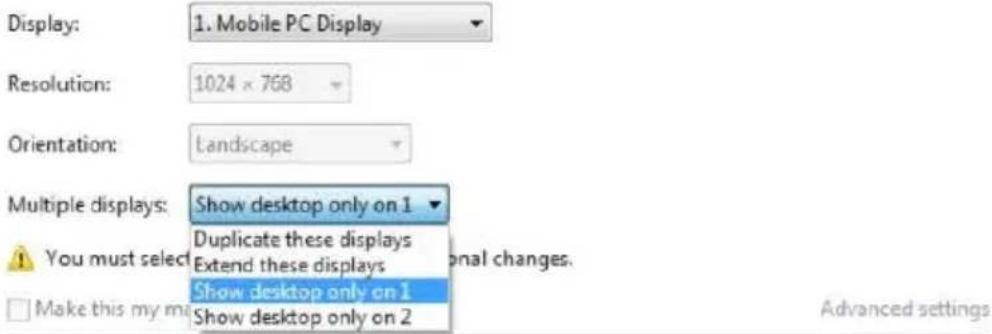

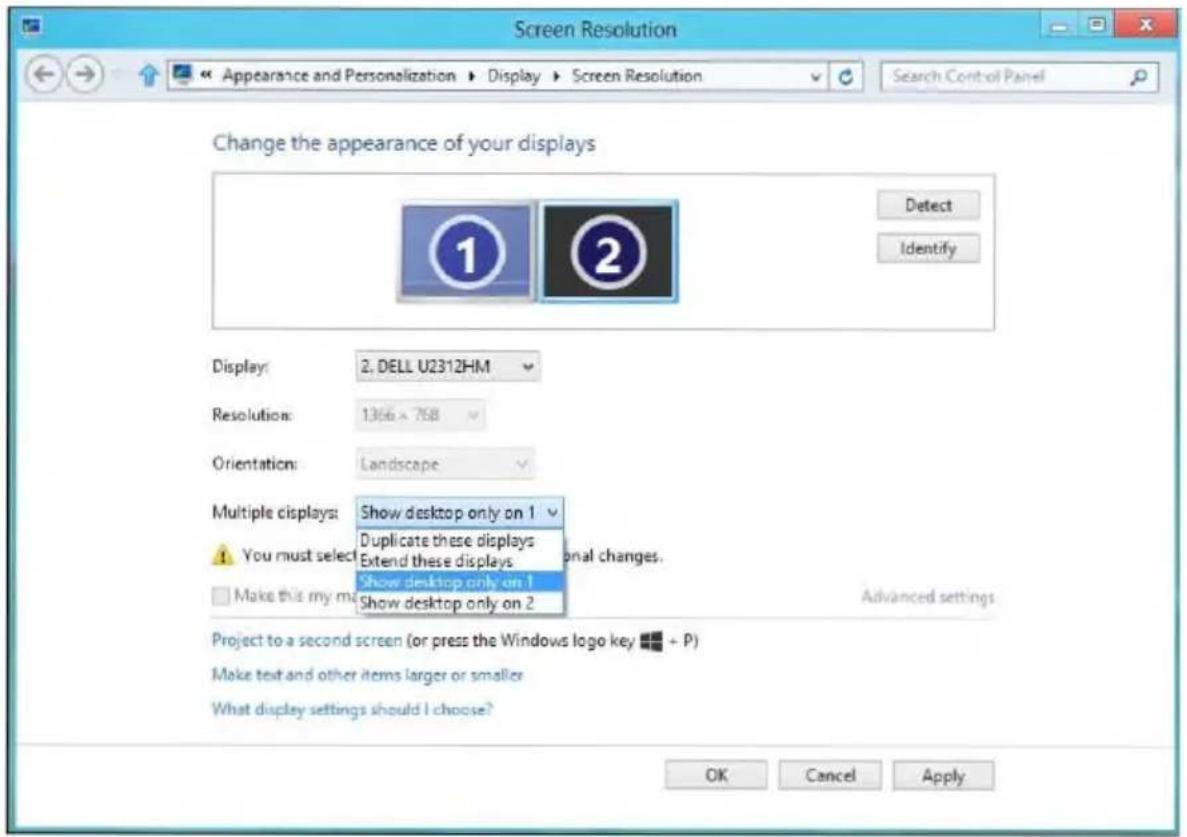

For Windows® 7....63

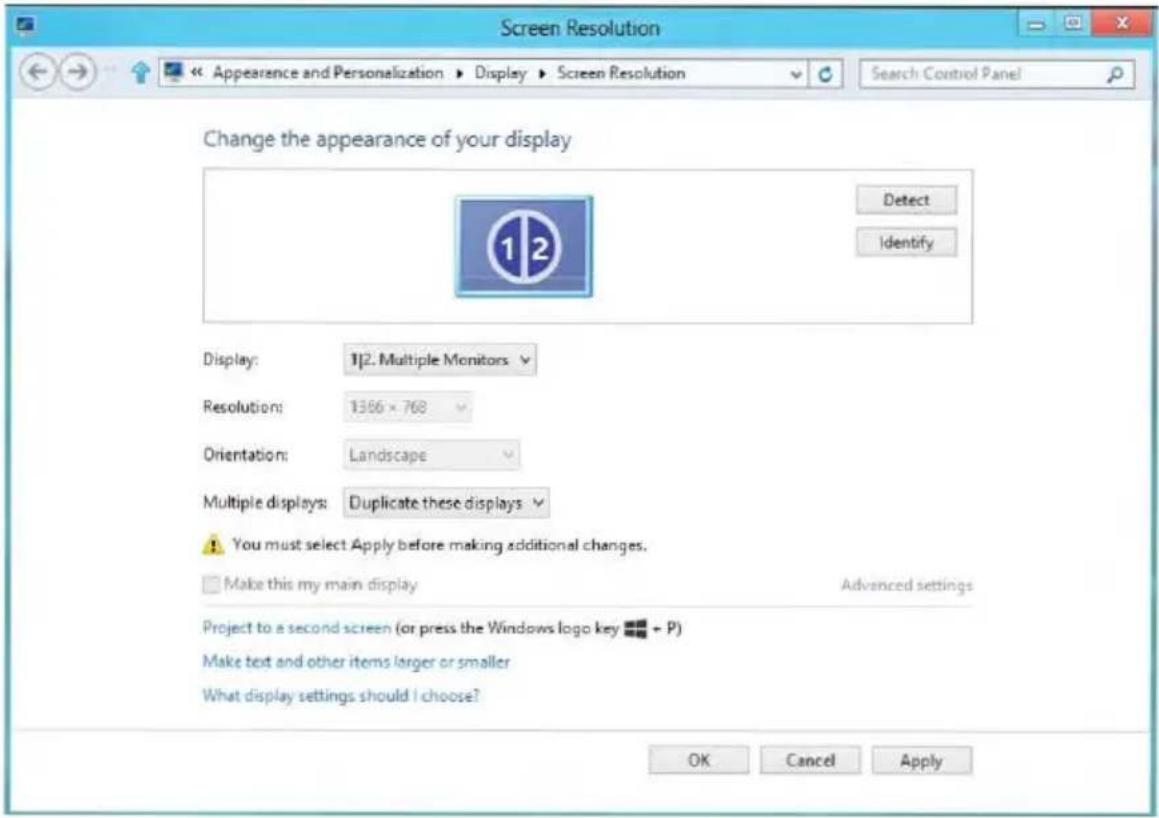

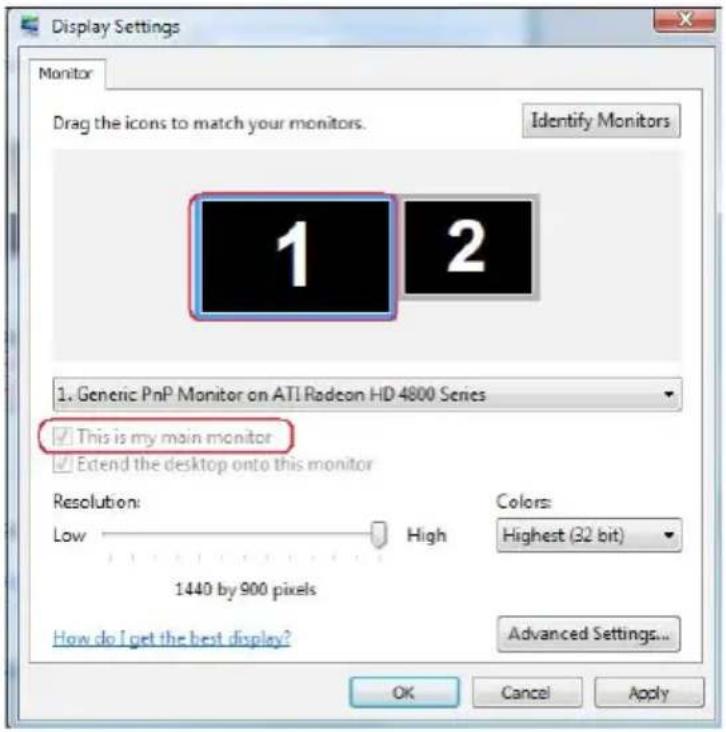

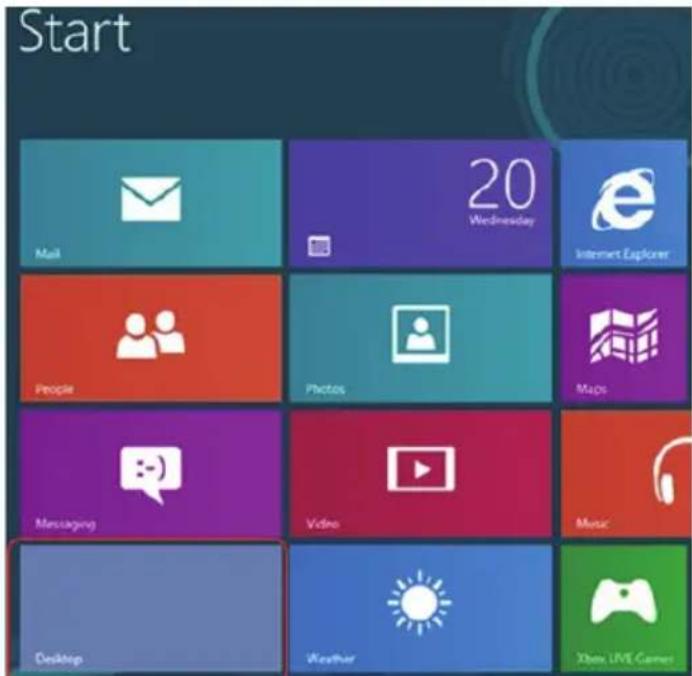

For Windows® 8. 65

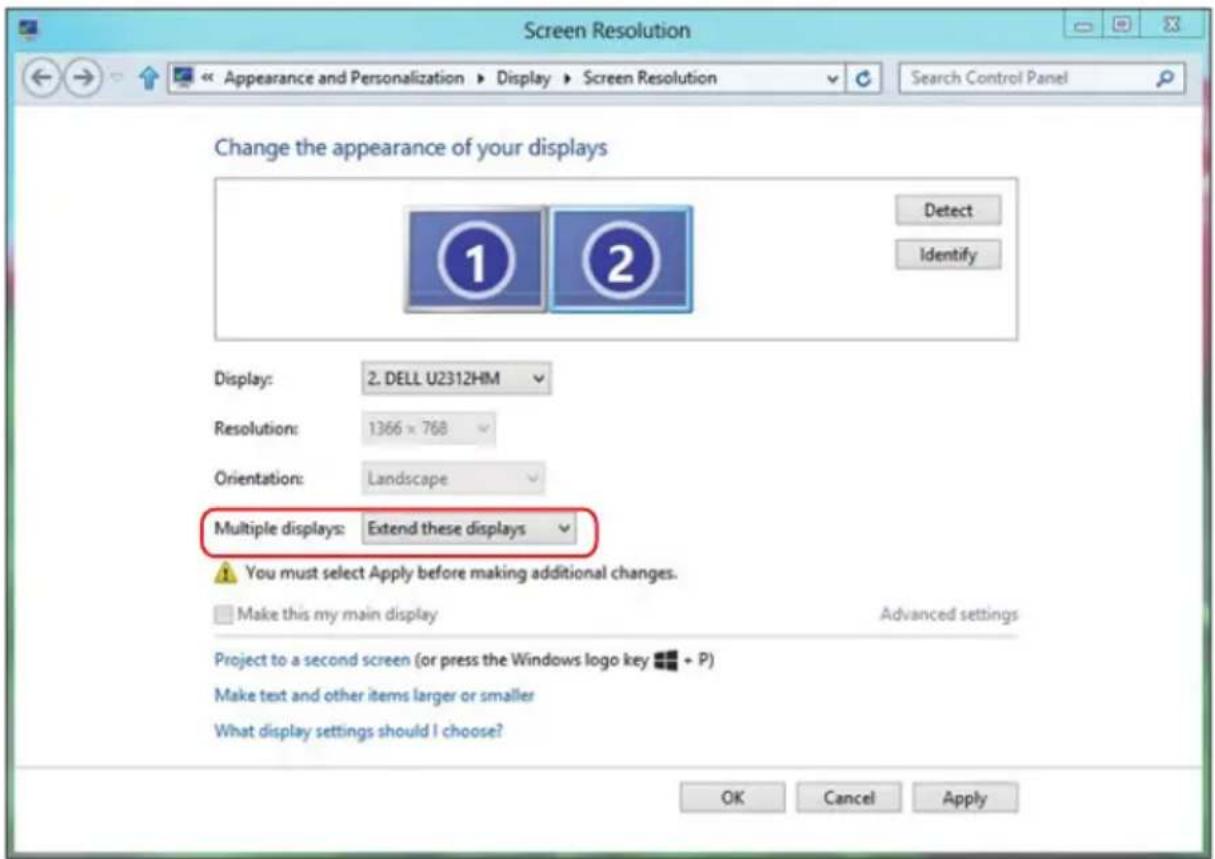

Setting Display Styles For Multiple Monitor 67

Dell Display Manager User's Guide

Overview

Dell Display Manager is a Windows application used to manage a monitor or a group of monitors. It allows manual adjustment of the displayed image, assignment of automatic settings, energy management, image rotation and other features on select Dell models. Once installed, Dell Display Manager will run each time the system starts and will place its icon in the notification tray. Information about monitors connected to the system is always available when hovering over the notification tray icon.

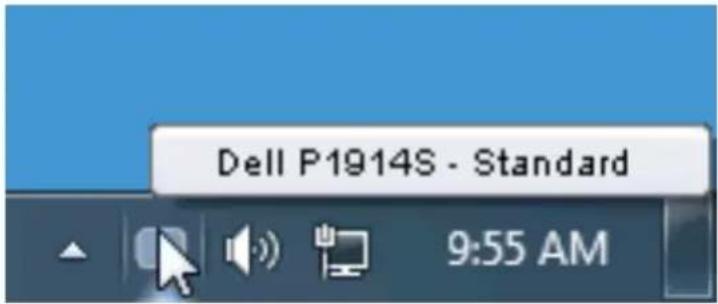

Dell P1914S - Standard 9:55 AM

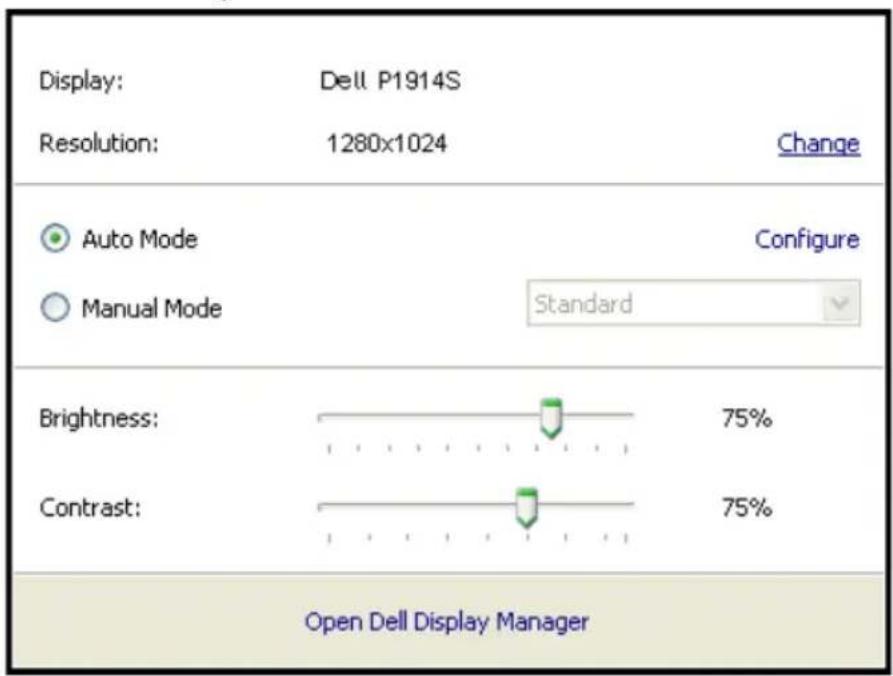

Using the Quick Settings Dialog

Clicking Dell Display Manager's notification tray icon opens the Quick Settings dialog box. When more than one supported Dell model is connected to the system, a specific target monitor can be selected using the menu provided. The Quick Settings dialog box allows convenient adjustment of the monitor's Brightness and Contrast levels, Preset Modes can be manually selected or set to Auto Mode, and the screen resolution can be changed.

Display: Dell P1914S Resolution: 1280x1024 Change Auto Mode Configure Manual Mode Standard Brightness: 75% Contrast: 75% Open Dell Display Manager

The Quick Settings dialog box also provides access to Dell Display Manager's advanced user interface which is used to adjust Basic functions, configure Auto Mode and access other features.

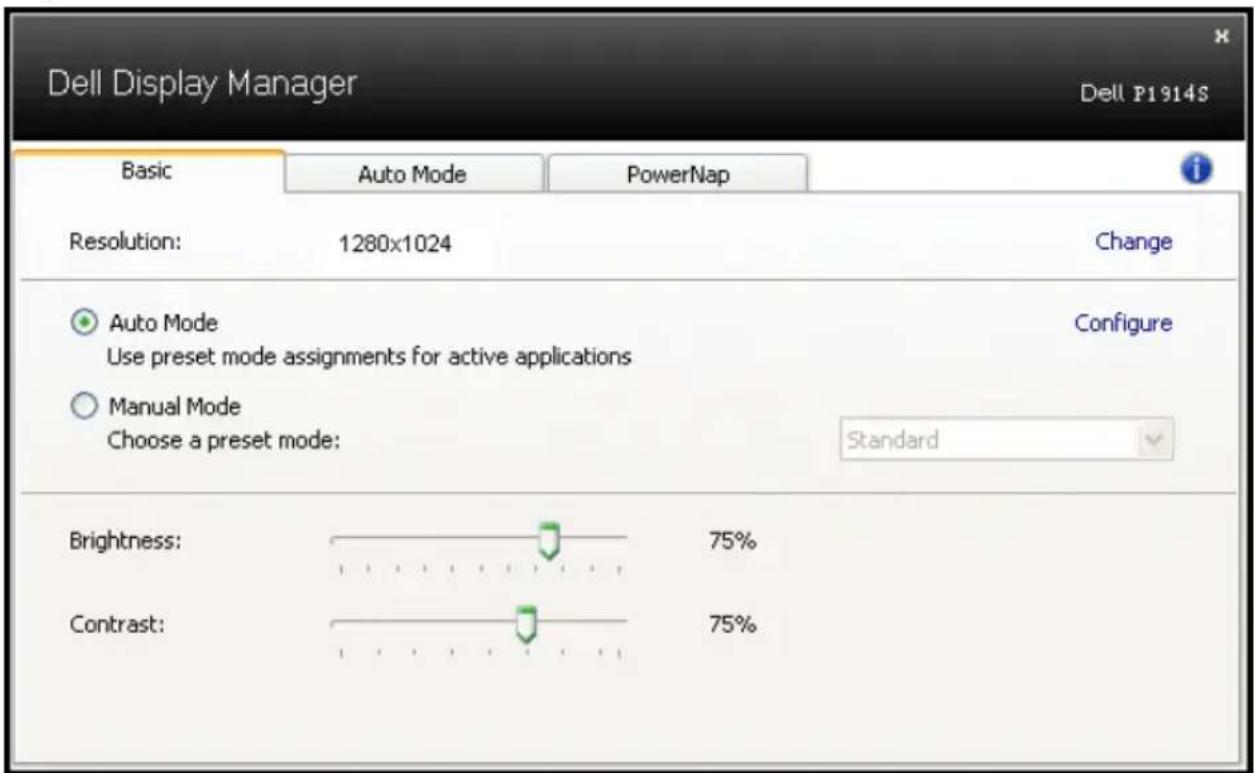

Setting Basic Display Functions

A Preset Mode for the selected monitor can be manually applied using the menu on the Basic tab. Alternatively, Auto Mode can be enabled. Auto Mode causes your preferred Preset Mode to be applied automatically when specific applications are active. An onscreen message momentarily displays the current Preset Mode whenever it changes.

The selected monitor's Brightness and Contrast can also be directly adjusted from the Basic tab.

Dell Display Manager Dell P1914S Basic Auto Mode PowerNap Resolution: 1280x1024 Change Auto Mode Use preset mode assignments for active applications Configure Manual Mode Choose a preset mode: Standard Brightness: 75% Contrast: 75%

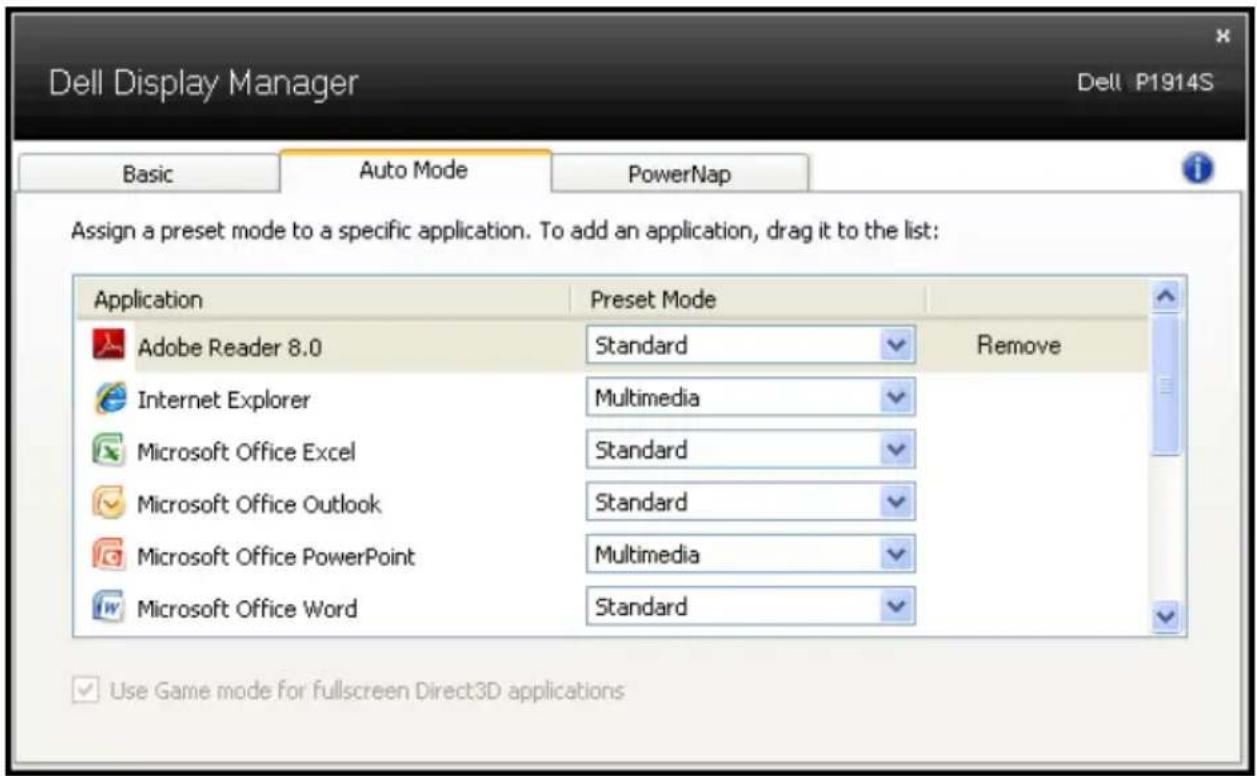

Assigning Preset Modes to Applications

The Auto Mode tab allows you to associate a specific Preset Mode with a specific application, and apply it automatically. When Auto Mode is enabled, Dell Display Manager will automatically switch to the corresponding Preset Mode whenever the associated application is activated. The Preset Mode assigned to a particular application may be the same on each connected monitor, or it can vary from one monitor to the next.

Dell Display Manager is pre-configured for many popular applications. To add a new application to the assignment list, simply drag the application from the desktop, Windows Start Menu or elsewhere, and drop it onto the current list.

NOTE: Preset Mode assignments targeting batch files, scripts, and loaders, as well as non-executable files such as zip archives or packed files, are not supported and will be ineffective.

Dell Display Manager Basic Auto Mode PowerNap Assign a preset mode to a specific application. To add an application, drag it to the list: Application Preset Mode Adobe Reader 8.0 Standard Remove Internet Explorer Multimedia Microsoft Office Excel Standard Microsoft Office Outlook Standard Microsoft Office PowerPoint Multimedia Microsoft Office Word Standard Use Game mode for fullscreen Direct3D applications

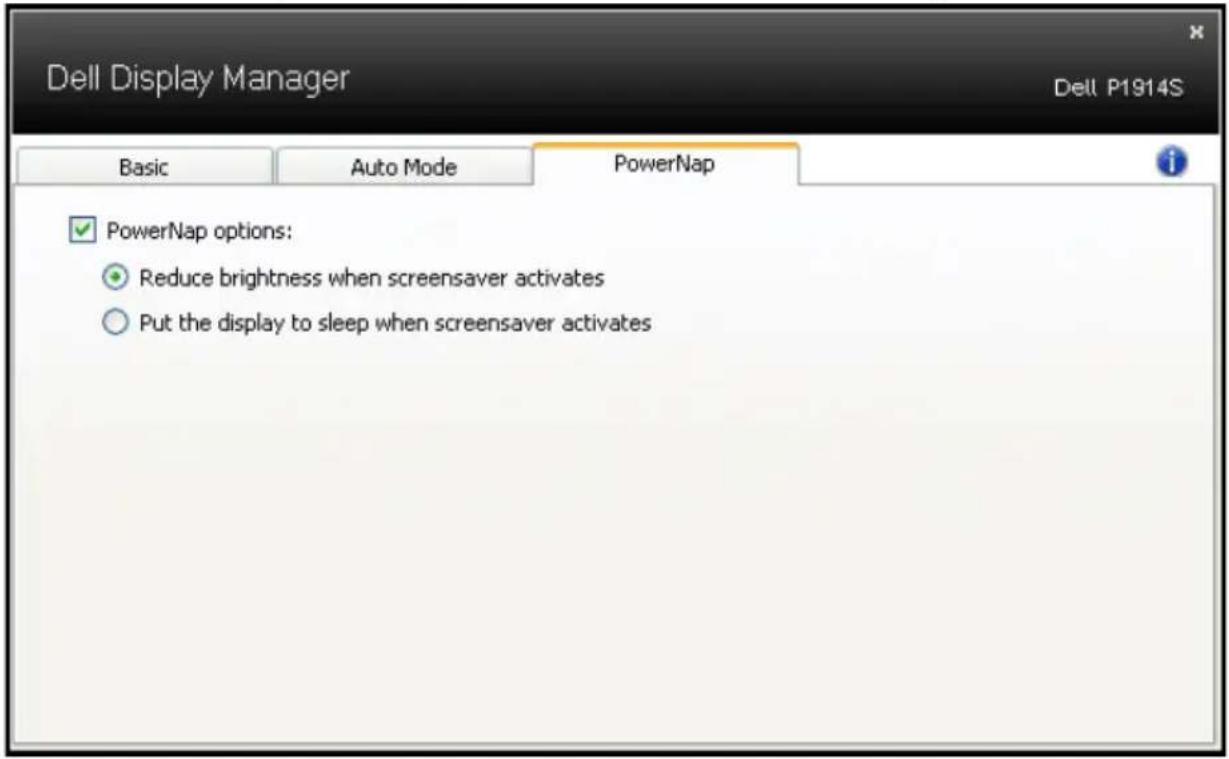

Applying Energy-Conservation Features

On supported Dell models, the PowerNap tab will be available to provide energy conservation options. When the screensaver activates, the monitor's Brightness can automatically be set to minimum level or the monitor can be put to sleep in order to save additional power.

Dell Display Manager Basic Auto Mode PowerNap PowerNap options: Reduce brightness when screensaver activates Put the display to sleep when screensaver activates

About Your Monitor

Package Contents

Your monitor ships with all the components shown below. Ensure that you have received all the components and Contact Dell if anything is missing.

NOTE: Some items may be optional and may not ship with your monitor. Some features or media may not be available in certain countries.
NOTE: To set up with any other stand, please refer to the respective stand setup guide for setup instructions.
NOTE: P1914S monitor is BFR/PVC-free (Halogen-free) excluding external cables.

			• Monitor
			• Stand
			• Cable Cover
			• Power Cable (varies with countries)
			• VGA Cable
			• DisplayPort (DP) Cable
			• USB upstream cable (enables the USB ports on the monitor)
			• Drivers and Documentation Media• Quick Setup Guide• Product and Safety Information Guide

Product Features

The Dell P1914S flat-panel display has an active matrix, Thin-Film Transistor, Liquid Crystal Display. The monitor's features include:

• P1914S: 48.00cm (19.0 inches) diagonal viewable image size, 1280 x 1024 resolution, plus full-screen support for lower resolutions.
• Wide viewing angle to allow viewing from a sitting or standing position, or while moving from side-to-side.
• Tilt, swivel, vertical extension and rotate adjustment capabilities.
• Stand lock.
• Removable pedestal and Video Electronics Standards Association (VESA) 100 mm mounting holes for flexible mounting solutions.
• Plug and play capability if supported by your system.
• On-Screen Display (OSD) adjustments for ease of set-up and screen optimization.
• Software and documentation media which includes an information file (INF), Image Color Matching File (ICM), Dell Display Manager software application and product documentation.
  • ENERGY STAR-compliant.
  • Security lock slot.
  • Asset Management Capability.
• EPEAT Gold Rating.
• Dell Display Manager software included (comes in the CD shipped with the monitor).
• BFR/PVC-free (Halogen-free) excluding external cables.
• TCO compliant.

- Energy Gauge shows the energy level being consumed by the monitor in real time.

Identifying Parts and Controls

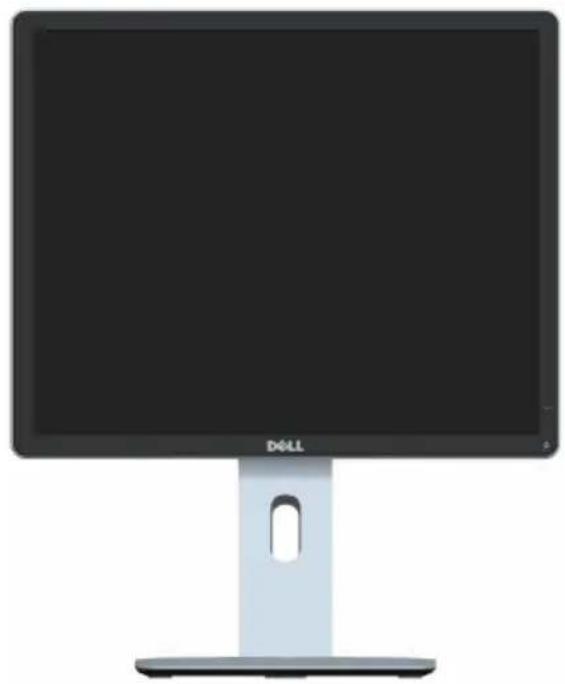

Front View

Front view of a black DOLL computer monitor with a silver stand (no visible text or symbols on the screen)

1 2

Front panel controls

1. Function buttons (For more information, see Operating the Monitor)
   2 Power On/Off button (with LED indicator)

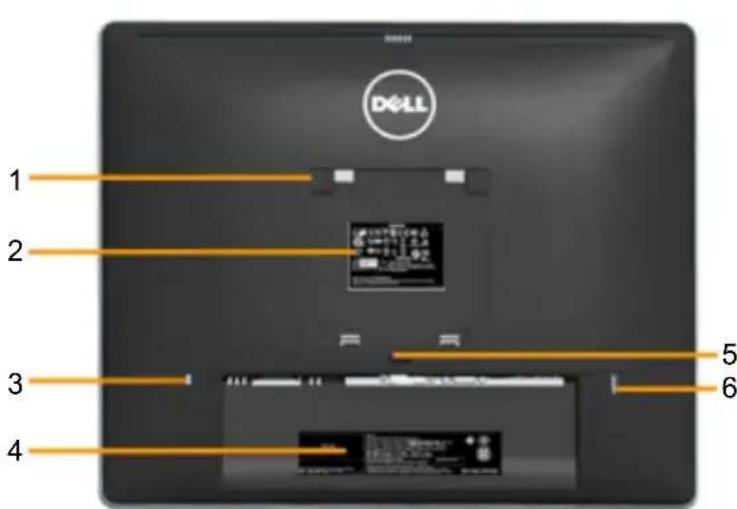

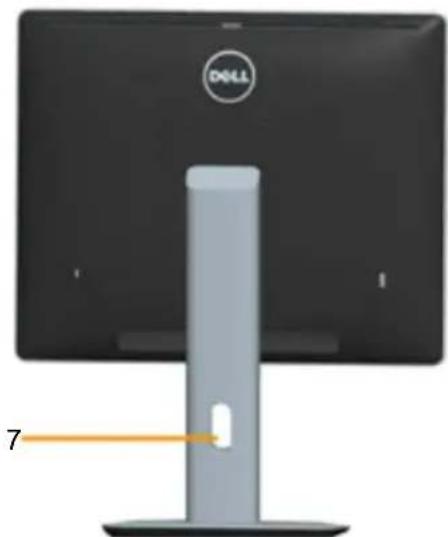

Back View

1 2 3 4 5 6

Front view of a Dell computer monitor with a stand and indicator light (no text or symbols on the device itself)

Back View with monitor stand

Label Description Use
1 VESA mounting holes (100 mm)		To mount the monitor.
2 Regulatory rating label Lists the regulatory approvals.
3 Security lock slot		Use a security lock to secure your monitor. (security lock not included).
4 Barcode serial number label Refer to this label if you need to contact Dell for technical support.
5 Stand release button Release stand from monitor.
6 USB downstream port Connect your USB device. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on the monitor.
7 Cable management slot Use to organize cables by placing them through the slot.

Side View

Side view of a modern computer monitor with a curved screen and stand (no text or symbols visible)

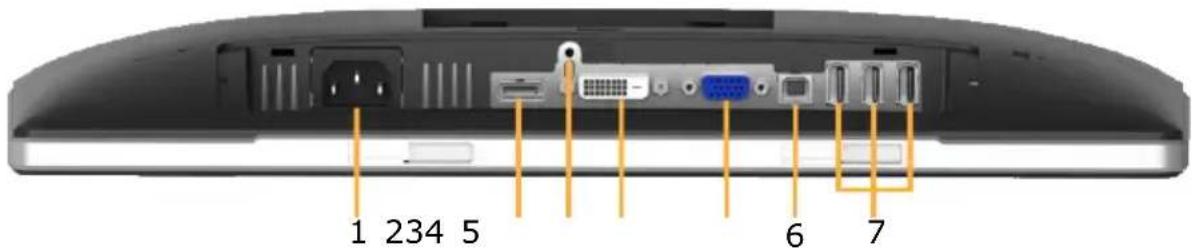

Bottom View

1 234 5 6 7

Label	Description Use
1 AC power connector To connect the monitor power cable.
2 DisplayPort connector To connect your computer to the monitor using a DisplayPort cable.
3 Stand lock feature To lock the stand to the monitor using a M3 x 6 mm screw (screw not included).
4 DVI connector To connect your computer to the monitor using a DVI cable.
5 VGA connector To connect your computer to the monitor using a VGA cable.
6 USB upstream port Connect the USB cable that came with your monitor to the monitor and the computer. Once this cable is connected, you can use the USB connectors on the monitor.
7 USB downstream port Connect your USB device. You can only use this connector after you have connected the USB cable to the computer and USB upstream connector on the monitor.

Monitor Specifications

The following sections give you information about the various power management modes and pin assignments for the various connectors of your monitor.

Power Management Modes

If you have VESA's DPM compliance display card or software installed in your PC, the monitor automatically reduces its power consumption when not in use. This is referred to as Power Save Mode. If the computer detects input from keyboard, mouse, or other input devices, the monitor automatically resumes functioning. The following table shows the power consumption and signaling of this automatic power-saving feature:

VESA Modes	Horizontal Sync	Vertical Sync	Video	Power Indicator	Power Consumption
Normal operation	Active Active	Active W	White 37	W (Maximum) **16 W (Typical)
Active-off mode Inactive	Inactive	Blank	Glowingwhite		Less than 0.5 W
Switch off - - - Off	Less	than 0.5 W *

The OSD will only function in the normal operation mode. When any button except power button is pressed in Active-off mode, the following messages will be displayed:

Dell P1914S

There is no signal coming from your computer. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button now to select the correct input source on the On-Screen-Display menu.

Activate the computer and monitor to gain access to the OSD.

NOTE: The Dell P1914S monitor is ENERGY STAR®-compliant.

* Zero-power consumption in OFF mode can only be achieved by disconnecting the main cable from the monitor.
** Maximum power consumption with max luminance and contrast.

Pin Assignments

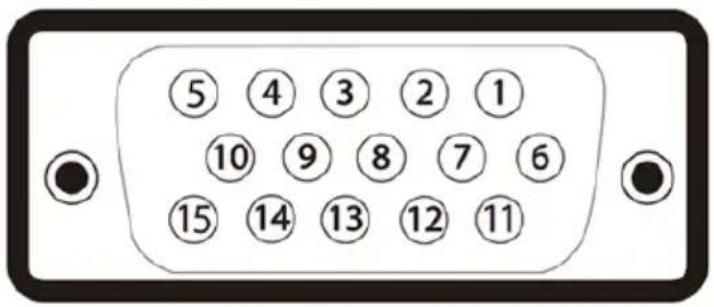

15-pin D-Sub connector

⑤ ④ ③ ② ① ⑩ ⑨ ⑧ ⑦ ⑥ ⑮ ⑭ ⑬ ⑭ ⑮

Pin Number	Monitor Side of the 15-pin Side Signal Cable
1 Video	-Red
2 Video	-Green
3 Video	-Blue
4 GND
5 Self-test
6 GND-R
7 GND-G
8 GND-B
9 DDC +5 V
10 GND-sync
11 GND
12 DDC data
13 H-sync
14 V-sync
15 DDC clock

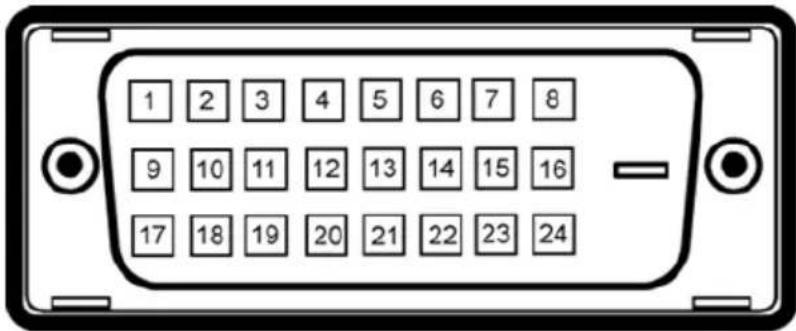

DVI Connector

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

Pin Number	24-pin Side of the Connected Signal Cable
1	TMDS RX2-
2	TMDS RX2+
3	TMDS Ground
4	Floating
5	Floating
6	DDC Clock
7	DDC Data
8	Floating
9	TMDS RX1-
10	TMDS RX1+
11	TMDS Ground
12	Floating
13	Floating
14	+5 V power
15	Self test
16	Hot Plug Detect
17	TMDS RX0-
18	TMDS RX0+
19	TMDS Ground
20	Floating
21	Floating
22	TMDS Ground
23	TMDS Clock+
24	TMDS Clock-

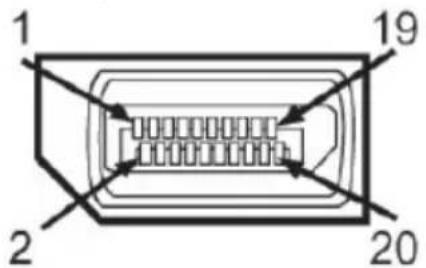

DisplayPort connector

1 19 2 20

Pin Number	20-pin Side of the Connected Signal Cable
1	ML0(p)
2	GND
3	ML0(n)
4	ML1(p)
5	GND
6	ML1(n)
7	ML2(p)
8	GND
9	ML2(n)
10	ML3(p)
11	GND
12	ML3(n)
13	GND
14	GND
15	AUX(p)
16	GND
17	AUX(n)
18	HPD
19	DP_PWR_Return
20	+3.3 V DP_PWR

Universal Serial Bus (USB) Interface

This section gives you information about the USB ports that are available on the monitor.

NOTE: This monitor supports High-Speed Certified USB 2.0 interface.

Transfer Speed 4-pin Side of the Connector

High speed 480 Mbps

Full speed 12 Mbps

Low speed 1.5 Mbps

USB Upstream Connector

1 2 3 4

Pin Number Data Rate
1 DMU
2 VCC
3 DPU
4 GND

USB Downstream Connector

1 2 3 4

PinNumber	Data Rate
1 VCC
2 DMD
3 DPD
4 GND

USB Ports

• 1 upstream - back
  • 4 downstream - back

NOTE: USB 2.0 functionality requires a USB 2.0-capable computer.

NOTE: The monitor's USB interface works only when the monitor is On or in the power-save mode. If you turn Off the monitor and then turn it On, the attached peripherals may take a few seconds to resume normal functionality.

Plug and Play Capability

You can install the monitor in any Plug and Play compatible system. The monitor automatically provides the computer with its Extended Display Identification Data (EDID) using Display Data Channel (DDC) protocols so that the system can configure itself and optimize the monitor settings. Most monitor installations are automatic. You can select different settings if required.

Flat-Panel Specifications

Model number Dell P1914S monitor
Screen type Active matrix - TFT LCD
Panel Type IIn Plane Switching Type
Viewable image dimensions:
Diagonal	480.0 mm (19.0 inches)
Horizontal	374.8 mm (14.76 inches)
Vertical	299.8 mm (11.80 inches)
Pixel pitch 0.29 mm
Viewing angle:
Horizontal	178° typical
Vertical	178° typical
Luminance output 250 cd/m2 (typical)
Contrast ratio 1000 to 1 (typical)
Faceplate coating Antiglare with hard-coating 3H
Backlight LED light bar system
Response Time 8 ms typical (gray to gray)
Color Depth 16.7 mil colors
Color Gamut 83 % (typical) **

** [P1914S] color gamut (typical) is based on CIE1976 (83 %) and CIE1931 (72 %) test standards.

Resolution Specifications

Model number Dell P1914S monitor
Scan rangeHorizontalVertical	30 kHz to 81 kHz (automatic)56 Hz to 76 Hz (automatic)
Maximum preset resolution	1280 x 1024 at 60 Hz

Electrical Specifications

Model number Dell P1914S monitor
Video input signals •	Analog RGB: 0.7 Volts ± 5 %, 75 ohm input impedanceDigital DVI-D TMDS, 600 mV for each differential line, positive polarity at 50 ohm input impedanceDP 1.2 signal input support*
Synchronization input signals	Separate horizontal and vertical synchronizations, polarity-free TTL level, SOG (Composite SYNC on green)
AC input voltage / frequency / current	100 VAC to 240 VAC/50 Hz or 60 Hz ± 3 Hz/1.2 A (Max.)
Inrush current 120 V:	30 A (Max.)240 V: 60 A (Max.)

*Supports DP1.2 (CORE) specification. Excludes High Bit Rate 2 (HBR2), Fast AUX transaction, Multi-stream transport (MST), 3D stereo transport, HBR Audio (or high data rate audio).

Preset Display Modes

The following table lists the preset modes for which Dell guarantees image size and centering:

Display Mode	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock (MHz)	Sync Polarity (Horizontal/ Vertical)
VESA, 720 x 400	31.5 70.0 28.3	-/+
VESA, 640 x 480	31.5 59.9 25.2	-/-
VESA, 640 x 480	37.5 75.0 31.5	-/-
VESA, 800 x 600	37.9 60.3	40.0	+/+
VESA, 800 x 600	46.9	75.0 49.5	+/+
VESA, 1024 x 768	48.4 60.0	65.0	-/-
VESA, 1024 x 768	60.0	75.0	78.8	+/+
VESA, 1280 x 1024	64.0	60.0	108.0	+/+
VESA, 1280 x 1024	80.0	75.0	135.0	+/+

Physical Characteristics

The following table lists the monitor's physical characteristics:

Model Number	Dell P1914S monitor
Connector type	D-subminiature, blue connector;DVI-D: white connector;DP, black connector
Signal cable type	D-sub: Analog, 15-pin.DVI-D: DVI-D, Solid pinsDigital: DisplayPort, 20-pin
Dimensions: (with stand)
Height (extended)	499.7 mm (19.67 inches)
Height (compressed)	370.2 mm (14.57 inches)
Width	411.4 mm (16.20 inches)
Depth	180.0 mm (7.09 inches)
Dimensions:(without stand)
Height	336.4 mm (13.24 inches)
Width	411.4 mm (16.20 inches)
Depth 46.5 mm (1.83 inches)
Stand dimensions:
Height (extended)	399.7 mm (15.74 inches)
Height (compressed)	354.2 mm (13.94 inches)
Width	225.0 mm (8.86 inches)
Depth	180.0 mm (7.09 inches)
Weight:
Weight with packaging	6.57 kg (14.45 lb)
Weight with stand assembly and cables	5.12 kg (11.26 lb)
Weight without stand assembly (For wall mount or VESA mount considerations - no cables)	2.76 kg (6.07 lb)
Weight of stand assembly 1.87 kg (4.11 lb)

Environmental Characteristics

The following table lists the environmental conditions for your monitor:

Model Number Dell P1914S monitor
Temperature
• Operating	0 °C to 40 °C (32 °F to 104 °F)
• Non-operating	Storage: -20 °C to 60 °C (-4 °F to 140 °F)Shipping: -20 °C to 60 °C (-4 °F to 140 °F)
Humidity
• Operating	10 % to 80 % (non-condensing)
• Non-operating	Storage: 5 % to 90 % (non-condensing)Shipping: 5 % to 90 % (non-condensing)
Altitude
• Operating	5,000 m (16,387 ft) max
• Non-operating	12,191 m (40,000 ft) max
Thermal dissipation	126.3 BTU/hour (maximum)54.6 BTU/hour (typical)

LCD Monitor Quality & Pixel Policy

During the LCD Monitor manufacturing process, it is not uncommon for one or more pixels to become fixed in an unchanging state. The visible result is a fixed pixel that appears as an extremely tiny dark or bright discolored spot. When the pixel remains permanently lit, it is known as a "bright dot." When the pixel remains black, it is known as a "dark dot."

In almost every case, these fixed pixels are hard to see and do not detract from display quality or usability. A display with 1 to 5 fixed pixels is considered normal and within competitive standards. For more information, see Dell Support site at:

http://www.dell.com/support/monitors.

Maintenance Guidelines

Caring for Your Monitor

CAUTION: Read and follow the safety instructions before cleaning the monitor.

CAUTION: Before cleaning the monitor, unplug the monitor power cable from the electrical outlet.

For best practices, follow the instructions in the list below while unpacking, cleaning, or handling your monitor:

• To clean your antistatic screen, slightly dampen a soft, clean cloth with water. If possible, use a special screen-cleaning tissue or solution suitable for the antistatic coating. Do not use benzene, thinner, ammonia, abrasive cleaners, or compressed air.
• Use a slightly dampened, warm cloth to clean the plastics. Avoid using detergent of any kind as some detergents leave a milky film on the plastics.
• If you notice a white powder when you unpack your monitor, wipe it off with a cloth. This white powder occurs during the shipping of the monitor.
• Handle your monitor with care as a darker-colored monitor may scratch and show white scuff marks more than a lighter-colored monitor.
• To help maintain the best image quality on your monitor, use a dynamically changing screen saver and power off your monitor when not in use.

Setting Up the Monitor

Attaching the Monitor

NOTE: The stand is detached when the monitor is shipped from the factory.

NOTE: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for the set up instructions.

2 3

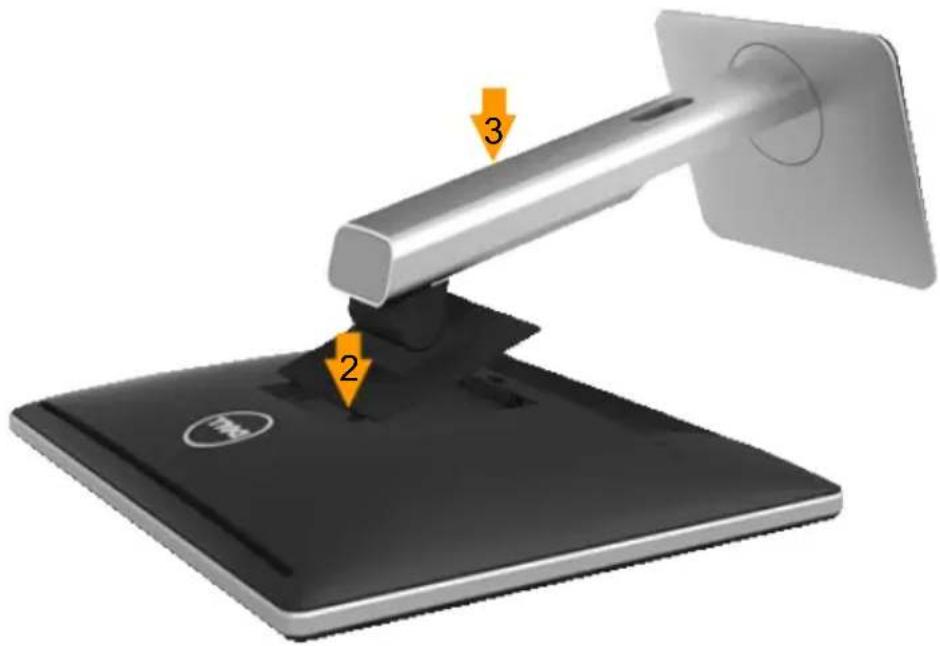

To attach the monitor stand:

1. Remove the cover and place the monitor on it.
2. Fit the two tabs on the upper part of the stand to the groove on the back of the monitor.
3. Press the stand till it snaps into place.

Connecting Your Monitor

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions.

To connect your monitor to the computer:

1. Turn off your computer and disconnect the power cable.

2. Connect either the white (digital DVI-D) or the blue (analog VGA) or the black (DisplayPort) display connector cable to the corresponding video port on the back of your computer. Do not use the three cables at the same time. Use both the cables only when they are connected to the three different computers with appropriate video systems.

Connecting the blue VGA Cable

Diagram showing connections between a Dell monitor, VGA, and computer tower via USB cable and network interface

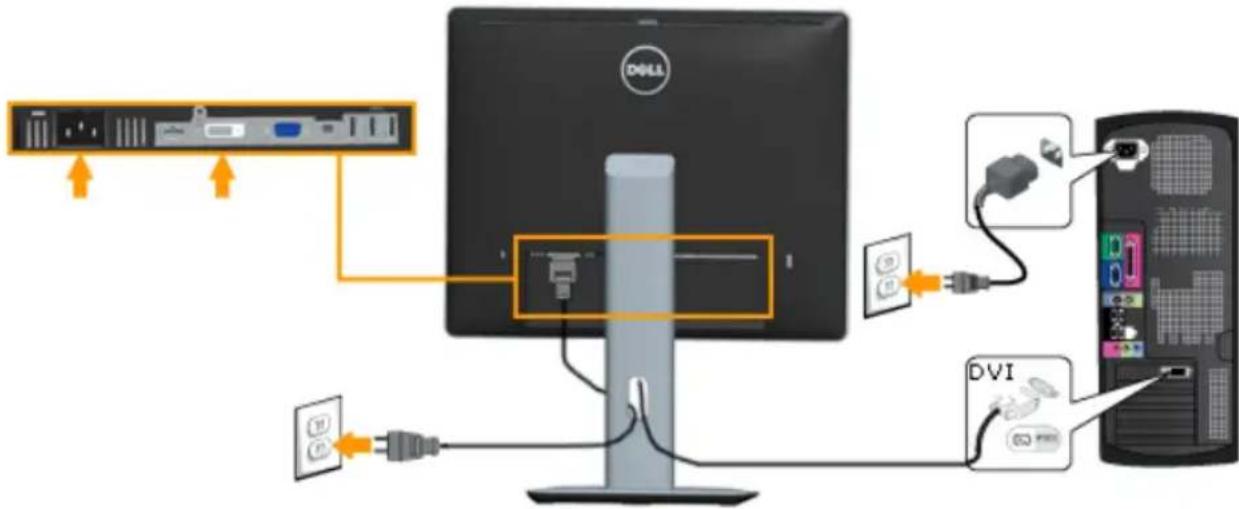

Connecting the white DVI cable

Diagram showing connections between a Dell monitor, DVI computer, and cable ports with labeled components.

Connecting the black DisplayPort cable

Diagram showing connections between a Dell monitor, connected to a CD-ROM and a DP charger via cable routing.

Note: The graphics are used for the purpose of illustration only. Appearance on the computer may vary.

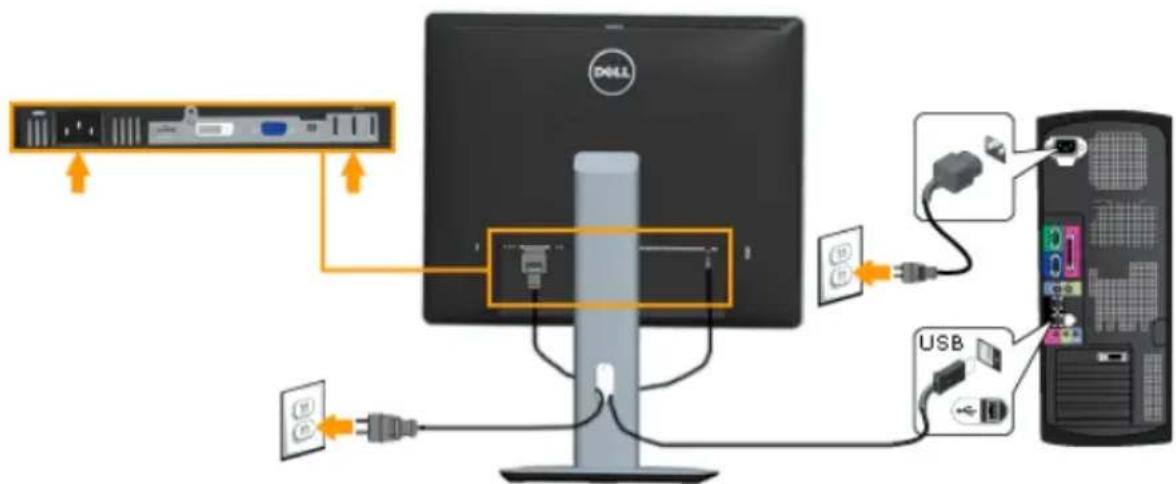

Connecting USB cable

After you have completed connecting the DVI/VGA/DP cable, follow the procedures below to connect the USB cable to the computer and complete your monitor setup:

1. Connect the upstream USB port (cable supplied) to an appropriate USB port on your computer. (See bottom view for details.)
2. Connect the USB peripherals to the downstream USB ports on the monitor.
3. Plug the power cables for your computer and monitor into a nearby outlet.
4. Turn on the monitor and the computer. If your monitor displays an image, installation is complete. If it does not display an image, see Solving Problems.
5. Use the cable slot on the monitor stand to organize the cables.

Diagram showing connections between a desktop computer, USB drive, and network interface with labeled components.

Organizing Your Cables

Front view of a black Dell monitor with a vertical stand and cable, no visible text or symbols on the device itself.

After attaching all necessary cables to your monitor and computer, (See Connecting Your Monitor for cable attachment), organize all cables as shown above.

Attaching the Cable Cover

NOTE: The Cable Cover is detached when the monitor is shipped from the factory.

Computer monitor with cable attachment and two highlighted views (no text or symbols)

To attach the Cable Cover:

1. Fit the two tabs on the bottom part of the Cable Cover to the groove on the back of the monitor

2. Press the Cable Cover till it snaps into place.

Removing the Monitor Stand

Note: To prevent scratches on the LCD screen while removing the stand, ensure that the monitor is placed on a soft, clean surface.
Note: This is applicable for a monitor with a stand. When any other stand is bought, please refer to the respective stand setup guide for the set-up instructions.

Diagram of a desktop computer with labeled parts and directional arrows indicating assembly or movement

1. Place the monitor on a flat surface.
2. Press and hold the stand release button.
3. Lift the stand up and away from the monitor.

Wall Mounting (Optional)

DELL

(Screw dimension: M4 x 10 mm).

Refer to the instructions that come with the VESA-compatible base mounting kit.

1. Place the monitor panel on a soft cloth or cushion on a stable, flat table.

2. Remove the stand.

3. Use a screwdriver to remove the four screws securing the plastic cover.

4. Attach the mounting bracket from the wall mounting kit to the LCD.

5. Mount the LCD on the wall by following the instructions that came with the base mounting kit.

NOTE: For use only with UL-listed wall-mount bracket with minimum weight/load bearing capacity of 6.86 kg.

Operating the Monitor

Power On the Monitor

Pressthe button to turn on the monitor.

Close-up of a black electronic device with a small circular button and a pointer, no visible text or symbols.

Using the Front-Panel Controls

Use the keys on the front of the monitor to adjust the image settings.

Preset Modes Brightness / Contrast Menu Exit A B C D

Front-Panel Keys Description
A	Preset modes	Use the Preset modes key to choose from a list of preset color modes. See Using the OSD Menu.
B	Brightness /Contrast	Use the Brightness / Contrast key to direct access to the "Brightness" and "Contrast" control menu.
C	Menu	Use the Menu key to open the on-screen display (OSD).
D	Exit	Use the Exit key to exit on-screen display (OSD) from menu and sub-menus.

Front-Panel Keys

A B C D

Front-Panel Keys		Description
A		Use theUpkey to adjust (increase ranges) items in the OSD menu.
B		Use theDownkey to adjust (decrease ranges) items in the OSD menu.
C		Use theOKkey to confirm your selection.
D		Use theBackkey to go back to the previous menu.

Using the On-Screen Display (OSD) Menu

Accessing the Menu System

NOTE: If you change the settings and then either proceed to another menu or exit the OSD menu, the monitor automatically saves those changes. The changes are also saved if you change the settings and then wait for the OSD menu to disappear.

1. Press the ☐ button to open the OSD menu and display the main menu.

Main Menu

1. Press the and buttons to toggle between options in the Menu. As you move from one icon to another, the option name is highlighted.
2. To select the highlighted item on the menu press the button again.
3. Press the ⬆ and √ buttons to select the desired parameter.
4. Press the button to enter the slide bar and then use the ▲ or ▼ buttons, according to the indicators on the menu, to make your changes.
5. Select the ⓑ to return to previous menu without accepting current settings or √ to accept and return to previous menu.

The table below provides a list of all the OSD menu options and their functions.

Icon	Menu and Submenus	Description
	Energy Use	This meter shows the energy level being consumed by the monitor in real time.
	Brightness/Contrast	Use the Brightness and Contrast menu to adjust the Brightness/Contrast.[YXH9]
	Brightness	Allows you to adjust the brightness or luminance of the backlight.Press the Key to increase brightness and press the key to decrease brightness (min 0 ~ max 100).
	Contrast Allows you to adjust the contrast or the degree of difference between darkness and lightness on the monitor screen. Adjust brightness first, and adjust contrast only if you need further adjustment.Press the Key to increase contrast and press the Key to decrease contrast (min 0 ~ max 100).

Auto Adjust Use this key to activate automatic setup and adjust menu.

Dell P1914S Energy Use Brightness / Contrast Auto Adjust Press V to adjust the screen automatically. Input Source Color Settings Display Settings Energy Settings Menu Settings Other Settings Personalize Resolution: 1024x768, 60Hz Maximum Resolution: 1280x1024, 60Hz

The following dialog appears on a black screen as the monitor self-adjusts to the current input:

Auto Adjustment in Progress...

Auto Adjustment allows the monitor to self-adjust to the incoming video signal. After using Auto Adjustment, you can further tune your monitor by using the Pixel Clock (Coarse) and Phase (Fine) controls under Display Settings.

NOTE: Auto Adjust does not occur if you press the button while there are no active video input signals or attached cables.

This option is only available when you are using the analog (VGA) connector.

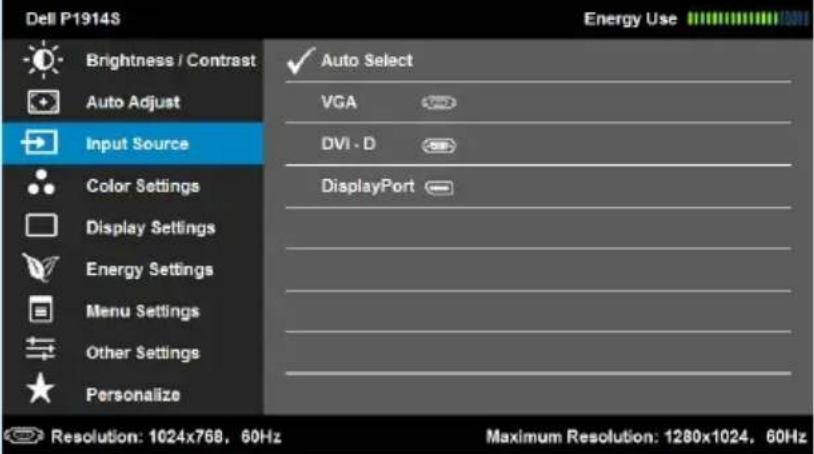

	Input Source	Use the Input Source menu to select between different video signals that may be connected to your monitor.
		[44Tyr]
	Auto Select	Select Auto Select to scan for available input signals.
	VGA	Select VGA input when you are using the analog (VGA) connector. Push 📄to select the VGA input source.
	DVI-D	Select DVI-D input when you are using the Digital (DVI) connector. Push 📄to select the DVI input source.
	DisplayPort	Select DisplayPort input when you are using the DisplayPort (DP) connector. Push 📄to select the DisplayPort input source.

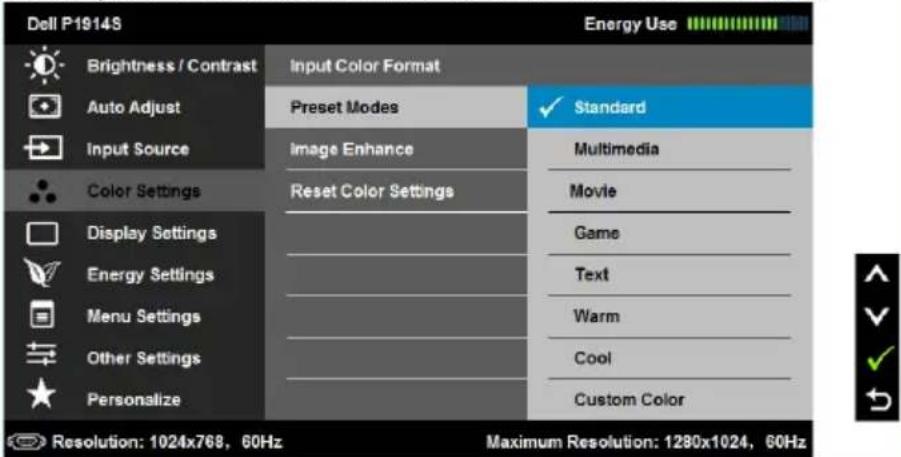

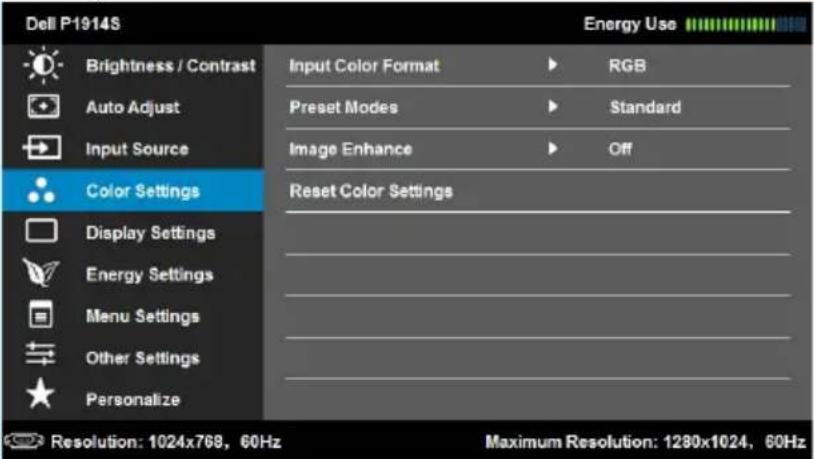

	Color Settings	Use the Color Settings menu to adjust the monitor's color settings.
		[8k0D]
	Input Color Format	Allows you to set the video input mode to:RGB: Select this option if your monitor is connected to a computer or DVD player using the HDMI to DVI adapter.YPbPr: Select this option if your monitor is connected to a DVD player by YPbPr to DVI cable; or if the DVD color output setting is not RGB.
	Preset Modes	Allows you to choose from a list of preset color modes.
		Standard: Loads the monitor's default color settings. This is the default preset mode.Multimedia: Loads color settings ideal for multimedia applications.Movie: Loads color settings ideal for movies.Game: Loads color settings ideal for most gaming applications.Text: Loads color settings ideal for office environment.Warm: Increases the color temperature. The screen appears warmer with a red/yellow tint.Cool: Decreases the color temperature. The screen appears cooler with a blue tint.Custom Color: Allows you to manually adjust the color settings. Press the ▲ and ▼ keys to adjust the Red, Green, and Blue values and create your own preset color mode.
	HueSaturation	This feature can shift the color of the video image to green or purple. This is used to adjust the desired flesh tone color.Use ▲r t ▼adjust the hue from '0' to '100'.Press ▲o increase the monochrome appearance of the video image.Press ▼o increase the colorful appearance of the video image.NOTE: Saturation adjustment is available only when you select Movie or Game preset mode.This feature can adjust the color saturation of the video image. Use ▲r to ▼adjust the saturation from '0' to '100'.Press ▲o increase the monochrome appearance of the video image.Press ▲o increase the colorful appearance of the video image.NOTE: Saturation adjustment is available only when you select Movie or Game preset mode.
	Image Enhance	Makes upsized images higher quality by removing image fading and roughnessof edge.NOTE: Image Enhances is avaliable only when you select Standard, Multimedia, Movie, or Gamepreset mode.
	Reset Color Settings	Resets your monitor's color settings to the factory defaults.

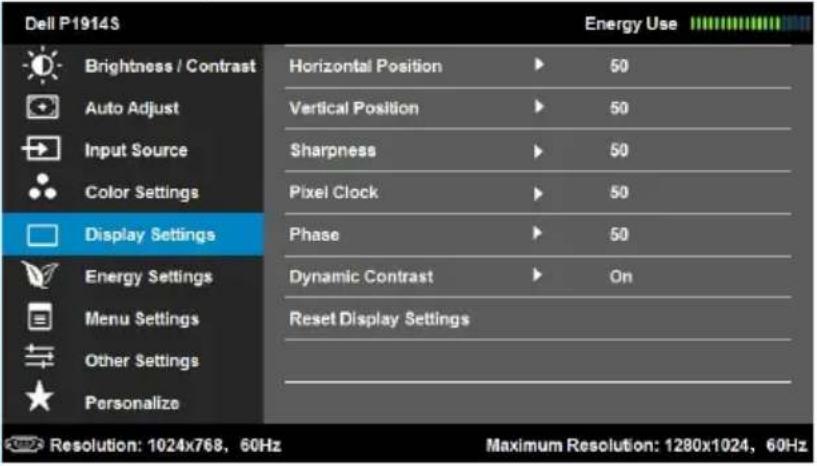

	Display Settings	Use the Displays Settings menu to adjust the monitor's display settings.
	Horizontal Position	Use ▲r the buttons to adjust image left and right. Minimum is '0' (-). Maximum is '100' (+).
	Vertical Position	Use the ▲r buttons to adjust image up and down. Minimum is '0' (-). Maximum is '100' (+).
	Sharpness	This feature can make the image look sharper or softer. Use ▲or ▼o adjust the sharpness from '0' to '100'.
	Pixel Clock	The Phase and Pixel Clock adjustments allow you to adjust your monitor to your preference. Use ▲r buttons to adjust for best image quality.
	Phase	If satisfactory results are not obtained using the Phase adjustment, use the Pixel Clock (coarse) adjustment and then use Phase (fine), again.
	Dynamic Contrast	Dynamic Contrast adjusts the contrast ratio to 2M to 1. Press the button to select the Dynamic Contrast "On" or "Off". NOTE: Dynamic Contrast provides higher contrast if you select Game or Movie preset mode.
	Reset Display Settings	Select this option to restore default display settings.

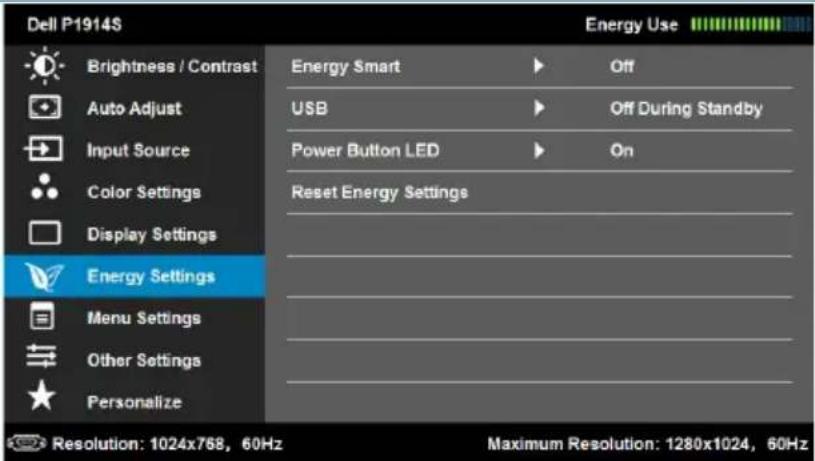

	Energy Settings	[KCS7]
	Energy Smart	To turn On or Off dynamic dimming.The dynamic dimming feature automatically reduces the screen's brightness level when the displayed image contains a high proportion of bright areas.
	USB	By turning on or off to control USB power supply while monitor without USB upstream cable and under standby mode.
	Power Button LED	Allows you to set the power LED indicator on or off to save energy.
	Reset Energy Settings	Select this option to restore default Energy Settings.

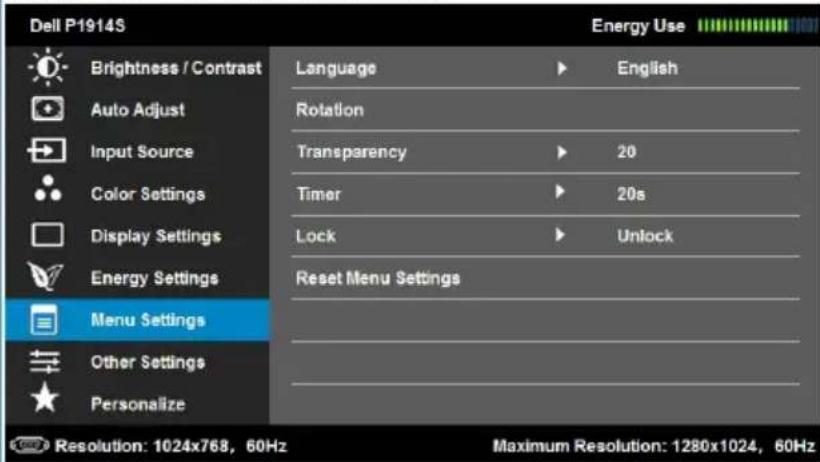

Menu Settings

Select this option to adjust the settings of the OSD such as, the languages of the OSD, the amount of time the menu remains on screen, and so on.

Dell P1914S Brightness / Contrast Auto Adjust Input Source Color Settings Display Settings Energy Settings Menu Settings Other Settings Personalize Language Rotation Transparency Timer Lock Reset Menu Settings English 20 20s Unlock Resolution: 1024x768, 60Hz Maximum Resolution: 1280x1024, 60Hz

Language	Allows you to set the OSD display to one of eight languages: English, Spanish, French, German, Portuguese, Russian, Simplified Chinese, or Japanese.
Rotation	Rotates the OSD by 90 degrees counter-clockwise. You can adjust the menu according to your Display Rotation.
Transparency	Allows you to adjust the OSD background from opaque to transparent.
Timer	Allows you to set the time for which the OSD remains active after you press a key on the monitor.Use the and keys to adjust the slider in 1 second increments, from 5 to 60 seconds.
Lock	Controls user access to adjustments. When Lock is selected, no user adjustments are allowed. All keys are locked except b key.NOTE:When the OSD is locked, pressing the menu key takes you directly to the OSD settings menu, with 'OSD Lock' pre-selected on entry. Press and hold b key for 15 seconds to unlock and allow user access to all applicable settings.
Reset Menu Settings	Select this option to restore default menu settings.

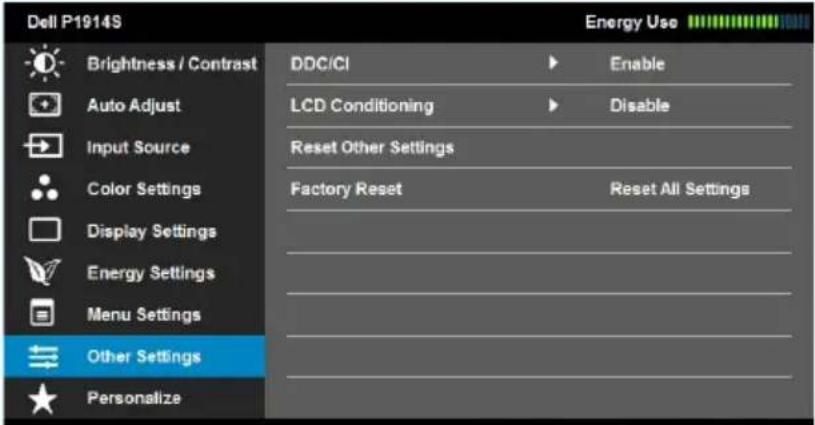

	Other Settings	Resolution: 1024x768, 60Hz Maximum Resolution: 1280x1024, 60Hz
	DDC/CILCD Conditioning	DDC/CI (Display Data Channel/Command Interface) allows a software on your computer to adjust the monitor display settings like the brightness, color balance etc.Enable (Default): Optimizes the performance of your monitor and provides a better customer experience.Disable: Disables the DDC/CI option and the following message appears on the screen.This feature will help reduce minor cases of image retention.If an image appears to be stuck on the monitor, selectLCD Conditioningto help eliminate any image retention. Using the LCD Conditioning feature may take some time. LCD Conditioning feature cannot remove severe cases of image retention or burn-in.NOTE: Use LCD Conditioning only when you experience a problem with image retention.The below warning message appears once user selects "Enable" LCD Conditioning.Dell P1914SThe feature will help reduce minor cases of image retention. Depending on the degree of image retention, the program may take some time to run.Do you wish to continue?NoYes
	Reset Other Settings	Select this option to restore default other settings, such as DDC/CI.
	Factory Reset	Resets all OSD settings to the factory preset values.

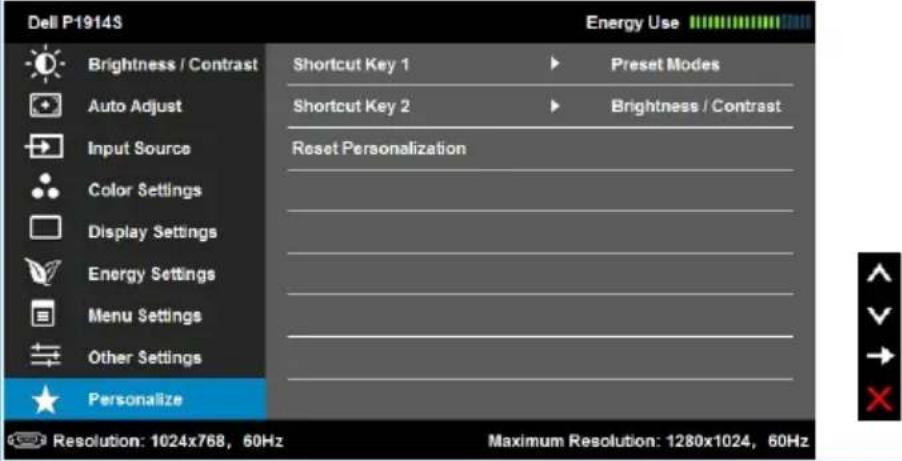

	Personalize	Users can choose a feature from "Preset Modes", "Brightness/Contrast", "Auto Adjust", "Input Source", or "Rotation" and set it as a shortcut

OSD Messages

When the monitor does not support a particular resolution mode you will see the following message:

Dell P1914S

The current input timing is not supported by the monitor display. Please change your input timing to 1280x1024, 60Hz or any other monitor listed timing as per the monitor specifications.

This means that the monitor cannot synchronize with the signal that it is receiving from the computer. See Monitor Specifications for the horizontal and vertical frequency ranges addressable by this monitor.

When the Energy Smart or Dynamic Contrast feature is enabled (in these preset modes: Game or Movie), the manual brightness adjustment is disabled.

Dell P1914S

To allow manual adjustment of brightness, the Energy Smart / Dynamic

Contrast will be switched off.

Do you want to continue?

No

Yes

You will see the following message before the DDC/CI function is disabled.

Dell P1914S

The function of adjusting display setting using PC application will be disabled.

Do you wish to disable DDC/CI function?

No

Yes

When the monitor enters the Power Save mode, the following message appears:

Dell P1914S

Entering Power Save Mode.

Activate the computer and wake up the monitor to gain access to the OSD.

If you press any button other than the power button, the following messages will appear depending on the selected input:

Dell P1914S

There is no signal coming from your computer. Press any key on the keyboard or move the mouse to wake it up. If there is no display, press the monitor button now to select the correct input source on the On-Screen-Display menu.

If VGA or DVI or DP cable is not connected, a floating dialog box as shown below appears. The monitor will enter Power Save Mode after 5 minutes if left at this state.

Dell P1914S

No VGA Cable

The display will go into Power Save Mode in 5 minutes

Dell P1914S

No DVI-D Cable

The display will go into Power Save Mode in 5 minutes.

Dell P1914S

No DisplayPort Cable

The display will go into Power Save Mode in 5 minutes.

See Solving Problems for more information.

Setting the Maximum Resolution

To set the Maximum resolution for the monitor:

In Windows Vista ^® , Windows ^® 7, Windows ^® 8:

1. For Windows ^® 8 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the dropdown list of the screen resolution and select 1280 x 1024.
4. Click OK.

If you do not see 1280 x 1024 as an option, you may need to update your graphics driver. Depending on your computer, complete one of the following procedures:

If you have a Dell desktop or portable computer:

- Go to www.dell.com/support/, enter your service tag, and download the latest driver for your graphics card.

If you are using a non-Dell computer (portable or desktop):

• Go to the support site for your computer and download the latest graphic drivers.
• Go to your graphics card website and download the latest graphic drivers.

Using the Tilt, Swivel, and Vertical Extension

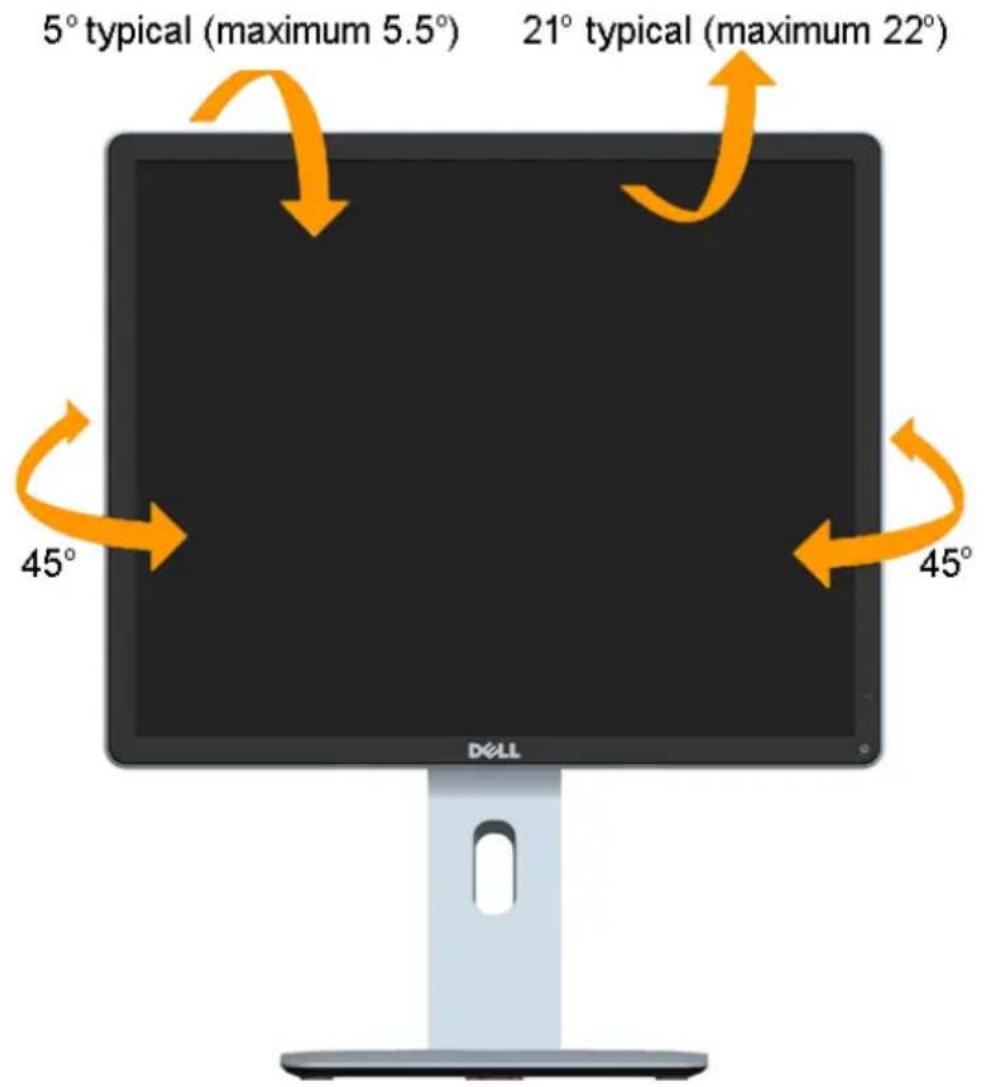

Tilt, Swivel

With the stand assembly, you can tilt and swivel the monitor for the most comfortable viewing angle.

5° typical (maximum 5.5°) 21° typical (maximum 22°) 45° DELL

NOTE: The stand is detached when the monitor is shipped from the factory.

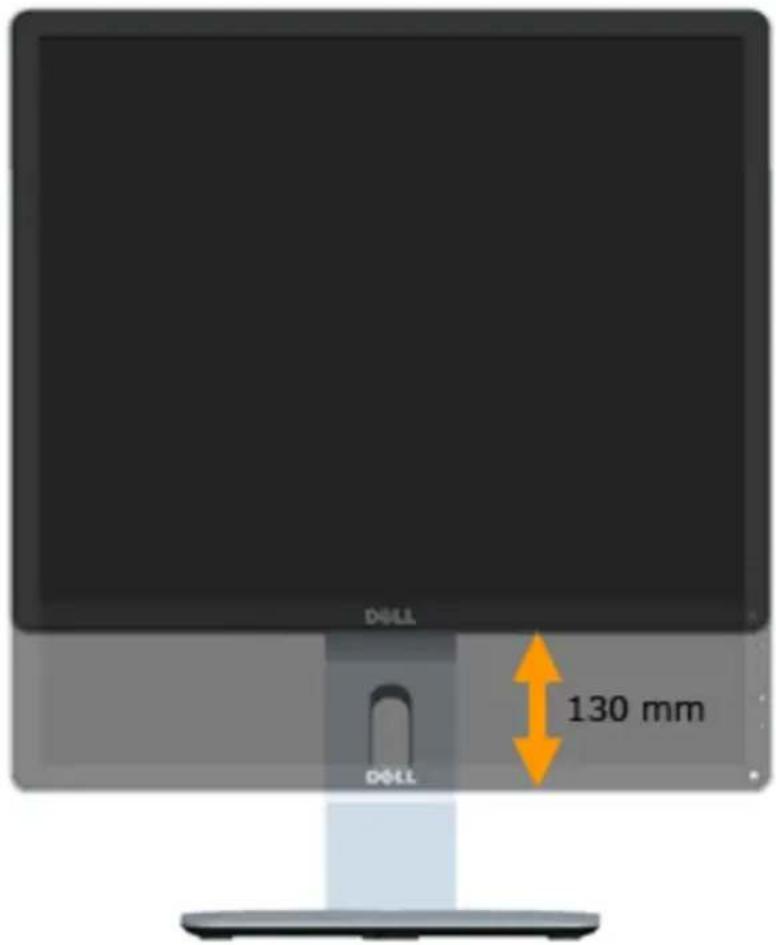

Vertical Extension

NOTE: The stand extends vertically up to 130 mm. The figure below illustrates how to extend the stand vertically.

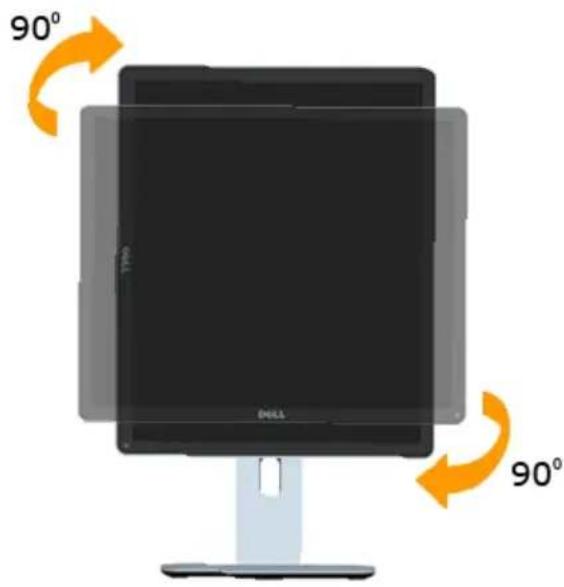

Rotating the Monitor

Before you rotate the monitor, your monitor should be fully vertically extended (Vertical Extension) and fully tilted (Tilt) up to avoid hitting the bottom edge of the monitor.

Diagram of a computer monitor with two directional arrows indicating rotation (no text or symbols)

90° Dell 90°

Illustration of a Dell monitor with two opposing rotation arrows indicating clockwise motion (no text or symbols)

NOTE: To use the Display Rotation function (Landscape versus Portrait view) with your Dell computer, you require an updated graphics driver that is not included with this monitor. To download the graphics driver, go to www.dell.com/support/ and see the Download section for Video Drivers for latest driver updates.

NOTE: When in the Portrait View Mode, you may experience performance degradation in graphic-intensive applications (3D Gaming and etc.).

Adjusting the Rotation Display Settings of Your System

After you have rotated your monitor, you need to complete the whether procedure below to adjust the Rotation Display Settings of your System.

NOTE: If you are using the monitor with a non-Dell computer, you need to go the graphics driver website or your computer manufacturer website for information on rotating the 'contents' on your display.

To adjust the Rotation Display Settings:

1. Right-click on the desktop and click Properties.
2. Select the Settings tab and click Advanced.
3. If you have an ATI graphics card, select the Rotation tab and set the preferred rotation.

If you have an nVidia graphics card, click the nVidia tab, in the left-hand column select NVRotate, and then select the preferred rotation.

If you have an Intel® graphics card, select the Intel graphics tab, click Graphic Properties, select the Rotation tab, and then set the preferred rotation.

NOTE: If you do not see the rotation option or it is not working correctly, go to www.dell.com/support/ and download the latest driver for your graphics card.

Troubleshooting

WARNING: Before you begin any of the procedures in this section, follow the Safety Instructions

Self-Test

Your monitor provides a self-test feature that allows you to check whether your monitor is functioning properly. If your monitor and computer are properly connected but the monitor screen remains dark, run the monitor self-test by performing the following steps:

1. Turn off both your computer and the monitor.

Unplug the video cable from the back of the computer. To ensure proper Self-Test operation, remove all video cables from the back of computer.

1. Turn on the monitor.

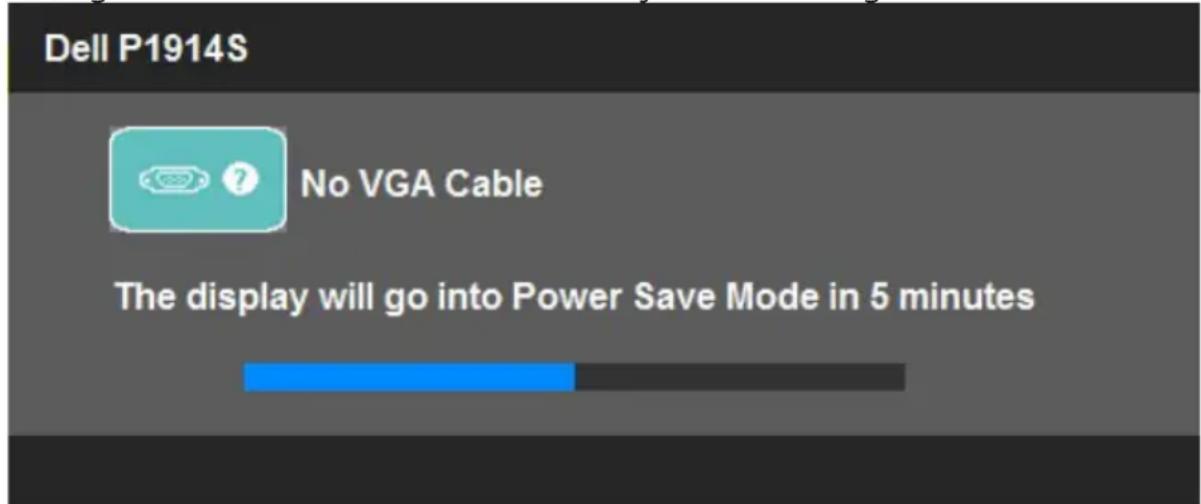

The floating dialog box should appear on-screen (against a black background) if the monitor cannot sense a video signal and is working correctly. While in self-test mode, the power LED remains white. Also, depending upon the selected input, one of the dialogs shown below will continuously scroll through the screen.

Dell P1914S No VGA Cable The display will go into Power Save Mode in 5 minutes

1. This box also appears during normal system operation, if the video cable becomes disconnected or damaged. The monitor will enter Power Save Mode after 5 minutes if left at this state.
2. Turn off your monitor and reconnect the video cable; then turn on both your computer and the monitor.

If your monitor screen remains blank after you use the previous procedure, check your video controller and computer, because your monitor is functioning properly.

NOTE: Self-test feature check is not available for S-Video, Composite, and Component video modes.

Built-in Diagnostics

Your monitor has a built-in diagnostic tool that helps you determine if the screen abnormality you are experiencing is an inherent problem with your monitor, or with your computer and video card.

1 2 3 4 5

NOTE: You can run the built-in diagnostics only when the video cable is unplugged and the monitor is in self-test mode.

To run the built-in diagnostics:

1. Ensure that the screen is clean (no dust particles on the surface of the screen).
2. Unplug the video cable(s) from the back of the computer or monitor. The monitor then goes into the self-test mode.
3. Press and hold the Button 1 and Button 4 on the front panel simultaneously for 2 seconds. A gray screen appears.
4. Carefully inspect the screen for abnormalities.
5. Press the Button 4 on the front panel again. The color of the screen changes to red.
6. Inspect the display for any abnormalities.
7. Repeat steps 5 and 6 to inspect the display in green, blue, black, white and text screens.

The test is complete when the white screen appears. To exit, press the Button 4 again.

If you do not detect any screen abnormalities upon using the built-in diagnostic tool, the monitor is functioning properly. Check the video card and computer.

Common Problems

The following table contains general information about common monitor problems you might encounter and the possible solutions.

Common Symptoms	What You Experience	Possible Solutions
No Video/Power LED off	No picture • Ensure that the video cable connecting the monitor and the computer is properly connected and secure. • Verify that the power outlet is functioning properly using any other electrical equipment. • Ensure that the power button is depressed fully.
No Video/Power LED on	No picture or no brightness	• Increase brightness & contrast controls via OSD. • Perform monitor self-test feature check. • Check for bent or broken pins in the video cable connector. • Ensure that the correct input source is selected via theInput Source Select menu. • Run the built-in diagnostics.
Poor Focus Picture is fuzzy, blurry, or ghosting		• Perform Auto Adjust via OSD. • Adjust the Phase and Pixel Clock controls via OSD. • Eliminate video extension cables. • Reset the monitor toFactory Settings. • Change the video resolution to the correct aspect ratio .
Shaky/Jittery Video Wavy picture or fine movement		• Perform Auto Adjust via OSD. • Adjust the Phase and Pixel Clock controls via OSD. • Reset the monitor toFactory Settings. • Check environmental factors. • Relocate the monitor and test in another room.
Missing Pixels	LCD screen has spots	• Cycle power on-off. • Pixel that is permanently off is a natural defect that can occur in LCD technology. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at:www.dell.com/support/monitors.

Stuck-on Pixels LCD screen has bright spots	Cycle power on-off.Pixel that is permanently off is a natural defect that can occur in LCD technology.For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site at:www.dell.com/support/monitors.
Brightness Problems Picture too dim or too bright	Reset the monitor to Factory Settings.Auto Adjust via OSD.Adjust brightness & contrast controls via OSD.
Geometric Distortion Screen not centered correctly	Reset the monitor to Factory Settings.Auto Adjust via OSD.Adjust brightness & contrast controls via OSD.NOTE:When using 'DVI-D', the positioning adjustments are not available.
Horizontal/Vertical Lines more lines	Screen has one or Reset the monitor to Factory Settings.Perform Auto Adjust via OSD.Adjust Phase and Pixel Clock controls via OSD.Perform monitor self-test feature check and determine if these lines are also in self-test mode.Check for bent or broken pins in the video cable connector.NOTE:When using 'DVI-D', the Pixel Clock and Phase adjustments are not available.
Synchronization Problems appears torn	Screen is scrambled or Reset the monitor to Factory Settings.Perform Auto Adjust via OSD.Adjust Phase and Pixel Clock controls via OSD.Perform monitor self-test feature check to determine if the scrambled screen appears in self-test mode.Check for bent or broken pins in the video cable connector.Restart the computer in the safe mode.

Safety-Related Issues	Visible signs of smoke or sparks	· Do not perform any troubleshooting steps.· Contact Dell immediately.
Intermittent Problems	Monitor malfunctions on & off	· Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.· Reset the monitor to Factory Settings.· Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode.
Missing Color	Picture missing color	· Perform monitor self-test feature check.· Ensure that the video cable connecting the monitor to the computer is connected properly and is secure.· Check for bent or broken pins in the video cable connector.
Wrong Color	Picture color not good	· Change the Color Setting Mode in the Color Settings OSD to Graphics or Video depending on the application.· Try different Color Preset Settings in Color Settings OSD. Adjust R/G/B value in Color Settings OSD if the Color Management is turned off.· Change the Input Color Format to PC RGB or YPbPr in the Advance Setting OSD.
Image retention from a static image left on the monitor for a long period of time Management Modes.		· Use the Power Management feature to turn off the monitor at all times when not in use (for more information, see Power___Alternatively, use a dynamically changing screensaver.

Product-Specific Problems

Specific Symptoms	What You Experience	Possible Solutions
Screen image is too small	Image is centered on screen, but does not fill entire viewing area	Reset the monitor to Factory Settings.
Cannot adjust the monitor with the buttons on the front panel	OSD does not appear on the screen	Turn off the monitor, unplug the power cord, plug back, and then turn on the monitor.
No Input Signal when user controls are pressed	No picture, the LED light is white. When you press "up", "down" or "Menu" key, the message " No input signal" will appear.	· Check the signal source. Ensure the computer is not in the power saving mode by moving the mouse or pressing any key on the keyboard.· Check whether the signal cable is plugged in properly. Re-plug the signal cable if necessary.· Reset the computer or video player.
The picture does not fill the entire screen	The picture cannot fill the height or width of the screen	· Due to different video formats (aspect ratio) of DVDs, the monitor may display in full screen.· Run the built-in diagnostics.

NOTE: When choosing DVI-D mode, the Auto Adjust function is not available.

Universal Serial Bus (USB) Specific Problems

Common Symptoms	What You Experience	Possible Solutions
USB interface is not working not working	USB peripherals are	Check that your monitor is turned ON.Reconnect the upstream cable to your computer.Reconnect the USB peripherals (downstream connector)Switch off and then turn on the monitor again.Reboot the computer.Some USB devices like external portable HDD require higher electric current; connect the device directly to the computer system.
High Speed USB 2.0 interface is slow. periph	High Speed USB 2.0 erals working slowly or not working at all Ensure that the c	Check that your computer is USB 2.0-capable.Some computers have both USB 2.0 and USB 1.1 ports.correct USB port is used.Reconnect the upstream cable to your computer.Reconnect the USB peripherals (downstream connector).Reboot the computer

Appendix

WARNING: Safety Instructions

⚠ WARNING: Use of controls, adjustments, or procedures other than those specified in this documentation may result in exposure to shock, electrical hazards, and/or mechanical hazards.

For information on safety instructions, see the Product Information Guide.

FCC Notices (U.S. Only) and Other Regulatory Information

For FCC notices and other regulatory information, see the regulatory compliance website located at www.dell.com\regulatory_compliance.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference
(2) this device must accept any interference received including interference that may cause undesired operation

Contact Dell

For customers in the United States, call 800-WWW-DELL (800-999-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area.

To get online monitor support content:

1. Visit www.dell.com/support/monitors

To contact Dell for sales, technical support, or customer service issues:

1. Visit www.dell.com/support.
2. Verify your country or region in the Choose A Country/Region drop-down menu at the top left of the page.
3. Click Contact Us on the top left side of the page.
4. Select the appropriate service or support link based on your need.
5. Choose the method of contacting Dell that is convenient for you.

Setting Up Your Monitor

Setting the display resolution to 1280 x 1024 (Maximum)

For optimal display performance while using the Microsoft Windows operating systems, set the display resolution to 1280 x 1024 pixels by performing the following steps:

In Windows Vista®, Windows® 7, Windows® 8:

1. For Windows® 8 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Screen Resolution.
3. Click the dropdown list of the screen resolution and select 1280 x 1024.
4. Click OK.

If you do not see 1280 x 1024 as an option, you may need to update your graphics driver. Please choose the scenario below that best describes the computer system you are using, and follow the provided

1: If you have a Dell desktop or a Dell portable computer with Internet access
2: If you have a non Dell desktop, portable computer, or graphics card

If you have a Dell desktop or a Dell portable computer with Internet access

1. Go to http://www.dell.com/support, enter your service tag, and download the latest driver for your graphics
2. After installing the drivers for your graphics adapter, attempt to set the resolution to 1280 x 1024 again.
   NOTE: If you are unable to set the resolution to 1280 x 1024, please contact Dell to inquire about a graphics adapter that supports these resolutions.

If you have a non Dell desktop, portable computer, or graphics card

In Windows Vista®, Windows® 7, Windows® 8:

1. For Windows® 8 only, select the Desktop tile to switch to classic desktop.
2. Right-click on the desktop and click Personalization.
3. Click Change Display Settings.
4. Click Advanced Settings.
5. Identify your graphics controller supplier from the description at the top of the window (e.g. NVIDIA, ATI, Intel etc.).
6. Please refer to the graphics card provider website for updated driver (for example, http://www.ATI.com OR http://www.NVIDIA.com).
7. After installing the drivers for your graphics adapter, attempt to set the resolution to 1280 x 1024 again.

NOTE: If you are unable to set the resolution to 1280 x 1024, please contact the manufacturer of your computer or consider purchasing a graphics adapter that will support the video resolution of 1280 x 1024.

Procedures for setting up dual monitors in Windows Vista ^® , Windows ^® 7 or Windows ^® 8

For Windows Vista®

Connect the external monitor(s) to your laptop or desktop using a video cable (VGA, DVI, DP, etc.) and follow any of the below setup method.

Method 1: Using keyboard shortcut "Win+P"

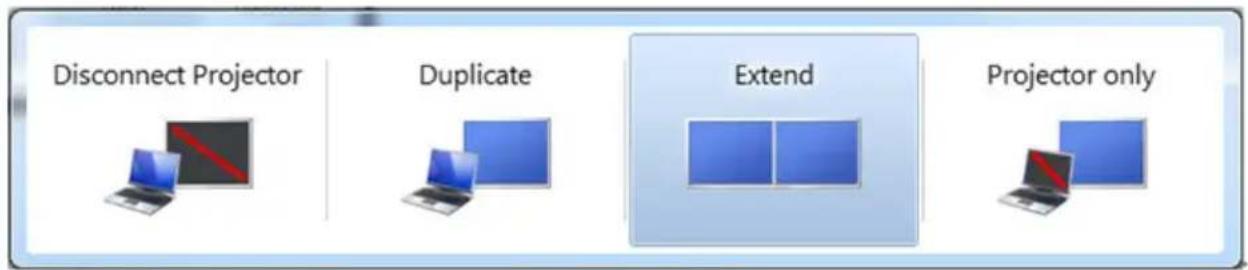

1. Press the Windows logo key + P on your keyboard.

1. While holding down the Windows logo key, press P to toggle between the display selections.

Disconnect Projector Duplicate Extend Projector only

Method 2: Using the "Personalize" menu

1. Right-click on the desktop and click Personalize.

AMD VISION Engine Control Center
	View
	Sort By
	Refresh
	Paste
	Paste Shortcut
	New
	Personalize

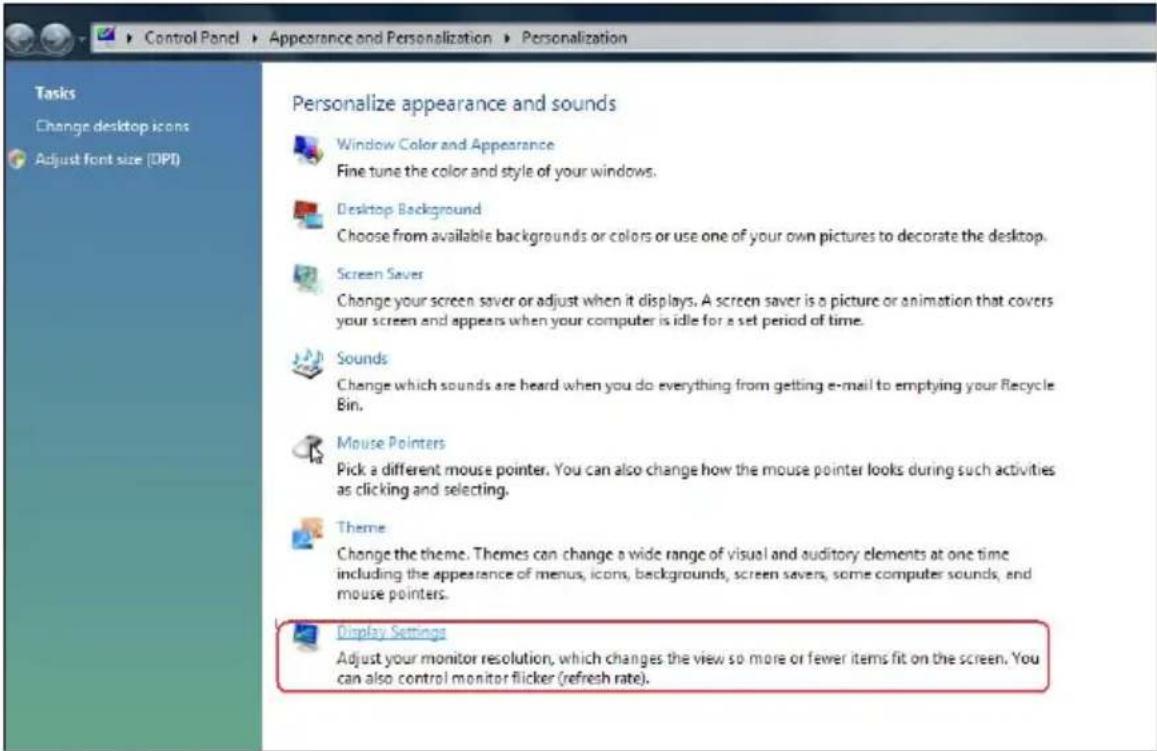

2. Click Display Settings.

Control Panel > Appearance and Personalization > Personalization Tasks Change desktop icons Adjust font size (DPT) Personalize appearance and sounds Window Color and Appearance Fine tune the color and style of your windows. Desktop Background Choose from available backgrounds or colors or use one of your own pictures to decorate the desktop. Screen Saver Change your screen saver or adjust when it displays. A screen saver is a picture or animation that covers your screen and appears when your computer is idle for a set period of time. Sounds Change which sounds are heard when you do everything from getting e-mail to emptying your Recycle Bin. Mouse Pointers Pick a different mouse pointer. You can also change how the mouse pointer looks during such activities as clicking and selecting. Theme Change the theme. Themes can change a wide range of visual and auditory elements at one time including the appearance of menus, icons, backgrounds, screen savers, some computer sounds, and mouse pointers. Display Settings Adjust your monitor resolution, which changes the view so more or fewer items fit on the screen. You can also control monitor flicker (refresh rate).

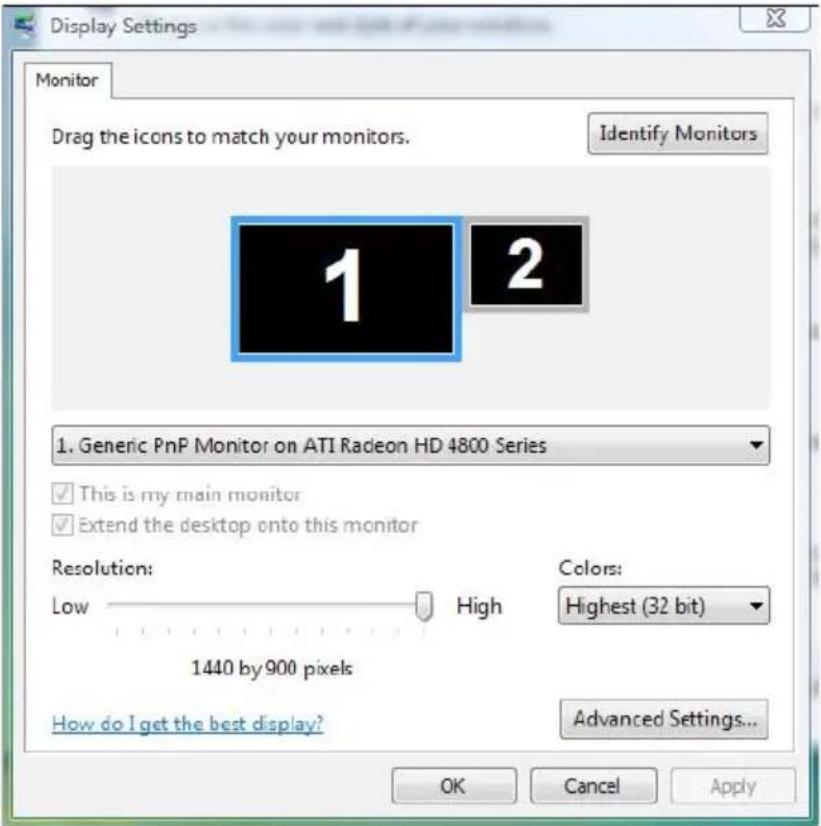

3. Click Identify Monitors.

- You may need to restart your system and repeat steps 1 to 3 if the system does not detect the added monitor.

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2 1. Generic PnP Monitor on ATI Radeon HD 4800 Series ✓ This is my main monitor ✓ Extend the desktop onto this monitor Resolution: Low High Colors: Highest (32 bit) 1440 by 900 pixels How do I get the best display? Advanced Settings... OK Cancel Apply

For Windows® 7

Connect the external monitor(s) to your laptop or desktop using a video cable (VGA, DVI, DP, etc.) and follow any of the below setup method.

Method 1: Using keyboard shortcut "Win+P"

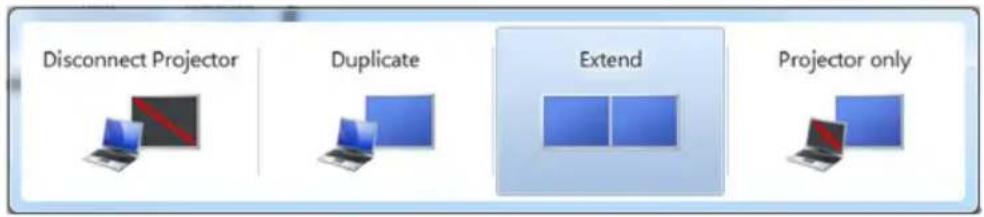

1. Press the Windows logo key + P on your keyboard.
2. While holding down the Windows logo key, press P to toggle between the display selections.

Disconnect Projector Duplicate Extend Projector only

Method 2: Using the "Screen Resolution" menu

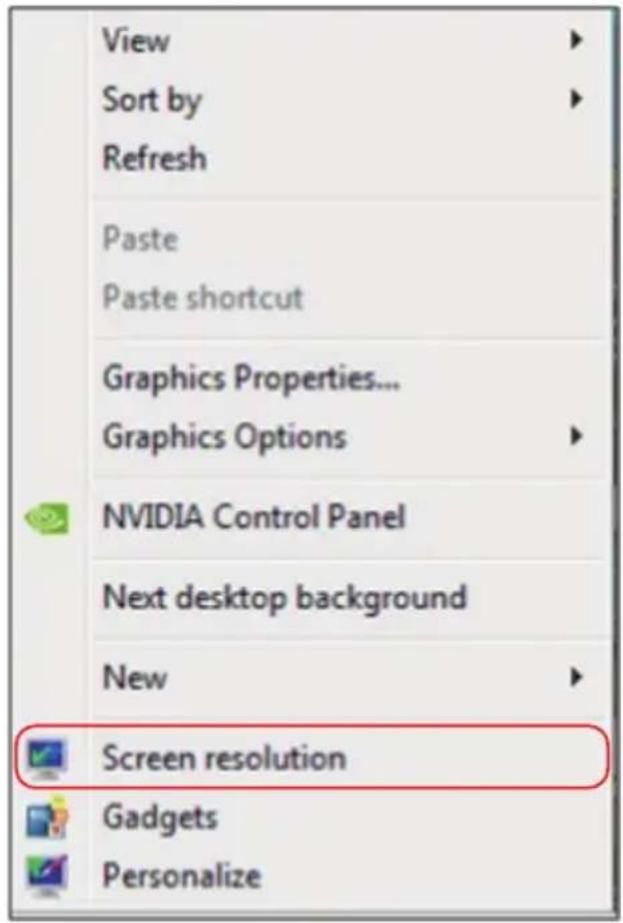

1. Right-click on the desktop and click Screen resolution.

View Sort by Refresh Paste Paste shortcut Graphics Properties... Graphics Options NVIDIA Control Panel Next desktop background New Screen resolution Gadgets Personalize

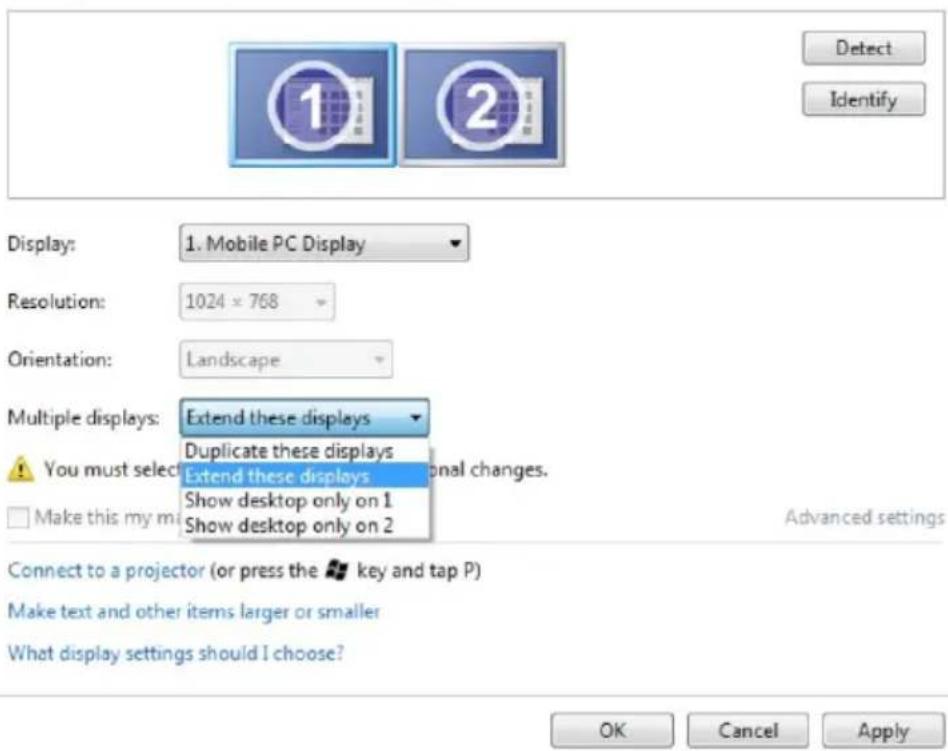

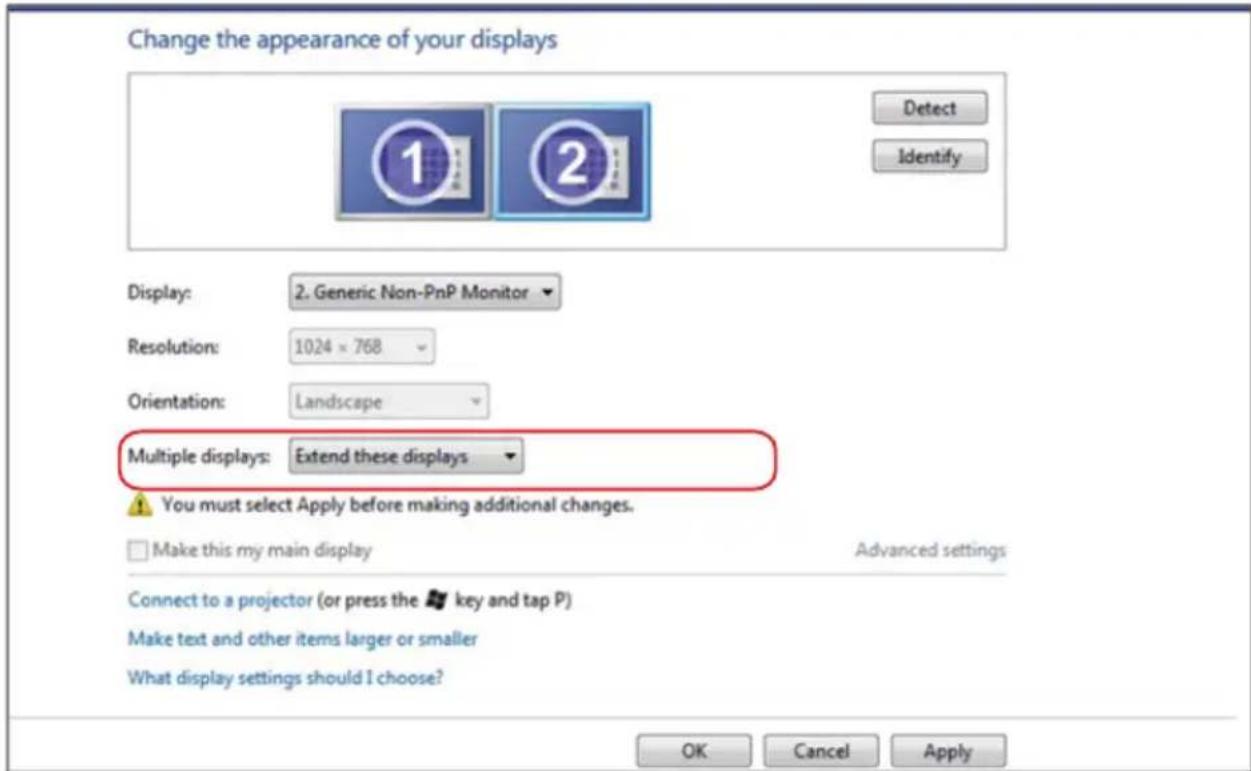

1. Click Multiple displays to choose a display selection. If you do not see the additional monitor listed, click Detect.

- You may need to restart your system and repeat steps 1 to 3 if the system does not detect the added monitor.

Change the appearance of your displays Detect Identify Display: 2. Generic Non-PnP Monitor Resolution: 1024 × 768 Orientation: Landscape Multiple displays: Extend these displays You must select Apply before making additional changes. Make this my main display Advanced settings Connect to a projector (or press the key and tap P) Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

For Windows® 8

Connect the external monitor(s) to your laptop or desktop using a video cable (VGA, DVI, DP, HDMI etc.) and follow any of the below setup methods.

Method 1: Using keyboard shortcut "Win+P"

1. Press the Windows logo key + P on your keyboard.
2. While holding down the Windows logo key, press P to toggle between the display selections.

Second screen Project to a connected screen PC screen only Duplicate Extend Second screen only

Method 2: Using the "Screen Resolution" menu

1. From the Start screen, select Desktop tile to switch to the Classic Windows desktop.

Start Mail 20 Wednesday Internet Explorer People Photos Maps Messaging Video Music Desktop Weather Xbox LIVE Cameroon

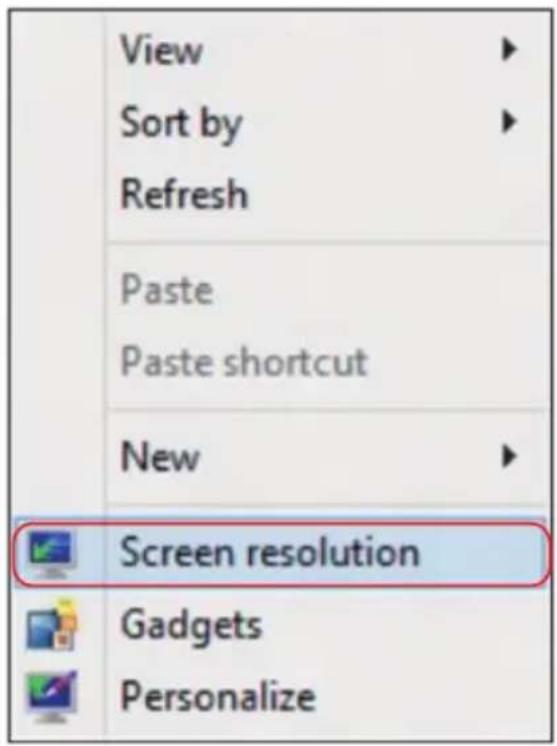

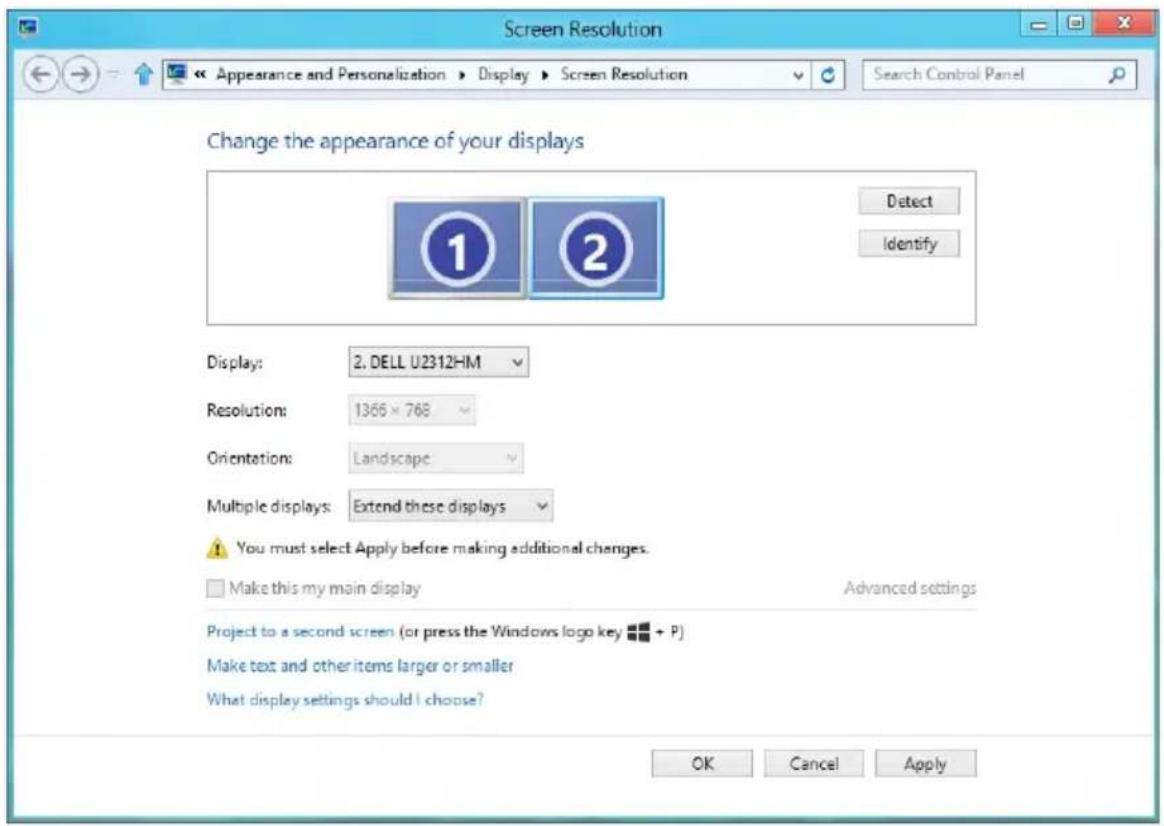

1. Right-click on the desktop and click Screen resolution.

View Sort by Refresh Paste Paste shortcut New Screen resolution Gadgets Personalize

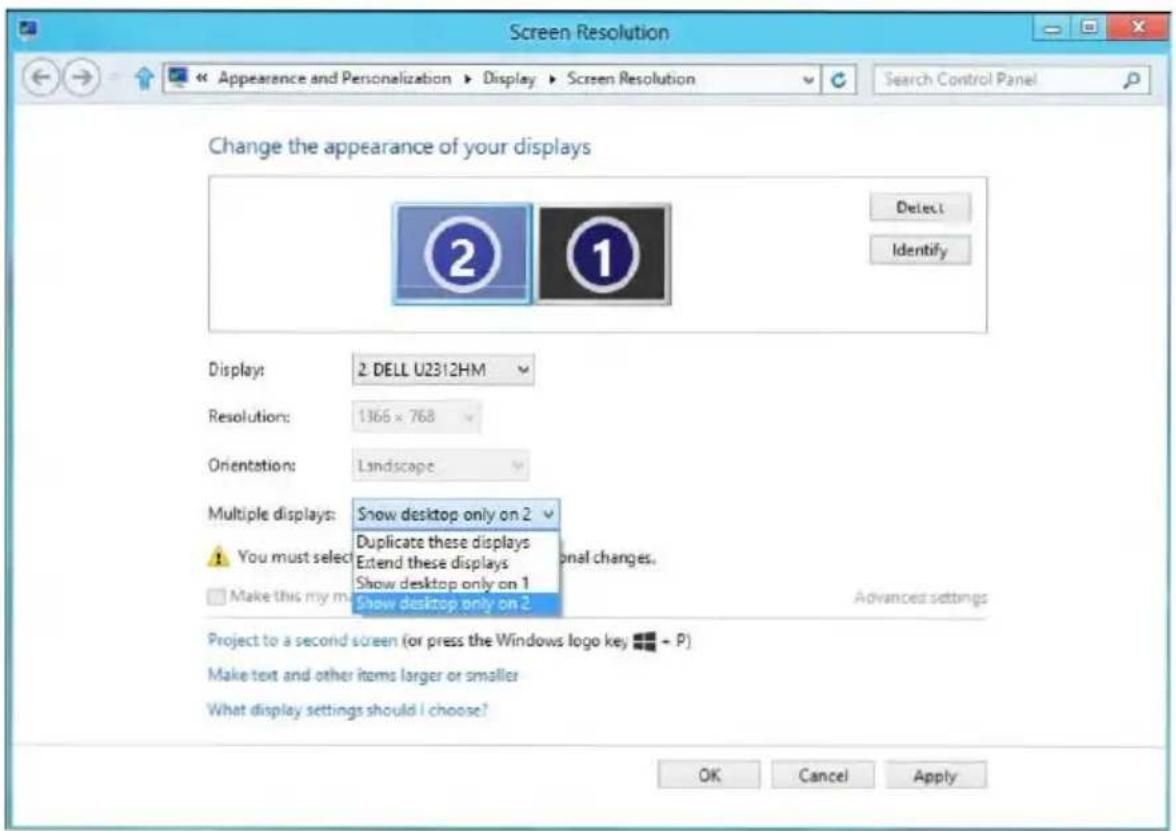

1. Click Multiple displays to choose a display selection. If you do not see the additional monitor listed, click Detect.

- You may need to restart your system and repeat steps 1 to 3 if the system does not detect the added monitor.

Screen Resolution Appearance and Personalization ▶ Display ▶ Screen Resolution Search Control Panel Change the appearance of your displays Detect Identify Display: 2. DELL U2312HM Resolution: 1366 x 768 Orientation: Landscape Multiple displays: Extend these displays You must select Apply before making additional changes. Make this my main display Advanced settings Project to a second screen (or press the Windows logo key + P) Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

Setting Display Styles For Multiple Monitor

After the external monitor(s) have been set up, users can select the desired display style from Multiple displays menu: Duplicate, Extend, Show Desktop On.

- Duplicate these displays: Duplicate the same screen on two monitors with the same resolution, chosen based on the monitor with a lower resolution.

For Windows Vista®

[DUPLICATE NOT AVAILABLE]

For Windows® 7

Change the appearance of your displays

Detect

Identify

Display:

1. Mobile PC Display

Resolution:

1024×768

Orientation:

Landscape

Multiple displays:

Extend these displays

You must select

Duplicate these displays

pnal changes.

□ Make this my ma

Show desktop only on 1

Show desktop only on 2

Advanced settings

Connect to a projector (or press the 🔒 key and tap P)

Make text and other items larger or smaller

What display settings should I choose?

OK

Cancel

Apply

For Windows® 8

Screen Resolution Appearance and Personalization ▶ Display ▶ Screen Resolution Search Control Panel Change the appearance of your display Detect Identify Display: 112. Multiple Monitors Resolution: 1366 × 768 Orientation: Landscape Multiple displays: Duplicate these displays You must select Apply before making additional changes. Make this my main display Advanced settings Project to a second screen (or press the Windows logo key ⋆ P) Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

- Extend these displays: This option is recommended when an external monitor is connected to a laptop, and each monitor can display different screen independently to improve user convenience. The relative position of the screens can be set up here, for example monitor 1 may be set up to be to the left of monitor 2 or vice versa. This depends on the physical position of the LCD monitor in relation to the laptop. The horizontal line displayed on both monitors can be based on the laptop or external monitor. These are all adjustable options, and all a user need do is drag the monitor of the main screen to the extended monitor.

For Windows Vista®

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2 2. Generic PnP Monitor on ATI Radeon HD 4800 Series This is my main monitor Extend the desktop onto this monitor Resolution: Low High 1024 by 768 pixels Colors: Highest (32 bit) Advanced Settings... How do I get the best display? OK Cancel Apply

For Windows® 7

Change the appearance of your displays

Detect Identify Display: 1. Mobile PC Display Resolution: 1024 x 768 Orientation: Landscape Multiple displays: Extend these displays Duplicate these displays Extend these displays Show desktop only on 1 Show desktop only on 2 You must select Make this my ma connal changes. Advanced settings Connect to a projector (or press the 🔊 key and tap P) Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

For Windows® 8

Screen Resolution Appearance and Personalization ▶ Display ▶ Screen Resolution Search Control Panel Change the appearance of your displays Detect Identify Display: 2. DELL U2312HM Resolution: 1366 × 768 Orientation: Landscape Multiple displays: Extend these displays You must select Apply before making additional changes. Make this my main display Advanced settings Project to a second screen (or press the Windows logo key + P) Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

- Show desktop only on: Display the status of a particular monitor. This option is typically chosen when the laptop is used as a PC so the user can enjoy a large external monitor. Most current laptops support mainstream resolutions. As shown in the figure above, the resolution of the laptop monitor is only 1280 x 800, but after connecting a 27" external LCD monitor, users can immediately improve their visual enjoyment to 1920 x 1080 Full HD quality.

For Windows Vista®

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2 1. Generic PnP Monitor on ATI Radeon HD 4800 Series ✓ This is my main monitor ✓ Extend the desktop onto this monitor Resolution: Low High Colors: Highest (32 bit) 1440 by 900 pixels How do I get the best display? Advanced Settings... OK Cancel Apply

Display Settings Monitor Drag the icons to match your monitors. Identify Monitors 1 2 2. Generic PnP Monitor on ATJ Radeon HD 4800 Series ✓ This is my main monitor ✓ Extend the desktop onto this monitor Resolution: Low High Colors: Highest (32 bit) 1024 by 768 pixels How do I get the best display? Advanced Settings... OK Cancel Apply

For Windows® 7

Change the appearance of your displays

Two numbered circular icons: one with a blue square containing a grid and the other with a white circle containing the number 2.

Display: 1. Mobile PC Display Resolution: 1024 × 768 Orientation: Landscape Multiple displays: Show desktop only on 1 You must select: Duplicate these displays Extend these displays Show desktop only on 1 Show desktop only on 2 Additional changes. Make this my men Advanced settings

Connect to a projector (or press the 📄 key and tap P)

Make text and other items larger or smaller

What display settings should I choose?

Change the appearance of your displays

2 1

Display: 1. Mobile PC Display

Resolution: 1024 × 768

Orientation: Landscape

Multiple displays: Show desktop only on 2

You must select Duplicate these displays Extend these displays onal changes.

Show desktop only on 1

Make this my ma Show desktop only on 2

Advanced settings

Connect to a projector (or press the key and tap P)

Make text and other items larger or smaller

What display settings should I choose?

For Windows® 8

Screen Resolution Appearance and Personalization ▶ Display ▶ Screen Resolution Search Control Panel Change the appearance of your displays Detect Identify Display: 2, DELL U2312HM Resolution: 1366 x 758 Orientation: Landscape Multiple displays: Show desktop only on 1 Duplicate these displays Extend these displays Show desktop only on 1 Show desktop only on 2 You must select Make this my mail Project to a second screen (or press the Windows logo key + P) Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply

Screen Resolution Appearance and Personalization ▶ Display ▶ Screen Resolution Search Control Panel Change the appearance of your displays Display: 2 DELL U2312HM Resolution: 1365 × 768 Orientation: Landscape Multiple displays: Show desktop only on 2 You must select: Duplicate these displays Show desktop only on 1 Show desktop only on 2 Make this my m. Project to a second screen (or press the Windows logo key 🎨 + P) Make text and other items larger or smaller What display settings should I choose? OK Cancel Apply
