Type	Washing machine
Dimensions (H x W x D)	85.0 x 60.0 x 51.0 cm
Net weight	Approx. 56.0 kg
Connection voltage	220-240 V~ / 50 Hz
Connection power	1750 W
Input power	10 A
Water pressure (min/max)	0.03 - 1.0 MPa
Max. loading capacity	8.0 kg
Spin speed range	0 - 1400 rpm
Temperature range	Cold - 90°C
Programs	Cotton, Synthetics, Wool, Baby Care, Duvet, Sportswear, Express 15', Drum Clean, eco 40-60, Rinse & Spin, Spin, Underwear
Detergent dispenser compartments	Pre-wash, main wash, fabric softener
Child lock	Yes, button combination
Start delay	3 - 24 hours
Drum clean function	Yes, with button combination
Foam detection	Yes, automatic extra rinse
Door lock	Automatic lock during cycle, auto unlock at end
Inlet hose safety system	Available as accessory (Art.-No. 8900 410)
Noise level	Not specified
Energy consumption (eco 40-60 full load)	1.190 kWh/cycle
Water consumption (eco 40-60 full load)	52 L/cycle
Residual moisture (eco 40-60 full load)	53%
Drain hose length	Approx. 1.5 m (extendable to max. 4 m)
Included accessories	1 inlet hose, 1 hose retaining sheet, 4 transport locking covers, 1 wrench

Frequently Asked Questions - WA 7182 BOMANN

What is the maximum load capacity of the BOMANN WA 7182?

The maximum load capacity is 8.0 kg for cotton and other heavy fabrics.

How do I remove the transport locking screws?

Use the included wrench to unscrew all transport bolts at the back of the appliance. Insert the supplied transport locking covers into the holes.

What water pressure is required for this washing machine?

The water pressure must be between 0.03 MPa and 1.0 MPa. If higher, use a pressure regulator.

How can I clean the detergent drawer?

Pull out the drawer until it stops, press the lever inside the softener compartment, and remove the drawer completely. Wash it under running water and clean the housing with a soft brush.

What should I do if the display shows an error code like IE or OE?

Code IE indicates a water inlet fault (check tap, filter, hose). OE indicates a drainage fault (check drain hose for kinks or blockages). Clean the inlet filter or drain pump filter as needed.

Can I open the door during a wash cycle?

It is possible only when the water temperature and level are low. Press START/PAUSE to pause the program; if safe, the door will unlock after a short time. Otherwise, the door remains locked.

How do I clean the drain pump filter?

Open the maintenance cover at the bottom, place a tray under the pump, turn the cap counterclockwise to drain water, then fully remove the filter. Clean it and reinsert securely.

What type of detergent should I use?

Use slightly foaming detergents suitable for washing machines. Choose according to fabric type and temperature: heavy-duty powder for whites at high temperatures, liquid or color-care for coloreds.

How do I activate the child lock?

After starting a program, press and hold the TEMP. and U/MIN buttons together for about 3 seconds. Repeat to deactivate.

What is the recommended first use procedure?

Ensure transport screws are removed. Run the Drum Clean program without laundry, adding a small amount of detergent. This removes any residues from manufacturing.

USER MANUAL WA 7182 BOMANN

Simple line drawing of a washing machine with no text or symbols

Special safety Information for this Unit......Page 22

Transport and Packaging......Page 23

Appliance Equipment......Page 24

Installation......Page 24

Startup / Operation......Page 26

Cleaning and Maintenance......Page 32

Troubleshooting......Page 34

Technical Data......Page 34

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions to avoid accidents and prevent damage:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions very carefully before putting the appliance into operation and keep the instructions including the warranty and the receipt. If you give this device to other people, also pass on the operating instructions.

NOTE:

• Due to constant product modifications, your device may differ slightly from these operating instructions; Functions and methods of use remain unchanged.
• The illustrations in these operating instructions may differ from the original device.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• The appliance is only to be used as described in the user manual. Do not use the appliance for any

other purpose. Any other use is not intended and can result in damages or personal injuries.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight and humidity.
• Do not operate the appliance without supervision.
• When not in use, for cleaning, user maintenance works or with disruption, switch off the appliance and disconnect the plug (pull the plug itself, not the lead) or turn off the fuse.
• The appliance and if possible the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• For safety reasons, alterations or modifications of the appliance are prohibited.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil.

There is a danger of suffocation!

Special safety Information for this Unit

WARNING: Hot surface! Danger of burns!

During operation the temperature of the unit drum may be very hot.

- This unit is intended to be used in household and similar applications such as

• staff kitchen areas in shops, offices and other working environments;
• farmhouses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Before using, the transportation locking screws must be removed, otherwise it may cause serious damages.

- The dry weight of laundry must not exceed the max. loading of 8.0 kg capacity.

- The unit must be connected with a new set of hoses to the water supply; old hose sets should not be reused.

- The maximum / lowest permitted water inlet pressure is 1.0 / 0.03 MPa.

- The appliance is not intended for operation with an external timer or external remote-control system.

- In the appliance bottom are located ventilation openings (depending on model). These may not be blocked e.g. by carpet. Pay attention to free circulation of air.

- If the unit is used in the bathroom, unplug the power cord after using as the proximity of water presents a danger. This even applies when the unit is switched off.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children shall not play with the appliance.
• Children younger than 3 years should be kept away, unless they are constantly supervised.
• Cleaning and user maintenance shall not be made by children unless they are older 8 years and supervised.
• The appliance must be cleaned regularly. Follow the instructions in the chapter "Cleaning and Maintenance".
• Do not use any flammable/explosive cleaning agents such as benzene in the appliance.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have faulty cable be replaced only by the manufacturer, by our customer service or by qualified person and with a cable of the same type. Do not use the device if the device or plug is damaged.

Transport and Packaging

Transport the appliance

CAUTION:

Never transport the appliance without correctly installed transport locking screws.

Unpacking the appliance

- Remove the appliance from its packaging.

• Remove all packaging material, such as foils, filler and cardboard packaging.
• To prevent hazards, check the appliance for any transport damage.
• In case of damage, do not put the appliance into operation. Contact your distributor.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter “Cleaning and Maintenance”.

Appliance Equipment

Appliance Overview

1 Control panel

4 Feet

2 Appliance door

5 Detergent dispenser

3 Maintenance cover

Delivery scope

1x inlet hose, 1x hose retaining sheet, 4x transport locking covers, 1x wrench

Installation

WARNING:

The unit must not be connected to the mains during installing. Otherwise there is danger to life or electric shock hazard!

CAUTION:

For a correct operation the appliance must be connected properly. The specifications for water supply and drain as well as the electrical connection must fulfill the required criteria.

Remove the transport locking screws

CAUTION:

• Before using, all transport locking screws must be removed from the appliance back. Otherwise it may cause serious damages.
• Keep the transport locking screws for later use / transport. Never transport the appliance without properly attached transportation safety!

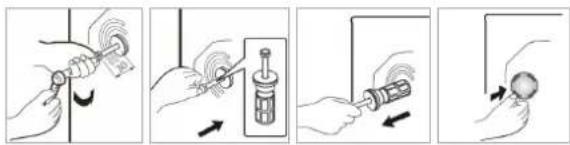

Remove the transport locking screws with the delivered wrench. Insert the supplied transport locking covers.

Installation location

• The site should be located near the water inlet and outlet, as well as near a properly grounded power socket.
• Good ventilation around the appliance is required, in order to dissipate the heat properly. Enough clearance must be created for this purpose.
• The free space in front of the unit should be so that the appliance door can be opened without hindrance.
• Make sure that the floor on which the appliance is installed, is even, heat-resistant and clean.
• Take care of a solid and horizontal position of the appliance. If the appliance is not horizontally leveled, adjust the feet accordingly (see "Adjust the feet").
• Power cord and water hoses may not kinked or squashed.
• The wall socket must be freely accessible.
• Avoid the installation:
• near heaters, next to a stove, direct sunlight or any other heat sources;
• at locations with high humidity (e.g. outdoors), as metal parts would be susceptible to corrosion under such circumstances;
• in rooms where the temperature could drop below freezing. Do not expose the appliance any weather.
• near volatile or flammable materials (e.g. gas, fuel, alcohol, paint, etc.).

Adjusting the feet

CAUTION:

The feet must never be removed. Do not restrict the floor clearance through carpets, strips of wood or similar. Danger of heat accumulation!

• Use the delivered wrench to loosen the lock nuts.
• Rotate the feet to change the height.
• Tighten the lock nuts, if the unit is aligned. The feet must have solid ground contact.
• Check with a spirit level whether the appliance is leveled horizontally. If the unit is not in balance, the feet must be adjusted again.

Water connection

CAUTION:

• The Installation of the water supply must conform to the local laws and regulations.
• The appliance is not suitable for hot water supply.
• Use the new supplied hose set to connect the appliance to the water supply. Do not reuse old or used connection sets.
• If the water pipe is new or long time not used, ensure before connecting to the water system, that the water is clear and free from contamination.

Notes on inlet hose safety system (delivery scope depending on model)

The safety system consists of a double-walled inlet hose. It guarantees to cut off the water supply when leakage of the inner hose. Switching off the water supply leads over an electronic contact.

If necessary, you can order an inlet hose safety system from your dealer or in our online accessories shop, www.bomann-germarny.de. To order, use the reference number found under “Technical Data”.

Connect the water inlet hose (cold water connection)

i NOTE:

The water pressure must be between 0.05-1.0 MPa. With higher pressure: use a pressure regulator.

• Check the tight fit of the rubber seals (d) at both ends of the inlet hose to prevent leakage.
• Connect the water inlet hose to a water thread with 34 “. Screw the hose firmly in the direction of the screw thread; pay attention for a tight fit.
• Connect the other end of the inlet hose to the inlet valve on the appliance back; pay attention for a tight fit too.

Connect the water drain hose

i NOTE:

The drain hose has a length of approx. 1.5 m and can extend with a suitable hose and connecting piece to a length of max. 4 m.

CAUTION:

In order to prevent backflow of contaminated water, the free end of the hose must not come under the water level of the drain.

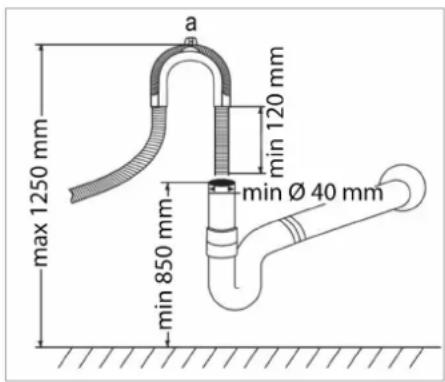

- Connect the drain hose to a drain pipe with a minimum diameter of 40 mm; alternatively, the drain hose can be fixed to a sink or directly to the drainage.

• Always make sure that the hose is not bent or squeezed. For this purpose, use the supplied hose retaining sheet (a).
• The hose must be installed at a height of min. 850 mm and max. 1250 mm above the floor.
• Secure the hose securely in order to avoid a change in position and with it a water leakage.

Electrical connection

WARNING:

• The installation to the mains supply must conform to the local standards and regulations.
• Improper connection may cause to an electric shock!
• Do not use multiple sockets or extension cords.
• It is not allowed to modify the plug provided with the appliance! If the plug does not fit properly to the outlet, let install a proper outlet by an authorized specialist.
• The accessibility of the power plug must always be ensured in order to disconnect the device from the power supply in case of an emergency.

- Make sure that the voltage supply matches the specifications on the rating label (appliance back) before connecting.

- Connect the mains cable to a properly installed and earthed wall outlet.

- If the plug after installation is not accessible, a corresponding disconnect device must be available to meet the relevant safety regulations.

Startup / Operation

Prior using for the first time

• Make sure that all transport securing devices has been removed.
• Remove the accessories and any material from the drum.

- Allow the appliance to wash the first time without any laundry, with the addition of some washing agent in the program [Drum Clean] (see "Starting the program").

Preparation of clothes

CAUTION

• Do not wash any items that are declared as non-washable. Follow always the instructions on the care label of your laundry.
• Do not wash clothes soaked in petrol, thinners, alcohol or solvents.

• Foreign objects (e.g. nails, coins) can cause damage to garments and components.

• Check the pockets of all garments on content and empty them completely.

• Sort your fabrics by color and the symbols contained on the care label. Separate white and colored laundry. All new colored clothes should be washed separately.

- Turn buttons and embroidery inside.

- Close zippers, buttons and hooks before washing. Tie any loose straps and loops.

- Wash bras e.g. in a pillowcase to prevent leakage of the steel bracket.

- Particularly delicate fabrics such as curtains, crochet or small items (socks, handkerchiefs, neckties, etc.) should be washed in a closed bag.

- Remove always all the hooks from curtains.

- Washing large and heavy parts such as bath towels, jeans, lined jackets and the like can cause the drum to run unbalanced. We recommend adding one or two smaller parts; this especially helps with the spinning cycle.

- The clothes which easily get fuzzed shall be washed separately; otherwise the other articles can be stained with dust and thrum etc. Preferably, black clothes and cotton clothes shall be washed separately because they can easily get

stained with the thrums of other colors when being washed together.

• Clean away dusts, stains and pet hairs from the clothes.
• For spot removing heavy soiling the laundry can be treated with a special prewash spray. Follow the operating instructions of the product packaging.

Select proper detergent

CAUTION:

Always consider the dosage and storage recommendations on the sales packaging.

WARNING:

Keep detergent and additives out of reach for children!

• Use only "slightly foaming" detergent for washing machines according to type of fabric (cotton, synthetics, lined or woolen products), color, washing temperature and degree of soiling. Otherwise foaming can cause overflowing.
• Bleach is alkaline and can damage your clothing, preferably does not use bleach.
• Detergents often leave residue in the clothes, which can cause bad odor if not rinsed properly.
• Detergent cannot easily get dissolved completely if there is too much detergent or water temperature is rather low. It can remain in clothes, pipes and washing machines to pollute the clothes.
• Washing shall follow the weight of clothes, dirty degrees, local water hardness as well as the recommendations from the detergent manufacturers. Consult the water company if you are not clear of water hardness.

Recommended detergent

Type of laundry	Washing Temp.	Detergent
White textiles made of cotton or organic fibers	20°C - 90°C	General purpose laundry detergent
Colorful textiles made of cotton or organic fibers	20°C - 90°C	Color-care landry detergent
Delicate textiles, e.g. silk	20°C Mild	detergent
Textiles made from synthetic fibers or mixed textiles	20°C - 60°C	Specialty laundry detergent
Microfiber sports-wear	20°C - 40°C	Specialty laundry detergent
Woolen textiles	20°C - 40°C	Specialty or mild laundry detergent
Baby clothing 20°C -	60°C	Specialty laundry detergent
Jeans / Denim 20°C -	90°C	General purpose or specialty laundry detergent

• When washing heavily soiled whites, we recommend using cotton programs of 60^ C or above and a normal washing powder (heavy duty) that contains bleaching agents that at medium/high temperatures provide excellent results.
• For washes between 40°C and 60°C, the type of detergent used needs to be appropriate for the type of fabric and level of soiling. Normal powders are suitable for „white“ or color fast fabrics with high soiling, while liquid detergents or „color protecting“ powders are suitable for colored fabrics with light levels of soiling.
• For washing at temperatures below 40^ C we recommend the use of liquid detergents or detergents specifically labeled as suitable for low temperature washing.

Detergent dispenser

CAUTION:

The detergent drawer is designed exclusively for the use of detergents for washing machines!

i NOTE:

• Always add the detergent powder just before starting the wash cycle, otherwise it could get damp and will not dissolve properly.
• At the end of the wash cycle the drawer must be empty.

I. Chamber for pre-wash detergent.
II. Chamber for main wash detergent.
Chamber for detergent additive (softener). Do not exceed the MAX mark!

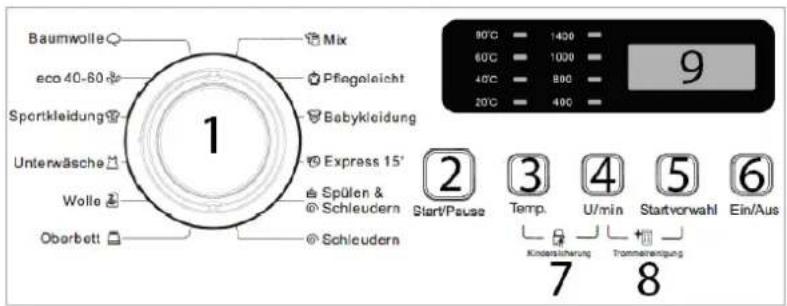

Control panel

1 Program selector switch

To select a wash program, turn the program selector switch to the appropriate position. For details about the programs, see the "Program table".

2 START/PAUSE

Press the button to start/pause the selected or running wash program. If the device is in pause mode, the seconds dot symbol lights up continuously between hour and minute.

Foam detection

Excessive foam forms when too much detergent is used. This affects the wash and rinse cycle. The function automatically checks foaming; excessive foam is removed by an extra rinse and spin cycle.

Fill in the laundry

• Unravel the clothes before putting them into the machine.
• Each load should correspond to the nominal capacity of the appliance. Do not overload the appliance. Different strengths, sizes and types of laundry can affect the actual loading capacity. It is advisable to load the appliance just that a normal circulation during washing is possible.
• Make sure that no laundries are caught between the appliance door.

3 TEMP. (Wash temperature)

By repeatedly pressing the button, you select the required wash temperature.

If the control lamps do not indicate a selection, the wash temperature remains cold.

4 U/MIN (Spin Speed)

By repeatedly pressing the button, you select the speed for the spin cycle. If the control lamps do not indicate a selection, the setting remains 0-spin stop, there is no spin.

5 STARTVORWAHL (Start delay)

By repeatedly pressing the button, the program start can be changed about 3 – 24 hours. Select and start a program, the appliance starts automatically after the selected time delay has expired.

6 EIN/AUS (Power)

Press the button to switch the unit on and/or off.

7 KINDERSICHERUNG (Safety child lock)

To activate / deactivate, press the button combination for about 3 seconds after program start.

8 TROMMELREINIGUNG (Draum clean)

Use this button combination to select the drum clean by pressing the buttons for about 3 seconds.

9 LED Display:

Display for settings and information:

- The start delay is selected via the display. Remaining run time of the start delay will be displayed, after the program is started after [xx] hours.

- After the start of the wash program, the remaining time will be displayed as [x:xx] hours and minutes.

Program table

i NOTE:

The shown values are approximate and recommendations under standard conditions and therefore not binding. The program times can vary depending on the water pressure, type of laundry, load and water temperature.

Program	Loading kg	Temperature °C	Spin speed rpm	Standard time h:min
	≤4.0	cold/20/40	0/400/800/1000 1:13
	Suitable for blended fabric textiles, means cotton mixed with synthetic fibers.
Synthetics [7XXX]	≤4.0 cold/20/	40/60 0/400/800/	1000 1:07
	Suitable for fine textiles, e.g. silk, satin, synthetic or mixed fabrics.
Baby Care	≤3.0 40/	60/90 0/400/800/	1000 2:10
	An additional rinse makes it suitable for baby laundry and laundry by particularly sensitive people, e.g. allergy sufferers.
Express 15'	≤2.0	cold/20/40 0/400/	800 0:15
	Suitable for washing few and not very dirty clothes quickly.
Rinse & Spin	≤8.0	---	0/400/800/1000/1400 0:38
	Separate rinse with spin function. Suitable for rinsing detergent residues.
Spin	≤8.0	---	0/400/800/1000/1400 0:14
	Separate spin. Water is pumped out before the spin cycle.
Duvet	≤4.0	cold/20/40/60/90 0/400/	800 2:05
	Machine washable articles filled with synthetic fabrics, e.g. pillows, quilts and comforters, also suitable for down filled items.
Wool	≤2.0	cold/20/40 0/400/	800 0:57
	Suitable for "machine washable" wool. Observe the correct washing temperature and use a suitable detergent.
Underwear	≤3.0	cold/20/40 0/400/800/	1000 1:16
	The rinse cycle is correspondingly long and intensive.
Sportswear	≤4.0 cold/	20/40 0/400/800/	1000 1:23
	Particularly gentle on lightly soiled sportswear made of cotton, microfibers, synthetic.
eco 40-60	≤8.0	cold/20/40/60 0/400/	800/1000/ 1400 3:38
	Less energy is used to heat the water and less water is used to wash the same amount of laundry as in program [Cotton]. The program is used to check compliance with EU ecodesign legislation.
Cotton	≤8.0	cold/20/40/60/90 0/400/	800/ 1000/1400 1:34
	For your daily laundry. Recommended for hard wearing, heat resistant cotton textiles.
Drum Clean[YSD3]	---	60	800	1:27
	Suitable for self-cleaning of the appliance drum. You cannot wash any laundry. Drum cleaning will be perfect if you add the appropriate amount of chlorine bleach.

Below listed parameter, with the exception of the values for the "eco 40-60" program, are only guide values:

Program	Temp. °C		Loading kg	Time h:min.	Water-consump. L/cycle	Energy-consump. kWh/cycle	Spin speed rpm	average remaining moisture %
	Selected	Reached
Synthetics	40	40	≤4.0	1:07	45	0.55	1000	80
Wool	cold	cold	≤2.0	0:57	35	0.06	800	95
Express 15'	cold	cold	≤2.0	0:15	35	0.05	800	80
eco 40-60	40	41	≤8.0	3:38	52	1.190	1400	53
	40	37	≤4.0	2:48	46	0.720	1400	53
	40	30	≤2.0	2:48	43	0.510	1400	53
Cotton	20	20	≤8.0	1:46	60	0.25	1000	76
Cotton	90	80	≤8.0	2:35	70	1.8	1000	76

General information to the program table!

• The program „eco 40-60“ is able to clean normally soiled cotton laundry washable at 40°C-60°C, together in the same cycle. The program is used to check compliance with EU ecodesign legislation.
• The most efficient programs in terms of energy and water consumption are generally those that perform at lower temperatures and longer duration.
• Loading the household washing machine or household washing-dryer up to the capacity specified for the respective programs helps saving energy and water.
• Noise emissions and residual moisture are influenced by the spin speed: the higher the spin speed in the spin cycle, the higher the noise emissions and the lower the residual moisture.

Wash temperature

Select the temperature corresponding to the textiles and pollution. Basically: the higher the temperature, the higher the power consumption.

90^ C : Heavily soiled pure white cotton or linen (e.g. tablecloths, sheets and towels).

60°C: Moderately soiled colored cotton, linen and synthetic (e.g. shirts or underwear). Slightly soiled whites (e.g. underwear).

cold_20°C_40°C : Normally soiled laundry (including synthetic and wool).

Capacity

Do not overload the appliance otherwise the laundry is not getting clean. Refer to the information in the "Program table".

Starting the program

• Connect the appliance to the power supply and switch it on.
• The water supply must be opened to the maximum pressure.
• Load your laundry and fill in the detergent, if necessary.
• Close the appliance door properly.
• Set the required washing conditions.
• Start the operation.

Appliance door lock

Once a wash program has been started, the appliance door cannot be opened.

When the wash cycle is finished, the door lock will automatically be unlocked.

Refill laundry

WARNUNG:

Never attempt to force open the appliance door during operation.

After the program has started, you can refill or remove laundry as needed. Interrupt the washing process with the START/PAUSE button. The appliance checks whether a refueling is possible and, if necessary, releases the door lock after a short time.

As soon as the water temperature or the water level exceeds a certain value, the door remains locked for safety reasons and cannot be refilled.

Changing the program

• To change the program, first interrupt the washing process.
• Switch the device briefly off and then on again.
• Select the desired program and start the new operation.

End of program

At the end of the wash cycle the display appears [END]. Several beeps sound; a few minutes later, the door lock is released and the appliance enters off mode.

Switching off

• Switch off the appliance.
• Close the water supply!
• Leave the appliance door slightly open until the next wash cycle to avoid odors.
• If the appliance is not in use for an extended period, disconnect the mains plug or switch off or turn out the fuse.

Energy saving tips

- If possible, avoid the selection of high wash temperatures. Modern detergents achieve good washing results even at low temperatures.

• Select the wash program depending on the type of laundry and the required degree of washing.
• Take advantage of the maximum capacity of each wash program.
• Clean the filter regularly to avoid excessive washing and high energy consumption.
• Ventilate the room well. The room temperature should not rise above +35°C.

Cleaning and Maintenance

WARNING:

• Always switch off the appliance and disconnect it from the power supply before cleaning and user maintenance.
• Allow the appliance to cool down enough before cleaning. Scalding!
• Do not use steam cleaners for cleaning the appliance; moisture could enter electrical components. Risk of electric shock! Hot steam could damage the plastic parts. The appliance must be dry before restarting operation.

CAUTION:

• Do not use a wire brush or other sharp, abrasive items.
• Do not use any acidic or abrasive detergents.

i NOTE:

Dirty or clogged filter degrades the washing result. Regularly check the filter and clean them if necessary.

Maintenance of the washing machine

• Clean the appliance outer surfaces and the door sealing thoroughly with a soft, damp cloth. Use only mild cleaning agent.

• Use a dampened cloth with a little white vinegar or a special detergent for washing machines to clean the appliance drum.

• Recommendation: allow the appliance to run regularly without loading in the program [Drum Clean].

• Dry the outer surfaces thoroughly before taking in operation again.

Cleaning the detergent container

• Pull out the drawer until it stops.
- Carefully push the lever (a) into the container for the fabric softener and pull out the tray completely.
- Wash the guide grooves and the containers with water.
• Use a soft brush to clean the housing.
- Replace the detergent drawer.

Cleaning the inlet filter

CAUTION:

• Close the water supply before cleaning!
• Always check if the water hoses are properly reinstalled and no water leaks.

Inlet filter at the tap

Clean the filter when not enough water is supplied with opened water valve.

• Unscrew the inlet hose from the water valve.
- Wash the inlet filter under running water. Reconnect the inlet hose firmly.

Inlet filter at the appliance

Clean the filter regularly, approximately every one to three months.

• Unscrew the inlet hose from the appliance back.
• Clean the filter with a small brush.
• Reconnect the inlet hose firmly

Cleaning the filter of drain pump

CAUTION:

The appliance must never be used without the filter.

The foreign body trap in the drain pump prevents the flushed parts from closing off the pumping system.

Clean the pump regularly, approx. once a month; depending on use.

Simple line drawing of a mechanical component with a circular hole and an arrow indicating rotation (no text or symbols)

• Open the maintenance cover in the base of the unit. Caution! For this, the use of a tool could be necessary.
• Place a drip tray under to catch possible leaking water.
• Turn the cap counterclockwise. Look for leaking water! Turn the filter not completely out!
• Interrupt the water flow by turning the filter clockwise again.

• If the draining process is completed, turn out the filter completely.

• Take off the filter and remove any dirt and foreign objects.

• Insert the cap again and make sure it is tightened well and no water can escape.
• Close the maintenance cover.

Troubleshooting

Before you contact an authorized specialist

For some malfunctions, the display shows error codes to warn you:

Trouble / CODE	Possible cause / measure
Appliance does not work or start	Check the power supply / water supply. Is the door closed, the device switched on or a program selected?
Strong Vibration UE	Have the transport bolts been removed? The device must stand on a firm surface. Are the feet aligned?
Water inlet fault IE	Faucet is not open, water supply not free or water pressure too low. Inlet filter blocked. Inlet hose is blocked, kinked, squeezed.
Drainage fault OE	Drain hose is blocked, kinked, squeezed, not correctly connected. Drain pump is blocked.
Water is continuously admitted FE	Check inlet water pressure and reduce if necessary. Close water supply and call specialized company.
Heating fault EE	Call specialized
Tub doesn't rotate LE or CE	Call specialized
Door lock fault DE	Door is not properly closed or blocked with laundry items.

i NOTE:

If a problem persists after following the steps above, contact your distributor or an authorized technician.

Technical Data

Electrical connection / Water supply......

Connection voltage: 220-240 V\~ / 50 Hz

Connection power: 1750 W

Input power: 10 A

Water pressure: 0.03 - 1.0 Mpa

Dimension H x W x D / Weight....

Unit size: 85.0 x 60.0 x 51.0 cm

Net weight: ....approx. 56.0 kg

Accessories available......

Inlet hose safety system....Art.-No. 8900 410

For more information about the product, scan the QR code on the supplied energy label and/or visit the official website of the product data bank:

https://eprel.ec.europa.eu

The right to make technical and design modifications during continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment; do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilization of electrical and electronic equipment.

Information concerning where these can be disposed of can be obtained from your local authority.

WARNING:

Remove or disable any existing snap and bolt locks, if you take the unit out of operation or dispose it.

BOMANN®

C. Bomann GmbH

www.bomann-germany.de

Made in P.R.C.
